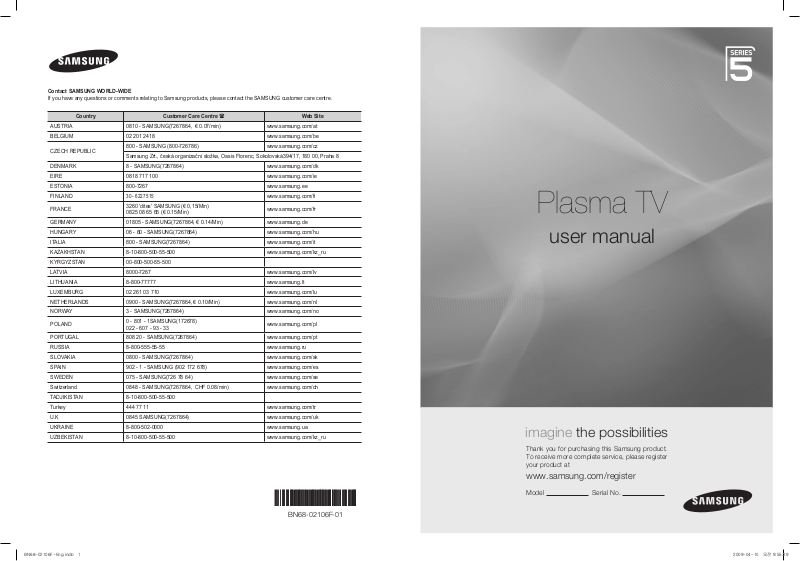

Samsung PS50B555T4W, PS50B555 QUICK GUIDE [da]
Contact SAMSUNG WORLD-WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
Country
AUSTRIA 0810 - SAMSUNG(7267864, € 0.07/min) www.samsung.com/at
BELGIUM 02 201 2418 www.samsung.com/be
CZECH REPUBLIC
DENMARK 8 - SAMSUNG(7267864) www.samsung.com/dk
EIRE 0818 717 100 www.samsung.com/ie
ESTONIA 800-7267 www.samsung.ee
FINLAND
FRANCE
GERMANY 01805 - SAMSUNG(7267864, € 0.14/Min) www.samsung.de
HUNGARY 06 - 80 - SAMSUNG(7267864) www.samsung.com/hu
ITALIA 800 - SAMSUNG(7267864) www.samsung.com/it
KAZAKHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
KYRGYZSTAN 00-800-500-55-500
LATVIA 8000-7267 www.samsung.com/lv
LITHUANIA 8-800-77777 www.samsung.lt
LUXEMBURG 02 261 03 710 www.samsung.com/lu
NETHERLANDS 0900 - SAMSUNG(7267864, € 0.10/Min) www.samsung.com/nl
NORWAY 3 - SAMSUNG(7267864) www.samsung.com/no
POLAND
PORTUGAL 808 20 - SAMSUNG(7267864) www.samsung.com/pt
RUSSIA 8-800-555-55-55 www.samsung.ru
SLOVAKIA 0800 - SAMSUNG(7267864) www.samsung.com/sk
SPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.com/es
SWEDEN 075 - SAMSUNG(726 78 64) www.samsung.com/se
Switzerland 0848 - SAMSUNG(7267864, CHF 0.08/min) www.samsung.com/ch
TADJIKISTAN 8-10-800-500-55-500
Turkey 444 77 11 www.samsung.com/tr
U.K 0845 SAMSUNG(7267864) www.samsung.com/uk
UKRAINE 8-800-502-0000 www.samsung.ua
UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
800 - SAMSUNG (800-726786) www.samsung.com/cz
Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8
30 - 6227 515
3260 'dites' SAMSUNG (€ 0,15/Min)
0825 08 65 65 (€ 0.15/Min)
0 - 801 - 1SAMSUNG(172678)
022 - 607 - 93 - 33
Customer Care Centre
www.samsung.com/fi
www.samsung.com/fr
www.samsung.com/pl
Web Site
Plasma TV
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
BN68-02106F-01
Model Serial No.
English - 2
User Instructions
Screen Image retention
Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more
than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image
retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
Height
The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not
install and operate there.
Heat on the top of the PDP TV
The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper
part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be
prevented from touching the upper part of the product.
The product is making a ‘cracking’ noise.
A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as
temperature or humidity. This is normal and not a defect of the unit.
Cell Defects
The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to
produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of
the product.
Avoid operating the TV at temperatures below 5°C(41°F)
A still image displayed too long may cause permanent damage to the PDP Panel.
Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left,
right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a
game console may cause similar effect to the screen. Damages caused by the above effect are not covered by
the Warranty.
Afterimage on the Screen.
Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.
Warranty
Warranty does not cover any damage caused by image retention.
-
Burn-in is not covered by the warranty.
-
Installation
Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures,
high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may
cause a serious damage to your set.
Digital TV (DVB-T) Notice
1. Functionalities related to Digital TV(DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC)
digital terrestrial signals are broadcasted or where you have access to a compatible DVB-C(MPEG2 and MPEG4 AAC)
cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.
2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C
is that for the broadcast transmission of digital TV over cable.
However, some differentiated features like EPG (Electric Program Guide), VOD (Video on Demand) and so on, are not
included in this specication. So, they cannot be supported at this moment.
3.
Although this TV set meets the latest DVB-T and DVB-C standards[August,2008], the compatibility with future DVB-T digital
terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.
4.
Some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and
conditions of their business.
5.
Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with all
providers.
6.
For more information, please contact your local Samsung customer care centre.
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care centre. (See back cover for more informations.)
N
Figures and illustrations in this User Manual are provided for reference only and may dif
Product design and specications may be changed without notice in order to enhance product performance.
© 2009 Samsung Electronics Co., Ltd. All rights reserved.
fer from actual product appearance.
English - 3
Contents
English
Connecting and Preparing Your TV
Checking Parts ..........................................................................4
■
Using the Stand-Base ...............................................................4
■
How to assemble the Stand-Base (depending on the model) ...4
■
Assembling the Cables ..............................................................4
■
Viewing the Control Panel .........................................................5
■
Viewing the Connection Panel...................................................6
■
Remote Control .........................................................................8
■
Installing Batteries in the Remote Control .................................9
■
Switching On and Off.................................................................9
■
Placing Your Television in Standby Mode .................................. 9
■
Viewing the Menus ..................................................................10
■
Using the TOOLS Button ........................................................10
■
Plug & Play Feature ................................................................ 11
■
Channel Control
■
Storing Channels ................................................................... 12
■
Managing Channels ................................................................14
Picture Control
■
Changing the Picture Settings ................................................. 16
■
Setting up the TV with your PC ...............................................19
■
PC Display ...............................................................................20
Sound Control
■
Changing the Sound Setting ...................................................21
■
Selecting the Sound Mode ...................................................... 22
Function Description
■
Setting the Time ......................................................................23
■
Conguring the Setup Menu ....................................................24
Support / Input
Supported Program .................................................................26
■
Source List / Edit Name ...........................................................27
■
Media Play
■
Connecting a USB Device ....................................................... 28
■
Using the Media Play Function ................................................29
■
Using and Sorting Photo List ................................................... 30
■
Viewing a Photo or Slide Show .............................................. 31
■
Using and Sorting the Music List ............................................. 32
■
Playing a Music ......................................................................33
■
Picture / Music Settings Using Media Play .............................. 34
■
Using the Setup Menu ............................................................. 34
About Anynet+
■
Connecting Anynet+ Devices ................................................... 35
■
Setting Up Anynet+ .................................................................36
■
Switching between Anynet+ Devices.......................................36
■
Recording ................................................................................37
■
Listening through a Receiver (Home theater) .........................38
■
Troubleshooting for Anynet+ ...................................................38
Recommendations for Use
■
Teletext Feature .......................................................................39
■
Wall Mount Kit Specications (VESA) .....................................40
■
Preparing before installing Wall- Mount ...................................41
■
Securing the TV to the Wall .....................................................41
■
Troubleshooting .......................................................................42
■
Specications ..........................................................................43
N O T
Symbol Press Note One-Touch Button TOOLS
English - 4
Connecting and Preparing Your TV

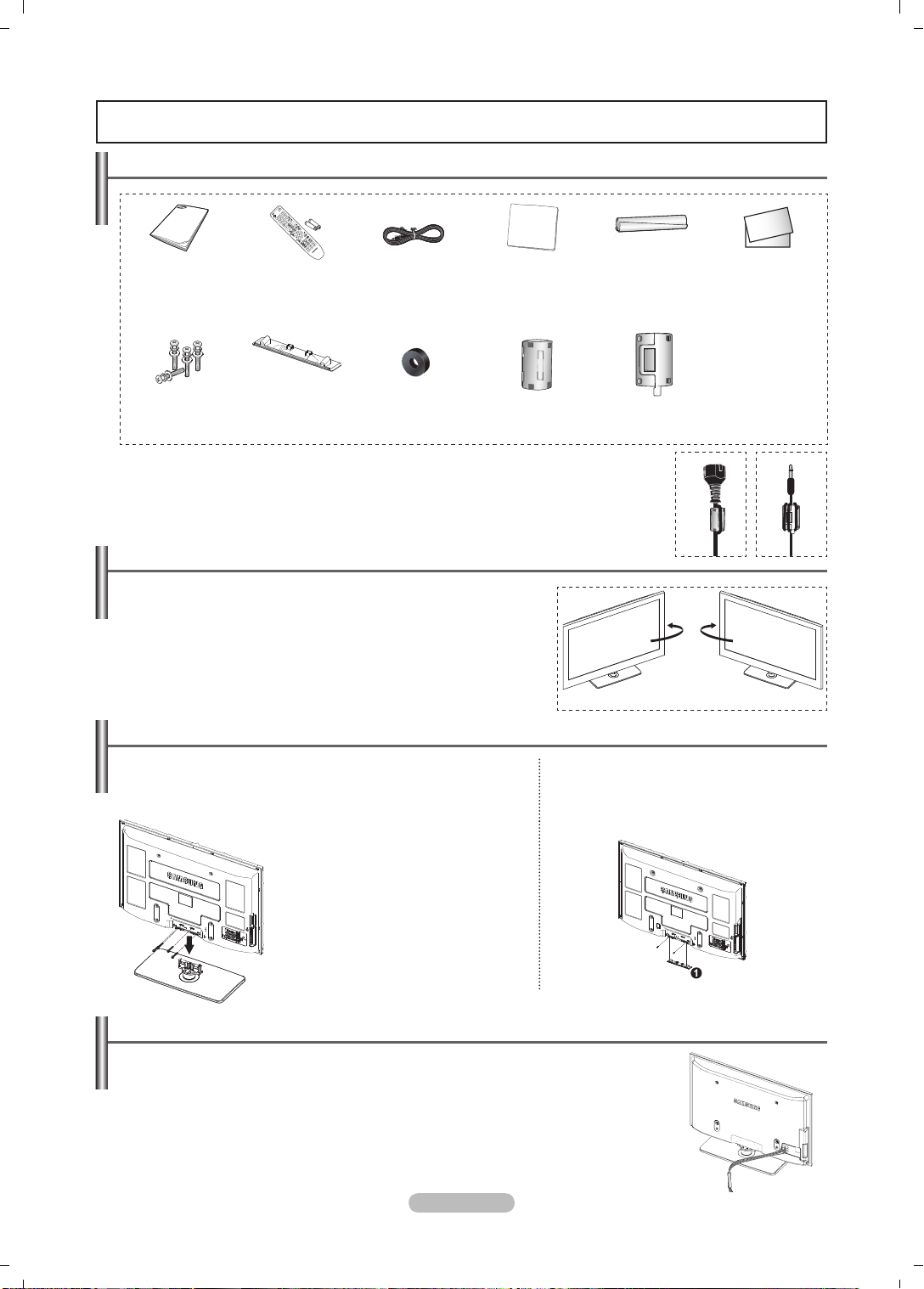

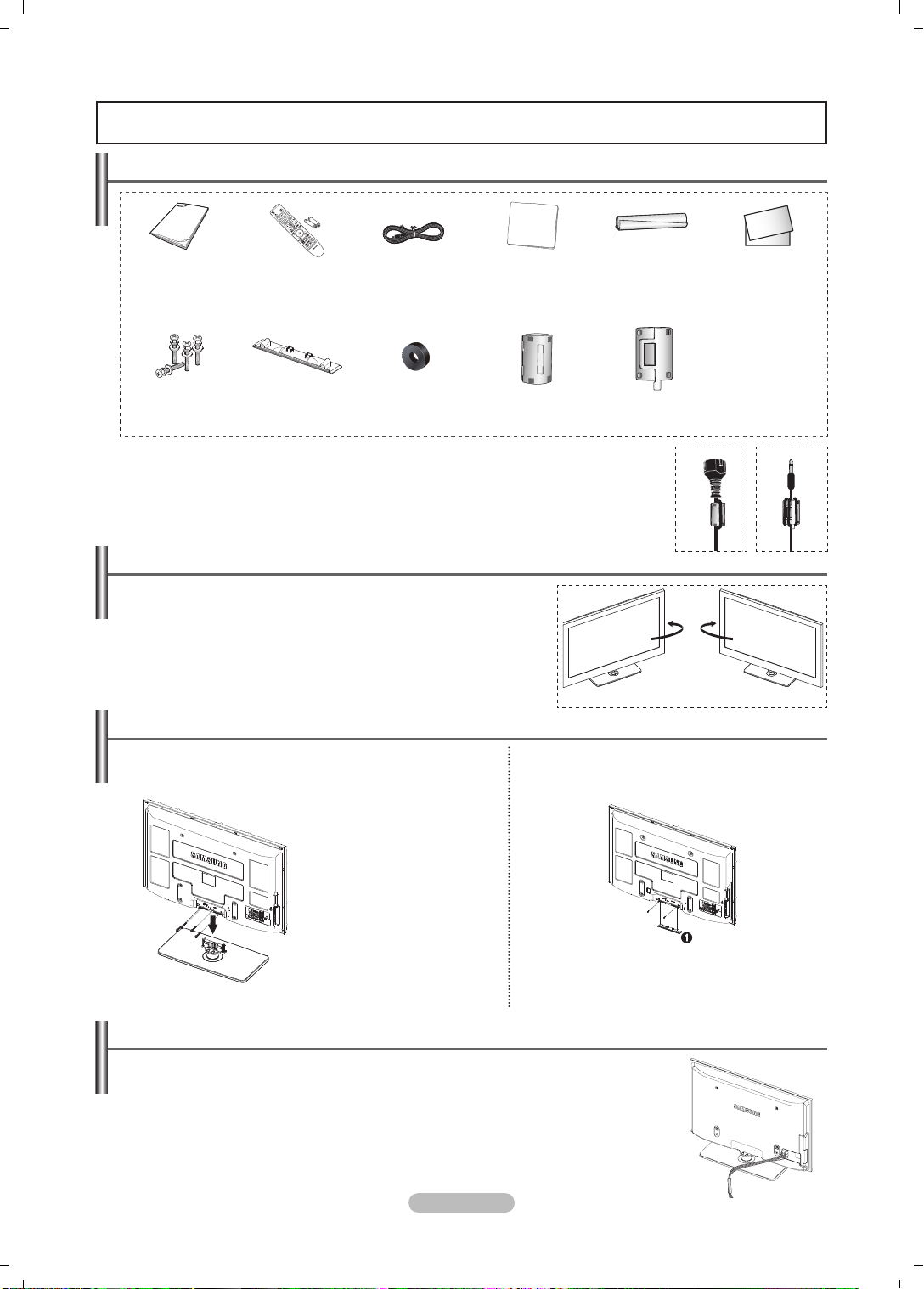

Checking Parts
Owner’s Instructions Remote Control/
Screw (4ea) Cover-Bottom Holder-Ring (4ea)
Ferrite CoreThe ferrite cores are used to shield the cables from interference.When connecting a
N
cable, open the ferrite core and clip it around the cable near the plug.
AAA Batteries (2ea)
Power Cord Cloth-Clean Holder-Wire Cable Warranty Card/Quck Setup
(Refer to page 41)
Ferrite Core for
Power Cord
Using the Stand-Base
Two or more people should carry the PDP. Never lay the PDP on the oor
N
because of possible damage to the screen. Always keep the PDP upright.
N
The PDP can rotate 20 degrees in right and left directions.
How to assemble the Stand-Base (depending on the model)
Guide (Not available in all
locations)
Ferrite Core fo
Headphone
-20° ~ 20°
Using the 4 screws for securing the stand base and the monitor, firmly attach the
monitor to the stand base.
Warning
Firmly secure the stand to the TV before
moving it, as the stand may fall and could
cause serious injury.
Two or more people should carry the TV.
N
Never lay the TV on the oor because of
possible damage to the screen. Always
store the TV upright.
The product colour and shape may vary
N
depending on the model.
In case of installing your TV on the wall, close the
cover (1) on the stand-base connection part using
two screws for hiding.
Assembling the Cables
Enclose the cables in the Holder-Wire Cable so that the cables are not visible through the
transparent stand.
English - 5
Viewing the Control Panel
The product colour and shape may vary depending on the model.
N

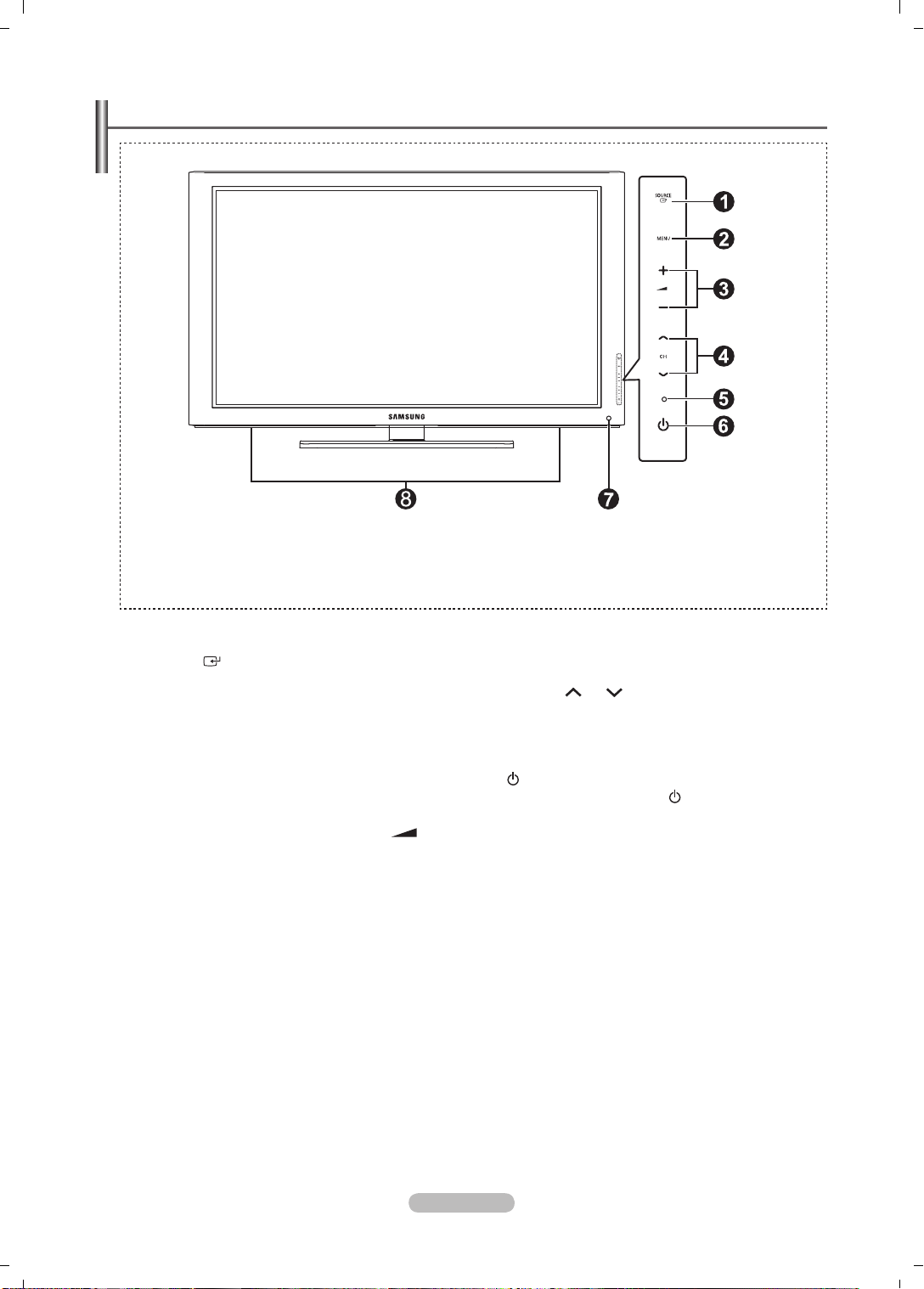

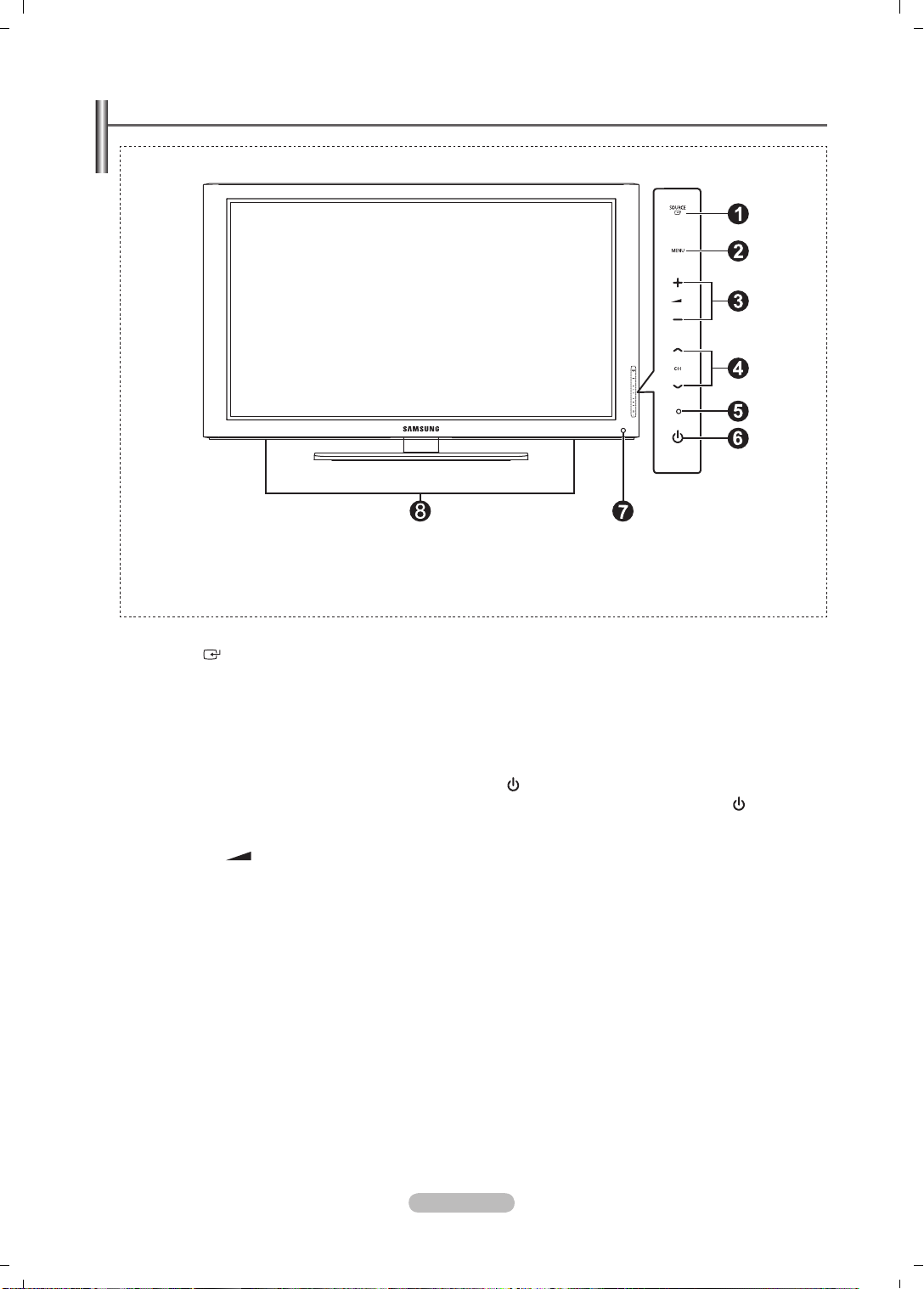

Front Panel buttons
Touch each button to
operate.
SOURCE
1
Toggles between all the available input sources
(TV, Ext1, Ext2, AV, PC, Component, HDMI1, HDMI2/DVI,
HDMI3, HDMI4, USB).
In the on-screen menu, use this button as you would use
N
the ENTER
MENU
2
Press to see an on-screen menu of your TV’s features.
+ –
3
Press to increase or decrease the volume. In the on-screen
menu, use the + – buttons as you would use the
◄ and ► buttons on the remote control.
E
button on the remote control.
CH
4
Press to change channels. In the on-screen menu, use the
CH buttons as you would use the ▲ and ▼ buttons
on the remote control.
POWER INDICATOR
5
Blinks and turns off when the power is on and lights up in
stand-by mode.
(
POWER)
6
Touch the silver sensor below the (icon) mark to turn the TV
on and off.
REMOTE CONTROL SENSOR
7
Aim the remote control towards this spot on the TV.remote control towards this spot on the TV. control towards this spot on the TV.
SPEAKERS
8
English - 6

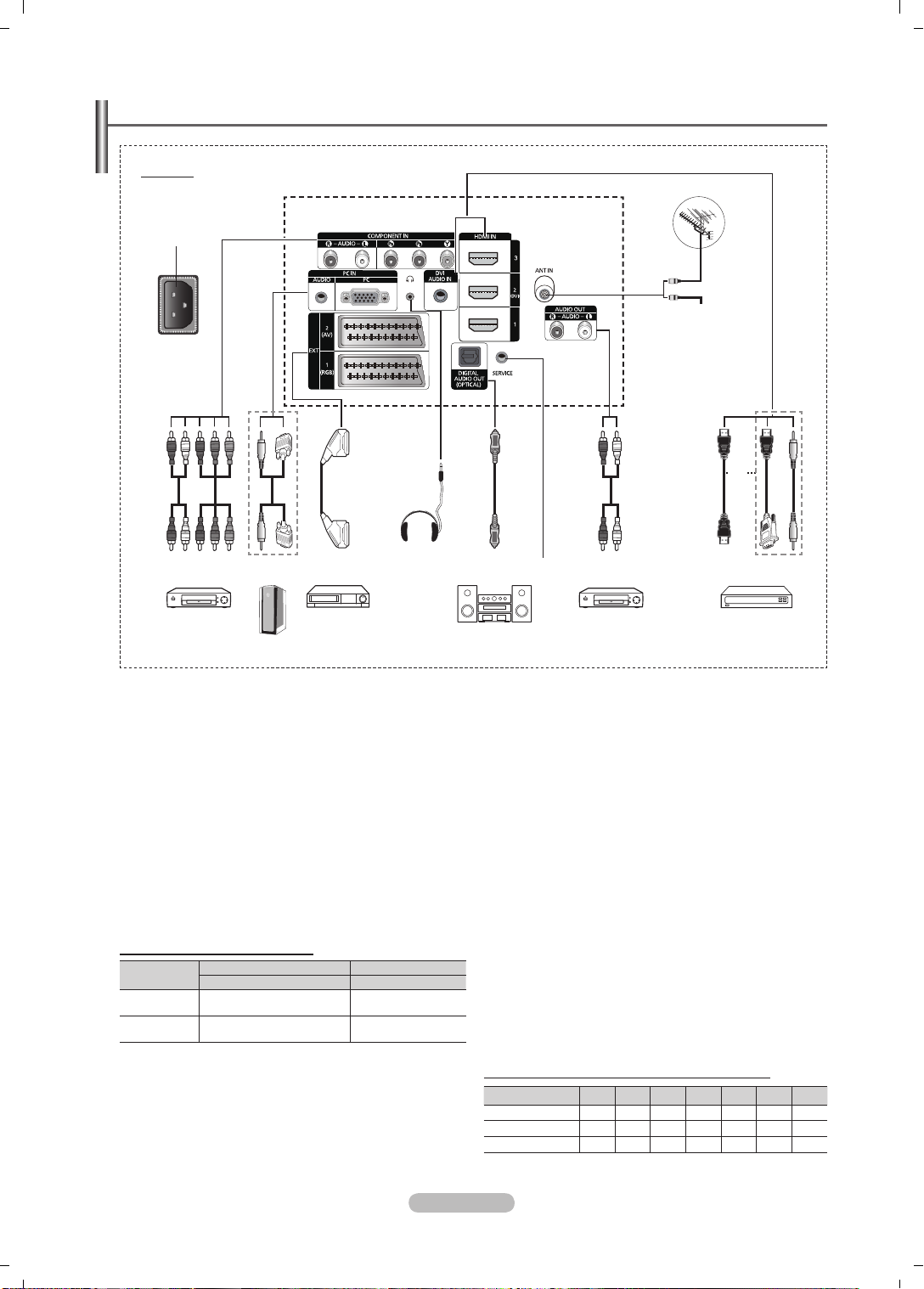

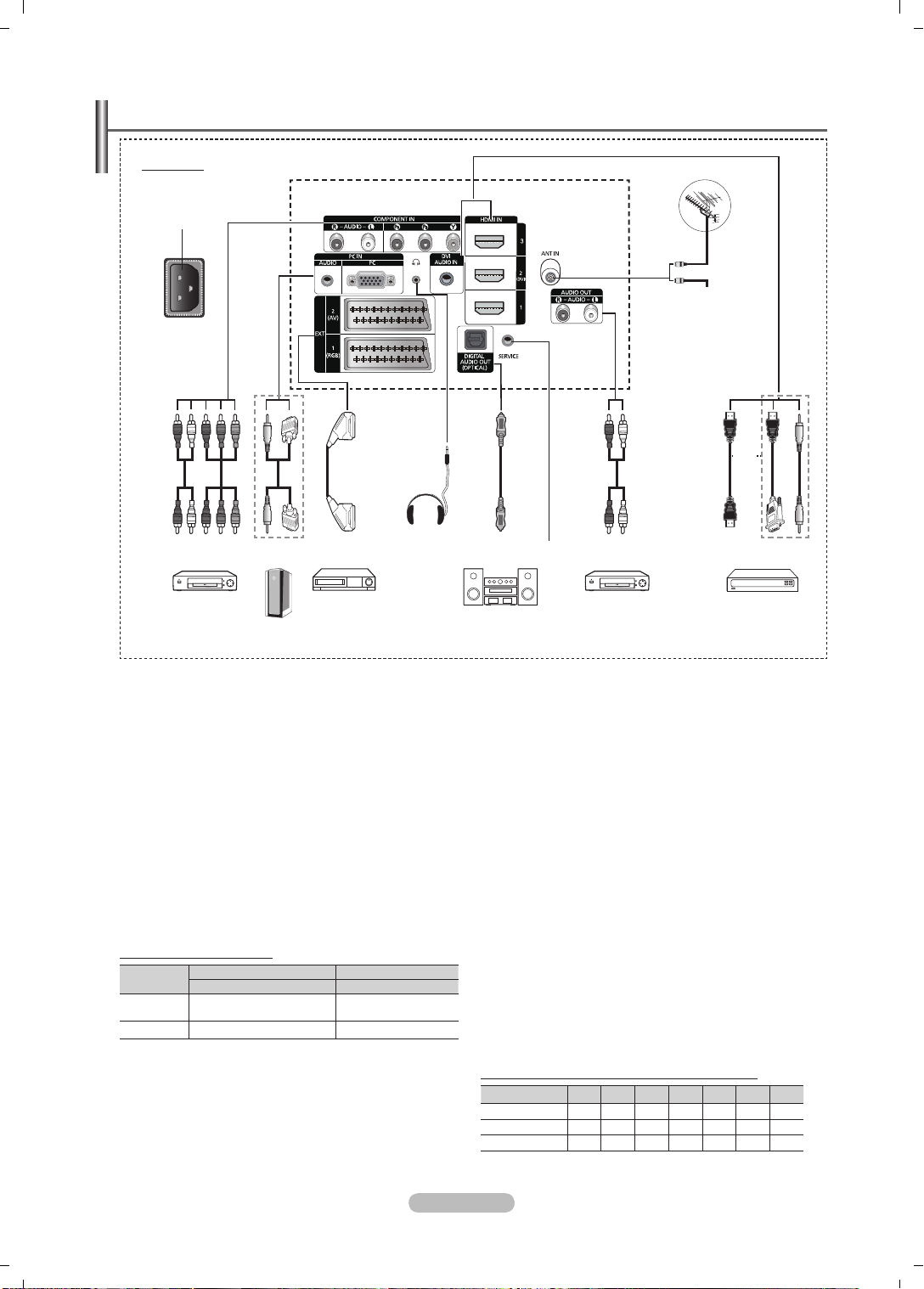

Viewing the Connection Panel
TV Rear Panel
1
or
9
Cable Television
Network
or
432 8 06
The product colour and shape may vary depending on the model.
N
Whenever you connect an audio or video system to your set, ensure that all elements are switched off.
N
When connecting an external device, match the colour of the connection terminal to the cable.
N
POWER IN
1
5
8
Connect the supplied power cord.
COMPONENT IN
2
Audio (AUDIO L/R) and video (Y / PB / PR) inputs for
9
Component.
PC IN (AUDIO / PC)
3
0
Connect to the video and audio output jack on your PC.
EXT 1, EXT 2
4
Inputs or outputs for external devices, such as VCR, DVD,
video game device or video disc players.
In EXT mode, DTV Out only supports MPEG SD Video
N
and Audio.
In EXT Mode, Game mode is not available
N
Input/Output Specification
Connector
EXT 1
EXT 2
Video Audio(L/R) RGB Video + Audio(L/R)
✔ ✔ ✔
✔ ✔ Output you can choose.
Input Output
Only TV or DTV output
is available.
7
AUDIO OUT(AUDIO R/L)
Connect RCA audio signals from the TV to an external source,
such as Audio equipment.
ANT IN
75Ω Coaxial connector for Aerial/Cable Network.
HDMI IN 1, 2(DVI), 3
No additional Audio connection is needed for an HDMI to
HDMI connection.
- When using an HDMI/DVI cable connection, you must
-
use the HDMI IN 2 (DVI) jack.
What is HDMI?
N
- High Definition Multimedia interface allows the
transmission of high denition digital video data and
multiple channels of digital audio.
- The HDMI/DVI terminal supports DVI connection to
an extended device with the appropriate cable (not
supplied). The difference between HDMI and DVI is
that the HDMI device is smaller in size, has the HDCP
(High Bandwidth Digital Copy Protection) coding feature
installed, and supports multi - channel digital audio.
DVI AUDIO IN
DVI audio outputs for external devices.
5 HEADPHONE
Connect a set of headphones if you wish to watch a television
program without disturbing other people in the room.
Prolonged use of headphones at a high volume may
N
damage your hearing.
DIGITAL AUDIO OUT (OPTICAL)
6
Supported modes for HDMI/DVI and Component
480i 480p 576i 576p 720p 1080i 1080p
HDMI/DVI 50Hz X X X O O O O
HDMI/DVI 60Hz X O X X O O O
Component O O O O O O O
Connect to a Digital Audio Component.
SERVICE
7
Connector for service.
English - 7

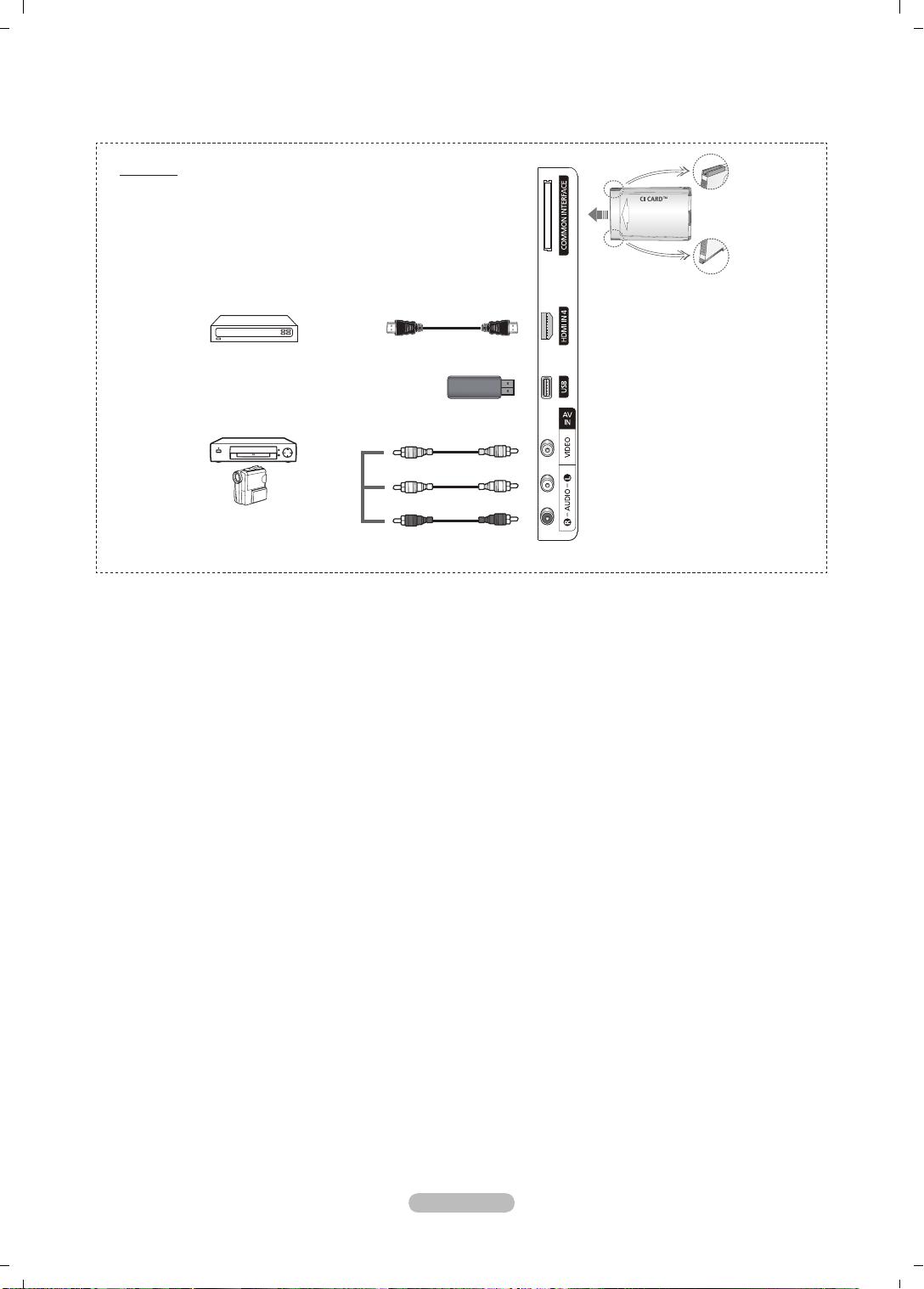

TV Side Panel
2
3
4
The product colour and shape may vary depending on the model.
N
1

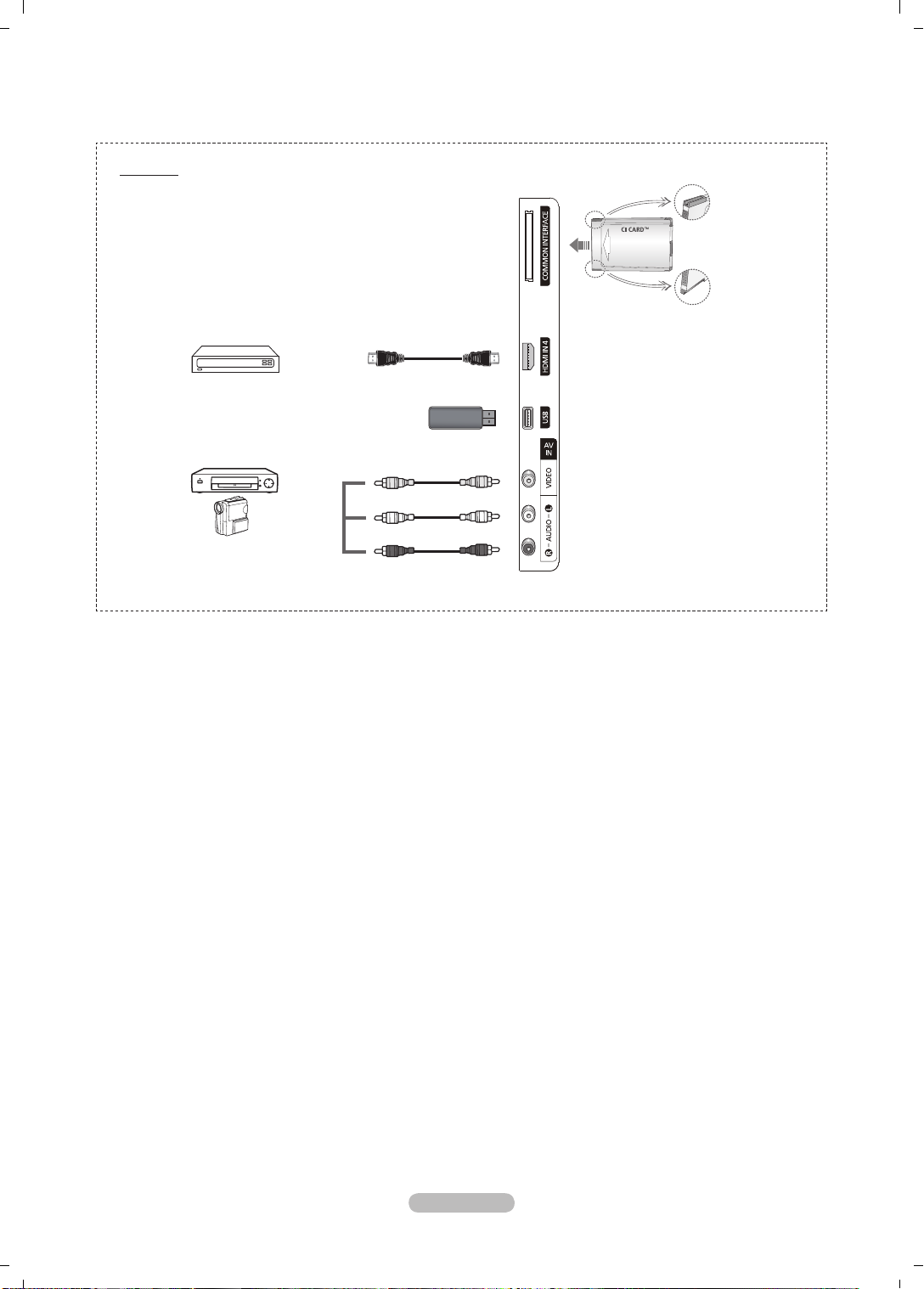

COMMON INTERFACE Slot
Insert CI (Common Interface) card into the slot.
(refer to page 25)
When not inserting CI CARD in some channels,
-
Scramble Signal is displayed on the screen.
The pairing information containing a telephone number,
-
CI CARD ID, Host ID, and other information will be
displayed in about 2~3 minutes. If an error message is
displayed, please contact your service provider.
When the channel information conguration has nished,
-
the message Updating Completed is displayed,
indicating that the channel list is now updated.
Insert the CI-Card in the direction marked on it.
N
CAM is not supported in some countries and
N
regions,check with your authorized dealer.
1
2
HDMI IN 4
Connect to the HDMI jack of a device with HDMI output.
3
USB
Connect a USB mass storage device to view and play photo
les (JPEG) and audio les (MP3).
4
AV IN (VIDEO, AUDIO L/R)
Video and audio inputs for external devices, such as a
camcorder or VCR.
English - 8

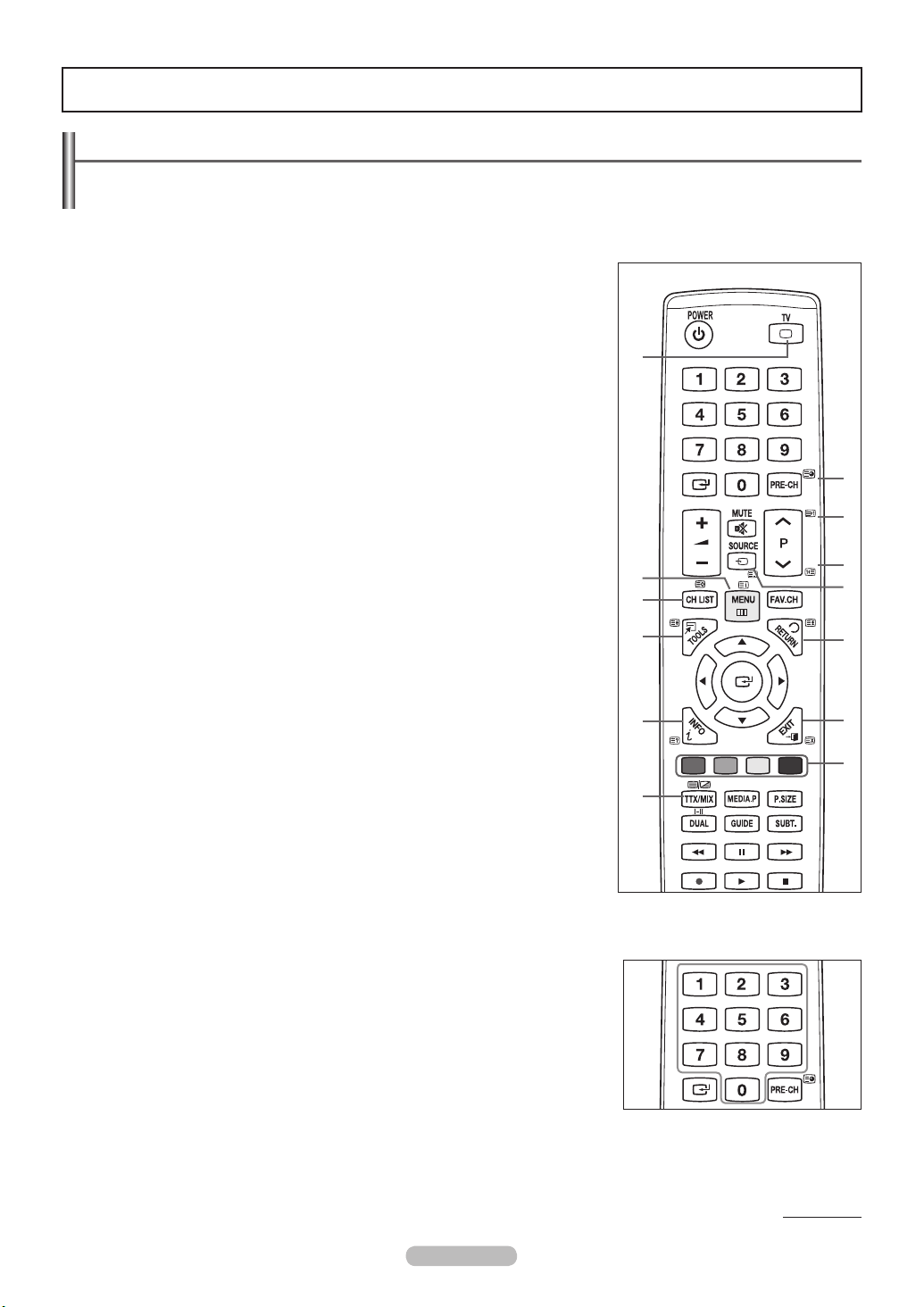

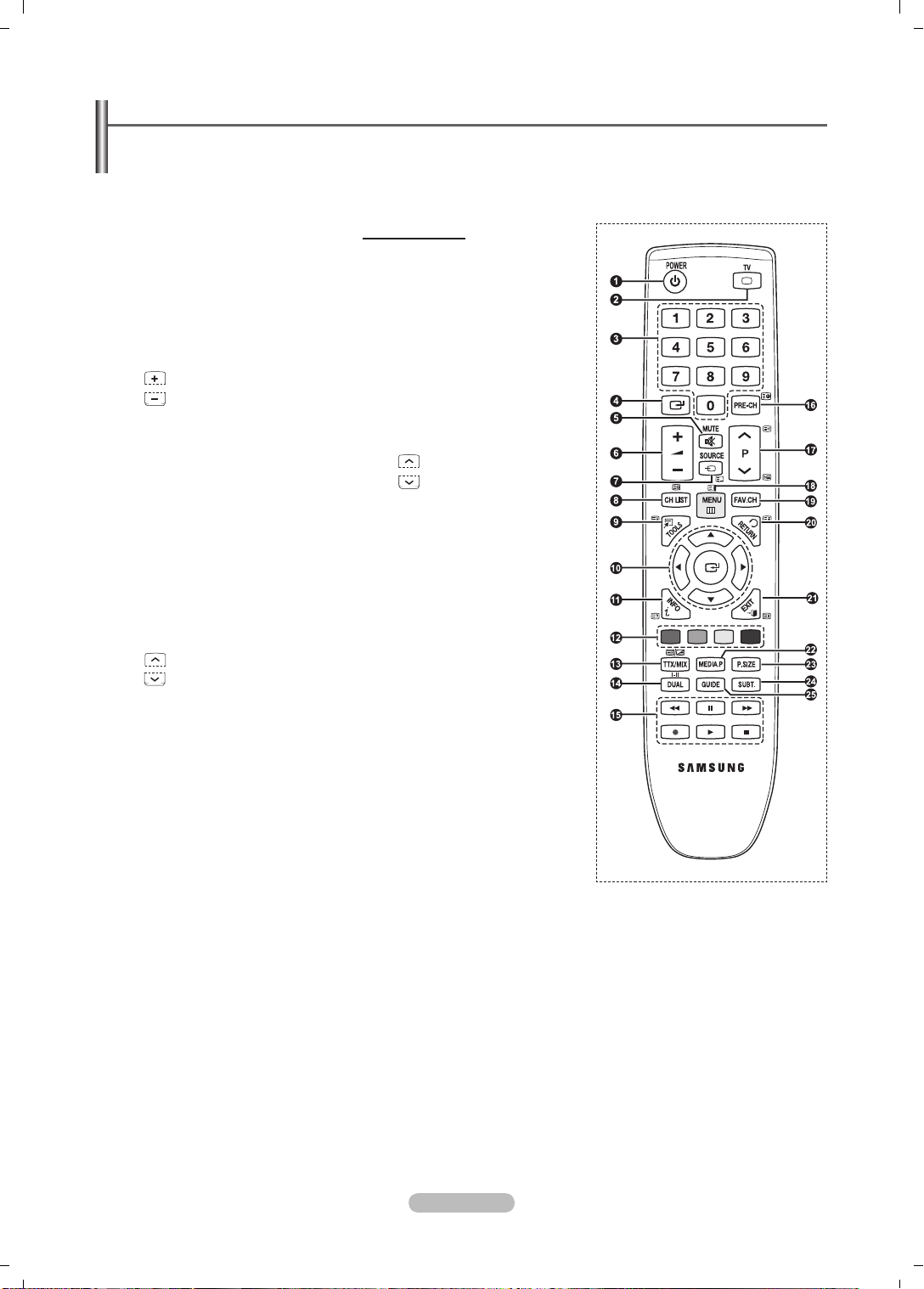

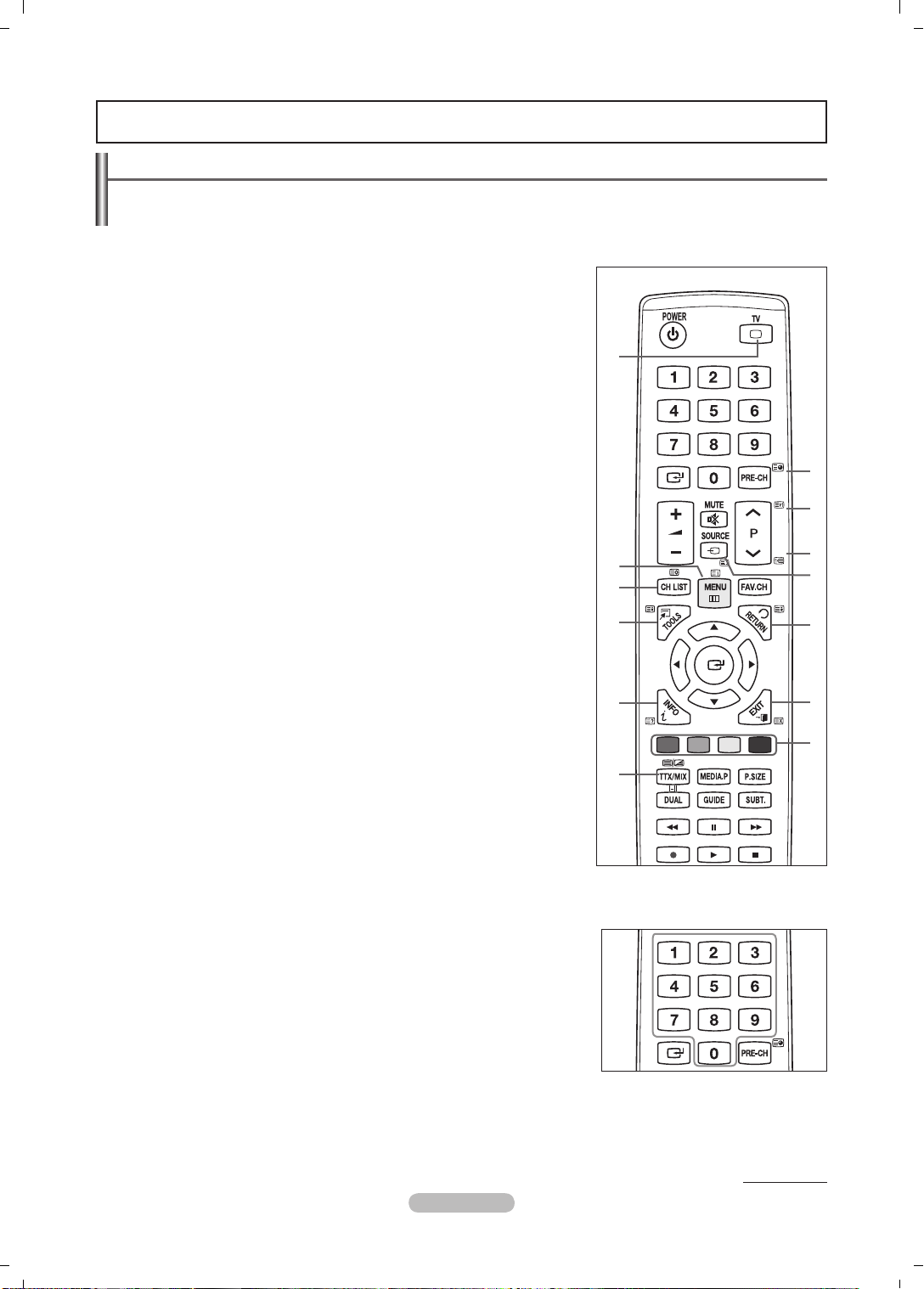

Remote Control
You can use the remote control up to a distance of about 23 feet from the TV.
N
The performance of the remote control may be affected by bright light.
POWER button
1
(turns the TV on and off)
Selects the TV mode directly.
2
Number buttons for direct channel
3
access
Use to select on-screen menu items
4
Temporary sound switch-off
5
6
Volume increase
Volume decrease
Available source selection
7
Channel control button
8
Use to quickly select frequently used
9
functions.
Control the cursor in the menu
0
Use to see information on the current
!
broadcast
Use these buttons in the Channel List
@
and Media Play, etc.
Sound mode selection
$
Use these buttons in the Channel list,
%
Media Play and Anynet+.
Previous channel
^
Next channel
&
Previous channel
Displays the main on-screen menu
*
Press to switch to your Favourite
(
channels.
Returns to the previous menu
)
Exit the on-screen menu
a
This function enables you to view
b
and play the photo (JPEG) and music
(MP3) les from an external devices.
Picture size selection
c
Digital subtitle display
d
e
Electronic Program Guide (EPG)
display
Teletext Functions
Exit from the teletext display
2
(depending on the model)
Teletext mode selection (LIST/FLOF)
7
Teletext store
8
Teletext size
9
Teletext reveal
!
Fastext topic selection
@
Teletext display/mix both
#
teletext information and the normal
broadcast
Teletext sub page
^
P :Teletext next page
&
*
)
a
:Teletext previous page
P
Teletext index
Teletext hold
Teletext cancel
English - 9

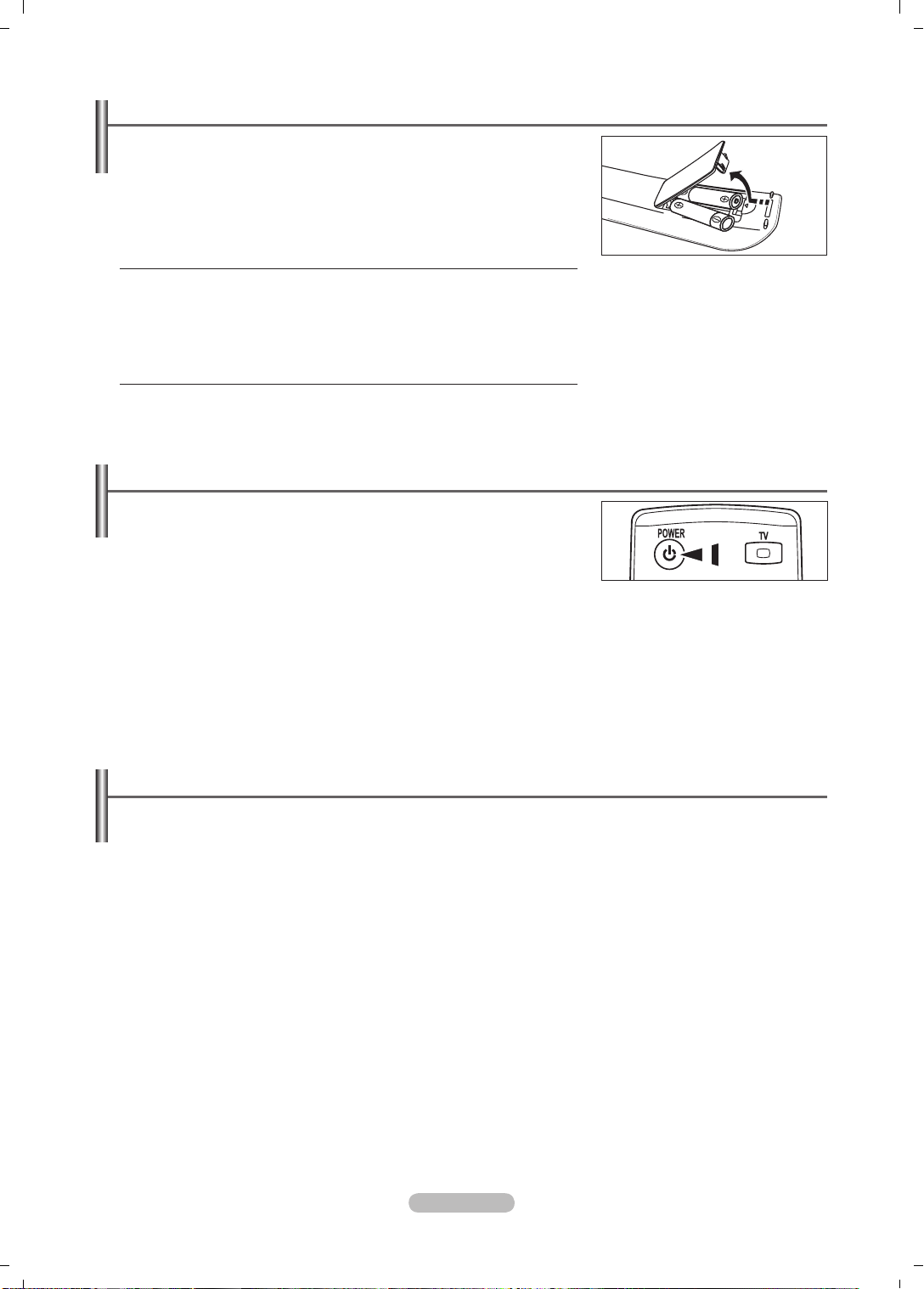

Installing Batteries in the Remote Control
1. Lift the cover at the back of the remote control upward as shown in the gure.
2. Install two AAA size batteries.
Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram inside
N
the compartment.
Close the cover.
3.
Remove the batteries and store them in a cool, dry place if you won’t be using the
N
remote control for a long time.
If the remote control doesn’t work, check the following
N
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage or is the power cord unplugged?
5. Is there a special uorescent light or neon sign nearby?
Switching On and Off
The mains lead is attached to the rear of your set.
Plug the mains lead into an appropriate socket.
1.
N
The standby indicator lights up on your set.
2. Press the POWERP button on your set.
You also can press the POWERP button or the TV button on the remote control to turn the TV on.
N
The programme that you were watching last is reselected automatically.
N
3.
Press the numeric button (0~9) or channel up / down (
When you switch the set on for the very rst time, you will be asked to choose language in which the menus are to be displayed.
N
4.
To switch your set off, press the POWERP button again.
< / >) button on the remote control or < CH> button on your set.
Placing Your Television in Standby Mode
Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to
interrupt viewing temporarily (during a meal, for example).
1.
Press the POWERP button on the remote control.
The screen is turned off and a red standby indicator appears on your set.
N
2. To switch your set back on, simply press the POWERP, numeric buttons (0~9), TV button or channel up / down (< / >) button
again.
Do not leave your set in standby mode for long periods of time (when you are away on holiday
N
the set from the mains and aerial.
, for example). It is best to unplug
English - 10

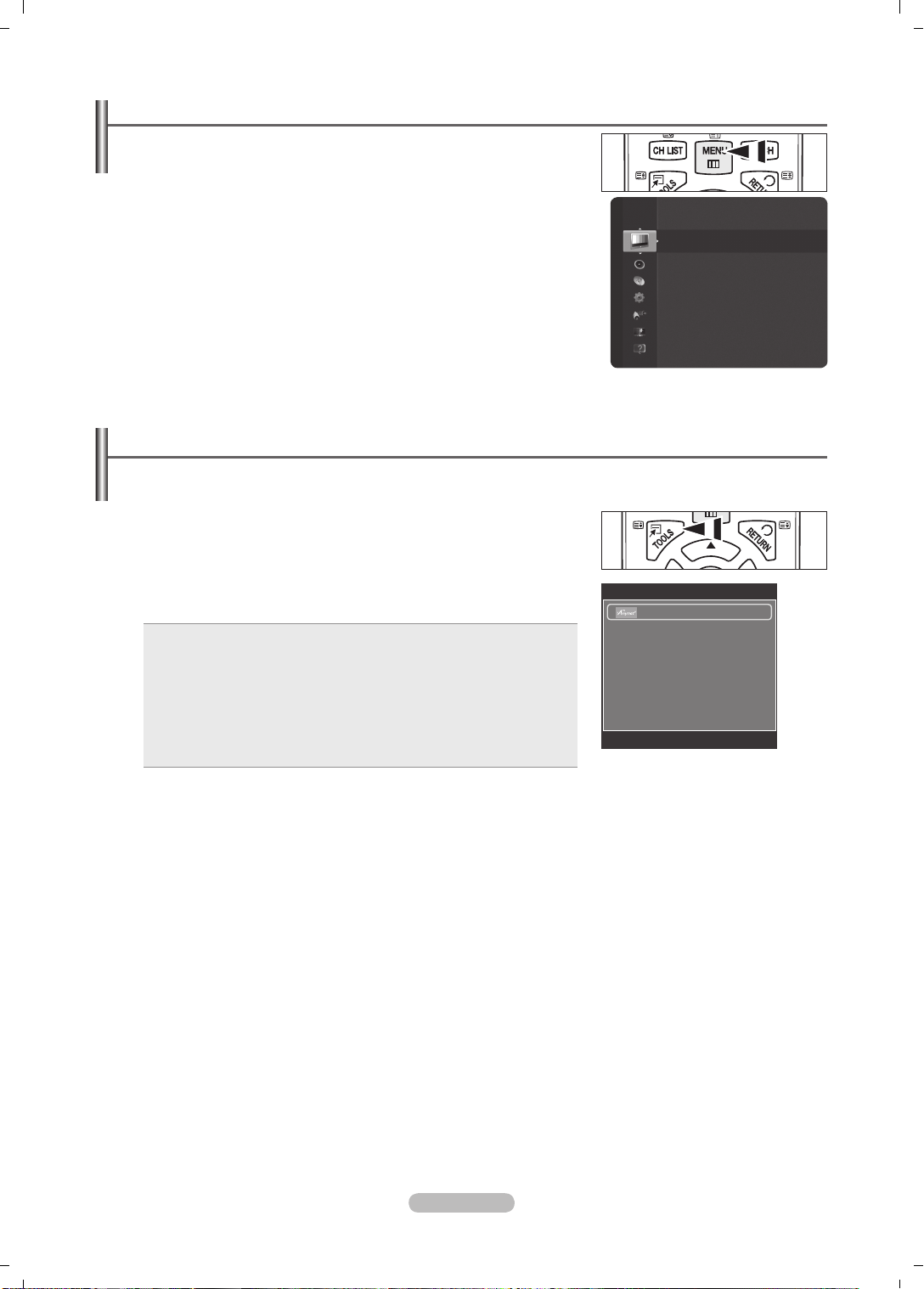

Viewing the Menus
1. With the power on, press the MENU button. The main menu appears on the
screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input,
Application, Support.
2. Press the ▲ or ▼ button to select one of the icons. Then press the ENTERE
button to access the icon’s sub-menu.
Press the EXIT button to exit.
3.
The on-screen menus disappear from the screen after about one minute.
N
Mode : Standard
Cell Light : 7
Contrast : 95
Brightness : 45
Sharpness : 50
Colour : 50
Tint (G/R) : G50/R50
Advanced Settings
Using the TOOLS Button
You can use the TOOLS button to select your frequently used functions quickly and easily. The Tools menu changes depending on
which external input mode you are viewing.
Press the TOOLS button. The Tools menu will appear.
1.
2. Press the ▲ or ▼ button to select a menu, then press the ENTERE button.
3.
Press the ▲ / ▼ / ◄ / ► / ENTERE buttons to display, change, or use the selected
items. For a more detailed description of each function, refer to the corresponding
page.
Anynet+ (HDMI-CEC), see page 36
•
Picture Mode, see page 16
•
Sound Mode, see page 21
•
Sleep Timer, see page 23
•
SRS TS HD, see page 21
•
Energy Saving, see page 25
•
Auto Adjustment, see page 19
•
Picture Mode : Standard
Sound Mode : Custom
Sleep Timer : Off
SRS TS HD : Off
Energy Saving : Off
Add to Favourite
Tools
Anynet+ (HDMI-CEC)
U
Move E Enter e Exit
English - 11
Plug & Play Feature
When the TV is initially powered on, basic settings proceed automatically and subsequently.
N
The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is running.
The Screen Saver is activated if there is no operating signal for longer than 15 minutes.
N
If you accidentally select the wrong country for your TV, the characters on the screen may be wrongly displayed.
N
Press the POWER button on the remote control. Select the OSD Language. menu
1.
is automatically displayed. Select the appropriate language by pressing the ▲ or ▼
button. Press the ENTERE button to conrm your choice.
2. Press the ◄ or ► button to select Store Demo or Home Use, then press the
ENTER
N
E
button.
We recommend setting the TV to Home Use mode for the best picture in your
Select the OSD Language.
Menu Language :
home environment.
Store Demo mode is only intended for use in retail environments.
N
If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button on
N
the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.
3.
Press the ENTERE. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTERE button to conrm your
choice.
4.
Press the ▲ or ▼ button to memorise the channels of the selected connection, then press the ENTERE button.
Air: Air antenna signal.
•
Cable: Cable antenna signal.
•
5.
Press the ▲ or ▼ button to select the channel source to memorise. Press the ENTER
Digital & Analogue: Digital and Analogue channels.
•
Digital: Digital channels.
•
Analogue: Analogue channels.
•
The channel search will start and end automatically.
N
For more detailed description of selecting Cable mode, refer to Auto Store chapter
N
6.
The message Set the Clock Mode is displayed. Press the ENTERE button. Press the ▲ or ▼ button to select Auto, then Press
E
button to select Start.
the ENTERE button.
If you select Manual, Set current date and time is displayed. (For a more detailed description of Manual, refer to 23 page)
N
If you have received a digital signal, the time will be set automatically.
N
7. The brief instruction on How to get the best performance from your new HDTV. is displayed. Press the ENTERE button.
This menu is available HD Connection Guide in the Support menu.
N
8. The message Enjoy your TV. is displayed. When you have nished, press the ENTER
E
button.
Plug & Play
Nederlands
English
Eesti
U
Move E Enter
▲
▼
If you want to reset this feature...
Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup,
1.
then press the ENTER
2. Press the ENTER
3.
Enter your 4 digit PIN number. The default PIN number of a new TV set is ‘0-0-0-0’.
If you want to change PIN number, refer to 24 page.
N
The Plug & Play feature is only available in the TV mode.
N
E
button.
E
button again to select Plug & Play.
Setup
Plug & Play
Language : English
Time
Game Mode : Off
Child Lock : On
Change PIN
Parental Lock
Subtitle
English - 12
Channel Control
Storing Channels
Country
❑
Digital Channel: You can change the country for digital channels.
Analogue Channel: You can change the country for analogue channels.
The PIN number input screen appears. Enter your 4 digit PIN number.
N
Auto Store
❑
Scans for all channels with active broadcast stations (and availability depends on your
country) and stores them in the TV's memory.
You can memorise the channels of the selected connection.
Air: Air antenna signal.
•
Cable: Cable antenna signal.
•
You can memorise the channel source
Digital & Analogue: Digital and Analogue channels.
•
Digital: Digital channels.
•
Analogue: Analogue channels.
•
When selecting Cable
N
Search Mode: Displays the search mode. (Quick)
•
- Network ID: Displays the network identication code.
- Frequency: Displays the frequency for the channel.
- Modulation: Displays available modulation values.
- Symbol Rate: Displays available symbol rates.
Search Mode: Displays the search mode.(Full, Network)
•
- Start Frequency: Displays the frequency start values.
- End Frequency: Displays the frequency stop values.
- Modulation: Displays available modulation values.
- Symbol Rate : Displays available symbol rates.
For more detailed description of Full search mode.
N
If you want to stop Auto Store, press the ENTER
N
The Stop Auto Store? message will be displayed.
N
Select Yes by pressing the ◄ or ► button, then press the ENTER
N
Manual Store
❑
Scans for a channel manually and stores it in the TV’s memory.
Digital Channel (Digital)
Digital Channel is only available in DTV mode.
N
Channel: Set the Channel number using the ▲, ▼ or number (
•
Frequency: Set the frequency using the number buttons.
•
Bandwidth: Set the bandwidth using the ▲, ▼ or number (
•
When it has nished, channels are updated in the channel list.
N
Analogue Channel
Manual store for analogue channel.
Programme (Programme number to be assigned to a channel): Sets the programme number using the ▲, ▼ or number (
•
buttons.
: Sets the colour system value using the ▲ or ▼ button.
•
Sound System → BG / DK / I / L : Sets the sound system value using the ▲ or ▼ button.
•
Channel (When you know the number of the channel to be stored): Press the ▲ or ▼ button to select C (Air channel) or S
•
(Cable channel). Press the ► button, then press the ▲, ▼ or number (
If there is abnormal sound or no sound, reselect the sound standard required.
N
•
Search (When you do not know the channel numbers): Press the ▲ or ▼ button to start the search. The tuner scans the
frequency range until the rst channel or the channel that you selected is received on the screen.
•
Store (When you store the channel and associated programme number): Set to OK by pressing the ENTER
Channel mode
N
- C (Air channel mode):
You can select a channel by entering the assigned number to each air broadcasting station in this mode
- S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.
E
button.
E
0~9) buttons.
0~9) buttons.
Channel
Country
Auto Store
Manual Store
Full Guide
Mini Guide
Default Guide : Full Guide
Channel List
Channel Mode : Added Ch.
button.
0~9) buttons to select the required number.
E
button.
0~9)
.
Continued...
English - 13
Full Guide / Mini Guide
❑
The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out
of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information
becomes available.
Full Guide: Displays the programme information as time ordered One hour segments. One hours of programme information is
•
displayed which may be scrolled forwards or backwards in time.
Mini Guide: The information of each programme is displayed by each line on the current channel Mini Guide screen from the
•
current programme onwards according to the programme starting time order.
Default Guide
❑
Mini Guide / Full Guide
You can decide whether to display either the Mini Guide or the Full Guide when the
GUIDE button on the remote control is pressed.
You can also display the guide menu simply by pressing the GUIDE button.
O
Full Guide
Mini Guide
Channel
Default Guide : Full Guide
Channel List
Channel Mode : Added Ch.
Fine Tune
Using the Full / Mini Guide
Full Guide
900 f tn
901 ITV Play
902 Kerrang!
903 Kiss
903 oneword
903 Smash Hits!
▼
DTV Cable 900 f tn 2:10 Tue 1 Jun
Freshmen On Campus
2:00 - 2:30
No Detailed Information
Today 2:00 - 3:00 3:00 - 4:00
Freshmen O..
Street Hypn..
Mint Extra
Loaded
Fresh 40 with Dynamite MC
The Distillery
Smash Hits! Sunday
INFO
Information
Watch
▲ / ▼ / ◄ / ►
(ENTER)
Mini Guide +24 Hours Exit
,
Select a programme by pressing the ▲/▼/◄/► button.
No Information
No Information
Kisstory
No Information
Mini Guide DTV Cable 900 f tn
▼
2:00
2:30
5:00
Watch
Freshmen On Campus
Street Hypnosis
Booze Britain
INFO
Information
Full Guide Next Page Exit
RED Toggle between the Mini Guide or Full Guide.
GREEN
YELLOW
Full Guide: Scroll backwards quickly (-24 hours).
Mini Guide: Display next page quickly.
Full Guide: Scroll forwards quickly (+24 hours).
Mini Guide: Display previous page quickly.
BLUE Exit the guide.
INFO INFO button for the detailed information.
Channel Mode
❑
When the press the P (</>) button, Channels will be switched within the selected channel list.
Added Ch.:
Favourite Ch.:
Fine Tune (only analogue channels)
❑
Channels will be switched within the memorised channel list.
Channels will be switched within the favourite channel list.
If the reception is clear, you do not have to ne tune the channel, as this is done automatically during the search and store
operation. If the signal is weak or distorted, you may have to ne tune the channel manually.
Fine tuned channels that have been saved are marked with an asterisk * on the right-hand side of the channel number in the
N
channel banner.
If you do not store the ne-tuned channel in memory, adjustments are not saved.
N
To reset the ne-tuning, select Reset by pressing the ▼ button and then press the ENTER
N
E
button.
English - 14

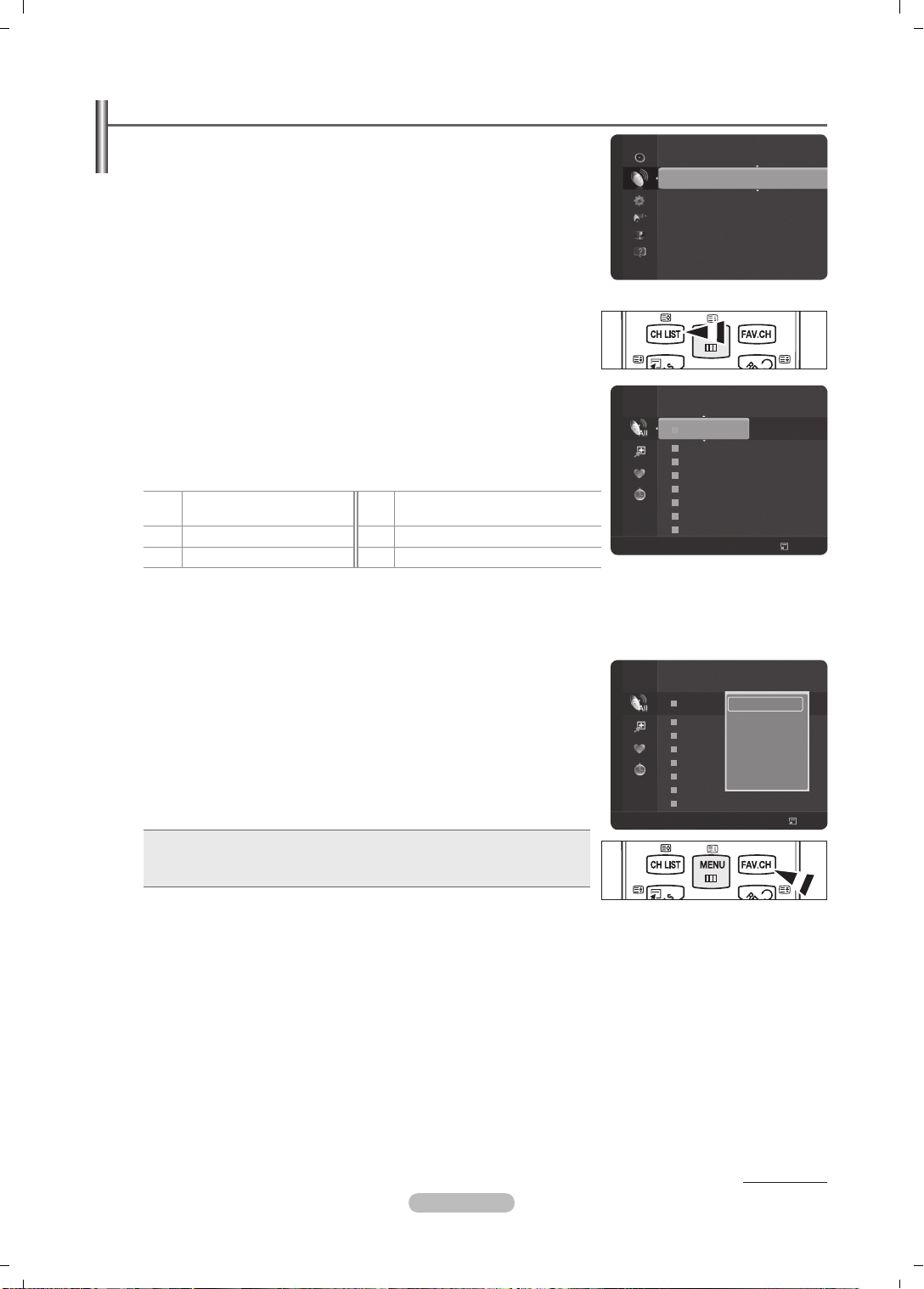

Managing Channels
Using this menu, you can Add / Delete or set Favourite channels and use the programme
guide for digital broadcasts.
N
Select a channel in the All Channels, Added Channels, Favourites, or Programmed
screen by pressing the ▲ / ▼ buttons, and pressing the ENTERE button.
Then you can watch the selected channel.
All Channels:
Added Channels:
Favourites:
Programmed:
Press the CH LIST button on the remote control to bring up the channel lists.
O
Using the Colour buttons with the Channel List
N
Red (Channel Type): Toggle between your TV, Radio, Data/Other and All.
-
Green (Zoom): Enlarges or shrinks a channel number.
-
Yellow (Select): Selects multiple channel lists.
-
T (Tools): Displays the Delete (or Add), Add to Favourite (or Delete from
-
Shows all currently available channels.
Shows all added channels.
Shows all favourite channels.
Shows all current reserved programmes.
Favourite), Timer Viewing, Edit Channel Name, Edit Channel Number, Sort,
Lock (or Unlock), Select All (or Deselect All), or Auto Store menu.
(The Tools menus may differ depending on the situation.)
Channel Status Display Icons
N
A channel selected by pressing the
An Analogue channel.
A
A channel set as a Favourite.
♥
\
A locked channel.
Channel List Tools Menu (in All Channels / Added Channels / Favourites)
❑
Press the TOOLS button to use the option menu.
N
The Tools menu items may differ depending on the channel status.
N
Add / Delete
c
yellow button.
A programme currently being
(
broadcast.
)
A reserved programme
You can delete or add a channel to display the channels you want.
All deleted channels will be shown on All Channels menu.
N
A gray-coloured channel indicates the channel has been deleted.
N
The Add menu only appears for deleted channels.
N
You can also delete a channel to the Added Channels or Favourite menu in the
N
same manner.
Add to Favourite / Delete from Favourite
You can set channels you watch frequently as favourites.
Press the TOOLS button to display Tools menu.
T
You can also add the favourite channel by selecting Tools → Add to Favourite
(or Delete from Favourite).
To select the Favourite channels you have set up, press the FAV.CH button on the
O
remote control.
N
The “♥” symbol will be displayed and the channel will be set as a favourite.
All favourite channels will be shown on Favourite menu.
N
Mini Guide
Default Guide : Full Guide
Channel
Channel List
Channel Mode : Added Ch.
Fine Tune
824 UKTV Gold
Added Channels
825 UKTV style
A 1 C --
A 2 C
A 3 ♥ C
A 4 C
A 5 C
A 6 C
A 7 C
A 8 C
All
Channel Type Zoom Select
824 UKTV Gold
All Channels
825 UKTV style
A 1 C --
A 2 C
A 3 C
A 4 C
A 5 C
A 6 C
A 7 C
A 8 C
All
Channel Type Zoom Select
--
--
--
--
--
--
--
Delete
Add to Favourite
--
Lock
--
Timer Viewing
--
Edit Channel Name
--
Sort
--
--
--
Tools
▼
Tools
Lock / Unlock
You can lock a channel so that the channel cannot be selected and viewed. This function is available only when the Child Lock is
set to on. (see page 24)
The PIN number input screen appears. Enter your 4 digit PIN number.
N
The default PIN number of a new TV set is ‘0-0-0-0’. You can change the PIN, by selecting Change PIN from the menu.
N
The “\” symbol will be displayed and the channel will be locked.
N
Continued...
English - 15
Timer Viewing
If you reserve a programme you want to watch, the channel is automatically switched to the reserved channel in the Channel List;
even when you are watching another channel. To reserve a programme set the current time rst. (See page 23)
Only memorised channels can be reserved.
N
You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote control.
N
Reserving a programme will be shown on Programmed menu.
N
Digital Programme Guide and Viewing Reservation
N
When a digital channel is selected, and you press the ► button, the Programme Guide for the channel appears.
You can reserve a programme according to the procedures described above.
Edit Channel Name (only analogue channel)
Channels can labeled so that their call letters appear whenever the channel is selected.
The names of digital broadcasting channels are automatically assigned and cannot be labeled.
N
Edit Channel NumberNumber (only digital channel)
You can also edit the channel number by pressing the number buttons on the remote control.
Sort (only analogue channel)
This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using
the auto store.
Select All / Deselect All
You can perform the add / delete, add to Favourites / delete from Favourites, or lock / unlock function for multiple channels at
N
the same time. Select the required channels and press the yellow button to set all the selected channels at the same time.
N
The c mark appears to the left of the selected channels.
You can only select Deselect All when there is a selected channel.
N
Auto Store
For further details on setting up options, refer to page 12.
N
If a channel is locked using the Child Lock function, the PIN input window appears.
N
Channel List Option Menu (in Programmed )
❑
You can view, modify or delete a reservation.
Press the TOOLS button to use the option menu.
N
Change Info: Select to change a viewing reservation.
Cancel Schedules: Select to cancel a viewing reservation.
Information: Select to view a viewing reservation. (You can also change the
reservation information.)
Select All / Deselect All: Select or deselect all reserved programmes.
Programmed
1 / 1 / 2009
13:59 5 TV1 Quincy, M.E
18:59 2 TV3 The Equalizer
20:59 2 TV3 McMillan & Wife
21:59 2 TV3 M.Spillane’s mike Hammer
All
Zoom Select
Change Info
Cancel Schedules
Information
Select All
Tools Information
English - 16
Picture Control
Changing the Picture Settings
Mode
❑
You can select the type of picture which best corresponds to your viewing requirements.
Dynamic / Standard / Eco / Movie
Press the TOOLS button to display Tools menu.
T
You can also set the picture mode by selecting .
Cell Light / Contrast / Brightness / Sharpness / Colour / Tint (G/R)
❑
Your television has several setting options that allow you to control the picture quality.
Cell Light: Adjusts the pixel brightness.
•
Contrast: Adjusts the contrast level.
•
Brightness: Adjusts the brightness level.
•
Sharpness: Adjusts the sharpness.
•
Colour: Adjusts colour saturation of the picture
•
Tint (G/R): Adjusts the colour tint of the picture.
•
When you make changes to Cell Light, Contrast, Brightness, Sharpness, Colour or Tint (G/R), the OSD will be adjusted
N
accordingly.
The adjusted values are saved for each picture mode.
N
In Analogue TV, Ext., AV modes of the PAL system, you cannot use the Tint Function.
N
In PC mode, you can only make changes to Cell Light, Contrast and Brightness.
N
Each adjusted setting will be stored separately according to its input mode.
N
The energy consumed during use can be signicantly reduced if the level of brightness of the picture is reduced, and then this
N
will reduce the overall running cost.
Advanced Settings
❑
You can adjust the advanced settings for your screen including the colour and contrast.
Advanced Settings is available in Standard or Movie mode.
N
In PC mode, you can only make changes to Dynamic Contrast, Gamma and
N
White Balance from among the Advanced Settings items.
Off / Dark / Darker / Darkest
You can enhance the picture depth by adjusting the black colour density.
Off / Low / Medium / High
You can adjust the screen contrast so that the optimal contrast is provided.
Gamma
You can adjust the primary colour (Red, Green, Blue) Intensity.
Colour Space
Colour Space is a colour matrix composed of red, green and blue colours. Select your favourite Colour Space to experience the
most natural colour.
Auto: Automatically sets the colour range depending on the input video source.
•
Native: Sets a colour range wider than that of the input video source.
•
Custom: Adjusts the colour range to suit your preference.
•
Customizing the Colour Space
N
- Adjusts the Colour range to suit your preference. Colour is available when Colour Space is set to Custom.
- Colour →→ Red / Green / Blue / Yellow / Cyan / Magenta
- Red / Green / Blue: In Colour, you can adjust the RGB values for the selected colour.
- Reset: Resets the colour space to the default values.
White Balance
You can adjust the colour temperature for more natural picture colours.
R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain: Changing the adjustment value will refresh the adjusted screen.
•
Reset: Resets the default white balance.
•
Mode : Standard
Cell Light : 7
Contrast : 95
Brightness : 45
Sharpness : 50
Colour : 50
Tint (G/R) : G50/R50
Advanced Settings
Colour : 50
Tint (G/R) : G50/R50
Advanced Settings
Picture Options
Picture Reset
Continued...
English - 17

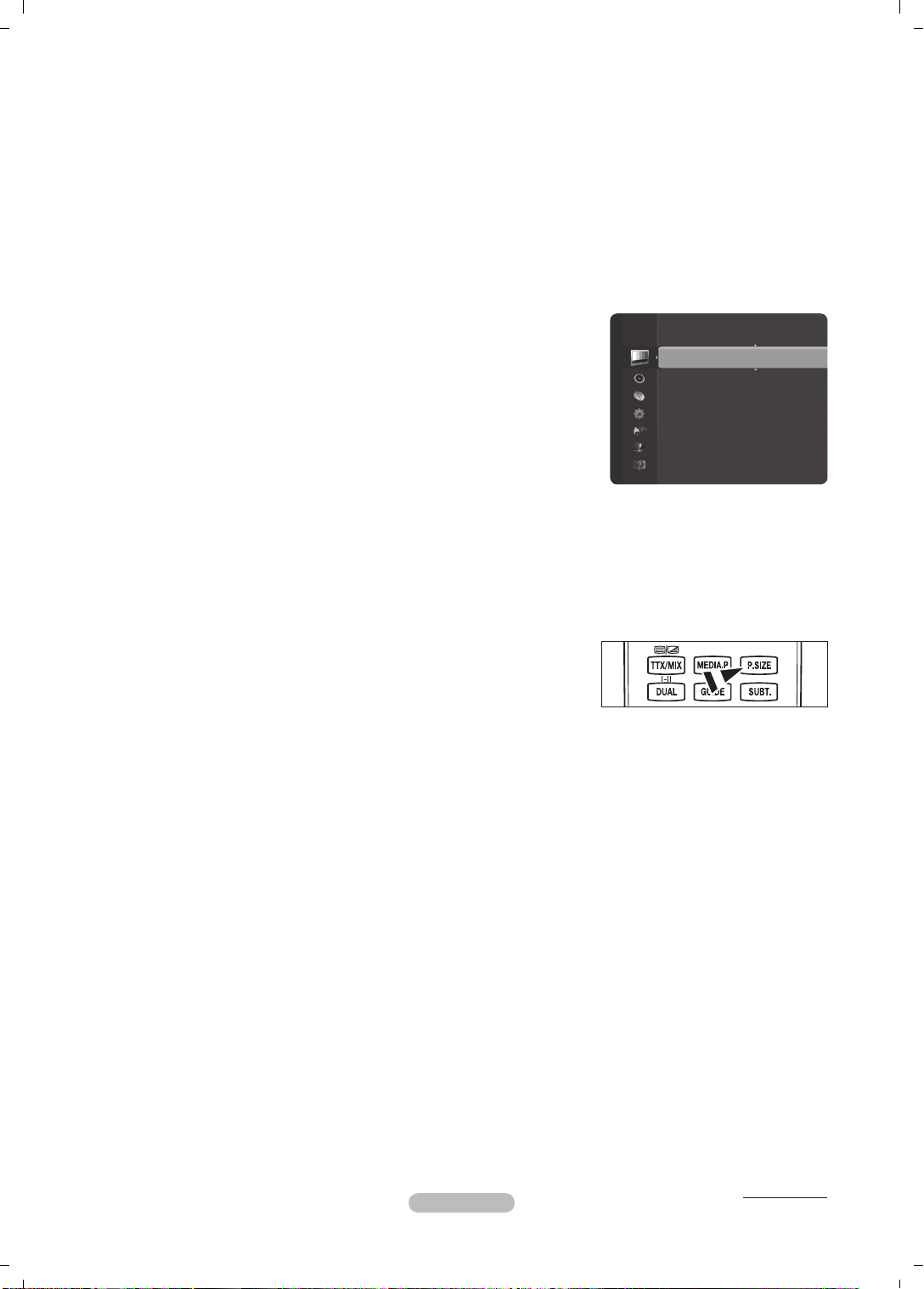

Flesh Tone
You can emphasize the pink esh tone in the picture.
Changing the adjustment value will refresh the adjusted screen.
N
Off / On
You can emphasize object boundaries in the picture.
❑
Setting the xvYCC mode to on increases detail and colour space when watching movies from an external device (i.e. DVD player).
xvYCC is available when the picture mode is set to Movie, and the external input is set to HDMI or Component mode.
N
If xvYCC function is active, PIP cannot be selected.
N
Picture Options
❑
You can customize the additional picture settings to suit your preference.
In PC mode, you can only make changes to the Colour Tone, Size and Screen
N
Burn Protection from among the items in Picture Options.
Cool / Normal / Warm1 / Warm2 / Warm3
Tint (G/R) : G50/R50
Advanced Settings
Picture Options
Picture Reset
You can select the most comfortable colour tone to your eyes.
The adjusted values are stored according to the selected Picture mode.
N
Warm1, Warm2, or Warm3 is only activated when the picture mode is Movie.
N
You can select the picture size which best corresponds to your viewing requirements.
Auto Wide: Sets the picture in Auto Wide format.
•
•
16:9: Sets the picture to the 16:9 aspect ratio.
•
: Select this menu to view 4:3 aspect ratio pictures over a 16:9 aspect ratio TV by stretching the 4:3 picture
vertically.
•
: Stretches the 16:9 aspect ratio picture vertically.
•
4:3: Sets the picture to the 4:3 aspect ratio.
•
Screen Fit: Displays the full native HD signal that cannot be viewed using a normal TV
Alternately, you can press the button on the remote control repeatedly to
O
.
change the picture size.
Depending on the input source, the picture size options may vary.
N
The items available may differ depending on the selected mode.
N
In PC Mode, only 16:9 and 4:3 mode can be adjusted.
N
Settings can be adjusted and stored for each external device you have connected to an input of the
N
Temporary image retention may occur when viewing a static image on the set for more than two hours.
N
: Press the ► button to select Position, then press the ENTERE button.
N
TV.
Press the ▲ or ▼ button to move the screen up / down. Then press the ENTERE button.
: Press the ► button to select Position, then press the ENTERE button. Press the ▲ or ▼ button to move the
N
picture up and down. Then press the ENTERE button. Press the ► button to select Size, then press the ENTERE button.
Press the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.
After selecting Screen Fit in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode: Select Position by pressing
N
Then press the ENTERE button.
the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture.
Reset: Press the ◄ or ► button to select Reset, then press the ENTERE button. You can initialize the setting.
N
If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan
N
function.
Screen Mode
When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS
(Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is
intended for users to select it.
This function is available in Auto Wide mode.
N
This function is not available in PC, Component or HDMI mode.
N
Digital NR Off / Low / Medium / High / Auto
If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static
and ghosting that may appear on the screen.
When the signal is weak, select one of the other options until the best picture is displayed.
N
Continued...
English - 18

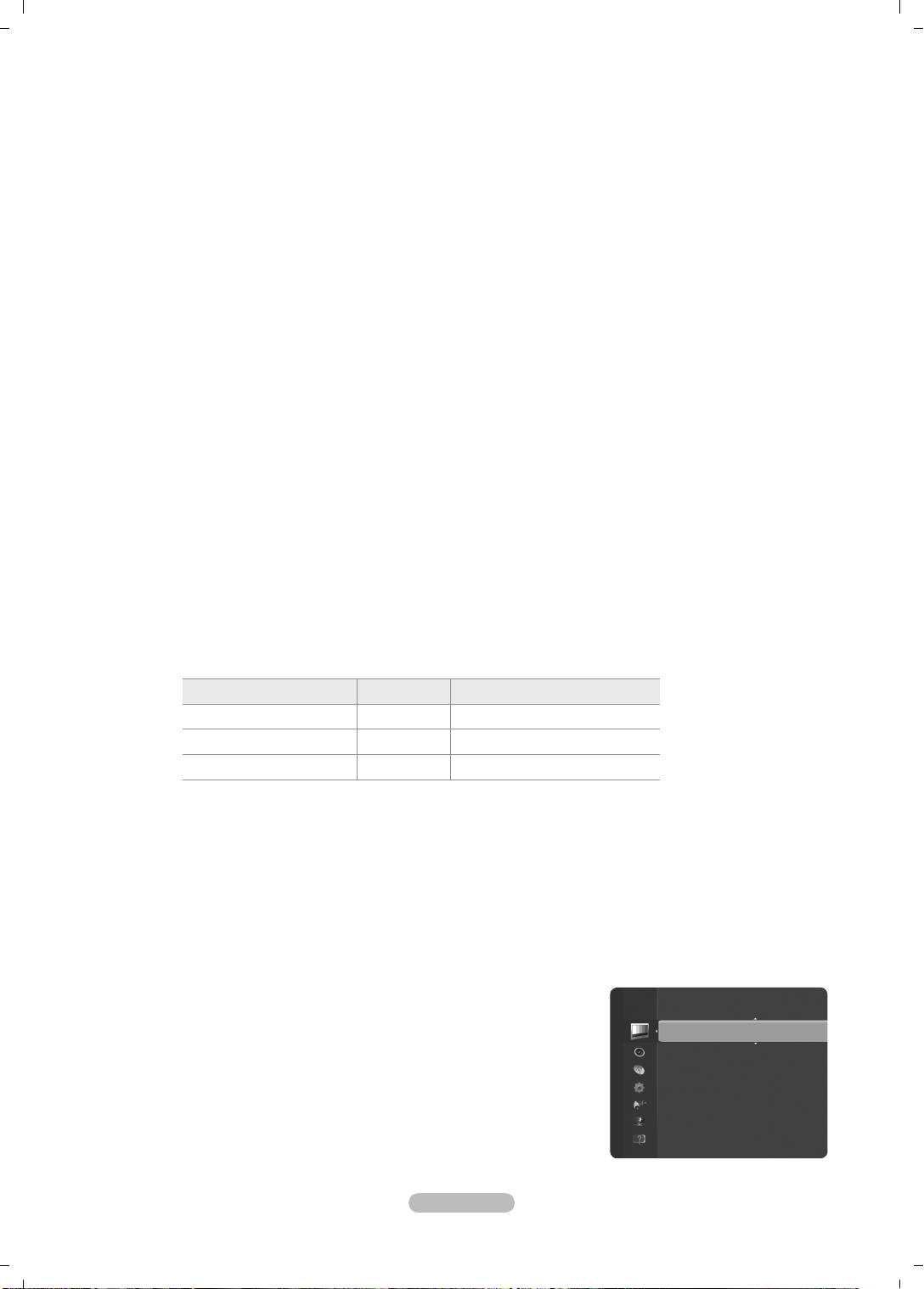

HDMI Black Level Normal / Low
You can directly select the black level on the screen to adjust the screen depth.
This function is active only when the external input connects to HDMI (RGB signals).
N
Samsung' new generation PDP panels deliver stunning Full HD motion clarity when viewing fast action sports, movies, and games.
This function is not available in PC, Game or Media Play mode.
N
Film Mode
You can optimize the picture mode for watching movies.
Off: Turn the Film Mode function off.
•
Auto1: Automatically adjusts the picture for the best quality when watching a lm.
•
•
Auto2: Automatically optimizes the video text when watching a lm.
Film mode is supported in TV, Video, Component(480i / 1080i) and HDMI(1080i).
N
This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green
signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such
as DVD players, Home Theaters, etc.
Blue Only Mode is available when the picture mode is set to Movie or Standard.
N
Screen Burn Protection
To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you
to set picture movement up/down (Vertical) and side to side (Horizontal). The Time setting allows you to program the time between
movement of the picture in minutes.
Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after
•
image on the screen.
Optimum condition for pixel shift
N
Item TV/Ext/AV/Component/HDMI/PC
Horizontal 0~4 2
Vertical 0~4 4
Time (minute) 1~4 min 2 min
The Pixel Shift value may differ depending on the monitor size (inches) and mode.
N
This function is not available in the Screen Fit mode.
N
Scrolling: This function helps remove after images on the screen by moving all the pixels on the PDP according to a pattern
•
Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image
on the screen for a long time.
Side Grey: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white
•
balance on both extreme left and right sides.
- Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.
- Light: When you set the screen ratio to 4:3, it brightens the left and right sides.
Reset Picture Mode / Cancel
❑
Resets all picture settings to the default values.
Select a picture mode to be reset. The reset is performed for each picture mode.
N
Advanced Settings
Picture Options
Picture Reset
English - 19
Setting up the TV with your PC
N
Preset: Press the SOURCE button to select PC mode.
❑
Auto Adjustment
Auto Adjustment allows the PC screen of set to self-adjust to the incoming PC video
signal. The values of ne, coarse and position are adjusted automatically.
This function does not work in DVI-HDMI mode.
N
Press the TOOLS button to display Tools menu.
T
You can also set the adjustment by selecting .
❑
Screen
The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone,
then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture
so that it is aligned on the center of screen.
Coarse
Adjusts the frequency when vertical noise appears on the screen.
Fine
Adjusts the screen to be clearer.
PC Position
Adjust the PC’s screen positioning if it does not t the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position.
Press the ◄ or ► button to adjust the Horizontal-Position.
Image Reset
You can replace all image settings with the factory default values.
Brightness : 45
Sharpness : 50
Auto Adjustment
Screen
Advanced Settings
Picture Options
Picture Reset
English - 20

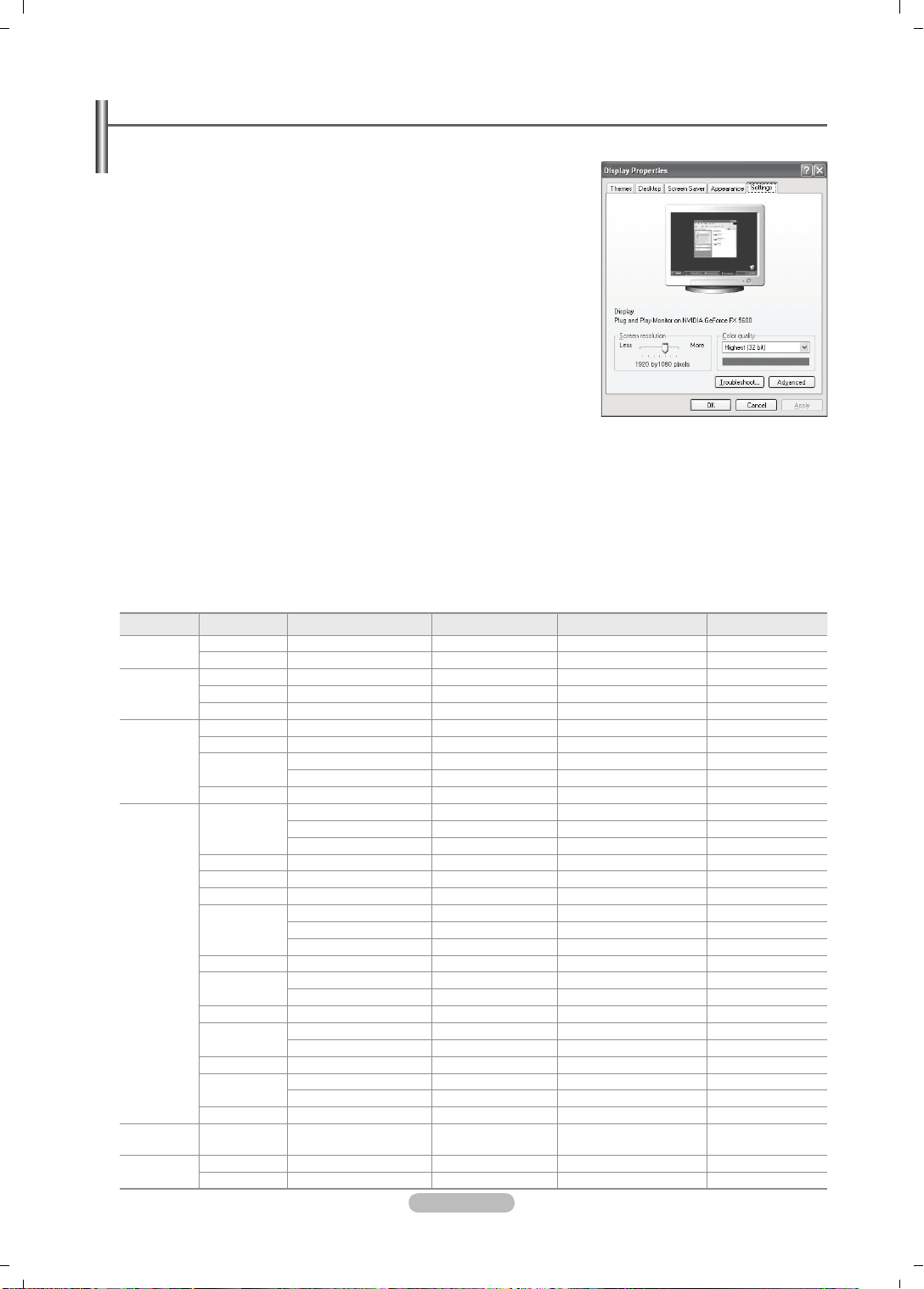

PC Display
Setting Up Your PC Software (Based on Windows XP)
❑
The Windows display-settings for a typical computer are shown below. The actual
screens on your PC will probably be different, depending upon your particular version
of Windows and your particular video card. However, even if your actual screens
look different, the same basic set-up information will apply in almost all cases. (If not,
contact your computer manufacturer or Samsung Dealer.)
1.
First, click on ‘Control Panel’ on the Windows start menu.
2. When the control panel window appears, click on ‘Appearance and Themes’ and a
display dialog-box will appear.
3.
When the control panel window appears, click on ‘Display’ and a display dialog-box
will appear.
4.
Navigate to the ‘Settings’ tab on the display dialog-box.
The correct size setting (resolution)
Optimum: 1920 X 1080 pixels
If a vertical-frequency option exists on your display settings dialog box, the correct
value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.
❑
Display Modes
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2(DVI) jack.
N
The interlace mode is not supported.
N
The set might operate abnormally if a non-standard video format is selected.
N
Separate and Composite modes are supported. SOG is not supported.
N
Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080).
N
D-Sub and HDMI/DVI Input
Mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V)
IBM
MAC
VESA CVT
VESA DMT
VESA DMT /
DTV CEA
VESA GTF
640 x 350 31.469 70.086 25.175 + / 720 x 400 31.469 70.087 28.322 - / +
640 x 480 35.000 66.667 30.240 - / 832 x 624 49.726 74.551 57.284 - / -
1152 x 870 68.681 75.062 100.000 - / +
720 x 576 35.910 59.950 32.750 - / +
1152 x 864 53.783 59.959 81.750 - / +
1280 x 720
1280 x 960 75.231 74.857 130.000 - / +
640 x 480
800 x 600
1024 x 768
1152 x 864 67.500 75.000 108.000
1280 x 800
1280 x 960 60.000 60.000 108.000
1280 x 1024
1360 x 768 47.712 60.015 85.500
1440 x 900
1680 x 1050 65.290 59.954 146.250
1920 x 1080p 67.500 60.000 148.500
1280 x 720 52.500 70.000 89.040
1280 x 1024 74.620
44.772 59.855 74.500 - / +
56.456 74.777 95.750 - / +
31.469 59.940 25.175 - / -
37.861 72.809 31.500 - / -
37.500 75.000 31.500 - / -
37.879 60.317 40.000 + / +
48.077 72.188 50.000 + / +
46.875 75.000 49.500 + / +
48.363 60.004 65.000 - / -
56.476 70.069 75.000 - / -
60.023 75.029 78.750 + / +
49.702 59.810 83.500
62.795 74.934 106.500
63.981 60.020 108.000
79.976 75.025 135.000
55.935 59.887
70.635 74.984 136.750
70.000
106.500
128.943
+ / +
- / +
- / +
+ / +
+ / +
+ / +
+ / +
- / +
- / +
- / +
+ / +
- / +
- / -
English - 21

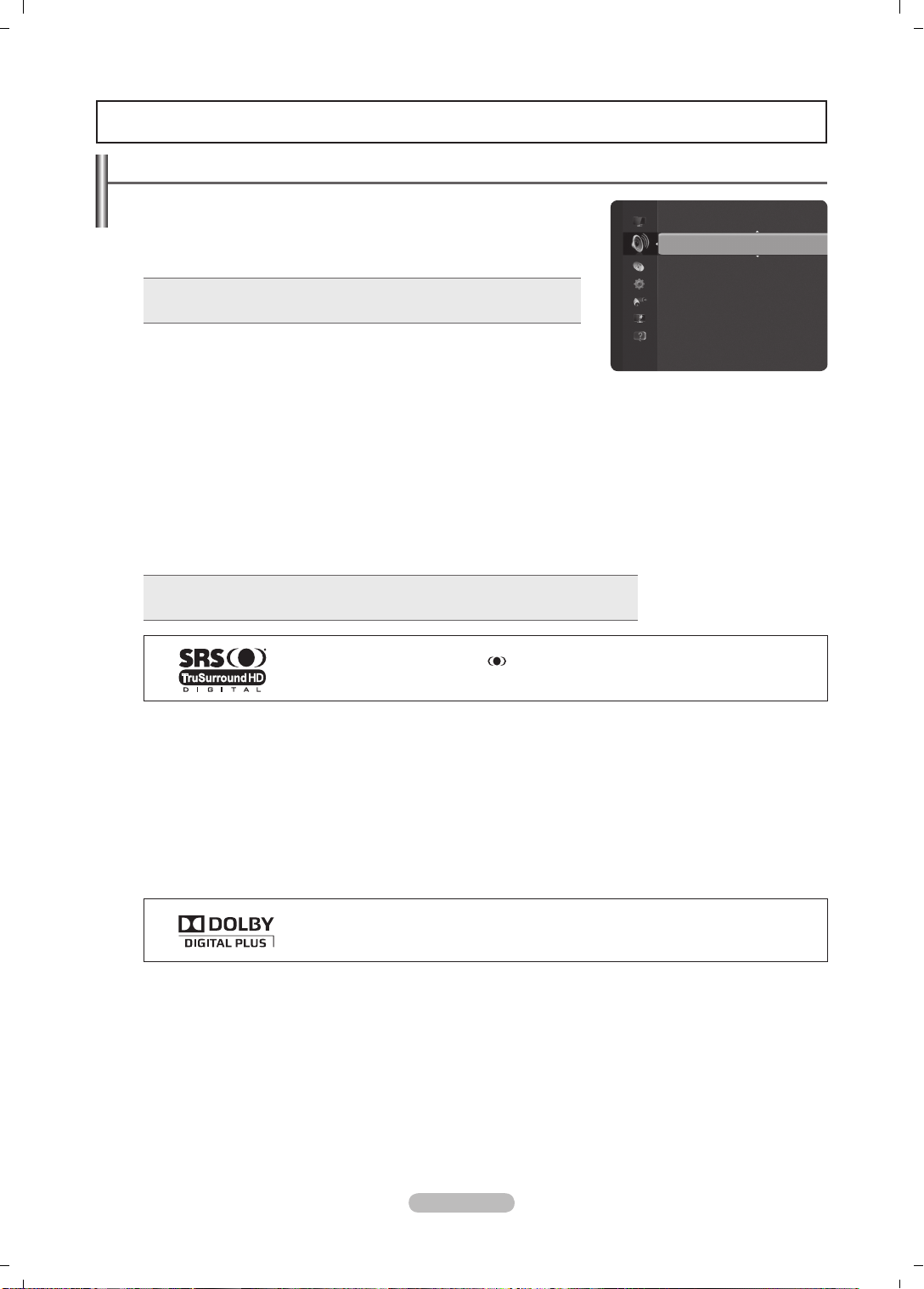

Sound Control
Changing the Sound Setting
Mode
❑
You can select the type of special sound effect to be used when watching a given
broadcast.
Standard / Music / Movie / Clear Voice / Custom
Press the TOOLS button to display Tools menu.
T
You can also congure the sound mode by selecting Tools → Sound Mode.
Equalizer
❑
The sound settings can be adjusted to suit your personal preferences.
Mode: You can select a sound mode to suit your personal preferences.
Balance: Controls the balance between the right and left speakers.
100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth Adjustment): Adjusts the level of different bandwidth frequencies
Reset: Resets the equalizer settings to the default values.
❑
SRS TruSurround HD is the combined technology of TruSurround and FOCUS, TruBass.
SRS TruSurround HD is down mixing technology that makes the Surround Sound effect of virtual 5.1 channel via two speakers.
This function provide not only rich deep bass at a low-pitched sound but also improve the resolution at a high-pitched sound.
Press the TOOLS button to display Tools menu.
T
You can also set the SRS TruSurround HD by selecting Tools → SRS TS HD.
Sound
Mode : Custom
Equalizer
SRS TruSurround HD : Off
Audio Language : ---Audio Format : ----
Audio Description
Auto Volume : Off
Speaker Select : TV Speaker
TruSurround HD, SRS and the symbol are trademarks of SRS Labs, Inc.
TruSurround HD technology is incorporated under license from SRS Labs, Inc.
N
If the sound is abnormal while TV is playing music, please adjust the equalizer and SRS TruSurround HD (Off/On).
Audio Language (only digital channel)
❑
You can change the default value for audio languages. Displays the language information for the incoming stream.
You can only select the language among the actual languages being broadcast.
N
(only digital channel)
❑
When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed
difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.
You can only select the language among the actual languages being broadcast.
N
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Audio Description (only digital channel)
❑
This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the
Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the
Audio Description On or Off and control the volume.
Off / On
Turn the audio description function on or off.
Volume
You can adjust the audio description volume.
Volume is active when Audio Description is set to On.
N
English - 22
❑

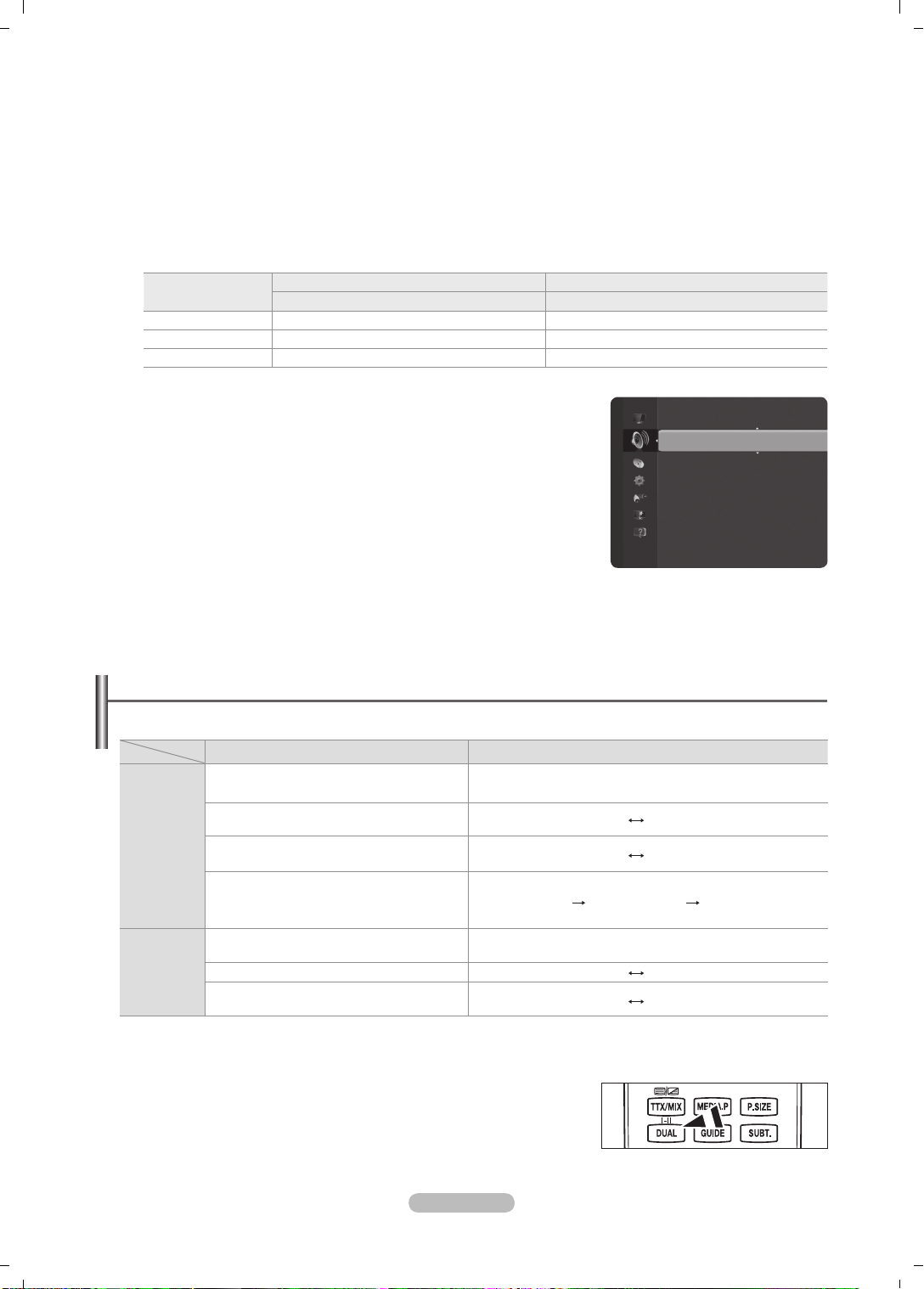

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is
changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the
modulation signal is high or by raising the sound output when the modulation signal is low.
❑
If you want to hear the sound through separate speakers, cancel the internal amplier.
The –
N
If you select External Speaker in the Speaker Select menu, the sound settings will be limited.
N
+, M MUTE buttons do not operate when the Speaker Select is set to External Speaker.
TV's Internal Speakers
TV / Ext. / AV / Component / PC / HDMI
Audio Out (Optical, L / R Out) to Sound System
TV / Ext. / AV / Component / PC / HDMI
TV Speaker Speaker Output Sound Output
External Speaker Mute Sound Output
Video No Signal Mute Mute
Sound Reset
❑
Reset All / Reset Sound Mode / Cancel:
You can restore the Sound settings to the
factory defaults.
Selecting the Sound Mode
When you set to Dual l ll, the current sound mode is displayed on the screen.
Type of broadcast
Regular broadcast
(Standard audio)
NICAM
Stereo
Regular + NICAM Mono
NICAM-Stereo
NICAM Dual-I/II
NICAM
NICAM
Stereo
NICAM
Dual-1
Auto Volume : Off
Speaker Select : TV Speaker
Sound
Sound Reset
On-screen indication
Mono (Normal use)
NICAM
Dual-2
Mono
(Normal)
Mono
(Normal)
Mono
(Normal)
Regular broadcast
A2
Stereo
If the stereo signal is weak and an automatic switching occurs, then switch to the mono.
N
This function is only activated in stereo sound signal. It is deactivated in mono sound signal.
N
This function is only available in TV mode.
N
You can select these options simply by pressing the DUAL button on the remote control.
O
(Standard audio)
Bilingual or DUAL-I/II
Stereo Stereo
Dual I Dual II
Mono (Normal use)
Mono
(Forced mono)
English - 23

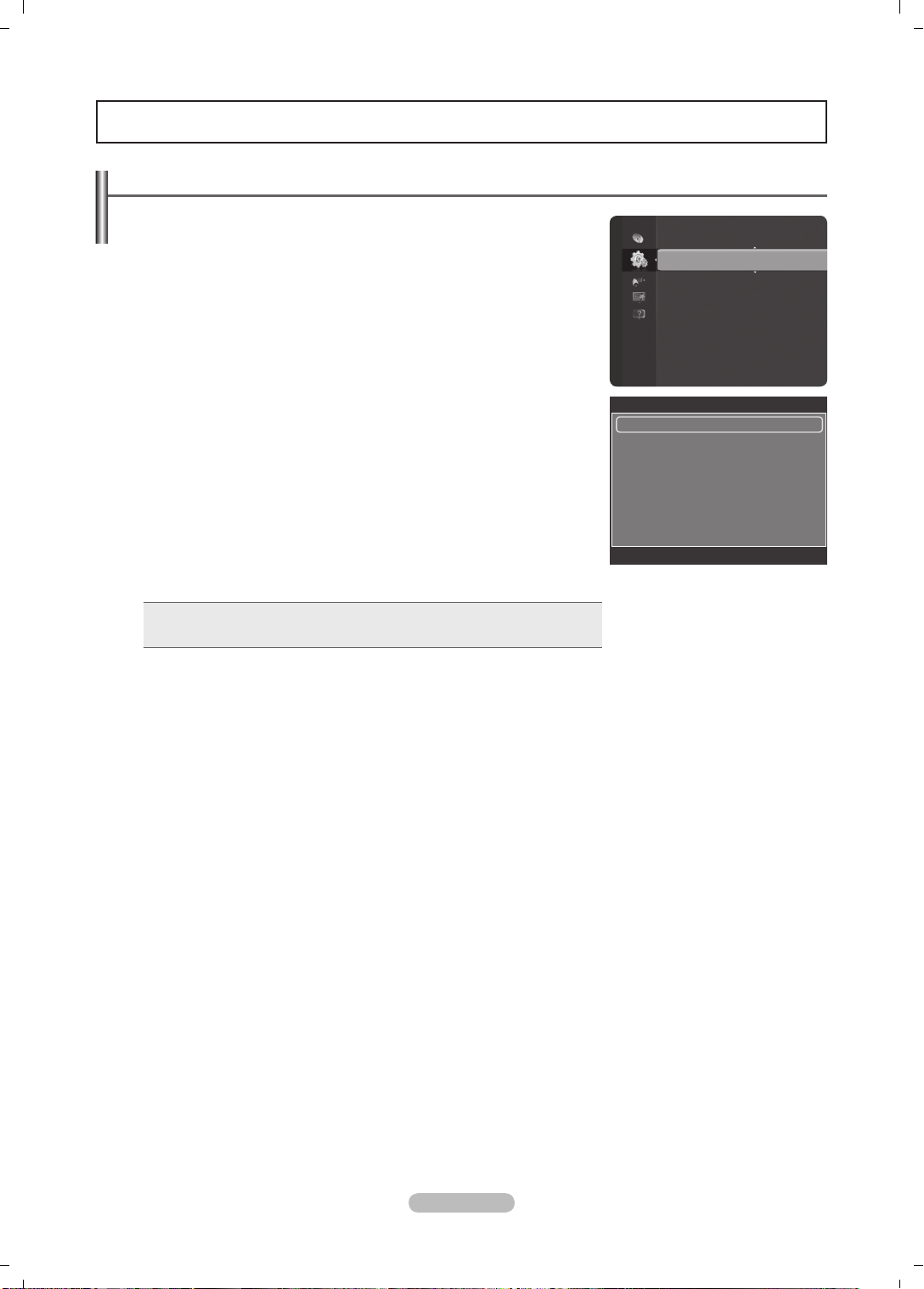

Function Description
Setting the Time
Clock
❑
Setting the clock is necessary in order to use the various timer features of the TV.
The current time will appear every time you press the INFO button.
N
If you disconnect the power cord, you have to set the clock again.
N
Clock Mode
You can set up the current time manually or automatically.
Auto: Set the current time automatically using the time from the digital broadcast.
•
Manual: Set the current time to a manually specied time.
•
Clock Set
You can set the current time manually.
Set up this item when you have set Clock Mode to Manual.
N
You can set the Day, Month, Year, Hour, Minute directly by pressing the number
N
buttons on the remote control.
Sleep Timer
❑
Plug & Play
Language : English
Setup
Time
Game Mode : Off
Child Lock : On
Change PIN
Parental Lock
Subtitle
Teletext Language
Preference
Time
Clock : -- : -- ►
Sleep Timer : Off
Timer 1 : Inactivated
Timer 2 : Inactivated
Timer 3 : Inactivated
The sleep timer automatically shuts off the TV after a preset time.
(30, 60, 90, 120, 150 and 180 minutes).
U
The TV automatically switches to standby mode when the timer reaches 0.
N
To cancel the Sleep Timer function, select Off.
N
Press the TOOLS button to display Tools menu.
T
Move E Enter R Return
You can also set the sleep timer by selecting .
Timer 1 / Timer 2 / Timer 3
❑
You can set the TV to turn on or off at a desired time.
On Time:
Off Time: Sets the time for the TV to turn off.
Volume: Set the required volume level.
Source : Selects TV or USB device.
When you select the TV, you can set the Antenna and Channel.
N
-
-
When you select the USB, you can set the Contents.
N
-
Repeat : Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual.
When Manual is selected, press the ► button to select the desired day of the week. Press the ENTERE button over the desired
N
Sets the time for the TV to turn on. (To activate timer with the setting you’ve chosen, set to(To activate timer with the setting you’ve chosen, set to Activate.)
Antenna: You can select either DTV or ATV when the TV turns on automatically.
Channel: Select the desired channel.
Contents: Selects the desired contents on the USB.
day and the (c) mark will appear.
N
The whole folder on the USB are supports English 64 character.
You must set the clock rst.
N
You can set the hour, minute and programme by pressing the number buttons on the remote control.
N
Auto Power Off
N
When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the
TV was turned on
by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long
time.
English - 24

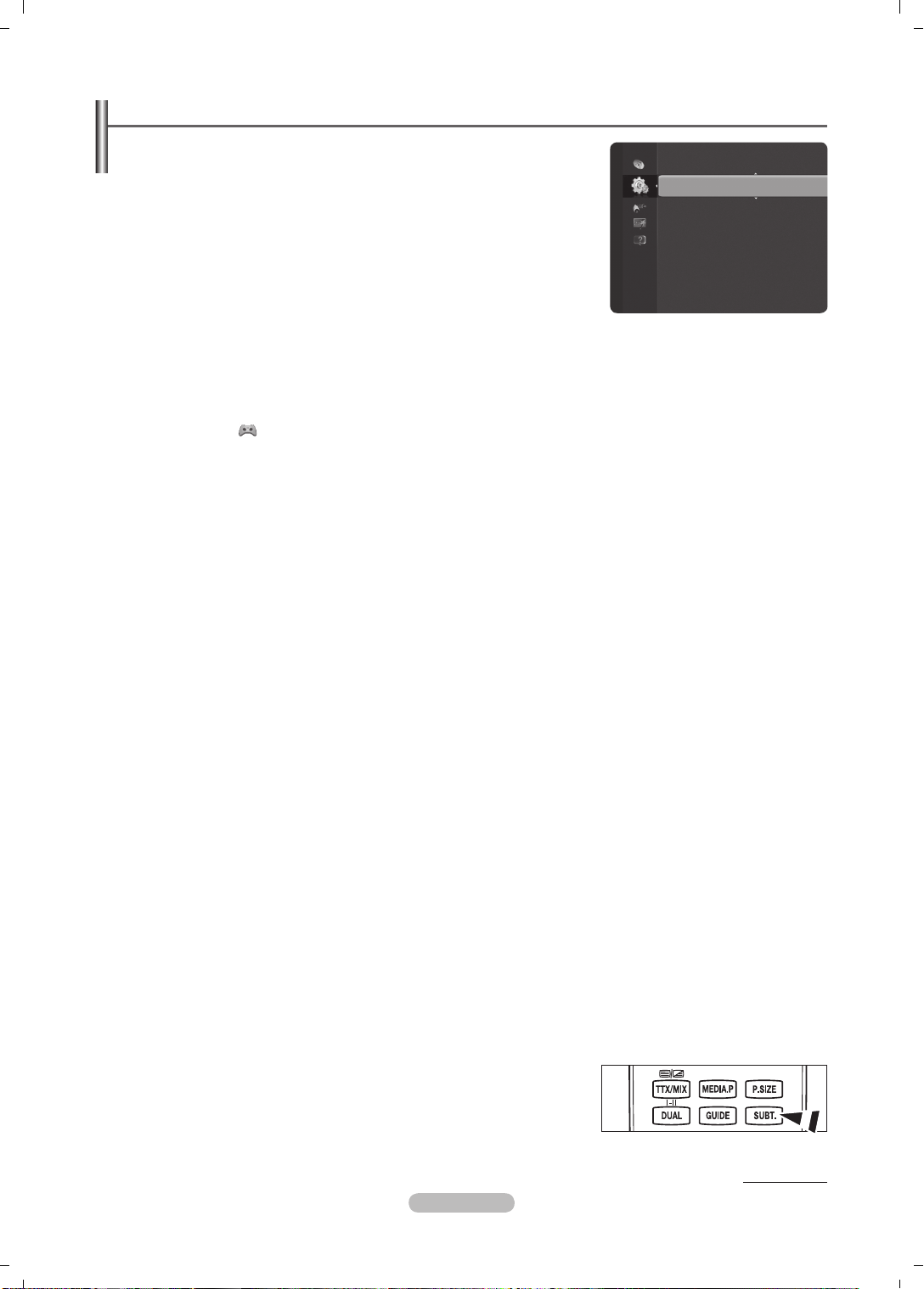

Configuring the Setup Menu
Language
❑
Plug & Play
You can set the menu language.
Off / On
❑
When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy
a more realistic gaming experience by selecting the game menu.
When the Game Mode is On
Picture Mode is automatically changed to Standard and users cannot change
•
the mode.
Sound Mode is automatically changed to Custom and users cannot change the
•
mode. Adjust the sound using the equalizer.
The Reset in the Sound menu is activated. Reset function initializes the Equalizer settings to the factory default setting.
•
Game Mode is not available in regular TV mode or Game Mode set to Off.
N
If the picture is poor when external device is connected to TV, check if Game Mode is On.
N
If you display the TV menu in Game mode, the screen shakes slightly.
N
The mark (
N
This function supports only game function.
N
Game mode is not available in PC mode.
N
❑
This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video
and audio.
Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number
N
The default PIN number of a new TV set is 0-0-0-0. You can change the PIN by selecting Change PIN from the menu.
N
You can lock some channels in Channel List. (refer to page 15)
N
Child Lock is available only in TV mode.
N
) appears on the screen which means that Game Mode is on with the selected source.
Setup
Language : English
Time
Game Mode : Off
Child Lock : On
Change PIN
Parental Lock
Subtitle
Teletext Language
.
Change PIN
❑
You can change your personal ID number that is required to set up the TV.
Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number
N
If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0:
N
POWER (Off),
❑
This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN
(Personal Identication Number) code that is dened by the user.
The Parental Rating item differs depending on the country.
N
Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number
N
The default PIN number of a new TV set is 0-0-0-0. You can change the PIN by selecting Change PIN from the menu.
N
When the parental ratings are set, the \ symbol is displayed.
N
Allow All / Block All: Press to unlock or lock all TV ratings.
N
Subtitle
❑
You can activate and deactivate the subtitles. Use this menu to set the Subtitle Mode. Normal under the menu is the basic subtitle
and Hard of hearing is the subtitle for a hearing-impaired person.
Off / On: Switches subtitles off or on.
•
•
Normal / Hard of hearing: Sets the subtitle mode.
•
Subtitle Language: Set the subtitle language.
If the programme you are watching does not support the Hard of hearing function, Normal automatically activates even though
N
Hard of hearing mode is selected.
English is the default in cases where the selected language is unavailable in the
N
broadcast.
O
You can select these options simply by pressing the SUBT. button on the remote
control.
Teletext Language
❑
You can set the Teletext language by selecting the language type.
English is the default in cases where the selected language is unavailable in the broadcast.
N
MUTE, 8, 2, 4, POWER (On).
.
.
Continued...
English - 25

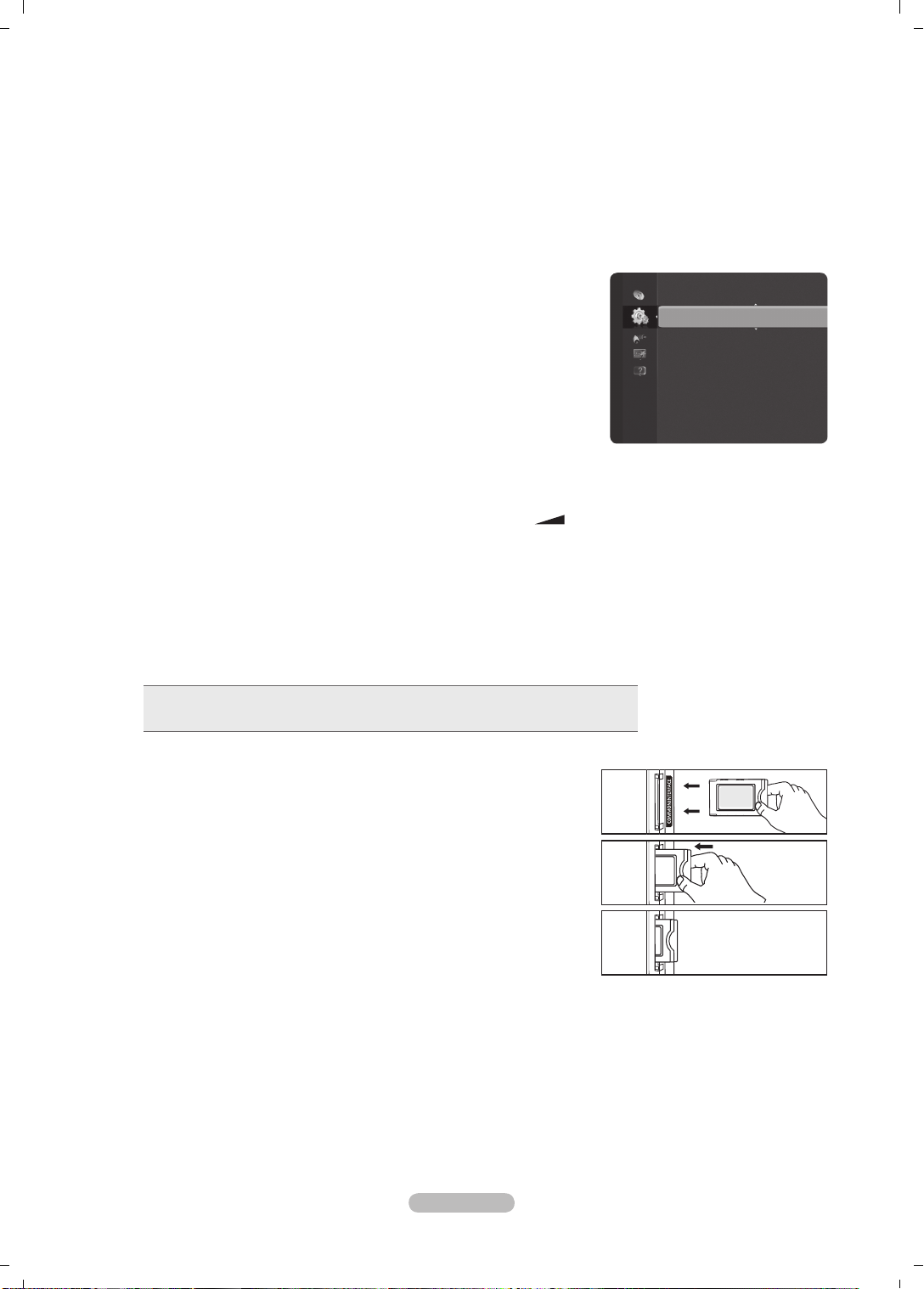

Preference
❑
Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language /
Primary Teletext Language / Secondary Teletext Language
Using this feature, users can select one of the languages. The language selected here is the default when the user selects a
channel.
If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu are
automatically changed to the selected language.
The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported
by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the
current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or
the Primary Teletext Language of the Preference menu.
❑
If the programme is broadcast with digital text, this feature is enabled.
MHEG (Multimedia and Hypermedia Information Coding Experts Group)
N
An International standard for data encoding systems used in multimedia and
hypermedia. This is at a higher level than the MPEG system which includes
data-linking hypermedia such as still images, character service, animation, graphic
Teletext Language
Preference
Setup
Digital Text : Enable
Melody : Medium
Energy Saving : Off
Common Interface
and video les as well as multimedia data. MHEG is user runtime interaction
technology and is being applied to various elds including VOD (Video-OnDemand), ITV (Interactive TV), EC (Electronic Commerce), tele-education,
tele-conferencing, digital libraries and network games.
❑
The TV power on / off melody sound can be adjusted.
The Melody does not play
N
- When no sound is output from the TV because the M MUTE button has been pressed.
- When no sound is output from the TV because the – (Volume) button has been pressed.
- When the TV is turned off by Sleep Timer function.
Energy Saving
❑
This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the
Energy Saving mode option to High to reduce eye fatigue as well as power consumption.
Off: Turns off the energy saving function.
•
•
Low: Sets the TV to low energy saving mode.
•
Medium: Sets the TV to medium energy saving mode.
•
High: Sets the TV to high energy saving mode.
Press the TOOLS button to display Tools menu.
T
You can also set the Energy Saving option by selecting .
Common Interface
❑
The CI+ function is only applicable to PS********P model.
N
If you have some problems, please contact to service provider
Installing the CI Card
1. Purchase the CI CAM module by visiting your nearest dealer or by phone.
2. Insert the CI CARD into the CAM in the direction of the arrow until it ts.
3. Insert the CAM with the CI CARD installed into the common interface slot.
Insert the CAM in the direction of the arrow, right up to the end so that it is parallel
N
with the slot.
4. Check if you can see a picture on a scrambled signal channel.
CI Menu
This enables the user to select from the CAM-provided menu.
Select the CI Menu based on the menu PC Card.
Application Info.
This contains information on CAM inserted in the CI slot and displays it.
The Application Info inserting is about the CI CARD. You can install the CAM anytime whether the TV is ON or OFF.
CAM is not supported in some countries and regions, check with your authorized dealer.
N
English - 26

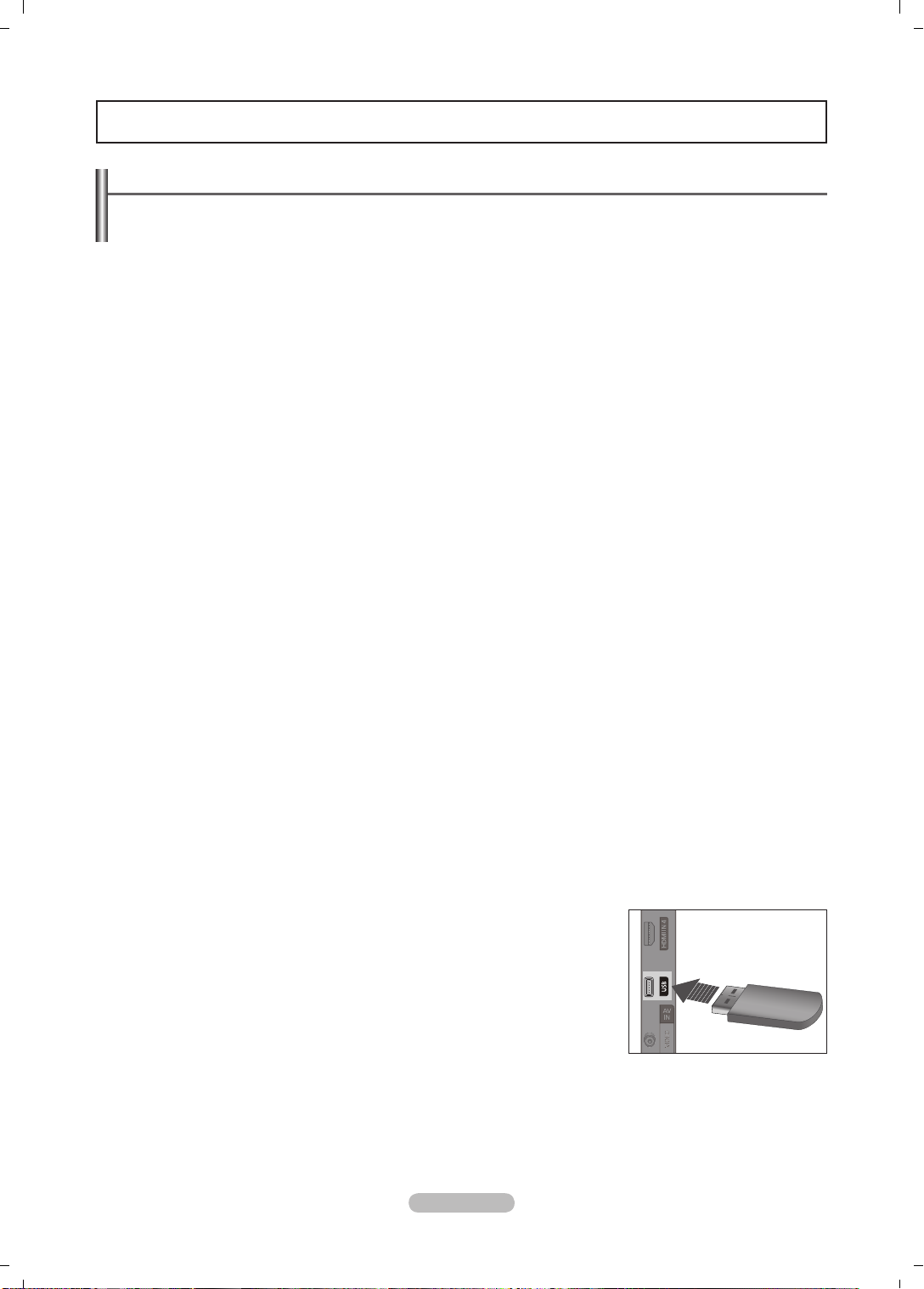

Support / Input
Supported Program
Self Diagnosis
❑
Picture Test
If you think you have a picture problem, perform the picture test. Check the Colour pattern on the screen to see if the problem still
exists.
Does the problem still exist with this test photo? appears on the screen.
N
If the test pattern does not appear or there is noise in the test pattern, select Yes.
N
If the test pattern is properly displayed, select No.
Yes : There may be a problem with the TV. Contact Samsung’s Call Center for assistance.
•
No : There may be a problem with your external equipment. Please check your connections. If the problem still persists, refer
•
to the external device’s user manual.
Sound Test
❑
If you think you have a sound problem, please perform the sound test.
You can check the sound by playing a built-in melody sound through the TV.
Does the problem still exist with this sound test? appears on the screen.
N
If during the sound test you can hear sound only from one speaker or not at all, select
speakers, select No.
Yes : There may be a problem with the TV. Contact Samsung’s Call Center for assistance.
•
No : There may be a problem with your external equipment. Please check your connections. If the problem still persists, refer
•
to the external device’s user manual.
If you hear no sound from the TV’s speakers, before performing the sound test, make sure Speaker Select is set to TV speaker
N
in the Sound menu.
The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing
N
the M MUTE button.
If headphones are connected, the test melody will play through the headphones.
N
Yes.If you can hear sound from the
Signal Strength (Digital channels only)
You can adjust your antenna to improve the reception of available digital channels.
If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength.
N
Continue to adjust the antenna until you nd the best position with the strongest signal.
Software Upgrade
❑
To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of
the normal Television signal. It will automatically detect these signals and display the software upgrade banner. You are given the
option to install the upgrade.
By USB
Insert a USB drive containing the rmware upgrade into TV. Please be careful to not disconnect the power or remove the USB drive
while upgrades are being applied. The TV will turn off and turn on automatically after completing the rmware upgrade. Please
check the rmware version after the upgrades are complete. When software is upgraded, video and audio settings you have made
will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the
upgrade.
By Channel
Upgrades the software using the broadcasting signal.
If the function is selected during the software transmission period, this function
N
searches for available software and downloads the software.
The time required to download the software is determined by the signal status.
N
Standby Mode Upgrade
To continue software upgrade with master power on, Select On by pressing the ▲ or
▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically
conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the product. This phenomenon may
continue for more than 1 hour until the software upgrade is completed.
TV Side Panel
USB Drive
English - 27
Alternative Software
Replace the current software with the alternative.
If software was changed, existing software is displayed.
N
You can change current software to alternative software by Alternative Software.
N
HD Connection Guide
❑
The brief instruction on How to get the best performance from your new HDTV is displayed. We offer the connection method for
HD devices.
You can move the previous or next page by pressing the ◄ or ► button.
N
Contact Samsung
❑
You can know the Samsung Call center, website and information for product.

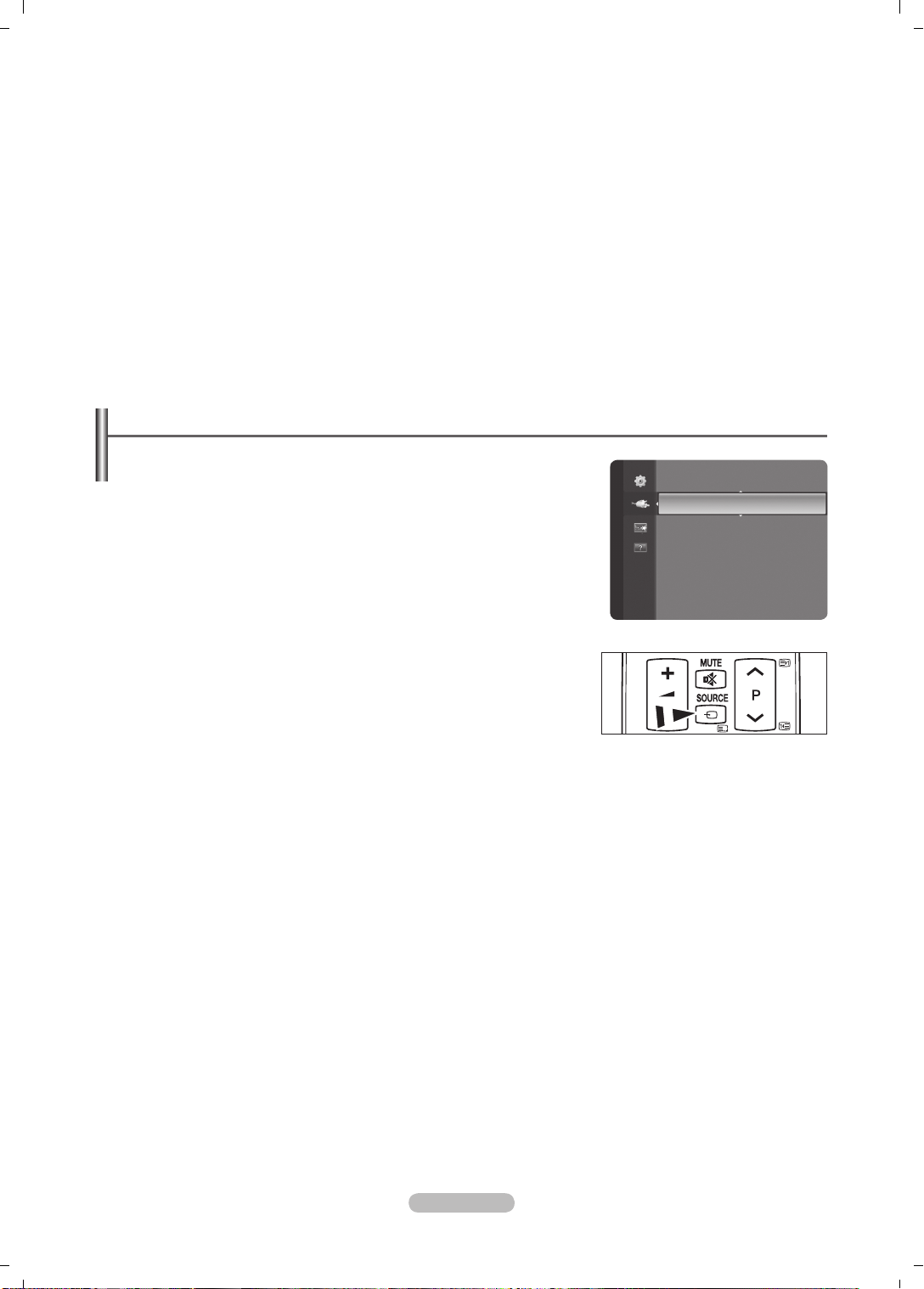

Source List / Edit Name
Source List
❑
Use to select TV or other external input sources such as DVD players or Cable Box /
Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of
your choice.
TV, Ext.1, Ext.2, AV, Component, PC, HDMI1, HDMI2/DVI, HDMI3, HDMI4, USB.
You can choose only those external devices that are connected to the TV. In the
N
Source List, connected inputs will be highlighted and sorted to the top. Inputs that
are not connected will be sorted to the bottom.
N
Using the Colour buttons on the remote with the Source list
- Red (Refresh): Refreshes the connecting external devices.
T (Tools): Displays the Edit Name and Information menus.
-
O
Press the SOURCE button on the remote control to view an external signal
source.
Input
Source List
Edit Name
Edit Name
❑
You can name the device connected to the input jacks to make your input source selection easier.
VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI / DVI PC / TV / IPTV /
Blu-ray / HD DVD / DMA
When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2(DVI) port, you should set the HDMI2 / DVI
N
mode to PC in the Edit Name of the Input mode.
English - 28

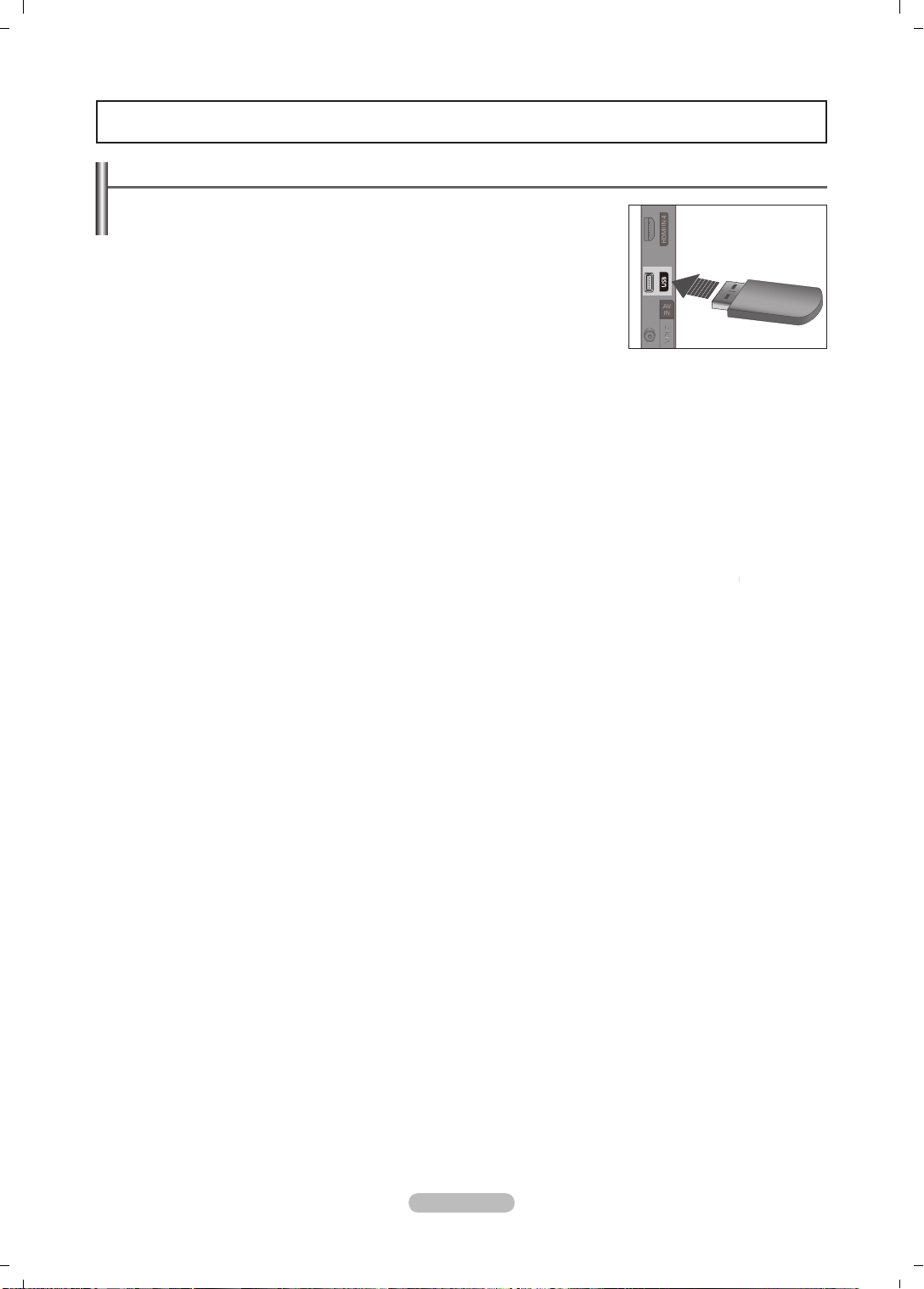

Media Play
Connecting a USB Device
1. Press the POWER button to turn the TV on.
2. Connect a USB device containing photo, music and movie les to the USB jack on the side
of the TV.
Media Play only supports USB Mass Storage Class devices (MSC). MSC is a Mass
N
Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash
Card Readers (Both USB HDD and HUB are not supported.)
MTP (Media Transfer Protocol) is not supported.
N
The le system only supports FAT16/32 (The NTFS le system is not supported).
N
Certain types of USB Digital camera and audio devices may not be compatible with this
N
Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB compatibility
N
problem.
Before connecting your device to the TV, please back up your les to prevent them from damage or loss of data. SAMSUNG is not
N
responsible for any data le damage or data loss.
Do not disconnect the USB device while it is loading.
N
MSC supports MP3 and JPEG les, while a PTP device supports JPEG les only.
N
The sequential JPEG format is supported.
N
The higher the resolution of the image, the longer it takes to display on the screen.
N
The maximum supported JPEG resolution is 15360X8640 pixels.
N
For unsupported or corrupted les, the Not Supported File Format message is displayed.
N
If the number of photo les exceeds 4000 (or the number of music les exceeds 3000), any les exceeding the 4000 limit may not
N
be displayed in the Photo List (or Music List).
MP3 les with DRM that have been downloaded from a non-free site cannot be played.
N
DRM(Digital Rights Management) prevents illegal uses of digital media for copyright protection.
N
When moving to a photo, loading may take a few seconds. At this point, the loading icon will appear at the screen.
N
TV.
TV Side Panel
USB Drive
English - 29

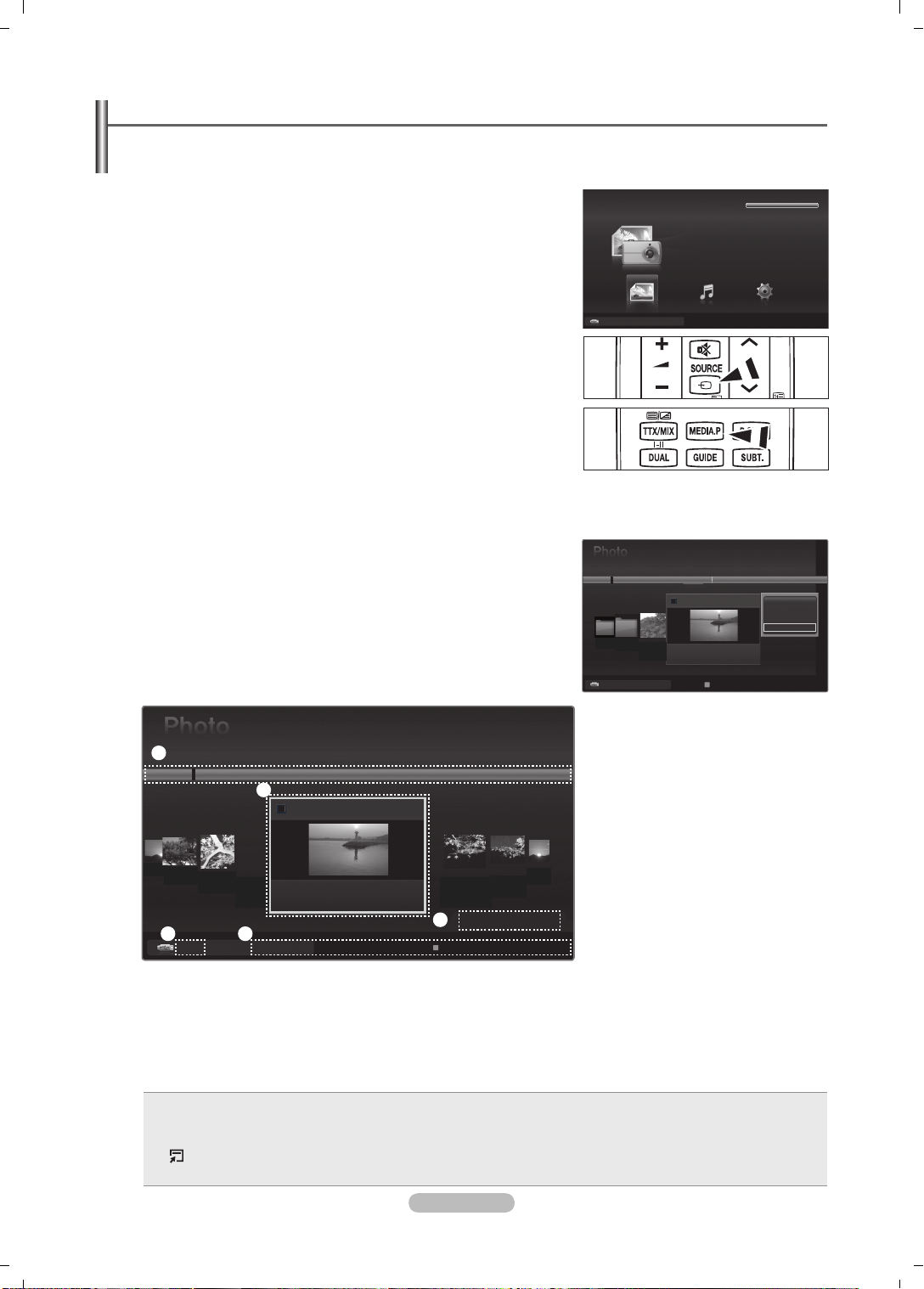

Using the Media Play Function
This function enables you to view and listen to photo, music and movie files saved on a USB Mass Storage Class (MSC) device.
❑
Entering the Media Play Menu
▶
1
▶
1
Select
148.48MB/995.00MB Free
R
4/6
Slide Show
Play Current Group
Information
Remove Safely
T
Tools R Upper Folder
Return
1. Press the MENU button. Press the ▲ or ▼ button to select Application, then
press the ENTERE button.
2. Press the ▲ or ▼ button to select Media Play (USB), then press the ENTERE
button.
The Media Play menu is displayed.
N
Press the SOURCE button on the remote control repeatedly to select USB,
O
then press the ENTER
O
Press the MEDIA.P button on the remote control to display the Media Play
E
button.
menu.
3.
Press the Red button, then press the ▲ or ▼ button to select the corresponding
USB Memory Device (i.e. if connected through a hub). Press the ENTERE
button.
This function differs depending on the USB Memory Device/ DLNA device
N
connected to TV.
The selected USB device name appears at the bottom left of the screen.
N
4.
Press the ◄ or ► button to select an icon (Photo, Music, Setup), then press
the ENTERE button.
To exit Media Play mode, press the MEDIA.P button on the remote control.
N
In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself.
N
❑
Removing a USB Memory Device Safely
You can remove the device safely from the TV.
1.
Press the TOOLS button in the Media Play le list screen, or while a Slide Show
or music le is being played.
2. Press the ▲ or ▼ button to select Remove Safely, then press the ENTERE
button.
3.
Remove the USB device from the TV.
Screen Display
❑
Media Play
Photo Music Setup
USB Device
IMG_0345.
IMG_0346.
IMG_0349.
JPG
JPG
JPG
USB
USB Device
USB : USB name
2
IMG_03496.
IMG_03496.
JPG
JPG
USB
3
USB Device
1
▶
5
▶
▶
1
▶
▶
1
▶
1/67
◀
4
Select
IMG_03496.
IMG_0343.
JPG
JPG
1File(s) Selected
T
Tools R Upper Folder
1. Currently selected le: The currently selected le is highlighted.
2. View Groups: The sorting group including the currently selected photo is highlighted.
N
One group involves the nine photos.
Current Device: Shows the currently selected device name.
3.
4. Item Selection Information: Shows the number of photos that are selected by pressing the Yellow button.
5. Help Items
Red (Device) button: Selects a connected device.
•
Yellow (Select) button: Selects le from the le list. Selected les are marked with a symbol c. Press the yellow button again
•
to cancel a le selection.
•
(Tools) button: Displays the option menus. (The tools menu changes according to the current status.)
•
R (Return) button: Return to previous menu.
English - 30

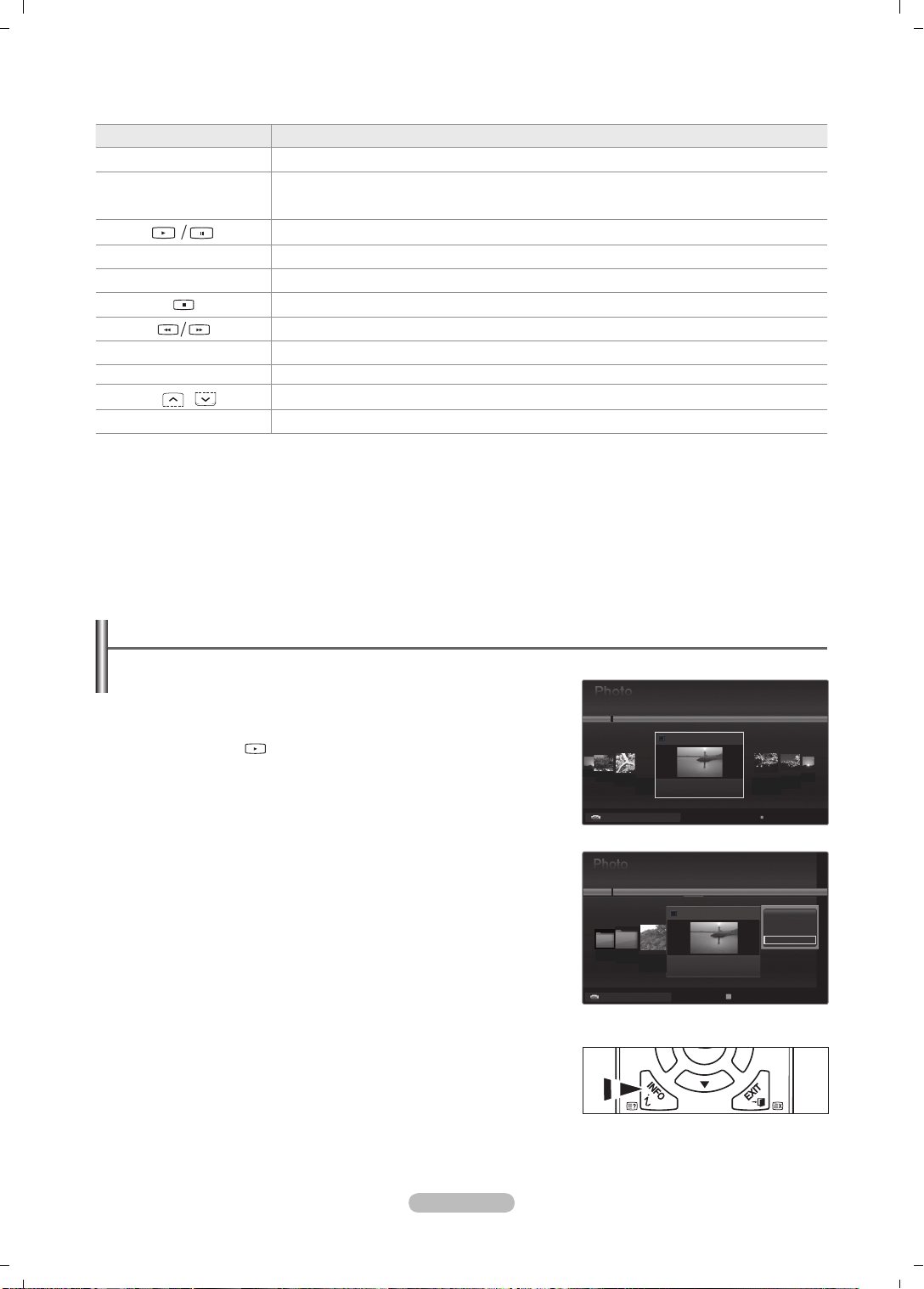

Using the Remote Control Button in Media Play Menu
❑
Button Operations
▲/▼/◄/► Move the cursor and select an item.
ENTER
E
Select the currently selected item.
Play or pause the files while playing the slide show or music files.
Play or pause the Slide Show or Music file.
RETURN
TOOLS
Return to the previous menu.
Run various functions from the Photo, Music and Movie menus.
Stop the current slide show, Music or Movie file.
Jump to previous group/Jump to next group.
INFO
MEDIA.P
/
P
EXIT
Show file information.
Exit Media Play mode.
Stop Media Play mode and Returns to TV mode.
Stop the current function and return to the Media Play main menu.

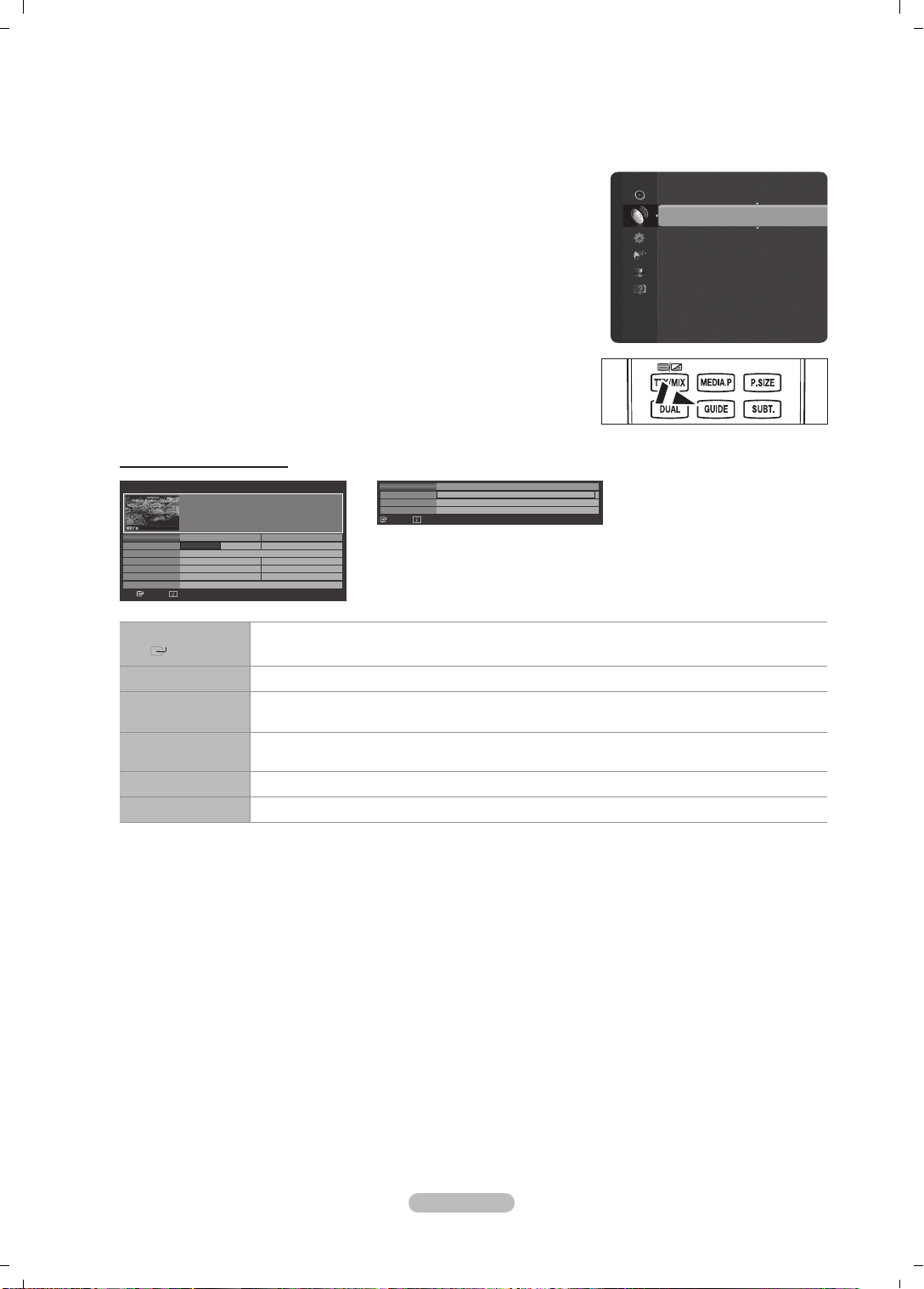

Using and Sorting Photo List
You can sort photos in the Photo List by a particular standard.
Press the MEDIA.P button on the remote control to display the Media Play menu.
1.
2. Press the ◄ or ► button to select Photo, then press the ENTERE button.
3.
Press the (Play)/
by the user.
The information of a photo le is automatically set.
N
Photos for which information cannot be displayed are set as Unclassified.
N
PTP does not support folder sort mode.
N
Photo List Tools Menu
❑
Slide Show
You can play a Slide Show using the photo les on the USB memory device.
Play Current Group
You can play a Slide Show using only the photo les in the currently selected sorting
group.
Information
The photo le information including the name, the size, the resolution, the date
modied and the path is displayed.
You can view the information of photo les during a Slide Show using the same
N
procedures.
Alternatively, select a photo from the photo list and press the INFO button to view
O
the information.
Remove Safely
You can remove the device safely from the TV.
ENTER
E
button to start the Slide Show in the order selected
IMG_03496.
IMG_03496.
JPG
JPG
USB
USB Device
IMG_0345.
IMG_0346.
JPG
JPG
USB
USB Device
IMG_0349.
▶
JPG
▶
▶
▶
▶
1
▶
1
1/67
◀
IMG_03496.
IMG_0343.
JPG
JPG
Select
T
Tools R Return
▶
1
▶
1
4/6
Slide Show
Play Current Group
Information
Remove Safely
Select
T
Tools R Return
Loading...
