PDP TV
quick start guide
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service, please
register your product at
www.samsung.com/global/register
connections
Caution
● When connecting an external device, match the colour of the connection terminal to the cable.
Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel con guration.
CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA HDMI
TV REAR PANEL
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
HDMI Cable (Not supplied)
1.
Connect an HDMI Cable(Not supplied) between the HDMI IN (1 or 2) jack on the TV and the HDMI jack on the
Cable Box/Satellite receiver (Set-Top Box).
➢
No additional Audio connection is needed for an HDMI to HDMI connection.
1
1

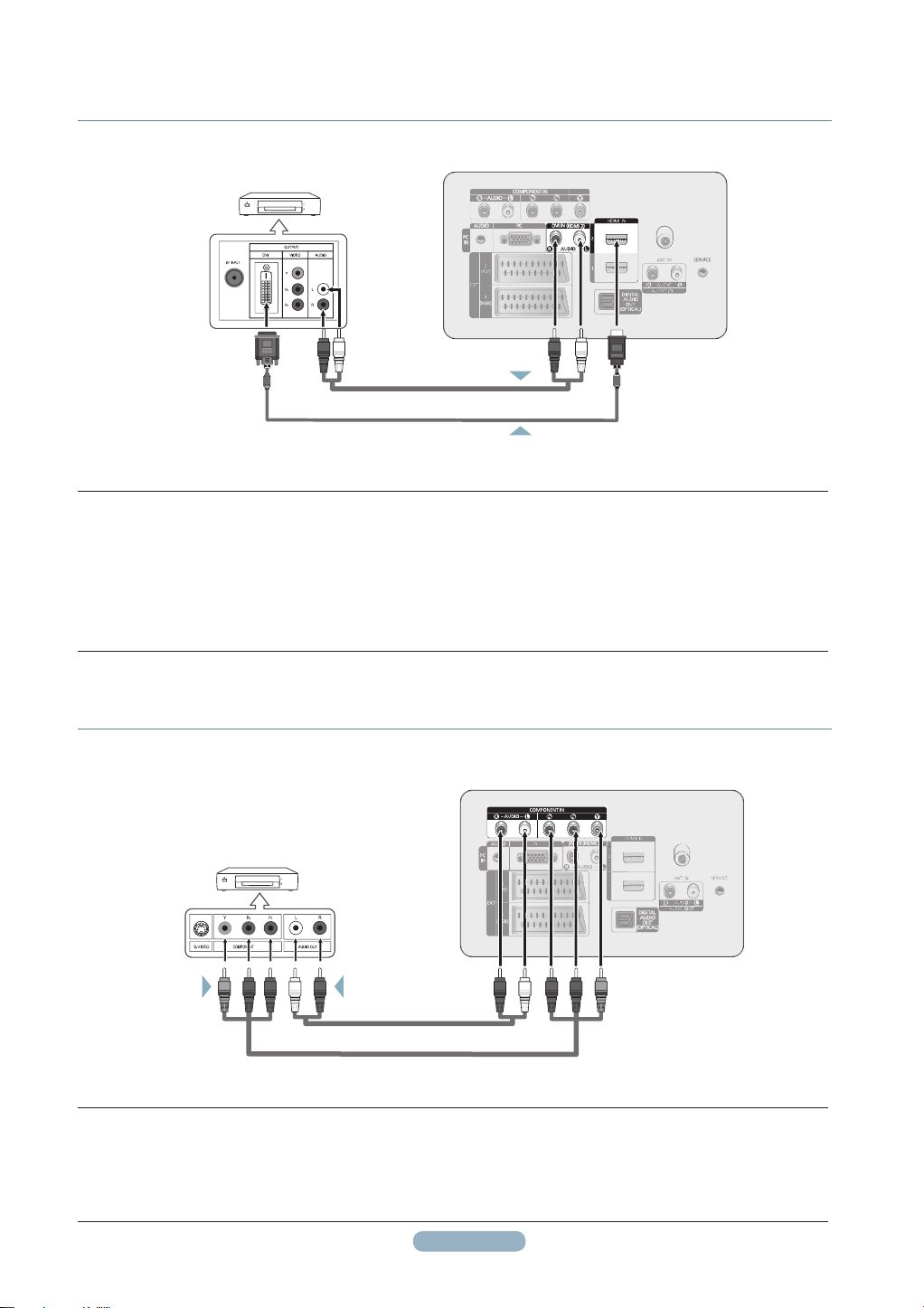

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA DVI
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
Audio Cable (Not supplied)
HDMI/DVI Cable (Not supplied)
TV REAR PANEL
2
1
1.
Connect an HDMI Cable(Not supplied) between the HDMI IN 2 jack on the TV and the HDMI jack on the Cable
Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables(Not supplied) between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the Cable
Box/Satellite receiver (Set-Top Box).
➢
When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN2 jack.
CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA COMPONENT CABLES
1
1.
Connect a Component Cable(Not supplied) between the COMPONENT IN [Y, PB, PR] jacks on the TV and the
COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables(Not supplied) between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT
jacks on the Cable Box/Satellite receiver (Set-Top Box).
2
Audio Cable (Not supplied)
Component Cable (Not supplied)
2
Storing Channels Automatically
Not available in DTV or external input mode.
➢
You can scan for the frequency ranges available to you (availability depends on your country).
Automatically allocated programme numbers may not correspond to actual or desired programme
numbers. However you can sort numbers manually and clear any channels you do not wish to
watch.
1. Press the MENU button to display the menu.
2. Press the ▲ or ▼ button to select Channel, then press the ENTER button.
3. Press the ENTER button again. The available countries are listed.
4. Select your country by pressing the ▲ or ▼ button, then press the ENTER button.
Even though you have changed the country setting in this menu, the country setting for DTV is not changed. Use the Plug
➢
& Play function to change the country setting for DTV. (Refer to pages 10 to 11 of the Owner's manual)
5. Press the ▲ or ▼ button to select Auto Store, then press the ENTER button.
6. Press the ENTER button again to start the search.
The search will end automatically.
To stop the search before it has finished, press the MENU or the ENTER button.
➢
T V
Country :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Move
Channel
United Kingdom
Enter
Return
Troubleshooting
Before contacting the Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the television and contact your local
dealer.
No sound or picture
Normal picture but no sound
No picture or black and white
Sound and picture
interference
Blurred or snowy picture,
distorted sound
Remote control malfunctions
Screen is black and power
indicator light blinks steadily
The damaged picture appears
in the corner of the screen.
• Check that the mains lead has been connected to a wall socket.
• Check that you have pressed the (Power) button (On/Off) on the front panel or press the
POWER button on the remote control.
• Check the picture contrast and brightness settings.
• Check the volume.
• Check if TV Speaker is set to Off.
• Check the volume.
• Check whether the volume MUTE button on the remote control has been pressed.
• Adjust the colour settings.
• Check that the broadcast system selected is correct.
•
Try to identify the electrical appliance that is affecting the television, then move it further away.
• Plug the television into a different main socket.
• Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.
• Replace the remote control batteries.
• Clean the upper edge of the remote control (transmission window).
• Check that the “+” and “–” ends of the batteries are inserted correctly.
• Check that the batteries are drained.
• On your computer check; Power, Signal Cable.
• The TV is using its power management system.
• Move the computer’s mouse or press any key on the keyboard.
• On your equipment check (STB, DVD, etc) ; Power, Signal Cable.
• The TV is using its power management system.
• Press the Source button on the panel or remote control.
• Turn the TV off and on.
• If Just Scan is selected in some external devices, the damaged picture may appear in the
corner of the screen. This symptom is caused by external devices, not TV.
The “Resets all settings to
the default values” message
appears.
• This appears when you press and hold the EXIT button for a while. The product settings are
reset to the factory defaults.
3
