Samsung NETWORK DIGITAL VIDEO RECORDER User Manual

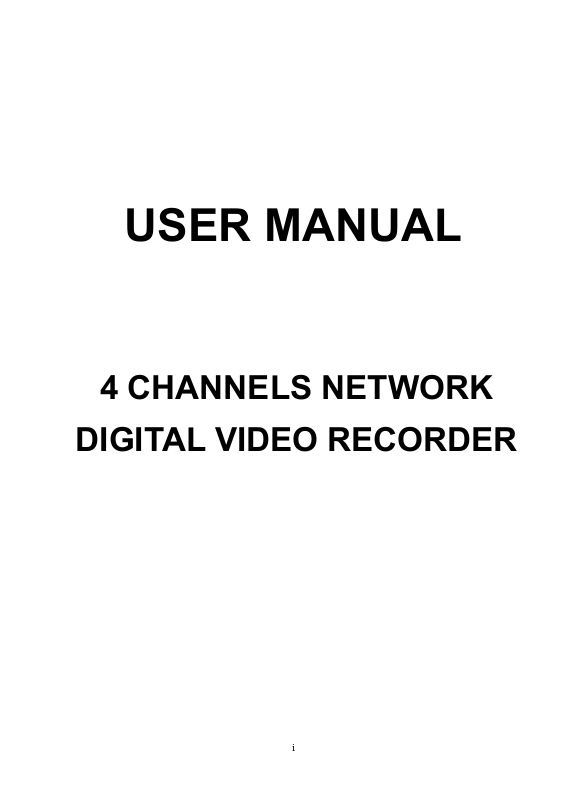

USER MANUAL

4 CHANNELS NETWORK

DIGITAL VIDEO RECORDER

INSTRUCTION MANUAL

To obtain the best performance and ensure device function correctly, please read this

instruction manual carefully and completely.

FCC Compliance

USER-INSTALLER CAUTION: YOUR AUTHORITY TO OPERATE THIS FCC

VERIFIED EQUIPMENT COULD BE VOIDED IF YOU MAKE CHANGES OR

MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE

FOR COMPLIANCE TO PART 15 OF THE FCC RULES.

NOTE: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH

THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE

FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE

PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS

OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT

GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF

NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION

MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO

COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO

CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE

REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

THIS CLASS A DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE

CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

Warnings and Cautions

WARINGS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insinuated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the product.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

USERS OF THE SYSTEM ARE RESPONSIBLE FOR CHECKING AND COMPLYING WITH ALL

FEDERAL, STATE, AND LOCAL LAWS AND STATUTES CONCERNING THE MONITORING AND

RECORDING OF VIDEO AND AUDIO SIGNALS. ULTRAK SHALL NOT BE HELD RESPONSIBLE

FOR THE USE OF THIS SYSTEM IN VIOLATION OF CURRENT LAWS AND STATUTES.

iii

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION ------------------------------------------------------------------------------------------ 1

FEATURE ---------------------------------------------------------------------------------------------------------- 1

CHAPTER 2 HARDWARE OVERVIEW ------------------------------------------------------------------------------ 2

CHAPTER 3 SETUP PROCEDURES --------------------------------------------------------------------------------- 4

1. MAIN MENU SETUP ----------------------------------------------------------------------------------------- 4

2. SYSTEM SETUP --------------------------------------------------------------------------------------------- 4

3. CAMERA SETUP --------------------------------------------------------------------------------------------- 5

4. RECORD SETUP --------------------------------------------------------------------------------------------- 5

5. SCHDULED RECORD -------------------------------------------------------------------------------------- 6

6. EVENT LIST ---------------------------------------------------------------------------------------------------- 6

7. HDD MANAGEMENT ---------------------------------------------------------------------------------------- 7

8. LOAD DEFAULT ---------------------------------------------------------------------------------------------- 8

9. EXIT -------------------------------------------------------------------------------------------------------------- 8

CHARPTER 4 OPERATION PROCEDURES ----------------------------------------------------------------------- 9

1. GETTING STARTED WITH YOUR MACHINE -------------------------------------------------------- 9

2. RECORDING -------------------------------------------------------------------------------------------------- 9

3. PLAYBACK ----------------------------------------------------------------------------------------------------- 9

4. HARD DISK and CF Card RECOMMEND ------------------------------------------------------------- 10

5. BACKUP -------------------------------------------------------------------------------------------------------- 11

6. ALARM CONTROL ------------------------------------------------------------------------------------------- 12

7. EXTERNAL ALARM CONNECTOR ---------------------------------------------------------------------- 12

8. NETWORK ----------------------------------------------------------------------------------------------------- 13

SPECIFICATIONS ------------------------------------------------------------------------------------------------- 13

CHAPTER 5 RECORDING TIME LENGTH ------------------------------------------------------------------------- 14

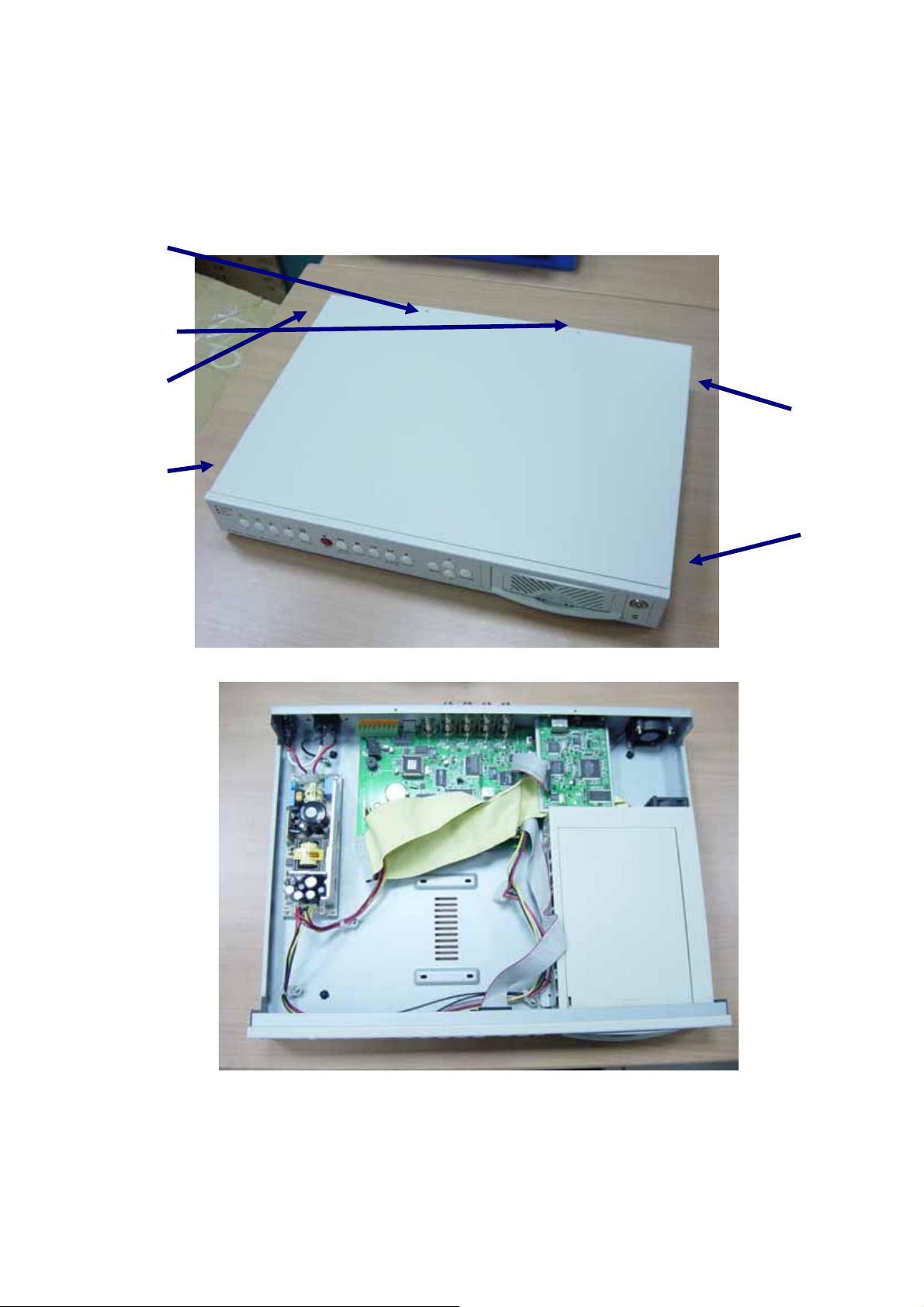

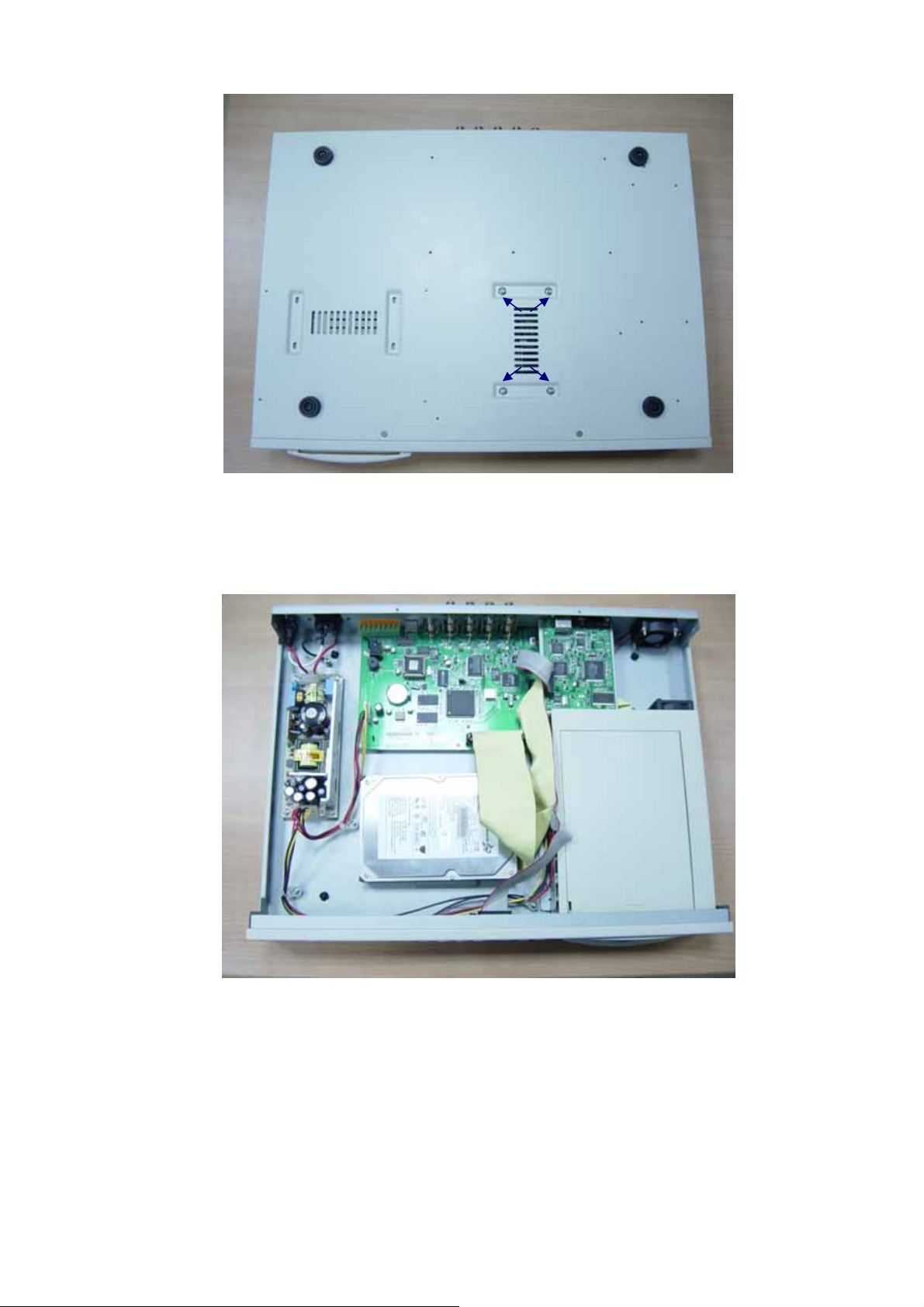

CHAPTER 6 HARD DRIVE INSTALLATION PROCEDURES -------------------------------------------------- 15

V1.02 2004/11/04

SETUP MENU List

SYSTEM SETUP

SETUP MENU

SYSTEM SETUP

CAMERA SETUP

RECORD SETUP

SCHEDULE RECORD

EVENT LIST

HDD MANAGEMENT

LOAD DEFAULT

EXIT

BUZZER DURATION 3 SEC VIDEO LOSS ALARM ON HDD PASSWORD SET TIME/DATE EXIT

CAMERA SETUP

CAMERA SELECT CH1 CAMERA RECORD ON MOTI ON DETECTION ON MOTION SENSITIVITY 5 BRIGHTNESS STANDARD CONTRAST STANDARD HUE STANDARD EXIT

RECORD SETUP RECORD MODE MUX NORMAL RECORD FPS 15P ALARM RECORD FPS 15P ALARM REXORD DWELL 5 SEC RECORD Q UALITY HIGH MOTION EVENT MIGRATION OFF EXIT

SCHEDULE RE CORD

O O O O O O O O O O O O O O O O O -

：　　：　　：　　：　：　　： 0 3 6 9 12 15 18 21 24

PRESS [UP，DOWN] TO SELECT PRESS [ENTER] TO SET， [MENU] TO EXIT

EVENT LIST

MASTER HARD D RIVE > 01 2003/AUG/25 12:13:16 REC 02 2003/AUG/25 11:14:21 PWR 03 2003/AUG/25 11:14:00 MOT CH3 04 2003/AUG/25 09:35:24 ALM CH1

HDD MANAGEMENT OVERWRITE MODE NO

HDD FUL L WARNING 10% MASTER HDD CAPACITY 239GB MASETR HDD LEFT RATIO 209GB 88% MASTER HDD FORMAT SLAVE HDD CAPACITY N/A SLAVE HDD LEFT RATIO N/A SLAVE HDD FORMAT EXIT

CHAPTER 1

INTRODUCTION

This product is 4 cameras input appliance with multiple function which will bring you following features:

z Device can be performed as VHS system with live display, play back and video recording。

z Device operates in hardware base with no OS (operating system) necessary for more reliability and

stability。

z Digitize data storage with M-JPEG compression technology will give you organized video data

management without using mess huge traditional video tape。

z Support various type of camera with real, live mode display。

z Multi-speed recording selection on normal recording mode or alarm recording mode, the highest

speed of recording is 30/25 (NTSC/PAL) fields on both mode。

z Contrast, hue and brightness are adjustable for each camera individually。 z Support up to 2 hard disks (HDD) from 40GB to 250GB compatible。

z When external alarm is triggered , correspond cameras number will show up on the monitor with

texts。

z Selectable recording qualities (best/high/medium/low)。 z Recording can operate manually or gets activated automatically when alarm is triggered。 z Motion detection function available, user can easily adjust sensitive of motion detection。 z Playback record can be searched by time or by event list。

z Play back mode could not be easier then ever for you to review the video that gets recorded on

reverse (x6) and fast forwarding (×2, ×4, ×6)。

z Play back mode with pause (field by field) for forward。 z Easy operation, setting can be easily modified OSD (on screen display) menu。 z Device will overwrites data and notice operator on monitor when the HDD is going full。 z HDD capacity status can be display on the screen for better storage management。 z System will restore the previous setting and continue camera activity after restart。 z Key lock function available to secure your DVR from button pressing accidentally。 z Provide 2 Monitor output。

z Optional network function z Support compact flash (CF) card for random backup and VCR for fully backup。

z Alarm notification could be sent via email when motion or external alarms are triggered.

CHAPTER 2

Hardware Overview

Front Panel Layout Overview

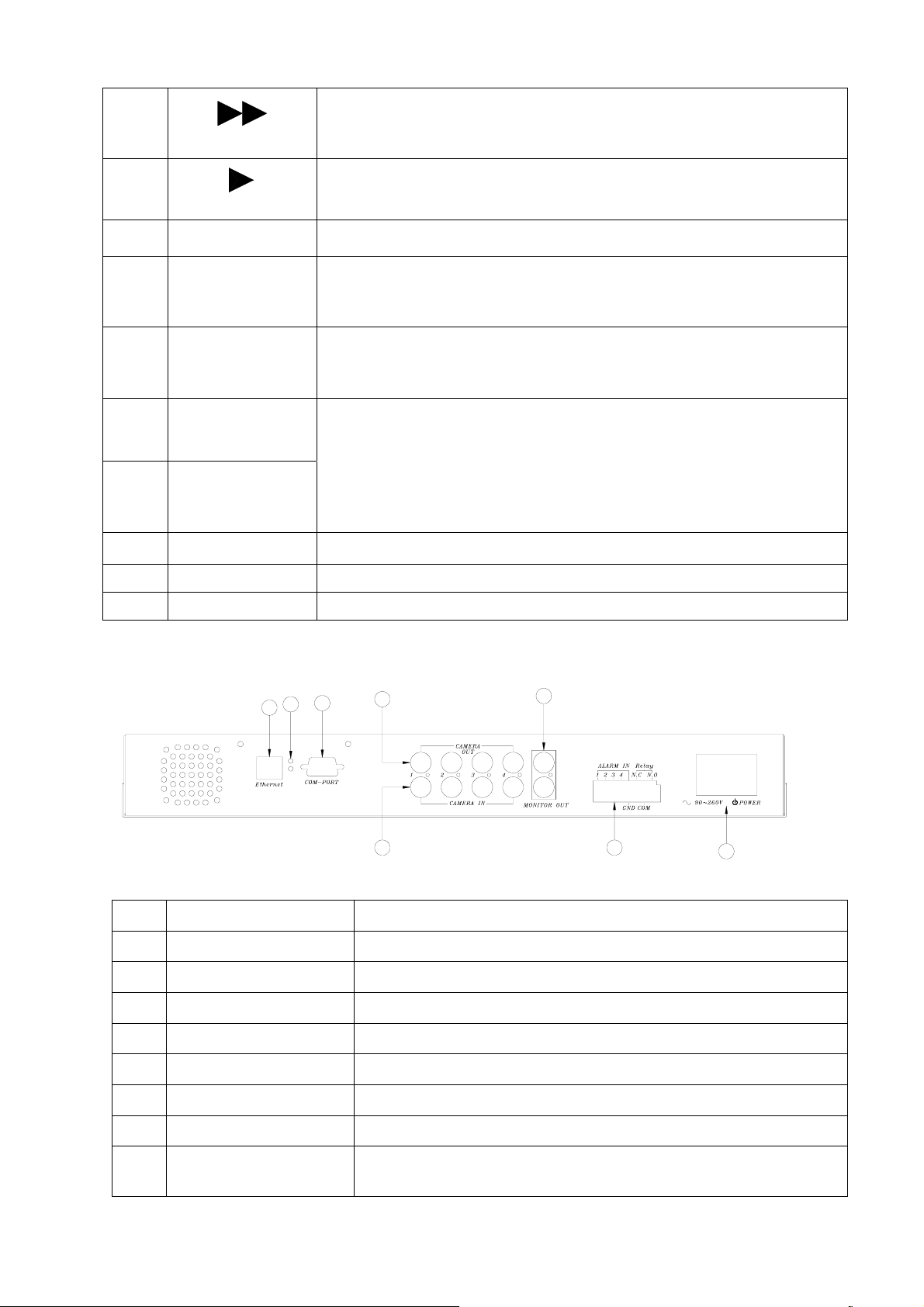

6 7 8 91011 12 13 14 15 16 17

1 2 3 4

18 20

Buttons Function List

Part Label Function

1 POWER Power status LED.

2 REC Recording status LED.

3 PLAY Playback status LED.

4 H.D.D H.D.D LED

Quad

REC

Rew Search

STOP

1. This View button controls FULL SCREEN display from camera 1.

2. A password can be setup by the view control button for number 1.

1. This View button controls FULL SCREEN display from camera 2.

2. A password can be setup by the view control button for number 2.

1. This View button controls FULL SCREEN display from camera 3.

2. A password can be setup by the view control button for number 3.

1. This View button controls FULL SCREEN display from camera 4.

2. A password can be setup by the view control button for number 4.

Quad screen: All cameras are displayed.

Press REC to start recording.

6 times speed fast rewind mode.

Press Stop to stop playback or recording.

Press Pause to pause (field by field) for forward. You can easily lock your DVR by press 5 times Pause button under

Pause

recording or monitoring mode. When key lock is activated, you can see a “L” show up on your upper right corner of screen. Press 5 times again to release your button from key lock mode.
