Samsung Electronics 5-1
5. Exploded Views and Parts List
5-1 Main Exploded View & Parts List
5-2 Cover Exploded View & Parts List
5-3 Frame Exploded View & Parts List
5-4 Exit Exploded View & Parts List
5-5 Fuser Exploded View & Parts List
5-6 Rack-MPF Exploded View & Parts List
5-7 Drive Exploded View & Parts List
5-8 Pick-Up Exploded View & Parts List
5-9 Cassette Exploded View & Parts List
Exploded Views and Parts List
5-2 Samsung Electronics
5-1 Main Exploded View
0
1
2
3
16
4
5
6
7
8
21
20
9
10
11
12
13
14
17
18
15
19
SAMSUNG
SAMSUNG
Samsung Electronics 5-3
Exploded Views and Parts List
Main Parts List
Location No. Description SEC. Code Q'ty SA Remark
1 ELA HOU TOP-HOUSING * 1 X
2 UNIT-LSU JC59-00004A 1 O
3 ELA UNIT-MOTOR JC96-01656A 1 O
4 ELA UNIT-DEVE * 1 X
5 ELA HOU-MPE JC96-01650A 1 O
6 MEA RACK-FEEDER CST JC97-01371A 1 O 270SHEETS
7 CBF-HARNESS-MOTOR * 1 X
8 MEA UNIT-FEEDER JC97-01324A 1 O
9 PMO-CAP SENSOR JC72-00320A 1 O
10 SHIELD-PCU JC70-00080A 1 O
11 PCT-INSULATOR PCU JC72-00334A 1 O
12 PBA MAIN-ENGINE_V1 JC92-01187A 1 O 110V
12 PBA MAIN-ENGINE_V2 JC92-01190A 1 O 220V
13 ELA UNIT-FRAME BASE JC96-01641B 1 O
14 PBA MAIN CTRL-LOW JC92-01258A 1 O
15 ELA UNIT-FUSER JC96-01778B 1 O 110V
15 ELA UNIT-FUSER JC96-01778C 1 O 220V
16 CBF HARNESS-LSU * 1 X
17 PBA PWR-HVPS_HAWK JC92-01175A 1 O
18 MEA RACK-HOU EXIT JC97-01338A 1 O
19 PMO-DUCT FAN JC72-00582A 1 O
20 PMO-DUMMY FACE MAIN(L) * 1 X
21 PMO-DUMMY FACE MAIN(R) * 1 X
SA. : Service Available
O: Service available X: Service not available
Indicate part is for electrical safety components
Exploded Views and Parts List
5-4 Samsung Electronics
5-2 Cover Exploded View
SAMSUNG
0
1
2
16
4
4
5
6
7
8
9
10
11
12
13
14
SAMSUNG
3
3-1
3-2
3-3
3-7
3-4
3-5
3-6
17
Samsung Electronics 5-5
Exploded Views and Parts List
Cover Parts List
Location No. Description SEC. Code Q'ty SA Remark
0 ELA COVER-HOUSING JC96-01590B 1 O
1 PMO-COVER OPEN * 1 X
2 PMO-COVER MAIN * 1 X
3 MEA RACK-MP TRAY JC72-00349A 1 O
3-1 PMO-COVER-MP * 1 X
3-2 NPR-BADGE (45) * 1 X
3-3 PMO-TRAY EXTENSION MP * 1 X
3-4 PMO-COVER MANUAL * 1 X
3-5 PMO-TRAY LINK MP * 1 X
4 STOPPER HINGE OPEN * 2 X
5 PMO-LENS LED * 1 X
6 PMO-KEY BUTTON * 1 X
7 PMO-KEY SAVE MODE * 1 X
8 PBA LED PANEL-II * 1 X
9 PMO-GUIDE EXIT * 1 X
10 PMO-BUSHING F/DOWN * 1 X
11 PMO-COVER REAR * 1 X
12 PMO-STACKER REAR * 1 X
13 IPR-SPRING LOCKER REAR * 2 X
14 PMO-COVER CONTROLLER JC72-00358A 1 O
15 PMO-CAP REAR * 1 X
16 PMO-SUPPONT MP TRAY * 1 X
17 PMO-STOPPER_EXIT,P * 1 X
S1 SCREW-TAPTITE * 7 X
SA. : Service Available
O: Service available X: Service not available
Exploded Views and Parts List
5-6 Samsung Electronics
5-3 Frame Exploded View
29-4
29-1
29-2
29-3
25-1
25-2
24-2
24-1
25
24
27
26
42
9
41
43
23
22
29
4
22-1
22-3
22-2
22-4
14
13
7
21
16
17
5
16-1
16-2
16-3
16-4
3
46
46
45
45
47
47
48
8
19-2
18-218-1
19-1
11
0
15
15-1
15-2
15-3
2
44
39
19
1
38
20
36
30
31
30-3
30-2
30-1
31-2
31-3
31-1
32
32-1
32-2
34
33
35
28
28-1
28-2
18
Samsung Electronics 5-7
Exploded Views and Parts List
Frame Parts List
Location No. Description SEC. Code Q'ty SA Remark
0 ELA UNIT-FRAME BASE
1 FAN-DC-HAWK JC31-00004A 1 O
2 PMO-GUIDE RIB * 1 X
3 CBF HARNESS-INLET ASS’Y * 1 X
4 PMO-HOLDER WIRE * 1 X
5 KEY DEVE * 1 X
6 CBF HARNESS-ENGINE_CONTROL * 1 X
7 CBF-HARNESS_FUSER * 1 X
8 PBA SUB-EXIT SENSOR * 1 X
9 CBF-HARNESS-THERMISTOR JOINT * 1 X
11 PBA SUB-FUSER_SW JC92-01261B 1 O
13 PMO-FRAME COVER * 1 X
14 IPR-TERMINAL FU * 2 X
15 ELA-UNIT-HOLDER TR L JC96-01730A 1 O
15-1 PMO-BUSHING TR * 1 X
15-2 SPRING TR L * 1 X
15-3 PMO-TRANSFER HOLDER * 1 X
16 ELA-UNIT-HOLDER TR R JC96-01729A 1 O
16-1 PMO-BUSHING TR * 1 X
16-2 SPRING TR R * 1 X
16-3 PMO-TRANSFER HOLDER * 1 X
16-4 IPR-PLATE TR * 1 X
17 GEAR-TR 29 JC66-00039A 1 O
18 ELA UNIT-GUIDE DEVE L * 1 X
18-1 PMO-GUIDE DEVE L * 1 X
18-2 SPRING GUIDE DEVE * 1 X
19 ELA UNIT-GUIDE DEVE R * 1 X
19-1 PMO-GUIDE DEVE R * 1 X
19-2 SPRING GUIDE DEVE * 1 X
SA. : Service Available
O: Service available X: Service not available
Exploded Views and Parts List
5-8 Samsung Electronics
Frame Parts Lists
Location No. Description SEC. Code Q'ty SA Remark
20 ELA HOU-VARISTOR JC96-01772A 1 O
21 IPR-TERMINAL TR * 1 X
22 ELA UNIT-SENSOR DEVE * 1 X
22-1 PBA SUB-SWITCH * 1 X
22-2 PMO-HOLDER ACTUA TOR * 1 X
22-3 PMO-ACTUATOR DEVE * 1 X
23 GROUND FU * 1 X
24 ELA UNIT-TERMINALTR L * 3 X
24-1 ICT-SHAFT HV LARGE * 3 X
24-2 SPRING-HV LARGE * 3 X
25 ELA UNIT-TERMINALTR S * 1 X
25-1 ICT-SHAFT HV LARGE * 1 X
25-2 SPRING-HV SMALL * 1 X
26 GROUND-HVPS * 1 X
27 IPR-REMOVE KEY JC70-00139A 1 O
28 ELA UNIT-ACTUATOR FEED * 1 X
28-1 PMO-ACTUATOR FEED * 2 X
28-2 PMO-HOLDER ACTUA TOR * 2 X
29 ELA UNIT-GUIDE TRANSFER * 1 X
29-1 PMO-HADER SAW PLATE * 1 X
29-2 IPR-PLATE SAW * 1 X
29-3 IPR-GUIDE TRANSFER * 1 X
29-4 PMO-GUIDE RIB TR * 1 X
30 ELA UNIT-GUIDE FEED JC96-01653A 1 O
30-1 PMO-GUIDE OPTIC * 1 X
30-2 GUIDE FEED * 1 X
30-3 PMO-HOLDER G/PAPER * 1 X
31 ELA UNIT-PTL * 1 X
31-1 GUIDE PLATE FEED * 1 X
31-2 PMO-HOLDER PTL * 1 X
31-3 PBA SUB-PTL * 1 X
SA. : Service Available
O: Service available X: Service not available
Samsung Electronics 5-9
Exploded Views and Parts List
Location No. Description SEC. Code Q'ty SA Remark
32 ELA UNIT-EMPTYACT * 1 X
32-1 PMO-ACTUATOR EMPTY HAWK * 1 X
32-2 SPRING EMPTY * 1 X
33 PMO-HINGE GUIDE FEED JC72-00321A 1 O
34 GND ICU * 1 X
35 PMO-CAP SENSOR * 1 X
36 GND MP * 1 X
39 IPR-GUIDE DUST * 1 X
41 IPR-OPC-HAWK * 1 X
42 CAP CONNECTOR L * 1 X
43 CAP CONNECTOR U * 1 X
44 MEC-ROLLER TRANSFER JC75-10963B 1 O
45 GEAR IDLE Z27 * 2 X
46 RING-CS * 2 X
47 WASHER-PLAIN * 2 X
48 IPR-WASHER SPRING SU * 1 X
SA. : Service Available
O: Service available X: Service not available
Frame Parts Lists
Exploded Views and Parts List
5-10 Samsung Electronics
5-4 Exit Exploded View
1
6
7
8
5
13
12
10
9
9
11
2
3
3
4
0
Samsung Electronics 5-11
Exploded Views and Parts List
Exit Parts List
Location No. Description SEC. Code Q'ty SA Remark
0 MEA RACK-HOU EXIT JC97-01338A 1 O
1 PMO-FRAME REAR * 1 X
2 GEAR-IDLE 15 * 1 X
3 RING-CS * 2 X
4 GEAR-IDLE 25 * 1 X
5 SPRING-F/DOWN * 4 X
6 PMO-HOLDER EXIT_F/DOWN * 4 X
7 PMO-ROLLER-EXIT, MAIN * 4 X
8 PMO-ROLLER-EXIT, FR * 4 X
9 MEC-BEARING EXIT * 2 X
10 RMO-RUBBER EXIT * 4 X
11 PMO-SHAFT EXIT_F/DOWN * 1 X
12 GEAR-EXIT JC66-40209A 1 O
13 RMP-RUBBER EXIT_F/UP * 4 X
SA. : Service Available
O: Service available X: Service not available
Exploded Views and Parts List
5-12 Samsung Electronics
5-5 Fuser Exploded View
0
2
11
1
3
4
7
6
10
11
12
13
9
14
15
16
17
18
19
20
26
25
22
37
23
21
24
33
34
29
30
31
27
28
32
35
36
5
8
Samsung Electronics 5-13
Exploded Views and Parts List
Fuser Parts List
Location No. Description SEC. Code Q'ty SA Remark
0 ELA UNIT FUSER (110V) JC96-01778B 1 O 110V
0 ELA UNIT FUSER (220V) JC96-01778C 1 O 220V
1 SCREW TAPTITE M3 x 8, BH+ * 6 X
2 SCREW TAPTITE M3 x 10, FH+ * 1 X
3 SCREW MACHINE M3 x 6 * 2 X
4 THERMISTOR-FUSER JC14-00001A 1 O
5 ELECTRODE FU R * 1 X
6 ELECTRODE FU M * 1 X
7 ELECTRODE FU L * 1 X
8 THERMOSTAT * 1 X
9 BRKT GEAR FUSER * 1 X
10 GEAR-IDLE 25 * 1 X
11 GEAR-IDLE 15 * 1 X
12 RING-CS * 2 X
13 COVER FUSER * 1 X
14 ROLLER EXIT_F/UP * 3 X
15 EXIT_F/UP (SPRING) * 3 X
16 SPRING-CLAW * 4 X
17 GUIDE-CLAW * 4 X
18 LAMP-HALOGEN 4713-001135 1 O 110V
18 LAMP-HALOGEN 4713-001136 1 O 220V
19 NEX-ROLLER-HEAT JC71-20901A 1 O
20 MEC-ROLLER_PRESSORE JC75-10956A 1 O
21 FRAME FUSER * 1 X
22 GEAR FUSER, Z32 * 1 X
23 BUSHING HR-L * 1 X
24 BUSHING HR-R * 1 X
25 SPRING-BEARING PR * 2 X
26 BUSHING PR * 2 X
27 GUIDE REAR * 1 X
28 SHAFT EXIT_F/UP * 1 X
29 BUSHING_TX * 3 X
30 GEAR-EXIT * 1 X
31 RUBBER EXIT * 3 X
32 RUBBER EXIT F/UP * 1 X
33 ACTUATOR EXIT * 1 X
34 SPRING-ACTUATOR * 1 X
35 HOLDER BRUSH * 1 X
36 BRUSH ANTIST ATIC * 1 X
37 HOLDER SHAFT * 1 X
38 SEREW TAPTITE M3X6,BH+ * 4 X
SA. : Service Available
O: Service available X: Service not available
Indicate part is for electrical safety components
Exploded Views and Parts List
5-14 Samsung Electronics
5-6 Rack-MPF Exploded View
0
3
2
1
4
Samsung Electronics 5-15
Exploded Views and Parts List
Rack-MPF Parts List
Location No. Description SEC. Code Q'ty SA Remark
0 ELA HOU-MPF JC97-01345A 1 O
1 PMO-FRAME_MP * 1 X
2 PMO-PLATE MANUAL * 1 X
3 BRACKET-MANUAL * 1 X
4 SCREW TAPTITE * 1 X
SA. : Service Available
O: Service available X: Service not available
Exploded Views and Parts List
5-16 Samsung Electronics

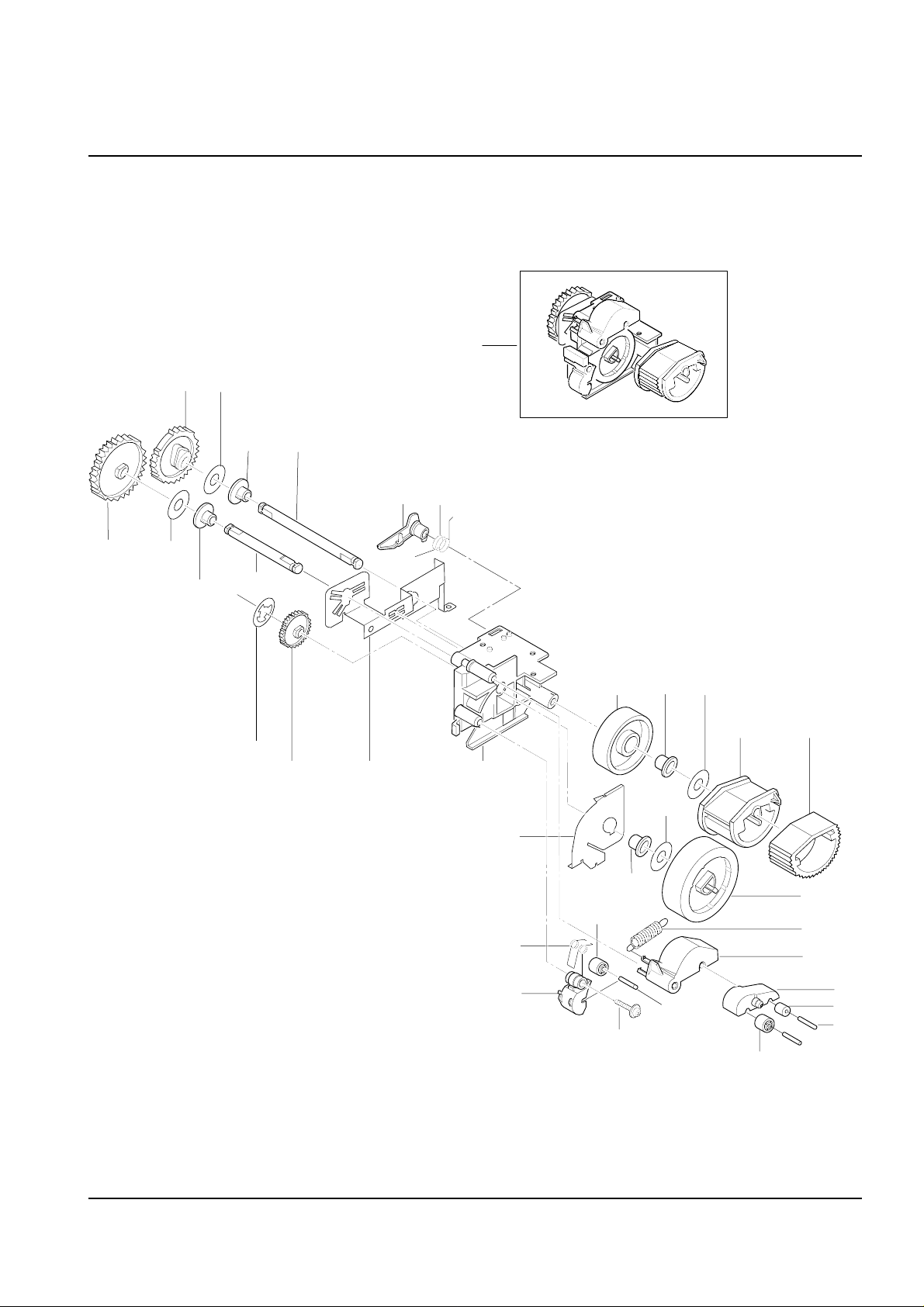

5-7 Drive Exploded View
0
2
8
6
7
4
3
5
13
1
16
16
15
9
12
11
10
14
Samsung Electronics 5-17
Exploded Views and Parts List
Drive Parts List
Location No. Description SEC. Code Q'ty SA Remark
0 ELA UNIT-MOTOR JC96-01656A 1 O
1 MOTOR-STEP JC31-00002A 1 O
2 IPR-BRKT GEAR * 1 X
3 IPR-BRKT MOTOR * 1 X
4 GEAR-RDCN 145-70 * 1 X
5 GEAR-RDCN 90-24 * 1 X
6 GEAR-OPC DRV 135 * 1 X
7 GEAR-OPC DRIVE2 * 1 X
8 GEAR-FEED DRV * 1 X
9 GEAR-CLUTCH 56 * 1 X
10 GEAR-FUSER DRV23 * 1 X
11 PMO-CLUTCH LEVER * 2 X
12 SPRING-CLUTCH * 2 X
13 WASHER-PLAIN * 1 X
14 MPR-POLYWASHER 8 * 1 X
15 WASHER-PLAIN * 1 X
16 SCREW-MACHINE * 5 X
SA. : Service Available
O: Service available X: Service not available
Exploded Views and Parts List
5-18 Samsung Electronics
5-8 Pick-Up Exploded View
0
8
2
2
5511
7
9
24
25
6
26
12
18
13
3
19
1
10
15
15
5
2
22
4
20
17
16
10
21
5
2
14 23
Samsung Electronics 5-19
Exploded Views and Parts List
Pick-Up Parts List
Location No. Description SEC. Code Q'ty SA Remark
0 MEA RACK-FEEDER JC97-01324A 1 O
1 SCREW-TAPTITE * 1 X
2 WASHER-PLAIN * 4 X
3 SPRING-FEED(1) * 1 X
4 SPRING-FEED(2) * 1 X
5 BEARING-PICK UP * 4 X
6 GEAR-P/UP DRIVE * 1 X
7 GEAR-FEED * 1 X
8 GEAR-PICK UP(12) * 1 X
9 IPR-SHAFT FEED * 1 X
10 IPR-SHAFT FEED IDLER * 3 X
11 IPR-SHAFT PICK UP * 1 X
12 GROUND_FEED * 1 X
13 IPR-GUIDE_FEED * 1 X
14 PMO-HOUSING P/UP * 1 X
15 PMO-ROLLER FEED L * 2 X
16 PMO-ROLLER FEED S * 1 X
17 PMO-SUB HOLDER FEED * 1 X
18 PMO-FRAME_FEED * 1 X
19 PMO-HOLDER FEED(1) * 1 X
20 PMO-HOLDER FEED(2) * 1 X
21 PMO-IDLE PICK_UP * 1 X
22 PMO-ROLL_FEED, DRV 12 * 1 X
23 RMO-RUBBER PICK_UP * 1 X
24 RMO-LEVER PICK_UP * 1 X
25 SPRING PICK UP(12) * 1 X
26 RING-CS * 1 X
SA. : Service Available
O: Service available X: Service not available
Exploded Views and Parts List
5-20 Samsung Electronics
5-9 Cassette Exploded View (270)
0
17
16
15
14
13
12
11
1
2
3
5
4
6
10
9
8
7
18
Samsung Electronics 5-21
Exploded Views and Parts List
Cassette Parts List
Location No. Description SEC. Code Q'ty SA Remark
0 MEA RACK-FEEDER CST JC97-01371A 1 O 2700SHEETS
1 PMO-FRAME CASSETTE * 1 X
2 PMO-GUIDE INNER,CAST * 1 X
3 PMO-GUIDE CASSETTE P * 1 X
4 PMO-HOLDER INDICATOR * 1 X
5 PMO-INDICATOR EMPTY * 1 X
6 PMO-LOCKER PLATE * 1 X
7 SPRING LOCKER PLATE * 1 X
8 PMO-FRAME LEGAL * 1 X
9 LABEL(R)-PLATE * 1 X
10 PMO-REAR GUIDE CST * 1 X
11 IPR-GUIDE PAPER * 2 X
12 LABEL(R)-HEIGHT * 1 X
13 IPR-FINGER * 1 X
14 PMO-SIDE GUIDE * 1 X
15 SPRING-KNOCK UP * 1 X
16 IPR-NOCK UP PLATE * 2 X
17 PAD KNOCK UP * 1 X
18 GUIDE-PAPER FILM * 1 X
SA. : Service Available
O: Service available X: Service not available
Exploded Views and Parts List
5-22 Samsung Electronics
MEMO
Loading...
