Samsung ML 3560 User Manual

This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any changes, direct or indirect, arising from or related to use of this manual.

Co., Ltd

• ML-3560, ML-3561N, ML-3561ND, and Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Centronics is a trademark of Centronics Data Computer Corporation.

• IBM and IBM PC are trademarks of International Business Machines Corporation.

• PCL and PCL 6 are trademarks of Hewlett-Packard company.

• Microsoft, Windows, Windows 9x, Windows Me, Wi ndows 2000, Windows NT 4.0, and Windows XP are regi stered trademarks of Microsoft Corporation.

• PostScript 3 is a trademark of Adobe System, Inc.

• UFST® and MicroType™ are registered trademarks of Agfa division of Bayer Corp.

• TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

Contact SAMSUNG WORLD WIDE

If you have any comments or questions regarding Samsung products, contact the SAMSUNG customer care center.

Country Customer Care Cen t er Web Site

CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca MEXICO 01-800-SAMSUNG

(7267864) U.S.A 1-800-SAMSUNG (7267864) www.samsung.com ARGENTINE 0800-333-3733 www.samsung.com /ar BRAZIL 0800-124-421 www.samsung.com/br CHILE 800-726-7864 (SAMSUNG) www.samsung.com/cl COSTA RICA 0-800-507-7267 www.samsung.com/latin ECUADOR 1-800-10-7267 www.samsung.com/latin EL SALVADOR 800-6225 www.samsung .com/latin GUA TEM ALA 1-800-299-0013 www.samsung .com/latin JAMAICA 1-800-234-7267 www.samsung.com /latin PANAMA 800-7267 www.samsung.com/latin PUERTO RICO 1-800-682-3180 www.samsun g.com/latin REP.

DOMINICA TRINIDA D &

TOBAGO

1-800-751-2676 www.samsun g.com/latin

1-800-7267-864 www.samsun g.com/latin

www.samsung.com/mx

Country Customer Care Center Web Site

LUXEMBURG 02 261 03 710 www.samsung.lu NETHERLANDS 0900 20 200 88

(€ 0,10/min) NORWA Y 231 627 22 www.samsung.com/no POLAND 0 801 801 881 www.samsung.com/pl PORTUGAL 80 8 200 128 www.samsung.com/pt SLOVAKIA 0850 123 989 www.samsung.com/sk SPAIN 902 10 11 30 www.samsung.com/es SWEDEN 08 585 367 87 www.samsung.com/se U.K 0870 242 0303 www.samsung.com/uk RUSSIA 8-800-200-0400 www.samsung.ru UKRAINE 8-800-502-0000 www.samsung.com/ur AUSTRALIA 1300 362 603 www.samsung.com/au CHINA 800-810-5858

010- 6475 1880 HONG KONG 2862 6001 www.samsung.com/hk INDIA 3030 8282

1600 1100 11 INDONESIA 0800-112-8888 www.samsung.com/id

www.samsung.com/nl

www.samsung.com.cn

www.samsung.com/in

VENEZUELA 1-800-100-5303 www.samsung.com/latin BELGIUM 02 201 2418 www.samsung.com /be CZECH

REPUBLIC DENMARK 38 322 887 www.samsung.com /dk FINLAND 09 693 79 554 www.samsung.com/fi FRANCE 08 25 08 65 65

GERMANY 01805 - 121213

HUNGARY 06 40 985 985 www.samsung.com/hu ITALIA 199 153 153 www.samsung.com/it

844 000 844 www.samsung.com/cz

www.samsung.com/fr

(€ 0,15/min)

www.samsung.de

(€ 0,12/min)

JAPAN 0120-327-527 ww w.samsung.com/jp MALAYSIA 1800-88-9999 www.samsung.com/my PHILIPPINES 1800-10-SAMSUNG

(7267864) SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg THAILAND 1800-29-3232

02-689-3232 TAIWAN 0800-329-999 www.samsung.com /tw VIETNAM 1 800 588 889 www.samsung.com/vn SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com/za U.A.E 800SAMSUNG (7267864) www.samsung.com/mea

www.samsung.com/ph

www.samsung.com/th

1. Introduction

Special Features ......................................... ........................................................................... 1.1

Printer Features ............................................................................................................... 1.2

Printer Components ..................................................................................... ........................... 1.3

Front View ............................................................................................................ ........... 1.3

Rear View ........................................................................................................................ 1.3

2. Setting Up Your Printer

Unpacking ............................................................................................................................. 2.1

Selecting a Location ................................................... ................................................ ....... 2.2

Installing the Toner Cartridge ............................................... ................................................ ... 2.2

Loading Paper ............................................................................ ........................................... 2.4

Changing the Size of the Paper in the Pape r Tray .................................................................. 2.5

Connecting a Printer Cable ....... ............................................................................................ ... 2.6

For Local Printing ............................................... ................................................ ............... 2.6

For Network Printing .......................................... ............................................................... 2.6

Turning the Printer On ..................................................................... .................................... ... 2.7

Printing a Demo Page ............................................................................................................. 2.7

Changing the Display Language ............................................................................................... 2.8

Using the Toner Save Mode ..................................................................................................... 2.8

Using the Control Panel Button ................................................................................ ........... 2.8

Using the Control Panel Menu ............................................................................................. 2.8

From the Software Application ......................................... ................................................ ... 2.8

Installing Printer Software ....................................................................................................... 2.8

3. Using the Control Panel

Understanding the Control Panel ........................................... ................................................... 3.1

Display ............................................................................................................................ 3.1

Buttons ........................................................................................................................ ... 3.2

Using Control Panel Menus ................................................................................................... ... 3.2

Accessing Control Panel Menus ........................................................................................... 3.2

Overview of Control Panel Menus ........................................................................................ 3.3

Information Menu ............................................................................................................. 3.3

Paper Menu .............................................................................................. ....................... 3.4

Layout Menu ................................................................. ................................................ ... 3.5

Graphics Menu .......................................................... ................................................ ....... 3.6

Printer Menu ..................... ................................................ ............................................... 3.6

Setup Menu ...................................................... ................................................ ............... 3.6

PCL Menu ............................................. ................................................ ........................... 3.7

PostScript Menu ........................................................................................ ....................... 3.8

EPSON/IBM Menu .............................................................................. ............................... 3.8

Network Menu ........................................................... ................................................ ....... 3.9

iii

4. Using Print Materials

Choosing Paper and Other Mater i als .............................................................................. ........... 4.1

Sizes and Capacities .............................................. ................................................ ........... 4.1

Guidelines for Paper and Special Mater ials ........................................................................... 4.1

Loading Paper ............................................................................ ........................................... 4.2

Using the Tray 1 or the Optional Tray .................................................................................. 4.2

Using the Multi-Purpose Tray ........................................................... ................................... 4.2

Using the Manual Feed Mode ................................................................................... ........... 4.4

Selecting an Output Location ................................................................................ ................... 4.5

Printing to the Output Tray (Face down) .............................................................................. 4.5

Printing to the Rear Cover (Face up) ................................................................................... 4.5

Printing on Special Print Materials .......... ................................................................................... 4.6

Printing on Envelopes ........................................................................................................ 4.6

Printing on Labels ...................................................................... ....................................... 4.7

Printing on Transparencies .......................................................................... ....................... 4.8

Printing on Preprinted Paper ............................................................................ ................... 4.9

Printing on Card Stock or Custom-sized Materials ........................................................... .... ... 4.9

5. Basic Printing

Printing a Document ............................................................................................................... 5.1

Canceling a Print Job ............................................... ................................................ ............... 5.1

6. Maintaining Your Printer

Printing Information Pages ....................................................................................... ............... 6.1

Printing a Configuration Page .............................................................. ............................... 6.1

Printing Usage Page ................................................................... ....................................... 6.1

Maintaining the Toner Cartridge ........................................................................ ....................... 6.2

Checking the Toner Remains ........................................................................... ................... 6.2

Redistributing Toner ........................... ................................................ ............................... 6.2

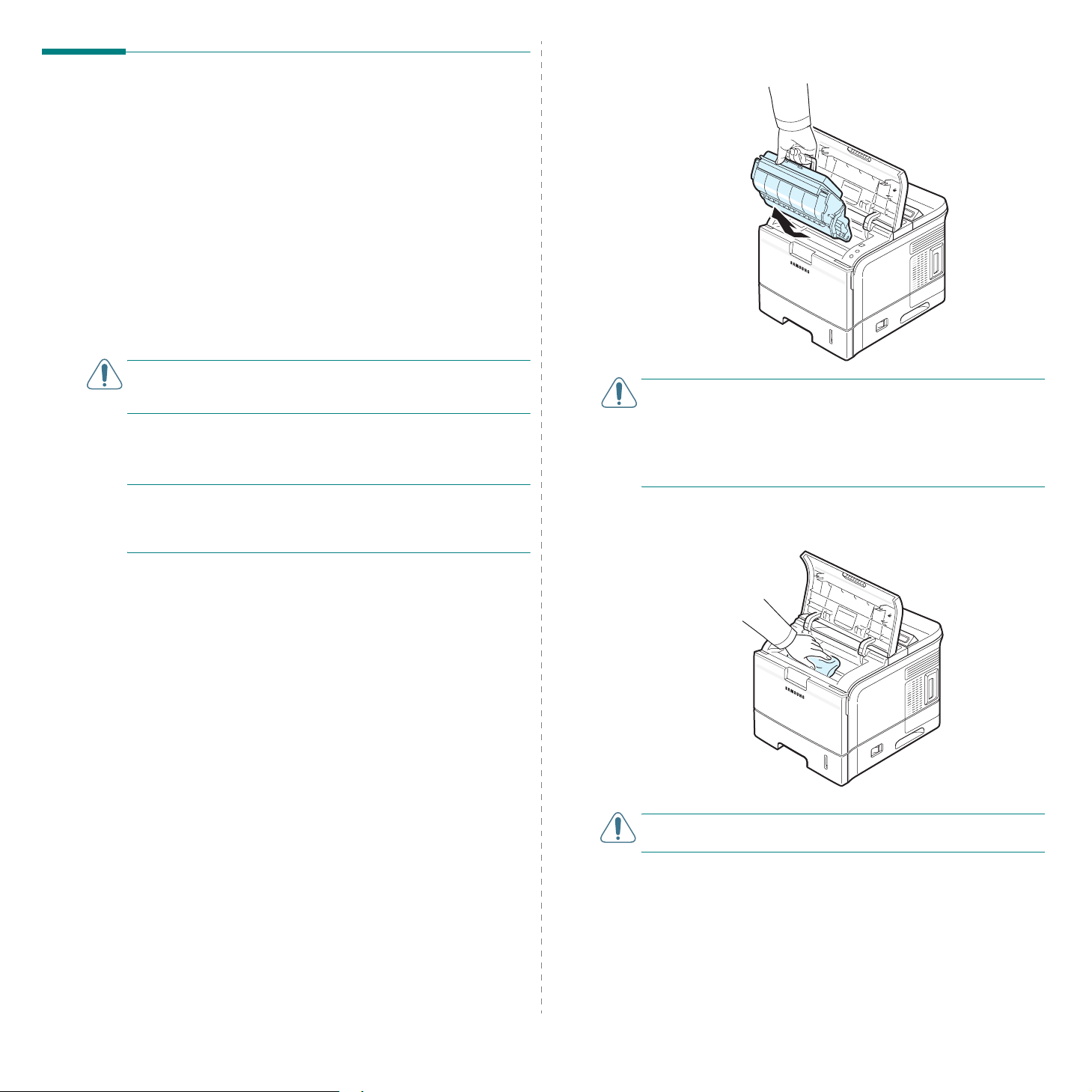

Replacing the Toner Cartridge ............................................................................................ 6.3

Cleaning the Printer ................................. ................................................ ............................... 6.5

Cleaning the Outside of the Printer ...................................................................................... 6.5

Cleaning the Inside of the Printer ........................................................................................ 6.5

Maintenance Parts ................................................................................................... ............... 6.6

7. Solving Problems

Troubleshooting Checklist ..................... ................................................................................... 7.1

Solving General Printing Problems ..................................................................... ....................... 7.2

Clearing Paper Jams ................................................................ ........................................... .... 7.4

In the Paper Feed Area (Paper Jam 0) ................................................................................. 7.4

Around the Toner Cartridge (Paper Jam 1) ........................................ ................................... 7.6

In the Paper Exit Area (Paper Jam 2) ....................................... ........................................... 7.7

In the Duplex Area (Duplex Jam 1,2) ............................................................... ................... 7.7

Tips for Avoiding Paper Jams .............................................................................................. 7.8

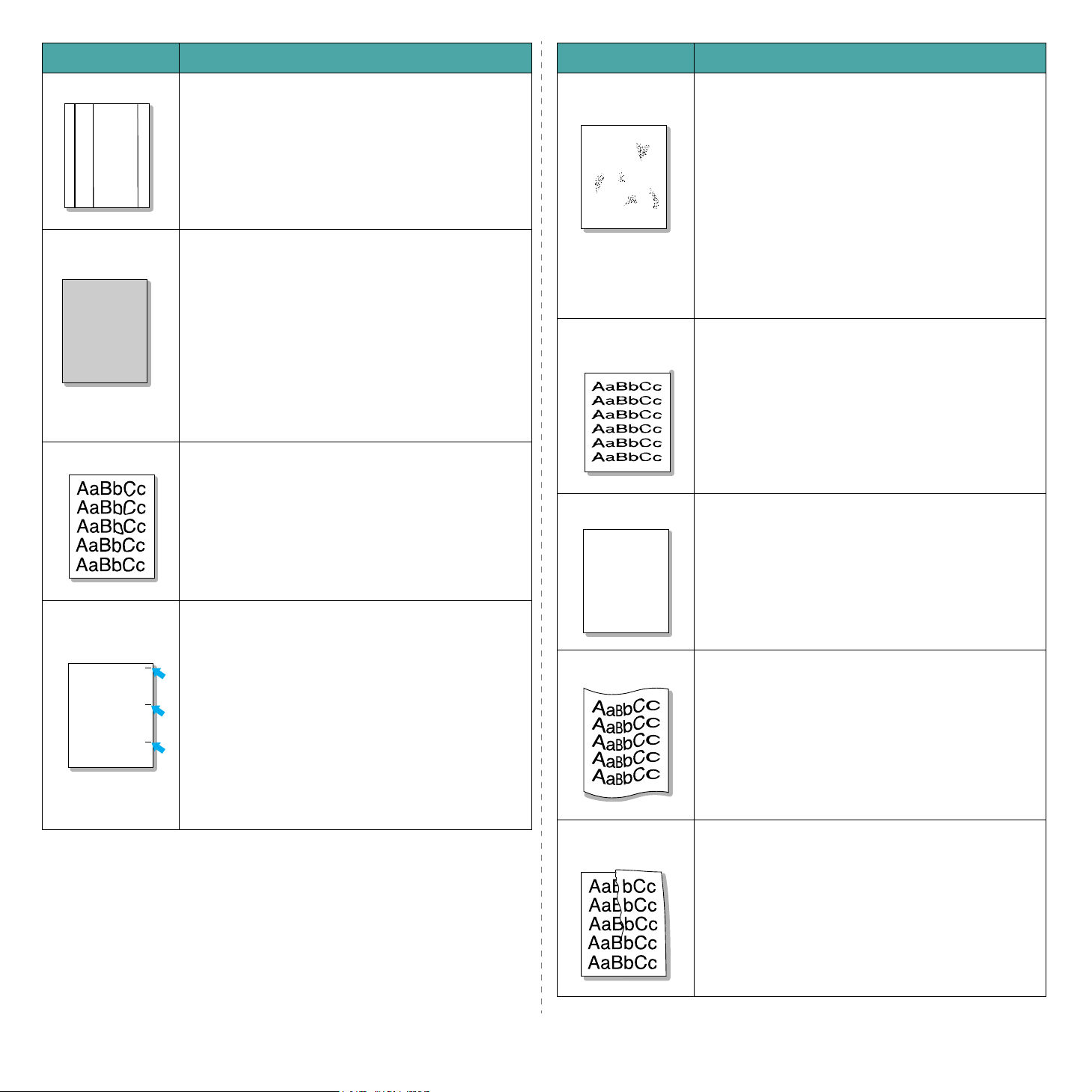

Solving Print Quality Problems .......................................................................... ....................... 7.8

Understanding Display Messages ............................................................... ............................. 7.10

Common Windows Problems .................................................................................................. 7.12

Common Macintosh Problems ............................................... ................................................ . 7.12

Common PS Problems .......................................................... ................................................ . 7.13

Common Linux Problems .............................................................................................. ......... 7.13

8. Using Your Printer on a Network

About Sharing the Printer on a Network ......................................................... ........................... 8.1

Setting Up a Network-Connected Printer ................................................................................... 8.1

Configuring Network Parameters on the C ontrol Panel ........................................................... 8.2

9. Installing Printer Options

Precaution When Installing Printer Options ................................................................................ 9.1

Installing Memory DIMM ......................................................................................................... 9.1

Removing the Memory DIMM ... ................................................ ........................................... 9.3

Installing a Network Card ..................................................................................................... ... 9.3

Using the Hard Disk ......................... ....................................................................................... 9.4

Installing the Hard Disk .................................................................. ................................... 9.4

Printing with the Optional Hard Disk ............................................................................. ....... 9.5

Installing an Optional Tray 2 .................................................................................................... 9.7

Installing a Duplex Unit ................................ ........................................................................... 9.9

Printing on Both Sides of Paper .......................................................................................... 9.9

10. Specifications

Printer Specifications ............................................................................... ............................. 10.1

Paper Specifications ............................................................................................................. 10.2

Overview ....................................................................................................................... 10.2

Supported Sizes of Paper ................................................................................................. 10.2

Guidelines for Using Paper .............................................................................. ................. 10.3

Paper Specifications ........................................................... ............................................. 10.4

Paper Output Capacity ....................................................... ............................................. 10.4

Printer and Paper Storage Environm ent ............................................................................. 10.4

Envelopes ...................................................................................................................... 10.4

Labels ........................................................................................................................... 10.5

Transparencies ............................................................................................................... 10.5

Important Precautions and Safety Information

When using this machine, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to people:

1 Read and understand all instructions. 2 Use common sense whenever operating electrical appliances. 3 Follow all warnings and instructions marked on the machine and in the

literature accompanying the machine.

15 Avoid using this machine during a lightning storm. There may be a

remote risk of electric shock from lightning. If possible, unplug the AC power for the duration of the lightning storm.

16 If you continuously print multiple pages, the surface of the output tray

may become hot. Be careful not to touch the surface, and keep childr en away from the surface.

17 SAVE THESE INSTRUCTIONS.

4 If an operating instruction appears to conflict with safety information,

heed the safety information. You may have misunderstood the operating instruction. If you cannot resolve the conflict, contact your sales or service representative for assistance.

5 U nplug the machine from the AC wall socket before cleaning. Do not use

liquid or aerosol cleaners. Use only a damp cloth for cleaning.

6 Do not p lace the machine on an unstable cart, stand or table. It may

fall, causing serious damage.

7 Y our machine should never be placed on, near or over a radiator, heater ,

air conditioner or ventilation duct.

8 Do not allow anything to rest on the power cable. Do not locate your

machine where the cords will be abused by persons walking on them.

9 Do not overload wall outlets and extension cords. This can diminish

performance, and may result in the risk of fire or electric shock. 10 Do not allow pets to chew on the AC power or PC interface cords. 11 Never push objects of any kind into the machine through case or

cabinet openings. They may touch dangerous voltage points, creating a

risk of fire or shock. Never spill liquid of any kind onto or into the

machine. 12 To reduce the risk of electric shock, do not disassemble the machine.

Take it to a qualified service technician when repair work is required.

Opening or removing covers may expose you to dangerous voltages or

other risks. Incorrect reassembly could cause electric shock when the

unit is subsequently used.

Environmental and Safety Consideration

Laser Safety Statement

The printer is certified in the U.S. to conform to the req u irements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere, is certified as a Class I laser product conforming to the requirements of IEC

825. Class I laser products are not considered to be hazardous. The laser system

and printer are designed so there is never any human access to laser radiation above a Class I lev el during normal operation, user maintenance, or prescribed service condition.

ARNING

Never operate or service the printer with the protective cover remov ed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes. When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

13 Unplug the machine from the PC and AC wall outlet, and refer ser vicing

to qualified service personnel under the following conditions:

• When any part of the power cord, plug, or connecting cable is damaged or frayed.

• If liquid has been spilled into the machine.

• If the machine has been exposed to rain or water.

• If the machine does not operate properly after instructions ha v e been followed.

• If the machine has been dropped, or the cabinet appears damaged.

• If the machine exhibits a sudden and distinct change in performance.

14 Adjust only those controls covered by the operating instructions.

Improper adjustment of other controls may result in damage, and may require extensive work by a qualified service technician to restore the machine to normal operation.

Ozone Safety

During normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is advisable that the machine be operated in a well ventilated area.

If you need additional information about ozone, please contact your nearest Samsung dealer.

Power Saver

This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.

When the printe r does not receive da ta for an extended period of time, power consumption is automatically lowered.

The energy star emblem does not represent EPA endorsement of any product or service.

•Increase the separation between the equipment and receiver .

•Connect the equipme nt into an outlet on a circuit differe nt from that to which the receiver is connected.

•Consult the dealer or an ex p er ien ce d radio/TV technician fo r he l p .

AUTION

manufacturer responsible for compliance could void the user’s authority to operate the equipment.

: Changes or modifications not expressly approved by the

Recycling

Please recycle or dispose of packaging materials for this product in an environmentally responsible manner.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for en vi ronmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Radio Frequency Emissions

FCC Regulations

This device complies with Part 15 of the FCC Ru le s. O pe ration is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

This device has been te ste d a n d fo u n d to com p ly w i th th e l imi ts fo r a C la ss B digital device, pursuant to Part 15 of the FCC rules. Th e se lim i ts are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However , there is no guarantee that interference will not occur in a particular installation. If this equipment does ca us e harmful interference to radio o r television reception, which can be determined by turning the equipment off and on, the user is enco u raged to try to correct the interfe ren ce by one or more of the following measures:

•Reorient or relocate the rece iving antenna.

Canadian Radio Interference Regulations

This digital appara tu s do e s n ot exceed the Class B lim its for r adio noise emissions from digital apparatus as set out in the interference-causing equipment standa rd e n titled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques” , ICES-003 édictée par l’Industrie et Sciences Canada.

United States of America

Federal Communications Commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be presen t (e mbe dde d) in you r pr inte r sys tem . This sec tion is o nly appl icabl e if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of Am er ica if an FC C ID n u mber is on the system lab e l.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body , for use of a wireless device near the body (this does not include extremities). This device should be used more tha n 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure lim its as set b y th e FCC.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Operation of this device is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

“While installing and operating this tr a n smitter and antenna combination the radio frequency exposure limit of 1mW/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at a ll time s. Th is dev ice can n o t b e colocated with another transmitter an d transm itting antenna.”

vii

Declaration of Conformity (European Countries)

Approvals and Certifications

The CE marking applied to this product symb olises Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directiv es of the European Union as of the dates indicated:

January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the member states related to low voltage equipment.

January 1, 1996: Council Directive 89/3 36/EEC (92/31/EEC), approxima tion of the laws of the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

A full declaration, defining the relevant Directiv es and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:

In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21 and/or TBR 38. To assist in the use and application of terminal equipment which complies with this standa rd, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 term inals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.

European Radio Approval Information (for products fitted with EU-approved radio devices)

This Product is a printer; low power , Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the Euro pean Commission through the R&TTE directive.

European States qualified under wireless approvals:

Accept EU

Austria, Belgium, Denmark, Finland, France (with frequency restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden and the United

Iceland, Liechtenstein, Norway and Switzerland

European States with restrictions on use:

Accept EU

In France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wireless

No limitations at this time.

Regulatory Compliance Statements

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval a gency for requirements. Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your p rinter ) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power lev els, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body , for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEE E 802 .11 ( also known a s w ireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wi reless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization

viii

prior to use or turning on the wireless device.

Every country has different restrictions on the use of wireless

devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restor ation Kit, or contact manufacturer Technical Support for additional information.

Replacing the Fitted Plug (for UK Only)

MPORTANT

The mains lead for this machine is fitted with a standard (BS 1363) 13 a mp plug and has a 13 amp fuse. When you change or exam ine the fuse, you must re-fit the correct 13 amp fuse. Y ou then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover.

Please contact the people from you purchased the machine. The 13 amp plug is the most widely used type in the UK and should be

suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. Yo u need to buy a suitable plug adaptor. Do not remove the moulded plug.

ARNING

If you cut off the moulded plug, get rid of it straight away. You cannot rewire the plug and you may receive an electric

shock if you plug it into a socket.

MPORTANT WARNING

The wires in the mains lead have the following color co de:

: You must earth this machine.

EU Declaration of Conformity (LVD, EMC)

For the follow ing prod uct :

Laser Beam Printer

(Product na m e)

KT35MPB, Phaser 3500

(Model N um b er)

Samsung Electronics Co., Ltd. 259, Go ngdan-Dong, Gum i-City, G yeongsangbuk-Do, 730-030 Korea.

Manufactured at :

W e hereby declare, that all major safety requ irements, con cerning to CE M arking Directive[93/ 68/ EEC] and Low Voltage Directive [73/ 23/ EEC], ElectroMagnetic Compatibility [89/ 336/ EEC], amendm ents [92/ 31/ EEC] are fulfilled, as laid out in the guideline set dow n by the member states of the EEC Commission.

his d ecla ratio n is valid for a ll sam p les th at a re p art o f this d ec lara tion , w hic h ar e manufactured according to the production charts appendix. The standards relevant for the e valu atio n o f saf ety & EM C re qu ire m en ts are as fo llow s :

LVD : EN 60950-1:2001 EMC : EN 55022:1998+A1:2000+A2:2003, EN 55024:1998+A1:2001+A2:2003

EN61000-3-2:2000, EN61000-3-3:1995+A1:2001

1. Certifica te o f co nfo rm ity / Test rep o rt issu ed by :

2. Technical documentation kept at :

w hich w ill be m ade available upon request.

(Manufacturer) (Representative in the EU)

LVD : SEMKO EMC : SAMSUN G Electronics EURO QA Lab. in U.K.

Samsung Electronics Co., Ltd.

Samsun g Electronics Co., Ltd. #259, Gongda n-Dong, G um i-City, GyeongBuk, K orea. 730 -030

Wh an-Soon Y im / Senior M anager

(place and date of issue) (na me and signature of authorized person)

Samsung Electronics Euro QA Lab. Blackbushe Business Park, Saxony Way, Yateley, Hampshire, GU46 6GG, UK

Yong-Sang Park / Manager

(place and date of issue) (name and signature of authorized person)

• Green and Yellow: Earth

•Blue: Neutral

•Brown: Live

If the wires in the mains lead do not match the colors marked in your plug, do the following:

You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or gr een.

You must connect the blue wire to the p in which is marked with the letter “N” or colored black.

You must connect the brown wire to the pin which is mark ed with the letter “L” or colored red.

You mu st have a 13 amp fuse in the plug, adaptor, or at the distribution board.

1 Introduction

Special Features

Congratulations on the purchase of your printer! This chapter includes:

• Special Features

• Printer Components

Your new printer is equipped with sever al specia l features that improve the print quality. You can:

Print with excellent quality and high speed

• You can print up to details, see the

• Your printer prints A4-sized paper at sized paper at

1200 x 1200 dpi

Software Section

35 ppm

effective output.

33 ppm

and letter-

For

Handle paper flexibly

•The

Multi-Purpose Tray

labels, transparencies, custom-sized materials, postcards, and heavy paper. supports up to 100 sheets of plain paper.

•

Standard 500-sheet input tray 500-sheet input tray

of paper.

• Two output tray; select either

down)

convenient access.

•

Straight-through paper pa th

Multi-Purpose Tray to the rear cover.

the rear cover (face-up)

supports letterheads, envelopes,

The

Multi-Purpose Tray

(Tray1) and

(T ray 2) supports all standard sizes

the output tray (face-

for the most

capability from the

optional

also

Create professional documents

•Print

Watermarks

a watermark, such as the word “Confidential.” For details, see the

document to create a book. Once printed, all you have to do is fold and staple the pages. For details, see the

Section

Software Section

Booklets

. You can customize y our documents with

. This feature enables you to easily print a

Software

1.1

Introduction

•Print

Posters

document can be magnified and printed across several sheets of paper and taped together to form a poster. For details, see the

. The text and pictures of each page of your

Software Section

Save time and money

• This printer allows you to use the save toner. For details, s

• You can print on both sides of the paper to save paper (

double-sided printing

unit.

For details, see

• You can print multiple pages on a single sheet of paper to save paper (

Section

• You can use preprinted forms and letterhead. For details, see the

Software Section

• This printer automatically substantially reducing power consumption when not printing.

• This printer meets efficiency.

N-Up printing

page 2.8.

) if you install an optional duplex

page 9.9.

conserves electricity

Energy Star

Toner Save

For details, see the

guidelines for energy

mode to

Software

Expand the printer capacity

• This printer has 32 MB of memory which can be expanded to

288 MB

•A

Network interface

add an optional network interface card to the ML-3560. The ML-3561N and ML-3561ND come with a built-in network

interface, 10/100 Base TX. You can also use an optional wireless netw ork interface in the

ML-3560, ML-3561N and ML-3561ND.

• Your printer comes with a built-in

Emulation

. For details, see page 9.1.

enables network printing. You can

PostScript 3

* (PS) DIMM which enables PS printing.

* PostScript 3 Emulation

* 136 PS3 fonts

• Contains UFST and MicroType from Monotype Imaging Inc..

Print in various environments

• You can print in

2003

• Your printer is compatible with

• Your printer comes with both the interfaces.

• You can also use a and ML-3561ND come with a built-in network interface, 10/100 Base TX.

However, you need to install the optional network interface card to the ML-3560. Y ou can also install the optional wireless network interface in the ML-3560, ML-3561N and ML3561ND.

Windows 95/98/Me/NT 4.0/2000/XP/

Linux

and

Parallel

network interface

Macintosh

and

. The ML-3561N

USB

Printer Features

The table below lists a general overview of features supported by your printer.

(S: Standard, O: Option)

Features

IEEE 1284 S S S USB 2.0 S S S Network Interface O S S Wireless LAN O O O PostScript Emulation S S S Hard Disk O O O Duplex Unit O O S Optional Tray 2 O O O

ML-3560 ML-3561N ML-3561ND

Use the optional hard disk

If you install an optional hard disk, you can use it in various ways with your printer.

• The hard disk allows the data from your computer to be sent to the print queue of the printer hard disk. This decreases the workload of the computer.

• You can use various print features, such as storing a job in the hard disk and printing jobs anytime you want.

• You can print or delete the stored files in the hard disk.

• You can manage the print jobs in the print queue of the printer hard disk.

For details, see page 9.4.

Introduction

1.2

Printer Components

Front View

Rear View

Rear Cover (Face up)

Top Cover

(Open to access the

toner cartridge.)

Multi-Purpose Tray

Tray 1

(500-sheet paper feeder)

Output Support

Optional Tray 2

(500-sheet paper feeder)

Output Tray (Face down)

Paper Level Indicator

Control Panel

(See page 3.1.)

Control Board

Cover

Handle

(Open to install optional printer accessories.)

Network Port

(ML-3560: Option

ML-3561N and

ML-3561ND: Standard)

Power Switch

USB Port

Parallel Port

Optional Tray 2

Cable Connector

Power Receptacle

Optional Duplex Unit

(ML-3561ND:

Standard ML-3560

Optional Tray 2 Cable

* The figure above shows an ML-3561ND

with all available options.

and ML-3561N: Option)

* The figure above shows an ML -3561ND

with all available options.

Introduction

1.3

2 Setting Up Your Printer

This chapter provides step by step information on setting up your printer .

This chapter includes:

•Unpacking

• Installing the Toner Cartridge

•Loading Paper

• Connecting a Printer Cable

• Turning the Printer On

• Printing a Demo Page

• Changing the Display Language

• Using the Toner Save Mode

• Installing Printer Software

Unpacking

Remove the printer and all acce ssories from the packing carton. Make sure that the printer has been packed with the following items:

Print Driver CD

Network Utilities

Power Cord

***

Network Printer

Quick Guide**

* The Printer Driver CD contains the printer driver, the User’s

Guide, and the Adobe Acrobat Reader programme.

**The Network Utilities CD and N e twork Printer Quick Guide

are only for ML-3561N and ML-3561ND.

***The appearance of the power cord may differ dependi ng on

your country’s specifications.

OTES

• If any items are missing or damaged, notify your dealer immediately.

•

Components may differ from one country to another.

AUTION

cartridge and the tray. Use safe lifting and handling techniques. If you need to move the printer, it should be moved by two people. Use the lifting handles as show n in page 1.3. Back injury could result if a single person attempts to lift the printer.

: The printer weights 17 kg including the toner

Carefully remove all of the packing tape from the printer.

Quick Guide

Toner Cartridge

2.1

Setting Up Your Printer

Pull the paper tray out of the printer and remove the packing tape and the packing material inside of the tray.

Selecting a Location

Select a level, stable place with adequate space for air circulation. Allow extra space for opening covers and trays.

The area should be well-ventilated and away from direct sunlight or sources of heat, cold, and humidity. Do not set the printer close to the edge of your desk or table.

Clearance Space

Front

: 482.6 mm (enough space so that trays can be opened or removed)

Back

: 320 mm (enough space to allow opening of the rear output tray)

Right

: 100 mm (enough space for ventilation)

Left

: 100 mm (enough space for ventilation)

100mm

(3.9in)

320mm(12.6in)

100mm

(3.9in)

Installing the Toner Cartridge

Open the top cover. Pull up on the handle to open the cover.

Remove the starter toner cartridge from its bag.

AUTION

scissors, to open the toner cartridge package. They might scratch the drum of the cartridge.

: Do not use sharp objects, such as a knife or

Locate the sealing tape at the end of the toner cartridge. Carefully pull the tape completely out of the cartridge and

discard it.

482.6mm(19in)

2.2

Setting Up Your Printer

OTES

• The sealing tape should be longer than 60 cm when correctly removed.

• Holding the toner cartridge, pull the sealing tape straight to remove it from the cartridge. Be careful not to cut the tape. If this happens, you cannot use the toner cartridge.

• Refer to the helpful pictures on the cartridge wrapping paper.

There is a flexible plastic holder. Remove the holder out of the toner cartridge.

Thoroughly shake the cartridge from side to side to distribute the toner evenly inside the cartridge.

Thoroughly shaking the cartridge will assure maximum copies per cartridge.

Grasp the handle and insert the cartridge in the printer until it snaps into place.

Close the top cover. Make sure that the cover is securely closed.

CAUTION

• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

• Do not touch the green surface, the OPC drum, on the front of the toner cartridge with your hands or any other material.

• To prevent da mage, do not expose the toner cartridge to light for more than a few minutes. Cover it with a piece of paper to protect it, if necessary.

Locate the cartridge slots inside the printer, one on each side.

OTE

: When printing text at 5% coverage, you can expect a toner cartridge life of approximately 12,000 pages (6,000 pages for the toner cartridge that is shipped with the printer).

2.3

Setting Up Your Printer

Loading Paper

The Tray 1 can hold a maximum of 500 sheets of 20lb plain paper.

To load a stack of A4 or Letter-sized paper:

Pull open the Tray 1 and remove it from the printer.

Pull down the metal plate until it locks into position.

Fan the edges of the paper stack to separate the pages. Then tap the stack on a flat surface to even it up.

Insert the paper stack into the paper tray

side down

You can load previously printed paper. The printed side should be facing up with an uncurled edge at the top side. If you experience problems with paper feed, turn the paper around.

with the print

Squeeze the paper width guide and slide it to the desired paper size marked at the bottom of the tray.

2.4

Setting Up Your Printer

OTE

: If you want load a different sized paper, you need to adjust the paper guides. For details, see page 2.5.

Make sure not to overfill the tray and that all four corners are flat in the tray and under the paper length guide

bracket, as shown below. Overfilling the tray may cause a paper jam.

Insert and slide the paper tray back into the printer.

Changing the Size of the Paper in the Paper Tray

The tray is preset to Letter or A4 size, depending on your country. To change the size, you need to adjust the paper guides.

Push the back plate of the tray outwards completely so that it can extend the length of the tray.

Squeeze the paper width guide and slide it to the desired paper size marked at the bottom of the tray.

OTES

• Do not push the paper width guide far enough to cause the

material to warp.

• If you do not adjust the paper width guide, it may cause

paper jams.

Squeeze the paper length guide and slide it to the correct position for the paper size you are loading, which is marked at the bottom of the tray.

Load paper with the print side down. For details, see from step 5 on page 2.4.

2.5

Setting Up Your Printer

Using a USB Cable

Connecting a Printer Cable

For Local Printing

To print from your computer in a local environment, you need to connect your printer to the computer with either a parallel interface cable or a Universal Serial Bus (USB) cable.

If you are a Macintosh user, you can use only the USB cable.

OTE

: You only need to connect one of the cab les mentioned above. Do not use the parallel cable and USB cables at the same time.

Using a Parallel Cable

OTE

: Connecting the printer to the parallel port of the computer requires a certified parallel cable. You will need to buy a IEEE1284 compliant cable that is 3 m or less in leng th.

Make sure that both the printer and the computer are turned off.

Connect a parallel printer cable into the parallel port on the back of the printer.

Push the metal clips down to fit inside the notches on the cable plug.

OTE

: Connecting the printer to the USB port of the computer requires a certified USB cable. You will need to buy a USB 2.0 compliant cable that is within 3 m in length.

Make sure that both the printer and the computer are turned off.

Connect a USB printer cable into the USB port on the back of the printer.

Connect the other end of the cable to the USB port on your computer.

See your computer’s User’s G uide, if you need help.

Connect the other end of the cable to the parallel interface port on your computer, and tighten the screws.

See your computer’s User’s Guide, if you ne ed help.

OTE

: To print using the USB interface, you must be running Windows 98/Me/2000/XP/2003 or Macintosh with the and G3 processor or OS 10.2.x later

OS 9.x

For Network Printing

You can attach your printers to a network using an Ethernet cable (UTP cable with RJ.45 connector).

The ML-3561N and ML-3561ND come with a built-in network interface card.

If you are a ML-3560 user, you need to install an optional network interface card.

If you want to use the printer in both wired and wireless network environments, you need to install an optional wired and wireless network card to the ML-3560. For the M L-3561N, ML -3561ND y o u can replace the ne twork interface card to one supporting the wired and wireless LAN interface.

For details about installing the network interface card, see page 9.3.

2.6

Setting Up Your Printer

Using an Ethernet Cable

Connect one end of the Ethernet cable into the network port on the printer.

To the network LAN connection

Connect the other end of the cable into a network LAN connection.

See your computer’s User’s Guide, if you ne ed help.

Using a Network Antenna

If you install a wired and wireless network card, you can use your printer in a wireless environment by using a network antenna.

For the ML -3560, ML -3561N, ML -3561ND you need to install an optional wired and wireless network card. For details about installing the wired and wireless network card, see pag e 9.3.

OTE

: After connecting the printer, you need to configure the network parameters on the control panel. See page 8.2. You can use the software supplied with the card. Refer to the

Software Section

Turning the Printer On

Connect one end of the supplied power cord into the power receptacle on the back of the printer.

Connect the other end into a properly grounded AC outlet and turn on the printer using the power switch.

OFF

To view your display text in another language, see page 2.8.

CAUTION

• The fuser area inside the rear cover of your printer becomes very hot when in use. Take care not to burn your fingers when you access this area.

• Do not disassemble the printer with power on. If you do, you may receive an electric shock.

2.7

Setting Up Your Printer

Printing a Demo Page

Print a demo page to make sure that the printer is operating correctly.

In ready mode, press the control panel. You can see “Information” on the bottom

line of the display.

Press the

Press the scroll button ( or ) until you see “Demo Page” on the bottom line.

Press the

A demo page prints out.

Enter

button ( ) to access the menu.

Enter

button ( ).

button ( ) on the

Changing the Display Language

To change the language that is displayed on the control panel, follow these steps:

In ready mode, press the control panel until you see “Setup” on the bottom line of

the display.

Press the

Press the scroll button ( or ) until you see “LCD Language” on the bottom line.

Press the

Press the scroll button ( or ) to display the language you want to use.

Press the

Press the ready mode.

Enter

button ( ) to access the menu.

Enter

button ( ) to confirm the menu item.

Enter

button ( ) to save the selection.

On Line/Continue

button ( ) on the

button ( ) to return to

Using the Toner Save Mode

The Toner Save mode allows the printer to use less toner on each page. Activating this mode extends the life of your toner cartridge and reduces your cost per page beyond what one would experience in the normal mode, but it reduces print quality. This setting is not available with the 1200 dpi setting .

There are three ways to enable the Toner Save mode:

Using the Control Panel Button

Press the printer must be in ready mode; the ( ) is on in green and “Ready” is shown on the display.

•If the enabled and the printer uses less toner to print a page.

•If the disabled and the printer prints in normal mode.

Using the Control Panel Menu

You can set the the Toner Save mode on or off.

For further details about using the control panel menu, see page 3.2.

Toner Save

button ( ) on the control panel. The

On Line/Continue

button backlight is on, the mode is

button backlight is off, the mode is

item in the

Graphics

button

menu to turn

From the Software Application

You can set the Toner Save mode from the printer properties window on your printer driver. For details, see the

Section

Software

Installing Printer Software

You must install software using the supplied Printer Drive CD after you have set up your printer and connected it to your computer. For details, see the

Software Section

The Printer Drive CD provides you with the fo llo wing software:

If you are printing from Windows

You can install the follo wing printer software using the Printer Drive CD.

•

PCL printer driver

full advantage of your printer’s features. See the

Software Section for details about installing the

Samsung PCL printer driver.

•

PostScript Printer Description (PPD) file

to allow installation of the PostScript driver. T o install the PostScript dr iver, you need to select

and put a check mark on the PostScript driver when you install the software. For details, see the

Section

•

Smart Panel Software Section

Panel program.

If you are printing in Linux

You can print from a Linux-based computer with your printer. Go to the the Linux driver and printing from a Linux environment.

Software Section

If you are printing from a Macintosh

You can print from a Macintosh with your printer. Go to the

Software Section

software and printing from a Macintosh.

for Windows. Use this driver to take

for Windows

Custom

Software

. Appears when printing errors occur. See the

for details about installing the Smart

for information about installing

for information about installing the print

2.8

Setting Up Your Printer

3 Using the Control Panel

Understanding the Control

This chapter describes how to use the printer’s co ntrol panel. This chapter includes:

• Understanding the Control Panel

• Using Control Panel Menus

Panel

The control panel on the top right side of your printer has the display and the eight buttons.

Display

printer status and job in progress.

Display

: displays the

Buttons

Message Description

• The printer is on-line and ready to print.

Ready

Offline

Printing XXX

* xxx is the

current emulation.

Sleeping...

See “Understanding Display Messages” on page 7.10 for a complete listing of all printer messages.

• If you press the button ( )

• The printer is off-line and cannot print.

• If you press the button ( )

line.

• The printer is printing.

• If you want to stop printing, press the

Cancel button ( )

• The printer is in the Power Save mode, consuming less power. When a print job is received from the computer, or if any button is pressed, the printer switches to on-line.

• To deactivate the Power Save mode or change the power-saving time, see page 3.6.

On Line/Continue

, the printer goes to off-line.

On Line/Continue

, the printer switches to on-

3.1

Using the Control Panel

Buttons

Button Description

• Press to switch between on-line and off-line.

• In menu mode, press to return to ready mode. You can check the printer status according to the button backlight.

The printer is on-line and can

On Line/ Continue

Enter

Scroll buttons

Cancel

Green

Blinking

Orange

Blinking

• The printer is off-line and cannot print.

Off

• Press to enter menu mode.

• In menu mode, press to scroll through the menus. In menu mode, press to select the displayed sub

menu item or to confirm the changed setting. You can see the selected value marked with *.

In menu mode, press to scroll through sub menu items or setting options. Pressing the next option and pressing the previous option.

• Press to cancel the current print job.

• In menu mode, press to return to ready mode.

• The printer is in the Power Save mode. When data is received, it switches to on-line automatically.

receive data from the computer.

• When the backlight slowly blinks, the printer is receiving data from the computer.

• When the backlight fast blinks, the printer is receiving and printing data.

If you want to pause printing, switch the printer to off-line.

The printer has stopped printing due to a major error. Check the display message. See page 7.10 for details on the meaning of the error message.

A minor error occurs and the printer is waiting an error to be cleared. Check the display message. When the problem is cleared, the printer resumes printing. If you want to ignore this warning, press this button.





moves you to

sends you back to

Upper Level

Toner Save

In menu mode, press to go back to the upper menu level.

Press to enable or disable the Toner Save mode.

• If the button backlight is on, the mode is enabled and the printer uses less toner to print a document.

• If the button backlight is off, the mode is disabled and the printer will print in the normal quality.

For more information on the Toner Save mode, see page 2.8.

Using Control Panel Menus

A number of menus are available to make it easy for you to change printer settings. The diagram on next column shows the menus and all of the menu items available in each menu. The items in each menu and the values you can select are described in more detail in the tables beginning on page 3.3.

Accessing Control Panel Menus

You can control your printer from the printer’s control panel. You can also set the control panel menus w hile the printer is in use.

In ready mode, press the the menu you want on the bottom line of the display.

Press the

Press the scroll button ( or ) until the desired menu item displays on the bottom line.

Press the

If the selected menu item has sub menus, repeat steps 3 and 4.

Press the scroll button ( or ) until the desired setting option displays on the bottom line, or enter the required

value.

Press the selection.

An asterisk ( display, indicating that it is now the default.

To exit the menu, press the repeatedly, or the

After 60 seconds of inactivity (no key being pressed), the printer automatically returns to ready mode.

OTE

: Print settings made from the printer driver on a

connected computer override the settings on the control panel.

Enter

button ( ) to access the menu.

Enter

button ( ) to confirm the selected item.

Enter

button ( ) to save your input or

) appears next to the selection on the

Cancel

button ( ) until you see

Upper Level

button ( ).

button ( )

3.2

Using the Control Panel

Overview of Control Panel Menus

The control panel menus are used to configure the printer. The control panel provides access to the following menus:

Information Menu

This menu contains printer information pages that giv e deta ils about the printer and its configuration.

Active Job * (See page 9.5.)

User Name Job Name

Graphics (See page 3.6.)

Resolution Image Quality Toner Save Density

Printer (See page 3.6.)

Default Set Current Job

Stored Job ** (See page 9.5.)

User Name Job Name

Layout (See page 3.5.)

Orientation Duplex**** Duplex Margin**** Simplex Margin Copies

Setup (See page 3.6.)

Date & Time*** Form Menu*** Sel. 1st. Form*** Sel. 2nd. Form*** LCD Language Emulation Power Save

Information (See page 3.3.)

Configuration Menu Map Demo Page Stored Job*** Usage Page***

Auto Continue JAM Recovery Altitude Adj. Auto CR Job Time Out Maintenance

Completed Job*** PS3 Font List PCL Font List EPSON Fonts IBM Fonts

Paper (See page 3.4.)

T r ay Source Media Size Custom Width Custom Height Media Type T r ay Chaining

PCL (See page 3.7.)

Typeface Symbol Lines Pitch Point Size Courier

Item Explanation

Configuration

Menu Map

Demo Page

Stored Job

Usage Page

Completed Job

PS3 Font List PCL Font List EPSON Fonts IBM Fonts

The configuration page shows the printer’s current configuration. See page 6.1.

The menu map shows the layout and current settings of the control panel menu items.

The demo page allows you to check if your printer properly performs printing.

The list shows the file list stored in the optional hard disk.

The Usage Page contains the total number of pages printed by person or group. This page can be used for cost accounting. See page 6.1.

The Completed Job page shows the list of completed print jobs. The list contains up to 50 files from the latest print jobs.

The font sample list shows all of the fonts currently available in the selected language.

Network***** (See page 3.9.)

Config Network Config TCP IP Get Method IP Address Subnet Mask Gateway Config WLAN

*:Available when your printer is printing a file from an optional hard disk. **: Available when there is a file stored in an optional hard disk. ***: Available when an optional hard disk is installed in your printer. ****: Available when an optional duplex unit is installed in your printer. *****: Available when a network card is installed in your printer. (ML-3561N or ML-3561ND, or ML-3560 with

an optional network card)

AppleTalk Netware Config Netware IPX Frame Type Reset Network Default Set Print Net CFG

EPSON/IBM/IBM (See page 3.8.)

Font Auto Wrap Character Set Character T ab. LPI Pitch

PostScript (See page 3.8.)

Print PS Error

Using the Control Panel

3.3

Paper Menu

Use this menu to define all settings relating to print material input and output, as well as the specific print material you are using with your printer.

(*: the default setting)

Item Explanation

Values: Auto Select*, Tray 1, MP Tray, Tray 2, Manual Tray

Using this item, you can set the tray you will use.

Tray Source

• If you select

Auto Select

automatically determine the source.

• Select

MP Tray

Multi-Purpose Tray. If you select

Tray

, you need to press the

Continue

button each time you print a

page.

•The

Tray 2

item is available only when the

optional Tray 2 is installed.

, the printer can

Manual Tray

On Line/

to use the

Manual

Item Explanation

Values: Off*, Plain Paper, Thick, Thin, Bond, Color Paper, Card Stock, Labels, Transparency, Envelope, Preprinted

The Media T ype setting lets you specify the type of print material you are using to get the best result.

Media Type

Plain Paper

•

Thick

•

Thin

: Select for thin paper

Bond

•

: Select for thick paper.

Color Paper Card Stock Labels Transparency Envelope Preprinted

something else printed on it, such as letterhead.

: Select for plain paper.

: Select for thick paper

: Select for colored paper.

: Select for card stocks.

: Select for labels.

: Select for transparencies.

: Select for envelops.

: Preprinted is for paper with

Media Size

Custom Width

Custom Height

Values: Letter, Legal, A4, EXE, JIS B5, ISO B5, No.10 Env., Monarch Env., DL Env., C5 Env., C6 Env., US Folio, A5, A6, Custom, Oficio * Letter for USA, A4 for Europe and Asia

Select the paper size currently loaded in the tray.

Values: A4:210 mm/ Letter:215 mm * Letter for USA, A4 for Europe and Asia

Select the paper size currently loaded in the tray. This menu is shown when value is set up by

Custom Width

•

Custom

: Set the custom width from

Media Size

76 to 216 mm.

Values: A4:297 mm/ Letter:279 mm * Letter for USA, A4 for Europe and Asia

Select the paper size currently loaded in the tray. This menu is shown when value is set up by

Custom Height

•

Custom

: Set the custom height

Media Size

from 127 to 356 mm.

Values: Off, On*

Tray Chaining

When you select any other value except

from

Select

Tray Source

and the selected

tray is empty, the printer automatically prints

Auto

from other trays.

Off

If this menu item is set to

On Line/Continue

button backlight blinks in

, the

orange and the printer doesn’t work until you insert paper into the specified tray.

3.4

Using the Control Panel

Layout Menu

Use the

(*: the default setting)

Layout

menu to define all settings relating to output.

Item Explanation

Values: Portrait*, Landscape

Choose the default orientation of print image on the page.

Orientation

Portrait

Values: Off*, Long Edge, Short Edge

To print on both sides of paper, choose the binding edge as follows.

Long Edge

• pages to read like a book.

Short Edge

• pages to read by flipping over like a note pad.

: Flip on long edge. Prints

: Flip on short edge. Prints

Landscape

Item Explanation

Values: Top/Left:5.0*, Short/Long: 0*

In this menu, you can set the margin of print materials for double-sided printing. You can increase or decrease the value in 0.1 mm increments.

Top Margin

•

: Set the top margin, from 0.0

to 9.9 mm.

Duplex Margin

•

Left Margin

: Set the left margin, from 0.0

to 9.9 mm.

Short Binding

•

: Set the bottom margin of the rear side for short binding, from 0.0 to 22 mm.

Long Binding

•

: Set the right margin of the rear side for long binding, from 0.0 to 22 mm.

OTE

This menu item is available only

when you install an optional

Values: 0.0*

Simplex Margin

Set the margin of print materials for onesided printing. You can increase or decrease the value in 0.1 mm increments.

•

Top Margin

: Set the top margin, from 0.0

to 250 mm.

Left Margin

•

: Set the left margin, from 0.0

to 164 mm.

duplex unit

Duplex

Long Edge in the Portrait orientation

Short Edge in the Portrait orientation

Select

OTE

Short Edge in the Landscape orientation

Off

to print on one side of paper.

Long Edge in the Landscape orientation

: This menu item is available only

when you install an optional duplex unit.

Using the Control Panel

Values: 1* ~ 999

Copies

Set the default number of copies by selecting any number from 1 to 999.

3.5

Graphics Menu

Use the of the printed characters and images.

(*: the default setting)

Graphics

menu to change settings affecting the quality

Item Explanation

Values: 600dpi-Normal*, 1200dpi-Best

Specify the number of dots printed per inch (dpi). The higher the setting, the sharper the clarity of printed characters and graphics.

Resolution

Image Quality

• If your print jobs are mostly text, select

600dpi-Normal

output.

•Select

This item enhances the print quality.

•

1200dpi-Best

contains bitmapped images, such as scanned photos or some business graphics, that will benefit from enhanced line screening.

Values: Normal, Text Enhance*

Normal Text Enhance

characters more vivid in your documents, use Text Enhance, and it will make your documents easier to read. Also, using 1200dpi mode will make characters and graphics better. Its higher resolution will provide better graphical image quality.

: Doesn’t enhance the quality.

: If you want to display

for the highest quality

when your job

Printer Menu

This menu allows you to reset the printer settings or cancel the current job.

Item Explanation

Default Set

Current Job

This menu item allows you to restore the printer’s factory default settings.

You can cancel the current print job and remove it from the printer buffer.

Setup Menu

Use the

(*: the default setting)

Date & Time Form Menu Sel. 1st. Form Sel. 2nd. Form

LCD Language

Setup

menu to configure a variety of printer features.

Item Explanation

For details, see “Using the Hard Disk” on page

9.4.

Values: English*, German, French, Italian, Spanish, Russian, Portuguese, ...

The LCD Language setting determines the language of the text that appears on the control panel display and information printing.

Toner Save

Density

Values: Off*, On

To get the most from your toner supply, set

Off

this menu to print quality may be reduced.

Values: Light, Medium*, Dark

You can lighten or darken the print on the page by changing the toner density setting.

Medium

The best result. Use the setting to save toner.

. If you set this menu to On,

setting usually produces the

Light

toner density

Using the Control Panel

3.6

Emulation

Power Save

Values: Auto*, PCL, HEXDUMP, EPSON, PS3, IBM ProPrint

The printer language defines how the computer communicates with the printer.

Auto

If you select the printer language automatically.

Values: Off, 5 Minutes, 10 Minutes, 15 Minutes*, 30 Minutes, 45 Minutes, 60 Minutes

When the printer does not receive data for an extended period of time, power consumption is automatically lowered. You can set how long the printer waits before going to the power save state.

, your printer can change

Item Explanation

Auto Continue

JAM Recovery

Altitude Adj.

Values: Off, On*

This item determines whether or not the printer continues printing when it detects the paper unmatched to your paper setting.

Off

: If the paper mismatch occurs, the

• message will remain on the display and the printer will remain off-line until you insert the correct paper.

: If the paper mismatch occurs, an error

• message will display. The printer will go offline for 30 seconds and auto m a t ic a lly clear the message and continue printing.

Values: Off*, On

This item determines how the printer behaves when a paper jam occurs.

Off

: The printer does not reprint pages.

• Printing performance might be increased with this setting.

: The printer automatically reprints

• pages after you clear the paper jam.

Values: Low*, High

You can optimize print quality depending on the air pressure, such as in a high ground.

Values: LF*, LF+CR

This item allows you to maintain the toner cartridge.

Maintenance

OPC Cleaning

• the cartridge and produces a cleaning sheet with toner debris on it.

Fuser Cleaning

• inside of the printer and produces a cleaning sheet with toner debris on it.

Life Remaining:

• check how much toner are left in the cartridge.

: Cleans the OPC drum of

: Cleans the fuser unit

This item allows you to

PCL Menu

This menu sets the PCL emulation configuration. You can set the font type, symbol type, lines per page, and point size.

(*: the default setting)

Item Explanation

Values: PCL1* ~ PCL68

You can select the standard font to be used in PCL emulation.

• PCL1~PCL7’s interval between letters is fixed,

Typeface

and PCL8~PCL45’s interval is proportional to the font type and point size. You can adjust the

Pitch

font size of PCL1~PCL7 using the and PCL8~PCL45 can do using item.

• PCL46~PCL54’s interval and point size are fixed.

Point Size

item,

Auto CR

Job Time Out

This item allows you to append the required carriage return to each line feed. Refer to the following samples:

AA BB

LF LF+CR

Values: 0 ~ 1800 sec *15 sec

You can set the time length the printer waits before printing the last page of a print job that does not end with a command to print the page. When a job time-out occurs, the printer prints the page in the print buffer.

AA BB

Using the Control Panel

3.7

Symbol

Lines

Values: ROMAN8 ~ PCCYRILLIC *PC8

This item selects the symbol to be used in PCL emulation. The symbol is the group of numbers, marks, and special signs being used when printing letters.

Values: 5 ~ 128 *60 (Letter), 64 (A4)

This item allows you to set vertical spacing from 5 to 128 lines for the default paper size. The lines may differ according to the paper size and printing orientation.

Item Explanation

Values: 0.44 ~ 99.99 (0.01 unit) *10

Pitch

When you select one between PCL1 and PCL7 from the font size by setting the number of characters that will print in one horizontal inch of type. The default value, 10 is the best size.

Typeface

menu, you can determine the

EPSON/IBM Menu

This menu sets the EPSON emulation configuration.

(*: the default setting)

Item Explanation

Values: SANSERIF*, ROMAN

Font

You can select the standard font will be used in EPSON emulation.

Values: 4.00 ~ 999.75 (0.25 unit) *12

Point Size

Courier

When you select one between PCL8 and PCL45 from the font size by setting the height of the characters in the font.

This item lets you select the version of Courier font to use.

Typeface

Values: Regular*, Dark

menu, you can determine the

PostScript Menu

This menu provides you with the Print PS Error menu item.

(*: the default setting)

Item Explanation

Values: Off*, On

Auto Wrap

Character Set

Character Tab.

LPI

Values: On*, Off

This item determines whether or not the printer automatically performs line feed when the data overflows the printable area of the print material.

Values: USA*, FRANCE, GERMANY, UK, DENMARK1, SWEDEN, ITALY, SPAIN1, JAPAN, NORWAY, DENMARK2, SPAIN2, LATIN

This item the desired language

This item

You can vertical inch.

allows you to select a character set of

Values: ITALIC, PC437US*, PC850

selects the character set.

Values: 6*, 8

set the number of lines printed in one

Print PS Error

You can select whether or not yo ur printer prints an error list when a PS error occurs.

•Select On to print PS 3 emulation errors. If an error occurs, the job stops processing, the error message prints, and the printer flushes the job.

Off

• If this menu is set to without an indication of the error.

, the job is flushed

Using the Control Panel

3.8

Pitch

Values: 10*, 12, 17.14, 20

You can determine the font size by setting the number of characters that will print in one horizontal inch of type.

Network Menu

This menu lets you configure the network interface card installed in your printer. You can upgrade the firmware of the network interface card and print a configuration page.

OTE

: This menu only appears when a network card is installed (ML-3561N, ML-3561ND, or ML -3560 with an optional network card).

(*: the default setting)

Item Explanation

You can set this item only when you set

Static

Subnet Mask

Get Method

enter the subnet mask manually. Press the scroll button to set the value of the 1st byte between 0 and 255, and then press the button. Set the value for the 2nd, 3rd, and 4th bytes in the same way.

. This item lets you

Enter

Item Explanation

Values: Yes, No*

Config Network

Config TCP

IP Get Method

Set whether or not you configu re ne twork values.

Yes

If you select available:

AppleTalk

Values: Yes, No*

Select whether you set the IP address item or not. If you select address. If you select appears on the display. You can select how to get the IP address.

Values: Static, BOOTP, DHCP*

You can set this item only when you set

Config TCP

•

BOOTP

address to you automatically.

DHCP

• address to you automatically.

Static

• subnetmask, and gateway manually.

: The BOOTP server allots the IP

: The DHCP server allots the IP

: You can enter IP address,

, the following options are

Config TCP, Config 802.11b

, and

Netware

Yes

, you can configure the IP

Yes

, the

Yes

IP Get Method

option

Gateway

Config WLAN

AppleTalk

You can set this item only when you set

Get Method

enter the gateway manually. Press the scroll button to set the value of the 1st byte between 0 and 255, and then press the Set the value for the 2nd, 3rd, and 4th bytes in the same way.

Values: Yes, No*

Configure the Wireless Network environments. If you select available:

Channel, Authentication, Encryption Using Key, Key Type

See “Configuring the Wireless Network” on page 8.4

OTE

optional wireless network interface card has been installed in ML-3560, ML-3561N or ML3561ND.

Values: On*, Off

This item lets you select whether or not you use the AppleTalk protocol. Select On to use the protocol.

Values: On*, Off

Static

. This item lets you

Enter

Yes

, the following options are

SSID, Operation Mode

, and

Key1~Key4

: This menu only appears when an

button.

IP Address

You can select this item only when you set

Static

Get Method

enter the IP address manually. Press the scroll button to set the value of the 1st byte between 0 and 255, and then press the Set the value for the 2nd, 3rd, and 4th byte the same way.

. This item lets you

Enter

button.

Using the Control Panel

3.9

Netware

This item selects whether you use the Netware protocol. If you select On, you can access the Config Netware menu item.

Config Netware

In the specify the frame type parameter used on your network.

menu, you can

Item Explanation

Values: Yes, No*

You can set this item only when you set Config Netware

IPX Frame Type

Netware

whether or not you set the frame type

parameter.

type.

If you select

option appears on the display.

You can select this item only when you set

Config Netware

select the IPX frame type.

Auto

• automatically.

EN_8023

•

802.3 frame type.

EN_II

• ETHERNET II frame type.

EN_8022

•

802.2 frame type.

EN_SNAP

• frame type.

to On. This item lets you select

Select

Yes

, the

Values: Auto*, EN_8023, EN_II, EN_8022, EN_SNAP

: You can set the frame type

: Select this value to use the IEEE

: Select this value to use the

: Select this value to use the IEEE

: Select this value to use the SNAP

to select the frame

IPX Frame Type

Yes

. This item lets you

Reset Network

Default Set

Print Net CFG

This item reboots the network interface card.

This item performs a simple reset and restores the factory default settings for the network configuration. take effect after you have reset the printer.

This item print a page showing the network parameters you set.

This setting will only

3.10

Using the Control Panel

4 Using Print Materials

This chapter will help you understand types of pape r you can use with your printer and how to properly load paper in the different paper trays for the best print quality.

This chapter includes:

• Choosing Paper and Other Materials

•Loading Paper

• Selecting an Output Location

• Printing on Special Print Materials

Sizes and Capacities

Input Source/Capacity

Size

Plain Paper Envelopes

Labels Transparencies**

Tray1 or

optional

Tray 2

500 100 1

-101

-251

-501

Multi-

Purpose

Tray

Manual

Feed

Choosing Paper and Other Materials

You can print on a variety of print materials, such as plain paper , en velopes, labels, tran sparencies, and so on. See “Pap er Specifications” on page 10.2. To get the best possible print quality, use only high-quality, copier-grade paper.

When you choose print materials, consider the following:

•

Desired outcome

appropriate for the project.

Size

: You can use any size paper that fits easily within

• the paper adjusters of the paper tray.

•

Weight

-16~28 lbs (60~105 g/m2) bond for the Tray 1 or

-16~43 lbs (60~163 g/m

•

Brightness

produce sharper, more vibrant images.

•

Surface smoothness

affects how crisp the printing looks on the paper.

AUTION

specifications listed on page 10.2 can cause problems that may require service. This service will not be cove red by the warranty or service agreements.

: Your printer supports paper weight as follows:

optional Tray 2

: Some papers are whiter than others and

: Using a material that does not conform to the

: The paper you choose should be

) bond for the Multi-Purpose Tray

: The smoothness of the paper

Card stocks** Bond**

* Depending on paper thickness, maximum capacity may be

reduced.

** If you are experiencing excessive jamming, feed one sheet

at a time through the Multi-Purpose Tray.

-101

Guidelines for Paper and Special Materials

When selecting or loading paper, envelopes, or other special materials, keep these guidelines in mind:

• Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and poor print quality.

• Use cut-sheet paper only. You cannot use multi-part paper.

• Use only high-quality, copier grade paper for the best print quality.

• Do not use paper with irregularities, such as tabs or a staples.

• Do not attempt to load any tray during printing, and never overfill the tray. This could cause a paper jam.

• Avoid paper with embossed lettering, perforations, or a texture that is too smooth or too rough.

• Colored paper should be of the same high quality as white photocopy paper. The pigments must be able to withstand the printer’s fusing temperature of 383°F (195°C) for 0.1 seconds without deteriorating. Do not use paper with a colored coating that was added after the paper was produced.

4.1

Using Print Materials

• Preprinted forms must be printed with nonflammable, heat-resistant ink that does not melt, vaporize, or release hazardous emissions when subjected to the printer’s approximately 383°F (195°C) fusing temperature for 0.1 seconds.

• Store paper in its ream wrapper until you are ready to use it. Place cartons on pallets or shelves, not on the floor.

• Do not place heavy objects on top of the paper, whether it is packaged or unpackaged.

• Keep paper away from moisture, direct sunlight, or other conditions that can cause it to wrinkle or curl.

OTE

: Do not use carbonless paper or tracing paper. They are unstable at the fusing temperature and can give of fumes, or cause damage to the printer.

Loading Paper

Using the Tray 1 or the Optional Tray

Use the print material you use for the majority of your print jobs in the Tray 1. The Tray 1 can hold a maximum of 500 sheets of 20lb paper.

You can purchase an optional Tray 2 and attach it below the Tray 1 to load an additional 50 0 sheets of paper. See page 9.7 for more information about installing the optional Tray 2.

Tray 1

Optional Tra y 2

Proper paper loading helps prevent paper jams and ensure trouble-free printing. Do not remove the paper tr ay while a job is printing. Doing so may cause a paper jam. See “Sizes and Capacities” on page 4.1 for acceptable paper size and capacities for each tray.

The paper level indicator on the front of the paper tray shows the amount of paper currently left in the tray. When the tray is empty, the indicator of the bar is completely lo wered.

Paper full

Paper empty

T o load paper, pull open the paper tray and load paper with the print side down. For details about loading paper in the T r ay 1 or optional Tray 2, see “Loading Paper” on page 2.4.

Using the Multi-Purpose Tray

The Multi-Purpose Tray is located in the front of your printer. It can be closed when not in use, making the printer more compact.

Multi-Purpose Tray

The Multi-Purpose Tray can hold several sizes and types of material, such as transparencies, cards, and envelopes. You may also want to use the Multi-Purpose Tray for single page print jobs on letterheads, colored paper for use as separ a tor sheets, or other special materials that you do not normally keep in the tray. You can load approximately 100 sheets of plain paper, 10 envelopes, 50 transparencies, 10 card stocks, or 25 labels at a time.

• Load only one size of print material at a time in the Multi-Purpose Tray.

4.2

Using Print Materials

• To prevent paper jams, do not add paper when there is still paper in the Multi-Purpose Tray. This also applies to other types of print materials.

• Print materials should be loaded face up with the top edge going into the Multi-Purpose Tray first, and be placed on the center of the tray.

• Do not place objects on the Multi-Purpose T ray. Also avoid pressing down or applying excessive force on it. The Multi-Purpose Tray may fall apart from the printer.

To load paper in the Multi-Purpose Tray:

Pull the Multi-Purpose Tray down towards you.

Load the print material on the center of the tray

print side up

If you want to print on previously printed paper from the Multi-Purpose T ra y , the printe d side should be facing down with an uncurled edge to the printer. If you experience problems with paper feeding, turn the paper around.

with the

Pull the extender to extend the Multi-Purpose Tray to hold longer paper.

If you are using paper, flex or fan the edge of the paper stack to separate the pages before loading.

OTE

: Make sure that you have not loaded too much print material. The print material buckles if you load a stack that is too deep or if you push it in too far.

Squeeze the paper width guide and slide it to the edge of the print material without causing it to bend.

For transparencies, hold them by the edges and avoid touching the print side. Oils from your fingers can cause print quality problems.

Using Print Materials

4.3

OTE

: Your printer cannot autom ati cally detect the size of paper loaded in the Multi-Purpose Tray. Configuring the MultiPurpose Tray with the correct paper size allows yo u to select paper by size rather than paper source when you print from your software application. You do not have to check which paper is loaded in the Multi-Purpose Tray before printing.

In Ready mode, press the “Paper” on the bottom line of the display.

Press the

Press the scroll button ( or ) until “Media Size” appears on the bottom line.

Press the

Press the scroll button ( or ) until the size of paper you loaded appears on the bottom line of the display.

Press the

When you print a document, set the paper source and type in the software application. For deta ils, see the

Section

For information about setting on the control panel, see page 3.2.

After printing, put the extender back to its place.

Enter

button ( ) to access the menu.

button ( ). Now, you are ready to print.

button ( ) until you see

Software

Using the Manual Feed Mode

You can manually load a sheet of print material in the MultiPurpose Tray if you select

Paper

from the document. For details about changing print settings, see the

Software Section. Manually loading paper can be helpful

when you want to check the print quality after each page is printed.

This loading procedure is almost the same as the procedure for loading in the Multi-Purpose Tray, ex cept you load paper sheet by-sheet in the tray, send print data to print the first page, and press the to print each following page.

Load a sheet of print material on the center of the MultiPurpose Tr ay

tab when you change print settings to print a

On Line/Continue

with the print side up

Manual Feed

button ( ) on the control panel

in the

Source

option

Close the Multi-Purpose Tray.

OTE

: When the Multi-Purpose T ray is empty , load paper after pushing the inner part of the tray. If not, the paper is not fed into the Multi-Purpose Tray automatically.

Squeeze the paper width guide and slide it to the edge of the print material without causing it to bend.

When you print a document, set the paper source to

Manual Feed

type

in the software application.

Software Section.

Print a document.

The display shows a message prompting you to load paper and press the

Press the

The printer picks up the print material and prints. After one page is printed, the message appears again.

and select the appropriate paper size and

For details, see the

On Line/Continue

button ( ).

4.4

Using Print Materials

OTE

: If you do not press the button, after a pause the printer will automatically pick the print material.

Insert the next sheet into the Multi-Purpose T r ay and press the

On Line/Continue

Repeat this step for every pag e to be printed.

button ( ).

Selecting an Output Location

The printer has two output locations; the rear cover (face up) and the output tray (face down).

Output tray

Rear cover

Printing to the Output Tray

The output tray collects paper face down, in the order in which the sheets were printed. The tray should be used for most print jobs.

OTE

• If you continuously print many pages, the surface of the output tray may become hot. Be careful not to touch the surface, especially for children.

• The output tray can hold up to 250 sheets of paper.

(Face down)

T o use the output tray, make sure that the rear cover is closed. To use the rear cover, open it.

OTES

• If paper coming out of the output tray has problems, such as excessive curl, try printing to the rear cover.

• To avoid paper jams, do not open or close the rear cover while the printer is printing.

Printing to the Rear Cover

The printer always prints to the rear cover if it is open. Paper comes out of the printer face up, with the last page on top.

Printing from the Multi-Purpose Tray to the rear cover provides the

straight paper path

improve the output quality with the following:

• over 100 sheets of paper continuously

•envelopes

•labels

• small custom-sized paper

•postcards

• paper lighter than 60 g/m

(28 lb)

• transparencies: some special transparencies may have stacking problem by curl. In that case, please use the output tray (face down).

. Opening the rear cover might

(16 lb) or heavier than 105 g/

(Face up)

4.5

Using Print Materials

To open the rear cover:

Open the rear cover by pulling it down. The cover functions as the output tray.

AUTION

printer becomes very hot when in use. Take care not to burn your fingers when you access this area.

: The fusing area inside the rear cover of your

Pull the extender to extend the rear cover to its full-length position to hold longer paper.

Printing on Special Print Materials

Printing on Envelopes

Guidelines

• Only use envelopes recommended for laser printers. Before loading envelopes in the Multi-Purpose Tray, make sure that they are undamaged and are not stuck together.

• Load envelopes into the Multi-Purpose Tray only.

• Do not feed stamped envelopes.

• Never use envelopes with clasps, snaps, windows, coated lining, or self-stick adhesives. These envelopes may severely damage the printer.

Open the Multi-Purpose Tray and pull the extender.

If you do not want to stack the printed pages on the rear cover, slide the extender to its place and close the tray. The pages will stack on the output tray.

OTE

: The rear cover can hold up to 100 sheets of paper. If the cover is overloaded with printed pages, it ma y fall from the printer. Remove the pages so that the cover is not overloaded.

Using Print Materials

4.6

Open the rear cover and pull the extender.

Push the envelope levers upwards. Th e print quality will be enhanced.

AUTION

print on materials other than envelopes.

: Push the envelope levers downwards when you

Flex or fan the edge of the envelope stack to separate and load the envelopes into the Multi-Purpose Tray

flap side down

the end of the envelope

printer first

. The stamp area is

with the stamp area enters the

on the left side

with the

and

When you print, set the paper source, type, and size properly in the software application. For details, see the

Software Section

For details about setting on the control panel, see page 3.2.

After printing, push the envelope levers to their original positions, and close the Multi-Purpose Tray and the rear cover.

Printing on Labels

Guidelines

• Only use labels recommended for laser printers.

• Verify that the labels’ adhesive material can tolerate fusing temperature of 195°C (383°F) for 0.1 second.

• Make sure that there is no exposed adhesive material between the labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to printer components.

• Never print on the same sheet of labels more than once, or print on a partial sheet of labels.

• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or damaged in any way.

• To prevent labels from sticking together, do not let the printed label sheets stack up as they are printed out.

Squeeze the paper width guide and slide it to the edge of the envelope stack without causing it to bend.

Open the Multi-Purpose Tray and pull the extender.

Open the rear cover and pull the extender.

4.7

Using Print Materials

Load labels into the

side up

When you print, set the paper source, type, and size properly in the software application. For details, see the

Software Section

For details about setting on the control panel, see page 3.2.

After printing, close the Multi-Purpose Tray and the rear cover.

. Adjust the guide to fit the width of the labels.

Multi-Purpose Tray

with the print

Printing on Transparencies

Open the rear cover and pull the extender.

Load transparencies in the

print side up entering the printer first

width of the transparencies.

, and

the top with the adhesive strip

Multi-Purpose Tray

. Adjust the guide to fit the

with the

Guidelines

• Only use transparencies recommended for use in laser printers.

• Ensure that transparencies are not wrinkled, curled, or have any torn edges.

• Hold the transparencies by the edges and avoid touching the print side. Oils from your fingers can cause print quality problems.

• Be careful not to scratch or leave fingerprints on the print side.

Open the Multi-Purpose Tray and pull the extender.

When you print, set the paper source, type, and size properly in the software application. For details, see the

Software Section

For details about setting on the control panel, see page 3.2.

After printing, close the Multi-Purpose Tray and the rear cover.

OTES

• If you print on thin transparencies to the rear cover , they can be curled. In this case, use the output tray. If the problem persists, check if your transparencies meets the printer’s specifications.

• To preven t transparencies from sticking, do not let the printed sheets stack up as they are printed out.

• Place transparencies on a flat surface after removing them from the printer.

4.8

Using Print Materials

Printing on Preprinted Paper

Preprinted paper is paper that has some type of printing on it before it is sent through the printer (paper that has a preprinted logo at the top of the page, for example).

Guidelines

• Letterheads must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the printer’s fusing temperature of 383 °F (195 °C) for 0.1 second.

• Ink on letterheads must be non-flammable and should not adversely affect printer rollers.

• Forms and letterheads should be sealed in a moisture-proof wrapping to prevent changes during storage.

• Before you load preprinted paper, such as forms and letterheads, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper , reducing print quality.

Load letterheads into the tray you want to use, as shown in the figures below. Adjust the guides to fit the width of the paper stack.

Load with the design face down, bottom edge towards the printer.

Printing on Card Stock or Customsized Materials

Postcards, 3.5 by 5.83 in. (index) cards, and other customsized materials can be printed with your printer . The minimum size is 76 by 127 mm (3 by 5 in.) and the maximum size is 216 by 356 mm (8.5 by 14 in.).

Guidelines

• Always insert the short-edge into the Multi-Purpose Tray first. If you want to print in landscape mode, make this selection through your software. Inserting paper long-edge first may cause a paper jam.

• Do not load more than 10 cards into the Multi-Purpose Tray at a time.

• Do not print on media smaller than 76 mm (3 in.) wide or 127 mm (5 in.) long.

• In the software application, set margins at least 6.4 mm (0.25 in.) away from the edges of the material.

Open the Multi-Purpose Tray and pull the extender.

Open the rear cover and pull the extender.

Load print material in the

print side up and short edge first

fit the width of the material stack.

Multi-Purpose Tray

. Adjust the guide to

with the

Load with the design face up, top edge towards the printer.

When you print, set the paper source, type, and size properly in the software application. For details, see the

Software Section

For details about setting on the control panel, see page 3.2.

4.9

Using Print Materials

When you print, set the paper source, type, and size properly in the software application. For details, see the

Software Section

For details about setting on the control panel, see page page 3.2.

After printing, close the Multi-Purpose Tray and the rear cover.

5 Basic Printing

Printing a Document

This chapter explains common printing tasks. This chapter includes:

• Printing a Document

• Canceling a Print Job

This printer allows you to print from various Windows applications, a Macintosh computer, or a Linux system. The exact steps for printing a document may vary depending on the application you use.

For details about printing, see the

Software Section

Canceling a Print Job

If the print job is waiting in a print queue or print spooler , such as the printer group in Windows, delete the job as follows:

Click the Windows

For Windows 98SE/NT 4.0 /2000/Me, select

Printers

then For Windows XP/2003, select

Double-click the

Samsung ML-3560 Series PS

From the (Windows 98SE/Me) or XP/2003).

Document

Start

button.

Settings

Printers and Faxes

Samsung ML-3560 Series PCL6

icon.

menu, select

Cancel

Cancel Printing

(Windows NT 4.0/2000/

and

NOTE

: You can access this window sim ply by double-clicking the printer icon at the bottom right corner of the Windows desktop.

You can also cancel the current job by pressing the button ( ) on the control panel of your printer.

Cancel

5.1

Basic Printing

6 Maintaining Your

Printing Information Pages

Printer

This chapter provides information for maintaining your printer and the toner cartridge, as well as suggestions for high-quality and economical printing.

This chapter includes:

• Printing a Configuration Page

• Maintaining the Toner Cartridge

• Cleaning the Printer

• Consumables and Replacement Parts

From the printer’s control panel, you can print pages tha t give detailed information about the printer. They can be help you maintain your printer.

Printing a Configuration Page

You can print a configuration page from the printer’s control panel. Use the configuration page to view the current settings, to help troubleshoot problems, or to verify the installation of optional accessories, such as memory , optional tray, hard disk, or duplex unit.

To print a configuration page:

In ready mode, press the control panel until you see “Information” on the bottom line of the display.

Press the

Press the displays on the bottom line.

A configuration page prints out.

Enter

button ( ) to access the menu.

Enter

button ( ) when “Configuration”

button ( ) on the

Printing Usage Page

This page shows the total number of pages printed up to the current time by person or group. It is useful for cost accounting. You can print this page only when an optional hard disk is installed in your printer.

To print a usage page:

In ready mode, press the control panel until you see “Information” on the bottom

line of the display.

Press the

Press the scroll button ( or ) until “Usage Page” displays on the bottom line.

Press the

The Usage Page prints out.

Enter

button ( ) to access the menu.

Enter

button ( ).

button ( ) on the

6.1

Maintaining Your Printer

Maintaining the Toner Cartridge

Toner Cartridge Storage

To get the maximum results from a toner cartridge , keep the following guidelines in mind:

• Do not remove the toner cartridge from its package until ready for use.

• Do not refill the toner cartridge.

does not cover damage caused by using a refilled cartridge.

• Store toner cartridges in the same environment as the printer.

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minute.

Expected Cartridge Life

The life of a toner cartridge depends on the amount of toner that your print jobs require. When printing text at 5% coverage, a new toner cartridge lasts an average of 12,000 pages or 6,000 pages depending on its type. (The original toner cartridge supplied with the printer lasts an average of 6,000 pages.)

The printer warranty

Redistributing Toner

When a toner cartridge is nearly empty, “Low To ner” appear s on the display and faded or light areas ma y appear on a printed page. Also, the Smart Panel program window appears on the computer telling you the toner cartridge is low on toner. You may be able to temporarily improve print quality by redistributing the toner.

To redistribute the toner:

Open the top cover.

Saving Toner

T o save toner , press the panel. The button backlight turns on. You can also enable the Toner Save mode in the printer properties window or from the control panel menu. For details, see page 2.8.

Using this feature extends the life of the toner cartridge and reduce your cost per page, but it also reduces print quality.

Toner Save

button ( ) on the control

Checking the Toner Remains

You can check the level of toner currently left in the cartridge. If you are having print quality problems, this can help you

determine if the problem is caused by low toner.

In ready mode, press the control panel until you see “Setup” on the bottom line of

the display.

Press the

Press the scroll button ( or ) until “Maintenance” displays on the bottom line and press the

().

Press the scroll button ( or ) until “Life Remaining” displays on the bottom line.

Press the

The display shows the percentage of the toner remains.

Enter

button ( ) to access the menu.

Enter

button ( ).

button ( ) on the

Enter

button

Remove the toner cartridge from the printer.

CAUTION

• Avoid reaching too far into the printer. The fusing area may be hot.

• Do not touch the green surface, the OPC drum, on the front of the toner cartridge with your hands or any other material.

• To prevent damage, do not expose the toner cartridge to light for more than a few minutes. Cover it with a piece of paper to protect it, if necessary.

6.2

Maintaining Your Printer

Thoroughly shake the toner cartridge from side to side 5 or 6 times to distribute the toner evenly inside the cartridge.

OTE

: If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

Locate the cartridge slots inside the printer, one on each side.

Close the top cover. Make sure that the cover is securely closed.

Replacing the Toner Cartridge

When “Replace Cartridge” appe ars on the displa y, you need to replace the toner cartridge. Also, the S mart Panel program window appears on the computer telling you the toner cartridge is empty.

To replace the toner cartridge:

Open the top cover.

Grasp the handle and insert the cartridge in the printer until it snaps into place.

Remove the old toner cartridge from the printer.

Take a new toner cartridge out of its package.

AUTION

scissors, to open the toner cartridge package. They might scratch the drum of the cartridge.

: Do not use sharp objects, such as a knife or

6.3

Maintaining Your Printer

Locate the sealing tape at the end of the toner cartridge. Carefully pull the tape completely out of the cartridge and discard it.

OTES

• The sealing tape should be longer than 60 cm when correctly

removed.

• Holding the toner cartridge, pull the sealing tape straight to

remove it from the cartridge. Be careful not to cut the tape. If this happens, you cannot use the toner cartridge.

• Refer to the helpful pictures on the cartridge wrapping paper.

There is a flexible plastic holder. Remove the holder out of the toner cartridge.

Locate the cartridge slots inside the printer, one on each side.

Grasp the handle and insert the cartridge in the printer until it snaps into place.

Thoroughly shake the cartridge from side to side 5 or 6 times to distribute the toner evenly inside the cartridge.

Thoroughly shaking the cartridge will assure maximum copies per cartridge.

CAUTION

• If toner gets on your clothing, wipe it off with a dry cloth and

wash clothing in cold water. Hot water sets toner into fabric.

• Do not touch the green surface, the OPC drum, on the front

of the toner cartridge with your hands or any other material.

• To prevent da mage, do not expose the toner cartridge to

light for more than a few minutes. Cover it with a piece of paper to protect it, if necessary.

Maintaining Your Printer

6.4

Close the top cover. Make sure that the cover is securely closed.

OTE

: When printing text at 5% coverage, you can expect a toner cartridge life of approximately 12,000 pages (6,000 pages for the toner cartridge that is shipped with the printer).

Cleaning the Printer

During the printing process, particles of paper, toner, and dust can accumulate inside the printer. Over time, this build-up can cause print quality problems such as toner specks or smearing. Your printer has a cleaning mode that can corre ct and prevent these types of problems.

Cleaning the Outside of the Printer

T urn the printer off and unplug the power cord, then w ait a few minutes for the printer to cool.

Clean the cabinet of the printer with a soft, lint-free cloth. You can dampen the cloth slightly with water, but be careful not to let any water drip onto the printer or inside of it.

After cleaning, plug in the power cord and turn the printer on.

AUTION

containing large amounts of alcohol, solvents, or other strong substances can discolor or crack the cabinet.

Cleaning the Inside of the Printer

OTE

to touch the transfer roller (located underneath the toner cartridge). Oil from your fingers can cause print quality problems.

: Cleaning the printer cabinet with cleaners

: While cleaning the inside of the printer, be careful not

Open the top cover and remove the toner cartridge.

AUTION

• Do not touch the green surface, the OPC drum, on the front

of the toner cartridge with your hands or any other material.

• To prevent damage, do not expose the toner cartridge to

light for more than a few minutes. Cover it with a piece of paper to protect it, if necessary.

Look inside the printer. Remove any dust, paper particles, and spilled toner with a damp, soft lint-fre e cloth.

There are two methods to clean the inside of the printer:

• Clean the inside manually.

• Print a cleaning sheet, which can be done from the control panel.

Cleaning the Inside of the Printer Manually

T urn the printer off and unplug the p ower cord, then wait a few minutes for the printer to cool.

AUTION

printer.

: Be careful not to damage the parts inside the

6.5

Maintaining Your Printer

Swap the long strip of glass (LSU) inside the printer and

if dirt turns the white cotton black.

see

OTE

: The long strip of glass is hard to locate because it is

inside the top of the cartridge compartment.

Locate the PTL lens by flipping up the guide feed and gently

swab the lens with the pointed white cotton.

In ready mode, press the

panel until you see “Setup” on the bottom line of

control

e display.

Press the

Press the scroll button ( or ) until “Maintenance” displays on the bottom line and press the

( ).

Press the scroll button ( or ) until the required opt

bottom line.

Press the

Your printer automatically picks up a sheet of paper from the particles on it.

Enter

button ( ) to access the menu.

ion, “OPC Cleaning” or “Fuser Cleaning” displays on the

Enter

button ( ).

tray and prints out a cleaning sheet with dust or toner

button ( ) on the

Enter

button

Maintenance Parts

To avoid print quality and paper feed problems resulting from worn parts and to maintain your printer in top working condition the following items will need to be replaced at the specified number of pages or when the life span of each item has expired.

PTL lens

Reinsert the toner cartridge and close the cover.

Plug in the power cord and turn the printer on.

Printing a Cleaning Sheet

If you are experiencing blurred, faded, or smeared printouts, you can clear the problem by printing a cleaning sheet, pr

ovided by your printer. You can print:

• OPC Cleaning sheet: cleans the OPC drum of the toner cartridge.

• Fuser Cleaning sheet: cleans the fuser unit inside the printer.

This process will produce a page with toner debris, which shou

ld be discarded.

Make sure that the printer is turned on with paper loaded in the tray.

Items Yield (Average)

Transfer Roller 150,000

k-up Roller 150,000

Pic

Retard Roller 150,000

Fuser Roller 150,000

Feed Roller 150,000\

Samsung highly recommends that an authorized service provider, dealer or the retailer where you bought printer performs this maintenance activity.

6.6

Maintaining Your Printer

7 Solving Problems

Troubleshooting Checklist

This chapter provides helpful information for what to do if y ou encounter an error while using your printer.

This chapter includes:

• Troubleshooting Checklist

• Solving General Printing Problems

•Clearing Paper Jams

• Solving Print Quality Problems

• Understanding Display Messages

• Common Windows Problems

• Common Macintosh Problems

• Common PS Problems

• Common Linux Problems

If the printer is not working properly, consult the following checklist. If the printer does not pass a step, follow the corresponding troubleshooting suggestions.

Check Solution

Make sure that the

Line/Continue

button on the control panel is on in green and “Ready” is shown on the display.

Print a demo page to verify that the printer is feeding paper correctly. See page 2.7.

Check the demo page to see if it printed correctly.

Print a short document from a software application to verify that the computer and printer are connected and are communicating correctly.

• If the button backlight is off, check the power cord connection. Check the power switch. Check the power source by plugging the power cord into another outlet.

• If the button backlight is on in orange, check the display message and go to “Understanding Display Messages” on page 7.10.

• If a demo page does not print, check the paper supply in the paper tray.

• If the paper jams in the printer, go to “Clearing Paper Jams” on page 7.4.

• If an error message appears on the display, go to “Understanding Display Messages” on page 7.10.

If there is a print quality problem, go to “Solving Print Quality Problems” on page 7.8.

• If the page does not print, check the cable connection between the printer and the computer.

• Check the print queue or print spooler to see if the printer has been paused.

• Check the software application to ensure that you are using the proper printer driver and communication port. If the page is interrupted during printing, go to “Solving General Printing Problems” on page 7.2.

If completing the checklist does not resolve the printer problem, check the following troubleshooting sections.

7.1

Solving Problems

• “Solving General Printing Problems” on page 7.2.

• “Understanding Display Messages” on page 7.10.

• “Common Windows Problems” on page 7.12.

• “Common Macintosh Problems” on page 7.12.

• “Common PS Problems” on page 7.13.

• “Common Linux Problems” on page 7.13.

Solving General Printing Problems

For problems with the operation of your printer, refer to the table for suggested solutions.

Problem Possible Cause Solution

The printer does not print.

(Continued)

The printer driver may be incorrectly installed.

The printer is malfunctioning.

Reinstall the printer driver; for details, see the Try printing a test page.

Check the display message on the control panel to determine if the printer is indicating a system error.

Software Section

The printer does not print.

The printer is not receiving power.

The printer is not selected as the default printer.

Check the printer for the following:

• The printer cover is not closed.

• Paper is jammed.

• No paper is loaded.

• The toner cartridge is not installed.

The printer may be in manual feed mode and out of paper.

The connection cable between the computer and the printer is not connected properly.

The connection cable between the computer and the printer is defective.

The port setting is incorrect.

The printer may be configured incorrectly.

Check the power cord connections. Check the power switch and the power source.

Select

Samsung ML-3560 Series

PCL 6

Samsung ML-3560

Series PS

After locating the problem, clear it. If a printer system error occurs, contact your service representative.

• Close the printer cover.

• Clear the paper jam. See page 7.4.

• Load paper. See page 2.4.

• Install the toner cartridge. See page 2.2.

Check the display message, add paper to the Multi-Purpose T ra y, and press the button on the printer’s control panel.

Disconnect the printer cable and reconnect it.

If possible, attach the cable to another computer that is working properly and try to print a document. You can also try using a different printer cable.

Check the Windows printer setting to make sure that the print job is sent to the correct port. If the computer has more than one port, make sure that the printer is attached to the correct one.

Check the printer properties to ensure that all of the print settings are correct.

as your default printer.

On Line/Continue

Printer selects print materials from the wrong paper source.

Paper does not feed into the printer.

Print job is extremely slow.

The paper source selection in the printer properties may be incorrect.

Paper has not been loaded correctly.

There is too much paper in the paper tray.

The paper is too thick.

The job may be very complex.

If using Windows 9x/ Me, the Spooling Setting may be set incorrectly.

The computer may have insufficient random-access memory (RAM).

For many software applications, the paper source selection is found under the printer properties. Sele ct the corr ect paper source. For details, see the

Software Section

Remove paper from the tray and reload it correctly. Check that the paper size guides are set correctly.

Remove excess paper from the tray.

Use only paper that meets printer specifications.

Reduce the complexity of the page(s) or try adjusting the print quality settings. To adjust the print quality settings, reduce the resolution. If you have set the resolution to (

Best

(

Normal

Software Section

Change the port setting to the USB or network port to improve print speed. Your printer prints A4-sized paper at 33 ppm and letter-sized paper at 34 ppm.

From the

Settings

the

PCL 6 Properties

and then choose the

Settings

spool setting. Install more memory in your printer.

See “Installing Memory DIMM” on page 9.1.

Paper

), change it to

). For details, see the

Start menu, choose

and

Samsung ML-3560 Series

printer icon, choose

button. Select the desired

tab within the

1200 dpi 600 dpi

Printers

, click the

. Right-click

Details

Spool

tab,

7.2

Solving Problems

Problem Possible Cause Solution

Half the page is blank.

The paper keeps jamming.

The page layout is too complex.

The page orientation setting may be incorrect.

The paper size and the paper size settings do not match.

There is too much paper in the paper tray.

An incorrect type of paper is being used.

Simplify the page layout and remove any unnecessary graphics from the document. Install more memory in your printer. See “Installing Memory DIMM” on page 9.1.

Change the page orientation in your application. For details, see the

Software Section

Ensure that the paper size in the printer driver settings matches the paper in the tray. Or, ensure that the paper size in the printer driver settings matches the paper selection in the software application settings you use.

Remove excess paper from the tray. If printing on special materials, use the Multi-Purpose Tray.

Use only paper that meets printer specifications. If printing on special materials, use the Multi-Purpose Tray.

The printer prints, but the text is wrong, garbled, or incomplete.

(Continued)

Pages print, but are blank.

The operating system is malfunctioning.

You may start your job before turnning the printer on.

The toner cartridge is defective or out of toner.

The file may have blank pages.

Some parts, such as the controller or the board, may be defective.

If printing from Windows (any version), exit to a DOS prompt and verify functionality with the following

C:\

command: At a

Dir LPT1

assumes you are connected to LPT1.) Exit Windows and reboot the computer. Turn the printer off and then back on again.

Make sure that you turn on the printer and start your job.

Redistribute the toner cartridge. See page 6.2. If necessary, replace the toner cartridge. See page 6.3.

Check the file to ensure that it does not contain blank pages.

Contact a service representative.

, and press

prompt, type

Enter

. (This

The printer prints, but the text is wrong, garbled, or incomplete.

An incorrect output method is being used.

There may be debris inside the machine.

The printer cable is loose or defective.

The wrong printer driver was selected.

The software application is malfunctioning.

Special print materials, such as thick paper, should not be printed using the output tray (face-down). Use the rear cover (face-up) instead.

Open the top cover and remove the debris.

Disconnect and reconnect the printer cable. Try a print job that you have already printed successfully. If possible, attach the cable and printer to another computer and try a print job that you know works. Finally, try a new printer cable.

Check the application’s printer selection menu to ensure that your printer is selected.

Try printing a job from another application.

The illustrations print incorrectly in Adobe Illustrator.

The setting in the software application is wrong.

Download as Bit Image

Select the

Advanced Options

the graphic properties. Print the document again.

window of

7.3

Solving Problems

Clearing Paper Jams

OTE

: When removing paper that is jammed in the printer, if possible always pull the paper in the direction that it normally moves so as not to damage internal components. Always pull firmly and evenly; do not jerk the paper. If the paper tears, ensure that all fragments of paper are removed; otherwise a jam will occur again.

When a paper jam occurs, the display on the control panel shows the message indicating the corresponding location of the paper jam. Refer to the table below to locate the pape r jam and to clear it:

Message Location of Jam Go To

Paper Jam0 In the paper feed area below

Remove an y jammed paper by gently pulling it str aight out by the visible edge from the tray. Make sure that all of the paper is properly aligned in the tray.

Paper Jam1 Around the toner

cartridge Paper Jam2 In the paper exit area page 7.7 Duplex Jam (1, 2) In the duplex area page 7.7 Duplex Jam 1 In the duplex area page 7.7 Duplex Jam 2 In the duplex area page 7.8

To resume printing after clearing paper jams, you must open and close the top cover.

page 7.6

In the Paper Feed Area (Paper Jam 0)

In the Tray (Paper Jam 0)

Slide out the Tray 1 to expose the jam med paper.

OTE

: If you cannot find jammed paper, or if there is any resistance removing the paper, stop pulling and remove the tray from the printer and carefully pull the jamme d paper from the printer.

Slide the tray back into the printer.

Open and close the top cover. The printer will resume printing.

7.4

Solving Problems

In the Optional Tray 2 (Paper Jam 0)

Pull the optional Tray 2 out of the printer.

Remove the jammed pap er from the tray. Slide the tray back into the printer. Go to step 6.

Pull the jammed paper by gently pulling it straight out.

Slide the trays back into the printer.

If you cannot find jammed paper, or if there is any resistance removing the paper, stop pulling and go to step

Remove the Tray 2 and pull the Tray 1 half wa y out of the printer.

7.5

Solving Problems

Open and close the top cover. The printer will resume printing.

In the Multi-Purpose Tray (Paper Jam 0)

Open the Multi-Purpose Tray.

Remove the jammed paper by pulling in direction shown. To avoid tearing the paper, pull it out gently and slowly.

Open and close the top cover. The printer will resume printing.

Around the Toner Cartridge (Paper Jam 1)

Carefully lift up the guide feed.

Guide Feed

Gently pull the jammed paper towards y ou to remove it from the printer.

Open and close the top cover. The jammed paper automatically exits the printer.

If the paper does not exit, continue to step 2.

Open the top cover and remove the toner cartridge.

AUTION

• Do not touch the green surface, the OPC drum, on the front of the toner cartridge with your hands or any other material.

• To prevent da mage, do not expose the toner cartridge to light for more than a few minutes. Cover it with a piece of paper to protect it, if necessary.

If you cannot find jammed paper, or if there is any resistance removing the paper, stop pulling and go to “In the Paper Exit Area (Paper Jam 2)” on page 7.7.

Flip down the guide feed and reinstall the toner cartridge.

OTE

: If it is difficult to reinstall the toner cartridge, make sure that the guide feed has been flipped back down into position.

Close the top cover. The printer will resume printing.

7.6

Solving Problems

In the Paper Exit Area (Paper Jam 2)

If a long portion of the paper is visible, pull it straight out. Go to step 5.

If you cannot find jammed paper, or if there is any resistance removing the paper, stop pulling and go to step

Open the rear cover.

In the Duplex Area (Duplex Jam 1,2)

In the Duplex Area (Duplex Jam 1)

Open the rear cover.

Gently pull the paper straight up.

Loosen the jammed paper if it is caught in the feed rollers. Then gently pull the paper straight out.

Close the rear cover.

Open and close the top cover. The printer will resume printing.

7.7

Solving Problems

Close the rear cover.

Open and close the top cover. The printer will resume printing.

In the Duplex Area (Duplex Jam 2)

Pull the duplex unit out of the printer.

Solving Print Quality Problems

Dirt inside of the printer or improper paper loading may reduce print quality. See the table below to troubleshoot problems.

Problem Solution

Locate the jammed paper and remove it.

Insert the duplex unit into the slot.

Open and close the top cover. The printer will resume printing.

Tips for Avoiding Paper Jams

By selecting the correct paper types, most paper jams can be avoided. If a paper jam occurs, follow the steps outli n ed in “Clearing Paper Jams” on page 7.4.

• Follow the procedures in “Loading Paper” on page 2.4. Ensure that the adjustable guides are positioned correctly.

• Do not overload the paper tray.

• Do not remove the paper from the tray while printing.

• Flex, fan, and straighten the paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in the tray.

• Use only recommended print materials. See “Paper Specifications” on page 10.2.

• Ensure that the recommended print side is facing down in the tray and facing up in the Multi-Purpose Tray.

Light or faded print

AaBbCc AaBbCc AaBbCc AaBbCc

AaBbCc

Toner specs

AaBbCc AaBbCc

AaBbCc AaBbCc AaBbCc

Dropouts

AaBbCc

AaBbCc AaBbCc AaBbCc

If a vertical white streak or faded area appears on the page:

• The toner supply is low. You may be able to temporarily extend the toner cartridge life. See “Redistributing Toner” on page 6.2. If this does not improve print quality, install a new toner cartridge.

• The paper may not meet paper specifications (for example, the paper is too moist or too rough). See “Paper Specifications” on page 10.2.

• If the entire page is light, the print resolution setting is too light or the Toner Save Mode is on. Adjust the print resolution and the Toner Save mode in the printer properties. For details, see the

Section

• A combination of faded or smeared defects may indicate that the printer needs cleaning. See “Cleaning the Inside of the Printer” on page 6.5.

• The surface of LSU may be dirty. Clean the LSU. See “Cleaning the Inside of the Printer” on page 6.5.

• The paper may not meet specifications (for example, the paper is too moist or too rough). See “Paper Specifications” on page 10.2.

• The transfer roller or paper path may be dirty. See “Cleaning the Inside of the Printer” on page 6.5.

If generally rounded, faded areas occur randomly on the page:

• A single sheet of paper may be defective. Try reprinting the job.

• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper. See “Paper Specifications” on page 10.2.

• The paper lot is bad. The manufacturing processes can cause some area s to rejec t tone r. Try a different kind or brand of paper.

• The toner cartridge may be defective. See “ repetitive defects

• If these steps do not correct the problems, contact a service representative.

” on the next page.

Software

Vertical

7.8

Solving Problems

Problem Solution

Vertical lines

AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc

Gray background

AaBbCc AaBbCc

AaBbCc AaBbCc AaBbCc

Toner smear

Vertical repetitive defects

AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc

If black vertical streaks appear on the page:

• The drum inside the toner cartridge has probably been scratched. Install a new toner cartridge.

If white vertical lines appear on the page:

• The surface of the LSU may be dirty. Clean the LSU. See page 6.6.

If the amount of background shading becomes unacceptable, the procedures below may fix the problem.

• Change to lighter weight pages. See “Paper Specifications” on page 10.2.

• Check the printer’s environment; very dry (low humidity) or high humidity (higher than 80% RH) conditions can increase the amount of background shading.

• Remove the old toner cartridge and install a new one. See “Replacing the Toner Cartridge” on page 6.3.

• Clean the inside of the printer. See “Cleaning the Inside” on “Cleaning the Inside of the Printer” on page 6.5.

• Check the paper type and quality. See “Paper Specifications” on page 10.2.

• Remove the toner cartridge and install a new one. See “Replacing the Toner Cartridge” on page 6.3.

If marks repeatedly appear on the printed side of the page at even intervals:

• The toner cartridge may be damaged. If a repetitive mark occurs on the page, print a cleaning sheet several times to clean the cartridge; see page 6.6. After the printout, if you still have the same problems, install a new toner cartridge. See “Replacing the Toner Cartridge” on page 6.3.

• Parts of the printer may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.

• The fusing assembly may be damaged. Contact a service representative.

Background scatter

Misformed characters

Page skew

aBbC

AaBbC

AaBbCc

aBbCc

Curl or wave

Wrinkles or creases

Background scatter results from bits of toner distributed on the printed page.

• The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.

• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.

• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or via the printer properties window.

• If characters are improperly formed and producing hollowed images, the paper stock may be too slick. Try a different paper. See “Paper Specifications” on page 10.2.

• If characters are improperly formed and producing a wavy effect, the scanner unit may need service. Verify that it also occurs on a demo page (see page 2.7). For service, contact a service representative.

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See “Paper Specifications” on page 10.2.

• Ensure that the paper or other material is loaded correctly and the guides are not too tight or too loose against the paper stack.

• Ensure that the paper is loaded properly.

• Check the paper type and quality. Both high temperature and humidity can cause paper curl. See “Paper Specifications” on page 10.2.

• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray.

• T ry printing to the face up output slot.

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See “Paper Specifications” on page 10.2.

• Open the rear output tray and try printing to the rear output tray (face-up).

• Turn over the stack of paper in the paper tray. Also try rotating the paper 180° in the tray.

7.9

Solving Problems

Problem Solution

Back of printouts are dirty

Solid color or Black pages

Loose toner

Character Voids

Horizontal stripes

AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc

• The transfer roller may be dirty . “Cleaning the Inside of the Printer” on page 6.5.

• Check for leaking toner . Clean the inside of the printer.

• The toner cartridge may not be installed properly. Remove the cartridge and re in se r t.

• The toner cartridge may be defective and need replacing. Install a new toner cartridge.

• The printer may require repair. Contact a service representative.

• Clean the inside of the printer.

• Check the paper type and quality. See page 10.2.

• Install a new toner cartridge. See “Replacing the Toner Cartridge” on page 6.3.

• If the problem persists, the printer may require repair. Contact a service representative.

Character voids are white areas within characters that should be solid black:

• If you are using transparencies, try another type of transparency. Because of the composition of the transparency, some character voids ma y b e no rm al.

• You may be printing on the wrong surface on the paper. Remove the paper and turn it around.

• The paper may not meet paper specifications. See “Paper Specifications” on page 10.2.

If horizontally aligned black streaks or smears appear:

• The toner cartridge may be installed improperly. Remove the cartridge and re in se r t.

• The toner cartridge may be defective. Install a new toner cartridge. See “Replacing th e Toner Cartridge” on page 6.3.

• If the problem persists, the printer may require repair. Contact a service representative.

Curl

If the printed paper is curled or paper does not feed into the printer:

• Turn over the stack of paper in the tray. Also try °

rotating the paper 180

• Try printing to rear output tray.

in the tray.

Understanding Display Messages

Messages appear on the Smart Panel program window or the control panel display to indicate the printer’s status or errors. Refer to the tables below to understa nd the messages’ meaning and correct the problem if necessary. Messages and their meanings are listed in alphabetical order.

OTE

: When you call for service, it is very convenient to tell

the service representative the display message.

Message Status Do this...

Check Cartridge A toner car tridge is n ot

installed or your toner cartridge is not for your printer.

Cleaning Now An OPC or fuser cleaning

page is printing. Close Fuser Door A fuser door is open. Close the fuser door firmly. Cover Open A cover is open. Close the top cover or rear

Delete The stored files in the

optional hard disk is

deleting Duplex Jam

(1, 2)

Engine Fuser Error A problem has occurred

A paper jam occurs

while printing on both

sides of paper.

in the fuser inside the

printer.

Install a Samsungapproved toner cartridge, designed for your printer.

Wait until printing is complete.

cover firmly. Wait until deleting is

complete.

Remove the jammed paper from the printer, referr in g to page 7.7.

Unplug the power cord and plug it in again. If the problem persists, call for service.

7.10

Solving Problems

Message Status Do this... Message Status Do this...

Engine Fuser Low Heat Error

Engine Fuser Over Heat Error

Engine Hsync Error

Engine LSU Error A problem has oc curred

Initialize System

Load Manual Press Cont Key

Load [Size] In [Tray]

Memory Overflow The printer does not

Menu The

Offline The printer is off-line

Outbin Full The output tray is full. It can hold up to 250 sheets

The temperature in the fuser is abnormally low.

The temperature in the fuser is abnormally high.

There is a problem in your printer engine.

in the LSU (Laser Scanning Unit) in the printer.

The printer is now turning on.

The Multi-Purpose Tray is empty in manual feed mode.

The paper size specified in the printer properties does not match the paper you are loading.

have enough memory to print the current job.

button is

pressed.

and cannot print.

Unplug the power cord and plug it in again. If the problem persists, call for service.

Turn off and then on the printer.

Unplug the power cord and plug it in again. If the problem persists, call for service.

Wait until your printer turns on completely.

Load a sheet of print material and press the

Line/Continue

You need to press the button each page to be printed.

Load the correct paper in the tray.

The job will be automatically cleared and the printer will return to ready mode. Expand the memory in your printer. See“Installing Memory DIMM” on page 9.1.

Use the printer features.

Press the

Continue

of paper. Once the paper is removed from the output bin, the printer resumes printing.

On Line/

button.

Page Too Complex Too complicated data

was sent to the printer.

Paper Empty [Size] In [Tray]

Paper Jam 0 A paper jam occurs in

Paper Jam 1 A paper jam occurs

Paper Jam 2 A paper jam occurs in

Load Manual The paper size specified Press Cont key in the printer properties

inting xxx

(xxx: Emulation)

Ready The printer is on-line

Ready Close Tray 1

Ready Close Tray 2

Ready IP Conflict An IP address conflicts

Ready Low Toner

e displayed tray is

empty.

the paper feed area.

ound the toner

cartridge.

the paper exit area.

not match the

does

you are loading.

paper

The printer is printing

jobs

using the displayed

language.

and

ready to printer.

e Tray 1 is open but

ther

e is paper in the

Multi-Pu

The optional Tray 2 is

open but there is paper

in the Multi-Purpose

Tray.

with other devices on

the

The toner cartridge in

your printer is nearly

empty.

rpose Tray.

network.

Simplify the page layout

remove unnecessary

and graphics from your docum

ent.

If the message persists,

and the memory in your

exp printer. See “Installing Memory DIMM” on page 9.1.

ad the corresponding size

Lo of paper into the tray.

Remove the jammed paper from the tray in use, referring to page 7.4.

Remove the jammed paper from the printer, referring

page 7.6.

Remove the jammed paper from

the output tray,

referring to page 7.7.

Load the correct paper and press the

Complete your printing.

e your printer.

Close message.

Clos clear the message.

Contact your network administrator and choose an

address within your sub co

nflict with any other

devices.

Redistribute the toner, referring to page 6.2.

On Line/

ntinue

button.

the Tray 1 to clear the

e the optional Tray 2 to

net which will not

7.11

Solving Problems

Message Status Do this...

Ready Replace Cart

Replace Cartridge

Sleeping The printer is on Power

Reset Now The network card is

Restore The printer settings or

The life of some parts on the toner cartridge ends.

The toner cartridge is out of its life.

Save mode.

initializing.

network settings are turning to their default value.

The overflow of the waste toner contaminates the inside of the machine.

Regardless of the remaining toner, this is warning message showing that the toner cartridge replacement is needed as the parts life there of is exhausted. The toner cartridge is at the end of its life and the print quality lowers, you need to replace the cartridge to new one.

Replace the toner cartridge.

When data is received, it switches to on-line automatically.

Wait until the message is cleared.

Wait until restoring is complete.

Common Windows Problems

Problem Possible Cause and Solution

“File in Use” message appears during installation.

“Error Writing to LPTx” message appears.

“General Protection Fault”, “Exception OE”, “Spool32”, or “Illegal Operation” messages appear.

“Fail To Print,” “A printer timeout error occurred,” messages appear.

OTE

2003 User’s Guide that came with your PC for further information on Windows error messages.

Exit all software applications. Remove all software from the StartUp Group, then restart Windows. Reinstall the printer driver.

• Ensure that the cables are connected correctly, the printer is on.

• If bi-directional communication is not turned on in the driver, it will also cause this message.

Close all other applications, reboot Windows and try printing again.

These messages may appear during printing. Just keep waiting until the printer finishes printing. If the message appears in standby mode or after printing has been completed, check the connection and/or whether an error has occurred.

: Refer to Microsoft Windows 9x/Me/NT 4.0/2000/XP/

Tray 1 Open

Tray 2 Open

The Tray 1 is open and also there is no paper in the Multi-Purpose Tray.

The optional Tray 2 is open and also there is no paper in the MultiPurpose Tray.

OTE

: When you encounter the problems about the optional

hard disk, call for service.

Close the Tray 1 or load paper in the Multi-Purpose Tray.

Close the optional T r ay 2 or load paper in the MultiPurpose Tray.

Common Macintosh Problems

Problem Possible Cause and Solution

The printer does not print a document from Acrobat Reader.

The document has printed, but the print job has not disappeared from the spooler in Mac OS

10.3.2.

You should change the Print Method option to

Print as Image

Reader . Update your Mac OS to OS 10.3.3 or higher.

when you print from Acrobat

7.12

Solving Problems

Common PS Problems

Common Linux Problems

The following situations are PS language specific and may occur when several printer languages are being use d.

OTE

PS errors occur, open the Print Options window and click the desired selection next to the PostScript errors section. You can also receive an error list by setting from the control panel. See page 3.8.

Problem

PostScript file can not be printed.

“This job contains binary data...” message appears.

A PS error page prints.

The optional Tray 2 is not selected in the driver.

: T o receive a printed or screen display ed message when

Possible

Cause

The PostScript driver may not be installed.

The pure binary data option is not supported by the PostScript driver.

Print job may not be PS.

The printer driver has not been configured to recognize the optional Tray 2.

• Print a configuration page and verify that the PS version is available for printing.

• Install the PostScript driver; to installing the PS printer driver, you need to select put a check mark on the PS printer driver. For details, see the

Software Section

Open the PostScript driver Properties, and click on The pure binary data option is not supported. Choose another.

Make sure that the print job is a PS job. Check to see whether the software application expected a setup or PS header file to be sent to the printer.

Open the PostScript driver properties and set the of the

Installed

Solution

Device option

Custom

Advanced

Tray 2

and

item

Problem Possible Cause and Solution

I can’t change settings in the configuration tool.

I am using the KDE desktop but the configuration tool and LLPR won’t start.

I just installed this package but can’t find entries in the KDE/Gnome menus.

I get a “Some options are not selected” error message while editing the printer settings.

I can’t make a printer the system default.

You need to have administrator privileges to be able to affect global settin g s.

Maybe you do not have the GTK libraries installed. These usually come with most Linux distributions, but you may have to install them manually. Refer to your distribution’s installation manual for more details about installing additional packages.

Some versions of the KDE or GNOME desktop environments may require that you restart your session for the changes to take effect.

Some printers have conflicting settings, meaning that some settings for two options can’t be selected at the same time. When you change a setting and the Printer Package detects such a conflict, the conflicting option is changed to a “No Choice” value, and you have to choose an option that does not conflict before being able to submit the changes.

In some conditions, it may not be possible to change the default queue. This happens with some variants of LPRng, especially on recent RedHat systems that use the “printconf” database of queues. When using printconf, the /etc/printcap file is automatically refreshed from the database of printers managed by the system (usually through the “printtool” command), and the queues in /etc/ printcap.local are appended to the resulting file. Since the default queue in LPRng is defined as the first queue in /etc/printcap, therefore it is not possible for the Linux Printer Package to change the default when some queues have otherwise been defined using printtool. LPD systems identify the default queue as the one named “lp”. Thus, if there is already a queue by this name, and if it doesn’t have an alias, then you won’t be able to change the default. To work around this, you can either delete the queue or rename it by manually editing the /etc/printcap file.

The N-up setting does not work correctly for some of my documents.

7.13

Solving Problems

The N-up feature is achieved through post-processing of the PostScript data that is being sent to the printing system. However, such post-processing can only be adequately achieved if the PostScript data conforms to the Adobe Document Structuring Conventions. Problems may arise when using N-up and other features relying on post-processing if the document being printed isn’t compliant.

Problem Possible Cause and Solution

I am using BSD lpr (Slackware, Debian, older distributions) and some options chosen in LLPR don’t seem to take effect.

I am trying to print a document in Landscape mode, but it prints rotated and cropped.

Some pages come out all white (nothing is printed), and I am using CUPS.

I can’t print to an SMB (Windows) printer.

My application seems to be frozen while LLPR is running.

Legacy BSD lpr systems have a hard limitation on the length of the option string that can be passed to the printing system. As su ch , if you selected a numb er of different options, the length of the options may have exceeded and some of your choices won’t be passed to the programmes responsible for implementing them. Try to select fewer options that deviate from the defaults, to save on memory usage.

Most Unix applications that offer a Landscape orientation option in their printing options will generate correct PostScript code that should be printed as is. In that case, you need to make sure that you leave the LLPR option set to its default Portrait setting, to avoid unwanted rotations of the page that would result in cropped output.

If the data being sent is in Encapsulated PostScript (EPS) format, some earlier versions of CUPS (1.1.10 and before) have a bug preventing them from being processed correctly. When going through LLPR to print, the Printer Package will work around this issue by converting the data to regular PostScript. However, if your application bypasses LLPR and feeds EPS data to CUPS, the document may not print correctly.

To be able to configure and use SMB-shared printers (such as printers shared on a Windows machine), you need to have a correct installation of the SAMBA package that enables that feature. The “smbclient” command should be available and usable on your system.

Most Unix applications will expect a command like the regular “lpr” command to be non-interactive and thus return immediately. Since LLPR is waiting for user input before passing the job on to the print spooler, very often the application will wait for the process to return, and thus will appear to be frozen (its windows won’t refresh). This is normal and the application should resume functioning correctly after the user exits LLPR.

I have CUPS and some options (such as N-up) seem to be always enabled even though I don’t pick them in LLPR.

I configured a printer to print to a file, but I get “Permission denied” errors.

On my PCL (or SPL) printer , I sometimes get error messages printing instead of my document.

Some color images come out all black.

There may be some local options defined in your ~/ .lpoptions file, which is manipulated by the lpoptions command. These options will always be used if not overridden by LLPR settings. To get rid of all options for a printer, run the following command, replacing “printer” with the name of the queue: lpoptions -x printer

Most printing systems will not run as the super-user but as a special user (usually “lp”). Therefore, make sure that the file you have chosen to print to is accessible to the user owning the spooler daemon.

Unfortunately, some Unix applications may generate non-compliant PostScript output that may not be supported by Ghostscript, or even the printer itself in PostScript mode. You can try to capture the output to a file and view the results with Ghostscript (gv or ghostview will allow you to do so interactively) and see if you get error messages. However, since the application is fault at probably , contact your software vendor to inform them of the issue.

This a known bug in Ghostscript (until GNU Ghostscript version 7.05) when the base color space of the document is indexed color space and it is converted through CIE color space. Because Postscript uses CIE color space for Color Matching System, you should upgrade Ghostscript on your system to at least GNU Ghostscript version 7.06 or later. You can find recent Ghostscript versions at www.ghostscript. com.

How do I specify the IP address of my SMB server?

Some documents come out as white pages when printing.

It can be specified in the “Add Printer” dialogue of the configuration tool, if you don’t use the CUPS printing system. Unfortunately, CUPS currently doesn’t allow to specify the IP address of SMB printers, so you will have to be able to browse the resource with SAMBA in order to be able to print.

Some versions of CUPS, especially those shipped with Mandrake Linux before the 8.1 release, have some known bugs when processing PostScript output from some applications. T ry upg rading to the latest version of CUPS (at least 1.1.14). Some RPM packages for most popular distributions are provided as a convenience with this Linux Printing Package.

7.14

Solving Problems

8 Using Your Printer on a

About Sharing the Printer on a

Network

If you work in a networked environment, the printer can be shared by other users on the network. The ML-3561N and ML-3561ND printers are network printers and can be connected to the network via Ethernet cable.

This chapter includes:

• About Sharing the Printer on a Network

• Setting Up a Network-Connected Printer

OTE

: If you are a ML-3560 user, you need to install an optional network interface card. For details, see “Installing a Network Card” on page 9.3.

Network

If you work in a networked environment, you can connect your printer to the network.

Locally-Shared Printer

You can connec t the printer directly to a selected computer , which is called the “host computer” on the network. The printer can then be shared by other users on the network through a Windows 9x/ Me/NT 4.0/2000/XP/2003 network printer connection.

For details about sharing the printer locally, see the

Section

Wired Network-connected Printer

The ML-3561N and ML-3561ND printer come with a built-in network interface. For more in formation about connecting your printer to the network, see page 2.7.

To use a ML-3560 printer as a network printer, you need to install an optional network interface card in your printer. See page 9.3 for information about installing the card.

Wireless Network-connected Printer

To use your ML-3560, ML-3561N or ML-3561ND in a wireless network environment, you need to install an optional wired and wireless network interface card in your printer. See page 9.3.

Software

Printing Across a Network

Whether the printer is locally connected or network-connected, you need to install the ML -3560 Series printer software on each computer that prints documents using the printer.

Setting Up a NetworkConnected Printer

You can set up the network protocols on the printer to use it as your network printer. Setting protocols can be accomplished by using the supplied network program. Please refer to Network User’s Guide.

You can configure the basic network parameters through the printer’s control panel. Use the printer control panel to do the following:

• Print a Network Configuration page

• Enable or disable network protocols (AppleTalk, IPX/SPX)

• Configure TCP/IP

• Configure IPX frame types

8.1

Using Your Printer on a Network

Configuring Network Parameters on the Control Panel

Supported Operating Systems

OTE

: The operating systems supported by the network card may be different from the operating systems supported by the printer. The following table shows the network environments supported by the printer.

Item Requirements

Network Interface

Network Operating System

Network Protocols

•IPX/SPX: Internet Packet exchange/Sequenced Packet

eXchange

•TCP/IP: Transmission Control Protocol/Internet Protocol

•DLC/LLC: Data Link Control/Logical Link Control

•DHCP: Dynamic Host Configuration Protocol

•BOOTP: Bootstrap Protocol

Printing a Network Configuration Page

The Network Configuration page shows how the network interface card on your printer is configured. The default settings enabled all parts which are suitable for most applicatio ns.

In ready mode, press the “Network” on the bottom line of the display.

Press the

Press the scroll button ( or ) until “Print Net CFG” displays on the bottom line.

Press the

The Network Configuration page prints out.

Setting Network Protocols

When you first install the printer, all supported network protocols are enabled when you turn the printer on. If a network protocol is enabled, the printer may actively transm it on the network even when the protocol is not in use. This may increase network traffic slightly. To eliminate unnecessary traffic, you can disable unused protocols.

10/100 Base-TX (standard for ML-3561N and ML-3561ND) or 802.11b Wireless LAN

• Novell NetWare 4.x, 5.x, 6.x

• Windows 98/Me, NT 4.0/2000/XP/2003

• Unix, BSD4.3, HP-UX, SUN OS, SOLARIS, SCO

• Linux Red Hat 8.0~9.0, Fedora Core 1~3, Mandrake 9.0~10.2, and SuSE 8.2~9.2

• Macintosh OS 8.6~9.2/10.1~10.4

• IPX/SPX

• TCP/IP(LPR,Standard TCP/IP pr int ing,IPP,DHCP,BOOTP,SN MP,HTT P)

•EtherTalk

button ( ) until you see

Enter

button ( ) to access the menu.

Enter

button ( ).

In ready mode, press the “Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays and press the button ( ).

Press the scroll button ( or ) until you see the desired protocol on the bottom line.

Press the

If you selected “AppleTalk,” press the scroll button ( or

(disable).

Press the

Press the ready mode.

Enter

button ( ) when “Config Network”

Enter

button ( ). Then press the

Enter

button ( ).

) to change the setting to “On” (enable) or “Off”

Enter

button ( ) to save the selection.

On Line/Continue

button ( ) until you see

Upper Level

button ( ) to return to

Configuring TCP/IP

Your printer can be set up on a variety of TCP/IP networks. There are several ways in wh ich your printer can be assigned a TCP/IP address, depending on your network.

• Static Addressing: TCP/IP address is assigned manually by the network administrator.

• Dynamic Addressing BOOTP/DHCP (default): TCP/IP address is assigned automatically by the server.

Static Addressing

To enter the TCP/IP address from your printer’s control panel, take the following steps:

In ready mode, press the “Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays and press the

Press the button ( ).

Press the

Press the scroll button ( or ) until “Yes” displays and press the

Press the button ( ).

Press the displays.

Enter

button ( ) when “Config Network”

Enter

button ( ).

Upper Level

Enter

button ( ) when “Config TCP” displays.

Enter

button ( ).

Upper Level

Enter

button ( ) when “IP Get Method”

button ( ) until you see

button ( ), then use the scroll

8.2

Using Your Printer on a Network

Press the scroll button ( or ) until “Static” displays and press the

Press the button ( ).

Press the menu.

IP address consists of 4 bytes.

Press the scroll button ( or ) to enter a number between 0 and 255 and press the

Repeat step 12 to complete the address from the 1st byte to the 4th byte.

To select other parameters, such as Subnet Mask or Gateway, press the the scroll button ( or ). Press the

Repeat steps 12 and 13 to configure the other TCP/IP parameters.

Press the mode.

Enter

button ( ).

Upper Level

Enter

button ( ) to access the IP Address

Enter a number between 0 and 255 for each byte.

Upper Level

button ( ), then use the scroll

Enter

button ( ).

Upper Level

button ( ) to return to ready

button ( ), then use

Enter

button ( ).

Dynamic Addressing (BOOTP/DHCP)

To assign the TCP/IP address automatically by the serv er, take the following steps:

In ready mode, press the “Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays and press the

Press the button ( ).

Press the

Press the scroll button ( or ) until “Yes” displays and press the

Press the button ( ).

Press the displays.

Enter

button ( ) when “Config Network”

Enter

button ( ).

Upper Level

Enter

button ( ) when “Config TCP” displays.

Enter

button ( ).

Upper Level

Enter

button ( ) when “IP Get Method”

button ( ) until you see

button ( ), then use the scroll

Press the scroll button ( or ) until “DHCP” displays and press the

To assign the address from the BOOT P server, press the

Enter

button ( ) when “BOOTP” displays.

Press the ready mode.

Enter

button ( ).

On Line/Continue

button ( ) to return to

Configuring IPX Frame Types

On IPX/SPX protocol networks (for example, Novell NetWare), the format of network communication frames must be specified on the printer. In most cases, you can keep the default setting

Auto

” . However, you can manually set the frame type format,

“ if required.

•

AUTO

(default): Automatically senses and limits the

frame type to the first one detected.

•

EN_8023

frames. All others will be counted and discarded.

•

EN_II

Frames. All others will be counted and discarded.

EN_8022

• with IEEE 802.3 frames. All others will be counted and discarded.

•

EN_SNAP

IEEE 802.3 frames. All others will be counted and discarded.

Note that the IPX/SPX protocol must be enabled in the

Netware

“Setting Network Protocols” on page 8.2. Take the following steps to change the frame type format:

In ready mode, press the “Network” on the bottom line of the display. Press the

Enter

Press the displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays on the bottom line. Press the

Press the

Press the scroll button ( or ) until “Netware” displays on bottom line. Press the

Press the scroll button ( or ) until “On” displays on the bottom line and press the

Press the button ( ).

Press the displays.

Press the scroll button ( or ) until “Yes” displays on the bottom line. Press the

Press the button ( ).

: Limits the frame type to IPX over IEEE 802.3

: Limits the frame type to IPX over Ethernet

: Limits the frame type to IPX over IEEE 802.2

: Limits the frame type to IPX over SNAP with

menu before you can configure frame types. See

button ( ) until you see

button ( ) to access the menu.

Enter

button ( ) when “Config Network”

Enter

button ( ).

Upper Level

Enter

button ( ) when “Config Netware”

Upper Level

button ( ).

Enter

button ( ).

Enter

button ( ).

button ( ), then use the scroll

Enter

button ( ).

button ( ), then use the scroll

8.3

Using Your Printer on a Network

Press the displays.

Press the scroll button ( or ) until you see the desired frame type and press the

Press the ready mode.

Enter

button ( ) when “IPX Frame Type”

Enter

button ( ).

On Line/Continue

button ( ) to return to

Restoring the Network Configuration

You can return the network configur ation to its default settings.

In ready mode, press the “Network”

Press the

Press scroll button ( or ) until “Default Set” displays on the bottom line.

Press the

on the bottom line of the display.

Enter

button ( ) to access the menu.

Enter

button ( ) to confirm the selection.

button ( ) until you see

Rebooting the Network Interface Card

If you configured the “Netware” or “Config WLAN” menu option, the printer will not recognize your change.

In this case, you can simply reboot the network interface card without turning your printer off and back on.

In ready mode, press the “Network” on the bottom line of the display.

Press scroll button ( or ) until “Reset Network” displays on the bottom line.

Press the interface card.

Enter

button ( ) to reboot the network

button ( ) until you see

Configuring the Wireless Network

See the instructions supplied with the wireless network interface card.

You can easily configure the wireless network environments using the SetIP program in Windows. See the Network User's Guide.

To configure the wireless network settings:

In ready mode, press the “Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays on the bottom line. Press the

Press the

Press the scroll button ( or ) until “Config WLAN” displays on the bottom line. Press

Press the scroll button ( or ) until “Yes” displays on the bottom line. Press

Enter

button ( ) when “Config Network”

Upper Level

button ( ) until you see

Enter

button ( ).

Enter

button ( ).

You can configure the following items:

•

SSID

: When you select “Search List”, the wireless network card on your printer searches for wireless networks in the area and shows the results on the list. Select a network on the list. You cannot change “Operation Mode” and “Channel”.

If you select “Custom”, you can configure the wireless settings according to your needs and enter a name of up to 32 letters for your “Custom” setting. “SSID” is case sensitive, so you need to change it carefully. Using the scroll buttons,

Enter

find the alphabet you want and press the When the cursor moves to the next input field, enter the following letters the same way you entered the first letter. After you entered the last letter of the name, press the button ( ) once again to save the ID. The way to enter the key number for the encryption key is the same as to enter letters.

•

Operation Mode

devices to communicate directly with each other. This is the default operating mode for the print server.

If your network uses an Access Point, you must reconfigure the operation mode to “Infra”. “Infra” mode allows both wireless and cabled computers to send files to the printer through an Access Point.

If you select “ mode automatically according to the network cable’s connection each time it boots up. If the network cable is detected, the print server enters “Ad-Hoc” mode; if not, enters “Infra” mode.

•

Channel

only. In most cases, you will not need to change this setting. The print server will scan all available channels for the specified network and will adapt its channel to the one detected. Default setting is 10.

Authentication

• Samsung print server is not configured for network authentication (Open System). If required by your network, the proper authentication method must be configured on the print server.

•

Encryption

Default setting is “None”. If your network uses WEP encryption keys, you must configure the encryption keys. You can configure up to four keys. The active key must match the value and active key position (for example, Key 1) configured on other wireless devices.

Using Key

•

Key Type

•

Key1, Key2, Key3, Key4

“Encryption”. The number you can enter are as follows:

: This option is available in the “Ad-Hoc” mode

: Select the key type of your network.

: “Ad-Hoc” mode allows the wireless

Auto

”, the print server selects the operation

: “Open System” or “Shared Key”. The

: “None”, “64-bit WEP”, or “1 28-bit WEP”.

: Select the key to use in your network.

: Enter the key number for

button ( ).

Enter

Hexadecimal Alphanumeric

64-bit WEP 10 digits 5 char acters 128-bit WEP 26 digits 13 characters

8.4

Using Your Printer on a Network

9 Installing Printer

Precaution When Installing

Options

Your printe r is a full-featured laser printer that has been optimized to meet most of your printing needs. R ecognizing that each user may have different requirements, however, Samsung makes several options av ailable to enhance the printer’s capabilities.

This chapter includes:

• Precaution When Installing Printer Options

• Installing Memory DIMM

• Installing a Network Card

• Using the Hard Disk

• Installing an Optional Tray 2

• Installing a Duplex Unit

Printer Options

DISCONNECT THE POWER CORD:

Never remove the printer contro l board while the printer is plugged in.

T o avoid the possibility of an electrical shock, always disconnect the power cord when installing or removing ANY internal or external printer option.

DISCHARGE STATIC ELECTRICITY:

The control board and internal printer options (Memory DIMM, Network Card and Hard Disk) are sensitive to static electricity. Before installing or removing an internal option, discharge static electricity from your body by touching something metal, such as the metal back plate on any device plugged into a grounded power source. If you walk round before finishing installation, discharge any static electricity once again.

Installing Memory DIMM

Your printe r has a dual in-line memory module (DIMM) slot. Use this DIMM slot to install more memory for the printer.

OTE

: Your printer has 32 MB of memory which can be expanded to 288 MB. Use only the Samsung-approved DIMM. Contact your Samsung dealer.

Turn the printer power off and unplug all cables from th e printer.

Remove the duplex -slot cover from the back of the printer. If you installed an optional duplex unit, remove it from the

printer.

9.1

Installing Printer Options

Hold the control board cover and remove it.

Completely open the latches on each side of the DIMM slot.

Remove the memory DIMM from its antistatic package. Locate the alignment notches on the bottom edge of the

DIMM.

Notches

Connection

Points

Push the DIMM straight into the DIMM slot until it snaps into place. Make sure the latches fit over the notches located on either side of the DIMM.

Latch

Replace the control board cover.

Holding the memory DIMM by the edges, align the notches on the memory DIMM with the grooves on the memory DIMM slot.

Groove

Notch

Reinstall the duplex-slot cover or the optional duplex unit.

Reconnect the power cord and printer cable, and turn the printer on.

After installing the memory DIMM, you need to select it in the printer properties of the PostScript printer driver so that you can use it with your printer:

Make sure that the PostScript printer driver is installed in your computer. T o installing the PS printer driver, you need

to select driver. For details, see the

Click the Window

For Windows 95/98/Me/NT4.0/2000, select then

For Windows XP/2003, select

Select the

Click the right mouse button on the printer icon and select

Properties

For Windows 95/98/Me, select

For Windows NT4.0/2000/XP/2003, select

Settings

Select the memory DIMM you installed in from

Memory

For Windows 98, select

→

Custom

Printers

Samsung ML-3560 Series PS

tab.

in the

change setting for:VMOption →

and put a check mark on the PS printer

Software Section

Start

menu.

Settings

Printers and Faxes

printer.

Device Options

Device

Installable Option

Installable Option →

section and click OK.

change memory

and

tab.

Printer

VMOption

9.2

Installing Printer Options

Removing the Memory DIMM

Follow steps 1 and 3 on page 9.1 to access the control board.

Push the latches at both ends of the DIMM slot away from the DIMM. Pull out the DIMM.

Place the DIMM in its original package or wrap it with a sheet of thin metal, such as aluminium foil, and store it i n

a box.

Follow from step 8 on page 9.2.

• When you purchase a wired/wireless network interface

card, the antenna connected to the card may not be separated from the card, depending on your country.

Review the precaution on page 9.1 and then follow this procedure to install the network in your printer.

Turn the printer power off and unplug all cables from th e printer.

Remove the duplex-slot cover from the back of the printe r.

If you installed an optional duplex unit, remove it from the printer.

Hold the control board cover and remove it.

If you are replacing an existing network interface card with a new one, remove the two screws and the old card.

Installing a Network Card

Check to see if there are any missing parts in your optional network card package.

ML-3560 only

Ethernet 10/100 Base TX (Internal)

Network Interface Card, Network Utilities CD and Network Printer Quick Guide

Tips for using the Network Interface Card

• The ML-3561N and ML-3561ND comes with a built-in network interface card.

• If you use a ML-3560 user, you need to install an optional network interface card.

• If you want to use the printer in both wired and wireless network environments, you need to install an optional wired/wireless network interface card in the ML-3560, ML -3561N and ML-3561ND.

ML-3560, ML-3561N,

ML-3561ND

Ethernet 10/100 Base TX + 802.11b Wireless LAN (Internal)

Wireless Network Interface Card, Network Utilities CD and Network Printer Quick Guide

Align the connector on the network card with the connector on the control board. Make sure that the jacks

on the card go through the holes. Push the card firmly into the connector on the control board until it is completely and securely in place.

9.3

Installing Printer Options

Tighten the two screws which you removed in step 4 or supplied with your new network card.

Replace the control board cover.

Using the Hard Disk

Installing the hard disk allows the data from your computer to be sent to the print queue of the printer hard disk. This decreases the workload of the computer.

You can use v arious print features , such as storing a job in the hard disk, proofing a job, and printing private d ocuments.

Installing the Hard Disk

Turn the printer off. Unplug the power cord and all of the cables.

Remove the duplex -slot cov er from the back of the printer.

If you installed an optional duplex unit, remove it from the printer.

Hold the control board cover and remove it.

Reinstall the duplex-slot cover or the optional duplex unit.

Connect the network cable, reconnect the power cord, and then turn the printer on.

OTE

: For information about configuring and using the printer on a network environment, refer to the N etwork Printer Use r’s Guide provided with the network interface card. You can also configure the network parameters on the control panel; see page 8.2.

Insert a hard disk and push it in until it is latched into place.

9.4

Installing Printer Options

Fasten the four screws supplied with your new hard disk.

Replace the control board cover.

Printing with the Optional Hard Disk

If you have the optional hard disk installed, you can use advanced printing features, such as storing or spooling a print job to the hard disk, proofing a job, and specifying of printing a private job in the printer properties window on your printer driver.

Once you stored files in the hard disk, you can easily reprint or delete the stored files using the control panel of your printer. You can also manag e all of the print jobs in the print queue of the printer hard disk.

Setting the time and date

Press the “Setup” appears on the bottom line of the display.

Press the

When “Date & Timet” appears, press the ().

Press the scroll button ( or ) until the digit you want appears and press the

You can enter from 2000 to 2065 in the year input section. The cursor moves to the next position. Repeat step 4 until all digits appears correctly.

Press the

button ( ) on the control panel until

Enter

button ( ) to access the menu.

Enter

button ( ).

Enter

button ( ).

button

Reinstall the duplex-slot cover or the optional duplex unit.

Reconnect the power cord and printer cable, a nd turn the printer on.

Print a configuration page from the control panel to check if the hard disk is correctly installed. See page 6.1.

Now you need to set the hard disk in your printer driver. The procedure for setting the hard disk may differ

depending on the selected printer driver.

Take the following steps:

Click the Windows

For Windows 9x/Me/NT4.0/ 2000, select then

Printers

For Windows XP/2003, select

Select the or

Samsung ML-3560 Series PS

Right-click on the printer icon and select

In PCL 6 Properties, click the

Optional Hard Disk Drive(HDD)

In PS Properties, click the

Printer Hard Disk

Click OK.

Samsung ML-3560 Series PCL 6

Start

menu.

option to

Settings

Printers and Faxes

printer icon.

Properties

Printer

Device Option

Installed

tab and then check

tab and set the

and

printer icon

Storing a Job

You can store jobs in the installed hard disk.

Open the file you want to store.

Select

Printer

displayed (It may look slightly different depending on your application.)

Click

Properties

click the button instead.

Click the

Select the Print Mode you want from the drop-down list.

•

Normal Proof

•

Click OK until the Print window is displayed.

Click OK or

: prints the first file and after a pause prints the

next file.

Confidential Store

: stores the file to the hard disk.

Spool

: spools the file into the hard disk and prints it fr om

the hard disk queue.

Delay

: prints the file at a specified time.

from the

. If you see

Extra

tab and click

: prints in normal mode.

: stores the files secured with a password.

to start printing.

File

menu. The Print window is

Setup, Printer

Print and Hold

Options

9.5

Installing Printer Options

Printing a Stored Job

You can print jobs currently stored in the hard disk.

Press the “Stored Job” appears on the bottom line of the display.

Press the

Press the scroll button ( or ) until the file name appears on the display and then press the

().

If the job is secured with a password, “Input PIN” displays. Press the

You must enter the specified 4-digit password. Press the scroll button ( or ) to enter the first digit and press

the the next digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

When “Func Print” appears, press the

If you enter incorrect password, “Input PIN” appears again. Reenter the correct password.

If you want to change the number of copies, press the

Enter

If you installed the optional duplex unit and want to print on both sides of paper, press the

“Duplex” appears on the display. Select the

When “Print Now” appears, press the start printing.

button ( ) on the control panel until

Enter

button ( ) to access the menu.

Enter

button

Enter

button ( ).

Enter

button ( ). The cursor automatically moves to

Enter

button ( ).

button ( ) when “Copies” appears on the display .

Enter

button ( ) when

binding edge

Enter

button ( ) to

Deleting a Stored Job

You can delete jobs currently stored in the hard.

Press the see “Stored Job” appears on the bottom line of the display.

Press the

Press the scroll button ( or ) until the file name appears on the display and then press the

().

If the job is secured with a password, “Input PIN” displays. Press the

You must enter the specified 4-digit password. Press the scroll button ( or ) to enter the first digit and press

the the next digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

Press the scroll button ( or ) until you see “Func Delete” on the display.

Press the

Press the scroll button ( or ) until you see “Yes” on the display.

Press the

button ( ) on the control panel until you

Enter

button ( ) to access the menu.

Enter

button ( ).

Enter

button ( ). The cursor automatically moves to

Enter

button ( ).

Enter

button ( ).

button

Installing Printer Options

Controlling the Active Job Queue

All of the print jobs waiting to be printed are listed in the Active Job Queue in the order you sent them to the printer. You can delete a job from the queue before printing, or promote a job to print sooner.

To delete a file from the queue

Press the

The first available menu item, “Active Job,” appears on the bottom line of the display.

Press the

Press the scroll button ( or ) until the file name appears on the display and then press the

().

If the job is secured with a password, “Input PIN” displays. Press the

You mu st en ter the specified 4-digit password. Press the scroll button ( or ) to enter the first digit and press

the the next digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

Press the scroll button ( or ) until you see “Func Cancel” on the display.

Press the

If you enter incorrect password, “Input PIN” appears again. Reenter the correct password.

Press the scroll button ( or ) until you see “Yes” on the display.

Press the

To promote a file from the queue

You can select a job w aiting in the Active Job Queue and change its print order so that it can be printed sooner.

Press the

Press the the bottom line of the display.

Press the scroll button ( or ) until the file name appears on the display and then press the

().

If the job is secured with a password, “Input PIN” displays. Press the

You mu st en ter the specified 4-digit password. Press the scroll button ( or ) to enter the first digit and press

the the next digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

Press the scroll button ( or ) until you see “Func Promote” on the display.

Press the

If you enter incorrect password, “Input PIN” appears again. Reenter the correct password.

button ( ).

Enter

button ( ).

Enter

button ( ).

Enter

button ( ). The cursor automatically moves to

Enter

button ( ).

Enter

button ( ) to delete the selected file.

button ( ).

Enter

button ( ) when “Active Job” displays on

Enter

button ( ).

Enter

button ( ). The cursor automatically moves to

Enter

button ( ).

Enter

button

Enter

button

9.6

To print a file immediately

You can p rint the print job you w ant imm ediately. In this case, the job currently printing is stopped and the selected job will be printed.

Press the

Press the the bottom line of the display.

Press the scroll button ( or ) until the file name appears on the display and then press the

().

If the job is secured with a password, “Input PIN” displays. Press the

You must enter the specified 4-digit password. Press the scroll button ( or ) to enter the first digit and press

the the next digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

Press the scroll button ( or ) until you see “Func Release” on the display. The Select Function Release

option appears only when you select Delay in the Print Mode option. See “Storing a Job” on page 9.5

Press the

If you enter incorrect password, “Input PIN” appears again. Reenter the correct password.

button ( ).

Enter

button ( ) when “Active Job” displays on

Enter

button ( ).

Enter

button ( ). The cursor automatically moves to

Enter

button ( ).

Enter

button

Printing using the form files

Press the mode. If you selected "Single Form", the selected form will be applied to every page. If you selected "Double Form",

1st form will be applied to odd page and 2nd page will be even page.

Upper Level

button ( ) to return to ready

Installing an Optional Tray 2

You can increase the paper handling capacity of your printer by installing an optional Tray 2. This tray holds 500 sheets of paper.

The optional Tray 2 consists of two components; the support unit and paper tray.

Support Unit

Paper Tray

In ready mode, press the scroll button ( or ) until you see "Setup" on the bottom line of the display. Press

Enter

the

Press scroll button ( or ) until you see "Form Menu" on the bottom line of the display. Press the

( ) to access the menu.

Select one among three menu "Off", "Single Form", "Double Form". Then, Press

Press the

If you selected "Single Form", press right button. Then you can see "Sel. 1st. Form" menu, and then press

button ( ).

Press the scroll button ( or ) until the form name appears on the display and then press the

().

Press the

If you selected "Double Form", press right button. Then you can see "Sel. 2nd. Form" menu, and then press

button ( ).

Press the scroll button ( or ) until the form name appears on the display and then press the

() for even page.

button ( ) to access the menu.

Enter

button ( ).

Upper Level

button ( ).

Enter

button

Turn off the printer and unplug all cables from the printer.

Remove the packing tape and the packing material inside of the tray.

9.7

Installing Printer Options

Find the location of the connector and the optional Tray 2 positioners.

Place the printer over the optional Tray 2, aligning the feet on the printer with the positioners on the optional Tray 2.

Lifting handles are located at the lower edge of both sides of

the printer.

AUTION

cartridge and the tray. Use safe lifting and handling techniques. If you need to move the printer, it should be moved by two people. Use the lifting handles as shown in page 1.3. Back injury could result if a single person attempts to lift the printer.

: The printer weights 23kg including the toner

Plug the optional T ra y 2 cable into the optional T r ay 2 cable connector on the back of the printer.

Load paper in the optional Tray 2. The instructions for loading paper in the optional Tray 2 are same as for loading in the Tray 1. See page 2.4.

Reconnect the power cord and cables and then turn the printer on.

AUTION

are printing using the optional Tray 2. If you do this, a paper jam may occur. Use the optional Tray 2 with the Tray 1.

After installing optional Tray 2, you must set the tray as installed in the printer properties window .

8 9

10 11

: Do not remove the Tray 1 from the printer while you

Click the Windows For Windows 9x/Me/NT4.0/2000, select

Printers

For Windows XP/2003, select Select the or Right-click on the printer icon and select

In PCL 6 Properties, click the from the

In PS Properties, click the

Installed

Click OK.

Samsung ML-3560 Series PCL 6

Samsung ML-3560 Series PS

Optional Tray

from the

Start

menu.

drop-down list.

Tray 2

Settings

Printers and Faxes

printer icon.

Properties

Printer

Device Option

drop-down list.

. Then select

tab and select

and then

printer icon

Tray 2

9.8

Installing Printer Options

Installing a Duplex Unit

The printer can automatically print on both sides of a sheet of paper with an optional duplex unit. This is called duplexing. The optional duplex unit supports the following paper sizes: letter, legal, folio, and A4.

The duplex-slot cover that is located at the rear of the printer must be removed when the optional duplex unit is installed. When you use duplexing, the printer partially ejects the printed page into the output tray, and then pulls it back to print the reverse side.

To install a duplex unit:

Turn the printer off and unplug all cables from the printer.

Remove the tape and all packing m aterial from the duplex unit.

Remove the duplex-slot cover from the back of the printer.

For Windows 9x/Me/NT4.0/2000, select

Printers

For Windows XP/2003, select

Select the or

Right-click on the printer icon and select

In PCL 6 Properties, click the

Duplex Unit

In PS Properties, click the

Installed

Click OK.

Printers and Faxes

Samsung ML-3560 Series PCL 6

Samsung ML-3560 Series PS

Printer

Device Option

from the

Duplex Unit

Settings

printer icon

printer icon.

Properties

tab and check

tab and select

drop-down list.

and then

Printing on Both Sides of Paper

After installing the duplex unit, you can print on both sides of paper. Before printing, decide how you want your document oriented.

The options are:

• Long Edge, which is the conventional layout used in book binding.

• Short Edge, which is the type often used with calendars.

OTES

• Do not print on both sides of labels, transparencies, envelopes, or thick paper. Paper jamming and damage to the printer may result.

• To use double-sided printing, you can use only the following paper sizes: A4, Letter, Legal, and Folio, with a weight of 20~24lbs (75~90g/m2).

OTE

: Reinstall this cover when you are not use the duplex

unit.

Insert the duplex unit all the way into the slot until it fits into place.

Reconnect the power cord and printer cable, a nd turn the printer on.

After installing the duplex unit, you must set the unit as installed in the printer properties window.

Click the Windows

Start

menu.

There are two ways to enable or disable the double-sided printing:

Using the Control Panel Menu

You can use the sided printing. After setting the item, set the item in the same menu, if necessary.

For further details about using the control panel menu, see page 3.2.

Duplex

item in the

Layout

menu for double-

Duplex Margin

From the Software Application

You can use the printer properties window on your printer driver. For details, see the

Software Section

9.9

Installing Printer Options

Specifications

This chapter includes:

• Printer Specifications

• Paper Specifications

Printer Specifications

Item Specifications and Description

****

Emulation

Random Access Memory (RAM)

Fonts 1 bitmap, 45 scalable, 136 PS3 fonts Interface

Switching

PCL 6 EPSON

32 MB (Max 288 MB) 16, 32, 64, 128, or 256 MB optional

memory available Use only the Samsung-approved DI MM.

Automatic (Parallel, USB, Network)

, PostScript 3, IBM ProPrinter,

ML -3560

Model Name

Print Speed

Resolution Up to 1200 x 1200 dpi effective output First Printing

Time Warm-up Time 40 seconds

Power Rating

Power Consumption

Acoustic Noise

Toner Supply Single cartridge Toner Cartridge

***

Life Duty Cycle Monthly: 150,000 pages maximum

Weight

Package Weight Paper: 2.5 Kg, Plastic: 0.6 Kg External

Dimensions (W x D x H)

ML-3561N (KT35MPB) ML -3561ND

Up to 33 PPM (A4); 35 PPM (Letter) Duplex: Up to 18 IPM (A4); 19 IPM (Letter)

Standby mode: 9 seconds Sleep mode: 49 seconds

AC 110 - 127 V (USA, Canada) / 220 - 240 V (Others), 50 / 60 Hz

600 W average during operation Less than 11 W in power-save mode

Stand by: Less than 35 dB

Operating: Less than 55 dB

12,000 Pages (for starter, 6,000 Pages) ISO 19752 (LSA 5% coverage)

Gross: 21 Kg (46.3 lb) Net: 17 Kg (37.5 lb)

396 (W) x 453 (D) x 353 (H) mm / 15.6 x

17.8 x 13.9 in. (without options)

• IEEE 1284 Bidirectional Parallel Standard

- Modes supported: Compatible, Nibble,

Byte, ECP

• USB Interface Standard

Interface

OS Compatibility

*****

Options

* Print speed will be affected by operating system used, com-

puting performance, application software, connection

method, media type, media size, and job complexity. **Sound pressure Level, ISO7779 ***The number of pages may be affected by operating envi-

ronment, printing interval, media type, and media size. ****Compatible with PCL6 Version 2.1 *****Please visit www.samsungprinter.com to download the

latest software version.

- USB 2.0 compliant

- 480 Mbps 1 port

• Network Interface

- 10/100 Base TX (option for ML-3560)

- 802.11b Wireless LAN (option for ML3560, ML-3561N and ML-3561ND)

Windows 95/98/Me/NT 4.0/2000/XP/ 2003, Various Linux OS, Mac 8.6~9.2/

10.1~10.4

ML-3560: Duplex unit, 500-sheet optional T ray 2, Ethernet 10/100 Base TX, Ethernet 100 Base TX + 802.11a/b/g wireless LAN, Hard disk

ML-3561N: Duplex unit, 500-sheet optional Tray 2, Ethernet 100 Base TX +

802.11a/b/g wireless LAN, Hard disk

ML-3561ND: 500-sheet optional Tray 2, Ethernet 100 Base TX + 802.11a/b/g wireless LAN, Hard disk

Operating Environment

Temperature: 10 ~ 32 °C / 50 ~ 90 °F Humidity: 20 ~ 80 % RH

10.1

Specifications

Paper Specifications

Overview

Your printer accepts a variety of print materials, such as cutsheet paper (including up to 100% recycled fiber content paper), envelopes, labels, transparencies, and custom-size paper. Properties, such as weight, composition, grain, and moisture content, are important factors affecting the printer’s performance and the output quality. Paper that does not meet the guidelines outlined in this User’s Guide can cause the following problems:

• Poor print quality

• Increased paper jams

• Premature wear on the printer.

OTES

• Some paper may meet all of the guidelines in this guide and still not produce satisfactory results. This may be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which Samsung has no control.

• Before purchasing large quantities of paper, ensure that the paper meets the requirements specified in this User’s Guide.

AUTION

specifications may cause problems, requiring repairs. These repairs are not covered by the Samsung w ar ranty or service agreements.

: Using paper that does not meet these

Supported Sizes of Paper

Tray 1/

Optional

Tray 2

Letter

Executive

Legal

B5 (JIS)

B5 (ISO)

Folio

Oficio

Dimensions* Weight

216 x 279 mm (8.5 x 11 in.)

210 x 297 mm (8.3 x 11.7 in.)

191 x 267 mm (7.25 x 10.5 in.)

216 x 356 mm (8.5 x 14 in.)

182 x 257 mm (7.2 x 10 in.)

176 x 250 mm (6.9 x 9.8 in.)

216 x 330 mm (8.5 x 13 in.)

148 x 210 mm (5.8 x 8.3 in.)

105 x 148 mm (4.1 x 5.8 in.)

216 x 343 mm (8.5 x 13.5 in.)

60 to 105 g/

bond (16

m to 28 lb)

Capacity

500 sheets of 75 g/m

bond paper

10.2

Specifications

Multi-

Purpose

Dimensions

Weight

Capacity

Tray

Minimum Size (custom)

Maximum Size (custom)

Transparency

***

Labels

Envelopes

* The printer supports a wide range of media sizes. See “Print-

ing on Card Stock or Custom-sized Materials” on page 4.9.

**Capacity may vary depending on media weight and thick-

ness, and environmental conditions.

***Smoothness: 100 to 250 (Sheffield)

OTE

: You may experience jams when using print materials with a length of less than 127 mm (5.0 in.). For optimum performance, ensure that you are storing and handling the paper correctly. Please refer to “Printer and Paper Storage Environment” on page 10.4.

76 x 127 mm (3 x 5 in.)

216 x 356mm (8.5 x 14 in.)

Same minimum and maximum paper sizes as listed above.

60 to 163 g/

bond (16

to 43 lb)

Thickness:

0.10 x 0.14 mm (0.0039 x 0.0055 in.)

Thickness:

0.10 x 0.14 mm (0.0039 x 0.0055 in.)

up to 90 g/

(16 to 24

lb)

100 sheets of 75 g/m

bond paper

50 typical

25 typical

up to 10

Guidelines for Using Paper

For the best result, use conventional 75 g/m2 (20 lb) paper. Ensure that the paper is of good quality , and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curled or bent edges.

If you are unsure of what type of paper you are loading, such as bond or recycled paper, check the label on the package.

The following problems may cause print quality deviations, jamming or even damage to the printer.

Symptom

Poor print quality or toner adhesion, problems with feeding

Dropout, jamming, curl

Increased gray background shading/printer wear

Excessive curl problems with feeding

Jamming, damage to printer

Problem with

Paper

Too moist, too rough, too smooth or embossed; faulty paper lot

Stored improperly

Too heavy

Too moist, wrong grain direction or short-grain construction

Cutouts or perforations

Solution

Try another kind of paper, between 100 ~ 250 Sheffield, 4 ~ 5 % moisture content.

Store paper flat in its moisture-proof wrapping.

Use lighter paper, open the rear output tray.

•Open the rear output tray.

• Use long-grain paper.

Do not use paper with cutouts or perforations.

10.3

Specifications

Problems with feeding

OTES

• Do not use letterhead paper printed with low-temperature inks, such as those used in some types of thermography.

• Do not use raised or embossed letterhead.

• The printer uses heat and pressure to fuse toner to the paper. Insure that any colored paper or preprinted forms use inks that are compatible with this fusing temperature (195 °C or 383 °F for 0.1 second).

Ragged edges

Use good quality paper.

Paper Specifications

Category Specifications

Acid Content 5.5 ~ 8.0 pH Caliper 0.094 ~ 0.18 mm (3.0 ~ 7.0 mi ls) Curl in Ream Flat within 5 mm (0.02 in.) Cut Edge

Conditions

Fusing Compatibility

Grain Long Grain Moisture Content 4 % ~ 6 % by weight Smoothness 100 ~ 250 Sheffield

Cut with sharp blades with no visible fray.

Must not scorch, melt, offset, or release hazardous emissions when heated to 195 °C (383 °F) for 0.1 second.

Care should be taken not to purchase more pa per than can be used in a short time (about 3 months). Paper stored for long periods may experience heat and moisture extremes, which can cause damage. Planning is important to prevent damage to large supplies of paper.

Unopened paper in sealed reams can remain stable for several months before use. Opened packages of paper have m o re potential for environment damage, especially if they are not wrapped with a moisture-proof barrier.

The paper storage environment should be properly maintained to ensure optimum printer performance. The required condition is 20° to 24°C (68° to 75°F), with a relative humidity of 45% to 55%. The following guidelines should be co nsidered when evaluating the paper’s storage environment:

• Paper should be stored at or near room temperature.

• The air should not be too dry or too humid.

• The best way to store an opened ream of paper is to rewrap it tightly in its moisture-proof wrapping. If the printer environment is subject to extremes, unwrap only the amount of paper to be used during the day’s operation to prevent unwanted moisture changes.

Paper Output Capacity

Output Tray Capacity

Face-down output tray

Face-up rear cover

250 sheets of 75 g/m paper

100 sheet of 75 g/m paper

bond

Printer and Paper Storage Environment

Paper storage environm ental conditions directly affect the feed operation.

Ideally , the printer and paper storage environment should b e at or near room temperature, and not too dry or humid. Remember that paper is hygroscopic; it absorbs and loses moisture rapidly.

Heat works with humidity to damage paper. Heat causes the moisture in paper to evaporate, while cold causes it to condense on the sheets. Heating systems and air conditioners remove most of the humidity from a room. As paper is opened and used, it loses moisture, causing streaks and smudging. Humid weather or water coolers can cause the humidity to increase in a room. As paper is opened and used it absorbs any excess moisture, causing light print and dropouts. Also, as paper loses and gains moisture it can become distorted. This can cause paper jams.

Envelopes

Envelope construction is critical. Envelope fold lines can vary considerably, not only between manufacturers, but also within a box from the same manufacturer. Successful printing on envelopes depends upon the quality of the envelopes. When selecting envelopes, consider the following components:

• Weight: The weight of the envelope paper should not exceed 90 g/m

• Construction: Prior to printing, envelopes should lie flat with less than 6 mm (0.25 in) curl, and should not contain air.

• Condition: Envelopes should not be wrinkled, nicked, or otherwise damaged.

• Temperature: You should use envelopes that are compatible with the heat and pressure of the printer.

• Size: You should only use envelopes within the following size ranges.

Multi-Purpose Tray

OTES

• Use only the Multi-Purpose Tray to print envelopes.

• You may experience some paper jams when using any m edia with a length less than 127 mm (5.0 in). This may be caused by paper that has been affected by environmental conditions. For optimum performance, make sure you are storing and handling the paper correctly. Please refer to “Printer and Paper Stor age Environment” on page 10.4.

(24 lb) or jamming may occur.

Minimum Maximum

76 x 127 mm (3 x 5 in)

216 x 356 mm (8.5 x 14 in)

10.4

Specifications

Envelopes with Double Side Seams

Double side-seams construction has vertical seams at both ends of the envelope rather than diagonal seams. This style may be more likely to wrinkle. Be sure the seam extends all the way to the corner of the envelope as illustr ated below.

Labels

CAUTION

• To avoid damaging the printer , use only labels recommended for laser printers.

• To preve n t serious jams, always use the Multi-Purpose Tray to print labels and always use the rear output tray.

• Never print on the same sheet of labels more than once and never print on a partial sheet of labels.

Correct

Incorrect

Envelopes with Adhesive Strips or Flaps

Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the heat and pressure in the printer. The extra flaps and strips might cause wrinkling, creasing, or even jams and may even damage the fuser.

Envelope Margins

The following gives typical address m a rgins for a commercial #10 or DL envelope.

Type of Address Minimum Maximum

Return address 15 mm (0.6 in.) 51 mm (2 in.) Delivery address 51 mm (2 in.) 89 mm (3.5 in.)

OTES

• For best print quality, position margins no closer than 15 mm (0.6 in) from the edges of the envelope.

• Avoid printing over the area where the envelope ’s seams meet.

When selecting labels, consider the quality of each component:

• Adhesives: The adhesive material should be stable at 195 °C (383 °F), the printer’s fusing temperature.

• Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets with spaces between the labels, causing serious jams.

• Curl: Prior to printing, labels must lie flat with no more than 13 mm (0.5 in) of curl in any direction.

• Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.

See “Printing on Labels” on page 4.7.

Transparencies

Transparencies used in the printer must be able to withstand 140 °C (284 °F), the printer’s fusing temperatur e.

AUTION

transparencies recommended for use in laser printers. See “Printing on Transparencies” on page 4.8.

To avoid damaging the printer, use only

Envelope Storage

Proper storage of envelopes help s contribute to print qualit y. Envelopes should be stored flat. If air is trapped in an envelope, creating an air bubble, then the envelope may wrinkle d u ring printing. See “Printing on Envelopes” on page 4.6.

Specifications

10.5

INDEX

antenna, connect

2.7

features, printer

1.1

install

9.1

remove

Multi-Purpose Tray, use

9.3

4.2

card stock, print clean

inside

6.5

outside cleaning sheet, print components configuration page, print connect

ethernet

network antenna

parallel

power cord

USB

2.6

control panel

buttons

display

menus custom-sized materials, prnt

4.9

6.5

6.6

1.3

6.1

2.7

2.6

2.7

3.1

3.2

3.1

3.2

4.9

demo page, print display language, change duplex unit, install

2.7

2.8

9.9

envelopes, print error messages ethernet cable, print

4.6

7.10

2.7

hard disk

install

9.4

use

9.5

install

duplex unit hard disk memory DIMM network card optional Tray 2 printer driver

9.9

9.4

9.1

9.3

9.7

2.8

labels, print Linux

common problems install driver

load, paper

in the Multi-Purpose Tray in the Tray1/optional Tray 2 using the manual feed

4.7

7.13

2.8

Macintosh

common problems

install driver manual feed mode, use memory DIMM

7.12

2.8

4.4

4.2

2.4

network antenna, connect network interface card, install network printing

cable/antenna, connect card, install network-connected printer, set parameters, configure

9.3

2.7

2.6

8.2

option, install

duplex unit hard disk memory DIMM network card

Tray 2 optional Tray 2, install output location, select output tray

9.9

9.4

9.1

9.3

9.7

4.5

paper

choose

guideline

load

sizes and capacities

specifications paper jam

around the toner cartridge

in the duplex area

in the paper exit area

4.1

2.4

4.1

10.2

7.7

9.3

8.1

7.6

in the paper feed area

Multi-Purpose Tray optional Tray 2 Tray 1

tips for avoiding paper level indicator paper size, change in the tray parallel cable, connect PostScript driver

errors

install preprinted paper, print printer driver, install printing

cleaning sheet

configuration page

demo page printing problems problem, solve

checklist

error messages

general

Linux

Macintosh

paper jams

print quality

PS errors

Windows

7.4

7.13

2.8

6.6

2.7

7.2

7.1

7.2

7.13

7.12

7.4

7.8

7.13

7.12

7.6

7.4, 7.5

7.8

4.2

2.6

4.9

2.8

6.1

7.10

3.4

maintain redistribute

replace transparencies, print Tray 1, use turn on, printer

6.2

6.3

2.4

2.7

unpack USB cable, connect

2.1

2.6

4.8

quality problems, solve

7.8

rear cover, use redistribute, toner cartridge replace, toner cartridge

4.5

6.3

software

overview

specification

paper printer

2.8

10.2

10.1

toner cartridge

install

2.2

6.2

Samsung Printer

Software section

SOFTWARE SECTION

CONTENTS

Chapter 1:

Chapter 2:

INSTALLING PRINTER SOFTWARE IN WINDOWS

Installing Printer Software ......................................................... ............................. .... .............. 4

Installing Software for Local Printing ................................................................................. 4

Installing Software for Network Printing ............................................................................. 7

Changing the Software Language ............................................................................................ 10

Reinstalling Printer Software ................................................................................................... 10

Removing Printer Software ..................................................................................................... 11

BASIC PRINTING

Printing a Document .............................................................................................................. 12

Printer Settings ..................................................................................................................... 13

Layout Tab ........................................ ............................. ............................. .... ............ 13

Paper Tab .................................................................................................................... 14

Graphics Tab ............................................................................................................... 15

Extras Tab ................................................................................................................... 16

About Tab ................................................................................................................... 17

Printer Tab .................................................................................................................. 17

Chapter 3:

Using a Favorite Setting ................................................................................................ 17

Using Help ................................................................................................................... 17

ADVANCED PRINTING

Printing Multiple Pages on One Sheet of Paper (N-Up Printing) ..................................................... 18

Printing Posters ..................................................................................................................... 19

Printing Booklets .................................................................................................................. 19

Printing on Both Sides of Paper ............................................................................................... 20

Printing a Reduced or Enlarged Document ................................................................................ 21

Fitting Your Document to a Selected Paper Size .................................................................. ..... .. 21

Using Watermarks ................................................................................................................. 22

Using an Existing Watermark ......................................................................................... 22

Creating a Watermark ................................................................................................... 22

Editing a Watermark ..................................................................................................... 23

Deleting a Watermark ................................................................................................... 23

Using Overlays ...................................................................................................................... 23

What is an Overlay? ...................................................................................................... 23

Creating a New Page Overlay ......................................................................................... 23

Using a Page Overlay .................................................................................................... 24

Deleting a Page Overlay ................................................................................................ 25

Chapter 4:

Chapter 5:

Chapter 6:

USING WINDOWS POSTSCRIPT DRIVER

Printer Settings ..................................................................................................................... 26

Advanced

Using Help ................................................................................................................... 26

.................................................................................................................. 26

SHARING THE PRINTER LOCALLY

Setting Up a Host Computer ........................................................... ............................ ..... ....... 27

Setting Up a Client Computer .................... .............................................................................. 27

USING SMART PANEL

Understanding Smart Panel .................................................................................................... 28

Opening the Troubleshooting Guide ......................................................................................... 28

Using Printer Settings Utility ................................................................................................... 29

Using Onscreen Help File ............................................................................................... 29

Changing the Smart Panel Program Settings ............................................................................. 29

Chapter 7:

USING YOUR PRINTER IN LINUX

System Requirements ............................................................................................................ 30

Installing the Printer Driver ..................................................................................................... 31

Changing the Printer Connection Method ......................................................................... 32

Uninstalling the Printer Driver ........................................................................................ 33

Using the Configuration Tool ................................................................................................... 33

Changing LLPR Properties ....................................................................................................... 34

Chapter 8:

USING YOUR PRINTER WITH A MACINTOSH

Installing Software for Macintosh ............................................................................................. 35

Setting Up the Printer ............................................................................................................ 36

For a Network-connected Macintosh ................................................................................ 36

For a USB-connected Macintosh ..................................................................................... 36

Printing ................................................................................................................................ 37

Printing a Document ..................................................................................................... 37

Changing Printer Settings .............................................................................................. 37

Printing Multiple Pages on One Sheet of Paper .................................................................. 38

Duplex Printing ............................................................................................................ 39

Typical Installation

1 Installing Printer

Software in Windows

This chapter in c ludes:

• Installing Printer Software

• Changing the Software Lang uag e

• Reinstalling Printer Software

• Removing Printer Software

Installing Printer Software

You can install the printer software for local printing or network printing. To install the printer software on the computer, perform the appropriate installation procedure depending on the printer in use.

A printer driver is software that lets your computer communicate with your printer . The procedure to install drivers may differ depending on the operating system you are using.

All applications should be closed on your PC before beginning installation.

This is recommended for most users. All components necessary for printer operations will be installed.

Make sure that the printer is connected to your computer and power ed on.

Insert the supplied CD-ROM into your CD-ROM drive. The CD-ROM should automatically run, and an installation

window appears.

Start

If the installation window does not appear, click then

Run

. Type

X:\Setup.exe

letter which represents your drive and click

, replacing “X” with the

and

Installing Software for Local Printing

A local printer is a printer directly attached to your computer using the printer cable supplied with your printer , such as a USB or parallel cable. If your printer is attached to a network, skip this step and go to “Installing Software for N etwork Printing” on page 7.

You can install the printer software using the typical or custom method.

NOTE

: If the “New Hardware Wizard” window appears during the installation procedure, click in the upper right corner of the box to close the wind o w, or click

Cancel

Click

• If necessary, select a language from the drop-down list.

•

View User’s Guide

Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will autom atically install Adobe Acrobat Reader for you.

Select

Typical installation for a local printer

: Allows you to view the User’s

. Click

Installing Printer Software in Windows

NOTE

: If your printer is not already connected to the computer, the following window will appear.

T o register yourself as a user of Samsung Printers in order to receive information from Samsung, select the checkbox and click site.

Otherwise, just click

Finish

. You are now sent to the Samsung web

Finish

• After connecting the printer, click

• If you don’t want to connect the printer at this time, click

, and No on the following screen. Then the installation will start and a test page will not be printed at the end of the installation.

• The installation window that appears in this User’s Guide may differ depending on the printer and interface in use.

After the installation is finished, a window asking you to print a test page appears. If yo u ch oose to p rint a test page, select the checkbox and click

Otherwise, just click

If the test page prints out correctly, click If not, click

to reprint it.

and skip to step 7.

Yes

NOTE

: After setup is complete, if your printer driver doesn’t work properly, reinstall the printer driver. See “Reinstalling Printer Software” on page 10.

Custom Installation

You can choose individual components to install.

Make sure that the printer is connected to your computer and power ed on.

Insert the supplied CD-ROM into your CD-ROM drive. The CD-ROM should automatically run, and an installation

window appears.

Start

If the installation window does not appear, click then

Run

. Type

X:\Setup.exe

letter which represents your drive and click

, replacing “X” with the

and

Installing Printer Software in Windows

Click

• If necessary, select a language from the drop-down list.

View User’s Guide

• Guide. If your computer doesn’t have Adobe Acrobat, click o n th is op tion a nd it w ill a u tom at ical ly ins ta ll Ad ob e Acrobat Reader for you.

Select

Custom installation

Select your printer and click

: Allows you to view the User’s

. Click

NOTE

: If your printer is not already connected to the

computer, the following window will appear.

• After connecting the printer, click

• If you don’t want to connect the printer a t this time , click

, and No on the following screen. Th e n the i n stalla tion will start and a test page will not be printed at the end of the installation.

• The installation window that appears in this User’s Guide may differ depending on the printer and interface in use.

Select the components to be installed and click

After the installation is finished, a window asking you to print a test page appears. If you choose to print a test

page, select the checkbox and click

Otherwise, just click

If the test page prints out correctly, click If not, click

to reprint it.

and skip to step 9.

Yes

Installing Printer Software in Windows

To register yourself as a user of Samsung Printers in order to receive information from Samsung, select the checkbox and click site.

Otherwise, just click

Finish

. You are now sent to the Samsung web

Finish

Installing Software for Network Printing

When you connect your printer to a network, you must first configure the TCP/IP settings for the printer. After you have assigned and verified the TCP/IP settings, you are ready to install the software on each computer on the network.

You can install the printer software using the typical or custom method.

If the installation window does not appear, click then

Run

. Type

X:\Setup.exe

letter which represents your drive and click

Click

• If necessary, select a language from the drop-down list.

•

View User’s Guide

Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will autom atically install Adobe Acrobat Reader for you.

Select

Typical installation for a network printer

: Allows you to view the User’s

, replacing “X” with the

Start

and

. Click

Typical Installation

This is recommended for most users. All components necessary for print er operations will be in stalled.

Make sure that the printer is connected to your network and powered on. For details about connecting to the network, see the supp lied pr inte r’s User’s Guide.

Insert the supplied CD-ROM into your CD-ROM driv e. The CD-ROM should automatically run, and an installation

window appears.

Installing Printer Software in Windows

The list of print ers available on the n e t work appears. Select the printer you w ant to install from the list and the n click

Custom Installation

You can choose individual components to install and set a specific IP address.

Make sure that the printer is conne cted to your network and powered on. For details about connecting to the network, see the supplied printer’s User’s Guide.

Insert the supplied CD-ROM into your CD-ROM drive. The CD-ROM should automatically run, and an installation

window appears. If the installation window does not appear, click

then

Run

. Type

X:\Setup.exe

letter which represents your drive and click

, replacing “X” with the

Start

and

• If you do not see your printer on the list, click refresh the list, or select printer to the network. To add the printer to the network, enter the po rt name and the IP addr ess for the printer.

• To find a shared network printer (UNC P ath), select

Shared Printer [UNC]

manually or find a shared printer by clicking the button.

After the installation is finished, a window appears asking you to print a test page and to register yourself as a user of Samsung Printers in order to receive information from Samsung. If you so desire, select the corresponding checkbox(es) and click

Otherwise, just click

Add TCP/IP Port

and enter the shared n ame

Finish

Update

to add your

Browse

Click

• If necessary, select a language from the drop-down list.

View User’s Guide

• Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will autom atically install Adobe Acrobat Reader for you.

Select

Custom installation

: Allows you to view the User’s

. Click

NOTE

: After setup is complete, if yo ur p rinte r dr iv e r d oesn ’t work pr operly, reinstall t he prin t er drive r. See “Reinstalling Printer Software” on page 10.

Installing Printer Software in Windows

The list of print ers available on the n e t work appears. Select the printer you w ant to install from the list and the n click

Select the components to be installed. After selecting the components, the following window appears. Y o u ca n also change the printer n ame, set the printer to be shar ed o n the network, set the printer as the d efa u lt printe r, and change the port na me of each printer. Click

• If you do not see your printer on the list, click refresh the list, or select printer to the network. To add the printer to the network, enter the po rt name and the IP addr ess for the printer.

• To find a shared network printer (UNC P ath), select

Shared Printer [UNC]

manually or find a shared printer by clicking the button.

TIP

: If you want to set a specific IP address on a specific network printer, click the Address window appears. Do as follows:

Add TCP/IP Port

and enter the shared n ame

Set IP Address

button. The Set IP

Update

to add your

Browse

To install this software on a server, select the

Finish

checkbox.

this printer on a server

Otherwise, just click

Setting up

a. Select a printer to be set with a specific IP address from the

list.

b. Configure an IP address, subnet mask, and gateway for the

printer manually and click address for the network printer.

c. Click

Configure

to set the specific IP

Installing Printer Software in Windows

NOTE

: After setup is complete, if your printer driver doesn’t work properly, reinstall the printer driver. See “Reinstalling Printer Software” on page 10.

Changing the Software Language

After installation of the software, you can change the display language.

Click the Windows

Select

Programs

driver name

Select

Language Selection

Select the desired language from the language selection window, and click

Start

menu.

All Programs

and then

your printer

NOTE

: If your printer is not already connected to the computer, the following window will appear.

Reinstalling Printer Software

You can reinstall the software if installation fails.

Start Windows.

From the

→

your printer driver name → Maintenance

Select

The list of print ers available on the n e t work appears. Select the printer you w ant to install from the list and the n click

Repair

Start

menu select

and click

Programs

All Programs

• After connecting the printer, click

• If you don’t want to connect the printer a t this time , click

, and No on the following screen. Th e n the i n stalla tion will start and a test page will not be printed at the end of the installation.

• The reinstallation window that appears in this User’s Guide may differ depending on the printer and interface in use.

Select the components you want to reinstall and click

If you installed the printer software for local printing

you select

and

asking you to print a te st page appears. Do as follow s: a. To print a test page, select the check box and click

b. If the test page prints out co rrec tly, click

If it does n’t, click

When the reinstallation is done, click

your printer driver name

to reprint it.

Finish

, the window

Yes

• If you do not see your printer on the list, click refresh the list, or select printer to the network. To add the printer to the network, enter the po rt name and the IP addr ess for the printer.

• To find a shared network printer (UNC P ath), select

Shared Printer [UNC]

manually or find a shared printer by clicking the button.

You will see a comp onent list so that yo u can reinstall any item individua lly.

Add TCP/IP Port

and enter the shared n ame

Update

to add your

Browse

Installing Printer Software in Windows

Removing Printer Software

Start Windows.

From the

→

your printer driver name → Maintenance

Select You will see a com ponent list so that y ou can rem ove any

item individua lly.

Select the components you w ant to rem ove and then click

When your computer asks you to confirm your selection, click

The selected driver and all of its components are removed from your comp ut er.

After the software is rem o ved, click

Start

Remove

Yes

menu select

and click

Programs

Finish

All Programs

Installing Printer Software in Windows

2 Basic Printing

This chapter explains the printing options and com mon printing tasks in Windows.

This chapter in c ludes:

• Printing a Document

• Printer Settings

- Layout Tab

- Paper T a b

- Graphics Tab

- Extras Tab

- About T a b

- Printer Tab

- Using a Favorite Setting

- Using H elp

Printing a Document

OTE

• Your printer driver User’s Guide may differ depending on the printer in use. However the compo sition of the printe r properties window is similar.

• Check the Operating System(s) that are compatible with your printer. Please refer to the OS Compatibility section of Printer Specifications in your Printer User’s Guide.

• If you need to know the exact name of your printer, you can check the supplied CD-ROM.

Properties

window that appears in this

Open the document you want to print.

Select

from the displayed. It may look slightly different depending on your application.

The basic print settings are selected within the Print window. These settings include the number of copies and print range.

Select

your printer driver

list.

T o take advantage of the printer features provided by your printer driver, click application’s Print window. For details, see “Printer

Settings” on pa ge 13. If you see

window, click it instead. Then click screen.

Click OK to close the printer properties window.

To start the print job, click OK or window.

Setup, Printer

File

menu. The Print window is

Make sure that your printer is selected.

from the

Properties

, or

Options

Name

Preferences

in your Print

Properties

drop-down

in the

on the next

in the Print

The following procedure describes the general steps required for printing from various Windows applications. The exact steps for printing a document may vary depending on the application program you are using. Refer to the User’s Guide of your software application for the exact printing procedure.

Basic Printing

Printer Settings

You can use the printer properties window, which allows you to access all of the printer options you need when using your printer. When the printer properties are displayed , you can review and change the settings needed for your print job.

Your printer properties window may differ, depending on your operating system. This Software User’s Guide shows the Properties window for Windows 98.

Your printer driver User’s Guide may differ depending on the printer in use.

If you access printer properties through the Printers folder , you can view additional Windows-based tabs (refer to your Windows User’s Guid e) and the Printer tab (see “Printer T ab” on page 17).

OTES

• Most Windows applications will override settings you specify in the printer driver. Change all print setting s available in the software application first, and change any remaining settings using the printer driver.

• The settings you change remain in effect only while you are using the current program.

permanent

• The following procedure is for Windows XP. For other Windows OS, refer to the corresponding Windows User's Guide or online help.

1. Click the Windows

2. Select

3. Select your printer driver icon.

4. Right-click on the printer driver icon and select

Printing Preferences

5. Change the settings on each tab , click OK.

Properties

, make them in the Pr inte r s fold er.

Printers and Faxes

window that appears in this

To make your changes

Start

button.

Layout Tab

The

Layout

appears on the printed page. The

Multiple Pages per Side

Document” on page 12 for more information on accessing printer properties.

Orientation

information is printed on a page.

•

Portrait Landscape

• style.

Rotate

•

tab provides options to adjust h ow the document

Layout Options

and

Poster

allows you to select the direction in which

prints across the width of the page, letter style.

prints across the length of the page, spreadsheet

allows you to rotate the page the selected degrees.

. See “Printing a

includes

Basic Printing

Portrait

Layout Options

You can choose

For details, see

• (N-Up Printing)” on page 18.

•

For details, see

Multiple Pages per Side

Landscape

allows you to select advanced printing options.

“Printing Multiple Pages on One Sheet of Paper “Printing Posters” on page 19

and

Poster

Paper Tab

Use the following options to set the basic paper handling specifications when you access the printer properties. See “Printing a Document” on page 12 for more information on accessing printer properties.

Paper

Click the

tab to access various paper properties.

Source

Make sure that

Manual Feed

Use envelopes and transparencies. You have to load one sheet at a time into the Ma n ual Tray or Multi-Pu r p os e Tray. If the paper source is set to automatically picks up p rint material in the following tray ord er: Manual Tray or Multi-Purpose Tray, Tray1, Optional Tray2

Source

is set to the corresponding paper tray.

when printing on special materials like

Auto Select

, the printer

Copies

You can select 1 to 999 copies.

Size

If the required size is not listed in the When the size and click select it.

allows you to choose the number of copies to be printed.

Size

allows you to set the size of paper you loaded in the tray.

Size

box, click

Custom Page Size

. The setting appears in the list so that you can

window appears, set the paper

Custom

Type

Make sure that different type of print material, select the corresponding paper type. If you use cotton paper, set the paper type to printing. To use recycled paper, with weighs from 20lb to 24lb

(75~90g/m

First Page

This property allows you to print the first page using a different paper type from the rest of the document. You can select the paper source for the first page. For example, load thick stock for the first page into the Multipurpose T r ay, and plain paper into Tr a y1. Then, select the

Source

option.

Scaling

job on a page. You can choose from and

•

Some printers do not support this feature.

Scaling

Fit to Pag e

For details, see page 21. For details, see Size” on page 21.

Type

is set to

), or colored paper, select

Printer Default

Color Paper

. If you load a

Thick

for best

Tray1

option and

allows you to autom a tic ally o r manu al ly sc ale you r print

Multi-Purpose Tray

None, Reduce/Enlarge

“Printing a Reduced or Enlarged Document” on “Fitting Your Document to a Selected Paper

in the

First Page

Enter the c usto m name you w ant to use.

Enter the paper size.

Basic Printing

Graphics Tab

Use the following Graphic options to adjust the print quality for

r specific printing needs. See “Printing a Document” on

you page 12 for more information on accessing printer properties.

Click the

Resolution

The Resolution options you can select may vary depending on your printer model.

the sharper the clarity of printed characters and graphics. The higher setting also may increase the time it takes to print a docum

Image Mode

The available options are Normal and Text Enhance.

printers do not support this feature.

•

Printer Setting

determined by the setting you’ve made on the control panel of the printer.

Normal

•

Text Enhance

Graphics

ent.

: This setting is for normal documents.

in your documents, use documents

tab to display the properties shown below..

: If you select this option, this feature is

: If you want to display characters more vivid

easier to read.

The higher the setting,

Some

Text Enhance, and it will make your

Advanced Options

You can set advanced settings by clicking the

Options

•

button.

TrueType Options

tells the printer about how to image the text in your document. Select the appropriate setting according to the status of your doc

ument.

Windows 9x/Me, depending on your particular printer model.

Download as Outline

iver will download any TrueType fonts that are used in your

dr do after printing a document, you find that the fonts did not print correctly, choose Download as bit image and resubmit your print job. The Download as bit image setting is often useful when printing Adobe.

when you use the PCL printer driver.

Download as Bit Image

driver will download the font data as bitmap images. Documents with complicated fonts, such as Korean or Chi

Print as Graphics

will download any fonts as graphics. When printing documents with high graphic content and relatively few TrueType fonts, printing performance (speed) may be enhanced in this setting.

Print All Text Black

is checked, all text in your document prints solid black, regardless of the color it appears on the screen.

This option may be available only in

cument not already stored (resident) on your printer. If,

nese, or various other fonts, will print faster in this setting.

: This option determines what the driver

: When this option is selected, the

This feature is available only

: When this option is selected, the

: When this option is selected, the driver

: When the

Print All Text Black

Advanced

option

Toner Save Mode

Selecting this option extends the life of your toner cartridge and reduces your cost per page without a significant reduction in print quality.

•

•On: Select this option to allow the printer to use less toner on

•

Some printers do not support this feature.

Printer Setting

determined by the setting you’ve made on the control panel of the printer.

each page.

Off

: If you don’t need to save toner when printing a document,

select this option.

: If you select this option, this feature is

Basic Printing

Extras Tab

You can select output options for your document. See “Printing a Document” on page 12 for more information about accessing the printer properties.

Click the

You can create a background text image to be printed on each page of your document. page 22.

Overlays are often used to take the place of preprinted forms and letterhead paper.

•

Print Order

print. Select the print orde r from the drop-down list.

Extras

Watermark

Overlay

Output Options

Normal

the last page.

Reverse All Pages

last page to the first page.

Print Odd Pages

pages of the document.

Print Even Pages

numbered pages of the document.

tab to access the following feature:

For details, see

: You can set the sequence in which the pages

: Your printer prints all pages from the first page to

: Your printer prints all pages from the

: Your printer prints only the odd numbered

: Your printer prints only the even

“Using Overlays” on page 23.

“Using W atermarks” on

•

Banner Page

containing the printer name, the netwo rk user ID, job name before printing the document. When several users send a print job to th e printer, this option allows you to easily find your printing from the output tray.

support this feature.

•

Use Printer Fonts

printer uses the fonts that are stored in its memory (resident fonts) to print your document, rather than downloading the fonts used in your document. Because downloading fonts takes time, selecting this option can speed up your printing time. When u sing Printer fonts, the printer will try to match the fon ts used in your document to those stored in its memory. If, however, you use fonts in your document that are very differen t from those resident in the printer, your printed output will appear very different from what it looks like on the screen.

This feature is available only when you use the PCL printer driver.

•

Save as Form for Overlay

save the document as a form file (C:\FORMOVER\*.FOM). Once this option is selected, the printer driver requires the file name and the destination path ea ch time you prin t. If you want to preset the file name and specify the path, click on the button in the Output to area, and type the file name and specify the path.

This feature is available only when you use the PCL printer driver.

Print and Hold

Print and H ol d di al og a l low s you to s e le ct h ow to pr in t or s a v e th e printing file by using the optional HDD.

support this feature.

Using Onscreen Help File

• For more information abou t the top right corner of the window. The Help window opens and allows you to view onscreen help supplied on the

: Select Banner Page to print a banner sheet

Some printers do not

: When Use Printer Fonts is checked, the

: Select Save as Form for Overlay to

Some pr inters do n o t

Print and Hold

, click at

Print and Hold

Basic Printing

About Tab

Use the version number of the driver. If you have an Internet browser, you can connect to the Internet by clicking on the web site icon. See “Printing a Document” on page 12 for more information about accessing printer properties.

About

tab to display the copyright no tice an d th e

Printer Tab

If you access printer properties through the you can view the configuration.

The following procedure is for Windows XP. For other Windows OS, refer to the corresponding Windows User's Guide or online help.

Click the Windows

Select

Right-click on the printer driver icon and select

Properties

Click the

Printer

Printers and Faxes your printer driver

Printer

tab. Y o u can se t th e p rinte r

Start

menu.

icon.

tab and set the options.

Printers

folder,

Using a Favorite Setting

The

Favorites

allows you to save the cu rren t pr operties settings for future use.

To save a

Change the settings as need ed on each tab.

Enter a name for the item in the

Click When you save

saved.

T o use a saved setting, select the item from the down list. The printer is now set to print according to the Favorites setting you selected.

To delete a Favorites item, select it from the list and click

Delete

You can also restore the printer driver’s default settings by selecting

option, which is visible on each properties tab,

Favorites

Save

Printer Default

item:

Favorites

from the list.

Favorites

, all current driver settings are

input box.

Favorites

drop

Using Help

Your printer has a help screen that can be activated by clicking

Help

the screens give detailed information ab o ut the p rinte r featu res provided by the printer driver.

You can also click from the upper right corner of the window, and then click on any setting.

button in the printer prop er ties w ind o w. These help

Basic Printing

3 Advanced Printing

Printing Mu ltiple Pages on One

This chapter explains printing options and advanced printing tasks.

OTE

• Your printer driver User’s Guide may differ depending on the printer in use. However the compo sition of the printe r properties window is similar.

• If you need to know the exact name of your printer, you can check the supplied CD-ROM.

This chapter in c ludes:

• Printing Multiple Pages on One Sheet of Paper (N-Up

Printing)

•Printing Posters

• Printing Booklets

• Printing on Both Sides of Paper

• Printing a Reduced or Enlarged Document

• Fitting Your Document to a Selected Paper Size

•Using Watermarks

•Using Overlays

Properties

window that appears in this

1 2

3 4

Sheet of Paper (N-Up Printing)

You can select the num ber of pages to p rint on a single sheet of paper . To print more than one page per sheet, the pages will be reduced in size and arranged in the order you specify. Y ou can print up to 16 pages on one sheet.

To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12.

From the the

Select the number of pages you want to print per sheet (1, 2, 4, 6, 9, or 16) in the list.

Layout

Type

drop-down list.

tab, choose

Pages per Side

Multiple Pages per Side

drop-down

Advanced Printing

Select the page order from the list, if necessary.

Check

Print Page Border

page on the sheet.

Click the type.

Click OK and print the document.

Paper

tab, select the paper source, size, and

Page Order

to print a border around each

drop-down
