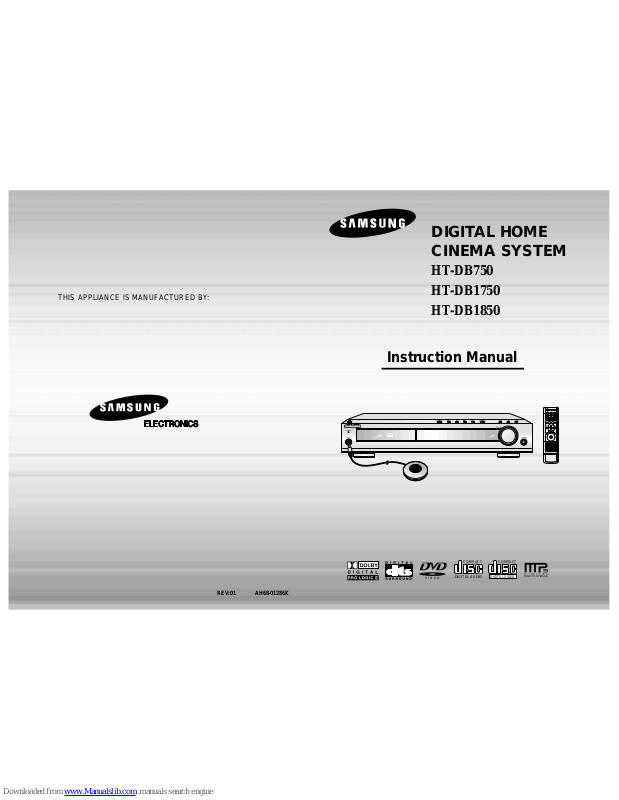

DIGITAL HOME
CINEMA SYSTEM

HT-DB750
HT-DB1750
HT-DB1850

ASC LSM V-H/P

TVDVD RECEIVER

OPEN/CLOSE

DVD TUNER AUX

EZ VIEW

NTSC/PAL

SLOW SUB TITLE

ASC

TUNING/CH

PL II

R

E

T

U

R

N

M

E

N

U

INFO

M
U
T

E

MODE

ENTER

SOUND EDIT

TEST TONERDS DISPLAY

PTY– PTY+PTY SEARCH

TA

SLEEP

LOGO REPEAT

CANCEL ZOOM

REMAIN

TUNER
MEMORY

PL II
EFFECT

VOLUME

LSM

V-H/P

MOVIEMUSIC

SUPER5.1

BAND

MO/ST

TV/VIDEO MODE
DIMMER

V I D E O

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL VIDEO

Instruction Manual

REV:01 AH68-01286K

THIS APPLIANCE IS MANUFACTURED BY:

12

Safety Warnings Precautions

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots
are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become
hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to
the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply,
remove the main plug from the wall outlet, especially when left unused for a long period of time.

Protect the player from moisture(i.e. vases) , and excess
heat(e.g.fireplace) or equipment creating strong magnetic or electric
fields (i.e.speakers...). Disconnect the power cable from the AC supply if
the player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc have been stored in cold
temperatures.
If transporting the player during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.

Phones

During thunderstorms, disconnect AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the unit.

The battery used with this product contain chemicals that
are harmful to the environment.
Do not dispose of batteries in the general household trash.

PREPARATION

Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.

This symbol alerts you to important operating and
maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not

expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE REAR COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified
as a CLASS 1 LASER product.

CAUTION

4

Features

3

Multi-Disc Playback & AM/FM Tuner

The HT-DB750/HT-DB1750/HT-DB1850 combines the convenience of multi-disc
playback capability, including DVD, VCD, CD, MP3-CD, CD-R, CD-RW, and
DVD-RW, with a sophisticated AM/FM tuner, all in a single player.

Super Digital Sound Master

Equipped with a new digital audio technology (auto sound
calibration, magic sound field, and magic headphone)
developed in cooperation with DiMagic Co., Ltd. in Japan,
you can enjoy a more lively and high-sensitive sound.

Built-in 5.1-Channel Amplifier

The HT-DB750/HT-DB1750/HT-DB1850 comes with a built-in

5.1-channel amplifier, allowing you to enjoy dynamic sound.

Sound Logo

When power is turned on, a sound logo is output from speakers to
notify the user that the unit is optimized for disc playback.

Power Saving Function

The HT-DB750/HT-DB1750/HT-DB1850 automatically shuts
itself off after 20 minutes in the stop or pause mode.

TV Screen Saver Function

The HT-DB750/HT-DB1750/HT-DB1850 automatically brightens and
darkens the brightness of the TV screen after 2 minutes in the stop or
pause mode.
The HT-DB750/HT-DB1750/HT-DB1850 automatically switches itself
into the power saving mode after 20 minutes in the screen saver mode.

Customized TV Screen Display

The HT-DB750/HT-DB1750/HT-DB1850 allows you to select your favorite image during
JPEG, DVD, or VCD playback and set it as your background wallpaper.

PREPARATION

Contents

PREPARATION

Safety Warnings..................................................................................................................................................................1

Precautions.........................................................................................................................................................................2

Features..............................................................................................................................................................................3

Notes on Discs....................................................................................................................................................................5

Description..........................................................................................................................................................................7

CONNECTIONS

Connecting the Speakers....................................................................................................................................................11

Connecting the FM and AM(MW) Antennas.......................................................................................................................13

Connecting the Video to TV................................................................................................................................................14

Connecting External Components......................................................................................................................................15

Before Using Your DVD Player...........................................................................................................................................17

OPERATION

Disc Playback .....................................................................................................................................................................18

Displaying Disc Information ................................................................................................................................................19

Checking the Remaining Time............................................................................................................................................20

Fast/Slow Playback.............................................................................................................................................................21

Skipping Scenes/Songs......................................................................................................................................................22

Repeat Playback.................................................................................................................................................................23

A-B Repeat Playback..........................................................................................................................................................24

Angle Function....................................................................................................................................................................25

Zoom Function....................................................................................................................................................................26

Selecting Audio/Subtitle Language.....................................................................................................................................27

Moving Directly to a Scene/Song........................................................................................................................................28

Using Disc Menu.................................................................................................................................................................29

Using the Title Menu...........................................................................................................................................................30

SETUP

Setting the Language..........................................................................................................................................................31

Setting TV Screen type.......................................................................................................................................................33

Setting Parental Controls (Rating Level).............................................................................................................................35

Setting the Password..........................................................................................................................................................37

Setting the Wallpaper..........................................................................................................................................................39

Setting the Speaker Mode ..................................................................................................................................................41

Setting the Test Tone..........................................................................................................................................................42

Setting the Delay Time........................................................................................................................................................43

Setting the Audio Quality........................................................................................................................................................................45

Setting the DRC (Dynamic Range Compression)...............................................................................................................47

Auto Sound Calibration Setup.............................................................................................................................................49

Magic Sound Field Mode....................................................................................................................................................51

Dolby Pro Logic II Mode......................................................................................................................................................53

Dolby Pro Logic II Effect .....................................................................................................................................................54

RADIO OPERATION

Listening to Radio...............................................................................................................................................................55

Presetting Stations..............................................................................................................................................................56

MISCELLANEOUS

Convenient Functions.........................................................................................................................................................57

Operating the TV with the Remote Control.........................................................................................................................59

Before Calling for Service...................................................................................................................................................61

Cautions on Handling and Storing Discs ............................................................................................................................63

Specifications......................................................................................................................................................................64

Notes on Terminology.........................................................................................................................................................65

Memo..................................................................................................................................................................................66

CD-R Discs

•

Depending on the disc recording device (CD-Recorder or PC ) and the condition of the disc, some CD-R discs
may not be playable.

•

Use a 650MB/74 minute CD-R. Avoid CD-R media, as they may not be playable.

•

If possible, do not use CD-RW (Rewritable) media, as they may not be playable.

•

Only the CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open,
you may not be able to fully play the disc.

CD-R JPEG Discs

•

Only files with the ".jpeg" and ".JPEG" extensions can be played.

•

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

•

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

•

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.

•

A maximum of 9,999 images can be stored on a single CD.

•

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

•

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

Disc Recording Format

6

CD-R MP3 Discs

•

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

•

MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

If the name of a file is in Korean, the name will be displayed on the TV screen in Korean and * will be shown in the
display of the main unit.

•

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

•

Only files with the ".mp3" and ".MP3" extensions can be played.

•

Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc, the
disc can be played only up to the blank segment.

•

If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

•

For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g.,
32Kbps ~ 320Kbps), the sound may skip during playback.

•

If more than 500 tracks are recorded on a single CD, a maximum of 500 tracks can be played.

•

If more than 300 folders are recorded on a single CD, a maximum of 300 folders can be played.

What is MP3?

MP3 is short for MPEG-1 Audio Layer 3 and MPEG is an acronym for Moving Pictures Experts
Group. MP3 is a file format with compression ratio of 1:12 (128 Kbps*) That is, you can use MP3
format to record about 12 times the usual amount of data on a regular CD.

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.

V I D E O

DVD players and the discs are coded by region. These regional codes must match in order
for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.

(Your DVD player will only play DVDs that are labeled with identical region codes.)

1 6

~

COMPACT

DIGITAL VIDEO

V I D E O

COMPACT

DIGITAL AUDIO

Mark (Logo)

Audio + Video

DVD

VIDEO-CD

AUDIO-CD

12cm

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

74 min.
20 min.
74 min.
20 min.

8cm

12cm

8cm

12cm

8cm

Audio + Video

Audio

Recorded Signals

Disc Type Disc Size Max. Playing Time

•

LD, CD-G, CD-I, CD-ROM and DVD-ROM cannot be played on this player.
If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.

•

DVD discs purchased abroad may not play on this player.
If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.

5

Notes on Discs

Playable Discs

Do not use the following types of disc!

•

Many DVD discs are encoded with copy protection. Because of this, you should only connect your
DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture
from copy-protected DVD discs.

•

This product incorporates copyright protection technology that is protected by methods claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.

Copy Protection

PREPARATION

VOLTAGE
SELECTOR

—Rear Panel—

Audio Cable Video CableRemote Control

FM Antenna User's Manual

AM Antenna

Auto Sound Calibration Microphone

8

ASC LSM V-H/P

—Front Panel—

DOLBY DIGITAL indicator

PRO LOGIC II indicator

TITLE indicator

PRGM indicator

STEREO indicator

CHAPTER indicator

TUNER indicator

DSP indicator

7

Description

Power ( ) button

Standby indicator

Function button

Auto Sound Calibration button

Magic Sound Field button

Magic Headphone button

Disc Tray

Auto Sound Calibration

Input Jack

Volume control

Play/Pause ( ) button

FM Antenna
Connector

5.1 Channel Speaker
Output Terminals

Accessories

RADIO FREQUENCY

indicator

System Status Display

SPEAKER indicator

DTS Disc indicator

LINEAR PCM indicator

PBC indicator

PREPARATION

Headphone Jack

Tuning Down & Skip ( ) buttons

Tuning Up & Skip ( ) buttons

Stop ( ) button

Open/Close button

AM Antenna Connector

External Digital Component Input
Connector

Use this to connect external equipment capable
of digital output.

External Audio

Component Input

Connector

External Video Component

Input Connector

Video Output Connector

Connect the TV's video input jacks (VIDEO

IN) to the VIDEO OUT connector.

S-Video Output Connector

If the TV is equipped with an S-Video input
connector (S-VIDEO IN), connect it to the
player's S-Video output jack.

Voltage Selector(option)

COMPONENT VIDEO

OUTPUT/INPUT jacks

Connect a TV with

component video

input jacks to these jacks.

To open the remote control cover, push the
top of the cover, then slide downward.

10

Insert Remote Batteries

The remote control can be used up to approximately 23
feet/7 meters in a straight line. It can also be operated at
a horizontal angle of up to 30° from the remote control
sensor.

Range of Operation of the Remote Control

Remove the battery
cover on the back of
the remote by
pressing down and
sliding the cover in
the direction of the
arrow.

1

Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).

2

Replace the battery
cover.

3

Follow these precautions to avoid leaking or cracking cells:

•

Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).

•

Use the correct type of batteries.Batteries that look similar may differ in voltage.

•

Always replace both batteries at the same time.

•

Do not expose batteries to heat or flame.

TV DVD RECEIVER

OPEN/CLOSE

DVD TUNER AUX

EZ VIEW

NTSC/PAL

SLOW SUB TITLE

ASC

TUNING/CH

PL II

R

E

T

U

R

N

MENU

INFO

MUTE

MODE

ENTER

SOUND EDIT

TEST TONE

SLEEP

LOGO REPEAT

CANCEL ZOOM

REMAIN

TUNER

MEMORY

PL II

EFFECT

VOLUME

LSM

V-H/P

MOVIEMUSIC

SUPER5.1

BAND

MO/ST

TV/VIDEO MODE
DIMMER

PL II MODE button

TUNING/CH button

MENU button

DVD POWER button

OPEN/CLOSE button

SUPER 5.1 button

Music Sound Field button/

Magic Headphone button

Auto Sound Calibration button

RETURN button

Number(0~9) buttons

SLEEP button

EZ VIEW, NTSC/PAL button

LOGO button

TV indicator
DVD RECEIVER indicator

TV/VIDEO, DIMMER button

MODE button

Direction/Enter button

REPEAT button

REMAIN button

CANCEL button

ZOOM button

TUNER MEMORY button

SOUND EDIT button

TEST TONE button

MUTE button

INFO button

VOLUME button

MOVIE button

SLOW, MO/ST button

SUBTITLE button

PL II EFFECT button

—Remote Control—

DVD button

Play/Pause button

Tuning Preset/CD Skip button

Stop button

AUX button

9

TUNER BAND button

Description

Caution

PREPARATION

RSLS

C

L

SW

R

RSLS

C

L

SW

R

Rear Speaker (L)

Rear Speaker (R)

Subwoofer

Center Speaker

Front Speaker (L)

Front Speaker (R)

•

Make sure the colors of the speaker terminals
match the colors of the connecting jacks.

•

Make sure the polarities (+ and -) are correctly.

•

Insert the black wire into the black
(–) terminal and the gray wire into
the gray (+) terminal.

•

Make sure the polarities (+ and –)
are correctly.

Black

Press down the terminal
tab on the back of the
speaker.

1

Insert the wire into the
terminal and release the
terminal tab.

2

Connect the connecting jacks to
the back of the DVD player.

3

Blue

Gray

Purple

White

Red

Green

Gray

12

Back of the Speakers Back of the Main Unit

Rear Speakers

•

Place these speakers behind your listening position.

•

If there isn't enough room, place these speakers to face each other.

•

Place them about 60 to 90cm (2 to 3feet) above your ear, facing
slightly downward.

*

Unlike the front and center speakers, the rear speakers are used
to handle mainly sound effects and sound will not come from
them all the time.

Subwoofer

•

The position of the subwoofer is not so critical.
Place it anywhere you like.

•

Usually, it is placed by a corner near the front speakers.

Front Speakers

•

Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.

•

Place the speakers so that their tweeters will be at
the same height as your ear.

•

Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.

Center Speaker

•

It is best to install it at the same height as the front
speakers.

•

You can also install it directly over or under the TV.

Position of the DVD Player

•

Place it on a stand or cabinet shelf, or under
the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8feet)

For 55" TVs 3.5~4m (11~13feet)

11

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

CONNECTIONS

R

L

C

RS

LS

SW

14

Connecting the Video to TV

13

VOLTAGE
SELECTOR

Composite

Video

Component

Video

S-Video

TV

CONNECTIONS

The cooling fan dissipates the heat generated inside the unit so that the unit can be operated
normally. The cooling fan is activated automatically to supply cool air to the unit.

Please observe the following cautions for your safety.

•

Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise
and may damage it.

•

Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a
newspaper or cloth, heat may build up inside the unit and fire may result.)

Cooling Fan

Connecting the FM and AM

(

MW

)

Antennas

FM antenna connection AM(MW) antenna connection

1. Connect the FM antenna supplied to the FM 75Ω

COAXIAL terminal as a temporary measure.

2. Slowly move the antenna wire around until you
find a location where reception is good, then
fasten it to a wall or other rigid surface.

•

If reception is poor, connect an outdoor antenna.
Before attaching a 75Ω coaxial cable (with a standard
type connector), disconnect the supplied FM antenna.

1. Connect the AM loop antenna supplied
to the AM and terminals.

2. If reception is poor, connect an outdoor
single vinyl-covered wire to the AM
terminal. (Keep the AM loop antenna
connected).

Snap the tabs on the loop into
the slots of the base to assemble
the AM loop antenna.

VOLTAGE
SELECTOR

ANTENNA

123

If FM reception is poor,
connect an outdoor FM

antenna (not supplied).

FM Antenna (supplied)

AM Loop Antenna
(supplied)

If AM reception is poor, connect an
outdoor AM antenna(not supplied).

•

When the Progressive scan mode is selected, the VIDEO and S-VIDEO
outputs do not feed any signals.

Note

Composite Video (Good Quality)

Connect the supplied video cable from the VIDEO OUT jack on the back panel of the
system to the VIDEO IN jack on your television.

S-Video (Better Quality)

If you television is equipped with an S-Video input, connect an S-Video cable (not supplied)
from the S-VIDEO OUT jack on the back panel of the system to the S-VIDEO IN jack on
your television.

Component Video (Best Quality)

If your television is equipped with Component Video inputs, connect a component video
cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the
corresponding jacks on your television.

*

Depending on your TV, Component Video input connectors may be marked as DVD Video input connectors.

Press AUX on the remote control to select AUX 1 or AUX 2.

•

Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX 1 ➝ AUX 2.

•

You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX1 ➝ AUX2 ➝ FM ➝ AM.

Connect Audio In on the DVD player to Audio Out on the external analog component.

•

Be sure to match connector colors.

1

2

VOLTAGE
SELECTOR

VIDEO OUT VIDEO IN COMPONENT VIDEO OUT

L

R

16

Example: Analog signal components such as a VCR, Camcorder, and TV.

Connecting an External Analog Component

Audio Cable

If the external

analog component
has only one Audio
Out, connect either

left or right.

15

CONNECTIONS

Press AUX on the remote control to select ‘DIGITAL IN’.

•

Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX 1 ➝ AUX 2.

•

You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX1 ➝ AUX2 ➝ FM ➝ AM.

Connecting External Components

Connect the Digital Input (OPTICAL) to the Digital Output on the external
digital component.

1
2

VOLTAGE
SELECTOR

DIGITAL OUT

Example: Digital signal components such as a DVD or CD Recorder.

Connecting an External Digital Component

Optical Cable
(not included)

The AC Cord must be plugged into an appropriate
socket.

Before plugging your system into an AC outlet, you must
check the voltage.
Check the position of the voltage selector on the rear of the
system (OPTIONAL).

1. Plug the AC Cord on the rear of the system into an
appropriate outlet.

2. Press the On/Standby button to switch your DVD Player
system on.

18

•

Each time the button is pressed, the TV indicator (red) and
the DVD Receiver indicator (green) will flash alternately.

•

You can operate the TV while the TV indicator is flashing
and the DVD player while the DVD indicator is flashing.

•

Buttons Enabled for TV Operation: POWER, CHANNEL,
VOLUME, TV/VIDEO, and Numeric (0-9) buttons.

•

By default, the remote control is set to work with Samsung
TVs. See page 61 for more information on the operation of
the remote control.

Press MODE button.

To Operate the TV and DVD Player
with a Single Remote Control

23

Press the MODE
button so that the
TV indicator on
the remote
control flashes.

TV

DVD RECEIVER

TV

DVD RECEIVER

Press the
POWER button to
turn on the TV.

56

Press the MODE
button so that the
DVD RECEIVER
indicator on the
remote control
flashes.

Press DVD
button to select
DVD/CD mode.

17

CONNECTIONS

Before Using Your DVD Player

Your DVD player is capable of playing DVD, VCD, CD, MP3 and JPEG discs.Depending on the disc
you are using, these instructions may vary slightly. Read the instructions carefully before using.

•

By default, the video format is set to "PAL".

•

Each time the button is pressed, the video format
switches between "NTSC" and "PAL".

•

Each country has a different video format standard.

•

For normal playback, the video format of the disc must
be the same as the video format of your TV.

Turn off the main unit and then press NTSC/PAL.

Selecting the Video Format

1

Plug the power
cord into the AC
power supply.

4

Press TV/VIDEO
button to select
VIDEO mode.

Disc Playback

•

Depending on the content of the disc, the initial screen may appear different.

•

Depending on the recording mode, some MP3-CDs cannot be played.

•

Table of contents of a MP3-CD varies depending on the MP3 track format
recorded on the disc.

•

To resume playback, press PLAY/PAUSE
button again.

1

Press OPEN/CLOSE button to open
the disc tray.

2

Load a discs.

•

Place a disc gently into the tray with the disc’s

3

Press OPEN/CLOSE button
to close the disc tray.

To temporarily pause playback,
press PLAY/PAUSE during

DVD VCD CD

•

Playback starts automatically.

MP3 JPEG

•

Playback starts automatically.

•

If the TV is on, a list of MP3s on the
CD will appear on the TV screen.

Something like you
Back for good
Love of my life
More than words
I need you
My love
Uptown girl

DVD RECEIVER SMART NAVI

•

If pressed once, “PRESS PLAY” is displayed and the
stop position will be stored in memory. If PLAY/PAUSE
( ) button or ENTER button is pressed, playback
resumes from the stop position. (This function works only
with DVDs.)

•

If pressed twice, “STOP” is displayed, and if

PLAY/PAUSE ( ) button is pressed, playback starts
from the beginning.

To stop playback,
press STOP during playback.

Note

Displaying Disc Information

You can view playback information on the disc on the TV screen.

20

Press INFO button.

•

Each time the button is pressed, the display changes as follows:

DVD

Display disappears

Display disappears Display disappears

VCD CD

Something like you
Back for good
Love of my life
More than words

DVD RECEIVER SMART NAVI

MP3 JPEG

•

What is a Title?

A movie contained in a DVD disc.

•

What is a Chapter?

Each title on a DVD disc is divided into several smaller sections called "chapters".

•

appears on the TV screen!

If this symbol appears on the TV screen while buttons are being operated, that
operation is not possible with the disc currently being played.

•

What is a Track (File)?

A section of video or a music file recorded on a VCD, CD, or MP3-CD.

Screen Display

DVD display

VCD display

CD display

MP3 CD display

TITLE display

CHAPTER display

TRACK (FILE) display

ELAPSED TIME display

REPEAT PLAYBACK display

AUDIO LANGUAGE display

SUBTITLE display

STEREO (L/R) display

DOLBY DIGITAL display

ANGLE display

•

Depending on the disc, the disc
information display may appear different.

•

Depending on the disc, you can also
select DTS, DOLBY DIGITAL, or PRO
LOGIC.

19

Note

OPERATION

Checking the Remaining Time

TRACK REMAIN

TOTAL ELAPSED

TOTAL REMAIN

TRACK ELAPSED

CHAPTER REMAIN

TITLE REMAIN

CHAPTER ELAPSED

TITLE ELAPSED

Each time the REMAIN button is pressed

Press the REMAIN button.

•

For checking the total and remaining time of a title or chapter
being played.

DVD

VCD

CD

VCD 2.0 with PBC is OFF

Skipping Scenes/Songs

22

DVD VCD CD MP3

DVD VCD CD MP3

Briefly press .

•

Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will

be played.

•

But, you cannot skip chapters consecutively.

•

During fast playback of a CD or MP3-CD, sound is heard only at 2x speed,
and not at 4x, 8x, and 32x speeds.

•

No sound is heard during slow playback and step motion playback.

•

When watching a VCD with a track
longer than 15 minutes, each time

is pressed, playback

will skip back or forward 5 minutes.

TITLE 01/05 CHAPTER 002/040

TITLE 01/05 CHAPTER 004/040

Fast/Slow Playback

Fast Playback

DVD VCD CD MP3

Press and hold .

•

Each time the button is held down during playback,

Press SLOW button.

•

Each time the button is pressed during playback,
the playback speed changes as follows:

Slow Playback

DVD VCD

21

•

Reverse slow playback does not work with VCDs.

Note

Note

OPERATION

Something like you
Back for good
Love of my life
More than words
I need you
My love
Uptown girl

DVD RECEIVER SMART NAVI

Something like you
Back for good
Love of my life
More than words
I need you
My love
Uptown girl

DVD RECEIVER SMART NAVI

Something like you
Back for good
Love of my life
More than words
I need you
My love
Uptown girl

DVD RECEIVER SMART NAVI

A-B Repeat Playback

24

•

The A-B Repeat function will not work on an MP3 or JPEG disc.

2

Press Cursor button
to move to REPEAT
PLAYBACK display.

•

For a VCD or CD, press INFO
button once.

1

Press INFO button
twice.

A -

A -?

REPEAT : A—

A - B

REPEAT : A—B

•

The specified segment will be played
repeatedly.

4

Press ENTER
button at the end
of the desired
segment.

•

When ENTER button is pressed,
the selected position will be stored in
memory.

3

Press Cursor ,
buttons to select ‘A-’
and then press ENTER
button at the beginning
of the desired segment.

To return to normal playback, press Cursor ,
buttons to select OFF.

DVD VCD CD

Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

23

Press REPEAT button.

•

Each time the button is pressed during playback, the repeat playback mode changes as follows:

DVD

VCD CD

MP3 JPEG

•

Repeat playback operation is
not possible with version 2.0
VCD discs if PBC is turned
on. To use Repeat Playback
on a VCD with PBC, you
should set the PBC to OFF in
the disc menu. (See page 29.)

CHAPTER

Repeatedly plays the selected chapter.

TITLE

Repeatedly plays the selected title.

RANDOM

Plays tracks in random order.
(A track that has already been played may
be played again.)

TRACK

Repeatedly plays the selected track.

FOLDER

Repeatedly plays all tracks in the selected
folder.

DISC

Repeatedly plays the entire disc.

OFF

Cancels Repeat Playback.

To Select a Repeat Playback Mode in the Disc Information Screen

Press INFO button twice.

1

Press Cursor button
to move to REPEAT
PLAYBACK display.

2

Press Cursor button
to select the desired
Repeat Playback mode.

3

DVD

VCD CD

*

For MP3 and JPEG discs, you cannot select Repeat
Play from the information display screen.

Press ENTER button.

4

DVD VCD CD MP3 JPEG

Repeat Playback Options

Note

Note

OPERATION

26

Zoom Function

This function allows you to enlarge a particular area of the displayed image.

Zoom (Screen Enlarge) Function

DVD VCD

Aspect Ratio

DVD

2

Press Cursor , ,

, buttons to
move to the area
you want to

1

Press ZOOM
button.

•

Each time the button is pressed, the
zoom level changes as follows:

3

Press ENTER
button.

Press EZ VIEW button.

•

Each time the button is pressed, the zoom function will switch between On and Off.

•

When a movie is played in Widescreen format, black bars at the top and bottom of the
TV screen can be removed by pressing the EZ VIEW button.

•

This function will not work if the DVD is recorded with multi-camera angle format.

•

Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.

25

Angle Function

This function allows you to view the same scene in different angles.

DVD

2

Press Cursor
button to move to
ANGLE display.

1

Press INFO button.

1/3

•

Each time the button is pressed, the angle changes as follows:

3

Press Cursor , buttons or numeric buttons
to select the desired angle.

2/3

3/3

1/3

1/3

•

The Angle function works only with discs on which multiple angles
have been recorded.

Note

Note

OPERATION

EZ VIEW OFFEZ VIEW

ENTER SELECT

28

Moving Directly to a Scene/Song

•

The selected file will be played.

•

An MP3 or JPEG disc cannot be moved
from the disc information screen.

•

When playing an MP3 or JPG disc, you
cannot use , to move a folder.
To move a folder, press (Stop) and
then press , .

DVD VCD CD

MP3 JPEG

2

Press Cursor , buttons
or numeric buttons to select
the desired title/track and then
press ENTER button.

1

Press INFO button.

01/05

001/040 0:00:37 1/1

03/05

001/002 0:00:01 1/1

01/05

001/040 0:00:01 1/1

Moving to a Title/Track

4

Press Cursor , buttons
or numeric buttons to select
the desired chapter and
then press ENTER button.

01/05

025/040 0:00:01 1/1

Moving to a Chapter

6

Press the numeric
buttons to select the
desired time and then
press ENTER button.

01/05

028/040 1:30:00 1/1

Moving to a Specific Time

3

Press Cursor ,
buttons to move to
Chapter display.

Moving to a Chapter

01/05

025/040 1:17:30 1/1

5

Press Cursor ,
buttons to move to
time display.

Moving to a Specific Time

Press the numeric
buttons.

•

You can press on the remote
control to move directly to the desired
title, chapter, or track.

•

Depending on the disc, you may not
be able to move to the selected title or
time.

27

Selecting Audio/Subtitle Language

•

Depending on the number of languages on a
DVD disc, a different audio language (KOREAN,
ENGLISH, JAPANESE, etc.) is selected each
time the button is pressed.

2

Press Cursor ,
buttons or numeric
buttons to select the
desired audio language.

1

Press INFO button
twice.

EN 2/3

JA 3/3

•

You can use the SUBTITLE
button on the remote control to
select a subtitle language.

•

Depending on the disc, the
Subtitle and Audio Language
functions may not work.

Audio Language Selection Function

DVD

Subtitle Language Selection Function

DVD

Note

Note

OPERATION

KO 1/3 KO 01/ 03

OFF

EN 02/ 03

JA 03/ 03
OFF / 03

2

Press Cursor
button to move to
SUBTITLE display.

1

Press INFO button
twice.

3

Press Cursor
button or numeric
buttons to select
the desired subtitle.

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, this function may either not work at all or may work differently.

2

Press Cursor ,
button to move to
‘Title Menu’.

DVD

1

Press MENU
button.

3

Press ENTER
button.

•

The title menu appears.

30

Press MENU button to exit the setup screen.

Using Disc Menu

You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.

DVD

29

2

•

When playing a VCD (version 2.),
this toggles between PBC ON and
OFF.

•

When you select the disc menu that is not
supported by the disc, the "This menu is not
supported" message appears on the screen.

1

Press MENU
button.

Press Cursor ,
buttons to move to
‘DISC MENU’ and then
press ENTER button.

4

Press ENTER
button.

3

Press Cursor , ,

, buttons to
select the desired
item.

PBC (Playback Control) Function

When playing a VCD (version 2.0), you can select and view various scenes according to the menu screen.
PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions may be

disabled. When some functions are disabled, select "PBC OFF" to enable them.

PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.

Note

OPERATION

31 32

*

If the language you selected is
not recorded on the disc, menu
language will not change even
if you set it to your desired
language.

Selecting the

OSD Language

Selecting the

Audio Language

(recorded on the disc)

Setting the Language

OSD language is set to English by default.

21

Press MENU
button.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

4

•

Once the setup is complete, if the language was
set to English, OSD will be displayed in English.

3

Selecting the

Subtitle Language

(recorded on the disc)

Selecting the Disc Menu

Language (recorded on the disc)

Press ENTER
button.

5

Press Cursor ,
button to select the
desired item and then
press ENTER button.

Press Cursor ,
button to select the
desired language and then
press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

SETUP

33 34

Setting TV Screen type

21

43

Press MENU button.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

•

Once the setup is complete, you will
be taken to the previous screen.

Press Cursor
button to move to ‘TV
DISPLAY’ and then

Press Cursor ,
button to select the
desired item and then
press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

SETUP

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high
definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen size, you should adjust the aspect ratio to fit your TV or monitor.

✱ For a standard TV, select either "4:3LB" or "4:3PS" option according to

personal preference. Select "16:9" if you have a wide screen TV.

: Select this to view a 16:9 picture in the full-screen

mode on your wide screen TV.

• You can enjoy the wide screen aspect.

: Select this to play a 16:9 picture in the letter box

mode on a conventional TV.

• Black bars will appear at the top and bottom of the screen.

: Select this to play a 16:9 picture in the pan & scan

mode on a conventional TV.

• You can see the central portion of the screen only (with the
sides of the 16:9 picture cut off).

4:3LB

(4:3 Letterbox)

WIDE

4:3PS

(4:3 Pan&Scan)

• If a DVD is in the 4:3 ratio, you cannot view it in wide screen.

• Since DVD discs are recorded in various image formats, they will look different depending on

the software, the type of TV, and the TV aspect ratio setting.

Note

Adjusting the TV Aspect Ratio (Screen Size)

35 36

Setting Parental Controls (Rating Level)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

•

This function works only if a DVD disc contains the rating level information.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

21

Press MENU button.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

4

•

The password is set to "7890" by default.

•

Once the setup is complete, you will be
taken to the previous screen.

•

If you have selected Level 6, you
cannot view DVDs with Level 7 or
higher.

•

The higher the level, the closer the
content is to violent or adult material.

3 5

Press Cursor
button to move to
‘PARENTAL’ and then
press ENTER button.

Press Cursor , button
to select the desired rating
level and then press
ENTER button.

Enter the password
and then press

ENTER button.

Note

SETUP

21

Press MENU button.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

4

•

Enter the old password, a new
password, and confirm new password.

•

The setting is complete.

3 5

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

37 38

Press Cursor button to
move to ‘PASSWORD’
and then press ENTER
button.

Press ENTER
button.

Enter the password
and then press

ENTER button.

SETUP

Setting the Password

You can set the password for the Parental (rating level) setting.

39 40

Setting the Wallpaper

While watching a DVD, VCD, or JPEG CD, you can set the image you like as a wallpaper.

•

"LOGO COPYING" will be displayed on the

TV screen followed by "LOGO COPIED".

21 43 5

76 8

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

During playback, press
PLAY/PAUSE button
when the image you
like comes up.

Press MENU button.

Press LOGO
button.

DVD VCDJPEG

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

Press Cursor
button to move to
‘LOGO’ and then
press ENTER button.

Press MENU
button to exit the
setup screen.

Press OPEN/CLOSE
button to open and then
close the disc tray.

Press Cursor
button to move to
‘USER’ and then
press ENTER button.

DVD VCDJPEG

To Change the Wallpaper

1

During playback, press
PLAY/PAUSE button when
you see an image you like.

Press LOGO button.

•

"LOGO COPYING" will be displayed

on the TV screen followed by
"LOGO COPIED".

2

3

Press OPEN/CLOSE
button to open and then
close the disc tray.

•

The wallpaper is changed.

Select this to set the
Samsung Logo image as
your wallpaper.

Select this to set the desired
image as your wallpaper.

SETUP

PAUSE

LOGO COPYING

PAUSE

PAUSE

LOGO COPYING

PAUSE

21

43

Setting the Speaker Mode Setting the Test Tone

Press MENU button.

Press Cursor
button to move to
‘Audio’ and then
press ENTER button.

In the Speaker
Setup, press the
ENTER button again.

L: Front Speaker (L) C: Center Speaker SW: Subwoofer
R: Front Speaker (R) LS: Rear Speaker (L) RS: Rear Speaker (R)

Press Cursor , ,

, buttons to move
to the desired
speaker and then
press ENTER button.

•

For C, LS, and RS, each time the button
is pressed, the mode switches
alternately as follows: SMALL ➝ NONE.

•

For L and R, the mode is set to SMALL.

•

With (Dolby Pro Logic II), the delay time may be different for each
mode.

•

With AC-3 and DTS, the delay time is set between 00 and 15mSEC.

•

Depending on PRO LOGIC and STEREO, the speaker mode may vary.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

41 42

Note

SETUP

SMALL

: Select this when using the speakers.

NONE : Select this when no speakers are installed.

21

Press MENU button.

Press Cursor
button to move to
‘Audio’ and then
press ENTER button.

3

Press Cursor button
to move to ‘TEST
TONE’ and then press
ENTER button.

•

The test tone will be sent to L ➝ C ➝
R ➝ RS ➝ LS ➝ SW in that order.
If the button is pressed again at this
time, the test tone will stop.

To end the test tone,
press TEST TONE button.

Press TEST TONE button.

•

Test tone will be produced as follows:
When playing a DVD or CD, this will work
only in Stop mode.

•

Use this function to check that each speaker is
correctly connected and that there is no problem.

When manually testing using the TEST TONE button

Multi-Channel Pro Logic Mode

Start

Setting the Delay Time

43 44

5.3 ms

10.6 ms

15.9 ms

• Setting REAR (SURROUND) SPEAKERS

If the distance of Df is equal to the distance of Ds
in the figure, set the mode as 0ms. Otherwise,
change the setting according to the table.

•

Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than
the distance of Df in the figure, set the mode as
0ms. Otherwise, change the setting according to
the table.

Distance between Df and Dc Delay Time

Delay Time

1.3 ms

2.6 ms

3.9 ms

5.3 ms

Distance between Ds and Dc

50
100
150
200

200
400
600

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if
the distance between you and each speaker is the same. Since the sounds
arrive at the listening position at different times depending on the
placement of speakers, you can adjust this difference by adding a delay
effect to the sound of the Center Speaker and Surround Speakers.

Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER

Ideal CENTER
SPEAKER placement

It is desirable to place all speakers within this circle.

Ideal
SURROUND
SPEAKER
placement

SETUP

2

1

Press MENU button.

Press Cursor button
to move to ‘Audio’ and
then press ENTER
button.

•

You can set the delay time for C
between 00 and 05mSEC and for
LS and RS between 00 and
15mSEC.

43 5

Press Cursor button
to move to ‘DELAY
TIME’ and then press
ENTER button.

Press Cursor , ,

, buttons to move
to the desired
speaker and then
press ENTER button.

Press Cursor ,
to set the Delay
time.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

45

Setting the Audio Quality

You can adjust the balance and level for each speaker.

21

43

Press MENU button.

Press Cursor
button to move to
‘Audio’ and then press
ENTER button.

Press Cursor button
to move to ‘SOUND
EDIT’ and then press
ENTER button.

Press Cursor , ,

, buttons to select
the desired item and then
press ENTER button.

Adjusting Front/Rear Speaker Balance

•

You can select between 00 and –06 and OFF.

•

The volume decreases as you move closer to –6.

Adjusting Center/Rear/Subwoofer Speaker Level

•

The volume level can be adjusted in steps from +6dB to –6dB.

•

The sound gets louder as you move closer to +6dB and smaller as you get closer to -6dB.

Method 1

When adjusting the audio quality using the setup screen

Method 2

When manually adjusting with the SOUND EDIT button

21

Adjusting Front Speaker Balance Adjusting Rear Speaker Balance

Press SOUND
EDIT button and

then press Cursor

, .

3

Adjusting Center Speaker Level

4 5

Adjusting Rear Speaker Level

Adjusting Subwoofer Speaker Level

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

46

Press SOUND
EDIT button and
then press Cursor

, .

Press SOUND
EDIT button and
then press Cursor

, .

Press SOUND
EDIT button and
then press Cursor

, .

Press SOUND
EDIT button and
then press Cursor

, .

Note

SETUP

TITLE

CHAP

PRGM RDS RTSTTUNED

kHz
MHz

TITLE

CHAP

PRGM RDS RTSTTUNED

kHz
MHz

TITLE

CHAP

PRGM RDS RTSTTUNED

kHz
MHz

TITLE

CHAP

PRGM RDS RTSTTUNED

kHz
MHz

TITLE

CHAP

PRGM RDS RTSTTUNED

kHz
MHz

47 48

Setting the DRC (Dynamic Range Compression)

You can use this function to enjoy Dolby Digital sound when watching movies at
low volume at night.

12

Press MENU
button.

Press Cursor
button to move to
‘Audio’ and then
press ENTER
button.

•

The longer the Cursor button is held
down, the greater the effect, and the
longer Cursor button is held down,
the smaller the effect.

•

Once the setup is complete, you will be
taken to the previous screen.

34

Press Cursor
button to move to
‘DRC’ and then
press ENTER
button.

Press Cursor

, to adjust

the ‘DRC’.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

SETUP

50

To listen in the auto sound calibration mode, briefly press ASC button.

(If you set the auto sound calibration in the order from 1 to 4 above for the first time)

•

The selection alternates between ASC ON and ASC OFF in the display.

•

If you select "ASC ON", you can listen in the auto sound calibration mode.
If you select "ASC OFF", you can listen in the mode set in the audio setting of the setup screen.

1

Plug the auto sound calibration
microphone into the auto sound
calibration input jack.

2

Place the auto sound calibration
microphone at the listener's position.

4

5

Press ASC button.

When the message "REMOVE MIC"
appears in the display, unplug the auto
sound calibration microphone.

A bell will sound and
the setup finishes.

•

The tone will be output twice, in the given order (L ➝ C ➝ R ➝ RS ➝
LS ➝ SW), and 5.1-channel sound field is optimized automatically.

•

The auto sound calibration setup takes about 2 minutes to complete.

3

Adjust the volume control on the main
unit as follows:

•

If the distance between the listener and the speaker is over 5 m:
Set the main unit's volume to over 25.

•

If the distance between the listener and the speaker is 3 to 5 m:
Set the main unit's volume to 25.

•

If the distance between the listener and the speaker is below 3 m:
Set the main unit's volume to 15.

To cancel the auto sound calibration setup, press ASC button.

•

The tone output stops, "CANCEL ASC" appears in the display followed by "REMOVE MIC", and the setup will be cancelled.

A tone is output.

A result for each speaker is displayed.

SETUP

49

Auto Sound Calibration Setup

Auto Sound Calibration

By setting the auto sound calibration function just once when you relocate or install the unit, you can have
the unit automatically recognize the distance between speakers, levels between channels, and frequency
characteristics to create 5.1-channel sound field optimized for the listener's environment.

L: Front Speaker (L) R: Front Speaker (R)
C: Center Speaker SW: Subwoofer
LS: Rear Speaker (L) RS: Rear Speaker (R)

•

"S.LOGO ON" or "S.LOGO OFF" appears in the display.

•

Each time the button is pressed, the selection alternates
between S.LOGO ON and S.LOGO OFF.

•

If you select "S.LOGO ON", a sound logo will be output
when the disc reading is finished after power-on. If you
select "S.LOGO OFF", no sound logo will be output.

To Turn On or Off Sound Logo

Press and hold ASCbutton.

Briefly press ASCbutton.

1

2

•

"ASC CHECK" appears in the display.

•

Distance and level values specified for
each channel will appear in the display.

Press and hold ASC button twice.

Briefly press ASC button.

1

2

When you turn on the power, the unit produces a sound logo after
the disc reading to notify that the unit is optimized for playback.

To Verify the Auto Sound Calibration

* This function is available only for DVD/CD playback.

*

The following images are for
illustrative purposes only and may
differ from the actual product.

•

If you purchased the unit for the first time or initialized it, pressing the Auto Sound Calibration button without
connecting the auto sound calibration microphone will display the message "PLEASE SET ASC FUNCTION FIRST"
in the display.

•

Because the volume level of the tone is fixed during the auto sound calibration setup, you cannot adjust the volume
using the volume control buttons.

•

If the auto sound microphone is disconnected during the auto sound calibration setup, the setup will be cancelled.

Note

Auto Sound Calibration

Microphone

5251

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE

PBC CHAP PRGM RDS RT TA

TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE

PBC CHAP PRGM TA

TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE

PBC CHAP PRGM RDS RT TA

TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE

PBC CHAP PRGM RDS RT TA

TUNED

kHz
MHz

ST

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

Magic Sound Field Mode

You can reproduce a 2-channel sound source, such
as VCD, CD, and radio broadcast, in 5.1-channel
surround sound.

Super 5.1 Function

•

Each time the button is pressed, the
selection alternates between SUPER

5.1 and SUPER OFF.

•

Select "SUPER 5.1" to play 2-channel
sound in 5.1 channel.

Press SUPER5.1
button.

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE

PBC CHAP PRGM RDS RT TA

TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

If you select Music Sound Field when listening to a
2-channel sound source, it will be reproduced in

5.1-channel surround sound so that you can enjoy a
dynamic sound with a sense of presence.

Music Sound Field Function

•

Each time the button is pressed,
the selection changes as follows:

Press MUSIC button.

You select from 3 different modes of sound field
for movies.

Movie Sound Field Function

•

Each time the button is pressed,
the selection changes as follows:

When watching
an action movie

When watching a
drama

When watching a
musical

Press MOVIE
button.

Magic Headphone Function

Use headphones (not supplied) for private listening pleasure.
You can enjoy a dynamic sound effects similar to that of 5.1 channel
surround sound using a conventional stereo headphone.

ASC LSM V-H/P

•

To purchase headphones, please
contact the nearest Samsung
Electronics Customer Center.

12

•

Each time the button is pressed, the
selection alternates between
VIRTUAL ON and VIRTUAL OFF.

Plug the
headphones into the
headphone jack.

Press V-H/P
button.

•

VIRTUAL ON: Select to enjoy a 5.1-channel surround sound that gives the

feeling of being in a baseball park or concert hall.

•

VIRTUAL OFF: Select to listen to a standard 2-channel stereo sound.

SETUP

•

When you insert a DVD recorded in 2-channel or multi-channel format and press the
SUPER 5.1 button, the message "THIS FUNCTION APPLIES ONLY 2CH SOURCE"
appears in the display and it will not work.

Note

•

Do not listen at extremely high volume levels when using headphones.
Extended, high-volume listening can lead to permanent hearing loss.

Note

53 54

Dolby Pro Logic II Mode

You can select the desired Dolby Pro Logic II audio mode.

Dolby Pro Logic II Effect

This function works only in Dolby Pro Logic MUSIC mode.

Press PL II MODE button.

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGMRDS RT

TA TUNED

kHz
MHz

ST

S

PRO LOGIC II

•

MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.

•

CINEMA: Adds realism to the movie soundtrack.

•

PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left

and right speakers.

•

MATRIX: You will hear 5.1 channel surround sound.

STEREO: Select this to listen to sounds from the front left and right speakers and the subwoofer only.

•

Each time the button is pressed, the mode changes as follows.

12

•

You can select between 0 and 7.

•

You can select between 0 and 6.

34

•

PANORAMA: This mode extends the front stereo image to include the surround speakers for

an exciting "wraparound" effect with side wall imaging.

•

CENTER WIDTH: Sound is output to the center speaker only. The front left and right speakers

produce phantom sound.

•

DIMENSION: Incrementally adjusts the sound field (DSP) from the front or rear.

•

When playing a DVD disc encoded with two or more channels, multi-channel mode will be
selected automatically and (Dolby Pro Logic II) button does not work.

•

You can select either 0 or 1.

Press PL II MODE
button to select ‘MUSIC’
mode.

Press

PL II EFFECT button
and then press Cursor ,
buttons to select the mode.

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGM RDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGM RDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGM RDS RT

TA TUNED

kHz
MHz

ST

DSP

CMX

LINEAR PCM

MPEG-2 AAC MPEG

L C R

SW

LS RS

TITLE PBC

CHAP

PRGM RDS RT

TA TUNED

kHz
MHz

ST

Press

PL II EFFECT button
and then press Cursor ,
buttons to select the mode.

Press

PL II EFFECT button
and then press Cursor ,
buttons to select the mode.

Note

SETUP

•

When selecting Pro Logic II mode, connect your external device to the
AUDIO INPUT jacks (L and R) on the player. If you connect to only one of
the inputs (L or R), you cannot listen to 5.1 channel surround sound.

Note

55 56

Listening to Radio

You can listen to the chosen band (FM, MW, LW broadcast stations) by using
either the automatic or manual tuning operation.

Presetting Stations

21

•

The selection toggles back
and forth between "FM➝ AM "
each time the TUNER(BAND)
button is pressed.

Tune in to the
desired station.

Press TUNER/
BAND button.

Automatic Tuning 2

Manual Tuning

21

Select a broadcast
station.

Press the STOP ( )

button to select
PRESET and then press
button to select the preset station.

Automatic Tuning 1

Press the Function
button to select the
desired band (FM,
AM).

Press the STOP

( )

button

to select "MANUAL" and
then press and hold button to
automatically search the band.

Automatic Tuning 2

Press STOP

( )

to select

MANUAL and then briefly
press to tune in to a lower or
higher frequency.

Manual Tuning

•

Each time the button is pressed, the sound switches between "STEREO" and "MONO".

•

In a poor reception area, select MONO for a clear, interference-free broadcast.

Press MO/ST button to listen in Mono/Stereo.

(This applies only when listening to an FM station.)

To tune in to a preset station, press on the
remote control to select a channel.

•

Refer to Step 2 on page 55 to
automatically or manually tune in
to a station.

21

•

Each time the button is pressed,
the band switches between
"FM

➝

MW ➝ LW".

TITLE

CHAP

PRGM RDS RTSTTUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RTSTTUNED

kHz

MHz

TITLE

RDS RTSTTUNED

kHz

MHz

•

“PRGM” flashes in the display.

3

Example: Presetting FM 89.1 in the memory

Press to
select "89.10".

Press the

TUNER(BAND)

button and select
the FM band.

•

Press the TUNER MEMORY button before

‘PRGM’ disappears from the display.

•

‘PRGM’ disappears from the display and

the station is stored in memory.

54

•

You can select between 1 and

15.

TITLE

RDS RTSTTUNED

kHz

MHz

TITLE

CHAP

RDS RTSTTUNED

kHz

MHz

Press the TUNER
MEMORY button.

Press the TUNER
MEMORY button.

6

To preset another
station, repeat
steps 2 to 5.

Press to
select preset
number.

When is pressed, a
preset broadcast station is
selected.

Press and hold to
automatically search for
active broadcasting stations.

Briefly press to
increase or decrease the
frequency incrementally.

Automatic Tuning 1

Remote Control Unit

Main Unit

RADIO OPERATION

You can store up to:

15 FM stations
15 AM stations

• FM Frequency Modulation

• AM(MW) Medium Wave

57 58

Convenient Functions

•

The remaining time before the DVD player will shut itself off is displayed.

•

Pressing the button again changes the sleep time from what you have set
earlier.

To confirm the sleep timer setting, press SLEEP button.

•

Each time the button is press, the brightness changes
as follows: ‘SLIGHTLY DARK, DARK BRIGHT’.

•

"SLEEP" will be displayed. Each time the button is pressed
the preset time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝
90 ➝ 120 ➝ 150 ➝ OFF.

TITLE

CHAP

PRGM RDS RTSTTUNED

kHz
MHz

TITLE

CHAP

PRGM RDS RTSTTUNED

kHz
MHz

Press SLEEP button.

Sleep Timer Function

You can set the time that the DVD player will shut itself off.

Adjusting Display Brightness

You can adjust the brightness of the display on the
main unit so it won't interfere with your movie viewing.

To cancel the sleep timer, press SLEEP button until
OFF appears on the display.

Press DIMMER button.

•

‘

MUTE’ flash in the display.

•

To switch the sound back on (at the same volume as
before), press MUTE again or the VOLUME buttons.

Mute Function

This is useful when answering a doorbell or
telephone call.

Press MUTE button.

MISCELLANEOUS

59 60

Operating the TV with the Remote Control

•

The remote control may not work on some brands of TVs. Also some operations may not be
possible depending on your brand of TV.

•

If you do not set the remote control with the code for your brand of TV, the remote control will
work on a Samsung TV by default.

When operating the TV with the remote control

1

Press the MODE button to make the TV
indicator on the remote control to flash.

2

Press POWER button to turn on the TV.

3

Point the remote control toward the TV.

4

While holding down POWER, enter the code
corresponding to your brand of TV.

•

If the code matches the TV's code, the TV will be turned off.

•

If there is more than one code listed for your TV in the table,
enter one at a time to determine which code works.

Example: For a Samsung TV

While holding down POWER, use the number buttons to enter 00,
01, 02, 03, 04, and 05.

•

You can use the TV POWER, VOLUME, CHANNEL, and Numeric
buttons (0~9).

5

Pont the remote control toward the TV and press
POWER. If the TV turns off or on, the setting is
complete.

TV

DVD RECEIVER

Note

MISCELLANEOUS

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

SAMSUNG

ANAM

DAEWOO

LG

HITACHI

JVC

SHARP

SONY

TOSHIBA

SANYO

MITSUBISHI
MATSUSHITA
TELEFUNKEN

RCA

PANASONIC

SABA

PHILIPS

GRUNDIG

ZENITH

MIVAL

NOBLEX

EMERSON

MAGNAVOX

LOEWE

THOMSON
NORDMENDE
LOEWE OPTA

BLAUPUNKT

SIEMENS

TV Brand Code List

No.

Brand

Code

00(Initial Value), 01, 02, 03, 04, 05, 73

06~11, 59

12~18, 20, 21

05, 20, 21, 22, 53

23, 40, 41, 49

24, 55

27, 33, 34, 35, 54

27, 36

27, 37, 42, 43, 44, 46

27, 30, 31, 32

05, 27, 28

09, 26

41, 49, 51, 57

29, 61

07, 09, 26, 48, 49, 50

40, 41, 47, 48, 49

05, 45, 47, 64, 65, 66, 67, 68, 69

39, 42, 46, 70, 71, 72

38
52
56
19
25

05, 60

40, 41, 49, 62, 63

40, 41, 49
36, 47, 05

39
39

30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

BRANDT

FERGUSON

PIONEER
TELEAVA

FINLUX
FISHER

AKAI

YOKO

PHONOLA

RADIOLA

SCHNEIDER

NEWSAN

CONTINENTAL EDISON

SALORA
SELECO

NOKIA

REX

MIVAR

IMPERIAL

CGE

BANG & OLUFSEN

BRIONVEGA

FORMENTI

METZ
WEGA

RADIOMARELLI

SINGER

SINUDYNE

No.

Brand

Code

41
41

41, 48, 74

41

05, 42, 47

31
31
05

05, 45, 47

05, 45

05
58
49
48
48
48
48
46
46
46
47
47
47
47
47
47
47
47

6261

Before Calling for Service

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not
listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact
the nearest authorized dealer or Samsung Electronics Service Center.

•

Is the power cord plugged securely into the outlet?

•

Turn off the power and then turn it back on.

•

Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.

•

CD-ROMs and DVD-ROMs cannot be played on this DVD
player.

•

Make sure that the rating level is correct.

•

Are you using a deformed disc or a disc with scratches on
the surface?

•

Wipe the disc clean.

Disc tray does not open.

Playback does not start.

Playback does not start
immediately when the
Play/Pause button is
pressed.

•

No sound is heard during fast playback, slow playback, and step
motion playback.

•

Are the speakers connected properly? Is the speaker setup
correctly customized?

•

Is the disc severely damaged?

Sound is not produced.

Sound can be heard only
from a few speakers and
not all six.

•

Was the DVD player suddenly moved from a cold place to a warm
one? When condensation forms inside the player, remove the disc
and let the player stand for 1 or 2 hours with the power on. (You
can use the player again after condensation disappears.)

•

When listening to a CD or radio, sound is output to the front
speakers (L/R) only. Select "PRO LOGIC II" by pressing
(Dolby Pro Logic II) on the remote control to use all six speakers.

•

Make sure that the DVD disc is 5.1-CH compatible.

•

If you set C, SL, and SR to NONE in the speaker mode in the
audio setup of the setup screen, no sound is heard from the
center speaker and the front left and right speakers. Set C, SL,
and SR to SMALL.

Picture does not appear, sound
is not produced, or the disc
tray opens 2 to 5 seconds later.

•

Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1
CH Surround Sound is produced only if the disc is recorded with

5.1 channel sound.

•

Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in
the information display?

Dolby Digital 5.1 CH
Surround Sound is not
produced.

Symptom Check/Remedy

•

Is the TV power on?

•

Are the video cables connected properly?

•

Is the disc dirty or damaged?

•

A poorly manufactured disc may not be playable.

• Disc is rotating but no
picture is produced.

• Picture quality is poor and
picture is shaking.

•

Is the remote control being operated within its operation range of
angle and distance?

•

Are the batteries exhausted?

•

Have you select the mode(TV/DVD) functions of the remote
control (TV or DVD) correctly?

The remote control does not
work.

•

Audio language and subtitles will not work for DVDs not containing
them. And depending on the disc, they may work differently.

Audio language and
subtitles do not work.

•

Are you using a disc that does not contain menus?

Menu screen does not appear even
when the menu function is selected.

•

While the player is in the stop mode, hold the main unit's button for
longer than 5 seconds. “INITIAL” appears on the display and all
settings will return to the default values.

•

Press the POWER button.

Using the RESET function will erase all stored settings.
Do not use this unless necessary.

•

Turn off the power and hold the button on the main unit for
longer than 5 seconds.

Using the RESET function will erase all stored settings.
Do not use this unless necessary.

The password for rating
level has been forgotten.

•

The main unit is not working.

(Example: The power goes out or
strange noise is heard.)

• The DVD player is not
working normally.

•

Is the antenna connected properly?

•

If the antenna's input signal is weak, install an external FM
antenna in an area with good reception.

Can't receive radio
broadcast.

Symptom Check/Remedy

•

You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3
ratio only. Refer to the DVD disc jacket and then select the
appropriate function.

Aspect ratio cannot be
changed.

MISCELLANEOUS

64

Specifications

63

Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.

Do not keep in
direct sunlight

Keep in a cool
ventilated area

Keep in a clean
Protection jacket.
Store vertically.

When you get fingerprints or dirt on the disc, clean it
with a mild detergent diluted in water and wipe with a
soft cloth.

•

When cleaning, wipe gently from the inside to the outside of the disc.

Handling discs

Disc Storage

Handling and Storing Discs

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause breaks in
playback. Be especially careful not to scratch discs when handling them.

•

Do not allow the discs to become contaminated with dirt.

•

Do not load cracked discs or discs that are scratched.

Caution

•

Condensation may form if warm air comes into contact with cold parts
inside the player. When condensation forms inside the player, the player
may not operate correctly. If this occurs, remove the disc and let the
player stand for 1 or 2 hours with the power on.

Note

MISCELLANEOUS

Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Usable Sensitivity
S/N Ratio
Distortion
Usable Sensitivity
S/N Ratio
Distortion

Composite Video
Component Video

S-Video

Front speaker output
Center speaker output
Rear speaker output
Subwoofer speaker output
Frequency range
S/N Ratio
Channel separation
Input sensitivity

Speaker system

Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input

Dimensions

(W x H x D) (HT-DB750)

Weights

(HT-DB750)

G
E
N
E
R
A
L

T

U
N
E
R

F
M

T
U
N
E
R

AM

O

U
T
P
U
T

V

I
D
E
O

A

M

P
L

I

F

I
E
R

S
P
E
A
K
E
R

Front/Rear
Center

Front/Rear
Center

230W

9.3Kg
430 x 75 x 368 mm
+5°C~+35°C
10%~75%
10dB
60dB

0.5%
54dB
40dB
2%

1.0Vp-p(75Ω load)
Y:1.0Vp-p(75Ω load)
Pr:0.7Vp-p(75Ω load)
Pb:0.7Vp-p(75Ω load)
Luminance signal : 1.0Vp-p(75Ω load)
Color Signal : 0.286Vp-p(75Ω load)
86W x 2(6Ω)
86W(6Ω)
86W x 2(6Ω)
100W(6Ω)
20Hz~20KHz
75dB
50dB
(AUX)500mV

5.1ch speaker system

VIDEO INPUT

Component Video

Y:1.0Vp-p(75Ω load), Pr:0.70Vp-p(75Ω load),Pb:0.70Vp-p(75Ω load)

Subwoofer speaker

6Ω
40Hz~250Hz
86dB/W/M
100W
200W

245 x 405 x 333 mm

6.60Kg

75 x 235 x 88 mm
264 x 98 x 88 mm

0.62Kg

0.82Kg

Front/Center/Rear speaker

6Ω x 5
150Hz~20KHz
85dB/W/M
86W
172W

66

Notes on Terminology

65

Recorded onto some DVD discs are scenes which have been simultaneously shot from a number
of different angles (the same scene is shot from the front, from the left , from the right , etc.).
With such discs, the Angle button can be used to change the angle of view for specific scenes.

ANGLE

These numbers are recorded on DVD discs. A Title is subdivided into many
sections, each of which is numbered, and specific parts of the video can be
searched quickly using these numbers.

A high-density optical disc on which high-quality pictures and sound have been recorded by
means of digital signals. Incorporating a new video compression technology (MPEG-2) and high­density recording technology, a DVD disc comprises two 0.6 mm thick discs bonded together.

An acronym for Pulse Code Modulation - another name for digital audio.

This is recorded on a video CD (version 2.0). Selected scenes or information can
be chosen from the menu displayed on the TV monitor.

Both the DVD player and DVD discs are encoded with a region number.
If the region number on the DVD disc does not correspond to the region number
of the DVD player, the player cannot play the disc.

Translated appearing at the bottom of the screen. A DVD disc can contain up to
32 subtitle languages.

These numbers are recorded on DVD discs. When a disc contains two or more
movies, these movies are numbered as Title 1, Title 2, etc.

These numbers are assigned to the tracks which are recorded on video and
audio CDs. They enable specific tracks to be located quickly.

Contains recordings of pictures and sound whose quality is roughly comparable
to that of video tape.
This player also supports video CDs with playback control (version 2.0).

You can enjoy 5.1 (or 6) channels of high fidelity digital sound from various
digital input sources such as DVD, CD etc.
DTS provides a realistic, clear surround sound that has not previously been
available from conventional surround sound.

5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs
recorded as a digital signals (with disc marking). With better sound quality,
dynamic range, and directionality than traditional Dolby surround technology, you
can enjoy dynamic, realistic sound.

CHAPTER

NUMBER

DVD

PCM
PBC

(PLAYBACK

CONTROL)

REGION NUMBER

SUBTITLES

TITLE NUMBER

TRACK NUMBER

VIDEO CD

A 4 channel analog sound reproduced from a program source such as a
videotape or LD with the mark. You can enjoy a more realistic, robust
sound unavailable from regular stereo sources.

MISCELLANEOUS

Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input

S
P
E
A
K
E
R

5.1ch speaker system

Front/Center/Rear speaker

6Ω x 5
150Hz~20KHz
85dB/W/M
86W
172W

Subwoofer speaker

6Ω
40Hz~250Hz
86dB/W/M
100W
200W

Speaker system

Dimensions

(W x H x D)

Weights

HT-DB1750

Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input

S
P
E
A
K
E
R

5.1ch speaker system

Speaker system

Dimensions

(W x H x D)

Weights

HT-DB1850

Front/Rear/Center

Front

Rear

Center

115 x 1307 x 110 mm
115 x 1252 x 110 mm
370 x 144 x 110 mm

8.6Kg/6.5Kg/2.6Kg

296 x 390 x 360 mm

9.2Kg

Front/Center/Rear speaker

6Ω x 5
150Hz~20KHz
85dB/W/M
86W
172W

Subwoofer speaker

6Ω
40Hz~250Hz
86dB/W/M
100W
200W

Front/Rear/Center

Front

Rear

Center

133 x 1456 x 129 mm
84 x 1200 x 81 mm
566 x 109 x 89 mm

10.6Kg/6.0Kg/2.5Kg

350 x 410 x 350 mm

8.8Kg
