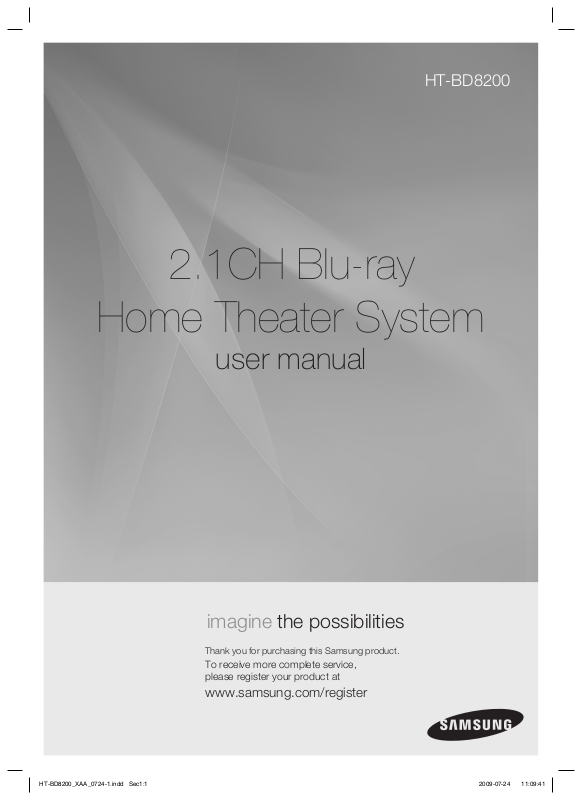

HT-BD8200

2.1CH Blu-ray

Home Theater System

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

Key features of your new Blu-ray Home Theater

PLAYER FEATURES

Playback of many disc types, plus an FM Tuner

The HT-BD8200 allows you to play various discs, including BD-ROM, DVD-VIDEO, DVD-RW/-R(V mode), CD, MP3, JPEG, DivX, MKV, MP4 and CD-R/RW, with a sophisticated FM tuner, all in a single player.

Full HD Audio Decoding Support (DD,DD+,DOLBY TRUE-HD,DTS,DTS-HD HRA, DTS-HD MA Essential)

Please refer to www.DOLBY.COM and DTS.COM for more detail.

TV Screen Saver Function

If the main unit remains in stop mode for 5 minutes, the Screen Saver mode will start. The HT-BD8200 automatically switches itself into the power saving mode after 15 minutes in the Screen Saver mode.

Power Saving Function

The HT-BD8200 automatically shuts itself off after 20 minutes in Stop mode.

USB Host support

You can connect and play ﬁ les from external USB storage devices such as MP3 players, USB ﬂ ash memory, etc. using the Home Theater's USB HOST function.

HDMI

HDMI transmits Blu-Ray/DVD video and audio signals simultaneously, and provides a clearer picture. The 1080p(Full HD) resolution provides even clearer pictures.

AV SYNC Function

Video may lag behind the audio if the unit is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video.

Anynet+(HDMI-CEC) Function

Anynet+ is a function that can be used to operate the main unit of this system using a Samsung TV remote control, by connecting the Blu-ray Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)

iPod & iPhone support

You can enjoy music ﬁ les by connecting your iPod to the home theater with the supplied iPod dock.

BD Wise

BD Wise automatically adjusts BD Wise-compliant Samsung products to the optimal settings between them. This feature is enabled only if BD Wise-compliant Samsung products are connected to each other using an HDMI cable.

Wireless Subwoofer

You can hear powerful sound from the subwoofer without having to use speaker cables.

BLU-RAY DISC FEATURES

Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.

* The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will

also vary from disc to disc. Not all discs will have the features described below.

ENG

Video highlights

The BD-ROM format for movie distribution

PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS

supports three highly advanced video codecs, including AVC, VC-1, and MPEG-2. HD video resolutions are also available:

1920 x 1080 HD

•

1280 x 720 HD

•

For High-Deﬁ nition Playback

▼

3 4 5 6 7 8 9 10 11 12 13 14 15

Graphic Planes

To view high-deﬁ nition contents on a Blu-ray disc, an HDTV (High Deﬁ nition Television) is required. Some discs may require using the player's HDMI OUT to view high-deﬁ nition content. The ability to

HD Video

view high-deﬁ nition content on a Blu-ray disc may be limited depending on the resolution of your TV.

PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS

Subtitles

Depending on what is contained on the Blu-ray Disc, you may be able to select different font styles, sizes and colors for the subtitles. Subtitles may also be animated, scrolled or faded in and out.

BD-LIVE

▼

3 4 5 6 7 8 9 10 11 12 13 14 15

You can use a Blu-ray Disc supporting BD-LIVE through a network connection to enjoy various contents provided by the disc manufacturer.

BLOCKBUSTER

This Blue-ray Home Theater enables you to enjoy movies on-demand provided by Blockbuster through a network connection.

NETFLIX

This Blu-ray Home Theater enables you to enjoy movies on-demand provided by Netﬂ ix through a network connection.

PANDORA

This Blu-ray Home Theater enables you to enjoy Internet Radio provided by Pandora through a network connection.

YouTube

This Blue-ray Home Theater enables you to enjoy videos on-demand provided by YouTube through a network connection.

Key features of your new Blu-ray Home Theater

WHAT’S INCLUDED

Check for the supplied accessories below.

Video Cable

(AH39-40001V)

Remote Control

(AH59-02195C)

/ Batteries (AAA size)

(4301-000116)

FM Antenna

(AH42-00017A)

User's Manual

(AH68-02244R)

iPod Dock

(AH96-00051A)

Main unit’s wall mount bracket

screws (M4 x L8, 4EA)

(6003-000133)

Cradle Stand

(AH96-00074A)

Bracket Wall Mount (2EA)

(AH61-02985A)/

Bracket Set Mount (2EA)

(AH61-02984A)

Wall Mount Sheet

(AH63-02018A)

Toroidal Ferrite Core

(3301-000144)

Wireless LAN Adapter

(AK98-01080A)

/ Wireless LAN Adapter Gender

(AK96-01050A)

Safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ENG

The lighting ﬂ ash and Arrowhead within

Triangle Is a warning sign alerting you of

dangerous voltage Inside the product

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

CAUTION :

WARNING

•

To reduce the risk of ﬁ re or electric shock, do not expose this appliance to rain or moisture.

•

To prevent injury, this apparatus must be securely attached to the ﬂ oor/wall in accordance with the installation instructions.

CAUTION

•

Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

•

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

This product satisﬁ es FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

FCC NOTE (for U.S.A): This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Caution : FCC regulations state that any unauthorized changes or modiﬁ cations to this equipment may void the user's authority to operate it.

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

DANGER :

•

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)

CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

The explanation point within the triangle is a

warning sign alerting you of important

instructions accompanying the product.

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these Instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer? instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachment/accessories speciﬁ ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14)

Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PRECAUTIONS

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the Disc Insert slot is empty. This player is designed for continuous use. Switching off the Blu-ray Home Theater to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the player from moisture (i.e. vases) , and excess heat (e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.

Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter, wait approxi before using.

mately 2 hours until the unit has reached room temperature

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and malfunction of the unit.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

Do not upside down the assembled stand and main unit by holding the stand, otherwise the main unit may fall apart from the stand and it may cause product damage or personal injury.

This product is covered by one or more of the following U.S. patents:

5,060,220 5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307 6,728,474 6,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649 7,092,327 7,099,566 7,123,564 7,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879 7,164,647 7,167,437 7,173,891 7,177,250 7,194,187 7,203,891 7,209,423 7,210,067 7,228,062 7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,106 7,280,460 7,283,729 7,286,454 7,304,938

"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.”

ENG

KEY FEATURES OF YOUR NEW

BLU-RAY HOME THEATER

SAFETY INFORMATION

GETTING STARTED

DESCRIPTION

REMOTE CONTROL

CONNECTIONS

2 Player Features 3 Blu-ray Disc Features 4 What’s Included

5 Safety Warnings 6 Precautions

10 Before Reading the User’s Manual 11 Disc Type and Characteristics

14 Front Panel 15 Rear Panel

16 Tour of the Remote Control 18 Setting the Remote Control

20 Connecting the Wireless Subwoofer 21 Installing the Cradle Stand 21 Installing the Wall Mount 22 Connecting the Video Out to Your TV 24 Connecting an iPod 26 Connecting Audio from External

Components 28 Connecting to the Network 30 Connecting the FM Antenna 30 Cooling Fan 30 Attaching the Toroidal Ferrite Core to the

Power Cord of the Main Unit

BASIC FUNCTIONS OF YOUR

BLU-RAY HOME THEATER

SYSTEM SETUP

LANGUAGE SETUP

31 Before Playing 32 On-Screen Menu Navigation 32 Playing a Disc 33 Setting the Sound 33 Using the Search and Skip Functions 34 Slow Motion Play/Step Motion Play

35 Setting the Clock

36 Setting up the Language Options

Contents

AUDIO SETUP

DISPLAY SETUP

HDMI SETUP

PARENTAL SETUP

NETWORK SETUP

37 Setting up the Speaker Options

40 Setting up the Display Options 42 Setting up the Video Display/Output Options

44 Setting up the HDMI Setup Options

47 Setting up the Parental Lock

49 Setting up the Network Setup Options

BD DATA MANAGEMENT

SYSTEM UPGRADE

WATCHING A MOVIE

54 System Device Management

55 Firmware Upgrade 57 System Information 57 Firmware Upgrade Notiﬁ cation 57 DivX(R) Registration 57 DivX(R) Deactivation

58 Using the Display Function 59 Using the Disc Menu & Popup/Title Menu 60 Repeat Play 61 Selecting the Audio Language 61 Selecting the Subtitle Language 62 Changing the Camera Angle 63 PIP (Picture In Picture) Settings 63 BD-LIVE™ 64 DivX, MKV, MP4 Playback

LISTENING TO MUSIC

66 Buttons on the Remote Control Used for

Audio CD(CD-DA)/ MP3 Disc Playback 66 Repeat Audio CD(CD-DA) & MP3 67 Playing an Audio CD(CD-DA)/MP3

ENG

VIEWING A PICTURE

USING THE USB FUNCTION

RADIO

USING AN iPod

PC STREAMING FUNCTION

USING THE E-CONTENTS

69 Viewing a Picture 69 Slide Show/Speed 69 Rotate 70 Zoom 70 Go To Photo List

71 Playing Media Files Using the USB Host

Feature

73 Listening to Radio 73 Presetting Stations

74 Listening to Music 76 Watching a Movie

Connecting to a Pc and Playing MP3, JPEG,

DIVX, MKV and MP4 Content

79 Using Blockbuster 80 Using Netﬂ ix 82 Using Pandora 84 Using YouTube

CONVENIENT FUNCTION

TROUBLESHOOTING

APPENDIX

89 Sleep Timer Function 89 Adjusting Display Brightness 89 Mute Function

92 Cautions on Handling and Storing Discs 93 Speciﬁ cations

Getting started

BEFORE READING THE USER’S MANUAL

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Deﬁ nition

h g

f Z

C V

A G

BD-ROM This involves a function available on a BD-ROM.

BD-RE This involves a function available on the BD-RE.

BD-R This involves a function available on the BD-R.

DVD-VIDEO

DVD-RW This involves a function available on DVD-RW. (V mode and ﬁ nalized only)

DVD-R This involves a function available on DVD-R. (V mode and ﬁ nalized only)

Audio CD This involves a function available on an audio CD-RW/CD-R (CD-DA format).

MP3

JPEG

DivX, MKV,

MP4

USB storage

device

Caution

This involves a function available on DVD-Video or DVD-RW/-R discs that have been recorded and ﬁ nalized in Video Mode.

This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices.

This involves a function available on USB storage device.

This involves a case where a function does not operate or settings may be cancelled.

About the use of this user’s manual

Be sure to be familiar with Safety Information before using this product. (See pages 5~6)

1) If a problem occurs, check the Troubleshooting. (See pages 90 ~91)

prior written permission of Samsung Electronics Co.,Ltd.

Note This involves tips or instructions on the page that help each function operate.

DISC TYPE AND CHARACTERISTICS

Disc types that can be played

Disc Types Disc Logo Recorded content Disc Shape Max. Playing minute

ENG

BD-ROM

BD-RE/BD-R

DVD-VIDEO

AUDIO-CD

DivX

DVD-RW (V mode and ﬁ nalized only)

DVD-R (V mode and ﬁ nalized only)

This player is compatible with the NTSC color system only.

•

PAL discs will not play.

•

AUDIO + VIDEO Single sided

Single sided(5 inches) 240

AUDIO + VIDEO

AUDIO

AUDIO + VIDEO

AUDIO + VIDEO 5 inches (4.7GB)

Double sided(5 inches) 480

Single sided(3 1/2 inches) 80

Double sided(3 1/2 inches) 160

Single sided(5 inches) 74

Single sided(3 1/2 inches) 20

5 inches

3 1/2 inches

Logos of Discs that can be played

Playing time depends

on the Title

● GETTING STARTED

480

(EX : Extended Play)

480

(EX : Extended Play)

Blu-ray Disc Dolby Digital Plus DTS-HD High Resolution Audio

NTSC broadcast system in U.S.A,

Canada, Korea, Japan

Digital Audio MP3 Stereo Java BD-LIVE

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are



trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380;



5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio | Essential are trademarks of DTS, Inc. © 19962008 DTS, Inc. All Rights Reserved.

Dolby TrueHD DTS-HD Master Audio | Essential

Getting started

Discs that cannot be played

HD DVD Disc

•

DVD-RAM

•

3.9 GB DVD-R Disc for Authoring.

•

DVD-RW(VR mode)

•

Some commercial discs and DVD discs purchased outside your region may not be playable with this



Region code

Both the Blu-ray Home Theater and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play. The Region Number for this Bluray Home Theater is described on the rear panel of the Blu-ray Home Theater.

product. When these discs are played, either “No disc.” or “Please check the regional code of the disc.” will be displayed.

If a DVD-R/-RW disc has not been recorded properly in DVD video format, it will not be playable.



BD Region Code Area

B Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.

C India, China, Russia, Central and South Asia.

North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.

DVD-ROM/PD/MV-Disc, etc

•

CVD/CD-ROM/CDV/CD-G/CD-I/LD

•

3 1/2 inch MD (mini disc)

•

DVD-Video

Region Code

USA, Canada Japan, Europe, South Africa, Middle East,

Greenland Korea, Taiwan, Hong Kong, parts of South

East Asia Australia, New Zealand, Latin America

(including Mexico)

5 Eastern Europe, Russia, India, Africa

Area

DVD-Video

Region Code

China

7 Unspeciﬁ ed Special Use

8 Airlines/Cruise Ships (including Mexico)

9 Region free

Area

Blu-ray Disc Compatibility

Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Disc Type section of this Manual. If you encounter compatibility problems, please contact the SAMSUNG customer care center at 1-800 SAMSUNG.

Playback may not work for some types of discs, or when speciﬁ c operations, such as angle change and aspect



ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary. Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette



smoke on the recording surface may make it impossible to use the disc for playback. Discs with PAL programs recorded on them cannot be played using this product.



When a BD-Java title is played, loading may take longer than a normal title, or some functions may perform slowly.



Disc Types

BD-RE/BD-R

❖

Blu-ray Disc Rewritable/Blu-ray Disc Recordable. BD-RE/BD-R is the ideal format for making backups, or recording personal video.

❖

BD-ROM

Blu-ray Disc Read Only Memory. A BD-ROM disc contains pre-recorded data. Although a BD-ROM may contain any form of data, most BD-ROM discs will contain movies in High Deﬁ nition format, for playback on Blu-ray Home Theaters. This unit can play back pre-recorded commercial BD-ROM discs.

❖

DVD-Video

A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32

•

subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround, allowing you to enjoy vivid and clear theatre quality images.

•

When switching from the ﬁ rst layer to the second layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.

•

Once a DVD-RW/-R recorded in Video Mode is ﬁ nalized, it becomes DVD-Video. Pre-recorded (prestamped) commercial DVDs with movies are also referred to as DVD-Videos. This unit can play back pre-recorded commercial DVD discs (DVD-Video discs) with movies.

Audio CD

❖

An audio disc on which 44.1kHz PCM Audio is recorded.

•

This unit can play back CD-DA format audio CD-R and CD-RW discs.

•

The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

•

CD-R/-RW

❖

Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above

•

disc, as the disc may not play back. If the CD-R/-RW disc was not recorded as a closed session, you may experience delays when playing

•

back the beginning of the disc or all recorded ﬁ les may not play. Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used

•

to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs.

DVD-R Disc Playback

❖

Once a DVD-R recorded in Video Mode is ﬁ nalized, it becomes DVD-Video.

•

This unit can play back DVD-R discs recorded and ﬁ nalized with a Samsung DVD video recorder. It

•

may not be able to play some DVD-R discs depending on the disc and the condition of the recording.

DVD-RW Disc Playback

❖

Playback can be performed with DVD-RW discs in the Video Mode and ﬁ nalized only.

•

Once a DVD-RW recorded in Video Mode is ﬁ nalized, it becomes DVD-Video. Ability to play back may

•

depend on recording conditions.

ENG

● GETTING STARTED

Disc Format

Using MP3 disc

❖

CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.

•

Only MP3 ﬁ les with the “.mp3” or “.MP3” extension can be played.

•

Playable bit-rate range is from 56 Kbps to 320 Kbps.

•

Playable sample-rate is 32KHz to 48KHz.

•

The unit can handle a maximum of 1500 ﬁ les and folders under a parent folder. For MP3 ﬁ les recorded

•

with a VBR(Variable Bit Rates), the sound may cut in and out.

Using JPEG disc

❖

CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.

•

Only JPEG ﬁ les with the ".jpg", ".JPG", ".jpeg" or "JPEG" extension can be displayed.

•

Progressive JPEG is supported.

•

DVD-RW/-R (V)

❖

This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played

•

by this Blu-ray Home Theater once it has been ﬁ nalized. If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been

•

ﬁ nalized, it cannot be played by this Blu-ray Home Theater.

Description

FRONT PANEL

POWER BUTTON

FUNCTION BUTTON

TUNING DOWN & SKIP

(

) BUTTON

STOP BUTTON

PLAY/PAUSE BUTTON

TUNING UP & SKIP(

) BUTTON

OPEN/CLOSE BUTTON

DISC SLOT

Volume Control

BUTTON

654321 7

Turns the Blu-ray Home Theater on and off.

The mode switches as follows : BD/DVD ➞ DIGITAL ➞ AUX ➞ TUNER.

Goes back to the previous title/chapter/track.

Tunes down the FM frequency band.

Stops disc playback.

Plays a disc or pauses playback.

Goes to the next title/chapter/track.

Tunes up the FM frequency band.

Ejects a disc.

Insert disc here.

Volume adjustment.

REAR PANEL

ENG

1 2 3

● DESCRIPTION

5 6

8 9

FM 75Ω COAXIAL JACK

EXTERNAL DIGITAL OPTICAL INPUT JACK

LAN TERMINAL

WIRELESS LAN JACK

HDMI OUT JACK

VIDEO OUT JACK

USB HOST

AUX IN JACK

HEADPHONE JACK

iPod JACK

Connect the FM antenna.

Use this to connect external equipment capable of digital output.

Can be used for connection to BD-LIVE, Blockbuster, Netﬂ ix, Pandora and YouTube. It can be also used for ﬁ rmware upgrades.

A USB storage device can be connected here and used as storage when connected to BD-LIVE. It can also be used for ﬁ rmware upgrades and MP3/JPEG/DivX/MKV/MP4 playback, as well as for connecting to BD-Live with a wireless LAN adapter.

Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.

Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on this unit.

A USB storage device can be connected here and used as storage when connected to BD-LIVE. It can also be used for ﬁ rmware upgrades and MP3/JPEG/DivX/MKV/MP4 playback.

Connect to the 2CH analog output of an external device (such as a VCR)

Connect headphones.

Connect the iPod dock connector here.

COOLING FAN

A USB HDD device cannot be used for BD Data storage (BD-LIVE).



The fan always revolves when the power is on. Ensure a minimum of 4 inches of clear space on all sides of the fan when installing the product.

Remote control

TOUR OF THE REMOTE CONTROL

5 6 7

10 11

25 26

17 18

19 20

31 32 33

34 35 36

POWER button

MO/ST button

ENG

BD RECEIVER button

TV button

Number (0~9) buttons

AUDIO button

STEP button

Tuning Preset/CD Skip buttons

PLAY button

STOP button

SEARCH buttons

VOLUME button

V-SOUND button

MENU button

Cursor/ENTER button

INFO button

COLOR Buttons : RED(A), GREEN (B), YELLOW(C), BLUE(D)

POPUP MENU, TITLE MENU button

TUNER MEMORY button

CANCEL button

SLEEP button

DISC MENU button

OPEN/CLOSE button

DIMMER button

BD button

TUNER button

AUX button

SOURCE button

SUBTITLE button

PAUSE button

MUTE button

TUNING/CH button

RETURN button

EXIT button

ZOOM button (JPEG Only)

PIP button

REPEAT button

DSP button

REPEAT A-B button

SLOW button

● REMOTE CONTROL

Installing batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown.

2. Install two AAA size batteries.

Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.

3. Replace the cover.

Assuming typical TV usage, the batteries last for about one year.

Remote control

SETTING THE REMOTE CONTROL

You can control certain functions of your TV with this remote control.

When operating a TV with the remote control

1. Press the TV button to set the remote to TV mode.

2. Press the POWER button to turn on the TV.

3. While holding down the POWER button, enter the code

corresponding to your brand of TV.

•

If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.

Example : For a Samsung TV

While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.

4. If the TV turns off, the setting is complete.

•

You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).

The remote control may not work on some brands of TVs. Also, some operations may not



be possible depending on your brand of TV.

If you do not set the remote control with the code for your brand of TV, the remote control



will work on a Samsung TV by default.

Operation Range of the Remote Control

The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

TV Brand Code List

ENG

No.

Admiral (M.Wards)

Bell & Howell (M.Wards)

25 26

General Electric (GE)

37 38

39 40 41

42 43

Brand

A Mark

Anam

AOC

Brocsonic

Candle

Cetronic

Citizen

Cinema

Classic

Concerto

Contec

Coronado

Craig

Croslex

Crown

Curtis Mates

CXC

Daewoo

Daytron

Dynasty

Emerson

Fisher

Funai

Futuretech

Hall Mark

Hitachi

Inkel

JC Penny

JVC

KTV

KEC

KMC

LG (Goldstar)

Luxman

LXI (Sears)

Magnavox

Marantz

Matsui

MGA

Mitsubishi/MGA

Code

56, 57, 58

01, 15

01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,

12, 13, 14

01, 18, 40, 48

57, 58, 81

59, 60

03, 18, 25

03, 05, 61, 82, 83, 84

59, 61, 63

02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,

25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90

03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85

19, 65

06, 40, 56, 59, 66, 67, 68

15, 18, 50, 59, 69

56, 59, 67, 86

59, 61, 87, 88

03, 15, 40

01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44

19, 54, 56, 59, 60, 62, 63, 65, 71

15, 17, 18, 48, 54, 59, 60, 62, 72, 89

40, 54

18, 40

18, 40, 59, 60, 75

Brand

MTC

NEC

Nikei

Onking

Onwa

Panasonic

Penney

Philco

Philips

Pioneer

Portland

Proton

Quasar

Radio Shack

RCA/Proscan

Realistic

Sampo

Samsung

Sanyo

Scott

Sears

Sharp

Signature 2000 (M.Wards)

Sony

Soundesign

Spectricon

SSS

Sylvania

Symphonic

Tatung

Techwood

Teknika

TMK

Toshiba

Vidtech

Videch

Wards

Yamaha

York

Yupiteru

Zenith

Zonda

Dongyang

Code

18, 19, 20, 40, 59, 60

06, 07, 08, 09, 54, 66, 67, 73, 74

03, 15, 17, 18, 48, 54, 59, 62, 69, 90

15, 17, 18, 40, 48, 54, 62, 72

63, 66, 80, 91

15, 18, 59

06, 66, 67

17, 48, 56, 60, 61, 75

18, 59, 67, 76, 77, 78, 92, 93, 94

03, 19

00, 15, 16, 17, 40, 43, 46, 47, 48, 49,

59, 60, 98

19, 61, 65

03, 40, 60, 61

15, 18, 19

15, 57, 64

57, 58

50, 51, 52, 53, 55

03, 40

18, 40, 48, 54, 59, 60, 62

61, 95, 96

03, 15, 18, 25

18, 40

19, 57, 63, 71

59, 60, 69

15, 17, 18, 40, 48, 54, 60, 64

58, 79

03, 54

● REMOTE CONTROL

Connections

This section involves various methods of connecting the Blu-ray Home Theater to other external components.

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

CONNECTING THE WIRELESS SUBWOOFER

The Subwoofer's linking ID is preset at the factory and the main unit and sub should link (connect wirelessly) automatically when turned on. If the link indicator does not light when main unit and subwoofer are turned on, please set the ID by following the process below.

1. Plug the power cords of the main unit and subwoofer into the AC power supply.

2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 3

seconds.

The STANDBY indicator is turned off and the LINK indicator (blue LED) blinks quickly.

•

In stand-by mode while the main unit is off, press the 0, 1, 3, 5 buttons in order.

•

The main unit's red stand-by LED ﬂ ashes white and turns red again.

4. Press the POWER button to turn on the main unit.

•

The main unit and the subwoofer are now linked (connected).

The Link indicator (blue LED) on the subwoofer is turned on.

•

Before moving or installing the product, be sure to turn off the power and disconnect the power

▪

cord. If the main unit is powered off, the wireless subwoofer will be in the standby mode and the

▪

STANDBY LED on the upper side will blink. If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any

▪

other device that uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to interference.

The transmission distance of the wireless signal between the main unit and sub is about 33 ft.,

▪

but may vary depending on your operating environment. If a steel-concrete or metallic wall is between main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.

If the main unit doesn't make wireless connection, follow steps 1-4 above to retry the connection

▪

between the main unit and wireless subwoofer.

The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from

▪

water and moisture. For optimal listening performance, make sure that the area around the wireless subwoofer

▪

location is clear of any obstructions.

INSTALLING THE CRADLE STAND

You can use the cradle stand to install this unit on a shelf. Make sure you place the unit on a ﬂ at surface.

Connecting

Face the FRONT mark on the stand forward and slide the stand into the bottom of the unit until you hear a click.

INSTALLING THE WALL MOUNT

1. Disconnect the cradle stand from the unit.

2. Peel off the ﬁ lm from the double-sided adhesive sheet

for the wall mount and attach it on a clean wall.

Secure the wall mount bracket using 6 screws (not supplied) while aligning holes marked on the sheet.

4. Attach the back unit bracket(bracket set mount) with the Home Theater unit by fastening provided 4 screws.

ENG

● CONNECTIONS

Fully insert the back bracket’s clasp into

the wall mount bracket’s receptacle and ﬁ x it by fully sliding to the right.

Installation completed.

•

Do not install on a place other than a vertical wall.



When installating, avoid locations with high temperature or humidity, or a wall that cannot



sustain the weight of the set. Check the strength of the wall. If the strength of the wall is insufﬁ cient for the product



installation, make sure to reinforce the wall before the installation. Check the material of the wall. If the wall is made of plaster board, marble, or iron board,



purchase and use the appropriate ﬁ xing screws. Cables connecting to external devices are to be connected to the unit before installing.



Be sure to turn off the unit before installation. Otherwise, it may cause electric shock.



Do not turn the assembled cradle stand and main unit upside down, as the main unit may fall



from the stand and cause product damage or personal injury.

Do not hang onto the installed unit and avoid any impact to the unit.

▪

Secure the unit ﬁ rmly to the wall so that it does not fall off. If the unit falls off, it may result in an

▪

injury or damage to the product. When the unit is installed on a wall, please make sure that a child does not pull any of

▪

connecting cables, as it may cause it to fall.

Connections

CONNECTING THE VIDEO OUT TO YOUR TV

Choose one of the two methods for connecting to a TV.

METHOD 1 : HDMI

Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the Blu-ray Home Theater to the HDMI IN jack on your TV.

Depending on your TV, certain HDMI output resolutions may not work.



If an HDMI cable is connected from the player to a TV, the Blu-ray Home Theater’s output is set to



HDMI automatically within 10 seconds. When you connect the player to the TV using the HDMI cable for the ﬁ rst time or to a new TV, the



HDMI output resolution will automatically be set to the highest provided by the TV. If you connect a Samsung TV to the Blu-ray Home Theater using an HDMI cable, the player can



be easily operated using the TV remote control. (This is only available with Samsung TVs that support the Anynet+ feature.) (See page 44) After making the video connection, set the Video input source on your TV to match the



corresponding Video output (HDMI) on your Blu-ray Home Theater. See your TV owner's manual for more information on how to select the TV's Video Input source.

(BEST)

METHOD1

METHOD2 (supplied)

HDMI Auto Detection Function

The player's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on. For possible HDMI resolutions, see page 41.

HDMI (High Deﬁ nition Multimedia Interface)

•

HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. Using HDMI, the Blu-ray Home Theater transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

•

HDMI connection description

HDMI connector - Supports video and digital audio data.

- HDMI outputs only a pure digital signal to the TV.

If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

Why does Samsung use HDMI?

•

Analog TVs require an analog video/audio signal. However, when playing a BD/DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the Blu-ray Home Theater) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV.

What is the HDCP?

•

HDCP (High-band width Digital Content Protection) is a system for protecting BD/DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

What is Anynet+?

•

Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the Anynet+ feature.

- If your Samsung TV has an logo, then it supports the Anynet+ function.

- If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on automatically and switch to HDMI mode.

- If you turn on the player and press the PLAY button with a disc already inserted, the TV will immediately turn on and switch to HDMI mode.

What is BD Wise?

•

BD Wise is Samsung's latest inter-connectivity feature.

- When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically.

ENG

● CONNECTIONS

METHOD 2 : Composite Video

(GOOD)

Connect the supplied Video cable from the VIDEO OUT jack on the back of the Blu-ray Home Theater to the VIDEO IN jack on your TV.

The VIDEO source is always output in 480i resolution regardless of the resolution set in the SETUP



menu. (See page 42)

After making the video connection, set the Video input source on your TV to match the



corresponding Video output (Composite) on your Blu-ray Home Theater. See your TV owner's manual for more information on how to select the TV's Video Input source.

Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by



Connections

CONNECTING AN

You can enjoy music and video ﬁ les from an iPod through the main unit. For iPod operation with this Blu-ray home theater, see pages 25 and 78 ~ 80.

Connect the iPod Dock to the iPod Jack on the rear side of the main unit.

iPod

(supplied)

Place the iPod in the dock.

“iPod Connected” message appears on the TV screen.

•

You must have the VIDEO output connected to your TV to view iPod video (See page 25).



As the cable ports are close together, be sure to remove the USB memory drive before



disconnecting the ipod docking cable. Adjust the volume to a moderate level before you connect your iPod and Blu-ray home theater.



When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery.



Make sure to connect the dock connector so that the label “SAMSUNG” faces backword.



“Made for iPod” means that an electronic accessory has been designed to connect



speciﬁ cally to iPod and has been certiﬁ ed by the developer to meet Apple performance standards.

iPod models that can be used with the HT-BD8200

“Made for iPod” means that an electronic accessory has been designed to connect speciﬁcally to the



iPod and has been certiﬁed by the developer to meet Apple performance standards. “Works with iPhone” means that an electronic accessory has been designed to connect



speciﬁcally to an iPhone and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and



regulatory standards.

ENG

● CONNECTIONS

iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

Connections

CONNECTING AUDIO FROM EXTERNAL COMPONENTS

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).

Connect the Digital Input (OPTICAL) on the main unit to the Digital Output of the external digital

component. Press the FUNCTION button on the main unit to select DIGITAL input.

The mode switches as follows : BD/DVD ➞ DIGITAL ➞ AUX ➞ TUNER.

•

Optical Cable

(not supplied)

To see video from your Cable Box/Satellite receiver, you must connect it's video output



to a TV.



This system supports Digital sampling frequencies of 32 kHz of higher from external digital This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.components.



This system supports only DTS and Dolby Digital audio, MPEG audio which is bitstream This system supports only DTS and Dolby Digital audio, MPEG audio which is bitstream cannot be supported.cannot be supported.

AUX : Connecting an External Analog Component

Analog signal components such as a VCR.

Connect AUX IN (Audio) on the main unit to the Audio Out of the external analog component.

Be sure to match connector colors.

•

Press the AUX button on the remote control to select AUX input.

You can also use the FUNCTION button on the main unit.

•

The mode switches as follows : BD/DVD ➞ DIGITAL ➞ AUX ➞ TUNER.

ENG

● CONNECTIONS

Audio Cable

If the external analog component has only one Audio Out, connect either left or right.

You can connect the Video Output jack of your VCR to the TV, and connect the Audio



Output jacks of the VCR to this product.

(not supplied)

Connections

CONNECTING TO THE NETWORK

To access network service or upgrade the current ﬁ rmware, you must make one of the following connections. By connecting to a network, you can access the BD-LIVE, Blockbuster, Netﬂ ix, Pandora, YouTube services, PC streaming and Software upgrades from Samsung’s update server. We recommend you use an AP or router for the network. If you don’t have one, you'll need two network providing services to use the PC streaming function.

Case 1 : Connecting a Direct LAN Cable to your Modem

Using a Direct LAN Cable (UTP cable, not supplied), connect the LAN terminal of the Blu-ray Disc

1. Player to the LAN terminal of your modem.

To LAN port

Connecting using a router

(e.g. DSL)

Broadband modem

(with integrated router) Router Broadband modem

Broadband

service

PC connection to Router for PC streaming

To use the PC streaming function (see pages 81~82), please make a network between your PC



and router.

Internet access to Samsung’s update server may not be allowed, depending on the router you



use or the ISP’s policy. For more information, contact your ISP (Internet Service Provider).



For DSL users, please use a router to make a network connection.

To LAN portTo LAN port

Broadband service

Case 2 : Connecting to a Wireless IP sharer

You can connect to network with a Wireless IP sharer. See page 50 for Wireless Network Setup.

ENG

Wireless LAN Adapter

Modem Port

● CONNECTIONS

Wireless IP sharer

Modem Cable

This unit is compatible with the Samsung Wireless LAN Adapter only.



(Model name: WIS09ABGN).



You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the wireless network.)

Wireless LAN, in its nature, may cause interference, depending on the use condition



(AP performance, distance, obstacle, interference by other radio devices, etc).

Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.



When applying the security key for the AP (wireless IP sharer), only the following is



supported.

Authentication Mode : WEP, WPAPSK, WPA2PSK

Encryption Type : WEP, TKIP, AES

Connect the Wireless Lan Adapter to only the Wireless Lan Jack on the back of the main



unit.

Connections

CONNECTING THE FM ANTENNA

Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.

Slowly move the antenna wire around until you ﬁ nd a location where reception is good, then fasten it

to a wall or other rigid surface.

This unit does not receive AM broadcasts.



FM Antenna

(supplied)

COOLING FAN

The cooling fan supplies cool air to the unit to prevent overheating. Please observe the following cautions for your safety.

Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise

•

and may damage it. Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a

•

newspaper or cloth, heat may build up inside the unit and ﬁ re may result.)

ATTACHING THE TOROIDAL FERRITE CORE TO THE POWER CORD OF THE MAIN UNIT

If you attach a Toroidal ferrite core to the power cord of the man unit, it will prevent help to prevent RF interference from radio signals.

Pull the ﬁ xing tab of the Toroidal ferrite core to open it.

Make a loop twice in the main unit power cord.

Attach the Toroidal ferrite core to the main unit power cord as the ﬁ gure shows and press it until it clicks.

+ 76 hidden pages

Samsung HT-BD8200 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual

Key features of your new Blu-ray Home Theater

Safety information

Contents

Getting started

Description

Remote control

Connections
