20.0 (0.79")
293.6 (11.56")
Ø220.0 (8.66")
Ø220.0 (8.66")

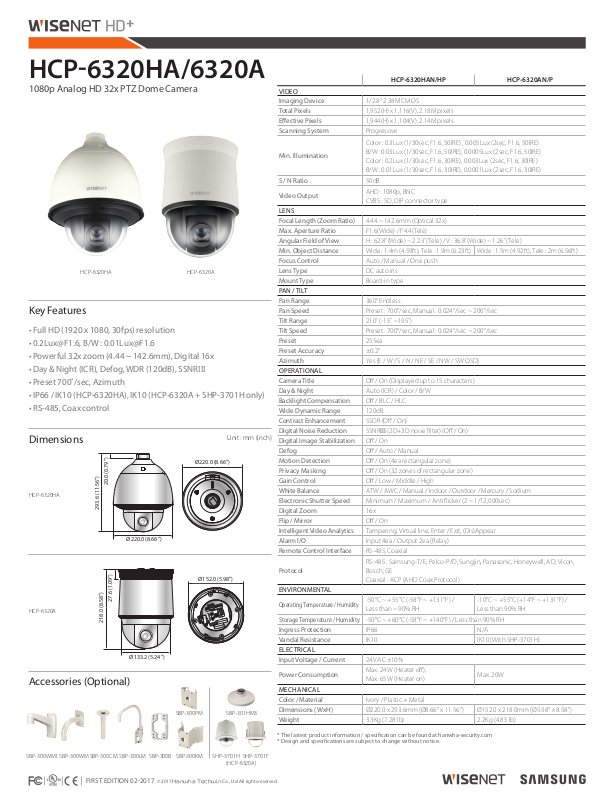

HCP-6320HA/6320A
1080p Analog HD 32x PTZ Dome Camera
HCP-6320HA HCP-6320A
Key Features
• Full HD (1920 x 1080, 30fps) resolution
• 0.2Lux@F1.6, B/W : 0.01Lux@F1.6
• Powerful 32x zoom (4.44 ~ 142.6mm), Digital 16x
• Day & Night (ICR), Defog, WDR (120dB), SSNR
• Preset 700˚/sec, Azimuth
• IP66 / IK10 (HCP-6320HA), IK10 (HCP-6320A + SHP-3701H only)
• RS-485, Coax control
Dimensions
20.0 (0.79")
HCP-6320HA
293.6 (11.56")
Ø220.0 (8.66")
27.6 (1.09")
27.6 (1.09")
HCP-6320A
218.0 (8.58")
218.0 (8.58")
Ø133.2 (5.24")
Ø133.2 (5.24")
Accessories (Optional)
SBP-300WMSBP-300WM1 SBP-300CM SBP-300LM SBP-300B
SBP-300PM
SBP-300KM
III
Ø220.0 (8.66")
Ø152.0 (5.98")
Ø152.0 (5.98")
Unit : mm (inch)
SBP-301HM3
SHP-3701H
(
HCP-6320A
SHP-3701F
)
HCP-6320HAN/HP HCP-6320AN/P
VIDEO
Imaging Device 1/2.8" 2.38M CMOS
Total Pixels 1,952(H) x 1,116(V), 2.18M pixels
Effective Pixels 1,944(H) x 1,104(V), 2.14M pixels
Scanning System Progressive
Color : 0.3Lux (1/30sec, F1.6, 50IRE) , 0.005Lux (2sec, F1.6, 50IRE)
Min. Illumination
S / N Ratio 50dB
Video Output
LENS
Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
Max. Aperture Ratio F1.6(Wide) / F4.4(Tele)
Angular Field of View H : 62.8˚(Wide) ~ 2.23˚(Tele) / V : 36.8˚(Wide) ~ 1.26˚(Tele)
Min. Object Distance Wide : 1.4m (4.59ft), Tele : 1.9m (6.23ft) Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
Focus Control Auto / Manual / One push
Lens Type DC auto iris
Mount Type Board-in type
PAN / TILT
Pan Range 360° Endless
Pan Speed Preset : 700°/sec, Manual : 0.024°/sec ~ 200°/sec
Tilt Range 210˚ (-15˚ ~195˚)
Tilt Speed Preset : 700°/sec, Manual : 0.024°/sec ~ 200°/sec
Preset 255ea
Preset Accuracy ±0.2°
Azimuth Yes (E / W / S / N / NE / SE / NW / SW OSD)
OPERATIONAL
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / BLC / HLC
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNR
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea rectangular zone)
Privacy Masking Off / On (32 zones of rectangular zone)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom 16x
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear
Alarm I/O Input 4ea / Output 2ea (Relay)
Remote Control Interface RS-485, Coaxial
Protocol
ENVIRONMENTAL
Operating Temperature / Humidity
Storage Temperature / Humidity
Ingress Protection IP66 N/A
Vandal Resistance IK10 IK10 (With SHP-3701H)
ELECTRICAL
Input Voltage / Current 24V AC ±10%
Power Consumption
MECHANICAL
Color / Material Ivory / Plastic + Metal
Dimensions (WxH) Ø220.0 x 293.6mm (Ø8.66" x 11.56") Ø152.0 x 218.0mm (Ø5.98" x 8.58")
Weight 3.3Kg (7.28 lb) 2.2Kg (4.85 lb)
* The lastest product information / specication can be found at hanwha-security.com
* Design and specications are subject to change without notice.
B/W : 0.03Lux (1/30sec, F1.6, 50IRE), 0.0005Lux (2sec, F1.6, 50IRE)
Color : 0.2Lux (1/30sec, F1.6, 30IRE), 0.003Lux (2sec, F1.6, 30IRE)
B/W : 0.01Lux (1/30sec, F1.6, 30IRE), 0.0001Lux (2sec, F1.6, 30IRE)
AHD : 1080p, BNC
CVBS : SD, DIP connector type
III
(2D+3D noise filter) (Off / On)
RS-485 : Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon,
Bosch, GE
Coaxial : ACP (AHD Coax Protocol)
-50°C ~ +55°C (-58°F ~ +131°F) /
Less than ~ 90% RH
-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Max. 24W (Heater off),
Max. 65W (Heater on)
-10°C ~ +55°C (+14°F ~ +131°F) /
Less than 90% RH
Max. 20W
FIRST EDITION 02-2017 © 2017 Hanwha Techwin Co., Ltd. All rights reserved.
