Owner’s
Instructions
PROJECTION TELEVISION
............................................................................................................................
.............
HCM4215W/HCM4216W
HCM422W/HCM5525WB
HCM653WB/HCM553WB
HCM474W/HCM4715W
PCL545R/PCL5415R
BP68-00021A(ENG)
Warning! Important
Safety Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates high voltage is present inside. It is
dangerous to make any kind of contact with any inside part of
this product.
This symbol alerts you that important literature concerning
operation and maintenance has been included with this product.
Note to CATV system installer: This reminder is provided to call CATV system
installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of
Canadian Electrical Code, Part I), that provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as practical.
Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it.
Caution: To prevent electric shock, match the wide blade of plug to the wide slot,
and fully insert the plug.
Attention: pour eviter les chocs electriques, introduire la lame le plus large de la
fiche dans la borne correspondante de la prise et pousser jusqu’au fond.
Important: One Federal Court has held that unauthorized recording of
copyrighted TV programs is an infringement of U.S. copyright laws.
Certain Canadian programs may also be copyrighted and any unauthorized
recording in whole or in part may be in violation of these rights.
To prevent damage which may result in fire or electric shock
hazard, do not expose this appliance to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SAFETY 1
Thank You for Choosing Samsung
Thank you for choosing Samsung! Your new Samsung Projection TV represents the latest in
television technology. We designed it with easy-to-use on-screen menus and closed captioning
capabilities, making it one of the best products in its class. We are proud to offer you a product
that will provide convenient, dependable service and enjoyment for years to come.
Important Safety Information
Always be careful when using your TV receiver. To reduce the risk of fire, electrical shock,
and other injuries, keep these safety precautions in mind when installing, using, and
maintaining your machine.
• Read all safety and operating instructions before operating your TV.
• Keep the safety and operating instructions for future reference.
• Heed all warnings on the TV receiver and in the operating instructions.
• Follow all operating and use instructions.
• Unplug the TV receiver from the wall outlet before cleaning. Use a damp cloth; do not use
liquid or aerosol cleaners.
• Never add any attachments and/or equipment without approval of the manufacturer. Such
additions can increase the risk of fire, electric shock, or other personal injury.
• Do not use the TV receiver where contact with or immersion in water is a possibility, such as
near bath tubs, sinks, washing machines, swimming pools, etc.
• Do not place the TV on an unstable cart, stand, tripod, bracket, or
table where it can fall. A falling TV can cause serious injury to a
child or adult, and serious damage to the appliance. Use only with
a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the TV. Follow the manufacturer’s instructions when mounting the unit, and use a mounting accessory recommended by the manufacturer. Move the TV and cart with care.
Quick stops, excessive force, and uneven surfaces can make the
unit and cart unsteady and likely to overturn.
• Provide ventilation for the TV receiver. The unit is designed with slots in the cabinet for
ventilation to protect it from overheating. Do not block these openings with any object, and
do not place the TV receiver on a bed, sofa, rug, or other similar surface. Do not place it near
a radiator or heat register. If you place the TV receiver on a rack or bookcase, ensure that
there is adequate ventilation and that you’ve followed the manufacturer’s instructions for
mounting.
• Operate your TV receiver only from the type of power source indicated on the marking label.
If you are not sure of the type of power supplied to your home, consult your appliance dealer
or local power company.
• Use only a grounded or polarized outlet. For your safety, this TV is equipped with a polarized
alternating current line plug having one blade wider than the other. This plug will fit into the
power outlet only one way. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug still does not fit, contact your electrician to replace your outlet.
• Protect the power cord. Power supply cords should be routed so that they won’t be walked on
or pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.
• Unplug the TV from the wall outlet and disconnect the antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-line surges.
• Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of
overhead power lines or other electric light or power circuits or where it can fall into such
power lines or circuits. When installing an outside antenna system, be extremely careful to keep
from touching the power lines or circuits. Contact with such lines can be fatal.
• Do not overload the wall outlet or extension cords. Overloading can result in fire or electric
shock.
• Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts. Never spill liquid of any kind on the TV.
• Ground outdoor antennas. If an outside antenna or cable
system is connected to the TV, be sure the antenna or
cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Section 810 of the National Electrical Code,
ANSI/NFPA No.70-1984, provides information about
proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
• Do not attempt to service the TV yourself. Refer all servicing to qualified service personnel.
Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
- when the power-supply cord or plug is damaged
- if liquid has been spilled on the unit or if objects have fallen into the unit
- if the TV has been exposed to rain or water
- if the TV does not operate normally by following the operating instructions
- if the TV has been dropped or the cabinet has been damaged
- when the TV exhibits a distinct change in performance
• If you make adjustments yourself, adjust only those controls that are covered by the operating
instructions. Adjusting other controls may result in damage and will often require extensive
work by a qualified technician to restore the TV to normal.
• When replacement parts are required, be sure the service technician uses replacement parts
specified by the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in additional damage to the unit.
• Upon completion of any service or repairs to this TV, ask the service technician to
perform safety checks to determine that the TV is in a safe operating condition.
2SAFETY
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference that may cause undesired operation.
This television receiver provides display of television closed captioning in accordance with
§15.119 of the FCC rules.
EXAMPLE OF
ANTENNA GROUNDING
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
NEC — NATIONAL ELECTRICAL CODE
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
ANTENNA
LEAD IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
SAFETY 3
Important Warranty Information
Regarding Television Format
Viewing
Standard screen format televisions (4:3, the aspect ratio of the screen width to height) are
primarily designed to view standard format full-motion video. The images displayed on
them should primarily be in the standard 4:3 ratio format and constantly moving.
Displaying stationary graphics and images on screen, such as the dark top and bottom
letterbox bars (wide screen pictures), should be limited to no more than 15% of the total
television viewing per week.
Wide screen format televisions (16:9, the aspect ratio of the screen width to height) are
primarily designed to view wide screen format full-motion video. The images displayed
on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the
screen if your model offers this feature, and constantly moving. Displaying stationary
graphics and images on screen, such as the dark side-bars on non-expanded standard
format television video and programming, should be limited to no more than 15% of the
total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports,
video game displays, station logos, web sites or computer graphics and patterns, should
be limited as described above for all televisions. Displaying any stationary images that
exceed the above guidelines can cause uneven aging of picture tubes (CRTs) that leave subtle,
but permanent burned-in ghost images in the television picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or
dark bars. On television models that offer picture sizing features, use these controls to
view the different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven
CRT aging as a result of format selection and use, as well as other burned-in images, is
not covered by your Samsung limited warranty.
CONTENTS
1 CONTENTS
Chapter 1: Your New TV . . . . . . . . . . . . . . .1.1
List of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.1
Familiarizing Yourself with Your New TV . . . . . . . . . . . . . . . . . . . . . .1.2
Front Panel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.2
Front/Side Panel Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.3
Using the Component Shelf . . . . . . . . . . . . . . . . . . . . . . . . .1.3
Rear Panel Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.4
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5
Chapter 2: Installation . . . . . . . . . . . . . . . . 2.1
Connecting VHF and UHF Antennas . . . . . . . . . . . . . . . . . . . . . . . . .2.1
Antennas with 300-ohm Flat Twin Leads . . . . . . . . . . . . . . .2.1
Antennas with 75-ohm Round Leads . . . . . . . . . . . . . . . . . .2.2
Separate VHF and UHF Antennas . . . . . . . . . . . . . . . . . . . .2.2
Connecting Cable TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.2
Cable without a Cable Box . . . . . . . . . . . . . . . . . . . . . . . . . .2.2
Connecting to a Cable Box that Descrambles
All Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.3
Connecting to a Cable Box that Descrambles
some Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.3
Connecting a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5
Connecting a Second VCR to Record from the TV . . . . . . . .2.6
Connecting a Camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.6
Connecting a DVD Player, DTV Set-Top Box (480i, 480p, 1080i) . . .2.7
Connecting a DTV Set-Top Box (480p, 1080i) . . . . . . . . . . . . . . . . . .2.8
Installing Batteries in the Remote Control . . . . . . . . . . . . . . . . . . . . .2.9
Chapter 3: Operation . . . . . . . . . . . . . . . . . .3.1
Turning the TV On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1
Plug & Play Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1
Using the Perfect Focus Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.3
Adjusting Manual convergence . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.4
Adjust Red Convergence . . . . . . . . . . . . . . . . . . . . . . . . . . .3.5
Viewing the Menus and On-Screen Displays . . . . . . . . . . . . . . . . . . .3.6
Viewing the Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.6
Viewing the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.6
Selecting a Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.7
Selecting the Antenna Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.7
Memorizing the Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.8
Selecting the Video Signal-source . . . . . . . . . . . . . . . . . . . . .3.8
Storing Channels in Memory (Automatic Method) . . . . . . . .3.9
Adding and Erasing Channels (Manual Method) . . . . . . . . .3.9
Changing Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.10
Using the Channel Buttons . . . . . . . . . . . . . . . . . . . . . . . .3.10
Using the Number Buttons . . . . . . . . . . . . . . . . . . . . . . . .3.10
Using the Previous Channel . . . . . . . . . . . . . . . . . . . . . . . .3.10
Selecting Your Favorite Channels . . . . . . . . . . . . . . . . . . . . . . . . . . .3.11
To Store Your Favorite Channels: . . . . . . . . . . . . . . . . . . . .3.11
To View Your Favorite Channels: . . . . . . . . . . . . . . . . . . . .3.11
Adding and Erasing Channels (Manual Method) . . . . . . . . . . . . . . .3.12
Labeling the Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.13
Picture Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.14
Customizing the Picture . . . . . . . . . . . . . . . . . . . . . . . . . . .3.14
Using Automatic Picture Settings . . . . . . . . . . . . . . . . . . . .3.15
Selecting the Color Tone . . . . . . . . . . . . . . . . . . . . . . . . . .3.16
Chapter 3: Operation (Cont.) . . . . . . . . . .3.16
CONTENTS 2
CONTENTS
Sound Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.16
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.16
Using Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.16
Customizing the Sound . . . . . . . . . . . . . . . . . . . . . . . . . . .3.17
Using Automatic Sound Settings . . . . . . . . . . . . . . . . . . . .3.18
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.19
Option 1: Setting the Clock Manually . . . . . . . . . . . . . . . .3.19
Option 2: Using the Local PBS Channel to Automatically
Set the TV Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.20
Chapter 4: Special Features . . . . . . . . . . . .4.1
Fine Tuning Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1
Digital Noise Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2
Changing the Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.3
Using the R.surf Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.4
Setting the On/Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.5
Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.6
Extra sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.7
Choosing a Multi-Channel Sound (MTS) track . . . . . . . . . . . . . . . . .4.8
Viewing Closed Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.9
Viewing Picture-in-Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.10
Activating Picture-in-Picture . . . . . . . . . . . . . . . . . . . . . . .4.10
Selecting a Signal Source (Antenna or Cable) for PIP . . . . .4.11
Selecting a Signal Source (External A/V) for PIP . . . . . . . . .4.11
Swapping the Contents of the PIP image and Main image .4.12
Changing the Size of the PIP Window . . . . . . . . . . . . . . . .4.12
Changing the PIP Channel . . . . . . . . . . . . . . . . . . . . . . . . .4.13
Changing the Location (Rotating) the PIP mode . . . . . . . .4.13
Scanning the Available Channels . . . . . . . . . . . . . . . . . . . .4.13
Using the V-Chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.14
Setting Up Your Personal ID Number (PIN) . . . . . . . . . . . .4.14
How to Enable/Disable the V-Chip . . . . . . . . . . . . . . . . . . .4.15
How to Set up Restrictions Using the “TV guidelines” . . . .4.15
How to Set up Restrictions using the MPAA Ratings:
G, PG, PG-13, R, NC-17, X . . . . . . . . . . . . . . . . . . . . . . . .4.17
How to Reset the TV after the V-Chip Blocks
a Channel (“Emergency Escape”) . . . . . . . . . . . . . . . . . . . .4.18
Viewing the Demonstration . . . . . . . . . . . . . . . . . . . . . . . .4.19
Customizing Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . .4.20
Setting Up Your Remote Control to Operate Your
VCR or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.20
Setting Up Your Remote Control to Operate Your
Cable Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.21
Chapter 5: Troubleshooting . . . . . . . . . . . .5.1
Identifying Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.1
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .A.1
Cleaning and Maintaining Your TV . . . . . . . . . . . . . . . . . . . . . . . . . .A.1
Using Your TV in Another Country . . . . . . . . . . . . . . . . . . . . . . . . . .A.1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.1
1.1 CHAPTER ONE: YOUR NEW TV
List of Features
Your Samsung TV was designed with the latest technology. This TV is a high-performance
unit that includes the following special features:
• Easy-to-use remote control
• Easy-to-use on-screen menu system
• Automatic timer to turn the TV on and off
• Adjustable picture and sound settings that can be stored in the TV’s memory
• Automatic channel tuning for up to 181 channels
• A special filter to reduce or eliminate reception problems
• Fine tuning control for the sharpest picture possible
• A built-in multi-channel sound decoder for stereo and bilingual listening
• Built-in, dual channel speakers
• A special sleep timer
• Picture-in-Picture
• Component Video Input jacks to obtain a sharper image from external sources
• Perfect Focus
Chapter One
YOUR NEW TV
CHAPTER ONE: YOUR NEW TV 1.2
Familiarizing Yourself with The TV
Front Panel Buttons
The buttons on the front panel control your TV’s basic features, including the on-screen
menu. To use the more advanced features, you must use the remote control.
YOUR NEW TV
Œ
TV/VIDEO
All the inputs connected to the external
component jacks will be shown in regular
sequence.
´
MUTE
Press to temporarily cut off the sound.
ˇ
MENU
Press to see an on-screen menu of your TV's features.
¨
VOL – , +
Press to increase or decrease the volume. Also
used to select items on the on-screen menu.
ˆ
CH▼ and CH▲
Press to change channels. Also press to highlight
various items on the on-screen menu.
Ø
Remote Control Sensor
Aim the remote control towards this spot on the TV.
∏
Timer indicator
When the TV is turned on, the Timer indicator blinks
about ten times. This indicator illuminates when the
Timer mode is set to the “On” position after setting the
clock and either the On timer or Off timer, with the
remote control. Even if the power is turned off, this
indicator stays lit. (Clock must be set before using this
function.).
”
POWER
Press to turn the TV on and off.
HCM4215W / HCM4216W / HCM422W
HCM5525WB / HCM653WB / HCM553WB / HCM474W
PCL545R / PCL5415R
HCM4715W HCM556W
1.3 CHAPTER ONE: YOUR NEW TV
YOUR NEW TV
Œ
PERFECT FOCUS
Press to adjust for the optimum picture set in the Factory.
´
VIDEO INPUT jack
Use to connect a video signal from a camcorder or a video
game.
ˇ
AUDIO INPUT jacks
Use to connect the audio signals from a camcorder or video
game.
¨
S-VIDEO INPUT jack
Use to connect an S-Video signal from a camcorder or a
video game.
Front or Side Panel Jacks
You can use the front or side panel jacks to connect an A/V component that is used only
occasionally, such as a camcorder or video game. (For information on connecting
equipment, see pages 2.1 – 2.8.)
Using the Component Shelf
(HCM5525WB/HCM653WB/HCM553WB/HCM474W/HCM556W)
You can place a VCR, a DVD player, etc. on the Component Shelf.
1
Press the symbol ““
in the center of the
Component Shelf door.
2
As shown in figure
below, hold the center
of door and lift it up.
3
After placing a component on the shelf,
hold the center of door
and pull it down as
shown in figure below.
4
Shut the door by
pressing the ““
symbol.
➔
Note: When placinga component on
the shelf, make sure it is no more
than 5 inches tall and leave one inch
of space from the front and sides for
ventilation.
HCM5525WB / HCM653WB / HCM553WB / HCM474W
1
Hold the center of the door and lift it up in the direction arrow
as shown in figure.
2
After placing a TV (or VCR, DVD, etc.) on the shelf, hold
the center of the door and pull it down as shown in figure.
HCM556W
CHAPTER ONE: YOUR NEW TV 1.4
YOUR NEW TV
Rear Panel Jacks
Use the rear panel jacks to connect an A/V component that will be connected continuously, such as a VCR or a DVD player.
Because there are two sets of input jacks, you can connect two different A/V components
(i.e., a VCR and a DVD, 2 VCRs, etc.)
For more information on connecting equipment, see pages 2.1 – 2.8.
Œ
ANTENNA terminals
Two independent cables or antennas can be
connected to these terminals. Use ANT-A and
ANT-B terminals to receive a signal from
VHF/UHF antennas or your cable system. Use
the ANT-A OUT terminal to send the signal being
received by the ANT-A terminal out to another
component (such as a Cable Set Top Box). The
PIP channel can be received only when a signal
source is connected to ANT-A.
´
AUDIO-VIDEO MONITOR
OUTPUT jacks
Connect to the audio/video input jacks of a
recording VCR.
Note: The monitor out does not operate in DVD
or DTV mode.
ˇ
VIDEO INPUT jacks
Connect to the video output jacks of VCRs, DVD
players and similar devices (Two sets are available: Video1 and Video2).
¨
AUDIO INPUT jacks
Connect to the audio output jacks of VCRs, DVD
players and similar devices.
ˆ
S-VIDEO INPUT jack
Connect to an S-VHS VCR or DVD player.
Ø
COMPONENT 1(480i, 480p,
1080i) AUDIO/VIDEO INPUT
jacks
Connect a source that outputs 480i/480p/1080i
Y,PBand PRsignals, such as a DVD (or DTV SetTop Box.
∏
COMPONENT 2, 3(480p,
1080i) AUDIO/VIDEO INPUT
jacks
Connect a source that outputs 480p/1080i Y, P
B
and PRsignals, such as a DTV Set-Top Box.
(The Component3 jack is available on PCL545R/
HCM422W / HCM474W / HCM553WB /
HCM653WB)
1.5 CHAPTER ONE: YOUR NEW TV
YOUR NEW TV
Remote Control
You can use the remote control up to about 23 feet from the TV. When using the remote,
always point it directly at the TV.
You can also use your remote control to operate your VCR and cable box. See page 4.20
for details.
Œ
Power
Turns the TV on and off.
´
+100
Press to select channels over 100.
For example, to select channel
121, press “+100,” then press “2”
and “1.”
ˇ
Still(Main)
Press to stop the action during a
particular scene. Press again to
resume normal video.
¨
CH and CH
(Channel Up/Down)
Press CH or CH to change
channels.
VOL -, VOL +
Press increase or decrease the
volume.
ˆ
Sleep
Press to select a preset time interval for automatic shutoff.
Ø
Display
Press to display the current channel and the audio-video
settings.
∏
Aspect
Press to change the screen size.
”
BBE
BBE is a built-in effect that adds
clarity, punch and dynamics to the
sound.
’
MTS (Multichannel
Television Stereo)
Press to choose stereo, mono or
Separate Audio Program (SAP
broadcast).
˝
Mute
Press to temporarily cut off
the sound.
Ô
Pre-CH
Tunes to the previous channel.
TV/Video
All the inputs connected to the
external component jacks will be
shown in regular sequence.
Ò
Menu
Displays the main on-screen
menu.
Ú
Caption
Controls the caption decoder.
Æ
PIP
Activates picture in picture.
ı
Perfect Focus
Press to adjust for the optimum
picture set in the Factory.
˜
Fav. CH (Favorite
Channel)
Press to switch between your
favorite channels.
CHAPTER ONE: YOUR NEW TV 1.6
YOUR NEW TV
Remote Control (continued)
¯
ANT A/B
Press to select the ANT A or ANT
B.
˘
R.surf
Press to automatically return to a
preferred channel after a userpreset time delay.
¿
S.Mode
Adjust the TV sound by selecting
one of the preset factory settings
(or select your personal, customized sound settings).
¸
P.Mode
Adjust the TV picture by selecting one of the preset factory settings (or select your personal,
customized picture settings).
˛
VCR controls
Controls VCR tape functions:
Rewind, Play, Fast Forward, Stop,
Pause.
◊
PIP Controls
Source
Press to select one of the available signal sources for the PIP
window.
Scan
Press to memorize (scan) the
available channels.
Locate
Press to move the PIP window to
any of the four corners of the TV
screen.
Swap
Exchanges the video signal that
is currently displayed on the
main screen with the signal in
the PIP window.
Size
Press to make the PIP window
small, large or double screen.
• Double window doesn’t function on models HCM5525WB/
HCM4715W/HCM4215W/
HCM4216W/PCL5415R.
CH
Displays the available channels
in sequence. (These buttons
change channels in the PIP window only).
±
Mode
Selects a target device to be
controlled by the Samsung
remote control(i.e., TV, VCR,
Cable box or DVD).
≠
Set
Used during set up of this
Samsung remote control, so that
it will work compatibly with
other devices (VCR, cable box,
DVD.)
–

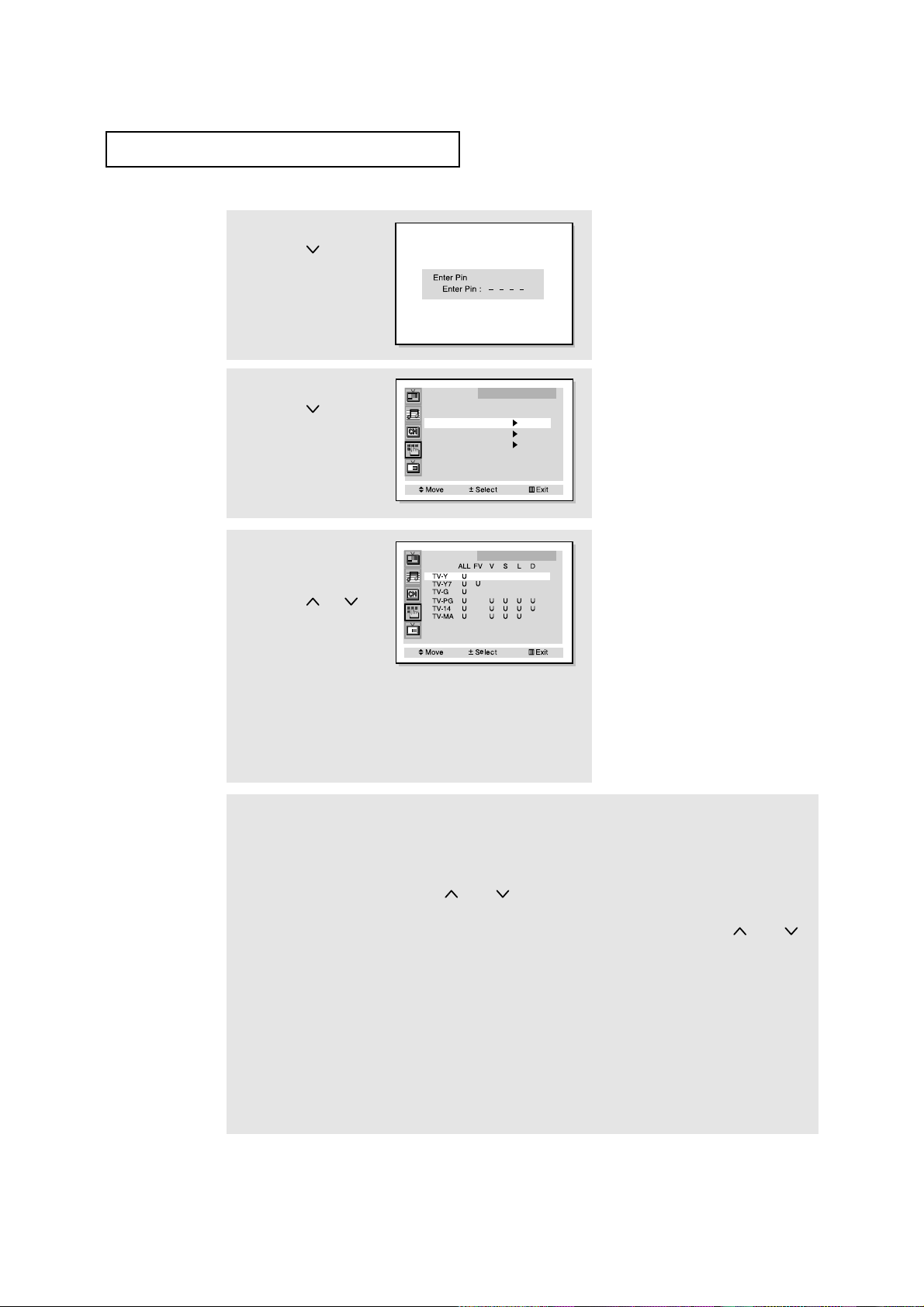

V.Chip
Press to set up and activate the
parental locks.
—
Add/Erase
Press to add or erase channels
in the TV’s memory.
2.1 CHAPTER TWO: INSTALLATION
Connecting VHF and UHF Antennas
If your antenna has a set of leads that
look like this, see “Antennas with
300-ohm Flat Twin Leads,” below.
If your antenna has one lead that looks
like this, see “Antennas with 75-ohm
Round Leads,” on page 2.2.
If you have two antennas, see “Separate
VHF and UHF Antennas,” on page 2.2.
Antennas with 300-ohm Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300ohm twin flat leads, follow the directions below.
Chapter Two
INSTALLATION
1
Place the wires from the
twin leads under the
screws on the 300-75
ohm adaptor (not supplied). Use a screwdriver
to tighten the screws.
2
Plug the adaptor into the
ANT-A or ANT-B terminal
on the rear panel.
2
CHAPTER TWO: INSTALLATION 2.2
Connecting Cable TV
You can connect different cable systems to your TV, including cable without a cable box,
and cable with a cable box that descrambles some or all channels.
Cable without a Cable Box
If you want to connect cable, and you do not need to use a cable box:
Plug the incoming cable
into the ANT-A or ANT-B
antenna terminal on the
rear of the TV.
2
Plug the combiner into
the ANT-A or ANT-B terminal on the rear panel.
INSTALLATION
Antennas with 75-ohm Round Leads
Plug the antenna lead
into the ANT-A or ANT-B
terminal on the rear
panel.
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine
the two antenna signals before connecting the antennas to the TV. This procedure requires a
an optional combiner-adaptor (available at most electronics shops).
1
Connect both antenna
leads to the combiner.
2.3 CHAPTER TWO: INSTALLATION
INSTALLATION
Cable with a Cable box that Descrambles All Channels
1
Find the cable that is
connected to the
ANTENNA OUT terminal
on your cable box. This
terminal might be
labeled “ANT OUT”,
“VHF OUT”, or simply,
“OUT”.
2
Connect the other end of
this cable to the ANT-A
or ANT-B terminal on the
rear of the TV.
▼
This terminal might be labeled
“ANT IN,” “VHF IN,” or simply,
“IN.”
Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the
instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of
coaxial cable. (These items are available at most electronics stores.)
1
Find and disconnect the
cable that is connected
to the ANTENNA IN terminal on your cable box.
2
Connect this cable to a
two-way splitter.
3
Connect a coaxial cable
between an OUTPUT terminal on the splitter and
the IN terminal on the
cable box.
CHAPTER TWO: INSTALLATION 2.4
INSTALLATION
4
Connect a coaxial cable
between the ANTENNA
OUT terminal on the
cable box and the B–IN
terminal on the A/B
switch.
5
Connect another cable
between the other OUT
terminal on the splitter
and the A–IN terminal on
the RF (A/B) switch.
6
Connect the last coaxial
cable between the OUT
terminal on the RF (A/B)
switch and the VHF/UHF
terminal on the rear of
the TV.
After you’ve made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the
A/B switch to “B,” you will need to tune your TV to the cable box’s output channel, which is
usually channel 3 or 4.)
2.5 CHAPTER TWO: INSTALLATION
INSTALLATION
Connecting a VCR
These instructions assume that you have already connected your TV to an antenna or a
cable TV system (according to the instructions on pages 2.1-2.3). Skip step 1 if you have
not yet connected to an antenna or a cable system.
1
Connect a coaxial cable between the
ANTENNA OUT terminal on the VCR and the
antenna terminal on the TV.
A coaxial cable is usually included with a
VCR. (If not, check your local electronics
store).
2
Connect a set of audio cables between the
AUDIO OUT jacks on the VCR and the
AUDIO jacks on the TV.
If you have a mono VCR, connect L(mono)
to VCR audio out using only one audio
cable.
3
Connect a video cable between the VIDEO
OUT jack on the VCR and the VIDEO jack on
the TV.
If you have a S-VHS VCR, use the S-Video
connections and remove the video cable.
Do not connect the video cable and the SVideo cable to video 1 simultaneously.
Follow the instructions in “Viewing a VCR
or Camcorder Tape” to view your VCR tape.
Note: This figure shows the Standard Connector-jack panel. The actual configuration on your TV may
be different, depending on the model.
CHAPTER TWO: INSTALLATION 2.6
INSTALLATION
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow
you to view the camcorder tapes without using a VCR.
1
Locate the A/V output jacks on the
camcorder. They are usually found on
the side or rear of the camcorder.
2
Connect an audio cable between the
AUDIO OUTPUT jack on the camcorder
and the AUDIO terminals on the side of
the TV.
If you have mono camcorder, connect
L(mono) to camcorder audio out using
only one audio cable.
3
Connect a video cable between the
VIDEO OUTPUT jack on the camcorder
and the VIDEO terminal on the sidet of
the TV.
The audio-video cables shown here are
usually included with a Camcorder. (If
not, check your local electronics store.)
If your camcorder is stereo, you need to
connect a set of two cables.
Connecting a Second VCR to Record from the TV
Your TV can send out signals of its picture and sound to be recorded by a second VCR. To do
this, connect your second VCR as follows:
1
Connect a set of audio cables between
the AUDIO OUT jacks on the TV and the
AUDIO IN jacks on the VCR.
(The VCR input jacks might be either
on the front or rear of the VCR.)
2
Connect a video cable between the
VIDEO OUT jack on the TV and the
VIDEO IN jack on the VCR.
Refer to your VCR’s instructions for
more information about how to record
using this kind of connection.
Note: This figure shows the Standard Connector-jack panel. The actual configuration on your TV may
be different, depending on the model.
2.7 CHAPTER TWO: INSTALLATION
INSTALLATION
Connecting a DVD Player, DTV Set-Top Box (480i, 480p, 1080i)
The rear panel jacks on your TV make it easy to connect a DVD player (or DTV Set-Top
Box) to your TV.
Connecting to Y, PB, P
R
1
Connect a set of audio cables between
the DVD audio in jacks on the TV and
the AUDIO OUT jacks on the DVD player
(or DTV Set-Top Box).
2
To enable Component video viewing,
connect video cables between the Y, PB,
and PRinputs on the TV and Y, PB, and P
R
(or Y, CB, CR) outputs on the DVD player
(or DTV Set-Top Box).
Note: For an explanation of
Component video, see your DVD
player’s (or DTV Set-Top Box) owner’s
instruction.
Connecting to regular audio and video jacks
1
Connect a set of audio cables between
the AUDIO IN jacks on the TV and the
AUDIO OUT jacks on the DVD player
(or DTV Set-Top Box).
2
Connect video cables between the
VIDEO OUT jack on the DVD player
(or DTV Set-Top Box) and the VIDEO
IN jack on the TV.
Note: This figure shows the Standard Connector-jack panel. The actual configuration on your TV may
be different, depending on the model.
CHAPTER TWO: INSTALLATION 2.8
Connecting a DTV Set-Top Box (480p, 1080i)
When switching to the DTV mode, either 480p or 1080i format is automatically selected
according to the input signal.
Note: Only 480p and 1080i formats are supported.
1
Connect a set of audio cables between
the DTV Set-Top Box audio in jacks on
the TV and the AUDIO OUT jacks on the
DTV Set-Top box.
2
To enable Component video viewing,
connect video cables between the Y, PB,
and PRinputs on the TV and Y, PB, and P
R
(or Y, CB, CR) outputs on the DTV Set-Top
box.
Note: For an explanation of
Component video, see your DTV Settop box’s owner’s instruction.
INSTALLATION
2.9 CHAPTER TWO: INSTALLATION
INSTALLATION
▼
3
Replace the cover.
Remove the batteries and store
them in a cool, dry place if you won’t
be using the remote control for a
long time.
The remote control can be used up
to about 23 feet from the TV.
(Assuming typical TV usage, the
Batteries last for about one year.)
▼
2
Install two AAA size
batteries.
Make sure to match the “+” and
“
–” ends of the batteries with the
diagram inside the compartment.
Installing Batteries in the Remote Control
1
Slide the back cover all
the way out to open the
battery compartment of
the remote control.
CHAPTER THREE: TV OPERATION 3.1
Chapter Three
OPERATION
Turning the TV On and Off
Press the Power button.
You can also use the POWER button on the front panel.
Plug & Play Feature
When the TV is initially powered On, five basic customer settings proceed automatically and
subsequently: Setting the language, Ant. input check, and Auto program/Setting the Clock.
1
Press the Power button on
the remote control.
The message “Plug & Play”
is displayed.
It flickers for a little while and
then the “Language” menu is
automatically displayed.
2
Press the VOL + or VOL -
button to select the desired
language. Press the Menu
button to enter the language,
and then the “ANT/CATV”
menu is automatically
displayed.
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
Function
3
Press the VOL + or VOL -
button to select the desired to
video signal source.
Press the Menu button to
enter the video signal source,
and then the “Ant Input
check” is automatically
displayed.
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
Channel
continued...
3.2 CHAPTER THREE: TV OPERATION
4
Make sure that the antenna
is connected to the TV.
And then press the VOL +
or VOL - button to activate
“Auto Program” or press the
MENU button to skip.
(refer to “Auto program”
on page 3.6)
5
Press the VOL + or VOL -
button to move to the hour
or minute. Set the hour or
minute by pressing the
CH or CH button.
(refer to “Setting the clock”
on page 3.10)
6
When you have finished,
press the Menu button.
The message “Enjoy your
watching..” is displayed.
7
If you want to reset this
feature
(1)Press the Menu button.
(2)Press the CH button
three times to select the
Function menu and press
the VOL + button.
(3)Press the CH button to
select “Plug & Play” and
press the VOL + button.
The message “Plug &
Play” is displayed.
Note: Plug & Play feature doesn’t work when the V-chip is
on or when in the A/V mode.
OPERATION
Time
Clock
On Time
Off Time
Sleep Timer Off
- -
:
- -
am
- -
:
- -
am Off
- -
:
- -
am Off
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
CHAPTER THREE: TV OPERATION 3.3
Using the Perfect Focus Feature
When the picture size is distorted after moving the TV set, use the Perfect Focus feature to
adjust for the optimum picture size set in the Factory.
1
Press the Menu button.
Press the CH button to
select “Function”, then
press the VOL + button.
2
Press the CH button to
select “Convergence”, then
press the VOL + button.
3
Press the CH button to
select “Perfect Focus”, then
press the VOL + button.
Perform Perfect Focus in the
following sequence: Green
➝ Red ➝ Blue.
Press Menu button to exit.
OPERATION
Notes
• If any error happens during Perfect Focus, then perform Perfect Focus once again.
• If you can’t make adjustments after Perfect Focus, then make manual adjustments.
Still you can’t make adjustments, contact your Service Center.
• The Perfect Focus function doesn’t operate when component input is in 480P.
▼
You can also select Perfect
Focus by pressing the Perfect Focus
button.
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
Convergence
Manual Convergence
Red
Blue
Perfect Focus
Perfect Focus
Mode On
Process : 8%
3.4 CHAPTER THREE: TV OPERATION
OPERATION
Adjusting Manual Convergence
If the color appears spread out or “smeared” on the screen, the convergence probably needs
alignment. Be sure to use the remote control for the convergence adjustments.
First steps:
1
Press the Menu button.
Press the CH button to
select “Function”, then
press the VOL + button.
2
Press the CH button to
select “Convergence”, then
press the VOL + button.
continued...
3
The “Manual Convergence”
screen will appear, and the
word “Red” will be highlighted.
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
Function
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
Convergence
Manual Convergence
Red
Blue
Perfect Focus
CHAPTER THREE: TV OPERATION 3.5
OPERATION
4
While “Red” is highlighted, press
the VOL + button: A crosshair
pattern will appear on the screen.
After moving the cursor to the
position you want to adjust using
the number buttons 2(up), 4(left),
6(right), 8(down) on the remote
control, adjust Red Convergence
by pressing the VOL +/ VOL -/CH
/CH buttons.
5
If a horizontal red line is visible, use
CH and CH buttons to move
the line so that it is superimposed on
the horizontal center-line (i.e., make
a single horizontal line that is as
white as possible.)
6
If a vertical red line is visible, use
the VOL + and VOL - buttons to
move the line so that it is superimposed on the vertical-center line
(i.e., make a single vertical line that
is as white as possible.)
Adjust Red Convergence
7
For ‘Blue’ adjustment, do the same as the above.
After the red convergence is correctly adjusted, press Menu to exit
all the menus.
3.6 CHAPTER THREE: TV OPERATION
OPERATION
Viewing the Display
The display identifies the current channel and the status of certain audio-video settings.
▼
The on-screen displays
disappear after ten seconds.
Viewing the Menus and On-Screen Displays
Viewing the Menus
▼
1
With the power on, press
the Menu button.
The “Picture” menu
appears on the screen.
Its left side has five
icons: Picture, Sound,
Channel, Function and
PIP.
The on-screen menus disappear
from the screen after thirty seconds.
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
▼
You can also use the Menu,
CHANNEL, and VOLUME buttons
on the control panel of the TV to
make selections.
1
Press the Display button on
the remote control.
The TV will display the channel, the type of audio, and the
status of certain video and
audio settings.
(“ *” indicates a channel has
been manually fine tuned.)
2
Press the CH or CH button to the move items in the menu
(the icons blink when highlighted). Press the VOL + or VOL - button to
display, change, or use the selected items. Press the VOL + button to
enter items in the menu.
3
Press the Menu button to exit.
CHAPTER THREE: TV OPERATION 3.7
OPERATION
Selecting a Menu Language
2
Press the CH button to
select “Language”, then
press the VOL + or VOL -
button to select the language.
Press the Menu button to
exit.
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
1
Press the Menu button.
Press the CH button to
select “Function”, then
press the VOL + button.
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
Selecting the Antenna Input
You can connect to two different signal sources by choosing the antenna input (Antenna A or
Antenna B).
1
Press the Menu button .
Press the CH button
to select “Channel”,
then press the VOL +
button to enter.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
2
Press the VOL + or VOL -
button to select “A” or “ B”.
Press the Menu button to
exit.
Channel
Antenna : B
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
3.8 CHAPTER THREE: TV OPERATION
OPERATION

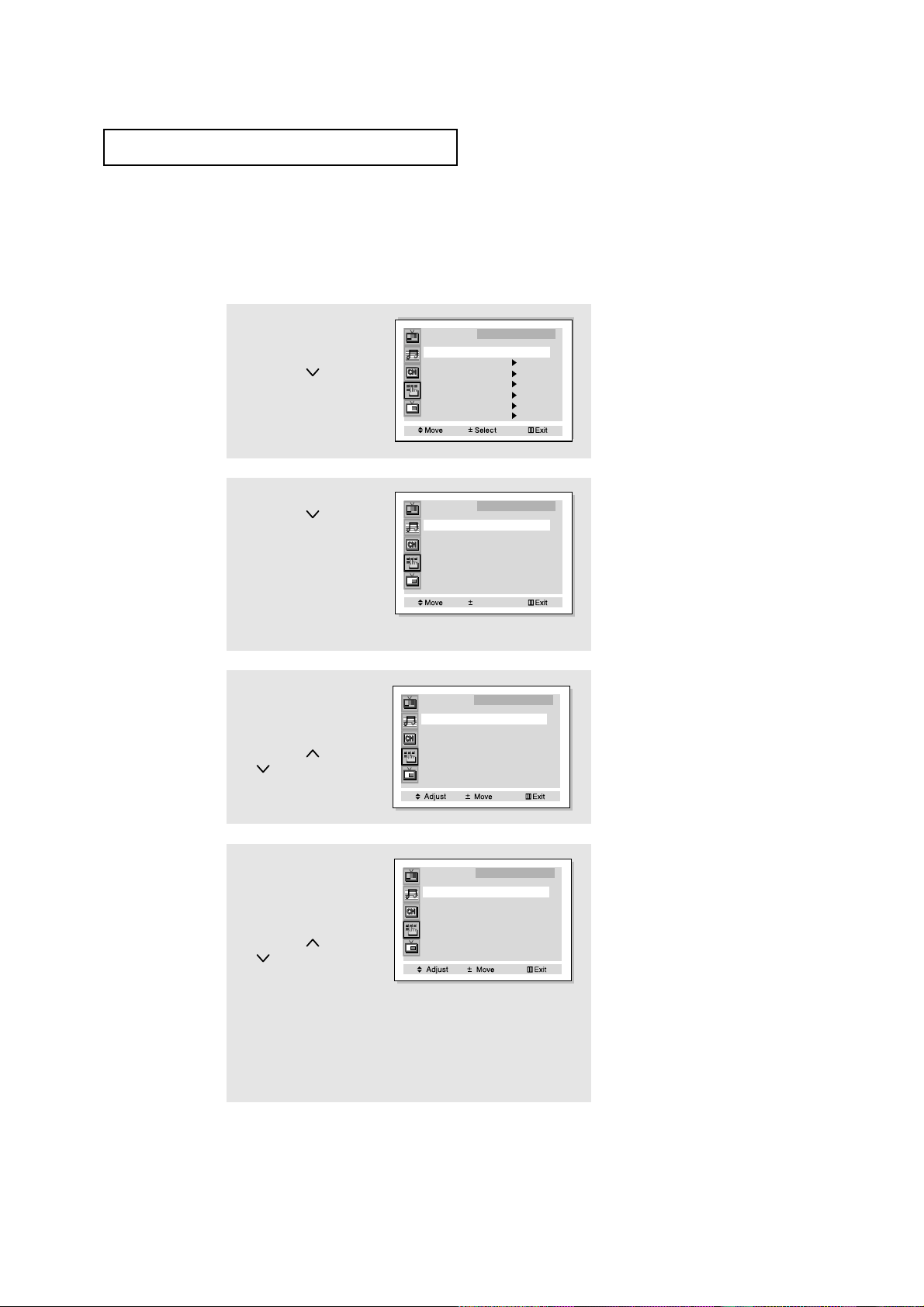

Memorizing the Channels
Your TV can memorize and store all of the available channels for both “off-air” (antenna) and
cable channels. After the available channels are memorized, use the CH and CH buttons to scan through the channels. This eliminates the need to change channels by entering
the channel digits. There are three steps for memorizing channels: selecting a broadcast
source, memorizing the channels (automatic) and adding and deleting channels (manual).
Selecting the Video Signal-source
Before your television can begin memorizing the available channels, you must specify the type
of signal source that is connected to the TV (i.e., an antenna or a cable system).
1
Press the Menu button.
Press the CH button to
select “Channel”, then
press the VOL + button.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
2
Press the CH button to
select “ANT/CATV”, then
Press the VOL + or VOL -
button to cycle through
these choices:
ANT (antenna), STD, HRC
or IRC (all cable TV).
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
Note: STD, HRC and IRC identify various types of cable TV systems. Contact your local
cable company to identify the type of cable system that exists in your particular area.
At this point the signal source has been selected. Proceed to “Storing Channels in Memory”
(next page).
CHAPTER THREE: TV OPERATION 3.9
3
The TV will begin
memorizing all of the
available channels.
After all the available
channels are stored, the
Auto program menu reappears. Press the Menu
button to exit.
OPERATION
Storing Channels in Memory (Automatic Method)
▼
The TV automatically cycles
through all of the available channels and stores them in memory.
This takes about one to two minutes.
2
Press the CH button to
select “Auto Program”, then
press the VOL + button.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling :
- - - -
1
First, select the correct
signal source (ANT, STD,
HRC, IRC). See steps 1~2
on previous page.
Press the Menu button.
Press the CH button to
select “Channel”, then
press the VOL + button
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
2
Press the Add/Erase button:
Repeatedly pressing this button will alternate between
“Added” and “Erased.”
Press the Menu button to exit.
You can view any channel (including an erased channel) by using the number
buttons on the remote control.
1
Use the number buttons to directly select the channel
that will be added or erased.
Adding and Erasing Channels (Manual Method)
3.10 CHAPTER THREE: TV OPERATION
OPERATION
Changing Channels
Using the Channel Buttons
Press the CH or CH button to change channels.
When you press CH or CH , the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels.) You will
not see channels that were either erased or not memorized.
Using the Number Buttons
Use the number buttons to quickly tune to any channel.
Press the number buttons to go directly to a channel.
For example, to select channel 27, press “2,” then “7.” The TV
will change channels when you press the second number.
When you use the number buttons, you can directly select channels that were either erased or not
memorized.
To select a channel over 100, press the +100 button. (For channel 122, press “+100,” then “2,” then
“2.”)
To change to single-digit channels (0–9) faster, press “0” before the single digit. (For channel “4,”
press “0,” then “4.”)
Using the Previous Channel
Press the Pre-CH button. The TV changes to the last channel
you were watching.
CHAPTER THREE: TV OPERATION 3.11
OPERATION

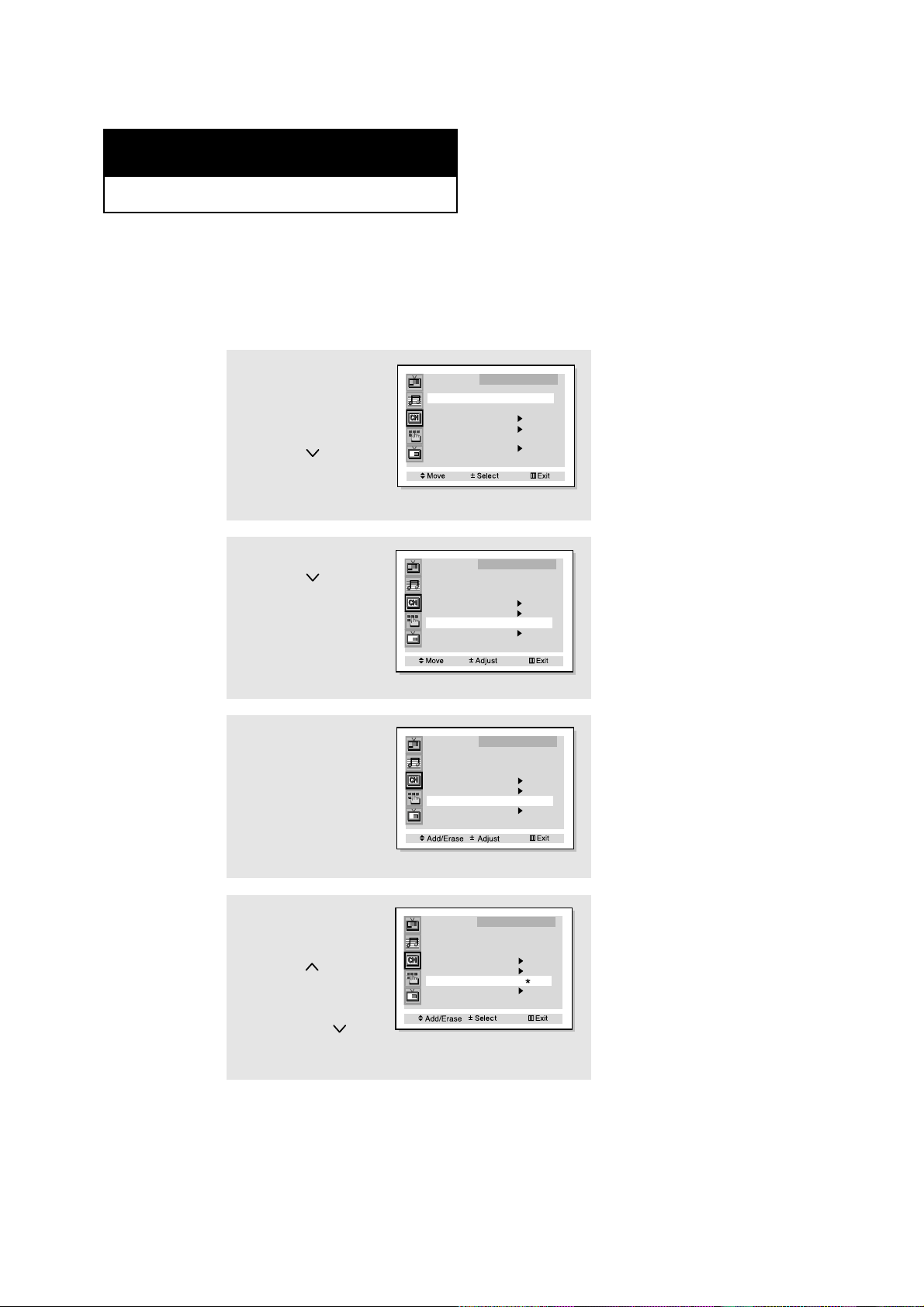

Selecting Your Favorite Channels
You can store up to ten of your favorite channels for each available input source (such as TV
and CATV). Then, when you press the Fav.CH button on the remote control, the TV displays
only the favorite channels you previously stored, allowing you to quickly and easily find frequently watched channels.
To Store Y our Favorite Channels:
1
Press the Menu button.
Press the CH button
to select “Channel”,
then press the VOL +
button.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
To View Your Favorite Channels:
Press the Fav.CH button repeatedly to jump from one favorite
channel to another.
2
Press the CH button to
select “Fav. Channel”, then
press the VOL + button.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
3
Press the VOL + or VOL -
button to select the first
channel.
To select more favorite
channels, press CH or
CH , then press VOL +
or VOL -.
To erase the memorized
Favorite Channel, select
the channel by pressing
the VOL +/VOL - buttons
and then press the
Add/Erase button.
Fav. Channel
Fav. Channel : ANT
▼
Note: Only memorized channels
can be set as Favorite channels.
3.12 CHAPTER THREE: TV OPERATION
Adding and Erasing Channels (Manual Method)
1
Press the Menu button.
Press the CH button to
select “Channel”, then
press the VOL + button.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
2
Press the CH button to
select “Add/Erase”, then
press the VOL + button.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
3
Press the VOL + button,
then press CH / CH
or number buttons to
select the channel you
want to add or erase.
Press the Menu button.
Add/Erase
Channel : ANT 11
Select : Erased
4
Press the CH or
CH button to select
“Select”.
Press the VOL + or VOL -
button to select “Added”
or “Erased”.
Add/Erase
Channel : ANT 11
Select : Added
Press the Menu button to exit
the menu.
OPERATION
CHAPTER THREE: TV OPERATION 3.13
OPERATION
Labeling the Channels
Use this feature to assign an easy-to-remember label to any channel (i.e., “CBS”, “ESPN”,
“PBS2”, CNN1”, etc.) A label consists of four fields, where each field is a letter, a number, “*”, or a blank. When the DISPLAY button is pressed, the channel label will appear
next to the channel number.
1
Press CH or CH to tune to the channel that will be labeled.
2
Press the Menu button.
Press the CH button to
select “Channel”, then
press the VOL + button.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
3
Press the CH button to
select “Labeling”.
Press the VOL + button to
begin labeling.
The left-most field will be
highlighted.
(Each label has four fields.
See top paragraph.)
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
4
Press the CH or CH
button to select a letter,
a number, or a blank.
(Press the CH or
CH button results in this
sequence: A,B,...Z, blank,
0,1,...9).
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : A - -
-
5
Press the VOL + button
switch to the next field,
which will be highlighted.
Select a second letter or
digit pressing the CH or
CH button, as above.
Repeat the process to
select the last two digits.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : ABC1
▼
Note: You cannot select
“Labeling” in the A/V mode.
Press the Menu button to exit the menu.
3.14 CHAPTER THREE: TV OPERATION
OPERATION
1
Press the Menu button.
The “Picture” icon will be
highlighted, then press the
VOL + or VOL - button
repeatedly, until the word “Custom”
is selected.
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
Picture Control
You can use the on-screen menus to change the contrast, brightness, tint, color, and sharpness
according to personal preference. (Alternatively, you can use one of the
“automatic” settings. See next page.)
Customizing the Picture
2
Press the CH button to
select “Adjust”, then press
the VOL + button.
(The words Contrast,
Brightness, Sharpness,
Color, and Tint will appear
on the screen.)
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
3
Press the VOL + button.
(The words Contrast,
Brightness, Sharpness,
Color, and Tint will appear
on the screen.) Press the
CH or CH button to
select a particular item.
Contrast : 80
Brightness : 50
Sharpness : 50
Color : 45
Tint : G 50 R: 50
Adjust
4
Press the VOL + or VOL -
button to increase or
decrease the value of a
particular item.
Brightness 50
▼
After adjusting an item, the
gauge will automatically
disappear(after about 4 seconds).
CHAPTER THREE: TV OPERATION 3.15
OPERATION
Using Automatic Picture Settings
Your TV has three automatic picture settings (“Dynamic”, “Standard” and “Movie”) that are
preset at the factory. You can activate either Dynamic, Standard or Movie by pressing P.Mode
(or by making a selection from the menu). Or, you can select “Custom” which automatically
recalls your personalized picture settings.
• Choose Standard for the standard factory settings.
• Choose Dynamic for viewing the TV during the day or when there is bright
light in the room.
• Choose Movie when viewing the Movie.
• Choose Custom if you want to adjust the settings according to personal pref-
erence (see “Customizing the Picture, page 3.14).
1
Press the Menu button.
Picture icon will be highlighted.
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
2
Press the VOL + or VOL -
button to select the
“Custom”, “Dynamic”,
“Standard” or “Movie”
picture setting.
Mode : Dynamic
Size : Wide
Digital NR : Off
Demonstration
Alternate method:
Simply press the P.Mode
button on the remote
control to select one of
the standard picture
settings.
Standard
3.16 CHAPTER THREE: TV OPERATION
1
Press the Menu button.
The “Picture” icon will
be highlighted. Then
press the VOL + button.
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
Selecting the Color Tone
Sound Control
Adjusting the Volume
2
Press the CH button
to
select “Color Tone”.
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
3
Press the VOL + or VOL -
button to select “Normal”,
“Warm1”, “Warm2”, “Cool2”
or “Cool1”
Press the Menu button to
exit.
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Warm1
Demonstration
OPERATION
Using Mute
At any time, you can temporarily cut off the sound using the Mute button.
1
Press the Mute button and the sound cuts off.
The word “Mute” will appear in the lower-left corner of the screen.
2
To turn mute off, press the Mute button again, or simply press either
the VOL - or VOL + button.
Press the VOL + or VOL - buttons to increase or decrease the volume.
CHAPTER THREE: TV OPERATION 3.17
OPERATION
2
Press the VOL + or VOL -
button
repeatedly, until the
word “Custom” is selected.
(When Custom is selected,
the words “Equalizer” will
appear on the screen.)
Sound
Mode : Custom
Equalizer
S. Function
MTS : Mono
3
Press the CH button to
select “Equalizer”, then
press the VOL+ button.
Sound
Mode : Custom
Equalizer
S. Function
MTS : Mono
1
Press the Menu button.
Press the CH button to
select “Sound”, the press
the VOL + button.
Mode : Custom
Equalizer
S. Function
MTS : Mono
Sound
Customizing the Sound
The sound settings can be adjusted to suit your personal perferences.
(Alternatively, you can use one of the “automatic” settings. See next page.)
4
Press the VOL + or VOL -
button to highlight a particular item to be changed.
Press the CH or CH
button to increase or
decrease the value of a
particular item.
Press the Menu button exit.
Equalizer
3.18 CHAPTER THREE: TV OPERATION
Using Automatic Sound Settings
Your TV has four automatic sound settings (“Standard,” “Music,” “Movie,” and “Speech”) that
are preset at the factory. You can activate either Standard, Music, Movie or Speech by pressing the S.MODE button (or by making a selection from the menu). Or, you can select
“Custom,” which automatically recalls your personalized sound settings.
• Choose Standardfor the standard factory settings.
• Choose Music when watching music videos or concerts.
• Choose Speech when watching a show that is mostly dialogue (i.e., news).
• Choose Movies when watching movies.
• Choose Custom to recall your personalized settings.
2
Press the VOL - or VOL +
button repeatedly to select
the “Standard,” “Music,”
“Movie,” “Speech” or
“Custom” sound settings.
Sound
Mode : Standard
S. Function
MTS : Mono
1
Press the Menu button.
Press the CH button to
select the “Sound”, then
press the VOL + button.
OPERATION
Sound
Mode : Custom
Equalizer
S. Function
MTS : Mono
Alternate method:
Simply press the S.MODE
button on the remote control to select one of the
standard sound settings.
Standard
CHAPTER THREE: TV OPERATION 3.19
OPERATION
Setting the Clock
Setting the clock is necessary in order to use the various timer features of the TV. Also,
you can check the time while watching the TV. (Just press Display.)
Option 1: Setting the Clock Manually
1
Press the Menu button.
Press the CH button to
select “Function”, then
press the VOL + button.
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
Function
2
Press the CH button to
select “Time” menu.
Press the VOL + button: The
Time menu will appear on
the screen, and “Clock” will
be highlighted.
Clock 00: 00 am
On Time
- -
:
- -
am Off
Off Time
- -
:
- -
am Off
Sleep Timer : Off
Time
Adjust
▼
When selecting the hours, be
sure to select the proper time of day
(AM or PM).
3
Press the VOL + button
again (the hours digits
will be highlighted).
Press the CH or
CH button repeatedly
until the correct hour
appears.
▼
The time will appear every time
you press the Display button.
Clock 11 : 00 am
On Time
- -
:
- -
am Off
Off Time
- -
:
- -
am Off
Sleep Timer : Off
Time
4
After the hour is entered,
Press the VOL + button.
(at this point the minutes
digits will be highlighted).
Press the CH or
CH button to select
the correct minutes.
After selecting the correct minutes, press the
VOL + button.
Press the Menu button to
exit.
Clock 11 : 30 am
On Time
- -
:
- -
am Off
Off Time
- -
:
- -
am Off
Sleep Timer : Off
Time
3.20 CHAPTER THREE: TV OPERATION
Option 2: Using the Local PBS Channel to Automatically Set
the TV Clock
OPERATION
1
Press the MENU.
Press the CH button
to select “Function”,
then press the VOL +
button.
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
2
Press the CH button
to select “Auto clock
set” menu, then press
the VOL + button.
3
Press the VOL + button to
select Auto clock set
“On”.
4
Press the CH button
to select “PBS channel”. While “PBS channel” is selected, press
the VOL + button to
activate the channelnumber field.
Press the CH or
CH button to select
your local PBS channel.
Press the Menu button.
continued...
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
Auto Clock Set
Auto Clock Set : On
PBS Channel : ANT 3
Time Zone : ATL.
DST : No
Auto Clock Set
Auto Clock Set : On
PBS Channel : ANT 6
Time Zone : ATL.
DST : No
CHAPTER THREE: TV OPERATION 3.21
OPERATION
5
Press the CH button to
select “Time Zone”.
While “Time Zone” is selected, then press the VOL+ or
VOL- to change the Time
zone.
Sequence: ATL., EAST, CEN.,
MTN., PAC., ALAS., HAW.
6
Press the CH button to
select “DST”(Daylight saving
time). While “DST” is selected, press the VOL+ or VOL-
button to indicate “Yes” or
“No”.
The clock is set.
Press the MENU button to exit.
Auto Clock Set
Auto Clock Set : On
PBS Channel : ANT 3
Time Zone : EAST
DST : No
Auto Clock Set
Auto Clock Set : Off
PBS Channel : ANT 3
Time Zone : ATL.
DST : Yes
4.1 CHAPTER FOUR:SPECIAL FEATURES
Chapter Four
SPECIAL F
EATURES
Fine Tuning Channels
Use fine tuning to manually adjust a particular channel for optimal reception.
1
Select the appropriate
channel.
Press the Menu button.
Press the CH button to
select the “Channel”, then
press the VOL + button.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
2
Press the CH button to
select “Fine Tune”.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : 00
Add/Erase
Labeling : - - -
-
3
Press the VOL + or VOL -
button to adjust the fine
tuning.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : +3
Add/Erase
Labeling : - - -
-
4
To store the fine tuning
setting in the TV’s memory,
press the CH button.
(A star icon<*>will appear.)
To reset the fine tuning to
“00”, press the CH button.
Press the Menu button to exit.
Channel
Antenna : A
ANT/CATV : ANT
Auto Program
Fav. Channel
Fine Tune : +3
Add/Erase
Labeling : - - -
-
▼
After you adjust the fine tuning,
“*” will appear when you press
Display while watching this channel.
CHAPTER FOUR:SPECIAL FEATURES 4.2
SPECIAL FEATURES
Digital Noise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital Noise
Reduction feature to help reduce any static and ghosting that may appear on the screen.
1
Press the Menu button.
Press the CH button
to select “Picture”, then
press the VOL + button.
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
2
Press the CH button to
select “Digital NR”.
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
3
Press the VOL + or VOL -
button to select “On”.
Press the Menu button to
exit.
Mode : Custom
Adjust
Size : Wide
Digital NR : On
Color tone : Normal
Demonstration
4.3 CHAPTER FOUR:SPECIAL FEATURES
Changing the Screen Size
Press the Aspect button to change the screen.
• Wide: Sets the picture to 16:9 wide mode.
• Panorama: Use this mode for the wide aspect ratio of a panoramic picture.
• DVD: Magnifies the size of the picture and moves the magnified picture up.
You can also move the picture on screen pressing the
CH or CH button.
• Zoom: Magnifies the size of the picture on screen.
You can also move the picture on screen pressing the
CH or CH button.
• 4:3(Normal): Sets the picture to 4:3 normal mode.
• Cinema: The broadcasting signal is enlarged automatically to optimum screen size.
The margins appear grayed.
SPECIAL FEATURES
Normal Cinema
Zoom
DVD
Normal
DVD
Zoom
Cinema
4:3 TV
4
:
3
16
:
9
DVD ZoomNormal Cinema
Wide TV (16:9)
Wide Panorama DVD
Zoom 4:3 Cinema
Wide
Panorama
DVD
Zoom
4 : 3
Cinema
Wide Panorama
Cinema
DVD
Zoom 4:3
Notes
• Changing the Screen size doesn’t work with Component1, 2, 3(480p) signals.
The PCL545R/PCL5415R models operate olny Zoom function with Component1, 2, 3
(1080i) signals.
• Screen size cannot be changed in the PIP mode.
• It’s possible to be a little difference to perform a grey letterbox by the specification of the DVD
or VCR Tapes.
4
:
3
16
:
9
Wide
Zoom
Panorama
4 : 3
DVD
Cinema
CHAPTER FOUR:SPECIAL FEATURES 4.4
S
PECIAL FEATURES
Using the R.surf feature
This feature allows you to set the TV to return to a particular channel after a certain amount
of time. For example, you may be watching a channel when commercials start. You can set
the R.Surf to “5 minutes”, then switch channels. After 5 minutes, the TV will return to the
original channel. To use the R.surf:
1
While you are watching
the channel to which you
want to return, press the
R.surf button. The onscreen display will read
“Surf off”.
Surf Off
2
Press the R.surf button
again to set the timer in
thirty second intervals,
up to five minutes.
Surf 1:30
3
The time you set will begin counting down on the screen. When the
time runs out, the TV will return to the channel you were watching
when you set the timer.
4.5 CHAPTER FOUR:SPECIAL FEATURES
S
PECIAL FEATURES
Setting the On/Off Timer
1
Press the Menu button.
Press the CH button to
select “Function”, then
press the VOL + button.
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
Function
▼
Before using the timer, you must
set the TV’s clock. (See “Setting the
Clock” on page 3.19)
When any of the timers are set, the
“Timer” LED will illuminate (front
panel of TV).
2
Press the CH button to
select "Time", then press
the VOL + button.
Clock 11 : 30 am
On Time
- -
:
- -
am Off
Off Time
- -
:
- -
am Off
Sleep Timer : Off
Time
Adjust
3
Press the CH button to
select "On time".
Press the VOL + button to
select the “On time” hours.
(The hours digits will be
highlighted.)
Press the CH or CH
button repeatedly to select
the appropriate hours (i.e.,
the hour when the TV will
turn on.)
Clock 11 : 30 am
On Time 06 : 00 am Off
Off Time
- -
:
- -
am Off
Sleep Timer : Off
Time
▼
When you set the hours, make
sure the correct time of day (AM or
PM) appears to the left of the hour.
4
Press the VOL + button
to select the “On time”
minutes.
(The minutes digits will be
highlighted.)
Press the CH or CH
button to select the appropriate minutes.
Clock 11 : 30 am
On Time 06 : 30 am Off
Off Time
- -
:
- -
am Off
Sleep Timer : Off
Time
Adjust
CHAPTER FOUR:SPECIAL FEATURES 4.6
SPECIAL FEATURES
5
Press the VOL + button to
select “On/Off.”
Press the CH or
CH button button to
turn the on-timer “On.”
(Repeatedly pressing the
CH or CH button
button will alternate
between on and off.)
When finished, press the
VOL + button.
Clock 11 : 30 am
On Time 06 : 30 am On
Off Time
- -
:
- -
am Off
Sleep Timer : Off
Time
6
To set the Off time, press
the CH button to select
“Off time.”
Press the VOL + button
and set the hours and
minutes. (Follow the same
procedure as in steps 1~6
above.)
7
When finished setting the timer, press the Menubutton to exit.
Clock 11 : 30 am
On Time 06 : 30 am On
Off Time
- -
:
- -
am Off
Sleep Timer : Off
Time
▼
To deactivate the “On time,”
select “Off” during this step.
▼
If no function buttons
(including remote control buttons or
front panel buttons) are operated for
three hours after the TV is turned on
with the by “On time” feature, the
TV will be automatically turned off.
1
Press the Sleep button on the remote control.
2
Press Sleep repeatedly until the appropriate time interval
appears (any of the preset values from “Off” to “180”).
▼
After about 5 seconds, the sleep
display will disappear from the
screen, and the time interval will be
set.
Setting the Sleep Timer
The sleep timer automatically shuts off the TV after a preset time (from 10 to 180 minutes).
4.7 CHAPTER FOUR:SPECIAL FEATURES
SPECIAL FEATURES
• Surround
Your Samsung TV can create a "surround" effect such that the sound seems to come
from all directions. Once the “Surround” is set to “On”, the setting applies to sound
effects such as Standard, Music, Movie and Speech.
• Auto Volume
Each broadcasting station has its own signal conditions, which can make it necessary
to adjust the volume every time the channel is changed. “Auto volume” lets you automatically adjust the volume of the desired channel by lowering the sound output when
the modulation signal is high or by raising the sound output when the modulation
signal is low.
• Melody
You can hear clear a melody sound when the TV is powered on or Off.
• BBE
BBE is a built-in effect that adds clarity, punch and dynamics to the sound.
1
Press the Menu button.
Press the CH button to
select “Sound”, then
press the VOL + button.
Sound
Mode : Custom
Equalizer
S. Function
MTS : Mono
▼
Before using the timer, you must
set the TV’s clock. (See “Setting the
Clock” on page 3.19)
When any of the timers are set, the
“Timer” LED will illuminate (front
panel of TV).
2
Press the CH button to
select "S. Function", then
press the VOL + button.
Sound
Mode : Custom
Equalizer
S. Function
MTS : Mono
3
Press the CH or CH
button button to select the
required item, the press the
VOL + button to select “On”.
Press the Menu button to
exit
S. Function
Surround : Off
Auto volume : Off
Melody : On
BBE : On
Extra sound settings
(Surround, Auto Volume, Melody, BBE)
The following sound settings can be adjusted to suit your personal preferences.
CHAPTER FOUR:SPECIAL FEATURES 4.8
SPECIAL FEATURES
Choosing a Multi-Channel Sound (MTS) Soundtrack
Depending on the particular program being broadcast, you can listen to stereo, mono, or a
Separate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAP
has unrelated information like news or weather.)
2
Press the CH button to
select “MTS”, then Press
the VOL + or VOL - button to
select “Mono,” “SAP,” or
“Stereo.”
Press the Menu button to exit
Sound
Mode : Custom
Equalizer
S. Function
MTS : Stereo
▼
The text at the bottom of the
menu tells you if the incoming
audio is Stereo, SAP, or Mono.
▼
Quick way to access the MTS
menu: Just press the “MTS” button
on the remote control.
1
Press the Menu button.
Press the CH button to
select “Sound”, then
press the VOL + button.
Sound
Mode : Custom
Equalizer
S. Function
MTS : Mono
• Choose Stereo for channels that are broadcasting in stereo.
• Choose Mono for channels that are broadcasting in mono, or if you are
having difficulty receiving a stereo signal.
• Choose SAP to listen to the Separate Audio Program, which is usually a
foreign-language translation.
4.9 CHAPTER FOUR:SPECIAL FEATURES
SPECIAL FEATURES
▼
Misspellings and unusual
characters sometimes occur during closed caption transmissions,
especially those of live events.
There may be a small delay before
captions appear when you change
channels. These are not malfunctions of the TV.
3
Press the VOL + or VOL -
button to turn closed captioning “on” or “off”.
Caption : On
Mode : Caption
Channels : 1
Field : 1
Caption
4
Press the CH button to
select “Mode”, then press
the VOL + or VOL - button to
select “Caption” or “Text.”
Caption : On
Mode : Text
Channels : 1
Field : 1
Caption
Viewing Closed Captions
Your TV decodes and displays the closed captions that are broadcast with certain TV shows.
These captions are usually subtitles for the hearing impaired or foreign-language trans-
lations. All VCRs record the closed caption signal from television programs, so home-recorded video tapes also provide closed captions. Most pre-recorded commercial video tapes provide closed captions as well. Check for the closed caption symbol in your television schedule
and on the tape’s packaging: .
1
Press the Menu button.
Press the CH button to
select “Function”, then
press the VOL + button.
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
2
Press the CH button to
select “Caption”, then
press the VOL + button.
Function
Language : English
Plug & Play
Convergence
Caption
Time
Auto Clock Set
V-Chip
▼
5
Depending on the particular broadcast, it might be necessary to
make changes to “Channels” and “Field”:
Use the CH , CH , VOL + and VOL - buttons to make the
changes. (Follow the same procedure as in steps 3~4 above.)
Press the Menu button to exit.
Different channels and fields
display different information:
Field 2
carries additional information that
supplements the information in
Field 1. (For example, Channel 1
may have subtitles in English,
while Channel 2 has subtitles in
Spanish.)
▼
In caption mode, captions
appear at the bottom of the
screen, and they usually cover
only a small portion of the picture.
In text mode, information unrelated to the program, such as
news or weather, is displayed.
Text often covers a large portion
of the screen.
▼
Quick way to access captions
menu: Simply press the “Caption”
button on the remote control:
Note: The Caption feature doesn’t work in Component1(480p, 1080i),
Component2 or Component3 mode.
CHAPTER FOUR:SPECIAL FEATURES 4.10
Viewing Picture-in-Picture
You can use the PIP feature to simultaneously watch two video sources.
Note: The PIP feature does not work with Component1, Component2, Component3 mode.
When PIP is selected in the Zoom mode, the Mode is automatically converted
into the Normal mode.
Activating Picture-in-Picture
1
Press the Menu button.
Press the CH button to
select “PIP”, then press
the VOL + button.
PIP : Off
PIP
2
Press the VOL + or VOL -
button to select PIP
“On”.
Press the Menu button
to exit.
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
▼
Quick way to access the PIP
menu: Simply press the “PIP”
button on the remote control.
▼
If you turn TV off while
watching and turn it on again,
the PIP window will disappear.
Notes
• Picture-in-Picture doesn’t function when the V-chip is active.
• Screen size cannot be changed in the PIP mode.
• The PIP feature doesn’t work with Component1 or Component2, 3 signals.
• When the cable box output is connected to ANT-B, it cannot be viewed in the PIP window.
• Double Window isn't available on models HCM5525WB/HCM4715W/ HCM4215W/
HCM4216W/PCL5415R.
SPECIAL FEATURES
4.11 CHAPTER FOUR:SPECIAL FEATURES
S
PECIAL FEATURES
1
Press the Menu button.
Press the CH button to
select “PIP”, then press
the VOL + button.
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
Selecting a Signal Source (Antenna or Cable) for PIP
2
Press the CH button to
select “ANT/CATV.”
If an antenna is connected,
the setting is “ANT.”
If a Cable TV system is providing the signal, press the
VOL + or VOL - button until
the appropriate type of
cable system is is displayed
(“STD,” “HRC,” or “IRC”).
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
Press the Menu button to exit.
1
Press the Menu button.
Press the CH button to
select “PIP”, then press the
VOL + button.
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
Selecting a Signal Source (External A/V) for PIP
2
Press the CH button to
select “SOURCE”, then
press the VOL + or VOL -
button to cycle through all
of the available signal
sources:
“TV”, “Video 1”, “Video 2”,
“Video 3”, “S-Video 1”,
and “S-Video 2”.
Press the Menu button to
exit.
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
▼
If you select “TV”, the PIP image is
the same as the main image.
▼
Quick way to access the signal
source (PIP): Simply press the
“Source” button on the remote
control.
CHAPTER FOUR:SPECIAL FEATURES 4.12
1
Press the Menu button.
Press the CH button to
select “PIP”, then press the
VOL + button.
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
Swapping the Contents of the PIP Image and Main Image
2
Press the CH button to
select “Swap,” then press
the VOL + or VOL - button
The image in the PIP window will appear on the
main screen, and vice
versa.
Press the Menu button to
exit.
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
▼
Quick way to access swapping:
Simply press the “Swap” button on
the remote control.
▼
Quick way to access PIP size:
Simply press the “Size” button on
the remote control.
▼
HCM4715W/HCM4215W/
HCM4216W/PCL5415R :
Large, Small, Stock Ticker
HCM653WB/HCM553WB/HCM474W/
HCM5525WB/HCM422W/PCL545R:
Double Screen, Large, Small, Stock
Ticker, 4 Pictures, 13 Pictures.
1
Press the Menu button.
Press the CH button to
select “PIP”, then press the
VOL + button.
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
Changing the Size of the PIP Window
2
Press the CH button to
select “Size,” then press the
VOL + or VOL - button to
select the “Small”, “Double
Screen”, “Large”, “Stock
Ticker”, “4 Pictures” or
“13 Pictures”.
Press the Menu button to
exit.
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
Note: When ANT-B is selected, the PIP Swap function doesn’t work.
S
PECIAL FEATURES
4.13 CHAPTER FOUR:SPECIAL FEATURES
S
PECIAL FEATURES
1
Press the Menu button.
Press the CH button to
select “PIP”, then press the
VOL + button
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
Changing the PIP Channel
2
Press the CH button to
select “Channel,” then
press the VOL + or VOL -
button to change the
channel that appears in
the PIP window.
Press the Menu button to
exit.
PIP : On
SOURCE : TV
Size : Double Screen
Swap
ANT/CATV : ANT
Channel : ANT 4
PIP
When you press the Locate button repeatedly, the PIP window
moves from corner to corner on the TV screen.
Changing the Location (Rotating) in PIP mode
This procedure scans all of the available channels and then stores
them in memory.
Press the Scan button, and the memorized channels will appear in
sequence for 2 to 3 seconds per channel.
Press the Scan button again to stop the scanning process.
When Scan stops, the viewing mode will return to its original setting.
Scanning the Available Channels
▼
Quick way to access PIP CH:
Simply press the (PIP) “CH” button
on the remote control.
Note: The PIP channels are not available when RF is set to ANT-B.
(The PIP channels link to ANT-A).
CHAPTER FOUR:SPECIAL FEATURES 4.14
Setting Up Your Personal ID Number (PIN)
Using the V -Chip
The V-Chip feature automatically locks out programming that is deemed inappropriate for
children. The user must first enter a PIN (personal ID number) before any of the V-Chip
restrictions can be set up or changed.
Note : When the V-chip feature is active, the PIP and channel-auto program features do not
function.
1
Press the MENU.
Press the CH button to
select the “Function”, then
press the VOL + button.
Language : English
Plug & Play
Convergence
Caption
Time
V-Chip
Function
2
Press the CH button to
select the “V-chip”, then
press theVOL + button.
The “Enter Pin” screen will
appear. Enter your 4-digit
PIN number,
Note: The default PIN number for a new TV set is “0-0-0-0.”
3
After entering a valid PIN
number, the “V-chip” screen
will appear.
Press the CH button and
select “Change pin.”, then
press the VOL + button.
V-Chip Lock : No
TV Guidelines
MPAA Rating
Change Pin
V-Chip
4
While the “Change pin”
field is selected, press the
VOL + button.
The Change pin screen will
appear. Choose any
4-digits for your PIN and
enter them.
As soon as the 4 digits are entered, the “Confirm new pin” screen
appears. Re-enter the same 4 digits. When the Confirm screen
disappears, your PIN has been memorized.
Press the Menu button to exit.
Note: If you forget the PIN,
press the remote-control keys in the
following sequence, which resets the
pin to 0-0-0-0:
POWER OFF ➜ MUTE ➜ 8 ➜ 2 ➜
4 ➜ POWER ON.
▼
Quick way to access the V-Chip
menu: Simply press the V.Chip
button on the remote control.
▼
SPECIAL FEATURES
Change Pin
Enter New Pin :
Confirm New Pin
Confirm New Pin :
4.15 CHAPTER FOUR:SPECIAL FEATURES
SPECIAL FEATURES
How to Enable/Disable the V-Chip
1
Press the Menu button.
Press the CH button to
select “Function”, then press
the VOL + button.
Language : English
Plug & Play
Convergence
Caption
Time
V-Chip
Function
2
Press the CH button to
select “V-Chip,” then
press the VOL + button.
The “Enter Pin” screen will
appear. Enter your 4-digit
PIN number.
3
To enable the V-Chip feature,
press the VOL + button so
that the “V-Chip lock” field is
Yes. (Pressing the VOL +button will alternate between
Yes and No.)
V-Chip Lock : Yes
TV Guidelines
MPAA Rating
Change Pin
V-Chip
How to Set up Restrictions Using the “TV guidelines”
First, set up a personal identification number (PIN), and enable the V-Chip. (See previous
section.) Parental restrictions can be set up using either of two methods: The TV guidelines
or the MPAA rating.
1
Press the Menu button.
Press the CH button
to select “Function,”
then press the VOL +
button.
Language : English
Plug & Play
Convergence
Caption
Time
V-Chip
Function
CHAPTER FOUR:SPECIAL FEATURES 4.16
2
Press the CH button to
select the “V-Chip”, then
press the VOL + button.
The “Enter Pin” screen
will appear. Enter your
4-digit PIN number,
3
Press the CH button to
select the “TV Guidelines”,
then press the VOL + button.
V-Chip Lock : No
TV Guidelines
MPAA Rating
Change Pin
V-Chip
4
The “TV Guidelines” screen
will appear.
Press the CH , CH
buttons to select one of the
six age-based categories:
TV-Y Young children
TV-Y7 Children 7 and over
-----------------------------------TV-G General audience
TV-PG Parent Guidance
TV-14 Viewers 14 and over
TV-MA Mature audience
TV Guidelines
B : Blocked
U : Unblocked
5
At this point, one of the TV-Ratings is selected (blue color).
Press the VOL + button: Depending on your existing setup, a letter “U” or “B” will start blinking.
(U= Unblocked, B= Blocked)
While the “U” or ”B” is red, press the CH or CH button to block or unblock the category.
Press the VOL + button once to save the TV guidelines. A TV-Rating will be selected (BLUE), and no letters will
blink. To exit this screen, press the Menu button again. To select a different TV-Rating, press the CH or CH
button and then repeat the process.
Note 1: The TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step to change
any of the following sub-ratings:
FV: Fantasy violence
D: Dialog
L: Adult language
S: Sexual situation
V: Violence
Note 2: The V-Chip will automatically block certain categories that are “more restrictive.” For example, if you
block “TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category,
then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14 and TV-MA).
The sub-ratings (D, L, S, V) work together similarly. (See next section.)
Note: These categories consist of
two separate groups: TV-Y and TV-Y7
(young children through age 7), and
TV-G through TV-MA (everybody
else).
The restrictions for these two groups
work independently: If a household
includes very young children as well
as young adults, the TV guidelines
must be set up separately for each age
group. (See next step.)
▼
S
PECIAL FEATURES
4.17 CHAPTER FOUR:SPECIAL FEATURES
SPECIAL F
EATURES
6
How to set the FV, D, L, S and V sub-ratings:
First, select one of these TV-Ratings: TV-Y7, TV-PG, TV-14 or TV-MA (See Step 4, on previous page).
Next, while the TV-Rating is selected (BLUE), repeatedly press the VOL + button. This will cycle through the available sub-ratings (FV,L, S, D or V).
A blinking letter (“U” or “B”) will be displayed for each sub-rating. While the “U” or “B” is blinking, press the
CH or CH button to change the sub-rating.
Press the VOL + button once to save the TV guidelines. A TV-Rating will be selected (BLUE), and no letters will
blink. To exit this screen, press the VOL + button again. To select a different TV-Rating, press the CH or CH
button and then repeat the process.
Note: The V-chip will automatically block certain categories that are “More restrictive”. For example, if you block
“L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.
7
Press the Menu button three times to clear all the screens. (Or proceed to the next section, and set up additional
restrictions based on the MPAA codes).
How to Set up Restrictions using the MPAA Ratings:G, PG, PG-13, R, NC-17, X
The MPAA rating system uses the Motion Picture Association of America (MPAA) system,
and its main application is for movies. (Eventually, movie videocassettes will be encoded with
MPAA ratings.) When the V-Chip lock is on, the TV will automatically block any programs that
are coded with objectionable ratings (either MPAA or TV-Ratings).
1
Press the Menu button.
Press the CH button to
select the “Function”, then
press the VOL + button.
Language : English
Plug & Play
Convergence
Caption
Time
V-Chip
Function
CHAPTER FOUR:SPECIAL FEATURES 4.18
How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)
If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following
message will appear: “Excessive rating.”
To resume normal viewing, tune to a different channel using the number buttons. Under certain conditions
(depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use
the V-Chip function for an “emergency escape”:
Press the Menu button to display the menu. Press the CH button to select the “Function” menu and press
the VOL + button.
Press the CH button to select the “V-Chip” menu and press the VOL + button. Enter your PIN number, and
press the VOL + button to temporarily disable the V-Chip Lock.
Press the V-Chip button on the remote control. Enter your PIN number, and move the joystick to the right to
temporarly disable the V-Chip Lock.
G General audience (no restrictions).
PG Parental guidance suggested.
PG-13 PG-13 (Parents strongly cautioned).
R R (Restricted. Children under 17 should
be accompanied by an adult).
NC-17 No children under age 17.
X X (Adults only).
NR Not rated.
3
The “V-Chip” screen will
appear.
Press the CH button to
select “MPAA rating”, then
press the VOL + button.
V-Chip Lock : No
TV Guidelines
MPAA Rating
Change Pin
V-Chip
4
The “MPAA rating” screen
will appear.
Repeatedly press the CH
button to select a particular
MPAA category.
Pressing the CH button
will cycle through the MPAA
categories:
TV Guidelines
B/U
B : Blocked
U : Unblocked
General audience
While a particular category is highlighted, move the joystick to the right to activate it.
A blinking letter (“U” or “B”) will be displayed. Press the CH or CH buttonto select “U” or”B”.
Press the VOL + button to save the settings.
Note: The V-Chip will automatically block any category that is “more restrictive.” For example, if you block the “PG-
13” category, then “R,” “NC-17,” and “X” will automatically be blocked also.
S
PECIAL FEATURES
2
Press the CH button to
select the “V-chip”, then
press the VOL + button.
The “Enter Pin” screen will
appear. Enter your 4-digit
PIN number,
4.19 CHAPTER FOUR:SPECIAL FEATURES
S
PECIAL FEATURES
Viewing the Demonstration
To become familiar with the various menus provided by your television, you can view
the built-in demonstration.
1
Press the Menu button.
Picture icon will be
highlighted (blinking).
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
2
Press the CH button to
select “Demonstration”,
then press the VOL+ button.
3
Each of the menu options
is displayed in turn.
When you wish to stop
the demonstration, press
any button on the remote
control.
Note:
The Component3 jack is
available on PCL545R/
HCM422W/HCM474W/
HCM553WB/HCM653WB.
Press the Menu button to
exit.
Demo Mode
Exit
DVD COMPONENT1
DTV COMPONENT2
(COMPONENT3)
480p, 480i, 1080i
Auto Identification
Demo Mode
Stock Ticker
Demo Mode
3-2 Pull Down
DVD Input
Demo Mode
Infor Catcher
Demo Mode
Color Tone : Nomal
Demo Mode
Melody On/Off
Exit
Exit
Exit
Exit
Equalizer
Exit
Demo Mode
Mode : Custom
Adjust
Size : Wide
Digital NR : Off
Color tone : Normal
Demonstration
CHAPTER FOUR:SPECIAL FEATURES 4.20
SPECIAL F
EATURES
Customizing Your Remote Control
Your TV comes equipped with a “universal” remote control. In addition to
controlling the TV, the universal remote can also operate most VCRs, DVDs and cable
boxes (even if your VCR, cable box or DVD are made by manufacturers other than
Samsung).
Setting Up Your Remote Control to Operate Y our VCR (or DVD)
1
Turn off your VCR (or
DVD.)
2
Press the MODE button and make sure that the VCR (or DVD) LED
is illuminated.
3
On your Samsung remote control, press Set.
▼
The remote control has four
“modes”: “TV,” “VCR”, “Cable”
and “DVD.” Press the “MODE”
button to switch the remote control
to the “VCR” (or DVD) mode.
▼
4
Enter 3 digits of the VCR (or DVD) code listed on page 4.22 for
your brand of VCR (or DVD).
Make sure you enter 3 digits of
the code, even if the first digit is a
“0.”
If more than one code listed, try the
first one.
▼
5
Press the Power button on the remote control. Your VCR
(or DVD) should turn on. If your VCR (or DVD) turns on, your
remote control is now set correctly.
If your VCR (or DVD) does
not turn on, repeat steps 2, 3, and
4, but try one of the other codes
listed for the brand of your particular VCR (or DVD).
If no other codes are listed, try
each code, 000 through 089.
▼
6
Once your remote control is set up, press the MODE button
any time you want to use the remote to operate your VCR (or
DVD).
When your remote control is
in the “VCR” (or DVD) mode, the
volume buttons still control your
TV’s volume.
When your remote is in the “TV”
mode, the VCR control buttons
(PLAY, PAUSE, etc.) will still operate your VCR.
4.21 CHAPTER FOUR:SPECIAL FEATURES
▼
4
Enter 3 digits of the cable box code listed below for your brand of
cable box.
Make sure you enter 3 digits of
the code, even if the first digit is a
“0.” (If more than one code listed,
try the first one.)
▼
5
Press Power. Your cable box should turn on. If your cable box turns
on, your remote control is now “set up” correctly.
If your cable box does not turn
on, repeat steps 2, 3, and 4, but try
one of the other codes listed for your
particular brand of cable box. (If no
other codes are listed, try each cable
box code, 000 through 077.)
▼
6
Once your remote control is set up, press the MODE button any time
you want to use the remote to operate your cable box.
When your remote control is
in the “CABLE” mode, the volume
buttons still control your TV’s volume. Also, the VCR control buttons
(PLAY, PAUSE, etc.) will still operate
your VCR.
3
On your Samsung remote control, press SET.
▼
2
Press the MODE button and make sure that the Cable
LED is illuminated.
The remote control has four
“modes”: “TV,” “VCR,” “CABLE”
and “DVD.”
Press the “MODE” button to switch
the remote control to the “Cable”
mode.
1
Turn off your cable
box.
Setting Up Your Remote Control to Operate Y our Cable Box
SPECIAL FEATURES
CHAPTER FOUR:SPECIAL FEATURES 4.22
SPECIAL FEATURES
Cable Box
Codes
VCR Codes
DVD Codes
Note: The remote control might not be compatible with all DVD
Players, VCRs, and Cable boxes.
If the TV seems to have a problem, first try this list of possible problems and solutions. If
none of these troubleshooting tips apply, then call your nearest service center.
Identifying Problems
Note
Wide TV(16:9): If you watch a still image or the screen in the Normal(4:3) aspect
ratio format for a long time, images may be burned onto the
screen.
Normal TV(4:3): If you watch a still image or the screen in the Wide(16:9) aspect
ratio format for a long time, images may be burned onto the
screen.
5.1 CHAPTER FIVE: TROUBLESHOOTING
Chapter Five
TROUBLESHOOTING
Problem Possible Solution
Poor picture. Try another channel.
Adjust the antenna.
Check all wire connections.
Poor sound quality. Try another channel.
Adjust the antenna.
No picture or sound. Try another channel.
Press the TV/Video button.
Make sure the TV is plugged in.
Check the antenna connections.
No color, wrong colors or tints. Make sure the program is broadcast in color.
Adjust the picture settings.
Picture rolls vertically. Adjust the antenna.
Check all wire connections.
The TV operates erratically. Unplug the TV for 30 seconds, then try
operating it again.
Your remote control does not Press the “MODE” button to put your remote
operate your TV. control in the “TV” mode.
The TV won’t turn on. Make sure the wall outlet is working.
APPENDIX A.1
Cleaning and Maintaining Your TV
With proper care, your TV unit will give you many years of service. Please follow these
guidelines to get the maximum performance from your TV.
Placement
• Do not place the TV near extremely hot, cold, humid or dusty places.
• Do not place the TV near appliances with electric motors that create magnetic fields,
such as vacuum cleaners.
• Keep the ventilation openings clear; do not place the TV on a soft surface, such as
cloth or paper.
• Place the TV in a vertical position only.
Liquids
• Do not handle liquids near or on the TV. Liquids that spill into it can cause serious
damage.
Cabinet
• Never open the cabinet or touch the parts inside.
• Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or
chemicals.
• Do not put heavy objects on top of the cabinet.
Temperature
• If your TV is suddenly moved from a cold to a warm place, unplug the power cord,
and allow at least two hours for moisture that may have formed inside the unit to dry
completely.
Using Your TV in Another Country
If you plan to take your TV with you to a foreign country, please be aware of the different
television systems that are in use around the world. A TV designed for one system may
not work properly with another system due to differences in the TV channel frequencies
Specifications
APPENDIX
Model
V oltage
Frequency of Operation
Power Consumption
Dimensions
W eight
HCM653WB / HCM553WB / HCM474W / HCM422W / HCM5525WB /
HCM4715W / HCM4215W / HCM4216W / PCL545R / PCL5415R
AC 120V
60Hz
240 Watts
HCM653WB : 1529.0x 736.0 x 1587.0 mm ; 60.2 x 29.0 x 62.5 inches
HCM553WB / HCM5525WB : 1312 x 651 x 1435 mm ; 51.7 x 25.6 x 56.5 inches
HCM474W : 1132 x 588 x 1325 mm ; 44.6x 23.1 x 52.2 inches
HCM422W / HCM4215W / HCM4216W : 1002 x 450 x 1070 mm ; 39.4 x 17.7 x 42.1 inches
HCM4715W : 1132 x 583 x 1217 mm ; 44.6 x 23.0 x 47.9 inches
PCL545R / PCL5415R : 1161 x 605 x 1400 mm ; 45.7 x 23.8 x 55.1 inches
HCM653WB : 136 Kg ; 299.8 lbs, HCM553WB / HCM5525WB : 99.5 Kg ; 219.4 lbs
HCM474W : 76 Kg ; 167.5 lbs, HCM422W / HCM4215W / HCM4216W : 49 Kg ; 108.0 lbs
HCM4715W : 62 Kg ; 136.7 lbs, HCM545R : 70 Kg ; 154.3 lbs, HCM5415R : 70 Kg ; 156.5 lbs
