Thank you for purchasing this
Samsung DVD-Player. We have
manufactured this product to
provide you with many hours of
Audio / Video Entertainment. This
"QUICK START" guide has been
included to get you up and running
in the least amount of time as
possible.

However, if you still have questions
about this product, please contact
us via the following:

1-(800)-SAMSUNG

1-800-726-7864

or

www.samsungusa.com

*

Side One shows and describes all
Remote Control functions.

* Side Two shows all rear panel

Video and Audio connections.
Enjoy your viewing.

1. POWER Button

Turns the power on or off.

2. NUMBER Buttons

3. CLEAR Button

Use to remove menus or status displays
from the screen.

4. VCR Select Button

5. DVD Select Button

6. REWIND / SKIP BACK Button

7. STOP Button

8. SUBTITLE Button

9. MENU Button

Brings up the DVD-Player's setup menu.

10. RECORD Button

11. PROGRESSIVE / SPEED Button

12. MODE / REPEAT Button

13. OPEN / CLOSE Button

To open and close the disc tray.

14. AUDIO Button

Use this button to access various
audio functions on a disc.

15. INPUT SEL. / F.ADV / SKIP
Button

16. FAST-FORWARD / SKIP NEXT
Button

17. PLAY / PAUSE Button

Begin / Pause disc play.

18. INFO. Button

Displays the current disc mode.

19. RETURN Button

Returns to a previous menu.

20. ENTER / DIRECTION Buttons
(UP / DOWN or LEFT / RIGHT
Buttons)

These buttons function as a toggle
switch.

21. DISC MENU Button

Brings up the Disc menu.

22. MARK / SEARCH Button

23. ANGLE / TIMER Button

1 13

14

15

16
17

18
19

20

21

2

3

5

6

9

10
11

12

23

8

7

4

22

Side One

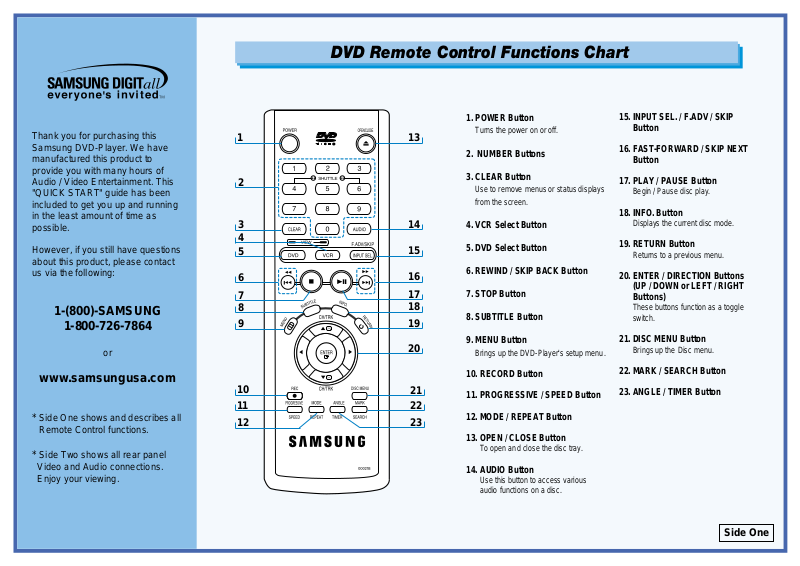

DVD Remote Control Functions Chart

To Line Inputs on your Television

To Television

From Antenna or Cable TV

Dolby Digital Decoder

Digital Audio Input Jack

DVD-V4600
BACK PANEL

Basic TV Video

NTSC

Connection

Enhanced

TV Video

Connection

Basic TV Audio

Left / Right

Connection

R

L

R

L

S-VIDEO OUT

S-Video Cable Video Cables AV Cable

AUDIO

LINE OUT

COMPONENT VIDEO OUT

YPr Pb

YPr

Pb

TELEVISION

BACK PANEL

DVD-V4600

BACK PANEL

Digital Audio Out

Basic Audio

Left / Right

Connection to Stereo

Amplifier

2ch Amplifier

Audio Input Jacks

Analog Audio Out

DVD-V4600
BACK PANEL

L

L

R

LINE OUT

AUDIO

R

Side Two

COAIXAL

COAIXAL

Connecting Your DVD - VCR

Coaxial Audio
Connection to
Home Theater

System
