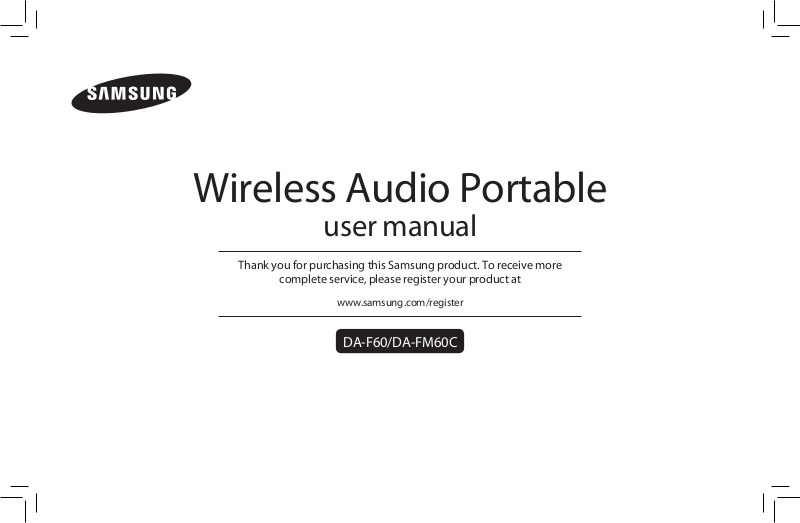

Samsung DA-F60-ZA User Manual
Wireless Audio Portable
user manual
Thank you for purchasing this Samsung product. To receive more
complete service, please register your product at
www.samsung.com/register
DA-F60/DA-FM60C
WHAT’S INCLUDED
5V 500mA
SERVICE
OPEN
AUX IN
DC 14V 2.5A
2
5V 500mA
USB
OPEN
AUX IN
DC 14V 2.5A
1
3
DC 14V 2.5A
AUX IN
5V 500mA
SERVICE
VOL
VOL
DC 14V 2.5A
AUX IN
SERVICE
5V 500mA
BASS
FUNC.
MUTE
VOL
OPEN
DC 14V 2.5A
AUX IN
5V 500mA
SERVICE
DC 14V 2.5A
AUX IN
5V 500
BASS
FUNC.
MUTE
VOL
OPEN
Check for the supplied accessories shown below. The appearance of the accessories may differ
slightly from the illustrations.
f When you charge smart phone via USB, the battery may discharge more quickly.
- Charging smart phone through the Service (USB) port takes longer than charging the
unit using the adapter. It is only chargeable when this product is turned on.
Power Adapter
(BN44-00659A)
Cover Fabric
(AH96-02524A)
Using the Cover Fabric
Wrap the cover around the product. The cover will be held in place by magnets.
YOUR WIRELESS AUDIO PORTABLE
SERVICE Port (Use to charge the smart
phone via a USB cable connected to the
unit. Also use to update the unit's rmware.)
Power cable connector
VOL
MUTE
NFC Tag
Function LED
English2
Battery indicator
FUNC.
BASS
AUX IN connector (Analog Input)
Reset hole
Volume control
MUTE button
Function button
Bluetooth , AUX , SoundShare
Power Bass button
Optimize the sound based on your tastes.
Power button (On/Off)
User Manual
(AH68-02622A)
Charge the battery
The battery status indicator is normally off to
conserve battery power. To check the charge level,
press and hold the Power button for 5 seconds. You
can play this product for 12 hours continuously on
one charge. For a full charge, we recommend you
charge the battery for about 3 hours.
]
[
OFF ...................... Full charge
Green .................. 60% to 99% of full charge
Yellow ..................30% to 60% of full charge
Red ...................... 30% or less
Red blink ............ Charge needed
Support
Don't pull the support too hard. You can damage it.
Power Adapter
f We recommend you charge the battery
for 3 hours.
f Charge and store the battery at 41° F
~ 95° F.
f Do not charge the battery for more
than 12 hours or leave the battery fully
discharged for a long time. Doing so
may shorten the battery life.
f Depending on how you use your
player, actual battery life may vary and
may be shorter than specied.
Reset your Product
SERVICE
5V 500mA
AUX IN
DC 14V 2.5A
OPEN
If an error occurs while you are operating this
product and it doesn't work properly, press the
Reset hole with a pen tip or similar item for 2
seconds.
USING THE NFC FUNCTION
BASS
BASS
Connect your NFC compatible device via Bluetooth to the
Wireless Audio Portable using this simple set-up procedure and
play music on the device through the Wireless Audio Portable.
1. Turn on the NFC function on the device and make sure the
screen lock function on the device is off. The device's NFC
function will not work if screen lock is on.
2. Gently touch the top of the Wireless Audio Portable's left
panel with the NFC supported device.
• If the Wireless Audio Portable is off, it will turn on
automatically.
3. A pop-up asking whether to proceed with the Bluetooth
connection appears on the device. Select<Yes>.
• When the connection is complete, the 'connected'
message appears.
4. To disconnect the NFC device, touch the device to the
Wireless Audio Portable's left panel again. To connect another
NFC device while the rst device is still connected, touch that
device to the Wireless Audio Portable's left panel. The
Wireless Audio Portable will disconnect the rst device and
connect to the second device.
f The NFC function is built into Android devices running
Android OS 4.1 Jellybean or later.
- If your device is running an Android OS earlier than
Android OS 4.1 Jellybean, you must download the
'Samsung NFC Connection' application from Android
market to use the NFC function.
f The position of the NFC antenna differs on devices. Check
where the NFC antenna is located before connecting.
f If your device is covered with a thick case, the connection
may not succeed.
USING BLUETOOTH
You can connect the Wireless Audio Portable to Bluetooth
devices and enjoy music with high quality stereo sound, all
without wires!
Bluetooth technology lets Bluetooth-compliant devices interconnect
easily with each other using a short wireless connection.
• A Bluetooth device may cause noise or malfunction,
depending on usage, when:
- A part of your body is in contact with the receiving/transmitting
system of the Bluetooth device or the Wireless Audio Portable.
- It is subject to electrical variation from obstructions caused
by a wall, corner, or by ofce partitioning.
- It is exposed to electrical interference from same
frequency-band devices including medical equipment,
microwave ovens, and wireless LANs.
• Pair the Wireless Audio Portable with the Bluetooth device
while they are close together.
• The further the distance between the Wireless Audio Portable
and Bluetooth device, the worse the quality. If the distance
exceeds the Bluetooth operational range, the connection is lost.
• The Bluetooth connection only works when the Bluetooth
device is close to the set. The connection is automatically cut
off if the Bluetooth device moves out of range. Even within
range, the sound quality may be degraded by obstacles such
as walls or doors.
• This wireless device may cause electric interference during its
operation.
To connect the Wireless Audio Portable to a
Bluetooth device
VOL
Connect
MUTE
FUNC.
BASS
External device
®
aptX
aptX enables high
quality Bluetooth
stereo audio that
delivers wired
audio quality
wirelessly.
FUNC.
1. Press the
the Bluetooth function.
2. Press the
3. The Bluetooth indicator blinks quickly and the product
changes to the pairing mode.
4. Scan or Search for the Wireless Audio Portable on your
Bluetooth device.
5. Select "[Samsung] W_Audio" on the list of items found by
the Bluetooth device.
• If the Bluetooth device fails to pair with the Wireless Audio
6. Play music on the connected device.
f In Bluetooth connection mode, the Bluetooth connection
will be lost if the distance between the Wireless Audio
Portable and the Bluetooth device exceeds 16.25 ft (5m).
button on the Wireless Audio Portable to select
FUNC.
button for 3 seconds in Bluetooth mode.
Portable, repeat Steps 2, 3, and 4.
3English
