Samsung d780 Exploded View Part List 03

5. Exploded View and Parts List

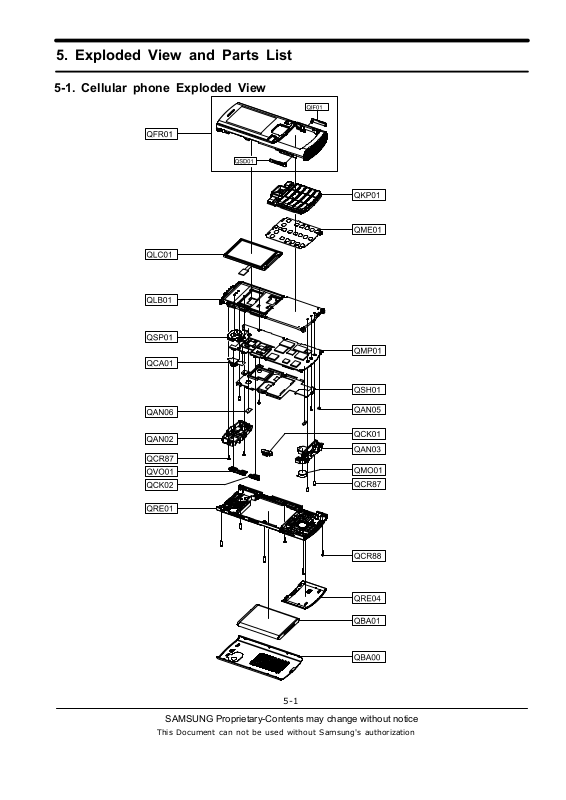

5-1. Cellular phone Exploded View

5-1

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

Exploded View and Parts List

5-2. Cellular phone Parts List

Design LOC Description SEC CODE

QAN02
QAN03
QAN05
QAN06
QBA00
QBA01
QCA01
QCK01
QCK02
QCR87
QCR87
QCR88
QKP01

QLB01
QLC01
QME01

QMO01
QMP01

QRE01
QRE04
QSH01
QSP01
QVO01
QFR01

INTENNA-SGHP240 UPPER GH42-01546A

INTENNA-SGHP240 LOWER GH42-01545A

ASSY RUBBER-INTENNA GH98-01592A

ASSY RUBBER-INTENNA CONTACT GH98-04988A

ASSY COVER-BATTERY GH98-07965A

INNER BATTERY PACK-1200MAH,BLK GH43-02986A

CAMERA MODULE-SGH P240 GH59-05590A

PMO KEY-CAMERA GH72-47114A

PMO KEY-SWITCH GH72-47115A

SCREW-TAPPING 6002-001412
SCREW-TAPPING 6002-001412
SCREW-TAPPING 6002-001409

ASSY KEYPAD-(SER/SIL) GH98-07966A

ASSY BRACKET-LCD GH98-08200A

LCD-SGH P240MODULE GH07-01270A

KEY FPCB-MAIN KEY PBA(P240) GH59-05594A

MOTOR DC-SGH P240 GH31-00434A

PBA MAIN-SGH_D780 GH92-04611A

ASSY CASE-REAR GH98-07964A
ASSY DECO-REAR GH98-08374A

ASSY BRACKET-SHIELD V2 GH98-08314A

SPEAKER 3001-002350

PMO KEY-VOLUME GH72-47113A

ASSY CASE-FRONT GH98-07963A

QIF01 PMO COVER-IF GH72-47091A

QSD01 PMO COVER-SD GH72-47092A
