Samsung BD-E6000E, BD-ES6000 User Manual

BD-ES6000 BD-ES6000E

Blu-ray

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

™

Disc Player

Safety Information

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates important instructions accompanying the product.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION

Blu-ray Disc Player USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE Blu-ray Disc Player CORRECTLY AS INSTRUCTED.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

IMPORTANT NOTE

The mains lead on this equipment is supplied with a molded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties.

2 English

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION :

• CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)

• THIS product UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

Precautions

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install

in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus.

11. Only use attachments/accessories specified

by the manufacturer.

12. Use only with the cart,

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14. Refer all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

01 Safety Information

English 3

Safety Information

Disc Storage & Management

• Holding Discs

- Fingerprints or scratches on a disc may reduce sound and picture quality or cause skipping

- Avoid touching the surface of a disc where data has been recorded.

- Hold the disc by the edges so that fingerprints will not get on the surface.

- Do not stick paper or tape on the disc.

• Cleaning Discs

- If you get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

- When cleaning, wipe gently from the inside to the outside of the disc.

• Disc Storage `Do not keep in direct sunlight. `Keep in a cool ventilated area. `Keep in a clean protection jacket and store

vertically.

Handling Cautions

• Do not expose this apparatus to dripping or

splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must

pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

• Do not plug multiple electric devices into the

same wall socket. Overloading a socket can cause it to overheat, resulting in a fire.

• Maintenance of Cabinet.

- Before connecting other components to this player, be sure to turn them off.

- If you move your player suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the player, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again.

• If the product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service centre for technical assistance. Do not use the product. Using the product as it is may cause a fire or an electric shock.

Using the 3D function

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the 3D function.

• Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea, and headaches. If you experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses, and rest.

• Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses, and rest.

• A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest.

• Do not use the 3D Active Glasses for other purposes (Such as general eyeglasses, sunglasses, protective goggles, etc.)

4 English

• Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may cause you to bump into objects, trip, and/or fall, and cause serious injury.

• If you want to enjoy 3D content, connect a 3D device (3D compliant AV receiver or TV) to the player's HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content.

• The player outputs 3D signals only through HDMI cable connected to the HDMI OUT port.

• As the video resolution in 3D play mode is fixed according to the resolution of the original 3D video, you can not change the resolution to your preference.

• Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode.

• You must use a high-speed HDMI cable for proper output of the 3D signal.

• Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46-inch screen, stay 138 inches (11.5 feet) from the screen.

• Place the 3D video screen at eye level for the best 3D picture.

• When the player is connected to some 3D devices, the 3D effect may not function properly.

• This player does not convert 2D content into 3D.

• "Blu-ray 3D" and "Blu-ray 3D" logo are trademarks of the Blu-ray Disc Association.

01 Safety Information

manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.

English 5

Contents

SAFETY INFORMATION

2 Warning 3 Precautions 3 Important Safety Instructions 4 Disc Storage & Management 4 Handling Cautions 4 Using the 3D function 5 Copyright

GETTING STARTED

8 Disc and Format Compatibility 8 Disc types and contents your player can

play 8 Disc types your player cannot play 9 Region Code 9 Logos of Discs the player can play 10 Supported Formats 12 Accessories 13 Front Panel 13 Rear Panel 14 Remote Control 14 Tour of the Remote Control

CONNECTIONS

15 Connecting to a TV 16 Connecting to an Audio System 16 Method 1 Connecting to an HDMI

supported AV receiver 16 Method 2 Connecting to an AV receiver

with Dolby Digital or DTS decoder 17 Connecting to a Network Router 17 Wired Network 17 Wireless Network

SETTINGS

18 The Initial Settings Procedure 18 The Home Screen 19 Accessing the Settings Screen 19 Buttons on the Remote Control Used for

the Settings Menu

20 Settings Menu Functions 25 Networks and the Internet 25 Configuring Your Network Connection 27 Wi-Fi Direct 28 Soft AP 29 AllShare Settings 29 Upgrading Software 29 By Online 30 By USB 30 By Disc 30 By Downloaded 31 Standby Mode Upgrade

MEDIA PLAY

32 Playing Commercial Video Discs 32 The AllShare Play Screen 32 Accessing the AllShare Play Screen 32 The AllShare Play Screen at a Glance 32 Playing Files on a USB Device or USB

Compatible Mobile Phone

33 Playing Commercial Audio Discs 33 Music Screen Controls 34 Playing a Disc with User Recorded

Content

34 Using the AllShare Network Function 34 To Download the AllShare Software 35 Playing Content Located on Your PC or

DLNA Device through the Blu-ray Disc Player

35 Controlling the Playback of Content

Located on Your PC with Your Smart Phone

6 English

36 Controlling Video Playback 36 Buttons on the Remote Control used for

Video Playback

36 Using the Tools Menu 38 Controlling Music Playback 38 Buttons on the Remote Control used for

Music Playback 38 Using the Tools Menu 38 Repeating Tracks on an Audio CD 38 Shuffling Tracks on an Audio CD 39 Creating a Playlist from a CD 39 Ripping 40 Playing Photo Contents 40 Using the Tools Menu 40 Using the Tools Menu when a file

is highlighted

NETWORK SERVICES

43 Using Smart Hub 43 Smart Hub at a Glance 44 Using the Web Browser 45 BD-LIVE™

APPENDIX

46 Compliance and Compatibility Notice 47 Copy Protection 47 Network Service Disclaimer 48 Licence 50 Additional Information 50 Note 52 Resolution according to the contents type 53 Digital Output Selection 54 Troubleshooting 56 Repairs 57 Specifications

Contents

English 7

Getting Started

Disc and Format Compatibility

Disc types and contents your player can play

Media Disc Type Details

Blu-ray Disc

3D Blu-ray Disc

VIDEO

MUSIC


| NOTE |

\The player may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions. \If a DVD-RW/-R has not been recorded properly in DVD video format, it will not be playable. \Your player will not play content that has been recorded on a DVD-R at a bit-rate that exceeds 10 Mbps. \Your player will not play content that has been recorded on a BD-R or USB device at a bit rate that exceeds 25 Mbps. \Playback may not work for some types of discs, or when you use specific functions, such as angle change and aspect ratio

adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

\When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly.

DVD-VIDEO

DVD-RW

DVD-R

DVD+RW

DVD+R

CD-RW/-R,

DVD-RW/-R,

BD-RE/-R

CD-RW/-R,

DVD-RW/-R,

BD-RE/-R

BD-ROM or BD-RE/-R recorded in the BD-RE format.

DVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVD-R/+R that have been recorded and finalized, or a USB storage media containing DivX, MKV, MP4 contents.

Music recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB storage media containing MP3 or WMA contents.

Photos recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB storage media containing JPEG contents.

Disc types your player cannot play

• HD DVD

• DVD-ROM/PD/

MV, etc

8 English

• DVD-RAM

• Super Audio CD

(except CD layer)

• DVD-RW(VR mode)

• CVD/CD-ROM/CDV/

CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)

• 3.9 GB DVD-R for Authoring.

Region Code

Both players and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play. The Region Number for this player is displayed on the rear panel of the player.

Logos of Discs the player can play

02 Getting Started

Blu-ray Disc 3D Blu-ray Disc

Disc Type

Blu-ray Disc

DVD-VIDEO

Region

Code

North America, Central America, South America, Korea, Japan,

Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa,

Australia and New Zealand.

India, China, Russia, Central and

South Asia.

The U.S., U.S. territories and

Canada

Europe, Japan, the Middle East,

Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines,

Indonesia, Hong Kong

Mexico, South America, Central America, Australia,

New Zealand, Pacific Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea,

Mongolia

Area

BD-LIVE DivX

PAL broadcast System in U.K.,

France, Germany, etc.

China

English 9

Getting Started

Supported Formats

Video File Support

File Extension Container Video Codec Resolution

*.avi

*.mkv

*.asf *.wmv *.mp4

*.3gp

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

`Limitations

- Even when a file is encoded by a supported codec listed above, the file might not be played if its content is defective or corrupted.

- Normal playback is not guaranteed if the file's container information is wrong or the file itself is corrupted.

- Files having higher bit or frame rates than standard may stutter when played back.

- The seek (skip) function is not available if the file's index table is damaged.

- When you playback a file remotely through a network connection, video playback may stutter depending on the network speed.

- Some USB/Digital camera devices may not be compatible with the player.

`Video decoder

- Supports up to H.264 Level 4.1

- Does not support GMC 2 or higher

`Audio decoder

- Supports WMA 7, 8, 9 and STD

- Does not support WMA 9 PRO multi-channel or lossless audio if the number of channels is more than 2.

- Does not support WMA sampling rate of 22050Hz mono.

AVI MKV ASF MP4 3GP VRO VOB

PS TS

DivX 3.11/4.x/

5.x/6.1

MPEG4 SP/ASP

H.264 BP/

MP/HP

Window Media

Video v9

MPEG2

MPEG1 352x288

1920x1080

Frame rate

(fps)

6~30

24/25/30

24/25/3 20

Bit rate (Mbps) Audio Codec

Dolby Digital

LPCM

AAC

HE-AAC

WMA DD+ MP3

DTS

10 English

`Comments

- MPEG4 : Supports up to GMC 1-Warping Point.

- H.264 : Supports up to BP/MP/HP Level 4.1.

- WMV : Supports V9, VC1 SP/MP/AP L3.

- MPEG1 : Does not support D-picture.

- MPEG2 : Supports up to Hight Profile High Level.

Supported DivX subtitle file formats

*.ttxt, *.smi, *.srt, *.sub, *.txt

| NOTE |

\Some DivX, MKV and MP4 format discs may not play,

depending on their video resolution and frame rate.

Music File Support

File

Extension

*.mp3

*.wma

Container

MP3

WMA

Audio

Codec

Support Range

MP3 -

* Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48

WMA

* Bit rates - All bit rates in the range 5kbps to 384kbps

Notes on the USB connection

• Your player supports USB storage media, MP3 players, digital cameras, and USB card readers.

• Some USB/digital camera devices may not be compatible with the player.

• Your player supports the FAT16, FAT32, and NTFS files systems.

• Connect USB devices directly to the player's USB port. Connecting through a USB cable may cause compatibility problems.

• Inserting more than one memory device into a multi-card reader may cause the reader to operate improperly.

• The player does not support the PTP protocol.

• Do not disconnect a USB device during a

"loading" process.

• The bigger the image resolution, the longer the image takes to display.

• This player cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial sites.

• Your player only supports video that is under 30fps (frame rate).

• Your player only supports USB Mass Storage Class (MSC) devices such as thumb drives and USB HDD. (HUB is not supported.)

• Certain USB HDD Devices, multi-card readers and thumb drives may not be compatible with this player.

• If some USB devices require excessive power, they may be limited by the circuit safety device.

• If playback from a USB HDD is unstable, provide additional power by plugging the HDD into a wall socket. If the problem continues, contact the USB HDD manufacturer.

• You must remove the USB storage device safely. (by performing the "Safely Remove USB" function to prevent possible damage to the USB memory.) Press the HOME button to move to the home screen, press the YELLOW (C) button, and then press the v button.

• SAMSUNG is not responsible for any data file damage or data loss.

• Your player does not support compression file, sparse file and encryption file of NTFS.

- Before disconnecting a USB device, please use USB Safety Removal.

- If you don't use USB Safety Removal, your data on USB device can be corrupted or lost

- You can repair or format a USB device on your Desktop PC. (MS-Windows OS only)

02 Getting Started

English 11

Getting Started

AVCHD (Advanced Video Codec High Definition)

• This player can play back AVCHD format discs. These discs are normally recorded and used in camcorders.

• The AVCHD format is a high definition digital video camera format.

• The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the conventional

image compressing format.

• Some AVCHD discs use the "x.v.Color" format. This player can play back AVCHD discs that use "x.v.Color" format.

• "x.v.Color" is a trademark of Sony Corporation.

• "AVCHD" and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd. and Sony

Corporation.

| NOTE |

\Some AVCHD format discs may not play, depending on the recording conditions.

AVCHD format discs need to be finalized.

\"x.v.Color" offers a wider colour range than normal DVD camcorder discs.

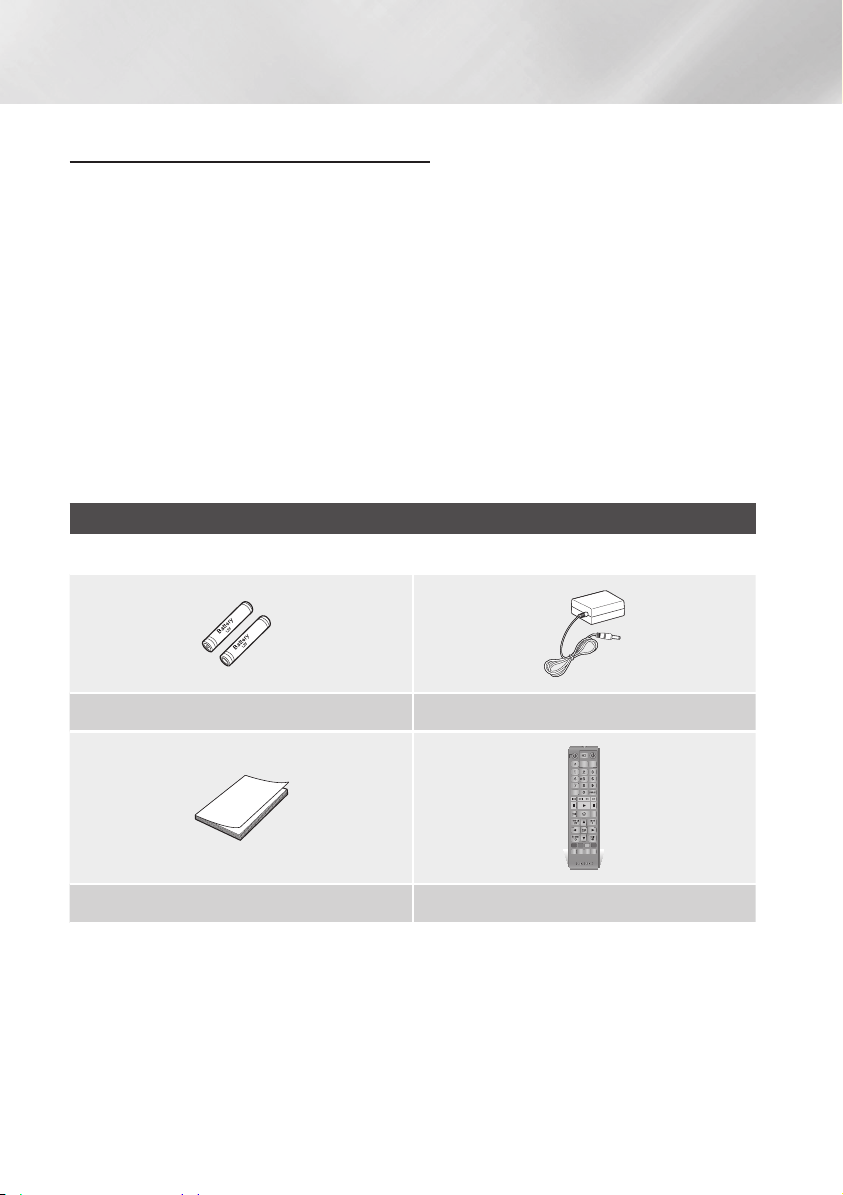

Accessories

Check for the supplied accessories shown below.

12 English

Batteries for Remote Control (AAA Size) Adapter

SOURCE

VOL VOL

– +

VOL

SAMSUNG TV

DISC MENU

TITLE MENU

POPUP

HOME REPEAT

SMART

HOME

HUB

INFOTOOLS

RETURN

EXIT

A B C D

BONUS SUBTITLE FULL

AUDIO

VIEW

PANDORA

DIGITAL

SUBTITLE

User Manual Remote Control

–

SCREEN

INPUT

Front Panel

STOP BUTTON

DISC SLOT

| NOTE |

\When the player displays the Blu-ray Disc menu, you cannot start the movie by pressing the Play button on the player or the

remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the v button.

\Lights when this player is in Standby mode, and it flashes while a signal is being received from the remote control sensor.

PLAY/PAUSE BUTTON

EJECT BUTTONPOWER BUTTON

STANDBY INDICATORREMOTE CONTROL SENSOR

Rear Panel

02 Getting Started

USB HOST DC 12V 2A

LAN

HDMI OUT

| NOTE |

\To upgrade the player's software through the USB Host jack, you must use a USB memory stick.

DIGITAL AUDIO OUT

English 13

Getting Started

Remote Control

Tour of the Remote Control

After setup, allows you to set the input

(This button is only available in samsung TV.)

Press numeric buttons to operate options.

Press to skip backwards or forwards.

Press to move to the home menu.

These buttons are used both for menus

on the player and also several Blu-ray Disc

Press to use bonusview function. Press to use full screen function.

Use to access various audio functions on a

source on your TV.

Turn the player on and off.

Press to eject a disc.

Use to enter the disc menu.

Press to stop a disc.

Press to use Smart Hub.

Press to use the Tools menu.

Return to the previous menu.

functions.

disc.

SOURCE

VOL VOL

– +

VOL

SAMSUNG TV

DISC MENU

SMART

HOME

HUB

RETURN

A B C D

BONUS SUBTITLE FULL

AUDIO

VIEW

PANDORA

DIGITAL

TITLE MENU

POPUP

HOME REPEAT

INFOTOOLS

EXIT

SCREEN

SUBTITLE

INPUT

Turn the TV on and off. (This button is only available in samsung TV.)

–

TV volume adjustment. (This button is only available in samsung TV.)

Use to enter the Popup menu/Title menu.

Press to search backwards or forwards.

Press to pause a disc.

Press to play a disc.

Press to use repeat function.

Use to display the playback information.

Use to select menu items and change menu values.

Press to exit the menu.

Press to switch the Blu-ray Disc/DVD's subtitle language.

Installing batteries

14 English

| NOTE |

\If the remote does not operate properly:

- Check the polarity +/– of the batteries.

- Check if the batteries are drained.

- Check if the remote sensor is blocked by obstacles.

- Check if there is any fluorescent lighting nearby.

| CAUTION |

\Dispose of batteries according to local environmental

regulations. Do not put them in the household trash.

Connections

Connecting to a TV

Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

- Do not connect the power cord to the wall outlet until you have made all the other connections.

- When you change the connections, turn off all devices before you start.

Audio Video

03 Connections

| NOTE |

\If you use an HDMI-to-DVI cable to connect to your display device, you must also connect the Digital Audio Out on the player

to an audio system to hear audio. \An HDMI cable outputs digital video and audio, so you don't need to connect an audio cable. \Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV. \When you connect the player to your TV using the HDMI cable or to a new TV, and then turn it on for the first time, the player

automatically sets the HDMI output resolution to the highest supported by the TV. \A long HDMI cable may cause screen noise. If this occurs, set HDMI Deep Colour to Off in the menu. \To view video in the HDMI 720p, 1080i, or 1080p output mode, you must use a High speed (category 2) HDMI cable. \HDMI outputs only a pure digital signal to the TV.

If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

English 15

Connections

Connecting to an Audio System

You can connect the Blu-ray player to an the audio system using the method illustrated below.

- Do not connect the power cord to the wall outlet until you have made all the other connections.

- When you change the connections, turn off all devices before you start.

Method 1 Connecting to an HDMI supported AV receiver

• Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your receiver.

• Best quality (Recommended)

Method 2 Connecting to an AV receiver with Dolby Digital or DTS decoder

• Using a digital Optical cable (not supplied), connect the Optical Digital Audio Out jack on the product to the Digital Optical In jack of the receiver.

• Good quality

• You will hear sound only through the front two speakers with Digital Output set to PCM.

16 English

Method 1

Audio

Method 2

Audio

Connecting to a Network Router

You can connect your player to your network router using one of the methods illustrated below.

To use the AllShare network functionality, you must connect your PC to your network as shown in the illustrations. The connection can be wired or wireless.

Wired Network

Broadband modem

(with integrated router)

Broadband

Router

Broadband

modem

| NOTE |

\Internet access to Samsung's software update server

may not be allowed, depending on the router you use or your ISP's policy. For more information, contact your ISP (Internet Service Provider).

\DSL users, please use a router to make a network

connection.

service

Broadband service

Wireless Network

03 Connections

Wireless Router

Broadband

service

| NOTE |

\If your wireless router supports DHCP, this player can use

a DHCP or static IP address to connect to the wireless network.

\Set your wireless router to Infrastructure mode. Ad-hoc

mode is not supported.

\The player supports only the following wireless security

key protocols:

- WEP (OPEN/SHARED), WPA-PSK (TKIP/AES),

WPA2-PSK (TKIP/AES)

\Select a channel on the wireless router that is not

currently being used. If the channel set for the wireless router is currently being used by another device nearby, it will result in interference and communication failure.

\If you select the Pure High-throughput (Greenfield)

802.11n mode and set the Encryption type on your router or router to WEP, TKIP or TKIP-AES (WPS2Mixed), the player will not support a connection in compliance with new Wi-Fi certification specifications.

\Wireless LAN, by its nature, may cause interference,

depending on the operating conditions (router performance, distance, obstacles, interference by other radio devices, etc).

English 17

Settings

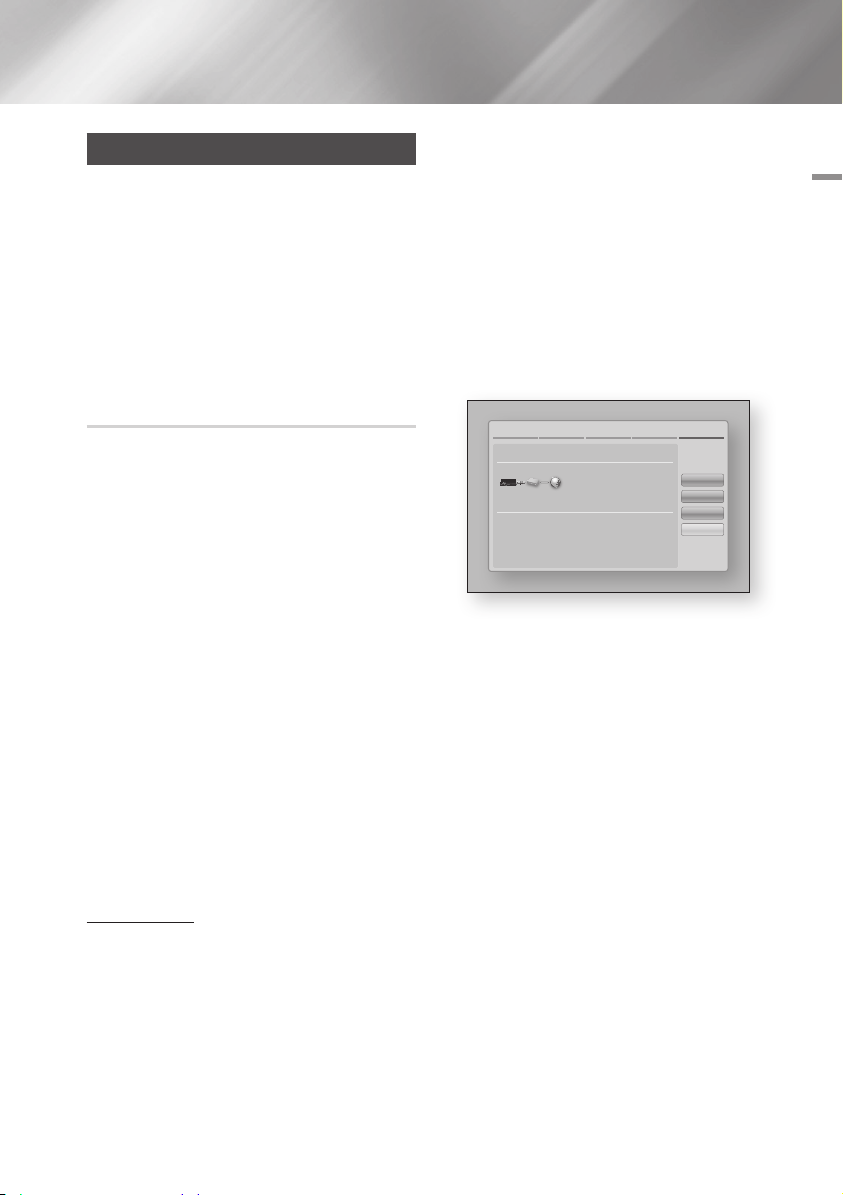

The Initial Settings Procedure

• The Home screen will not appear if you do not configure the initial settings.

• The OSD (On Screen Display) may change in this player after you upgrade the software version.

• The access steps may differ depending on the menu you selected.

The Initial Settings Procedure lets you set the OSD and menu languages, configure the connection to your home network, choose the aspect ratio output (screen size and format) that is correct for your TV, and apply an upgrade to your player's software, if one is available.

| NOTE |

\If you skip Network Setup during the Initial Settings

procedure, you can configure your network settings later. See "Configuring Your Network Connection" on pages 25~27 for instructions.

\If you want to display the Initial Settings screen again and

make changes, select Settings > System > Initial Settings in the Home screen or select the Reset option. (See pages 22 or 24)

\If you want to use an Anynet+(HDMI-CEC) function,

please follow the instructions below.

1) Connect the player to an Anynet+(HDMI-CEC)compliant Samsung TV using HDMI Cable.

2) Set the Anynet+(HDMI-CEC) feature to On in both the TV and the player.

3) Set the TV to the Initial Settings Procedure.

The Home Screen

Settings

Set various functions to suit your personal preferences.

`Selecting an Option on the Home Screen

1. To select an option on the Home screen,

| NOTE |

\If you leave the player in the stop mode for more than

5 minutes without using it, a screen saver will appear on your TV. If the player is left in the screen saver mode for more than 20 minutes, the power will automatically turn off.

Smart Hub AllShare Play

Smart Hub : Starts Smart Hub. From Smart Hub,

you can access YouTube, games, and other apps.

AllShare Play : Play videos, photos or music content from Disc, USB, PC or mobile devices.

Settings : Set various functions to suit your personal preferences.

move the cursor using the ◄► buttons until it highlights the option of your choice, and then press the v button.

18 English

Accessing the Settings Screen

HOME

VOL

–

SOURCE

DISC MENU

HOME REPEAT

TITLE MENU

VOL VOL

POPUP

SAMSUNG TV

SMART

HUB

– +

INFOTOOLS

RETURN

EXIT

1. Select Settings on the Home screen, and

then press v button. The Settings screen appears.

3D Settings

Display

TV Aspect Ratio 16:9 Original Smart Hub Screen Size Size 3

Audio

BD Wise On

Resolution Auto

Network

Movie Frame (24Fs) Auto

System

HDMI Colour Format Auto HDMI Deep Colour Auto

Support

Progressive Mode Auto

2. To access the menus, sub-menus, and

options on the Settings screen, please refer to the remote control illustration below.

Buttons on the Remote Control Used for the Settings Menu

Detailed Function Information

Each Settings function, menu item, and individual option is explained in detail on-screen. To view an explanation, use the ▲▼◄► buttons to select the function, menu item, or option. The explanation will usually appear on the right side of the screen. A short description of each Settings function starts on the next page. Additional information on some of the functions is also in the Appendix of this manual.

04 Settings

2 4

HOME Button : Press to move to the Home screen.

RETURN Button : Return to the previous menu.

(Enter) / DIRECTION Buttons :

• Press ▲▼◄► to move the cursor or select an item.

• Press the v button to activate the currently selected item or confirm a setting.

EXIT Button : Press to exit the current menu.

English 19

Settings

Settings Menu Functions

Display

Select whether to play a Blu-ray Disc with 3D contents in 3D Mode.

3D Settings

TV Aspect Ratio

Smart Hub Screen Size

BD Wise

Resolution

Movie Frame (24Fs)

HDMI Colour Format

HDMI Deep Colour

Progressive Mode Lets you improve picture quality when viewing DVDs.

•

If you move to the Home or Smart Hub Home screen while in 3D mode, the player will switch to 2D automatically.

Lets you adjust the output of the player to the screen size and screen format of your TV.

Lets you select the optimal size for the Smart Hub Screen.

BD Wise is Samsung's latest inter-connectivity feature. When you connect a Samsung player and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the player and TV, the player outputs video at the video resolution and frame rate of the Blu-ray Disc/DVD.

Set the output resolution of the HDMI video signal to Auto, 1080p, 1080i, 720p or 576p/480p. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. Generally, the higher quality.

If the player is connected to a 24Fs compatible TV, setting the Movie Frame (24Fs) feature to Auto lets the player adjust its HDMI output to 24 frames per second automatically for improved picture quality.

•

You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate.

•

Movie Frame is only available when the player is in the HDMI 1080i or 1080p output resolution modes.

Lets you set the colour space format for the HDMI output so that it matches the capabilities of the connected device (TV, monitor, etc). The screen goes black momentarily after you have selected a format.

Lets you set the product to output HDMI video with Deep Colour. Deep Colour provides more accurate colour reproduction with greater colour depth.

20 English

Audio

Digital Output

PCM Downsampling

Dynamic Range Control

Downmixing Mode

Lets you select the digital audio output format that is suitable for your TV or AV Receiver. For more details, see the digital output selection table on page 53.

Lets you choose to have 96Khz PCM signals downsampled to 48Khz before they are outputted to an amplifier. Choose On if your amplifier or receiver is not compatible with a 96Khz signal.

Lets you apply dynamic range control to Dolby Digital, Dolby Digital Plus, and Dolby True HD audio.

Auto : Automatically controls the dynamic range of

Dolby TrueHD audio, based on information in the Dolby TrueHD soundtrack. Also turns dynamic range control on for Dolby Digital and Dolby Digital Plus.

Off : Leaves the dynamic range uncompressed,

letting you hear the original sound.

On : Turns dynamic range control on for all three

Dolby formats. Quieter sounds are made louder and the volume of loud sounds is reduced.

Lets you select the multi-channel downmix method that is compatible with your stereo system. You can choose to have the player downmix to normal stereo or to surround compatible stereo.

04 Settings

Network

Network Settings

Network Status Lets you check the current network and Internet status.

Wi-Fi Direct

Configure the network connection so you can enjoy various features such as Internet services or AllShare Wi-Fi functionality, and perform software upgrades.

Lets you connect a Wi-Fi Direct device to the player using a peer-to-pear network, without the need for a wireless router. Note that if you set wireless network, it may be disconnected while you're using Wi-Fi Direct.

English 21

Settings

Network

System

Lets you connect other types of Wi-Fi devices to the

Soft AP

AllShare Settings

Device Name

BD-Live Settings

Initial Settings Lets you re-run the Initial Settings procedure.

Quick Start

Anynet+(HDMI-CEC)

player wirelessly. Requires that you create a security key which you must enter into the other Wi-Fi devices when you are connecting them to the network.

Lists network connected AllShare devices and lets you control whether each device (a smartphone, a tablet, etc.) can share content with or control the player.

Lets you input a name for the player that will identify it on your networks.

Set various BD-Live function. BD-Live allows you to access extra features available on some Blu-ray Discs if you are connected to the Internet.

BD-Live Internet Connection : Lets you fully allow,

partly allow, or prohibit a BD-Live Internet connection.

BD Data Management : Manage BD data

downloaded from a BD-Live service or Blu-ray Disc.

Lets you set the player to turn on quickly by decreasing the boot time.

| NOTE |

\If this function set to On, Standby power consumption will be

increased.

Anynet+ is a convenient function that offers linked operations with other Samsung players that have the Anynet+ feature and lets you control those products with one Samsung TV remote. To operate this function, you must connect this player to an Anynet+ Samsung TV using an HDMI cable.

22 English

System

Device Manager

Language

You can connect a wireless USB keyboard or mouse to the USB port on the rear of the player.

Keyboard Settings : Lets you configure a wireless

USB keyboard connected to the player.

| NOTE |

\You can use the keyboard only when a QWERTY keyboard

screen or window appears in the Web Browser.



Mouse Settings : Lets you configure a wireless USB mouse connected to the player. You can use the mouse in the player's menu in the same way you use a mouse on your PC.

`To use a mouse with the player's menu:

Connect the USB mouse to the player.

Click the primary button you selected in Mouse Settings. The Simple Menu appears.

Click the menu options you want.

| NOTE |

\Depending on the model of the USB HID keyboard and mouse

may not be compatible with your product. \Some HID keyboard keys may not work. \Wired USB keyboards are not supported. \Some applications may not be supported. \If a wireless HID Keyboard does not operate because of

interference, move the keyboard closer to the player.

You can select the language you prefer for the Onscreen menu, disc menu, subtitles, etc.

•

The language you select for the disc menu, disc audio, or subtitles will only appear if it is supported on the disc.

04 Settings

English 23

Settings

System

Support

Security

General

DivX® Video On

Demand

Software Upgrade

Contact Samsung

Remote Management

Reset

The default PIN is 0000. Enter the default PIN to access the security function if you haven't created your own PIN. After you have accessed the security function for the first time, change the PIN using the Change PIN function.

BD Parental Rating : Prevents playback of Blu-ray

Discs with a rating equal to or above a specific age rating you enter unless the PIN is entered.

DVD Parental Rating : Prevents playback of DVDs

with a rating above a specific numerical rating you select unless the PIN is entered.

Change PIN : Change the 4-digit PIN used to access

security functions.

`If you forget your PIN:

Remove any disc or USB storage device.

Press and hold the @ button on the front panel for 5 seconds or more. All settings will revert to the factory settings.

You can change the options listed below to match your preferences.

Time Zone : Select the time zone in which you live. Menu Transparency : Adjust the transparency of the

menu box.

View DivX® VOD Registration Codes to purchase and play DivX® VOD contents.

For more information about the Software Upgrade function, see "Upgrading Software" on pages 29~31.

Provides contact information for assistance with your player.

When activated, lets Samsung Call Centre agents diagnose and fix problems with the product remotely. Requires an active Internet connection.

| NOTE |

\Remote Management service might not be available in some

countries.

\Contact your nearest service centre for your PIN code and tell

the code to the person in charge. It enables remote diagnosis of the product and required measures.

Resets all settings to their default settings except for the network and Smart Hub settings. The default security PIN is 0000.

24 English

Networks and the Internet

When you connect this player to a network, you can use network based applications and functions such as Smart Hub and BD-LIVE, and upgrade the player's software through the network connection. For more information about accessing and using Internet services, see the Network Services chapter of this manual on pages 43~45. Instructions for configuring the network connection start below.

Configuring Your Network Connection

Before you begin, contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, and you have a wired or wireless network, we recommend using the Automatic configuration procedures described below.

If you are connecting to a wired network, connect the player to your router using a LAN cable before you start the configuration procedure. If you are connecting to a wireless network, disconnect any wired network connection before you begin. To begin configuring your network connection, follow these steps:

1. In the Home screen, select Settings, and

then press the v button.

2. Select Network, and then press the v

button.

3. Select Network Settings, and then press the

button.

4. Go to the instructions for Wired networks

starting below or the instructions for Wireless networks starting on page 26.

Wired Network

Wired - Automatic

After following Steps 1 to 3 above:

1. Select Start in the Network Settings screen,

and then press the v button. The player detects the wired connection, verifies the network connection and then connects to the network.

Wired - Manual

If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually.

After following Steps 1 to 3 above:

1. Select Start in the Network Settings screen,

and then press the v button. The Network Status screen appears. The player attempts to verify the network connection and fails.

Network Settings

Wired network connection failed.

Unable to connect to the network. Try the following: check if your IP address is set correctly in IP Settings. Contact your Internet service provider for more information.

MAC Address XX:XX:XX:XX:XX:XX IP Address 0.0.0.0 Subnet Mask 0.0.0.0 Gateway 0.0.0.0 DNS Server 0.0.0.0

IP Settings

Retry

2. Select IP Settings on the right of the screen,

and press the v button. The IP Settings screen appears.

3. Select the IP Mode field, and then set it to

Manual.

4. Use the number keypad on your remote to

enter the Network values. Use the ▲▼◄► buttons on the remote to move from entry field to entry field.

| NOTE |

\You can get these values from your Internet provider. You

can also view these values on most Windows computers. For instructions, see "Getting the Network Settings Values." on page 26.

5. When done, highlight OK, and then press

button. The player verifies the network

connection and then connects to the network.

04 Settings

English 25

Settings

< Getting the Network Settings Values >

You can view your Network Settings values on most Windows computers. To view the Network Settings values, follow these steps:

• Windows XP

1. Right click the Network icon on the bottom

right of the Windows desktop.

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support

tab.

4. On the Support tab, click the Details button.

The Network settings are displayed.

• Windows 7

1. Click the Network icon on the bottom right of

the Windows desktop.

2. In the pop-up menu, click Network and

Sharing Centre.

3. On the dialog that appears, click the Local

Area Connection or Wireless Network Connection depending on your network connection.

4. On the Support tab, click the Details button.

The Network settings are displayed.

| NOTE |

\Depending on your Windows version, the information may

differ.

Wireless Network

You can setup a wireless network connection in three ways:

- Wireless Automatic

- Wireless Manual

- WPS(PBC)

When you configure the wireless network connection, any wireless network devices currently connected through the player or, if applicable, the player's current wired connection, will be disconnected.

Wireless (General) - Automatic

After followng Steps 1 to 3 in "Configuring Your Network Connection" on page 25.

1. Select Start in the Network Settings screen,

and then press the v button. The player searches for and then displays a list of the available networks.

Network Settings

Select your wireless router from the list.

iptime23

ELT

JSY

KT_WLAN_C361

Mirhenge_edu

SO070VOIP

Refresh

WPS(PBC)

Cancel

2. Select the desired network, and then press

the v button.

3. Select Next, and then press the v button

again.

4. On the Security screen, enter your network's

Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with an arrow button, and then pressing v button.

5. When done, select Next at the right of the

screen. The player verifies the network connection and then connects to the network.

| NOTE |

\You should be able to find the Security Code or Pass

Phrase on one of the set up screens you used to set up your router or modem.

Wireless (General) - Manual

If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually.

After folloiwng Steps 1 to 3 in "Configuring Your Network Connection" on page 25.

26 English

1. Select Start in the Network Settings screen,

and then press the v button. The player searches for and then displays a list of the available networks.

2. Select the desired network, and then press

the v button.

3. Select Next, and then press the v button

again.

4. On the Security screen, enter your network's

Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the ▲▼◄► buttons, and then pressing the v button.

5. When done, select Next at the right of the

screen, and then press the v button.

6. The Network Status screen appears.

The player attempts to verify the network connection and fails.

7. Select IP Settings on the right of the screen,

and press the v button. The IP Settings screen appears.

8. Select the IP Mode field, and then set it to

Manual.

9. Use the number keypad on your remote to

enter the Network values. Use the ▲▼◄► buttons on the remote to move from entry field to entry field.

| NOTE |

\You can get these values from your Internet provider. You

can also view these values on most Windows computers. For instructions, see "Getting the Network Settings Values." on page 26.

10. When done, highlight OK, and then press v

button. The Network Status screen appears. The product verifies the network connection and then connects to the network. When it is done, highlight OK, and then press v button.

WPS(PBC)

After followng Steps 1 to 3 in "Configuring Your Network Connection" on page 25.

1. Select Start in the Network Settings screen,

and then press the v button. The player searches for and then displays a list of the available networks.

2. Press the WPS(PBC) button on your router

within two minutes. Your player automatically acquires all the network settings values it needs and connects to your network. The Network Status screen appears. The player connects to the network after the network connection is verified.

Wi-Fi Direct

The Wi-Fi Direct function allows you to connect Wi-Fi Direct devices to the player and each other using a peer-to-peer network, without a wireless router.

| NOTE |

\Some Wi-Fi Direct devices may not support the AllShare

function if connected via Wi-Fi Direct. If this is the case, it is advisable to change the network connection method between devices.

1. Turn on the Wi-Fi direct device and activate

its Wi-Fi Direct function.

2. In the Home screen, select Settings, and

then press the v button.

3. Select Network, and then press the v

button.

4. Select Wi-Fi Direct, and then press the v

button. The Wi-Fi Direct devices that you can connect appear.

Display

Audio

Network

System

Support

Wi-Fi Direct

Refresh

' Return

Device Name : [BD]ES6000 Select your Wi-Fi Direct device to connect to.

AndroidXXXXXXX Disconnected

04 Settings

English 27

Settings

5. You have three ways to complete the Wi-Fi

connection:

• Through the Wi-Fi device.

• Through the player using PBC.

• Through the player using a PIN.

Each is covered below.

Through the Wi-Fi Device

1. On the Wi-Fi device, follow the procedure on

the device for connecting to another Wi-Fi Direct device. See the device's user manual for instructions.

2. When you have completed the procedure,

you should see a pop-up on your TV screen saying that a device that supports Wi-Fi Direct has requested to connect. Select OK, and then press the v button to accept.

3. The Connecting pop-up appears, followed

by the Connected pop-up. When it closes, you should see the device listed on the Wi-Fi Direct screen as connected.

Through the Player Using PBC

1. Select the Wi-Fi Direct device you want to

connect to this player, and then press the v button. The PBC/PIN pop up appears.

2. Select PBC, and then press the v button.

The PBC pop-up appears.

3. Press the PBC button on the Wi-Fi Direct

device within 2 minutes.

4. The Connecting pop-up appears, followed

by the Connected pop-up. When it closes, you should see the device listed on the Wi-Fi Direct screen as connected.

Through the Player Using a PIN

1. Select the Wi-Fi Direct device you want to

connect to this player, and then press the v button. The PBC/PIN pop up appears.

2. Select PIN, and then press the v button.

The PIN pop-up appears.

3. Note the PIN code in the pop-up, and then

enter it into the appropriate field in the Wi-Fi Direct device you want to connect.

4. The Connecting pop-up appears, followed

by the Connected pop-up. When it closes, you should see the device listed on the Wi-Fi Direct screen as connected.

| NOTE |

\The wired or wireless network connection will be

disconnected when you use the Wi-Fi Direct function.

Soft AP

Soft AP is short for Software enabled Access Point. Soft AP lets you connect other Wi-Fi devices to your network through the player and lets you can enjoy various features such as AllShare network functionality or network remote control. It requires that you create a security key which you must enter into the other Wi-Fi devices when you are connecting them to the network.

1. In the Home screen, select Settings, and

then press the v button.

2. Select Network, and then press the v

button.

3. Select Soft AP, and then press the v

button.

4. Select On or Off, and then press the v

button.

< To Set the Soft AP Security Key >

1. On the Soft AP screen, select Security Key,

and then press the v button. The Security Key screen appears.

2. On the Security key screen, enter a security

key. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the ▲▼◄► buttons, and then pressing the v button.

3. When done, use the the ▲▼◄► buttons to move to DONE at the bottom of the screen, and then press the v button.

When you connect a Wi-Fi device through the connection procedure on the device, you must enter the security key you created here into the appropriate field.

28 English

AllShare Settings

The AllShare Settings screen lists your network connected AllShare devices and their IP addresses. Through this screen, you can allow a device to access the player, deny access, or delete the device from the AllShare list.

1. In the Home screen, select Settings, and

then press the v button.

2. Select Network, and then press the v

button.

3. Select AllShare Settngs, and then press the

button.

4. Select a device, and then press the v

button. The AllShare Settings pop-up appears.

5. Select Allow, Deny, or Delete from List, and

then press the v button.

The AllShare Settings screen only displays devices if you have established networked connections to AllShare devices. For more information about AllShare networked devices, see page 32.

Upgrading Software

The Software Upgrade menu allows you to upgrade the player's software for performance improvements or additional services.

• Never turn the player off or back on manually during the update process.

1. In the Home screen, select the Settings, and

then press the v button.

2. Select Support, and then press the v

button.

3. Select Software Upgrade, and then press

the v button.

4. Select one of the following methods:

• By Online

• By USB

• By Disc

• By Downloaded

• Standby Mode Upgrade

5. Press the v button.

| NOTE |

\The upgrade is complete when the player turns off, and

then turns on again by itself.

\Samsung Electronics shall takes no legal responsibility

for player malfunction caused by an unstable Internet connection or consumer negligence during a software upgrade.

\If you want to cancel the upgrade while the upgrade

software is downloading, press the v button.

By Online

Your player must be connected to the Internet to use the By Online function.

1. Select By Online, and then press the v

button. The Connecting to Server message appears.

2. If there is a download available, the Download

pop-up appears with a progress bar and the download starts.

3. When the download is complete, the

Upgrade Query window appears with three choices: Upgrade Now, Upgrade Later, or Don't Upgrade.

4. If you select Upgrade Now, the player

upgrades the software, turns off, and then turns on automatically.

5. If you do not make a selection in one minute

or select Upgrade Later, the player stores the new upgrade software. You can upgrade the software later using the By Downloaded function.

6. If you select Don't Upgrade, the player

cancels the upgrade.

04 Settings

English 29

Settings

By USB

1. Visit www.samsung.com.

2. Click SUPPORT on the top right of the page.

3. Enter the product's model number into the search field, and then click Find Product.

4. Click Get downloads in the centre of the

page below the Downloads header.

5. Click Firmware in the centre of the page.

6. Click the ZIP icon in the File column on the

right side of the page.

7. Click OK in the pop-up that appears to download and save the firmware file to your PC.

8. Unzip the zip archive to your computer. You should have a single folder with the same name as the zip file.

9. Copy the folder to a USB flash drive.

10. Make sure no disc is inserted in the player,

and then insert the USB flash drive into the USB port of the player.

11. In the player's menu, go to Settings > Support > Software Upgrade.

12. Select By USB.

| NOTE |

\There should be no disc in the player when you upgrade

the software using the USB Host jack.

\When the software upgrade is done, check the software

details in the software Upgrade menu.

\Do not turn off the player during the software upgrade.

It may cause the player to malfunction.

\Software upgrades using the USB Host jack must be

performed with a USB flash memory stick only.

By Disc

1. Follow Steps 1 through 7 in By USB.

2. Unzip the zip archive to your computer. You

should have a single folder with the same name as the zip file.

3. Write the folder onto a disc. We recommend

a CD-R or DVD-R.

4. Finalize the disc before you remove it from

your computer.

5. Insert the disc into the player.

6. In the player's menu, go to Settings >

Support > Software upgrade.

7. Select By Disc.

| NOTE |

\When the system upgrade is done, check the software

details in the software Upgrade menu.

\Do not turn off the player during the Software Upgrade.

It may cause the player malfunction.

By Downloaded

The By Downloaded option lets you upgrade using a file the player downloaded earlier but you decided not to install immediately or a file downloaded by the player in Standby Mode.

1. If upgrade software has been downloaded,

you will see the software version number to the right of By Downloaded.

2. Select By Downloaded, and then press the

button.

3. The player displays a message asking if you want to upgrade. Select Yes. The player begins the upgrade.

4. When the update is complete, the player turns off automatically, and then turns on.

| NOTE |

\When the system upgrade is done, check the software

details in the software Upgrade menu.

\Do not turn off the player during the software Upgrade.

It may cause the player to malfunction.

30 English

+ 206 hidden pages
