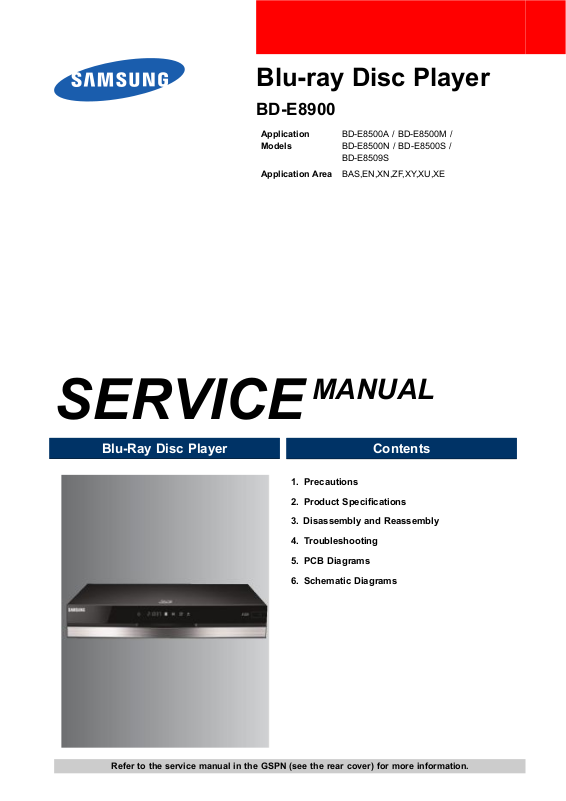

Blu-rayDiscPlayer

BD-E8900

Application Models

ApplicationAreaBAS,EN,XN,ZF,XY ,XU,XE

BD-E8500A/BD-E8500M/ BD-E8500N/BD-E8500S/ BD-E8509S

MANUAL

SERVICE

Blu-RayDiscPlayer

1.Precautions

2.ProductSpecications

3.DisassemblyandReassembly

4.Troubleshooting

5.PCBDiagrams

6.SchematicDiagrams

Contents

RefertotheservicemanualintheGSPN(seetherearcover)formoreinformation.

Page 2

Contents

1.Precautions......................................................................................................................................1−1

1.1.SafetyPrecautions...................................................................................................................1−1

1.2.ServicingPrecautions...............................................................................................................1−3

1.2.1.GeneralServicingPrecautions.......................................................................................1−3

1.2.2.InsulationCheckingProcedure.......................................................................................1−3

1.3.ESDPrecautions......................................................................................................................1−4

1.4.Handlingtheopticalpick-up......................................................................................................1−5

2.ProductSpecications........................................................................................................................2−1

2.1.ProductSpecication................................................................................................................2−1

2.1.1.PlayerFeatures...........................................................................................................2−2

2.1.2.Blu-rayDiscFeatures...................................................................................................2−2

2.1.3.Disctypesandcontentsyourproductcanplay..................................................................2−3

2.1.4.HDDRecording..........................................................................................................2−4

2.1.5.Disctypesyourproductcannotplay................................................................................2−4

2.1.6.Regioncode...............................................................................................................2−4

2.1.7.SupportedFormats.......................................................................................................2−5

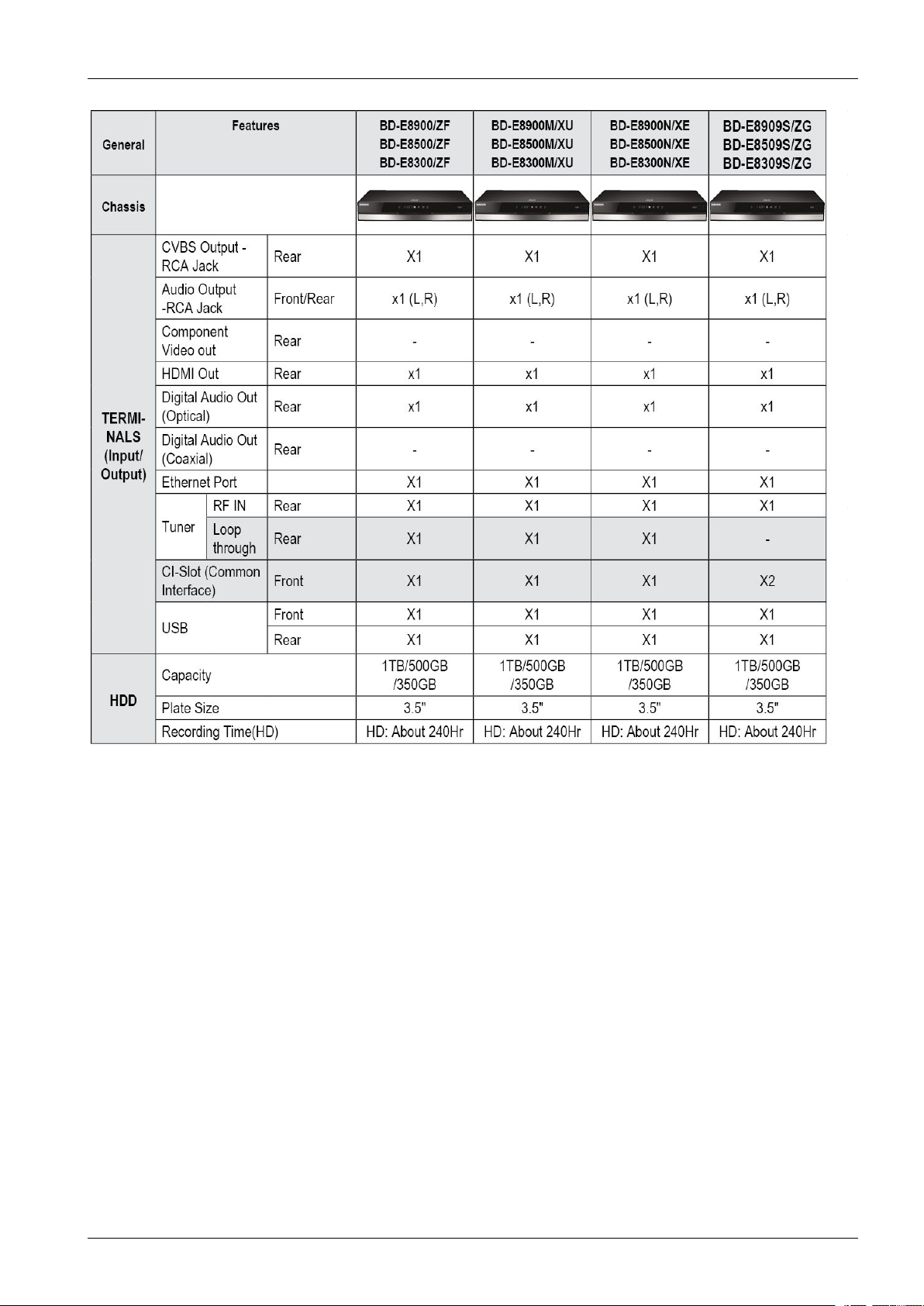

2.2.ChassisProductSpecication.....................................................................................................2−9

2.3.OptionProductSpecication......................................................................................................2−19

3.DisassemblyandReassembly..............................................................................................................3−1

3.1.CabinetandPCB.....................................................................................................................3−1

3.1.1.CoverP-TopRemoval..................................................................................................3−1

3.1.2.AssyFront-CabinetRemoval.........................................................................................3−2

3.1.3.AssyDeckRemoval.....................................................................................................3−3

3.1.4.AssyHDDRemoval....................................................................................................3−4

3.1.5.S.M.P.SPCBRemoval.................................................................................................3−5

3.1.6.FanRemoval..............................................................................................................3−6

3.1.7.MainPCB&Wi-FiModuleRemoval..............................................................................3−7

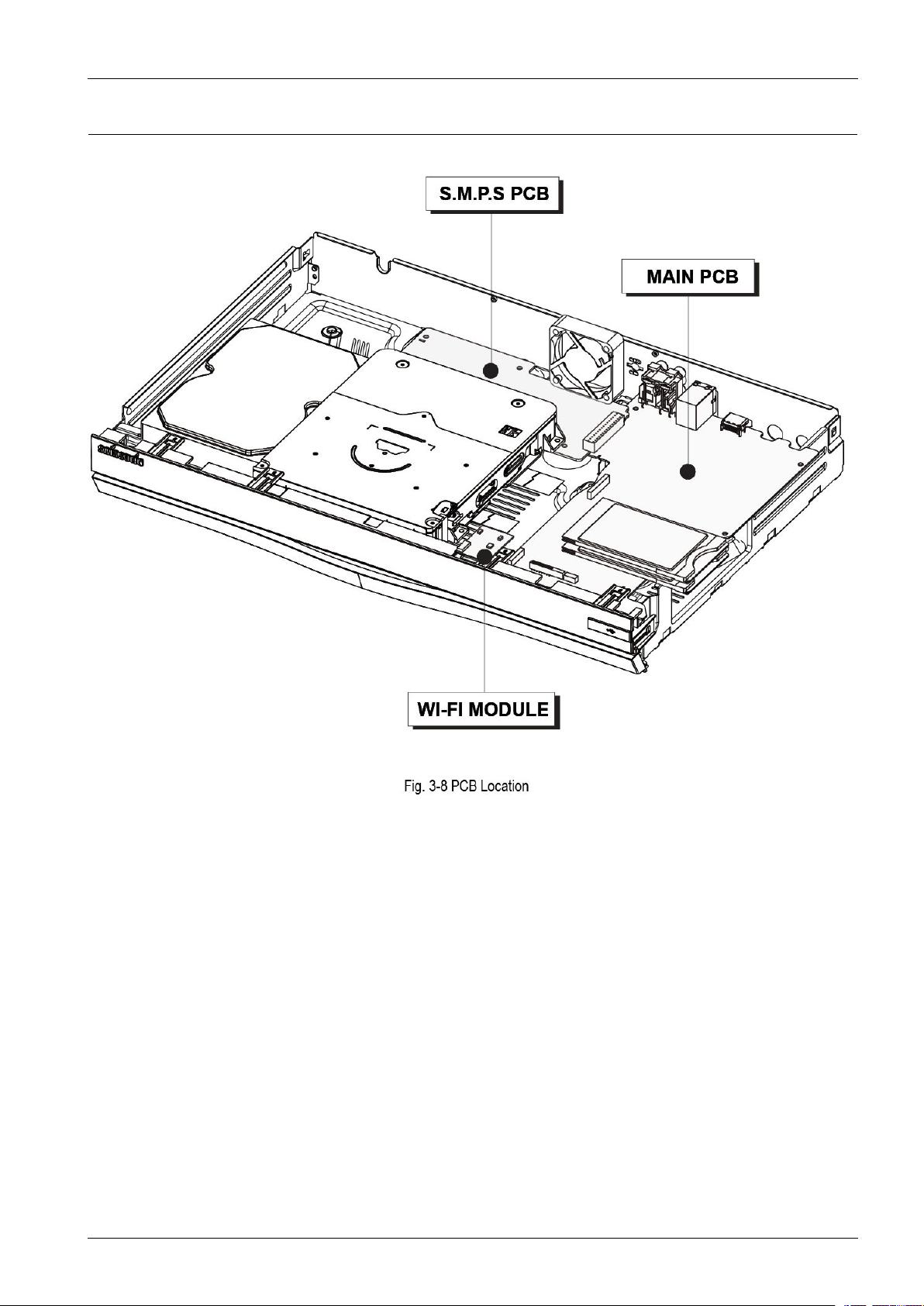

3.2.PCBLocation.........................................................................................................................3−8

4.Troubleshooting................................................................................................................................4−1

4.1.Troubleshooting......................................................................................................................4−2

4.2.SoftwareUpdate......................................................................................................................4−15

4.2.1.Upgrade.....................................................................................................................4−15

4.3.DeckAdjustment.....................................................................................................................4−18

5.PCBDiagrams..................................................................................................................................5−1

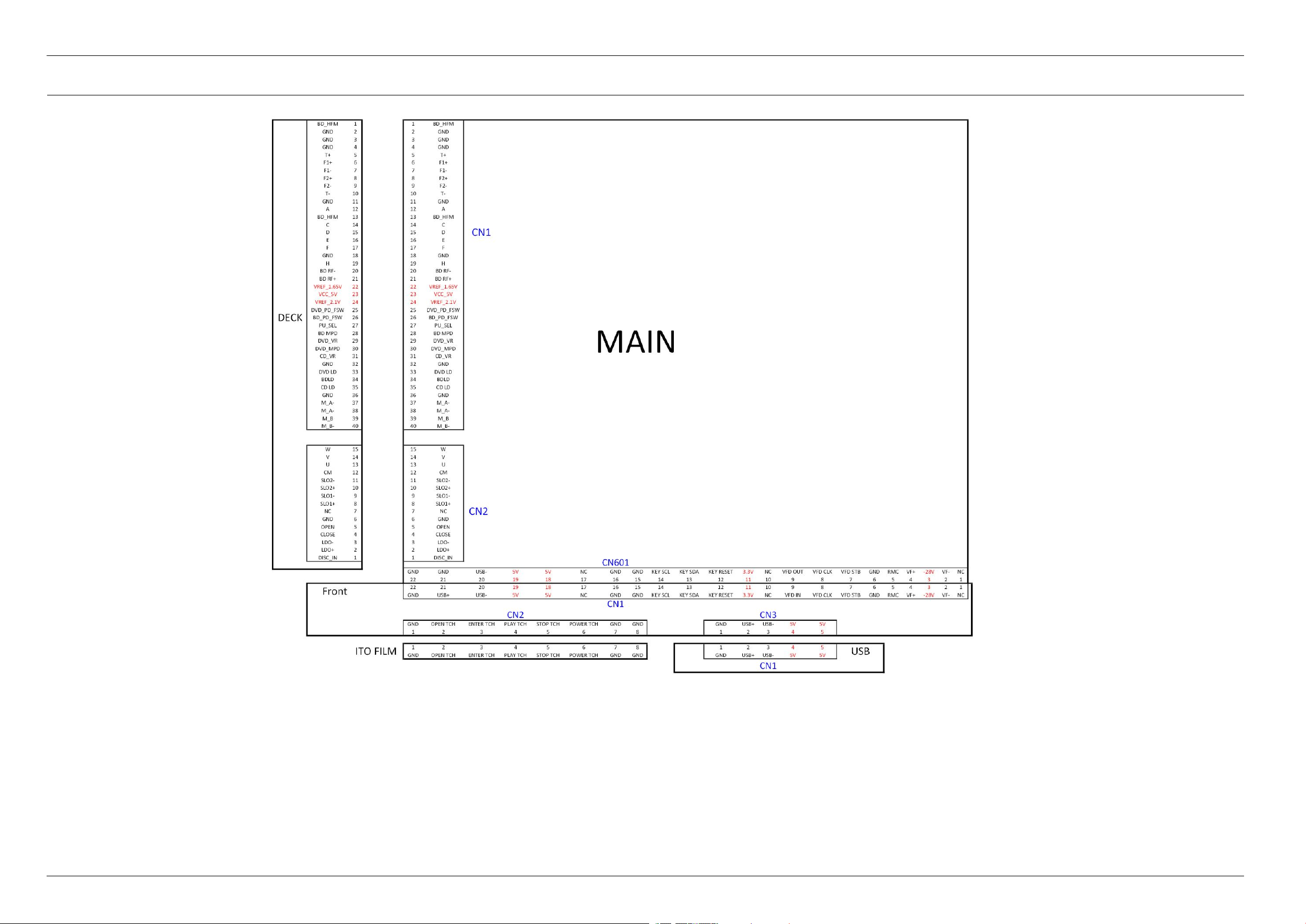

5.1.WiringDiagram.......................................................................................................................5−2

5.2.MainPCB..............................................................................................................................5−3

5.3.S.M.P.SPCB...........................................................................................................................5−5

5.4.FrontPCB..............................................................................................................................5−7

Page 3

Contents

5.5.USBPCB...............................................................................................................................5−8

6.SchematicDiagrams..........................................................................................................................6−1

6.1.AllBlockDiagram...................................................................................................................6−2

6.2.Power....................................................................................................................................6−3

6.2.1.AboutS.M.P.S(RingingChokeConverterMethod)............................................................6−3

6.2.2.Circuitdescripcotion[FLY-BackRCC(RingingChokeConverter)]Control............................6−3

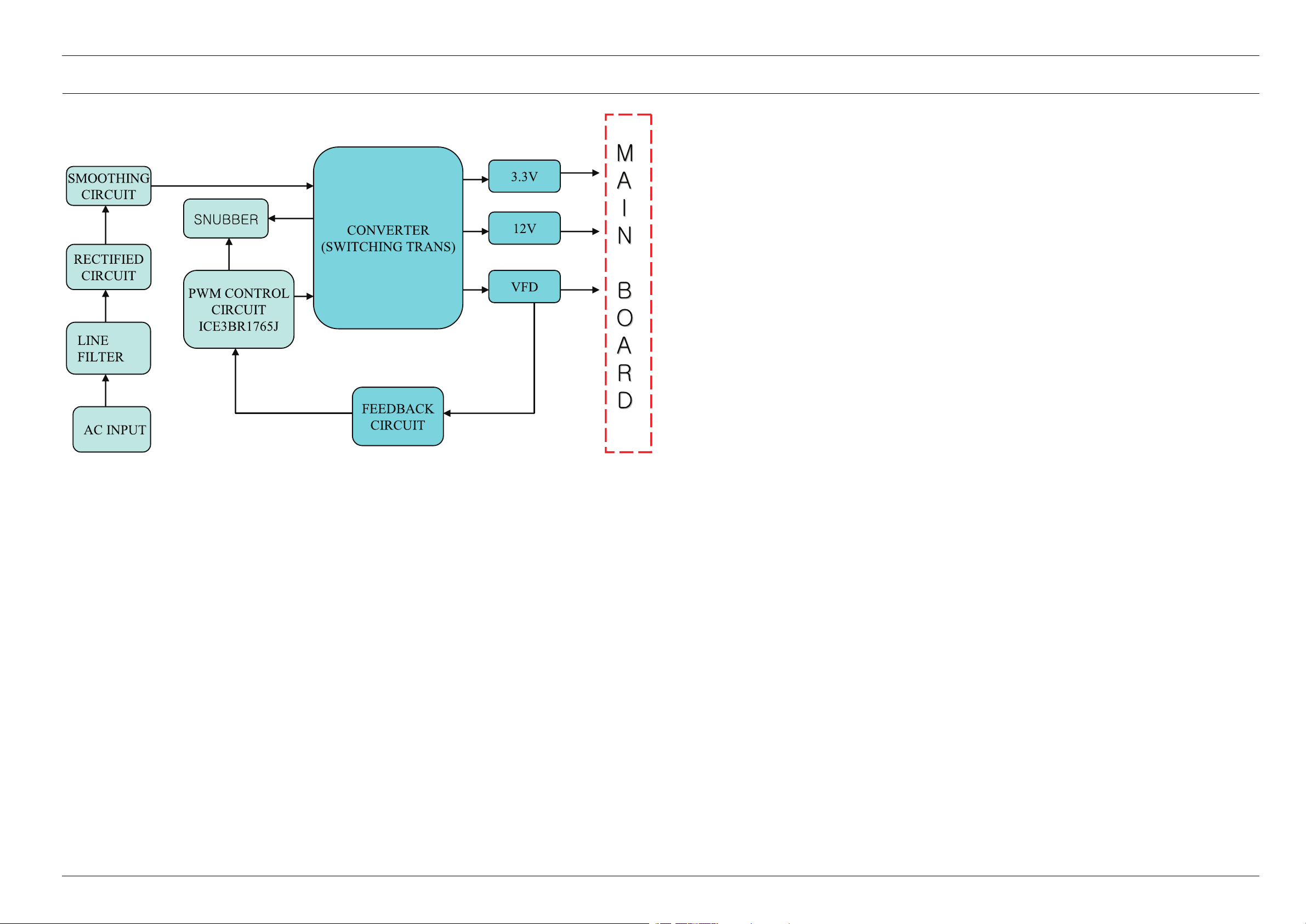

6.2.3.InternalBlockDiagram(InternalBlockDiagramofS.M.P .SCircuit)....................................6−5

6.3.S.M.P.S(S.M.P .SPCB).............................................................................................................6−6

6.4.HDMI(MainPCB)..................................................................................................................6−7

6.5.NANDFlash(MainPCB).........................................................................................................6−8

6.6.DDR3-1333(MainPCB)...........................................................................................................6−9

6.7.GPIO,BOOTSTRAP,UART(MainPCB).....................................................................................6−10

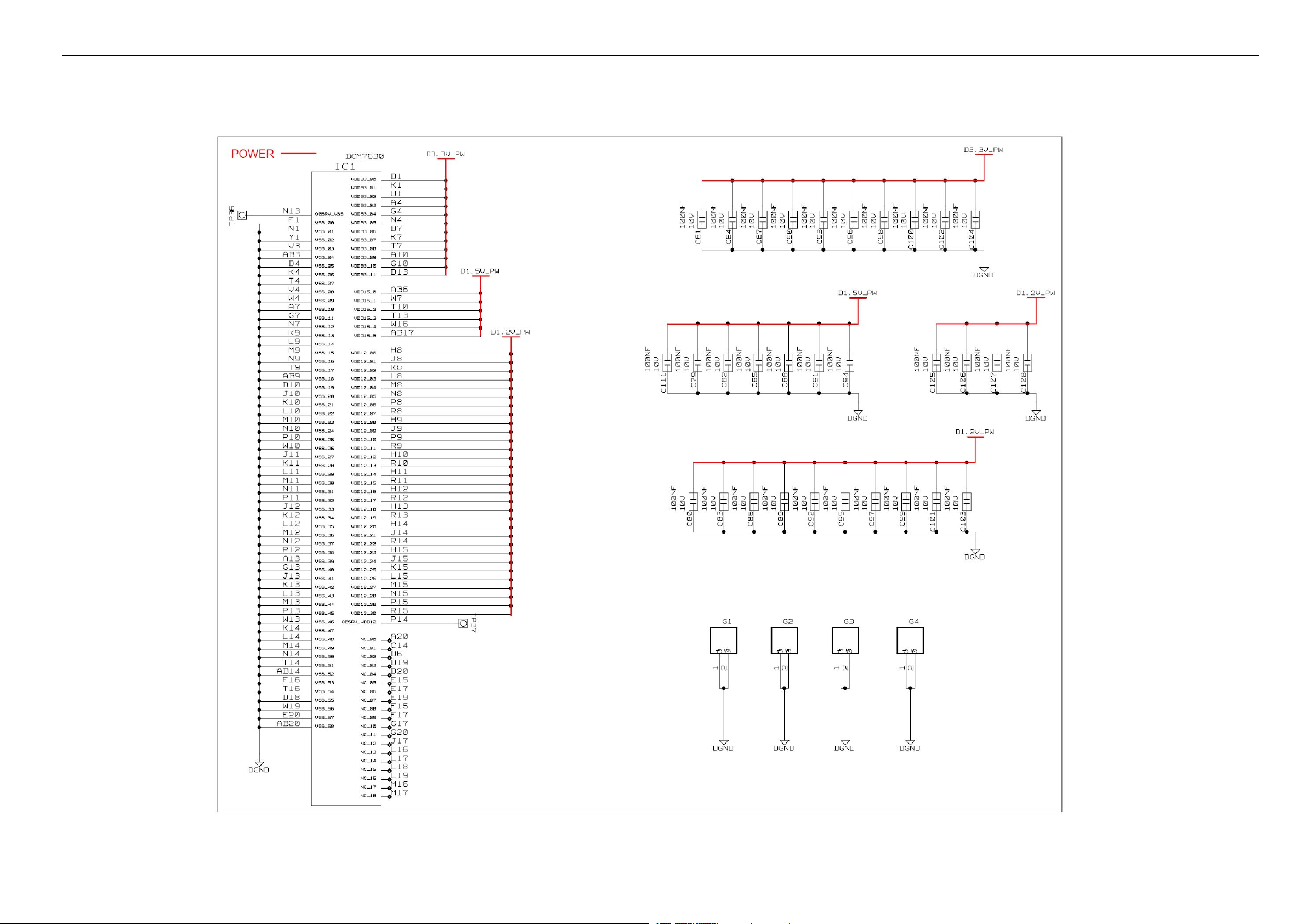

6.8.7631POWER,DECOUPLING(MainPCB)..................................................................................6−11

6.9.DC-DCPower(MainPCB).......................................................................................................6−12

6.10.FrontMicom(MainPCB).........................................................................................................6−13

6.11.F_EOPUConnection(MainPCB)..............................................................................................6−14

6.12.F_EMotorDrive(MainPCB)....................................................................................................6−15

6.13.Ethernet,USB(MainPCB).........................................................................................................6−16

6.14.Audio_Video(MainPCB).........................................................................................................6−17

Page 4

1.Precautions

1.1.SafetyPrecautions

1)Beforereturninganinstrumenttothecustomer,alwaysmakeasafetycheckoftheentireinstrument,including,butnot limitedto,thefollowingitems:

a)Besurethatnobuilt-inprotectivedevicesaredefectiveorhavebeendefeatedduringservicing

i)Protectiveshieldsareprovidedtoprotectboththetechnicianandthecustomer .Correctlyreplaceallmissing

protectiveshields,includinganyremovedforservicingconvenience.

ii)Whenreinstallingthechassisand/orotherassemblyinthecabinet,besuretoputbackinplaceallprotective

devices,including,butnotlimitedto,nonmetalliccontrolknobs,insulatingshpapers,adjustmentand compartmentcovers/shields,andisolationresistor/capacitornetworks.Donotoperatethisinstrumentorpermit ittobeoperatedwithoutallprotectivedevicescorrectlyinstalledandfunctioning.

b)Besurethattherearenocabinetopeningsthroughwhichadultsorchildrenmightbeabletoinserttheirngersand

contactahazardousvoltage.Suchopeningsinclude,butarenotlimitedto,excessivelywidecabinetventilation slots,andanimproperlyttedand/orincorrectlysecuredcabinetbackcover.

c)LeakageCurrentHotCheck—Withtheinstrumentcompletelyreassembled,plugtheAClinecorddirectlyintoa

230V(220V~240V)ACoutlet.(Donotuseanisolationtransformerduringthistest.)

UsealeakagecurrenttesterorameteringsystemthatcomplieswithAmericanNationalStandardInstitute(ANSI) C101.1LeakageCurrentforAppliancesandUnderwritersLaboratories(UL)1270(40.7).Withtheinstrument’ s ACswitchrstintheONpositionandthenintheOFFposition,measurefromaknownearthground(metal waterpipe,conduit,etc.)toallexposedmetalpartsoftheinstrument(antennas,handlebrackets,metalcabinets, screwheads,metallicoverlays,controlshafts,etc.),especiallyanyexposedmetalpartsthatofferanelectrical returnpathtothechassis.

Anycurrentmeasuredmustnotexceed0.5mA.

Reversetheinstrumentpowercordplugintheoutletandrepeatthetest.See

Anymeasurementsnotwithinthelimitsspeciedhereinindicateapotentialshockhazardthatmustbeeliminated beforereturningtheinstrumenttothecustomer.

Figure1.1ACLeakageTest

Page 5

d)InsulationResistanceT estColdCheck—(1)Unplugthepowersupplycordandconnectajumperwirebetween

thetwoprongsoftheplug.(2)Turnonthepowerswitchoftheinstrument.(3)Measuretheresistancewith anohmmeterbetweenthejumperedACplugandallexposedmetalliccabinetpartsontheinstrument,suchas screwheads,antenna,controlshafts,handlebrackets,etc.Whenanexposedmetallicparthasareturnpathtothe chassis,thereadingshouldbebetween1and5.2megohm.Whenthereisnoreturnpathtothechassis,thereading mustbeinnite.Ifthereadingisnotwithinthelimitsspecied,thereisthepossibilityofashockhazard,andthe instrumentmustberepairedandrecheckedbeforeitisreturnedtothecustomer.See

1.Precautions

2)Readandcomplywithallcautionandsafetyrelatednotesonorinsidethecabinet,oronthechassis.

3)DesignAlterationW arning—Donotalteroraddtothemechanicalorelectricaldesignofthisinstrument.

Designalterationsandadditions,includingbutnotlimitedto,circuitmodicationsandtheadditionofitemssuchas auxiliaryaudiooutputconnections,mightalterthesafetycharacteristicsofthisinstrumentandcreateahazardtothe user.Anydesignalterationsoradditionswillmakeyou,theservicer,responsibleforpersonalinjuryorproperty damageresultingtherefrom.

4)Observeoriginalleaddress.Takeextracaretoassurecorrectleaddressinthefollowingareas:

(1)nearsharpedges,(2)nearthermallyhotparts(besurethatleadsandcomponentsdonottouchthermallyhotparts), (3)theACsupply,(4)highvoltage,and(5)antennawiring.Alwaysinspectinallareasforpinched,out-of-place,or frayedwiring,Donotchangespacingbetweenacomponentandtheprinted-circuitboard.ChecktheACpowercord fordamage.

5)Components,parts,and/orwiringthatappeartohaveoverheatedorthatareotherwisedamagedshouldbereplacedwith components,partsand/orwiringthatmeetoriginalspecications.

Additionally,determinethecauseofoverheatingand/ordamageand,ifnecessary,takecorrectiveactiontoremove anypotentialsafetyhazard.

6)ProductSafetyNotice—Someelectricalandmechanicalpartshavespecialsafety-relatedcharacteristicswhichare oftennotevidentfromvisualinspection,norcantheprotectiontheygivenecessarilybeobtainedbyreplacingthemwith componentsratedforhighervoltage,wattage,etc.Partsthathavespecialsafetycharacteristicsareidentiedbyshading, an(

)schematicsandpartslists.Useofasubstitutereplacementthatdoesnothavethesamesafetycharacteristics astherecommendedreplacementpartmightcreateshock,reand/orotherhazards.Productsafetyisunderreview continuouslyandnewinstructionsareissuedwheneverappropriate.

Page 6

1.Precautions

1.2.ServicingPrecautions

CAUTION

Beforeservicingunitscoveredbythisservicemanualanditssupplements,readandfollowtheSafetyPrecautions sectionofthismanual.

NOTE

Ifunforeseencircumstancescreateconictbetweenthefollowingservicingprecautionsandanyofthesafetyprecautions, alwaysfollowthesafetyprecautions.Remember:SafetyFirst.

1.2.1.GeneralServicingPrecautions

1)a.Alwaysunplugtheinstrument’sACpowercordfromtheACpowersourcebefore(1)removingorreinstallingany component,circuitboard,moduleoranyotherinstrumentassembly ,(2)disconnectinganyinstrumentelectricalplugor otherelectricalconnection,(3)connectingatestsubstituteinparallelwithanelectrolyticcapacitorintheinstrument.

b.Donotdamageanyplug/socketB+voltageinterlockswithwhichinstrumentscoveredbythisservicemanual mightbeequipped.

c.DonotapplyACpowertothisinstrumentandoranyofitselectricalassembliesunlessallsolid-statedeviceheat sinksarecorrectlyinstalled.

d.Alwaysconnectatestinstrument’sgroundleadtotheinstrumentchassisgroundbeforeconnectingthetestinstrument positivelead.Alwaysremovethetestinstrumentgroundleadlast.

NOTE

RefertotheSafetyPrecautionssectiongroundleadlast.

2)Theserviceprecautionsareindicatedorprintedonthecabinet,chassisorcomponents.Whenservicing,followthe printedorindicatedserviceprecautionsandservicematerials.

3)Thecomponentsusedintheunithaveaspeciedameresistanceanddielectricstrength.Whenreplacingcomponents, usecomponentswhichhavethesame.Componentsidentiedbyshading,inthecircuitdiagramareimportantforsafety orforthecharacteristicsoftheunit.Alwaysreplacethemwiththeexactreplacementcomponents.

4)Aninsulationtubeortapeissometimesusedandsomecomponentsareraisedabovetheprintedwiringboardfor safety.Theinternalwiringissometimesclampedtopreventcontactwithheatingcomponents.Installsuchelements astheywere.

5)Afterservicing,alwayscheckthattheremovedscrews,components,andwiringhavebeeninstalledcorrectlyandthat theportionaroundtheservicedparthasnotbeendamagedandsoon.

Further,checktheinsulationbetweenthebladesoftheattachmentplugandaccessibleconductiveparts.

1.2.2.InsulationCheckingProcedure

DisconnecttheattachmentplugfromtheACoutletandturnthepowerON.Connecttheinsulationresistancemeter(500V) tothebladesoftheattachmentplug.Theinsulationresistancebetweeneachbladeoftheattachmentplugandaccessible conductiveparts(seenote)shouldbemorethan1Megohm.

NOTE

Accessibleconductivepartsincludemetalpanels,inputterminals,earphonejacks,etc.

Page 7

1.Precautions

1.3.ESDPrecautions

ElectrostaticallySensitiveDevices(ESD)

Somesemiconductor(solidstate)devicescanbedamagedeasilybystaticelectricity.

SuchcomponentscommonlyarecalledElectrostaticallySensitiveDevices(ESD).ExamplesoftypicalESDdevicesare integratedcircuitsandsomeeld-effecttransistorsandsemiconductorchipcomponents.Thefollowingtechniquesshould beusedtohelpreducetheincidenceofcomponentdamagecausedbystaticelectricity.

1)Immediatelybeforehandlinganysemiconductorcomponentorsemiconductor-equippedassembly ,drainoffany electrostaticchargeonyourbodybytouchingaknownearthground.Alternatively ,obtainandwearacommercially availabledischargingwriststrapdevice,whichshouldberemovedforpotentialshockreasonspriortoapplyingpower totheunitundertest.

2)AfterremovinganelectricalassemblyequippedwithESDdevices,placetheassemblyonaconductivesurfacesuchas aluminumfoil,topreventelectrostaticchargebuilduporexposureoftheassembly.

3)Useonlyagrounded-tipsolderingirontosolderorunsolderESDdevices.

4)Useonlyananti-staticsolderremovaldevices.Somesolderremovaldevicesnotclassiedas“anti-static”cangenerate electricalchargessufcienttodamageESDdevices.

5)Donotusefreon-propelledchemicals.ThesecangenerateelectricalchargessufcienttodamageESDdevices.

6)DonotremoveareplacementESDdevicefromitsprotectivepackageuntilimmediatelybeforeinstallingit.(Most replacementESDdevicesarepackagedwithleadselectricallyshortedtogetherbyconductivefoam,aluminumfoilor comparableconductivematerials).

7)ImmediatelybeforeremovingtheprotectivematerialsfromtheleadsofareplacementESDdevice,touchtheprotective materialtothechassisorcircuitassemblyintowhichthedevicewillbeinstalled.

CAUTION

Besurenopowerisappliedtothechassisorcircuit,andobserveallothersafetyprecautions.

8)MinimizebodymotionswhenhandlingunpackagedreplacementESDdevices.

(Otherwiseharmlessmotionssuchasthebrushingtogetherofyourclothesfabricortheliftingofyourfootfroma carpetedoorcangeneratestaticelectricitysufcienttodamageanESDdevice).

Page 8

1.Precautions

1.4.Handlingtheopticalpick-up

Thelaserdiodeintheopticalpickupmaysufferelectrostaticbreakdownbecauseofpotentialstaticelectricityfrom clothingandyourbody.

Thefollowingmethodisrecommended.

1)Placeaconductivesheetontheworkbench(Theblacksheetusedforwrappingrepairparts.)

2)Placethesetontheconductivesheetsothatthechassisisgroundedtothesheet.

3)Placeyourhandsontheconductivesheet(Thisgivesthemthesamegroundasthesheet.)

4)Removetheopticalpickupblock

5)Performworkontopoftheconductivesheet.Becarefultoletyourclothesoranyotherstaticsourcestouchtheunit.

NOTE

•Besuretoputonawriststrapgroundedtothesheet.

•Besuretolayaconductivesheet,thatisgroundedtothetable,madeofcopper.

Fig.1-3

6)ShorttheshortterminalonthePCB,whichisinsidethePick-UpASS’Y ,beforereplacingthePick-Up.(Theshort terminalisshortedwhenthePick-UpAss’yisbeingliftedormoved.)

7)AfterreplacingthePick-up,opentheshortterminalonthePCB.

Page 9

2.ProductSpecications

2.1.ProductSpecication

Page 10

2.ProductSpecications

2.1.1.PlayerFeatures

•SupportsaVarietyofDiscTypes

-Blu-ray(BD-ROM,BD-RE,BD-R),DVDVideo,DVD-RW/-R(Vmodeandnalizedonly)discsandAudioCD.

-CD-RW/CD-R,DVD-RW/-RandUSBstoragedevicecontentsuchasMP3,JPEGandDivXles.

•HDMI(HighDenitionMultimediaInterface)

HDMIreducespicturenoisebyallowingapuredigitalvideo/audiosignalpathfromtheplayertoyourTV .

2.1.2.Blu-rayDiscFeatures

Blu-rayDiscscanstore25GB(singlelayer)or50GB(duallayer)onasinglesideddisc-about5to10timesthecapacity ofaDVD.Blu-rayDiscsalsosupportthehighestqualityHDvideoavailableintheindustry(upto1920x1080at40 Mbit/sec)–Largecapacitymeansnocompromiseonvideoquality.Furthermore,aBlu-rayDischasthesamefamiliarsize andlookasDVD.

NOTE

ThefollowingBlu-rayDiscfeaturesarediscdependantandwillvary.

Appearanceandnavigationoffeatureswillalsovaryfromdisctodisc.

Notalldiscswillhavethefeaturesdescribedbelow.

•Videohighlights

TheBD-ROMformatformoviedistributionsupportsthreehighlyadvancedvideocodecs,includingA VC,VC-1, andMPEG-2.

HDvideoresolutionsarealsoavailable:

-1920x1080HD

-1280x720HD

•ForHigh-DenitionPlayback

Toviewhigh-denitioncontentsinBDdiscs,anHDTV(HighDenitionTelevision)isrequired.Somediscsmay requireusingtheplayer'sHDMIOUTtoviewhigh-Denitioncontent.Theabilitytoviewhigh-Denitioncontenton BDdiscsmaybelimiteddependingontheresolutionofyourTV .

•Graphicplanes

Twoindividual,fullHDresolution(1920x1080)videolayersareavailableontopoftheHDvideolayer.

Onelayerisassignedtovideo-relatedgraphics(likesubtitles),andtheotherlayerisassignedtointeractiveelements, suchasbuttonsormenus.Variouswipes,fadesandscrolleffectsmaybeavailableonbothlayers.

•Menugraphics

Support256fullcolorresolutiongraphicsandanimation,therebygreatlysurpassingthecapabilitiesofDVDV ideo. UnlikeDVD,Menuscanbeaccessedduringvideoplayback.

Page 11

2.ProductSpecications

•Menusounds

WhenyouhighlightorselectamenuoptiononaBlu-raydisc,soundscanbeheardsuchasbuttonclicksoravoice overexplainingthehighlightedmenuchoice.

•Multi-page/PopUpMenus

WithDVD-Video,playbackisinterruptedeachtimeanewmenuscreenisaccessed.DuetoBlu-rayDisc'sabilityto preloaddatafromthediscwithoutinterruptingplayback,amenumayconsistofseveralpages.

Youcanbrowsethroughthemenupagesorselectdifferentmenupaths,whiletheaudioandvideoremainplaying inthebackground.

•Interactivity

CertainBlu-rayDiscsmaycontainAnimatedmenusandTriviagames.

•UserBrowsableSlideshows

WithBlu-rayDiscs,youcanbrowsethroughvariousstillpictureswhiletheaudioremainsplaying.

•Subtitles

DependingonwhatiscontainedontheBlu-rayDisc,youmaybeabletoselectdifferentfontstyles,sizesandcolorsfor thesubtitles,Subtitlesmayalsobeanimated,scrolledorfadedinandout.

•BD-LIVE

YoucanuseaBlu-rayDiscsupportingBD-LIVEthroughnetworkconnectiontoenjoyvariouscontentsprovided bythediscmanufacturer.

2.1.3.Disctypesandcontentsyourproductcanplay

Page 12

2.ProductSpecications

NOTE

•TheproductmaynotplaycertainCD-RW/RandDVD-Rbecauseofthedisctypeorrecordingconditions.

•IfaDVD-RW/-RhasnotbeenrecordedproperlyinDVDvideoformat,itwillnotbeplayable.

•YourproductwillnotplaycontentthathasbeenrecordedonaDVD-Ratabit-ratethatexceeds10Mbps.

•YourproductwillnotplaycontentthathasbeenrecordedonaBD-RorUSBdeviceatabitratethatexceeds25Mbps.

2.1.4.HDDRecording

YoucanrecorddigitalbroadcastontheinternalHDDasbelow.Dependingonthebitrateofactualbroadcastprogramme, availablerecordingtimemaybedecreasedorincreased.

2.1.5.Disctypesyourproductcannotplay

•HDDVD

•DVD-RAM

•DVD-RW(VRmode)

•3.9GBDVD-RforAuthoring.

•DVD-ROM/PD/MVDisc,etc

•SuperAudioCD(exceptCDlayer)

•CVD/CD-ROM/CDV/CD-G/CD-I/LD(CD-Gsplayaudioonly,notgraphics.)

2.1.6.Regioncode

Boththeproductandthediscsarecodedbyregion.Theseregionalcodesmustmatchinordertoplaythedisc.Ifthecodes donotmatch,thediscwillnotplay .TheRegionNumberforthisproductisdescribedontherearpaneloftheproduct.

Page 13

2.ProductSpecications

2.1.7.SupportedFormats

VideoFileSupport

Page 14

2.ProductSpecications

•Limitations

-Evenwhentheleisencodedbyasupportedcodeclistedabove,alemightnotbeplayedifitscontenthas

aproblem.

-Normalplaybackisnotguaranteedifthele’scontainerinformationiswrongortheleitselfiscorrupted.

-FileshavinghigherBitrate/frameratethanstandardmaystutterwhenplayedback.

-Seek(skip)functionisnotavailableifthele’sindextableisdamaged.

-Whenyouplaybackaleremotelythroughanetworkconnection,videoplaybackmaystutterdependingon

thenetworkspeed.

-SomeUSB/Digitalcameradevicesmaynotbecompatiblewiththeplayer.

•Videodecoder

-SupportsuptoH.264Level4.1

-DoesnotsupportGMC2orhigher

•Audiodecoder

-SupportsWMA7/8/9STD/9PRO(Upto5.1)/10PRO(Upto5.1).

-Doesnotsupportlossless.

-SWdecoding(DoesnotsupportSeek,Supportsupto2ch)

-SupportsADPCMIMA/MS(DoesnotsupportMULAW/ALAW)

-DoesnotsupportQCELP/AMRNW/WB

•Comments

-WMV:SupportsV9,VC1SP/MP/APL3.

-MPEG1:DoesnotsupportD-picture.

-MPEG2:SupportsuptoHighProleHighLevel.

NOTE

•PlaybackofsomeMKVorMP4lemaynotbesupporteddependingontheirvideoresolutionandframerate.

MusicFileSupport

Page 15

PictureFileSupport

2.ProductSpecications

PictureFileSupport

•YourproductsupportsUSBstoragemedia,MP3products,digitalcameras,andUSBcardreaders.

•SomeUSB/digitalcameradevicesmaynotbecompatiblewiththeproduct.

•YourproductsupportstheFAT16,FAT32,andNTFSlessystems(readonly).

•ConnectUSBdevicesdirectlytotheproduct’sUSBport.ConnectingthroughaUSBcablemaycausecompatibility

problems.

•Insertingmorethanonememorydeviceintoamulti-cardreadermaycausethereadertooperateimproperly.

•TheproductsupportsthePTPprotocol.

•DonotdisconnectaUSBdeviceduringa"loading"process.

•Thebiggertheimageresolution,thelongertheimagetakestodisplay .

•ThisproductcannotplayMP3leswithDRM(DigitalRightsManagement)downloadedfromcommercialsites.

•Yourproductonlysupportsvideothatisunder30fps(framerate).

•YourproductonlysupportsUSBMassStorageClass(MSC)devicessuchasthumbdrives,ashcardreadersandUSB

HDD.(HUBisnotsupported.)

•CertainUSBHDDDevices,multi-cardreadersandthumbdrivesmaynotbecompatiblewiththisproduct.

•IfsomeUSBdevicesrequireexcessivepower,theymaybelimitedbythecircuitsafetydevice.

•IfplaybackfromaUSBHDDisunstable,provideadditionalpowerbypluggingtheHDDintoawallsocket.Ifthe

problemcontinues,contacttheUSBHDDmanufacturer.

•YoumustremovetheUSBstoragedevicesafely(byperformingthe"SafelyRemoveUSB"functiontopreventpossible

damagetotheUSBmemory).

•SAMSUNGisnotresponsibleforanydataledamageordataloss.

Page 16

2.ProductSpecications

•Yourproductdoesnotsupportcompressionle,sparseleandencrptionleofNTFS.

-BeforedisconnectingaUSBdevice,pleaseuseUSBSafetyRemoval.

-Ifyoudon'tuseUSBSafetyRemoval,yourdataonUSBdevicecanbecorruptedorlost

-YoucanrepairorformataUSBdeviceonyourDesktopPC.(MS-WindowsOSonly)

ConnectaUSBdevicebeforeusingtheTimeshiftandRecordedTVfunctions

•TousetheTimeshiftmodeortheRecordedTVfunction,aconnectedUSBdevicemustbeexecutetheDeviceFormat

functiontoproperformforrecording.

-Duringthedeviceformatting,donotdisconnectthedevicewhileformattingisinprogress.Ifyouformatthe

device,allleswillbedeleted.

-Beforeformattingyourdevicetothisproduct,pleasebackupyourlestopreventthemfromdamageorlossof

data.SAMSUNGisnotresponsibleforanydataledamageordataloss.

•RecordedvideosareDRM(digitalrightsmanagements)protectedandcannotbeplayedonaPCorotherproduct.Note

thatlessavedontheTVcannotbeusedafterthemainboardischanged.

•Atleast100MBoffreespaceisrequiredforrecording.

•Recordingwillstopifthestorage'sfreespacebecomeslessthan50MB.

•IftheUSBdevicehasfailedtheDevicePerformanceTest,theUSBdevicemustgothroughtheDeviceFormatand

DevicePerformanceTestagainbeforeyourecordwiththeGuideorChannelManager.Ifthedevicehasfailedthe PerformanceTest,Itcannotbeusedforrecording.

A VCHD(AdvancedVideoCodecHighDenition)

•ThisproductcanplaybackA VCHDformatdiscs.Thesediscsarenormallyrecordedandusedincamcorders.

•TheA VCHDformatisahighdenitiondigitalvideocameraformat.

•TheMPEG-4A VC/H.264formatcompressesimageswithgreaterefciencythantheconventionalimagecompressing

format.

•SomeA VCHDdiscsusethe"x.v.Color"format.ThisproductcanplaybackA VCHDdiscsthatuse"x.v .Color"format.

•"x.v.Color"isatrademarkofSonyCorporation.

•"A VCHD"andtheA VCHDlogoaretrademarksofMatsushitaElectronicIndustrialCo.,Ltd.andSonyCorporation.

NOTE

•SomeA VCHDformatdiscsmaynotplay,dependingontherecordingcondition.A VCHDformatdiscsneedtobenalized.

•"x.v.Colour"offersawidercolourrangethannormalDVDcamcorderdiscs.

Page 17

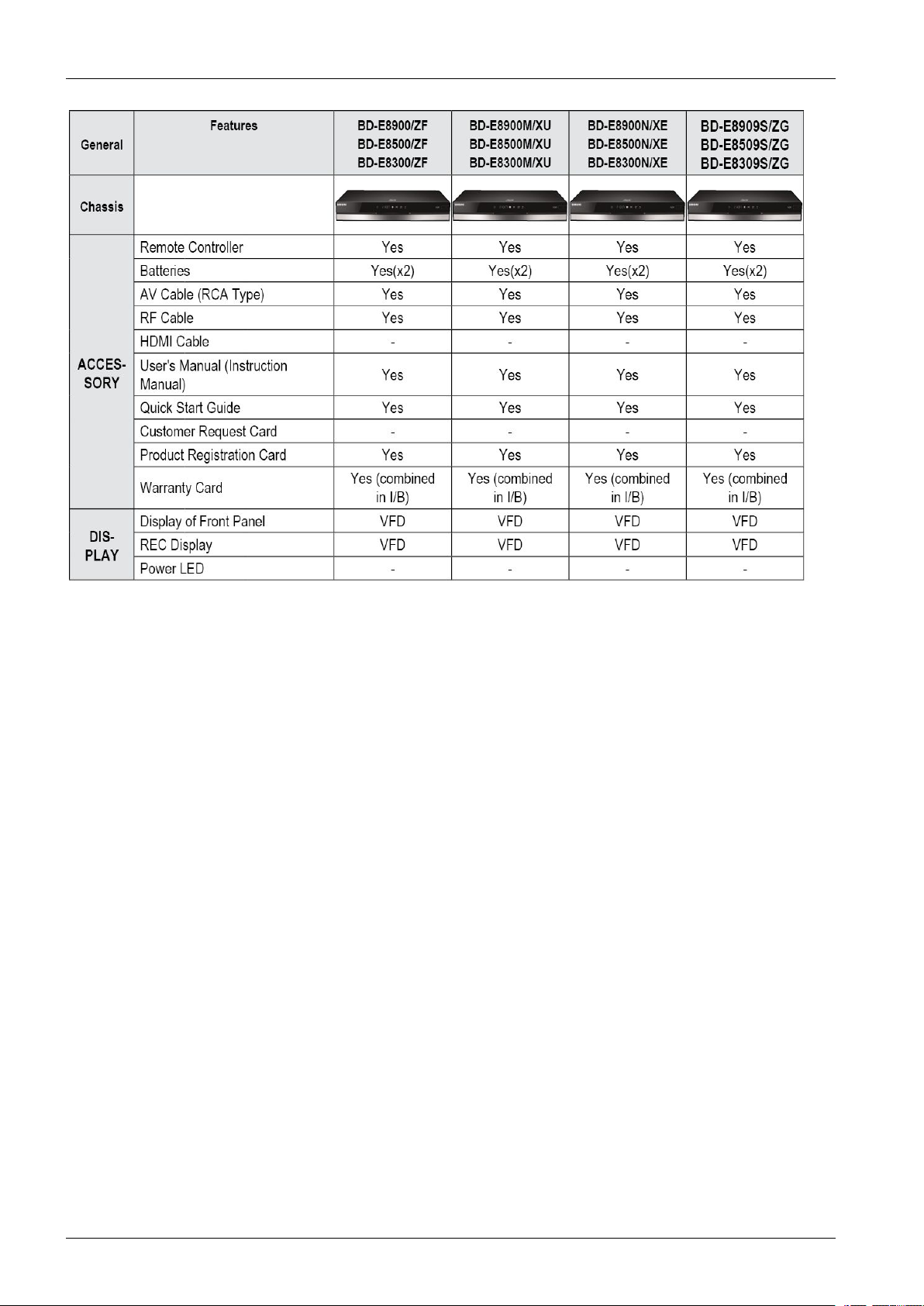

2.2.ChassisProductSpecication

2.ProductSpecications

Page 18

2.ProductSpecications

Page 19

2.ProductSpecications

Page 20

2.ProductSpecications

Page 21

2.ProductSpecications

Page 22

2.ProductSpecications

Page 23

2.ProductSpecications

Page 24

2.ProductSpecications

Page 25

2.ProductSpecications

Page 26

2.ProductSpecications

Page 27

2.3.OptionProductSpecication

2.ProductSpecications

Page 28

3.DisassemblyandReassembly

3.1.CabinetandPCB

NOTE

ConnectorMustberemovedwithcare

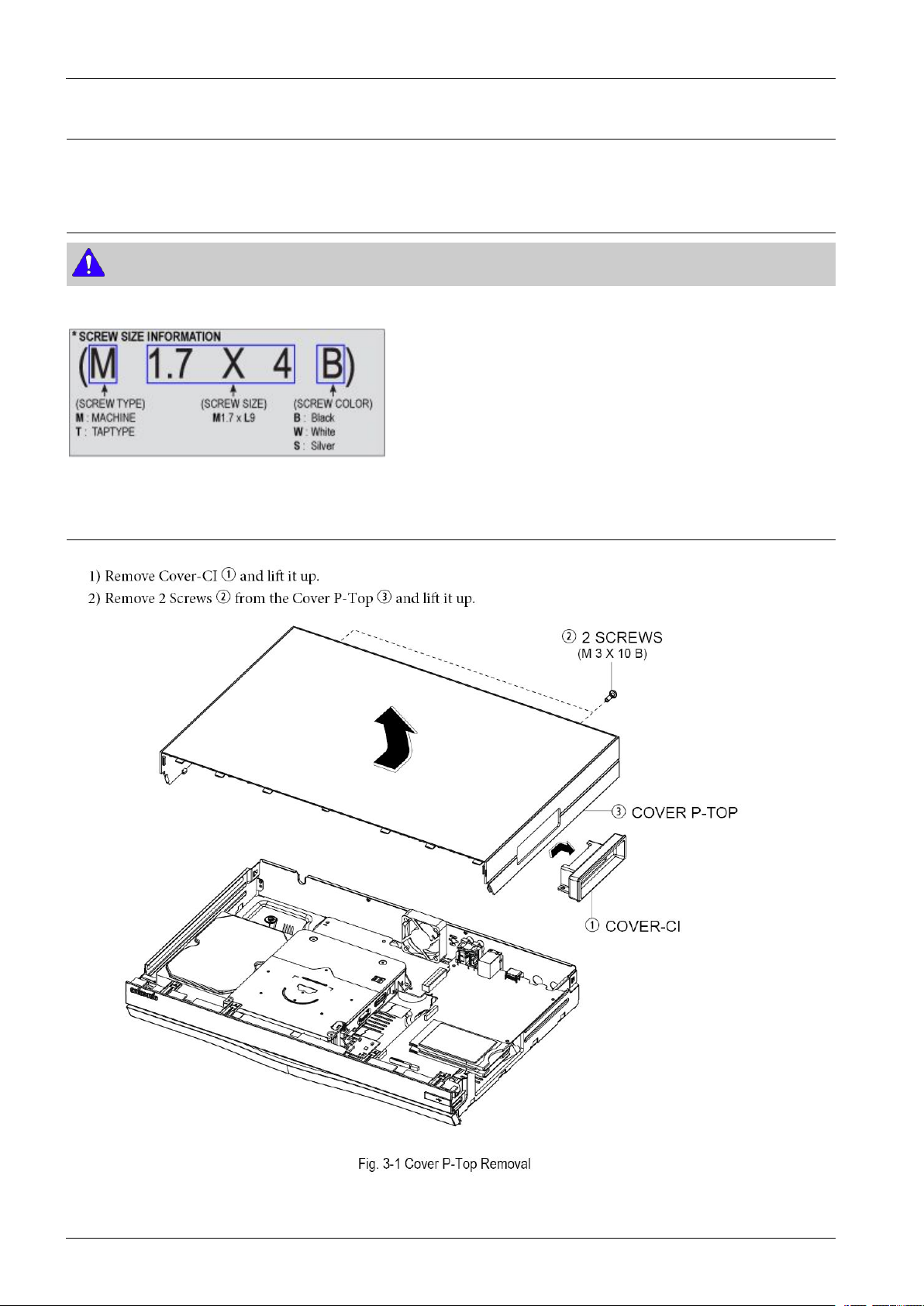

3.1.1.CoverP-TopRemoval

Page 29

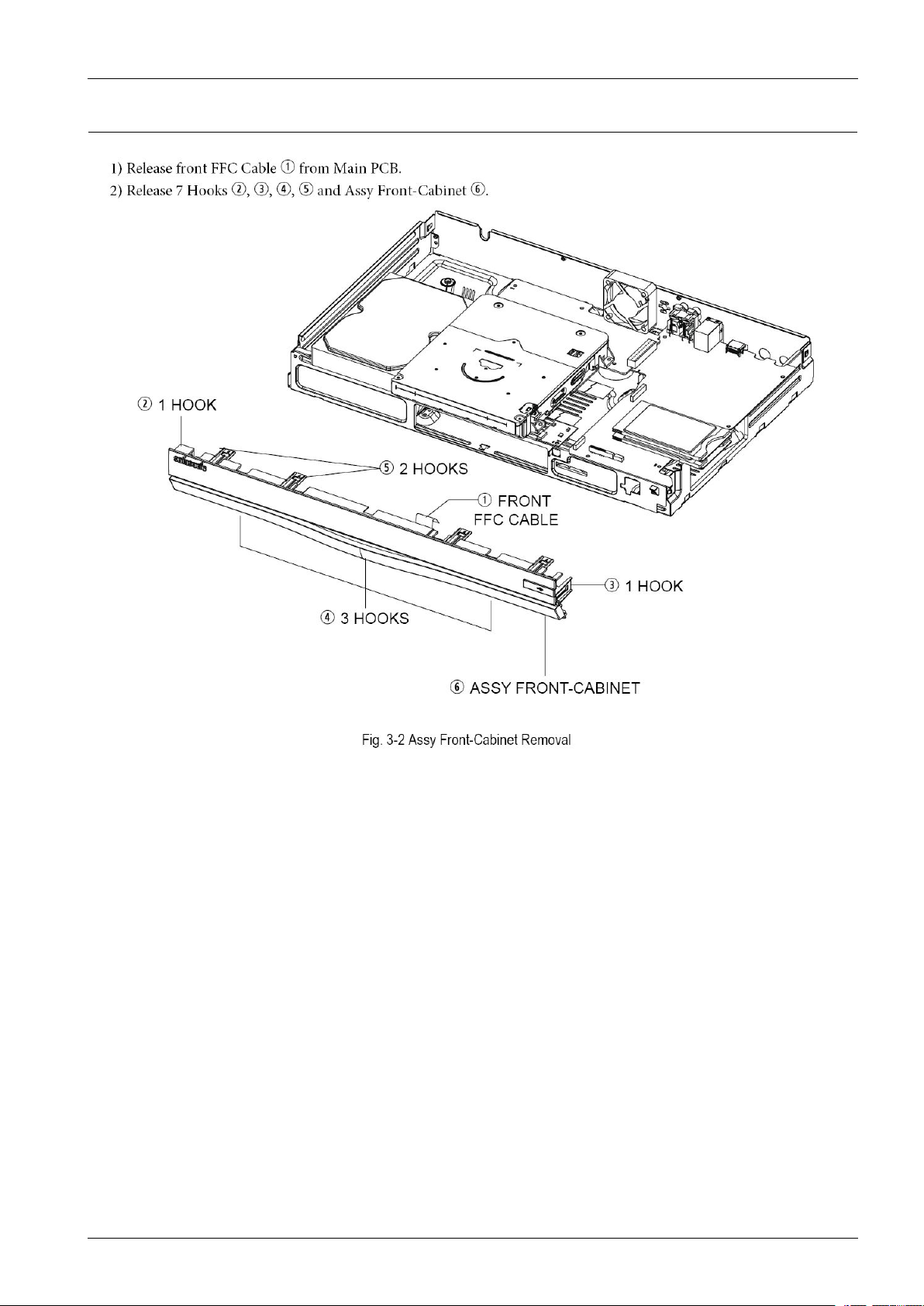

3.1.2.AssyFront-CabinetRemoval

3.DisassemblyandReassembly

Page 30

3.DisassemblyandReassembly

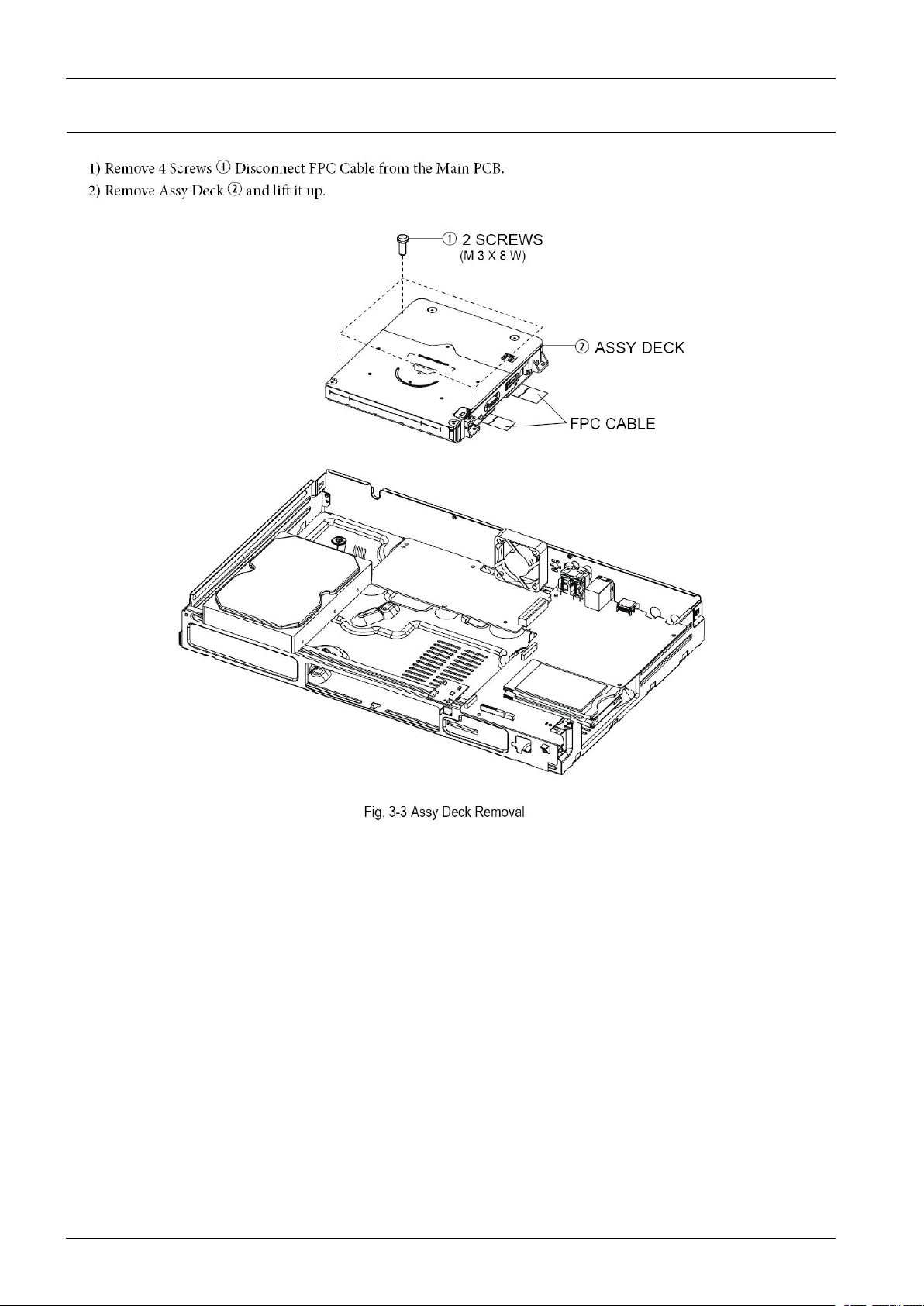

3.1.3.AssyDeckRemoval

Page 31

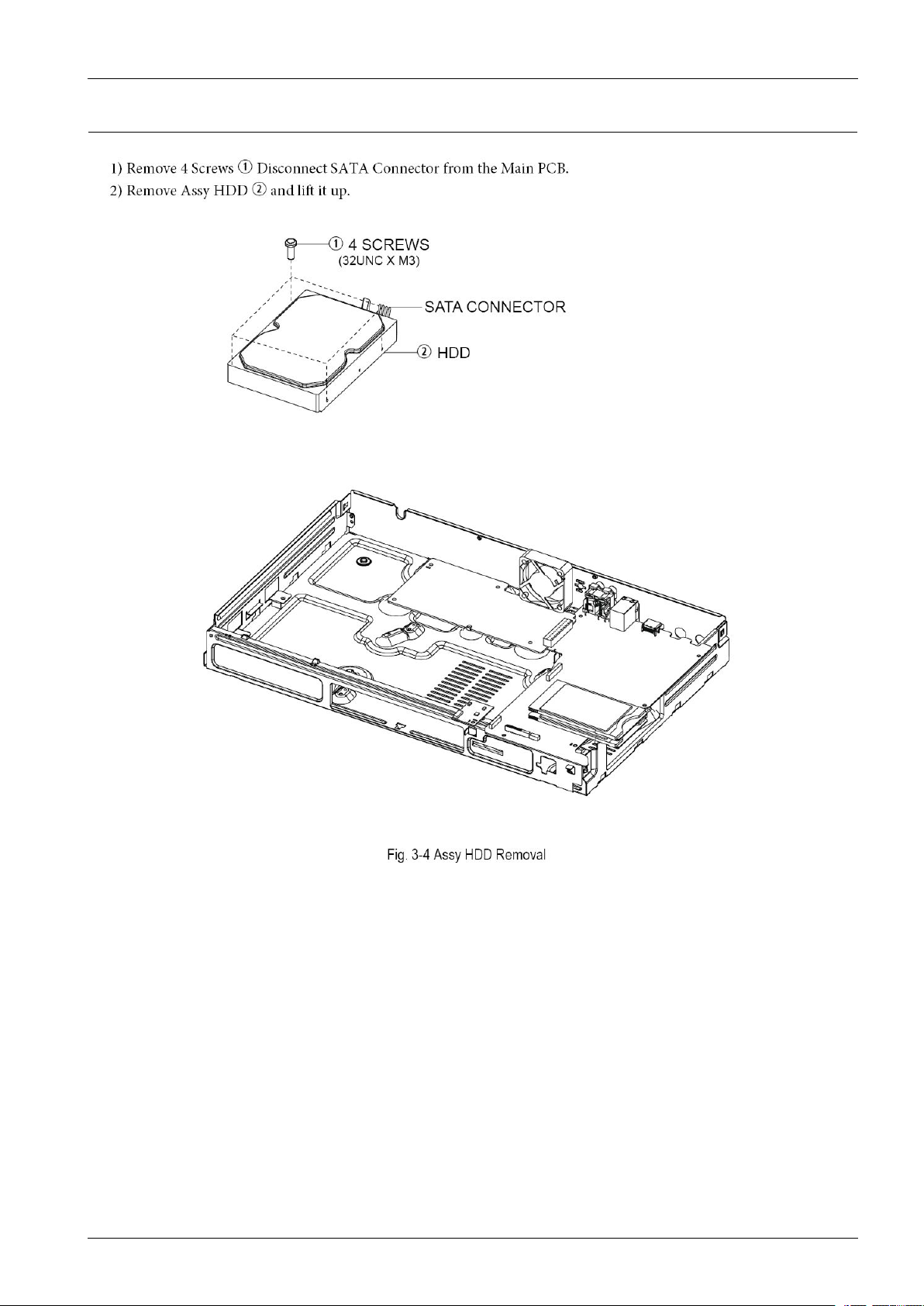

3.1.4.AssyHDDRemoval

3.DisassemblyandReassembly

Page 32

3.DisassemblyandReassembly

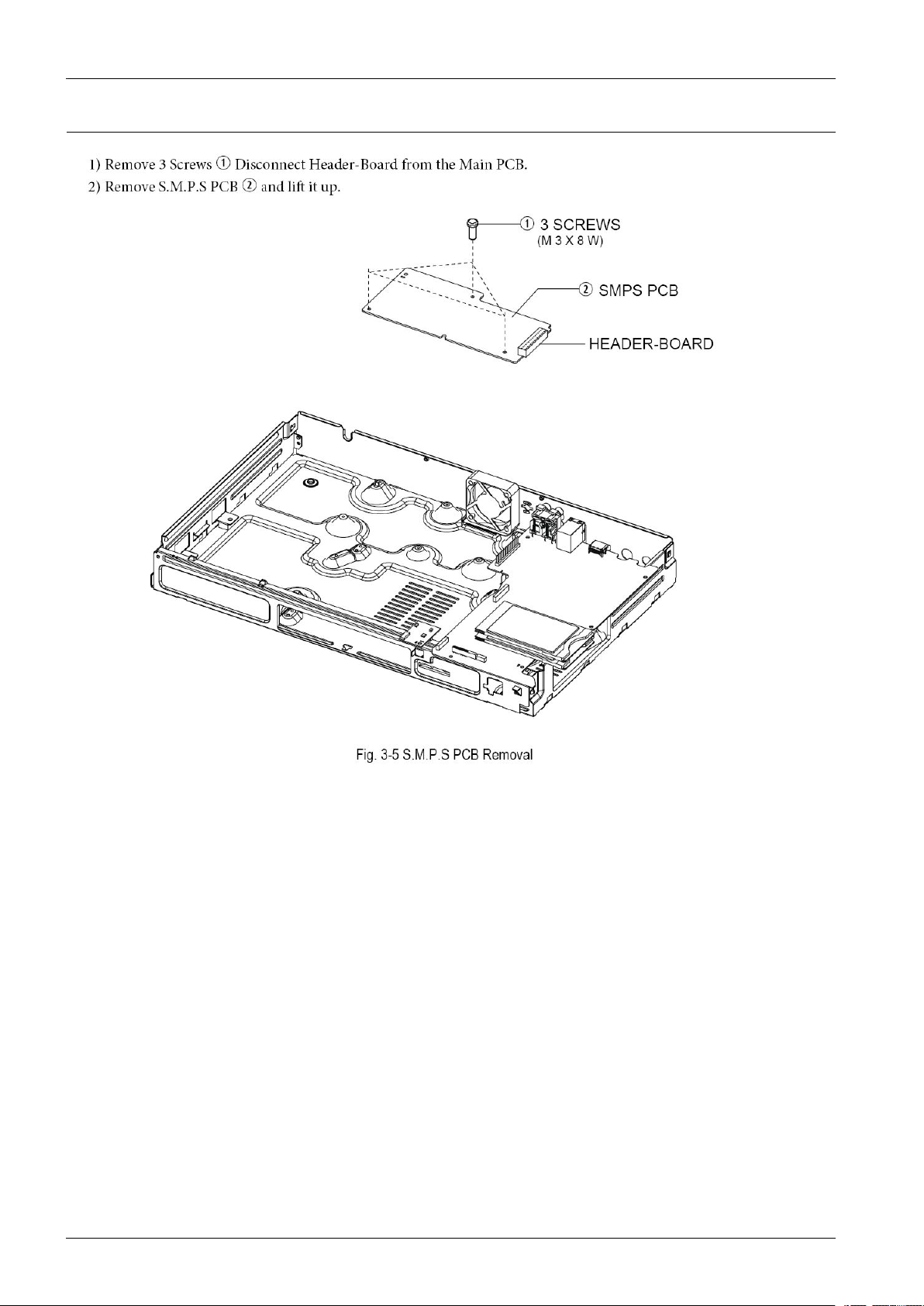

3.1.5.S.M.P .SPCBRemoval

Page 33

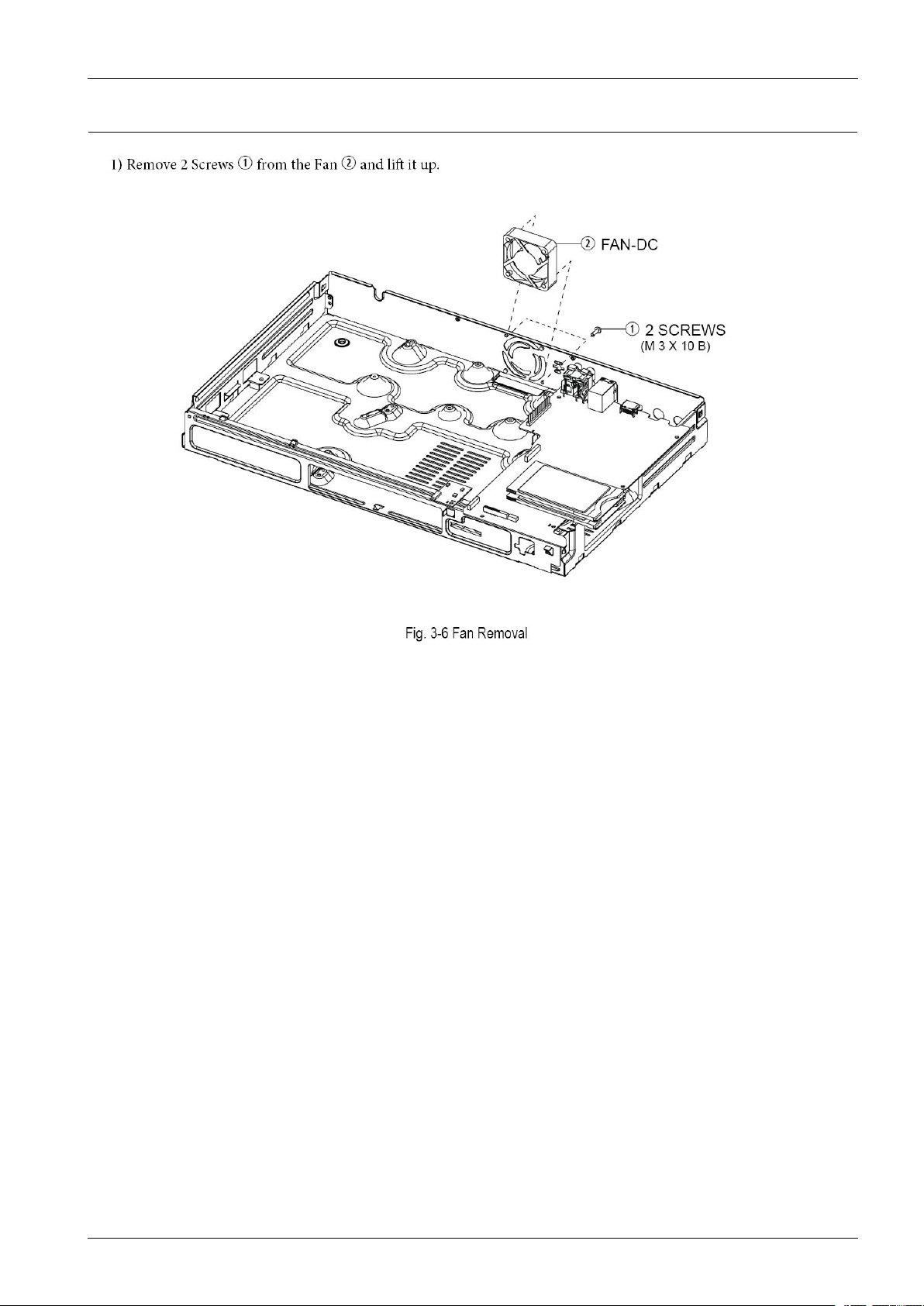

3.1.6.FanRemoval

3.DisassemblyandReassembly

Page 34

3.DisassemblyandReassembly

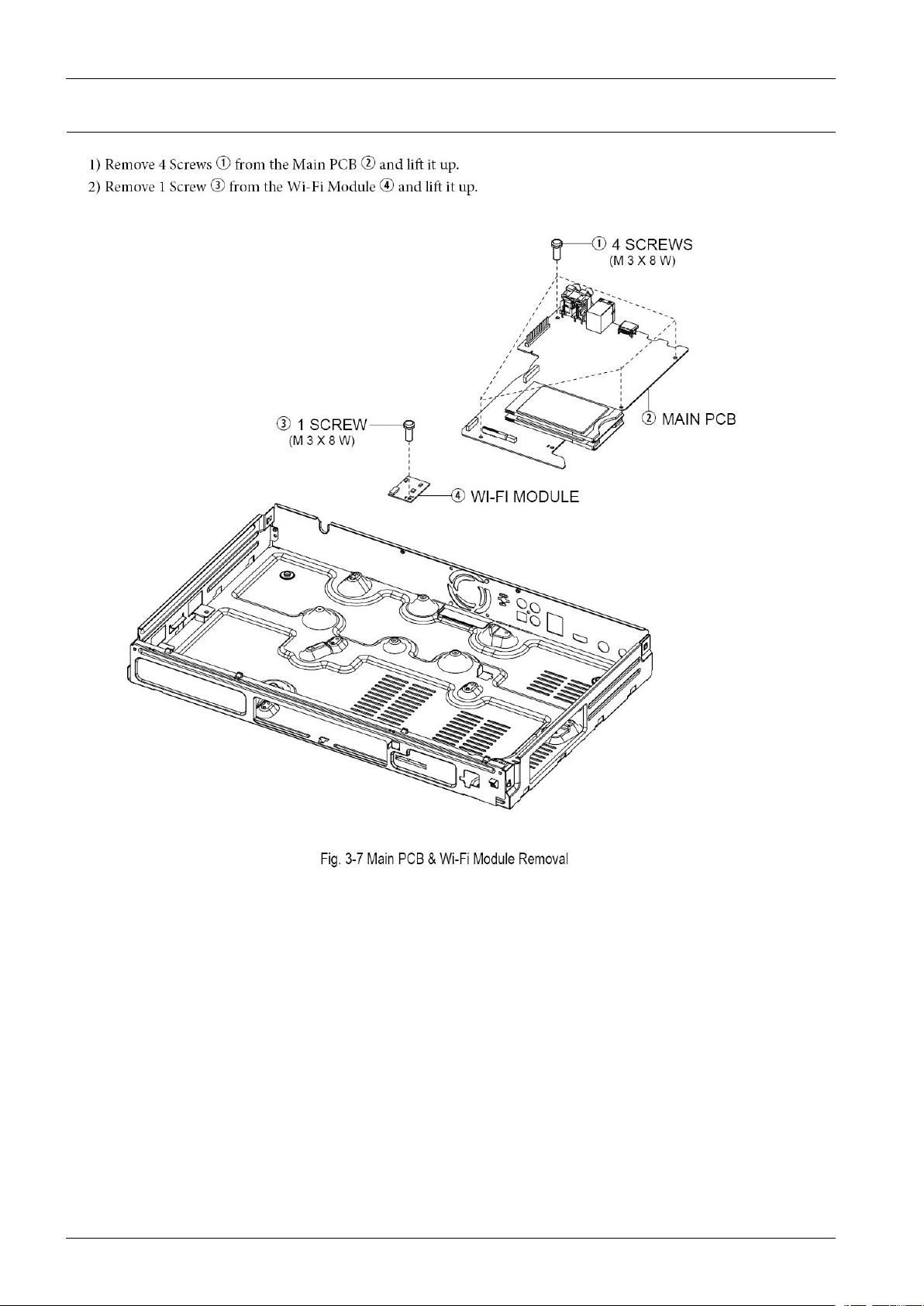

3.1.7.MainPCB&Wi-FiModuleRemoval

Page 35

3.DisassemblyandReassembly

3.2.PCBLocation

Page 36

4.Troubleshooting

Page 37

4.Troubleshooting

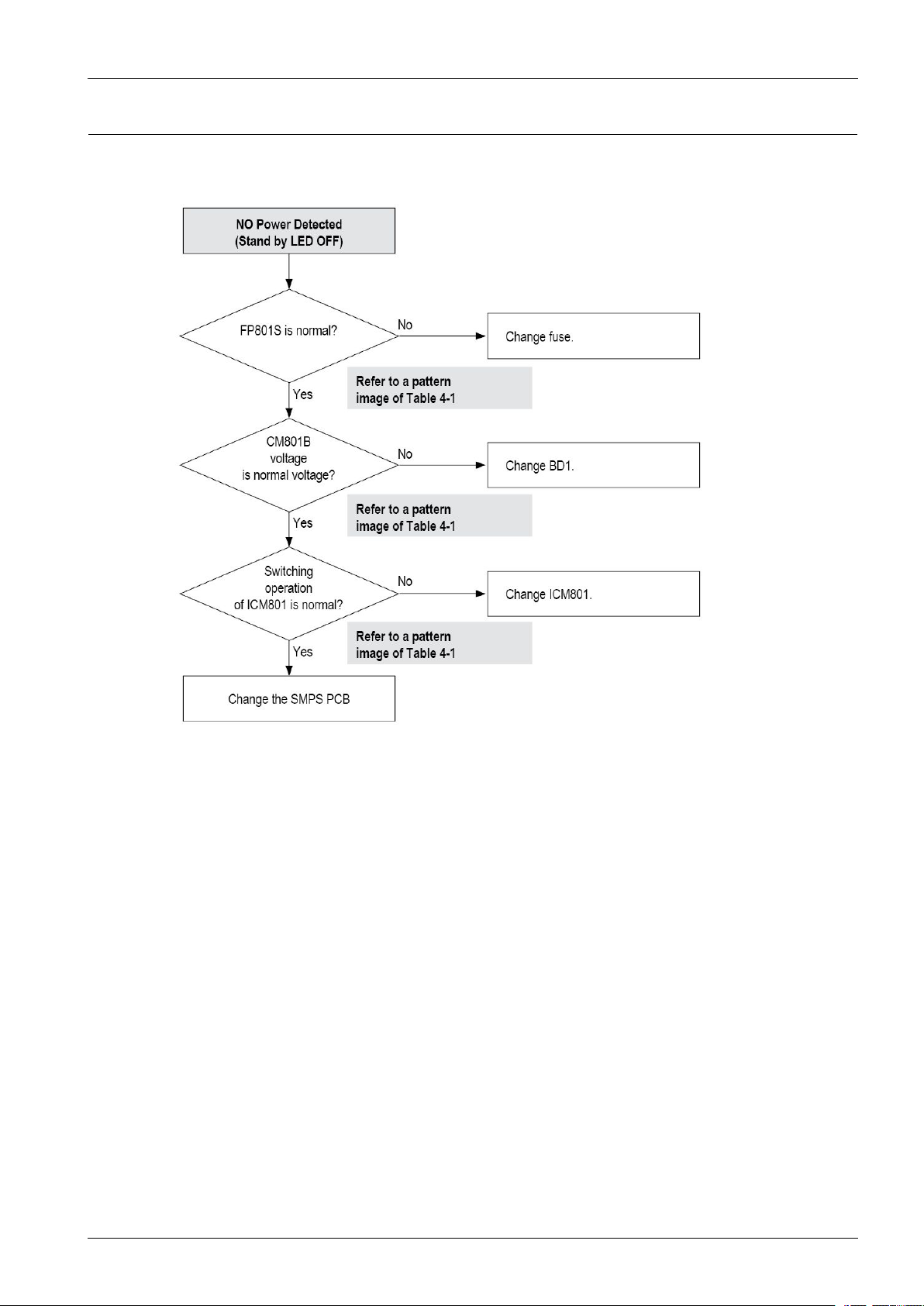

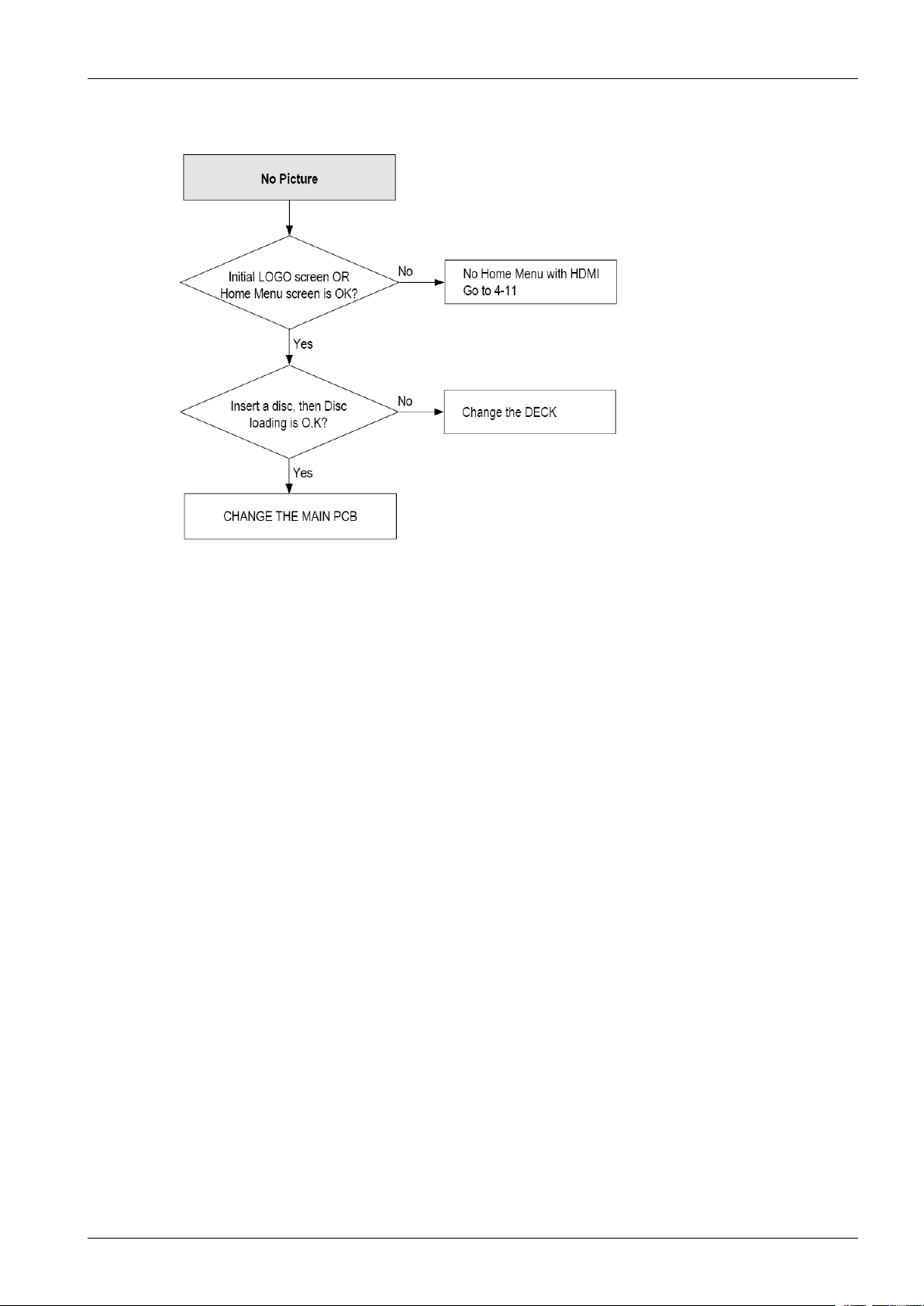

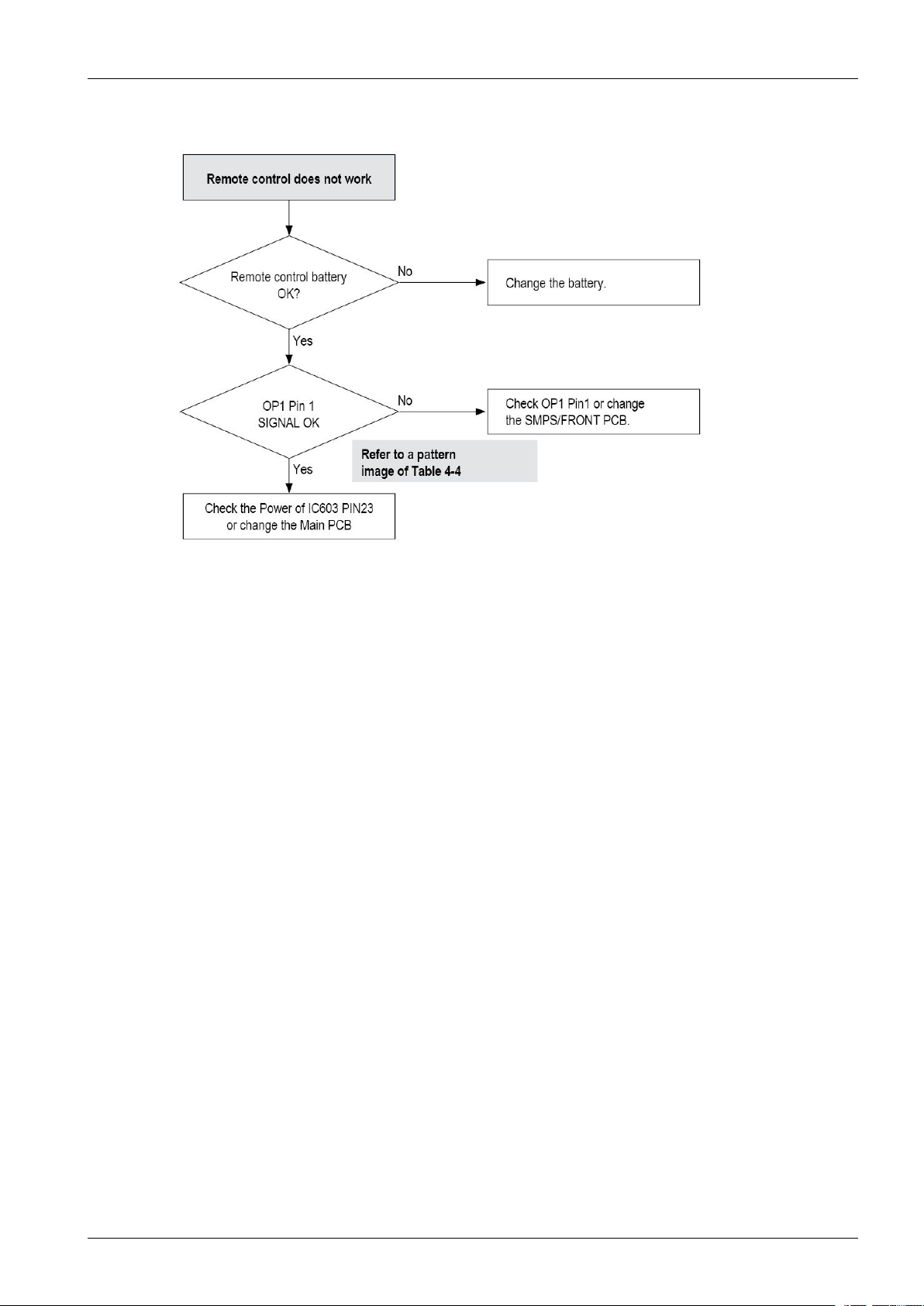

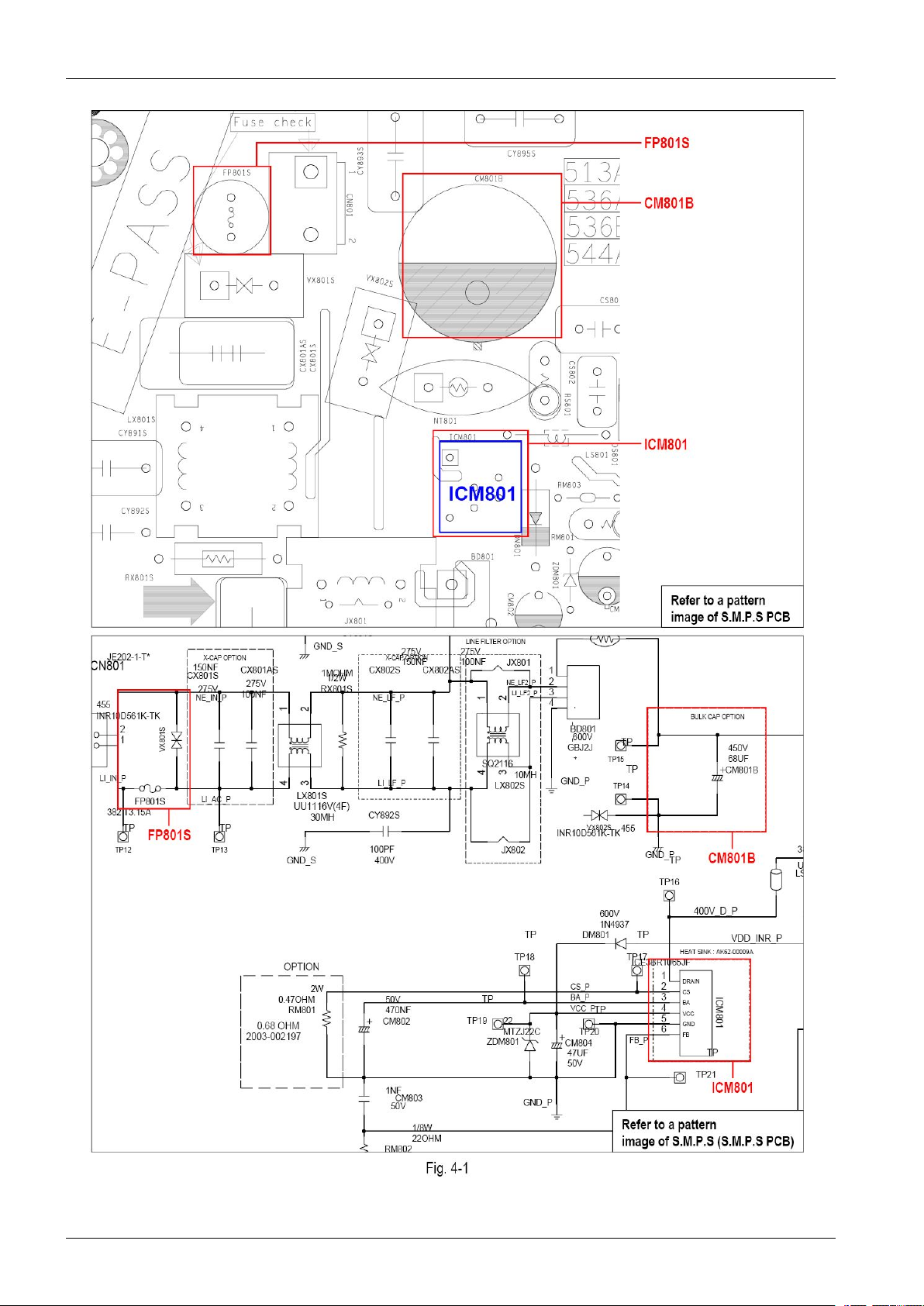

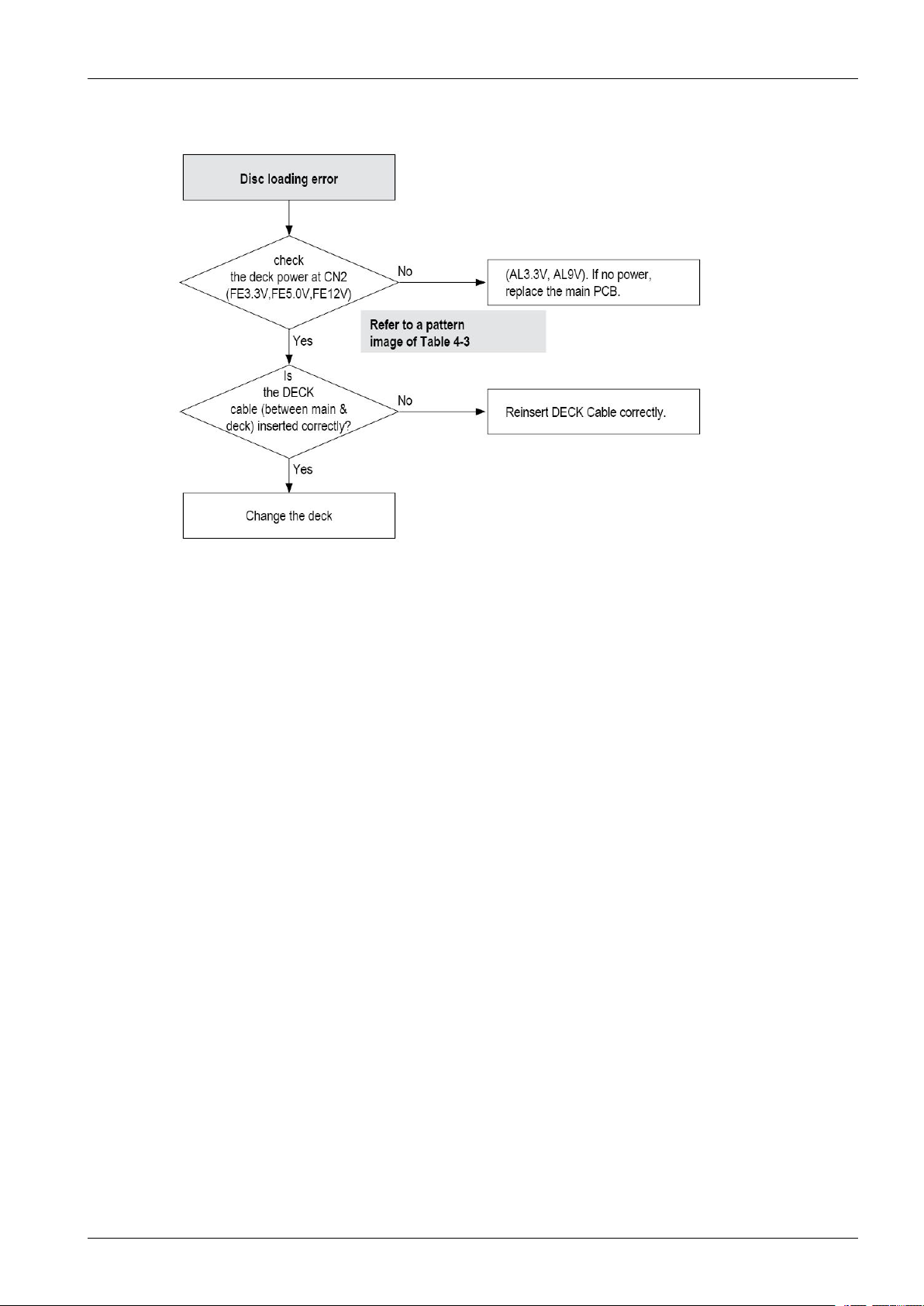

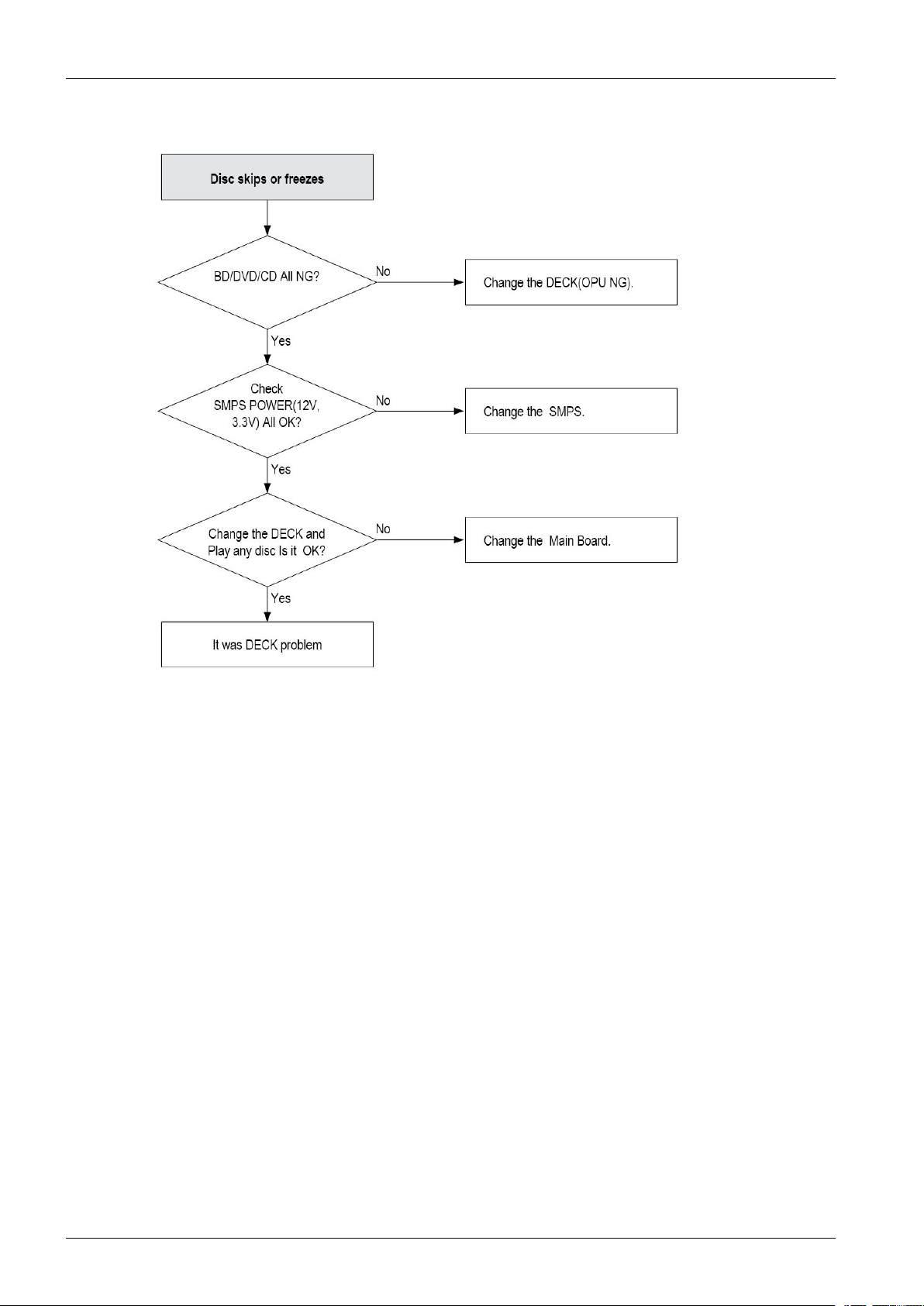

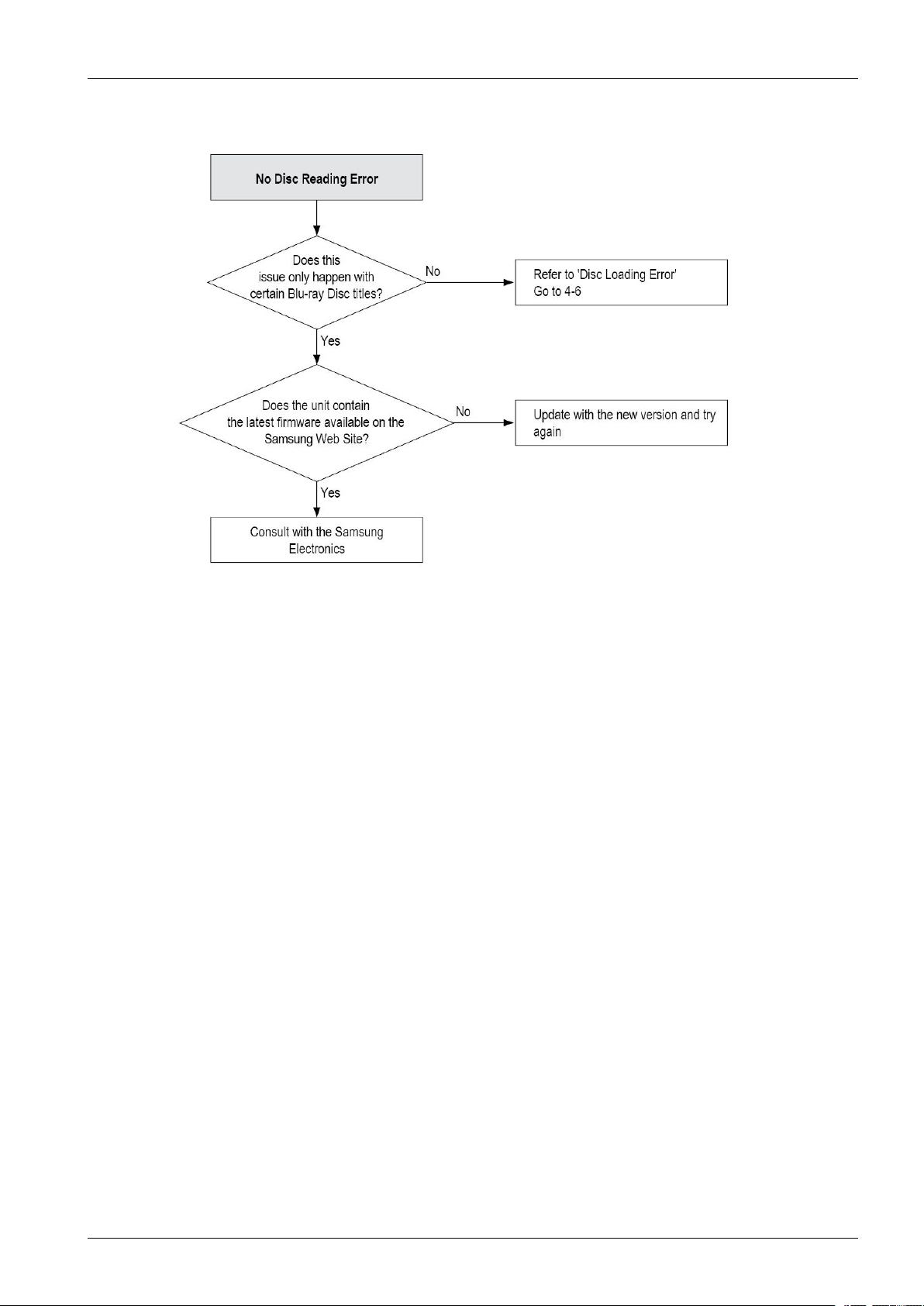

4.1.Troubleshooting

Page 38

4.Troubleshooting

Page 39

4.Troubleshooting

Page 40

4.Troubleshooting

Page 41

4.Troubleshooting

Page 42

4.Troubleshooting

Page 43

4.Troubleshooting

Page 44

4.Troubleshooting

Page 45

4.Troubleshooting

Page 46

4.Troubleshooting

Page 47

4.Troubleshooting

Page 48

4.Troubleshooting

Page 49

4.Troubleshooting

Page 50

4.Troubleshooting

4.2.SoftwareUpdate

4.2.1.Upgrade

TheSoftwareUpgrademenuallowsyoutoupgradetheplayer’ssoftwareforperformanceimprovementsoradditional services.

•Neverturntheplayerofforbackonmanuallyduringtheupdateprocess.

1)IntheHomemenu,selecttheSettings,andthenpressthe

2)SelectSupport,andthenpressthebutton.

3)SelectSoftwareUpgrade,andthenpressthebutton.

4)Selectoneofthefollowingmethods:

•ByOnline

•ByChannel

•ByUSB

•ByDisc

•ByDownoaded

•StandbyModeUpgrade

5)Pressthe

NOTE

•Theupgradeiscompletewhentheplayerturnsoff,andthenturnsonagainbyitself.

•SamsungElectronicsshalltakenolegalresponsibilityforplayermalfunctioncausedbyanunstableInternetconnectionor consumernegligenceduringasoftwareupgrade.

•Ifyouwanttocanceltheupgradewhiletheupgradesoftwareisdownloading,pressthe

button.

•ByOnline

YourplayermustbeconnectedtotheInternettousetheByOnlinefunction.

1)SelectByOnline,andthenpressthe

2)Ifthereisadownloadavailable,theDownloadpop-upappearswithaprogressbarandthedownloadstarts.

3)Whenthedownloadiscomplete,theUpgradeQuerywindowappearswiththreechoices:UpgradeNow,Upgrade Later,orDon’tUpgrade.

4)IfyouselectUpgradeNow,theplayerupgradesthesoftware,turnsoff,andthenturnsonautomatically.

5)IfyoudonotmakeaselectioninoneminuteorselectUpgradeLater,theplayerstoresthenewupgradesoftware.You canupgradethesoftwarelaterusingtheByDownloadedfunction.

6)IfyouselectDon’tUpgrade,theplayercancelstheupgrade.

•ByChannel

Upgradesoftwareusingthebroadcastingsignal.

•ByUSB

button.TheConnectingtoServermessageappears.

Page 51

1)V isitwww.samsung.com.

2)ClickSUPPORTonthetoprightofthepage.

3)Entertheproduct'smodelnumberintothesearcheld,andthenclickFindProduct.

4)ClickGetdownloadsinthecenterofthepagebelowtheDownloadsheader.

5)ClickFirmwareinthecenterofthepage.

6)ClicktheZIPiconintheFilecolumnontherightsideofthepage.

7)ClickOKinthepop-upthatappearstodownloadandsavethermwareletoyourPC.

8)Unziptheziparchivetoyourcomputer.Y oushouldhaveasinglefolderwiththesamenameastheziple.

9)CopythefoldertoaUSBashdrive.

10)Makesurenodiscisinsertedintheproduct,andtheninserttheUSBashdriveintotheUSBportoftheproduct.

11)Intheproduct'smenu,gotoSettings>Support>SoftwareUpgrade.

12)SelectByUSB.

NOTE

4.Troubleshooting

•ThereshouldbenodiscintheplayerwhenyouupgradethesoftwareusingtheUSBHostjack.

•Whenthesoftwareupgradeisdone,checkthesoftwaredetailsinthesoftwareUpgrademenu.

•Donotturnofftheplayerduringthesoftwareupgrade.Itmaycausetheplayertomalfunction.

•SoftwareupgradesusingtheUSBHostjackmustbeperformedwithaUSBashmemorystickonly .

•ByDisc

1)FollowSteps1through7inByUSB.

2)Unziptheziparchivetoyourcomputer.Y oushouldhaveasinglefolderwiththesamenameastheziple.

3)Writethefolderontoadisc.W erecommendaCD-RorDVD-R.

4)Finalizethediscbeforeyouremoveitfromyourcomputer.

5)Insertthediscintotheproduct.

6)Intheproduct'smenu,gotoSettings>Support>Softwareupgrade.

7)SelectByDisc.

NOTE

•Whenthesystemupgradeisdone,checkthesoftwaredetailsinthesoftwareUpgrademenu.

•DonotturnofftheplayerduringtheSoftwareUpgrade.Itmaycausetheplayermalfunction.

•ByDownloaded

TheByDownloadedoptionletsyouupgradeusingaletheplayerdownloadedearlierbutyoudecidednottoinstall immediatelyoraledownloadedbytheplayerinStandbyMode.

1)Ifupgradesoftwarehasbeendownloaded,youwillseethesoftwareversionnumbertotherightofByDownloaded.

2)SelectByDownloaded,andthenpressthebutton.

3)Theplayerdisplaysamessageaskingifyouwanttoupgrade.SelectY es.Theplayerbeginstheupgrade.

Page 52

4.Troubleshooting

4)Whentheupdateiscomplete,theplayerturnsoffautomatically,andthenturnson.

NOTE

•Whenthesystemupgradeisdone,checkthesoftwaredetailsinthesoftwareUpgrademenu.

•DonotturnofftheplayerduringthesoftwareUpgrade.Itmaycausetheplayertomalfunction.

•StandbyModeUpgrade

YoucansettheStandbyModeUpgradefunctionsothattheplayerdownloadsnewupgradesoftwarewhenitisinStandby mode.InStandbymode,theplayerisoff,butitsInternetconnectionisactive.Thisallowstheplayertodownloadupgrade softwareautomatically,whenyouarenotusingit.

1)PressthebuttonstoselectStandbyModeUpgrade,andthenpressthebutton.

2)SelectOnorOff.IfyouselectOn,theplayerwillautomaticallydownloadnewupgradesoftwarewhenitisinStandby modewiththepoweroff.Ifitdownloadsnewupgradesoftware,theplayerwillaskyouifyouwanttoinstallitwhen youturntheplayeron..

NOTE

•TouseStandbyModeUpgradefunction,yourplayermustbeconnectedtotheInternet.

Page 53

4.3.DeckAdjustment

•When

1)Y ouhavetocompleteaDeckAdjustmentwheneverafteryoureplacetheMainPCBAss'yorDeckAss'y

•Method

YourplayermustbeconnectedtotheInternettousetheByOnlinefunction.

1)Step1:Puttheplayerin'NoDisc'status.

2)Step2:Press'2','3','5','8','7','8'ontheremotecontroller.

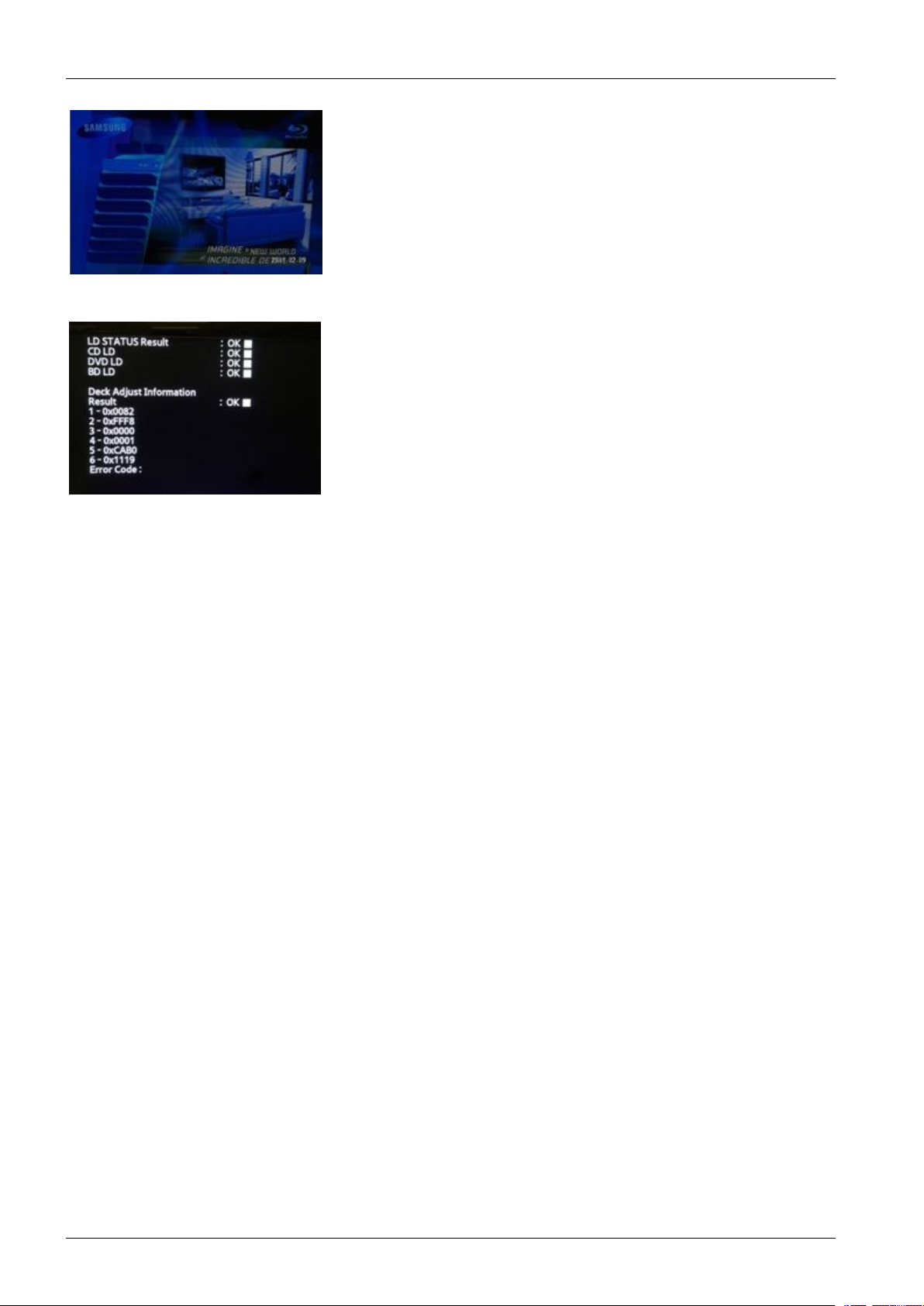

3)Step3:V erifythepictureonthescreen.

4)Step4:InsertaBlu-rayDisc

•TrayTypePlayer(E5300,E5700,E5900):traywillbeopenedautomatically.

•Slot-inTypePlayer(E6500,ES6000):justinsertaBlu-rayDisc

•Y oucanuseoneofeithersinglelayeredBlu-rayDiscorduallayeredBlu-rayDisc.

4.Troubleshooting

•Seek(skip)functionisnotavailableifthele’sindextableisdamaged.

•Y oudon'tneedtoplayDVD.

5)Step5:Ejectthediscafteryouverifyplayback.

6)Step6:Press'2','3','5','8','7','9'ontheremotecontroller.

7)Step7:MakesuretheresultsareOK,ifnotthenrepeattheprocess.

Step1

Step3

Page 54

4.Troubleshooting

Step4

Step7

Page 55

5.PCBDiagrams

Page 56

5.PCBDiagrams

5.1.WiringDiagram

Page 57

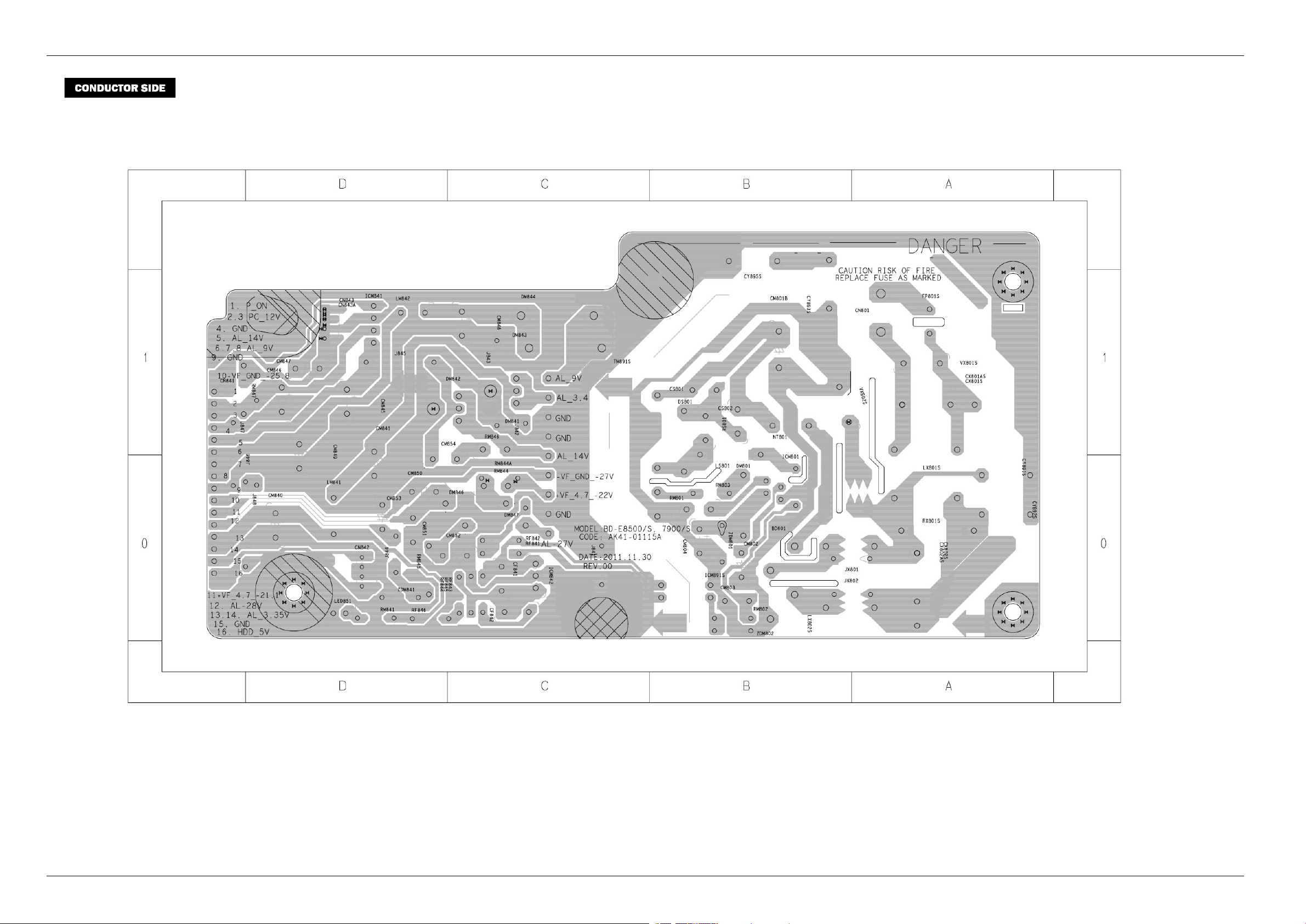

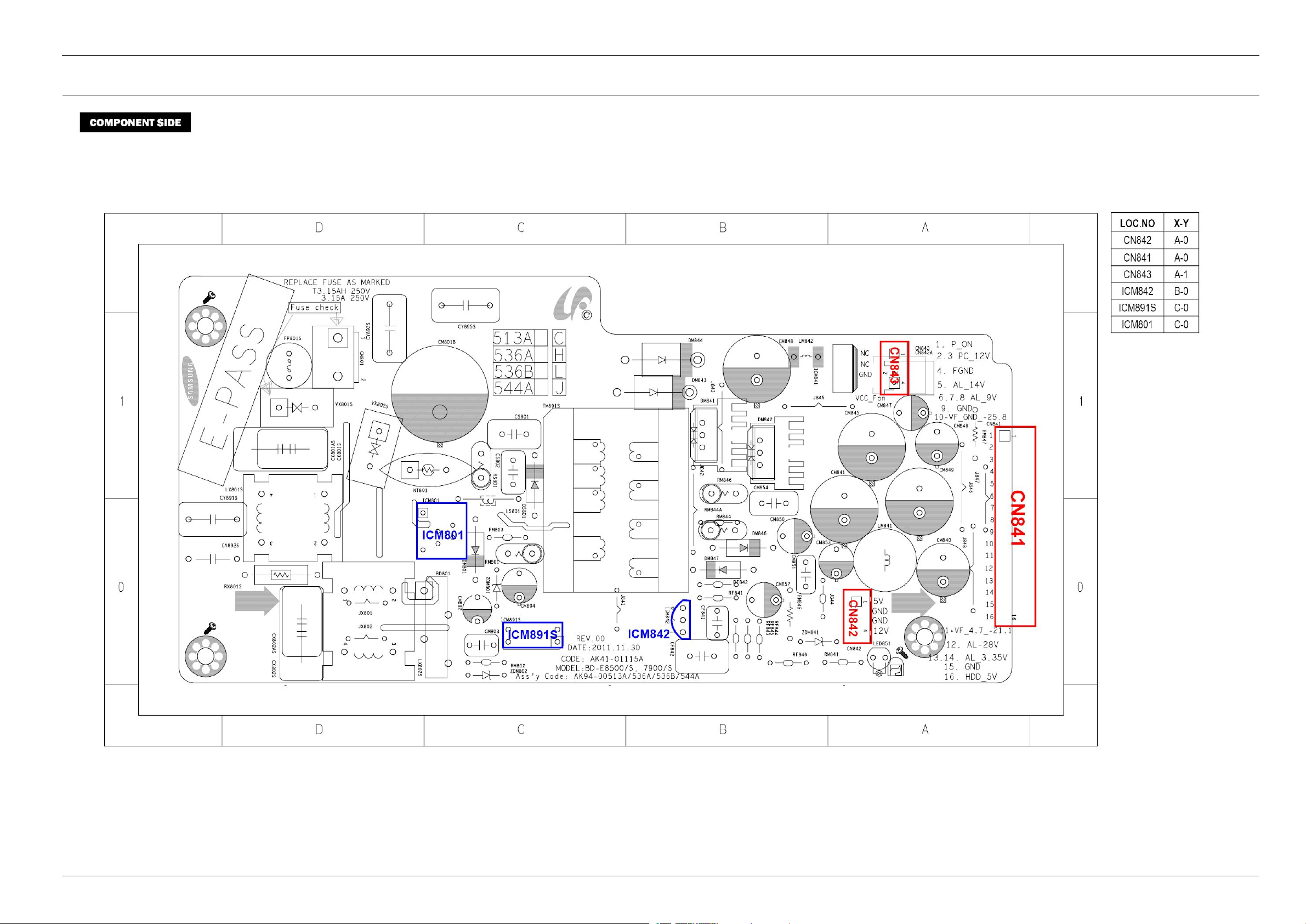

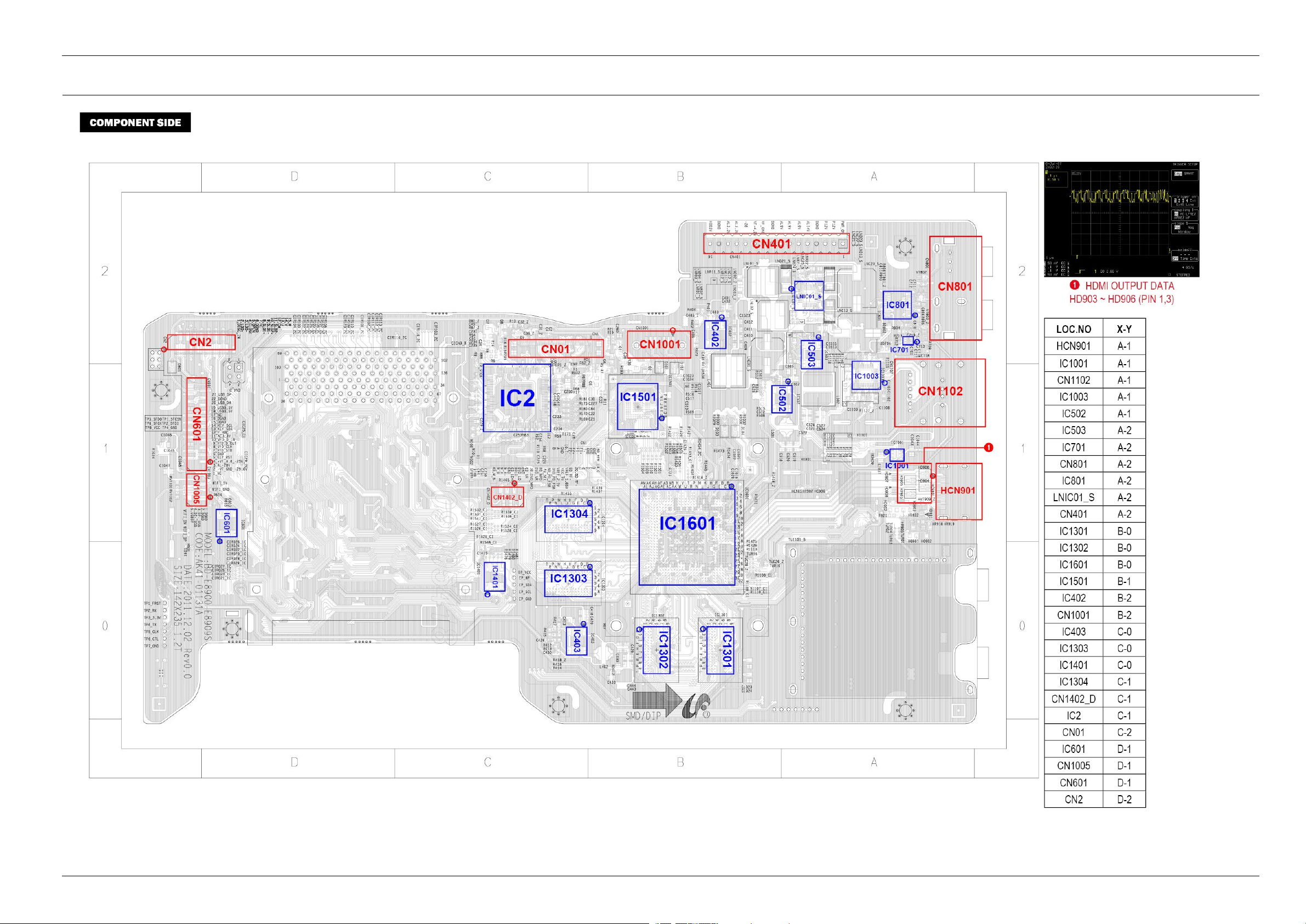

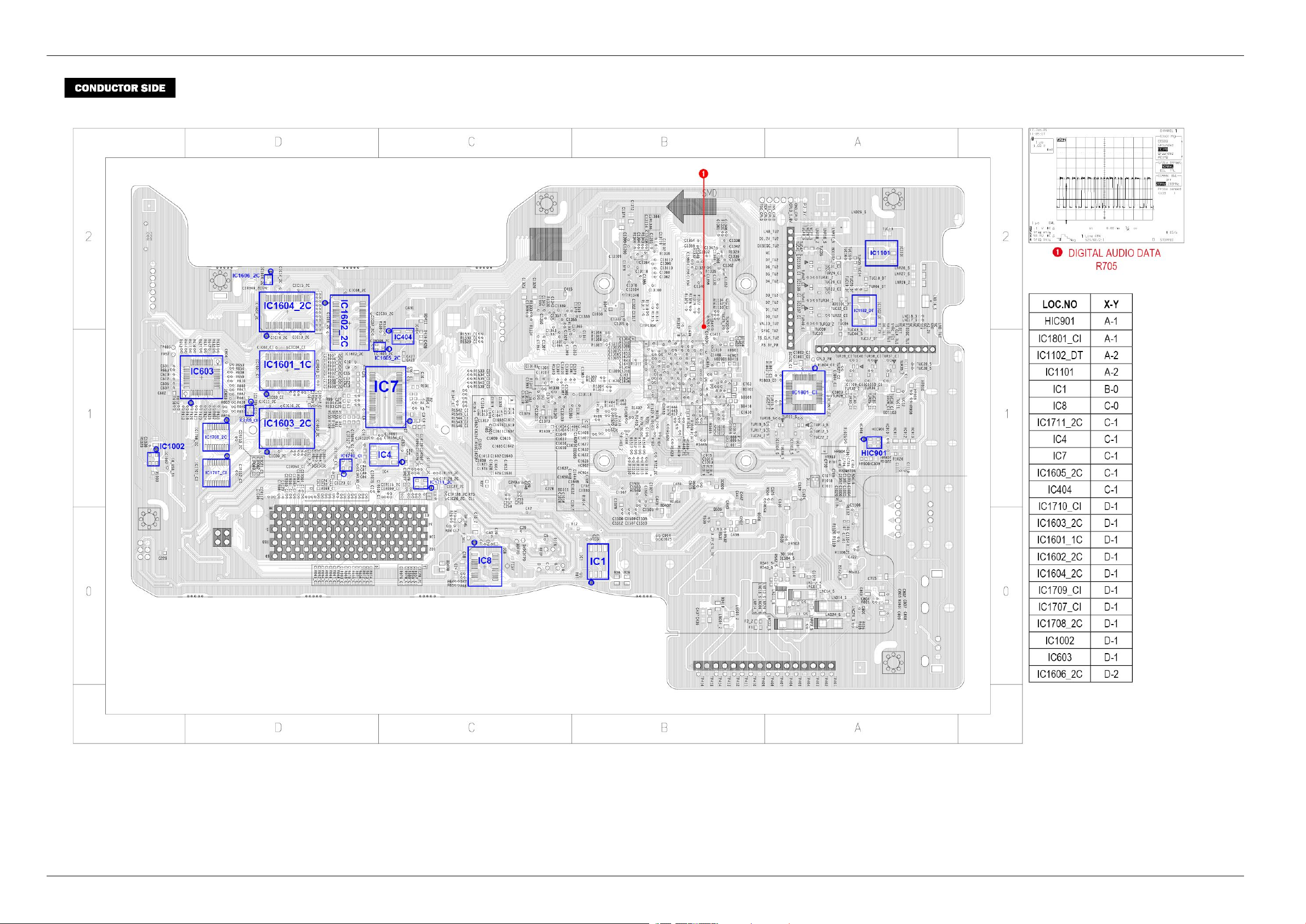

5.2.MainPCB

5.PCBDiagrams

Page 58

5.PCBDiagrams

Page 59

5.3.S.M.P .SPCB

5.PCBDiagrams

Page 60

5.PCBDiagrams

Page 61

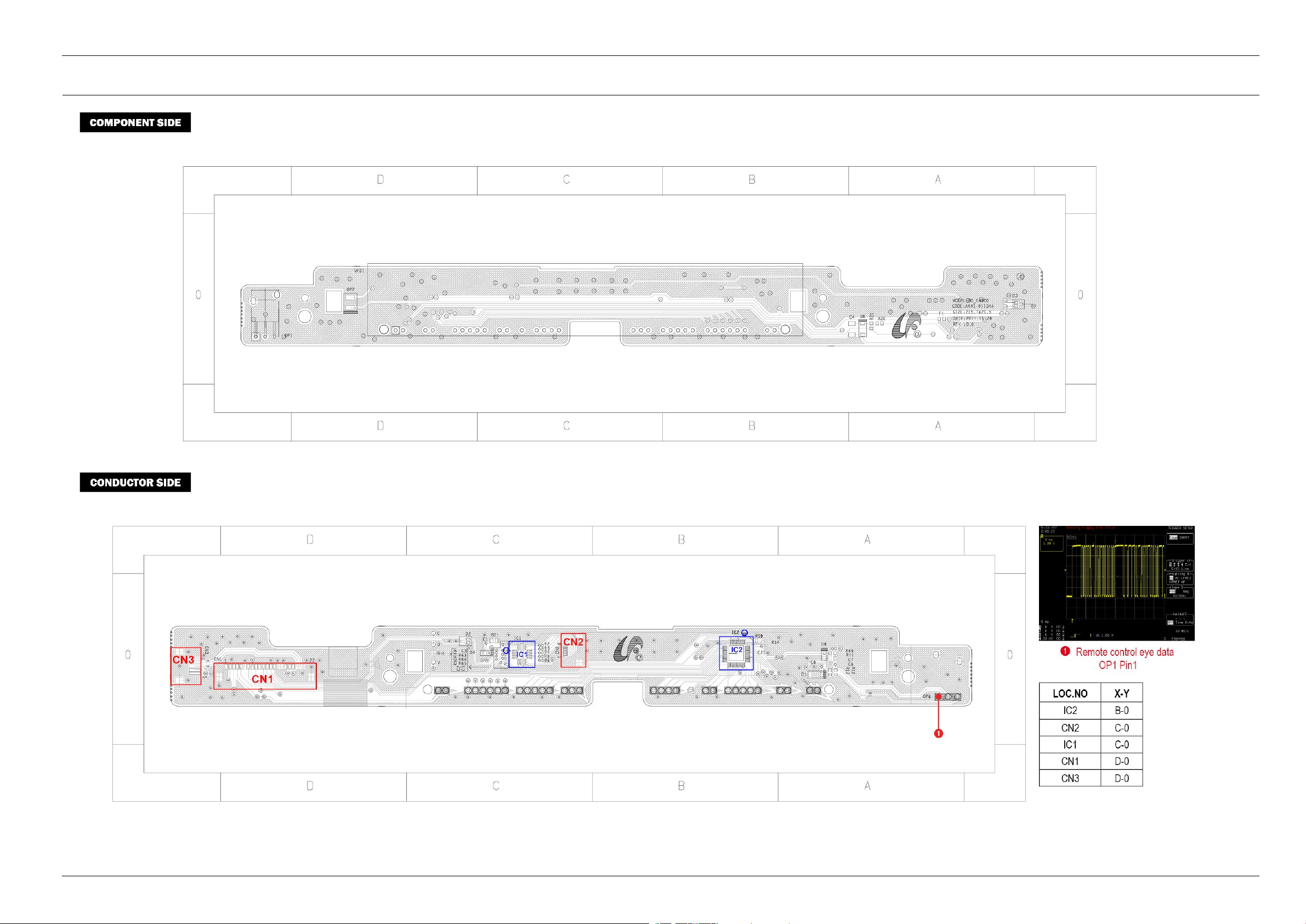

5.4.FrontPCB

5.PCBDiagrams

Page 62

5.PCBDiagrams

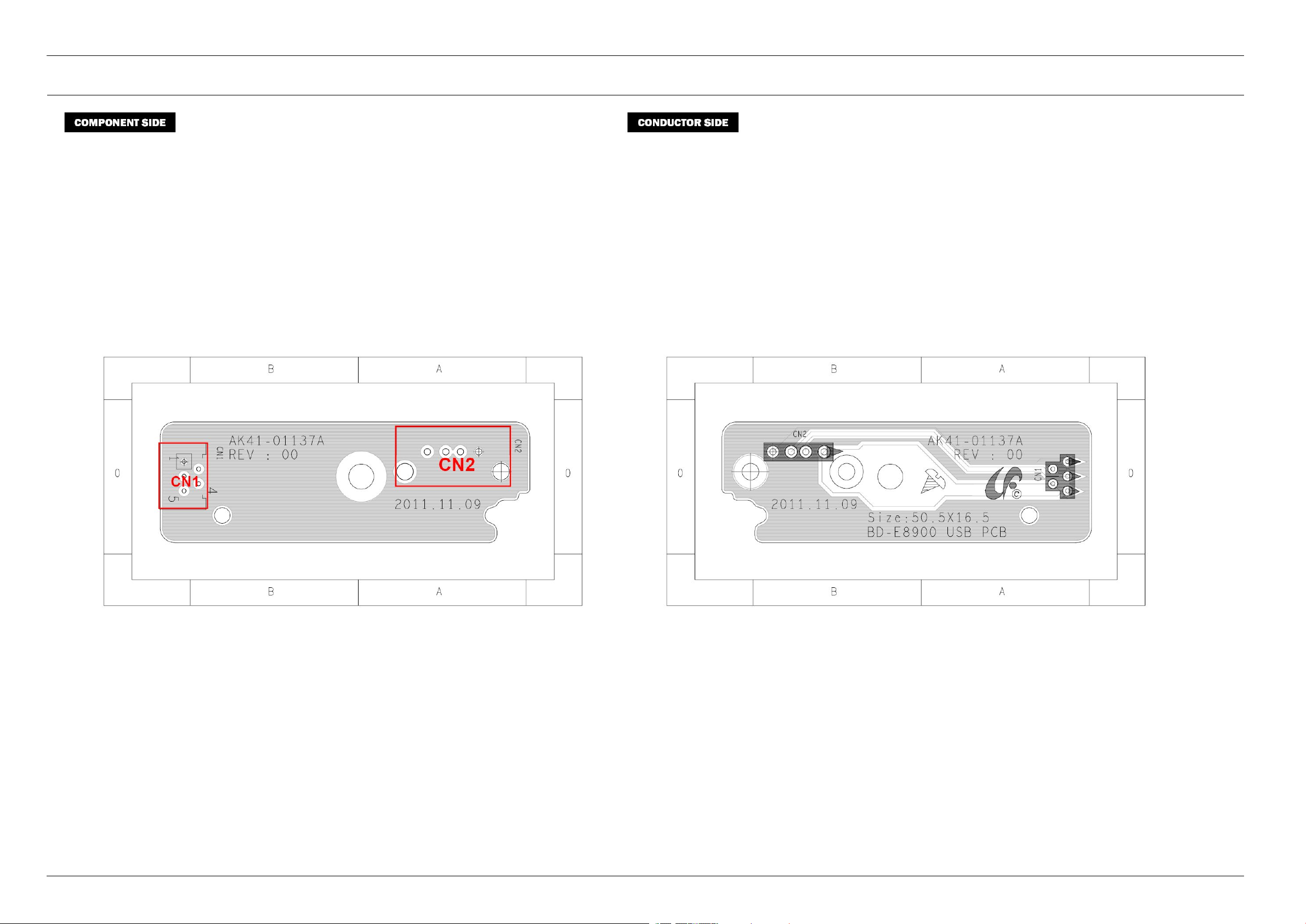

5.5.USBPCB

Page 63

6.SchematicDiagrams

NOTE

•ForschematicDiagram

-Resistorsareinohms,1/8Wunlessotherwisenoted.

NOTE

Donotusethepartnumbershownonthisdrawingforordering.Thecorrectpartnumberisshowninthepartslist(maybeslightlydifferentoramendedsincethisdrawingwasprepared).

CAUTION

Mostsemiconductordevicesareelectrostaticallysensitiveandthereforerequirethespecialhandlingtechniquesdescribedunderthe“electrostaticallysensitive(ES)devices”sectionofthisservicemanual.

WARNING

Componentsidentiedwiththemarkhavethespecialcharacteristicsforsafety.Whenreplacinganyofthesecomponents.Useonlythesametype.

6.SchematicDiagrams

Page 64

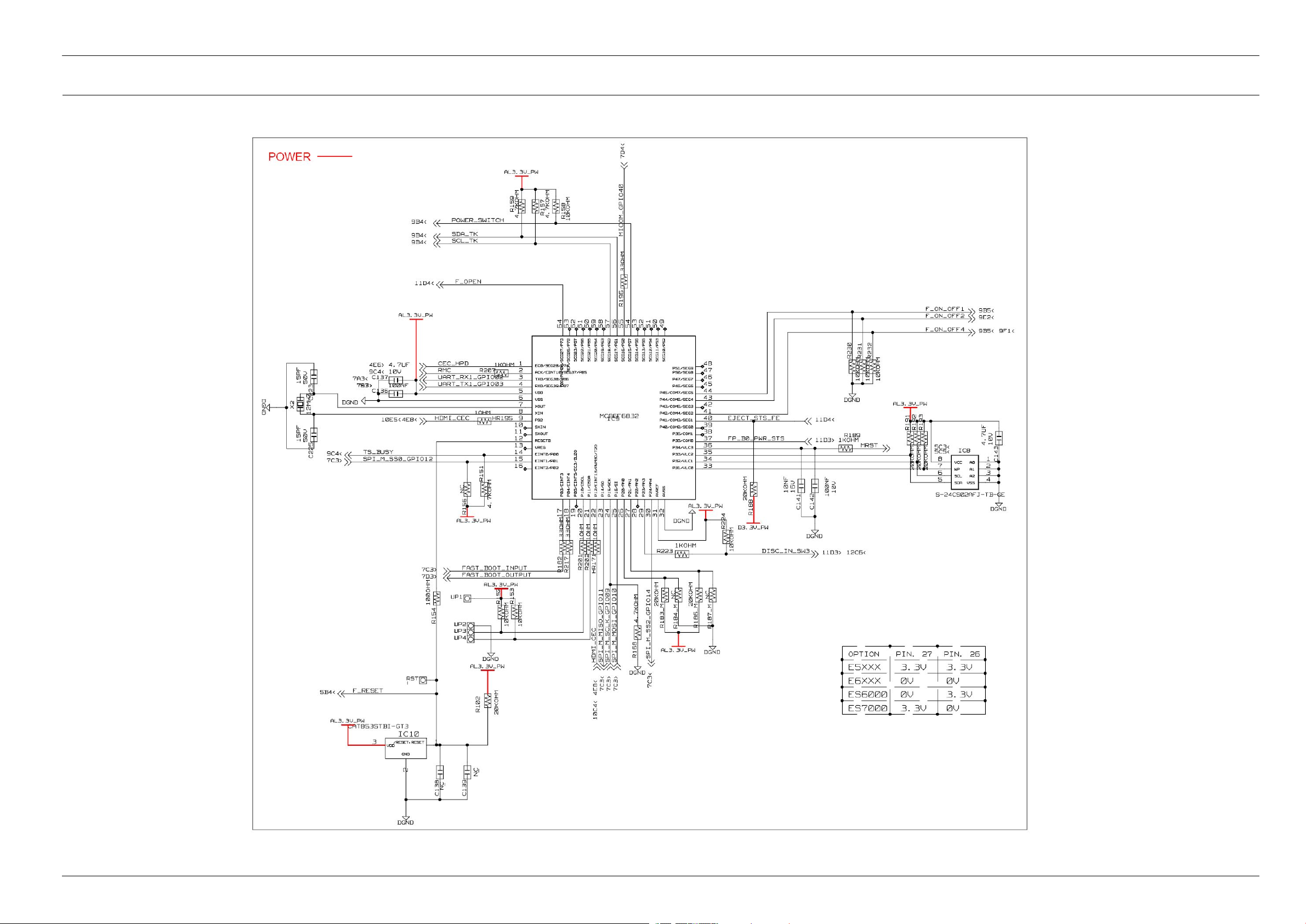

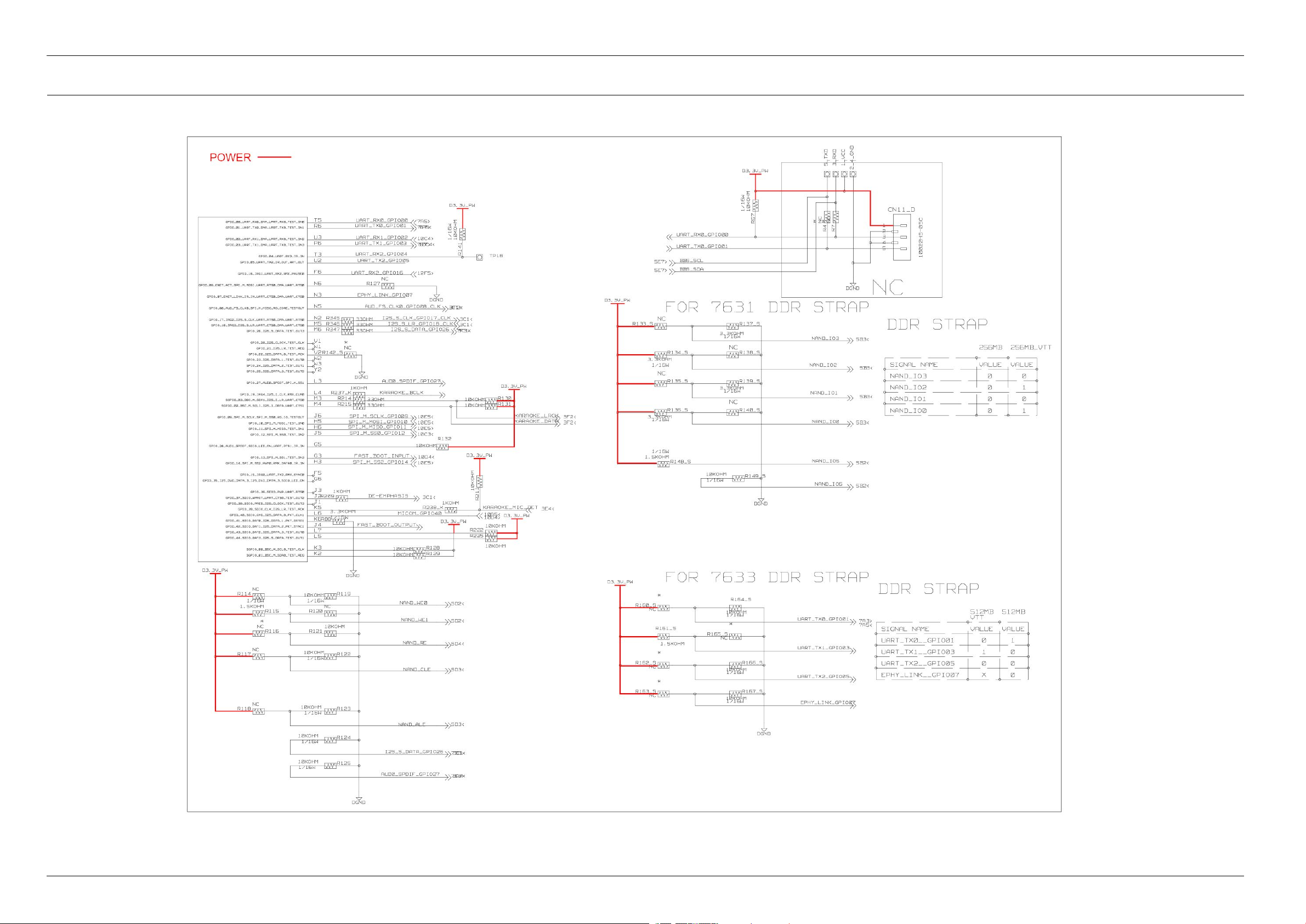

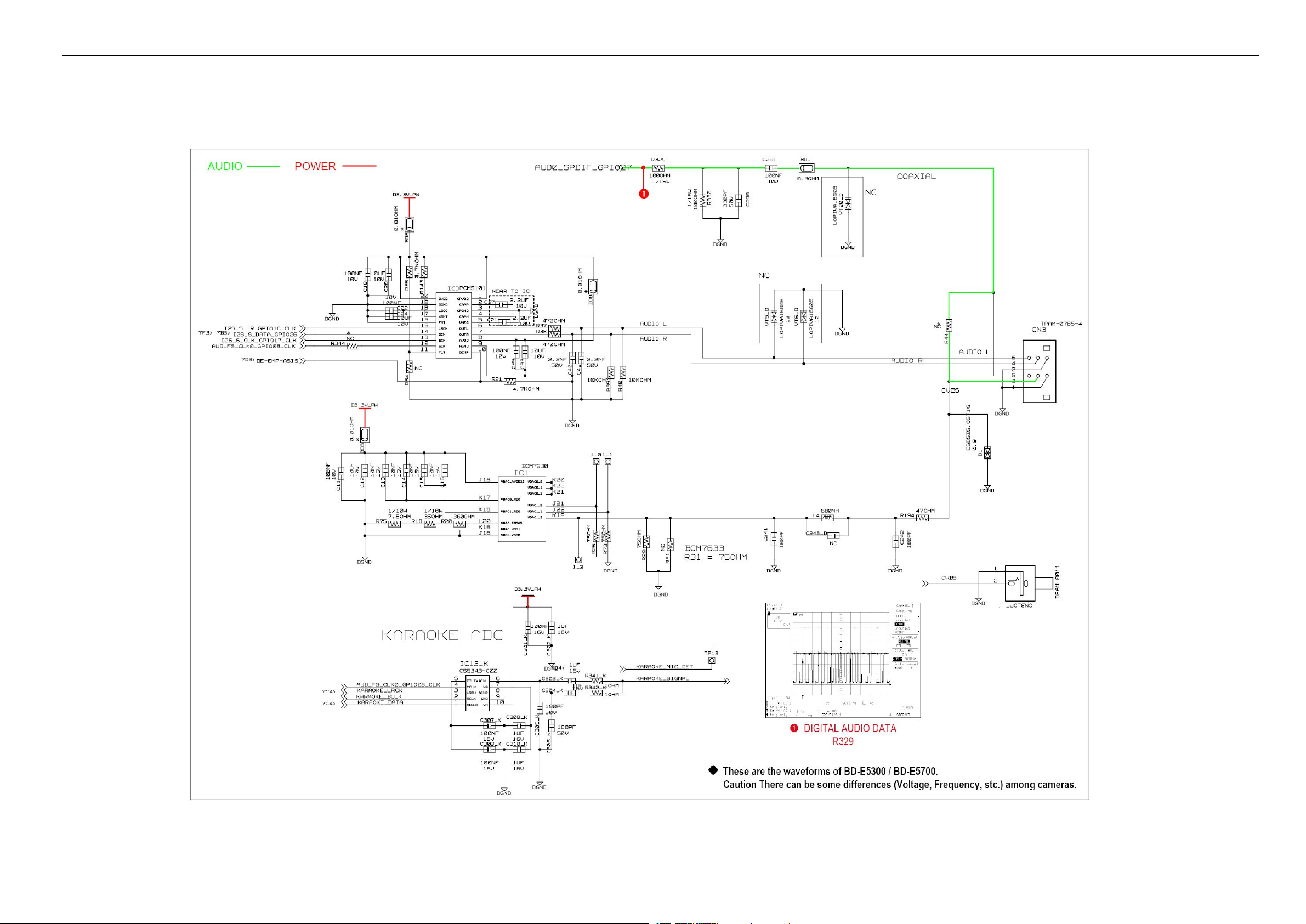

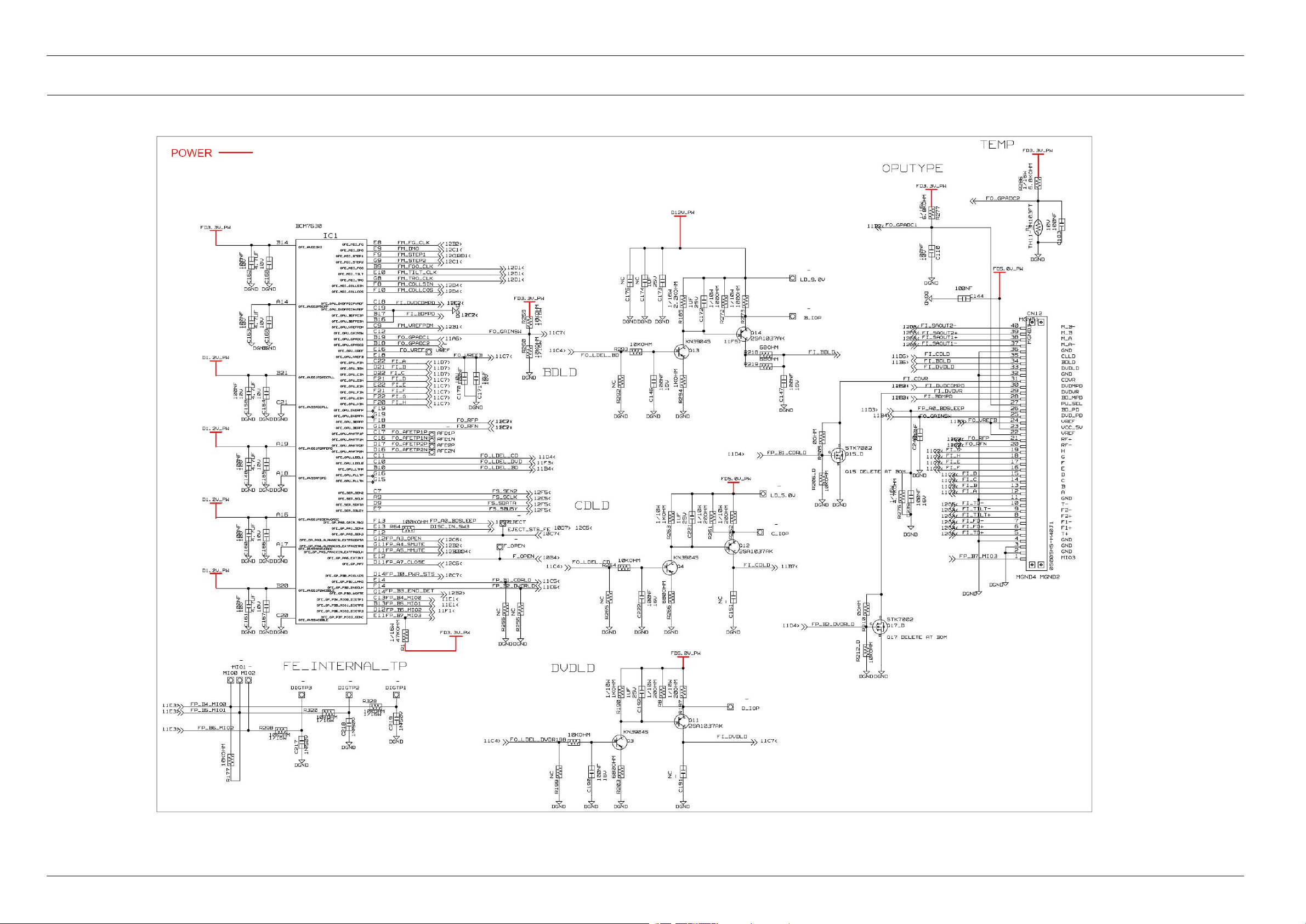

6.SchematicDiagrams

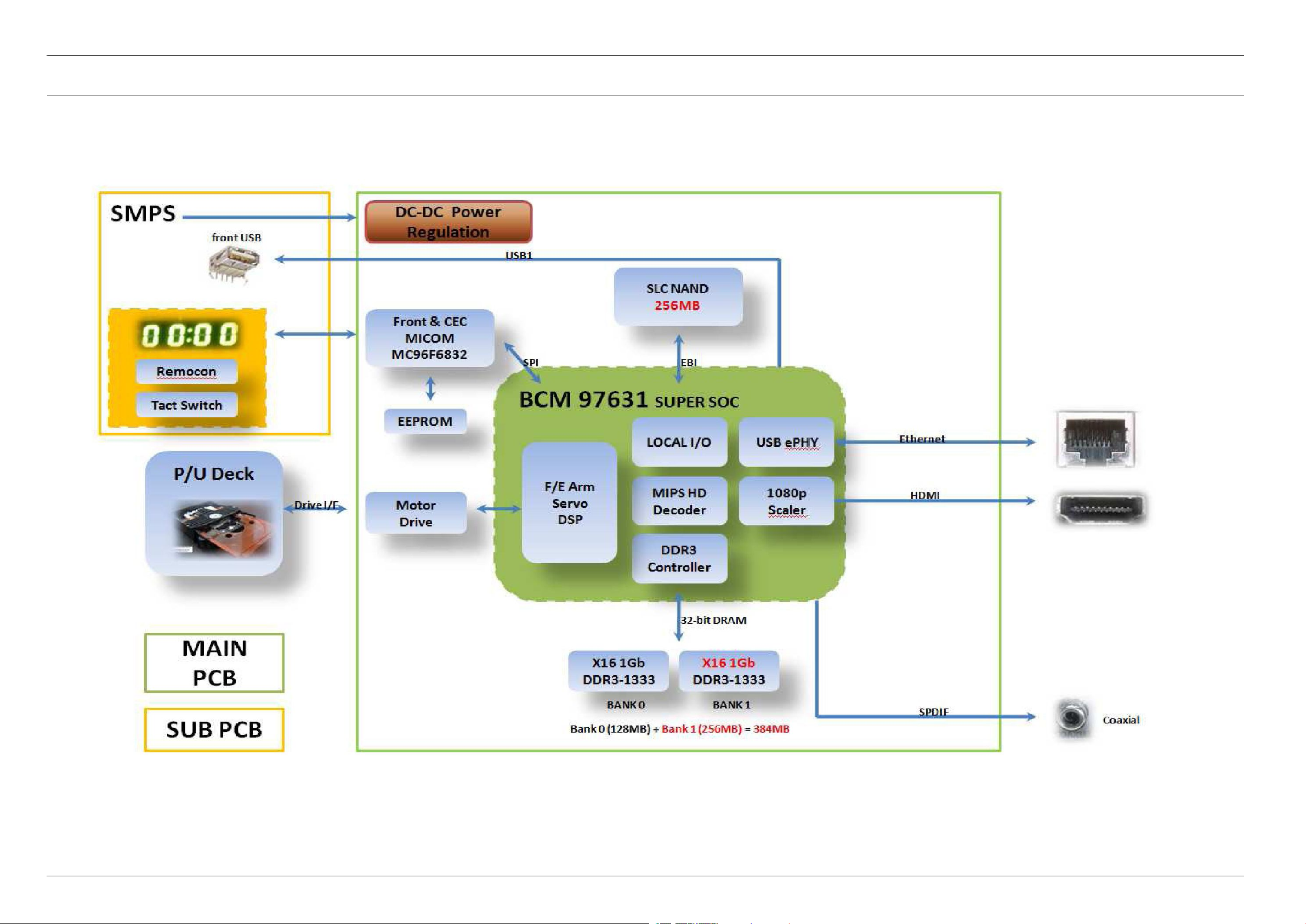

6.1.AllBlockDiagram

Page 65

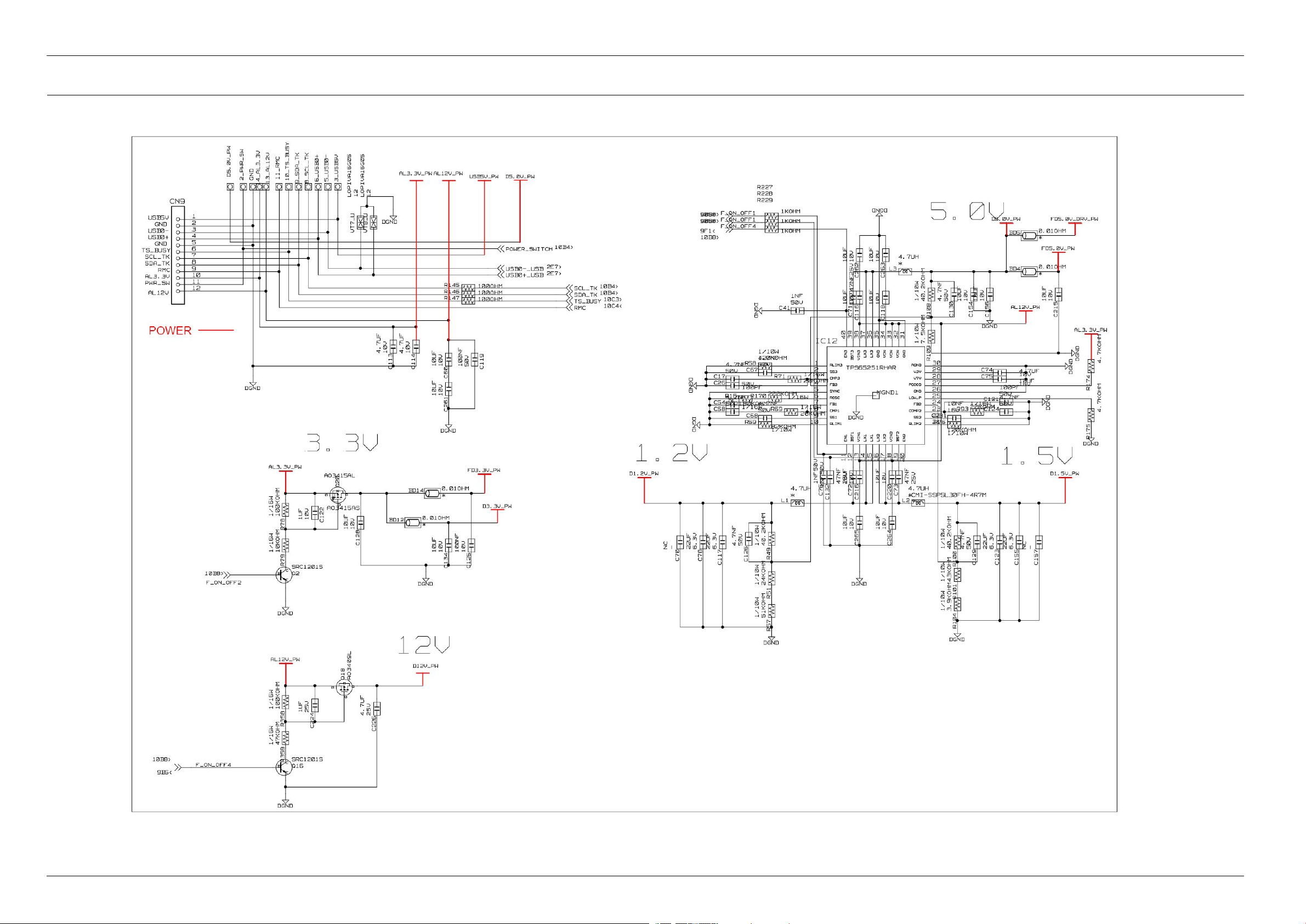

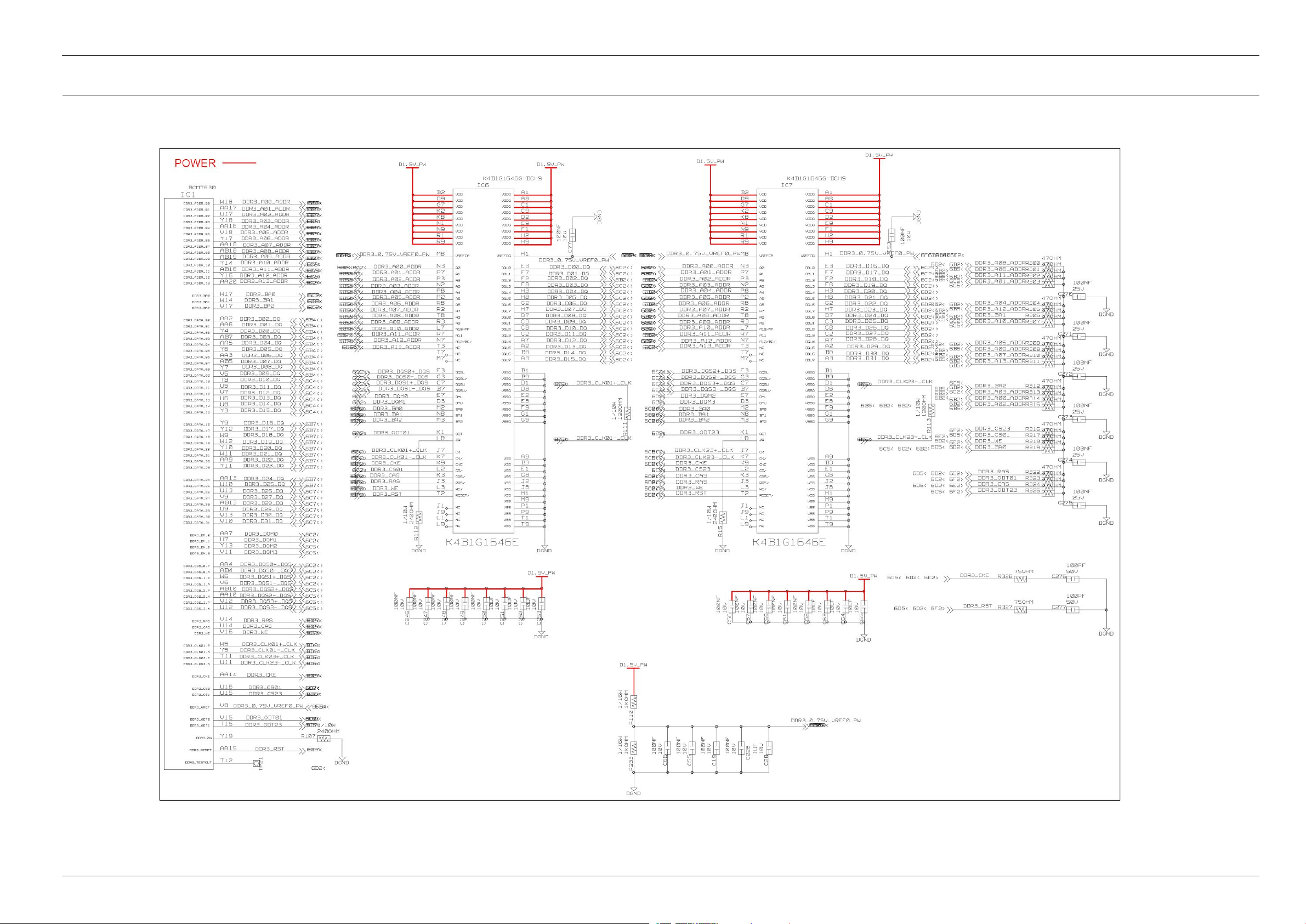

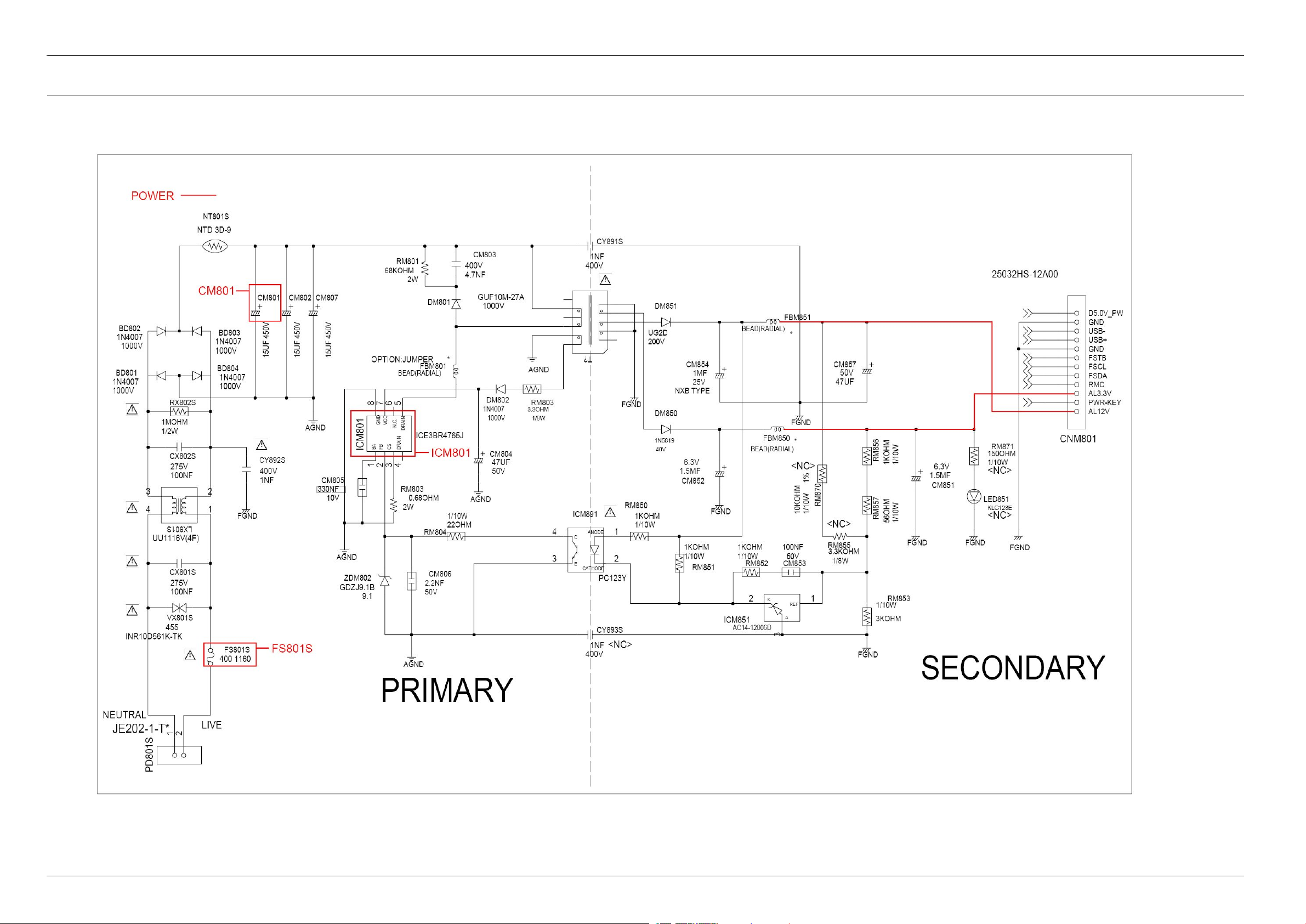

6.2.Power

6.2.1.AboutS.M.P .S(RingingChokeConverterMethod)

Terms

1)1st:Commonpowerinputto1stwinding.

2)2nd:Circuitfollowingsoutputwindingoftransformer.

3)f(Frequency):Switchingfrequency(T:Switchingcycle)

4)Duty:(Ton/T)x100

6.2.2.Circuitdescripcotion[FL Y-BackRCC(RingingChokeConverter)]Control

1)ACPowerRectication/SmoothingTerminal

a)BD01~04:ConvertACpowertoDC(Waverectication).

b)C1S05B:SmooththevoltageconvertedtoDC.

c)L1S01,C1S03,C1S04:Noiseremovalatpowerinput/output.

d)R1S02:Rushcurrentlimitresistanceatthemomentofpowercordinsertion.

WithoutP1S02,thebridgediodemightbedamagedastherushcurrentincreases.

6.SchematicDiagrams

2)SNUBBERCircuit:D1S10,C1S10,R1S10

a)Preventresidualhighvoltageattheterminalsofswitchduringswitchoff/Suppressnoise.Highinvertedpoweroccursatswitchoff,becauseofthe1stwindingoftransformer:(V=-L1xdi/dt.L1:LeakageInduction)Averyhighresidualvoltageexistonboth

terminalsofIC1becausedtisaveryshort.

b)SNUBBERcircuitprotectsIC1fromdamagethroughleakagevoltagesuppressionbyRC,(ChargestheleakagevoltagetoDIS10andCIS10anddischargestoR1S10).

Page 66

6.SchematicDiagrams

3)IC1S01Vcccircuit

a)ICIS01,RIS05,RIS07,RIS08:ICIS01drivingresistance(ICIS01worksthroughdrivingresistanceatpowercordin)

b)ICIS01Vcc:RIS05,RIS07,RIS08

i)UsetheoutputoftransformerasVcc,becausethecurrentstartstoowintotransformerwhileICIS01isactive

ii)RectifytoDIS07andsmoothtoCIS09.

iii)UsetheoutputoftransformerasICIS01Vcc:TheloadsaredifferentbeforeandafterICIS01driving.(VccofICIS01decreasesbelowOFFvoltage,usingonlytheresistanceduttolodeincreaseafterICIS01driving.)

4)FeedbackControlCircuit

a)F/BTerminalofIC1determinesoutputdutycycle.

b)C-E(Collector-Emitter)ofandF/BpotentialofPQIZ1aresame.

Page 67
