Samsung BD-E5500 User Manual

Download

Page 1

BD-E5500

Blu-ray

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

™

Disc Player

ENGLISH

Page 2

Safety Information

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION

Blu-ray Disc Player USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE Blu-ray Disc Player CORRECTLY AS INSTRUCTED.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

This symbol indicates important instructions accompanying the product.

IMPORTANT NOTE

The mains lead on this equipment is supplied with a molded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION :

• CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)

• THIS product UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

2 English

Page 3

Precautions

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus.

11. Only use attachments/accessories

specified by the manufacturer.

12. Use only with the cart,

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of time.

14. Refer all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disc Storage & Management

• Holding Discs

- Fingerprints or scratches on a disc may reduce sound and picture quality or cause skipping

- Avoid touching the surface of a disc where data has been recorded.

- Hold the disc by the edges so that fingerprints will not get on the surface.

- Do not stick paper or tape on the disc.

• Cleaning Discs

- If you get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

- When cleaning, wipe gently from the inside to the outside of the disc.

• Disc Storage `Do not keep in direct sunlight. `Keep in a cool ventilated area. `Keep in a clean protection jacket and

store vertically.

Handling Cautions

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

• Do not plug multiple electric devices into the same wall socket. Overloading a socket can cause it to overheat, resulting in a fire.

• Maintenance of Cabinet.

- Before connecting other components to this player, be sure to turn them off.

- If you move your player suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the player, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again.

• If the product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service centre for technical assistance. Do not use the product. Using the product as it is may cause a fire or an electric shock.

01 Safety Information

English 3

Page 4

Safety Information

Using the 3D function

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the 3D function.

• Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea, and headaches. If you experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses, and rest.

• Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses, and rest.

• A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest.

• Do not use the 3D Active Glasses for other purposes (Such as general eyeglasses, sunglasses, protective goggles, etc.)

• Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may cause you to bump into objects, trip, and/or fall, and cause serious injury.

• If you want to enjoy 3D content, connect a 3D device (3D compliant AV receiver or TV) to the player's HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content.

• The player outputs 3D signals only through HDMI cable connected to the HDMI OUT port.

• As the video resolution in 3D play mode is fixed according to the resolution of the original 3D video, you can not change the resolution to your preference.

• Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode.

• You must use a high-speed HDMI cable for proper output of the 3D signal.

• Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46-inch screen, stay 138 inches (11.5 feet) from the screen.

• Place the 3D video screen at eye level for the best 3D picture.

• When the player is connected to some 3D devices, the 3D effect may not function properly.

• This player does not convert 2D content into 3D.

• "Blu-ray 3D" and "Blu-ray 3D" logo are trademarks of the Blu-ray Disc Association.

Copyright

user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.

4 English

Page 5

Contents

SAFETY INFORMATION

2 Warning

3 Precautions

3 Important Safety Instructions

3 Disc Storage & Management

3 Handling Cautions

4 Using the 3D function

4 Copyright

GETTING STARTED

6 Disc and Format Compatibility

6 Disc types and contents your player can

play

6 Disc types your player cannot play

7 Region Code

7 Logos of Discs the player can play

8 Supported Formats

9 Accessories

10 Front Panel

10 Rear Panel

11 Remote Control

11 Tour of the Remote Control

CONNECTIONS

12 Connecting to a TV

12 Connecting to an Audio System

12 Method 1 Connecting to an HDMI

supported AV receiver

12 Method 2 Connecting to an AV receiver

with Dolby Digital or DTS decoder

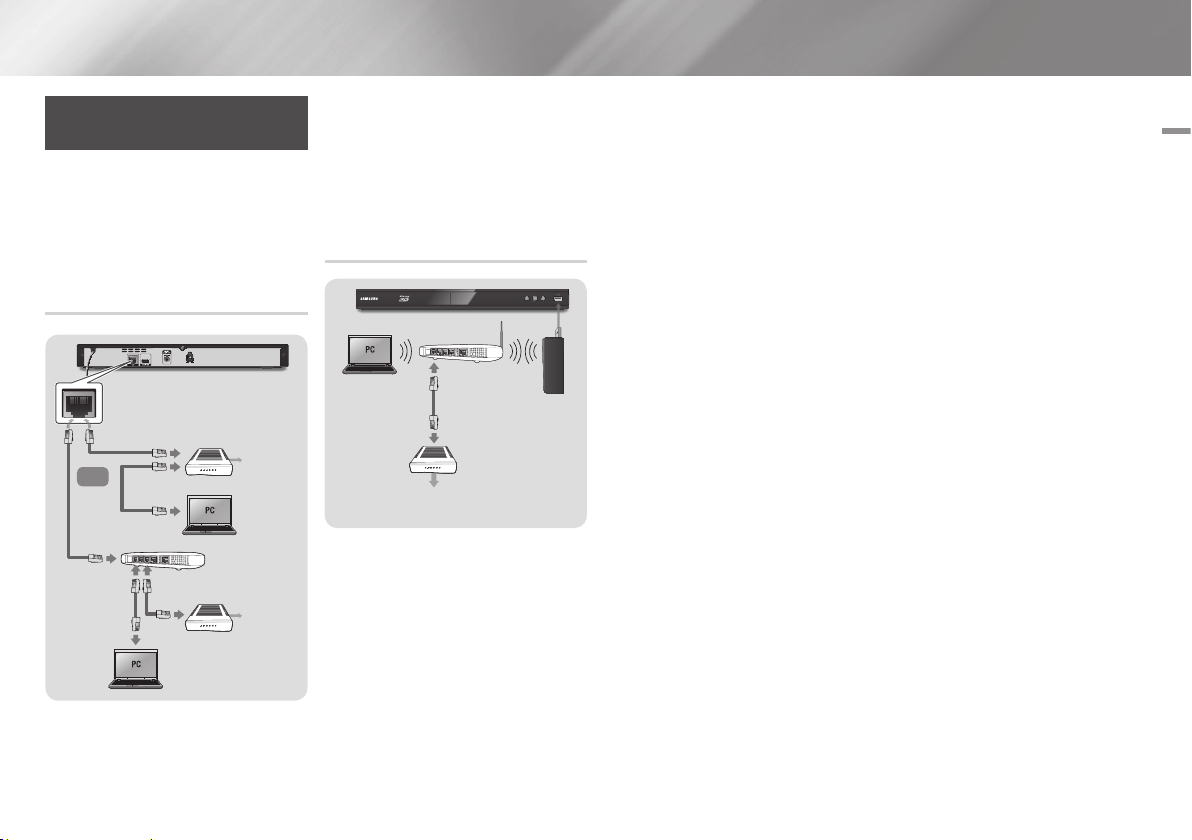

13 Connecting to a Network Router

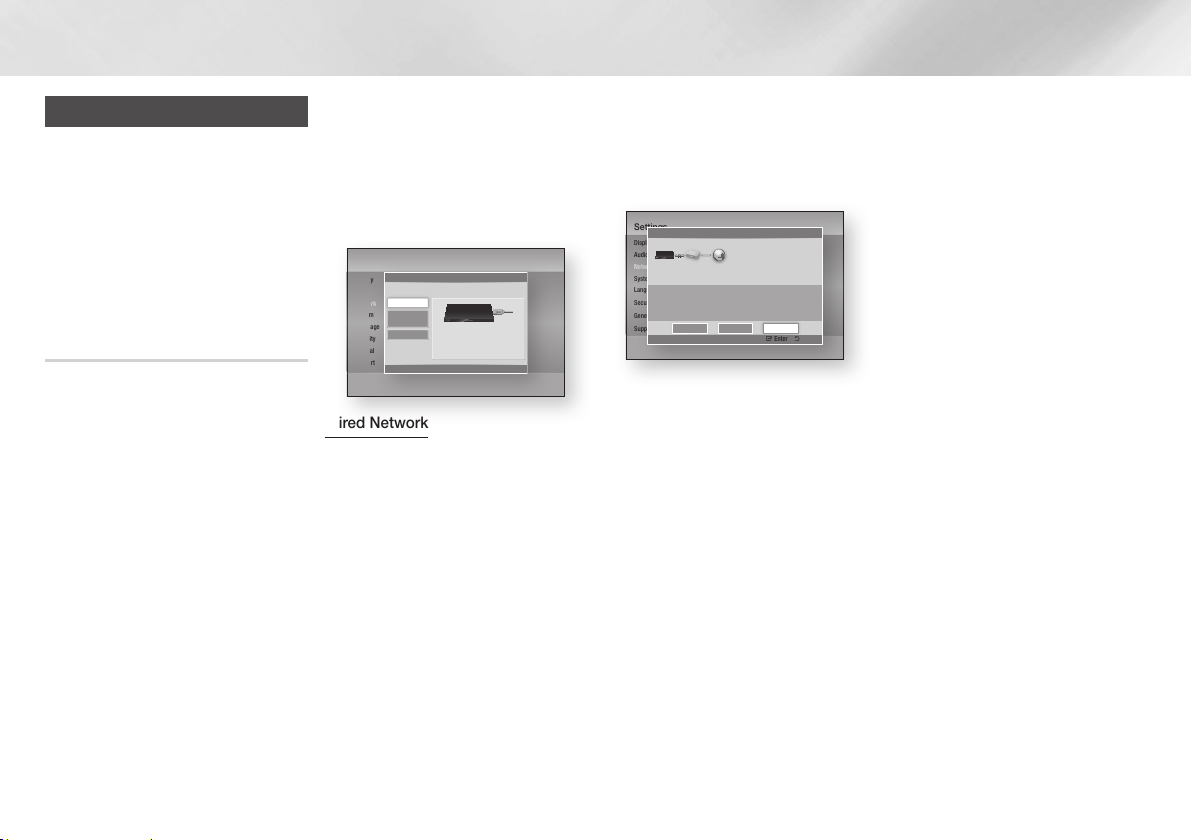

13 Wired Network

13 Wireless Network

SETTINGS

14 The Initial Settings Procedure

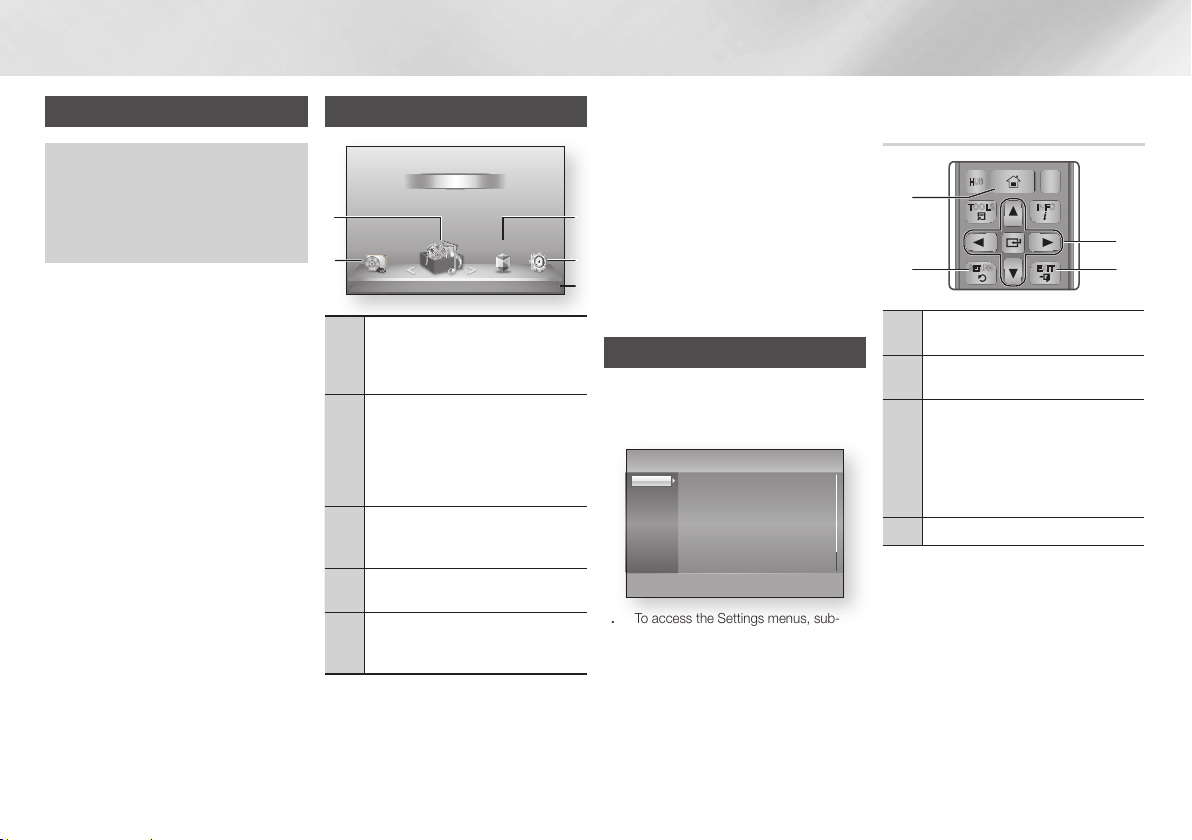

14 The Home Screen

14 Accessing the Settings Screen

14 Buttons on the Remote Control Used for

the Settings Menu

15 Settings Menu Functions

18 Networks and the Internet

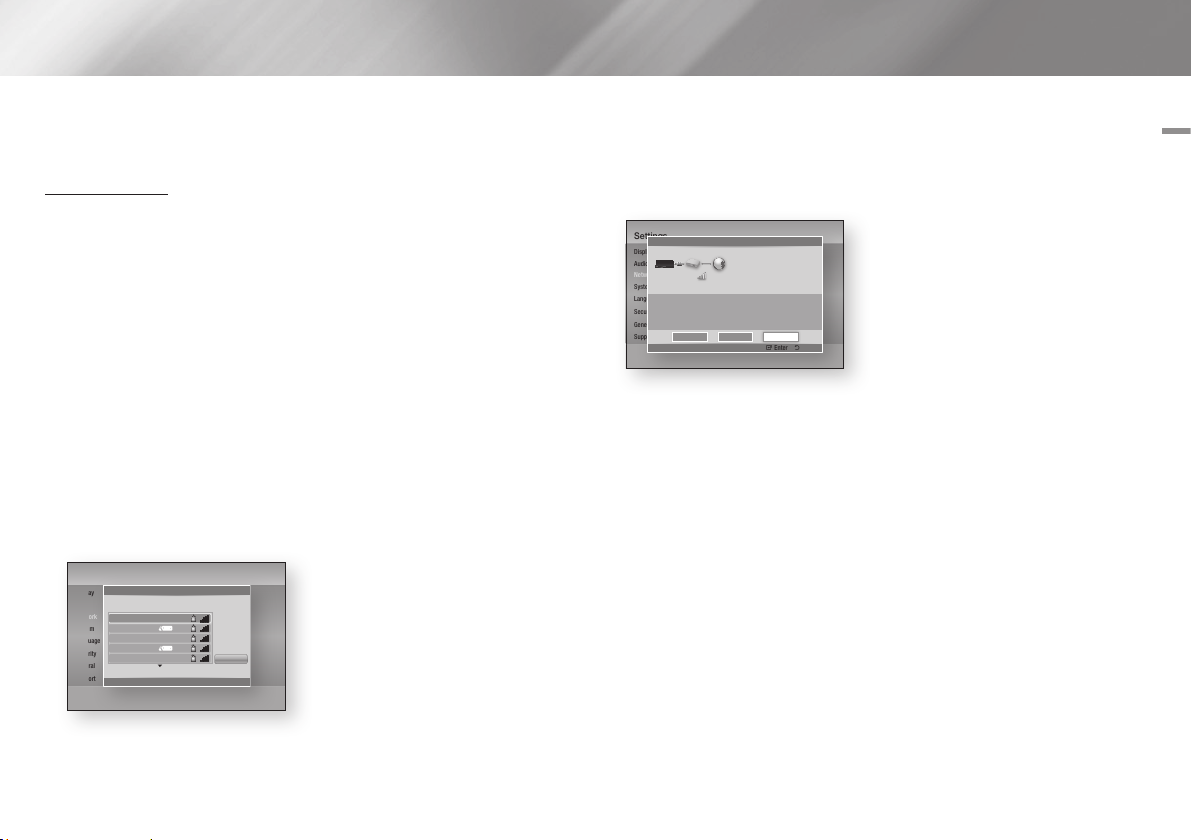

18 Configuring Your Network Connection

20 Upgrading Software

20 By Internet

20 By USB

20 By Disc

21 Via downloaded

21 Download in Standby Mode

MEDIA PLAY

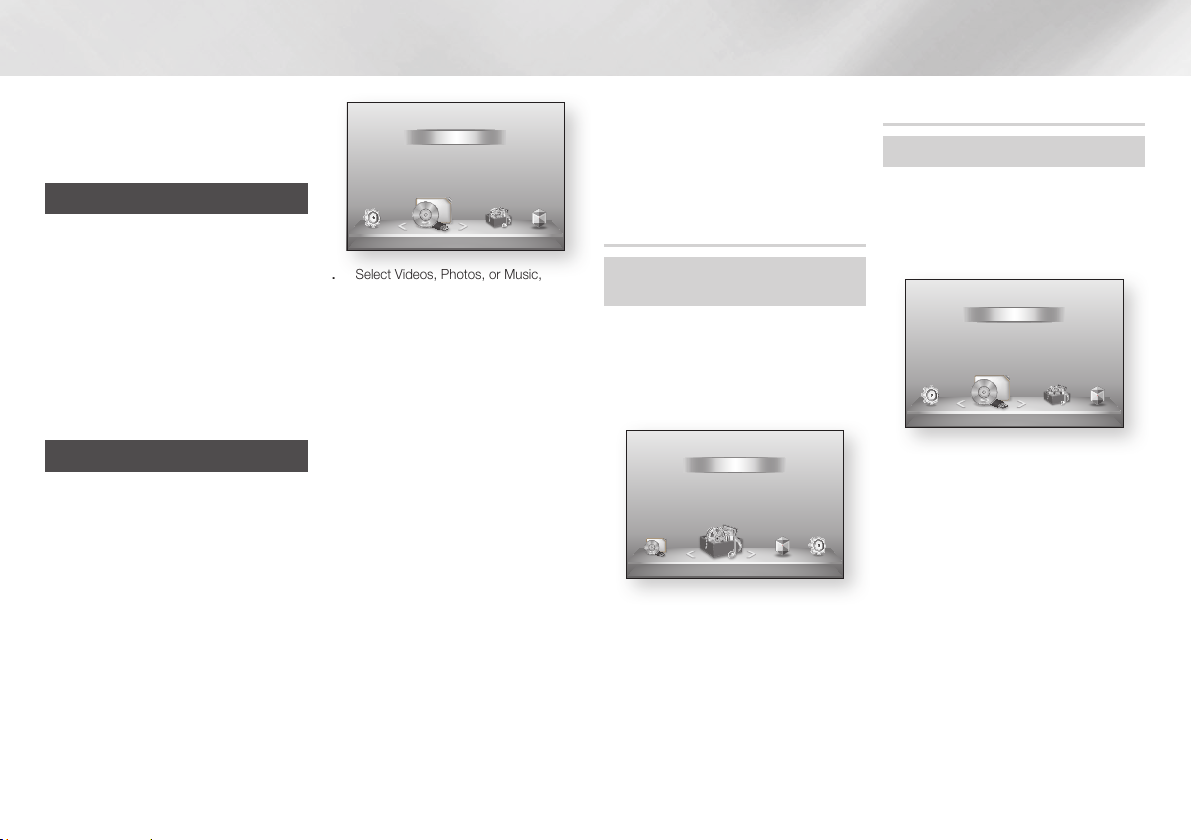

22 Insert a Disc

22 Insert a USB Device

22 My Contents

22 My Devices

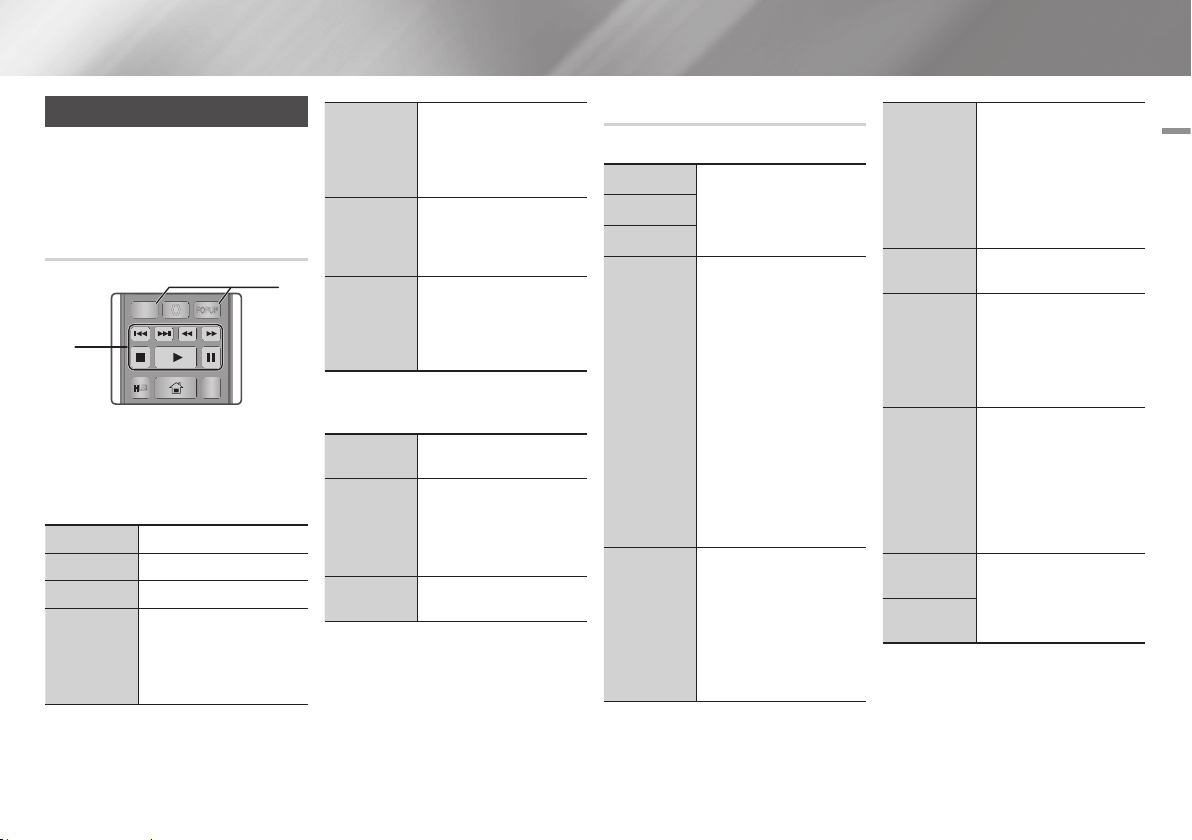

23 Controlling Video Playback

23 Buttons on the Remote Control used for

Video Playback

23 Using the Tools Menu

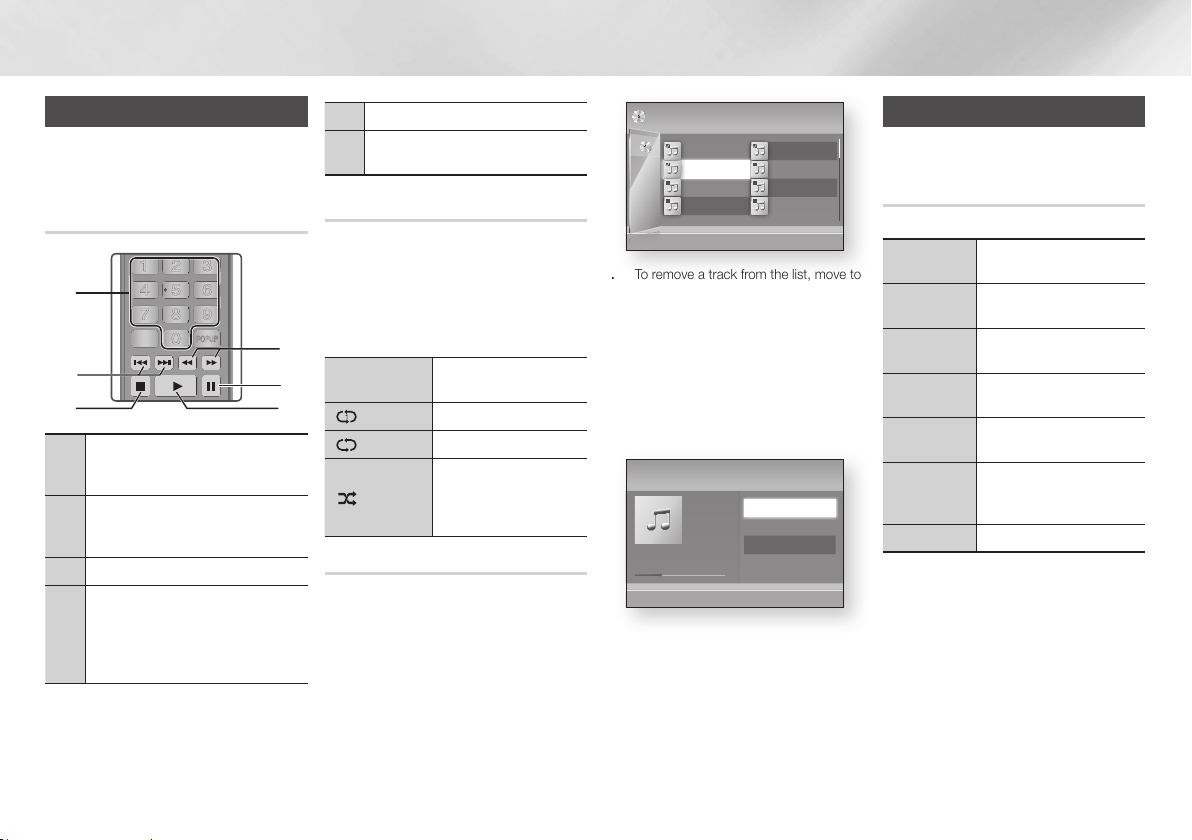

24 Controlling Music Playback

24 Buttons on the Remote Control used for

Music Playback

24 Repeat an Audio CD (CD-DA)/MP3

24 Playlist

24 Playing Photo Contents

24 Using the Tools Menu

NETWORK SERVICES

25 Using Smart Hub

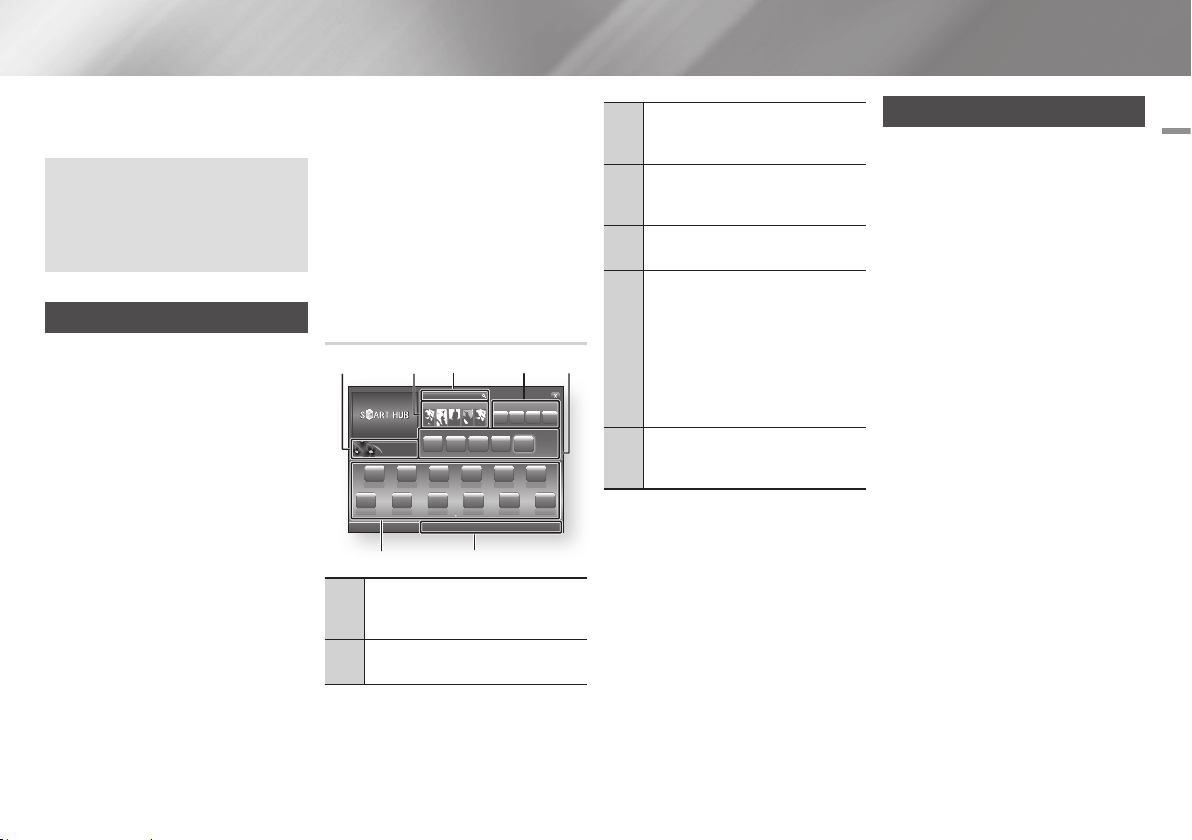

25 Smart Hub at a Glance

25 BD-LIVE™

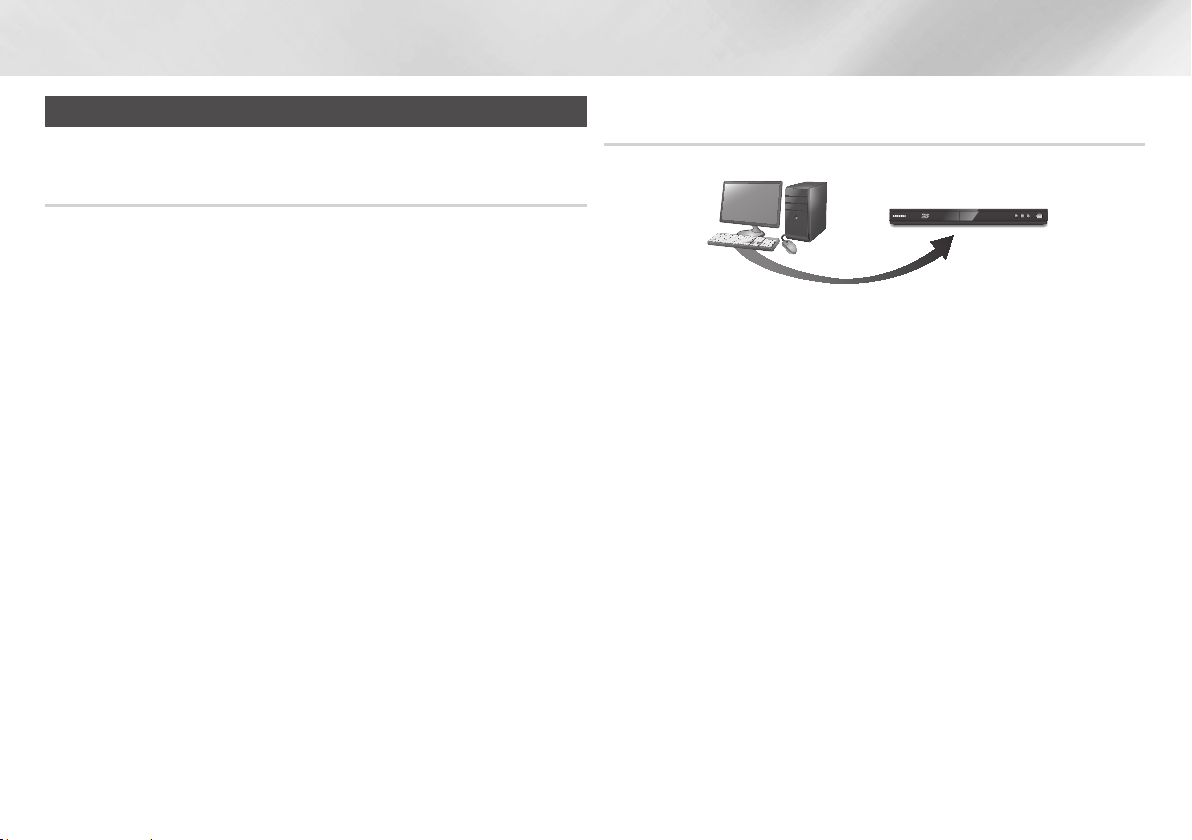

26 Using the AllShare Network Function

26 To Download the AllShare Software

26 Playing Content Located on Your PC or

DLNA Device through the Blu-ray Disc

Player

APPENDIX

27 Compliance and Compatibility Notice

27 Copy Protection

28 Network Service Disclaimer

28 Licence

29 Additional Information

29 Note

31 Resolution according to the contents type

32 Digital Output Selection

33 Troubleshooting

34 Repairs

35 Specifications

Contents

English 5

Page 6

Getting Started

Disc and Format Compatibility

Disc types and contents your player can play

Media Disc Type Details

Blu-ray Disc

3D Blu-ray Disc

VIDEO

MUSIC


| NOTE |

\The player may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions.

\If a DVD-RW/-R has not been recorded properly in DVD video format, it will not be playable.

\Your player will not play content that has been recorded on a DVD-R at a bit-rate that exceeds 10 Mbps.

\Your player will not play content that has been recorded on a BD-R or USB device at a bit rate that exceeds 25

Mbps.

\Playback may not work for some types of discs, or when you use specific functions, such as angle change and

aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

\When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly.

DVD-VIDEO

DVD-RW

DVD-R

DVD+RW

DVD+R

CD-RW/-R,

DVD-RW/-R,

BD-RE/-R

CD-RW/-R,

DVD-RW/-R,

BD-RE/-R

BD-ROM or BD-RE/-R recorded in the BD-RE format.

DVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVD-R/+R that have been recorded and finalized, or a USB storage media containing DivX, MKV, MP4 contents.

Music recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB storage media containing MP3 or WMA contents.

Photos recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB storage media containing JPEG contents.

Disc types your player cannot play

• HD DVD

• DVD-ROM/PD/

MV, etc

| NOTE |

\This player may not respond to all operating commands because some Blu-ray Discs, DVDs, and CDs allow

specific or limited operation and provide only certain features during playback. Please note that this is not a defect in the player.

\Samsung cannot guarantee that this player will play every disc bearing the Blu-ray Disc, DVD or CD logo

because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, and CD software and/or the manufacture of discs.

\Please contact the SAMSUNG Customer Care Centre if you have questions or encounter difficulty when playing

Blu-ray Disc, DVD, or CD in this player. Also, refer to rest of this user manual for additional information on playback restrictions.

\Some commercial discs and DVDs purchased outside your region may not play on this player.

• DVD-RAM

• Super Audio CD

(except CD layer)

• DVD-RW(VR mode)

• CVD/CD-ROM/

CDV/CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)

• 3.9 GB DVD-R for Authoring.

6 English

Page 7

Region Code

Both players and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not

play. The Region Number for this player is displayed on the rear panel of the player.

Disc Type Region Code Area

North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.

Blu-ray Disc

Logos of Discs the player can play

02 Getting Started

Blu-ray Disc 3D Blu-ray Disc BD-LIVE

DivX PAL broadcast System in U.K., France, Germany, etc.

DVD-VIDEO

India, China, Russia, Central and South Asia.

The U.S., U.S. territories and Canada

Europe, Japan, the Middle East, Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines, Indonesia, Hong Kong

Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia

China

English 7

Page 8

Getting Started

Supported Formats

Video File Support

File

Extension

*.avi

*.mkv

*.asf *.wmv *.mp4 *.3gp

*.vro *.mpg

*.mpeg

*.tp

*.trp

`Limitations

- Even when a file is encoded by a supported codec listed above, the file might not be played if its content is defective or corrupted.

- Normal playback is not guaranteed if the file's container information is wrong or the file itself is corrupted.

- Files having higher bit or frame rates than standard may stutter when played back.

- The seek (skip) function is not available if the file's index table is damaged.

- When you playback a file remotely through a network connection, video playback may stutter depending on the network speed.

- Some USB/Digital camera devices may not be compatible with the player.

Container Video Codec Resolution

AVI

MPEG4 SP/ASP

MKV

ASF MP4 3GP VRO VOB

Media Video v9

*.ts

PS TS

DivX 3.11/

4.x/5.x/6.1

1920x1080

H.264 BP/

MP/HP

Window

1920x1080

MPEG2

MPEG1 352x288

Frame rate

(fps)

6~30

24/25/30

24/25/3 20

Bit rate (Mbps)

Audio Codec

Dolby Digital

LPCM

AAC

HE-AAC

WMA

MP3 DTS

`Video decoder

- Supports up to H.264 Level 4.1

- Does not support GMC 2 or higher

`Audio decoder

- Supports WMA 7, 8, 9 and STD

- Does not support WMA 9 PRO multi-channel or lossless audio if the number of channels is more than 2.

- Does not support WMA sampling rate of 22050Hz mono.

`Comments

- MPEG4 : Supports up to GMC 1-Warping Point.

- H.264 : Supports up to BP/MP/HP Level 4.1.

- WMV : Supports V9, VC1 SP/MP/AP L3.

- MPEG1 : Does not support D-picture.

- MPEG2 : Supports up to Hight Profile High Level.

Supported DivX subtitle file formats

*.ttxt, *.smi, *.srt, *.sub, *.txt

| NOTE |

\Some DivX, MKV and MP4 format discs may not play, depending on their video resolution and frame rate.

Music File Support

File Extension Container Audio Codec Support Range

*.mp3

*.wma

MP3

WMA

MP3 -

WMA

* Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48 * Bit rates - All bit rates in the range 5kbps to 384kbps.

8 English

Page 9

Notes on the USB connection

• Your player supports USB storage media, MP3 players, digital cameras, and USB card readers.

• Some USB/digital camera devices may not be compatible with the player.

• Your player supports the FAT16, FAT32, and NTFS files systems.

• Connect USB devices directly to the player's USB port. Connecting through a USB cable may cause compatibility problems.

• Inserting more than one memory device into a multi-card reader may cause the reader to operate improperly.

• The player does not support the PTP protocol.

• Do not disconnect a USB device during a "loading" process.

• The bigger the image resolution, the longer the image takes to display.

• This player cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial sites.

• Your player only supports video that is under 30fps (frame rate).

• Your player only supports USB Mass Storage Class (MSC) devices such as thumb drives and USB HDD. (HUB is not supported.)

• Certain USB HDD Devices, multi-card readers and thumb drives may not be compatible with this player.

• If a USB device requires excessive power, it may be limited by the circuit safety device.

• If playback from a USB HDD is unstable, provide additional power by plugging the HDD into a wall socket. If the problem continues, contact the USB HDD manufacturer.

• You must remove USB Storage devices using the "Safely Remove USB" function to prevent possible damage to the USB memory. Press the HOME button to move to the home screen, press the YELLOW (C) button, and then press the v button.

• SAMSUNG is not responsible for any data file damage or data loss.

• Your player does not support NTSF compressed files, sparse files, or encrypted files.

- You can repair or format a USB device on your Desktop PC. (MS-Windows OS only)

AVCHD (Advanced Video Codec High Definition)

• This player can play back AVCHD format discs. These discs are normally recorded and used in camcorders.

• The AVCHD format is a high definition digital video camera format.

• The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the conventional image compressing format.

• Some AVCHD discs use the "x.v.Color" format. This player can play back AVCHD discs that use "x.v.Color" format.

• "x.v.Color" is a trademark of Sony Corporation.

• "AVCHD" and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd.

and Sony Corporation.

| NOTE |

\Some AVCHD format discs may not play, depending on the recording conditions.

AVCHD format discs need to be finalized.

\"x.v.Color" offers a wider colour range than normal DVD camcorder discs.

Accessories

Check for the supplied accessories below.

Batteries for Remote Control (AAA Size) User Manual

SOURCE

VOL VOL

– +

VOL

–

SAMSUNG TV

DISC MENU

TITLE MENU

POPUP

HOME REPEAT

SMART

HOME

HUB

INFOTOOLS

RETURN

EXIT

A B C D

BONUS SUBTITLE FULL

AUDIO

SCREEN

VIEW

PANDORA

DIGITAL

SUBTITLE

INPUT

Quick Guide Remote Control

02 Getting Started

English 9

Page 10

Getting Started

Front Panel

OPEN/CLOSE BUTTON

DISPLAY USB HOST

REMOTE CONTROL SENSOR

DISC TRAY

| NOTE |

\To upgrade the player's software through the USB Host jack, you must use a USB memory stick.

\When the player displays the Blu-ray Disc menu, you cannot start the movie by pressing the Play button on the

player or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the v button.

PLAY/PAUSE BUTTON

POWER BUTTON

Rear Panel

LAN

HDMI OUT DIGITAL AUDIO OUT

10 English

Page 11

Remote Control

Tour of the Remote Control

Installing batteries

02 Getting Started

After setup, allows you to select the input

(This button only works with Samsung TVs.)

Press to open and close the disc tray.

Press numeric buttons to operate options.

Press to skip backwards or forwards.

Press to move to the home menu.

These buttons are used both for menus

on the player and also several Blu-ray Disc

Use to access various audio functions on a

source on your TV.

Turn the player on and off.

Use to enter the disc menu.

Press to stop a disc.

Press to use Smart Hub.

Press to use the Tools menu.

Return to the previous menu.

Press to use bonusview function. Press to use the full screen function.

functions.

disc.

SOURCE

VOL VOL

– +

VOL

SAMSUNG TV

HOME REPEAT

AUDIO

DIGITAL

SUBTITLE

TITLE MENU

POPUP

INFOTOOLS

EXIT

SCREEN

INPUT

DISC MENU

SMART

HOME

HUB

RETURN

A B C D

BONUS SUBTITLE FULL

VIEW

PANDORA

Turn the TV on and off. (This button only works with Samsung TVs.)

TV volume adjustment.

–

(This button only works with Samsung TVs.)

Use to enter the popup menu/title menu.

Press to search backwards or forwards.

Press to pause a disc.

Press to play a disc.

Press to use repeat function.

Use to display the playback information.

Use to select menu items and change menu values.

Press to exit the menu.

Press to switch the Blu-ray Disc/DVD's subtitle language.

| NOTE |

\If the remote does not operate properly:

Check the polarity +/– of the batteries.

Check if the batteries are drained.

Check if the remote sensor is blocked by obstacles.

Check if there is any fluorescent lighting nearby.

| CAUTION |

\Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

English 11

Page 12

Connections

Connecting to a TV

Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

- Do not connect the power cord to the wall outlet until you have made all the other connections.

- When you change the connections, turn off all devices before you start.

Audio Video

| NOTE |

\If you use an HDMI-to-DVI cable to connect to your display device, you must also connect the Digital Audio Out

on the player to an audio system to hear audio.

\An HDMI cable outputs digital video and audio, so you don't need to connect an audio cable.

\Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your

TV.

\When you connect the player to your TV using the HDMI cable or to a new TV, and then turn it on for the first

time, the player automatically sets the HDMI output resolution to the highest supported by the TV.

\A long HDMI cable may cause screen noise. If this occurs, set HDMI Deep Colour to Off in the menu.

\To view video in the HDMI 720p, 1080i, or 1080p output mode, you must use a High speed (category 2) HDMI

cable.

\HDMI outputs only a pure digital signal to the TV.

If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

12 English

Connecting to an Audio System

You can connect the Blu-ray player to an the audio system using one of the methods illustrated below.

- Do not connect the power cord to the wall outlet until you have made all the other connections.

- When you change the connections, turn off all devices before you start.

Method 1 Connecting to an HDMI supported AV receiver

• Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your receiver.

• Best quality (Recommended)

Method 2 Connecting to an AV receiver with Dolby Digital or DTS decoder

• Using a digital Coaxial cable (not supplied), connect the Coaxial Digital Audio Out jack on the product to the Digital Coaxial In jack of the receiver.

• Good quality

• You will hear sound only through the front two speakers with Digital Output set to PCM.

Method 2Method 1

AudioAudio

Page 13

Connecting to a Network Router

You can connect your player to your network router using one of the methods illustrated below.

To use the AllShare network functionality, you must connect your PC to your network as shown in the illustrations. The connection can be wired or wireless.

Wired Network

Broadband modem

(with integrated router)

Router

Broadband

modem

Broadband service

| NOTE |

\Internet access to Samsung's software update

server may not be allowed, depending on the router you use or your ISP's policy. For more information, contact your ISP (Internet Service Provider).

\DSL users, please use a router to make a network

connection.

Wireless Network

Wireless Router

Wireless LAN

Adapter

(not included)

Broadband

service

| NOTE |

\Use only the Samsung wireless LAN adapter

with this player. (Model name:WIS12ABGNX). Do not use this wireless adapter with any thirdparty players. To purchase the Samsung wireless LAN adapter, visit your Samsung retailer.

\If your wireless router supports DHCP, this player

can use a DHCP or static IP address to connect to the wireless network.

\Set your wireless router to Infrastructure mode. Ad-

hoc mode is not supported.

\The player supports only the following wireless

security key protocols:

WEP (OPEN/SHARED), WPA-PSK (TKIP/AES),

WPA2-PSK (TKIP/AES)

\Select a channel on the wireless router that is not

currently being used. If the channel set for the wireless router is currently being used by another device nearby, it will result in interference and communication failure.

\If you select the Pure High-throughput (Greenfield)

802.11n mode and set the Encryption type on your router to WEP, TKIP or TKIP-AES (WPS2Mixed), the player will not support a connection in compliance with new Wi-Fi certification specifications.

\Wireless LAN, by its nature, may cause interference,

depending on the operating conditions (router performance, distance, obstacles, interference by other radio devices, etc).

03 Connections

English 13

Page 14

Settings

HOME

VOL

–

SOURCE

DISC MENU

HOME REPEAT

TITLE MENU

VOL VOL

POPUP

SAMSUNG TV

SMART

HUB

– +

INFOTOOLS

RETURN

EXIT

The Initial Settings Procedure

• The Home menu will not appear if you do not configure the initial settings.

• The OSD (On Screen Display) may change in this player after you upgrade the software version.

• The access steps may differ depending on the menu you selected.

The Initial Settings Procedure lets you set the OSD and menu languages, configure the connection to your home network, choose the aspect ratio output (screen size and format) that is correct for your TV.

| NOTE |

\If you skip Network Setup during the Initial Settings

procedure, you can configure your network settings later. See "Configuring Your Network Connection" on pages 18~19 for instructions.

\If you want to display the Initial Settings screen

again and make changes, select Settings > System > Initial Settings in the Home screen or select the Reset option. (See page 16)

\If you want to use an Anynet+(HDMI-CEC) function,

please follow the instructions below.

1) Connect the player to an Anynet+(HDMI-CEC)compliant Samsung TV using HDMI Cable.

2) Set the Anynet+(HDMI-CEC) feature to On in both the TV and the player.

3) Set the TV to the Initial Settings Procedure.

The Home Screen

My Contents

My Devices

My Contents : Lets you select contents located on connected devices by type to view

or play: You can select videos, photos, or music.

My Devices : Lets you select a connected device to play or access. The device can be the player itself, a device directly connected

to the player, such as a USB thumb drive, or a device connected via your network, such as a shared drive on your PC.

Smart Hub : Starts Smart Hub. From Smart Hub, you can access YouTube, games, and

other apps.

Settings : Set various functions to suit your

personal preferences.

Displays the coloured buttons on your remote that you can press to access or perform

functions.

Videos

Photos

Music

SettingsSmart Hub

WPS(PBC)

`Selecting an Option on the Home Screen

1. To select an option on the Home screen,

move the cursor using the ◄► buttons until it highlights the option of your choice, and then press the v button.

| NOTE |

\If you leave the player in the stop mode for more

than 5 minutes without using it, a screen saver will

appear on your TV. If the player is left in the screen

saver mode for more than 20 minutes, the power will automatically turn off.

Accessing the Settings Screen

1. Select Settings on the Home screen,

and then press the v button. The Settings screen appears.

Settings

3D Settings

Display

TV Aspect : 16:9 Original

Audio

Smart Hub Screen Size : Size 2

Network

BD Wise : On

System

Resolution : Auto

Language

HDMI Colour Format : Auto

Security

Movie Frame (24Fs) : Auto

General

HDMI Deep Colour : Auto

Support

2. To access the Settings menus, sub-

menus, and options, please refer to the remote control illustration and the table to the right.

Buttons on the Remote Control Used for the Settings Menu

2 4

HOME Button : Press to move to the Home

screen.

RETURN Button : Return to the previous

menu.

(Enter) / DIRECTION Buttons :

• Press ▲▼◄► to move the cursor or select an item.

• Press the v button to activate the currently selected item or confirm a setting.

EXIT Button : Press to exit the current menu.

Detailed Function Information

Each Settings function, menu item, and individual option is explained in detail onscreen. To view an explanation, use the ▲▼◄► buttons to select the function, menu item, or option. The explanation will usually appear on the right side of the screen. A short description of each Settings function starts on the next page. Additional information on some of the functions is also in the Appendix of this manual.

14 English

Page 15

Settings Menu Functions

Display

3D Settings

TV Aspect

Smart Hub Screen

Size

BD Wise

Resolution

HDMI Colour Format

Select whether to play a Blu-ray Disc with 3D contents in 3D Mode.

•

If you move to the Home or Smart Hub Home screen while in 3D mode, the player will switch to 2D automatically.

Lets you adjust the output of the player to the screen size and screen format of your TV.

Lets you select the optimal size for the Smart Hub Screen.

BD Wise is Samsung's latest inter-connectivity feature.

When you connect a Samsung player and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the player and TV, the player outputs video at the video resolution and frame rate of the Blu-ray Disc/ DVD.

Set the output resolution of the HDMI video signal to Auto, 1080p, 1080i, 720p or 576p/480p. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. Generally, the higher the number of lines, the higher the picture quality.

Lets you set the colour space format for the HDMI output so that it matches the capabilities of the connected device (TV, monitor, etc). The screen goes black momentarily after you have selected a format.

Display

Movie Frame (24Fs)

HDMI Deep Colour

Still Mode

Progressive Mode

If the player is connected to a 24Fs compatible TV, setting the Movie Frame (24Fs) feature to Auto lets the player adjust its HDMI output to 24 frames per second automatically for improved picture quality.

•

You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate.

•

Movie Frame is only available when the player is in the HDMI 1080i or 1080p output resolution modes.

Lets you set the product to output HDMI video with Deep Colour. Deep Colour provides more accurate colour reproduction with greater colour depth.

Lets you set the type of picture the player displays when you pause DVD playback.

Lets you improve picture quality when viewing DVDs.

04 Settings

English 15

Page 16

Settings

Audio

Digital Output

PCM Downsampling

Dynamic Range

Control

Downmixing Mode

Lets you select the digital audio output format that is suitable for your TV or AV Receiver. For more details, see the digital output selection table on page 32.

Lets you choose to have 96Khz PCM signals downsampled to 48Khz before they are outputted to an amplifier. Choose On if your amplifier or receiver is not compatible with a 96Khz signal.

Lets you apply dynamic range control to Dolby Digital, Dolby Digital Plus, and Dolby True HD audio.

Auto : Automatically controls the dynamic

range of Dolby TrueHD audio, based on information in the Dolby TrueHD soundtrack. Also turns dynamic range control on for Dolby Digital and Dolby Digital Plus.

Off : Leaves the dynamic range

uncompressed, letting you hear the original sound.

On : Turns dynamic range control on for all

three Dolby formats. Quieter sounds are made louder and the volume of loud sounds is reduced.

Lets you select the multi-channel downmix method that is compatible with your stereo system. You can choose to have the player downmix to normal stereo or to surround compatible stereo.

Network

System

Network Settings

Network Status

BD-Live Internet

Connection

Initial Settings

Quick Start

Anynet+ (HDMI-CEC)

BD Data

Management

Time Zone

Configure the network connection so you can enjoy various features such as Internet services or AllShare, and perform software upgrades.

Lets you check the current network and Internet status.

Set to allow or prohibit an Internet connection when you use the BD-LIVE service.

You can set the language, Network Settings, etc. by using the Initial Settings function.

Lets you set the player to turn on quickly by decreasing the boot time.

| NOTE |

\If this function set to On, Standby power

consumption will be increased.

Anynet+ is a convenient function that offers linked operations with other Samsung players that have the Anynet+ feature and lets you control those products with one Samsung TV remote. To operate this function, you must connect this player to an Anynet+ Samsung TV using an HDMI cable.

Lets you manage the downloaded contents you accessed through a Blu-ray Disc that supports the BD-LIVE service.

You can specify the time zone that is applicable to your area.

16 English

Page 17

System

Language

Security

DivX® Video On

Demand

Reset

You can select the language you prefer for the Home menu, disc menu, etc.

On-Screen Menu : Select the language for the on-screen displays. Disc Menu : Select the language for the disc menu displays. Audio : Select the language for the disc audio. Subtitle : Select the language for the disc subtitles.

| NOTE |

\The selected language will only appear if it is supported on the disc.

The default PIN is 0000. Enter the default PIN to access the security function if you haven't created your own password.

BD Parental Rating : Prevents playback of Blu-ray Discs with a rating

equal to or above a specific age rating unless you enter the security PIN.

DVD Parental Rating : Prevents playback of DVDs with a rating above

a specific numerical rating unless you enter the security PIN.

Change Password : Change the 4-digit PIN used to access security

functions.

`If you forgot your PIN:

Remove any disc or USB storage device.

Press and hold the p button on the front panel for 5 seconds or more. All settings will revert to the factory settings.

View DivX® VOD Registration Codes to purchase and play DivX® VOD contents.

Resets all settings to their default settings except for the network and Smart Hub settings. The default security PIN is 0000.

General

Support

Network Remote

Control

Software Upgrade

Contact Samsung

The Network Remote Control function lets you control your Blu-ray Disc player from a remote device such as a smart phone through a wireless connection to your local area network.

Select On in the Network Remote Control menu.

Install the Samsung network remote control application to control your player on your compatible portable device.

Make sure your portable device and your player are connected to the same wireless router.

Start the application on your portable device. The application should find your player and display it on a list.

Select the player.

If this is the first time you are using the function, it will ask you to allow or deny remote control of the player. Select Allow.

Follow the instructions that came with the application to control the player.

For more information about the Software Upgrade function, see "Upgrading Software" on pages 20~21.

Provides contact information for assistance with your player.

04 Settings

English 17

Page 18

Settings

Networks and the Internet

When you connect this player to a network, you can use network based applications and functions such as Smart Hub and BD-LIVE, and upgrade the player's software through the network connection. For more information about accessing and using Internet services, see the Network Services chapter of this manual on pages 25~26. Instructions for configuring the network connection start below.

Configuring Your Network Connection

Before you begin, contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, and you have a wired or wireless network, we recommend using the Automatic configuration procedures described below. If you are connecting to a wired network, connect the player to your router using a LAN cable before you start the configuration procedure. If you are connecting to a wireless network, disconnect any wired network connection before you begin.

To begin configuring your network connection, follow these steps:

1. In the Home menu, select Settings, and

then press the v button.

2. Select Network, and then press the v

button.

3. Select Network Settings, and then

press the v button. The Network Settings screen appears.

Settings

Display

Audio

Network

System

Language

Security

General

Support

Network Settings

Select a network connection type.

Wired

Wireless (general)

Connect to the network using a LAN cable. Please make

WPS(PBC)

sure that the LAN cable is connected.

Move " Enter ' Return

Wired Network

Wired - Automatic

To setup, follow steps 1 to 3 in "Configuring Your Network Connection" on page 18.

1. Select Wired in the Network Settings

screen, and then press the v button. The Network Status screen appears. The player verifies the network connection and then connects to the network.

Wired - Manual

If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually.

Settings

Display

Audio

Network

System

Language

Security

General

Support

Network Settings

MAC Address XX:XX:XX:XX:XX:XX IP Address 0.0.0.0 Subnet Mask 0.0.0.0 Gateway 0.0.0.0

DNS Server 0.0.0.0

Move " Enter ' Return

Unable to connect to the network. Try the following: check if your IP address is set correctly in IP Settings. Contact your Internet service provider for more information.

IP Settings Retry OK

1. Select Wired in the Network Settings

screen, and then press the v button. The Network Status screen appears. The player attempts to verify the network connection and fails.

2. Select IP Settings on the bottom of the

screen, and press the v button. The IP Settings screen appears.

3. Select the IP Mode field, and then set it

to Manual.

4. Use the number keypad on your remote

to enter the Network values. Use the ▲▼◄► buttons on the remote to move from entry field to entry field.

5. When done, highlight OK, and then

press the v button. The Network Status screen appears. The player verifies the network connection and then connects to the network.

< Getting the IP Settings values >

You can view your Network Settings values on most Windows computers. To view the Network Settings values, follow these steps:

• Windows XP

1. Right click the Network icon on the

bottom right of the Windows desktop.

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the

Support tab.

4. On the Support tab, click the Details

button. The Network settings are displayed.

• Windows 7

1. Click the Network icon on the bottom

right of the Windows desktop.

2. In the pop-up menu, click Network and

Sharing Centre.

3. On the dialog that appears, click the

Local Area Connection or Wireless Network Connection depending on your network connection.

4. On the Support tab, click the Details

button. The Network settings are displayed.

18 English

Page 19

| NOTE |

\Depending on your Windows version, the

information may differ.

Wireless Network

You can setup a wireless network connection in three ways:

- Wireless Automatic

- Wireless Manual

- WPS(PBC)

When you configure the wireless network connection, any wireless network devices currently connected through the player or, if applicable, the player's current wired connection, will be disconnected.

Wireless (general) - Automatic

To setup, follow steps 1 to 3 in "Configuring Your Network Connection" on page 18.

1. Select Wireless (general) in the

Network Settings screen, and then press the v button. The player searches for and then displays a list of the available networks.

Settings

Display

Audio

Network

System

Language

Security

General

Support

Network Settings

Select your wireless router from the list:

XXXXX XXXXX XXXXX XXXXX XXXXX

WEP WPA WPA WPA WEP

Previous m Move " Enter ' Return

1/11

Refresh

2. Select the desired network, and then

press the v button. The Security screen appears.

3. On the Security screen, enter your

network's Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with an arrow button, and then pressing the v button.

4. When done, select DONE at the bottom

of the screen, and then press the v button. The Network Status screen appears. The player verifies the network connection and then connects to the network.

| NOTE |

\You should be able to find the Security Code or

Pass Phrase on one of the set up screens you used to set up your router or modem.

Wireless (general) - Manual

If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually.

After following Steps 1 to 3 in "Configuring Your Network Connection" on page 18.

1. Select Wireless (general) in the

Network Settings screen, and then press the v button. The Network Status screen appears. The player attempts to verify the network connection and fails.

Settings

Display

Audio

Network

System

Cannot connect to the Network. Try the following.

Language

Security

- Contact your Internet Service Provider for more information.

General

Support

Network Settings

MAC Address XX:XX:XX:XX:XX:XX IP Address 0.0.0.0

Subnet Mask 0.0.0.0 Gateway 0.0.0.0 DNS Server 0.0.0.0

Move " Enter ' Return

KT_WLAN

Check security key on Wireless Router, and check if IP is set correctly in 'IP Settings'.

IP Settings Retry OK

2. Select IP Settings on the bottom of the

screen, and then press the v button. The IP Settings screen appears.

3. Select the IP Mode field, and then set it

to Manual.

- For the IP setting values, see "Getting the IP Settings values" on page 18.

4. Use the number keypad on your remote

to enter the Network values. Use the ▲▼◄► buttons on the remote to move from entry field to entry field.

5. When done, highlight OK, and then

press the v button. The Security screen appears.

6. On the Security screen, enter your

7. When done, select DONE at the bottom

of the screen, and then press the v button. The Network Status screen appears. The player verifies the network connection and then connects to the network.

WPS(PBC)

One of the easiest ways to set up the wireless network connection is using the WPS(PBC) function. If your wireless router has a WPS(PBC) button, follow these steps:

1. Open the Home screen.

2. Press the BLUE (D) button on the

remote control.

3. Press the WPS(PBC) button on your

router within two minutes. Your player automatically acquires all the network settings values it needs and connects to your network. The Network Status screen appears. The player connects to the network after the network connection is verified.

04 Settings

English 19

Page 20

Settings

Upgrading Software

The Software Upgrade menu allows you to upgrade the player's software for performance improvements or additional services.

• Never turn the player off or back on manually during the update process.

1. In the Home screen, select Settings,

and then press the v button.

2. Select Support, and then press the v

button.

3. Select Software Upgrade, and then

press the v button.

4. Select one of the following methods:

• By Internet

• By USB

• By Disc

• Via downloaded

• Download in Standby Mode

5. Press the v button.

| NOTE |

\The upgrade is complete when the player turns off,

and then turns on again by itself.

\Samsung Electronics takes no legal responsibility

for player malfunction caused by an unstable Internet connection or consumer negligence during a software upgrade.

\If you want to cancel the upgrade while the upgrade

software is downloading, press the v button.

\When the system upgrade is progressing, "UP" is

displayed on the front panel.

By Internet

Your player must be connected to the Internet to use the By Internet function.

1. Select By Internet, and then press the

button. The Connecting to Server

message appears.

2. If there is a download available, the

Download pop-up appears with a progress bar and the download starts.

3. When the download is complete, the

Upgrade Query window appears with three choices: Upgrade Now, Upgrade Later, or Don't Upgrade.

4. If you select Upgrade Now, the player

upgrades the software, turns off, and then turns on automatically.

5. If you do not make a selection in one

minute or select Upgrade Later, the player stores the new upgrade software. You can upgrade the software later using the Via downloaded function.

6. If you select Don't Upgrade, the player

cancels the upgrade.

By USB

1. Visit www.samsung.com.

2. Click SUPPORT on the top right of the

page.

3. Enter the product's model number into the search field, and then click Find

Product.

4. Click Get downloads in the centre of

the page below the Downloads header.

5. Click Firmware in the centre of the

page.

6. Click the ZIP icon in the File column on

the right side of the page.

7. Click OK in the pop-up that appears to

download and save the firmware file to your PC.

8. Unzip the zip archive to your computer.

You should have a single folder with the same name as the zip file.

9. Copy the folder to a USB flash drive.

10. Make sure no disc is inserted in the

player, and then insert the USB flash drive into the USB port of the player.

11. In the player's menu, go to Settings >

Support > Software Upgrade.

12. Select By USB.

| NOTE |

\There should be no disc in the player when you

upgrade the software using the USB Host jack.

\When the software upgrade is done, check the

software details in the software Upgrade menu.

\Do not turn off the player during the software

upgrade. It may cause the player to malfunction.

\Software upgrades using the USB Host jack must

be performed with a USB flash memory stick only.

By Disc

1. Follow Steps 1 through 7 in By USB.

2. Unzip the zip archive to your computer.

You should have a single folder with the same name as the zip file.

3. Write the folder onto a disc. We

recommend a CD-R or DVD-R.

4. Finalize the disc before you remove it

from your computer.

5. Insert the disc into the player.

6. In the player's menu, go to Settings >

Support > Software upgrade.

7. Select By Disc.

| NOTE |

\When the system upgrade is done, check the

software details in the software Upgrade menu.

\Do not turn off the player during the Software

Upgrade. It may cause the player malfunction.

20 English

Page 21

Via downloaded

The Via downloaded option lets you upgrade using a file the player downloaded earlier but you decided not to install immediately or a file downloaded by the player in Standby Mode.

1. If upgrade software has been

downloaded, you will see the software version number to the right of Via downloaded.

2. Select Via downloaded, and then press

the v button.

3. The player displays a message asking if you want to upgrade. Select Yes . The player begins the upgrade.

4. When the update is complete, the player turns off automatically, and then turns on.

| NOTE |

\When the system upgrade is done, check the

software details in the software Upgrade menu.

\Do not turn off the player during the software

Upgrade. It may cause the player to malfunction.

Download in Standby Mode

You can set the Download in Standby Mode function so that the player downloads new upgrade software when it is in Standby Mode. In Standby Mode, the player is off, but its Internet connection is active. This allows the player to download upgrade software automatically, when you are not using it.

1. Press the ▲▼ buttons to select Download in Standby Mode, and then

press the v button.

2. Select On or Off. If you select On, the player will automatically download new upgrade software when it is in Standby Mode with the power off. If it downloads new upgrade software, the player will ask you if you want to install it when you turn the player on.

| NOTE |

\To use Standby Mode Upgrade function, your player

must be connected to the Internet.

04 Settings

English 21

Page 22

Media Play

Your Blu-ray player can play Disc and USB contents and the contents located on your PC using the AllShare function. For more information about AllShare, refer to page 26.

Insert a Disc

1. Press the 8 button to open the disc

tray.

2. Push a disc gently into the disc tray with

the disc's label facing up.

3. Press the 8 button to close the disc

tray. Playback starts automatically.

4. If playback does not start automatically,

select the My Contents or My Devices option on the Main screen, and then press the v button.

Insert a USB Device

You can play multimedia files located on a USB storage device.

1. With the player off, connect the USB

storage device to the USB port on the front panel of the player.

2. Turn on the player. When the Main

screen appears, select My Devices > USB, and then press the v button.

My Devices

Disc

USB

AllShare

Settings My Contents Smart Hub

WPS(PBC)

3. Select Videos, Photos, or Music, and then press the v button. The contents of the USB device is displayed. Depending on how the contents is arranged, you will see either folders, individual files, or both.

4. Using the ▲▼◄► buttons on your remote, select the desired contents. To open a folder, select it, and then press the v button. To play a file, select it, and then press the v button.

5. Press the RETURN button to exit a folder or to return to the Main screen.

| NOTE |

\You must remove the USB storage device safely (by

performing the "Safely Remove USB" function) in order to prevent possible damage to the USB memory. Press the HOME button to move to the Home menu, select the YELLOW (C) button, and then press the v button.

\If you insert a disc when playing a USB storage

device, the device mode changes to "DVD or CD" automatically.

\The screen will only display files of the Content

Type you selected. For example, if you select Music, you will only be able to see music files. If you open folders labelled Photos or Videos, no files will be displayed. To view other types of files, select a different Content Type.

My Contents

HOME  My Contents  Videos, Photos or Music

The My Contents option lists only files of the type you select. For example, if you select Music, the player will list only music files on the screen. Note that the player will display all folders. You must open the folders to display the music files.

My Contents

My Devices

Videos

Photos

Music

SettingsSmart Hub

WPS(PBC)

My Devices

HOME  My Devices  USB, Disc or AllShare

The My Devices option lists only those folders and files on the kind of device you select. For example, if you select USB, the player will list only those folders or files on an attached USB device on the screen.

My Devices

Settings My Contents Smart Hub

Disc

USB

AllShare

WPS(PBC)

22 English

Page 23

Controlling Video Playback

HOME

VOL

–

SOURCE

DISC MENU

HOME REPEAT

TITLE MENU

VOL VOL

POPUP

SAMSUNG TV

SMART

HUB

– +

You can control the playback of video content located on a DVD, CD or USB storage device. Depending on the disc, some of the functions described in this manual may not be available.

Buttons on the Remote Control used for Video Playback

Playback related buttons



The player does not play sound in Search, Slow or Step mode.

• To return to normal speed playback, press the 6 button.

Starts playback.

Stops playback.

Pauses playback.

During playback, press the 3 or

button.

Each time you press the 3 or

button, the playback speed

will change.

button

Fast Motion Play

In pause mode, press the 4

Slow Motion Play

button. Each time you press the 4 button, the playback speed will change.

In pause mode, press the 7

Step Motion Play

button. Each time you press the 7 button, a new frame appears.

During playback, press the 1 or

button.

Skip Motion Play

Each time you press 1 or 2 button, the disc moves to the previous or next chapter or file.

Using the disc menu, title menu,



popup menu and title list

DISC MENU button

During playback, press this button to start the disc menu function.

During playback, press this button

TITLE MENU button

to start the title menu function.

• If your disc has a playlist,

press the GREEN (B) button to go to the playlist.

POPUP MENU button

During playback, press this button to start the popup menu function.

Using the Tools Menu

During playback, press the TOOLS button.

Title Search

Chapter Search

Time Search

Repeat Mode

Picture Settings

Select to move to a desired scene.

Select this to repeat the desired scene.

- Off : Choose this to return to

normal playback.

- Title : Choose this to repeat a

selected title.

- Chapter : Choose this to

repeat a selected chapter.

- Repeat A-B : Choose this to

set a repeat point where you want to play.

| NOTE |

\You must set point (B) at least

5 seconds of playing time after point (A).

Select this to set the picture settings.

- Dynamic : Choose this setting

to increase sharpness.

- Normal : Choose this setting

for most viewing applications.

- Movie : This is the best setting

for watching movies.

- User : Lets you adjust the

sharpness and noise reduction function respectively.

Picture Settings

| NOTE |

\When you use the BD wise

function, this menu will not appear.

Audio

Select to set the desired audio language.

Select to set the desired subtitle language.

Subtitle

- You can also operate this

function by pressing the SUBTITLE button on the remote control.

Select to view a scene from another angle. The Angle option displays the number of angles

Angle

available to view. When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can change angle.

BONUSVIEW Video

BONUSVIEW

Select to set the desired bonusview option.

Audio

| NOTE |

\Depending on the disc or storage device, the Tools

menu may differ.

05 Media Play

English 23

Page 24

Media Play

VOL

–

SOURCE

DISC MENU

TITLE MENU

VOL VOL

POPUP

SAMSUNG TV

– +

Controlling Music Playback

You can control the playback of music content located on a DVD, USB, mobile device or PC.

Buttons on the Remote Control used for Music Playback

NUMBER buttons : During Playlist playback, press the desired track number.

The selected track is played.

Skip : During playback, press the 1 or 2 button to move to the previous or next page

of the playlist.

button : Stops a track.

Fast Play (Audio CD (CD-DA) only)

During playback, press the 3 or 4

button. Each time you press the 3 or 4 button, the playback speed will change.

24 English

Pause : Pauses a track.

button : Plays the currently selected

track.

Repeat an Audio CD (CD-DA)/MP3

1. During Playlist playback, press the TOOLS button.

2. Press the ▲▼ buttons to select Repeat Mode, and then press the ◄► buttons

to select the desired repeat mode.

3. Press the v button.

5 6

Off

(

) One Song The current song is repeated.

(

) All All songs are repeated.

Songs are played in the order in which they were recorded.

The random option plays

(

)

Shuffle Mode

songs in random order. To operate this function, please set the shuffle mode to On.

Playlist

1. To move to the Music List, press the 5

or RETURN button. The Music List screen appears.

2. Press the YELLOW (C) button.

3. Press the ▲▼◄► buttons to move to

a desired track, and then press the v button. A check appears on the track. Repeat this procedure to select additional tracks.

Audio CD | Music

TRACK 001

00:43

TRACK 003

04:41

TRACK 005

03:43

TRACK 007

04:06

Close Edit Mode

( )

Page / Tools " Select ' Return

Selected Items : 3

TRACK 002

03:56

TRACK 004

04:02

TRACK 006

03:40

TRACK 008

03:52

1/2 Page

4. To remove a track from the list, move to

the track, and then press the v button again. The check on the track is cancelled.

5. When done, press the TOOLS button.

6. Press the ▲▼ buttons to select Play

Selected, and then press the v button. The tracks you selected play automatically.

Music

TRACK 001

00:13 / 00:43

Audio CD

TRACK 001

00:43

TRACK 002

03:56

TRACK 003

04:41

Enter / Tools ' Return

1/3

7. To go to the Music List, press the RETURN button.

| NOTE |

\You can create a playlist with up to 99 tracks on

Audio CDs (CD-DA).

Playing Photo Contents

You can play photo contents located on a DVD, CD, or a USB storage device.

Using the Tools Menu

During playback, press the TOOLS button.

Start Slide Show

Slide Show Speed

Background Music

Background Music Setting

Zoom

Rotate

Information

| NOTE |

\Depending on the disc or storage device, the Tools

menu may differ.

\To enable the background music function, the photo

file must be in the same storage media as the music file. However, the sound quality can be affected by the bit rate of the MP3 file, the size of the photo, and the encoding method.

\You can't enlarge the subtitle and PG graphic in the

full screen mode.

Select to start the slide show.

Select to set a slide show's speed.

Select to listen to music while viewing a slide show.

Select to set the background music setting.

Select to enlarge the current picture. (Enlarged up to 4 times)

Select to rotate the picture. (This will rotate the picture either clockwise or counter clockwise.)

Shows the picture information.

Page 25

Network Services

You can enjoy various network services such as Smart Hub or BD-LIVE by connecting the player to your network.

To use network services, you must first:

1. Connect the player to the network.

(See page 13)

2. Configure the network settings.

(See pages 18~19)

Using Smart Hub

Using Smart Hub, you can download movies, videos, and music from the Internet, and access various for pay or free-of-charge applications and view them on your TV. Application content includes news, sports, weather forecasts, stock market quotes, maps, photos, and games.

For instructions that explain how to use Smart Hub, follow these steps:

1. Go to www.samsung.com.

2. Click Support at the top of the page.

3. On the Support page, enter the model

number of your player into the Model Number field, and then press the Enter button.

4. On the page that appears, click Get

downloads on the left side under Downloads. The Download Centre appears.

5. On the Download Centre page, click the

Manuals tab.

6. On the Manuals tab, click the file icon

to the right of Smart Hub Users Manual. The manual downloads.

| NOTE |

\The web location of the Smart Hub manual is

subject to change without notice.

\If the home page is updated or revised, the content

mentioned in the user manual may differ from the actual menus.

Smart Hub at a Glance

1 2 3 5

Your Video

Recommended

Contents 1

Contents 2

xxxxxxxx

Contents 3

Contents 2

xxxxxxxx

Contents 8

Contents 9

xxxxxxxx

Contents 7

xxxxxxxx

Contents 1

xxxxxxxx

7 6

Commercial : Displays the Smart Hub Guide, an introduction to the player, and new

application introductions.

Your Video : Provides recommendations for

videos based on your tastes.

Contents 4

xxxxxxxx

Contents 10

xxxxxxxx

Contents 3

xxxxxxxx

Samsung Apps

Contents 1 Contents 2 Contents 3 Contents 4

Contents 4

Contents 5

xxxxxxxx

Contents 6

Contents 5

xxxxxxxx

Contents 11

Contents 12

xxxxxxxx

Search : Provides an integrated search of your video providers and connected AllShare

devices.

Samsung Apps : Open Samsung Apps to download various for pay or free-of-charge

application services.

Recommended : Displays recommended

contents managed by Samsung.

Navigation Help : Displays the remote control buttons you can use to navigate in Smart Hub.

• RED (A) : To log in to Smart Hub.

• GREEN (B) : To sort the applications.

• YELLOW (C) : To edit the applications.

• BLUE (D) : To change the settings of

Smart Hub.

My Applications : Displays your personal gallery of applications which you can add to,

modify, and delete.

BD-LIVE™

Once the player is connected to your network, you can enjoy various movie-related service contents available on BD-LIVE compliant discs.

1. Attach a USB memory stick to the

USB jack on the front of the player, and then check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BDLIVE services.

2. Select Settings on the Home screen,

and then press the v button.

3. Select System, and then press the v

button.

4. Select BD Data Management, and

then press the v button.

5. Select Select Device, and then press

the v button.

6. Select USB, and then press the v

button.

7. Insert a Blu-ray Disc that supports BD-

LIVE.

8. Select an item from various BD-LIVE

service contents provided by the disc manufacturer.

| NOTE |

\The way you use BD-LIVE and the provided contents

may differ, depending on the disc manufacturer.

06 Network Services

English 25

Page 26

Network Services

Using the AllShare Network Function

AllShare lets you play Videos, Photos, or Music located on your PC or your DLNA compatible device through the player using a wireless network connection.

To Download the AllShare Software

To use AllShare with your PC or DLNA device, you must install AllShare software on your PC. You can download the PC software and get detailed instructions for using AllShare from the

Samsung.com website.

1. Go to www.samsung.com.

2. Click Support at the top of the page.

3. On the Support page, enter the model number of your player into the Model Number

field, and then press the v button.

4. On the page that appears, click Get downloads on the left side under Downloads.

The Download Centre appears.

5. On the Download Centre page, click the Software tab.

6. On the software tab, click the File icon on the right side of the AllShare line.

7. In the pop-up that appears, click Save File.

8. Find the AllShare install file on your disk, and then double click the file.

9. In the pop-up that appears, click Run, and then follow the directions that appear on your

screen.

Download the AllShare Installation/Instruction manual from the same Software Tab by clicking the corresponding PDF file symbol in the File column on the right. The file, in PDF format, will download and open. You can view and/or save the file.

Playing Content Located on Your PC or DLNA Device through the Bluray Disc Player

PC Blu-ray Disc Player

AllShare Connection

1. Connect the Blu-ray Disc Player, your PC, and/or your DLNA compatible device to the same wireless network.

2. Follow the directions in the AllShare software Installation/Instruction manual to set up devices and files for playing or viewing.

3. Select My Devices in the player's Home screen, and then press the v button. The AllShare Play screen appears.

4. Select the connected DLNA compatible device or your PC, and then press the v button. A screen listing the available files appears.

5. Select the file you want to play or view, and then press the v button.

Play back PC's files

26 English

Page 27

Appendix

Compliance and Compatibility Notice

NOT ALL discs are compatible

• Subject to the restrictions described below and those noted throughout this Manual, including the Disc Type and Characteristics section of this user manual, disc types that can be played are: pre-recorded commercial BD-ROM, DVD-VIDEO, and Audio CD (CD-DA); BD-RE/-R, DVD-RW/-R; and CD-RW/-R.

• Discs other than the above cannot and/or is not intended to be played by this player. And some of the above discs may not play due to one or more reasons provided below.

• Samsung cannot assure that this player will play every disc bearing the BD-ROM, BDRE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos, and this player may not respond to all operating commands or operate all features of every disc. These and other disc compatibility and player operation issues with new and existing format discs are possible because:

- Blu-ray is a new and evolving format and this player may not operate all features of Bluray Discs because some features may be optional, additional features may have been added to the Blu-ray Disc format after the production of this player, and certain available features may be subject to delayed availability;

- not all new and existing disc format versions are supported by this player;

- new and existing disc formats may be revised, changed, updated, improved and/or supplemented;

- some discs are produced in a manner that allows specific or limited operation and feature during playback;

- some features may be optional, additional features may have been added after the production of this player or certain available features may be subject to delayed availability;

- some discs bearing the BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos may still be non-standardized discs;

- some discs may not be played depending on their physical state or recording conditions;

- problems and errors can occur during the creation of Blu-ray Disc, DVD software and/or the manufacture of discs;

- this player operates differently than a standard DVD player or other AV equipment; and/or

- for reasons noted throughout this user manual and for other reason(s) discovered and posted by SAMSUNG customer care centre.

• If you encounter disc compatibility or player operation problems, please contact SAMSUNG customer care centre. You may also contact SAMSUNG customer care centre for possible updates on this player.

• For additional information on playback restrictions and disc compatibility, refer to the Precautions, Before Reading the user manual, Disc Types and Characteristics, and Before Playing sections of this user manual.

• For Blu-ray Disc Player progressive scan output : CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS PRODUCT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTRE.

Copy Protection

• Because AACS (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analogue signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection system for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+, or this product, please contact SAMSUNG customer care centre.

• Many Blu-ray Disc/DVDs are encoded with copy protection. Because of this, you should only connect your Player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected Blu-ray Disc/DVDs.

• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, Blu-ray Discs, DVDs, and other materials may subject you to civil and/or criminal liability.

07 Appendix

English 27

Page 28

Appendix

• Cinavia Notice : This product uses Cinavia technology to limit the use of unauthorized

copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Centre at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. This product incorporates proprietary technology under licence from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

Network Service Disclaimer

All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device.

THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." SAMSUNG DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE. SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Third party services may be terminated or interrupted at any time, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device.

Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.

Licence

• Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

• Manufactured under licence under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS

• DivX

- ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

28 English

Page 29

- ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

- DivX Certified® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274.

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.

• Open Source Licence Notice

- In the case of using open source software, Open Source Licences are available on the product menu.

• Blu-ray Disc™, Blu-ray™ and the logos are trademarks of the Blu-ray Disc Association.

• This item incorporates copy protection technology that is protected by U.S. patents and

other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Additional Information

Note

3D Settings

• For some 3D discs, to stop a movie during 3D playback, press the 5 button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection when you are playing a 3D movie, press the 5 button once. The Blu-ray menu appears. Press the 5 button again, then select 3D Settings in the Blu-ray menu.

• Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides.

TV Aspect

Settings

• Depending on the disc type, some aspect ratios may not be available.

• If you select an aspect ratio and option that is different than the aspect ratio of your

TV screen, the picture might appear to be distorted.

• If you select the 16:9 Original, your TV may display 4:3 Pillarbox (black bars on sides of picture).

BD Wise (Samsung Players only)

• When BD Wise is on, the Resolution setting automatically defaults to BD Wise and BD Wise appears in the Resolution menu.

• If the player is connected to a device that does not support BD Wise, you can not use the BD Wise function.

• For proper operation of BD Wise, set the BD Wise option of both the player and the TV to On.

07 Appendix

English 29

Page 30

Appendix

Settings

Digital Output

• Be sure to select the correct Digital Output or you will hear no sound or just loud noise.

• If the HDMI device (AV receiver, TV) is not compatible with compressed formats (Dolby Digital, DTS), the audio signal outputs as PCM.

• Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects.

• Some Blu-ray Discs do not have BONUSVIEW audio and Navigation Sound Effects.

• This Digital Output setup does not affect the HDMI audio output to your TV.

It affects the coaxial and HDMI audio output when your player is connected to an AV receiver.

• If you play MPEG audio soundtracks, the audio signal outputs as PCM regardless of your Digital Output selections (PCM or Bitstream).

PCM Downsampling

• Even when PCM Downsampling is set to Off, some discs will only output downsampled audio through the coaxial digital outputs.

• HDMI

- If your TV is not compatible with compressed multi-channel formats (Dolby Digital,

DTS), the player may output PCM 2ch downmixed audio even though you selected Bitstream (either Reencoded or Unprocessed) in the setup menu.

- If your TV is not compatible with PCM sampling rates over 48kHz, the player may

output 48kHz.

BD-LIVE Internet Connection

• What is a valid certificate? When the player uses BD-LIVE to send the disc data and a request to the server to certify the disc, the server uses the transmitted data to check if the disc is valid and sends the certificate back to the player.

• The Internet connection may be restricted while you are using BD-LIVE contents.

Settings

Media Play

Anynet+(HDMI-CEC)

• Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

• This function is not available if the HDMI cable does not support CEC.

• If your Samsung TV has an Anynet+ logo, then it supports the Anynet+ function.

BD Data Management

• In the external memory mode, disc playback may be stopped if you disconnect the USB device in the middle of playback.

• Only those USB devices formatted in the FAT file system (DOS 8.3 volume label) are supported. We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster read/write speed.

• The Resume Play function may not work after you format the storage device.

• The total memory available to BD Data Management may differ, depending on

conditions.

Selecting the Audio Language

• The ◄► indicator will not appear on the screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings.

• The languages available through the Audio Language function depend on the languages that are encoded on the disc. This function or certain languages may not be available.

• Some Blu-ray Discs may allow you to select either the PCM or Dolby Digital audio soundtrack in English.

30 English

Page 31

Media Play

Selecting the Subtitle Language

• Depending on the Blu-ray Disc / DVD, you may be able to change the subtitle

language in the Disc Menu. Press the DISC MENU button.

• This function depends on the selection of subtitles that are encoded on the disc and may not be available on all Blu-ray Discs/DVDs.

• Information about the main feature BONUSVIEW mode will also appear if the Blu-ray Disc has a BONUSVIEW section.

• This function changes both the primary and secondary subtitles at the same time.

• The total number of primary and secondary subtitles are displayed respectively.

• If you press the SUBTITLE button on the remote control, the subtitle bar appears.

Press the RETURN button to remove the subtitle bar.

Resolution according to the contents type

Setup

Movie Frame : Auto (24Fs) 1080@24F 1080@24F -

| NOTE |

\If the TV you connected to the player does not support Movie Frame or the resolution you selected, the

message "If no pictures are shown after selecting 'Yes', please wait for 15 seconds to return to the previous resolution. Do you want to change the resolution?" appears. If you select Yes, the TV's screen will go blank for 15 seconds, and then the resolution will revert to the previous resolution automatically.

\If the screen stays blank after you have changed the resolution, remove all discs, and then press and hold the

Run the Initial Settings procedure again. Then, go to Settings > Display > Resolution in the Menu, and select the correct resolution for your TV.

\When you run the Initial Settings procedure, re-select the language and aspect ratio (screen size and format)

only. Resetting does not affect your network settings, so you should be able to skip Network Setup and Software Upgrade.

\When the factory default settings are restored, all stored user BD data will be deleted.

\The Blu-ray Disc must have the 24 frame feature for the player to use the Movie Frame (24Fs) mode.

Output

BD Wise Resolution of Blu-ray Disc 1080p 576i/480i

Auto Max. Resolution of TV input Max. Resolution of TV input Max. Resolution of TV input

1080p 1080p 1080p 1080p

1080i 1080i 1080i 1080i

720p 720p 720p 720p

576p/480p 576p/480p 576p/480p 576p/480p

button on the front of the player for more than 5 seconds. All settings are restored to the factory default.

Blu-ray Disc

E-contents/

Digital contents

DVD

07 Appendix

English 31

Page 32

Appendix

Digital Output Selection

Setup PCM

Connection

Audio Stream on

Blu-ray Disc

Audio Stream on

DVD

Dolby Digital PCM 2ch PCM 2ch Dolby Digital Dolby Digital

Dolby Digital

Resolution

Dolby Digital PCM 2ch PCM 2ch Dolby Digital Dolby Digital Dolby Digital Dolby Digital

Receiver

PCM Up to 7.1ch PCM 2ch PCM PCM 2ch

PCM 2ch PCM 2ch

Plus

Dolby

TrueHD

HD High

DTS-HD

PCM 2ch PCM 2ch

DTS PCM 2ch PCM 2ch DTS DTS

DTS-

PCM 2ch PCM 2ch

Audio

Master

PCM 2ch PCM 2ch

Audio

PCM PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch

DTS PCM 2ch PCM 2ch DTS DTS DTS DTS

HDMI

Coaxial

Bitstream

(Unprocessed)

HDMI

Receiver

Dolby Digital

Plus

Dolby

TrueHD

DTS-

HD High

Resolution

Audio

DTS-HD

Master

Audio

Coaxial

Dolby Digital

DTS

Bitstream

(Re-

encoded

DTS)

HDMI

Receiver

or Coaxial

Re-encoded

DTS

Re-encoded

DTS

Re-encoded

DTS

Re-encoded

DTS

Re-encoded

DTS

Re-encoded

DTS

Re-encoded

DTS

Bitstream

(Reencoded Dolby D)

HDMI

supported

AV receiver

or Coaxial

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Decodes

and

then re-

main feature

audio and BONUSVIEW audio stream together into

PCM audio

and add

Navigation

Sound

Effects, then

re-encodes

the PCM

audio into Dolby Digital

bitstream

Decodes main

feature audio

Decodes main feature

Definition for

Blu-ray Disc

* If Source Stream is 2ch, "Re-encoded Dolby D" Settings are not applied.

Blu-ray Discs may include three audio streams :

- Main Feature Audio : The audio soundtrack of the main feature.

- BONUSVIEW audio : An additional soundtrack such as the director or actor's commentary.

- Navigation Sound Effects : When you choose some menu navigation, Navigation Sound Effects may sound. Navigation Sound Effects are different on each Blu-ray Disc.

audio and BONUSVIEW

Any

audio stream together

into PCM audio and add

Navigation Sound Effects.

Outputs only main feature

audio stream so that your

AV receiver can decode

the audio bitstream.

You will not hear

BONUSVIEW audio and

Navigation Sound Effects.

BONUSVIEW audio stream together into

PCM audio and add Navigation

Sound Effects,

encodes the

PCM audio into

DTS bitstream

32 English

Page 33

Troubleshooting

Before requesting service, please try the following solutions.

PROBLEM SOLUTION

No operation can be performed with the remote control.

The disc does not play. • Ensure that the disc is installed with the label side facing up.

The disc Menu does not appear. • Ensure that the disc has disc menus.

The prohibition message appears on the screen.

• Check the batteries in the remote control. They may need replacing.

• Operate the remote control at a distance of no more than 6.1m

from the player.

• Remove the batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall the batteries and try to operate the remote control again.

• Check the region number of the Blu-ray Disc/DVD.

• This message appears when an invalid button is pressed.

• The Blu-ray Disc/DVD's software doesn't support the feature (e.g.,

angles).

• You've requested a title or chapter number or search time that is out of range.

PROBLEM SOLUTION

The screen is blank. • If the HDMI output is set to a resolution your TV cannot support (for

Forgot PIN • Press the

If you experience other problems. • Go to the contents and find the section of the user manual that

The picture is noisy or distorted • Make sure that the disc is not dirty or scratched.

example, 1080p), you may not see a picture on your TV.

• Press the

• When the factory default settings are restored, all stored user BD

• If the problem still cannot be solved, please contact your nearest

• Clean the disc.

no disc inside. All settings will revert to the factory settings.

data will be deleted.

no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.

data will be deleted.

contains the explanations regarding the current problem, and follow the procedure once again.

Samsung authorized service centre.

button (on front panel) for more than 5 seconds with

07 Appendix

Play mode differs from the Setup Menu selection.

The screen ratio cannot be changed. • The Screen Ratio is fixed on your Blu-ray Disc/DVD.

No audio. • Make sure you have selected the correct Digital Output in the Audio

• Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.

• This is not a problem with the player.

Options Menu.

No HDMI output. • Check the connection between the TV and the HDMI jack of the

player.

• Check if your TV supports 576p/480p, 720p, 1080i or 1080p HDMI input resolution.

Abnormal HDMI output screen. • If random noise appears on the screen, it means that TV does not

support HDCP (High-bandwidth Digital Content Protection).

English 33

Page 34

Appendix

PROBLEM SOLUTION

AllShare function

I can see folders shared through AllShare, but I cannot see the files.

The video plays intermittently. • Check if the network is stable.

The AllShare connection between the player and the PC is unstable.

BD-LIVE

I cannot connect to the BD-LIVE server. • Test whether the network connection is successful using the

• AllShare only shows Video, Photo, and Music files. Other types of

files are not displayed.

• Check if the network cable is properly connected and if the network is not overloaded.

• The wireless connection between the DLNA compatible device and the player is unstable. Check the connection.

• IP addresses within the same subnetwork should be unique. If they are not, IP interference can cause this phenomenon.

• Check if you have a firewall enabled. If so, disable the firewall function.

Network Status function. (See page 16)

• Check whether a USB memory device is connected to the player.

• The memory device must have at least 1GB of free space to

accommodate the BD-LIVE service. You can check the available size in BD Data Management. (See page 16)

• See if the BD-LIVE Internet Connection option is set to Allow(All).

• If all above fails, contact the contents provider or update the player

to the latest firmware.

PROBLEM SOLUTION

When using the BD-LIVE service, an error occurs.

| NOTE |

\When the factory default settings are restored, all stored user BD data will be deleted.

• The memory device must have at least 1GB of free space to accommodate the BD-LIVE service. You can check the available size in BD Data Management. (See page 16)

Repairs

If you contact us to repair your player, an administration fee may be charged if either:

1. An engineer is called out to your home at your request and there is no defect in the

product.

2. You bring the unit to a repair centre and there is no defect in the product.

We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player. We recommend you read this manually thoroughly, search for a solution on line at www. samsung.com, or contact Samsung Customer Care before seeking to repair your player.

34 English

Page 35

Specifications

Weight 1.3 Kg

General

USB

HDMI

Audio Output Digital Audio Output Coaxial

Network

• Network speeds equal to or below 10Mbps are not supported.

• Design and specifications are subject to change without prior notice.

• For the power supply and power consumption, refer to the label attached to the player.

• Weight and dimensions are approximate.

Dimensions 360 (W) X 193 (D) X 37 (H) mm Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 % to 75 % Type A USB 2.0 DC output 5V 500mA Max.

Video

Audio PCM, Bitstream

Ethernet 100BASE - TX Terminal

Wireless LAN

Security

WPS(PBC) Supported

2D : 1080p, 1080i, 720p, 576p/480p 3D : 1080p, 720p

Supports when the player is connected with the Samsung Wireless LAN Adapter. (Model Name : WIS12ABGNX)

WEP (OPEN/SHARED) WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES)

07 Appendix

English 35

Page 36

UNITED KINGDOM EIRE

This Samsung product is warranted for the period of twelve (12) months from the original date of purchase, against defective materials and workmanship. In the event that warranty service is required, you should return the product to the retailer from whom it was purchased. However, Samsung Authorised Dealers and Authorised Service Centres in other EC Countries will comply with the warranty on the terms issued to purchasers in the country concerned. In case of difficulty, details of our Authorised Service Centres are available from:

Customer Support Centre, PO Box 479,

Gatehead, Ne9 9BJ

United Kingdom

Tel: 0330 SAMSUNG (7267864)

Fax: 033 07260001

www.samsung.com/uk

Eire

Tel: 0818 717100

Fax: +44(0)117 915 6736

www.samsung.com/ie

@ WARRANTY CONDITIONS

1. The warranty is only valid if, when warranty service is required, the warranty card is fully and properly completed and is presented with the original invoice or sales slip or confirmation, and the serial number on the product has not been defaced.

2. Samsung's obligations are limited to the repair or, at its discretion, replacement of the product or the defective part.

3. Warranty repairs must be carried out by Authorised Samsung Dealers or Authorised Service Centres. No re-imbursement will be made for repairs carried out by non Samsung Dealers and, any such repair work and damage to the products caused by such repair work will not be covered by this warranty.

4. This product is not considered to be defective in materials nor workmanship by reason that it requires adaptation in order to conform to national or local technical or safety standards in force in any Country other than the one for which the product was originally designed and manufactured. This warranty will not cover, and no re-imbursement will be made for such adaptation nor any damage which may result.

5. This warranty covers none of the following:

a) Periodic check ups, maintenance and repair or replacement of parts due to normal

wear and tear.

Cost relating to transport, removal or installation of the product.

c) Misuse, including the faiure to use this product for its normal purposes or incorrect

installation.

d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances,

incorrect mains voltage, improper ventilation or any other cause beyond the control of Samsung.

6. This warranty is valid for any person who legally acquired possession of the product during the warranty period.

7. The consumers statutory rights in any applicable national legislation whether against the retailer arising from the purchase contract or otherwise are not affected by this warranty. Unless there is national legislation to the contrary, the rights under this warranty are the consumers sole rights and Samsung, its subsidiaries and distributors shall not be liable for indirect or consequential loss or any damage to records, compact discs, videos or audio taper or any other related equipment or material.

SAMSUNG ELECTRONICS (U.K.) LTD.

Page 37

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Area Contact Centre

ALBANIA 42 27 5755 www.samsung.com AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.com

BELGIUM 02-201-24-18

BOSNIA 05 133 1999 www.samsung.com BULGARIA 07001 33 11 www.samsung.com CROATIA 062 SAMSUNG (062 726 7864) www.samsung.com CZECH 800 - SAMSUNG (800-726786) www.samsung.com DENMARK 70 70 19 70 www.samsung.com FINLAND 030 - 6227 515 www.samsung.com FRANCE 01 48 63 00 00 www.samsung.com GERMANY 01805 - SAMSUNG(726-7864 € 0,14/Min) www.samsung.com CYPRUS 8009 4000 only from landline www.samsung.com

GREECE

HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com ITALIA 800-SAMSUNG(726-7864) www.samsung.com KOSOVO +381 0113216899 www.samsung.com LUXEMBURG 261 03 710 www.samsung.com MACEDONIA 023 207 777 www.samsung.com MONTENEGRO 020 405 888 www.samsung.com NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) www.samsung.com NORWAY 815-56 480 www.samsung.com

POLAND

PORTUGAL 808 20-SAMSUNG (808 20 7267) www.samsung.com

ROMANIA

SERBIA 0700 Samsung (0700 726 7864) www.samsung.com SLOVAKIA 0800 - SAMSUNG(0800-726 786) www.samsung.com SPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.com SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com

Switzerland 0848 - SAMSUNG(7267864, CHF 0.08/min)

U.K 0330 SAMSUNG (7267864) www.samsung.com EIRE 0818 717100 www.samsung.com LITHUANIA 8-800-77777 www.samsung.com LATVIA 8000-7267 www.samsung.com ESTONIA 800-7267 www.samsung.com

80111-SAMSUNG (80111 726 7864) only from land line (+30) 210 6897691 from mobile and land line

0 801-1SAMSUNG(172-678) +48 22 607-93-33

08010 SAMSUNG (08010 726 7864) only from landline (+40) 21 206 01 10 from mobile and land line



Web Site

www.samsung.com/be (Dutch) www.samsung.com/be_fr (French)

www.samsung.com

www.samsung.com/ch www.samsung.com/ch_fr (French)

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
