Samsung ACC2800C User Manual
ENGLISH
Cassette-type Air Conditioner (Cool)
Aire acondicionador Tipo Casete
(Refrigeración)
Climatiseur de type Cassette (Refroidissement)
ESFDB68-02173A(2)
OWNER’S INSTRUCTIONS &
INSTALLATION MANUAL
MANUAL DE INSTRUCCIONES &
MANUAL DE INSTALACIÓN
MANUEL D’UTILISATION &
MANUEL D’INSTALLATION
ACC2400C
ACC2800C
Indoor Unit
UCC2400C
UCC2800C
Outdoor Unit
Before Starting
The wired remote controller, wireless remote controller and Centralized controller of the
air conditioner are optional accessories. And your Owner’s Instructions is for all of them.
So that before using this instruction, ensure your option(s).
E-
2
Safety Precautions
◆ If the power supply cord of this air conditioner is damaged,
it must be replaced by the manufacturer or its authorized
service personnel only in order to avoid a safety hazard.
WARNING
◆ Do not attempt to install this air conditioner by yourself.
◆ This unit contains no user-serviceable parts. Always consult authorized
service personnel for repairs.
◆ When moving, consult authorized service personnel for disconnection
and installation of the unit.
◆ Do not become over-exposed to cold air by staying in the direct path of
the airflow of the air conditioner for extended periods of time.
◆ Do not insert fingers or objects into the outlet port or intake grilles.
◆ Do not start and stop air conditioner operation by disconnecting the
power supply cord and so on.
◆ Take care not to damage the power supply cord.
◆ In the event of a malfunction (burning smell, etc.), immediately stop
operation, turn off the electrical breaker, and consult authorized
service personnel.
DANGER
◆ Provide occasional ventilation during use.
◆ Do not direct air flow at fireplaces or heating apparatus.
◆ Do not climb on, or place objects on, the air conditioner.
◆ Do not hang objects from the indoor unit.
◆ Do not set flower vases or water containers on top of air conditioners.
◆ Do not expose the air conditioner directly to water.
◆ Do not operate the air conditioner with wet hands.
◆ Do not pull power supply cord.
◆ Turn off power source when not using the unit for extended periods.
◆ Check the condition of the installation stand for damage.
◆ Do not place animals or plants in the direct path of the air flow.
◆ Do not drink the water drained from the air conditioner.
◆ Do not use in applications involving the storage of foods, plants or
animals, precision equipment, or art works.
◆ Do not apply any heavy pressure to radiator fins.
◆ Operate only with air filters installed.
◆ Do not block or cover the intake grille and outlet port.
◆ Ensure that any electronic equipment is at least one metre away from
either the indoor or outdoor units.
◆ Avoid installing the air conditioner near a fireplace or other heating
apparatus.
◆ When installing the indoor and outdoor unit, take precautions to prevent
access to infants.
◆ Do not use inflammable gases near the air conditioner.
CAUTION
Contents
◆
P
REPARING YOUR AIR CONDITIONER
■ Before Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . .6
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . .7
■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
■ The Indicators on the Unit (For Wireless Remote Controller Only)
. . . . . .9
■ Getting Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
■ Inserting the Wireless Remote Controller Batteries . . . . . . . . . .11
UU
UU
SSSSIIIINNNNGGGGWWWWIIIIRRRREEEEDDDDRRRREEEEMMMMOOOOTTTTEEEECCCCOOOONNNNTTTTRRRROOOOLLLLLLLLEEEERR
RR
◆
O
PERATING YOUR AIR CONDITIONER
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . .13
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .15
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
■ Adjusting the Air Flow Direction . . . . . . . . . . . . . . . . . . . . . . . .17
◆
P
ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
UU
UU
SSSSIIIINNNNGGGGWWWWIIIIRRRREEEELLLLEEEESSSSSSSSRRRREEEEMMMMOOOOTTTTEEEECCCCOOOONNNNTTTTRRRROOOOLLLLLLLLEEEERR
RR
◆
O
PERATING YOUR AIR CONDITIONER
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . .21
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .23
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
■ Adjusting the Air Flow Direction . . . . . . . . . . . . . . . . . . . . . . . . .25
◆
P
ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
UU
UU
SSSSIIIINNNNGG
GG
CC
CC
EEEENNNNTTTTRRRRAAAALLLLIIIIZZZZEEEEDDDDCCCCOOOONNNNTTTTRRRROOOOLLLLLLLLEEEERR
RR

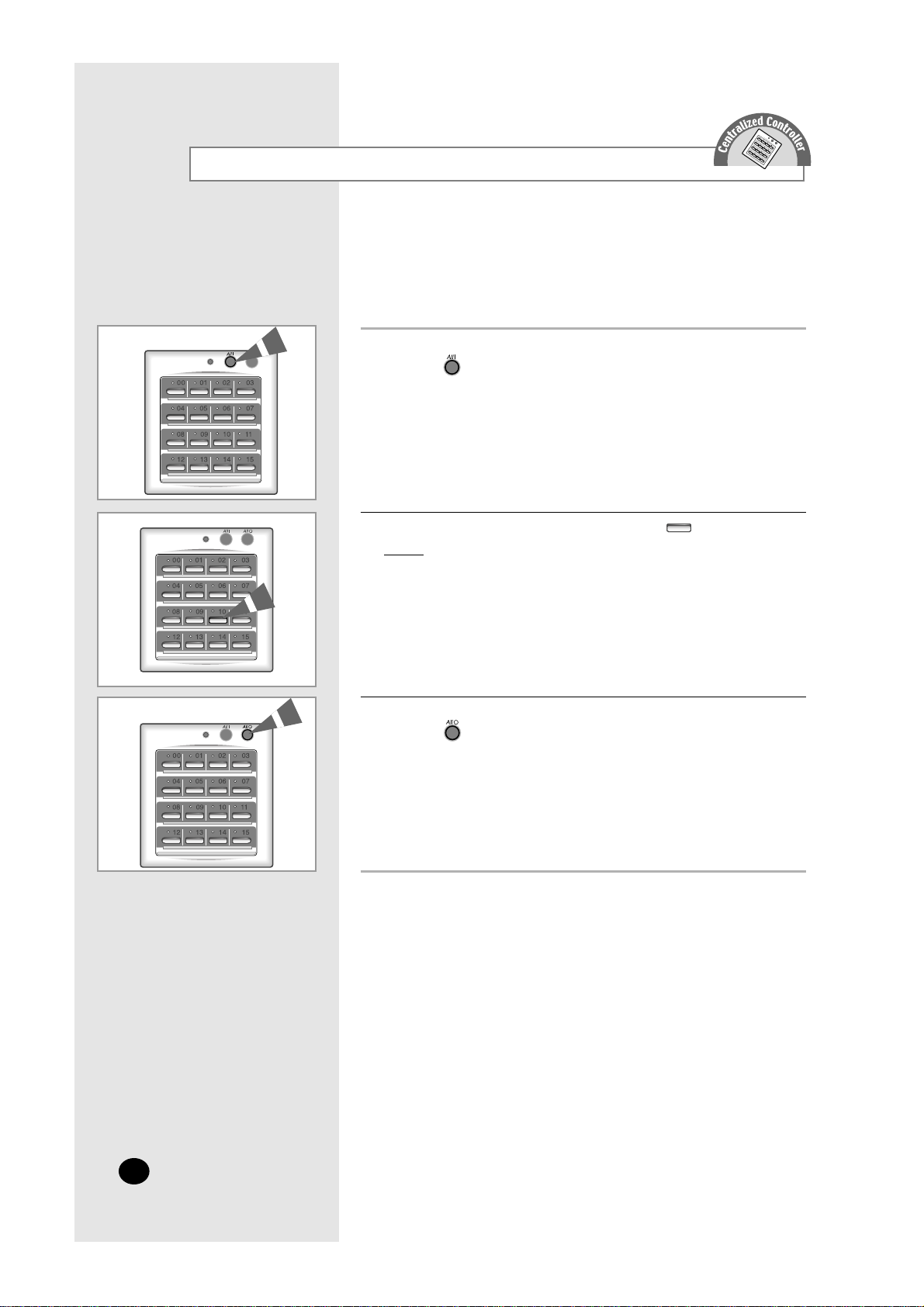

■ Using the Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . .28
◆
R
ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . .29
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . .29
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . .30
■ Bio-Pure Filter Installation(Optional) . . . . . . . . . . . . . . . . . . . . .31
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . .32
◆
S
PECIFICATIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
◆
I

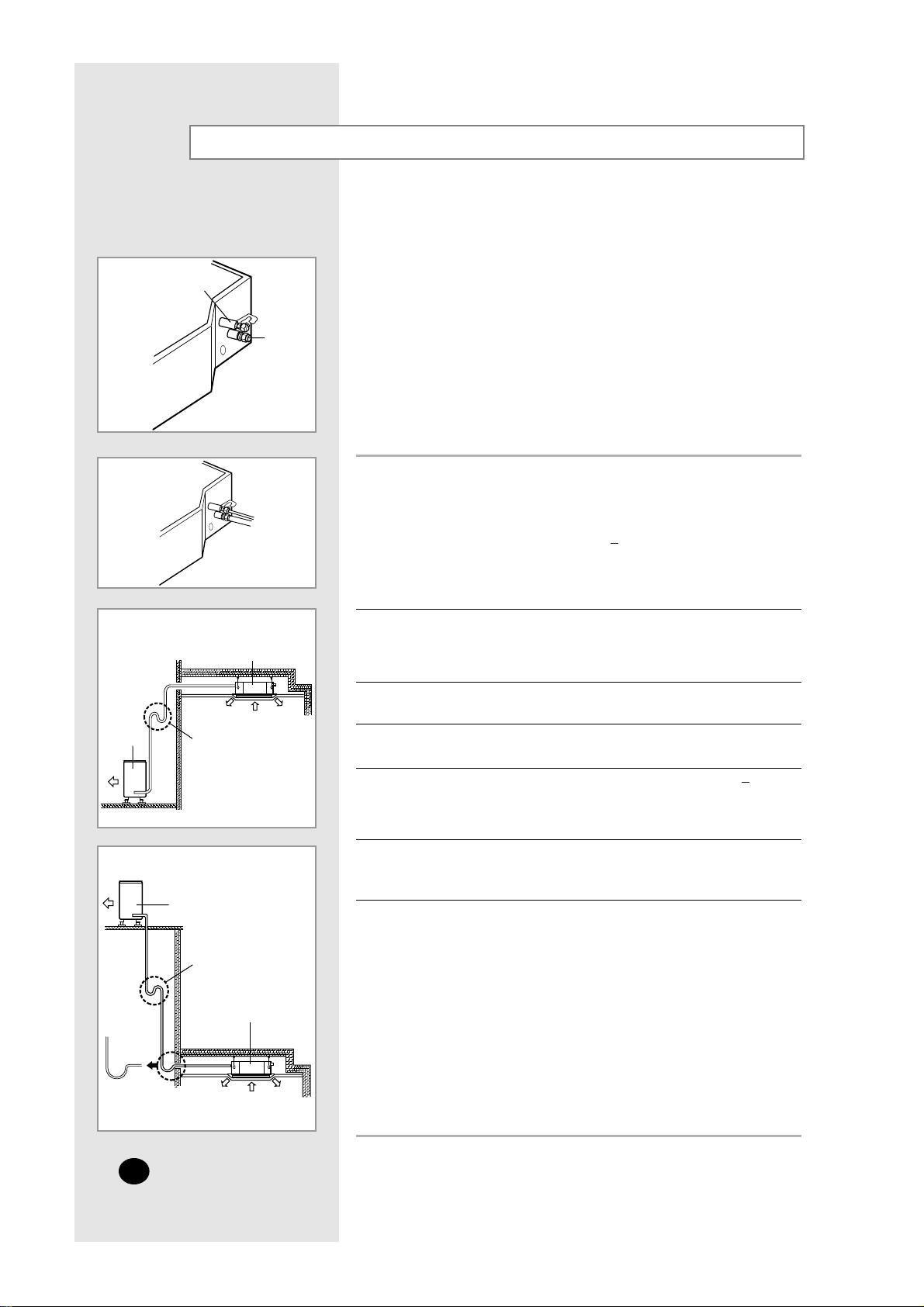

NSTALLATIONMANUAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
E-
