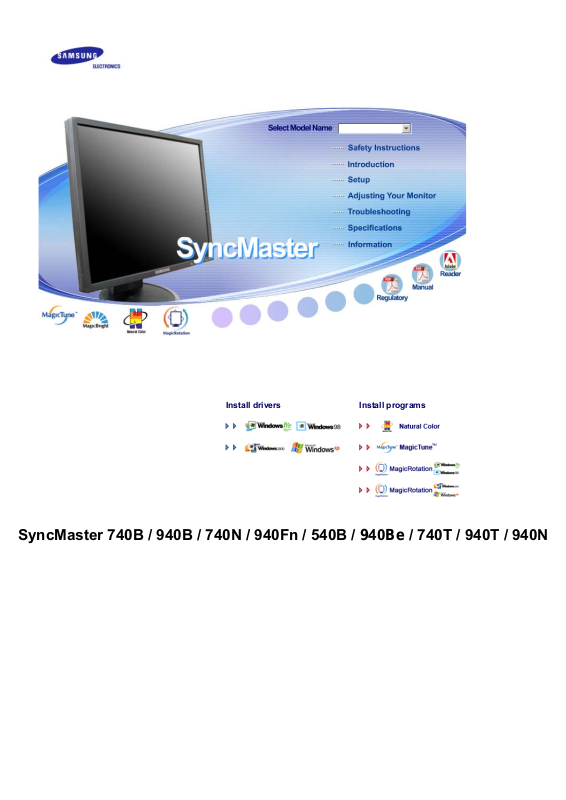

Samsung 940B, 940BE, 940N User Manual

Install drivers Install programs

SyncMaster 740B / 940B / 740N / 940Fn / 540B / 940Be / 740T / 940T / 940N

Notational

Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment.

Prohibited Important to read and understand at all times

Do not disassemble Disconnect the plug from the outlet

Power

Do not touch Grounding to prevent an electric shock

When not used for an extended period of time, set your computer to DPMS. If using a screen saver, set it to the active screen mode.

Do not use a damaged or loose plug.

z This may cause an electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

This may cause an electric shock or fire.

z

Use only a properly grounded plug and receptacle.

z An improper ground may cause electric shock or equipment damage.

Insert the power plug firmly so that it does not come loose.

A bad connection may cause fire.

z

Installation

Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.

This may cause an electric shock or fire.

z

Do not connect too many extension cords or plugs to an outlet.

z This may cause fire.

Be sure to contact an authorized service center, when installing your monitor in a location with the heavy dust, high or low temperatures, high humidity, chemical substance and where it operates for 24 hours such as the airport, the train station or etc.

Failure to do so may cause a serious damage to your monitor.

Put your monitor in a location with low humidity and a minimum of dust.

z Failure to do so may cause an electric shock or fire inside the monitor.

Do not drop the monitor when moving it.

z This may cause damage to the product or human body.

Install the monitor base in a showcase or shelf so that the end of the base does not project beyond the showcase or shelf.

z Dropping the product may cause damage to the product or personal

injury.

Do not place the product on an unstable or small surface area.

z Place the product on an even, stable surface, as the product may fall

and cause harm to someone walking by, specifically children.

Do not place the product on the floor.

Someone, specifically children could trip over it.

z

Keep any flammable objects such as candles, insecticides or cigarettes away from the product.

z Otherwise, this may cause a fire.

Keep any heating devices away from the power cable.

z A melted coating may lead to electric shock or fire.

Do not install the product in places with poor ventilation, for instance, a bookshelf, closet, etc.

z Any increase in internal temperature may cause fire.

Set down the monitor carefully.

The monitor could be damaged or broken.

z

Do not place the monitor face down.

z The TFT-LCD surface may be damaged.

Clean

Installing a wall bracket must be done by a qualified professional.

z Installation by unqualified personnel may result in injury.

Always use the mounting device specified in the owner's manual.

z

When installing the product, make sure to keep it away from the wall (more than 10cm/4inch ) for ventilation purposes.

z Poor ventilation may cause an increase in the internal temperature of the

product, resulting in a shortened component life and degraded performance.

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a slightly moistened, soft fabric.

Do not spray water or detergent directly on the monitor.

z This may cause damage, electric shock or fire.

Use the recommended detergent with a smooth cloth.

If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.

z A dirty connector may cause an electric shock or fire.

Make sure to unplug the power cord before cleaning the product.

z Otherwise, this may cause electric shock or fire.

Others

Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth.

z Do not use any chemicals such as wax, benzene, alcohol, thinners,

insecticide, air freshener, lubricant or detergent.

Contact the Service Center or Customer Center for interior cleaning once a year.

Keep the product's interior clean. Dust which has accumulated in the

z

interior over an extended period of time may cause malfunction or fire.

Do not remove cover (or back).

z This may cause an electric shock or fire. z Refer servicing to qualified service personnel.

If your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and

contact an authorized dealer or service.

z This may cause an electric shock or fire.

Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle.

z This may cause malfunction, an electric shock or fire. z Especially avoid operating the monitor near water or outdoors where it

could be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off and unplug the power cord. Then contact the Service Center .

z The monitor may malfunction, causing an electric shock or fire.

Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time.

z Failure to do so may cause an electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal cable.

z This may cause a breakdown, electric shock or fire due to damage to

the cable.

Do not move the monitor right or left by pulling only the wire or the signal cable.

This may cause a breakdown, electric shock or fire due to damage to

z

the cable.

Do not cover the vents on the monitor cabinet.

z Bad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects on the monitor.

This may cause malfunction, an electric shock or fire.

z

z If a foreign substance enters the monitor, unplug the power cord and

contact the Service Center.

Keep the product away from combustible chemical sprays or inflammable substances.

z This may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

z This may cause an electric shock, fire or injury.

Do not insert metal objects such as chopsticks, wire and gimlet or inflammable objects such as paper and match into the vent, headphone port or AV ports.

It may cause a fire or an electric shock. If an alien substances or water

z

flows into the product, turn the product off, unplug the power connector from the wall outlet and contact service center.

If you view a fixed screen for an extended period of time, residual image or blurriness may appear.

Change the mode to energy save or set a screensaver to moving picture

z

when you need to be away from the monitor for an extended period of time.

Adjust the resolution and frequency to the levels appropriate for the model.

z Inappropriate resolution may cause undesirable picture quality.

15 inch - 1024 X 768 17,19 inch - 1280 X 1024

Watching the monitor continuously at a too close angle may result in eyesight damage.

To ease eye strain, take at least a five-minute break after every hour of using the monitor

.

Do not install the product on an unstable, uneven surface or a location prone to vibrations.

z Dropping the product may cause damage to the product or personal

injury. Using the product in a location prone to vibrations may shorten the lifetime of the product or may catch fire.

When moving the monitor, turn off and unplug the power cord. Make sure that all cables, including the antenna cable and cables connecting to other devices, are disconnected before moving the monitor.

z Failure to disconnect cables may damage it and lead to fire or an electric

shock.

Place the product out of children’s reach, as they could damage it by hanging onto it.

z A falling product could cause physical damage even death.

When not using the product for an extended time period, keep the product unplugged.

Otherwise, this may cause heat emission from the accumulated dirt or

z

degraded insulation, leading to electric shock or fire.

Do not place children’s favorite objects (or anything else that may be tempting) on the product.

z Children may try to climb on the product to retrieve an object. The

product could fall, causing physical damage or even death.

r

p

Unpacking

Type 1

SyncMaster 740B / 940B / 540B

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local deale

to buy optional items.

Type 2

Type 3

Monitor & Sim

MagicRotation™ program can not be provided as Simple Stand does not support Pivot function.

Monitor & Pivot stand

le stand Bottom

g

Monitor & Slidin

Stand

Manual

User's Guide,

Quick Setup Guide

(Not available in all

Warranty Card

locations)

Monitor Driver,

Natural Color software,

MagicTune™ software

Ma

icRotation software

Cable

D-sub Cable Power Cord DVI Cable

(option)

Front

MENU button [ ]

MagicBright™ []

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently six different modes are available: Custom, Text, Internet, Game, Sport and Movie. Each mode has its own pre-configured brightness value. You can easily select one of six settings by simply pressing MagicBright control button.

1) Custom

Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Text

For documentations or works involving heavy text.

3) Internet

For working with a mixture of images such as text and graphics.

4) Game

For watching motion pictures such as a game.

5) Sport

For watching motion pictures such as a sport.

6) Movie

For watching motion pictures such as a DVD or Video CD.

>>Click here to see an animation clip

Brightness button []

Adjust buttons [ ]

Enter button [ ] / Source button

When OSD is not on the screen, push the button to adjust brightness.

Adjust items in the menu.

Activates a highlighted menu item. / Push the ' ', then selects the video signal while the OSD is off. (When the source button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- analog or digital input signal.) Note : If you select the digital mode, you must connect your monitor to the graphic card's DVI port using the DVI cable.

AUTO button

(op

)

g

Use this button for auto adjustment.

Power button [ ]/ Power indicator

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

Rear

Use this button for turn the monitor on and off. / This light glows blue during normal operation, and blinks blue once as the monitor saves your adjustments.

(The configuration at the back of the monitor may vary from product to product.)

POWER port

DVI IN port

RGB IN port

POWER on/off Switch

tion

Kensington Lock

See Connecting the Monitor for further information regarding cable connections.

Simple stand Pivot stand / Sliding Stand

Connect the power cord for your monitor to the power port on the back of the monitor. Connect the DVI Cable to the DVI port on the back of your monitor.

Connect the signal cable to the 15-pin, D-sub port on the back of your monitor. Use this button for turn the monitor on and off.

The Kensington lock is a device used to physically fix the system when using it in a public place. (The locking device has to be purchased separately. )

For usin

a locking device, contact where you purchase it.

r

p

Unpacking

Type 1

SyncMaster 740N / 940N

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local deale

to buy optional items.

Type 2

Type 3

Monitor & Sim

MagicRotation™ program can not be provided as Simple Stand does not support Pivot function.

Monitor & Pivot stand

le stand Bottom

g

Manual

Cable

Monitor & Slidin

Quick Setup Guide

D-sub Cable Power Cord

Stand

Warranty Card

(Not available in all

locations)

User's Guide,

Monitor Driver,

Natural Color software,

MagicTune™ software

Ma

icRotation software

Front

MENU button [ ]

MagicBright™ []

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently six different modes are available: Custom, Text, Internet, Game, Sport and Movie. Each mode has its own pre-configured brightness value. You can easily select one of six settings by simply pressing MagicBright control button.

1) Custom

Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Text

For documentations or works involving heavy text.

3) Internet

For working with a mixture of images such as text and graphics.

4) Game

For watching motion pictures such as a game.

5) Sport

For watching motion pictures such as a sport.

6) Movie

For watching motion pictures such as a DVD or Video CD.

>>Click here to see an animation clip

Brightness button []

Adjust buttons [ ]

Enter button [ ]

AUTO button

Power button [ ]/ Power indicator

When OSD is not on the screen, push the button to adjust brightness.

Adjust items in the menu.

Activates a highlighted menu item.

Use this button for auto adjustment.

Use this button for turn the monitor on and off. / This light glows blue during normal operation, and blinks blue once as the monitor saves your adjustments.

(op

)

g

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

Rear

(The configuration at the back of the monitor may vary from product to product.)

POWER port

RGB IN port

POWER on/off Switch

tion

Kensington Lock

See Connecting the Monitor for further information regarding cable connections.

Simple stand Pivot stand / Sliding Stand

Connect the power cord for your monitor to the power port on the back of the monitor. Connect the signal cable to the 15-pin, D-sub port on the back of your monitor. Use this button for turn the monitor on and off.

The Kensington lock is a device used to physically fix the system when using it in a public place. (The locking device has to be purchased separately. )

For usin

a locking device, contact where you purchase it.

r

g

SyncMaster 940Fn

Please make sure the following items are included with your monitor.

Unpacking

Manual

If any items are missing, contact your dealer.

Contact a local deale

Monitor & Pivot stand

to buy optional items.

User's Guide,

Warranty Card

Quick Setup Guide

Cable

'DVI-A to D-sub' Cable Power Cord DVI Cable

(Not available in all

locations)

Monitor Driver,

Natural Color software,

MagicTune™ software

Ma

icRotation software

Front

MENU button [ ]

MagicBright™ []

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently six different modes are available: Custom, Text, Internet, Game, Sport and Movie. Each mode has its own pre-configured brightness value. You can easily select one of six settings by simply pressing MagicBright control button.

1) Custom

Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Text

For documentations or works involving heavy text.

3) Internet

For working with a mixture of images such as text and graphics.

4) Game

For watching motion pictures such as a game.

5) Sport

For watching motion pictures such as a sport.

6) Movie

For watching motion pictures such as a DVD or Video CD.

>>Click here to see an animation clip

Brightness button []

Adjust buttons [ ]

When OSD is not on the screen, push the button to adjust brightness.

Adjust items in the menu.

Enter button [ ] /

(op

)

g

Source button

AUTO button

Activates a highlighted menu item. / Push the ' ', then selects the video signal while the OSD is off. (When the source button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- analog or digital input signal.) Note : If you select the digital mode, you must connect your monitor to the graphic card's DVI port using the DVI cable.

Use this button for auto adjustment.

Power button [ ]/ Power indicator

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

Rear

Use this button for turn the monitor on and off. / This light glows blue during normal operation, and blinks blue once as the monitor saves your adjustments.

(The configuration at the back of the monitor may vary from product to product.)

POWER port

DVI IN port RGB IN port

Power on/off Switch

tion

Kensington Lock

See Connecting the Monitor for further information regarding cable connections.

Connect the power cord for your monitor to the power port on the back of the monitor. Connect the DVI Cable to the DVI port on the back of your monitor.

Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor. Use this button for turn the monitor on and off.

The Kensington lock is a device used to physically fix the system when using it in a public place. (The locking device has to be purchased separately. )

For usin

a locking device, contact where you purchase it.

r

p

g

Unpacking

Type 1

SyncMaster 740T / 940T / 940Be

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local deale

to buy optional items.

Type 2

Manual

Monitor & Sim

MagicRotation™ program can not be provided as Simple Stand does not support Pivot function.

Monitor & Slidin

le stand Bottom

Stand

g

Quick Setup Guide

(Not available in all

Warranty Card

locations)

Monitor Driver,

Natural Color software,

MagicTune™ software

Ma

icRotation software

Cable

User's Guide,

Front

D-sub Cable Power Cord DVI Cable

(option)

MENU button [ ]

MagicBright™ []

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently six different modes are available: Custom, Text, Internet, Game, Sport and Movie. Each mode has its own pre-configured brightness value. You can easily select one of six settings by simply pressing MagicBright control button.

1) Custom

Although the values are carefully chosen by our engineers,

the pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Text

For documentations or works involving heavy text.

3) Internet

For working with a mixture of images such as text and graphics.

4) Game

For watching motion pictures such as a game.

5) Sport

For watching motion pictures such as a sport.

6) Movie

For watching motion pictures such as a DVD or Video CD.

>>Click here to see an animation clip

Brightness button []

Adjust buttons [ ]

Enter button [ ] / Source button

AUTO button

Power button [ ]/ Power indicator

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

When OSD is not on the screen, push the button to adjust brightness.

Adjust items in the menu.

Activates a highlighted menu item. / Push the ' ', then selects the video signal while the OSD is off. (When the source button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- analog or digital input signal.) Note : If you select the digital mode, you must connect your monitor to the graphic card's DVI port using the DVI cable.

Use this button for auto adjustment.

Use this button for turn the monitor on and off. / This light glows blue during normal operation, and blinks blue once as the monitor saves your adjustments.

Rear

p

(The configuration at the back of the monitor may vary from product to product.)

(op

)

g

POWER port

DVI IN port

RGB IN port

POWER on/off Switch

tion

Kensington Lock

See Connecting the Monitor for further information regarding cable connections.

le stand Sliding Stand

Sim

Connect the power cord for your monitor to the power port on the back of the monitor. Connect the DVI Cable to the DVI port on the back of your monitor.

Connect the signal cable to the 15-pin, D-sub port on the back of your monitor. Use this button for turn the monitor on and off.

The Kensington lock is a device used to physically fix the system when using it in a public place. (The locking device has to be purchased separately. )

For usin

a locking device, contact where you purchase it.

SyncMaster 740B / 940B / 540B / 740T / 940T / 940Be

Connecting the Monitor

1.

2-1.

2-2.

2-3.

2-4.

3.

Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.

Using the D-sub (Analog) connector on the video card. Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

[ RGB IN ]

Using the DVI (Digital) connector on the video card. Connect the DVI Cable to the DVI Port on the back of your Monitor.

[ DVI IN ]

Connected to a Macintosh. Connect the monitor to the Macintosh computer using the D-sub connection cable.

In the case of an old model Macintosh, you need to connect the monitor using a special Mac adapter.

Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Using the Stand

y

Monitor Assembl

Monitor and Bottom

Pivot Stand / Sliding Stand

Stand Stopper

A.

Attaching a Base

This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.

Simple stand

Monitor

A.

Mounting interface pad

B.

Pivot stand

Sliding Stand

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.

3. Remove four screws and then remove the stand from the LCD monitor.

4. Align the mounting interface pad with the holes in the rear cover mounting Pad and secure it with four screws that came with the arm-type base, wall mount hanger or other base.

Installing the Monitor Driver (Automatic)

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/ (China)

Windows ME

1. Insert CD into the CD-ROM drive.

2. Click

"Windows ME Driver"

.

3. Choose your monitor model in the model list, then click the

"OK"

button.

4. Click the

5. Monitor driver installation is completed.

Windows XP/2000

1. Insert CD into the CD-ROM drive.

2. Click

3. Choose your monitor model in the model list, then click the

"Install"

"Windows XP/2000 Driver"

button in the

"Warning"

window.

"OK"

button.

4. If you can see following message window, then click the Then click

5. Monitor driver installation is completed.

button.

"OK"

This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor momepage

http://www.samsung.com/.

"Continue Anyway"

button.

Installing the Monitor Driver (Manual)

Windows XP | Windows 2000 |Windows Me |Windows NT | Linux

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "

Start

" —> "

Control Panel

" then click the "

Appearance and Themes

" Icon.

3. Click "

Display

4. Click the "

" icon and choose the "

Properties

" button on the "

Settings

" tab then click "

Advanced..

".

Monitor

" tab and select "

Driver

" tab.

5. Click "

Update Driver..

" and select "

Install from a list or..

" then click "

6. Select "

7. Click the " model list and click the "

Don't search ,I will..

Browse

" then click "

" button then choose A:(D:\Driver) and choose your monitor model in the

" button.

".

8. If you can see following " click "OK" button.

This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor homepage.

http://www.samsung.com/

9. Click the "

" button then click "OK" button continually.

Close

Message

" window, then click the "

Continue Anyway

" button. Then

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "

2. Click the "

3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

How to install

1. Click "

2. Double click the "

3. Choose the "

4. Choose "

Case1: If the "Properties" button is inactive, it means your monitor is properly configured.

Case2: If the "Properties" button is active, click the "Properties" button then follow next steps

5. Click "

6. Choose "

specific driver

7. Click the "

8. Click the "

9. Choose your monitor model and click the "

10. Click the "

Browse

Start

Monitor

Please stop installation

continually.

Driver

Display a list of the known drivers for this device so that I can choose a

Browse Open

Finish

" button on the "

" , "

Setting

Display

Settings

".

" and then click on "

" then click "

" button then choose A:(D:\Driver).

" button, then click "OK" button.

" button then the "

Insert disk

" , "

Control Panel

" Icon.

" tab and then click "

" and then click "

File Needed

".

Advanced..

Update Driver..

Close

" window.

".

" then click on the "Next" button.

Have disk

" button then click "

".

If you can see the " And click the "

Microsoft® Windows® Millennium Operating System

1. Click "

2. Double click "

3. Select the "

4. Select the "

5. Click the "

6. Choose "

7. Choose "

8. Click the "

9. Specify A:\(D:\driver) then click "OK" button.

10. Select " connected to your computer and click "OK".

11. Continue choosing " dialogue box.

" , "

Start

Settings Monitor

Change Specify the location of the driver Display a list of all the driver in a specific location..

Have Disk

Show all devices

Digital Signature Not Found

" button then the "

Finish

Setting

Display

" , "

Control Panel

" icon.

" tab and click "

" tab.

" button in the "

" button

" and choose the monitor that corresponds to the one you

" button and "OK" button until you close the Display Properties

Close

Monitor Type

" button.

Close

".

Advanced Properties

" area.

".

" window then click the "

" button.

" then click "

Yes

"button.

" button.

Microsoft® Windows® NT Operating System

r

1. Click

Start,Settings,Control Panel

2. In Display Registration Information window, click Settings Tab and then click .

Modes

, and then double-click

Display

icon.

All Display

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)

and then click OK.

4. Click

button if you see the screen working normally after clicking

Apply

. If the screen is

Test

not normal, change to a different mode (lower mode of resolution, colors or frequency).

If there is no Mode at

All Display Modes

, select the level of resolution and vertical

frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and the second screen after executing the X86Config file.

2. The third screen is for

setting your mouse

.

3. Set a mouse for your computer.

4. The next screen is for

selecting a keyboard

.

5. Set a Keyboard for your computer.

6. The next screen is for

7. First of all, set a

horizontal frequency

setting your monitor

.

for your monitor. (You can enter the frequency

directly.)

8. Set a

vertical frequency

9. Enter the

model name of your monitor

for your monitor. (You can enter the frequency directly.)

. This information will not affect the actual execution

of X-Window.

10. You have

Execute

finished

X-Window after setting other requested hardware.

setting up your monitor.

Natural Color

Natural Colo

One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor. The Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.

For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program Natural Color will be executed. Click Natural Color on the initial screen to install the Natural Color software. To install the program manually, insert the CD included with the Samsung monitor into the CDROM Drive, click the [Start] button of Windows and then select [Execute]. Enter D:\color\eng\setup.exe and then press the <Enter> key. (If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select

"Setting/Control Panel"

program"

.

Select Natural Color from the list and then click the

on the

"Start"

menu and then double-click

"Add/Delete"

button.

"Add/Delete a

Connecting the Monitor

SyncMaster 740N / 940N

1.

2-1.

2-2.

2-3.

3.

Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.

Using the D-sub (Analog) connector on the video card. Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

Connected to a Macintosh. Connect the monitor to the Macintosh computer using the D-sub connection cable.

In the case of an old model Macintosh, you need to connect the monitor using a special Mac adapter.

Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Using the Stand

[ RGB IN ]

Monitor Assembl

y

Monitor and Bottom

Pivot Stand / Sliding Stand

Stand Stopper

A.

Attaching a Base

This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.

Simple stand

Monitor

A.

Mounting interface pad

B.

Pivot stand

Sliding Stand

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the

screen.

3. Remove four screws and then remove the stand from the LCD monitor.

4. Align the mounting interface pad with the holes in the rear cover mounting Pad and secure it

with four screws that came with the arm-type base, wall mount hanger or other base.

Installing the Monitor Driver (Automatic)

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/ (China)

Windows ME

1. Insert CD into the CD-ROM drive.

2. Click

"Windows ME Driver"

.

3. Choose your monitor model in the model list, then click the

"OK"

button.

4. Click the

5. Monitor driver installation is completed.

Windows XP/2000

1. Insert CD into the CD-ROM drive.

2. Click

3. Choose your monitor model in the model list, then click the

"Install"

"Windows XP/2000 Driver"

button in the

"Warning"

window.

"OK"

button.

4. If you can see following message window, then click the Then click

5. Monitor driver installation is completed.

button.

"OK"

This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor momepage

http://www.samsung.com/.

"Continue Anyway"

button.

Installing the Monitor Driver (Manual)

Windows XP | Windows 2000 |Windows Me |Windows NT | Linux

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "

Start

" —> "

Control Panel

" then click the "

Appearance and Themes

" Icon.

3. Click "

Display

4. Click the "

" icon and choose the "

Properties

" button on the "

Settings

" tab then click "

Advanced..

".

Monitor

" tab and select "

Driver

" tab.

5. Click "

Update Driver..

" and select "

Install from a list or..

" then click "

6. Select "

7. Click the " model list and click the "

Don't search ,I will..

Browse

" then click "

" button then choose A:(D:\Driver) and choose your monitor model in the

" button.

".

8. If you can see following " click "OK" button.

This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor homepage.

http://www.samsung.com/

9. Click the "

" button then click "OK" button continually.

Close

Message

" window, then click the "

Continue Anyway

" button. Then

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "

2. Click the "

3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

How to install

1. Click "

2. Double click the "

3. Choose the "

4. Choose "

Case1: If the "Properties" button is inactive, it means your monitor is properly configured.

Case2: If the "Properties" button is active, click the "Properties" button then follow next steps

5. Click "

6. Choose "

specific driver

7. Click the "

8. Click the "

9. Choose your monitor model and click the "

10. Click the "

Browse

Start

Monitor

Please stop installation

continually.

Driver

Display a list of the known drivers for this device so that I can choose a

Browse Open

Finish

" button on the "

" , "

Setting

Display

Settings

".

" and then click on "

" then click "

" button then choose A:(D:\Driver).

" button, then click "OK" button.

" button then the "

Insert disk

" , "

Control Panel

" Icon.

" tab and then click "

" and then click "

File Needed

".

Advanced..

Update Driver..

Close

" window.

".

" then click on the "Next" button.

Have disk

" button then click "

".

If you can see the " And click the "

Microsoft® Windows® Millennium Operating System

1. Click "

2. Double click "

3. Select the "

4. Select the "

5. Click the "

6. Choose "

7. Choose "

8. Click the "

9. Specify A:\(D:\driver) then click "OK" button.

10. Select " connected to your computer and click "OK".

11. Continue choosing " dialogue box.

" , "

Start

Settings Monitor

Change Specify the location of the driver Display a list of all the driver in a specific location..

Have Disk

Show all devices

Digital Signature Not Found

" button then the "

Finish

Setting

Display

" , "

Control Panel

" icon.

" tab and click "

" tab.

" button in the "

" button

" and choose the monitor that corresponds to the one you

" button and "OK" button until you close the Display Properties

Close

Monitor Type

" button.

Close

".

Advanced Properties

" area.

".

" window then click the "

" button.

" then click "

Yes

"button.

" button.

Microsoft® Windows® NT Operating System

r

1. Click

Start,Settings,Control Panel

2. In Display Registration Information window, click Settings Tab and then click .

Modes

, and then double-click

Display

icon.

All Display

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)

and then click OK.

4. Click

button if you see the screen working normally after clicking

Apply

. If the screen is

Test

not normal, change to a different mode (lower mode of resolution, colors or frequency).

If there is no Mode at

All Display Modes

, select the level of resolution and vertical

frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and the second screen after executing the X86Config file.

2. The third screen is for

setting your mouse

.

3. Set a mouse for your computer.

4. The next screen is for

selecting a keyboard

.

5. Set a Keyboard for your computer.

6. The next screen is for

7. First of all, set a

horizontal frequency

setting your monitor

.

for your monitor. (You can enter the frequency

directly.)

8. Set a

vertical frequency

9. Enter the

model name of your monitor

for your monitor. (You can enter the frequency directly.)

. This information will not affect the actual execution

of X-Window.

10. You have

Execute

finished

X-Window after setting other requested hardware.

setting up your monitor.

Natural Color

Natural Colo

One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor. The Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.

For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program Natural Color will be executed. Click Natural Color on the initial screen to install the Natural Color software. To install the program manually, insert the CD included with the Samsung monitor into the CDROM Drive, click the [Start] button of Windows and then select [Execute]. Enter D:\color\eng\setup.exe and then press the <Enter> key. (If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select

"Setting/Control Panel"

program"

.

Select Natural Color from the list and then click the

on the

"Start"

menu and then double-click

"Add/Delete"

button.

"Add/Delete a

Connecting the Monitor

SyncMaster 940Fn

1.

2-1.

2-2.

2-3.

2-4.

3.

Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.

Using the D-sub (Analog) connector on the video card. Connect the 'DVI-A to D-sub' Cable to the D-sub port on the back of your monitor.

[ RGB IN ]

Using the DVI (Digital) connector on the video card. Connect the DVI Cable to the DVI port on the back of your monitor.

[ DVI IN ]

Connected to a Macintosh. Connect the monitor to the Macintosh computer using the 'DVI-A to D-sub' connection cable.

In the case of an old model Macintosh, you need to connect the monitor using a special Mac adapter.

Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Using the Stand

Pivot Stand

Stand Stopper

A.

Attaching a Base

This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.

Monitor

A.

Mounting interface pad

B.

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the

screen.

3. Remove four screws and then remove the stand from the LCD monitor.

4. Align the mounting interface pad with the holes in the rear cover mounting Pad and secure it

with four screws that came with the arm-type base, wall mount hanger or other base.

Installing the Monitor Driver (Automatic

)

yway

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/ (China)

Windows ME

1. Insert CD into the CD-ROM drive.

2. Click

"Windows ME Driver"

3. Choose your monitor model in the model list, then click the

.

button.

"OK"

4. Click the

"Install"

button in the

"Warning"

window.

5. Monitor driver installation is completed.

Windows XP/2000

1. Insert CD into the CD-ROM drive.

2. Click

"Windows XP/2000 Driver"

3. Choose your monitor model in the model list, then click the

"OK"

button.

4. If you can see following message window, then click the

"Continue An

button.

"

Then click

"OK"

button.

This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor momepage

http://www.samsung.com/.

5. Monitor driver installation is completed.

Installing the Monitor Driver (Manual)

Windows XP | Windows 2000 |Windows Me |Windows NT | Linux

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "

Start

" —> "

Control Panel

" then click the "

Appearance and Themes

" Icon.

3. Click "

Display

" icon and choose the "

Settings

" tab then click "

Advanced..

".

4. Click the "

5. Click "

Update Driver..

Properties

" button on the "

" and select "

Monitor

Install from a list or..

" tab and select "

" then click "

Driver

" tab.

6. Select "

7. Click the "

model list and click the "

Don't search ,I will..

Browse

" then click "

" button then choose A:(D:\Driver) and choose your monitor model in the

" button.

".

8. If you can see following "

click "OK" button.

This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor homepage.

http://www.samsung.com/

9. Click the "

" button then click "OK" button continually.

Close

Message

" window, then click the "

Continue Anyway

" button. Then

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "

2. Click the "

3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

How to install

Browse

" button on the "

Insert disk

" window.

File Needed

" window.

1. Click "

2. Double click the "

3. Choose the "

4. Choose "

Case1: If the "Properties" button is inactive, it means your monitor is properly configured.

Case2: If the "Properties" button is active, click the "Properties" button then follow next steps

5. Click "

6. Choose "

specific driver

7. Click the "

8. Click the "

9. Choose your monitor model and click the "

10. Click the "

" , "

Start

Driver

Setting

Settings

Monitor

Please stop installation

continually.

" and then click on "

Display a list of the known drivers for this device so that I can choose a

Browse Open

Finish

" , "

Control Panel

Display

".

" then click "

" button, then click "OK" button.

" button then the "

" Icon.

" tab and then click "

Update Driver..

" and then click "

" button then choose A:(D:\Driver).

".

Advanced..

".

" then click on the "Next" button.

Have disk

" button then click "

".

" button.

Microsoft® Windows® Millennium Operating System

1. Click "

2. Double click "

3. Select the "

4. Select the "

5. Click the "

6. Choose "

7. Choose "

8. Click the "

9. Specify A:\(D:\driver) then click "OK" button.

10. Select " connected to your computer and click "OK".

11. Continue choosing " dialogue box.

Microsoft® Windows® NT Operating System

1. Click

2. In Display Registration Information window, click Settings Tab and then click

Modes

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then click OK.

4. Click not normal, change to a different mode (lower mode of resolution, colors or frequency).

" , "

Start

Settings Monitor

Change Specify the location of the driver Display a list of all the driver in a specific location..

Have Disk

Show all devices

Start,Settings,Control Panel

.

Apply

If there is no Mode at frequency by referring to the Preset Timing Modes in the user guide.

Digital Signature Not Found

" button then the "

Finish

Setting

Display

button if you see the screen working normally after clicking

" , "

Control Panel

" icon.

" tab and click "

" tab.

" button in the "

" button

" and choose the monitor that corresponds to the one you

" button and "OK" button until you close the Display Properties

Close

All Display Modes

Close

".

Advanced Properties

Monitor Type

, and then double-click

" window then click the "

" button.

" area.

".

" then click "

Display

, select the level of resolution and vertical

icon.

"button.

Yes

. If the screen is

Test

" button.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and the second screen after executing the X86Config file.

2. The third screen is for

3. Set a mouse for your computer.

4. The next screen is for

5. Set a Keyboard for your computer.

6. The next screen is for

7. First of all, set a directly.)

8. Set a

9. Enter the

10. You have

vertical frequency

of X-Window.

Execute

model name of your monitor

finished

X-Window after setting other requested hardware.

setting your mouse

selecting a keyboard

setting your monitor

horizontal frequency

for your monitor. (You can enter the frequency directly.)

setting up your monitor.

.

for your monitor. (You can enter the frequency

. This information will not affect the actual execution

Natural Color

r

Natural Colo

One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor. The Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images. For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program Natural Color will be executed. Click Natural Color on the initial screen to install the Natural Color software. To install the program manually, insert the CD included with the Samsung monitor into the CDROM Drive, click the [Start] button of Windows and then select [Execute]. Enter D:\color\eng\setup.exe and then press the <Enter> key. (If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select

"Setting/Control Panel"

program"

Select Natural Color from the list and then click the

.

on the

"Start"

menu and then double-click

"Add/Delete"

button.

"Add/Delete a

SyncMaster 740B / 940B / 540B / 740T / 940T / 940Be

Use this button to open the on-screen menu and exit from the menu screen or close screen

1.

adjustment menu. This button allows you to adjust items in the menu.

2.

Press this button to activate a highlighted menu item.

3.

Press to self-adjust to the incoming PC signal. The values of fine,coarse and position are

4.

adjusted automatically.

AUTO

Menu Description

AUTO

OSD Lock & Unlock

When the '

' button is pressed, the Auto Adjustment screen appears

AUTO

as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically. (Available in analog mode only)

To make the automatic adjustment function sharper, execute the 'AUTO' function while the AUTO PATTERN is on.

- If auto adjustment does not work properly, press AUTO button again to adjust picture with more accuracy.

- If you change resolution in the control panel, auto function will be executed automatically.

Menu Description

OSD Lock & Unlock

MagicBright™

After pushing the "MENU" button more than 5 seconds, OSD function is locked (unlocked).

You can also adjust the brightness and contrast of the monitor with the OSD adjustment locking feature.

Menu Description

Push the MagicBright button to circle through available preconfigured

MagicBright™

modes.

- Six different modes (Custom/Text/Internet/Game/Sport/Movie)

Brightness

Menu Description

Brightness

SOURCE

When OSD is not on the screen, push the button to adjust brightness.

Menu Description

SOURCE


Selects the video signal while the OSD is off.

Brightness Contrast

Color Image OSD Setup Information


MagicColor Color Tone Color Control Gamma Coarse Fine Sharpness H-Position V-Position Language H-Position V-Position Transparency Display Time Auto Source Image Reset Color Reset

Menu Description Play/Stop

You can use the on-screen menus to change the brightness according to personal preference.

Brightness

Contrast

Color

Direct Access Feature

push the button to adjust brightness.

You can use the on-screen menus to change the contrast according to personal preference. (Not available in MagicColor mode of Full and Intelligent.)

: When OSD is not on the screen,

Menu Description Play/Stop

MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.

- Returns to the original mode.

1) Off

2) Demo

- The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.

- Displays not only vivid natural color but also

3) Full

more realistic natural skin color with clearness.

4) Intelligent

5) MagicZone

sharp display of animated multimedia or photo images by

- Displays vivid natural color with clearness.

- The MagicZone ensures the clear and

MagicZone

enhancing the brightness, sharpness, saturation, hue of a certain area on the screen. Especially, MagicZone is appropriate to using the moving picture.

MagicColor

Hue

: This function is to adjust the hue of the MagicZone.

Saturation : This function is to adjust the saturation of the MagicZone.

Brightness : This function is to adjust the brightness of the MagicZone.

Sharpness : This function is to adjust the sharpness of the MagicZone.

H-Position : This function is to move the MagicZone horizontally.

V-Position : This function is to move the MagicZone vertically.

H-Size : This function is to adjust the horizontal size of the MagicZone.

V-Size

Hue

Saturation

Brightness

Sharpness

H-Position

V-Position

H-Size

V-Size

Color Tone

: This function is to adjust the vertical size of the MagicZone.

The tone of the color can be changed and one of four modes can be selected - Cool, Normal, Warm and Custom. (Not available in MagicColor mode of Full and Intelligent.)

Color Control

Gamma


Adjusts individual R,G,B color balance. (Not available in MagicColor mode of Full and Intelligent.)

Select one of three pre-defined gammas.

Mode 1 : Shows normal gamma

z

z Mode 2 : Shows higher gamma(brighter) z Mode 3 : Shows lower gamma(darker)

Menu Description Play/Stop

Removes noise such as vertical stripes. Coarse

Coarse

adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu. (Available in analog mode only)

Removes noise such as horizontal stripes. If the noise

Fine

persists even after fine tuning, repeat it after adjusting the frequency (clock speed). (Available in analog mode only)

Sharpness

Changes the clearance of image. (Not available in MagicColor mode of Full and Intelligent.)

Changes the horizontal position of the monitor's entire

H-Position

display. (Available in analog mode only)

V-Position

Changes the vertical position of the monitor's entire display.

OSD

(Available in analog mode only)

Menu Description Play/Stop

You can choose one of eight languages.

Language

:The language chosen affects only the language of

Note

the OSD. It has no effect on any software running on the computer.

H-Position

V-Position

Transparency

Display Time

You can change the horizontal position where the OSD menu appears on your monitor.

You can change the vertical position where the OSD menu appears on your monitor.

Change the transparency of the background of the OSD.

The menu will be automatically turned off if no adjustments are made for a certain time period. You can set the amount of time the menu will wait before it is turned off.

Setup

Menu Description Play/Stop

Auto Source

Image Reset

Color Reset

Information

Select

Auto Source

for the monitor to automatically select

the signal source.

Image parameters are replaced with the factory default values.

Color parameters are replaced with the factory default values.

Menu Description

Information

Shows a video source, display mode on the OSD screen.

SyncMaster 740N / 940N

Use this button to open the on-screen menu and exit from the menu screen or close screen

1.

adjustment menu. This button allows you to adjust items in the menu.

2.

Press this button to activate a highlighted menu item.

3.

Press to self-adjust to the incoming PC signal. The values of fine,coarse and position are

4.

adjusted automatically.

AUTO

Menu Description

AUTO

OSD Lock & Unlock

When the '

' button is pressed, the Auto Adjustment screen appears

AUTO

as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically. (Available in analog mode only)

To make the automatic adjustment function sharper, execute the 'AUTO' function while the AUTO PATTERN is on.

- If auto adjustment does not work properly, press AUTO button again to adjust picture with more accuracy.

- If you change resolution in the control panel, auto function will be executed automatically.

Menu Description

OSD Lock & Unlock

MagicBright™

After pushing the "MENU" button more than 5 seconds, OSD function is locked (unlocked).

You can also adjust the brightness and contrast of the monitor with the OSD adjustment locking feature.

Menu Description

Push the MagicBright button to circle through available preconfigured

MagicBright™

modes.

- Six different modes (Custom/Text/Internet/Game/Sport/Movie)

Brightness

Menu Description

Brightness

Picture Color Image OSD Setup Information


When OSD is not on the screen, push the button to adjust brightness.

Brightness Contrast MagicColor Color Tone Color Control Gamma Coarse Fine Sharpness H-Position V-Position Language H-Position V-Position Transparency Display Time Image Reset Color Reset

Menu Description Play/Stop

You can use the on-screen menus to change the brightness according to personal preference.

Brightness

Direct Access Feature

: When OSD is not on the screen,

push the button to adjust brightness.

You can use the on-screen menus to change the contrast

Contrast

according to personal preference. (Not available in MagicColor mode of Full and Intelligent.)

Color

Menu Description Play/Stop

MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.

- Returns to the original mode.

1) Off

2) Demo

- The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.

- Displays not only vivid natural color but also

3) Full

more realistic natural skin color with clearness.

4) Intelligent

5) MagicZone

sharp display of animated multimedia or photo images by

- Displays vivid natural color with clearness.

- The MagicZone ensures the clear and

MagicZone

enhancing the brightness, sharpness, saturation, hue of a certain area on the screen. Especially, MagicZone is appropriate to using the moving picture.

MagicColor

Color Tone

Hue

: This function is to adjust the hue of the MagicZone.

Saturation : This function is to adjust the saturation of the MagicZone.

Brightness : This function is to adjust the brightness of the MagicZone.

Sharpness : This function is to adjust the sharpness of the MagicZone.

H-Position : This function is to move the MagicZone horizontally.

V-Position : This function is to move the MagicZone vertically.

H-Size : This function is to adjust the horizontal size of the MagicZone.

V-Size : This function is to adjust the vertical size of the MagicZone.

The tone of the color can be changed and one of four modes can be selected - Cool, Normal, Warm and Custom. (Not available in MagicColor mode of Full and Intelligent.)

Hue

Saturation

Brightness

Sharpness

H-Position

V-Position

H-Size

V-Size

Color Control

Gamma


Adjusts individual R,G,B color balance. (Not available in MagicColor mode of Full and Intelligent.)

Select one of three pre-defined gammas.

Mode 1 : Shows normal gamma

z

z Mode 2 : Shows higher gamma(brighter) z Mode 3 : Shows lower gamma(darker)

Menu Description Play/Stop

Removes noise such as vertical stripes. Coarse

Coarse

Fine

adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu. (Available in analog mode only)

Removes noise such as horizontal stripes. If the noise persists even after fine tuning, repeat it after adjusting the frequency (clock speed). (Available in analog mode only)

Sharpness

H-Position

V-Position

OSD

Changes the clearance of image. (Not available in MagicColor mode of Full and Intelligent.)

Changes the horizontal position of the monitor's entire display. (Available in analog mode only)

Changes the vertical position of the monitor's entire display. (Available in analog mode only)

Menu Description Play/Stop

You can choose one of eight languages.

Language

:The language chosen affects only the language of

Note

the OSD. It has no effect on any software running on the computer.

H-Position

V-Position

Transparency

Display Time

Setup

You can change the horizontal position where the OSD menu appears on your monitor.

You can change the vertical position where the OSD menu appears on your monitor.

Change the transparency of the background of the OSD.

The menu will be automatically turned off if no adjustments are made for a certain time period. You can set the amount of time the menu will wait before it is turned off.

Menu Description Play/Stop

Image Reset

Color Reset

Information

Image parameters are replaced with the factory default values.

Color parameters are replaced with the factory default values.

Menu Description

Information

Shows a video source, display mode on the OSD screen.

SyncMaster 940Fn

Use this button to open the on-screen menu and exit from the menu screen or close screen

1.

adjustment menu. This buttons allow you to adjust items in the menu.

2.

Press this button to activate a highlighted menu item.

3.

Press to self-adjust to the incoming PC signal. The values of fine,coarse and position are

4.

adjusted automatically.

AUTO

Menu Description

AUTO

OSD Lock & Unlock

When the '

' button is pressed, the Auto Adjustment screen appears

AUTO

as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically. (Available in analog mode only)

To make the automatic adjustment function sharper, execute the 'AUTO' function while the AUTO PATTERN is on.

- If auto adjustment does not work properly, press AUTO button again to adjust picture with more accuracy.

- If you change resolution in the control panel, auto function will be executed automatically.

Menu Description

OSD Lock & Unlock

MagicBright™

After pushing the "MENU" button more than 5 seconds, OSD function is locked (unlocked).

You can also adjust the brightness and contrast of the monitor with the OSD adjustment locking feature.

Menu Description

Push the MagicBright button to circle through available preconfigured

MagicBright™

modes.

- Six different modes (Custom/Text/Internet/Game/Sport/Movie)

Brightness

Menu Description

Brightness

SOURCE

When OSD is not on the screen, push the button to adjust brightness.

Menu Description

SOURCE


Selects the video signal while the OSD is off.

Brightness Contrast

Color Image OSD Setup Information


MagicColor Color Tone Color Control Gamma Coarse Fine Sharpness H-Position V-Position Language H-Position V-Position Transparency Display Time Auto Source Image Reset Color Reset Priority

Menu Description Play/Stop

You can use the on-screen menus to change the brightness according to personal preference.

Brightness

Contrast

Color

Direct Access Feature

push the button to adjust brightness.

You can use the on-screen menus to change the contrast according to personal preference. (Not available in MagicColor mode of Full and Intelligent.)

: When OSD is not on the screen,

Menu Description Play/Stop

MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.

- Returns to the original mode.

1) Off

2) Demo

- The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.

- Displays not only vivid natural color but also

3) Full

more realistic natural skin color with clearness.

4) Intelligent

5) MagicZone

sharp display of animated multimedia or photo images by

- Displays vivid natural color with clearness.

- The MagicZone ensures the clear and

MagicZone

enhancing the brightness, sharpness, saturation, hue of a certain area on the screen. Especially, MagicZone is appropriate to using the moving picture.

MagicColor

Hue

: This function is to adjust the hue of the MagicZone.

Saturation : This function is to adjust the saturation of the MagicZone.

Brightness : This function is to adjust the brightness of the MagicZone.

Sharpness : This function is to adjust the sharpness of the MagicZone.

H-Position : This function is to move the MagicZone horizontally.

V-Position : This function is to move the MagicZone vertically.

H-Size : This function is to adjust the horizontal size of the MagicZone.

V-Size

Hue

Saturation

Brightness

Sharpness

H-Position

V-Position

H-Size

V-Size

Color Tone

: This function is to adjust the vertical size of the MagicZone.

The tone of the color can be changed and one of four modes can be selected - Cool, Normal, Warm and Custom. (Not available in MagicColor mode of Full and Intelligent.)

Color Control

Gamma


Adjusts individual R,G,B color balance. (Not available in MagicColor mode of Full and Intelligent.)

Select one of three pre-defined gammas.

Mode 1 : Shows normal gamma

z

z Mode 2 : Shows higher gamma(brighter) z Mode 3 : Shows lower gamma(darker)

Menu Description Play/Stop

Removes noise such as vertical stripes. Coarse

Coarse

adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu. (Available in analog mode only)

Removes noise such as horizontal stripes. If the noise

Fine

persists even after fine tuning, repeat it after adjusting the frequency (clock speed). (Available in analog mode only)

Sharpness

Changes the clearance of image. (Not available in MagicColor mode of Full and Intelligent.)

Changes the horizontal position of the monitor's entire

H-Position

display. (Available in analog mode only)

V-Position

Changes the vertical position of the monitor's entire display.

OSD

(Available in analog mode only)

Menu Description Play/Stop

You can choose one of eight languages.

Language

:The language chosen affects only the language of

Note

the OSD. It has no effect on any software running on the computer.

H-Position

V-Position

Transparency

Display Time

You can change the horizontal position where the OSD menu appears on your monitor.

You can change the vertical position where the OSD menu appears on your monitor.

Change the transparency of the background of the OSD.

The menu will be automatically turned off if no adjustments are made for a certain time period. You can set the amount of time the menu will wait before it is turned off.

Setup

Menu Description Play/Stop

Auto Source

Image Reset

Color Reset

Priority

Information

Select

Auto Source

for the monitor to automatically select

the signal source.

Image parameters are replaced with the factory default values.

Color parameters are replaced with the factory default values.

This is a source-switch function according to the priority that the user has set for the source.

Menu Description

Information

Shows a video source, display mode on the OSD screen.

Overview | Installation | OSD Mode |

Color

Calibration

|Uninstall | Troubleshooting

Overview

What is MagicTune™?

Monitor performance can vary due to the graphics card, host computer lighting conditions and other environmental factors. In order to get the best image on a monitor requires you to adjust it for your unique setting. Unfortunately, the manual controls available to tune the image often prove to be challenging. Proper adjustment (tuning) requires an easy to use program that goes through a step-by-step process to obtain the best overall picture quality.

In most cases even simple adjustments to Brightness, or Contrast require navigation of the multi-level, onscreen display (OSD) menus that are not easy to understand. Furthermore, there is no feedback to assist in correctly setting the controls of the monitor. MagicTune™ is a software utility that guides you through the tuning process with easy to understand instructions and back ground patterns designed for each monitor control. The display settings for each user can be saved, providing an easy way to select display characteristics in a multi-user environme or having a single user have multiple defined presets based on content and ambient lighting.

Basic Functionality

MagicTune™ is a software utility that allows monitor adjustment and color tuning using the Display Data

Channel Command Interface (DDC/CI)

to eliminate the need to use the monitor on-screen disp la y (OSD). MagicTune™ supports Windows™ 98 SE, Me, 2000, XP Home, and XP Professional.

It is recommended using MagicTune™ in Windows™ 2000 or later.

MagicTune™ allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you.

protocol. All adjustments to the display are controlled via software

OSD Mode

The OSD mode allows easy adjustment of monitor settings without taking pre-defined steps. You can access the desired menu item to set with ease.

Overview | Installation | OSD Mode |

Installation

1. Insert the installation CD into the CD-ROM drive.

2. Click th e Magi cT un e ™ inst al lat i on fi le .

3. Select installation Language, Click "Next".

Color

Calibration

|Uninstall | Troubleshooting

4. When the InstallationShield Wizard window appears, click "Next."

5. Select "I agree to the terms of the license agreement" to accept the terms of us e.

6. Choose a folder to install the MagicTune™ program.

7. Click "Install."

8. The "Installation Status" window appears.

9. Click "Finish."

10. When the installation is complete, the MagicTune™ executable icon appears on your desktop.

Double-click the icon to start the program.

MagicTune™ execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key.

Installation Problems

The installation of MagicTune™ can be affected by such factors as the video card, motherboard and the network environment. See

"Troubleshooting"

if you have trouble during installation.

System Requirements

OS

z Windows™ 98 SE z Windows™ Me z Windows™ 2000 z Windows™ XP Home Edition

z

Windows™ XP Professional

Hardware

z 32MB Memory above z 25MB Hard disk space above

It is recommended using MagicTune™ in Windows™ 2000 or later.

* For more information, visit the MagicTune™

website.

Overview | Installation | OSD Mode |

T

MagicTune™ allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you.

z

OSD mode may appear inconsistent with the explanation in guidance book depending on specification of each monitor.

z

When Rotation is functioning, portion of MagicTune™ program may not operate normally.

z

AutoRotation : The screens display will automatically rotate when the monitor is rotated.

To execute Auto Rotation, it should be done as below.

z

Please install both MagicRotation and MagicTune™ 3.6 programs in your computer.

z

Launch MagicTuneTM 3.6

z

Option → Preference → Click the small box in the enable task tray menu.

z

MagicTuneTM control mode will be different according to monitor models.

z

he permitted angle of rotation of the monitor is determined by the

model of the monitor.

OSD Mode

Color

Calibration

| Uninstall | Troubleshooting

The OSD mode makes the adjustment of settings on all monitors easy. When selected , each tab on top of the control window displays the general descriptions of the sub-menu items for adjustment. When selected, each tab displays a list of menus. For quick adjustment of the monitor settings, the OSD mode allows easy and convenient access to all tabs and sub-menu items.

Button Tab Definition

OK

Applies any changes made and exits MagicTune™.

g

Reset

Cancel

Restores the display settings to the factory settings.

Exits MagicTune™ without applyin in the control window, clicking "Cancel" does not cause any actions.

the changes made. If you have not made any changes

Picture Tab Definition

Allows the user to adjust the screen settings to the desired values.

Brightness Contrast Resolution MagicBright

nmlkji

Brightness

Contrast

Resolution

MagicBright™

nmlkj nmlkj nmlkj

Makes the entire screen bri if the brightness is not adjusted to the proper level. Adjust the brightness for best viewing conditions.

Adjusts the difference in brightness between the bright and dark areas on screen. Determines the crispness of the images.

Lists all display resolutions supported by the program.

MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of the ima Movie and Custom. Each mode has its own pre-configured brightness value. You can easily select one of six settings by simply pressing MagicBright control buttons.

e you are watching. Currently four different modes are available: Text, Internet,Game, Sport,

1. Text: For documentations or works involving heavy text.

2. Internet: For working with a mixture of images such as text and graphics.

3. Game : For watching motion pictures such as a Game.

4. Sport : For watching motion pictures such as a Sport.

5. Movie: For watching motion pictures such as a DVD or Video CD.

6. Custom: Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the Brightness and Contrast by using the OSD menu.

hter or darker. The detailed data of the images in the dark areas can be lost

MagicBright control mode will be different according to monitor models. Some monitor will only support Four modes(Text, Internet, Entertain, Custom)

Color Tab Definition

Adjusts the "warmth" of the monitor background or image color.

MagicColor and Gamma will be shown only in the monitor that supports these functions.

Color Tone Color Control Calibration MagicColor Gamma

nmlkji nmlkj

nmlkj nmlkj nmlkj

The tone of the color can be changed.

z

Warm2 - Warm1 - Cool 1 - Cool 2 - Cool 3 - Cool 4 - Cool 5 - Cool 6 - Cool 7

z

Off

Color Tone

Color Tone mode will be different according to monitor models. Some monitor will only support Four modes( Warm, Normal, Cool, Custom)

Color Control

Adjusts of the monitor image color. You can change the monitor color to your desired color.

z

R- G - B

The process through which the colors of your choice are optimized and maintained. You will find

Calibration

MagicTune™ extremely useful if you are one of those who wish to view images with their full details accurately reproduced - including web images and ones produced by a digital camera or scanner.

MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.

1. OFF : Returns to the original mode.

2. DEMO : The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.

3. Full : Displays not only vivid natural color but also more realistic natural skin color with clearness.

4. Intelligent : Displays vivid natural color with clearness.

5. MagicZone

{

The MagicZone ensures the clear and sharp display of animated multimedia or photo images by enhancing the brightness, sharpness, saturation, Hue of a certain area on the screen. This offers an easy-to-use interface that highlights the video-playing portion of your multimedia program by automatically detecting and highlight the desired area by dragging.

{

When the mouse cursor is activated( )and it is necessary to de-activate it to use it for other tasks, right click your mouse, or put the activated cursor ( )on the taskbar and click. When de-activated, the icon on the screen changes back to the one shown before activation.

{

Especially, MagicZone is appropriate to using the moving picture.

{

Auto Detect : If you run the Movie in some players, MagicZone will automatically get the play screen highlighted (it will be supported in players of Gom, Adrenalin, KCP, Window Media, and Power DVD etc., )Some other players also can be highlighted but could have some problems.

{

Tusk menu

MagicColor

HUE Adjust the tint of the color.

Saturation Adjusts the color saturation.

Brightness Adjusts the Brightness.

Sharpness

Adjusts the difference between the lightest and darkest areas of the display.

Zone Off Turn off the zone that you have captured.

Reset Returns to the the default setting that vendor has set.

z

Depending on the monitor models Color Control, Sharpness, Contrast, Color Tone will not be adjustable in MagicColor mode of Full and Intelligent.

z

MagicTune™ will be disappear if you excute MagicZone, and closing the MagicZone after adjusting, will show the MagicTune™ again. (System Tray is Unhecked) MagicTune™ will be disappear if you excute MagicZone, and closing the MagicZone after adjusting. will not show MagicTune™ again. (System Tray is Checked)

z

MagicColor mode will be different according to monitor models. MagicZone mode will show if the monitor supports the function.

Gamma

Adjusts the gamma value.

Gamma mode will be different according to monitor models. Some monitor will only

support Three modes( Mode1, Mode2, Mode3)

z

Mode 1 : Shows normal gamma

z

Mode 2 : Shows lower gamma(darker)

z

Mode 3 : Shows higher gamma(brighter)

Image Tab Definition

Adjusts the Fine , Coarse and Position values.

Image Setup Position Sharpness

nmlkji nmlkj nmlkj

z

Fine : Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).

Image Setup

z

Coarse : Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may relocate it to the center using the Horizontal Control menu.

z

Auto Setup : Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically.

Position

Adjusts the screen location horizontally and vertically.

Sharpness

Changes the clearance of image.

Option Tab Definition

You can configure MagicTune™ using the following options.

g

Loads the Preferences Dialo

Box. Preferences in use will have an "V" in the check box. To

turn on or off any Preference, position the cursor over the box and click.

Preferences

z

Enable task tray menu .

- To access the MagicTune™ menus, click the icon on the [task tray menu]. The menus are not displayed if the [Enable System Tray] is deselected in [Options] ' [Basic Settings].

z

Select Language - The language chosen affects only the language of the OSD.

Source Select

z

Analog Digital

Support Tab Definition

Shows the Asset ID and the version number of the program, and allows you to use the Help feature.

Help

Asset ID

Visit the MagicTune™ website or click to open the Help files (User Manual) if you need any help installing or running MagicTune™. The User Manual opens within a basic browser window.

you can use the server to control the Client monitor. (Server program should be installed to use this program as Client)

User Name

User ID

Server IP

Department

Location

Version

Displays the version of MagicTune™.

Shows the user name that is registered in PC.

Shows the user ID that is register in PC.

Write down the server IP .

Write down the department.

Write down the location.

Overview | Installation | OSD Mode |

Color Calibration

1. Color Calibration

Color

Calibration

|Uninstall | Troubleshooting

Color Calibration guides you to get optimal color condition for your monitor.

Proceed following 5steps for getting optimal monitor color condition .

1. Control "Brightness control bar" for matching the brightness of control patch and the brightness of background pattern

2. When you detect specific color tone on "Control patch", move the control cursor toward to the direction of the color tone referring to "Color reference Circle". => Adjustment is finished properly, you won't detect any color tone on Control patch.

3. When you finish adjustment for step1,Click "Next" button .

4. Repeat 1), 2), 3) procedures for remaining step2 ~ step5.

5. You can easily view the calibration effect through clicking "Preview " button!

How multiple users can use adjusted color values

Definition When monitor is used by multiple users, color values which are adjusted via Color calibration for each users can be saved and used. Up to 5 users can use the saved color values.

1. How to save adjusted color values: Press Next to make it change into Apply and then you can save adjusted color values. As many as 5 values can be saved.

2. How to apply the saved color values: Press Multi User button on main screen to select and use one of the saved color values.

2. Preview

Press "Preview" button on the Color Calibration. The above picture will be shown.

1. Press "View Calibrated" button to see the calibration effect which you adjusted.

2. Press "View Uncalibrated" button to see the original image.

Overview | Installation | OSD Mode |

Color

Calibration

| Uninstall | Troubleshooting

Uninstall

The MagicTune™ program can be removed only by using the "Add or Remove Programs" option of the Windows™ Control Panel .

Perform the following steps remove MagicTune™.

1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on Windows™ XP, go to [Control Panel] in the [Start] menu.

2. Click the "Add or Remove Programs" icon in Control Panel.

3. In the "Add or Remove Programs" screen, scroll down to find "MagicTune™." Click on it to highlight it.

4. Click the "Change/Remove" button to remove the program.

5. Click "Yes" to begin the uninstall process.

6. Wait until the "Uninstall Complete" dialog box appears.

Visit the MagicTune™ software upgrades.

website for technical support for MagicTune™, FAQs (questions and answers) and

Overview | Installation | OSD Mode |

Color

Calibration

|Uninstall | Troubleshooting

Troubleshooting

The current computing system is not compatible with MagicTune™.

Please press OK and click on the "Shortcut to the MagicTune™ site" to view our home

page for further reference.

An error may occur when your video/graphic card is not in the 'Available' list.

(The latest or oldest video cards may not be compatible.)

Please visit our homepage to see the Troubleshooting section.

An error may occur if the card maker has modified the video card driver or the

graphics chip even when the video card is in the list.

Please visit our homepage to see the Troubleshooting section.

Check if your monitor is manufactured by Samsung.

Products from other manufacturers may cause errors.

Only Samsung products are able to support this feature.

An error may occur even when your monitor is manufactured by Samsung but is

out of date.

Check if your monitor is able to support MagicTune™.

This feature is only supported by those monitors that are registered on our homepage.

Check for the monitor before purchasing it as out-of-date models are not supported.

An error occurs when no information on EDID (Extended Display Identification

Data) exists for the current monitor.

This happens when from your desktop, Start > Setup > Control Panel > System >

Hardware > Device Manager > Monitor is selected, the current "Plug-and-play

monitor" is removed and new hardware is searched for but the system couldn't find

any "Plug-and-play monitor".

Please visit our homepage to see the Troubleshooting section.

An error occurs when replacing the monitor with a new one when the system

power is off but the system has not been restarted.

Please restart the system each time the monitor is replaced before using

MagicTune™.

An error occurs when the video card driver is not installed properly.

This happens when the current video card list is not displayed normally. You can

check this via Start > Setup > System > Hardware > Device Manager > Display

Adapter.

Visit the video card maker's homepage and download and install the latest driver.

For more information about the video card, contact the card manufacturer.

To ensure normal operation, please restart your system.

An error occurs when the system is not restarted after installing MagicTune™.

(This is for Win98SE and WinMe only.)

Restart the system before use.

For the best performance of MagicTune™, adjust to the optimal resolution. Refer to the

User Guide for the optimal resolution.

If you do not adjust to the optimal resolution and perform Color Calibration, the

monitor cannot be adjusted to the optimal condition.

Refer to the manual for the optimal resolution.

This video card does not support MagicTune™.

Please install a new video card driver.

An error occurs when the video card driver is not installed properly.

This happens when the current video card list is not displayed normally. You can

check this from Start > Setup > System > Hardware > Device Manager > Display

Adapter.

Visit the video card manufacturer's homepage and download and install the latest

driver.

For more information about the video card, contact the card manufacturer.

As the Highlight program uses the communication lines,

please exit the Highlight program before you can access MagicTune™.

Some of Samsung CDT monitors support the Highlight feature.

When using both the Highlight feature and MagicTune™ simultaneously, conflicts

occur, which cause errors.

Make sure to turn OFF Highlight before using MagicTune™.

Troubleshooting

z MagicTune™ may not work in case monitor is replaced or driver of graphic card is updated while

MagicTune™ is operating. If so, please restart the system.

Symptom Check List Solutions

Check when MagicTune™ does not function properly.

MagicTune™ feature is found only on PC (VGA) with Window OS that supports Plug and Play.

* To check whether your PC is available for MagicTune™ feature, follow the steps below (When Windows™ is XP);

Control Panel -> Performance and Maintenance

-> System -> Hardware -> Device Manager -> Monitors -> After deleting Plug and Play monitor, find 'Plug and Play monitor' by searching new Hardware.

MagicTune™ is an additional software for the monitor. Some graphic cards may not support your monitor. When you have a problem with

the graphic card, visit our website to check the compatible graphic card list provided.

http://www.samsung.com/monitor/MagicTune™

MagicTune™ doesn't work properly.

z Visit the MagicTune™

and software upgrades.

z Visit the MagicTune™

Have you changed your PC or video graphic card?

for technical support for MagicTune™, FAQs (questions and answers)

website

and download the installation software for MagicTune™ MAC.

website

Download the latest program. The program can be downloaded

http://www.samsung.com/monitor/MagicTune™.

Overview | Installation | Interface | Uninstall | Troubleshooting

Overview

What is MagicRotation?

Traditionally, computer displays allowed the user to view only in landscape mode. In today's information age, more users need to view documents, web pages, emails, etc. in there day to day life. These types of applications can be better viewed in portrait mode where the entire contents are available on the screen. This greatly improves the user's productivity allowing him the flexibility to switch between landscape and portrait modes.

The MagicRotation Software from Samsung Electronics, Inc. provides the user with a rotation feature (0, 90, 180, 270 orientation) that facilitates the optimum utilization of computer display screen, better viewing and improved user productivity.

Basic Function

MagicRotation will support Windows™ 98 SE, Me, NT 4.0, 2000, XP Home and XP Professional.

* Windows™ is registered trademark of Microsoft Corporation,Inc.

Overview | Installation | Interface | Uninstall | Troubleshooting

Installation

1. Insert the installation CD into the CD-ROM drive.

2. Click the MagicRotation installation file.

3. Select installation Language, Click "Next".

4. When the InstallShield Wizard window appears, click "Next."

5. Select "I accept the terms of the license agreement" to accept the terms of use.

6. Choose a folder to install the MagicRotation program.

7. Click "Install."

8. The "Setup Status" window appears.

9. Click "Finish." Have to reboot the system in order for the MagicRotation to work properly.

10. When the installation is complete, the MagicRotation executable icon appears on your desktop.

Installation Problems

The installation of MagicRotation can be affected by the factors such as video card, motherboard and the network environment. See "Troubleshooting" if you have trouble during installation.

Limitation

1. The "Display Driver" should be properly loaded for the MagicRotation to work properly. The installed "Display Driver" should be the latest driver supplied by the vendor.

2. If some applications like Windows Media Player, Real Player, etc. are not displaying

Samsung 940B, 940BE, 940N User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SyncMaster 740B / 940B / 740N / 940Fn / 540B / 940Be / 740T / 940T / 940N

Notational

Power

Installation

Unpacking

SyncMaster 740B / 940B / 540B

Front

Rear

Unpacking

SyncMaster 740N / 940N

Front

SyncMaster 940Fn

Unpacking

Front

Rear

Unpacking

SyncMaster 740T / 940T / 940Be

Front

Rear

Connecting the Monitor

Connecting the Monitor

Using the Stand

Natural Color

Connecting the Monitor

SyncMaster 740B / 940B / 540B / 740T / 940T / 940Be

SyncMaster 740N / 940N

SyncMaster 940Fn

Overview | Installation | Interface | Uninstall | Troubleshooting
