Plasma TV

user manual

© 2011 Samsung Electronics Co., Ltd. All rights reserved.

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-03447A-01

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.

Important Warranty Information Regarding Television Format Viewing

See the warranty card for more information on warranty terms.

✎

Wide screen format PDP Displays (with 16:9 aspect ratios, the ratio of the screen width to height) are primarily designed to view wide screen format full­motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers
this feature with the images constantly in motion. Displaying stationary graphics and images on the screen, such as the dark sidebars on non-expanded
standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics
and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven
aging of PDP Displays that leave subtle, but permanent burned-in ghost images in the PDP picture. To avoid this, vary the programming and images, and
primarily display full screen moving images, not stationary patterns or dark bars. On PDP models that offer picture sizing features, use these controls to
view different formats as a full screen picture.
Be careful about the television formats you select and the length of time you view them. Uneven PDP aging as a result of format selection and use, as well
as burned in images, are not covered by your Samsung limited warranty.

• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG)
products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service
in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the
warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited
Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service
Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those
encountered in normal use of the product.
Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or
replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
– In the United States : 1-800-SAMSUNG (1-800-726-7864)
– In Canada : 1-800-SAMSUNG

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image

retention. This image retention is also known as ‘screen burn’. To avoid such image retention, refer to e-Manual to reduce the degree of brightness
and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the

product.

This is normal and does not indicate any defect or operation failure of the product.
However, children should be prevented from touching the upper part of the product.

• The product is making a ‘cracking’ noise.

A ‘cracking’ noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or

humidity. This is normal and not a defect of the unit.

• Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of
the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to
the screen.
Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games or a PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images for a long time.

• Warranty

Warranty does not cover any damage caused by image retention.
Burn-in is not covered by the warranty.

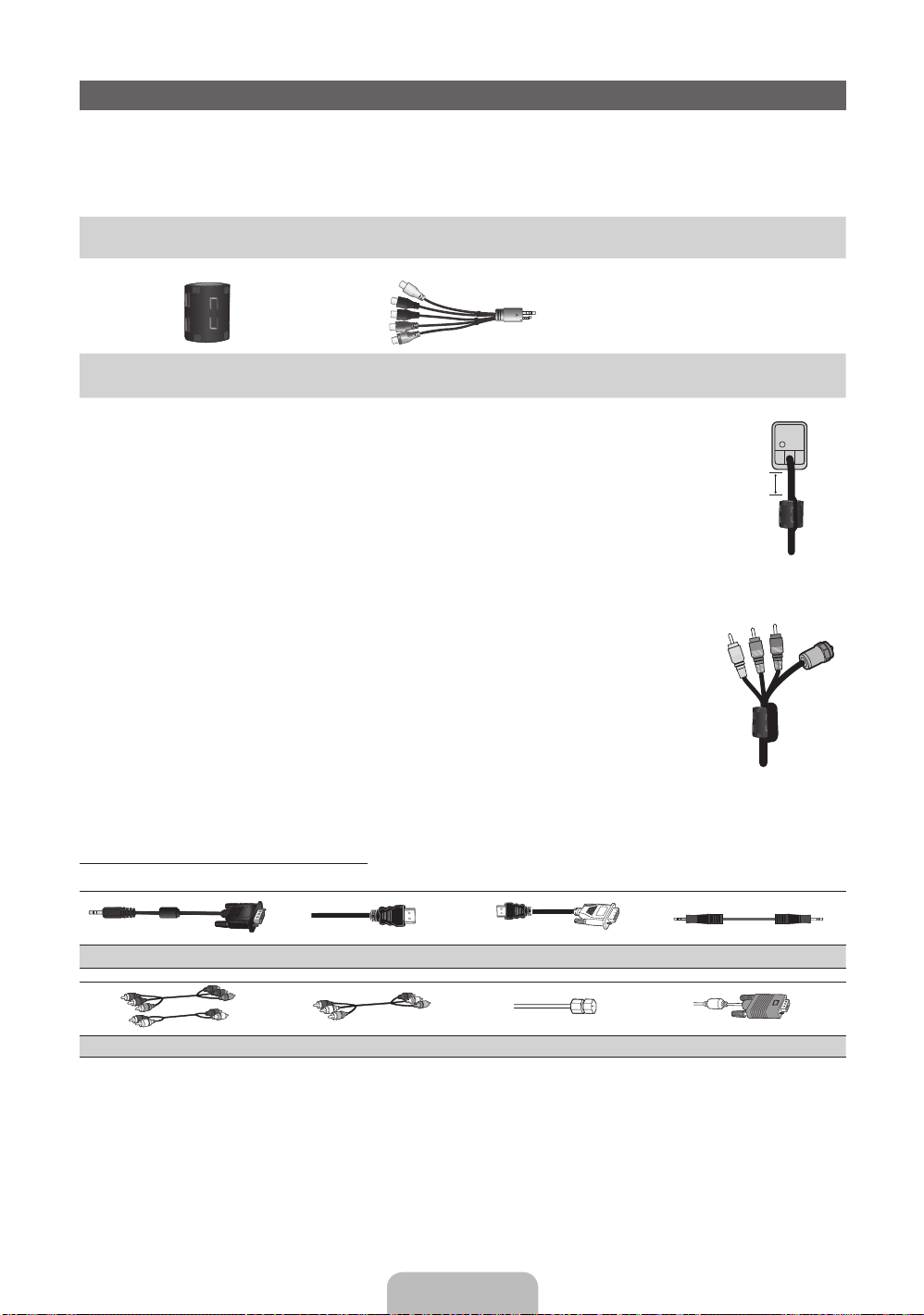

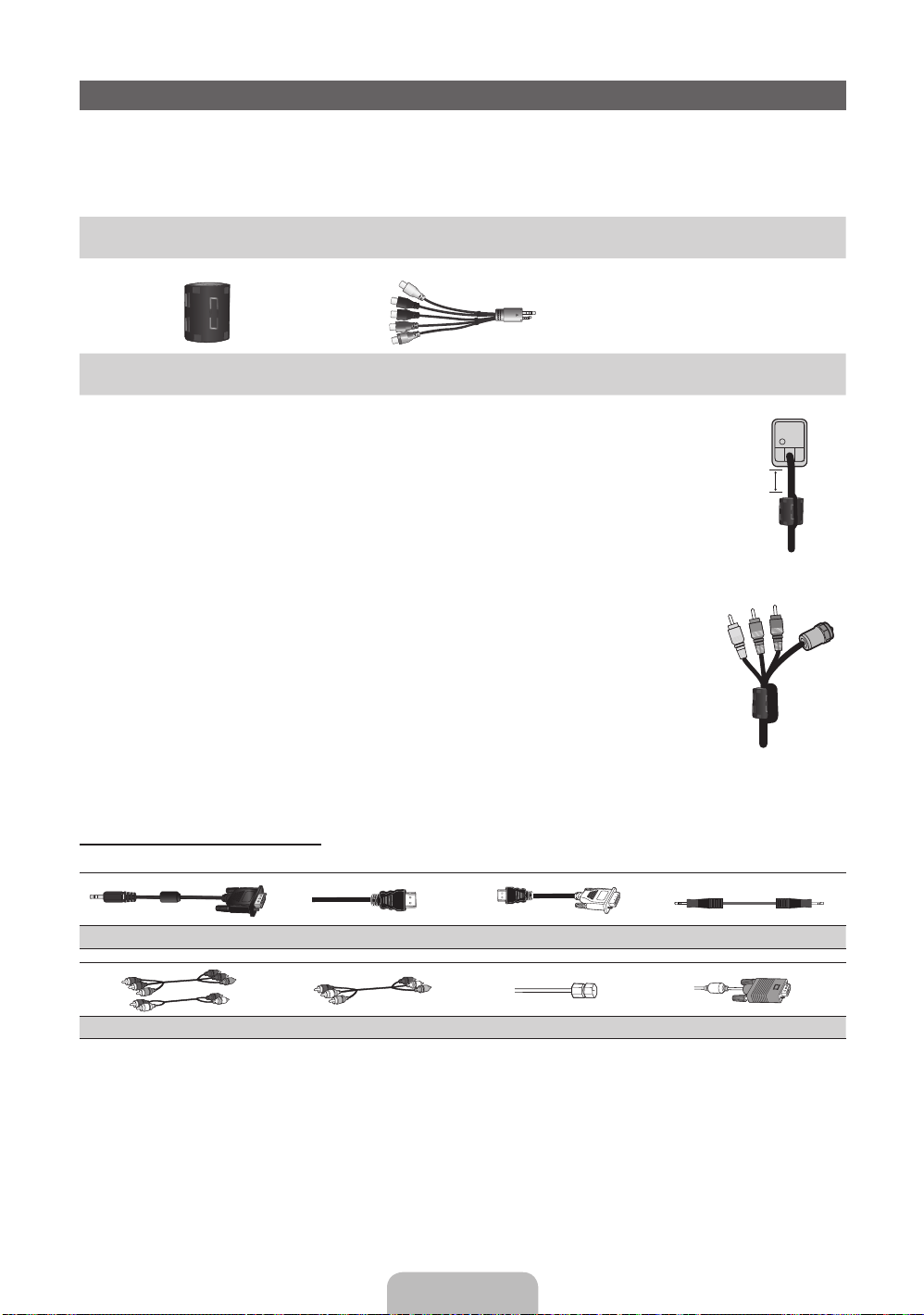

Accessories

✎

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

✎

The items’ colors and shapes may vary depending on the model.

✎

Check that there are no accessories hidden behind or under packing materials when you open the box.

y QWERTY Remote (BN59-01134A / BN59-01134B)

& Batteries (AAA x 4)

y Owner’s Instructions

Ferrite Core (2EA) AV/Component Adapter

(3301-002049) (BN39-01154W)

✎

Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from interference.
When connecting the ferrite core to a cable, open the ferrite core and clip it around the cable near
the plug as shown in the figure.

A: One ferrite core should be no more than 2 inches from the end of the cord that is inserted

x

into the TV.

✎

Ferrite Core: The ferrite cores are used to shield the cables from interference. When connecting a
cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

y Cleaning Cloth (BN63-01798B)
y Warranty Card / Safety Guide

A

Power Cord

Input Cables (Sold Separately)

To purchase the RS232 cable, contact www.SamsungParts.com.

RS232 (AA39-00311A)

Component Composite (AV) Coaxial (RF) VGA

HDMI HDMI-DVI Audio

English - 3

Antenna Cable/

Component Cable

(sold separately)

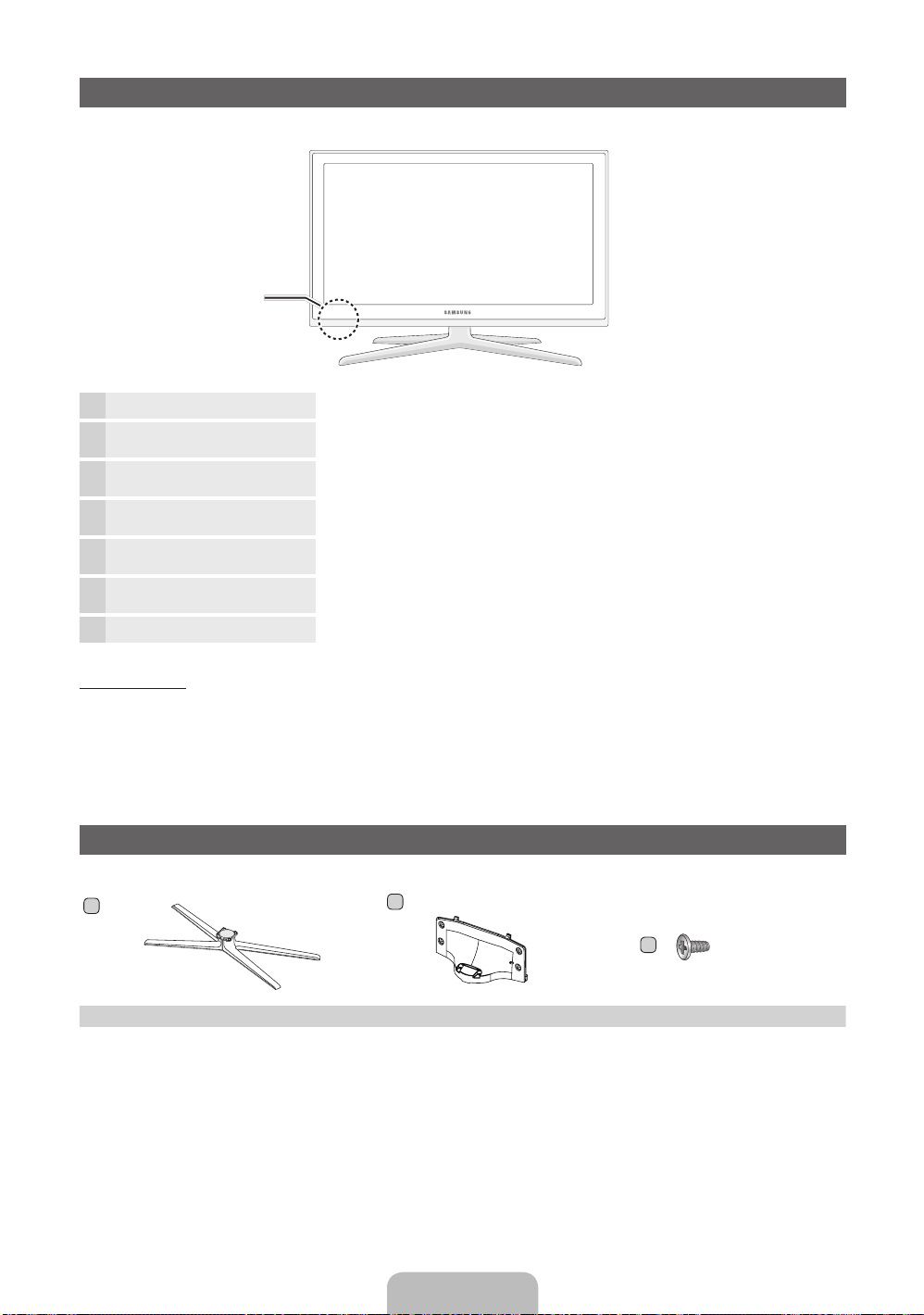

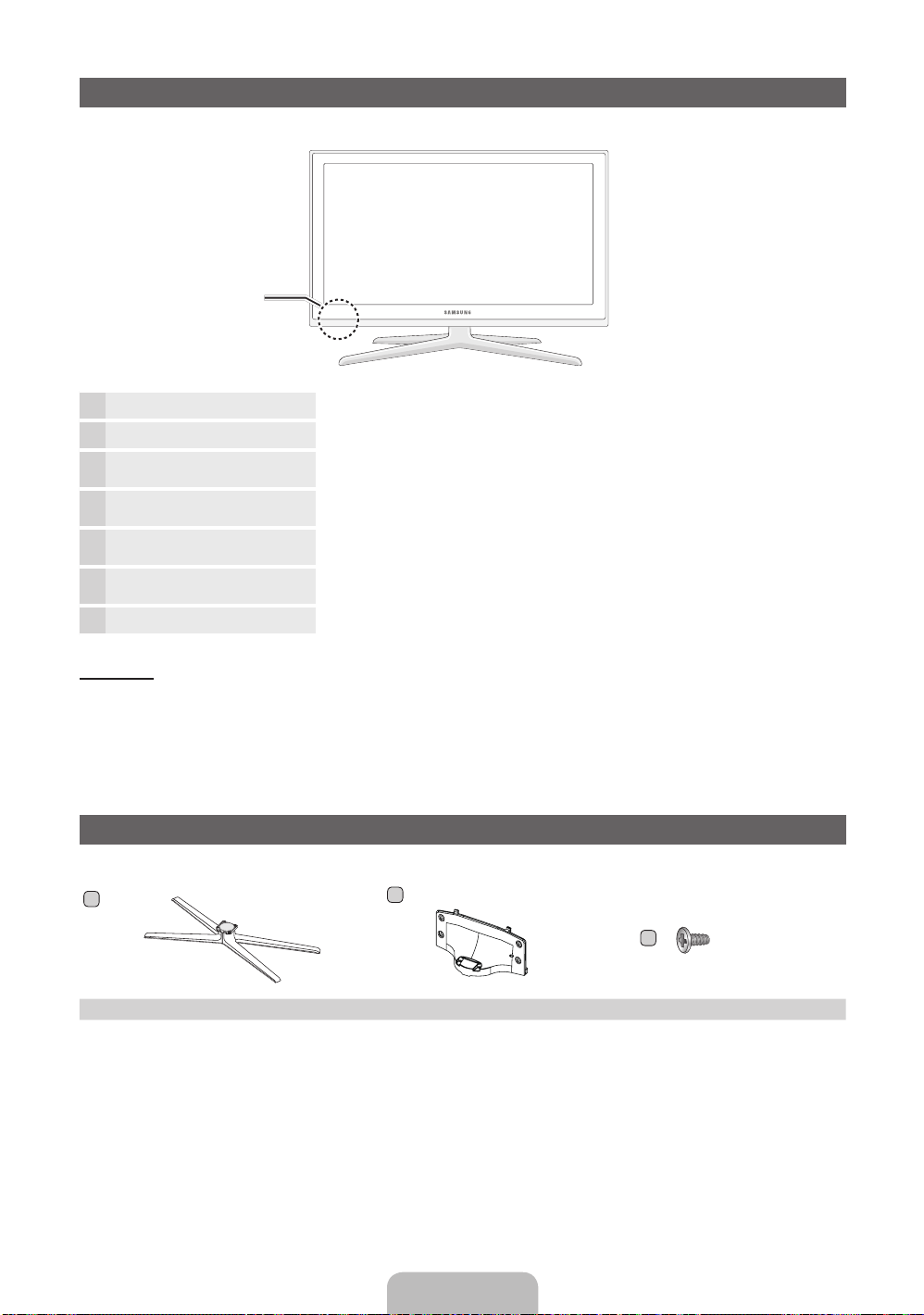

Viewing the Control Panel

✎

The product color and shape may vary depending on the model.

Control Panel

Remote control sensor Aim the remote control towards this spot on the TV.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

SOURCE

m

MENU

y

z

P

(Power)

E

Toggles between all the available input sources. In the on-screen menu, use this
button as you would use the ENTERE button on the remote control.

Displays an on-screen menu, the OSD (on screen display), which contains controls for
your TV’s features

Adjusts the volume. In the OSD, use the
◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the
▼ and ▲ buttons on the remote control.

Turns the TV on or off.

y

z

buttons as you would use the

buttons as you would use the

Standby mode

Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe
and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on
vacation, for example). It is best to unplug the power cord.

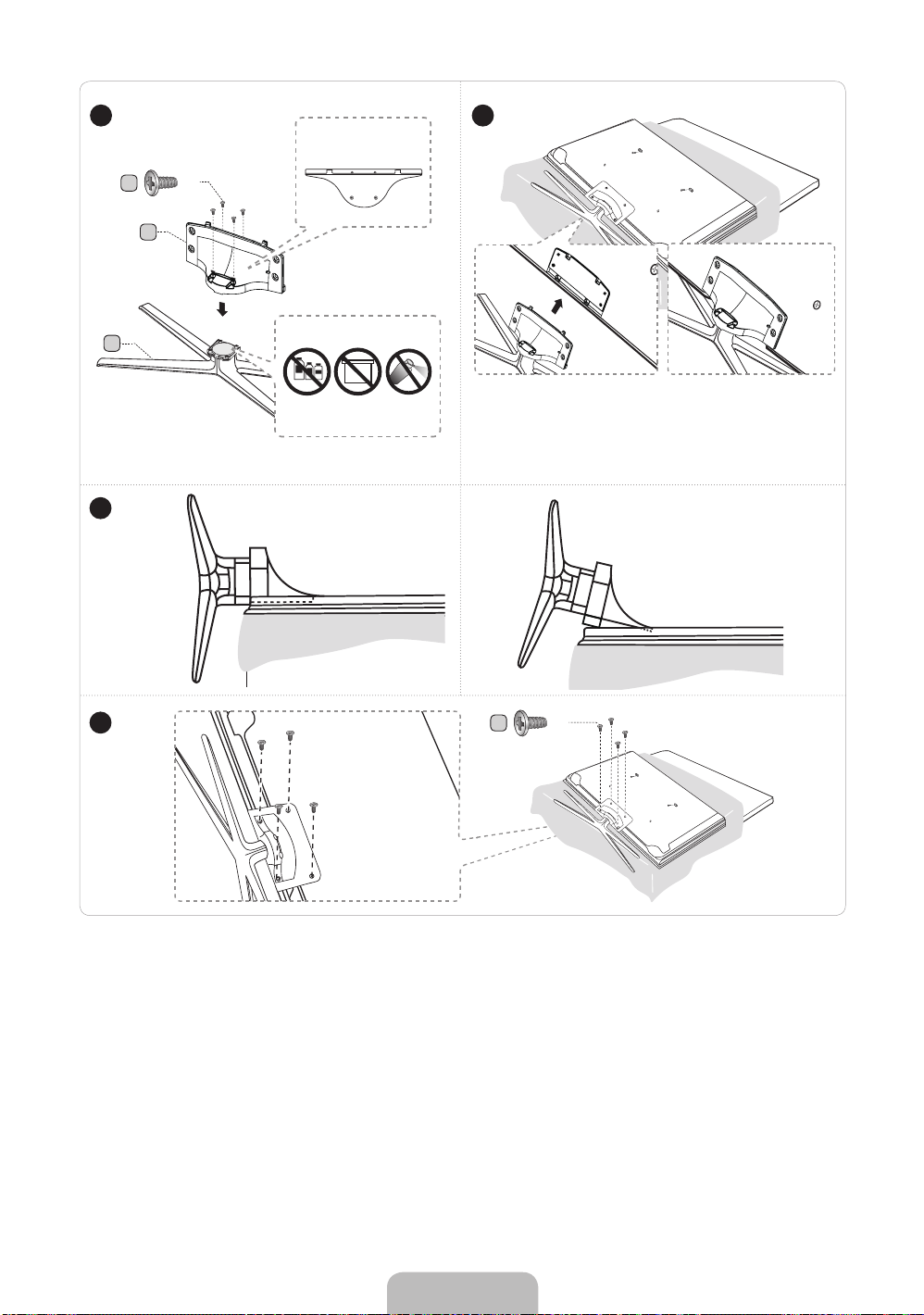

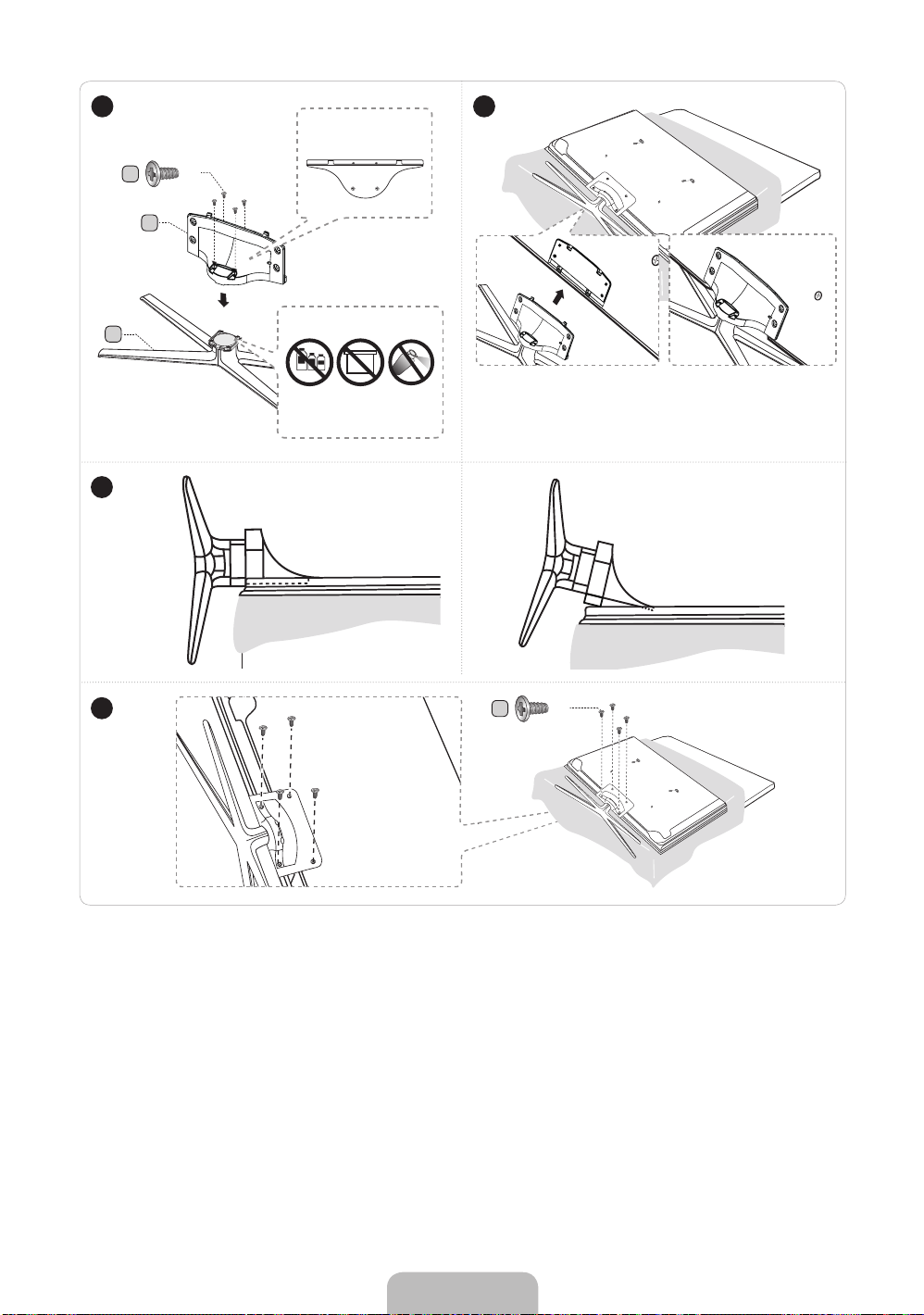

Install the Stand

See the separate stand installation guide for more detailed instructions.

B

A

1 EA

Stand (1EA) Guide Stand (1EA) Screws (8EA)

Follow the steps below to connect the TV to the stand.

1 EA

C

x8 (M4 X L8)

English - 4

1 2

Top View

A

3

4

C

(M4 X L8)

B

Side View

x4

Front

Rear

ATTENTION

DO NOT USE

DO NOT USE

CHEMICALS

GREASE

(Correct assembly)

DO NOT USE

OIL

✎

P

lace a soft cloth over the table to protect the TV, and

then place the TV on the cloth screen side down.

✎

I

nsert the Stand Guide into the slot of TV bottom side.

(Incorrect assembly)

C

x4

(M4 X L8)

✎

NOTE

Make sure to distinguish between the front and back of each component when assembling them.

x

Make sure that at least two persons lift and move the TV.

x

Stand the product up when you fasten the screws. If you fasten the screws with the TV lying down, it may lean to one

x

side when you stand it up.

Do not insert your fingers into the stand base slot of the TV when installing the stand base.

[

English - 5

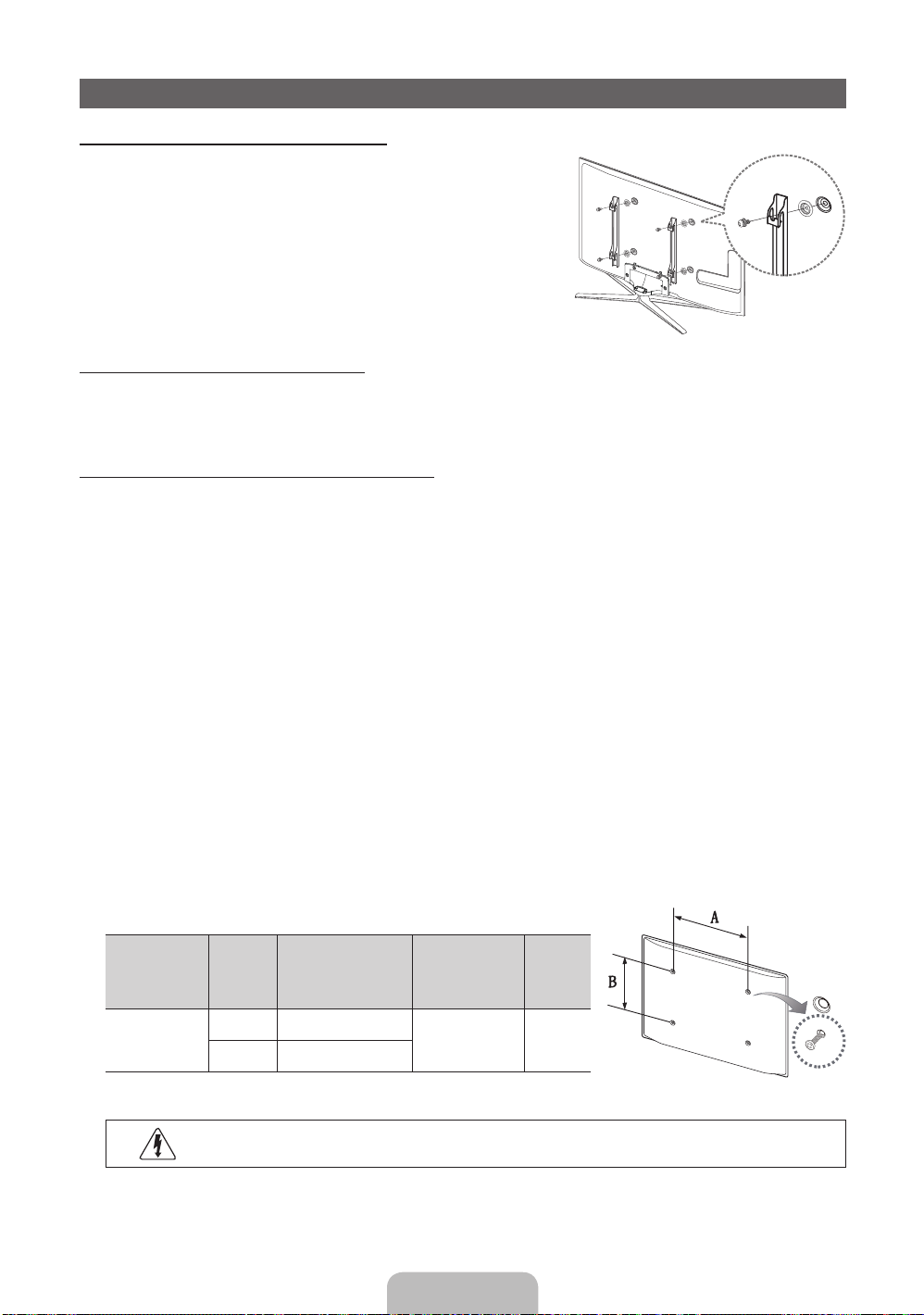

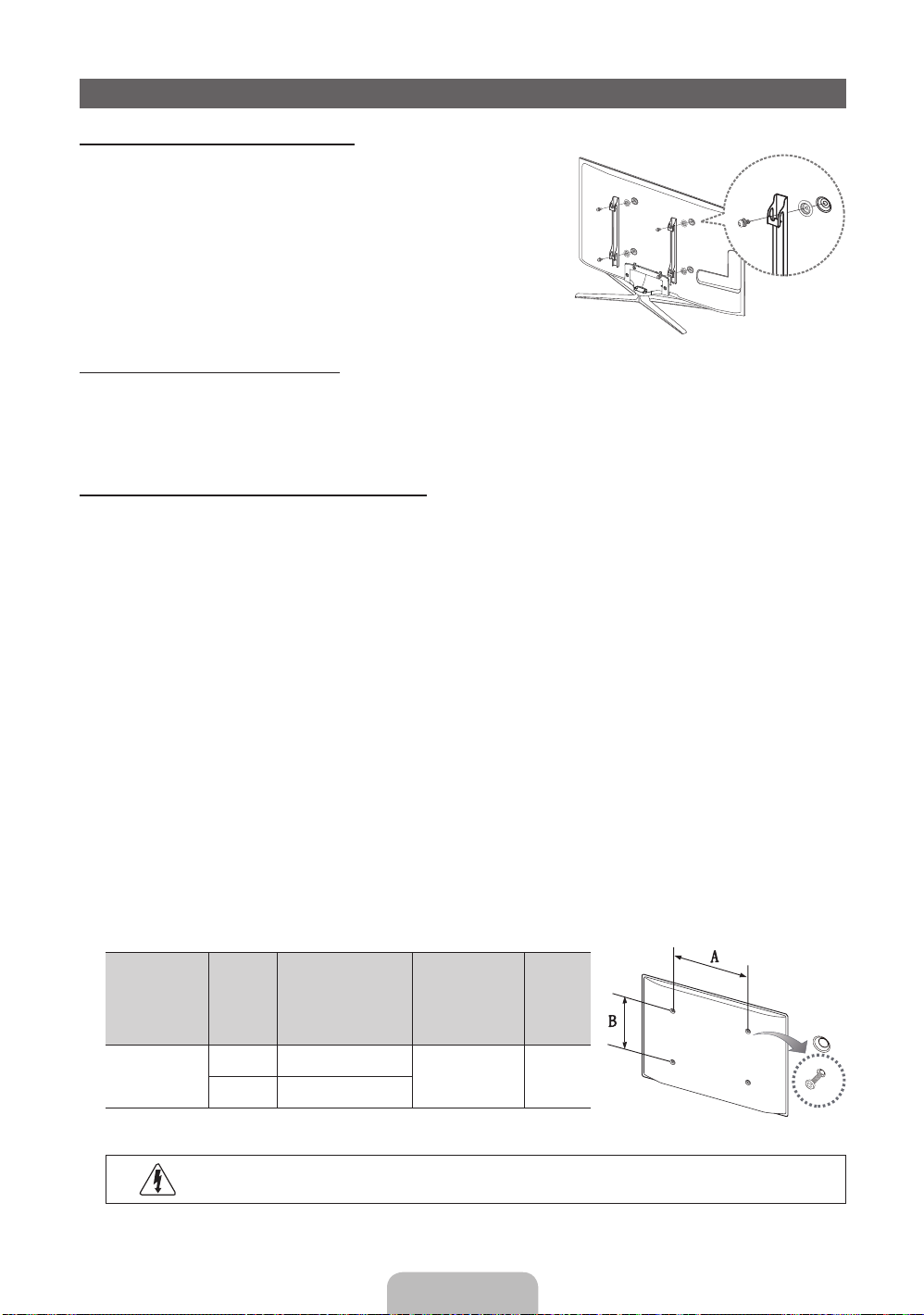

Installing the Wall Mount

Preparing before installing Wall-Mount

To install a wall-mount from another manufacturer, use the Holder-Ring.

1

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount. We recommend you

contact a technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any
damage to the product or injury to yourself or others if you elect to install the wall mount on your own.

Wall Mount Kit Specifications (VESA)

✎

Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than
plaster board, please contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted
wall, it may fall and result in severe personal injury.

✎

NOTE

Standard dimensions for wall mount kits are shown in the table below.

x

Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are provided.

x

Do not use screws that do not comply with the VESA standard screw specifications.

x

Do not use screws that are longer than the standard length or do not comply with the VESA standard screw

x

specifications. Screws that are too long may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ

x

depending on the wall mount specifications.
Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal

x

injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or

x

the consumer fails to follow the product installation instructions.
Our 55” model do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for

x

this model.
Do not mount the TV at more than a 15 degree tilt.

x

Always have two people mount the TV on a wall.

x

Product Family

PDP TV

[Ultra-Slim]

✎

Remove the screws in the mounting holes before you install the wall mount.

TV size in

inches

~51 400 X 400

59~64 600 X 400

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to
electric shock.

VESA screw hole

specs (A * B) in

millimeters

Standard Screw Quantity

M8 4

English - 6

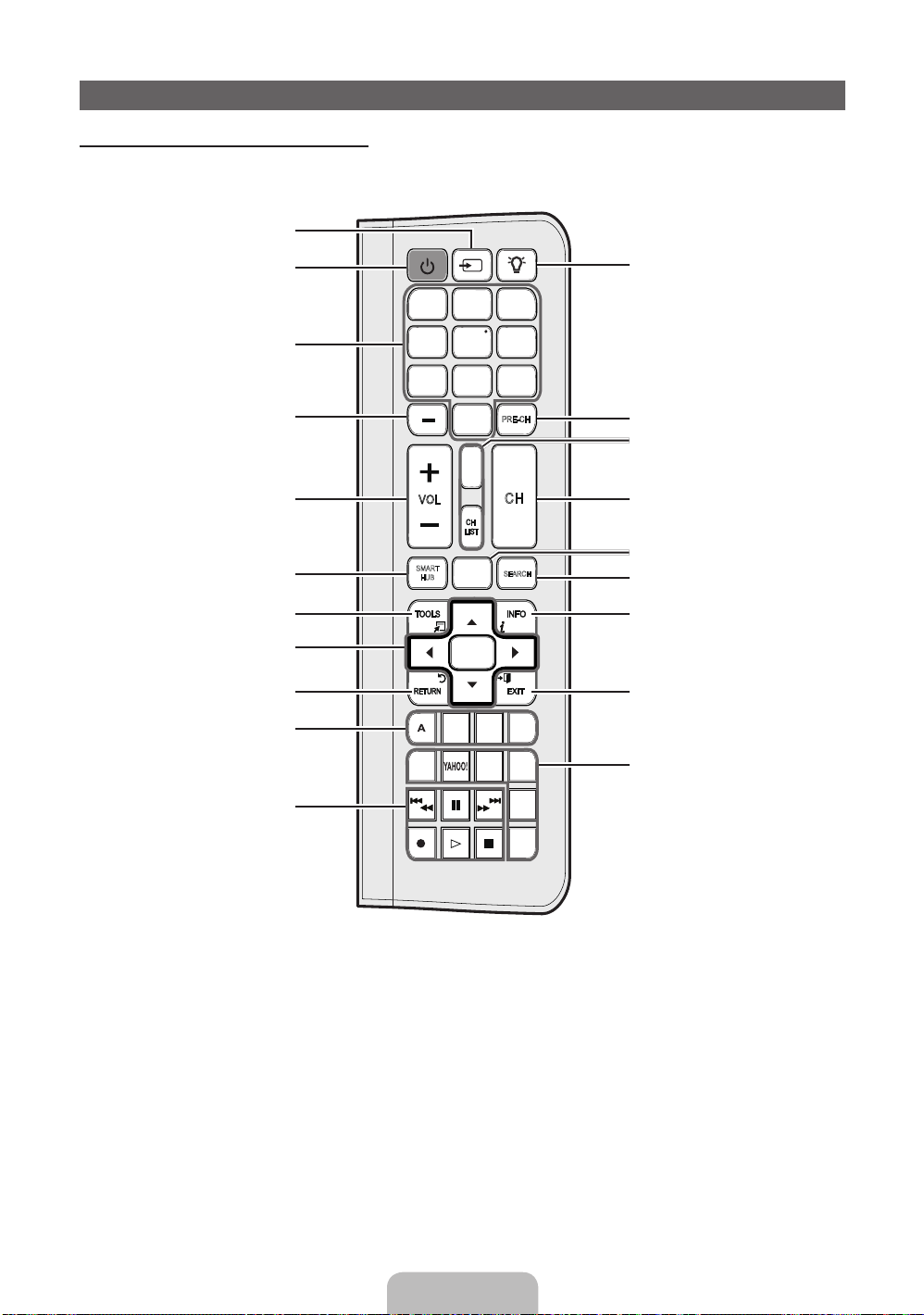

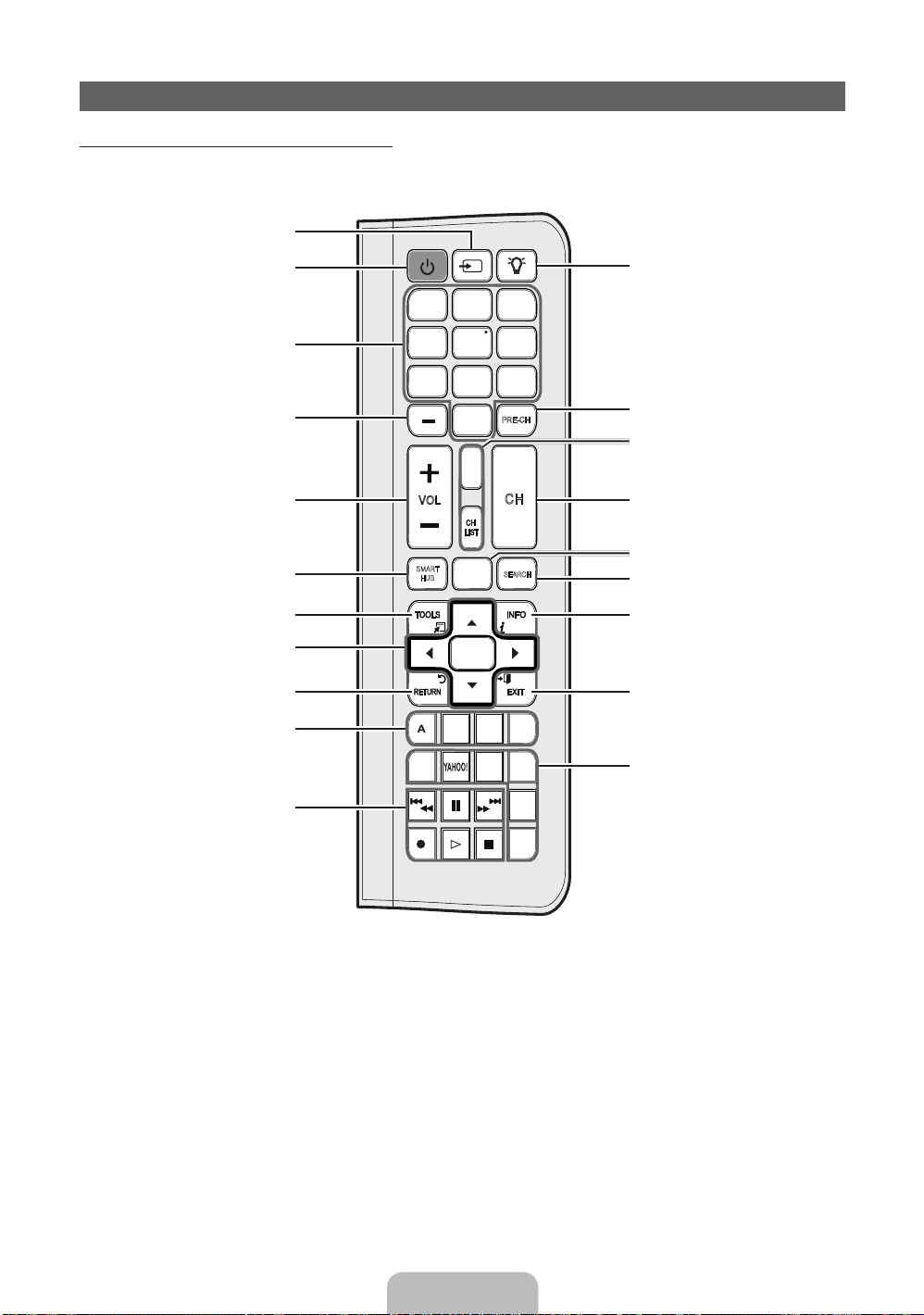

Remote Side View (BN59-01134A)

PRE-CH

CH
LIST

142

3

5

6

7 8

9

0

MUTE

M

MENU

m

SOURCEPOWER ON/OFF

SMART

HUB

l

B

X

E-MANUAL

P.SIZE

CC

SOCIAL

TV

C D

VOL

<

<

CH

SEARCH

E

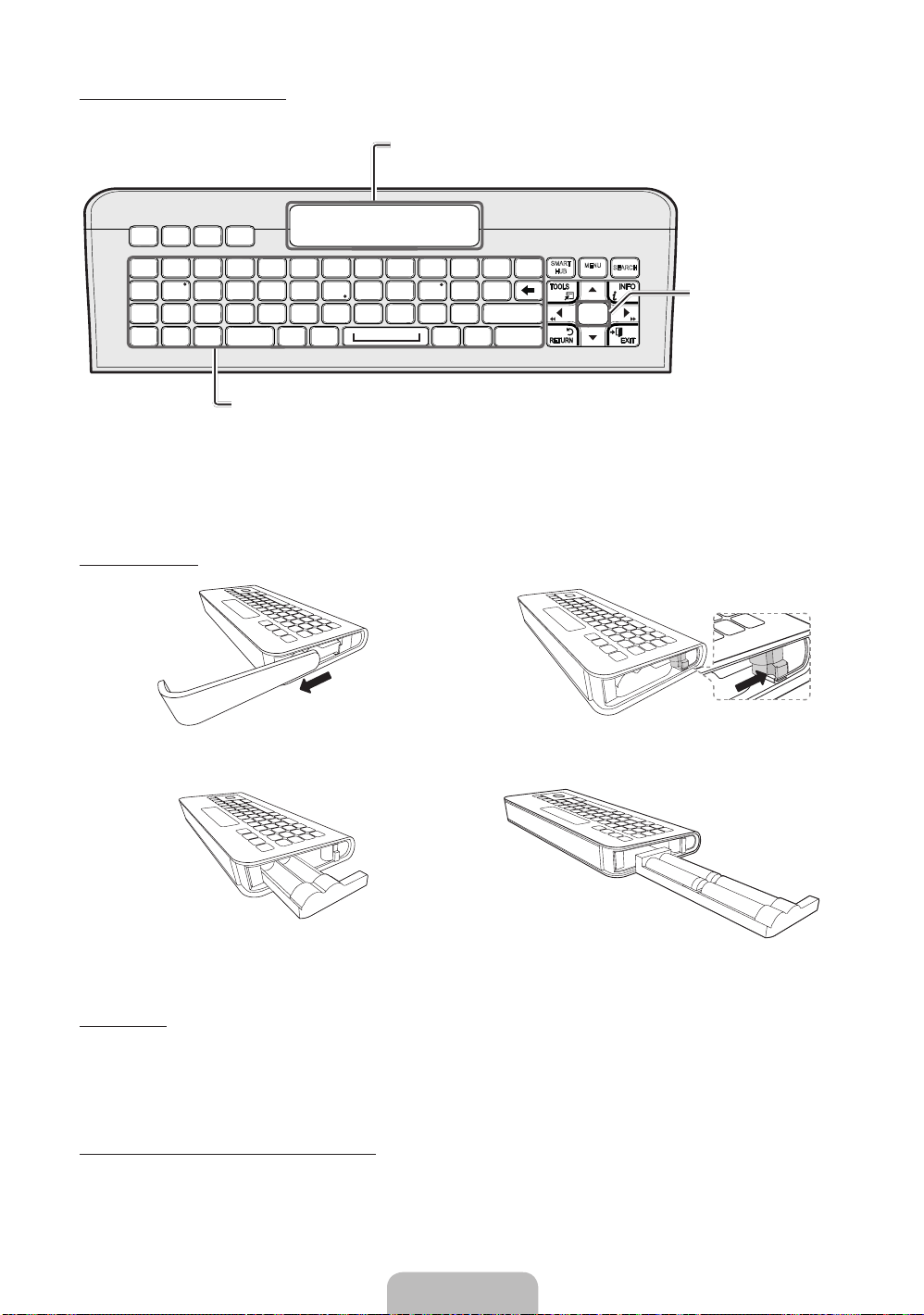

QWERTY Remote (RMC-QTD1)

Displays and selects the available video

Turns the TV on and off.

Gives direct access to channels.

Press to select additional digital channels

being broadcast by the same station. For

example, to select channel ‘54-3’, press

Quickly select frequently used functions.

Selects the on-screen menu items and
changes the values seen on the menu.

Use these buttons in SMART HUB and

‘54’, then press ‘-’ and ‘3’.

Adjusts the volume.

Link to various application services.

Returns to the previous menu.

Buttons used in the Channel and

SMART HUB menu, etc.

Anynet+ (HDMI-CEC) modes.

sources.

Turns the remote control light on or
off. When on, the buttons become
illuminated for a moment when pressed.
(Using the remote control with this button
set to On will reduce the battery usage
time.)

Returns to the previous channel.

MUTE: Cuts off the sound temporarily.
CH LIST: Displays channel lists on the

screen.

Changes channels.

Opens the OSD.

Support to recommendation search
word and search function.

Displays information on the TV screen.

Exits the menu.

SOCIAL TV: Connect to Social TV

application.

YAHOO!: Runs Yahoo widget.

X

: Turns the 3D image on or off.

E-MANUAL: Displays the e-Manual.
P.SIZE: Lets you select the Picture Size.
CC: Displays digital subtitles.

English - 7

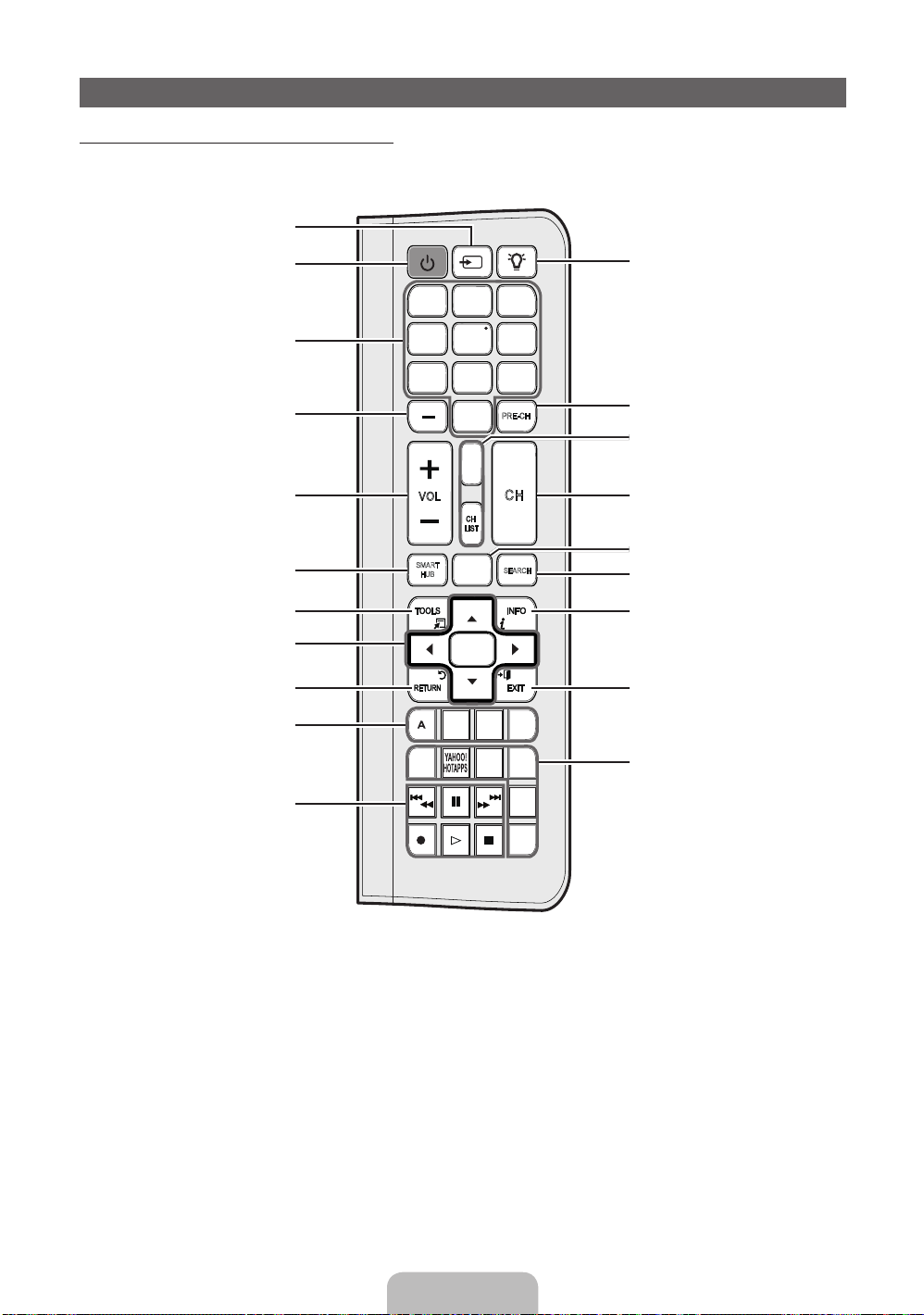

Remote Side View (BN59-01134B)

PRE-CH

CH
LIST

142

3

5

6

7 8

9

0

MUTE

M

MENU

m

SOURCEPOWER ON/OFF

SMART

HUB

l

B

X

E-MANUAL

P.SIZE

CC

SOCIAL

TV

C D

VOL

<

<

CH

SEARCH

E

QWERTY Remote (RMC-QTD1)

Displays and selects the available video

Turns the TV on and off.

Gives direct access to channels.

Press to select additional digital channels

being broadcast by the same station. For

example, to select channel ‘54-3’, press

Quickly select frequently used functions.

Selects the on-screen menu items and
changes the values seen on the menu.

Use these buttons in SMART HUB and

‘54’, then press ‘-’ and ‘3’.

Adjusts the volume.

Link to various application services.

Returns to the previous menu.

Buttons used in the Channel and

SMART HUB menu, etc.

Anynet+ (HDMI-CEC) modes.

sources.

Turns the remote control light on or
off. When on, the buttons become
illuminated for a moment when pressed.
(Using the remote control with this button
set to On will reduce the battery usage
time.)

Returns to the previous channel.

MUTE: Cuts off the sound temporarily.
CH LIST: Displays channel lists on the

screen.

Changes channels.

Opens the OSD.

Support to recommendation search
word and search function.

Displays information on the TV screen.

Exits the menu.

SOCIAL TV: Connect to Social TV

application.

YAHOO!: Runs Yahoo widget.

X

: Turns the 3D image on or off.

E-MANUAL: Displays the e-Manual.
P.SIZE: Lets you select the Picture Size.
CC: Displays digital subtitles.

English - 8

QWERTY Side View

Displays the characters the user typed in.
When the user presses ENTER

E

, all characters

on the screen are removed.

D

WQ E

#!

^%

CAPS SHIFT SHIFTSYM SYM.COM

)

-_+

SA D

~`

Z

TAP ENTER

X

TR Y

[=]

GF H

;

VC B

,

/

>

<

@

.

IU O

KJ L

MN

P

}{ |

/

‘: “

?

SMART

HUB

ESC

$

& (*

BA C

21 3

@

54 6

807 9

Convenient QWERTY keyboard to type characters in SMART HUB and
SOCIAL TV menu, etc.

SYM: Enables the symbol printed on the lower right side of each button.

✎

NOTE

y The remote side doesn’t work when the QWERTY side is up, and vice versa.

Inserting Batteries

1 2

y Slide out the battery cover. y Push the button right.

MENU

m

E

SEARCH

OFN(Optical Finger
Navigation) Sensor

In full browser function,
it can be used as the
pointer. If the user
doesn’t press any button
during 30 seconds,
the sensor will be off
automatically.

To wake up the sensor,
press any button on the
QWERTY side.

3 4

y Pull the battery tray out. y Insert 4 AAA batteries in the tray, insert the battery tray

Initial Pairing

1. When the user inserts batteries into the QWERTY Remote, "NEED PAIRING PRESS SYM+TAB” will be displayed on the

screen.

2. Press SYM and TAB buttons at the same time more than 2 seconds.

✎

A TV can be paired with only one QWERTY Remote.
When turn on the TV, start the pairing process about 30 seconds later.

To perform the pairing process again

1. Press MUTE, 0, MUTE and 0 on the remote side of new QWERTY Remote facing the TV.

2. Follow the initial pairing process in 3 minutes.

✎

If new QWERTY Remote doesn't paired with the TV in 3 minutes, perform the process again.

English - 9

into the QWERTY Remote and put the cover back on.

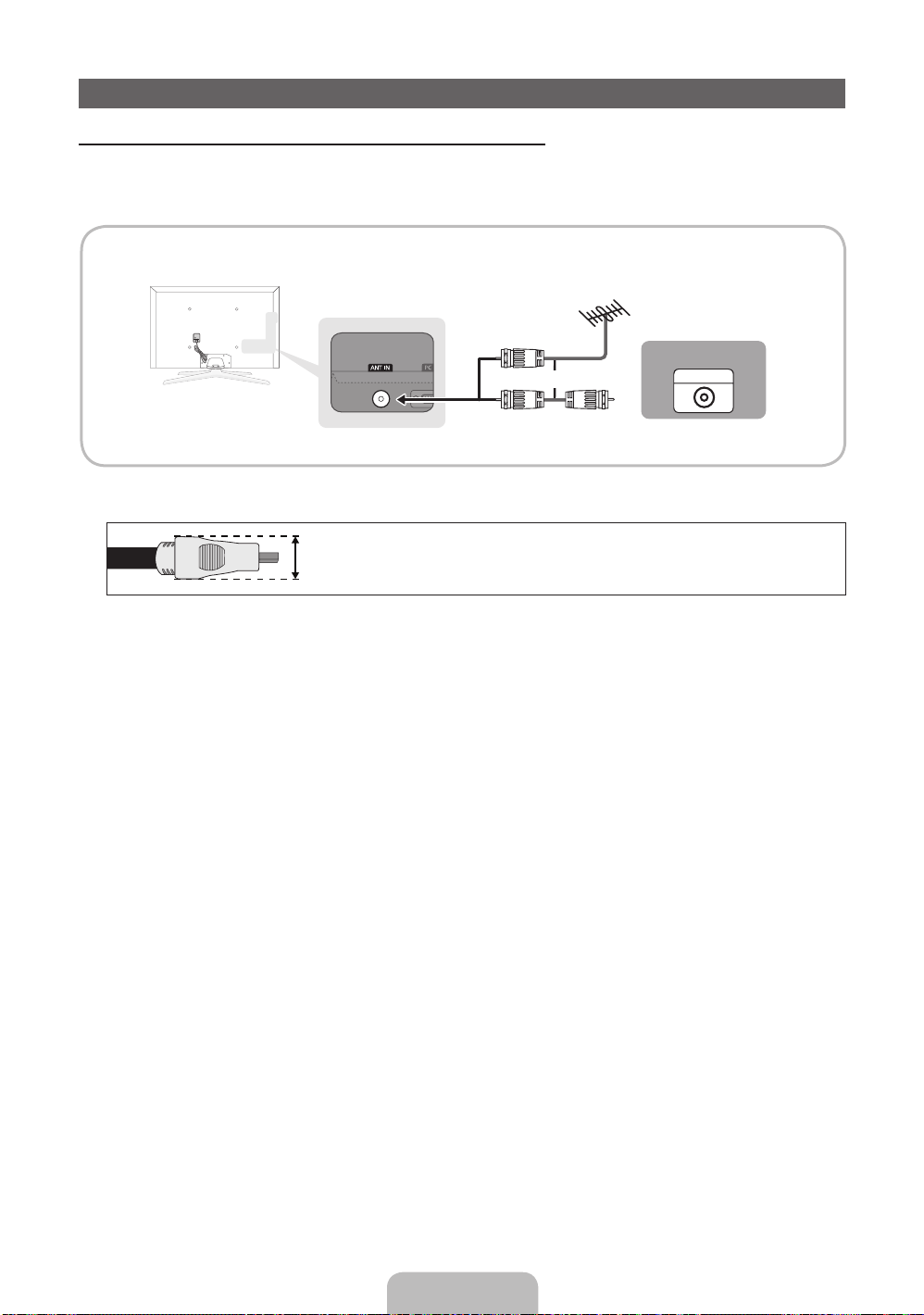

Connecting to an Antenna or Cable Connection

Connecting the power cord and an antenna or cable connection

✎

The PDP device may interfere with an amateur radio or AM radio.

✎

Using two-way radio mobile and portable units or amateur radio or AM radio near your TV may cause the TV to
malfunction.

VHF/UHF Antenna

Antenna Cable (Not Supplied)

Cable

or

✎

For the best cable connections to this product, be sure to use cables no thicker than 0.55 inches (14mm).

Maximum thickness - 0.55 inches (14mm)

x

ANT OUT

English - 10

Plug & Play (Initial Setup)

When you turn the TV on for the first time, a sequence of on-screen prompts will assist in configuring basic settings. To turn on
the TV, press the POWERP button.

✎

Plug & Play is available only when the Source is set to TV.

✎

To return to the previous step in the Plug & Play sequence, Select Previous, and then press ENTERE.

✎

Before turning on the TV, make sure you have connected the TV to an antenna or cable connection (p. 9).

Selecting the OSD

1

Language
Setting up the Network

2

Software Upgrade Select Next to upgrade TV software. Your TV will automatically upgrade, if your TV need a

3

Selecting the usage

4

mode

Setting the Clock

5

Mode

Selecting search

6

options for auto tuning

Selecting and

7

memorizing channels

Enjoy your TV. If you want to watch a broadcast program, select Close. If you want to enjoy Smart Hub,

8

Press the ▲ or ▼ button, then press the ENTER
Select the desired OSD (On Screen Display) language.
Set up your network connection. Press the ENTER

your network set up information or want to set to it later, select Skip. We suggest you skip
network connection setup now and refer to “Wired/Wireless Network Connection” in the
e-Manual for set up requirements and instructions, and the Network Connection section
of this manual (Page 16). You can set up the network connection later using the Network
menu.

software upgrade. If you want to upgrade later, select the Skip. For more information, refer
to "Software Upgrade" (Preference Features → Support Menu) in the e-Manual.

✎

This may take some time, depending on network status.

Press the ▲ or ▼ button to select Home Use, and then press the ENTER
twice.

Select the Home Use mode. Store Demo mode is for retail environments.
Press the ▲ or ▼ button to select Auto or Manual, and then press ENTER

✎

If you selected Auto, you’ll go to the Time Zone and DST screen. Select Time Zone
or DST, and then press ENTER
button to select your zone, and then press ENTERE. On the DST screen, press,

ENTERE, then select whether to turn DST (Daylight Savings Time) on or off. When

done, press ENTER

✎

If you selected Manual, you’ll go to the Date and Time screen. Select Date or Time,
and then press ENTERE. Then, use the number buttons or the ▲ or ▼ button to
set the date or time. Use the ◄ or ► button to move between entry fields.

When done setting the Date and Time, select Next, and then press ENTER
Press the ▲ or ▼ button to select Air or Cable, and then press ENTER

appears on your selection. Select Next, and then press the ENTERE button. You can
check both if you have both connected.

✎

If you selected Cable, you’ll go to the Cable System screen. Use the ▲ or ▼ button
to select Digital or Analog, and then press ENTERE. Use the ▲ or ▼ button
to select the correct cable signal format - STD, HRC, or IRC - and then press

ENTERE. Most cable systems use STD. Select the correct cable signal format for

both the Digital and Analog systems.
When done, select Next, and the press ENTER

The channel search will start automatically. This can take up to 30 minutes.
For more information, refer to Channel → Auto Program in the e-Manual.

✎

Press the ENTERE button at any time to interrupt the memorization process.

select Smart Hub. Smart Hub will start. For more detailed information, refer to “Smart
Hub” in the e-Manual.

E

E

. On the Time Zone screen, use the ▲ or ▼

.

E

button.

E

button to start. If you do not know

E

button

E

E

E

. A check

E

.

twice.

.

If You Want to Rerun Plug & Play...

MENUm → System → Plug & Play → ENTER

O

You should do Plug & Play again at home although you did in shop.

✎

NOTE

y To change the TV’s setting from Store Demo to Home Use when not in Plug & Play, press the volume button on the TV.

When you see the volume bar on the screen, press and hold the MENU button on the TV for 5 sec.

E

English - 11

Connecting to an AV Device

R-AUDIO-L

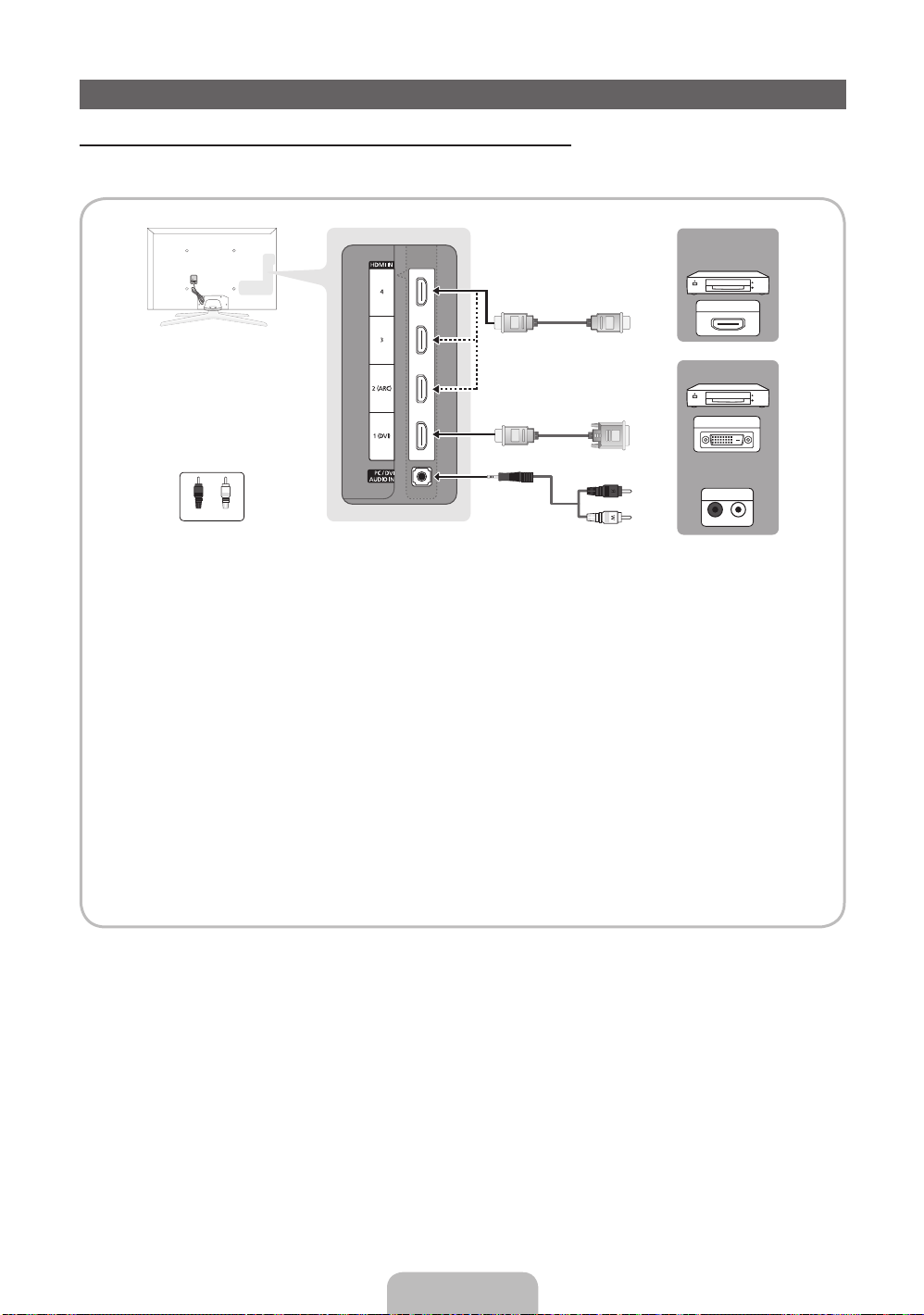

Using an HDMI or an HDMI to DVI Cable: HD connection (up to 1080p)

We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD player, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver

Device

HDMI Cable (Not Supplied)

HDMI OUT

Device

HDMI to DVI Cable (Not Supplied)

WR

WhiteRed

✎

HDMI IN 1 (DVI), 2 (ARC), 3, 4 / PC/DVI AUDIO IN

For better picture and audio quality, connect to a digital device using an HDMI cable.

x

An HDMI cable supports digital video and audio signals, and does not require an audio cable.

x

Audio Cable (Not Supplied)

DVI OUT

AUDIO OUT

– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older

x

version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may

x

occur.
We recommend using a basic high-speed HDMI cable or an HDMI cable that is Ethernet is compatible. Note

x

that this product does not support the Ethernet function via HDMI.
This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the

x

ARC function is supported by the HDMI IN 2 (ARC) port only.
The ARC function allows digital audio to output via the HDMI IN 2 (ARC) port. It can be enabled only when the

x

TV is connected to an audio receiver that supports the ARC function.

English - 12

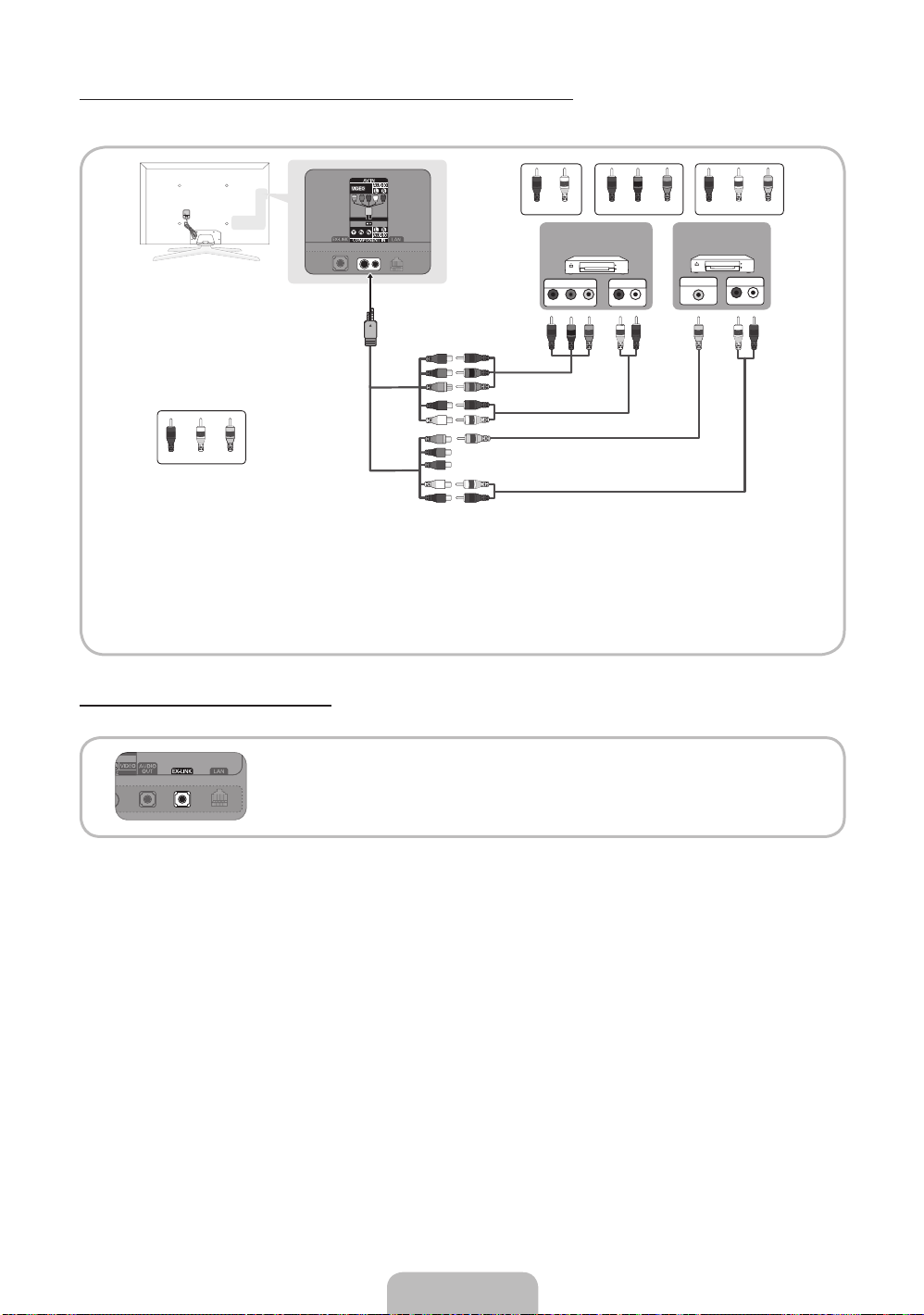

Using a Component (up to 1080p) or an Audio/Video (480i only) Cable

Available devices: DVD player, Blu-ray player, cable box, STB satellite receiver, VCR

R RW R

Red White Red Red

G

B

Blue White

Green Yellow

Device Device

R

Audio Cable
(Not Supplied)

VIDEO OUT AUDIO OUT

Audio Cable

(Not Supplied)

Y

G

B

(Not Supplied)

AUDIO OUT

R-AUDIO-L

W

COMPONENT OUT

PR PB

R

Component
Adapter(Supplied)

White

Y

W

Y

W

Yellow

R

R

Red

✎

For better picture quality, we recommend the Component connection over the A/V connection.

✎

When connecting to AV IN, the color of the AV IN 1[VIDEO] jack (green) will not match the video cable (yellow).

B

G

R R

W

Y

W

R

Component Cable

Using an EX-Link Cable Connection

Available Devices: External devices that support EX-Link.

W

W

R-AUDIO-L

W

Video Cable
(Not Supplied)

Y

Y

R

R

Y

EX-LINK: Connector for service only.

English - 13

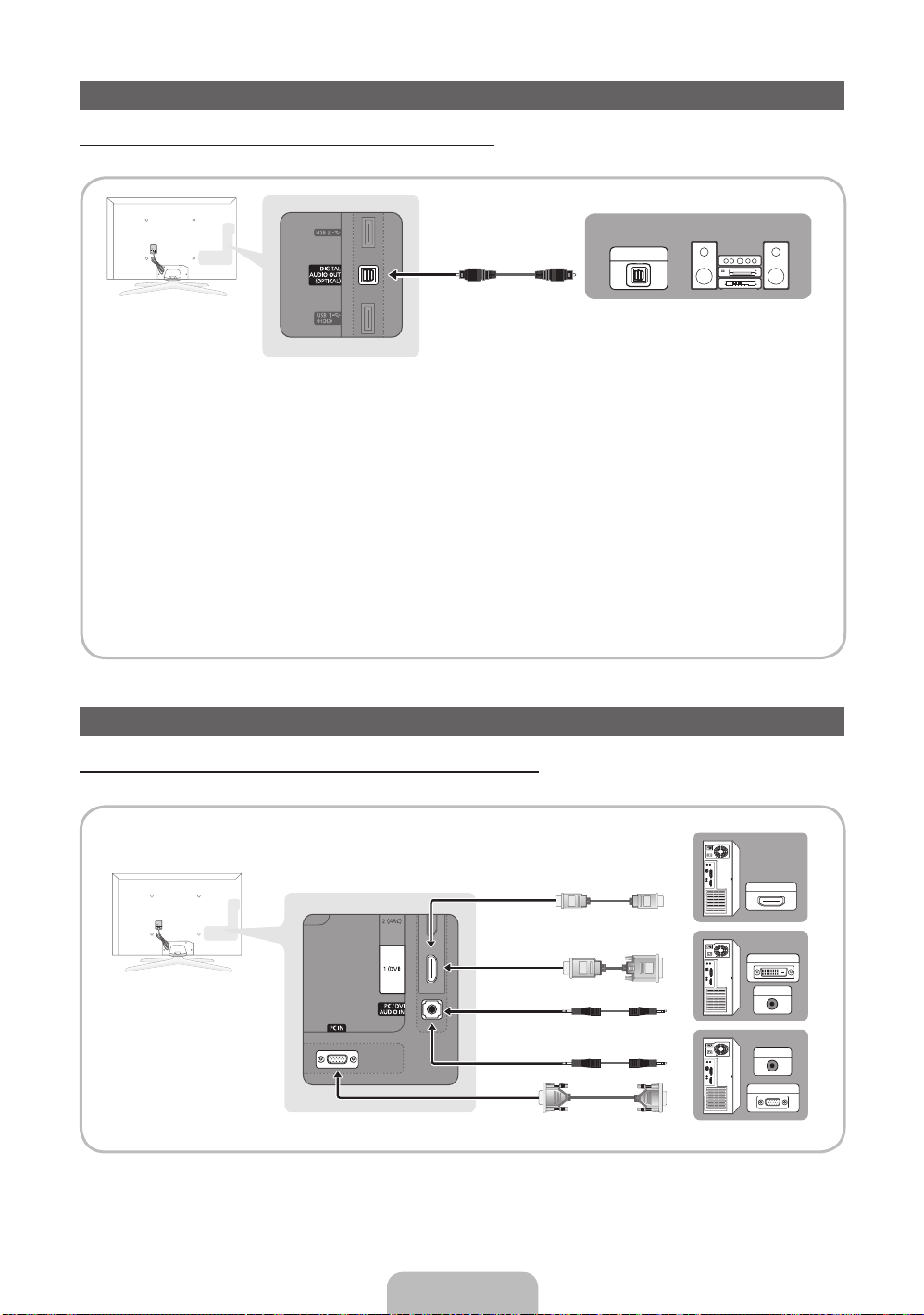

Connecting to an Audio Device

AUDIO OUT

PC OUT

AUDIO OUT

DVI OUT

HDMI OUT

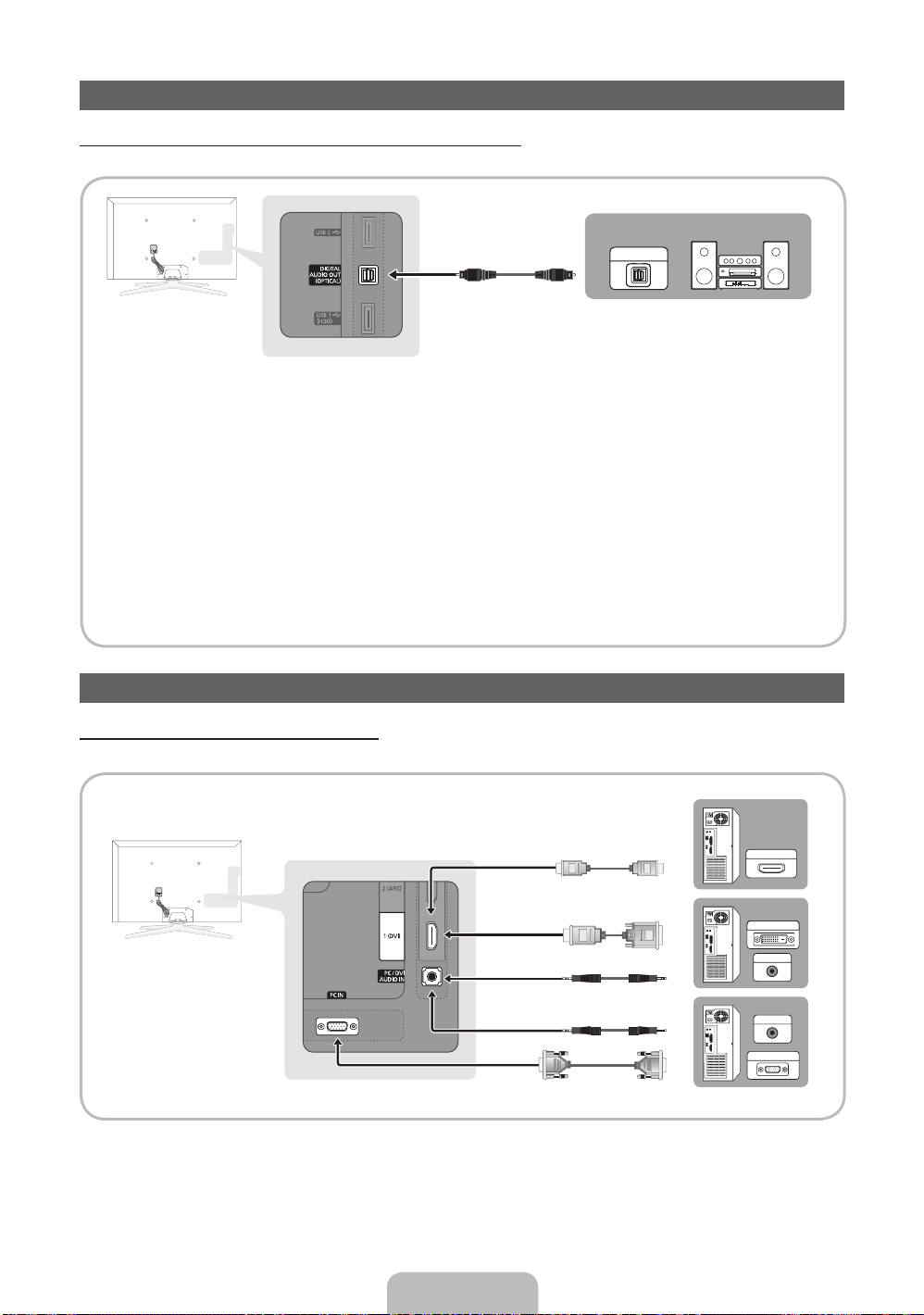

Using an Optical (Digital) or an Audio (Analog) Cable Connection

Available devices: Digital Audio System, Amplifier, DVD home theater

Optical Cable (Not Supplied)

✎

DIGITAL AUDIO OUT (OPTICAL)

When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

x

of both the TV and the system.

5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1 CH.

x

When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the

x

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is
a digital component such as a DVD player / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver
and you connected it to the TV via HDMI, you will only hear 2 CH audio from the home theater receiver. If you
want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB
satellite receiver directly to an amplifier or home theater.

Connecting to a PC

Using an HDMI cable or an HDMI to DVI cable or a D-sub cable

✎

Your PC may not support an HDMI connection.

Digital Audio System

OPTICAL

English - 14

HDMI Cable (Not Supplied)

HDMI to DVI Cable (Not Supplied)

Audio Cable (Not Supplied)

D-Sub Cable (Not Supplied)

PC Display Modes (D-Sub and HDMI to DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz. You can also select one of the standard resolutions listed in the Resolution
column. The TV will automatically adjust to the resolution you choose.

Mode Resolution

IBM

MAC

VESA DMT

VESA DMT / DTV CEA 1920 x 1080p 67.500 60.000 148.500 +/+

✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1 (DVI) jack.

x

The interlaced mode is not supported.

x

The set might operate abnormally if you select a non-standard video format.

x

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

x

640 x 350
720 x 400

640 x 480
832 x 624

1152 x 870

640 x 480
640 x 480
640 x 480
800 x 600
800 x 600

800 x 600
1024 x 768
1024 x 768
1024 x 768
1152 x 864

1280 x 1024
1280 x 1024

1280 x 800
1280 x 800
1280 x 960
1360 x 768
1440 x 900
1440 x 900

1680 x 1050

Horizontal Frequency

(KHz)

31.469

31.469

35.000

49.726

68.681

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

63.981

79.976

49.702

62.795

60.000

47.712

55.935

70.635

65.290

Vertical Frequency

(Hz)

70.086

70.087

66.667

74.551

75.062

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.020

75.025

59.810

74.934

60.000

60.015

59.887

74.984

59.954

Pixel Clock Frequency

(MHz)

25.175

28.322

30.240

57.284

100.000

25.175

31.500

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

108.000

135.000

83.500

106.500

108.000

85.500

106.500

136.750

146.250

Sync Polarity

(H / V)

+/-

-/+

-/-

-/-

-/-

-/-

-/-

-/­+/+
+/+
+/+

-/-

-/­+/+
+/+
+/+
+/+

-/+

-/+
+/+
+/+

-/+

-/+

-/+

English - 15

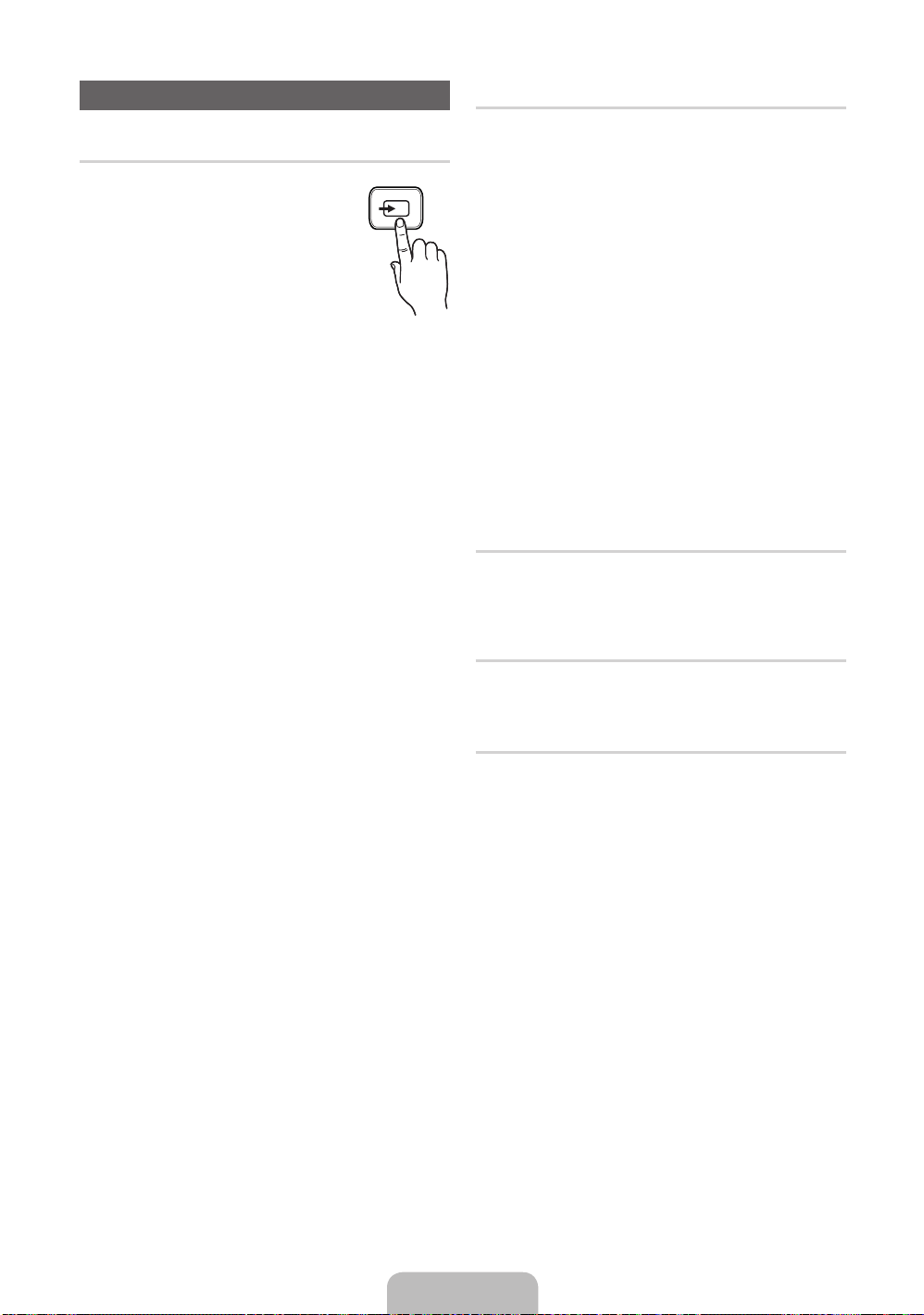

Changing the Input Source

Source

Use to select TV or an external input
source such as a DVD player / Blu-ray
player / cable box / STB satellite receiver.

■ TV / Component / PC / HDMI1/DVI /

HDMI2 / HDMI3 / HDMI4 / AV / USB
/ AllShare

1. Press the SOURCE button on your

remote.

2. Select a desired external input source.

✎

You can only choose external devices that are
connected to the TV. In Source, connected inputs will
be highlighted.

✎

In Source, PC always stays activated.

SOURCE

Edit Name

Edit Name lets you associate a device name to an input
source. To access Edit Name, press the TOOLS button In
Source. The following selections appear under Edit Name:

■ VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVI PC / DVI
Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name

the device connected to the input jacks to make your
input source selection easier.

✎

If you have connected a PC to the HDMI IN 1 (DVI)
port with an HDMI cable, select PC under Edit Name
to enter a device name.

✎

If you have connected a PC to the HDMI IN 1 (DVI)
port with an HDMI to DVI cable, select DVI PC under
Edit Name to enter a device name.

✎

If you connected an AV device to the HDMI IN 1 (DVI)
port with an HDMI to DVI cable, select DVI Devices
under Edit Name to enter a device name.

Edit Favorites

In Source, press the TOOLS button to select Edit
Favorites. You can set an external input source as a
Favorites.

Information

You can see detailed information about the selected external
device.

Refresh

In Source, If the external devices are not displayed, press
the TOOLS button to select Refresh, then search for the
connected devices.

English - 16

Network Connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless
connection.

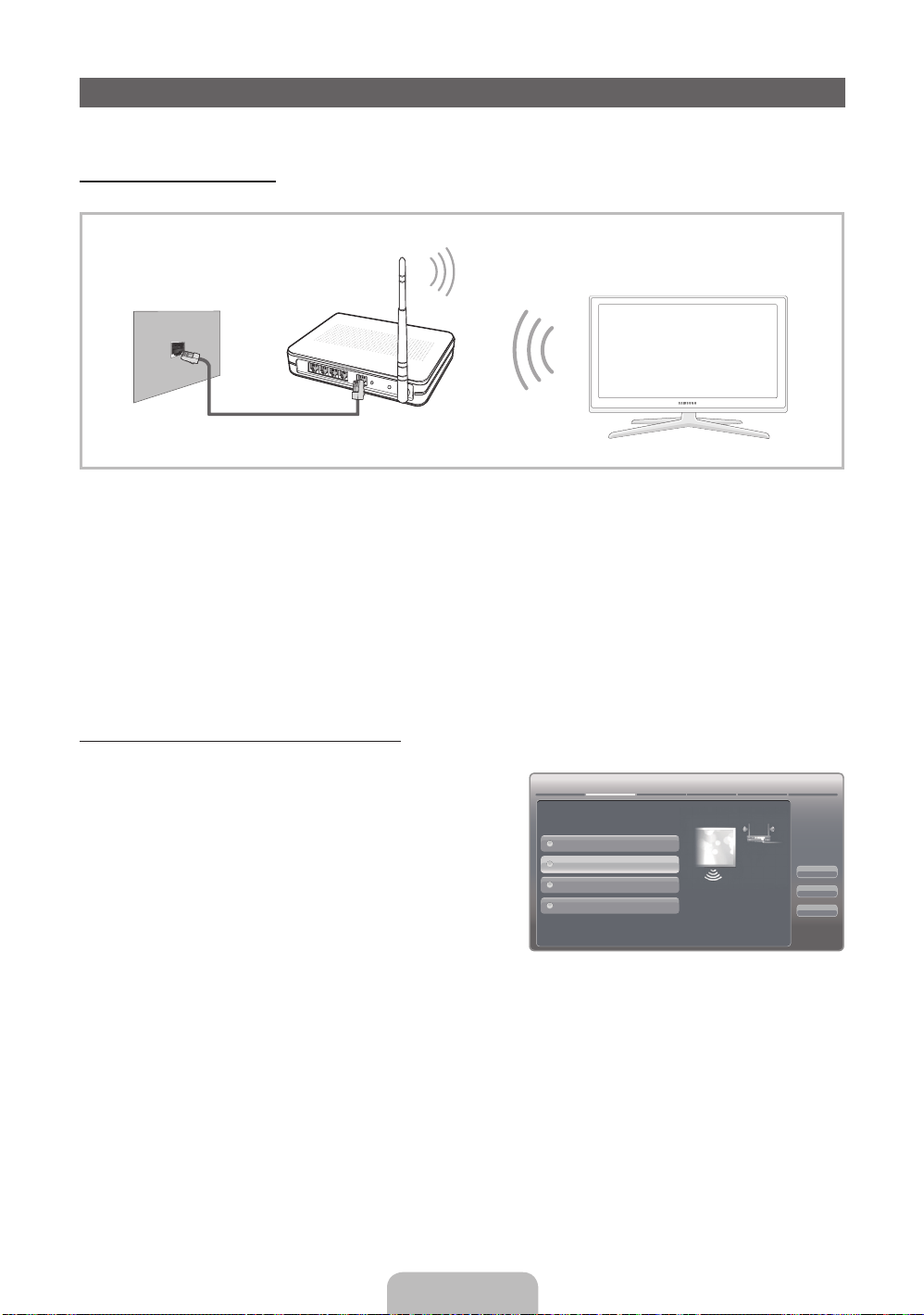

Network Connection - Wireless

You can connect your TV to your LAN through a standard wireless router or modem.

Wireless IP Sharer

(router having DHCP Server)

The LAN Port on the Wall

LAN Cable (Not Supplied)

This TV supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When
you play video over a IEEE 802.11b/g connection, the video may not play smoothly.

Most wireless network systems incorporate a security system that requires devices that access the network through an access
point or AP (typically a wireless IP Sharer - router or modem) to transmit an encrypted security code called an access key.

Your TV is compatible with the following security protocols:

y Authentication Mode: OPEN, SHARED, WPAPSK, WPA2PSK
y Encryption Type: WEP, TKIP, AES

If you select Pure High-throughput (Greenfield) 802.11n mode and the Encryption type is set to WEP, TKIP or TKIP AES
(WPS2Mixed) on your AP or wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi
certification specifications.

Configuring the Network Connection - Wireless

The instructions below are for networks that use the Dynamic Host Configuration Protocol (DHCP) to configure network
connections automatically. If your have a Static IP network, see your user’s manual for configuration instructions.

To configure your network connection for a network that uses DHCP, follow these steps:

1. Connect your TV to your network as shown in the illustration

above.

2. Turn on your TV, press the MENU button on your remote, and
the select Network → Network Settings.

3. Select the Wireless (General), press ENTER

E

, and then

press ENTERE again.

4. The Network function searches for available wireless networks.
When done, it displays a list of the available networks.

5. In the list of networks, press the

u

or ▼ button to select a

network, select Next, and then press ENTERE.

6. If you have selected a wireless router that has security, the Security Key screen appears. Enter the Security key (Security
key or PIN), select Next, and then press ENTER

✎

When you enter the Security Key (Security key or PIN), use the u / d / ◄ / ► buttons on your remote to select

E

.

numbers and characters.

7. The Network connection screen appears and verifies the network connection. When the connection has been verified, the
“Internet connection successful.” message appears. Network set up is complete.

✎

For more detailed information, see “Wireless Network Connection” in the e-Manual.

Network Settings

Select a network connection type.

Wired

Wireless(General)

WPS(PBC)

One Foot Connection

Set up wireless network
by selecting your Wireless
Router. you may need to enter
security key depending on
the setting of the Wireless
Router.

Previous

Next

Cancel

English - 17

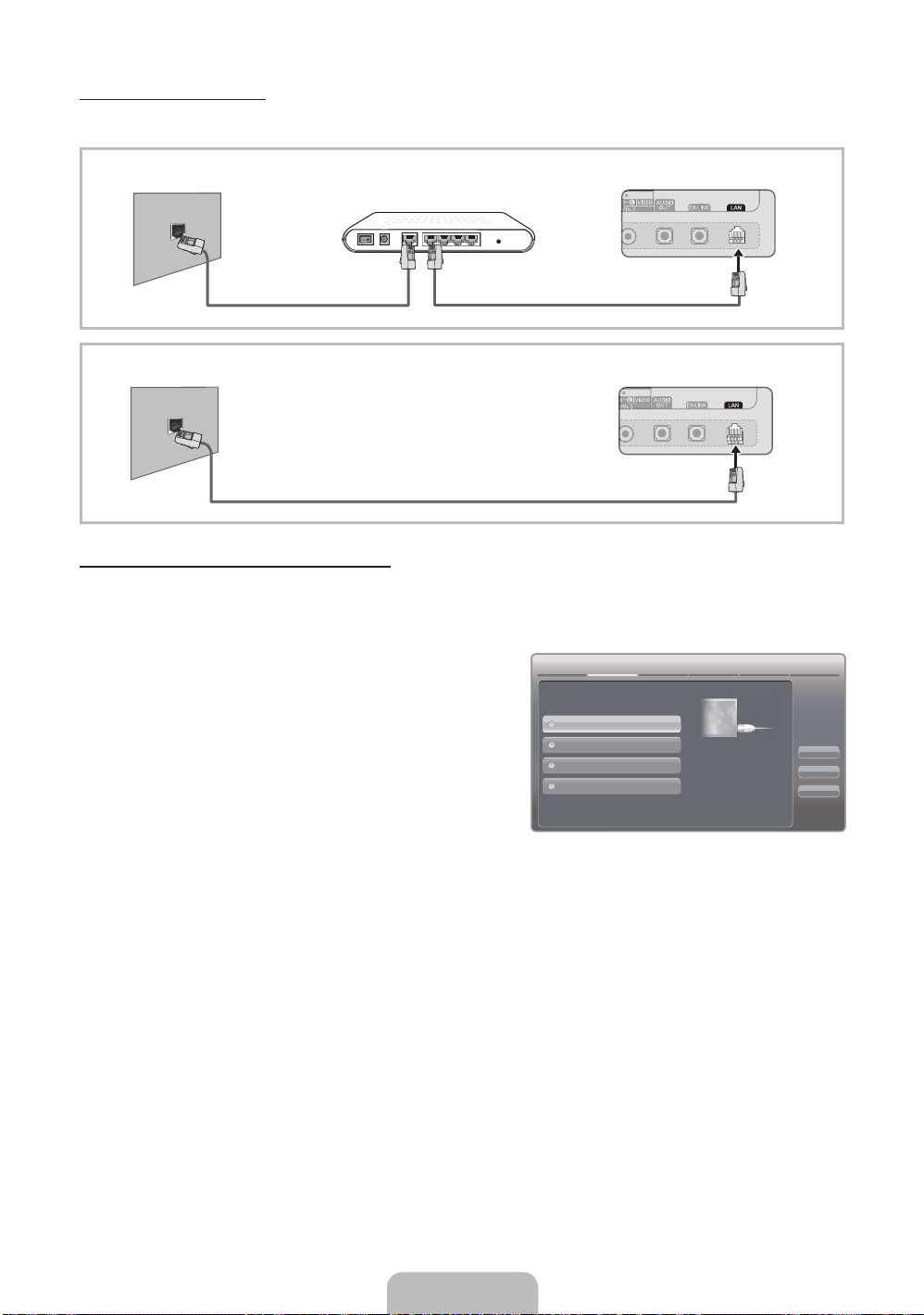

Network Connection - Wired

There are two main ways to connect your TV to your network using cable, depending on your network setup. They are
illustrated below:

The Modem Port on the Wall

The LAN Port on the Wall TV Rear Panel

External Modem

(ADSL / VDSL / Cable TV)

LAN Cable (Not Supplied)Modem Cable (Not Supplied)

LAN Cable (Not Supplied)

TV Rear Panel

Configuring the Network Connection - Wired

Most home networks use the Dynamic Host Configuration Protocol (DHCP) to configure network connections. Home networks
that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the
Internet so you don’t have to enter them manually.

To configure your network connection for a network that uses DHCP, follow these steps:

1. Connect your TV to your network as shown in one of the
illustrations above.

2. Turn on your TV, press the MENU button on your remote, and
then select Network → Network Settings. The Network

Settings screen will appear.

3. Select Wired, press ENTER

E

, and then press ENTERE

again.

4. The Network Connection screen appears, and verifies the

Network Settings

Select a network connection type.

Wired

Wireless(General)

WPS(PBC)

One Foot Connection

Connect to the network using LAN
cable. Please make sure that the
LAN cable is connected.

Previous

Next

Cancel

network connection. When the connection has been verified,
the “Internet connection successful.” message appears.
Network set up is completed.

✎

If your TV cannot acquire network the connection values automatically or if you want to set the connection manually,
select IP Settings on the network connection screen. Set Internet Protocol Setup to Manual. You must enter the IP
Address, Subnet Mask, Gateway, and DNS Server manually.

✎

For more detailed information, refer to “Wired Network Connection” in the e-Manual.

English - 18

How to view the e-Manual

You can fi nd instructions for your TV’s features in the e-Manual in your TV. To use the e-Manual, press

E-MANUAL

the E-MANUAL button on your remote. Move the cursor using the
category, then a topic, and then press the ENTER
to see.

You can also access it through the menu:

MENUm → Support → e-Manual → ENTER

O

✎

If you want to return to the e-Manual, press the E-MANUAL button on your remote.

✎

You can’t use the Try Now function if the menu is not activated.

Screen Display

TV Screen: Displays the program,

movie, video, etc. you are currently

watching.

Basic Features

Changing the Preset Picture Mode

Adjusting Picture Settings

Changing the Picture Size

Changing the Picture Options

Setting up the TV with Your PC

Help: Displays the e-Manual

Guide or Product Guide. Press

E

ENTER

button.

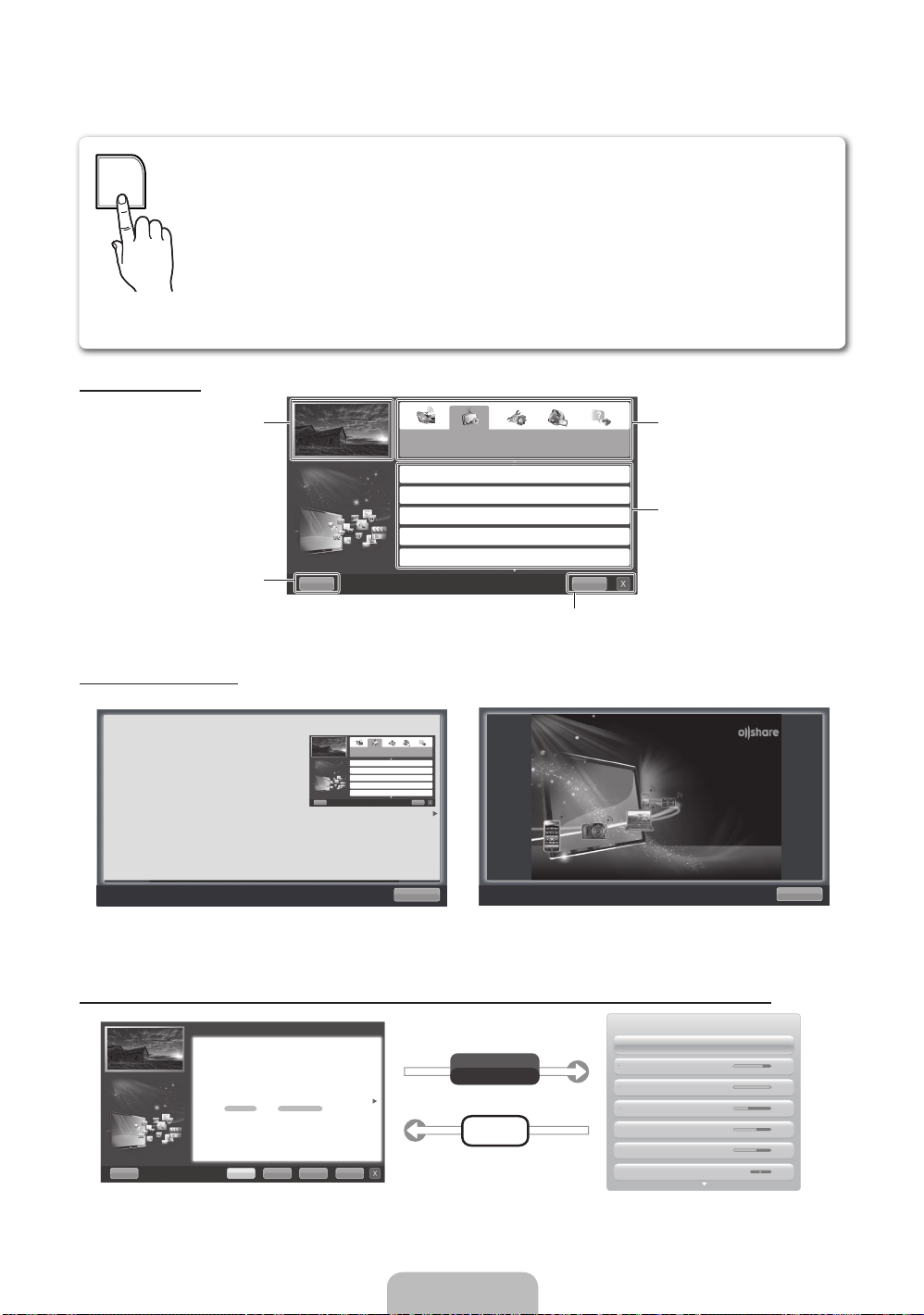

Using the Help
Display the e-Manual Guide & the Product Guide by pressing Help.

 How to view the e-Manual

You can fi nd instructions for your TV’s features in
the e-Manual in your TV. To use the e-Manual, press
the E-MANUAL button on your remote. Move the
cursor using the u / d / l / r buttons to highlight a
category, then a topic, and then press the ENTERE
button. The e-Manual displays the page you want
to see.
You can also access it through the menu:

O MENU

m

→ Support → e-Manual → ENTER

✎ If you want to ret urn to the e-Manual, p ress the E-MANUAL bu tton on your

re-1mote.

✎ You can’t use the Try Now f unction if the men u is not activated.

Basic Features

Changing the Preset Picture Mode

Adjusting Picture Settings

Changing the Picture Size

Changing the Picture Options

Setting up the TV with Your PC

Help

E

Index

Return

u

E

button. The e-Manual displays the page you want

/ d / l / ► buttons to highlight a

E

The category list. Press
button to select the category you
want.

Displays the sub-menu list. Use
the arrow buttons on your remote
to move the cursor. Press the

ENTER

E

IndexHelp

menu you want.

Index: Displays the Index screen.
X: Exit the e-Manual.

Sync media from multiple devices with AllShare

button to select the sub-

AllShare™ syncs your digital devices so you can
enjoy music, movies and photos from your PC,
camera and mobile devices, on your larger TV
screen. Connects you to multiple PCs, as well.

l

or r

Return

<e-Manual Guide>

The e-Manual guide appears as above.

The product guide appears as above.

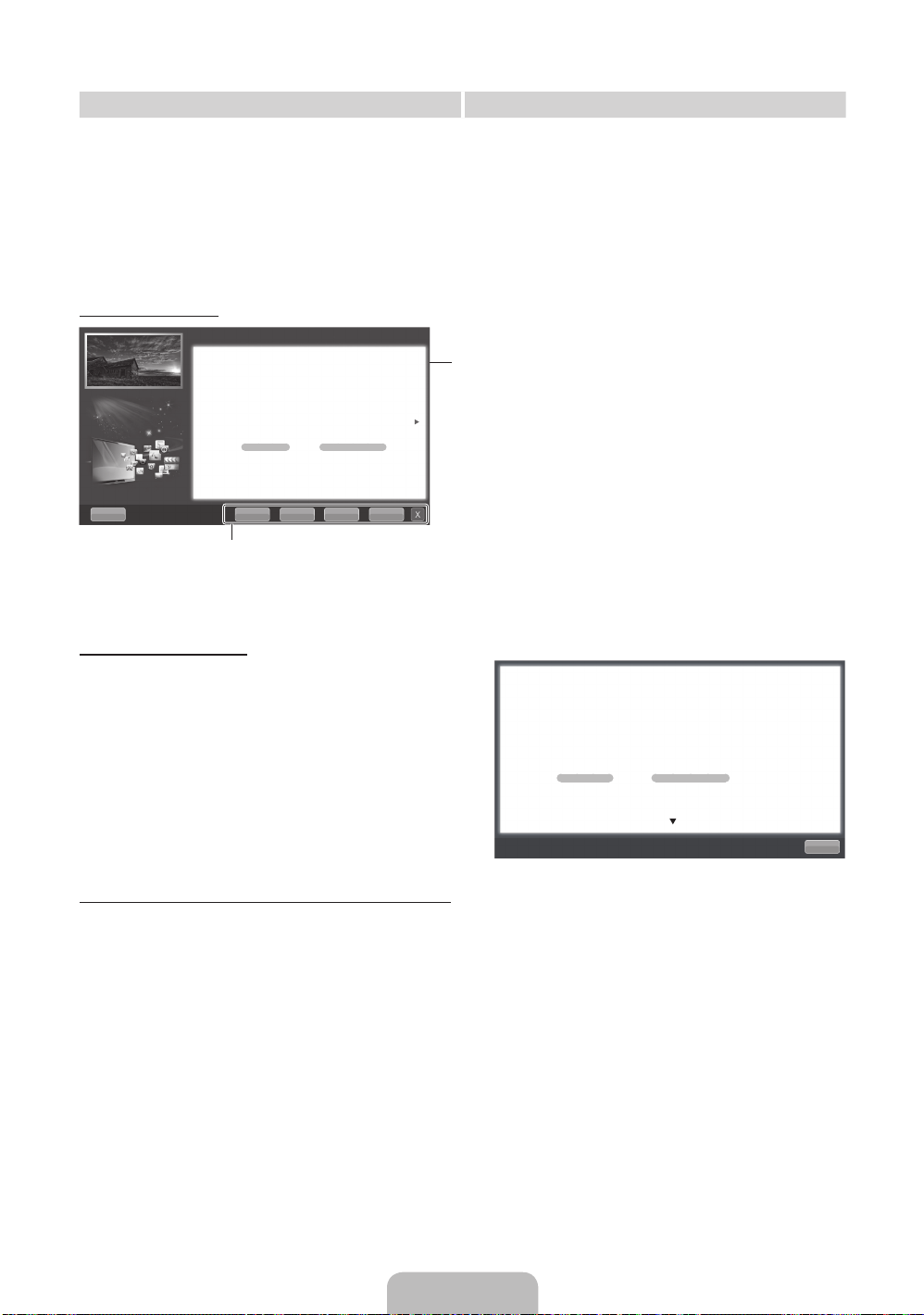

How to toggle between an e-Manual topic and the corresponding OSD menu(s).

Basic Features > Changing the Preset Picture Mode (1/1)

 Changing the Preset Picture Mode

■

Picture Mode t

Select your preferred picture type.

N In PC mode, you can only select Entertain and Standard.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

for LED TV

for PDP TV

/ Relax

• Natural

• Movie: Suitable for watching movies in a dark room.

• Entertain: Suitable for watching movies and games.

: Suitable for reducing eye strain.

Try Now

E-MANUAL

Help Try Now Home Zoom Index

✎

This function is not enabled in some menus.

English - 19

<Product Guide>


Picture Mode Standard

Cell Light 14

Contrast 100

Brightness 45

Sharpness 50

Color 50

Tint (G/R) G 50 R 50

Method 1 Method 2

1. Select Try Now, if you want to execute the

corresponding menu(s).

2. To return to the e-Manual screen, press the E-MANUAL

button.

Viewing the Contents

Basic Features > Changing the Preset Picture Mode (1/1)

 Changing the Preset Picture Mode

O MENUm → Picture → Picture Mode → ENTER

■

Picture Mode t

Select your preferred picture type.

N In PC mode, you can only select Entertain and Standard.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

for LED TV

for PDP TV

• Natural

• Movie: Suitable for watching movies in a dark room.

• Entertain: Suitable for watching movies and games.

Help Try Now Home Zoom Index

/ Relax

Try Now: Displays the OSD menu that corresponds to the topic. To return

to the e-Manual screen, press the E-MANUAL button.

Home: Moves to the e-Manual home screen.
Zoom: Magnifies a screen.
Index: Displays the Index screen.

E

: Suitable for reducing eye strain.

1. Press the ENTER

E

button when a topic is displayed.

“Do you want to execute this?” appears. Select Yes,
and then press the ENTERE button. The OSD window
appears.

2. To return to the e-Manual screen, press the E-MANUAL

button.

Contents Area: Contains the topic contents
if you selected a sub-menu. To move to the
previous or next page, press the

l

or r button.

Using the Zoom mode

Select Zoom, and then press ENTER
screen. You can scroll through the magnified screen by using
the u or d buttons.

✎

To return to the screen to normal size, press the

RETURN button.

E

to magnify the

 Changing the Preset Picture Mode

O MENUm → Picture → Picture Mode → ENTER

■

Picture Mode t

Select your preferred picture type.

N In PC mode, you can only select Entertain and Standard.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

for LED TV

• Natural

• Movie: Suitable for watching movies in a dark room.

• Entertain: Suitable for watching movies and games.

/ Relax

for PDP TV

: Suitable for reducing eye strain.

E

How to search for a topic on the index page

1. To search for a topic, press the left or right arrow button to select a letter, and then press ENTER

E

list of topics and keywords that begin with the letter you selected.

2. Press the up or down arrow button to select a topic or keyword you want, and then press the ENTER
a topic you want to see.

3. The e-Manual page with the topic appears.

✎

To close the Index screen, press the RETURN button.

Return

. The Index displays a

E

button to select

English - 20

Troubleshooting

If the TV seems to have a problem, first review this list of possible problems and solutions. Also review the Troubleshooting
section in the e-Manual. If none of the troubleshooting tips apply, visit “www.samsung.com,” and then click on Support, or call
Samsung customer service at 1-800-SAMSUNG.

Issues Solutions and Explanations

The TV won’t turn on. y Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

y Make sure the wall outlet is working.
y Try pressing the POWER button on the TV to make sure the problem is not the

remote. If the TV turns on, refer to “Remote control does not work” below.

There is no picture/video. y Check the cable connections. Remove and reconnect all cables connected to the

The remote control does not work. y Replace the remote control batteries. Make sure the batteries are installed with their

The cable/set top box remote
control doesn’t turn the TV on or
off, or adjust the volume.

TV and external devices.

y Set the video outputs of your external devices (Cable/Sat Box, DVD, Blu-ray etc)

to match the TV input connections. For example, if an external device’s output is
HDMI, it should be connected to an HDMI input on the TV.

y Make sure your connected devices are powered on.
y Be sure to select the correct input source by pressing the SOURCE button on the

remote control.

y Reboot the connected device by unplugging and then reconnecting the device’s

power cable.

poles (+/–) in the correct direction.
y Clean the sensor’s transmission window on the remote.
y Try pointing the remote directly at the TV from 5~6 feet away.

y Program the Cable/Set remote control to operate the TV. Refer to the Cable/Set

user manual for the SAMSUNG TV code.

✎

This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However,
there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the
product.

✎

To keep your TV in optimum condition, upgrade to the latest firmware on the Samsung web site by USB (samsung.com
→ Support → Downloads).

License

List of Features

y Excellent Digital Interface & Networking: With a built-in HD digital tuner, your TV lets you watch non-subscription HD

broadcasts without a cable box or STB (Set-Top-Box) satellite receiver.

y 3D: This exciting new feature enables you to view 3D content.
y SMART HUB: Your Gateway to all your content, integrated in one place.

– Provides diverse entertainment choices.
– Lets you control your entertainment life with an easy-to-use, user friendly UI.
– Gives you easy access to diverse Apps, with more being added every day.
– Lets you customize your TV by grouping and sorting Apps to your taste.

y AllShare™: AllShare™ connects your TV and compatible Samsung mobile phones/devices through a network.
y Anynet+(HDMI-CEC): Allows you to control all connected Samsung devices that support anynet+ with your Samsung

TV’s remote.

English - 21

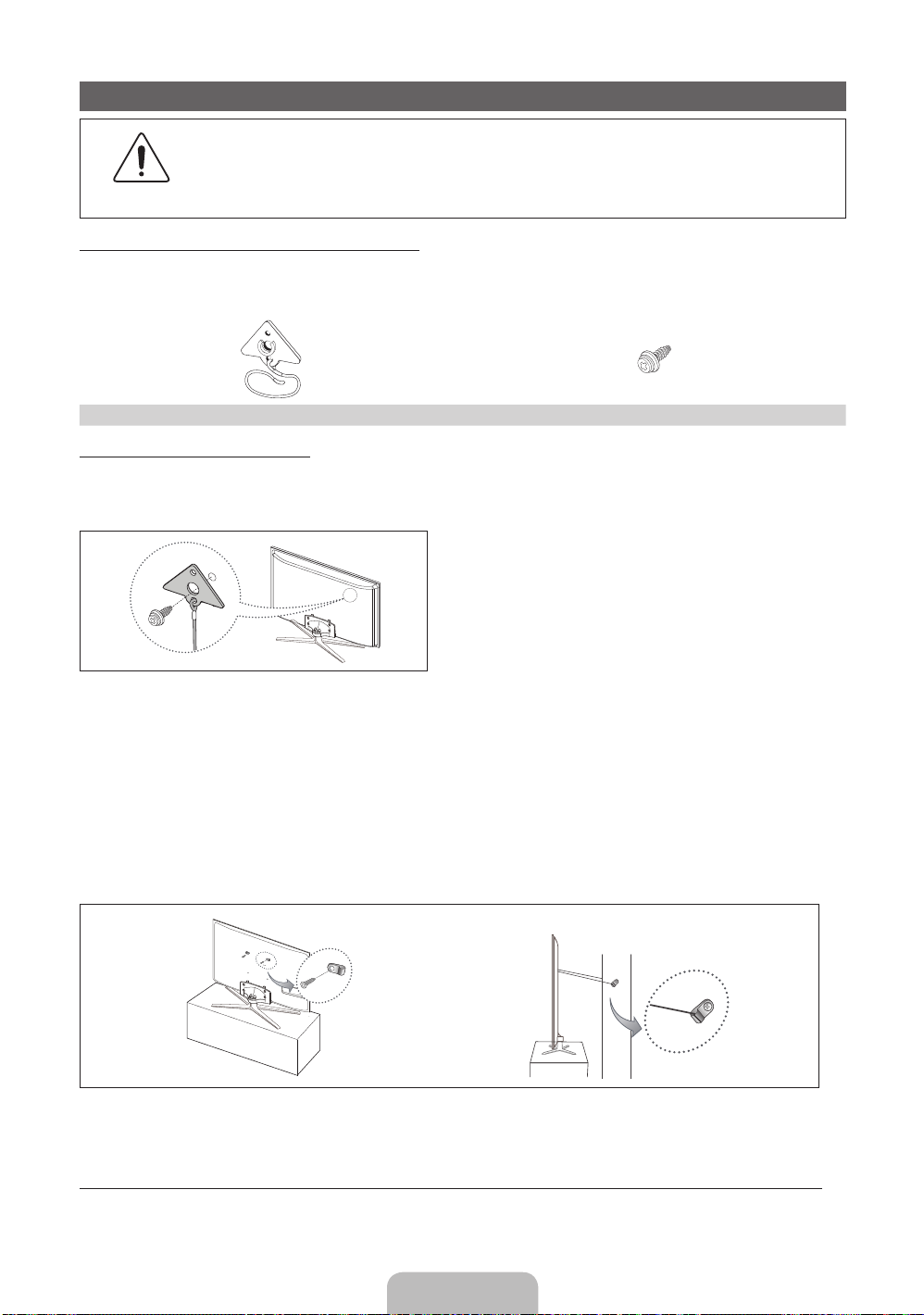

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your
children do not hang over or destabilize the TV. Doing so may cause the TV to tip over, causing serious
injuries or death. Follow all safety precautions provided in the included Safety Flyer with your TV. For
added stability and safety, you can purchase and install the anti fall device as described below.

The TV-Holder Kit (Sold Separately):

The parts below are included in the TV Holder kit. In addition, you need to provide a wood screw, screw and molly, or other
screw appropriate for the wall or cabinet you intend to secure the TV-Holder string to. We recommend a size M4xL20 wood
screw.

TV-Holder (BN96-15753A) Screw (M8 X L19)

Installing the TV-Holder

1. Remove the screw attached to the back of your TV, and then connect the TV-Holder to the TV with the screw included in

the TV-Holder Kit that is designated for your TV.

✎

Make sure to use only the appropriate supplied screw. If you use a different screw, you can damage your TV.

2. Firmly fasten the screw you provided (size M4xL20 or similar) to the wall or cabinet where the TV is to be installed.

✎

If you fasten the screw to the wall, we recommend you drive the screw into a stud. If that is not possible, use a
molly to anchor the screw.

3. Tie the TV-Holder cord to the screw fastened on the wall or cabinet so that the TV is fixed. See the illustrations below.

✎

Install the TV close to the wall so that it does not fall.

✎

When attaching the TV-Holder cord to the wall, tie the cord level with the ground or slanted downwards for safety
purposes.

✎

Check the cord occasionally to make sure it is secure.

✎

Before moving the TV, separate the connected cord first.

4. Verify all connections are properly secured. Periodically check the connections for any sign of fatigue or failure. If you have

any doubt about the security of your connections, contact a professional installer.

To purchase the TV-Holder Kit, contact Samsung Customer Care

In the United States: 1-800-SAMSUNG (1-800-726-7864)

–

In Canada: 1-800-SAMSUNG (1-800-726-7864)

–

English - 22

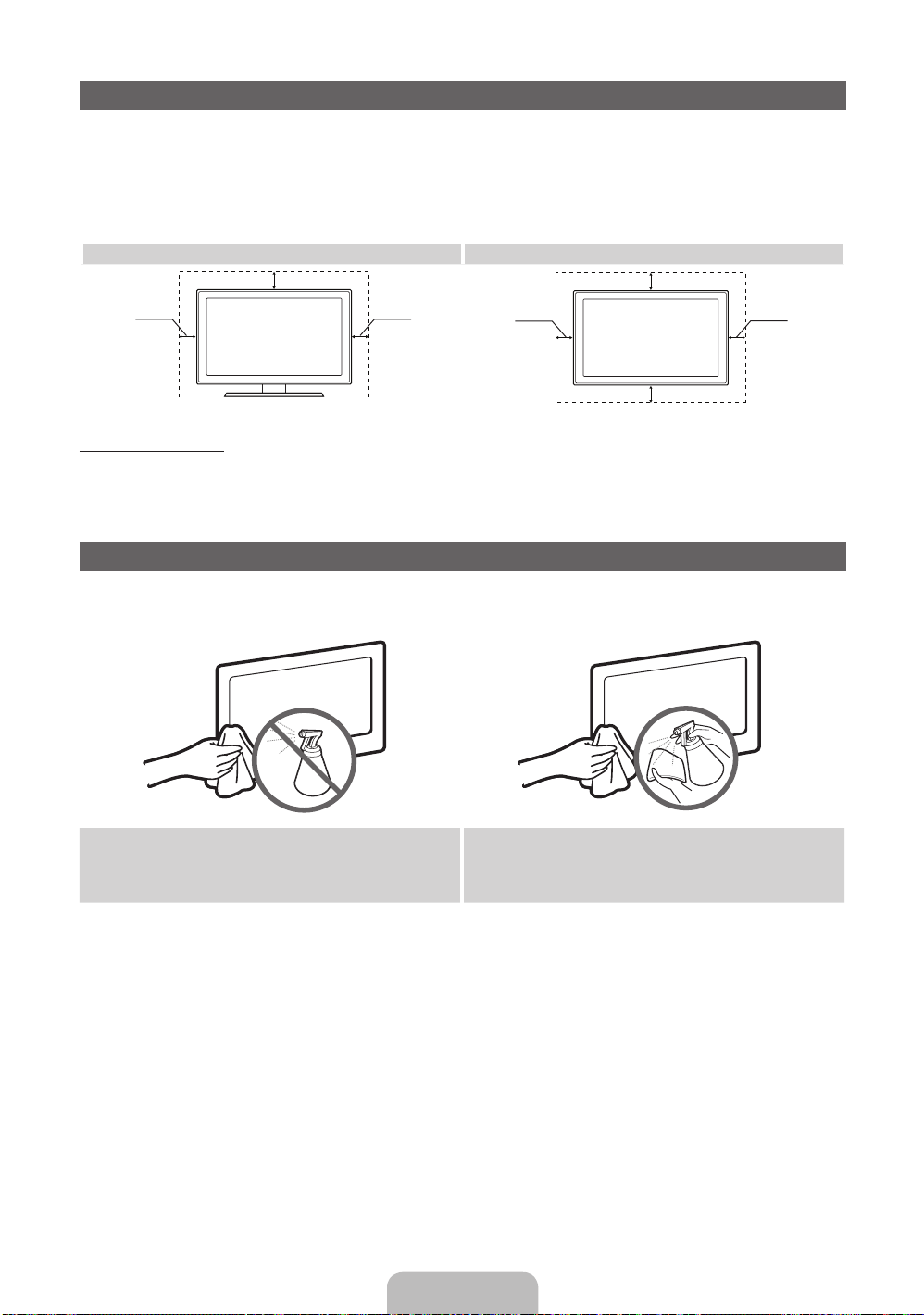

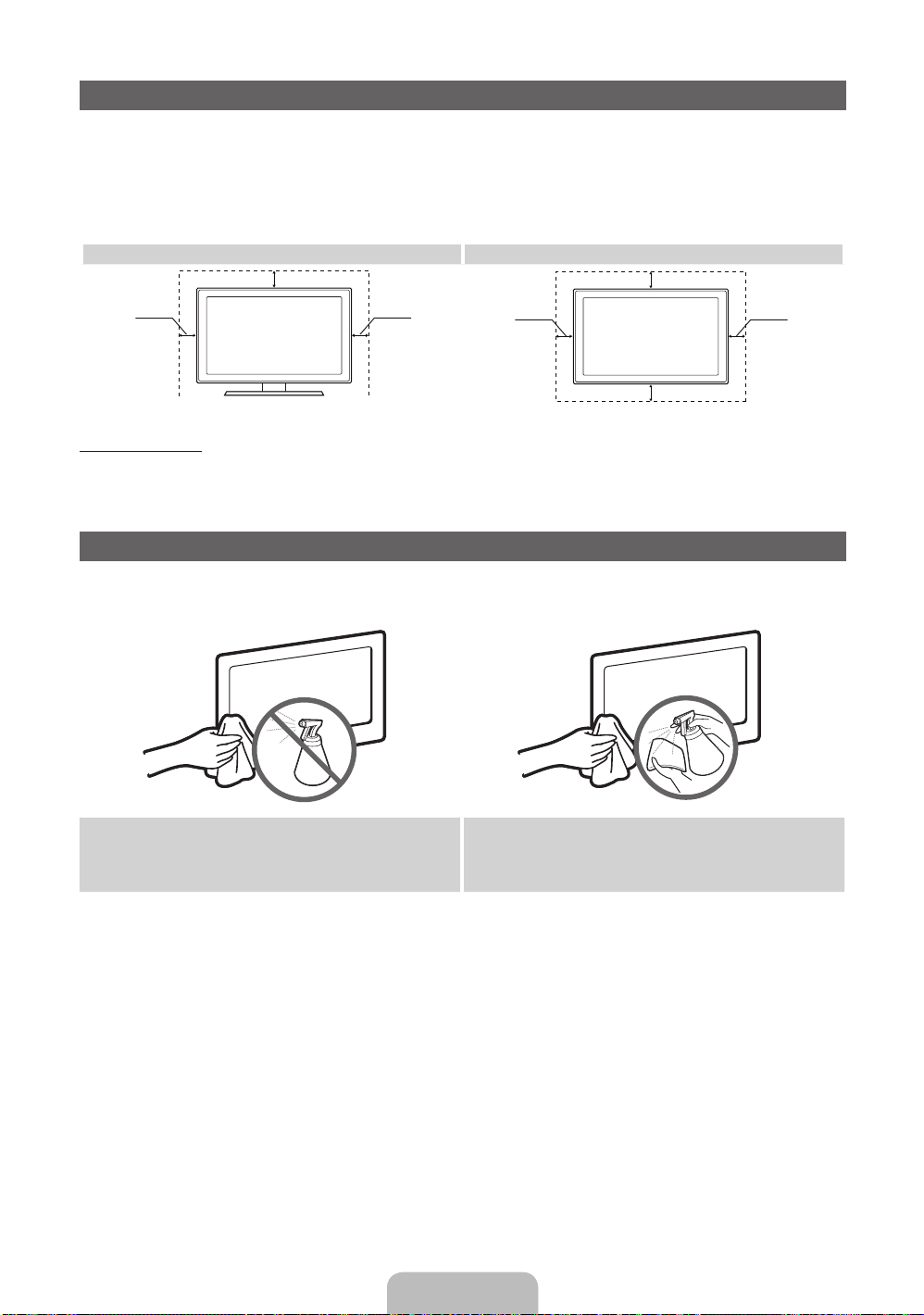

Securing the Installation Space

Keep the required distances between the TV, the wall, and other objects to ensure proper ventilation. Failing to do so may
result in a fire or a problem with the TV caused by an increase in its internal temperature.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the

x

product falling.

Installation with a stand. Installation with a wall-mount.

4 inches

4 inches

Other Warnings

✎

The actual appearance of the TV may differ from the images in this manual, depending on the model.

✎

Be careful when you touch the TV. Some parts can be somewhat hot.

4 inches

4 inches

4 inches

4 inches

4 inches

Storage and Maintenance

✎

If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to
watch TV.

Do not spray water or a cleaning agent directly onto the
product. Any liquid that goes into the product may cause a
failure, fire, or electric shock.

English - 23

Clean the product with a soft cloth dampened with a small
amount of water.
