Introduction

󰼿󰼿󰼿󰼿󰼿Unpacking

󰼿󰼿󰼿󰼿󰼿󰼿Front

󰼿󰼿󰼿󰼿󰼿󰼿Rear

󰼿󰼿󰼿󰼿󰼿󰼿Bottom

Setup

Troubleshooting

󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿Check List

󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿Q & A

󰼿󰼿󰼿󰼿󰼿󰼿

󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿Self-Test Feature Check

Specifications

󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿General Specifications

󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿Preset Timing Modes

󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿PowerSaver

Information

󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿Service

󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿Terms
󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿Natural Color

󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿Authority

󰼿󰼿󰼿󰼿󰼿󰼿Connecting Your Monitor

󰼿󰼿󰼿󰼿󰼿󰼿󰼿Installing the Monitor Driver

󰼿Automatic

󰼿Manual

Base Installation

Notational

Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.

Prohibited Important to read and understand at all times

Do not disassemble Disconnect the plug from the outlet

Do not touch Grounding to prevent an electric shock

Power

When not used for extended periods of time, set your PC to DPMS. If using
a screen saver, set it to the active screen mode.

If the size of your monitor is small, or if the same image is present for long

z

periods of time, you may see afterimages due to damage to the
fluorescent substance on the inside of the CDT.

Do not use a damaged or loose plug.

This may cause an electric shock or fire.

z

Do not pull the plug out by the wire nor touch the plug with wet
hands.

This may cause an electric shock or fire.

z

Use only a properly grounded plug and receptacle.

An improper ground may cause electric shock or equipment

z

damage.

Do not excessively bend the plug and wire nor place heavy objects
upon them, which could cause damage.

Failure to do so may cause an electric shock or fire.

z

Disconnect the plug from the outlet during storms or lightening or
if it is not used for a long period of time.

Failure to do so may cause an electric shock or fire.

z

Do not connect too many extension cords or plugs to an outlet.

This may cause a fire.

z

Installation

Do not cover the vents on the monitor cabinet.

Bad ventilation may cause a breakdown or fire.

z

Put your monitor in a location with low humidity and a minimum of
dust.

An electric shock or fire could result inside the monitor.

z

Do not drop the monitor when moving it.

This may cause damage to the product or human body.

z

Place the monitor on a flat and stable surface.

The monitor can cause injury by falling.

z

Set down the monitor carefully.

It could be damaged or broken.

z

Do not place the monitor face down.

The CDT surface may be damaged.

z

Do not use the monitor without the monitor stand.

It could break down or cause a fire due to bad ventilation.

z

If the monitor must be used without the supplied stand, take steps

z

to insure proper ventilation.

Cleaning

When cleaning the monitor case or the surface of the CDT, wipe with a
slightly moistened, soft fabric.

Do not clean Flat monitor with water. Use a water-diluted mild
detergent.

(Some detergents contain significant amounts of alcohol-based solvents,
which can damage (color change) or crack the monitor case. The
antiglare/anti-static surface coating on the CDT may also be affected.)

Dilute the detergent (1:10 ratio) with water before using.

Do not spray detergent directly on the monitor.

Use the recommended detergent with a smooth cloth.

You can prevent the coated CDT from being damaged or the

z

monitor cabinet from being dissolved, cracked or discolored.
You can buy a recommended detergent at any Samsung Service

z

Center.

If the connector between the plug and the pin is dusty or dirty,
clean it properly with a dry cloth.

A dirty connector can cause an electric shock or fire.

z

Do not set a glass of water, chemicals or any small metal objects
on the monitor.

This may cause damage, electric shock or a fire.

z

If a foreign substance gets into the monitor, disconnect the plug

z

and then contact a service center.

Other

Do not remove cover(or back). No user serviceable parts inside.

This may cause an electric shock or a fire.

z

Refer servicing to qualified service personnel.

z

If your monitor does not operate normally - in particular, if there are
any unusual sounds or smells coming from it - unplug it
immediately and contact an authorized dealer or service.

This may cause an electric shock or a fire.

z

Do not place any heavy objects on the monitor.

This may cause an electric shock or a fire.

z

For each hour of looking at the monitor, you should let your eyes
rest for 5 minutes.

This will reduce eye fatigue.

z

Do not use or store inflammable substances near the monitor.

This may cause an explosion or fire.

z

Do not try to move the monitor by pulling on the wire or the signal
cable.

This may cause a breakdown, electric shock or a fire due to

z

damage to the cable.

Do not move the monitor right or left by pulling only the wire or the
signal cable.

This may cause a breakdown, electric shock or a fire due to

z

damage to the cable.

Never insert anything metallic into the monitor openings.

This may cause an electric shock, fire or injury.

z

Other

Keep the monitor away from any magnetic substances.

This may cause discoloring or distortion of the image.

z

Unpacking

Monitor and Stand

(Some models include a stand attached. )

Please make sure the following items are included

with your monitor. If any items are missing,

contact your dealer.

Power Cord

Stand

Quick Setup Guide

Warranty Card

(Not available in all locations)

For Multimedia model

Multimedia Speaker Stand

User's Guide and

Driver Installation CD

Sound Cables(2each)

DC Power Cord (Option)

User Guide

Front

1. Menu button

2. Adjust buttons

3. Enter button

4. Power button

5. Power indicator

See PowerSaver described in the manual for further information regarding power saving

Note:

functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.

Opens the OSD menu. Also used to exit the OSD menu or return to the
previous menu.

These buttons allow you to highlight and adjust items in the menu.

Used to select the OSD menu.

Use this button to turn the monitor on and off.

This light glows green during normal operation, and blinks green once as
the monitor saves your adjustments.

Rear

General

SyncMaster 591S/793S/793DF/795DF

/797DF/997DF/793MB/795MB

(The configuration at the back of the monitor may vary from product to product.)

1. Power port

2. Signal Cable

BNC Connectors (Option)

Connect the power cord for your monitor to the power port on the back of
the monitor.

Connect the signal cable to the video port on your computer, video board,
video card, or graphics card.

SyncMaster 997DF

(The configuration at the back of the monitor may vary from product to product.)

1. Power port

2. Signal port

3. BNC Connectors
(Option)

Note:

See Connecting Your Monitor for further information regarding cable connections.

Connect the power cord for your monitor to the power port on the back of
the monitor.

Connect the signal cable to the 15-pin D-sub connector on the back of
your monitor.

Connect the signal cable to the BNC signal port on the back of your
monitor.

Bottom

1. Signal Cable

2. Power port

3. Tilt/Swivel Base

Connect the signal cable to the video port on your computer, video board,
video card, or graphics card.

Connect the power cord for your monitor to the power port on the back of
the monitor.

You can separate the base from the monitor.

Connecting Your Monitor

SyncMaster 591S/793S/793DF/795DF

General

1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.

2. Connect the signal cable to the video port on your computer, video board, video card, or
graphics card.

3. If you are using a Macintosh computer, connect the cable to a Macintosh adapter, and set the
pins on your adapter(Adapter not included). A PC-compatible computer does not need an
adapter.

4. Turn on your computer and monitor. If your monitor displays an image, installation is complete.

/797DF/997DF/793MB/795MB

BNC Connectors (Option)

SyncMaster 997DF

1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.

2. Connect the end of the signal cable to your computer's video port(video board, video card or
graphics card).

3. If you are using a Macintosh computer, connect the cable to a Macintosh adapter, and set the

Connecting Your Monitor

pins on your adapter(Adapter not included). A PC-compatible computer does not need an
adapter.

4. When you use a BNC connector.
Connect the signal cable to the BNC signal port on the back of your monitor/computer.

5. Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Opstilling-For multimedia-model

1. Sluk for computeren og fjern strømkablet.

2. Tilslut signalkablet til din computers videoport (videoboard, videokort eller grafikkort).

3. Tilslut den ene ende af et lydkabel til stereo output jacket på lydkort eller computer. Tilslut den
anden ende af kablet til stereo input jacket bag på monitorens fod.
Tilslut den ene ende af det andet lydkabel til linie output jacket på lydkort eller computer. Tilslut
den anden af kablet til Mic By-Pass jacket bag på monitorens fod.

4. Tilslut DC strømkablet (jævnstrøm) fra fodstykket til den nærmeste stikkontakt.

5. Tilslut monitorens strømkabel til strømporten bag på monitoren.

6. Tilslut monitorens strømkabel og computerens strømkabel til et stik i nærheden.

7. Tænd for computer og monitor.

8. Drej op eller ned på ON-OFF knappen på monitorens fod, indtil den klikker.

9. Start et lydprogram, musik eller lydeffekt på din computer og juster lydstyrken ved at skrue op
eller ned til den ønskede lydstyrke.

10. Juster diskant og bas.

BEMÆRK:

Lydforvrængning kan forekomme, hvis monitoren er placeret oven på et stort set hult
kabinet, som f.eks. din computer. Hvis det sker, kan du anbringe en skriveblok eller et
blad under monitorens fod. Høj lydstyrke kan også resultere i forvrængning af lyden; skru
ned for lyden.

Connecting Your Monitor

Fodstykke for Multimedia højttaler

1.

2.

3.

4.

5.

6.

7.

8.

9.

Mic by-pass jack

For transmission af din stemme, tilslut et lydkabel fra
mic by-pass jack til mic in jack på lydkortets slot i din
computer.

Stereo input jack

Tilslut et lydkabel fra input kilden (lydkort, computer,
CD-ROM drev).

DC strømkabel

Tilsluttes til monitorens DC 12V output jack.

Strømindikator

Lyser grøn, når der er tændt for højttalerne.

On/Off lydstyrke

Tænder/slukker og justerer lydstyrken

Diskant kontrolknap

Bruges til kontrol af høje frekvenser.

Bas kontrol knap

Bruges til kontrol af lave frekvenser.

Mic input jack

For transmission af din stemme, tilslut en mikrofon til
dette jack.

Jack til øretelefoner

Øretelefoner kan tilsluttes her.

10.

Aftagelig overdel til fodstykke.

Installing the Monitor Driver

Automatic

Manual

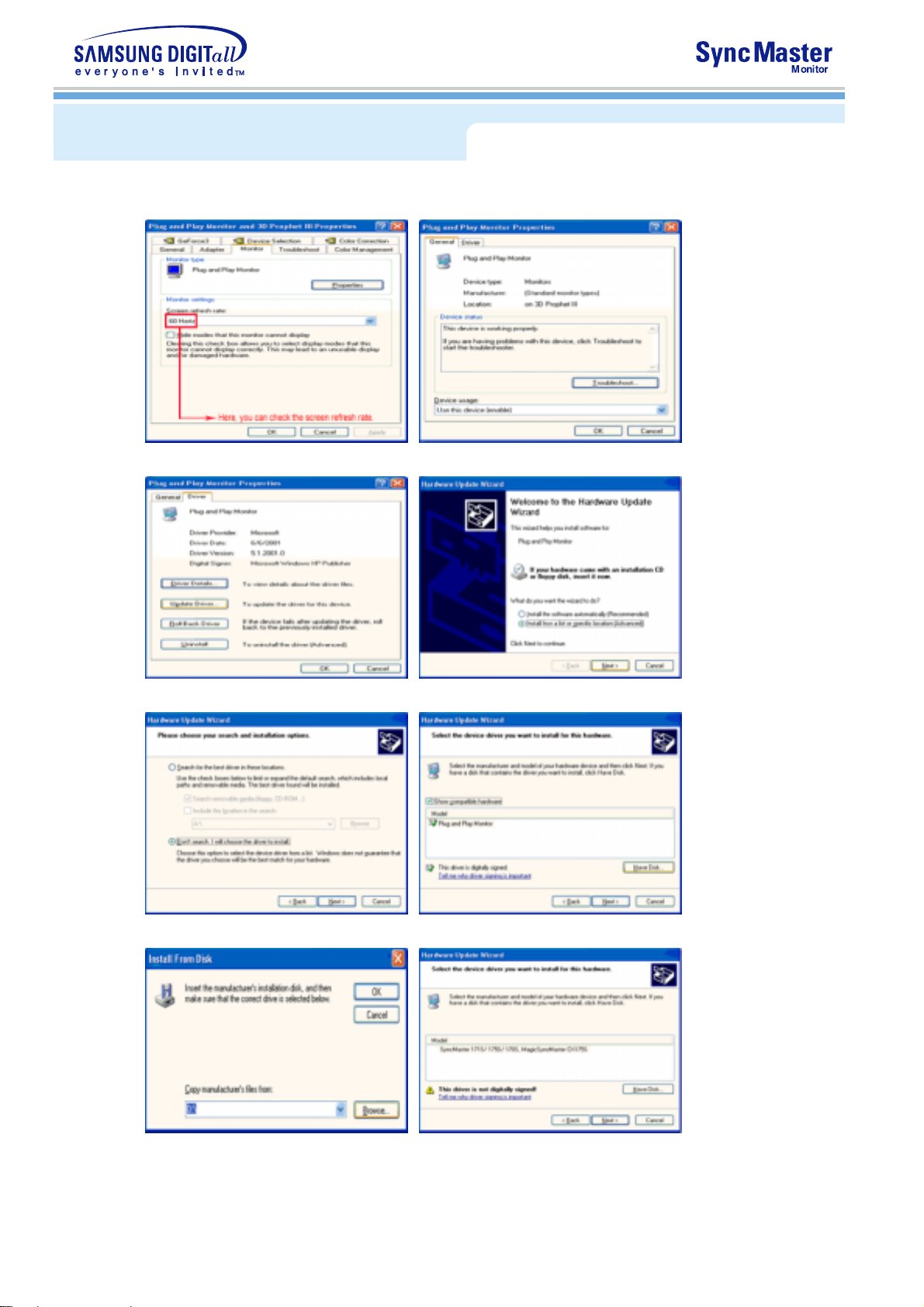

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.

Prepare a blank disk and download the driver program file at the Internet web site shown
here.

z Internet web site : http://www.samsung-monitor.com/ (WorldWide)

http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)

1. Insert CD into the CD-ROM driver.

2. Click "Windows XP/2000 Driver".

3. Choose your monitor model in the model list, then click the "OK" button.

4. Click the "

5. If you can see following
Then click

* This monitor driver is under certifying MS logo,and this installation don't damage your
system.The certified driver will be posted on Samsung Monitor Homepage

http://www.samsung-monitor.com/.

6. Monitor driver installation is completed.

" button in the "

Install

button.

"OK"

Warning

"Message"

" window.

window, then click the

"Continue Anyway"

button.

Installing the Monitor Driver

Automatic

Manual

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.

Prepare a blank disk and download the driver program file at the Internet web site shown
here.

z

Internet web site : http://www.samsung-monitor.com/ (WorldWide)

http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.

3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".

4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

Installing the Monitor Driver

5. Click "

Update Driver..

" and select "

Install from a list or..

" then click "

Next

" button.

6. Select "

7. Click the "
model list and click the "

Don't search ,I will..

Browse

" then click "

" button then choose A:(D:\Driver) and choose your monitor model in the

" button.

Next

" and then click "

Next

Have disk

".

8. If you can see following "
click "OK" button.

Message

" window, then click the "

Continue Anyway

" button. Then

Installing the Monitor Driver

This monitor driver is under certifying MS logo,and this installation don't damage your
system.The certified driver will be posted on Samsung Monitor Homepage

http://www.samsung-monitor.com/.

9. Click the "

" button then click "OK" button continually.

Close

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "

2. Click the "

3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

Browse

" button on the "

Insert disk

File Needed

" window.

" window.

Installing the Monitor Driver

How to install

1. Click "

2. Double click the "

3. Choose the "

4. Choose "
Case1: If the "Properties" button is inactive, it means your monitor is properly configured.

Case2: If the "Properties" button is active, click the "Properties" button then follow next

5. Click "

6. Choose "

specific driver

7. Click the "

8. Click the "

9. Choose your monitor model and click the "

10. Click the "
If you can see the "

And click the "

Microsoft® Windows® NT Operating System

1. Click

2. In Display Registration Information window, click Settings Tab and then click

Modes

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)
and then click OK.

4. Click
is not normal, change to a different mode (lower mode of resolution, colors or frequency).

Note

frequency by referring to the Preset Display Modes in the user guide.

" , "

Start

Driver

Start, Settings, Control Panel

Apply

: If there is no Mode at

Setting

Settings

Monitor

Please stop installation
steps continually.

" and then click on "

Display a list of the known drivers for this device so that I can choose a

Browse
Open

Finish

Finish

.

button if you see the screen working normally after clicking Test. If the screen

" , "

Control Panel

Display

".

" then click "

" button, then click "OK" button.

" button then the "

" Icon.

" tab and then click "

Update Driver..

" and then click "

" button then choose A:(D:\Driver).

Digital Signature Not Found

Next

" button then the "

All Display Modes

".

Advanced..

Next

" button.

Close

" button.

Close

, and then double-click

".

" then click on the "Next" button.

Have disk

" button then click "

" window then click the "

, select the level of resolution and vertical

".

Display

Next

" button.

Yes

icon.

"button.

All Display

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting
file.

1. Press Enter at the first and the second screen after executing the X86Config file.

2. The third screen is for

3. Set a mouse for your computer.

4. The next screen is for

5. Set a Keyboard for your computer.

6. The next screen is for

7. First of all, set a
directly.)

8. Set a

9. Enter the

10. You have

vertical frequency

execution of X-Window.

Execute

model name of your monitor

finished

X-Window after setting other requested hardware.

setting your mouse
selecting a keyboard
setting your monitor

horizont al frequency

for your monitor. (You can enter the frequency directly.)

setting up your monitor.

.

.

.

for your monitor. (You can enter the frequency

. This information will not affect the actual

Base Installation

With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable
viewing angle.

The base is detachable.

Note:

Attaching the Base

1. Place the monitor upside-down on a flat work surface.

2. Align the tabs on the base with the corresponding slots on the bottom of the monitor.

3. Press the base onto the monitor until the tabs are fully engaged in the slots.

4. Push the base toward the front of the monitor until the release latch clicks into the locked
position.
* Do not bend the snap.

Removing the Base

5. Squeeze and pull up on the release latch on the base.

6. Push the base toward the back of the monitor and lift up to remove the base.

Note: The base will align with the monitor slots in only one position.

y

Check List

Note

Before calling for servi ce, check the informati on in this section to see if you can remedy
any problems yourself. If you do need assis tance, please call t he phone number on the
warranty card, the phone number on the Information section or contact your deal er.

Symptom Check List Solutions

No images on the screen. I
cannot turn on the monitor.

Is the power cord connected
properly?

Can you see " " on

the screen?

If the power is on, reboot the
computer to see the initial
screen(the login screen),
which can be seen.

Check the power cord connection and
supply.

Check the signal cable connection.

If the initial screen (the login screen)
appears, boot the computer in
the applicable mode (the safe mode
for Windows XP/2000)
and then change the frequency of the
video card.
(Refer to the Preset Display Modes)

Note: If the initial screen (the login
screen) does not appear, contact a
service center or your dealer.

I cannot see the On Screen
Display.

Can you see " " on the
screen?

There is no image on the
screen. Is the power indicator
on the monitor blinking at 1
second intervals?

Have you locked the On
Screen Display (OSD)
Menu to prevent changes?

You can see this message when the
signal from the video card exceeds the
maximum resolution and frequency
that the monitor can properly handle.

Adjust the maximum resolution and
frequency that the monitor can
properly handle.

The monitor is in PowerSaver mode.
Press a key on the keyboard or move

the mouse to activate the monitor and
restore the image on the screen.

Unlock the OSD by pressing the
MENU button for at least 10 seconds.

Check List

Symptom Check List Solutions

The image on the screen is
shaking.

The screen shows strange
colors or just black and
white.

Check the monitor
configuration to see if it is in
Interlace Mode. (Interlace
Mode: Vertical frequency
43Hz, 87Hz(i), etc)

Are there any magnetic
products such as a power
adapter, speaker or a high
voltage wire near by?

Is the voltage stable? The screen image can appear to shake

The screen image can also appear to shake or vibrat e if there i s a
problem with the video card or the computer's main board.

Is the screen displaying only
one color as if looking at the
screen through a cellophane
paper?

Have the screen colors
become strange after
running a program or due to a
crash between applications?

The signal from the video card
exceeds the maximum resolution and
frequency of the monitor.

Move the monitor away from anything
that can create a strong magnetic field.

or vibrate at a particular time of day
due to low supply voltage.

Check the signal cable connection.
Make sure the video card is fully

inserted in it's slot.
Reboot the computer.

The screen suddenly has
become unbalanced.

Has the video card been set
properly?

Have you changed the video
card or the driver?

Have you adjusted the
resolution or frequency to the
monitor?

The screen can be unbalanced due to the cycle of the video card
signals. Readjust Position by referring to the OSD.

Set the video card by referring to the
video card manual.

Adjust screen image position and size
using the OSD.

Adjust the resolution and frequenc y at
the video card.
(Refer to the Preset Display Modes).

Check List

Symptom Check List Solutions

The screen is out of focus
or OSD cannot be adjusted.

The screen is partially
distorted.

LED is blinking but no
images on the screen.

There are only 16 colors
shown on the screen. The
screen colors have
changed after changing the
video card.

Have you adjusted the
resolution or frequency on
the monitor?

Are there any magnetic
products such as an ada pter,
speaker or a high voltage
wire near the monitor?

Is the frequency properly
adjusted when checking the
Display Timing on the menu?

Have the Windows colors
been set properly?

Has the video card been set
properly?

Adjust the resolution and frequenc y of
the video card.
(Refer to the Preset Display Modes).

Enter the OSD and perform a
"Degauss".

Keep the monitor away from any
magnetic products.

Adjust the frequency properly by
referring to the video car d manual and
the Preset Display Modes.

(The maximum frequency per
resolution may differ from product to
product.)

For Windows XP/ 2000:
Set the colors properly at the Control
Panel, Display, Settings.

Set the video card by referring to the
video card manual.

Check the following items if there is trouble with the monitor.

1. Check if the power cord and the cable are properly connected to the computer.

2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)

3. If you installed a new video card or if you assembled the PC, check if the installed the adapter
(video) driver and the monitor driver.

4. Check if the scanning ratio of the video screen is set at 75Hz or 85Hz.
(Do not exceed 60Hz when using the maximum resolution.)

5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "
reboot the computer to reinstall the adapter (video) driver.

If problems repeatedly occur, contact an authorized service center.

Note:

Control Panel, System, Device Administrator

" and then

Q & A

Question Answer

How can I change the frequency? Frequency can be changed by reconfiguring the video

How can I adjust the resolution? Windows XP/2000: Set the resolution at the Control

How can I set the Power Saving
function?

The monitor makes a sound when it
is turned on.

How can I clean the outer
case/Picture tube?

card.
Note that video card support can vary, depending on the

version of the driver used.
(Refer to the computer or the video card manual for
details.)

Panel, Display, Settings.
* Contact the video card manufacturer for details.

Windows XP/2000: Set the function at BIOS -SETUP
of the computer or the screen saver. (Refer to
Windows/Computer Manual).

This is normal as some sound may be generated when
the metal case and the electromagnet, which are installed
to block any electromagnetic waves, interact with each
other.

Disconnect the power cord and then clean the monitor
with a soft cloth, using either a cleaning solution or plain
water.

Do not leave any remains of the detergent nor scratch the
case. Do not allow any water to go inside the monitor.

Self-Test Feature Check

Your monitor provides a self test feature that allows you to check whether your monitor is

SyncMaster 591S/793S/793DF/795DF/797DF/793MB/795MB

functioning properly.

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.
If your monitor works normally, the following screen appears.

SyncMaster 591S/793DF/795DF

Failure of any of the boxes to appear indicates a problem with your monitor. This box
also appears during normal operation if the video cable becomes disconnected or
damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.

If your monitor screen remains blank after using the previous procedure, check your
video controller and computer system; your monitor is functioning properly.

If there is something wrong with the input signal, a message appears on the screen or
the screen goes blank although the power indicator LED is still on. The message may
indicate that the monitor is out of scan range or that you need to check the signal cable.

SyncMaster 591S/793DF/795DF

SyncMaster 997DF

SyncMaster 997DF

The location and the position of the monitor may influence the quality and other
features of the monitor.

1. If there are any woofer speakers near the monitor, unplug and relocate the woofer to another
room.

2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3
feet (one meter) of the monitor.

3. Run the despeckling function again after moving your device.

Self-Test Feature Check

l

A monitor recreates visual signals received from the PC. Therefore, if there is trouble with the
PC or the video card, this can cause the monitor to become blank, have poor coloring, noise,
Sync. Out of Range, etc. In this case, first check the source of the problem, and then contact
a service center or your dealer.

l

Judging the monitor's working condition
If there is no image on the screen or an "Sync. Out of Range" message comes up, disconnect
the cable from the computer while the monitor is still powered on.

¡

If there is a message coming up on the screen or if the screen goes white, this means
the monitor is in working condition.

¡

In this case, check the computer for trouble.

General

PowerSaver
Preset Timing

Modes

General

Model Name SyncMaster 797DF

Picture Tube

Type 17"(43cm) DynaFlat (40.6cm viewable)
Deflection angle 90 °
Dot Pitch 0.20mm (Horizontal)
Screen type Aluminized tri-color phosphor dot trio with black matrix.

Anti-doming invar shadow mask.
Multi-layer coated with anti-static.

Maximum Resolution

1600 x 1200@76Hz

Active Display

Horizontal 312 ± 4 mm
Vertical 234 ± 4 mm

Synchronization

Horizontal 30 ~ 96 kHz
Vertical 50 ~ 160 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vpp positive at 75 ohms
Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

250 MHz

Power Supply

90 ~ 264VAC rms, 60/50 Hz ± 3Hz

Power Consumption

Less than 90W

Dimensions (WxDxH)

401 x 410 x 378mm (After installation of Stand)

Weight

14.3kg

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)
Humidity 10% ~ 80%, non-condensing
Storage Temperature -4°F ~113°F (-20°C ~ 45°C)
Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Note: Design and specifications are subject to change without prior notice.

General

PowerSaver

Preset Timing
Modes

This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a certain
amount of time. The monitor automatically returns to normal operation when you move the
computer's mouse or press a key on the keyboard. For energy conservation, turn your monitor OFF
when it is not needed, or when leaving it unattended for long periods. The PowerSaver system
operates with a VESA DPMS compliant video card installed in your computer. Use a software utility
installed on your computer to set up this feature.

State Normal Operation

Power-off Mode EPA/ENERGY

2000

Power Indicator Green Green, Blinking

Power Consumption Less than 90W Less than 2.0W

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when
used with a computer equipped with VESA DPMS functionality.

As an E

NERGY STAR

the E

NERGY STAR

®

Partner, SAMSUNG has determined that this product meets

®

guidelines for energy efficiency.

General

Modes

The time to scan one line connecting the right edge to the left edge of the

PowerSaver

Preset Timing

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

Frequency

(kHz)

VESA, 640 x 480 37.500 75.000 31.500 -/-

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

VESA, 1024 x 768 68.677 84.997 94.500 +/+
VESA, 1280 x 1024 91.146 85.024 157.50 +/+

Horizontal Frequency

screen horizontally is called Horizontal Cycle and the inverse number of
the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called Vertical Frequency or Refresh Rate. Unit: Hz

(H/V)

General

PowerSaver
Preset Timing

Modes

General

Model Name SyncMaster 795DF/795MB

Picture Tube

Type 17"(43cm) DynaFlat (40.6cm viewable)
Deflection angle 90 °
Dot Pitch 0.20mm (Horizontal)
Screen type Aluminized tri-color phosphor dot trio with black matrix.

Anti-doming invar shadow mask.
Multi-layer coated with anti-static.

Maximum Resolution

1600 x 1200 (NI)

Active Display

Horizontal 312 ± 4 mm
Vertical 234 ± 4 mm

Synchronization

Horizontal 30 ~ 85 kHz
Vertical 50 ~ 160 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vpp positive at 75 ohms
Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

185 MHz

Power Supply

90 ~ 264VAC rms, 60/50 Hz ± 3Hz

Power Consumption

Less than 90W

Dimensions (WxDxH)

401 x 410 x 378mm (After installation of Stand)

Weight

14.3kg

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)
Humidity 10% ~ 80%, non-condensing
Storage Temperature -4°F ~113°F (-20°C ~ 45°C)
Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Note: Design and specifications are subject to change without prior notice.

General

PowerSaver

Preset Timing
Modes

This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a certain
amount of time. The monitor automatically returns to normal operation when you move the
computer's mouse or press a key on the keyboard. For energy conservation, turn your monitor OFF
when it is not needed, or when leaving it unattended for long periods. The PowerSaver system
operates with a VESA DPMS compliant video card installed in your computer. Use a software utility
installed on your computer to set up this feature.

State Normal Operation

Power-off Mode EPA/ENERGY

2000

Power Indicator Green Green, Blinking

Power Consumption Less than 90W Less than 2.0W

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when
used with a computer equipped with VESA DPMS functionality.

As an E

NERGY STAR

the E

NERGY STAR

®

Partner, SAMSUNG has determined that this product meets

®

guidelines for energy efficiency.

General

Modes

The time to scan one line connecting the right edge to the left edge of the

PowerSaver

Preset Timing

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

Frequency

(kHz)

VESA, 640 x 480 37.500 75.000 31.500 -/-

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

VESA, 1024 x 768 68.677 84.997 94.500 +/+
VESA, 1280 x 1024 79.976 75.025 135.00 +/+

Horizontal Frequency

screen horizontally is called Horizontal Cycle and the inverse number of
the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called Vertical Frequency or Refresh Rate. Unit: Hz

(H/V)

General

PowerSaver
Preset Timing

Modes

General

Model Name SyncMaster 793S

Picture Tube

Type 17"(43cm) Full square type (40.6cm viewable)
Deflection angle 90 °
Dot Pitch 0.23mm (Horizontal)
Screen type Aluminized tri-color phosphor dot trio with black matrix.

Anti-doming invar shadow mask.
Multi-layer coated with anti-static.

Maximum Resolution

1280 x 1024 (NI)

Active Display

Horizontal 312 ± 4 mm
Vertical 234 ± 4 mm

Synchronization

Horizontal 30 ~ 70 kHz
Vertical 50 ~ 160 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vpp positive at 75 ohms
Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

110 MHz

Power Supply

90 ~ 264VAC rms, 60/50 Hz ± 3Hz

Power Consumption

Less than 90W

Dimensions (WxDxH)

401 x 410 x 378mm (After installation of Stand)

Weight

14.3kg

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)
Humidity 10% ~ 80%, non-condensing
Storage Temperature -4°F ~113°F (-20°C ~ 45°C)
Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Note: Design and specifications are subject to change without prior notice.

General

PowerSaver

Preset Timing
Modes

This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a certain
amount of time. The monitor automatically returns to normal operation when you move the
computer's mouse or press a key on the keyboard. For energy conservation, turn your monitor OFF
when it is not needed, or when leaving it unattended for long periods. The PowerSaver system
operates with a VESA DPMS compliant video card installed in your computer. Use a software utility
installed on your computer to set up this feature.

State Normal Operation

Power-off Mode EPA/ENERGY

2000

Power Indicator Green Green, Blinking

Power Consumption Less than 90W Less than 2W

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when
used with a computer equipped with VESA DPMS functionality.

As an E

NERGY STAR

the E

NERGY STAR

®

Partner, SAMSUNG has determined that this product meets

®

guidelines for energy efficiency.

General

Modes

The time to scan one line connecting the right edge to the left edge of the

PowerSaver

Preset Timing

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

Frequency

(kHz)

VESA, 640 x 480 37.500 75.000 31.500 -/-

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

VESA, 800 x 600 53.674 85.061 56.250 +/+
VESA, 1024 x 768 68.677 84.997 94.500 +/+

Horizontal Frequency

screen horizontally is called Horizontal Cycle and the inverse number of
the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called Vertical Frequency or Refresh Rate. Unit: Hz

(H/V)

General

PowerSaver
Preset Timing

Modes

General

Model Name SyncMaster 793DF/793MB

Picture Tube

Type 17"(43cm) DynaFlat (40.6cm viewable)
Deflection angle 90 °
Dot Pitch 0.20mm (Horizontal)
Screen type Aluminized tri-color phosphor dot trio with black matrix.

Anti-doming invar shadow mask.
Multi-layer coated with anti-static.

Maximum Resolution

1280 x 1024 (NI)

Active Display

Horizontal 312 ± 4 mm
Vertical 234 ± 4 mm

Synchronization

Horizontal 30 ~ 70 kHz
Vertical 50 ~ 160 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vpp positive at 75 ohms
Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

110 MHz

Power Supply

90 ~ 264VAC rms, 60/50 Hz ± 3Hz

Power Consumption

Less than 90W

Dimensions (WxDxH)

401 x 410 x 378mm (After installation of Stand)

Weight

14.3kg

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)
Humidity 10% ~ 80%, non-condensing
Storage Temperature -4°F ~113°F (-20°C ~ 45°C)
Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Note: Design and specifications are subject to change without prior notice.

General

PowerSaver

Preset Timing
Modes

This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a certain
amount of time. The monitor automatically returns to normal operation when you move the
computer's mouse or press a key on the keyboard. For energy conservation, turn your monitor OFF
when it is not needed, or when leaving it unattended for long periods. The PowerSaver system
operates with a VESA DPMS compliant video card installed in your computer. Use a software utility
installed on your computer to set up this feature.

State Normal Operation

Power-off Mode EPA/ENERGY

2000

Power Indicator Green Green, Blinking

Power Consumption Less than 90W Less than 2.0W

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when
used with a computer equipped with VESA DPMS functionality.

As an E

NERGY STAR

the E

NERGY STAR

®

Partner, SAMSUNG has determined that this product meets

®

guidelines for energy efficiency.

General

Modes

The time to scan one line connecting the right edge to the left edge of the

PowerSaver

Preset Timing

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

Frequency

(kHz)

VESA, 640 x 480 37.500 75.000 31.500 -/-

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

VESA, 800 x 600 53.674 85.061 56.250 +/+
VESA, 1024 x 768 68.677 84.997 94.500 +/+

Horizontal Frequency

screen horizontally is called Horizontal Cycle and the inverse number of
the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called Vertical Frequency or Refresh Rate. Unit: Hz

(H/V)

General

PowerSaver
Preset Timing

Modes

General

Model Name SyncMaster 591S

Picture Tube

Type 15" (38cm) Full square type (35cm viewable)
Deflection angle 90 °
Dot Pitch 0.24mm (Horizontal)
Screen type Aluminized tri-color phosphor dot trio with black matrix.

Anti-doming invar shadow mask.
Multi-layer coated with anti-static/Glare.

Maximum Resolution

1024 x 768(NI)

Active Display

Horizontal 267 ± 4 mm
Vertical 200 ± 4 mm

Synchronization

Horizontal 30 - 55 kHz
Vertical 50 ~ 120 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vpp positive at 75 ohms
Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

65 MHz

Power Supply

90 ~ 264VAC rms, 60/50 Hz ± 3Hz

Power Consumption

Less than 70W

Dimensions (WxDxH)

361 x 379.2 x 347 mm (After installation of Stand)

Weight

11.0 kg

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)

Humidity 10% ~ 80%, non-condensing

Storage Temperature -4°F ~113°F (-20°C ~ 45°C)

Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Note: Design and specifications are subject to change without prior notice.

General

PowerSaver

Preset Timing
Modes

This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a certain
amount of time. The monitor automatically returns to normal operation when you move the
computer's mouse or press a key on the keyboard. For energy conservation, turn your monitor OFF
when it is not needed, or when leaving it unattended for long periods. The PowerSaver system
operates with a VESA DPMS compliant video card installed in your computer. Use a software utility
installed on your computer to set up this feature.

State Normal Operation

Power-off Mode EPA/ENERGY

2000

Power Indicator Green Green, Blinking

Power Consumption Less than 70W Less than 2.0W

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when
used with a computer equipped with VESA DPMS functionality.

As an E

NERGY STAR

the E

NERGY STAR

®

Partner, SAMSUNG has determined that this product meets

®

guidelines for energy efficiency.

General

Modes

The time to scan one line connecting the right edge to the left edge of the

PowerSaver

Preset Timing

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

Frequency

(kHz)

VESA, 640 x 480 37.500 85.008 36.000 -/-

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

VESA, 640 x 480 43.269 75.000 31.500 -/­VESA, 800 x 600 53.674 85.061 56.250 +/+

Horizontal Frequency

screen horizontally is called Horizontal Cycle and the inverse number of
the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called Vertical Frequency or Refresh Rate. Unit: Hz

(H/V)

General

PowerSaver
Preset Timing

Modes

General

Model Name SyncMaster 997DF

Picture Tube

Type 19"(48cm) DynaFlat (45.8cm viewable)
Deflection angle 90 °
Dot Pitch 0.20mm (Horizontal)
Screen type Aluminized tri-color phosphor dot trio with black matrix.

Anti-doming invar shadow mask.
Multi-layer coated with anti-static/Glare.

Maximum Resolution

1600 X 1200@ 76Hz

Active Display

Horizontal 352 ± 3 mm
Vertical 264 ± 3 mm

Synchronization

Horizontal 30 ~ 96 kHz
Vertical 50 ~ 160 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vpp positive at 75 ohms
Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

250 MHz

Power Supply

90 ~ 264VAC rms, 60/50 Hz ± 3Hz

Power Consumption

Less than 110W

Dimensions (WxDxH)

445 x 457,5 x 416mm (After installation of Stand)

Weight

18,2 kg

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)
Humidity 10% ~ 80%, non-condensing
Storage Temperature -4°F ~113°F (-20°C ~ 45°C)
Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Note: Design and specifications are subject to change without prior notice.

General

PowerSaver

Preset Timing
Modes

This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a certain
amount of time. The monitor automatically returns to normal operation when you move the
computer's mouse or press a key on the keyboard. For energy conservation, turn your monitor OFF
when it is not needed, or when leaving it unattended for long periods. The PowerSaver system
operates with a VESA DPMS compliant video card installed in your computer. Use a software utility
installed on your computer to set up this feature.

State Normal Operation

Power-off Mode EPA/ENERGY

2000

Power Indicator Green Green, Blinking

Power Consumption Less than 110W Less than 2W

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when
used with a computer equipped with VESA DPMS functionality.

As an E

NERGY STAR

the E

NERGY STAR

®

Partner, SAMSUNG has determined that this product meets

®

guidelines for energy efficiency.

General

Modes

The time to scan one line connecting the right edge to the left edge of the

PowerSaver

Preset Timing

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

Frequency

(kHz)

VESA, 640 x 480 37.500 75.000 31.500 -/-

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

VESA, 1024 x 768 68.677 84.997 94.500 +/+
VESA, 1280 x 1024 91.146 85.024 157.50 +/+

Horizontal Frequency

screen horizontally is called Horizontal Cycle and the inverse number of
the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called Vertical Frequency or Refresh Rate. Unit: Hz

(H/V)

Service

AUSTRALIA :
Samsung Electronics Australia Pty Ltd.
Customer Response Centre
7 Parkview Drive, Homebush Bay NSW 2127
Tel : [phone]

http://www.samsung.com.au/

BRAZIL :
Samsung Eletronica da Amazonia Ltda.
R. Prof. Manoelito de Ornellas, 303, Terro B
Chacara Sto. Antonio, CEP : 04719-040
Sao Paulo, SP
SAC : 0800 124 421

http://www.samsung.com.br/

CANADA :
Samsung Electronics Canada Inc.
Samsung Customer Care
7037 Financial Drive
Mississauga, Ontario
L5N 6R3
1-800-SAMSUNG (1-800-726-7864)

http://www.samsung.ca/

CHILE :
SONDA S.A.
Teatinos 550, Santiago Centro, Santiago, Chile
Fono: 56-2-5605000 Fax: [phone]
56-2-800200211

http://www.sonda.com/
http://www.samsung.cl/

COLOMBIA :
Samsung Electronics Colombia
Cra 9 No 99A-02 Of. 106
Bogota, Colombia
Tel.: [phone]
Fax: (571) 618 - 2068

http://www.samsung-latin.com/

e-mail : [e-mail]
ESPAÑA :

Samsung Electronics Comercial Iberica, S.A.
Ciencies, 55-65 (Poligono Pedrosa) 08908
Hospitalet de Llobregat (Barcelona)
Tel. : [phone]
Fax. : [phone]

http://samsung.es/

FRANCE :
SAMSUNG ELECTRONICS FRANCE Service
Paris Nord 2
66 rue des Vanesses
BP 50116 Villepinte
95950 Roissy CDG Cedex
Tel : [phone]
Fax : [phone]

http://www.samsungservices.com/

GERMANY :
TELEPLAN Rhein-Main GmbH
Feldstr. 16
64331 Weiterstadt
T. 06151/957-1306
F. 06151/957-1732
* EURO 0.12/Min

http://www.samsung.de/

HUNGARY :
Samsung Electronics Magyar Rt.

1039, Budapest, Lehel u. 15-17.
Tel: [phone]
Fax: [phone]

http://www.samsung.hu/

ITALY :
Samsung Electronics Italia S.p.a.
Via C. Donat Cattin, 5
20063 Cernusco s/Naviglio (MI)
Servizio Clienti: 199.153.153

http://www.samsung-italia.com/

MEXICO :
SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V.
Saturno NO.44, Col. Nueva Industrial Vallejo
Gustavo A.Madero C.P.07700, Mexico D.F. Mexico
TEL. [phone]
Fax. [phone]
RFC: SEM950215S98

http://www.samsung.com.mx/

NETHERLANDS/BELGIUM/LUXEMBOURG :
Samsung Electronics Benelux B. V.
Fleminglaan 12 2289 CP Rijiswijk, NEDERLANDS
Service and informatielijn ;
Belgium :0800-95214, http://www.samsung.be/
Netherlands : 0800-2295214, http://www.samsung.nl/

PANAMA :
Samsung Electronics Latinoamerica( Z.L.) S.A.
Calle 50 Edificio Plaza Credicorp, Planta Baja
Panama
Tel. : [phone]
Tel : [phone](FAST)

http://www.samsung-latin.com/

PERU
Servicio Integral Samsung
Av.Argentina 1790 Lima1. Peru
Tel: [phone]
Fax: [phone]

http://www.samsungperu.com/

PORTUGAL :
SAMSUNG ELECTRONICA PORTUGUESA S.A.

Rua Mário Dioniso, N
Tel. [phone] Fax. [phone]
Free Line 800 220 120

http://www.samsung.pt/

SOUTH AFRICA :
Samsung Electronics,5 Libertas Road, Somerset Office Park,
Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa
Tel : [phone]
Fax : [phone]

http://www.samsung.co.za/

SWEDEN/DENMARK/NORWAY/FINLAND :
Samsung Electronics AB
Box 713
S-194 27 UPPLANDS VÄSBY
SVERIGE
Besöksadress : Johanneslundsvägen 4
Samsung support Sverige: 020-46 46 46
Samsung support Danmark : 8088-4646
Samsung support Norge: 8001-1800
Samsung support Finland: 0800-118001
Tel [phone]
Fax [phone]

http://www.samsung.se/

THAILAND :
HAI SAMSUNG SERVICE CENTER
MPA COMPLEX BUILDING,1st-2nd Floor
175 SOI SUEKSA VIDHAYA SATHON SOI 12
SILOM ROAD ,SILOM,BANGRAK
BANGKOK 10500
TEL : [phone]
FAX : [phone]

o

2 - 1º Drt. 2795-140 LINDA-A-VELHA

Service

UKRAINE :
SAMSUNG ELECTRONICS REPRESENTATIVE OFFICE IN UKRAINE
4 Glybochitska str.
Kiev, Ukraine
Tel. [phone]
Fax [phone]
Toll-free 8-800-502-0000

http://www.samsung.com.ua/

United Kingdom :
Samsung Electronics (UK) Ltd.
Samsung House, 225 Hook Rise South
Surbiton, Surrey KT6 7LD
Tel. : [phone]
Fax. : [phone]
< European Service Center & National Service >
Stafford Park 12 Telford, Shropshire, TF3 3BJ
Tel. : [phone]
Fax. : [phone]

http://samsungservice.co.uk/

U.S.A. :
Samsung Electronics America
Service Division
400 Valley Road, Suite 201
Mount Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)

http://samsungusa.com

IMPORTADO POR: SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V.

Saturno NO.44, Col. Nueva Industrial Vallejo
Gustavo A.Madero C.P.07700, Mexico D.F. Mexico
TEL. [phone]

EXPORTADO POR: Samsung Electronics CO.,LTD.

416, Mae tan-3dong, Yeongtong-gu,
Suwon City, Kyoungki-Do Korea

Terms

Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the
higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'.
Unit: mm

Vertical Frequency

The screen must be redrawn several times per second in order to create and display an image
for the user. The frequency of this repetition per second is called Vertical Frequency or Refresh
Rate. Unit: Hz

Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz. In this

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is
called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal
Frequency. Unit: kHz

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom in order is called the Non­Interlace method while showing odd lines and then even lines in turn is called the Interlace
method. The Non-Interlace method is used for the majority of monitors to ensure a clear image.
The Interlace method is the same as that used in TVs.

Plug & Play

This is a function that provides the best quality screen for the user by allowing the computer and
the monitor to exchange information automatically. This monitor follows the international
standard VESA DDC for the Plug & Play function.

Resolution

The number of horizontal and vertical dots used to compose the screen image is called
'resolution'. This number shows the accuracy of the display. High resolution is good for
performing multiple tasks as more image information can be shown on the screen.

Example: If the resolution is 1024 X 768, this means the screen is composed of 1024

case, flickering of the screen can be detected. To avoid this problem, there is a
Flicker-free Mode using a vertical frequency over 70 Hz.

horizontal dots (horizontal resolution) and 768 vertical lines (vertical resolution).

Natural Color

Natural Color Software Program

One of the recent problems in using a computer is that the color of the images printed out by a
printer or other images scanned by a scanner or a digital camera are not the same as those
shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system
developed by Samsung Electronics in association with Korea Electronics &
Telecommunications Research Institute (ETRI). This system is available only for Samsung
monitors and makes the color of the images on the monitor the same as the printed or scanned
images.
For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial
screen of the program installation will be executed. Click Natural Color on the initial screen to
install the Natural Color software. To install the program manually, insert the CD included with
the Samsung monitor into the CD-ROM Drive, click the [Start] button of Windows and then
select [Execute].
Enter D:\color\eng\setup.exe and then press the key.
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select [Setting]/[Control Panel] on the [Start] menu and then double-click [Add/Delete a
program].
Select Natural Color from the list and then click the [Add/Delete] button.

_

Authority

Information in this document is subject to change without notice.
© 2004 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics
Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and
Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are

registered trademarks of Video Electronics Standard Association; the ENERGY STAR name and
logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an
ENERGY S TAR Partner, Samsung Electronics Co., Ltd. has determined that this product meets
the ENERGY S TAR guidelines for energy efficiency. All other product names mentioned herein
may be the trademarks or registered trademarks of their respective owners.
