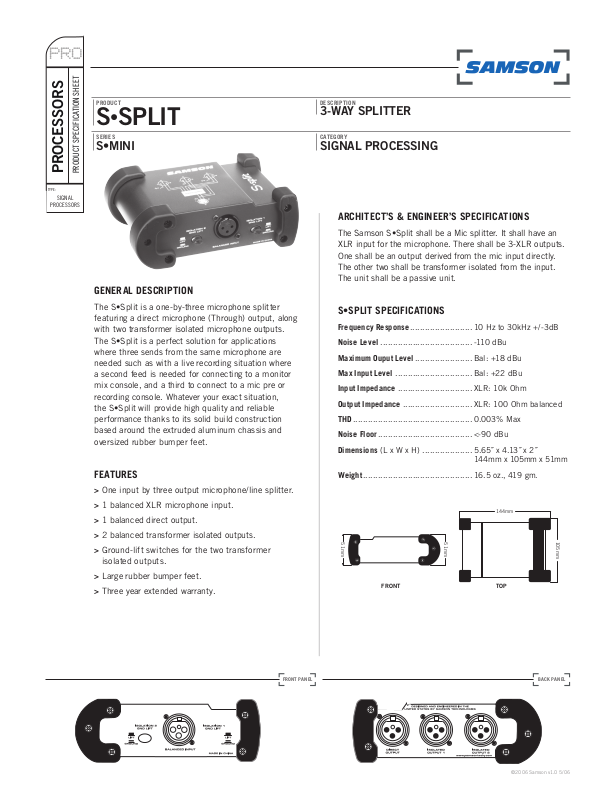

Samson S-Split Spec Sheet

Download

Page 1

PRO

144mm

105mm

51mm

TOPFRONT

PROCESSORS

TYPE:

SIGNAL

PROCESSO RS

PRODU CT DESCR IPTION

3-WAY SPLITTER

S•SPLIT

SERIE S

S•MINI SIGNAL PROCESSING

PRODUCT SPECIFICATION SHEET

GENERAL DESCRIPTION

The S•Split is a one-by-three microphone splitter featuring a direct microphone (Through) output, along with two transformer isolated microphone outputs. The S•Split is a perfect solution for applications where three sends from the same microphone are needed such as with a live recording situation where a second feed is needed for connecting to a monitor mix console, and a third to connect to a mic pre or recording console. Whatever your exact situation, the S•Split will provide high quality and reliable performance thanks to its solid build construction based around the extruded aluminum chassis and oversized rubber bumper feet.

FEATURES

> One input by three output microphone/line splitter.

> 1 balanced XLR microphone input.

> 1 balanced direct output.

> 2 balanced transformer isolated outputs.

> Ground-lift switches for the two transformer

isolated outputs.

> Large rubber bumper feet.

> Three year extended warranty.

CATEGO RY

ARCHITECT’S & ENGINEER’S SPECIFICATIONS

The Samson S•Split shall be a Mic splitter. It shall have an XLR input for the microphone. There shall be 3-XLR outputs. One shall be an output derived from the mic input directly. The other two shall be transformer isolated from the input. The unit shall be a passive unit.

S•SPLIT SPECIFICATIONS

Frequency Response ......................... 10 Hz to 30kHz +/-3dB

Noise Level ..................................... -110 dBu

Maximum Ouput Level ....................... Bal: +18 dBu

Max Input Level ............................... Bal: +22 dBu

Input Impedance .............................. XLR: 10k Ohm

Output Impedance ............................ XLR: 100 Ohm balanced

THD ................................................ 0.003% Max

Noise Floor ...................................... <-90 dBu

Dimensions (L x W x H) .................... 5.65˝ x 4.13˝ x 2˝

Weight ............................................ 16.5 oz., 419 gm.

144mm x 105mm x 51mm

FRONT PA NEL

BACK PAN EL
