Samson SAMDR1064, MDR 1064 User Manual
MDR Series Mixers
TEN CHANNEL MIXER
Safety Instructions/Consignes de sécurité/Sicherheitsvorkehrungen/Instrucciones de seguridad
ACHTUNG: Um die Gefahr eines Brandes oder Stromschlags zu verringern, soll-
ten Sie dieses Gerät weder Regen noch Feuchtigkeit aussetzen.Um die Gefahr
eines Stromschlags zu verringern, sollten Sie weder Deckel noch Rückwand des
Geräts entfernen. Im Innern befinden sich keine Teile, die vom Anwender
gewartet werden können. Überlassen Sie die Wartung qualifiziertem
Fachpersonal.Der Blitz mit Pfeilspitze im gleichseitigen Dreieck soll den Anwender
vor nichtisolierter “gefährlicher Spannung” im Geräteinnern warnen. Diese
Spannung kann so hoch sein, dass die Gefahr eines Stromschlags besteht. Das
Ausrufezeichen im gleichseitigen Dreieck soll den Anwender auf wichtige
Bedienungs- und Wartungsanleitungen aufmerksam machen, die im mitgelieferten
Informationsmaterial näher beschrieben werden.
Wichtige Sicherheitsvorkehrungen
1. Lesen Sie alle Anleitungen, bevor Sie das Gerät in Betrieb nehmen.
2. Bewahren Sie diese Anleitungen für den späteren Gebrauch gut auf.
3. Bitte treffen Sie alle beschriebenen Sicherheitsvorkehrungen.
4. Befolgen Sie die Anleitungen des Herstellers.
5. Benutzen Sie das Gerät nicht in der Nähe von Wasser oder Feuchtigkeit.
6. Verwenden Sie zur Reinigung des Geräts nur ein feuchtes Tuch.
7. Blockieren Sie keine Belüftungsöffnungen. Nehmen Sie den Einbau des
Geräts nur entsprechend den Anweisungen des Herstellers vor.
8. Bauen Sie das Gerät nicht in der Nähe von Wärmequellen wie Heizkörpern,
Wärmeklappen, Öfen oder anderen Geräten (inklusive Verstärkern) ein, die
Hitze erzeugen.
9. Setzen Sie die Sicherheitsfunktion des polarisierten oder geerdeten Steckers
nicht außer Kraft. Ein polarisierter Stecker hat zwei flache, unterschiedlich breite Pole. Ein geerdeter Stecker hat zwei flache Pole und einen dritten
Erdungsstift. Der breitere Pol oder der dritte Stift dient Ihrer Sicherheit. Wenn
der vorhandene Stecker nicht in Ihre Steckdose passt, lassen Sie die veraltete
Steckdose von einem Elektriker ersetzen.
10. Schützen Sie das Netzkabel dahingehend, dass niemand darüber laufen und
es nicht geknickt werden kann. Achten Sie hierbei besonders auf Netzstecker,
Mehrfachsteckdosen und den Kabelanschluss am Gerät.
11. Ziehen Sie den Netzstecker des Geräts bei Gewittern oder längeren
Betriebspausen aus der Steckdose.
12. Überlassen Sie die Wartung qualifiziertem Fachpersonal. Eine Wartung ist
notwendig, wenn das Gerät auf irgendeine Weise, beispielsweise am Kabel
oder Netzstecker beschädigt wurde, oder wenn Flüssigkeiten oder Objekte in
das Gerät gelangt sind, es Regen oder Feuchtigkeit ausgesetzt war, nicht
mehr wie gewohnt betrieben werden kann oder fallen gelassen wurde.
WARNING: To reduce the risk of fire or electric shock, do not expose this unit to
rain or moisture. To reduce the hazard of electrical shock, do not remove cover or
back. No user serviceable parts inside. Please refer all servicing to qualified personnel.The lightning flash with an arrowhead symbol within an equilateral triangle,
is intended to alert the user to the presence of uninsulated "dangerous voltage"
within the products enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
Important Safety Instructions
1. Please read all instructions before operating the unit.
2. Keep these instructions for future reference.
3. Please heed all safety warnings.
4. Follow manufacturers instructions.
5. Do not use this unit near water or moisture.
6. Clean only with a damp cloth.
7. Do not block any of the ventilation openings. Install in accordance with the
manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or third
prong is provided for your safety. When the provided plug does not fit your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on and pinched particularly at
plugs, convenience receptacles and at the point at which they exit from the
unit.
11. Unplug this unit during lightning storms or when unused for long periods of
time.
12. Refer all servicing to qualified personnel. Servicing is required when the unit
has been damaged in any way, such as power supply cord or plug damage, or
if liquid has been spilled or objects have fallen into the unit, the unit has been
exposed to rain or moisture, does not operate normally, or has been dropped.
PRECAUCION: Para reducir el riesgo de incendios o descargas, no permita que
este aparato quede expuesto a la lluvia o la humedad. Para reducir el riesgo de
descarga eléctrica, nunca quite la tapa ni el chasis. Dentro del aparato no hay
piezas susceptibles de ser reparadas por el usuario. Dirija cualquier reparación al
servicio técnico oficial. El símbolo del relámpago dentro del triángulo equilátero
pretende advertir al usuario de la presencia de “voltajes peligrosos” no aislados
dentro de la carcasa del producto, que pueden ser de la magnitud suficiente como
para constituir un riesgo de descarga eléctrica a las personas. El símbolo de exclamación dentro del triángulo equilátero quiere advertirle de la existencia de importantes instrucciones de manejo y mantenimiento (reparaciones) en los documentos
que se adjuntan con este aparato.
Instrucciones importantes de seguridad
1. Lea todo este manual de instrucciones antes de comenzar a usar la unidad.
2. Conserve estas instrucciones para cualquier consulta en el futuro.
3. Cumpla con todo lo indicado en las precauciones de seguridad.
4. Observe y siga todas las instrucciones del fabricante.
5. Nunca utilice este aparato cerca del agua o en lugares húmedos.
6. Limpie este aparato solo con un trapo suave y ligeramente humedecido.
7. No bloquee ninguna de las aberturas de ventilación. Instale este aparato de
acuerdo a las instrucciones del fabricante.
8. No instale este aparato cerca de fuentes de calor como radiadores, calentadores, hornos u otros aparatos (incluyendo amplificadores) que produzcan
calor.
9. No anule el sistema de seguridad del enchufe de tipo polarizado o con toma
de tierra. Un enchufe polarizado tiene dos bornes, uno más ancho que el
otro. Uno con toma de tierra tiene dos bornes normales y un tercero para la
conexión a tierra. El borne ancho o el tercero se incluyen como medida de
seguridad. Cuando el enchufe no encaje en su salida de corriente, llame a un
electricista para que le cambie su salida anticuada.
10. Evite que el cable de corriente quede en una posición en la que pueda ser
pisado o aplastado, especialmente en los enchufes, receptáculos y en el
punto en el que salen de la unidad.
11. Desconecte de la corriente este aparato durante las tormentas eléctricas o
cuando no lo vaya a usar durante un periodo de tiempo largo.
12. Dirija cualquier posible reparación solo al servicio técnico oficial. Deberá
hacer que su aparato sea reparado cuando esté dañado de alguna forma,
como si el cable de corriente o el enchufe están dañados, o si se han derramado líquidos o se ha introducido algún objeto dentro de la unidad, si esta ha
quedado expuesta a la lluvia o la humedad, si no funciona normalmente o si
ha caído al suelo.
ATTENTION: Pour éviter tout risque d’électrocution ou d’incendie, ne pas
exposer cet appareil à la pluie ou à l’humidité. Pour éviter tout risque d’électrocution, ne pas ôter le couvercle ou le dos du boîtier. Cet appareil ne contient aucune
pièce remplaçable par l'utilisateur. Confiez toutes les réparations à un personnel qualifié. Le signe avec un éclair dans un triangle prévient l’utilisateur de la
présence d’une tension dangereuse et non isolée dans l’appareil. Cette tension
constitue un risque d’électrocution. Le signe avec un point d’exclamation dans
un triangle prévient l’utilisateur d’instructions importantes relatives à l’utilisation
et à la maintenance du produit.
Consignes de sécurité importantes
1. Veuillez lire toutes les instructions avant d’utiliser l’appareil.
2. Conserver ces instructions pour toute lecture ultérieure.
3. Lisez avec attention toutes les consignes de sécurité.
4. Suivez les instructions du fabricant.
5. Ne pas utiliser cet appareil près d’une source liquide ou dans un lieu
humide.
6. Nettoyez l’appareil uniquement avec un tissu humide.
7. Veillez à ne pas obstruer les fentes prévues pour la ventilation de l’appareil.
Installez l’appareil selon les instructions du fabricant.
8. Ne pas installer près d’une source de chaleur (radiateurs, etc.) ou de tout
équipement susceptible de générer de la chaleur (amplificateurs de puissance par exemple).
9. Ne pas retirer la terre du cordon secteur ou de la prise murale. Les fiches
canadiennes avec polarisation (avec une lame plus large) ne doivent pas
être modifiées. Si votre prise murale ne correspond pas au modèle fourni,
consultez votre électricien.
10. Protégez le cordon secteur contre tous les dommages possibles (pincement, tension, torsion,, etc.). Veillez à ce que le cordon secteur soit libre,
en particulier à sa sortie du boîtier.
11. Déconnectez l’appareil du secteur en présence d’orage ou lors de périodes
d’inutilisation prolongées.
12. Consultez un service de réparation qualifié pour tout dysfonctionnement
(dommage sur le cordon secteur, baisse de performances, exposition à la
pluie, projection liquide dans l’appareil, introduction d’un objet dans le boîtier, etc.).
Table of Contents
Introduction 2
MDR1064 Features 3
Front and Rear Panel Layout 4
Front and Rear Panel Controls 5
Controls and Functions
Mono/Stereo Input Channel Section 6–7

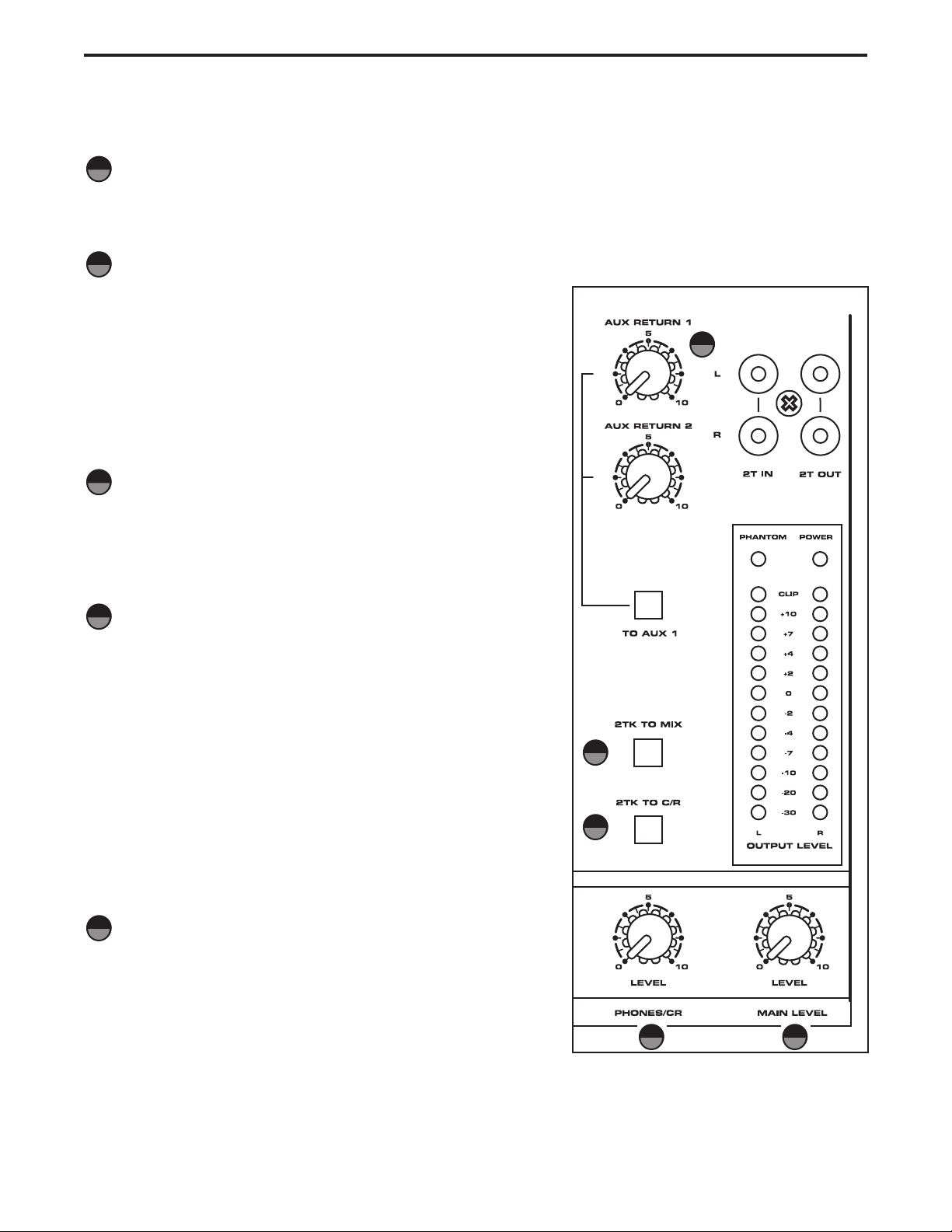

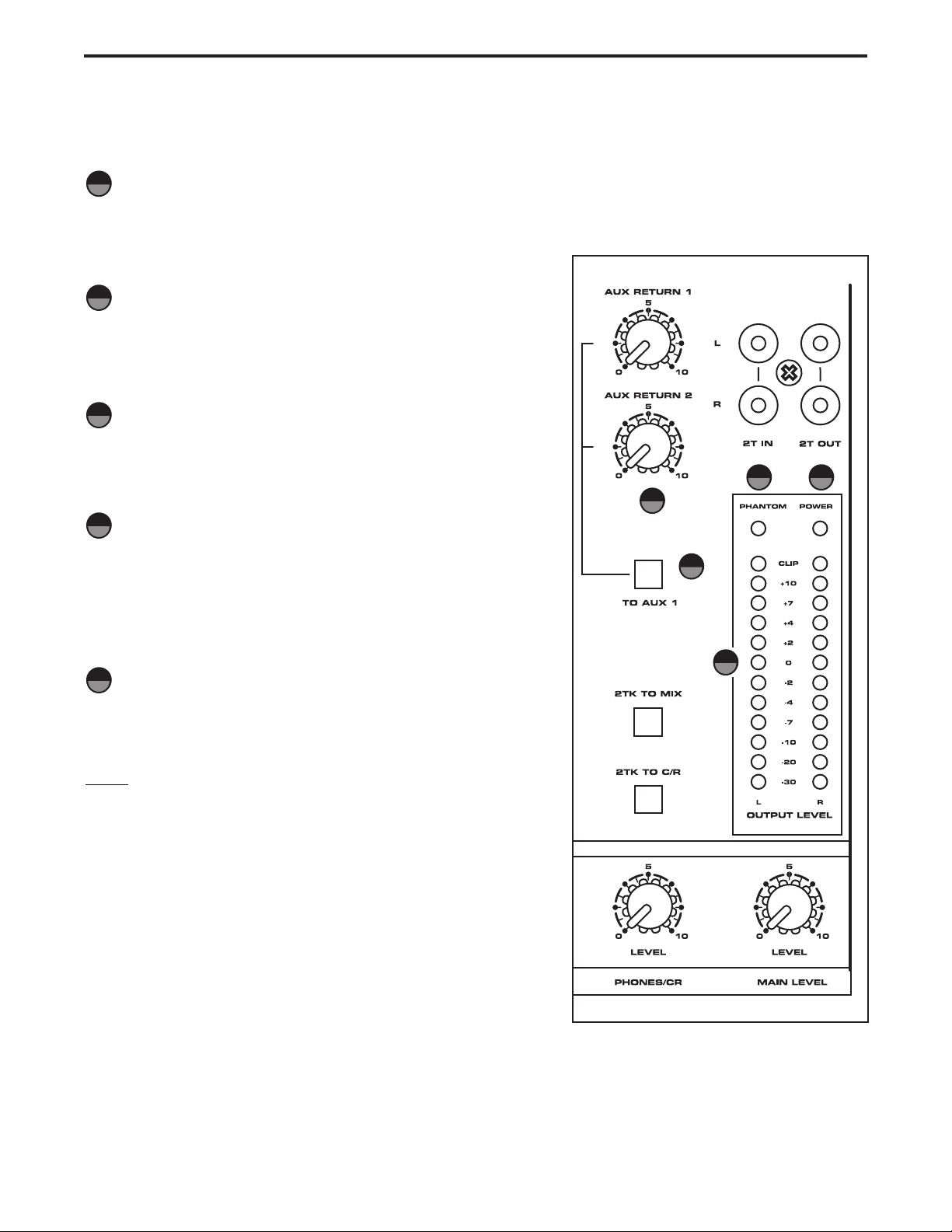

Master Section 8–9

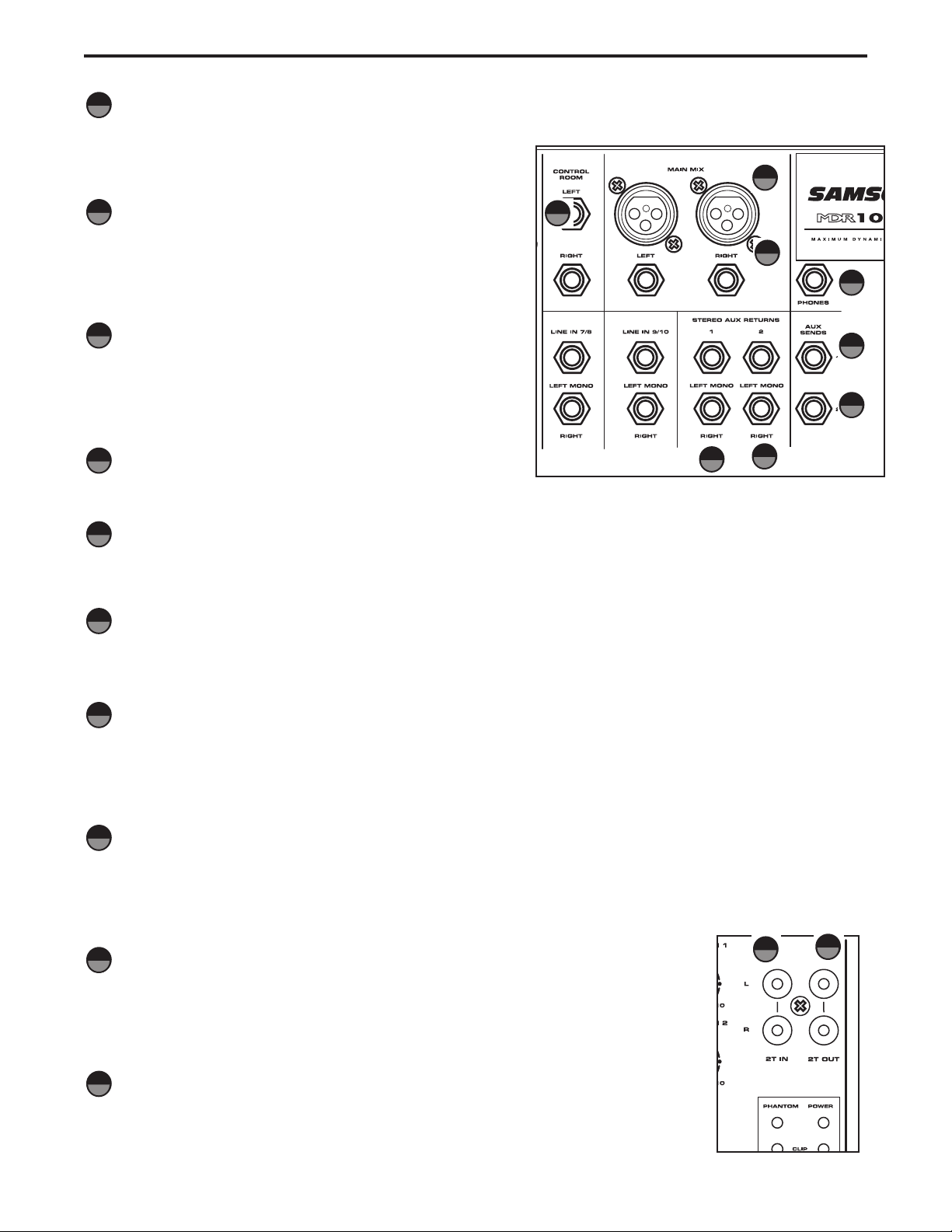

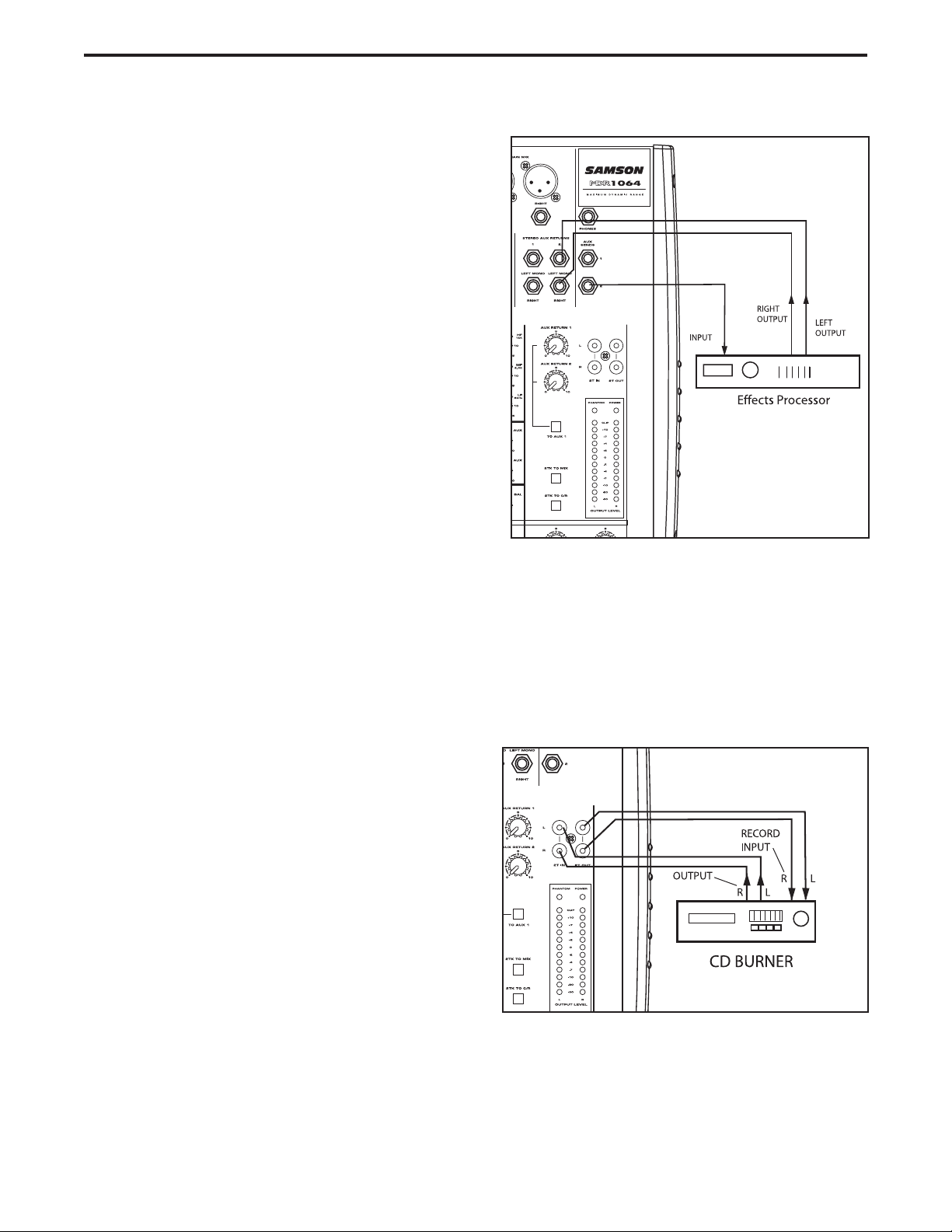

MDR1064 Input and Output Connections 10–11

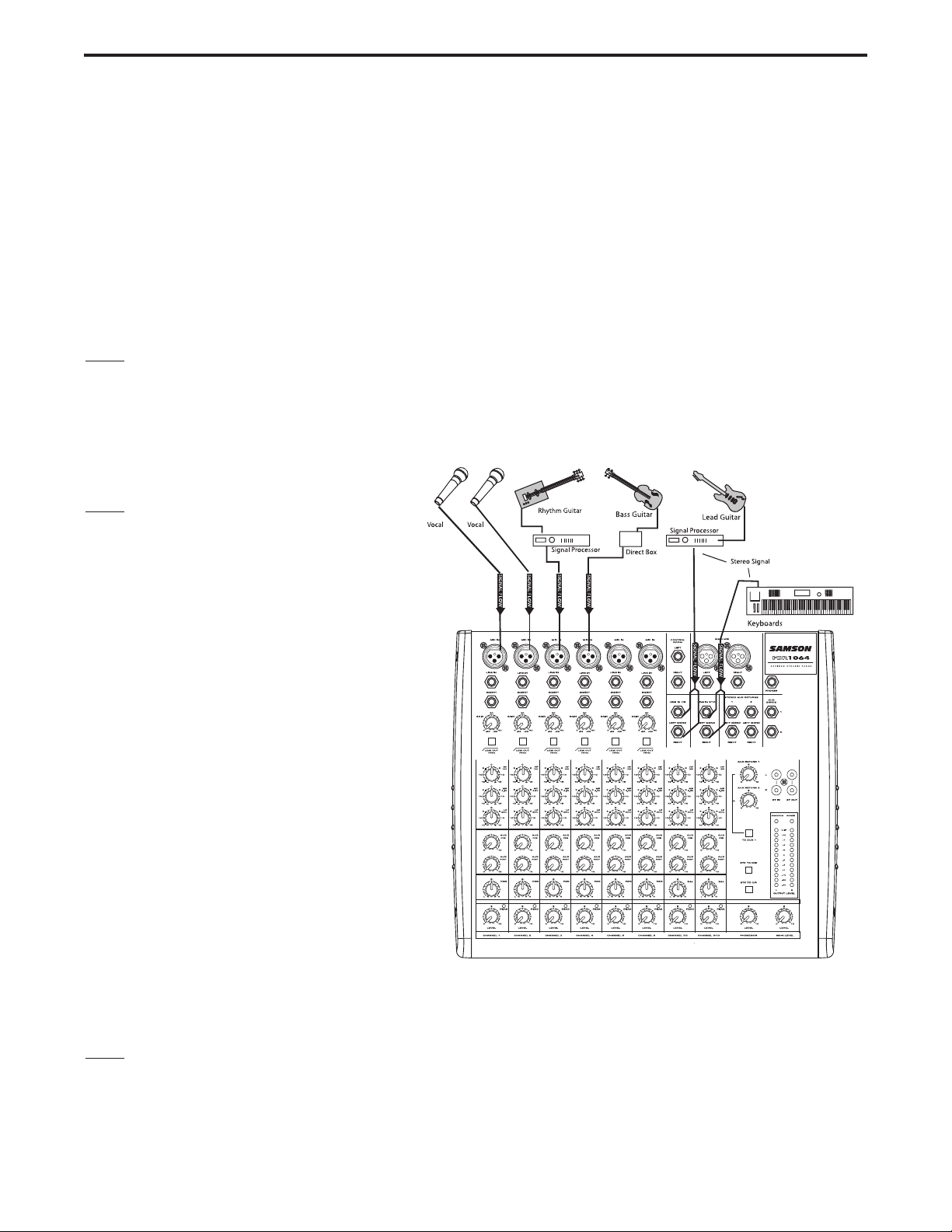

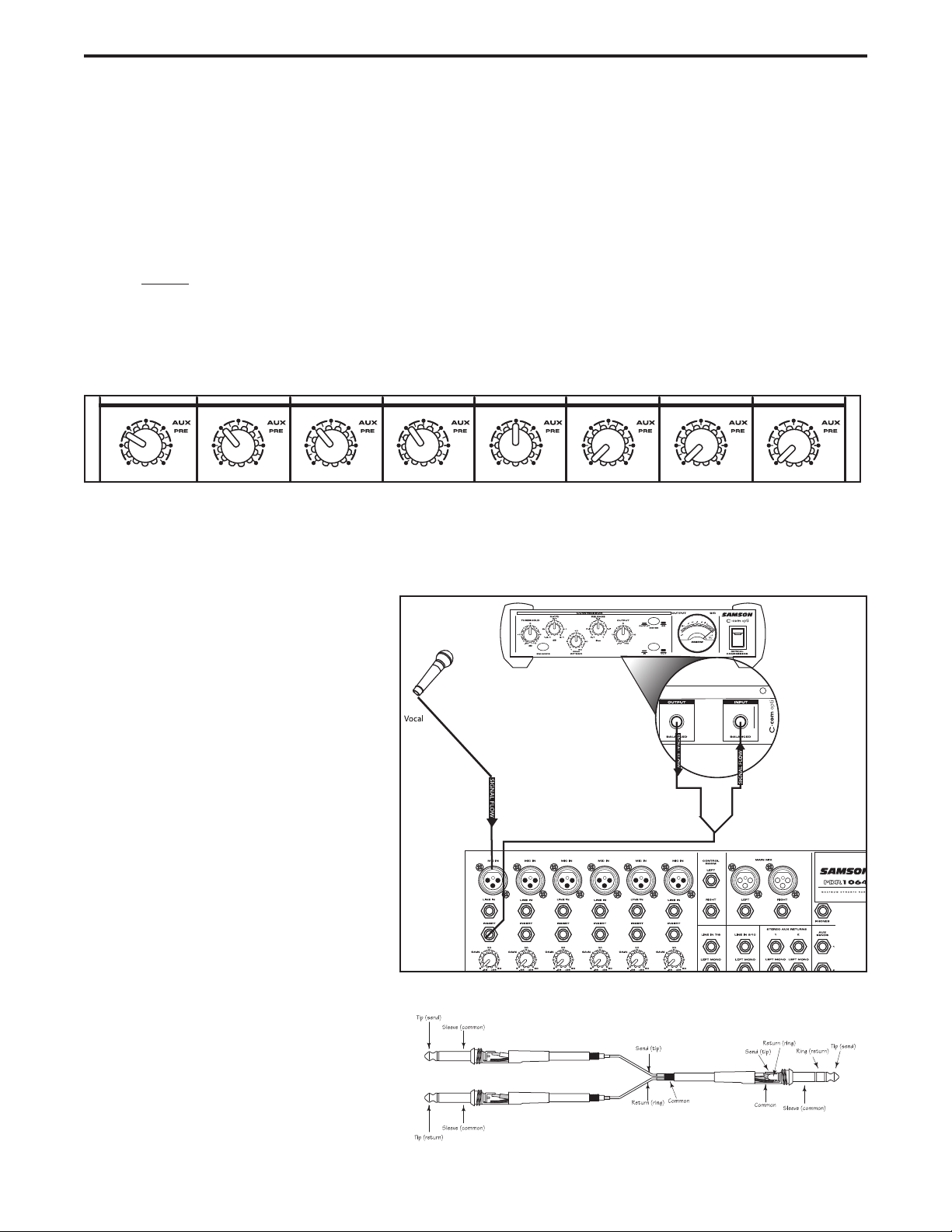

Operating the MDR1064 12–14
System Set-ups 15–16

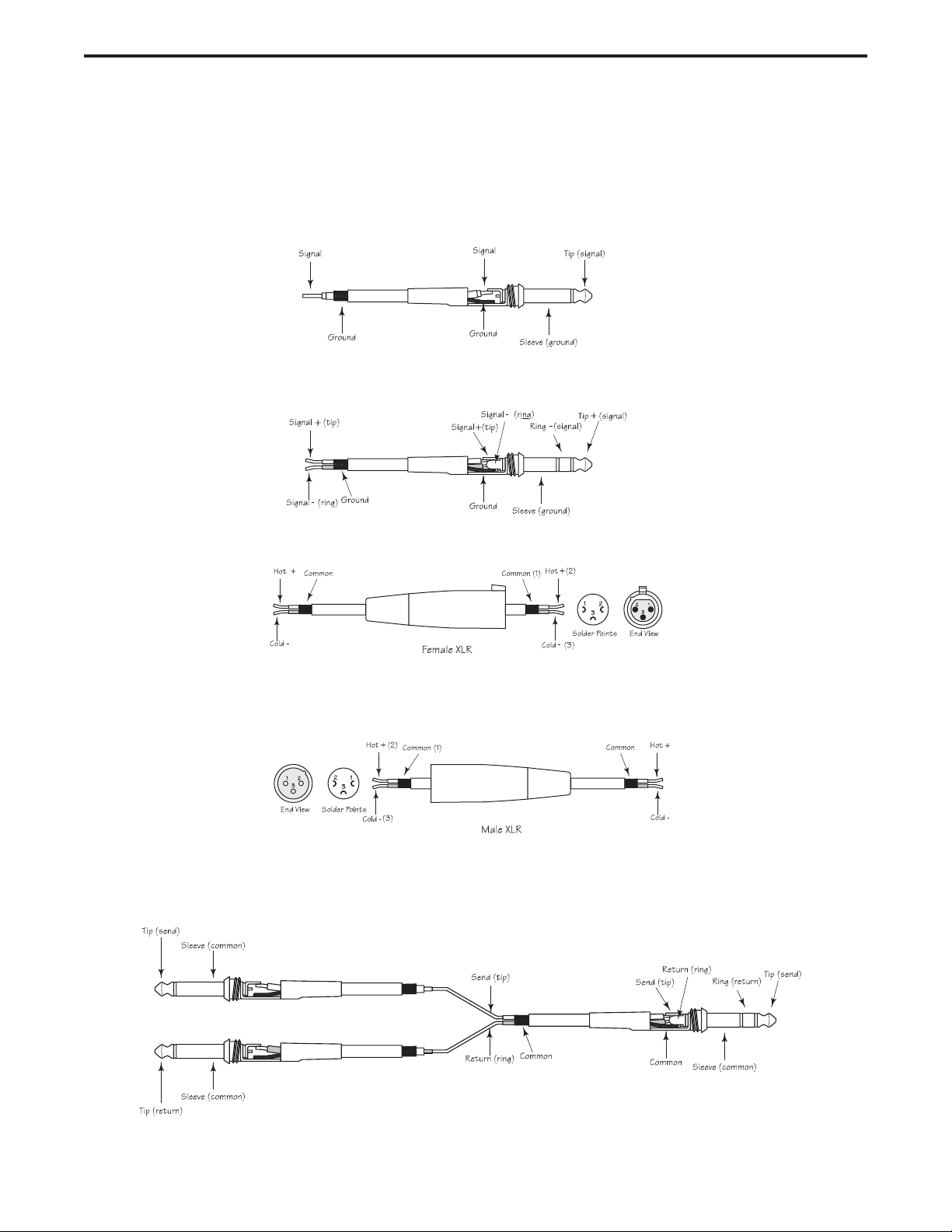

MDR1064 Wiring Guide 17
Specifications 18

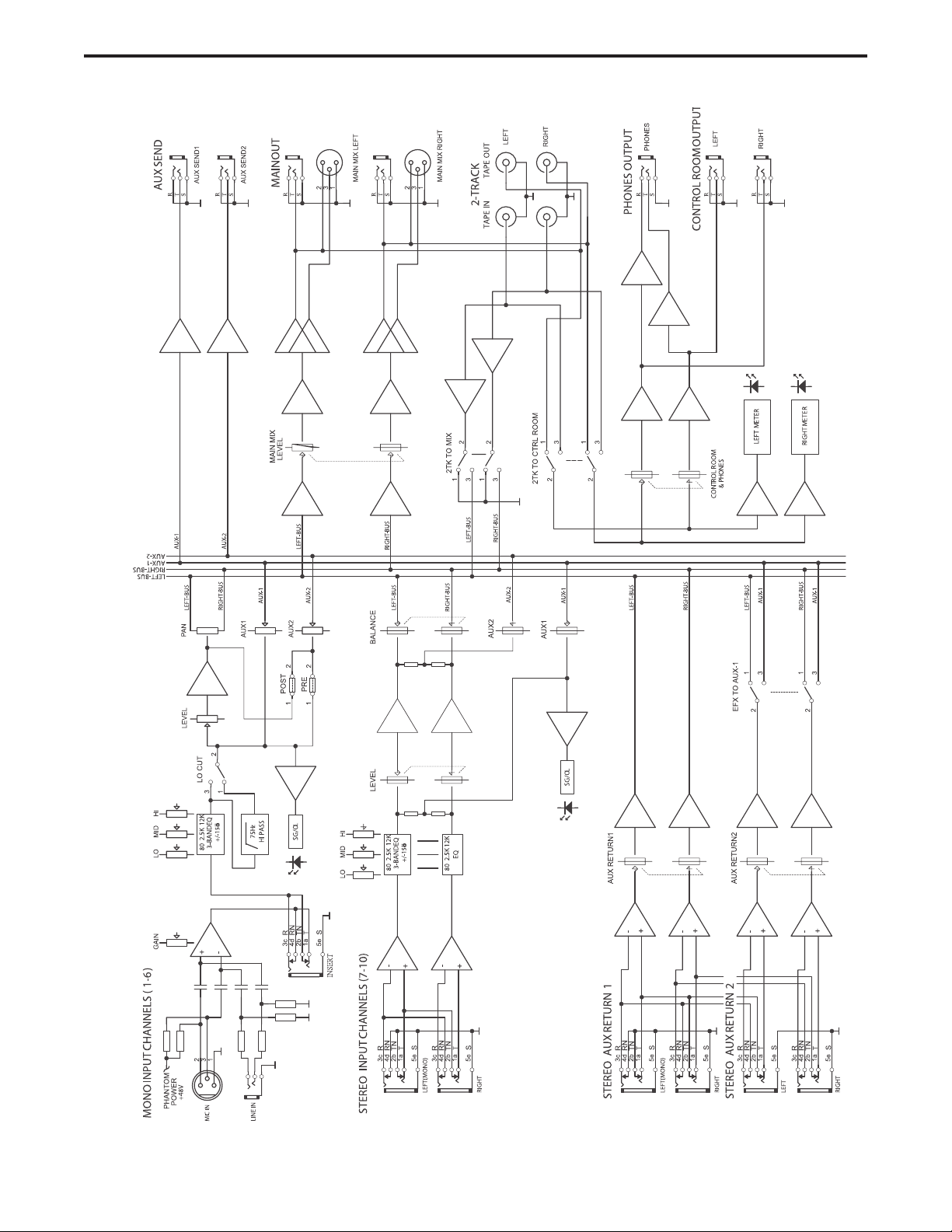

Block Diagram 19
Notes 20
Copyright 2004, Samson Technologies Corp.
Printed February, 2004
Samson Technologies Corp.
575 Underhill Blvd.
P.O. Box 9031
Syosset, NY 11791-9031
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: 516-364-3888
www.samsontech.com
2
Congratulations on your purchase of the Samson MDR1064 mixer! The MDR1064 is a ten-channel mixer, with six
low noise microphone pre-amps. The six Mic/line inputs and two stereo inputs each feature a 3-band equalizer
plus two Aux sends. The MDR1064’s master section includes two stereo Aux returns and a 2-tack Input and
Output for playing back stereo devices and for recording your mix. Clean, clear sound reproduction with sweet
equalization and signal flexible routing in a rugged enclosure, ensure reliable high quality sound from performance to performance. Optimized for recording, live sound reinforcement and commercial installations, the
MDR1064 is an ideal mixer solution offering big sound in a compact package.
In these pages, you’ll find a detailed description of the features of the MDR1064 mixer, as well a description of its
front and rear panels, step-by-step instructions for its setup and use, and full specifications. You’ll also find a warranty card enclosed—please don’t forget to fill it out and mail it in so that you can receive online technical support
and so we can send you updated information about these and other Samson products in the future.
With proper care and adequate air circulation, your MDR1064 will operate trouble free for many years. We recommend you record your serial number in the space provided below for future reference.
Serial number:
Date of purchase:
Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping
your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON
(1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing
materials and if possible, return the unit in the original carton and packing materials.
Introduction
3
MDR1064 Features
The Samson MDR1064, ten-channel mixer is a comprehensive, all-in-one solution for live sound, recording, fixed
installation and post production applications. Here are some of its main features:
• Eight Channels – Six Mic/Line plus two Stereo inputs with mic pre’s.
• Flexible design topology ideal for live sound, recording and post production.
•2 Track Input and Output allows you to connect a CD, DAT, Cassette, Mini Disk or Computer Sound
Card.
• Three-band channel equalizer, +/-15dB at 80Hz, 2.5 KHz and 12KHz provides precise and musical
results in sound shaping.
• Two Auxiliary Sends for built-in or external effects, on-stage monitor mix, or headphone mixing.
• Twelve segment LED Meter with VU ballistics displays the main MIX output.
• High quality, low noise, discrete microphone pre-amplifiers with 48-Volt phantom power, provide
Maximum Dynamic Range and transparent audio.
• Advanced circuit design using discrete components and high quality, low noise op-amps carefully selected at each stage of the signal path.
• Quality build and rugged construction ensure reliable performance from venue to venue and session to
session.
• Three-year extended warranty.
4
Front and Rear Panel Layout
5
Front and Rear Panel Controls
FRONT PANEL
1 MIC IN – Input connector for Low-Noise Microphone pre-
amp.
2 LINE IN–Input connector for Line level inputs.
3 INSERT – 1/-4-inch TRS (TIP/RING/SLEEVE) connector
providing send and recieve channel patch point for outboard effects.
4 GAIN – Used to set the input level of the mic pre and line
input.
5 LOW CUT – Bass roll off switch at 75Hz used to eliminate
unwanted low end rumble and hum.
`6` HIGH FREQUENCY – Controls the high band of the
Channel Equalizer, +/- 15 dB at 12KHz.
7 MID FREQUENCY – Controls the mid band of the Channel
Equalizer, +/- 15 dB at 2.5KHz.
8 LOW FREQUENCY – Controls the low band of the Channel
Equalizer, +/- 15 dB at 80Hz.
9 AUX 1 – Pre-fader auxiliary send that can be used with
an external effects processor, or to create a cue or monitor mix.
10 AUX 2 – Post-fader auxiliary send that can be used with
an external effects processor, or to create a cue or monitor mix.
11 PAN – Controls the channel’s position between left and
right in the stereo bus.
12 PEAK – Red LED will illuminate indicating when the
GAIN has been adjusted too high.
13 LEVEL – Audio taper fader provides smooth control over
level changes.
14 RIGHT LINE – 1/4-inch phone input connector for the right
line input for the stereo channels.
15 LEFT LINE - 1/4-inch phone input connector for the Left
Line input for the stereo channels.

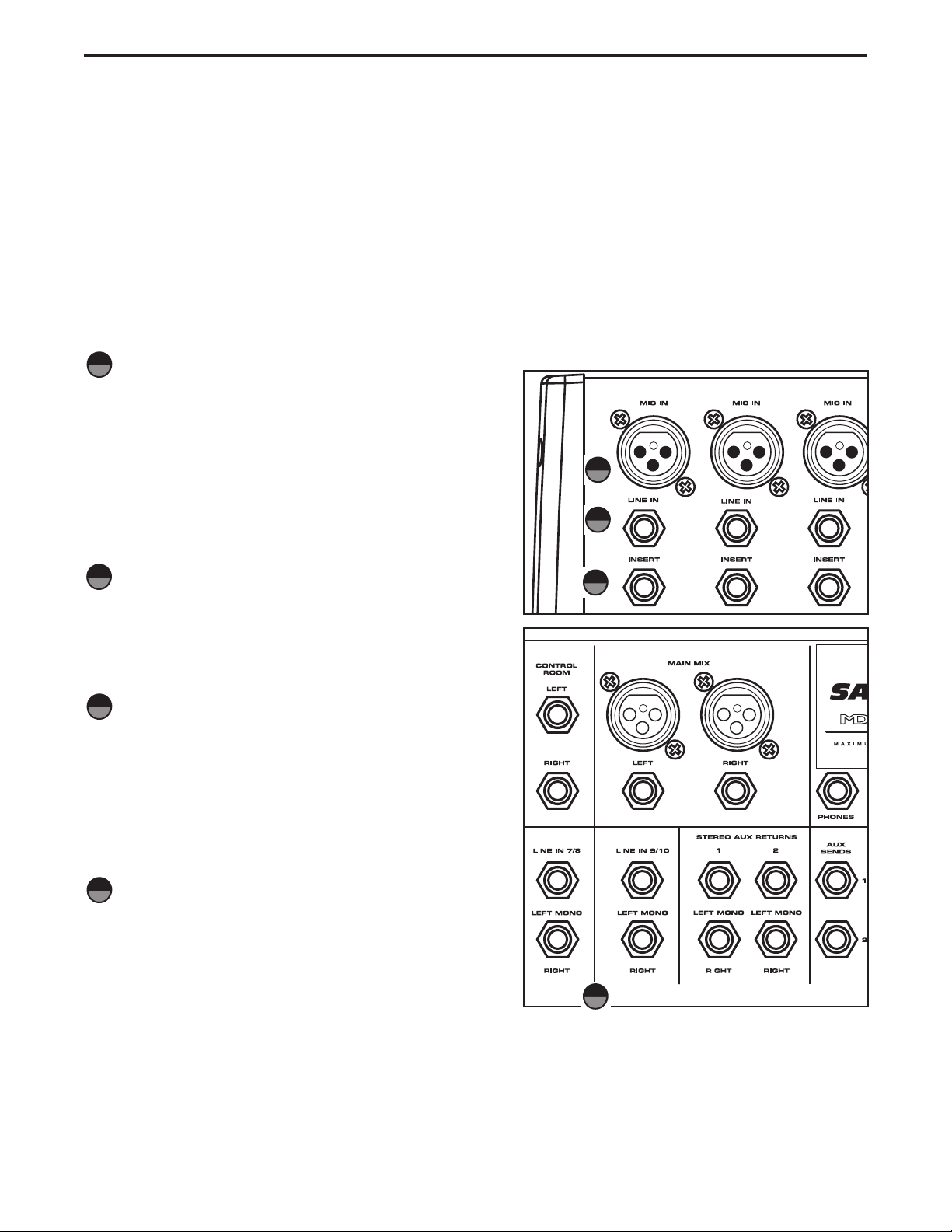

16 CONTROL ROOM OUTPUT– Left and Right Control Room
output connectors for connecting a monitor system.
17 MAIN MIX OUTPUT (1/4-inch) – Left and Right Main Mix
balanced output 1/4-inch TRS connectors.
18 MAIN MIX OUTPUT (XLR) – Left and Right Main Mix bal-
anced output XLR connectors.
19 PHONES JACK – Connect stereo headphones here.
20 AUX SEND 1 – Line level output from the Auxiliary 1
bus.
21 AUX SEND 2 – Line level output from the Auxiliary 2
bus.
22 AU X RETURN 2 – Left and right input jacks for con-
necting to the outputs of external line level sources
like those from effects processors.
23 AU X RETURN 1 – Left and right input jacks for con-
necting to the outputs of external line level sources
like those from effects processors.
24 2 TRACK OUTPUTS – Connect to the input of a DAT,
Cassette, Mini Disk or Hard Disk Recording system.
25 2 TRACK INPUTS – Connect the output from a DAT,
Cassette, Mini Disk or Hard Disk Recording system.
26 POWER LED – Indicates the MDR1064 is powered up.
27 PHANTOM LED – Indicates that the 48 Volt Phantom
Power is on.
28 OUTPUT METER - Twelve segment LED display with
VU ballistics indicates main Mix level.
29 MAIN LEVEL – Used to control the overall volume of
the Left and Right main Mix outputs.
30 PHONES/CR – Adjusts the volume of the control room
speakers or headphones.
31 2 TRACK TO CR – Switches between the main Mix
and the 2 Track in the Control Room output.
32 2 TRACK TO MIX - Switch used to mix the 2 track
input with the mix from the channel inputs.
33 TO AUX 1 - Switch used to route aux return 2 into the
Aux 1 output so that effects can be heard in the monitor mix.
34 AUX RETURN 2 – Used to mix in level of the effects
return.
35 AUX RETURN 1 – Used to mix in level of the effects
return.

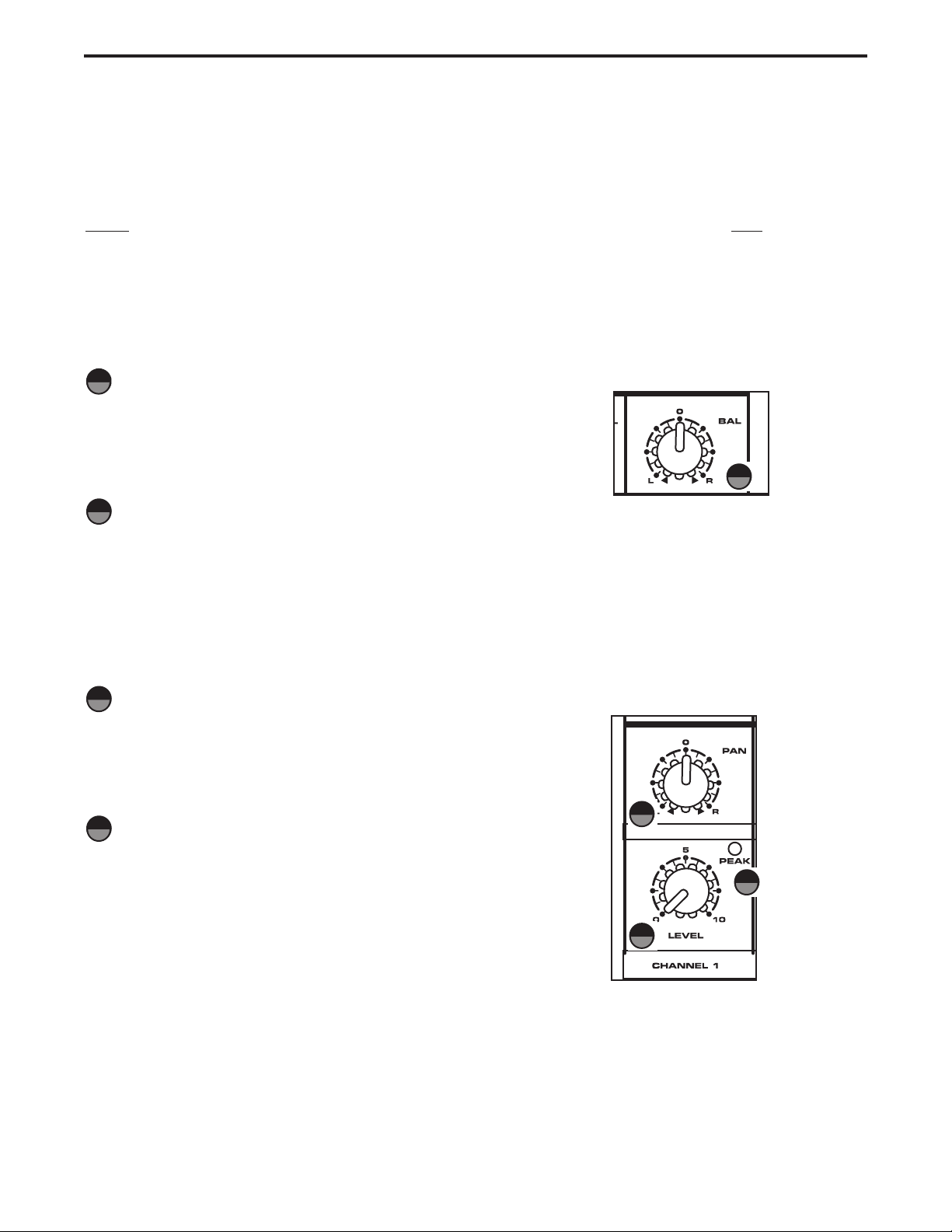

36 BALANCE – Controls the channel’s position between
left and right in the stereo inputs.
REAR PANEL
A POWER – Switches on the MDR1064’s main power.
B PHANTOM – Engages the 48-Volt Phantom power
supply to microphone pre-amps.
CAC ADAPTOR INLET – Connect External AC power
supply here.
6
Controls and Functions
MONO/STEREO INPUT CHANNEL SECTION
The following section details each part of the MDR1064’s MONO INPUT CHANNELS including the GAIN control, LOW CUT switch, 3-BAND EQ, AUX sends, PEAK LED, PAN and LEVEL controls. The input channels one
through six on the MDR1064 feature high quality, discrete transistor pre-amp providing transparency and
extended dynamic range.
GAIN
The MDR1064’s pre-amp stage has a variable GAIN control with a range of 5
to 60dB on the MIC input and –26 to +26dB on the LINE input.
LOW CUT FILTER
Each of the MDR1064’s first six channels include a LOW CUT (or high pass)
filter which rolls off the low frequencies from 75Hz and below at the rate of
18dB per octave. The LOW CUT filter allows you to remove the lower frequencies that you sometime just don’t want to pick up. For example, when you are
miking a high-hat you only want to capture the frequencies that the hi-hat is
producing. Therefore, by using the LOW CUT filter, you can reduce the
amount of pick-up from the low toms and bass drum that may leak into the hihat mic. You can use the same technique on other instruments like acoustic
guitar, violin, piano and even on vocals. In live sound applications, the LOW
CUT filter is especially useful for removing stage rumble.
CHANNEL EQUALIZER
The MDR1064 input channels feature a 3-band equalizer allowing you to
adjust the high, mid, and low frequencies independently on each channel. The
channel’s frequency response is flat when the knobs are in the "12:00" position. Rotating the knob towards the right will boost the corresponding frequency band by 15dB, and rotating it towards the left will cut the frequency by
15dB. The frequency centers, range of boost or cut, and equalizer type for
each band are as follows:
High: 12KHz +/- 15dB shelving type
Mid: 2.5KHz +/- 15dB peaking type
Low: 80Hz +/- 15dB shelving type
AUX 1
The MDR1064 has two auxiliary sends which can be used for sending signals
to external effects devices or for creating a monitor mix. The AUX1 section is
often used for a monitor mix in a live sound mixing, or for a headphone mix in
a recording application. Each input channel includes an AUX 1 send which
controls the amount of that channel’s signal that is sent to the AUX bus.
NOTE:
The AUX1 controls are "PRE-FADER SENDS" which means they are
not affected by the FADER level settings of each channel. This allows you to
create a mix for the monitors that is independent of the main LEFT and RIGHT
MIX.
AUX 2
The channel’s AUX 2 knob controls the amount of signal that is sent to the AUX 2 bus. The AUX 2 signal
can be sent to an external effects device connected to the AUX 2 OUT jack located in the MASTER SECTION jack field.
1
2
4
5
1
2
4
5
3
3
Loading...
