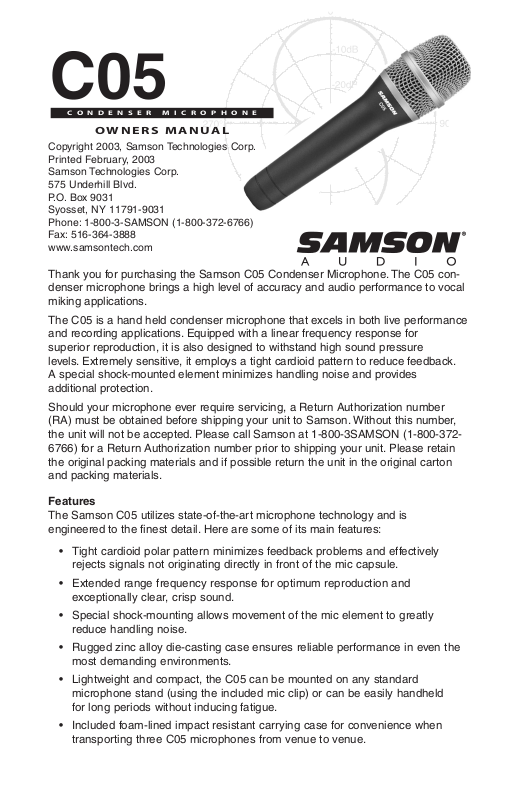

Samson CO5 User Manual

C ONDENSER MICROPHONE

OWNERS MANUAL

Thank you for purchasing the Samson C05 Condenser Microphone. The C05 con­denser microphone brings a high level of accuracy and audio performance to vocal
miking applications.

The C05 is a hand held condenser microphone that excels in both live performance
and recording applications. Equipped with a linear frequency response for
superior reproduction, it is also designed to withstand high sound pressure
levels. Extremely sensitive, it employs a tight cardioid pattern to reduce feedback.
A special shock-mounted element minimizes handling noise and provides
additional protection.

Should your microphone ever require servicing, a Return Authorization number
(RA) must be obtained before shipping your unit to Samson. Without this number,
the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-

6766) for a Return Authorization number prior to shipping your unit. Please retain
the original packing materials and if possible return the unit in the original carton
and packing materials.

Features

The Samson C05 utilizes state-of-the-art microphone technology and is
engineered to the finest detail. Here are some of its main features:

• Tight cardioid polar pattern minimizes feedback problems and effectively
rejects signals not originating directly in front of the mic capsule.

• Extended range frequency response for optimum reproduction and
exceptionally clear, crisp sound.

• Special shock-mounting allows movement of the mic element to greatly
reduce handling noise.

• Rugged zinc alloy die-casting case ensures reliable performance in even the
most demanding environments.

• Lightweight and compact, the C05 can be mounted on any standard
microphone stand (using the included mic clip) or can be easily handheld
for long periods without inducing fatigue.

• Included foam-lined impact resistant carrying case for convenience when
transporting three C05 microphones from venue to venue.

Copyright 2003, Samson Technologies Corp.
Printed February, 2003
Samson Technologies Corp.
575 Underhill Blvd.
P. O. Box 9031
Syosset, NY 11791-9031
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: [phone]
www.samsontech.com

Microphone Placement and Tone Quality

Listed are some common microphone placement techniques. Use these sugges­tions as a guide and let your ears determine what works best in your situation.

• Sound source less than 6 inches away from mic—Full sound, pronounced
bass, increased isolation from background noise.

• Sound source 6 inches to 2 feet away from mic—Balanced natural sound, less
bass, some background noise.

• Sound source 3 to 6 feet away from mic—Thinner ambient sound.

Guidelines for Microphone Use

• Aim the microphone at the desired source. Keep unwanted sound sources at a

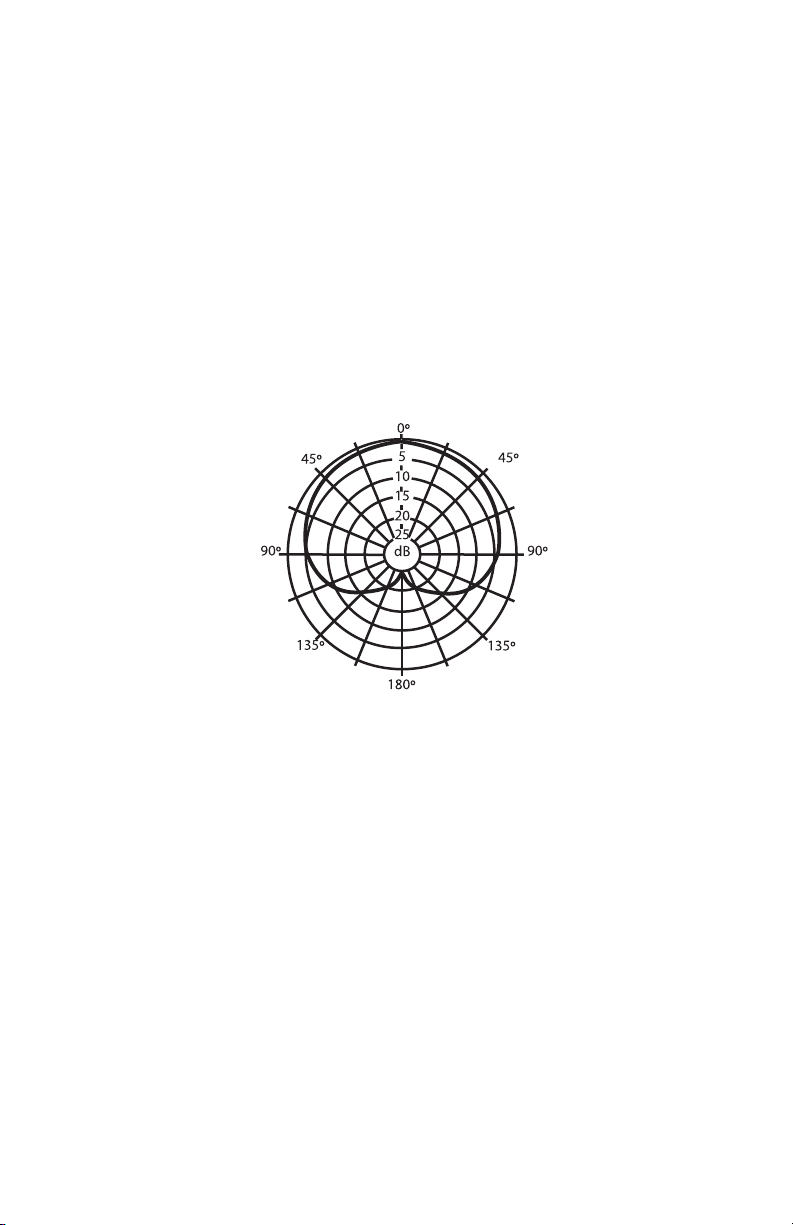

135° angle from the front of the microphone (see polar pattern).

• Place the microphone as close to the sound source as possible.

• Use the proximity effect to your advantage: The closer the mic is to the sound
source, the more emphasized the bass response will be.

• Use a windscreen to suppress unwanted wind noise.

• Never cup your hand over the microphone grill.

Operating Notes

• The C05 will boost bass frequencies when the microphone is between 0—6
inches from the sound source. As you move the sound source further away
from the microphone, the bass response will gradually roll off.

• The C05 has a built-in wind screen which protects against most wind and
breathing noise. Under adverse conditions, such as high winds, an optional
foam windscreen can be used.

• For maximum signal handling capability and minimal distortion, a minimum
load impedance of 800 ohms should be used. A reduction in output signal
strength and output clipping level will result with the load at 150 ohms.

• Withstands high SPLs, lending itself to a wide range of miking
situations.

• Ultra sensitive element picks up all of the nuances of any performance.

• Gold plated XLR Connector.
