Saitek

PC Flight Stick

USER MANUAL

BEDIENUNGSANLEITUNG

GUIDE D'UTILISATION

MANUALE D’USO

MANUAL DEL USUARIO

SAITEK CYBORG X FLIGHT STICK

Congratulations on buying your Saitek Cyborg X Flight Stick - the world's most adjustable PC joystick.

Features

• Revolutionary stick base opens to create ultra stable platform

• Handle length increases to fit hand

• Button positions adjust for greater flexibility

• Head and stick handle tilts for even greater comfort

• Includes scroll wheel, perfect for flap or trim control

• Twin throttle levers for greater control and flexibility

• Adjustment tool stores securely in base compartment

• Handle locks to base with secure screw collar

Please note: Do not overtighten the precision adjustment screws when adjusting your Cyborg X Flight Stick

Setting up your Cyborg X stick

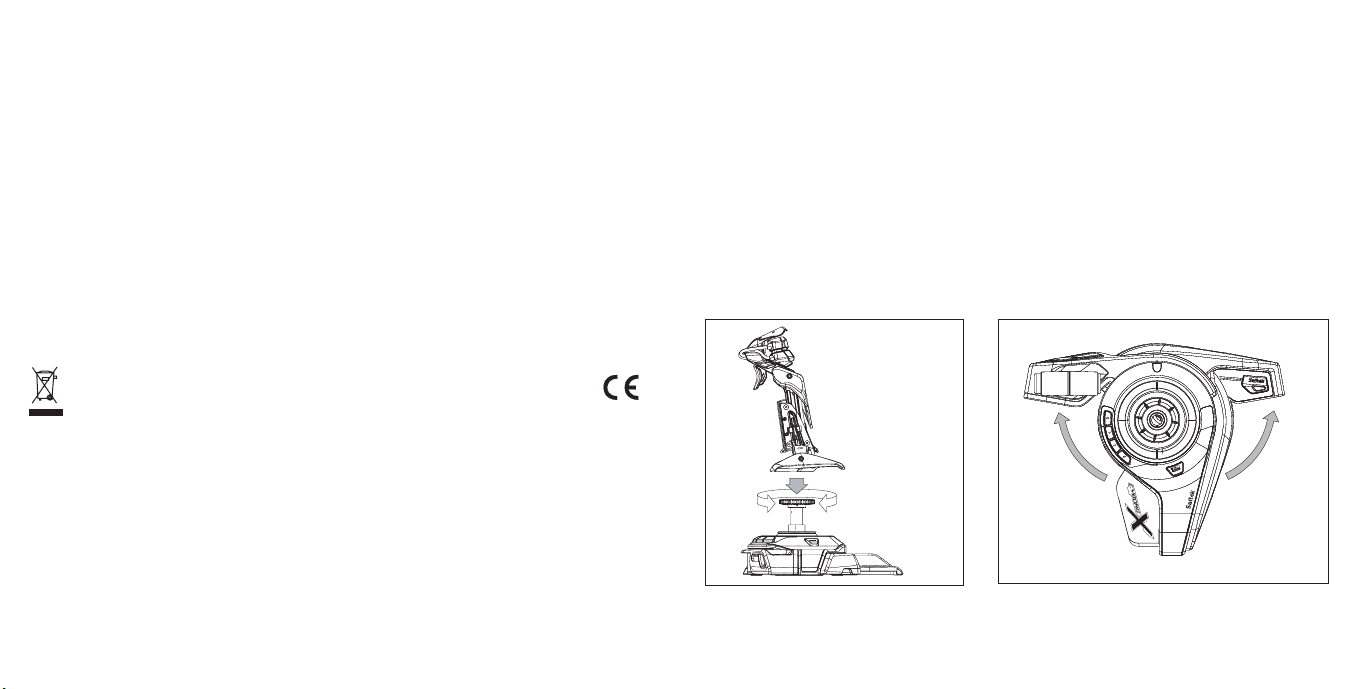

Attach the stick handle to the base by inserting it into the base collar and tightening the securing screw.

Extend the Cyborg stick’s legs outwards until they click into place.

Remove the adjustment tool from the compartment on the stick base.

Press the locking switch (a) and move the stick up or down to adjust the height.

Insert the adjustment tool in the locking nut (b) and turn counter-clockwise. Press the locking pin (c) in and move the stick forward or backwards to the required angle. Lock by turning locking nut (b) clockwise.

Insert the adjustment tool in the locking nut (d) and turn counter-clockwise to unlock the head mechanism. Move to the required angle and lock by turning the locking nut clockwise.

System compatibility

PC running Windows XP/XP64/Vista (all versions)

Software installation for users of Windows® XP, XP64 and Vista (all versions)

A) Drivers Only

1. With your computer switched on, close down any programs that are currently running and insert the Installation CD into your CD-ROM drive.

2. When the Introduction Screen appears, click Install Software to continue. If the CD does not run automatically, select Start from the Windows® Taskbar, then Run and type D:\Setup.exe and click OK - where D:\ is letter of your CD-ROM drive. For Vista users, the screen will ask Do you want to run this file? Press Run. A screen will now appear saying A program needs your permission to continue. Press Continue.

3. When the Welcome screen appears, click Next to continue.

4. After reading the Disclaimer, select the I accept the terms of the Disclaimer option and click Next to continue.

5. At the Registration screen, select Check this box to register now and follow the on-screen instructions, or you can choose to select this option later.

6. Click on Finish to complete the installation.

B) Drivers and Programming Software

Follow points 1 - 6 of the install procedure in A), then at the Software Setup screen, select Install the SST Programming Software and click Next. For Vista users, the screen will once again ask Do you want to run this file? Press Run. A screen will now appear saying A program needs your permission to continue. Press Continue.

In the following Software Setup screen, click Next and follow the on-screen instructions. At this point Vista users will be asked to install the Saitek Magic Bus and XP users asked to install the Saitek Magic Mouse, HID-compliant mouse, Saitek Magic Keyboard and HID Keyboard Device (these are what Windows calls the Programming elements of your Saitek controller). Continue to click on Next and Finish to accept the installation until the Registration screen appears.

At the Registration screen, select Check this box to register now and follow the on-screen instructions, or do not select this option and register later.

Upon completion of the installation, you have the option to Run Profile Editor, which will give you a view of the programming environment. If you do not wish to see the Profile Editor at this point, just uncheck the box and click on Finish to complete the installation.

Introducing Saitek Smart Technology programming software

Saitek Smart Technology Programming Software (SST) is the software Saitek supplies to configure your Saitek controller for enhanced functionality. SST delivers a powerful set of features, allowing you to program your device with the ultimate configuration for total interaction. Despite a level of sophistication previously unseen in the market, and because of the Saitek Smart Technology inside, the software remains simple and intuitive to use.

For a complete guide on how to program your Saitek controller, visit the Saitek website at www.saitek.com or look at the help tab on your programming software menu.

Features of Smart Technology programming software:

• Quick and easy setup in any game

• Personalize the controller settings for your favorite games

• Configure your controller with an on-screen 3D model and interface

• Multiple setup option for each controller - ideal if a controller is used by several people and you need more than one profile per device

• Program special moves with sophisticated timing features

• Special game setups available as 'Profiles' from the Saitek website and on the Smart Technology CD

• Download the latest version of Saitek Smart Technology software from the Saitek website

Insert the adjustment tool in the button adjustment nut (e) and turn clockwise or anticlockwise.

Turn the adjustment nut clockwise to move the buttons in direction (f) and anti-clockwise to move the buttons in direction (g).

Important Information

Driver updates

From time to time there may be updates to the driver and programming software for this product. You can check for the latest software updates by visiting the Saitek website (www.saitek.com) and clicking on Downloads. A drop down menu will appear. Select Drivers and Software.

Technical Support Nearly all the products that are returned to us as faulty are not faulty at all - they have just not

been installed properly. If you experience any difficulty with this product, please first visit our website www.saitek.com. The technical support area will provide you with all the information you need to get the most out of your product and should solve any problems you might have.

If you do not have access to the internet, or if the website cannot answer your question, please contact your local Saitek Technical Support Team. We aim to offer quick, comprehensive and thorough technical support to all our users so, before you call, please make sure you have all the relevant information at hand.

To find your local Saitek Technical Support Center, please see the separate Technical Support Center sheet that came packaged with this product.

Information for Customers in the United States

FCC Compliance and Advisory Statement

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and; 2 This device must accept any interference received, including interference that may cause

undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

What is a Profile?

A Profile is a custom setup for improved gameplay - consisting of a set of commands that are preassigned to the buttons or axes of your controller. Pre-written Profiles are available on the Product Companion Disk that accompanies this device or on the Saitek Website - www.saitek.com. (Please check the website for new or improved Profiles, which are added regularly).

How do I program my controller? After getting to know your controller, you can start creating your own personal Profiles with the

Saitek Smart Technology programming software (SST). This software has virtually unlimited programming capabilities and allows you to customize the controller to your exact gaming needs.

The Profile Editor allows you to program the buttons on your controller to perform different actions within your games - this is especially useful if the game you are using does not have its own screen that allows reconfiguring of your buttons.

Getting Started

1. Double-click on the Saitek Smart Technology icon the install left on your desktop.

2. In the Profile Editor, choose the control to which you wish to assign a keyboard command. You do this by left-clicking on the control's cell in the control list on the right of the screen.

3. With the cursor flashing, type in the key commands and then click on the green tick mark when complete.

4. Repeat this procedure for all the buttons you would like to program and then click File, Save at the top of the Profile Editor window.

5. Give the profile a name (it is recommended you name it after the game for which the profile is intended) and then click Save.

6. To enable the profile either click the blue Profile Now icon at the top of the Profile Editor or right-click on the controller icon in your taskbar and select the name of the profile from the pop-up list of options.

7. You will notice that when a profile is loaded that the controller icon in your taskbar has a green square behind it, indicating that a profile is currently loaded. If you wish to unload a profile simply right-click on the controller icon and click Clear Profile from the pop-up list of options.

If you require more detailed assistance with using the SST Programming Software, click on Help at the top of the Profile Editor and then Manual.

original packaging materials. Please also include an explanatory note.

7 IMPORTANT: To save yourself unnecessary cost and inconvenience, please check carefully

that you have read and followed the instructions in this manual. This warranty is in lieu of all other expressed warranties, obligations or liabilities. ANY

IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS WRITTEN LIMITED WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. Some states do not allow the exclusion or limitation of special, incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

• Reorient or relocate the receiving antenna;

• Increase the separation between the equipment and receiver;

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;

• Consult the dealer or an experienced radio/TV technician for help.

Mad Catz, Inc, 7480 Mission Valley Rd, Suite 101, San Diego, CA 92108-4406

Canada ICES-003

Operation is subject to the following two conditions: 1 This device may not cause interference, and; 2 This device must accept any interference, including interference that may cause undesired

operation of the device.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Conditions of Warranty

1 Warranty period is 2 years from date of purchase with proof of purchase submitted. 2 Operating instructions must be followed. 3 Specifically excludes any damages associated with leakage of batteries.

Note: Batteries can leak when left unused in a product for a period of time, so it is advisable to inspect batteries regularly.

4 Product must not have been damaged as a result of defacement, misuse, abuse, neglect,

accident, destruction or alteration of the serial number, improper electrical voltages or currents, repair, alteration or maintenance by any person or party other than our own service facility or an authorized service center, use or installation of non-Saitek replacement parts in the product or the modification of this product in any way, or the incorporation of this product into any other products, or damage to the product caused by accident, fire, floods, lightning, or acts of God, or any use violative of instructions furnished by Saitek plc.

5 Obligations of Saitek shall be limited to repair or replacement with the same or similar unit, at

our option. To obtain repairs under this warranty, present the product and proof of purchase (eg, bill or invoice) to the authorized Saitek Technical Support Center (listed on the separate sheet packaged with this product) transportation charges prepaid. Any requirements that conflict with any state or Federal laws, rules and/or obligations shall not be enforceable in that particular territory and Saitek will adhere to those laws, rules, and/or obligations.

6 When returning the product for repair, please pack it very carefully, preferably using the

Nehmen Sie das Einstellwerkzeug aus dem Fach der Basis des Stick.

Drücken Sie den Verriegelungsschalter (a) und bewegen Sie den Stick auf- oder abwärts, um die Höhe einzustellen.

Setzen Sie das Einstellwerkzeug in die Sperrmutter (b) und drehen entgegen dem Uhrzeigersinn. Drücken Sie den Sperrstift (c) ein und bewegen den Stick in den gewünschten Winkel vor oder zurück. Verriegeln Sie ihn durch Drehen der Sperrmutter (b) im Uhrzeigersinn.

Setzen Sie das Einstellwerkzeug in die Sperrmutter (d) und drehen sie entgegen dem Uhrzeigersinn, um den Kopfmechanismus zu lösen. Bewegen Sie ihn in den gewünschten Winkel und verriegeln ihn, indem Sie die Sperrmutter im Uhrzeigersinn drehen.

SAITEK CYBORG X FLIGHT STICK

Herzlichen Glückwunsch zum Kauf Ihres Saitek Cyborg X Flight Stick, dem anpassungsfähigsten PC-Joystick der Welt.

Eigenschaften

• Die revolutionäre Basis des Stick entfaltet sich, um eine extrem stabile Plattform anzubieten

• Die Grifflänge lässt sich zur besseren Anpassung an die Hand vergrößern

• Die Knopfpositionen lassen sich für eine größere Flexibilität anpassen

• Kopf und Griff des Stick kippen für besseren Komfort

• Schließt Scroll-Rad ein, ideal für Klappen- oder Trimmsteuerung

• Doppel-Fahrtregler für bessere Kontrolle und Flexibilität

• Einstellwerkzeug lässt sich sicher in einem Fach in der Basis verstauen

• Griff wird mittels sicherer Schraubmanschette mit der Basis verriegelt

Bitte beachten Sie, dass Sie bei der Feinabstimmung des Cyborg X Flight Sticks die Einstellschrauben nicht überdrehen.

Einrichtung Ihres Cyborg X Stick

Verbinden Sie den Griff des Stick mit der Basis, indem Sie ihn in die Manschette der Basis einführen und die Sicherungsschraube anziehen.

Ziehen Sie die Beine des Cyborg Stick nach außen, bis sie einrasten.

8. Im Fenster Software Setup wählen Sie bitte SST Programmier-Software NICHT installieren und klicken Sie auf Weiter. Sie können die SST Programmier-Software zu einem späteren Zeitpunkt nachträglich installieren. Führen Sie hierzu die Schritte wie im folgenden Abschnitt B) beschrieben aus.

9. Im Fenster Registrieren wählen Sie bitte "Markieren Sie dieses Feld, um sich zu registrieren" und folgen Sie den Bildschirmanweisungen. Wenn Sie sich später registrieren möchten, dann markieren Sie dieses Feld nicht.

10. Um die Installation zu beenden, klicken Sie auf Fertig stellen. Ihr Saitek Controller ist nun spielbereit!

B) Komplette Installation (Treiber und Programmier-Software)

1. Führen Sie die oberen Schritte 1-7 aus bis das Fenster zur Einrichtung der Programmiersoftware erscheint. Wählen Sie hier die Option für fortgeschrittene Spieler und klicken Sie Weiter.

2. Im Fenster Treiber klicken Sie auf Update und folgen den Anweisungen. Jetzt werden Sie gefragt, ob Sie Funktionen wie Saitek Magic Mouse oder Saitek Magic Keyboard installieren wollen (dies sind XP-Namen für einige Funktionen Ihres Controllers). Bestätigen Sie mit Weiter bis Sie mit Fertigstellen die Installation abschliessen. Sie erhalten die Meldung, dass die Installation erfolgreich abgeschlossen wurde.

3. Im Fenster Registrieren wählen Sie bitte "Markieren Sie dieses Feld, um sich zu registrieren" und folgen sie den Bildschirmanweisungen. Wenn Sie sich später registrieren möchten, dann markieren Sie dieses Feld nicht.

4. Nach Abschluss der Installation können Sie sofort den Profileditor starten - heisst die Programmierung beginnen. Entscheiden Sie sich dafür, nicht sofort zu programmieren, klicken Sie auf Fertigstellen, um dies zu übergehen. Ihr Saitek Controller ist spielbereit.

Wie Sie Ihren Saitek Controller mit der Saitek Smart Technology Software programmieren

Einführung in die Programmiersoftware

Saitek Smart Technology (SST) ist eine Software, mit der Sie Ihren Saitek Controller unabhängig von den Einstellmöglichkeiten in Spielen an Ihre eigenen Bedürfnisse anpassen können. Die SST beinhaltet eine Vielzahl von Funktionen, um Ihr Eingabegerät mit einer persönlichen Konfiguration zu versehen um maximalen Spielgenuss zu erreichen. Obwohl die SST sehr viele Möglichkeiten bietet, bleibt Sie dennoch einfach und intuitiv zu benutzen.

Die komplette Anleitung zur Programmierung Ihres Saitek Controllers, finden Sie auf der Saitek Homepage unter www.saitek.de.

Installation unter Windows® XP, XP64 und Vista

A) Basisinstallation (nur Treiber)

1. Schalten Sie Ihren PC ein, und schließen Sie alle laufenden Programme. Legen Sie die Saitek Smart Technology CD in Ihr CD-ROM-Laufwerk.

2. Im Begrüßungsbildschirm klicken Sie bitte auf Software installieren, um fortzufahren. Wenn die CD nicht automatisch startet, wählen Sie bitte Start in der Windows Menüleiste, dann Ausführen und hier geben Sie D:\Setup.exe (ohne Anführungszeichen) ein und klicken Sie OK. Falls D:\ nicht der Laufwerksbuchstabe Ihres CD Laufwerks ist ändern Sie diesen entsprechend.

3. Im Willkommen-Fenster, klicken Sie auf Weiter, um mit der Installation zu beginnen.

4. Haben Sie den Haftungsausschluss gelesen, akzeptieren Sie diesen und klicken Weiter.

5. In der Treiberinstallationsanzeige verbinden Sie, sofern Sie das noch nicht gemacht haben, das USB-Kabel mit einem der USB-Ports des Computers und klicken Sie auf Weiter.

6. Klicken Sie in den folgenden Fenstern auf Weiter, um die Installation fortzusetzen. Nachdem Sie im Fenster Treiber-Installation auf Weiter klicken, können Sie Ihren Controller testen.

7. Wenn das Saitek Controller Fenster erscheint, probieren Sie bitte alle Knöpfe und Achsen aus, um zu sehen, ob Ihr Pad ordnungsgemäß funktioniert. Nach dem Test klicken Sie bitte auf OK.

Setzen Sie das Einstellwerkzeug in die Einstellmutter des Knopfs (e) und drehen sie im oder entgegen dem Uhrzeigersinn.

Drehen Sie die Einstellmutter im Uhrzeigersinn, um die Knöpfe in Richtung (f) und entgegen dem Uhrzeigersinn, um die Knöpfe in Richtung (g) zu bewegen.
