Internet Radio RM50
User Guide
English
Introduction
WELCOME
Dear customer:
Thank you for purchasing a SAGEMCOM WiFi IP Radio; we appreciate your trust in us.
This product was manufactured with the upmost care, should you encounter any
difficulties during its use, we recommend that you refer to this user guide. You can also
find information on the following site:
http://support.sagemcom.com
The new material is guaranteed (parts and labour) by SAGEMCOM under the conditions
and according to procedures defined on the site www.sagemcom.com heading support.
In the event of a technical problem, please refer to the table at the end of this user guide
for a list of incidents and the way to solve them.
The SAGEMCOM site (www.sagemcom.com assistance section) also provides information
on how your IP Radio works and how to solve any problems you may encounter. You can
also contact our assistance service by E-mail. If the problem persists, you should contact
our call centre (see the table below). They will offer an expert appraisal of your material
remotely to determine the cause as well as the type of repair required.
For your comfort and safety, please read carefully the paragraphs below on safety
recommendations and instructions.
2
Introduction
Recommendations and safety instructions
Do not install your IP Radio in a humid room (bathroom, laundry, kitchen, etc.), or within 1.50mof a tap
or water source, or outside. Your IP Radio should be used at an ambient temperature of between 15 °C
and 35 °C for optimum sound results.
Do not set up your IP Radio in a dusty environment as dust deposits might adversely affect the sound
quality.
Avoid objects or liquids getting into the unit.
Unplug the power lead if the unit will not be used for a long period.
Do not handle your AC cord with wet hands. If liquid spills on your product, unplug immediately and
contact your dealer for cleaning instructions.
Only the power supply provided with the IP Radio should be used. Connect this to the mains in
accordance with the installation instructions in this user guide and the information on the
identification label affixed to the power supply (voltage, current, mains frequency). As a precaution, in
case of danger, the main adapters act as a disconnecting mechanism for the 230 V power supply. They
should be placed near the device and should be easily accessible.
Do not attempt to use force to plug a connector into the audio jack. If the connector cannot be plugged
into the jack easily, the connector is incompatible.
Do not attempt to remove any screws or open the unit. No user serviceable parts are inside.
The length of the USB cables used on this product shall not exceed 3m.
This t
erminal was designed for private use inside a building (CPE customer premises equipment) in the
uropean Free Trade association (EFTA). It has been tested in accordance with the technical provisions
E
!
for radio equipment (EN 300328).
The radio frequency bands authorized for Wireless transmission depend on national regulations.
The installation of this terminal operating in the 2.4 GHz band is covered by the European
recommendation ERC 70-03.
Before use, make sure that the gateway with which you establish a wireless connection from your
terminal is set up in accordance with this regulation and with the national regulations where it is used.
SAGEMCOM accepts no liability if the regulations in force on the installation site are not complied with.
Hearing safety – Listen at a moderate volume
Using headphones at a high volume can impair your hearing.
This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for
exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced
some hearing loss. Sounds can be deceiving. Over time your hearing “comfort level” adapts to higher volumes
of sound. So after prolonged listening, what sounds “normal” can actually be loud and harmful to your hearing.
To guard against this, set your volume to a safe level before your hearing adapts and leave it there.T
Some sensitive medical equipment and safety equipment may be affected by the radio-frequency
transmissions of your radio. In all cases, we ask that you respect the safety recommendations.
The device shall not permanently be installed or used closer than 20cm from the human body.
FCC Caution: Any changes or modificatio
ould void the user's authority to operate this equipment.
c
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
ns not expressly approved by the party responsible for compliance
3
4
Table of Contents
1. Your IP Radio 6
Main Features 6
Unpacking 6
Front Panel 7
Rear Panel 8
Remote Control 8
Menu Structure 10
2. Getting Started 11
Turning On The Device for The First Time 11
Adjusting The Volume 16
Text Entry 16
Standby Mode 17
3. Listening To Music 18
Listening To Internet Radio 18
Listening To FM Radio 21
Listening To Home Music (UPnP) 23
Favorite List 25
4. Settings 26
Audio Profile 26
Time Setup 27
Sleep Timer 27
Snooze Timer 27
Alarm 1&2 28
Advanced Setup 29
Language 29
Time Zone 29

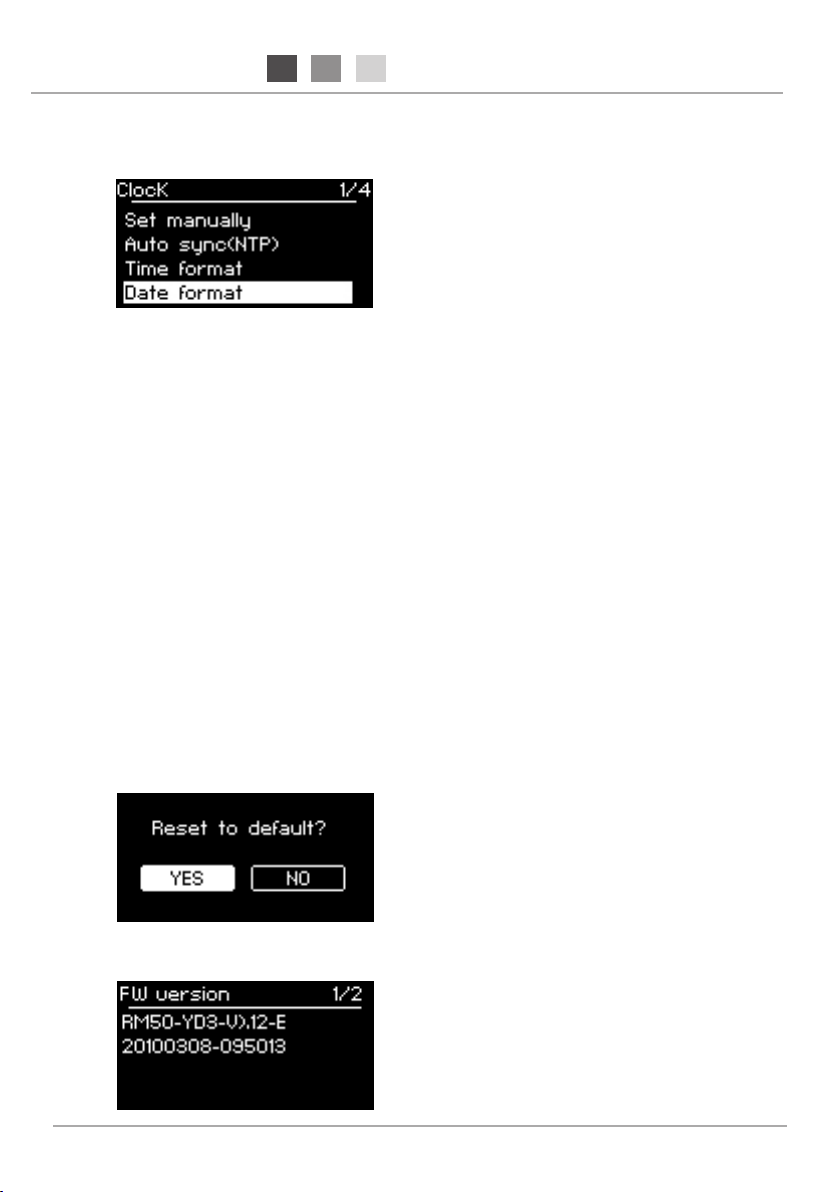

Clock 30
Reset To Default 30
FW Version 30
Demo Mode 31
5
Table of Contents
ECO Config 32
Backlight 32
Brightness 32
Volume limitation 33
Network Config 33
Scan For Networks 33
View Config 33
Edit Config 34
5. Appendix 36
Care And Maintenance 36
Problems
6. Specifications 39
7. Environment 40
Packaging 40
Batteries 40
The Product 40
36
6
Your IP Radio
1. Your IP Radio
This product is an IP Radio that, once connected to an Internet gateway, will allow
you to access worldwide Internet radio stations and to listen to your digital music files
stored on your PC, or on a multimedia UPnP server (Home Music). It can also be used
as an alarm clock for wake-up and important appointments.
1.1 Main Features
WiFi 802.11 b/g1.
Firmware upgrade through USB2.
Internet Radio3.
FM RDS4.
Audio Codec : MP3 / WMA / WAV5.
Output Connector : Line-out6.
1.2 Unpacking
• 1 x IP Radio Device
• 1 x Power Adapter (DC 5V / 2A)
with 1 three prong attachment (UK), 1 two prong attachment (Europe)
• 1 x Remote Control
• 1 x CD / User Manual
• 1 x Quick Guide
• 1 x Quick Warranty Guide
7
Your IP Radio
1
2
3 4
5
6
7
9
10
11
12
12
11
8
1.3 Front Panel
1. Display Screen Displays contents on the screen.
2. PRESETS [1] Press and hold to display a list of available FM stations.
3. MODE
4. VOL. Enables volume control on the Wheel.
5. MENU Displays the settings menu.
6. STATIONS [1]Press to displays the Favorite List
7. Navigation Wheel [1] In playback screen, rotate to increase/decrease the
8. C Act as the BACK button in all display screen.
9. INFO While listening to an IP Radio music source, press to
10. SMART RANDOM
SWITCH
11. SMART RANDOM
THEME
12. Speakers Provides music sound output.
[2] Press to activate auto/manual scan.
Displays the Mode menu.
[2] Press and hold to add/remove stations to/from the
Favorite List.
volume. Press to mute the audio volume.
[2] Navigate in the menu list. Press to enter or confirm the
highlighted item in the menu list.
display the music data.
Switch randomly to a new station.
Displays a list of all existing themes defined by Internet
Radio.
Your IP Radio
1.4 Rear Panel
1
2
3
4
5
6
5V DC
RAUDIO L
1. POWER [1] Press to shut off the music source currently playing and
put the device into the Standby mode.
[2] Press and hold to put the device in the Power off mode.
2. USB Port
3. 5V DC Power Jack
4. Audio Line Out Jack
Left/Right
Connect to USB cable for ffirmware upgrade only.
Plug in the power adaptor.
Plug in external speakers.
5. Antenna Cable Reception of radio signals.
6. Headset Jack Plug in an external headset. Speakers do not function while
headset is plugged in.
1.5 Remote Control
1
2
3
4
5
6
8
9
13
10
14
11
15
16
13
7
12
8
9
Your IP Radio
1. Mode
2. Snooze When the alarm is on, press to shut the alarm off and
3. Back
4. VOL +/VOL - Enables volume control.
5. Mute Mute all the sound.
6. Presets [1] Press and hold to display a list of available FM
7. Stations [1]Press to displays the Favorite List
8. Menu Displays the settings menu.
9. On/Off [1] Press to shut off the music source currently playing
10. Info While listening to an IP radio music source, press to
11. Smart Random
SWITCH
12. Smart Random
THEME
13. UP and DOWN
14. Previous
15. Next
16. Play/Pause/Select [1] Menu List: confirm or enter the highlighted item.
Displays the Mode menu.
reactivate again later.
Act as the BACK button in all display screen.
stations.
[2] Press to activate auto/manual scan.
[2] Press and hold to add/remove stations to/from the
Favorite List.
and put the device in standby mode.
[2] When the alarm goes off, presses this button to turn it
off and go to the Standby mode.
display music data.
Switch randomly to a new station.
Displays a list of all existing themes defined by Internet
Radio.
Move to the previous/next item.
Menu list: go to the top of list.
Menu List: go to next list.
[2] FM Radio: stop music and go back to Mode menu.
[3] IP radio/Home Music; Play/ Pause
Your IP Radio
1.6 Menu Structure
Press MODE to enter the menu:
(1) Internet radio (2) FM radio (3) Home Music
Mode
Press MENU to enter the settings menu:
(1) Audio profile (2) Time setup (3) Advanced setup (4) ECO config
(5) Network config
Audio Prole
> Off
> Classical
> Rock
> Pop
> Jazz
> Customized
Internet Radio
> Search by theme
> Search by name
> Search by region
> FM Internet radio
> Favorite Stations
> vTuner ID
Time Setup
> Sleep Timer
> Snooze Timer
> Alarm 1
> Alarm 2
FM Radio
Settings
Advanced Setup
> Language
> Time Zone
> Clock
> Reset to Default
> FW Version
> Demo Mode
Home Music
ECO Cong.
> Backlight
> Brightness
> Volume Limitation
Network Cong.
> Scan for Networks
> View Cong.
> Edit Cong.
10
Getting Started
Internet
DSL/ CableModem
Wireless
Router
5V DC
RAUDIO L
5V DC
2. Getting Started
2.1 Turning On The Device for The First Time
2.1.1 Network Environment
Please confirm that your wireless router or Access Point (AP) is connected to
the broadband network. The diagram below describes the network
environment that should be established to use your IP Radio.
2.1.2 Setting Up The device
(1) Plug the included power adapter into a wall outlet.
(2) Connect the power adapter to the power jack on the rear panel of the
device.
(3) Press and hold the Power button on the rear panel to turn on the device.
11
12
Getting Started
After the device is turned on, a welcome screen appears.
Note: Turning on the device for the first time will require you to set up the
Network, Language and Time Zone for your device. Please follow the setup guide
for proper setup.
The device will scan for network connection automatically.
2.1.3 After A Network Is Found
After scanning and a network connection is found, a Scan for networks menu
displays:
Rotate the Wheel to select the desired network connection method.
