F@ST 1704N
Quick Installation Guide
F@ST 1704N
Sagemcom thanks you for choosing the range of F@ST 1704N routers while hoping that it will provide you with full satisfaction.
F@ST 1704N products adapt the ADSL function respectively on POTS (ITU G.992.1/3/5 - Appendix A) and on ISDN (ITU G.992.1/3/5 - Appendix B).
F@ST 1704N equipment include four ethernet interfaces (LAN1 to LAN4), one ADSL interface and one USB port (depending model).
Copyright © Sagemcom Broadband SAS
All rights reserved.
Sagemcom is a registered trademark.
Windows® is a registered trademark of Microsoft Corporation.
2

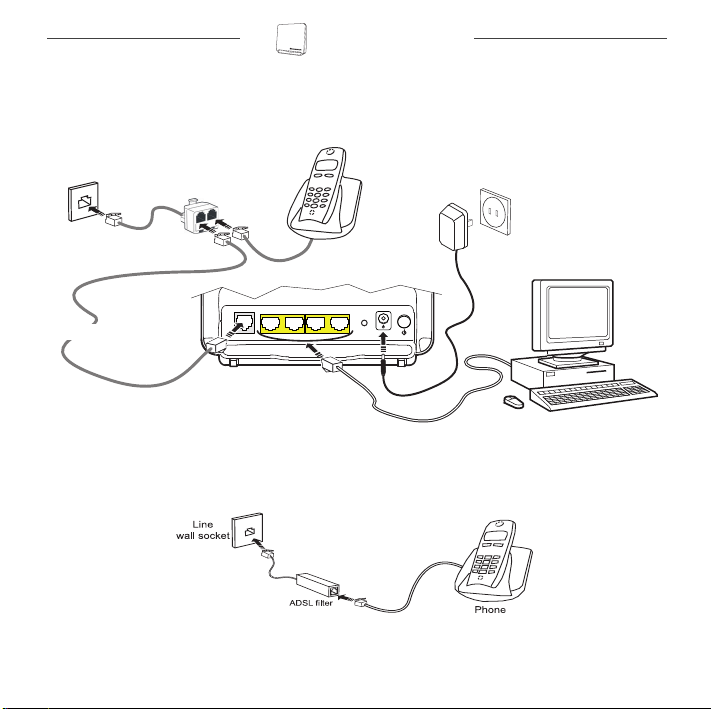

F@ST 1704N Contents of the pack
Before you carry out the installation, make sure that the pack contains the following elements:
1
2
3
4
5
6
Item |
Description |
|
|
|
|
1 |
F@ST 1704N router |
|
|
|
|
2 |
Mains adapter |
|
|
|
|
3 |
ADSL line cable used to connect your router to your |
|
telephone line |
||
|
||
|
|
|
4 |
Ethernet cable used to connect your router to the |
|
Ethernet port of your computer |
||
|
||
|
|
|
5 |
Quick Installation Guide |
|
|
|
|
6 |
Filter/Splitter used to connect one phone set and your |
|
router to your telephone line* |
||
|
||
|
|
|
7 |
Microfilter used to connect another phone set to your |
|
telephone line* |
||
|
||
|
|
|
|
* Option depending on pack content requested |
|
|
|
7
3
F@ST 1704N
Safety instructions
Power supply source
•Do not cover the router’s power adapter.
•The router comes with its own power adapter. Do not use another adapter.
•This class II adapter does not need to be grounded (earthed). The connection to the electrical network should comply with the indications given on the label.
•Use a readily accessible AC power outlet located near the router. The power supply cord is 1.5 m long.
•Care should be taken to ensure that the power cord is routed, so it is not likely to be walked on or pinched by items placed upon or next to it.
•The router is designed to be connected to a GG- (ground-to-ground) or GN- (ground-to-neutral) type power supply network.
•The router is not designed to be connected to an electrical installation with IT type diagram (neutral connected to earth through an impedance).
•Protection against short-circuits and leaks between the phase, neutral and earth should be provided by the building’s electrical installation. The power supply circuit for this equipment should be fitted with 16 A overcurrent protection and differential protection.
•Connect the router to the AC power via a readily accessible wall socket providing the electric protection.
Location conditions
By choosing an appropriate location, you will preserve the longevity of the device. Ensure that the selected location has the following characteristics:
•Install and use the router inside a building.
•The room temperature must not exceed 40 °C.
•Solar radiation: 700 w/m².
•Relative humidity: 5 to 85 % without condensation.
•The router can be placed on a desktop or fixed vertically in its wall mounting.
•Do not expose the router to strong sunlight or place it near a substantial source of heat.
•Do not place the router in an environment where it could be subjected to considerable steam condensation.
4
F@ST 1704N
•Do not expose the router to splashes of water.
•Avoid blocking any vent openings or exhaust exits on this equipment. Do not place equipment in a built-in installation such as a cabinet that may impede the flow of air through the ventilation openings.
•Do not use the router or its peripherals for outdoor transmissions.
Maintenance
•This equipment is not user serviceable and is to be serviced by qualified personnel only.
•Do not disassemble this equipment. If service is required, disconnect all power and phones lines from the equipment and consult qualified service personnel.
•Do not use liquid or aerosol cleaning agents.
Environment
Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.
5
