SAGEMCOM BROANDS FAST4320HP Users Manual
F@ST 4320 US
User Manual
VER: 1.1
FCC Statement
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment and it also complies with Part 15 of the FCC RF
Rules. This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other antenna
or transmitter. End-users and installers must be provided with antenna
installation instructions and consider removing the no-collocation statement.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment. (Example- use only
shielded interface cables when connecting to computer or peripheral
devices).
FCC Radiation Exposure Statement
This equipment complies with Part 15 of the FCC Rules.Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized changes or modifications to this equipment.
Such changes or modifications could void the user authority to operate
the equipment.
FCC - PART 68
This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this equipment
is a label that contains, among other information, a product identifier in
the format US: NS3DL01BFAST4320US. If requested, this number
must be provided to the telephone company.
This equipment uses the following USOC jacks: RJ-11.
REN (RINGER EQUIVALENT NUMBERS) STATEMENT Notice:
The Ringer Equivalence Number (REN) assigned to each terminal
device provides an indication of the maximum number of terminals
allowed to be connected to a telephone interface. The termination on
an interface may consist of any combination of devices subject only to
the requirement that the sum of the Ringer Equivalence Numbers of all
the devices does not exceed 5.
ATTACHMENT LIMITATIONS STATEMENT
Notice: This equipment meets telecommunications network protective,
operational and safety requirements as prescribed in the appropriate
Terminal Equipment Technical Requirements document(s). This is
confirmed by marking the equipment with the Industry Canada
certification number. The Department does not guarantee the
equipment will operate to the user's satisfaction.
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be installed
using an acceptable method of connection. The customer should be
aware that compliance with the above conditions may not prevent
degradation of service in some situations.
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunctions, may
give the telecommunications company cause to request the user to
disconnect the equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic
water pipe system, if present, are connected together.
This precaution may be particularly important in rural areas. Caution:
Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or
electrician, as appropriate.
IC Statement
This product meets the applicable Industry Canada technical
specifications. / Le présent matériel est conforme aux specifications
techniques applicables d’Industrie Canada.
The Ringer Equivalence Number (REN) is an indication of the
maximum number of devices allowed to be connected to a telephone
interface. The termination of an interface may consist of any
combination of devices subject only to the requirement that the sum of
the RENs of all the devices not exceed five. / L’indice d’équivalence
de la sonnerie (IES) sert à indiquer le nombre maximal de terminaux
qui peuvent être raccordés à une interface téléphonique. La terminaison
d’une interface peut consister en une combinaison quelconque de
dispositifs, à la seule condition que la somme d’indices d’équivalence
de la sonnerie de tous les dispositifs n’excède pas cinq.
User Manual
Contents
1 Safety Precautions.............................................................................................1
2 Overview............................................................................................................2
2.1 Application.............................................................................................2
2.2 Features ................................................................................................3
2.3 Standards Compatibility and Compliance..............................................4
3 Hardware Description and Installation ...............................................................5
3.1 Hardware Description............................................................................5
3.1.1 Front Panel.................................................................................5
3.1.2 Rear Panel and Side Panel ........................................................6
3.2 Hardware Installation.............................................................................7
3.2.1 Choosing the Best Location for Wireless Operation...................7
3.2.2 Connecting the Device ...............................................................7
4 PC Network Configuration and Login.................................................................9
4.1 PC Network Configuration.....................................................................9
4.2 Logging In to the DSL Router.............................................................. 11
5 Web-Based Management ................................................................................12
5.1 Quick Setup.........................................................................................12
5.2 Advanced Setup..................................................................................15
5.2.1 Layer2 Interface........................................................................15
5.2.2 WAN Service ............................................................................19
5.2.3 3G WAN Service.......................................................................27
5.3 Wireless...............................................................................................29
5.3.1 Basic Settings...........................................................................29

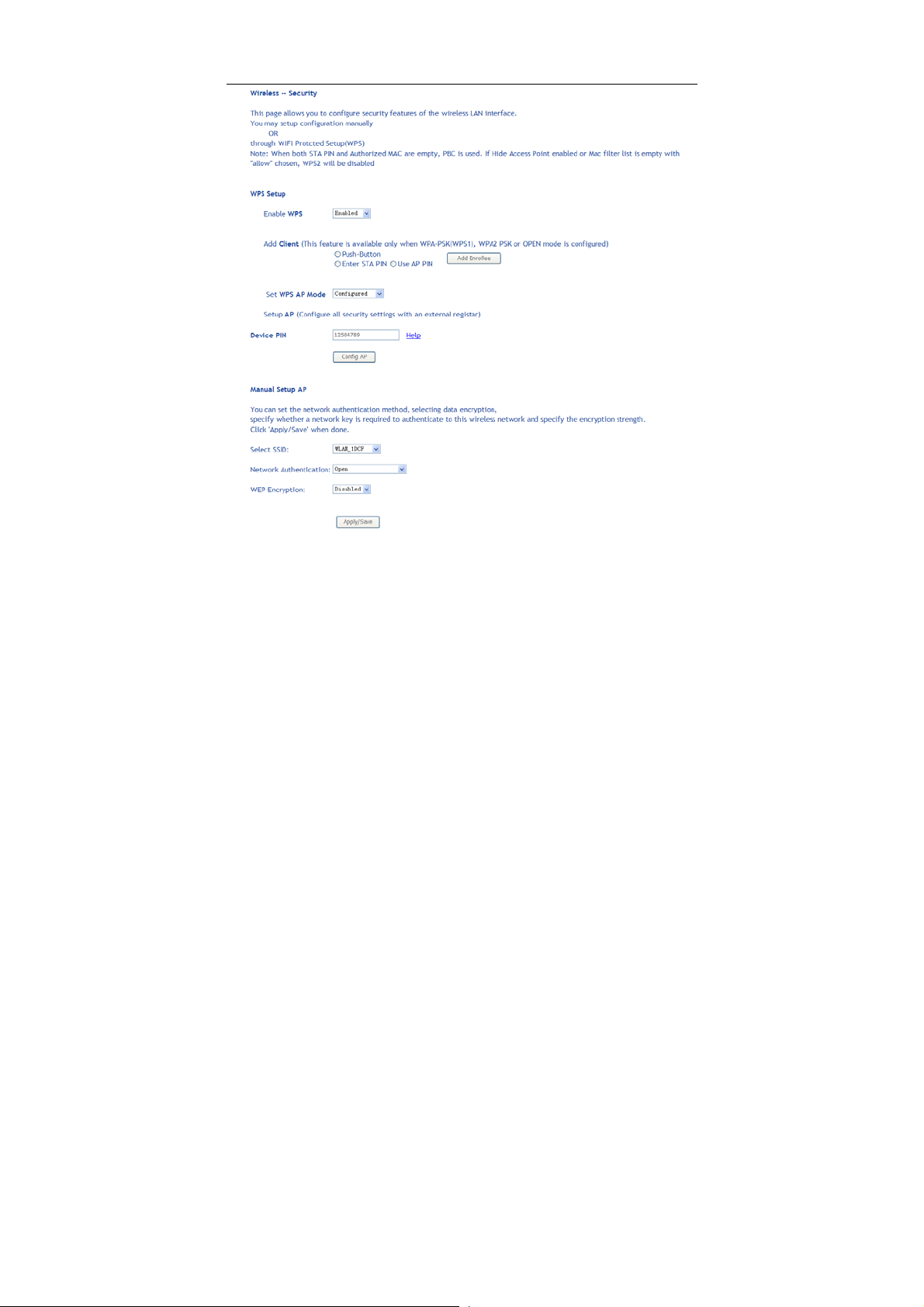

5.3.2 Security.....................................................................................30
5.4 Management........................................................................................32
5.4.1 Access Control..........................................................................33
5.4.2 Update Software.......................................................................33
6 Q&A..................................................................................................................34
i
User Manual
1 Safety Precautions
Read the following information carefully before operating the device. Please follow
the following precaution items to protect the device from risks and damage caused
by fire and electric power:
Use volume labels to mark the type of power.
Use the power adapter that is packed within the device package.
Pay attention to the power load of the outlet or prolonged lines. An
overburden power outlet or damaged lines and plugs may cause electric
shock or fire accident. Check the power cords regularly. If you find any
damage, replace it at once.
Proper space left for heat dissipation is necessary to avoid any damage
caused by overheating to the device. The holes on the device are designed
for heat dissipation to ensure that the device works normally. Do not cover
these heat dissipation holes.
Do not put this device close to a place where a heat source exits or high
temperature occurs. Avoid the device from direct sunshine.
Do not put this device close to a place where is over damp or watery. Do not
spill any fluid on this device.
Do not connect this device to any PC or electronic product, unless our
customer engineer or your broadband provider instructs you to do this,
because any wrong connection may cause any power or fire risk.
Do not place this device on an unstable surface or support.
1
User Manual
2 Overview
The xDSL Router integrates wireless LAN and USB into one unit. It is designed to
provide a simple and cost-effective xDSL Internet connection for a private Ethernet
and 802.11b/802.11g/802.11n wireless network. The Router combines high-speed
xDSL Internet connection, Ethernet uplink, IP routing for the LAN and wireless
connectivity in one package. It is usually preferred to provide high access
performance applications for the individual users, the SOHOs, and the small
enterprises. The Router supports 3G WAN service.
The Router is easy to install and use. The Router connects to an Ethernet LAN or
computers via standard Ethernet ports. The xDSL connection is made using
ordinary telephone line with standard connectors. You can connect the Ethernet
interface of WAN to Internet with Ethernet cable for ETH uplink. Multiple
workstations can be networked and connected to the Internet by a single Wide
Area Network (WAN) interface and single global IP address. The advanced
security enhancements, packet filtering and port redirection, can help protect your
network from potentially devastating intrusions by malicious agents from outside
your network.
Network and Router management is done through the web-based management
interface that can be accessed through the local Ethernet using any web browser.
Y ou may also enable remote management to enable configuration of the Router via
the WAN interface.
2.1 Application
Home gateway
SOHOs
Small enterprises
Higher data rate broadband sharing
Audio and video streaming and transfer
PC file and application sharing
Network and online gaming
USB storage
3G WAN service
2
User Manual
2.2 Features
User-friendly GUI for web configuration
Several pre-configured popular games. Just enable the game and the port
settings are automatically configured.
Compatible with all standard Internet applications
Industry standard and interoperable DSL interface
Simple web-based status page displays a snapshot of system configuration,
and links to the configuration pages
Downloadable flash software updates
Support for up to 8 permanent virtual circuits (PVC)
Support for up to 8 PPPoE sessions
Support RIP v1 & RIP v2
WLAN with high-speed data transfer rates, compatible with IEEE 802.11b/g/n
Optimized Linux 2.6 Operating System
IP routing and bridging
Asynchronous transfer mode (ATM) and digital subscriber line (DSL) support
Packet Transfer Mode (PTM)
Ethernet (ETH) Transfer Mode
Point-to-point protocol (PPP)
Network/port address translation (NAT/PAT)
Quality of service (QoS)
Wireless LAN security: WPA, 802.1x, RADIUS client
Universal plug-and-play(UPnP)
File server for network attached storage (NAS) devices
Print server
Web filtering
Management and control
- Web-based management (WBM)
- Command line interface (CLI)
- TR-069 WAN management protocol
- Simple Network Management Protocol (SNMP)
Remote update
System statistics and monitoring
DSL router is targeted at the following platforms: DSL modems, wireless
access points and bridge.
3
User Manual
2.3 Standards Compatibility and Compliance
Support application level gateway (ALG)
ITU G.992.1 (G.dmt)
ITU G.992.2 (G.lite)
ITU G.994.1 (G.hs)
ITU G.992.3 (ADSL2)
ITU G.992.5 (ADSL2+)
ITU G.993.1 (VDSL)
ITU G993.2 (VDSL2)
3G (WCDMA, CDMA2000, TD-SCDMA)
ANSI T1.413 Issue 2
IEEE 802.3
IEEE 802.3u
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
4
User Manual
3 Hardware Description and Installation
Note:
The figures in this document are for reference only.
3.1 Hardware Description
3.1.1 Front Panel
Figure 1 Front panel
The following table describes the indicators on the front panel.
Indicator Color Status Description
On
Green
Power
Red
WAN Green
WPS Green
DSL Green On DSL link has established.
Blink The software is upgrading.
Off The device is powered off.
On The device is initiating.
Blink The software is upgrading.
On
Blink Network data is transmitting.
Off
On
Blink
Off Wi-Fi Protected Setup is disabled.
The device is powered on and the device operates
normally.
The WAN interface is connected to the Ethernet
cable.
The WAN interface is not connected to the
Ethernet cable.
Connection succeeds under Wi-Fi Protected
Setup.
Negotiation is in progress under W-iFi Protected
Setup.
5
User Manual
Indicator Color Status Description
Blink The DSL line is training.
Off Device is powered off.
Internet is synchronized successfully in the route
mode.
Internet
On
Green
Red On Authentication has failed.
Blink Internet data is being transmitted.
Off Ethernet interface is disconnected.
3.1.2 Rear Panel and Side Panel
Figure 2 Rear panel
The following table describes the interfaces and the buttons.
Interface Description
DSL
LAN 4~1
WAN For connecting Ethernet cable to provide Ethernet uplink.
Reset
RJ-11 port. Connect the router to DSL connector or splitter through
telephone cable.
RJ-45 port, for connecting the router to a PC or another network
device.
Press the button for at least 1 second and then release it. System
restores the factory default settings.
6
User Manual
Interface Description
USB1/2
Power Power interface, for connecting the power adapter.
On/Off
WiFi WiFi switch, for enabling or disabling the WiFi function.
WPS
Warning:
Do not press the Reset button unless you want to clear the current settings. The
Reset button is in a small circular hole on the rear panel. If you want to restore the
default settings, please press the Reset button gently for 1 second with a fine needle
inserted into the hole and then release the button. The system reboots and returns to
the factory defaults.
USB port, for connecting the 3G network card or other USB storage
devices.
Power switch.
This button is used for enabling WPS PBC mode. If WPS is enabled,
press this button, and then the wireless router starts to accept the
negotiation of PBC mode.
3.2 Hardware Installation
3.2.1 Choosing the Best Location for Wireless Operation
Many environmental factors may affect the effective wireless function of the DSL
Router. If this is the first time that you set up a wireless network device, read the
following information:
The access point can be placed on a shelf or desktop, ideally you should be able to
see the LED indicators in the front, as you may need to view them for troubleshooting.
Designed to go up to 100 meters indoors and up to 300 meters outdoors, wireless
LAN lets you access your network from anywhere you want. However, the numbers of
walls, ceilings, or other objects that the wireless signals must pass through limit sign al
range. Typical ranges vary depending on types of materials and background RF
noise in your home or business.
3.2.2 Connecting the Device
Step 1 Connect the DSL port of the router and the Modem port of the splitter
with a telephone cable; connect the phone to the phone port of the
7
Loading...
