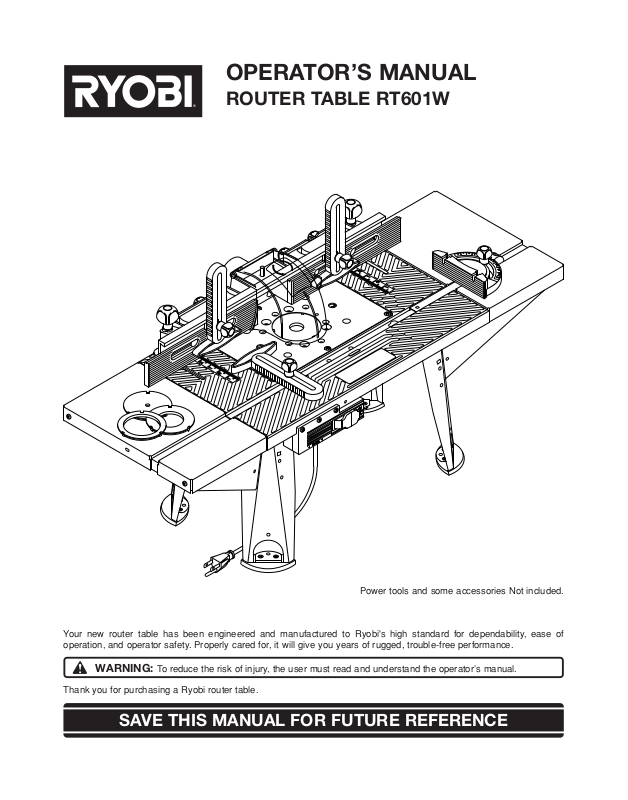

OPERATOR’S MANUAL

ROUTER TABLE RT601W

Thank you for purchasing a Ryobi router table.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Your new router table has been engineered and manufactured to Ryobi's high standard for dependability, ease of
operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual.

Power tools and some accessories Not included.

TABLE OF CONTENTS

2

INTRODUCTION

Your router table has many features for making the use of
a router more pleasant and enjoyable.
Safety, performance, and dependability have been given
top priority in the design of this router table making it easy
to maintain and operate.

WARNING:

Do not attempt to use this product until you have read
thoroughly and completely understand the operator’s
manual. Pay close attention to the safety rules,
including Dangers, Warnings, and Cautions. If you
use your router table properly and only for what it is
intended, you will enjoy years of safe, reliable service.

The operation of any power tool can result in foreign objects being thrown into your eyes, which
can result in severe eye damage. Before beginning tool operation, always wear safety goggles
or safety glasses with side shields and a full face shield when needed. We recommend Wide
Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.
Always wear eye protection which is marked to comply with ANSI Z87.1.

Look for this symbol to point out important safety
precautions. It means attention!!! Your safety is involved.

I Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

I Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

I Unpacking and checking contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

I Features and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

I Package contents and hardware legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9

I Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-14

I Securing the router table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

I Mounting the router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-18

I Switch box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-20

I Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-25

I Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

I Repair parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-27

RULES FOR SAFE OPERATION

3

I Read all safety instructions before using

Read the owner's manual carefully. Learn its applica­tions and limitations as well as the specific potential
hazards.

I Ground all tools (unless double insulated)

If tool is equipped with an approved 3-conductor cord
and a 3-prong grounding type plug to fit the proper
grounding type receptacle, the green conductor in the
cord is the grounding wire. NEVER connect the green
wire to a live terminal.

I Keep away from hazardous materials

Normal sparking of the motor could ignite fumes,
flammable liquids, or combustibles.

I Protect yourself against personal injury

DO NOT operate any tool while under the influence of
drugs, alcohol, or any medication.

I Dress for safety

Do not wear loose clothing, gloves, neckties, or jewelry,
as these items can get caught and draw you into
moving parts. ALWAYS wear non-slip footwear. Tie back
long hair. Roll long sleeves above the elbow.

I Avoid accidental starting

Make sure all switches are in "OFF" position before
plugging in.

I Never stand on tool

Serious injury could occur if the tool is tipped or if the
cutting tool is accidentally contacted. DO NOT store
materials above or near the tool, making it necessary to
stand on the tool to reach them.

I Protect and use suitable cords

NEVER carry tool by cord or yank it to disconnect from
receptacle. Protect cord from heat, oil and sharp edges.
For outdoor operation, use extension cords intended for
outdoor use.

I Avoid a dangerous environment

DO NOT use power tools in damp or wet locations or
expose them to rain. Keep work area well lit and
provide an adequate surrounding work space.

I Check direction of feed

Feed workpiece against the router bit’s direction of
rotation.

WARNING:

WARNING:

Means that failure to follow this safety statement may
result in extensive product damage, serious personal
injury, or death.

I Check damaged parts

Before further use of the tool, a guard or other part that
is damaged should be carefully checked to ensure that
it will operate properly and perform its intended
function. Check for alignment of moving parts, binding
of moving parts, broken parts, mounting and any other
conditions that may affect its operation. A guard or other
part that is damaged should be properly repaired or
replaced.

I Never leave tool running unattended

Turn power off. Do not leave tool until it comes to a
complete stop.

I Secure router table

DO NOT attempt to use your router table unless it is
fastened firmly to your workbench or floor.

I Disconnect tools before servicing

When changing bits, make sure router is unplugged.

I Keep guards in place

Be sure guards are in working order, properly adjusted,
and aligned.

I KEEP HANDS AWAY FROM CUTTING AREA

RULES FOR SAFE OPERATION

UNPACKING AND CHECKING CONTENTS

4

CAUTION:

Separate all parts from packaging materials and check
each item against the package contents listed in this
manual, found on pages 6-9.

If any parts are damaged or missing, please call
[phone] for assistance.

Your RYOBI®router table is shipped complete in one
carton. Make sure all items are accounted for before
discarding any of the packing materials.

CAUTION:

Means that failure to follow this safety statement may
result in minor or moderate personal injury, or property
or equipment damage.

I Store properly

Do not store router table outdoors or in a damp location.

I Keep work area clean

ALWAYS keep your work area clean, uncluttered, and
well lit. DO NOT work on or place router table legs on
floor surfaces that are slippery from sawdust, oil, water,
or wax.

I Do not force the tool

Do not force tool or attachment to do a job for which it
was not designed. It will do the job better and more
safely at the rate for which it was designed.

I Use clamps or a vise to hold work when practical

Using clamps or a vise to hold work is safer than using
your hand. It also frees both hands to operate the tool.

I Do not overreach

Keep proper footing and balance at all times.

I Maintain tools with care

Keep tools sharp and clean for best and safest perfor­mance. Follow instructions for lubricating and changing
accessories.

I Use recommended accessories

Consult this manual for recommended accessories.
Follow the instructions that accompany the accessories.
The use of improper accessories may cause hazards.

I Remove adjusting keys and wrenches

Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool before
turning it on.

I Ensure safety of others

Keep visitors and children a safe distance away from
the work area, especially when operating a power tool.
Visitors should wear the same safety equipment as the
operator.

I SAVE THESE INSTRUCTIONS

FEATURES AND SPECIFICATIONS

5

Table weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22.5 lbs.

Table work space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .574 square inches

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-5/8"L x 14-1/8"W x 14"H

WARNING:

Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alteration
or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

ROUTER TABLE features include:

Fig. 1

Universal router
adapter plate

Universal router
drop in adapter plate

Accessible clamping position

Twin receptacle
electrical switch

Multi-position fence

Aluminum
tabletop

Multi-adjustable
featherboards

Easy to read
miter guide

Universal router
clamping system

PACKAGE CONTENTS AND HARDWARE LEGEND

6

ITEM DESCRIPTION QTY.

A Safety shield 1 A

B Fence 1 B

C Tabletop 1 C

D Extension 2 D

E Leg support, left 2 E

F Leg support, right 2 F

G Leg 4 G

H Switch box 1 H

PACKAGE CONTENTS AND HARDWARE LEGEND

7

ITEM DESCRIPTION QTY.

J Miter guide 1 J

K Miter bar 1 K

L Knob screw 2 L

M Knob 8 M

N Miter pointer 1 N

P Footpad 4 P

Q Featherboard 3 Q

R Sliding block 2 R

S Swivel piece 4 S

T Clamp 4 T

U Adapter plate 1 U

PACKAGE CONTENTS AND HARDWARE LEGEND

8

Note: Hardware parts shown (screws, nuts, washers) are actual size.

ITEM DESCRIPTION QTY.

V Locating pin 3 V

W Tabletop insert 1 W

X Tabletop insert, 1 X

small hole

Y Tabletop insert, 1

Y

medium hole

Z Tabletop insert, 1

Z

large hole

AA Carriage bolt 1

AA

(M 6 x 30)

AB Countersink screw 4

AB

with nose (M 6 x 65)

AC Self tapping pan head screw 21

AC

(5 x 12)

AD Pan head screw 18

AD

(M 5 x 16)

AE Pan head screw 2

AE

(M 6 x 25)

AF Hex head bolt 3 AF

(M 6 x 35)

AH Allen screw (M 6 x 10) 1

AH

PACKAGE CONTENTS AND HARDWARE LEGEND

9

Note: Hardware parts shown (screws, nuts, washers) are actual size.

ITEM DESCRIPTION QTY.

AJ Countersink screw 8 AJ

(M 4 x 12)

AK Washer (6.4 DIN 9021) 10

AK

AL Washer (6.4 DIN 125) 4 AL

AM Toothed washer 34 AM

(5.3 DIN 6797)

AN Hex nut (M 4) 8

AN

AP Hex nut (M 5) 18 AP

AQ Hex nut (M 6) 4 AQ

AR Square nut (M 6) 2 AR

AS Countersink screw 3 AS

(5/16" - 18 x 3/4")

AT Countersink screw 3

AT

(M 8 x 20)
