Installation Guide

www.ruggedcom.com

RuggedCom Inc. I 30 Whitmore Road, Woodbridge, Ontario, Canada L4L 7Z4

Tel: (905) 856-5288 I Fax: (905) 856-1995 I Toll Free: (888) 264-0006

Federal Communications Commission

Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his expense.

Caution

This product contains a laser system and is classified as a “CLASS 1 LASER PRODUCT”.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This product contains no user serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void.

Should this device require service see the “Warranty” section of this installation guide.

Important

This unit should be installed in a restricted access location where access can only be gained by service personnel or users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken; and access is through the use of a tool or lock and key, or other means of security, and is controlled by the authority responsible for the location.

Trademarks:

Ethernet is a trademark of Xerox Corporation RuggedSwitch, RuggedRated, ROS and eRSTP are trademarks of RuggedCom® Inc.



Table of Contents

1 Product Overview.................................................................................................................. 4

1.1 Functional Overview ....................................................................................................... 4

1.2 Feature Highlights........................................................................................................... 4

1.3 RS900W Family Front Panel View.................................................................................. 5

1.4 RS900W Family Bottom Panel View............................................................................... 6

2 Installation ............................................................................................................................. 7

2.1 DIN Rail Mounting........................................................................................................... 7

2.2 Power Supply Wiring and Grounding.............................................................................. 8

2.2.1 AC Power Supply Wiring and Grounding.................................................................... 8

2.2.2 DC Power Supply Wiring and Grounding ................................................................... 9

2.3 Dielectric Strength (HIPOT) Testing ............................................................................. 10

2.4 Failsafe Output Wiring and Specifications .................................................................... 11

2.5 RS232 Port Wiring ........................................................................................................ 12

2.6 RJ45 Ports – Signal Description ................................................................................... 13

3 Technical Specifications..................................................................................................... 14

3.1 Operating Environment................................................................................................. 14

3.2 Power Supply Specifications......................................................................................... 14

3.3 Failsafe Relay Specifications........................................................................................ 14

3.4 RJ45 Ethernet Port Specifications ................................................................................ 15

3.5 Wireless Standards Supported ..................................................................................... 16

3.6 Radio Characteristics.................................................................................................... 16

3.7 IEEE 802.11b/g............................................................................................................. 17

3.8 Fiber Optical Port Specifications................................................................................... 18

3.9 Physical Dimensions..................................................................................................... 19

3.10 Agency Approvals......................................................................................................... 20

4 Warranty............................................................................................................................... 20

5 Appendix A - RuggedWireless ™ Frequently Asked Questions (FAQ)........................... 21



1 Product Overview

1.1 Functional Overview

The RuggedWireless RS900W family of products are industrially hardened, fully managed, IEEE

802.11g Access Points with integrated Ethernet switching, specifically designed to operate reliably in electrically harsh and climatically demanding industrial environments. The RS900W’s superior

ruggedized design coupled with the RS900W’s RuggedWireless Operating System (ROS) provides improved system reliability and advanced networking features making it ideally suited for creating 802.11g Wireless Ethernet networks for mission-critical, real-time, control applications.

The RS900W can be equipped with dual 100Mbps fiber optical Ethernet ports for creating a fiber optical backbone with high noise immunity and long haul connectivity. The RS900W also provides dual power inputs for backup power and is packaged in a rugged steel enclosure that can be DIN rail or panel mounted.

1.2 Feature Highlights

 Complies with the IEEE 802.11g 2.4GHz specification (Wireless LAN) including “fallback”

(backward) compatibility with IEEE802.11b station-client devices.

 High wireless data rates: 54, 48, 36, 24, 18, 12, 11, 5.5, 2 and 1Mbps network speed.  The RW80 Access Point functionality will seamlessly integrate wireless and wired Ethernet

LAN networks.

 Auto rate fallback in case of obstacles or interferences.  Basic security is provided with 64/128-bit WEP Data Encryption function to protect the wireless

data transmissions.

 Enhanced security is provided by WPA and TKIP data-encryption method.  Robust security is provided by 802.11i/WPA2 (backward compatible with WPA stations) and

AES (with CCMP) data-encryption method.

 Both WPA and WPA2 modes both feature Enterprise and Personal configurations for key

management. Enterprise mode will offer IEEE 802.1x security (EAP with RADIUS) while Personal offers Pre-Shared Key (PSK) “passphrase” to generate keys for authentication.

 Integrated ROS™ configuration methods.  Exceeds IEC 61000-6-2 standards for industrial environments and NEMA TS-2 standards for

traffic control equipment.

 Operating temperature: -40° to 85°C (no fan)  Power supply options: 12, 24 or 48VDC, and universal HI (88-300VDC or 84-264VAC)  Dual, independent inputs for 24 and 48VDC power supplies for redundancy  Failsafe output relay for critical failure or error alarming  Advanced layer-2 switching functions: Rapid Spanning Tree, Message Prioritization and Virtual

LANs

 Full-duplex operation (no collisions) with flow-control



1.3 RS900W Family Front Panel View

Fail-Safe Relay

Power Port

Port 9:

Ports 1

–

Ports 7

–

Power and

Alarm LEDs Reset LED

10/100 BaseTx or 100 BaseFx

Antenna #1

10/100 BaseTx

Figure 1 - Front Panel Description

ITEM Activity Comments

Power LED Solid Power On

Alarm LED Solid Alarm condition exists

Table 1 - Status LEDs

Antenna #2

Solid Link Established LINK LED (Yellow) Blinking – Once per second Tx/Rx Activity



1.4 RS900W Family Bottom Panel View

Chassis ground

Power Supply

Optional DIN Rail

Fail-Safe Relay

RS232 Console

Port

Connection

Figure 2 - Bottom Panel Description

Mounting Bracket



2 Installation

Optional

Release

2.1 DIN Rail Mounting

An optional DIN rail mounting bracket is available for the RS900W. Figure 2.1.1 details mounting instructions for the standard 1” DIN Rail.

Din Rail mounting bracket

direction

Figure 3 - DIN Rail Mounting



2.2 Power Supply Wiring and Grounding

2.2.1 AC Power Supply Wiring and Grounding

Figure 4 - Power Supply Inputs

The AC power supply inputs should be connected as follows:

1. +/L should be connected to AC Line/Hot.

2. -/N should be connected to AC Neutral.

3. Surge Ground should be connected to the Chassis Ground via a braided cable or other

appropriate grounding wire. Surge Ground is used as the ground conductor for all surge and transient suppression circuitry internal to the unit.

4. Chassis Ground must be connected to the AC ground terminal.

NOTES:

1. Equipment must be installed according to the applicable country wiring codes.

2. All line-to-ground transient energy is shunted to the Surge Ground terminal. In cases

where users require the inputs to be isolated from ground, remove the ground braid between Surge and Chassis Ground. Note that all line-to-ground transient protection circuitry will be disabled.



2.2.2 DC Power Supply Wiring and Grounding

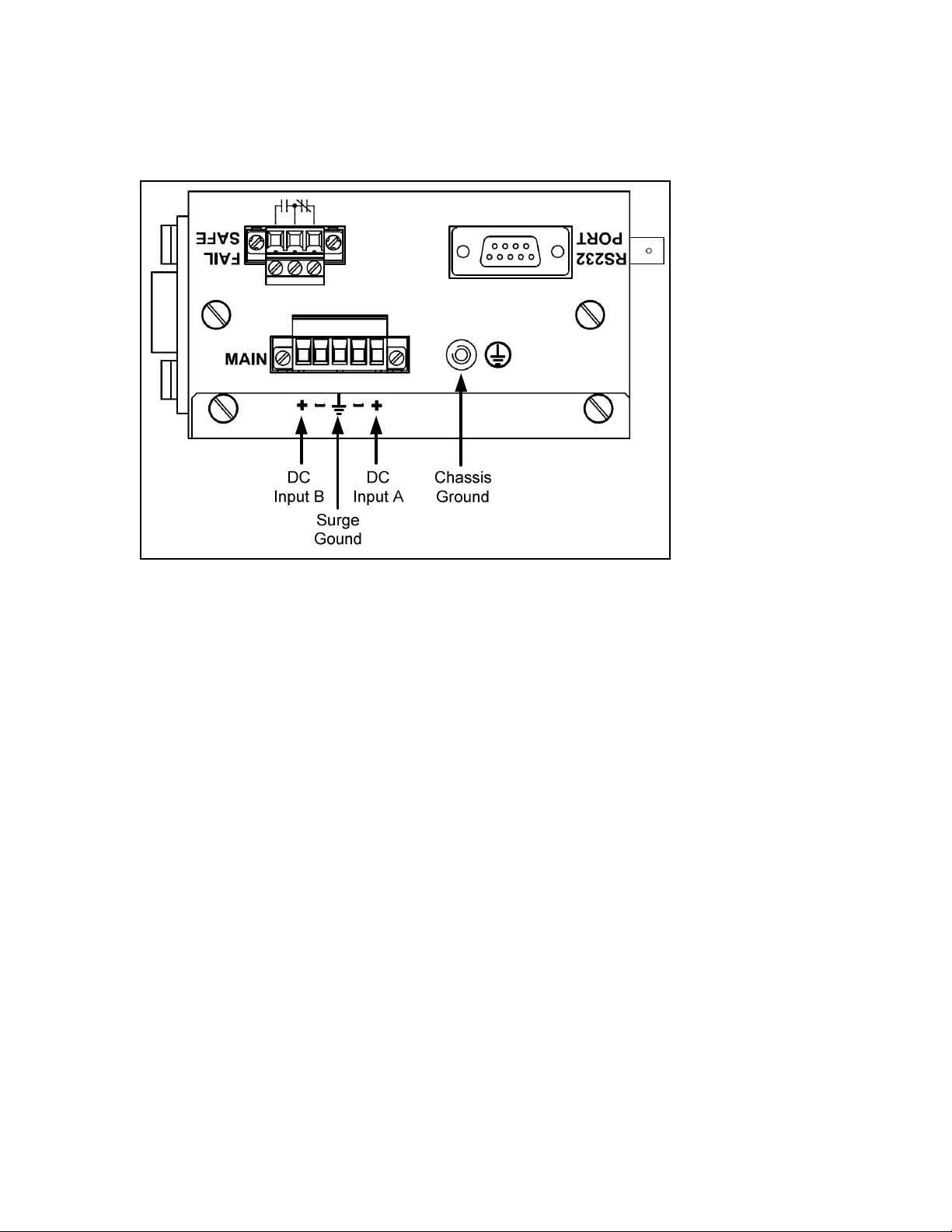

Figure 5 - DC Power supply wiring and grounding diagram

The low voltage DC power supply features reverse polarity protection and dual independent inputs. The latter feature allows the connection of two DC sources with the same nominal voltage to provide redundant power supply inputs.

The DC power supply inputs should be connected as follows:

1. Connect to the DC inputs according to the polarity markings on the unit.

2. Surge Ground should be connected to the Chassis Ground via a braided cable or other

appropriate grounding wire. Surge Ground is used as the ground conductor for all surge and transient suppression circuitry internal to the unit.

3. Chassis Ground must be connected to the protective earth.

NOTES:

1. Equipment must be installed according to the applicable country wiring codes.

2. All line-to-ground transient energy is shunted to the Surge Ground terminal. In cases

where users require the inputs to be isolated from ground, remove the ground braid between Surge and Chassis Ground. Note that all line-to-ground transient protection circuitry will be disabled.



2.3 Dielectric Strength (HIPOT) Testing

Units which are to have dielectric strength testing (HIPOT testing) done in the field must have the braided ground cable disconnected during the test. This is required in order to prevent the surge suppression circuitry, which is connected to surge ground, from being activated.

Figure 6 - Dielectric Strength Testing



2.4 Failsafe Output Wiring and Specifications

The Failsafe output relay is provided to signal critical error conditions that may occur on the unit. The contacts are energized upon power up of the unit and remain energized until an alarm condition or power loss occurs.

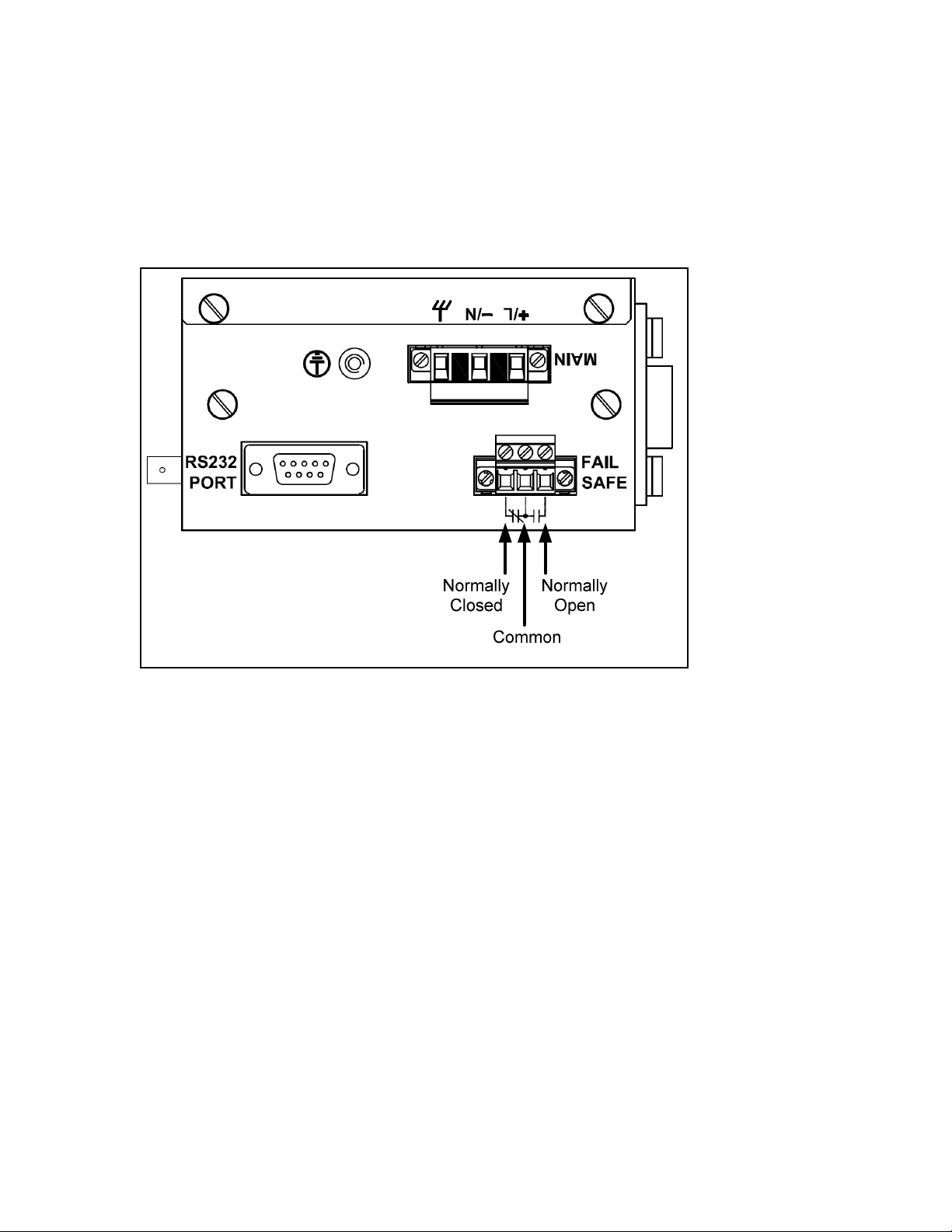

Figure 7 - Failsafe Output Relay



2.5 RS232 Port Wiring

The RS232 port is used for configuring the unit. A straight-through serial cable with a DB-9 connector is required. There is no need to crossover the Transmit and Receive signals from the PC side since this has been done internally as is shown below.

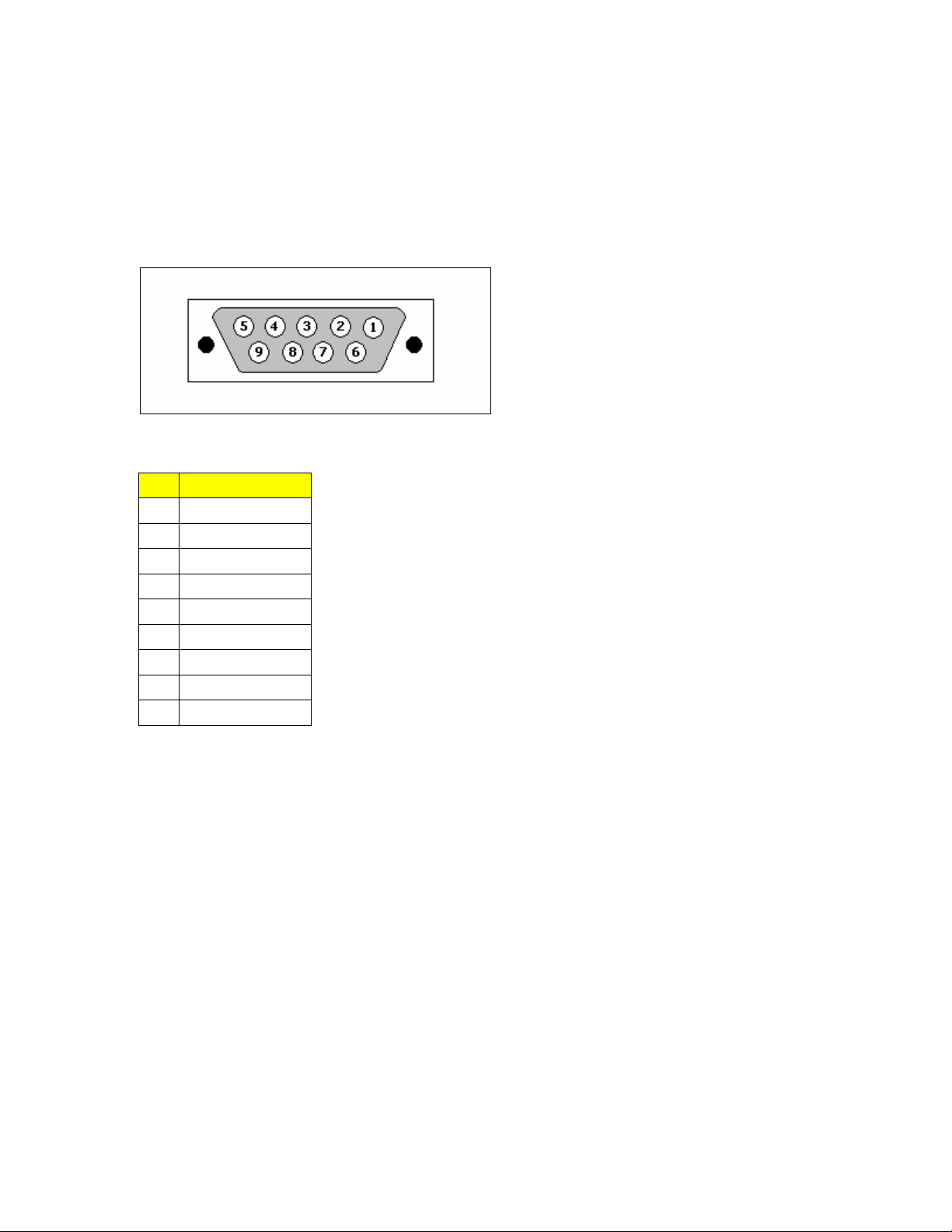

Figure 8 - RS232 Female DCE pin-out

1 No Connection 2 Transmit Data 3 Receive Data 4 No Connection 5 Ground 6 No Connection 7 No Connection 8 No Connection 9 No Connection

Signal

Table 2 - RS232 Female DCE pin-out

NOTE: This port is not intended to be a permanent connection and the cable shall be less than 2m

(6.5 ft) in length.



2.6 RJ45 Ports – Signal Description

Units with 10/100Base-TX ports allow connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP) cable with RJ45 male connectors. The RJ45 receptacles are directly connected to the chassis ground on the unit and can accept CAT-5 shielded twisted-pair (STP) cables. If shielded cables are used, care must be taken to ensure the shielded cables do not form a ground loop via the shield wire and the RJ45 receptacles at either end. The figure below shows the shows the RJ45 port pin-out and LEDs.

Figure 9 - RJ45 port pin-out and LEDs

Pin Signal

1 +Rx 2 -Rx 3 +Tx 4 No Connection 5 No Connection 6 -Tx 7 No Connection 8 No Connection

Case Shield (Chassis Ground)

Table 3 - RJ45 port pin-out

NOTE: RuggedCom does not recommend the use of copper cabling of any length for critical real-

time substation automation applications. However, transient suppression circuitry is present on all copper ports to protect against damage from electrical transients and to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance. This means that during the transient event communications errors or interruptions may occur but recovery is automatic.

RuggedCom also does not recommended to use these ports to interface to field devices across distances which could produce high levels of ground potential rise, (i.e. greater than 2500V) during line to ground fault conditions.



3 Technical Specifications

3.1 Operating Environment

Parameter Range Comments

Ambient Operating Temperature

Ambient Storage Temperature

Ambient Relative Humidity 5% to 95% Non-condensing

Table 4 - Operating Environment

-40 to 85°C

3.2 Power Supply Specifications

Power Supply Type

12 – 24 VDC 10 VDC 36 VDC 3.15 (T) 1.5 kV DC

24 VDC 18 VDC 36 VDC 3.15 (T) 1.5 kV DC 48 VDC 36 VDC 72 VDC 3.15 (T) 1.5 kV DC

HI (125/250 VDC) 1 HI (110/230 VAC) 1

Minimum

Input

88 VDC

85 VAC

Maximum

Input

300 VDC 265 VAC

Ambient Temperature as measured from a 30 cm radius

surrounding the center of the enclosure.

Fuse

Rating

3.15 (T)

Isolation

4 kV AC

5.5 kV DC

Maximum Power

Consumption

10W

Table 5 - Power Supply Specifications

NOTES:

1. This is the same power supply for both AC and DC.

2. (F) Denotes fast-acting fuse, (T) denotes time-delay fuse.

3. For continued protection against risk of fire, replace only with same type and rating of fuse.

3.3 Failsafe Relay Specifications

Parameter Value

Max Switching Voltage 30VAC, 80VDC Rated Switching Current 0.3A @ 30VAC

1A @ 30VDC, 0.3A @ 80VDC

Table 6 - Failsafe Relay Specification

NOTES:

1. Resistive Load.

2. For Class-2 circuits only.



Isolation Comments

1500 V

Table 7 - Failsafe Relay Isolation

Dielectric test voltage (1 minute) between coil & contacts

rms

3.4 RJ45 Ethernet Port Specifications

Data Port Media Distance Connector Type

10/100 Mbps CAT-5 UTP or STP 100m RJ45

Table 8 – RJ45 Ethernet Port Specifications



3.5 Wireless Standards Supported

Standard Parameter Mode Notes

IEEE 802.11g 54 Mbps (WLAN) Full Access Point 2.4 Ghz ISM

IEEE 802.11b 11 Mbps (WLAN) Client support Backwards compatibility

IEEE 802.11i Strong Encryption WPA2-AES (CCMP)

Enhanced Encryption WPA-TKIP (RC4) Temporal keys

Basic Encryption WEP (RC4) Up to 4 static keys

IEEE 802.1x Wireless Authentication ‘Personal’ or ‘Enterprise’ PSK or RADIUS

Table 9 - Wireless Standards supported

Robust Secure Network

(RSN)

3.6 Radio Characteristics

Standard Parameter

Modulation Direct Sequence Spread Spectrum 802.11b / OFDM 802.11g

Frequency Range 2.4 Ghz – 2.4965 Ghz

6-54 Mbps: OFDM 11 Mbps: CCK

Data Rate

Channels

Output Power

Receiver Sensitivity

Table 10 - Radio Characteristics

5.5 Mbps: CCK 2 Mbps: DQPSK 1 Mbps: DBPSK 11 – US (FCC) 11 - CAN (IC) 14 – Japan (MKK) 13 – Other countries (ETS) 100 mW (20dBm) 802.11b 11Mbps Data Rate 100 mW (20dBm) 802.11g 6-24Mbps Data Rate 79 mW (19dBm) 802.11g 36Mbps Data Rate 63 mW (18dBm) 802.11g 48Mbps Data Rate 40 mW (16dBm) 802.11g 54Mbps Data Rate

At Radio 802.11b 11Mb@-88dBm / With Antenna: 11Mb@-91dBm At Radio 802.11g 54Mb@-74dBm / With Antenna: 54Mb@-77dBm



3.7 IEEE 802.11b/g

The channel identifiers, channel center frequencies, and regulatory domains of each IEEE 802.11b/g 22-MHz-wide channel are shown in Figure 2.7.1

Regulatory Domains

Frequency

Channel Identifier

1 2412 X X X X

2 2417 X X X X

3 2422 X X X X

4 2427 X X X X

5 2432 X X X X

6 2437 X X X X

7 2442 X X X X

8 2447 X X X X

9 2452 X X X X

10 2457 X X X X

11 2462 X X X X

(in MHz)

America (-A) EMEA (-E) Japan (-J)

Rest of World (-W)

12 2467 - X X X

13 2472 - X X X

14 2484 - - X -

Table 11 - Channel allocations for IEEE 802.11b/g

NOTES:

• Mexico is included in the Rest of World regulatory domain; however, channels 1 through 8 are for indoor use

only while channels 9 through 11 can be used indoors and outdoors. Users are responsible for ensuring that the channel set configuration complies with the regulatory standards of Mexico.

• In Japan, channel 14 is not supported for 802.11g mode.



3.8 Fiber Optical Port Specifications

Order

Code

MJ 100FX MM/MTRJ 1300 50/125 -22.5 -14 -33.5 -14 2 11

MC 100FX MM/SC 1300 50/125 -22.5 -14 -33.9 -14 2 11.4

MT 100FX MM/ST 1300 50/125 -22.5 -14 -33.9 -14 2 11.4

ML 100FX MM/LC 1310 62.5/125 -19 -14 -32 -14 2 13

T2 100FX SM/ST 1310 9/125 -15 -7 -34 -3 20 19

L2 100FX SM/LC 1300 9/125 -15 -8 -38 -3 20 23

C2 100FX SM/SC 1300 9/125 -15 -8 -31 -7 20 16

L5 100FX SM/LC 1310 9/125 -5 0 -35 -3 50 30

C5 100FX SM/SC 1310 9/125 -5 0 -34 -3 50 29

L9 100FX SM/LC 1310 9/125 0 5 -37 0 90 37

C9 100FX SM/SC 1310 9/125 5 0 -37 0 90 42

Speed

Standard

62.5/125 -19 -14 -33.5 -14 2 14.5

62.5/125 -19 -14 -33.9 -14 2 14.9

Mode /

Connector

(nm)

Cable

Type (um)

min

(dBm)

max

(dBm)

Sensitivity

(dBm)

Saturation

(dBm)

Typical

Distance

(km)

Power

Budget

(dB)

Table 12 - Fiber Optic Port Specifications

NOTES:

1. All values listed are average values

2. To convert from average to peak add 3 dBm. To convert from peak to average, subtract 3 dBm.

3. Maximum segment length is greatly dependent on factors such as fiber quality, and number of patches and

splices. Please consult RuggedCom sales associates when determining maximum segment distances.



3.9 Physical Dimensions

Figure 10 - Mechanical Specifications



Parameter Value Comments

Dimensions 7,4 x 2,6 x 5,0 inches

(187,96) x (66,04) x (127,0) mm Weight 2.7 lb (1.2 Kg) Enclosure 20 AWG Galvanized Steel

Table 13 - Physical Dimensions

(Length x Width x Depth)

3.10 Agency Approvals

Agency Standards Comments

CSA CSA C22.2 No. 60950, UL 60950 Approved

CE EN 60950, EN 61000-6-2

FCC FCC Part 15, Class A Approved

CISPR EN55022, Class A Approved

FDA/CDRH 21 CFR Chapter 1, Subchapter J Approved

IEC/EN EN60825-1:1994 + A11:1996 + A2:2001 Approved

Class 1, Division 2 Hazardous Locations

CSA

Gas Groups: A,B,C, and D

Temp. Code: T6 at 40C°, T4A at 85C°

CE Compliance is claimed via

Declaration of Self Conformity Route

Approved

Table 14 - Agency Approvals

4 Warranty

RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit http://www.ruggedcom.com or contact your customer service representative. Should this product require warranty or service contact the factory at:

RuggedCom Inc. 30 Whitmore Road, Woodbridge, Ontario Canada L4L 7Z4

Phone: (905) 856-5288 Fax: (905) 856-1995



5 Appendix A - RuggedWireless ™ Frequently Asked

Questions (FAQ)

What factors can affect wireless coverage/range?

Range estimates are typical and require line of sight. Basically that means you will need a clear unobstructed view of the antenna from the remote point in the link. Keep in mind that walls and obstacles will limit your operating range and could even prevent you from establishing a link. Signals in the 2.4 Ghz generally will not penetrate metal or concrete walls. Trees and leaves are also obstructions to 802.11 frequencies so they can partially (or even entirely) block the signal. Other factors that will reduce range and affect coverage area include metal studs in walls, concrete fiberboard walls, aluminum siding, foil-backed insulation in the walls or under the siding, pipes and electrical wiring, furniture and sources of interference. Other sources of interference include the microwave oven, other wireless equipment, cordless phones, radio transmitters and other electrical equipment. Due to the increased gain, installing range extender antennas in the presence of interference could actually yield either no improvement or worse range.

Which WiFi (802.11) Antenna type should I choose? Patch/Directional Antennas

Choose a patch if you want the signal more focused than from an omni-directional antenna . Patch antennas typically transmit the signal with approximately a 30 degree beam width. This is ideal for use in office locations, ie placed at one end of room to provide coverage for it's entire length. They can also be used outdoors to provide short distance point to point links.

When would I choose a Parabolic Grid Antenna?

These antennas have a very narrow beamwidth and are ideal for point-to-point bridge links. Grid antennas are highly directional and they should only be chosen to aim at one small (i.e. concentrated) spot.

When would I choose an Omni-Directional Antenna?

Choose an Omni-directional antenna to provide a signal over a full 360 degree radius.

How many clients can associate with an access point?

An Access Point is a shared medium and acts as a wireless hub. The performance of each user decreases as the number of users increases on an individual AP. Ideally, not more than 24 clients should associate with the AP because the throughput of the AP is reduced with each client that associates to the AP.

How do I convert between power expressed in ‘milliwatt’ and power expressed in ‘dBm’ units?

The formula used to convert stated ‘power’ levels to decibels (dBm – milliwatt @ 50 or 600 ohm impedance) is given as: dBm = 10 * Log (Power in mW / 1 mW)

Conversely, the formula used to convert stated ‘power’ levels to milliwatts when expressed in dBm is given as: Power (mW) = anti-log (dBm / 10)



dBm Watts

0 1.0 mW 1 1.3 mW 2 1.6 mW 3 2.0 mW 4 2.5 mW 5 3.2 mW 6 4 mW 7 5 mW 8 6 mW

9 8 mW 10 10 mW 11 13 mW 12 16 mW 13 20 mW 14 25 mW 15 32 mW

dBm Watts

16 40 mW 17 50 mW 18 63 mW 19 79 mW 20 100 mW 21 126 mW 22 158 mW 23 200 mW 24 250 mW 25 316 mW 26 398 mW 27 500 mW 28 630 mW 29 800 mW 30 1.0 W 31 1.3 W

dBm Watts

32 1.6 W 33 2.0 W 34 2.5 W 35 3.2 W 36 4.0 W 37 5.0 W 38 6.3 W 39 8.0 W 40 10 W 41 13 W 42 16 W 43 20 W 44 25 W 45 32 W 46 40 W 47 50 W

Table 15 - dBm to Watt Conversion Table



RuggedCom RS900W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
