INSTRUCTION

MANUAL

FOR

RUGER

MODEL 10/22®& MODEL 10/17

AUTOLOADING RIFLES

For Product Service on This Model Please Call:

(603) 865-2442 (See p. 32)

STURM, RUGER & Company, Inc.

Southport, Connecticut 06890 U.S.A.

THIS INSTRUCTION MANUAL SHOULD ALWAYS ACCOMPANY THIS FIREARM AND BE

TRANSFERRED WITH IT UPON CHANGE OF OWNERSHIP, OR WHEN THE FIREARM IS LOANED OR

PRESENTED TO ANOTHER PERSON.

B 3/04 R13

READ THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL CAREFULLY BEFORE USING THIS FIREARM

BLUED &

STAINLESS

STEEL

CALIBERS

17 HMR, 22 Long Rifle

& 22 Magnum

10/22 Carbine

10/22 Rifle

10/17 Rifle

WARNING

“Children are attracted to and can operate firearms that can cause severe injuries or death. Prevent child access by always keeping guns locked away and unloaded when not in use. If you keep a loaded firearm where a child obtains and improperly uses it, you may be fined or sent to prison.”

ADVERTENCIA

State-By-State Warnings

Certain states require by law that their own specified warning notices in larger-than-normal type be conspicuously included by the manufacturer, distributor, or retail dealer with firearms sold in that state. Sturm, Ruger sells its products in compliance with applicable laws and regulations. Because our products may be sold in these states, we include the following:

California:

“A los niños los atraen las armas de fuego y las pueden hacer funcionar. Ellos pueden causarses lesions graves y la muerte. Evite que los niños tengan accesso a las armas de fuego guardándolas siempre con llave y descargadas cuando no las esté utilizando. Si usted tiene un arma de fuego cargada en un lugar en que un niño tiene acceso a ella y la usa indebidamente, le pueden dar una multa o enviarlo a la carcel.”

Connecticut:

“UNLAWFUL STORAGE OF A LOADED FIREARM MAY RESULT IN IMPRISONMENT OR FINE.”

Florida:

“IT IS UNLAWFUL, AND PUNISHABLE BY IMPRISONMENT AND FINE, FOR ANYADULT TO STORE OR LEAVE AFIREARM IN ANY PLACE WITHIN THE REACH OR EASY ACCESS OF AMINOR UNDER 18 YEARS OF AGE OR TO KNOWINGLY SELL OR OTHERWISE TRANSFER OWNERSHIP OR POSSESSION OF A FIREARM TO A MINOR OR A PERSON OF UNSOUND MIND.”

Maine:

“ENDANGERING THE WELFARE OF A CHILD IS A CRIME. IF YOU LEAVE A FIREARM AND AMMUNITION WITHIN EASY ACCESS OF ACHILD, YOU MAY BE SUBJECT TO FINE, IMPRISONMENT OR BOTH. KEEP FIREARMS AND AMMUNITION SEPARATE. KEEP FIREARMS AND AMMUNITION LOCKED UP. USE TRIGGER LOCKS.”

Maryland:

“WARNING: Children can operate firearms which may cause death or serious injury. It is a crime to store or leave a loaded firearm in any location where an individual knew or should have known that an unsupervised minor would gain access to the firearm. Store your firearm responsibly!”

Massachusetts:

“WARNING FROM THE MASSACHUSETTS ATTORNEY GENERAL: This handgun is not equipped with a device that fully blocks use by unauthorized users. More than 200,000 firearms like this one are stolen from their owners every year in the United States. In addition, there are more than a thousand suicides each year by younger children and teenagers who get access to firearms. Hundreds more die from accidental discharge. It is likely that many more children sustain serious wounds, or inflict such wounds accidentally on others. In order to limit the chance of such misuse, it is imperative that you keep this weapon locked in a secure place and take other steps necessary to limit the possibility of theft or accident. Failure to take reasonable preventive steps may result in innocent lives being lost, and in some circumstances may result in your liability for these deaths.”

“IT IS UNLAWFUL TO STORE OR KEEPA FIREARM, RIFLE, SHOTGUN OR MACHINE GUN IN ANY PLACE UNLESS THAT WEAPON IS EQUIPPED WITH A TAMPER-RESISTANT SAFETY DEVICE OR IS STORED OR KEPT IN ASECURELY LOCKED CONTAINER.”

New Jersey:

“IT IS A CRIMINAL OFFENSE TO LEAVE A LOADED FIREARM WITHIN EASYACCESS OF A MINOR.”

New York City:

“THE USE OF ALOCKING DEVICE OR SAFETY LOCK IS ONLY ONE ASPECT OF RESPONSIBLE FIREARMS STORAGE. FIREARMS SHOULD BE STORED UNLOADED AND LOCKED IN ALOCATION THAT IS BOTH SEPARATE FROM THEIR AMMUNITION AND INACCESSIBLE TO CHILDREN AND OTHER UNAUTHORIZED PERSONS.”

North Carolina:

“IT IS UNLAWFUL TO STORE OR LEAVE A FIREARM THAT CAN BE DISCHARGED IN A MANNER THAT A REASONABLE PERSON SHOULD KNOW IS ACCESSIBLE TO A MINOR.”

Texas:

“IT IS UNLAWFUL TO STORE, TRANSPORT, OR ABANDON AN UNSECURED FIREARM IN A PLACE WHERE CHILDREN ARE LIKELY TO BE AND CAN OBTAIN ACCESS TO THE FIREARM.”

Wisconsin:

“IF YOU LEAVE A LOADED FIREARM WITHIN THE REACH OR EASY ACCESS OF ACHILD YOU MAY BE FINED OR IMPRISONED OR BOTH IF THE CHILD IMPROPERLY DISCHARGES, POSSESSES, OR EXHIBITS THE FIREARM.”

***************** *****

Please check with your licensed retailer or state police for additional warnings which may be required by local law or regulation. Such regulations change constantly, and local authorities are in the best position to advise you on such legal matters.

WARNING – LOCKING DEVICES

DO NOT INSTALL

INSIDE TRIGGER GUARD

INSTALL LOCK

AS SHOWN HERE

This firearm was originally sold with a key-operated locking device. While it can help provide secure storage for your unloaded firearm, any locking device can fail. All guns are designed to fire if they are loaded and the trigger is pulled. Therefore, never install the

locking device inside the trigger guard or in any way that it can possibly pull the trigger! Do not

leave the keys in the lock.

The ultimate responsibility for secure storage of any firearm must depend upon its owner and his or her individual circumstances. Guns should be

securely stored unloaded, in a secure location, separate from their ammunition.

See “Storage Warning”, page 28.

NEVER INSTALL

LOCKING DEVICE

INSIDE TRIGGER GUARD

FIREARMS SAFETY-YOUR RESPONSIBILITY

SAFETY MUST BE THE FIRST AND CONSTANT

CONSIDERATION OF EVERY PERSON WHO HANDLES

FIREARMS AND AMMUNITION.

This Instruction Manual is designed to assist you in learning how to use and care for your RUGER®MODEL 10/22®and 10/17TMrifles properly. Please contact us if you have any questions about it.

Only when you are certain you fully understand the Manual and can properly carry out its instructions should you practice loading, etc. with live ammunition. If you have any doubts about your ability to handle or use a particular type of gun safely, then you should seek supervised instruction. Such personalized instruction is often available from gun dealers, gun clubs or police departments. If none of these sources can help you, write to the National Rifle Association, 11250 Waples Mill Road, Fairfax, VA 22030-7400. They will assist you.

The person possessing a gun has a full-time job. You cannot guess; you cannot forget. You must know how to use your firearm safely. Do not use any firearm

without having a complete understanding of its particular characteristics and safe use.

Remember: There is no such thing as a foolproof gun.

TABLE OF CONTENTS

Page

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Operation of Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

The Bolt Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Ammunition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Special Safety Note - 10/22 Target Rifle Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Magazine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Loading the Magazine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

To Load and Fire (With Magazine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

To Load and Fire (Without Magazine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

To Unload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

To Extract and Eject a Chambered Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

To Clear a Malfunction (“Jam”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

To Minimize Malfunctions (“Jams”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

To Disassemble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

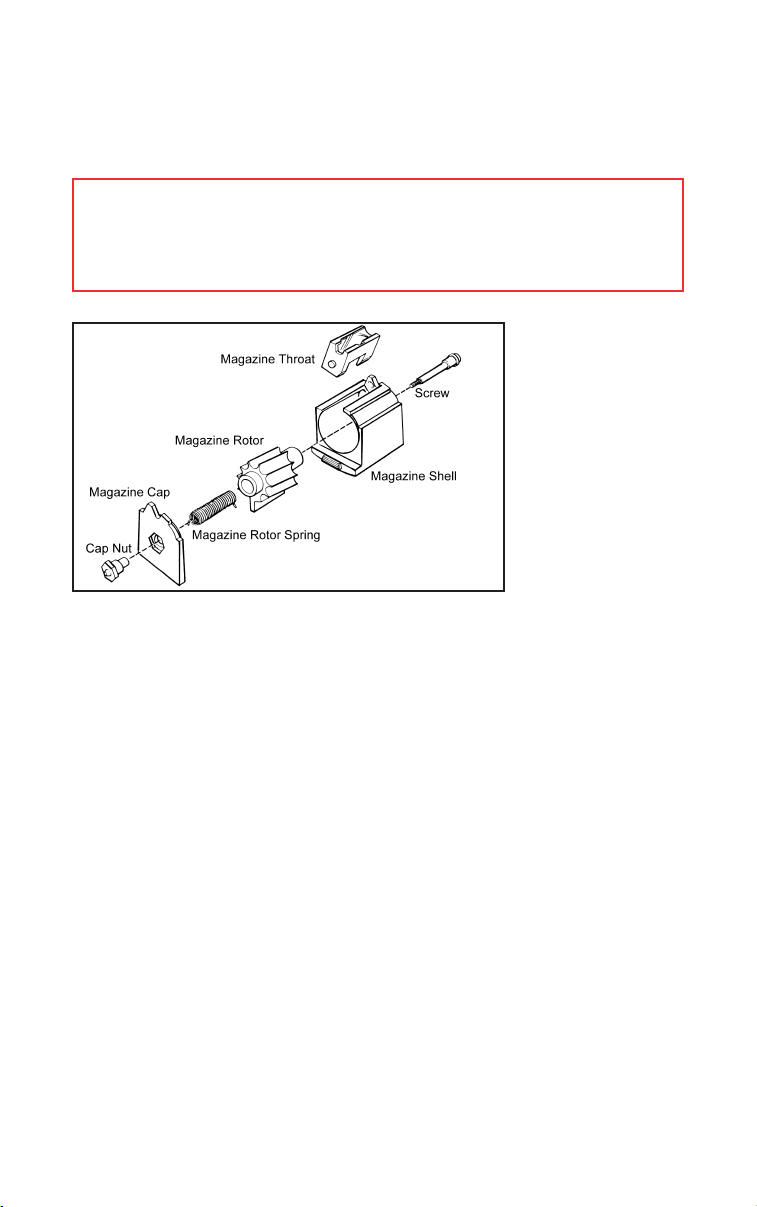

Magazine Inspection and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Maintenance of Stainless Steel Rifles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

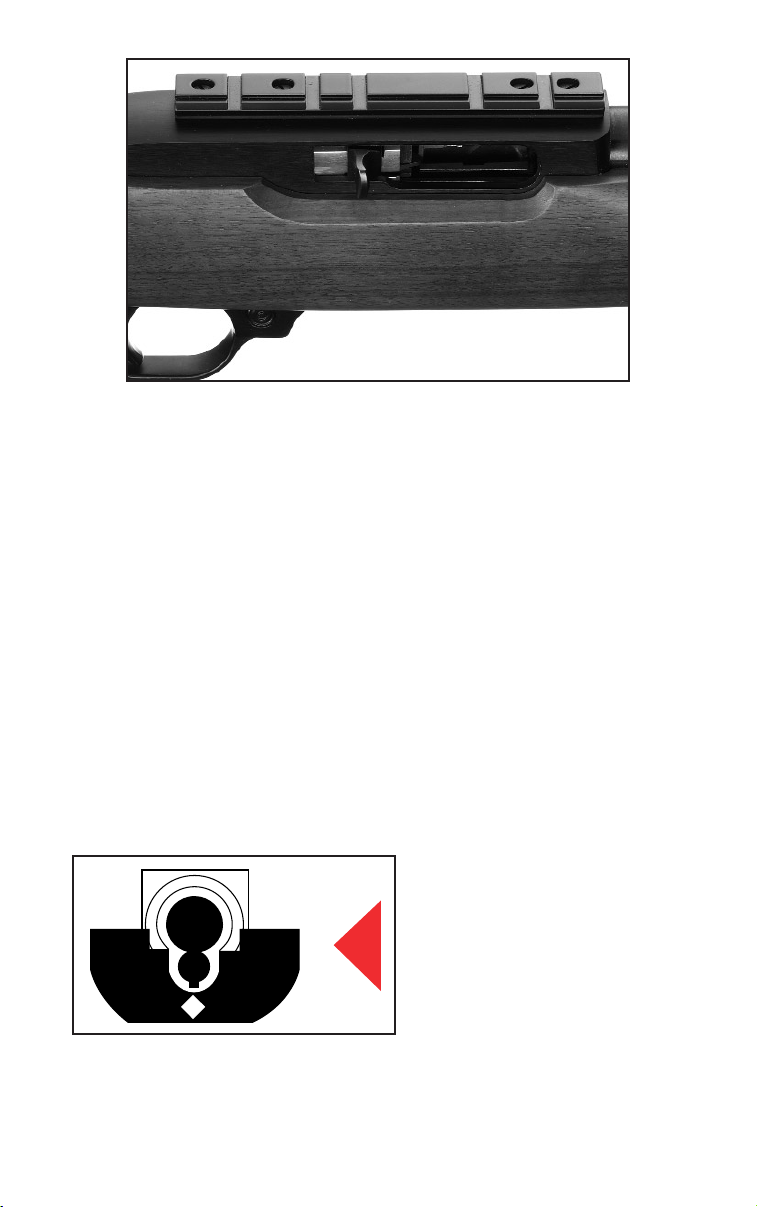

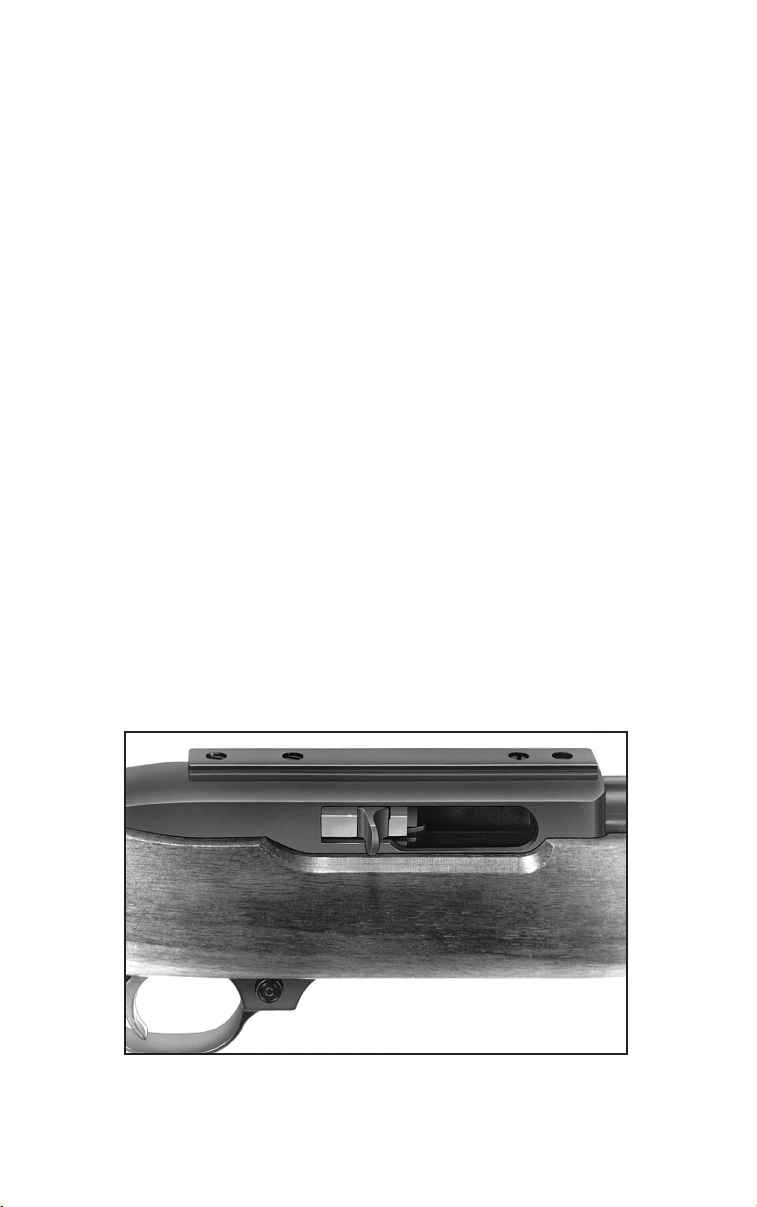

Attaching Scope Base Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Sight Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Service and Parts Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Shipping Firearms for Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Ordering Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 - 40

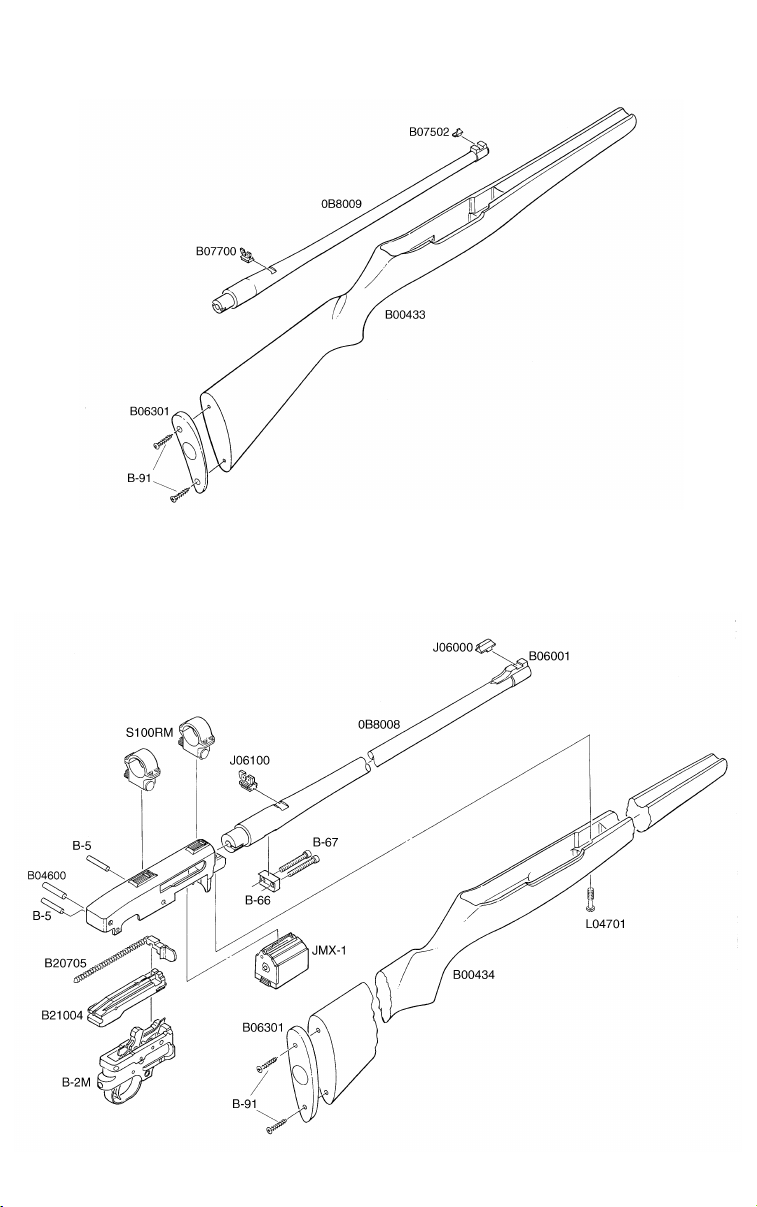

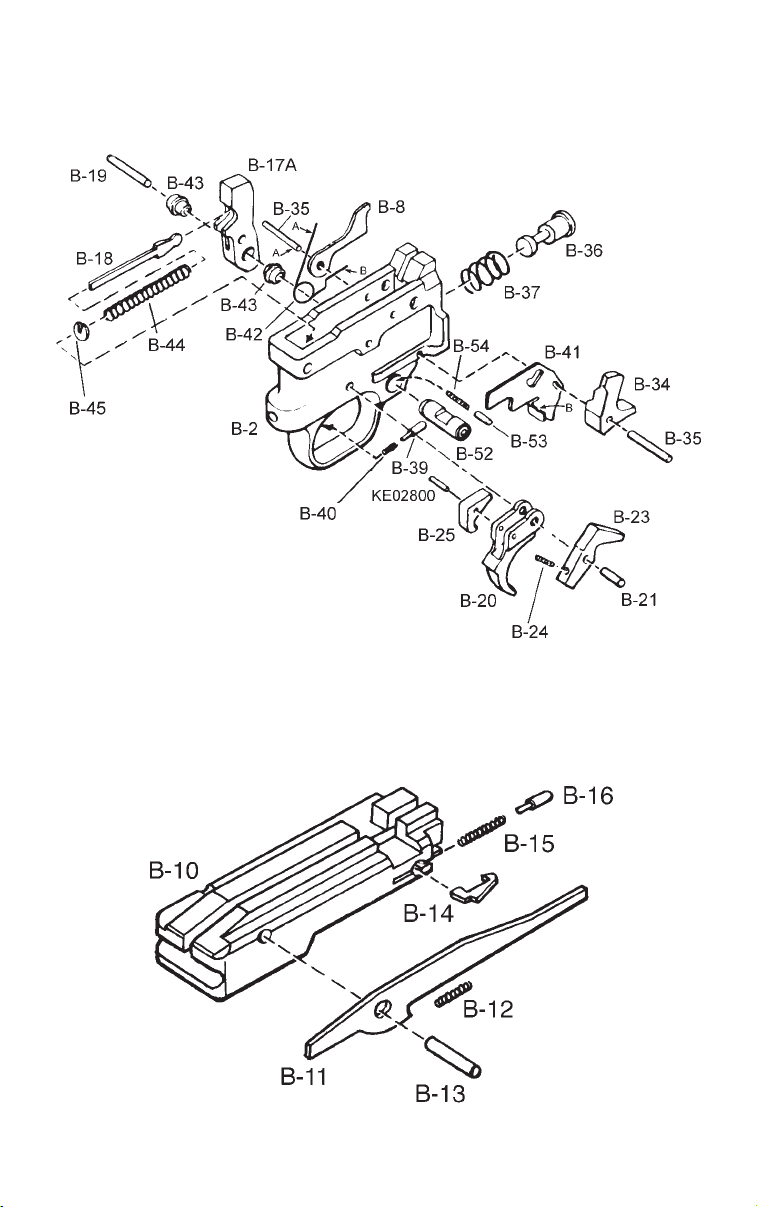

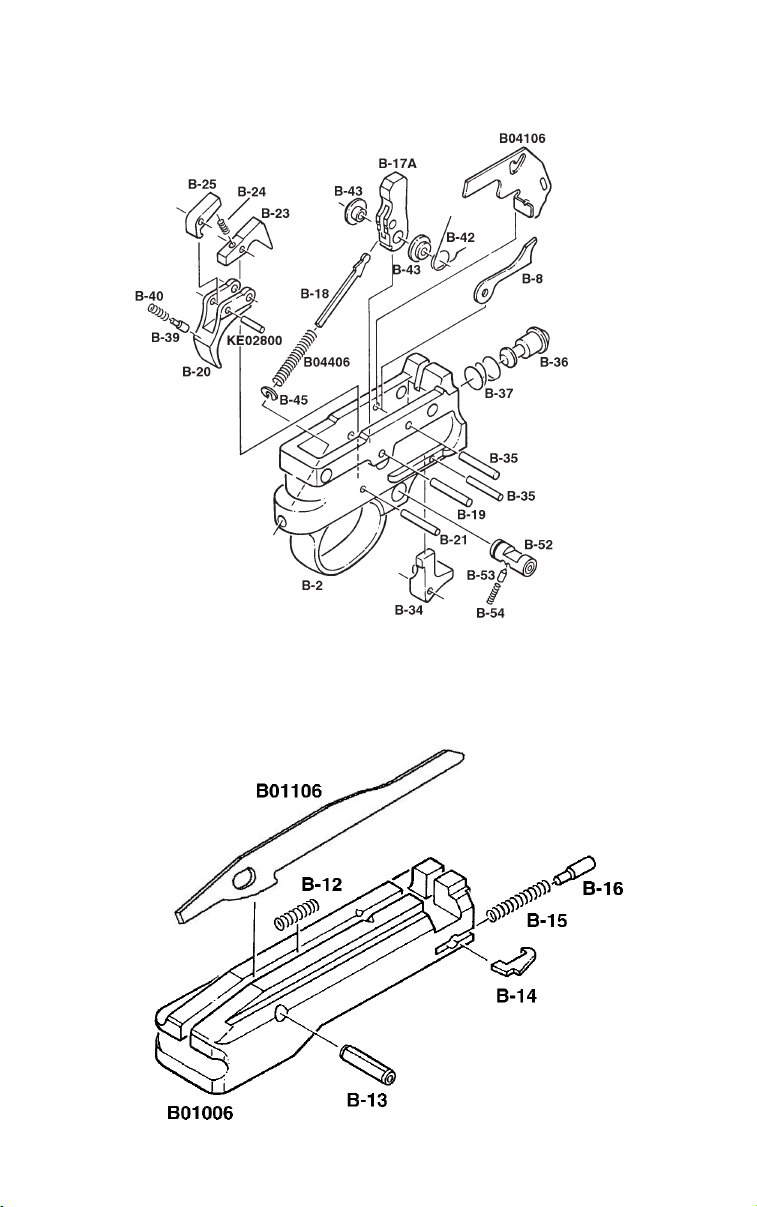

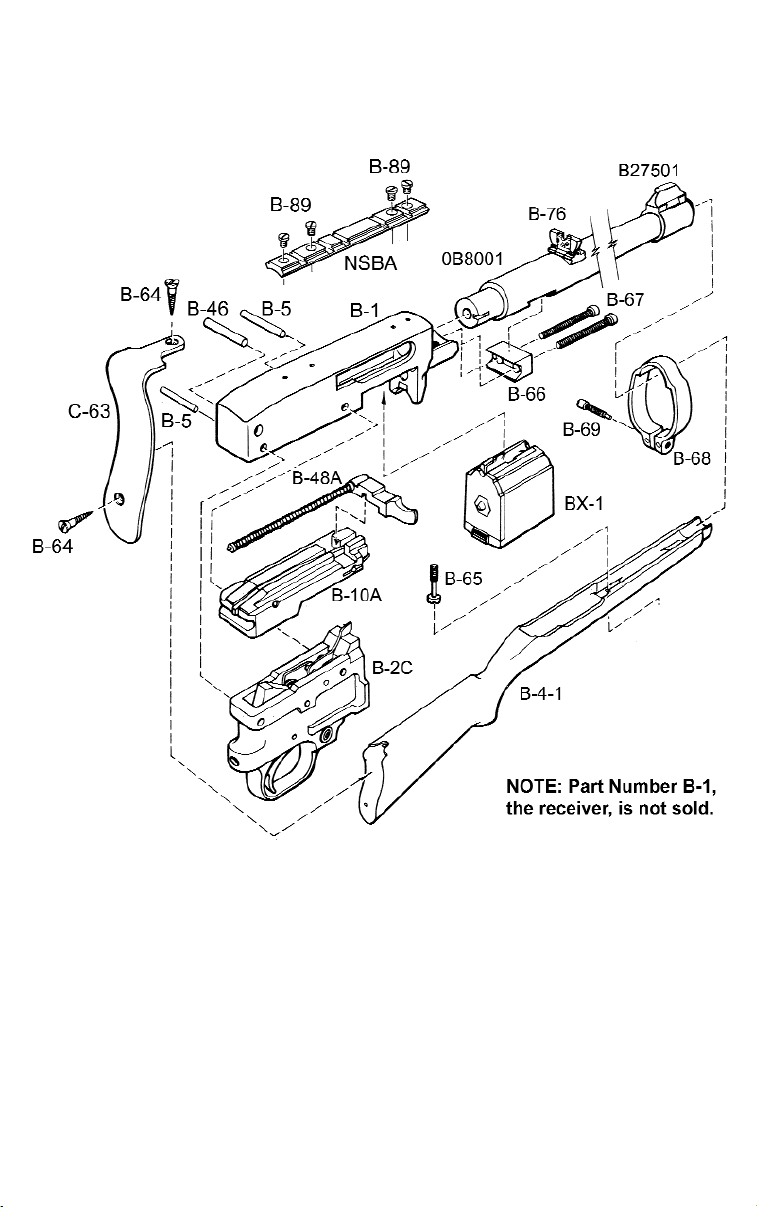

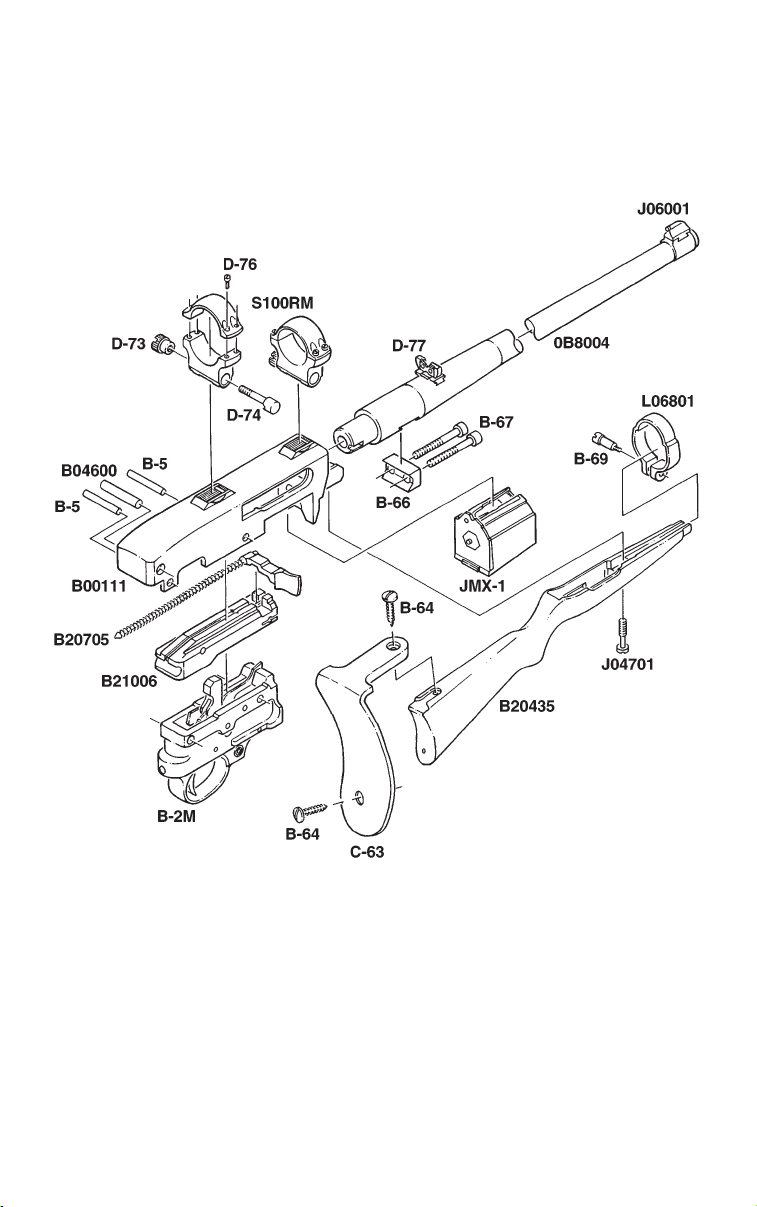

Parts Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 - 46

The Basic Rules of Safe Firearms Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 - 50

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

“RUGER” and “10/22” are registered U.S. trademarks.

FIREARMS ARE DANGEROUS WEAPONS–

READ THE INSTRUCTIONS AND WARNINGS

IN THIS MANUAL THOROUGHLY AND

CAREFULLY BEFORE USING.

GENERAL INFORMATION

AND MECHANICAL CHARACTERISTICS

The RUGER®MODEL 10/22®and 10/17TMrifles are autoloading, recoil operated rifles.

Retracting the bolt handle cocks the internal hammer and compresses the recoil spring. When the bolt is manually released, it moves forward (driven by the recoil spring), strips a cartridge from the magazine, if a loaded magazine is in place, and chambers the cartridge. The bolt is held against the chambered cartridge by the recoil spring.

When the trigger is pulled, the hammer is released and strikes the firing pin. The firing pin indents the cartridge case rim and ignites the priming compound inside the rim. This ignites the powder in the cartridge case and a great volume of gas is instantly generated, which acts on the interior of the cartridge case in all directions.

WARNING–ALTERATIONS

This product was designed to function properly in its original condition. Alterations can make it unsafe. Do not alter any part or add or substitute parts or accessories not made by Sturm, Ruger & Co. Inc.

DO NOT ALTER ANY GUN

WARNINGS OF GREAT IMPORTANCE ARE FOUND ON THE FOLLOWING PAGES:

Locking Devices 6 Firing 18 Alterations 8 Handling 18 Manual Safety 12 Unloading 19 Lead Exposure 13 Malfunctions 23 Ammunition 13 Disassembly 23 22 Magnum Ammunition 14 Lubrication 27 “Stinger” Ammunition 15 Storage 28 Target Trigger 15 Parts Purchasers 33

OTHER CAUTIONS AND WARNINGS APPEAR

THROUGHOUT THE MANUAL.

Because the bullet offers the least resistance, it moves out of the cartridge case and exits the muzzle. The bolt then moves rearward automatically, extracting and ejecting the fired cartridge case, and at the same time cocking the hammer and compressing the recoil spring, etc., as described above. Once the trigger is released, the rifle is ready to fire again.

Each time the trigger is pulled and released, the same cycle is repeated until there are no more cartridges in the magazine or in the chamber.

The rifle will fire if there is a cartridge in the chamber and the trigger is pulled, whether or not there is a magazine in place! Removing the magazine does not unload the rifle. Never assume the rifle is unloaded. Visually inspect the chamber and the magazine each time the rifle is handled to be certain there are no cartridges in either.

The 10/22 Carbine is identified by its curved carbine-style butt plate and barrel band. The Deluxe Sporter Model has a flat recoil pad, cut checkered stock, and no barrel band. The Target Model has a heavyweight, hammer forged barrel, laminated target style stock, and a special target trigger (see p. 15). The All-Weather

Model has a carbine style stock with barrel

band and is checkered on the forearm, pistol grip and butt plate. The black composite stock is made of a thermoplastic polyester resin, reinforced with fiberglass for strength, durability, and resistance to the elements. These models use a ten-shot rotary magazine chambered for the 22 Long Rifle cartridge

The 10/22 MAGNUM is chambered for the larger and more powerful 22 Winchester Magnum Rimfire (22 WMR) cartridge only

. It uses a larger nine-shot magazine, first introduced in the Ruger 77/22 magnum rifle, to handle this longer cartridge. It uses a special longer chrome-molybdenum steel receiver, which also incorporates integral scope mount bases. Unlike the screw-on aluminum “tip-off” or Weaver-type scope mount base furnished with standard Ruger 10/22 rifles, the Ruger 10/22 Magnum features steel scope bases integral to the receiver, which accept the patented Ruger scope rings (furnished at no extra charge). The Ruger 10/22 Magnum bolt is manufactured from a dense tungsten alloy, in order to give the bolt adequate mass required to function correctly with the more powerful 22 Winchester Magnum Rimfire cartridge.

The 10/22 RIFLE features a slimmer, hardwood stock, longer barrel, flat rifle butt plate, ramp front sight, and no barrel band. It uses the same ten-shot rotary magazine, chambered for the 22 Long Rifle cartridge, as the 10/22 Carbine models.

The 10/17 RIFLE features a solid steel receiver and integral scope mount such as the 10/22 Magnum has. It has a slimmer, hardwood stock, 20 inch tapered barrel and a centerfire band-type rifle front sight. The 10/17 is chambered for the 17 Hornady Magnum Rimfire (17 HMR) cartridge and uses the same larger, nine-shot magazine as the 10/22 Magnum.

Figure 1. In these illustrations the frequently used operating components are identified. Note that the safety is protruding fully from the right side of the trigger guard and is therefore in its “on” (safe) position.

Stock

Receiver

Bolt

Rear Sight

Barrel

Trigger Guard

(housing)

Barrel Band

Front Sight

Bolt Handle

Trigger

Safety

(shown "on")

Bolt Lock

Magazine Latch

Magazine

Take-Down

Screw

NOMENCLATURE

(10/22 Carbine Model Shown)

All models have the same basic operation mechanism and include the following features with which the gun user should be thoroughly familiar.

The 10/22 RIFLE and the 10/17 RIFLE have no barrel band.

OPERATION OF SAFETY

The RUGER®MODEL 10/22®and 10/17TMrifles and carbines have a cross-button safety which is located in the forward portion of the trigger guard (See Figure 1, p. 10.) The safety can be operated only when the hammer is cocked.

The safety is “on” when it protrudes fully from the right side (the bolt handle side) of the trigger guard assembly, as shown in Figure 1. In this position the sear is blocked, and the gun cannot be fired from a normal pull on the trigger.

The safety should always be in the “on” (safe) position except when the shooter is actually firing the gun. The safety should be moved to the “on” position whenever the shooter ceases firing, even temporarily.

The safety is “off” (fire) when it protrudes from the left side of the trigger guard assembly, as shown in Figure 2. When the safety is off, the red band shows on the safety button. Do not totally rely on the appearance of the red band to indicate that the safety is off. In poor light or if dirt is present, the red band may not be visible. If the safety is “off” and the trigger is pulled, the rifle will fire.

SAFETY IN “OFF” (FIRE) POSITION

Figure 2. The underside of the trigger guard section of the rifle. In this illustration the safety is shown in the “off” (fire) position. The position of the safety and red band indicate the safety is “off.” It should be in this position only

when you are actually firing at a target.

The safety is held in its “on” or “off” position by a plunger that is under spring tension. When the safety is moved to either the “on” or “off” position, a distinct “click” should be heard. Frequently check the position of the safety to be certain the safety has not been inadvertently moved. If the safety seems to move too easily, or if the click is not heard when the safety is moved, stop using the rifle and return it to the Newport Product Service Department for repair (see p. 32).

THE BOLT LOCK

The bolt lock is located in the forward section of the trigger guard (see Figure 1, p. 10). The bolt lock is the manually operated means of retaining the bolt in the rearward (open) position. When the bolt is locked open, the rifle is in an inoperative safe condition for inspection of the chamber, cleaning, etc.

To lock the bolt open: Retract the bolt handle to its extreme rearward position and, while holding it there, press in on the lower

section of the bolt lock. Release pressure on the bolt handle and it will move forward a fraction of an inch, and then be locked in its open position.

To release the bolt: Retract the bolt handle to its extreme rearward position and then press in on the upper

section of the bolt lock. Release the bolt and it will

move fully forward.

NOTE: Simply retracting the bolt will not disengage the lock. The bolt lock must be deliberately pressed up while the bolt is held fully to the rear. Only then will the bolt close when released. This is designed to prevent accidental release of the bolt from its open position.

Press Back to Lock Bolt Open Press Up to Close Bolt

WARNING –MANUAL SAFETY

SAFETY IN “ON” (SAFE) POSITION

Keep the safety on unless actually firing. Always move the safety fully to its intended position and check it. The safety is not “ON” unless it is completely “ON”. Never depend on a safety mechanism or any other mechanical device to justify careless handling or permitting the rifle to point in an unsafe direction. The only “safe” rifle is one in which the bolt is open, the chamber is empty, and there is no magazine in the gun.

KNOW HOW TO USE THE SAFETY

WARNING –AMMUNITION

Death, serious injury, and damage can result from the use of wrong ammunition, bore obstructions, powder overloads, or incorrect cartridge components. 22 cases are very thin and sometimes split when fired. Always wear shooting glasses and hearing protection.

IMPROPER AMMUNITION

DESTROYS GUNS

AMMUNITION

The RUGER®10/22®CARBINE and 10/22 RIFLE are chambered for, and designed to properly function with, only the 22 caliber Long Rifle rimfire cartridge, standard, high velocity, or hyper-velocity, manufactured to U.S. industry standards.

Do not use 22 short, 22 long, 22 shot, or 22 cartridges loaded with blunt-nosed, sharp-shouldered, or “explosive” bullets. They will not function reliably and may jam the mechanism or discharge before being fully chambered. Use only ammunition that functions correctly in your rifle. See “Warning – Malfunctions”, p. 23.

The RUGER

10/17TMRIFLE is chambered for the 17 Hornady Magnum

Rimfire (17 HMR) cartridge only. Do not use any other rimfire ammunition in this rifle!

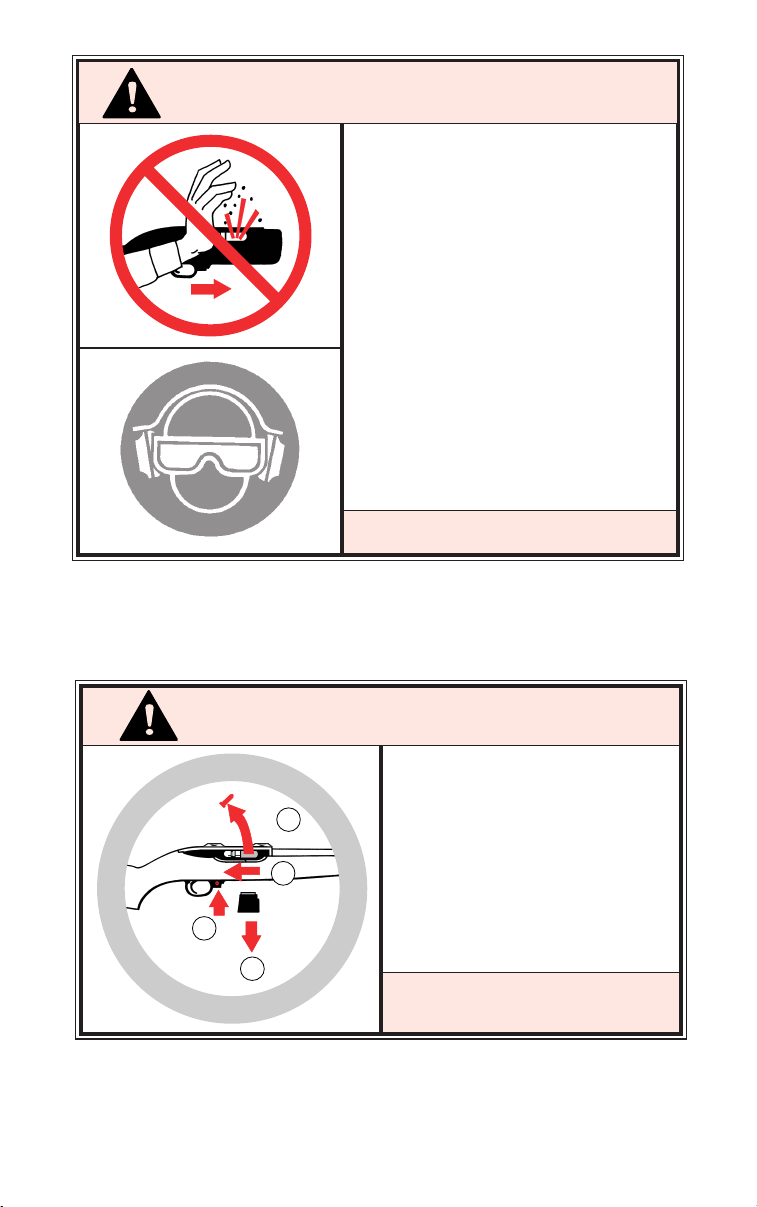

Discharging firearms in poorly ventilated areas, cleaning firearms, or handling ammunition may result in exposure to lead and other substances known to the state of California to cause birth defects, reproductive harm, and other serious physical injury. Have adequate ventilation at all times. Wash hands thoroughly after exposure.

SHOOTING OR CLEANING GUNS

MAY EXPOSE YOU TO LEAD

WARNING – LEAD EXPOSURE

The RUGER®MODEL 10/22®MAGNUM is chambered for, and designed to properly function with, only the 22 Winchester Magnum Rimfire (22 WMR) cartridge, both jacketed and hollow point, manufactured to U.S. industry standards. Do not use any other 22 caliber ammunition in this rifle as burst cases and the release of hot powder gas can result. See “Warning – 22 Magnum Ammunition”, p. 14.

Use only standard Winchester Magnum Rimfire (22 WMR) ammunition loaded to U.S. Industry specifications. Do not

fire 22 short, long, or long rifle cartridges in this rifle or load them into the magazine - they are of smaller case diameter and otherwise vary in size from the larger 22 WMR cartridge. They can split or burst when fired in the larger magnum chamber, releasing hot powder gasses and particle fragments out of the action at high speed, possibly resulting in injury to the shooter or bystanders.

USE ONLY

22 WMR AMMUNITION

IN 22 MAGNUM FIREARMS

WARNING – 22 MAGNUM AMMUNITION

22 WMR

Long Rifle

22 Long

22 Short

However, your choice of ammunition may affect the functioning of this firearm. Ammunition manufacturers use different powders, bullets and case specifications. If you find that you are experiencing feeding and extraction problems, switching to another type or brand of 22 WMR ammunition may improve the situation.

AMMUNITION (CARTRIDGES) NOTICE

WE SPECIFICALLY DISCLAIM RESPONSIBILITY FOR ANY DAMAGE

OR INJURY WHATSOEVER OCCURRING IN CONNECTION WITH, OR

AS A RESULT OF, THE USE IN ANY RUGER FIREARMS OF FAULTY,

OR NON-STANDARD, OR “REMANUFACTURED” OR HAND-LOADED

(RELOADED) AMMUNITION, OR OF CARTRIDGES OTHER THAN THOSE FOR

WHICH THE FIREARM WAS ORIGINALLY CHAMBERED.

WARNING: SOME TYPES OF 22 MAGNUM CARTRIDGES HAVE BLUNT-NOSE OR SHARP-SHOULDER BULLETS WHICH CAN

INTERFERE WITH SMOOTH AND RELIABLE FEEDING FROM MAGAZINE TO CHAMBER. SUCH CARTRIDGES SHOULD NOT BE USED BECAUSE THEY MAY DISCHARGE BEFORE BEING FULLY CHAMBERED AND THEREBY POSSIBLY INJURE THE SHOOTER AND THOSE NEARBY. THE SHOOTER MUST BE ALERT TO THIS POTENTIALLY DANGEROUS SITUATION AND SHOULD AT ONCE DISCONTINUE THE USE OF ANY CARTRIDGE WHICH APPEARS TO BE THE CAUSE OF FEEDING PROBLEMS OR JAMMING. KEEP THE CHAMBER AND MAGAZINE CLEAN (SEE “CARE AND CLEANING”, P. 26).

10/22T Models have a target trigger that has been carefully set at the factory to a minimum safe weight of pull for precision target shooting. Do not alter any factory setting! You can create an unsafe condition and the rifle may fire unexpectedly.

You should be especially careful to keep the

safety on at all times except when actually firing and keep your finger off the trigger

unless you are squeezing it to fire, in order to minimize the possibility of accidental discharge.

DO NOT TAMPER WITH TRIGGER -

KEEP SAFETY ON UNLESS FIRING

SPECIAL SAFETY NOTE

10/22 TARGET RIFLE ONLY

The special model you have selected is specifically designed for rapid fire precision target shooting. As such, it demands that you take extra safety precautions.

The trigger of the Target version of the RUGER

10/22®has a lighter, target

trigger pull than standard 10/22 rifles and carbines, for more precise placement of shots. You should practice “dry-firing” an empty

rifle (with it pointing in a safe

direction) to learn the “feel” of the trigger before ever loading it with ammunition.

NOTE: The following warning applies to RUGER®10/22 Target rifles only:

“Stinger” cartridges have a longer case than 22 LR cartridges loaded to U.S. Industry specifications. They can stick in the tighter chambers of target rifles, including the Ruger 10/22 Target Rifle, which can result in a hazardous ruptured case and release of hot powder gasses and brass when fired.

DO NOT USE

“STINGER” AMMUNITION IN

10/22 TARGET RIFLES

WARNING – “STINGER” AMMUNITION

S T I N G E R

.22

22 LR

22 "Stinger"

22 LR

WARNING –TARGET TRIGGER

SAFETY IN “ON” (SAFE) POSITION

MAGAZINE

The 9-shot 22 WMR and 17 HMR magazine (JMX-1) for the Ruger Model 10/22 Magnum and Model 10/17 is longer than the 10-shot 22 long rifle magazine (BX-1) for Ruger 10/22 rifles. Do not attempt to use standard 10/22 magazines in the 10/22 Magnum or 17 HMR rifles or load 22 short, long, or long rifle ammunition into the 22 magnum or 17 HMR magazine. They will not function correctly and are unsafe to use in 22 Magnum and 17 HMR rifles.

Ruger Model 10/22 Magnum

& 17 HMR Magazine (JMX-1)

Ruger Model 10/22 Long Rifle

Magazine (BX-1)

Never attempt to use 22 Long Rifle ammunition in Ruger 10/22 Magnum or 10/17 rifle magazines. The cartridges have a smaller case diameter and can split or burst when fired in the larger magnum chamber, releasing hot powder gasses and particle fragments out of the action at high speed, possibly resulting in injury to the shooter or bystanders.

Do Not Use in Ruger 10/22 Magnum

or 10/17 Rifles

LOADING THE MAGAZINE

To load the magazine, press the rim of the cartridge against the magazine rotor at the widest section of the magazine throat until the cartridge enters far enough to be pushed to the rear end of the magazine. Each succeeding cartridge is pressed against the body of the top cartridge and slid to the rear of the magazine until a maximum of ten (10) 22 LR cartridges (or nine 22 WMR or 17 HMR cartridges, depending upon the magazine being loaded) are in the magazine.

NOTE: The 9-shot Ruger 77/22 Magnum magazine (JMX-1) is the same as, and is interchangeable with, the 9-shot Ruger 10/22 Magnum and 17 HMR magazine.

Loading Magazine

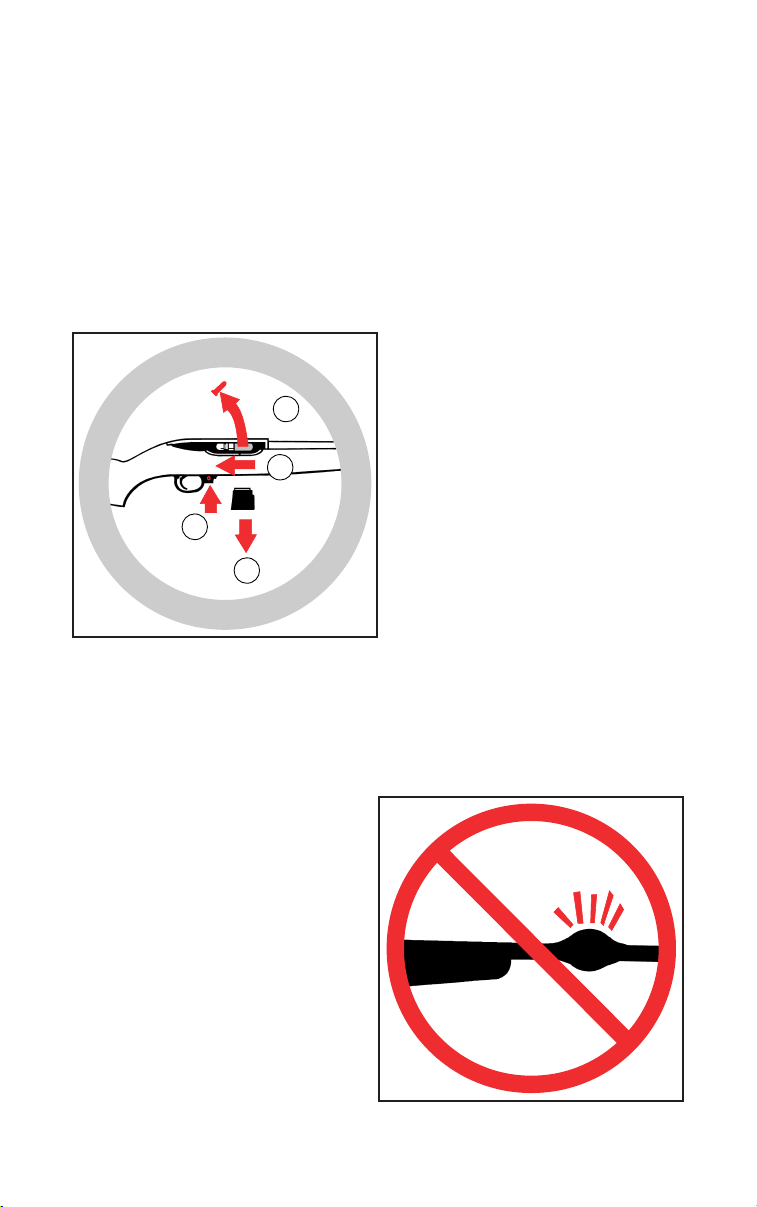

TO LOAD AND FIRE (WITH MAGAZINE)

Practice this important aspect of gun handling (with an unloaded rifle) until you can perform each of the steps – described below – with skill and confidence. But before you do anything with the rifle, please first read completely through this manual.

1. Keep the muzzle pointed in a safe direction. (See Rule 2, p. 47.)

2. Pull the bolt handle rearward. Engage the bolt lock so that the bolt is held open. (See p. 12.) Check the chamber to be certain it is empty. Engage the safety. (See Figure 1, p. 10.)

Figure 3. The safety should be “on” when the magazine is being removed or inserted. When the forward section of the magazine latch is pushed in (pivoted upward), the magazine is released. Depress the latch with the thumb and at the same time grasp the magazine between the thumb and forefinger and draw it out of the gun.

Removing Magazine (Safety “On”)

3. Remove the magazine by using thumb to depress magazine latch and at the

same time grasp the magazine between thumb and forefinger of the same hand to draw it out of the magazine well. (See Figure 3.)

4. Load the magazine with the appropriate number of cartridges (see “Loading

The Magazine” section, p. 16).

5. Insert magazine into the firearm, with bullet end of the cartridges toward the

muzzle. (Magazine cannot be seated if reversed.)

6. Load a cartridge into the chamber by fully retracting the bolt handle, releasing

the bolt lock, and then releasing the bolt handle. Don’t touch the trigger. Do not ‘ride’ the bolt handle as it moves forward. Do not apply force to the bolt handle to chamber a cartridge. If a cartridge does not readily chamber, eject it from the rifle, lock the bolt open, remove the magazine and see “Warning – Malfunctions”, p. 23.

7. The rifle is now fully loaded. If the rifle is not to be fired immediately, the

safety should remain “ON”. (See Figure 1, p. 10.) When the safety is moved to

the “off” position, the rifle will fire each time the trigger is pulled until all the cartridges in the magazine, and the one in the chamber, have been fired. Firing will automatically reload and recock the rifle. Note that every time the

trigger is pulled, if a cartridge is in the chamber, the rifle will fire – be careful!

8. Immediately following the firing of a shot, and if a subsequent shot is not to

be fired at once, put the safety “ON” while the rifle is still pointing in a safe direction down range. The safety should be moved to the “on” position as soon

as firing is completed, and it should be “on” at all times except when the rifle is on target and being fired.

9. The bolt does not remain open after the last shot has been fired, nor does the

bolt automatically lock open when the magazine is empty. When firing is completed, manually retract the bolt, lock it open, and visually check the chamber to be sure it is empty. If the bolt is shut, the shooter should always

assume that there is a cartridge in the chamber. Don’t rely on your memory to know if a gun or magazine is loaded. Visually inspect the magazine and the chamber.

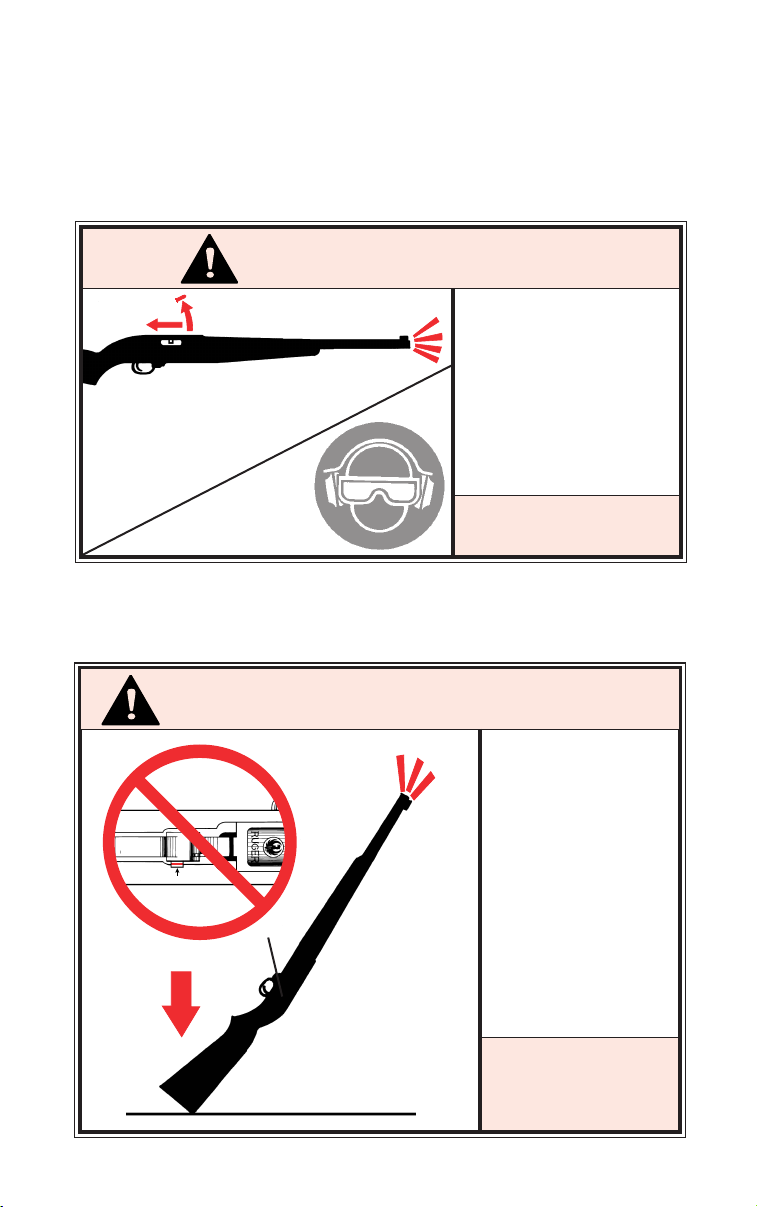

WARNING –FIRING

The bolt automatically opens and shuts quickly while firing. Keep face and hands away from it. Hot brass and powder gas are ejected quickly and can burn you. The rifle should be fired from the right shoulder. Always wear shooting glasses and hearing protection.

BOLT OPENS FAST–

HOT BRASS EJECTED

NOTE: For the 10/22 Magnum rifles, to avoid possibly dangerous malfunctions, never fire more than 50 shots without scrupulously cleaning the chamber. See “Care and Cleaning”, pp. 26 - 27.

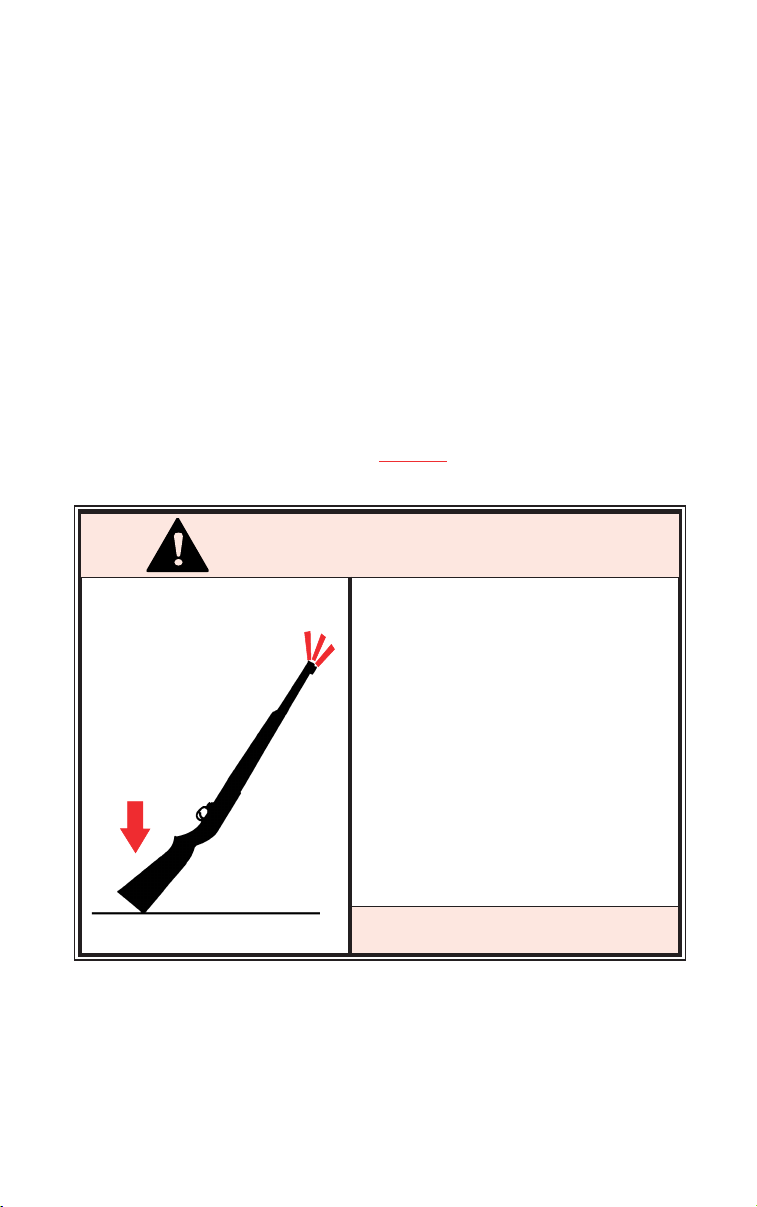

If dropped or struck with the safety “off”, the rifle may fire. Keep chamber empty unless actually firing! Keep safety “on” unless actually firing!

ANY GUN

MAY FIRE IF

DROPPED

WARNING –HANDLING

SAFETY IN “OFF” (FIRE) POSITION

TO LOAD AND FIRE (WITHOUT MAGAZINE)

The rifle can be used as a single shot rifle in the absence of a magazine or for safety or training purposes. To do so, follow step 1, p. 17. Then load a cartridge into the chamber, and follow steps 6 and 7, p. 17, disregarding the magazine. Engage the safety between shots.

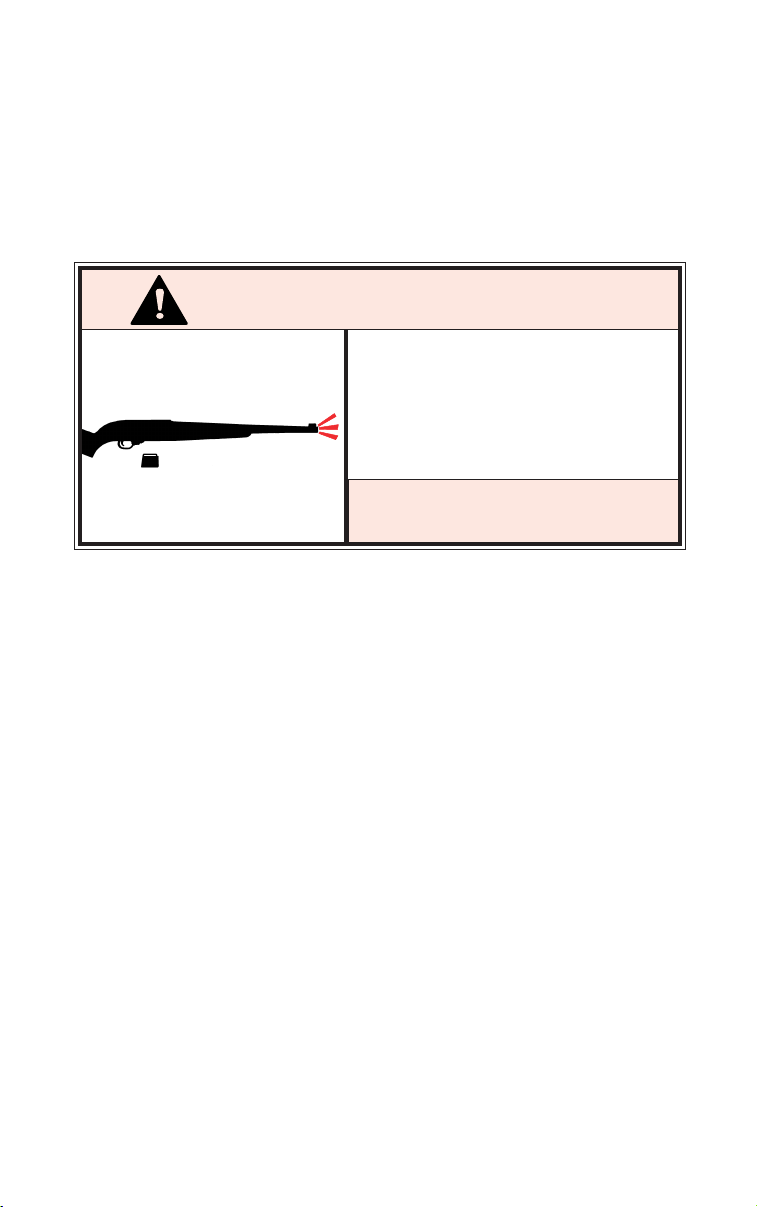

WARNING – UNLOADING

So that the rifle can be used as a single loader, it will fire whether or not a magazine is in the gun if a cartridge is chambered. Removing magazine does not unload rifle! To unload, first remove magazine, then pull bolt to rear, eject chambered cartridge, and visually inspect chamber. The safety

should always be in the “on” (safe) position when loading or unloading the rifle. Keep safety “on”.

GUN WILL FIRE WITH

MAGAZINE OUT

TO UNLOAD

(Rifle Must Be Kept Pointed In A Safe Direction)

UNLOAD THE RIFLE IMMEDIATELY WHEN YOU ARE FINISHED SHOOTING!

NOTE: This sequence must be followed exactly as spelled out. Failure to do so

can result in the rifle’s chamber becoming unintentionally loaded with a cartridge!

1. Keep the muzzle pointed in a safe direction at all times and keep fingers

outside the trigger guard. If the rifle is cocked, move the safety to the “on”

position.

2. Remove the magazine. Remember that even though the magazine has been

removed, a cartridge remaining in the chamber can still be fired!

3. Retract the bolt to its open position and lock it there. This should eject any

cartridge in the chamber, but...

4. Always visually double check the chamber to be certain it is empty.

5. The only “safe” rifle is one in which the bolt is open and the chamber and

magazine are empty.

6. Cartridges can be removed from the magazine by simply pushing them lightly

downward and forward with the thumb, forefinger, or the rubber eraser end of a pencil against the rim of the top cartridge. Do not use a loaded cartridge as a

‘tool’ to strip cartridges from the magazine.

7. If desired, the bolt can be left in the open position, being held there by the bolt

lock. If it is desired to close the bolt, again look to be certain the chamber is empty. Put the safety “on”, retract the bolt to its rearmost position, release the bolt lock and let the bolt snap forward. Keep your fingers out of the receiver!

8. With the muzzle pointed in a safe direction, push the safety to the “off”

position and pull the trigger to decock it. The rifle can be “dry fired” for practice as long as it is empty and pointed in a safe direction.

9. Push empty (unloaded) magazine into the rifle until the catch locks it in place.

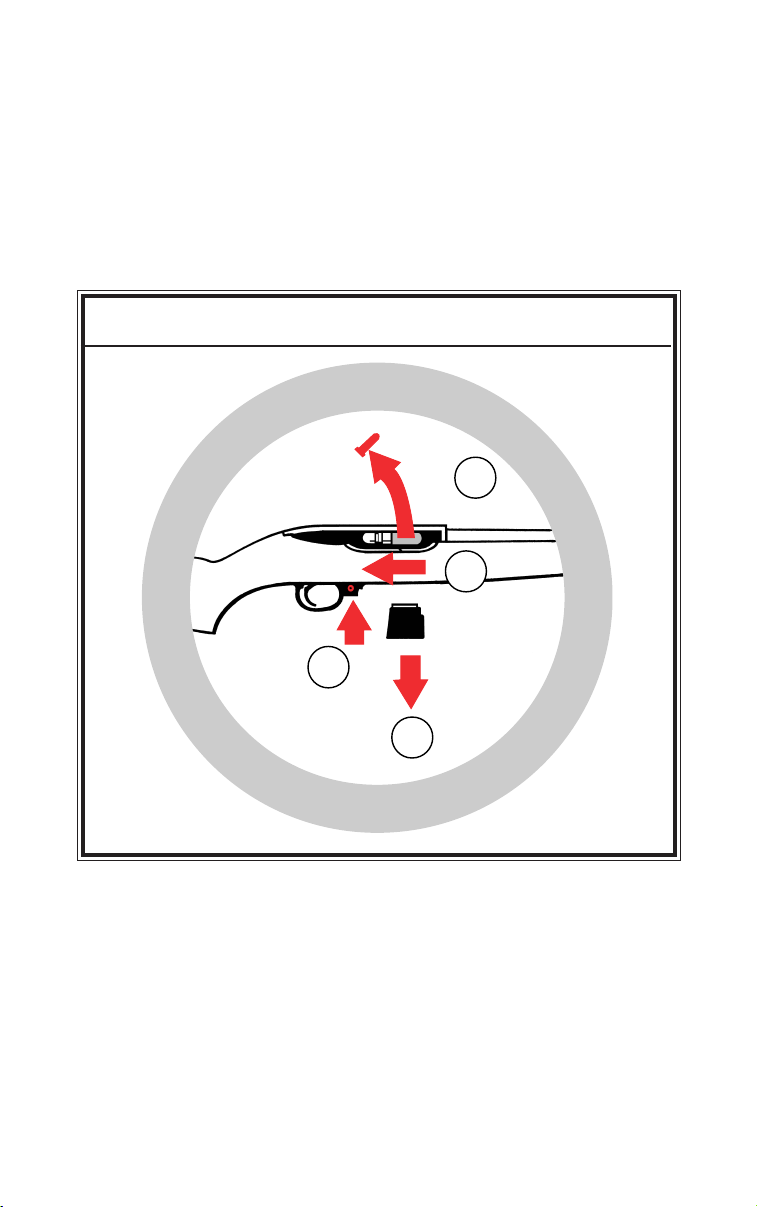

CORRECT UNLOADING SEQUENCE

TO EXTRACT AND EJECT

A CHAMBERED CARTRIDGE

When the rifle is fired, the same gas pressure which drives the bullet forward also acts through the cartridge case to push the bolt to the rear. That action causes extraction and ejection of the fired cartridge case. But, when the bolt is operated by hand, there can be a failure to extract the cartridge from the chamber, or a failure to eject the cartridge clear of the rifle. These failures usually are the result of the bolt not being pulled rearward vigorously, coupled with an accumulation of bullet lubricant in the chamber. From the foregoing it is clear that the gun user must:

1. Always visually check the chamber after opening the bolt to eject a chambered

cartridge. If the bolt is not vigorously retracted when being operated by hand,

the extracted cartridge can be ‘ejected’ into the magazine area, instead of outside the rifle.

2. Thor

oughly clean the chamber and the extractor as often as necessary to

prevent the accumulation of grease and dirt.

3. If an empty magazine is in the rifle when the bolt is being hand retracted to

extract a cartridge, the cartridge may drop on top of the magazine. Then when the bolt goes forward, the cartridge will be chambered again! Always remove

the magazine before clearing the chamber, and visually ensure that no cartridges remain in the gun.

TO CLEAR A MALFUNCTION (“JAM”)

Any autoloading firearm may occasionally malfunction. If it does:

1. Be certain the muzzle is pointed in a safe direction and the safety is “on”.

2. If possible, first remove the magazine. It may be necessary to manually remove

a jammed cartridge which has only partially been stripped from the magazine.

If so, use extreme care. Lock the bolt open with the bolt stop before attempting to clear the jam. Drawing the bolt fully to the rear may bring the jammed cartridge along. Keep your face away from the ejection port during

this operation. When attempting to clear a jam, use only wood ‘tools’ so that a

cartridge will not be ignited if you strike a primer, and so that the chamber and magazine will not be damaged. A 3/16” wood dowel rod with a point on one end is useful.

3. Visually check to make sure all cartridges have been removed from the rifle.

Safely dispose of any cartridges involved in a malfunction incident. Do not use damaged ammunition in any firearm.

TO MINIMIZE MALFUNCTIONS (“JAMS”)

Most malfunctions are caused by improper or damaged magazines, incorrect ammunition, or poor maintenance. RUGER®MODEL 10/22®MAGNUM

& 10/17

chambers must be scrupulously cleaned at least every 50 shots

(see “Care and Cleaning”, pp. 26 - 27.)

1.If it appears that the gun and magazine are not at fault and that the jam was

caused by the type of cartridge being used, then try another type.

2.If changing to another type or brand of cartridges does not at once eliminate

malfunctioning, then the following steps should be taken:

a. Make certain the gun and the magazine are unloaded and that the safety is

“on”. Remember, the magazine should be removed first, then check the chamber and be certain it and the magazine-well are clear of cartridges.

b. Thoroughly clean the magazine (See “Magazine Inspection and Care”, pp. 25

& 26) and bolt mechanism, paying particular attention to removing accumulated grease. Use a bristle brush and solvent to remove grease and fouling from the bolt face, the extractor, the chamber, and the feed ramp. (See the “Care and Cleaning” section of this manual for detailed cleaning instructions.)

c. Check to see that the magazine rotor spring tension is adequate.

d. Check the magazine throat to be certain they are free of nicks and burrs and

are not deformed.

e. Remove excess oil and solvent from all cleaned components, load the

magazine, and try the firearm again. As always, proceed slowly. Be certain

bystanders are not close and that you are wearing eye and hearing protection and that your face is a safe distance from the rifle so that any discharge resulting from a jammed cartridge will not injure anyone.

If the above procedures do not result in a smooth and reliably functioning firearm, don’t use the gun. The rifle can be returned directly to our Newport, New Hampshire Product Service Department for repair. See the Service and Parts Policy section (p. 32) of this manual for packing and shipping information.

Another precaution: When using any firearm chambered for rimfire cartridges, form the habit of examining fired cartridge cases. If they have bulged heads or frequently show splits on any part of the case, the rifle or pistol should be returned to the factory for inspection.

The 22 Long Rifle, 22 Magnum and 17 HMR rimfire cartridges fire when the firing pin impacts the relatively soft cartridge case rim, and also can be “discharged” before it is chambered if its rim receives a sharp blow. If a cartridge hangs up, jams, or binds when being chambered or when being fed from the magazine into the chamber, do not

attempt to force it into the chamber by pushing or striking the bolt. Any jam or feeding problem is a

signal to immediately stop using the gun until it can be determined what is wrong. Most failures of a cartridge to feed or to chamber are caused by a damaged magazine, improper gun handling, poor maintenance, improper or defective ammunition.

Whatever the cause, rimfire cartridge jams can result in the potentially dangerous situation of a cartridge discharging before it is chambered. If this occurs, the cartridge case will rupture and its fragments will fly out of the gun with sufficient force to cause injury. Always wear shooting glasses and hearing protectors! Keep face away from chamber!

CRUSHING RIM CAN BURST AMMO

WARNING –MALFUNCTIONS

WARNING –DISASSEMBLY

Safety "ON"

Always unload a firearm before cleaning, lubrication, disassembly or assembly.

UNLOAD BEFORE

CLEANING

TO DISASSEMBLE

Make Sure Rifle is Unloaded!

1. With the rifle pointing in a safe direction, remove the magazine, open the bolt

and visually make certain there is not a cartridge in the chamber. Then allow

the bolt to close. The rear sight leaf should be down, and the hammer should be cocked.

2. Loosen the barrel band screw (B-69) and remove the barrel band (B-68). (Does

not apply to the Sporter Model, Rifle Model, and the 10/17.)

3. Loosen (don’t remove) the take-down screw (B-65).

4. Position the safety so an equal amount of the button is exposed on each side. If

the safety is not in the middle when the barrel-receiver assembly is lifted out of the stock, the stock will be damaged.

5. Swing the barrel-receiver assembly upward away from the forearm of the

stock. Be careful the two receiver cross pins (B-5) and bolt stop pin (B-46) do not fall out.

6. Remove the trigger guard by simply drifting out the two receiver pins. It is

recommended that the components of the trigger guard assembly not be disassembled from the trigger guard.

This is the extent of disassembly required for routine inspection, cleaning and lubrication.

If it is desired to thoroughly clean the inside of the receiver by removing the bolt, be aware that although removing and installing the bolt (along with the bolt handle-recoil spring assembly) is simple, it must be done correctly.

7. To remove the bolt:

a. Position the rifle upside down so the bolt is fully accessible.

b. Drift out the bolt stop pin, located at the rear of the receiver.

c. Pull the bolt handle fully to the rear of the receiver with the left hand,

and while it is in that position, using the right hand, lift up the front of the bolt until it is disengaged from the bolt handle.

d. Remove the bolt handle assembly through the ejection port.

e. Lift bolt out of receiver. If it does not come out readily, turn the rifle over

and the bolt will drop out of the receiver.

REASSEMBLY

Again, Be Sure Rifle is Unloaded!

1. Reassembly of bolt into receiver:

a. To reassemble bolt handle and bolt in the receiver, position the rear end

(cone pointed) of the recoil spring guide rod in the mating recess near the rear right side of the receiver. The recoil spring must be flat against the side and “bottom” of the receiver.

b. Maintain the guide rod in its proper position by keeping pressure on the

bolt handle with the left forefinger and thumb. At the same time, use the flat side of the screwdriver blade to compress the recoil spring by drawing it against that area of the bolt handle near to the spring. In accomplishing this spring compression it is necessary to maintain the same pressure on the screwdriver with the right hand as that being maintained (rearward and inward) on the bolt handle with the left hand.

c. When the spring is fully compressed, maintain it in that position with the

left hand and with the right hand lay the recessed section of the top of the bolt on the section of the bolt handle that mates with it. Press down on the bolt until a ‘click’ is heard. At this point allow the bolt handle (with bolt attached) to move forward slowly.

d. Cycle the bolt handle a few times to be certain the components are

correctly assembled.

2. Reassembly of rifle:

a. Install the bolt stop pin and then lay the trigger guard in place and install

the two receiver pins.

b. Assemble the barrel-receiver to the stock by following, in reverse order,

steps 1 through 5 under the “Disassembly” instructions on page 24.

Guns should not be stored loaded or cocked!

MAGAZINE INSPECTION AND CARE

Check the magazine frequently. The rotor must move freely and have adequate tension so that each cartridge is quickly raised to the feeding position. At the time of manufacture, proper rotor tension is set by rotating the magazine cap nut until the r

otor stops turning. Then the nut is turned an additional 1 1/4

turns beyond the ‘stop’ position.

To test the rotor tension, load one cartridge into the magazine and then firmly press against the side of the cartridge case. Remove your finger quickly. The cartridge should instantly and fully move in to the feeding position. If it does not, the magazine should be cleaned. If cleaning does not restore proper rotor

tension, do not use the magazine. (NOTE: After testing, remove the test

cartridge.)

When cleaning is necessary, use a solvent that will not rust the metal components or adversely affect the plastic magazine box. After the magazine has been soaked in solvent to loosen foreign matter, be certain to shake it vigorously (with the loading opening away from you) to remove solvent or residue from within the magazine.

After cleaning, always check to be certain that rotor movement and tension are correct, and that no solvent or debris remain. Do not disassemble the magazine.

Improper reassembly or improper tensioning of the rotor spring can cause a potentially dangerous malfunction. If you experience a problem with the magazine, don’t use it. Get a new one.

DAMAGED, NON-STANDARD, OR IMPROPERLY ASSEMBLED MAGAZINES SHOULD NOT BE USED.

THEY CAN CAUSE THE RIFLE TO MALFUNCTION.

Exploded view of the 10/22 magazine components. This illustration is included to show the relationship and names of the magazine components. As noted in the text above, the magazine should not be disassembled.

CARE AND CLEANING

Make Sure Gun is Unloaded!

Before cleaning, be certain the rifle and its magazine contain no cartridges.

Cleanliness is most important to the function of this blow-back operated autoloading firearm. Any failures to feed or extract rounds may be indications of a dirty chamber. Note: For the 10/22 Magnum and 10/17 rifles – Never fire more

than 50 shots without scrupulously cleaning the chamber. Use commercially

available bore cleaning solution and a brass brush, followed by drying with a cloth patch, to remove any powder residue. An excess of dirt, powder residue, or

oil in the chamber will cause malfunctions and may result in potentially dangerous cartridge case ruptures and release of hot gasses and case fragments when firing.

At regular intervals, or whenever the rifle has been exposed to sand, dust, extreme humidity, condensation, immersion in water, or other adverse conditions, disassemble, clean and oil it. Proper periodic maintenance is essential to the reliable functioning of any firearm.

To clean the rifle, proceed as follows:

1. Disassemble (field-strip) the rifle to the extent described on page 24.

2. Using a cleaning rod, run a solvent-wetted patch through the bore several

times. Then attach a solvent-wetted bristle brush to the rod and run it back

Firing a rifle with oil, grease, or any other material even partially obstructing the bore may result in damage to the rifle and serious injury to the shooter and those nearby. Do not spray or apply lubricants directly on ammunition. If the powder of a cartridge is affected by the lubricant, it may not be ignited, but the primer firing may push the bullet into the bore where it may be lodged. Firing a subsequent bullet into the obstructed bore may damage the rifle and cause serious injury or death to the shooter and those nearby. Use lubricants properly. You are responsible for the proper care and maintenance of your firearms.

IMPROPER LUBRICATION

DESTROYS GUNS

and forth the full length of the bore as many times as necessary to remove grease and dirt from the bore and chamber. Clean bore with dry patches and examine. Bore fouling can contribute to reduced accuracy, and grease accumulation in the chamber can interfere with proper feeding of cartridges from the magazine.

3. Using powder solvent on a clean patch or bristle brush, remove powder residue

from all components of the mechanism. After cleaning, run a dry patch through the bore, then follow with a patch that is very lightly oiled. Wipe all surfaces clean with cloth, then wipe all surfaces with a patch or cloth that has been very lightly oiled.

4. NOTE: Only a light application of oil is needed to provide adequate lubrication

of moving parts and to prevent rust. Excess accumulations of oil tend to attract particles of dust and dirt and may congeal in cold weather which can interfere with the safe and reliable functioning of the rifle.

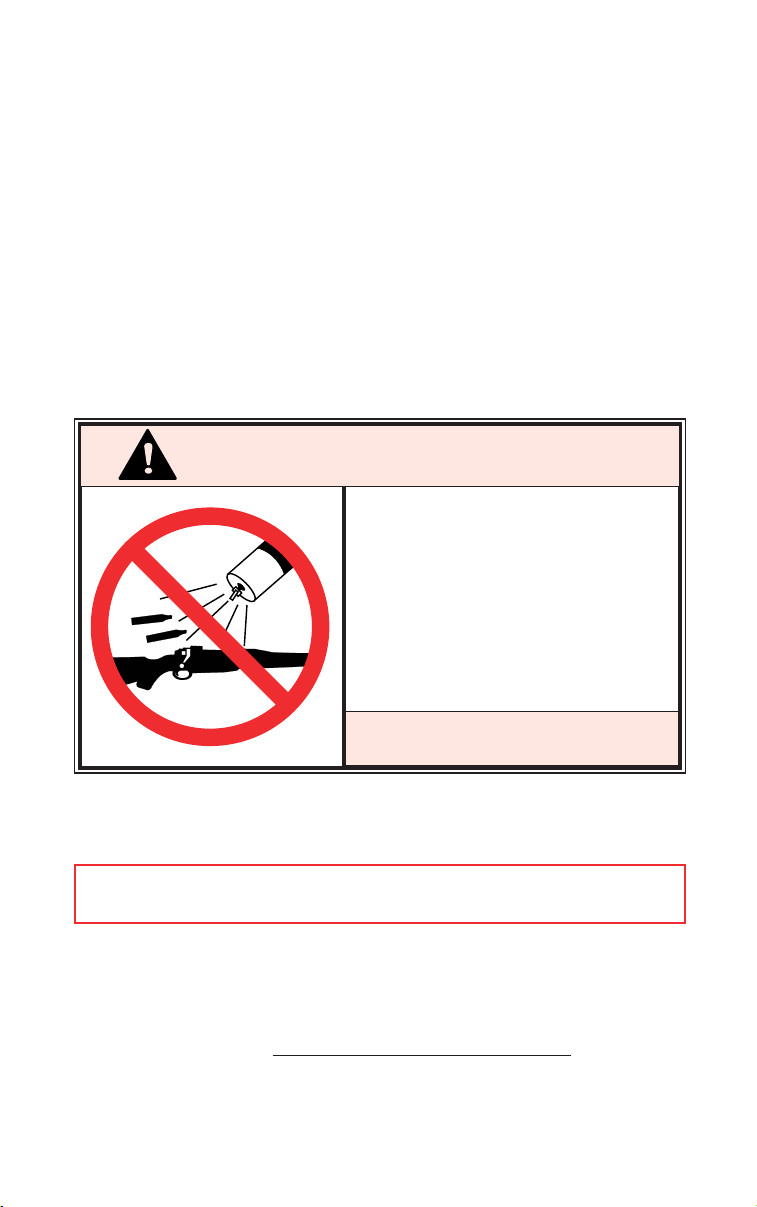

WARNING –LUBRICATION

OIL

STORAGE

GUNS SHOULD NOT BE STORED LOADED!

Do not store the rifle in a leather case or scabbard. Leather attracts moisture, even though it may appear to be dry.

TO RENDER THE RIFLE INOPERATIVE FOR SAFE STORAGE

With the muzzle pointed in a safe direction, remove the magazine, open the bolt, and check the chamber to be sure the rifle is completely unloaded! For Carbines with a barrel band, loosen barrel band screw and slide barrel band forward off stock. Unscrew, but do not remove, takedown screw on underside of stock. Move safety button to centered position

USE THE LOCKING DEVICE SUPPLIED WITH THE RIFLE FOR STORAGE.

EE PAGE 6)

Never place or store any firearm in such a manner that it may be dislodged. Firearms should always be stored securely and unloaded, away from children and careless adults. Use the locking device originally supplied with this firearm for storage.

The use of a locking device or safety lock is only one aspect of responsible firearms storage. For increased safety, firearms should be stored unloaded and locked in a location that is both separate from their ammunition and inaccessible to children and any other unauthorized person.

STORE SECURELY & UNLOADED

and carefully lift barrel/receiver assembly out of the stock. Drift out receiver cross pins to the left and remove trigger housing assembly. Reassemble rifle without trigger housing assembly, which contains most of the firing mechanism.

Store the rifle and the trigger housing assembly in different locations. When disassembled in this manner, the rifle is inoperable. It is impossible to fire the rifle until the trigger housing assembly has been correctly replaced into the rifle.

To reassemble the rifle for firing, remove the barrel/receiver assembly from the stock as above and reinstall the trigger housing. Replace the receiver cross pins to secure the trigger housing to the receiver. With the safety in the centered position, carefully reinstall the barrel/receiver/trigger housing into the stock. Check to be sure the bolt, trigger, and safety mechanisms can be operated fully and freely. Reinstall the barrel band on Carbines. The rifle is now reassembled and can be loaded and fired normally.

While the rifle is less likely to be used by unauthorized persons when disassembled in the above manner, it is always safest to store a firearm with the supplied locking device correctly installed, or to store the firearm in a gun safe or other secure location, away from children and unauthorized adults. Guns should always be stored securely, unloaded

and separate from their

ammunition.

WARNING –STORAGE

MAINTENANCE OF STAINLESS STEEL RIFLES

Firearms and components made of stainless steel are relatively more resistant to corrosion than those of blued steel. However, in the interest of proper operation and long life of a stainless steel firearm, inspect it frequently and clean, lubricate and apply an appropriate rust preventative.

Sometimes discoloration occurs from perspiration or from contact with some types of gun cases. Rusting may occur as a result of the firearm being exposed to moisture, salt air or chemicals.

Minor discoloration can usually be removed by rubbing the stainless area with an abrasive ink eraser, crocus cloth, or a “metal polishing” compound. When using any of these abrasives, proceed with care and use light pressure to achieve a blending of “color” with those areas that are not discolored. Do NOT

use abrasives

on the clear coating of the aluminum alloy receiver and trigger housing.

External surfaces most subject to rusting from handling, or from exposure to the elements, should be cleaned and wiped dry after use or after exposure to adverse conditions. If the rifle is to be stored, coat it with a light film of oil or preservative. Where the rifle is in continuing use, and the presence of oil or grease would be objectionable, then the external surfaces can be coated (after cleaning and drying) with a paste wax formulated for use on metals. Apply the wax sparingly, allow time for it to dry hard, then buff lightly with a soft cloth. When applying the wax, take care that it does not get into the mechanism or on the functioning parts or in the bore.

ATTACHING SCOPE BASE ADAPTER

To attach Scope Base Adapter to rifle receiver:

1. Retract bolt handle, lock bolt open and push safety to “on” position. Be sure

gun is completely empty.

2. Unscrew the four filler (headless) screws from the receiver. These screws may

be quite tight.

3. Position adapter on receiver and place a base-mounting screw in each hole of

the adapter. Turn each screw until it just catches the threads in the receiver hole, but don’t tighten the screws at this point.

4. Starting at the first screw, turn each screw part way in; then move to the next

screw, repeating the procedure until all four screws are snugly tightened.

5. Release the bolt handle; then retract it several times, permitting it to snap

forward. If the bolt seems to bind, determine which screw is binding the top of the bolt. If it is necessary to shorten a screw, be certain to chamfer its top so it does not cross thread the hole in the receiver.

6. Attach scope bases and scope to the adapter in accordance with their

instructions.

Scope mounting precautions: Do not remove the scope base filler screws (there are four in the receiver) unless the supplied scope base adapter or other suitable base is to be mounted with properly fitting screws. Do not deepen or alter the screw holes that are in the Ruger 10/22. Do not place any sealant into the screw

holes in the receiver, as the sealant can drip into the bolt or receiver and cause potentially dangerous malfunctions.

Tip-Off Style

Scope Base Adapter

SIGHT ADJUSTMENT

The folding leaf rear sight is adjustable for elevation. The slide must be moved one graduation to change the point of impact by approximately one inch at 25 yards. Use a small screwdriver with a blade tip that exactly fits the screw-head. Loosen the screws only slightly so the slide doesn’t move too freely. Move the slide in the direction you want the point of impact of the bullet to move. When the slide is positioned at the desired height, carefully tighten both screws.

Lateral (windage) adjustment is made by ‘drifting’ the sight base in its slot. Place a short brass rod against the sight base (and only the base) and tap the sight in the direction you wish to move the point of bullet impact. Before moving the sight, pencil mark an index line on the sight base and rib so that sight movement can be detected.

SUGGESTED SIGHT PICTURE

Top of front sight even with top of rear sight slide. Front sight centered in notch of rear sight slide. Target bull’s-eye centered on top of front sight.

Note that the rear sight blade can be reversed to give a square notch rear sight picture.

Weaver-Style

Scope Base Adapter

SERVICE AND PARTS POLICY

If you have any question regarding the performance of your RUGER

MODEL 10/22®or 10/17TMrifle or carbine please write or call (603-865-

2442) our Product Service Department in Newport, New Hampshire 03773, fully

describing all circumstances and conditions involved. If you should return your rifle to the factory for repair, or order parts for it, please comply with the following suggestions for prompt service:

WARNING: BEFORE SHIPPING ANY FIREARM, BE ABSOLUTELY CERTAIN THAT IT AND ITS MAGAZINE ARE UNLOADED. DO NOT SHIP CARTRIDGES WITH A FIREARM.

SHIPPING FIREARMS FOR REPAIR

RUGER®MODEL 10/22®and 10/17TMrifles and carbines returned to

the factory for repair should be sent to: Sturm, Ruger & Company, Inc., Product Service Department, 411 Sunapee St., Newport, New Hampshire 03773. Telephone (603) 865-2442.

Guns should be sent prepaid. We will not accept collect shipments.

The Federal Gun Control Act, as well as the laws of most States and localities, do not prohibit an individual (who is not otherwise barred from purchasing or possessing a firearm) from shipping a firearm directly to the manufacturer for repair. However, before you ship your rifle to us, be certain that your State or locality does not have a law or regulation which will prohibit you from receiving the rifle from us after it has been repaired. If such receiving is prohibited, then please have a Federally Licensed firearms dealer ship the gun to us. If your rifle is sent to us by a dealer, it will be returned to him after being repaired. If a handgun (pistol or revolver) is shipped by an individual who does not hold a Federal Firearms License, it must be shipped via U.P.S.(Next Day Air). Persons who do not hold a Federal Firearms License are prohibited by Federal law from shipping a handgun by Mail. Handguns mailed in violation of the law are impounded by the Post Office.

Please do not include a rifle case, sling, telescopic sights or custom accessories with a firearm being shipped to the factory for service. DO NOT SEND GUN

BOXES OR LITERATURE THAT YOU CONSIDER TO BE COLLECTOR’S ITEMS – THESE ARE INVARIABLY DAMAGED OR DESTROYED IN SHIPMENT. Rifles

and shotguns may be shipped via Parcel Post. Always insure your shipment.

Enclose a letter that includes your name, address, telephone number, serial number and model of the firearm. Describe in detail the trouble you have experienced with your firearm, or the work you wish to have done. Merely stating that the firearm “needs repair” is inadequate information.

It is the purchaser’s responsibility to be absolutely certain that any parts ordered from the factory are correctly fitted and installed. Firearms are complicated mechanisms and

IMPROPER FITTING OF PARTS MAY RESULT IN A DANGEROUS MALFUNCTION, DAMAGE TO THE FIREARM, AND SERIOUS INJURY TO THE SHOOTER AND OTHER PERSONS. The

purchaser and installer of parts must accept full responsibility for the correct adjustment and functioning of the firearm after such installation.

PARTS MUST FIT CORRECTLY

WARNING –PARTS PURCHASERS

Work performed will bear a net minimum labor charge of $20.00 plus a $12.00 shipping and handling charge. The charge for rebluing the RUGER®MODEL

10/22

and 10/17TMrifles and carbines is $50.00 plus a $12.00 shipping and

handling charge. Custom gunsmithing service or nonstandard alterations are NOT AVAILABLE from Ruger Product Service Departments.

ORDERING PARTS

Please contact the New Hampshire Product Service Department for parts availability and current prices. All parts ordered for the RUGER®MODEL

10/22

or 10/17TMshould be sent to: Sturm, Ruger & Co., Inc., Product

Service Department, 411 Sunapee Street, Newport, New Hampshire 03773, 603865-2442. We cannot comply with open account or C.O.D. orders. Payment in the form of a check, money order, Visa or Mastercard must accompany your order. Credit Card orders must include the account number, expiration date and whether it is a Visa or Mastercard account. Minimum parts order is $1.00 plus $3.50 shipping and handling charge. Order parts by Part Name and Part Number and include the entire serial number of the firearm for which the parts are being ordered. There is a minimum net labor charge of $20.00 plus $12.00 shipping and handling charge if the parts are factory fitted. All factory fitted parts are fit on an exchange basis only. We will not return the replaced parts.

Because the receiver is a serial numbered component, it is defined as a “firearm” by Federal law and is not sold as a separate component.

*Parts designated by an asterisk must be factory fitted. These parts are fitted on an exchange basis only. We will not return the replaced parts. We will not return any part that is broken, malfunctioning, badly worn or has been modified. See “Warning – Parts Purchasers” above.

CAUTION: A gun containing modified, broken, malfunctioning, or badly worn parts should not be fired.

RUGER®MODEL 10/22®& 10/17TMRIFLES

PARTS LIST

Design, prices and specifications subject to change without notice.

SPECIFY MODEL AND CALIBER WHEN ORDERING

(See Exploded Views on Pages 41 - 46)

Part Name Part No. Model

Barrel 0B8001 Standard, Deluxe Sporter & All-Weather - Blued Models Barrel K0B8001 Standard & All-Weather - Stainless Models Barrel 0B8003 Target - Blued Model Barrel K0B8003 Target - Stainless Model Barrel K0B8006 Target - Silhouette Model Barrel 0B8004 10/22 Magnum Barrel 0B8009 10/22 RR Barrel 0B8008 10/17 RBR Barrel Band B-68 Standard & All-Weather - Blued Models Barrel Band L06801 10/22 Magnum Barrel Band, Clear Coated B06802 Standard & All-Weather - Stainless Models Barrel Band Screw B-69 Standard, All-Weather & 10/22 Magnum Barrel Retainer, V-Block B-66 All Models Barrel Retainer Screw, 2 Req’d. B-67 All Models Bolt Only B-10 All Models except 10/22 Magnum & 10/17 RBR Bolt Only B01006 10/22 Magnum Bolt Only B01004 10/17 RBR Bolt Assembly, Complete B-10A Standard, All-Weather & 10/22 RR

Standard Finish

Part Name Part No. Model

Bolt Assembly, Complete B-10C Deluxe Sporter & Target Models

Color Buffed Bolt Assembly, Complete B21006 10/22 Magnum Bolt Assembly, Complete B21004 10/17 RBR Bolt Lock B-41 All Models except 10/22 Magnum & 10/17 RBR Bolt Lock B04106 10/22 Magnum & 10/17 RBR Bolt Lock Spring B-42 All Models Bolt Stop Pin B-46 All Models except 10/22 Magnum & 10/17 RBR Bolt Stop Pin B04600 10/22 Magnum & 10/17 RBR Butt Plate C-63 Standard & 10/22 Magnum Butt Plate B06301 10/22 RR & 10/17 RBR Butt Plate Screw, 2 Req’d. B-64 Standard & 10/22 Magnum Butt Plate Screw, 2 Req’d. B-91 10/22 RR & 10/17 RBR Cocking Handle, Guide Rod & B-48A All Models except 10/22 Magnum & 10/17 RBR

Recoil Spring Assembly Cocking Handle, Guide Rod & B20705 10/22 Magnum & 10/17 RBR

Recoil Spring Assembly Disconnector B-25 All Models Disconnector Spring B-24 All Models Disconnector & Trigger Pivot Pin KE02800 All Models Ejector B-8 All Models Ejector Cross Pin, Not Illustrated B-22 All Models Escutcheon, Not Illustrated B-51 All Models Extractor B-14 All Models Extractor Plunger B-16 All Models

Part Name Part No. Model

Extractor Spring B-15 All Models Firing Pin B-11 All Models except 10/22 Magnum & 10/17 RBR Firing Pin B01106 10/22 Magnum & 10/17 RBR Firing Pin Rebound Spring A20000 All Models except 10/22 Magnum Firing Pin Rebound Spring B-12 10/22 Magnum Firing Pin Stop Pin B-13 All Models Front Mounting Screw J04701 10/22 Magnum Front Sight B27501 Standard, Deluxe Sporter & All-Weather Models Front Sight J06001 10/22 Magnum Front Sight J06000 10/17 RBR Front Sight Base B06001 10/17 RBR Front Sight Blade B07502 10/22 RR Hammer B-17A All Models except Target Model Hammer B01703 Target Hammer Bushing, 2 Req’d. B-43 All Models Hammer Pivot Pin B-19 All Models Hammer Spring B-44 All Models except 10/22 Magnum & 10/17 RBR Hammer Spring B04406 10/22 Magnum & 10/17 RBR Hammer Strut B-18 All Models Hammer Strut Washer B-45 All Models Magazine, Complete, BX-1 All Models except 10/22 Magnum & 10/17 RBR

10-Shot Capacity Magazine, Complete, JMX-1 10/22 Magnum & 10/17 RBR

10-Shot Capacity

Part Name Part No. Model

Magazine, Complete, BX-1-5 All Models except 10/22 Magnum & 10/17 RBR

5-Shot Capacity Magazine Latch B-34 All Blued Models Magazine Latch B03401 All Stainless Models Magazine Latch Pivot & Ejector B-35 All Models

Pin, 2 Req’d Magazine Latch Plunger B-36 All Models Magazine Latch Plunger Spring B-37 All Models Pistol Grip Cap Medallion D-82 All-Weather Models Rear Sight, Open B-76 Standard, Deluxe Sporter & All-Weather Models Rear Sight D-77 10/22 Magnum Rear Sight B07700 10/22 RR Rear Sight J06100 10/17 RBR Receiver Cross Pin, 2 Req’d. B-5 All Models Receiver Filler Screws, 4 Req’d., C-83 All Models except 10/22 Magnum & 10/17 RBR

Not Illustrated Recoil Pad D06304 Deluxe Sporter & Target Recoil Pad Screws, 2 Req’d. D-84 Deluxe Sporter & Target Safety B-52 All Models Safety Detent Plunger B-53 All Models Safety Detent Plunger Spring B-54 All Models Scope Base Adapter, With 4 Screws SBA All Blued Models except 10/22 Magnum & 10/17 RBR

Not Illustrated Scope Base Adapter, Clear Coated KSBA All Stainless Models

Not Illustrated

Part Name Part No. Model

Scope Base Adapter, With 4 Screws NSBA All Blued Models except 10/22 Magnum & 10/17 RBR

Weaver-Style Scope Base Adapter, Clear Coated NKSBA All Stainless Models

Weaver-Style

Scope Base Screws, 4 Req’d., B-89 All Models except 10/22 Magnum & 10/17 RBR

Not Illustrated Scope Base Torx® Head Screw, MPF07602 10/22 Magnum & 10/17 RBR

8 Req’d. Scope Rings, Medium S100RM 10/22 Magnum & 10/17 RBR

Accomodates 42mm lens Scope Ring Clamp D-74 10/22 Magnum & 10/17 RBR Scope Ring Nut D-73 10/22 Magnum & 10/17 RBR Sear B-23 All Models except Target Model

* Sear B02302 Target

Sear Spring B-24 All Models Sling Swivel, Front MS07601 Deluxe Sporter Sling Swivel, Front MS07602 Target Sling Swivel, Rear MS07601 Deluxe Sporter, International & Target Stock Assembly, Complete — B-4-1 Standard

Birch Stock Assembly, Complete — B00405 Standard

Black Laminate — See “Note A” on page 39. Stock Assembly, Complete — B09201 Deluxe Sporter

Walnut

Part Name Part No. Model

Stock Assembly, Complete — B00430 Target

Laminated American Hardwood Stock Assembly — B30425A All-Weather

Synthetic Stock Stock, Black Laminate BOYDS-600-333 Target Silhouette Model Stock Assembly, Complete — B20435 10/22 Magnum

Standard Carbine Birch Stock Assembly B00433 10/22 RR Stock Assembly B00434 10/17 RBR Take-Down Screw B-65 All Models except 10/22 Magnum, 10/22 RR & 10/17 RBR Take-Down Screw L04701 10/22 RR & 10/17 RBR Torx® Key Wrench, Not Illustrated MPF07601 10/22 Magnum & 10/17 RBR

(for Scope Base Torx®Head Screw) Trigger B-20 All Blued Models Trigger B02001 All Stainless Models Trigger Assembly, Complete B-20D All Blued Models except Target

* Trigger Assembly, Complete B02002D Target - Blued Model

Trigger Assembly, Complete B02001D Standard & All-Weather - Stainless Models

NOTE A: The black laminate stock assembly (B00405) is sold only on an exchange basis. That is, the “old” black laminate stock must accompany the payment and order for a new B00405 stock.

Part Name Part No. Model

* Trigger Assembly, Complete B02003D Target - Stainless Models

Trigger Guard B-2 All Blued Models except Target Trigger Guard B00202 Target - Blued Model Trigger Guard B00201 Standard & All-Weather - Stainless Models Trigger Guard B00203 Target - Stainless Model Trigger Guard Assembly, Complete B-2C Al Blued Models except Target, 10/22 Magnum & 10/17 RBR Trigger Guard Assembly, Complete B00202C Target - Blued Model Trigger Guard Assembly, Complete B-2M 10/22 Magnum & 10/17 RBR Trigger Guard Assembly, Complete B00201B Standard & All-Weather - Stainless Models Trigger Guard Assembly, Complete B00203C Target - Stainless Model Trigger Pivot Pin B-21 All Models Trigger Plunger B-39 All Models Trigger Plunger Spring B-40 All Models

* PARTS SO MARKED MUST BE FACTORY FITTED

RUGER®MODEL 10/22®CARBINE

10/22

TRIGGER GUARD ASSEMBLY

10/22®BOLT ASSEMBLY

MS07602

0B8003

B00430

MS07601

D06304

D-84 (2)

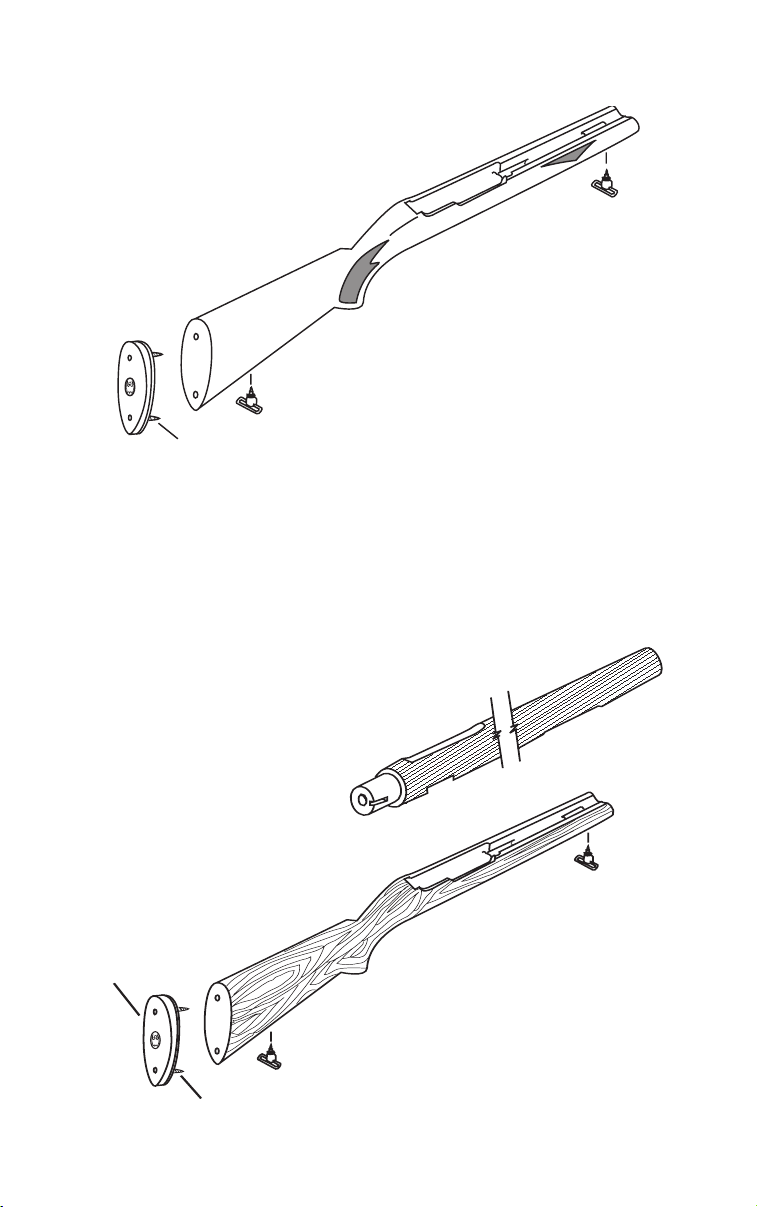

RUGER®10/22

TARGET RIFLE

D06304

D-84 (2)

MS07601

B09201

RUGER®10/22

DELUXE SPORTER

RUGER®MODEL 10/22®MAGNUM

TRIGGER GUARD ASSEMBLY

RUGER®MODEL 10/22®MAGNUM

BOLT ASSEMBLY

RUGER®MODEL 10/22®RIFLE

RUGER®MODEL 10/17TMRIFLE

THE BASIC RULES OF SAFE FIREARMS HANDLING

We believe that Americans have a right to purchase and use firearms for lawful purposes. The private ownership of firearms in America is traditional, but that ownership imposes the responsibility on the gun owner to use his firearms in a way which will ensure his own safety and that of others. When firearms are used in a safe and responsible manner, they are a great source of pleasure and satisfaction, and represent a fundamental part of our personal liberty.

Firearms do not cause accidents! Firearms accidents are almost always found to have been the result of carelessness, or ignorance on the part of the shooter of the basic rules of safe gun handling.

The following rules must be observed by gun users at all times. Safe gun handling is not just desirable, it is absolutely essential to your safety, the safety of others, and the continuation of gun ownership and sport shooting as we know it today.

1. LEARN THE MECHANICAL AND HANDLING CHARACTERISTICS OF THE FIREARM YOU ARE USING.

Not all firearms are the same. The method of carrying and handling firearms varies in accordance with the mechanical provisions for avoiding accidental discharge and the various proper procedures for loading and unloading. No person should handle any firearm without first having thoroughly familiarized himself with the particular type of firearm he is using, and with safe gun handling in general.

2. ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.

Be sure of the bullet stop behind your target, even when dry-firing. Never let the muzzle of a firearm point at any part of your body or at another person. This is particularly important when loading or unloading a firearm. In the event of an accidental discharge, no injury can occur as long as the muzzle is pointing in a safe direction. A safe direction means

a direction which will not permit a discharged bullet to strike a person, or to strike an object from which the bullet may ricochet.

RUGER

INSTRUCTION MANUAL

READ THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL CAREFULLY BEFORE

USING THIS FIREARM.

A safe direction must take into account the fact that a bullet may penetrate a wall, ceiling, floor, window, etc., and strike a person or damage property. Make it a habit to know exactly where the muzzle of your gun is pointing whenever you handle it, and be sure that you are always in control of the direction in which the muzzle is pointing, even if you fall or stumble. Keep your finger off the trigger until you are ready to shoot.

3. FIREARMS SHOULD BE UNLOADED WHEN NOT IN USE

Firearms should be loaded only when you are in the field or on the target range or shooting area, ready to shoot. Firearms and ammunition should be securely locked in safes, racks or cabinets, or by using the locking device supplied with the firearm, when not in use. Ammunition should safely be stored separate from firearms. Store your firearms out of sight of visitors and children. It is the gun owner’s responsibility to

be certain that children and persons unfamiliar with firearms cannot gain access to firearms, ammunition, or components.

4. BE SURE THE BARREL IS CLEAR OF OBSTRUCTIONS BEFORE SHOOTING.

Even a bit of mud, snow or excess

lubricating oil or grease in the bore may cause the barrel to bulge, or even burst on firing, and can cause serious injury to the shooter and bystanders. Be sure that you are using ammunition of the proper caliber and loading for the gun you are using. If the report or recoil on firing seems weak, or doesn’t seem quite right, CEASE FIRING IMMEDIATELY, unload your firearm, and check to be sure that no obstruction has become lodged in the barrel. Never try to shoot out an obstruction!

5. BE SURE OF YOUR TARGET BEFORE YOU SHOOT.

Don’t shoot unless you know exactly where your bullet is going to strike. Be sure of the bullet stop behind your target, even when dry-firing with an unloaded gun. If you are in the field hunting, do not fire at a movement or noise. Take the time to be absolutely certain of your target before you pull the trigger.

6. WEAR SHOOTING GLASSES AND HEARING PROTECTORS WHEN YOU SHOOT.

All shooters should wear protective shooting glasses and adequate hearing protectors when shooting. Exposure to shooting noise can damage hearing, and adequate eye protection when shooting is essential.

7. NEVER CLIMB A TREE OR FENCE WITH A LOADED FIREARM.

Put the firearm down carefully before climbing a fence, and unload it before climbing or descending a tree or jumping over a ditch or other obstruction. Never pull or push a loaded firearm toward yourself or another person. When in doubt, or whenever you are about to do anything awkward, unload your gun!

8. DON’T SHOOT AT A HARD SURFACE, OR AT WATER.

Bullets can glance off many surfaces like rocks or the surface of water and travel in unpredictable directions with considerable velocity.

9. NEVER TRANSPORT A LOADED FIREARM.

Firearms should always be unloaded before being placed in a vehicle. A suitable carrying case or scabbard should be used to carry an unloaded firearm to and from the shooting area.

10. AVOID ALCOHOLIC BEVERAGES WHEN SHOOTING.

Don’t drink until the day’s shooting is over. Handling firearms while under the influence of alcohol in any form, or medications that could affect your judgement or coordination, constitutes a criminal disregard for the safety of others. Also, do not handle or use firearms while taking any drugs or medication which may impair your ability to act safely.

A BRIEF ACCOUNT OF AN EXTRAORDINARY

ACHIEVEMENT: RUGER FIREARMS

One of the few American firearms manufacturers whose management has remained in the same family since starting in business, Sturm, Ruger & Company, Inc., had its beginning in a small machine shop occupying a rented frame building in Southport, Connecticut. In January, 1949, with an initial investment of only $50,000 and an idea, William B. Ruger and Alexander M. Sturm started production of a 22 caliber autoloading pistol–a design which was so successful that it became the cornerstone upon which one of the most comprehensive lines of sporting firearms ever made in America was established. After Alex Sturm’s death in 1951, William B. Ruger continued to direct the Company until his death in

2003. Today, William B. Ruger, Jr. continues to provide guidance which has made this Company a sound and successful enterprise.

Sturm, Ruger & Company, in this relatively short time, has established itself as a leading small arms design organization, developing a unique and broad line of fine quality sporting, military and police firearms to become one of the world’s most famous producers of revolvers, pistols, rifles and shotguns. Since 1949 Ruger craftsmen have built many millions of firearms.

During its five decades of growth and progress under the leadership of William B. Ruger, the Company developed a business philosophy and implemented policies which represent a constructive influence in the life of modern America. From the beginning, Sturm, Ruger & Company played a positive role in conservation efforts and has supported the interests of shooters through such groups as the National Rifle Association, National Shooting Sports Foundation, and many regional sportsmen’s organizations.

The Company has always endeavored to market its firearms for constructive and recreational purposes, to emphasize the traditional aspects of shooting, to render meaningful public services and to encourage shooters in constructive, responsible, and safe participation in the shooting sports. Its motto is “Arms Makers For Responsible Citizens.”

Today, Sturm, Ruger & Company is particularly mindful of those elements which have contributed to the creation of its success, and extends heartfelt thanks to its many loyal employees and customers.

A current catalog of Ruger firearms is available free upon request to

Sturm, Ruger & Co., Inc., Southport, CT 06890

WHY NO WARRANTY CARD HAS BEEN

PACKED WITH THIS NEW RUGER FIREARM

The Magnuson-Moss Act (Public Law 93-637) does not require any seller or manufacturer of a consumer product to give a written warranty. It does provide that if a written warranty is given, it must be designated as “limited” or as “full” and sets minimum standards for a “full” warranty. Sturm, Ruger & Company, Inc. has elected not to provide any written warranty, either “limited” or “full”, rather than to attempt to comply with the provisions of the Magnuson-Moss Act and the regulations issued thereunder. There are certain implied warranties under state law with respect to sales of consumer goods. As the extent and interpretation of these implied warranties varies from state to state, you should refer to your state statutes. Sturm, Ruger & Company wishes to assure its customers of its continued interest in providing service to owners of Ruger firearms.

STURM, RUGER & Company, Inc.

Southport, Connecticut 06890 U.S.A.

www.ruger.com

Arms Makers For Responsible Citizens

A COPY OF THE INSTRUCTION MANUAL FOR ANY RUGER

FIREARM IS AVAILABLE FROM THE FACTORY FREE ON REQUEST.

THESE INSTRUCTION MANUALS CONTAIN IMPORTANT

WARNINGS WHICH MUST BE UNDERSTOOD

BEFORE USING THESE FIREARMS.

“10/17,” “22/45,” “Model 96,” “Gold Label,” ”P90,” “P91,” “P93,” “P94,” “P95,” “P97,” and “Target Grey”

are RUGER TRADEMARKS. “RUGER,” THE STURM, RUGER LOGO, “Arms Makers For Responsible

Citizens,” “10/22,” “All-Weather,” “Bearcat,” “Blackhawk,” “GP-100,” “M77,” “Mini Thirty,” “Mini-14,”

“Old Army,” “P85,” “Redhawk,” “77/17,” “77/22,” “77/44,” “77/50,” “SP101,” “Vaquero,” “Single Six,”

“Security-Six,” “Service-Six,” and “Speed-Six,” are REGISTERED U.S. TRADEMARKS.

“DEERFIELD” is a registered trademark of Blount, Inc.

ruger 10/17, 10/22 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
