Rosemount 3095MFP Data sheet

Product Data Sheet

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Rosemount Integral Orifice
Flowmeter Series

HIGHLY ACCURATE SMALL-BORE FLOW
MEASUREMENT CAPABILITY WITH
MINIMAL INSTALLATION AND
MAINTENANCE REQUIREMENTS

• Improves accuracy and repeatability in
1-in., and 1

1

/2-in. line sizes

• Reduces leak points by over 50% and
minimizes line plugging

• Improves reliability with consistent
installations

• Multivariable measurement for gas and steam

1

/2-in.,

Flowmeter Series

Rosemount 1195, 3051SFP and 3095MFP

Contents

Rosemount Integral Orifice Flowmeter Series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2

1195 Integral Orifice Series Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3

Rosemount 3051SFP Proplate Flowmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4

Product Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15

Rosemount 3095MFP Mass Proplate Flowmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 20

Product Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 24

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 26

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 27

Rosemount 1195 Integral Orifice Primary Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 30

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 30

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 33

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 34

HART Configuration Data Sheet (CDS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 39

OUNDATION fieldbus

F

™

Configuration Data Sheet (CDS) . . . . . . . . . . . . . . . . . . . . . . . . . . page 42

Fluid Data Sheet (FDS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 45

www.rosemount.com

Rosemount Integral Orifice

Rosemount pressure transmitters

combined with the Rosemount 1195 Integral

Orifice create Best-in-Class Flowmeters

3051SFP
Proplate

Flowmeter

3095MFP Mass

Proplate

Flowmeter

1195

Integral

Orifice

Flowmeter Series

Rosemount Integral Orifice Flowmeter Series

Industry leading integrated DP flowmeters

By integrating Rosemount pressure transmitters with the
1195 Integral Orifice Series primary element, Rosemount
provides the highest performing DP Flowmeters. This fully
integrated flowmeter eliminates the need for fittings, tubing,
valves, adapters, and mounting brackets, thereby reducing
welding and installation time.

Improves accuracy and repeatability in

1

1

/2-in. line sizes

Using an integral orifice flowmeter solution will eliminate
the three measurement inaccuracies recorded in small
orifice line installations.

1. The Rosemount 1195 Integral Orifice honed body reduces ID uncertainty

2. By inserting precision bored upstream and downstream sections of pipe, the velocity profile distortion due to pipe roughness is reduced

3. The self-centering design of the 1195 Integral Orifice Plate eliminates plate misalignment

Using integral orifice flowmeter solutions will greatly
improve measurement accuracy and repeatability.

1

/2-in., 1-in., and

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Improves reliability and maintenance costs

The integral orifice flowmeter solutions eliminate impulse
lines, reducing leak points by over 50% and decrease
start-up time due to the flexibility of numerous process
connection options. The direct mount design minimizes line
plugging by eliminating long lines, small-bore ports, and
crevices while providing consistently reliable installations.

MultiVariable measurement for gas and steam

Measuring mass flow (base volumetric) in Gas and Steam
reduces process variability. The Embedded Flow Software
re-calculates ALL flow coefficients and calculates density
and mass flow in Real Time. Coupled with DP technology,
the Integral Orifice Flowmeter solution is designed to
maximize performance in real-world conditions.

Annubar® Flowmeter Series: Rosemount
3051SFA ProBar

®

, 3095MFA Mass ProBar®, 485,

and 285

The state-of-the-art, fifth generation Rosemount 485 Annubar
combined with the 3051S or 3095 MultiVariable transmitter creates
an accurate, repeatable and dependable insertion-type flowmeter.
The Rosemount 285 provides a commercial product offering for
your general purpose applications.

Compact Orifice Flowmeter Series: Rosemount 3051SFC, 3095MFC, and 405

Compact Orifice Flowmeters can be installed between existing
flanges, up to a Class 600 (PN100) rating. In tight fit applications,
a conditioning orifice plate version is available, requiring only two
diameters of straight run upstream.

2

Advanced PlantWeb

Rosemount orifice flowmeters power
PlantWeb through a scalable architecture,
advanced diagnostics, and MultiVariable
capabilities. This reduces operational and
maintenance expenditures while improving
throughput and utilities management.

Rosemount DP-Flow Solutions

Integral Orifice Flowmeter Series: Rosemount 3051SFP

ProPlate

These integral orifice flowmeters eliminate the inaccuracies that
become more pronounced in small orifice line installations. The
completely assembled, ready to install flowmeters reduce cost and
simplify installation.

Orifice Plate Primary Element Systems: Rosemount 1495 and 1595 Orifice Plates, 1496 Flange Unions and 1497 Meter Sections

A comprehensive offering of orifice plates, flange unions and
meter sections that is easy to specify and order. The 1595
Conditioning Orifice provides superior performance in tight fit
applications.

®

, 3095MFP Mass ProPlate, and 1195

®

functionality

Product Data Sheet

Rosemount 3051SFP Proplate Flowmeter

See ordering information on page 15.

• Combines the Rosemount 3051S scalable pressure
transmitter with the 1195 Integral Orifice Primary

• Wireless output now available, delivering information rich data
with > 99% reliability

• Accuracy up to ±0.95% of volumetric flow rate

• Remote display and interface assembly enables direct

mounting with “at-grade” operator interface

• F

OUNDATION

®

fieldbus protocol available

• Ideal fluid type: liquid

Rosemount 3095MFP Mass Proplate Flowmeter

See ordering information on page 27.

•Combines the Rosemount 3095MV MultiVariable
mass flow transmitter with the 1195 Integral Orifice

•Accuracy up to ±0.90% of mass flow rate in gas and steam

•Measures differential pressure, static pressure,
and process temperature all in one flowmeter assembly

•Dynamically calculates compensated mass flow

•Ideal fluid types: gas and steam

Rosemount 1195 Integral Orifice Primary

See ordering information on page 34.

• Integral manifold head allows direct
mounting of DP transmitters

• Ideal fluid types: liquid, gas, and steam

• Accuracy up to ±0.75% of discharge coefficient
uncertainty

• Direct mounting capability

3095MFP Mass ProPlate Flowmeter

1195 Integral Orifice Primary

3051SFP ProPlate Flowmeter

00813-0100-4686, Rev NA
March 2008

1195 Integral Orifice Series Selection Guide

Rosemount Integral Orifice

Flowmeter Series

3

Rosemount Integral Orifice
Flowmeter Series

Rosemount 3051SFP Proplate Flowmeter

SPECIFICATIONS

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Performance

System Reference Accuracy

Percentage (%) of volumetric flow rate

Classic

(2)

Beta (β)

β < 0.1 ±2.70% ±2.65% ±2.60%

0.1 < β < 0.2 ±1.60% ±1.45% 1.40%

0.2 < β < 0.6 ±1.20% ±1.10% ±0.95%

0.6 < β < 0.8 ±1.80% ±1.70% ±1.65%

(1) Without associated straight run piping, discharge coefficient

uncertainty can add up to 1.5% - 5% additional error. Consult the
factory for additional information.

(2) β = Orifice Plate Bore

(8:1 flow

turndown)

body I.D.

Repeatability

±0.1%

Line Sizes

•1/2-in. (15 mm)

• 1-in. (25 mm)

1

/2-in. (40 mm)

•1

Performance Statement Assumptions

• Use associated piping.

• Electronics are trimmed for optimum flow accuracy

(1)

Ultra

(8:1 flow

turndown)

Ultra for Flow

(10:1 flow

turndown)

Functional

Service

• Liquid

•Gas

•Steam

4–20 mA/HART

Zero and Span Adjustment

Zero and span values can be set anywhere within the range.
Span must be greater than or equal to the minimum span.

Output

Two-wire 4–20 mA is user-selectable for linear or square root
output. Digital process variable superimposed on 4–20 mA
signal, available to any host that conforms to the HART
protocol.

Power Supply

External power supply required.

Standard transmitter (4–20 mA): 10.5 to 42.4 V dc with no load

3051S HART Diagnostics transmitter: 12 to 42 Vdc with no load

Sizing

Contact a Emerson Process Management sales representative for
assistance. A “Configuration Data Sheet” is required prior to order
for application verification.

4

Product Data Sheet

Voltage (V dc)

Load (Ohms)

Operating

Region

1387

1000

500

0

10.5 20 30

42.4

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

Load Limitations

Maximum loop resistance is determined by the voltage level of
the external power supply, as described by:

Standard Transmitter

Maximum Loop Resistance = 43.5 * (Power Supply Voltage – 10.5)

The HART communicator requires a minimum

loop resistance of 250Ω for communication.

ASP™ Diagnostics Suite for HART (Option Code DA1)

The 3051S provides Abnormal Situation Prevention indication
for a breakthrough in diagnostic capability. The New 3051S
ASP™ Diagnostics Suite for HART includes Statistical
Process Monitoring (SPM), variable logging with time stamp
and advanced process alerts. The enhanced EDDL graphic
display provides an intuitive and user-friendly interface to
better visualize these diagnostics.

The integral SPM technology calculates the mean and
standard deviation of the process variable 22 times per
second and makes them available to the user. The 3051S
uses these values and highly flexible configuration options for
customization to detect many user-defined or application
specific abnormal situations (e.g. detecting plugged impulse
lines and fluid composition change). Variable logging with time
stamp and advanced process alerts capture valuable process
and sensor data to enable quick troubleshooting of application
and installation issues.

FOUNDATION fieldbus

Power Supply

External power supply required; transmitters operate on 9.0 to

32.0 V dc transmitter terminal voltage.

Current Draw

17.5 mA for all configurations (including LCD display option)

OUNDATION fieldbus Parameters

F

Schedule Entries 14 (max.)
Links 30 (max.)
Virtual Communications Relationships (VCR) 20 (max.)

Standard Function Blocks

Resource Block

• Contains hardware, electronics, and diagnostic information.

Transducer Block

• Contains actual sensor measurement data including the
sensor diagnostics and the ability to trim the pressure
sensor or recall factory defaults.

LCD Block

• Configures the local display.

2 Analog Input Blocks

• Processes the measurements for input into other function
blocks. The output value is in engineering or custom units
and contains a status indicating measurement quality.

PID Block with Auto-tune

• Contains all logic to perform PID control in the field including
cascade and feedforward. Auto-tune capability allows for
superior tuning for optimized control performance.

Backup Link Active Scheduler (LAS)

The transmitter can function as a Link Active Scheduler if the
current link master device fails or is removed from the
segment.

Software Upgrade in the Field

Software for the 3051S with F
upgrade in the field using the F
Device Software Download procedure.

PlantWeb Alerts

Enable the full power of the PlantWeb digital architecture by
diagnosing instrumentation issues, communicating advisory,
maintenance, and failure details, and recommending a
solution.

Advanced Control Function Block Suite (Option Code A01)

Input Selector Block

• Selects between inputs and generates an output using
specific selection strategies such as minimum, maximum,
midpoint, average, or first “good.”

Arithmetic Block

• Provides pre-defined application-based equations including
flow with partial density compensation, electronic remote
seals, hydrostatic tank gauging, ratio control and others.

Signal Characterizer Block

• Characterizes or approximates any function that defines an
input/output relationship by configuring up to twenty X, Y
coordinates. The block interpolates an output value for a
given input value using the curve defined by the configured
coordinates.

Integrator Bock

• Compares the integrated or accumulated value from one or
two variables to pre-trip and trip limits and generates
discrete output signals when the limits are reached. This
block is useful for calculating total flow, total mass, or
volume over time.

Output Splitter Block

• Splits the output of one PID or other control block so that the
PID will control two valves or other actuators.

Control Selector Block

• Selects one of up to three inputs (highest, middle, or lowest)
that are normally connected to the outputs of PID or other
control function blocks.

OUNDATION fieldbus is easy to

OUNDATION fieldbus Common

5

Rosemount Integral Orifice
Flowmeter Series

Block Execution Time

Resource ­Transducer ­LCD Block ­Analog Input 1, 2 20 milliseconds
PID with Auto-tune 25 milliseconds
Input Selector 20 milliseconds
Arithmetic 20 milliseconds
Signal Characterizer 20 milliseconds
Integrator 20 milliseconds
Output Splitter 20 milliseconds
Control Selector 20 milliseconds

Fully Compensated Mass Flow Block (Option Code H01)

Calculates fully compensated mass flow based on differential
pressure with external process pressure and temperature
measurements over the fieldbus segment. Configuration for
the mass flow calculation is easily accomplished using the
Rosemount Engineering Assistant.

ASP™ Diagnostics Suite for F
Code D01)

The 3051S ASP™ Diagnostics Suite for F
provides Abnormal Situation Prevention indication and
enhanced EDDL graphic displays for easy visual analysis.

The integral Statistical Process Monitoring (SPM) technology
calculates the mean and standard deviation of the process
variable 22 times per second and makes them available to the
user. The 3051S uses these values and highly flexible
configuration options for customization to detect many
user-defined or application specific abnormal situations (e.g.
detecting plugged impulse lines and fluid composition
change).

Wireless Self-Organizing Networks (3051S only)

Output

Wireless enabled HART.

Transmit Rate

User selectable, 15 sec. to 60 min.

Power Module

Replaceable, Intrinsically Safe Lithium-thionyl chloride Power
Module with polybutadine terephthalate (PBT) enclosure.
Five-year life at one minute transmit rate: ten-year life at ten
minute transmit rate.

(1) Reference conditions are 70 °F (21 °C), and routing data for three

additional network devices.
NOTE
Continuous exposure to ambient temperature limits, -40 °F (-40
°C) or 185 °F (85 °C), may reduce specified life by less than 20
percent.

(1)

Process Temperature Limits

Direct Mount Transmitter

• –40 to 450 °F (40 to 232 °C)

Remote Mount Transmitter

• –148 to 850 °F (–100 to 454 °C)

OUNDATION fieldbus (Option

OUNDATION fieldbus

(1)

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Transmitter Temperature Limits

Ambient

• –40 to 185 °F (–40 to 85 °C)

• With Integral Mount LCD Display

Storage

• –50 to 230 °F (–46 to 110 °C)

• With Integral Mount LCD Display: –40 to 185 °F (–40 to 85 °C)

• With wireless output (code X): –40 to 185 °F (–40 to 85 °C)

(1) LCD display may not be readable and LCD updates will be slower at

temperatures below -4 °F (-20 °C).

Maximum Working Pressure

Transmitter

• Range 1A: Zero to two times the absolute pressure range with
a maximum of 2000 psia (138 bar).

• Range 2A/3A: Zero to two times the absolute pressure range
with a maximum of 3626 psia (250 bar).

Flowmeter

• Pressure retention per ANSI B16.5 600 lb. or
DIN PN100

TABLE 1. 1195 Pressure Limits

Process

Line Size

1

/2-in.

(12.7 mm)

1-in.

(25.4 mm)

1

/2-in.

1

(38.1 mm)

All Flanged Meets flange primary

(1) For pressure ratings at temperatures less than -20 °F (-29 °C)

or above 100 °F (38 °C) consult an Emerson Process
Management representative.

(2) Transmitter static pressure range may limit maximum working

pressure. Refer to Static Pressure Ranges specification.

Connection

Code

S1 or P2 3000 psig (207 bar)
T1 or P1 1500 psig (103 bar)
S1 or P2 2000 psig (138 bar)
T1 or P1 1500 psig (103 bar)
S1 or P2 1500 psig (103 bar)
T1 or P1 1500 psig (103 bar)

Humidity Limits

• 0–100% relative humidity

Turn-On Time

Performance within specifications less than 2 seconds (typical)
after power is applied to the transmitter

Damping

Analog output response to a step input change is user-selectable
from 0 to 60 seconds for one time constant. This software damping
is in addition to sensor module response time

(1)

: –40 to 175 °F (–40 to 80 °C)

Maximum Working

Pressure @ 100 °F

pressure rating per ANSI

B16.5 (EN-1092-1 for DIN

flanges)

(1)(2)

(1) High temperature option G must be selected.

6

Product Data Sheet

T

c

T

d

Td = Dead Time
T

c

= Time Constant

Pressure Released

Response Time = Td+T

c

63.2% of Total
Step Change

Time

0%

100%

36.8%

Transmitter Output vs. Time

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

Failure Mode Alarm

3051S Safety-Certified Transmitter Failure Values

HART 4-20mA (output option codes A and B)

If self-diagnostics detect a gross transmitter failure, the analog
signal will be driven offscale to alert the user. Rosemount
standard (default), NAMUR, and custom alarm levels are
available (see Table 2).

High or low alarm signal is software-selectable or
hardware-selectable via the optional switch (option D1).

TABLE 2. Alarm Configuration

High Alarm Low Alarm

Default ≥ 21.75 mA ≤ 3.75 mA
NAMUR compliant
Custom levels

(1) Analog output levels are compliant with NAMUR

recommendation NE 43, see option codes C4 or C5.

(2) Low alarm must be 0.1 mA less than low saturation and high

alarm must be 0.1 mA greater than high saturation.

(1)

(2)

≥ 22.5 mA ≤ 3.6 mA

20.2 - 23.0 mA 3.6 - 3.8 mA

Dynamic Performance

4 - 20 mA (HART®)

Total Response Time (Td + Tc)

3051S_C, Ranges 2A - 3A:

Dead Time (Td)

(4)

(3)

Range 1A:

:

100 milliseconds
255 milliseconds

45 milliseconds (nominal) 97 milliseconds

Update Rate..........................3051S 22 times per second 22 times per second

(1)

Fieldbus protocol

152 milliseconds
307 milliseconds

Safety accuracy: 2.0%

(1)

Safety response time: 1.5 seconds

(1) A 2% variation of the transmitter mA output is allowed before

a safety trip. Trip values in the DCS or safety logic solver
should be derated by 2%.

(2)

Typical Transmitter Response Time

(1) Dead time and update rate apply to all models and ranges; analog output only

(2) Transmitter fieldbus output only, segment macro-cycle not included.

(3) Nominal total response time at 75 °F (24 °C) reference conditions. For option code DA1, add 45 milliseconds (nominal) to 4-20 mA (HART®) total

response time values.

(4) For option code DA1, dead time (Td) is 90 milliseconds (nominal).

7

Rosemount Integral Orifice

30°

30°

120°

30°

30°

120°

360°

Flow

360°

Flow

Flowmeter Series

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Installation Considerations

Pipe Orientation

Process

Orientation/ Flow Direction

Horizontal D/R D/R D/R
Vertical Up R R R
Vertical Down R NR NR

(1) D = Direct mount acceptable (recommended)

R = Remote mount acceptable
NR = Not recommended

Gas Liquid Steam

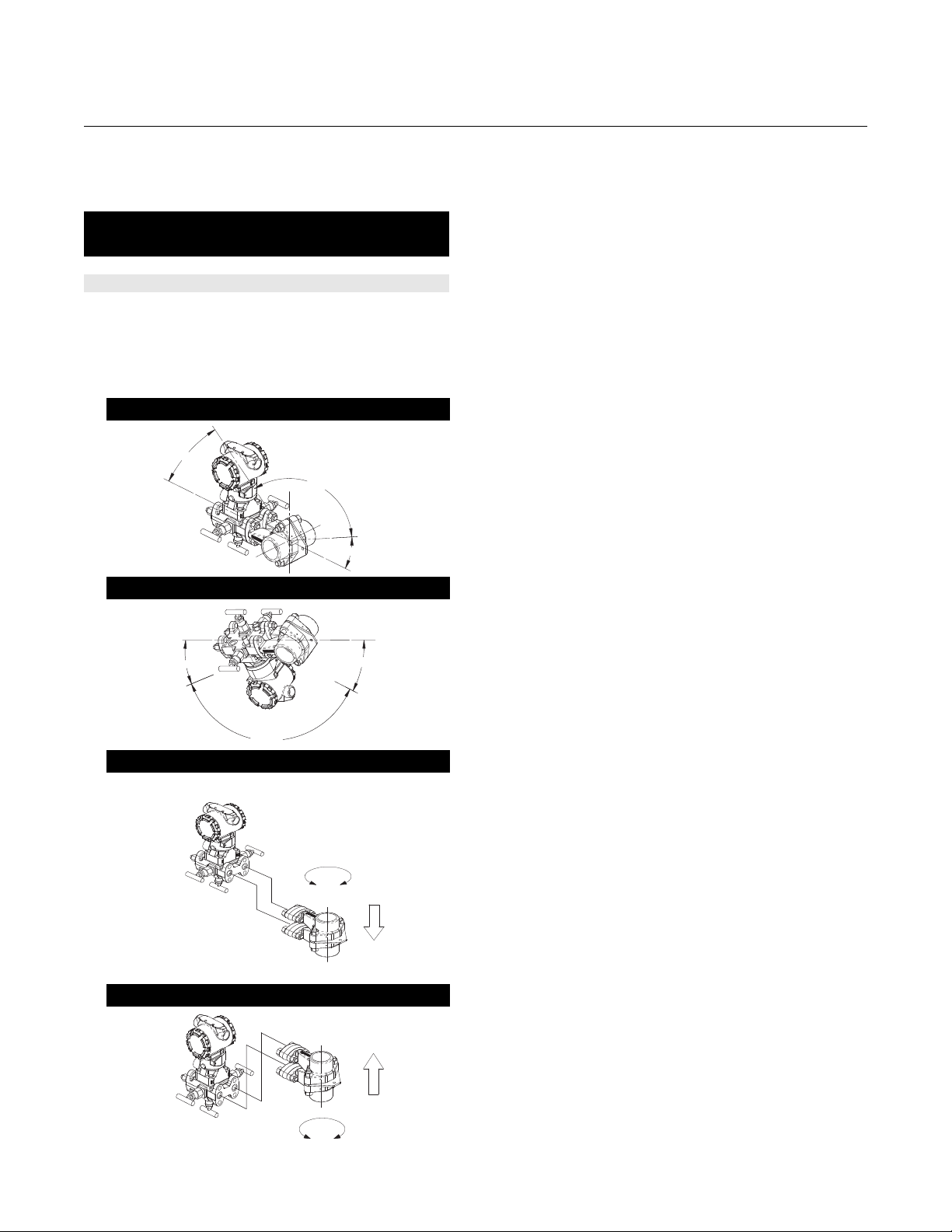

Flowmeter Orientation

Gas (Horizontal)

Liquid and Steam (Horizontal)

Gas (Vertical)

(1)

Physical

Temperature Measurement

RTD in Downstream Section

• 100 Ohm platinum with
series with Rosemount 644 housing)

• Standard RTD cable is shielded armored cable, length is 12
feet (3.66 m)

Thermowell with Remote RTD with

Electrical Considerations

1

/2–14 NPT, G1/2, and CM20 conduit. HART interface connections

permanently fixed to terminal block

Material of Construction

Orifice Plate

• 316/316L SST

• Hastelloy C-276

• Monel 400

Body

• 316 SST (CF8M), material per ASTM A351

• Hastelloy C-276 (CW12MW), material per ASTM A494

Pipe Material (If Applicable)

• A312 Gr 316/316L, B622 UNS N10276, Hastelloy C-276

Flange

• A182 Gr 316/316L, SB-564 UNS N10276, Hastelloy C-276

• Flange pressure limits are per ANSI B16.5

• Flange face finish per ANSI B16.5, 125 to 250 RMS

Body Bolts/Studs

• ASTM A193 Gr B8M studs

• ASTM A193 Gr B8M Class 2 body studs provided for high
temperature option code G

Transmitter Connection Studs

• ASTM A193 Gr B8M studs

Gaskets/O-rings

• Glass filled PTFE

• Inconel

• Gaskets and o-rings must be replaced each time the 3051SFP

®

X-750 provided for high temperature option code G

is disassembled for installation or maintenance.

1

/2-in. NPT nipple and union (078

1

/2-in. SST weld couplet

Orifice Type

Square edged—orifice bore size

• 0.066-in and larger

Quadrant edged—orifice bore size (for

• 0.034-in

• 0.020-in

Liquid (Vertical)

8

• 0.014-in

• 0.010-in

NOTE

Integral orifice bodies contain corner tapped pressure ports.

1

/2-in. line size only)

Product Data Sheet

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

Pipe Lengths

• Upstream and downstream associated piping sections are
available on the 3051SFP. The table below lists the standard
overall length (lay length) as a function of end connections and
line size.

1

Flanged Process
Connection

RF, ANSI Class 150, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, ANSI Class 300, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, ANSI Class 600, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, DIN PN16, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, DIN PN40, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, DIN PN100, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, ANSI Class 150, weld-neck 21.8 (554) 33.2 (843) 44.9 (1140)

RF, ANSI Class 300, weld-neck 22.2 (564) 33.7 (856) 45.5 (1156)

RF, ANSI Class 600, weld-neck 22.8 (579) 34.3 (871 46.1 (1171)

RTJ, ANSI Class 150, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RTJ, ANSI Class 300, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RTJ, ANSI Class 600, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

NPT / Beveled Process
Connection

(1) See the ordering information for model code description.

(2) Consult factory for other lengths.

(3) See page 37 for additional information on associated pipe lengths.

(1) (2) (3)

(1)(2)(3)

/2-in.

(15 mm)

18 (457) 28.9 (734) 40.3 (1023)

Line Size

1-in.

(25 mm)

11/2-in.

(40 mm)

Weight

The following weights are approximate

Line Size With Body With Flanged Piping

lb kg lb kg

1

/2-in. (15 mm) 13.6 6.2 17.6 8.0

1-in. (25 mm) 15.6 7.1 21.6 9.8

1

/2-in. (40 mm) 17.6 8.0 34.6 15.7

1

(1) As supplied with standard lengths, ANSI Class 150 flanges.

Process-Wetted Parts

Integral Manifolds

•316 SST

• Hastelloy C-276

Remote Manifolds

•316 SST

• Hastelloy C-276

Transmitter Vent Valves and Process Flanges

•316 SST

• Hastelloy C-276

Process Isolating Diaphragms

• 316L SST

• Hastelloy C-276

O-rings

• Glass-filled PTFE / Inconel X-750

Integral Manifold O-Rings

• PTFE / Graphite (D7)

Non-Wetted Parts

Sensor Module Fill Fluid

• Silicone oil

• Inert Fill optional

Cover O-rings

•Buna-N

Remote Mounting Brackets

• SST

(1)

Sensor mounting (including nuts, bolts, and gasket)

• SST (CS optional for high temperature)

Electronic Housing

• Low-copper aluminum or CF-3M (Cast version of 316L SST)
NEMA 4X, IP 66, IP 68 (not available with wireless output
(code X))

Paint

• Polyurethane

Bolts

• SST

Antenna

• PBT/ polycarbonate (PC) integrated omnidirectional antenna

9

Rosemount Integral Orifice
Flowmeter Series

PRODUCT CERTIFICATIONS

Approved Manufacturing Locations

Rosemount Inc. — Chanhassen, Minnesota USA

Emerson Process Management GmbH & Co. — Wessling,
Germany

Emerson Process Management Asia Pacific Private Limited —
Singapore

Beijing Rosemount Far East Instrument Co., LTD — Beijing, China

Ordinary Location Certification for FM

As standard, the transmitter has been examined and tested to
determine that the design meets basic electrical, mechanical, and
fire protection requirements by FM, a nationally recognized testing
laboratory (NRTL) as accredited by the Federal Occupational
Safety and Health Administration (OSHA).

European Directive Information

The EC declaration of conformity for all applicable European
directives for this product can be found at www.rosemount.com. A
hard copy may be obtained by contacting an Emerson Process
Management representative.

ATEX Directive (94/9/EC)

Emerson Process Management complies with the
ATEX Directive.

European Pressure Equipment Directive (PED) (97/23/EC)

Models 3051S_CA4; 3051S_CD2, 3, 4, 5; (also with P9 option)
Pressure Transmitters — QS Certificate of Assessment ­EC No. PED-H-100, Module H Conformity Assessment

All other Model 3051S Pressure Transmitters
— Sound Engineering Practice

Transmitter Attachments: Diaphragm Seal - Process Flange ­Manifold

Primary Elements, Flowmeter
— See appropriate Primary Element QIG

Electro Magnetic Compatibility (EMC) (2004/108/EC)

All Models: EN 50081-1: 1992; EN 50082-2:1995;
EN 61326-1:1997 + A1, A2, and A3 – Industrial

Radio and Telecommunications Terminal Equipment Directive (R&TTE)(1999/5/EC)

Emerson Process Management complies with the R&TTE
Directive.

HART & FOUNDATION Fieldbus Hazardous Locations Certifications

North American Certifications

FM Approvals

E5 Explosion-proof for Class I, Division 1, Groups B, C, and D;

— Sound Engineering Practice

Dust Ignition-proof for Class II and Class III, Division 1,
Groups E, F, and G; hazardous locations; enclosure Type
4X, conduit seal not required when installed according to
Rosemount drawing 03151-1003.

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

I5/IE Intrinsically Safe for use in Class I, Division 1, Groups A, B,

C, and D; Class II, Division 1, Groups E, F, and G; Class III,
Division 1; Class I, Zone 0 AEx ia IIC when connected in
accordance with Rosemount drawing 03151-1006;
Non-Incendive for Class I, Division 2, Groups A, B, C, and D
Enclosure Type 4X
For entity parameters see control drawing 03151-1006.

Canadian Standards Association (CSA)

E6 Explosion-proof for Class I, Division 1, Groups B, C, and D;

Dust Ignition-proof for Class II and Class III, Division 1,
Groups E, F, and G; suitable for Class I, Division 2, Groups
A, B, C, and D, when installed per Rosemount drawing
03151-1013, CSA Enclosure Type 4X; conduit seal not
required.

I6/IF Intrinsically Safe for Class I, Division 1, Groups A, B, C, and

D when connected in accordance with Rosemount drawings
03151-1016;
For entity parameters see control drawing 03151-1016.

European Certifications

I1/IA ATEX Intrinsic Safety

Certificate No.: BAS01ATEX1303X II 1G
EEx ia IIC T4 (T
Display/Quick Connect/HART Diagnostics
EEx ia IIC T4 (T
EEx ia IIC T4 (T
IP66

118 0

TABLE 3. Input Parameters

Loop / Power Groups

U

= 30 V HART / FOUNDATION fieldbus/ Remote

i

Ui = 17.5 V FISCO
I

= 300 mA HART / FOUNDATION fieldbus/ Remote

i

Ii = 380 mA FISCO
P

= 1.0 W HART / Remote Display / Quick Connect /

i

Pi = 1.3 W FOUNDATION fieldbus
P

= 5.32 W FISCO

i

Ci = 30 nF SuperModule Platform / Quick Connect
C

= 11.4 nF HART / HART Diagnostics

i

Ci = 0 FOUNDATION fieldbus / Remote Display /

L

= 0 HART / FOUNDATION fieldbus/ FISCO /

i

Li = 60 µH Remote Display

Special conditions for safe use (x)

1. The apparatus, excluding the Types 3051 S-T and 3051
S-C (In-line and Coplanar SuperModule Platforms
respectively), is not capable of withstanding the 500V test
as defined in Clause 6.4.12 of EN 50020. This must be
considered during installation.

2. The terminal pins of the Types 3051 S-T and 3051 S-C
must be protected to IP20 minimum.

= -60 °C to 70 °C) -HART/Remote

a

= -60 °C to 70 °C) -FOUNDATION fieldbus

a

= -60 °C to 40 °C) -FISCO

a

Display / Quick Connect / HART
Diagnostics

Display / Quick Connect / HART
Diagnostics

HART Diagnostics

FISCO

Quick Connect / HART Diagnostics

10

Product Data Sheet

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

N1 ATEX Typ e n

Certificate No.: BAS01ATEX3304X II 3 G
EEx nL IIC T4 (T
Ui = 45 Vdc max
IP66

Special conditions for safe use (x)

The apparatus is not capable of withstanding the 500V
insulation test required by Clause 9.1 of EN 50021: 1999.

This must be taken into account when installing the apparatus.

ND ATEX Dust

Certificate No.: BAS01ATEX1374X II 1 D
T105°C (-20 °C ≤ T

= 42.4 volts max

V

max

A = 22 mA
IP66

118 0

Special conditions for safe use (x)

1. The user must ensure that the maximum rated voltage
and current (42.4 volts, 22 milliampere, DC) are not
exceeded. All connections to other apparatus or
associated apparatus shall have control over this voltage
and current equivalent to a category “ib” circuit according
to EN 50020.

2. Cable entries must be used which maintain the ingress
protection of the enclosure to at least IP66.

3. Unused cable entries must be filled with suitable blanking
plugs which maintain the ingress protection of the
enclosure to at least IP66.

4. Cable entries and blanking plugs must be suitable for the
ambient range of the apparatus and capable of
withstanding a 7J impact test.

5. The 3051S must be securely screwed in place to maintain
the ingress protection of the enclosure. (The 3051S
SuperModule must be properly assembled to the 3051S
housing to maintain ingress protection.)

E1 ATEX Flameproof

Certificate No.: KEMA00ATEX2143X II 1/2 G
EEx d IIC T6 (-50 °C ≤ T
EEx d IIC T5 (-50 °C ≤ T

= 42.4V

V

max

118 0

Special conditions for safe use (x)

This device contains a thin wall diaphragm. Installation,
maintenance and use shall take into account the
environmental conditions to which the diaphragm will be
subjected. The manufacturer’s instructions for installation
and maintenance shall be followed in detail to assure safety
during its expected lifetime. The Model 3051S pressure
transmitter must include a Series 300S housing integrally
mounted to a Series Model 3051S Sensor module as per
Rosemount drawing 03151-1023.

= -40 °C TO 70 °C)

a

≤ 85 °C)

amb

≤ 65 °C)

amb

≤ 80 °C)

amb

Japanese Certifications

E4 TIIS Flameproof

Ex d IIC T6

Certificate Description

TC15682 Coplanar with Junction Box Housing
TC15683 Coplanar with PlantWeb Housing
TC15684 Coplanar with PlantWeb Housing

TC15685 In-Line SST with Junction Box Housing
TC15686 In-Line Hastelloy with Junction Box Housing
TC15687 In-Line SST with PlantWeb Housing
TC15688 In-Line Hastelloy with PlantWeb Housing
TC15689 In-Line SST with PlantWeb Housing

TC15690 In-Line Hastelloy with PlantWeb Housing

TC17102 Remote Display

and LCD Display

and LCD Display

and LCD Display

Australian Certifications

E7 SAA Flameproof and Dust Ignition-proof

Certification No.: AUS Ex 3798X
Ex d IIC T6 (T
DIP A21 TA T6 (T

Special conditions for safe use (x)

1. It is a condition of safe use that each housing shall be
connected to external circuits via suitable conduit or
Standards Australia certified cable glands. Where only one
entry is used for connection to external circuits, the unused
entry shall be closed by means of the blanking plug
supplied by the equipment manufacturer or by a suitable
Standards Australia certified blanking plug.

2. It is a condition of safe use that a dielectric strength test
shall be applied whenever the terminal block is changed or
replaced in either the dual compartment or single
compartment housings. The breakdown current shall be
less than 5 mA, when 500 V, 47 to 62 Hz, is applied for one
minute. Note: if tested with an optional T1 transient
protector terminal block fitted, the protection will operate
and hence there will be no current indicated.

3. It is a condition of safe use that each transmitter module
shall be used with a Model 300S housing, in order to
comply with flameproof requirements.

4. It is a condition of safe use that each model 300S housing
fitted with a transmitter module shall be marked with the
same certification marking code information. Should the
housing be replaced after initial supply to another model
300S housing, the replacement housing shall have the
same certification marking code information as the
housing it replaces.

= 60°C) IP66

a

= 60°C) IP66

a

11

Rosemount Integral Orifice

µ

Flowmeter Series

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

IECEx Certifications

I7/IG IECEx Intrinsic Safety

Certificate No.: IECExBAS04.0017X
Ex ia IIC T4 (T
Display/Quick Connect/HART Diagnostics
Ex ia IIC T4 (T
Ex ia IIC T4 (T
IP66

TABLE 4. Input Parameters

Loop / Power Groups

U

= 30 V HART / FOUNDATION fieldbus/

i

Ui = 17.5 V FISCO
I

= 300 mA HART / FOUNDATION fieldbus/

i

Ii = 380 mA FISCO
P

= 1.0 W HART / Remote Display / Quick

i

Pi = 1.3 W FOUNDATION fieldbus
P

= 5.32 W FISCO

i

Ci = 30 nF SuperModule Platform / Quick

C

= 11.4 nF HART / HART Diagnostics

i

Ci = 0 FOUNDATION fieldbus / Remote

= 0 HART / FOUNDATION fieldbus /

L

i

Li = 60 H Remote Display

Special conditions for safe use (x)

1. The Models 3051S HART 4-20mA, 3051S fieldbus, 3051S
Profibus and 3051S FISCO are not capable of
withstanding the 500V test as defined in clause 6.4.12 of
IEC 60079-11. This must be taken into account during
installation.

2. The terminal pins of the Types 3051S-T and 3051S-C must
be protected to IP20 minimum.

N7 IECEx Type n

Certificate No.: IECExBAS04.0018X
Ex nC IIC T4 (T
Ui = 45 Vdc MAX
IP66

Special conditions for safe use (x)

The apparatus is not capable of withstanding the 500 V
insulation test required by Clause 8 of IEC 79-15: 1987.

= -60 °C to 70 °C) -HART/Remote

a

= -60 °C to 70 °C) -FOUNDATION fieldbus

a

= -60 °C to 40 °C) -FISCO

a

Remote Display / Quick Connect
/ HART Diagnostics

Remote Display / Quick Connect
/ HART Diagnostics

Connect / HART Diagnostics

Connect

Display / FISCO / Quick Connect
/ HART Diagnostics

FISCO / Quick Connect / HART
Diagnostics

= -40 °C to 70 °C)

a

Combinations of Certifications

Stainless steel certification tag is provided when optional approval
is specified. Once a device labeled with multiple approval types is
installed, it should not be reinstalled using any other approval
types. Permanently mark the approval label to distinguish it from
unused approval types.

K1 Combination of E1, I1, N1, and ND

K5 Combination of E5 and I5

K6 Combination of E6 and I6

K7 Combination of E7, I7, and N7

KA Combination of E1, I1, E6, and I6

KB Combination of E5, I5, I6 and E6

KC Combination of E5, E1, I5 and I1

KD Combination of E5, I5, E6, I6, E1, and I1

12

Product Data Sheet

Radio Power Label

Figure 1.

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

WIRELESS CERTIFICATIONS

Telecommunication Compliance

All wireless devices require certification to ensure that they adhere
to regulations regarding the use of the RF spectrum. Nearly every
country requires this type of product certification. Emerson is
working with governmental agencies around the world to supply
fully compliant products and remove the risk of violating country
directives or laws governing wireless device usage. =

FCC and IC Approvals

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following conditions: This device may not cause
harmful interference this device must accept any interference
received, including interference that may cause undesired
operation.

This device must be installed to ensure a minimum antenna
separation distance of 20cm from all persons.

Ordinary Location Certification for FM

As standard, the transmitter has been examined and tested to
determine that the design meets basic electrical, mechanical, and
fire protection requirements by FM, a nationally recognized testing
laboratory (NRTL) as accredited by the Federal Occupational
Safety and Health Administration (OSHA).

European Directive Information

The EC declaration of conformity for all applicable European
directives for this product can be found at www.rosemount.com. A
hard copy may be obtained by contacting an Emerson Process
Management representative.

ATEX Directive (94/9/EC)

Emerson Process Management complies with the ATEX
Directive.

European Pressure Equipment Directive (PED) (97/23/EC)

Models 3051S_CA4; 3051S_CD2, 3, 4, 5; (also with P9 option)

Pressure Transmitters — QS Certificate of Assessment ­EC No. PED-H-100, Module H Conformity Assessment

All other Model 3051S Pressure Transmitters
— Sound Engineering Practice

Transmitter Attachments: Diaphragm Seal - Process Flange ­Manifold

Primary Elements, Flowmeter
— See appropriate Primary Element QIG

Electro Magnetic Compatibility (EMC) (2004/108/EC)

All Models: EN 50081-1: 1992; EN 50082-2:1995;
EN 61326-1:1997 + A1, A2, and A3 – Industrial

Radio and Telecommunications Terminal Equipment Directive (R&TTE)(1999/5/EC)

Emerson Process Management complies with the R&TTE
Directive.

— Sound Engineering Practice

Hazardous Locations Certifications

North American Certifications

Factory Mutual (FM) Approvals

I5 FM Intrinsically Safe, Non-Incendive, and Dust Ignition-proof.

Intrinsically Safe for Class I/II/III, Division 1,
Groups A, B, C, D, E, F, and G.
Zone Marking: Class I, Zone 0, AEx ia llC
Temperature Codes T4 (T
Non-Incendive for Class I, Division 2, Groups A, B, C, and D.
Dust Ignition-proof for Class II/III, Division 1,
Groups E, F, and G.
Ambient temperature limits: -50 to 85° C
For use with Rosemount SmartPower options
00753-9220-XXXX only.
Enclosure Type 4X / IP66

CSA - Canadian Standards Association

I6 CSA Intrinsically Safe

Intrinsically Safe for Class I, Division 1, Groups A, B, C, and D.
Temp Code T3C
Enclosure Type 4X / IP66
For use with Rosemount SmartPower options
00753-9220-XXXX only.

European Certifications

I1 ATEX Intrinsic Safety

Certificate No.: BAS01ATEX1303X II 1G
Ex ia IIC T4 (T
IP66
For use with Rosemount SmartPower options
00753-9220-XXXX only.

1180

Country Restriction

Bulgaria General authorization required for outdoor use

France Outdoor use limited to 10mW e.i.r.p.
Italy If used outside of own premises, general

Norway May be restricted in the geographical area within

Romania Use on a secondary basis. Individual license

Radio Power Label (See
Figure 1) indicates output
power configuration of the radio.
Devices with this label are
configured for output power less
than 10 mW e.i.r.p. At time of
purchase the customer must
specify ultimate country of
installation and operation.

= -60 °C to 70 °C)

a

and public service

authorization is required.

a radius of 20 km from the center of Ny-Alesund.

required.

IECEx Certifications

I7 IECEx Intrinsic Safety

Certificate No.: IECEx BAS 04.0017X
Ex ia IIC T4 (Ta = -60 °C to 70 °C)
For use with Rosemount SmartPower options
00753-9220-XXXX only.
IP66

= -50 to 70° C)

amb

13

Rosemount Integral Orifice

Flow

8.8 (223.46)

J Upstream

K

(1)

Downstream

5.3

(134.14)

11.9

(302.3)

7.7 (195.6)

B.D.

(2)

Flowmeter Series

DIMENSIONAL DRAWINGS

Rosemount 3051SFP Proplate Flowmeter

Bottom View Side View

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Front View

14

Dimensions are in inches (millimeters).

Dimension

J (RF slip-on, RTJ slip-on, RF-DIN slip-on) 12.5-in. 318 mm 20.2-in. 513 mm 28.4-in. 721 mm
J (RF 150#, weld-neck) 14.3-in. 363 mm 22.3-in. 566 mm 30.7-in. 780 mm
J (RF 300#, weld-neck) 14.5-in. 368 mm 22.6-in. 574 mm 31.0-in. 787 mm
J (RF 600#, weld-neck) 14.8-in. 376 mm 22.9-in. 582 mm 31.3-in. 795 mm
K ((RF slip-on, RTJ slip-on, RF-DIN slip-on)
K (RF 150#, weld-neck) 7.5-in. 191 mm 10.9-in. 277 mm 14.2-in. 361 mm
K (RF 300#, weld-neck) 7.7-in. 196 mm 11.1-in. 282 mm 14.5-in. 368 mm
K (RF 600#, weld-neck) 8.0-in. 203 mm 11 .4-i n. 290 mm 14.8-in. 376 mm

(2)

B.D.

(1) Downstream length shown here includes plate thickness of 0.162-in. (4.11 mm).

(2) B.D is diameter of the precision bored portion of the upstream and downstream piping.

(1)

1

/2-in. (12.7 mm) 1-in. (25.4 mm) 11/2-in. (38.1 mm)

5.7-in. 145 mm 8.7-in. 221 mm 11.9-in. 302 mm

0.664-in. 16.86 mm 1.097-in. 27.86 mm 1.567-in. 39.80 mm

Line Size

Product Data Sheet

00813-0100-4686, Rev NA
March 2008

Rosemount 3051SFP Proplate Flowmeter Ordering Information

Model Product Description

3051SFP Proplate Flowmeter

Code Measurement Type

D Differential Pressure

Code Body Material

S 316 SST
H Hastelloy C-276

Code Line Size

1

005
010 1-in. (25 mm)
015 11/2-in. (40 mm)

Code Process Connection

T1 NPT Female Body (not available with remote thermowell and RTD)

(1)

S1
P1 Pipe Ends: NPT threaded
P2 Pipe Ends: Beveled
A1 Pipe Ends: Flanged, RF, ANSI Class 150, slip-on
A3 Pipe Ends: Flanged, RF, ANSI Class 300, slip-on
A6 Pipe Ends: Flanged, RF, ANSI Class 600, slip-on
D1 Pipe Ends: Flanged, RF, DIN PN16, slip-on
D2 Pipe Ends: Flanged, RF, DIN PN40, slip-on
D3 Pipe Ends: Flanged, RF, DIN PN100, slip-on
W1 Pipe Ends: Flanged, RF, ANSI Class 150, weld-neck
W3 Pipe Ends: Flanged, RF, ANSI Class 300, weld-neck
W6 Pipe Ends: Flanged, RF, ANSI Class 600, weld-neck
R1 Pipe Ends: Flanged, RTJ, ANSI Class 150, slip-on
R3 Pipe Ends: Flanged, RTJ, ANSI Class 300, slip-on
R6 Pipe Ends: Flanged, RTJ, ANSI Class 600, slip-on
P9 Special process connections

Code Orifice Plate Material

S 316 SST
H Hastelloy C-276
M Monel

Code Bore Size Option

0010 0.010-in. (0.25 mm) for 1/2-in. pipe
0014 0.014-in. (0.36 mm) for 1/2-in. pipe
0020 0.020-in. (0.51 mm) for 1/2-in. pipe
0034 0.034-in. (0.86 mm) for 1/2-in. pipe
0066 0.066-in. (1.68 mm) for 1/2-in. pipe
0109 0.109-in. (2.77 mm) for 1/2-in. pipe

(2)

0160

(2)

0196

(2)

0260

(2)

0340
0150 0.150-in. (3.81 mm) for 1-in. pipe

(2)

0250

(2)

0345

(2)

0500

(2)

0630
0800 0.800-in. (20.32 mm) for 1-in. pipe
0295 0.295-in. (7.49 mm) for 11/2-in. pipe

(2)

0376

(2)

0512

/2-in. (15 mm)

Socket Weld Body (not available with remote thermowell and RTD)

0.160-in. (4.06 mm) for 1/2-in. pipe

0.196-in. (4.98 mm) for 1/2-in. pipe

0.260-in. (6.60 mm) for 1/2-in. pipe

0.340-in. (8.64 mm) for 1/2-in. pipe

0.250-in. (6.35 mm) for 1-in. pipe

0.345-in. (8.76 mm) for 1-in. pipe

0.500-in. (12.70 mm) for 1-in. pipe

0.630-in. (16.00 mm) for 1-in. pipe

0.376-in. (9.55 mm) for 11/2-in. pipe

0.512-in. (13.00 mm) for 11/2-in. pipe

Rosemount Integral Orifice

Flowmeter Series

15

Rosemount Integral Orifice

Product Data Sheet

00813-0100-4686, Rev NA

Flowmeter Series

Rosemount 3051SFP Proplate Flowmeter Ordering Information

(2)

0748
1022 1.022-in. (25.96 mm) for 11/2-in. pipe
1184 1.184-in. (30.07 mm) for 11/2-in. pipe

Code Transmitter Connection Platform

D3 Direct-mount, 3-valve manifold, SST
D4 Direct-mount, 3-valve manifold, Hastelloy-C
D5 Direct-mount, 5-valve manifold, SST
D6 Direct-mount, 5-valve manifold, Hastelloy-C
D7 Direct-mount, High Temperature, 5-valve manifold, SST
R3 Remote-mount, 3-valve manifold, SST
R4 Remote-mount, 3-valve manifold, Hastelloy-C
R5 Remote-mount, 5-valve manifold, SST
R6 Remote-mount, 5-valve manifold, Hastelloy-C

Code Differential Pressure Range

1A 0 to 25 in H2O (0 to 62.2 mbar)
2A 0 to 250 in H2O (0 to 623 mbar)
3A 0 to 1000 in H2O (0 to 2.5 bar)

Code Output Protocol

A 4–20 mA with digital signal based on HART protocol

(3)

F

(4)

X

Code Transmitter Housing Style Material Conduit Entry Size

1A PlantWeb Housing Aluminum
1B PlantWeb Housing Aluminum M20 x 1.5 (CM20)
1C PlantWeb Housing Aluminum G
1J PlantWeb Housing 316L SST
1K PlantWeb Housing 316L SST M20 x 1.5 (CM20)
1L PlantWeb Housing 316L SST G1/2
5A Wireless PlantWeb Housing Aluminum
2A Junction Box Housing Aluminum
2B Junction Box Housing Aluminum M20 x 1.5 (CM20)
2C Junction Box Housing Aluminum G1/2
2E Junction Box Housing with output for remote display and interface Aluminum
2F Junction Box Housing with output for remote display and interface Aluminum M20 x 1.5 (CM20)
2G Junction Box Housing with output for remote display and interface Aluminum G1/2
2J Junction Box Housing 316L SST
2M Junction Box Housing with output for remote display and interface 316L SST

(5)

7J

Code Performance Class

(6)

3

(6)

1
2 Classic: up to ±1.20% flow rate accuracy, 8:1 flow turndown, 5-year stability

Code Wireless Options - Select code from each wireless category (example: WA2WK1)

Wireless Transmit Rate

WA User Configurable Transmit Rate

Operating Frequency and Protocol

1 2.4 GHz DSSS, HART
2 900 MHz FHSS, HART

Antenna

WK Omnidirectional, Integral Antenna

SmartPower

1 Long-life Power Module Adapter, Intrinsically Safe

0.748-in. (19.00 mm) for 11/2-in. pipe

FOUNDATION fieldbus: AI block, Link Master, Input Selector Block
Wireless (Requires wireless options and wireless housing 5A)

1

/2-14 NPT

1

/2

1

/2-14 NPT

1

/2–14 NPT

1

/2-14 NPT

1

/2-14 NPT

1

/2-14 NPT

1

/2-14 NPT

Quick Connect (A size Mini, 4-pin male termination) 316L SST

Ultra for Flow: up to ±0.95% flow rate accuracy, 14:1 flow turndown, 10-year stability. limited 12-year warranty
Ultra: up to ±1.05% flow rate accuracy, 8:1 flow turndown, 10-year stability, limited 12-year warranty

™

NOTE: Long-life Power Module must be shipped separately, order Part No. 00753-9220-0001.

March 2008

16

Product Data Sheet

Rosemount Integral Orifice

00813-0100-4686, Rev NA
March 2008

Flowmeter Series

Rosemount 3051SFP Proplate Flowmeter Ordering Information

Code Options

High Temperature Materials

G High temperature Option (850 °F (454 °C)

Temperature Sensor

(7)

T

Optional Connection

G1 DIN 19231 Transmitter Connection

Pressure Testing

(8)

P1

Special Cleaning

P2 Cleaning for special processes
PA Cleaning per ASTM G93 Level D (section 11.4)

Material Testing

V1 Dye Penetrant Exam

Material Examination

V2 Radiographic Examination (available only with Process Connection code W1, W3, and W6)

Flow Calibration

(9)

WD

(9)

WZ

Special Inspection

QC1 Visual and dimensional inspection with certificate
QC7 Inspection and performance certificate

Material Traceability Certification

(10)

Q8

Code Conformance

(11)

J2

(11)

J3

Materials Conformance

(12)

J5

Country Certification

J1 Canadian Registration
J6 European Pressure Directive (PED)

Transmitter Calibration Certification

Q4 Calibration Data Certificate for Transmitter
QP Calibration Data Certificate and Tamper Evident Seal

Special Certification

(6)

QS

(13)

QT

Product Certifications

E1 ATEX Flameproof
I1 ATEX Intrinsic Safety
IE FM FISCO Intrinsically Safe; for FOUNDATION fieldbus protocol only
IF CSA FISCO Intrinsically Safe; for FOUNDATION fieldbus protocol only

(14)

IA
N1 ATEX Type n
ND ATEX Dust
K1 ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E1, I1, N1, and ND)
E4 TIIS Flameproof
E5 FM Explosion-proof, Dust Ignition-proof
I5 FM Intrinsically Safe, Division 2
K5 FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E5 and I5)
E6 CSA Explosion-proof, Dust Ignition-proof, Division 2
I6 CSA Intrinsically Safe
K6 CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E6 and I6)

(14)

E7
I7 IECEx Intrinsic Safety

Thermowell and RTD

Hydrostatic Testing

Discharge Coefficient Verification
Special Calibration

Material certification per ISO 10474 3.1.B and EN 10204 3.1.B

ANSI / ASME B31.1
ANSI / ASME B31.3

NACE MR-0175 / ISO 15156

Prior-use certificate for FMEDA data
Safety-certified to IEC 61508 with certificate of FMEDA data

ATEX FISCO Intrinsic Safety; for FOUNDATION fieldbus protocol only

SAA Flameproof, Dust Ignition-proof

17

Rosemount Integral Orifice

Product Data Sheet

00813-0100-4686, Rev NA

Flowmeter Series

March 2008

Rosemount 3051SFP Proplate Flowmeter Ordering Information

N7 IECEx Type n
K7 SAA Flameproof, Dust Ignition-proof, IECEx Intrinsic Safety, Type n (combination of E7, I7, and N7)
KA ATEX and CSA Flameproof, Intrinsically Safe, Division 2 (combination of E1, I1, E6, and I6)

Note: Only available on Housing Style codes 1A, 1J, 2A, 2J, 2E, or 2M.

KB FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E5, E6, I5, and I6)

KC FM and ATEX Explosion-proof, Intrinsically Safe, Division 2 (combination of E5, E1, I5, and I1)

KD FM, CSA, and ATEX Explosion-proof, Intrinsically Safe (combination of E5, I5, E6, I6, E1, and I1)

Alternative Transmitter Material of Construction

L1 Inert Sensor Fill Fluid
L2 Graphite-filled PTFE o-ring
LA Inert sensor fill fluid and graphite-filled PTFE o-ring

Display

M5 PlantWeb LCD display

(6)(16)

M7

(6)(16)

M8

(6)(16)

M9

Terminal Blocks

(17)

T1

(18)

T2

(18)

T3

PlantWeb Control Functionality

(19)

A01

PlantWeb Diagnostic Functionality

(19)

D01

(20)

DA1

PlantWeb Enhanced Measurement Functionality

(19)(21)

H01

Alarm Limits

(6)(22)

C4

(6)(22)

C5

(6)(22)

C6

(6)(22)

C7

(6)(22)

C8

Special Configuration (Hardware)

(22)

D1
D4 External ground screw

(22)

DA

Conduit Electrical Connector

(23)

GE

(23)

GM

Typical Model Number: 3051SFP D S 010 A3 S 0150 D3 1A A 1A 3

(1) To improve pipe perpendicularity for gasket sealing, socket diameter is smaller than standard pipe O.D.

(2) Best flow coefficient uncertainty is between (0.2 < β < 0.6).

(3) Requires PlantWeb housing.

(4) Available approvals are FM Intrinsically Safe, Division 2 (option code I5), CSA Intrinsically Safe (option code I6), ATEX Intrinsic Safety

(option code I1; only available with 2.4 GHz), and IECEx Intrinsic Safety (option code I7; only available with 2.4 GHz).

(5) Available with output code A only. Available approvals are FM Intrinsically Safe, Division 2 (option code I5) or ATEX Instrinsic Safety (option code I1). Contact

an Emerson Process Management representative for additional information.

(6) Not available with Output Protocol code X.

Note: Only available on Housing Style codes 1A, 1J, 2A, 2J, 2E, or 2M.

Note: Only available on Housing Style codes 1A, 1J, 2A, 2J, 2E, or 2M.

Note: Only available on Housing Style codes 1A, 1J, 2A, 2J, 2E, or 2M.

(15)

Remote mount LCD display and interface, PlantWeb housing, no cable, SST bracket
Remote mount LCD display and interface, PlantWeb housing, 50 foot cable, SST bracket
Remote mount LCD display and interface, PlantWeb housing, 100 foot cable, SST bracket

Transient terminal block
Terminal block with WAGO® spring clamp terminals
Transient terminal block with WAGO spring clamp terminals

FOUNDATION fieldbus Advanced Control Function Block Suite

FOUNDATION fieldbus Diagnostics Suite
HART Diagnostics Suite

Fully Compensated Mass Flow Block

NAMUR alarm and saturation signal levels, high alarm
NAMUR alarm and saturation signal levels, low alarm
Custom alarm and saturation signal levels, high alarm

Note: A Configuration Data Sheet must be completed, see document number 00806-0100-4686.

Custom alarm and saturation signal levels, low alarm

Note: A Configuration Data Sheet must be completed, see document number 00806-0100-4686..

Low alarm (standard Rosemount alarm and saturation signal levels)

Hardware Adjustment (zero, span, alarm, security)

Hardware adjustment (zero, span, security) and external ground screw

M12, 4-pin, Male Connector (eurofast®)

A size Mini, 4-pin, Male Connector (minifast®)

18

Product Data Sheet

Rosemount Integral Orifice

00813-0100-4686, Rev NA
March 2008

(7) Thermowell material is the same as the body material.

(8) Does not apply to Process Connection codes T1 and S1.

(9) Not available for bore sizes 0010, 0014, 0020, or 0034.

(10) Includes certificates for mechanical and chemical properties of bodies, orifice plates, pipes, flanges, and adapters as applicable.

(11) Not available with DIN Process Connection codes D1, D2, or D3.

(12) Materials of Construction comply with metallurgical requirements within NACE MR0175/ISO for sour oil field production environments. Environmental limits

apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

(13) Not available with output code F or X. Not available with housing code 7J.

(14) Consult factory for availability.

(15) Not available with Housing code 7J.

(16) Not available for Output Protocol code F, option code DA1, or option code QT.

(17) Not available with Housing code 5A or 7J.

(18) Available with Output Protocol code A and PlantWeb housing only.

(19) Requires PlantWeb housing and output code F.

(20) Requires PlantWeb housing and Output code A. Includes Hardware Adjustments as standard. Contact an Emerson Process Management representative

regarding availability.

(21) Requires Rosemount Engineering Assistant to configure.

(22) Not available with Output Protocol code F.

(23) Not available with Housing code 7J. Available with Intrinsically Safe approvals only. For FM Intrinsically Safe, Division 2 (option code I5) or FM FISCO

Intrinsically Safe (option code IE), install in accordance with Rosemount drawing 03151-1009 to maintain NEMA 4X rating.

Flowmeter Series

19

Rosemount Integral Orifice
Flowmeter Series

Rosemount 3095MFP Mass Proplate Flowmeter

SPECIFICATIONS

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Performance

System Reference Accuracy

Percentage (%) of mass flow rate

(2)

Beta (β)

β < 0.1 ±2.60% ±2.55%

0.1 < β < 0.2 ±1.50% ±1.35%

0.2 < β < 0.6 ±1.10% ±0.95%

0.6 < β < 0.8 ±1.70% ±1.60%

(1) Without associated straight run piping, discharge coefficient

uncertainty can add up to 1.5% - 5% additional error. Consult the
factory for additional information.

(2) β = Orifice Plate Bore

body I.D.

(8:1 flow turndown)

Repeatability

±0.1%

Line Sizes

•1/2-in. (15 mm)

• 1-in. (25 mm)

1

/2-in. (40 mm)

•1

Output

Two-wire 4–20 mA, user-selectable for DP, AP, GP, PT, mass flow,
or totalized flow. Digital HART protocol superimposed on 4–20 mA
signal, available to any host that conforms to the HART protocol.

Performance Statement Assumptions

• Measured pipe I.D

• Electronics are trimmed for optimum flow accuracy

Sizing

Contact a Emerson Process Management sales representative for
assistance. A “Configuration Data Sheet” is required prior to order
for application verification.

(1)

Classic

Ultra for Flow

10:1 flow turndown

Functional

Service

• Liquid

•Gas

•Steam

Power Supply

4–20 mA option

• External power supply required. Standard transmitter
(4–20 mA) operates on 11 to 55 v dc with no load

Process Temperature Limits

Direct Mount Transmitter

• –40 to 450 °F (–40 to 232 °C)

Remote Mount Transmitter

• –148 to 850 °F (–100 to 454 °C)

(1) High temperature option code G must be selected.

Transmitter Temperature Limits

Ambient

• –40 to 185 °F (–40 to 85 °C)

• With Integral Mount LCD Display: –4 to 175 °F (–20 to 80 °C)

Storage

• –50 to 230 °F (–46 to 110 °C)

• With Integral Mount LCD Display: –40 to 185 °F (–40 to 85 °C)

Maximum Working Pressure

Transmitter

• Zero to two times the absolute pressure range with a
maximum of 3626 psia (250 bar).

Flowmeter

• Pressure retention per ANSI B16.5 600 lb. or
DIN PN100

TABLE 5. 1195 Pressure Limits

Process

Connection

Line Size

1

/2-in.

(12.7 mm)

1-in.

(25.4 mm)

1

/2-in.

1

(38.1 mm)

All Flanged Meets flange primary

(1) For pressure ratings at temperatures less than -20 °F (-29 °C)

or above 100 °F (38 °C) consult an Emerson Process
Management representative.

(2) Transmitter static pressure range may limit maximum working

pressure. Refer to Static Pressure Ranges specification.

Code

S1 or P2 3000 psig (207 bar)
T1 or P1 1500 psig (103 bar)
S1 or P2 2000 psig (138 bar)
T1 or P1 1500 psig (103 bar)
S1 or P2 1500 psig (103 bar)
T1 or P1 1500 psig (103 bar)

(1)

Maximum Working

Pressure @ 100 °F

pressure rating per ANSI

B16.5 (EN-1092-1 for DIN

flanges)

(1)(2)

20

Product Data Sheet

Load (Ohms)

0

11.0 42.4

(1)

55

Operating

Region

(1) For CSA approval, power supply must not exceed 42.4 V dc.

(2) HART protocol communication requires a loop resistance value

between 250-1100 ohms, inclusive.

Power Supply

250

16.5

(2)

Maximum Loop Resistance = Power Supply - 11.0

0.022

2000

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

Static Pressure Limits

Operates within specification between static pressures of 0.5 psia
(0.03 bar-A) and the URL of the static pressure sensor.

Load Limitations

Maximum loop resistance is determined by the voltage level of
the external power supply, as described by:

Humidity Limits

• 0–100% relative humidity

Turn-On Time

Digital and analog measured variables will be within specification
7 – 10 seconds after power is applied to the transmitter.
Digital and analog flow output will be within specifications 10 – 14
seconds after power is applied to the transmitter.

Damping

Analog output response to a step input change is user-selectable
from 0 to 29 seconds for one time constant. This software damping
is in addition to sensor module response time

Failure Mode Alarm

Output Code A

If self-diagnostics detect a non-recoverable transmitter failure,
the analog signal will be driven either below 3.75 mA or above

21.75 mA to alert the user. High or low alarm signal is
user-selectable by internal jumper pins.

Output Code V

If self-diagnostics detect a gross transmitter failure, that
information gets passed as a status along with the process
variable(s).

Configuration

HART Hand-held Communicator (Model 275 or 375)

• Performs traditional transmitter maintenance functions

3095 Multivariable Engineering Assistant (EA) software package

• Contains built-in physical property database

• Enables mass flow configuration, maintenance, and diagnostic
functions via HART modem (output option code A)

Enables mass flow configuration via PCMCIA Interface for

OUNDATION fieldbus (output option code V)

F

Physical Properties Database

• Maintained in Engineering Assistant Software Configurator

• Physical properties for over 110 fluids

• Natural gas per AGA

• Steam and water per ASME

• Other database fluids per American Institute of Chemical
Engineers (AIChE)

• Optional custom entry

FOUNDATION fieldbus Function Blocks

Standard Function Blocks

Resource Block

• Contains hardware, electronics, and diagnostic information.

Transducer Block

• Contains actual sensor measurement data including the
sensor diagnostics and the ability to trim the pressure
sensor or recall factory defaults.

LCD Block

• Configures the local display.

5 Analog Input Blocks

• Processes the measurements for input into other function
blocks. The output value is in engineering or custom units
and contains a status indicating measurement quality.

PID Block with Auto-tune

• Contains all logic to perform PID control in the field including
cascade and feedforward. Auto-tune capability allows for
superior tuning for optimized control performance.

Advanced Control Function Block Suite (Option Code A01)

Input Selector Block

• Selects between inputs and generates an output using
specific selection strategies such as minimum, maximum,
midpoint, average, or first “good.”

Arithmetic Block

• Provides pre-defined application-based equations including
flow with partial density compensation, electronic remote
seals, hydrostatic tank gauging, ratio control and others.

Signal Characterizer Block

• Characterizes or approximates any function that defines an

input/output relationship by configuring up to twenty X, Y
coordinates. The block interpolates an output value for a
given input value using the curve defined by the configured
coordinates.

Integrator Bock

• Compares the integrated or accumulated value from one or

two variables to pre-trip and trip limits and generates
discrete output signals when the limits are reached. This
block is useful for calculating total flow, total mass, or
volume over time.

Output Splitter Block

• Splits the output of one PID or other control block so that the

PID will control two valves or other actuators.

Control Selector Block

• Selects one of up to three inputs (highest, middle, or lowest)

that are normally connected to the outputs of PID or other
control function blocks.

21

Rosemount Integral Orifice
Flowmeter Series

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Physical

Temperature Measurement

Remote RTD

• 100 Ohm platinum with
series with Rosemount 644 housing)

• Standard RTD cable is shielded armored cable, length is12
feet (3.66 m)

• Remote RTD material is SST

Thermowell

1

/2-in. x 1/2-in. NPT, 316 SST

•

Electrical Considerations

1

/2–14 NPT, G1/2, and CM20 conduit. HART interface connections

permanently fixed to terminal block

Material of Construction

Orifice Plate

• 316/316L SST

• Hastelloy C-276

• Monel 400

Body

• 316 SST (CF8M), material per ASTM A351

• Hastelloy C-276 (CW12MW), material per ASTM A494

Flange and Pipe Material (If Applicable)

• A312 Gr 316/316L, B622 UNS N10276

• Flange pressure limits are per ANSI B16.5

• Flange face finish per ANSI B16.5, 125 to 250 RMS

Body Bolts/Studs

• ASTM A193 Gr B8M studs

• SAE J429 Gr 8 bolts (meets or exceeds ASTM A193 B7
requirements) for body bolt/stud material option code G for
high temperatures.

Transmitter Connection Studs

• ASTM A193 Gr B8M studs

Gaskets/O-rings

• Glass filled PTFE

• Optional high temperature Inconel

• Gaskets and o-rings must be replaced each time the
3095MFP is disassembled for installation or maintenance.

1

/2-in. NPT nipple and union (078

®

X-750

Orifice Type

Square edged—orifice bore size

• 0.066-in and larger

1

Quadrant edged—orifice bore size (for

/2-in. line size only)

• 0.034-in

• 0.020-in

• 0.014-in

• 0.010-in

NOTE

Integral Orifice bodies contain corner tapped pressure ports.

Pipe Lengths

• Upstream and downstream associated piping sections are
available on the 1195. The table below lists the standard
overall length (lay length) as a function of end connections and
line size.

1

Flanged Process
Connection

RF, ANSI Class 150, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, ANSI Class 300, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, ANSI Class 600, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, DIN PN16, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, DIN PN40, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, DIN PN100, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, ANSI Class 150, weld-neck 21.8 (554) 33.2 (843) 44.9 (1140)

RF, ANSI Class 300, weld-neck 22.2 (564) 33.7 (856) 45.5 (1156)

RF, ANSI Class 600, weld-neck 22.8 (579) 34.3 (871 46.1 (1171)

RTJ, ANSI Class 150, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RTJ, ANSI Class 300, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RTJ, ANSI Class 600, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

NPT / Beveled Process
Connection

(1) See the ordering information for model code description.

(2) Consult factory for other lengths.

(3) See page 37 for additional information on associated pipe lengths.

(1) (2) (3)

(1)(2)(3)

/2-in.

(15 mm)

18 (457) 28.9 (734) 40.3 (1023)

Line Size

1-in.

(25 mm)

11/2-in.

(40 mm)

Weight

The following weights are approximate

Line Size With Body With Flanged Piping

lb kg lb kg

1

/2-in. (15 mm) 16.1 7.3 20.1 9.1

1-in. (25 mm) 18.1 8.2 24.1 10.9

1

/2-in. (40 mm) 20.1 9.1 37.1 16.8

1

(1) As supplied with standard lengths, ANSI Class 150 flanges.

(1)

22

Product Data Sheet

30°

30°

120°

30°

30°

120°

360°

Flow

Flow

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

Installation Considerations

Pipe Orientation

Process

Orientation/ Flow Direction

Horizontal D/R D/R D/R
Vertical Up R R R
Vertical Down R NR NR

(1) D = Direct mount acceptable (recommended)

R = Remote mount acceptable
NR = Not recommended

Gas Liquid Steam

Flowmeter Orientation

Gas (Horizontal)

Liquid and Steam (Horizontal)

Gas (Vertical)

(1)

Process-Wetted Parts

Integral Manifolds

•316 SST

• Hastelloy C-276

Remote Manifolds

•316 SST

• Hastelloy C-276

Transmitter Vent Valves and Process Flanges

•316 SST

• Hastelloy C-276

Process Isolating Diaphragms

• 316L SST

• Hastelloy C-276

O-rings

• Glass-filled PTFE / Inconel X-750

Integral Manifold O-Rings

• PTFE / Graphite (D7)

Non-Wetted Parts

Sensor Module Fill Fluid

• Silicone oil

• Inert Fill optional

Cover O-rings

•Buna-N

Remote Mounting Brackets

• SST

Sensor mounting (including nuts, bolts, and gasket)

• SST

Electronic Housing

• Low copper aluminum, NEMA 4x, IP65

• SST (optional)

Paint

• Polyurethane

Bolts

• SST

Liquid (Vertical)

360°

23

Rosemount Integral Orifice
Flowmeter Series

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

PRODUCT CERTIFICATIONS

Rosemount 3095 with HART

European Directive Information

The EC declaration of conformity for all applicable European
directives for this product can be found on the Rosemount website
at www.rosemount.com. A hard copy may be obtained by
contacting our local sales office.

ATEX Directive (94/9/EC)

Emerson Process Management complies with the ATEX Directive.

European Pressure Equipment Directive (PED) (97/23/EC)

3095M_2/3,4/D Flow Transmitters — QS Certificate of
Assessment - EC No. PED-H-20
Module H Conformity Assessment

All other 3095_ Transmitters/Level Controller —
Sound Engineering Practice

Transmitter Attachments: Process Flange - Manifold —
Sound Engineering Practice

Electro Magnetic Compatibility (EMC) (89/336/EEC)

3095MV Flow Transmitters

— EN 50081-1: 1992; EN 50082-2:1995;

EN 61326-1:1997 – Industrial

Ordinary Location Certification for Factory Mutual

As standard, the transmitter has been examined and tested to
determine that the design meets basic electrical, mechanical, and
fire protection requirements by FM, a nationally recognized testing
laboratory (NRTL) as accredited by the Federal Occupational
Safety and Health Administration (OSHA).

Hazardous Locations Certifications

North American Certifications

FM Approvals

E5 Explosion Proof for Class I, Division 1, Groups B, C, and D.

Dust-Ignition Proof for Class II/Class III, Division 1, Groups
E, F, and G. Enclosure type NEMA 4X. Factory Sealed.
Provides nonincendive RTD connections for Class I, Division
2, Groups A, B, C, and D.

I5 Intrinsically Safe for use in Class I, II and III, Division 1,

Groups A, B, C, D, E, F, and G hazardous outdoor locations.
Non-incendive for Class I, Division 2, Gro ups A, B, C, and D.
Temperature Code T4. Factory Sealed.

For input parameters and installation see control drawing
03095-1020.

Canadian Standards Association (CSA)

E6 Explosion Proof for Class I, Division 1, Groups B, C, and D.

Dust-Ignition Proof for Class II/Class III, Division 1, Groups
E, F, and G. CSA enclosure Type 4X suitable for indoor and
outdoor hazardous locations. Provides nonincendive RTD
connection for Class I, Division 2, Groups A, B, C, and
D.Factory Sealed. Install in accordance with Rosemount
Drawing 03095-1024. Approved for Class I, Division 2,
Groups A, B, C, and D.

I6 Intrinsically Safe for Class I, Division 1, Groups A, B, C, and

D. when installed in accordance with Rosemount drawing
03095-1021. Temperature Code T3C.

For input parameters and installation see control drawing
03095-1021.

European Certifications

I1 ATEX Intrinsic Safety

Certificate Number: BAS98ATEX1359X II 1 G

EEx ia IIC T5 (T
EEx ia IIC T4 (T

118 0

TABLE 6. Connection Parameters (Power/Signal Terminals)

= 30V

U

i

Ii = 200 mA

= 1.0 W

P

i

Ci = 0.012 µF

= 0

L

i

TABLE 7. Temperature Sensor Connection Parameters

= 30V

U

o

Io = 19 mA

= 140 mW

P

o

Ci = 0.002 µF

= 0

L

i

TABLE 8. Temp Sensor Terminals Connection Parameters

= 0.066 ␮F Gas Group IIC

C

o

Co = 0.560 ␮F Gas Group IIB

= 1.82 ␮F Gas Group IIA

C

o

Lo = 96 mH Gas Group IIC

= 365 mH Gas Group IIB

L

o

Lo = 696 mH Gas Group IIA

= 247 ␮H/ohm Gas Group IIC

L

o/Ro

Lo/Ro = 633 ␮H/ohm Gas Group IIB

= 633 ␮H/ohm Gas Group IIA

L

o/Ro

Special Conditions for Safe Use

The 3095, when fitted with the transient terminal block
(order code B), are not capable of withstanding the 500 volts
insulation test required by EN50 020, Clause 6.4.12 (1994).
This condition must be accounted for during installation.

N1 ATEX Type N

Certificate Number: BAS98ATEX3360X II 3 G

EEx nL IIC T5 (T
EEx nL IIC T4 (T

= 55V

U

i

= –45 °C to 40 °C)

amb

= –45 °C to 70 °C)

amb

= –45 °C to 40 °C)

amb

= –45 °C to 70 °C)

amb

24

The apparatus is designed for connection to a remote
temperature sensor such as a resistance temperature
detection (RTD)

Product Data Sheet

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

Special Conditions for Safe Use

The 3095, when fitted with the transient terminal block
(order code B), are not capable of withstanding the 500 volts
insulation test required by EN50 021, Clause 9.1 (1995).
This condition must be accounted for during installation.

E1 ATEX Flameproof

Certificate Number: KEMA02ATEX2320X II 1/2 G
EEx d IIC T5 (-50°C ≤ T

T6 (-50°C ≤ T

118 0

Special Conditions for Safe Use (x):

The device contains a thin wall diaphragm. Installation,
maintenance, and use shall take into account the
environmental conditions to which the diaphragm will be
subjected. the manufacturer’s instructions fro installation
and maintenance shall be followed in detail to assure safety
during its expected lifetime.

ND ATEX Dust

Certificate Number: KEMA02ATEX2321 II 1 D
V = 55 Vdc MAX
I = 23 mA MAX
IP66

118 0

amb

amb

≤ 80°C)
≤ 65°C)

Combinations of Certifications

Stainless steel certification tag is provided when optional approval
is specified. Once a device labeled with multiple approval types is
installed, it should not be reinstalled using any other approval
types. Permanently mark the approval label to distinguish it from
unused approval types.

K5 E5 and I5 combination

K6 E6 and I6 combination

K1 I1, N1, E1, and ND combination

Rosemount 3095 with Fieldbus

— EN 50081-1: 1992; EN 50082-2:1995; EN 61326-1:1997 –
Industrial

Ordinary Location Certification for Factory Mutual

As standard, the transmitter has been examined and tested to
determine that the design meets basic electrical, mechanical, and
fire protection requirements by FM, a nationally recognized testing
laboratory (NRTL) as accredited by the Federal Occupational
Safety and Health Administration (OSHA).

Rosemount 3095 Fieldbus Hazardous Locations Certifications

North American Certifications

FM Approvals

E5 Explosion Proof for Class I, Division 1, Groups B, C, and D.

Dust-Ignition Proof for Class II/Class III, Division 1, Groups
E, F, and G. Enclosure type NEMA 4X. Factory Sealed.
Provides nonincendive RTD connections for Class I,
Division 2, Groups A, B, C, and D.

I5 Intrinsically Safe for use in Class I, II and III, Division 1,

Groups A, B, C, D, E, F, and G hazardous outdoor locations.
Non-incendive for Class I, Division 2, Groups A, B, C, and D.
Temperature Code T4. Factory Sealed.

For input parameters and installation see control drawing
03095-1020.

IE FISCO for use in Class I, II and III, Division 1, Groups A, B,

C, D, E, F, and G hazardous outdoor locations. Temperature
Code T4. Factory Sealed.

For input parameters and installation see control drawing
03095-1020.

European Directive Information

The EC declaration of conformity for all applicable European
directives for this product can be found on the Rosemount website
at www.rosemount.com. A hard copy may be obtained by
contacting our local sales office.

ATEX Directive (94/9/EC)

Emerson Process Management complies with the ATEX Directive.

European Pressure Equipment Directive (PED) (97/23/EC)

3095F_2/3,4/D and 3095M_2/3,4/D Flow Transmitters

— QS Certificate of Assessment - EC No. PED-H-20
Module H Conformity Assessment

All other 3095_ Transmitters/Level Controller

— Sound Engineering Practice

Transmitter Attachments: Process Flange - Manifold

— Sound Engineering Practice

Primary Elements, Flowmeter

— See appropriate Primary Element QIG

Electro Magnetic Compatibility (EMC) (89/336/EEC)

3095 Flow Transmitters

Combinations of Certifications

Stainless steel certification tag is provided when optional approval
is specified. Once a device labeled with multiple approval types is
installed, it should not be reinstalled using any other approval
types. Permanently mark the approval label to distinguish it from
unused approval types.

K5 E5 and I5 combination

Canadian Standards Association (CSA)

IF CSA FISCO Intrinsically Safe; for FOUNDATION fieldbus

protocol only

European Certifications

IA ATEX FISCO Intrinsically Safe; for FOUNDATION fieldbus

protocol only

Australian Certifications

IG IECEx FISCO Intrinsic Safety

25

Rosemount Integral Orifice

R

Flow

8.8 (223.46)

J Upstream

K

(1)

Downstream

RTDL

5.3

(134.14)

10.3 (262.32)

6.3 (160.61))

B.D.

(2)

Flowmeter Series

DIMENSIONAL DRAWINGS

Rosemount 3095MFP Mass Proplate Flowmeter

Bottom View Side View

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Top View

Dimensions are in inches (millimeters).

Dimension

J (RF slip-on, RTJ slip-on, RF-DIN slip-on) 12.5-in. 318 mm 20.2-in. 513 mm 28.4-in. 721 mm
J (RF 150#, weld-neck) 14.3-in. 363 mm 22.3-in. 566 mm 30.7-in. 780 mm
J (RF 300#, weld-neck) 14.5-in. 368 mm 22.6-in. 574 mm 31.0-in. 787 mm
J (RF 600#, weld-neck) 14.8-in. 376 mm 22.9-in. 582 mm 31.3-in. 795 mm
K ((RF slip-on, RTJ slip-on, RF-DIN slip-on)
K (RF 150#, weld-neck) 7.5-in. 191 mm 10.9-in. 277 mm 14.2-in. 361 mm
K (RF 300#, weld-neck) 7.7-in. 196 mm 11.1-in. 282 mm 14.5-in. 368 mm
K (RF 600#, weld-neck) 8.0-in. 203 mm 11 .4-i n. 290 mm 14.8-in. 376 mm

(2)

B.D.
RTDL 3.11-in. 78.9 mm 5.25-in. 133.4 mm 7.50-in. 190.5 mm
R 7.4-in. 187.96 mm 7.8-in. 198.12 mm 8.4-in. 213.36 mm

(1) Downstream length shown here includes plate thickness of 0.162-in. (4.11 mm).

(2) B.D is diameter of the precision bored portion of the upstream and downstream piping.

26

(1)

1

/2-in. (12.7 mm) 1-in. (25.4 mm) 11/2-in. (38.1 mm)

5.7-in. 145 mm 8.7-in. 221 mm 11.9-in. 302 mm

0.664-in. 16.86 mm 1.097-in. 27.86 mm 1.567-in. 39.80 mm

Line Size

Product Data Sheet

Rosemount Integral Orifice

00813-0100-4686, Rev NA
March 2008

Flowmeter Series

Rosemount 3095MFP Mass Proplate Flowmeter Ordering Information

Model Product Description

3095MFP Mass Proplate Flowmeter

Code Body Material

S 316 SST
H Hastelloy C-276

Code Line Size

1

005
010 1-in. (25 mm)
015 11/2-in. (40 mm)

Code Process Connection

T1 NPT Female Body (not available with remote thermowell and RTD, requires Temperature Sensor code N)

(1)

S1
P1 Pipe Ends: NPT threaded
P2 Pipe Ends: Beveled
A1 Pipe Ends: Flanged, RF, ANSI Class 150, slip-on
A3 Pipe Ends: Flanged, RF, ANSI Class 300, slip-on
A6 Pipe Ends: Flanged, RF, ANSI Class 600, slip-on
D1 Pipe Ends: Flanged, RF, DIN PN16, slip-on
D2 Pipe Ends: Flanged, RF, DIN PN40, slip-on
D3 Pipe Ends: Flanged, RF, DIN PN100, slip-on
W1 Pipe Ends: Flanged, RF, ANSI Class 150, weld-neck
W3 Pipe Ends: Flanged, RF, ANSI Class 300, weld-neck
W6 Pipe Ends: Flanged, RF, ANSI Class 600, weld-neck
R1 Pipe Ends: Flanged, RTJ, ANSI Class 150, slip-on
R3 Pipe Ends: Flanged, RTJ, ANSI Class 300, slip-on
R6 Pipe Ends: Flanged, RTJ, ANSI Class 600, slip-on
P9 Special process connections

Code Orifice Plate Material

S 316 SST
H Hastelloy C-276
M Monel

Code Bore Size Option

0010 0.010-in. (0.25 mm) for 1/2-in. pipe
0014 0.014-in. (0.36 mm) for 1/2-in. pipe
0020 0.020-in. (0.51 mm) for 1/2-in. pipe
0034 0.034-in. (0.86 mm) for 1/2-in. pipe
0066 0.066-in. (1.68 mm) for 1/2-in. pipe
0109 0.109-in. (2.77 mm) for 1/2-in. pipe
0160
0196
0260
0340
0150 0.150-in. (3.81 mm) for 1-in. pipe
0250
0345
0500
0630
0800 0.800-in. (20.32 mm) for 1-in. pipe
0295 0.295-in. (7.49 mm) for 11/2-in. pipe
0376
0512
0748
1022 1.022-in. (25.96 mm) for 11/2-in. pipe
1184 1.184-in. (30.07 mm) for 11/2-in. pipe

/2-in. (15 mm)

Socket Weld Body (not available with remote thermowell and RTD, requires Temperature Sensor code N)

(2)

0.160-in. (4.06 mm) for 1/2-in. pipe

(2)

0.196-in. (4.98 mm) for 1/2-in. pipe

(2)

0.260-in. (6.60 mm) for 1/2-in. pipe

(2)

0.340-in. (8.64 mm) for 1/2-in. pipe

(2)

0.250-in. (6.35 mm) for 1-in. pipe

(2)

0.345-in. (8.76 mm) for 1-in. pipe

(2)

0.500-in. (12.70 mm) for 1-in. pipe

(2)

0.630-in. (16.00 mm) for 1-in. pipe

(2)

0.376-in. (9.55 mm) for 11/2-in. pipe

(2)

0.512-in. (13.00 mm) for 11/2-in. pipe

(2)

0.748-in. (19.00 mm) for 11/2-in. pipe

27

Rosemount Integral Orifice

Product Data Sheet

00813-0100-4686, Rev NA

Flowmeter Series

Rosemount 3095MFP Mass Proplate Flowmeter Ordering Information

Code Transmitter Connection Platform

D3 Direct-mount, 3-valve manifold, SST
D4 Direct-mount, 3-valve manifold, Hastelloy-C
D5 Direct-mount, 5-valve manifold, SST
D6 Direct-mount, 5-valve manifold, Hastelloy-C
D7 Direct-mount, High Temperature, 5-valve manifold, SST
R3 Remote-mount, 3-valve manifold, SST
R4 Remote-mount, 3-valve manifold, Hastelloy-C
R5 Remote-mount, 5-valve manifold, SST
R6 Remote-mount, 5-valve manifold, Hastelloy-C

Code Differential Pressure Range

1 0 to 25 in H2O (0 to 62.2 mbar)
2 0 to 250 in H2O (0 to 623 mbar)
3 0 to 1000 in H2O (0 to 2.5 bar)

Code Static Pressure Range

B 0 – 8 to 0 – 800 psia (0 –55.16 to 0 – 5515.8 kPa)
C 0 – 8 to 0 – 800 psig (0 –55.16 to 0 – 5515.8 kPa)
D 0 – 36.2 to 0 – 3626 psia (0 –250 to 0 – 25000 kPa)
E 0 – 36.2 to 0 – 3626 psig (0 –250 to 0 – 25000 kPa)

Code Output Protocol

A 4–20 mA with digital signal based on HART protocol
V FOUNDATION fieldbus protocol

Code Transmitter Housing Material Conduit Entry Size

1

1A Polyurethane-covered aluminum
1B Polyurethane-covered aluminum M20 x 1.5 (CM20)
1C Polyurethane-covered aluminum G
1J SST
1K SST M20 x 1.5 (CM20)
1L SST G 1/2

Code Options

Performance Class

(3)

U3

PlantWeb Control Functionality

(4)

A01

High Temperature Materials

G High temperature Option (850 °F (454 °C))

Temperature Sensor

N No thermowell, cable and RTD (fixed temperature mode)

Optional Connection

G1 DIN 19231 Transmitter Connection

Pressure Testing

(6)

P1

Special Cleaning

P2 Cleaning for special processes
PA Cleaning per ASTM G93 Level D (section 11.4)

Material Testing

V1 Dye Penetrant Exam

Material Examination

V2 Radiographic Examination (available only with Process Connection codes W1, W3, and W6)

Flow Calibration

(7)

WD

(7)

WZ

Special Inspection

QC1 Visual and dimensional inspection with certificate
QC7 Inspection and performance certificate

Ultra for Flow: up to ±0.95% mass flow rate accuracy, up to 10:1 turndown, 10-year stability, limited 12-year warranty

Advanced Control Function Block Suite

(5)

Hydrostatic Testing

Flow Rate Calibration
Special Calibration

/2-14 NPT

1

/2

1

/2-14 NPT

March 2008

28

Product Data Sheet

Rosemount Integral Orifice

00813-0100-4686, Rev NA
March 2008

Flowmeter Series

Rosemount 3095MFP Mass Proplate Flowmeter Ordering Information

Material Traceability Certification

(8)

Q8

Code Conformance

(9)

J2

(9)

J3

Material Conformance

(10)

J5

Country Certification

J1 Canadian Registration
J6 European Pressure Directive (PED)

Transmitter Calibration Certificate

Q4 Calibration Data Certificate for Transmitter

Product Certifications

E1 ATEX Flameproof
I1 ATEX Intrinsic Safety
N1 ATEX Type n
K1 ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E1, I1, N1, and ND)
ND ATEX Dust
E5 FM Explosion-proof, Dust Ignition-proof
I5 FM Intrinsically Safe, Division 2
K5 FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E5 and I5)
E6 CSA Explosion-proof, Dust Ignition-proof, Division 2
I6 CSA Intrinsically Safe, Division 2
K6 CSA Explosion-proof, Intrinsically Safe, Division 2 (combination of E6 and I6)

(11)

IE

(11)

IF

(11)

IA

(11)

IG
I7 IECEx Intrinsic Safety
E4 TIIS Flameproof
ID TIIS FISCO Intrinsically Safe; for FOUNDATION fieldbus protocol only
I3 China Intrinsic Safety
E3 China Flameproof

Alternative Transmitter Material of Construction

L1 Inert Sensor Fill Fluid (not available with Static Pressure range codes B and D)

Display

M5 Integral mount LCD display

Terminal Blocks

T1 Transient Protection

Typical Model Number: 3095MFP S 010 A3 S 0150 D3 1 C A 1A

(1) To improve pipe perpendicularity for gasket sealing, socket diameter is smaller than standard pipe O.D.

(2) Best flow coefficient uncertainty is between (0.2 < β < 0.6).

(3) Ultra for Flow applicable for HART protocol, DP ranges 2 and 3 with SST isolator material and silicone fill fluid options only.

(4) Function Blocks include: Arithmetic, Integrator, Analog Output, Signal Characterizer, Control Selector, and Output Selector.

(5) Rosemount 3095MFP is supplied with an integral temperature sensor as standard. Thermowell material is the same as the body material.

(6) Does not apply to Process Connection codes T1 and S1.

(7) Not available for bore sizes 0010, 0014, 0020, or 0034.

(8) Includes certificates for mechanical and chemical properties of bodies, orifice plates, pipes, flanges, and adapters as applicable.

(9) Not available with DIN Process Connection codes D1, D2, or D3.

(10) Materials of Construction comply with metallurgical requirements within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental

(11) Consult factory for availability.

Material certification per ISO 10474 3.1.B and EN 10204 3.1.B

ANSI / ASME B31.1
ANSI / ASMEB31.3

NACE MR-0175 / ISO 15156

FM FISCO Intrinsically Safe; for FOUNDATION fieldbus protocol only
CSA FISCO Intrinsically Safe; for FOUNDATION fieldbus protocol only
ATEX FISCO Intrinsically Safe; for FOUNDATION fieldbus protocol only
IECEx FISCO Intrinsic Safety

limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

29

Rosemount Integral Orifice
Flowmeter Series

Rosemount 1195 Integral Orifice Primary Element

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

SPECIFICATIONS

Performance

Discharge Coefficient Uncertainty

(2)

Beta (β)

β < 0.1 ±2.50%

0.1 < β < 0.2 ±1.25%

0.2 < β < 0.6 ±0.75%

0.6 < β < 0.8 ±1.50%

(1) Without associated straight run piping, discharge coefficient

uncertainty can add up to 1.5% - 5% additional error. Consult the
factory for additional information.

(2) β = Orifice Plate Bore

body I.D.

Discharge Coefficient Uncertainty

Line Sizes

•1/2-in. (15 mm)

• 1-in. (25 mm)

1

/2-in. (40 mm)

•1

Sizing

Contact a Emerson Process Management sales representative for
assistance. A “Configuration Data Sheet” is required prior to order
for application verification.

(1)

Functional

Service

•Liquid

•Gas

• Vapor

Process Temperature Limits

Standard (direct/remote mount):

• –40 to 450 °F (–40 to 232 °C)

Extended (remote mount only with option code T):

• –148 to 850 °F (–100 to 454 °C)

Maximum Working Pressure

• Pressure retention per ANSI B16.5 600# or DIN PN100

TABLE 9. 1195 Pressure Limits

Process

Line Size

1

/2-in.

(12.7 mm)

1-in.

(25.4 mm)

1

/2-in.

1

(38.1 mm)

All Flanged Meets flange primary

(1) For pressure ratings at temperatures less than -20 °F (-29 °C)

or above 100 °F (38 °C) consult an Emerson Process
Management representative.

(2) Transmitter static pressure range may limit maximum working

pressure. Refer to Static Pressure Ranges specification.

Connection

Code

S1 or P2 3000 psig (207 bar)
T1 or P1 1500 psig (103 bar)
S1 or P2 2000 psig (138 bar)
T1 or P1 1500 psig (103 bar)
S1 or P2 1500 psig (103 bar)
T1 or P1 1500 psig (103 bar)

Maximum Working

Pressure @ 100 °F

pressure rating per ANSI

B16.5 (EN-1092-1 for DIN

flanges)

(1)(2)

Assembly to a transmitter

Select option code D11 for the Rosemount 3051S transmitter (or
option code S3 for the Rosemount 3051C or 3095MV transmitters)
to factory assemble the Rosemount 1195 to a Rosemount
pressure transmitter. The D11 (or S3) option will drive square-root
mode operation (output proportional to flow rate.) If the 1195 and
transmitter are not factory assembled, they may be shipped
separately. Option code S4 is required on the 1195 if assembly to
a transmitter is required. For a consolidated shipment, inform an
Emerson Process Management sales representative when placing
the order.

30

Product Data Sheet

30°

30°

120°

30°

30°

120°

360°

Flow

360°

Flow

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

Installation Consideration

Pipe Orientation

Process

Orientation/ Flow Direction

Horizontal D/R D/R D/R
Vertical Up R D/R R
Vertical Down D/R NR NR

(1) D = Direct mount acceptable (recommended)

R = Remote mount acceptable
NR = Not recommended

Gas Liquid Steam

Primary Orientation

Gas (Horizontal)

Liquid and Steam (Horizontal)

(1)

Physical

Material of Construction

Orifice Plate

• 316/316L SST

• Hastelloy C-276

• Monel 400

Body

• 316 SST (CF8M), material per ASTM A351

• Hastelloy C-276 (CW12MW), material per ASTM A494

Pipe Material (If Applicable)

• A312 Gr 316/316L, B622 UNS N10276, Hastelloy C-276

Flange

• A182 Gr 316/316L, SB-564 UNS N10276, Hastelloy C-276

• Flange pressure limits are per ANSI B16.5

• Flange face finish per ANSI B16.5, 125 to 250 RMS

Body Bolts/Studs

• ASTM A193 Gr B8M studs

• ASTM A193 Gr B8M Class 2 body studs provided for high
temperature option code G

Transmitter Connection Studs

• ASTM A193 Gr B8M studs

Gaskets/O-rings

• Glass filled PTFE

• Inconel

• Gaskets and o-rings must be replaced each time the 3051SFP

®

X-750 provided for high temperature option code G

is disassembled for installation or maintenance.

Gas (Vertical)

Liquid (Vertical)

Orifice Type

Square edge–orifice bore sizes

• 0.066-in. and larger

Quadrant edge–orifice bore sizes (for

• 0.034-in.

• 0.020-in.

• 0.014-in.

• 0.010-in.

NOTE

Integral orifice bodies contain corner tapped pressure ports.

1

/2-in. line size only)

31

Rosemount Integral Orifice
Flowmeter Series

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Pipe Lengths

Upstream and downstream associated piping sections are
available on the 1195. The table below lists the standard overall
length (lay length) as a function of end connections and line size.

Flanged Process
Connection

RF, ANSI Class 150, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, ANSI Class 300, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, ANSI Class 600, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, DIN PN16, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, DIN PN40, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, DIN PN100, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RF, ANSI Class 150, weld-neck 21.8 (554) 33.2 (843) 44.9 (1140)

RF, ANSI Class 300, weld-neck 22.2 (564) 33.7 (856) 45.5 (1156)

RF, ANSI Class 600, weld-neck 22.8 (579) 34.3 (871 46.1 (1171)

RTJ, ANSI Class 150, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RTJ, ANSI Class 300, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

RTJ, ANSI Class 600, slip-on 18.2 (463) 28.9 (734) 40.3 (1023)

NPT / Beveled Process
Connection

(1) See the ordering information for model code description.

(2) Consult factory for other lengths.

(3) See page 37 for additional information on associated pipe lengths.

(1) (2) (3)

(1)(2)(3)

1

/2-in.

(15 mm)

18 (457) 28.9 (734) 40.3 (1023)

Line Size

1-in.

(25 mm)

11/2-in.

(40 mm)

Transmitter Connections

21/8-in. (54 mm) center-to-center. Other transmitter spacing can be
accommodated using the optional remote adapters and
customer-supplied impulse piping. DIN 19213 connections are
available.

Torque Values of Standard Bolts

Orifice Body Studs (for body bolt/stud material codes C or D)

• 60 ft-lb (81 N-m)

Orifice Body Bolts (for body bolt/stud material code G)

• 78 ft-lb (105 N-m)

Transmitter studs

• 34-38 ft-lb (46-52 N-m)

3-valve manifold bolting

• 34-38 ft-lb (46-52 N-m)

Weight

The following weights are approximate

Line Size 1195 Only With Flanged Piping

lb kg lb kg

1

/2-in. (15 mm) 4.0 1.8 8 3.6

1-in. (25 mm) 6.0 2.7 12 5.4

1

/2-in. (40 mm) 8.0 3.6 25 11.3

1

(1) As supplied with standard lengths, ANSI Class 150 flanges.

(1)

32

Product Data Sheet

1

/2-in. NPT

1.63 (41)

1.10 (27.94)

2.13 (53.98)

Flow

J Upstream

K

(1)

Downstream

B.D.

(2)

00813-0100-4686, Rev NA
March 2008

DIMENSIONAL DRAWINGS

Rosemount 1195 Integral Orifice Plate

Bottom View End View

Rosemount Integral Orifice

Flowmeter Series

Top View

Dimensions are in inches (millimeters).

Dimension

J (RF slip-on, RTJ slip-on, RF-DIN slip-on) 12.5-in. 318 mm 20.2-in. 513 mm 28.4-in. 721 mm
J (RF 150#, weld-neck) 14.3-in. 363 mm 22.3-in. 566 mm 30.7-in. 780 mm
J (RF 300#, weld-neck) 14.5-in. 368 mm 22.6-in. 574 mm 31.0-in. 787 mm
J (RF 600#, weld-neck) 14.8-in. 376 mm 22.9-in. 582 mm 31.3-in. 795 mm
K ((RF slip-on, RTJ slip-on, RF-DIN slip-on)
K (RF 150#, weld-neck) 7.5-in. 191 mm 10.9-in. 277 mm 14.2-in. 361 mm
K (RF 300#, weld-neck) 7.7-in. 196 mm 11.1-in. 282 mm 14.5-in. 368 mm
K (RF 600#, weld-neck) 8.0-in. 203 mm 11 .4-i n. 290 mm 14.8-in. 376 mm

(2)

B.D.

(1) Downstream length shown here includes plate thickness of 0.162-in. (4.11 mm).

(2) B.D is diameter of the precision bored portion of the upstream and downstream piping.

(1)

1

/2-in. (12.7 mm) 1-in. (25.4 mm) 11/2-in. (38.1 mm)

5.7-in. 145 mm 8.7-in. 221 mm 11.9-in. 302 mm

0.664-in. 16.86 mm 1.097-in. 27.86 mm 1.567-in. 39.80 mm

Line Size

33

Rosemount Integral Orifice
Flowmeter Series

Rosemount 1195 Integral Orifice Primary Element Ordering Information

Model Product Description

1195 Integral Orifice Primary Element

Code Body Material

S 316 SST
H Hastelloy C-276

Code Line Size

1

005
010 1-in. (25 mm)
015 11/2-in. (40 mm)

Code Process Connection

T1 NPT Female Body (not available with remote thermowell and RTD)

(1)

S1
P1 Pipe Ends: NPT threaded
P2 Pipe Ends: Beveled
A1 Pipe Ends: Flanged, RF, ANSI Class 150, slip-on
A3 Pipe Ends: Flanged, RF, ANSI Class 300, slip-on
A6 Pipe Ends: Flanged, RF, ANSI Class 600, slip-on
D1 Pipe Ends: Flanged, RF, DIN PN16, slip-on
D2 Pipe Ends: Flanged, RF, DIN PN40, slip-on
D3 Pipe Ends: Flanged, RF, DIN PN100, slip-on
W1 Pipe Ends: Flanged, RF, ANSI Class 150, weld-neck
W3 Pipe Ends: Flanged, RF, ANSI Class 300, weld-neck
W6 Pipe Ends: Flanged, RF, ANSI Class 600, weld-neck
R1 Pipe Ends: Flanged, RTJ, ANSI Class 150, slip-on
R3 Pipe Ends: Flanged, RTJ, ANSI Class 300, slip-on
R6 Pipe Ends: Flanged, RTJ, ANSI Class 600, slip-on
P9 Special process connections

Code Orifice Plate Material

S 316 SST
H Hastelloy C-276
M Monel

Code Bore Size Option

0010 0.010-in. (0.25 mm) for 1/2-in. pipe
0014 0.014-in. (0.36 mm) for 1/2-in. pipe
0020 0.020-in. (0.51 mm) for 1/2-in. pipe
0034 0.034-in. (0.86 mm) for 1/2-in. pipe
0066 0.066-in. (1.68 mm) for 1/2-in. pipe
0109 0.109-in. (2.77 mm) for 1/2-in. pipe
0160
0196
0260
0340
0150 0.150-in. (3.81 mm) for 1-in. pipe
0250

/2-in. (15 mm)

Socket Weld Body (not available with remote thermowell and RTD)

(2)

0.160-in. (4.06 mm) for 1/2-in. pipe

(2)

0.196-in. (4.98 mm) for 1/2-in. pipe

(2)

0.260-in. (6.60 mm) for 1/2-in. pipe

(2)

0.340-in. (8.64 mm) for 1/2-in. pipe

(2)

0.250-in. (6.35 mm) for 1-in. pipe

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

34

Product Data Sheet

Rosemount Integral Orifice

00813-0100-4686, Rev NA
March 2008

Rosemount 1195 Integral Orifice Primary Element Ordering Information

(2)

0345
0500
0630
0800 0.800-in. (20.32 mm) for 1-in. pipe
0295 0.295-in. (7.49 mm) for 11/2-in. pipe
0376
0512
0748
1022 1.022-in. (25.96 mm) for 11/2-in. pipe
1184 1.184-in. (30.07 mm) for 11/2-in. pipe

Code Transmitter / Body Bolt Material

C 316 SST transmitter studs

(3)

G

Code Options

Temperature Sensor

(4)

S

(4)

T

Assemble to Transmitter

(5)

S4

Optional Bore Calculation

BC Bore Calculation

Optional Connection

G1 DIN 19231 Transmitter Connection

Adapters for Remote Mounting

G2
G3

Pressure Testing

(6)

P1

Special Cleaning

P2 Cleaning for special processes
PA Cleaning per ASTM G93 Level D (section 11.4)

Material Testing

V1 Dye Penetrant Exam

Material Examination

V2 Radiographic Examination (available only with Process Connection code W1, W3, and W6)

0.345-in. (8.76 mm) for 1-in. pipe

(2)

0.500-in. (12.70 mm) for 1-in. pipe

(2)

0.630-in. (16.00 mm) for 1-in. pipe

(2)

0.376-in. (9.55 mm) for 11/2-in. pipe

(2)

0.512-in. (13.00 mm) for 11/2-in. pipe

(2)

0.748-in. (19.00 mm) for 11/2-in. pipe

High temperature (850 °F (454 °C)) (SAE J429 Gr8 / Body bolts with A193 Gr B8M transmitter studs)

Thermowell and RTD (SST Temperature Housing)
Thermowell and RTD (Aluminum Temperature Housing)

Factory assembly – attached to transmitter and manifold

1

/2–14 NPT Remote Adapters – SST

1

/2–14 NPT Remote Adapters – Hastelloy C

Hydrostatic Testing

Flowmeter Series

35

Rosemount Integral Orifice

Product Data Sheet

00813-0100-4686, Rev NA

Flowmeter Series

March 2008

Rosemount 1195 Integral Orifice Primary Element Ordering Information

Flow Calibration

(7)

WD

(7)

WZ

Special Inspection

QC1 Visual and dimensional inspection with certificate
QC7 Inspection and performance certificate

Material Traceability Certification

(8)

Q8

Code Conformance

(9)

J2

(9)

J3

Materials Conformance

(10)

J5

Country Certification

J1 Canadian Registration
J6 European Pressure Directive (PED)

Special Configuration (Hardware)

A1 External Ground Screw for Temperature Connection Head
A2 Cover Clamp and External Ground Screw for Temperature Connection Head

Typical Model Number: 1195 S 010 A3 S 0150 C

(1) To improve pipe perpendicularity for gasket sealing, socket diameter is smaller than standard pipe O.D.

(2) Best flow coefficient uncertainty is between (0.2 < β < 0.6).

(3) Not available with Assemble to Transmitter code S4 or Temperature Sensor code S or T with E5.

(4) Thermowell material is the same as the body material.

(5) Not available with Process Connection code S1.

(6) Does not apply to Process Connection codes T1 and S1.

(7) Not available for bore sizes 0010, 0014, 0020, or 0034.

(8) Includes certificates for mechanical and chemical properties of bodies, orifice plates, pipes, flanges, and adapters as applicable.

(9) Not available with DIN Process Connection codes D1, D2, or D3.

(10) Materials of Construction comply with metallurgical requirements within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental

Discharge coefficient Verification
Special Calibration

Material certification per ISO 10474 3.1.B and EN 10204 3.1.B

ANSI B31.1
ANSI B31.3

NACE MR-0175 / ISO 15156

limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

36

Product Data Sheet

D

E

F

1.625 (41.23)
F

H

0.47
(11.85)

2.46 (62.4)

0.162 (4.11)

2.13 (53.93)

3.37 (85.6)

A

C

B

D I.D.

0.062 (1.57)

½–14 NPT

0.47
(11.91)

0.81 (20.64)

0.81 (20.64)

1.10 (27.94)

B.D.

L Upstream

M

(2)

Downstream

Flow

RTDL

R

Flow

00813-0100-4686, Rev NA
March 2008

DIMENSIONAL DRAWINGS

Orifice Plate Socket-Weld or Threaded Body

Remote Adapter NPT / Beveled Piping (Prepared for welding)

Rosemount Integral Orifice

Flowmeter Series

Temperature Sensor

Dimension

A 3.4-in. 86 mm 3.8-in. 97 mm 4.5-in. 114 m m
B 4.7-in. 119.4 mm 5.2-in. 132 mm 5.9-in. 149.9 mm
C 3.0-in. 76 mm 3.3-in. 84 mm 3.7-in. 94 mm

(1)

D
E 3.6-in. 91 mm 3.9-in. 99 mm 4.4-in. 112 m m
F 2.6-in. 66 mm 3.0-in. 76 mm 3.5-in. 89 mm
H 2.5-in. 64 mm 3.0-in. 76 mm 3.5-in. 89 mm
L 12.4-in. 315 mm 20.1-in. 511 mm 28.2-in. 716 mm
M 5.6-in. 142 mm 8.6-in. 218 mm 11.7-in. 297 mm

(2)

B.D.
I.D. 0.622-in. 15.80 mm 1.049-in. 26.64 mm 1.500-in. 38.10 mm

(1) To improve pipe perpendicularity for gasket sealing, socket diameter “D” is smaller than standard pipe O.D. Pipe O.D. must be machined smaller than socket

diameter “D” to ensure proper fit.

(2) B.D is diameter of the precision bored portion of the upstream and downstream piping.

1

/2-in. (12.7 mm) 1-in. (25.4 mm) 11/2-in. (38.1 mm)

0.805-in. 20.45 mm 1.280-in. 32.51 mm 1.865-in. 47.37 mm

0.664-in. 16.87 mm 1.097-in. 27.86 mm 1.567-in. 39.80 mm

Line Size

37

Rosemount Integral Orifice

U D

U D

U D

U D

U D

U D

Product Data Sheet

00813-0100-4686, Rev NA

Flowmeter Series

Pipe Length Requirements for Installation

FIGURE A. Reducer

(2 d to d over a length of 1.5 d to 3 d)

FIGURE C. Two or More 90° Bends in the Same Planes FIGURE D. Two or More 90° Bends in Different Planes

FIGURE B. Single 90° Bend

flow from one branch only

March 2008

FIGURE E. Expander (0.5 d to d over a length of d to 2 d) FIGURES F and G. Ball/Gate Valve Fully Open

TABLE 10. Recommended lengths of pipe

The following chart gives the upstream (U) and downstream (D) lengths as a guideline recommended by ISO 5167 for the above installations.
The lengths are given in terms of pipe diameters. For example, for a 1-in. line size with a beta ratio (b) of 0.4 using installation type B above, the
straight length of upstream piping required is 16 ⫻1 = 16 in., and downstream 6 ⫻1 = 6 in.

On Upstream (U)

FIGURE

β

<0.20 5

0.40 5

0.50 8 (5) 22 (9) 18 (10) 75 (34) 20 (9) 12 (6) 6 (3)

0.60 9 (5) 42 (13) 30 (18) 65 (18) 26 (11) 14 (7) 7 (3,5)

0.67 12 (6) 44 (20) 44 (18) 60 (18) 28 (14) 18 (9) 7 (3,5)

0.75 13 (8) 44 (20) 44 (18) 75 (18) 36 (18) 24 (12) 8 (4)

(1)

A

(2)

(2)

FIGURE

(1)

B

6 (3) 10

16 (3) 10

FIGURE

(1)

C

(2)

(2)

FIGURE

(1)

D

34 (17) 6
50 (25) 12 (8) 12 (6) 6 (3)

FIGURE

(1)

E

(2)

FIGURE

(1)

F and G

12 (6) 4 (2)

On Downstream (D)

FIGURES A - G

U D

(1) Values in parenthesis correspond to an additional +0.5% discharge coefficient uncertainty.

(2) Straight length gives zero additional uncertainty; data not available for shorter lengths.

38

Product Data Sheet

Rosemount Integral Orifice

00813-0100-4686, Rev NA
March 2008

Flowmeter Series

HART Configuration Data Sheet (CDS)

DP FLOW CDS

Complete this form to define a custom flow configuration for DP Flowmeters. Unless specified, the flowmeter will
be shipped with the default values identified by the H symbol.

For technical assistance in filling out this CDS, call a Rosemount representative.

NOTE

Any missing information will be processed with the indicated default values.

* = Required Item
★ = Default

Customer Information

Customer: Contact Name:

Customer Phone: Customer Fax:

Customer Approval Sign-Off: Customer PO:

Calculation Approval

❑ Check this box if a calculation for approval prior to manufacturing is required

Application and Configuration Data Sheet (Required with Order)

Ta g:

Model No

* Select fluid type ❑ Liquid ❑ Gas ❑ Ste am
* Fluid name

Flowmeter Information (optional)

* Failure Mode Alarm Direction (select one)

Software Tag: ___ ___ ___ ___ ___ ___ ___ ___ (8 characters)

Descriptor: ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ (16 characters)

Message: ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___

Date: Day __ __ (numeric) Month __ __ (numeric) Year __ __ (numeric)

(1) A complete model number is required before Rosemount Inc. can process the order.

(2) If the Fluid is not located in Table 11 on page Flow-41, the “Fluid Data Sheet (FDS)” on page 45 must be completed.

(1)

(2)

❑ Alarm High★❑ Alarm Low

___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ (32 characters)

For Rosemount Use Only

S.O.: LI

CHAMP: DATE:

ADMIN:

39

Rosemount Integral Orifice
Flowmeter Series

* = Required Item
★ = Default

Primary Element Information

* Select Differential Producer (Select One)

Annubar

❑ 485 Annubar/ 3095MFA Mass ProBar, 3051SFA ProBar
❑ 285 Annubar
❑ Annubar Diamond II + / Mass Probar
❑ Long Radius Wall Taps, ASME
❑ Long Radius Wall Taps, ISO
❑ ISA 1932, ISO

Venturi

❑ Nozzle, ISO
❑ Rough Cast/Fabricated Inlet, ASME
❑ Round Cast Inlet, ISO
❑ Machined Inlet, ASME
❑ Machined Inlet, ISO
❑ Welded Inlet, ISO

Other (All options require a discharge coefficient value)

❑ Calibrated Orifice: Flange, Corner, or D & D/2 Taps.

Discharge coefficient: __________________

❑ Calibrated Orifice: 2

Discharge coefficient: __________________

1

/2 D & 8D Taps

❑ Calibrating Nozzle

Discharge coefficient: __________________

❑ Calibrating Venturi

Discharge coefficient: __________________

❑ Area Averaging Meter

Discharge coefficient: __________________

❑ V-Cone

Discharge coefficient: __________________

Special Annubar dimension (required if customer supplies mounting hardware).

®

Diameter (d) ________________

Orifice

❑ 3051SFP, 3095MFP, 1195
❑ 405C, 405P, 3051SFC, 3095MFC
❑ 1595 Conditioning Orifice
❑ 2
❑ Corner Taps, ASME
❑ Corner Taps, ISO
❑ D & D/2 Taps, ASME
❑ D & D/2 Taps, ISO
❑ D & D/2 Taps, ISO 99 Amendment 1
❑ Flange Taps, AGA
❑ Flange Taps, ASME
❑ Flange Taps, ISO
❑ Flange Taps, ISO 99 Amendment 1
❑ Small Bore, Flange Taps, ASME

❑ inch★
❑ millimeters

1

/2D & 8D Taps, ASME

at __________

❑ ODF _____ ❑ ODT _____

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

❑ °F
❑ 68 °F★

❑ °C

Pipe Information

* Orientation / Flow Direction:
* Line Size / Schedule: ___________________________________ Body I.D. (D): ___________________________________

Materials of Construction

* Pipe Material
* Primary Element Material

Operating Conditions

4 mA value Minimum Normal Maximum Full Scale:20 mA flow rate

Flow Rate 0 *

Pressure (P) — *

Temperature (T) — *

RTD Mode

❑ Vertical Up ❑ Vertical Down ❑ Horizontal

❑ Carbon Steel ❑ 304 SST ❑ 316 SST ❑ Hastelloy ❑ Other ________________

❑ 316 SST ❑ Hastelloy ❑ Other ___________________ (Please verify material availability)

(1)

(1)

(1)

**

* *

* *

(1)

(1)

(design to P and T)

(2)

*

*

Design

❑ Normal Mode ★ (Requires a RTD to be connected. If the RTD is disconnected or fails, the 3095MV output goes to alarm value)

❑ Fixed Temperature Mode: Specify the fixed temperature value _____________________ ❑ °F ❑ °C

❑ Backup Mode (Uses the connected RTD for temperature measurement. If the RTD is disconnected or fails, the transmitter uses a fixed

temperature value as a backup. This will not cause the mA output to go to alarm value and can potentially cause inaccurate flow
measurement.) Fixed temperature value to be used as backup_________________

❑ °F ❑ °C

40

Product Data Sheet

Rosemount Integral Orifice

00813-0100-4686, Rev NA
March 2008

Flowmeter Series

* = Required Item
★ = Default

Base Conditions

❑ Standard Base (P=14.696 psia / 101.325 kPa abs, T= 60 °F (15.56 °C))

❑ Normal Base (P=14.696 psia / 101.325 kPa abs, T= 32 °F (0 °C))

❑ Standard Base for Natural Gas (AGA) (P=14.73 psia, T= 60°F (15.56 °C))

❑ User Defined: P= ________ Units: ________ T= ________ Units = ________

Compressibility at Base: ________________________ OR Density at Base: ________________________

(1) Operating ranges for pressure and temperature are needed for transmitter configuration.

(2) Required to verify that the product selection meets design criteria.

TABLE 11. Rosemount Fluids Database

Acetic Acid
Acetone
Acetonitrile
Acetylene
Acrylonitrile
Air
Allyl Alcohol
Ammonia
Argon
Benzene
Benzaldehyde
Benzyl Alcohol
Biphenyl
Carbon Dioxide
Carbon Monoxide
Carbon Tetrachloride
Chlorine
Chlorotrifluoroethylene
Chloroprene
Cycloheptane
Cyclohexane
Cyclopentane
Cyclopentene
Cyclopropane

(1) This list is subject to change without notice. Steam per ASME Steam tables. All other fluids per AlChE.

Divinyl Ether
Ethane
Ethanol
Ethylamine
Ethylbenzene
Ethylene
Ethylene Glycol
Ethylene Oxide
Fluorene
Furan
Helium-4
Hydrazine
Hydrogen
Hydrogen Chloride
Hydrogen Cyanide
Hydrogen Peroxide
Hydrogen Sulfide
Isobutane
Isobutene
Isobutyl benzene
Isopentane
Isoprene
Isopropanol

(1)

Methane
Methanol
Methyl Acrylate
Methyl Ethyl Ketone
Methyl Vinyl Ether
m-Chloronitrobenzene
Neon
Neopentane
Nitric Acid
Nitric Oxide
Nitrobenzene
m-Dichlorobenzene
Nitroethane
Nitrogen
Nitromethane
Nitrous Oxide
n-Butane
n-Butanol
n-Butyraldehyde
n-Butyronitrile
n-Decane
n-Dodecane
n-Heptadecane
n-Heptane

n-Hexane
n-Octane
n-Pentane
Oxygen
Pentafluorothane
Phenol
Propadiene
Pyrene
Propylene
Styrene
Sulfer Dioxide
Propane
Toluene
Trichloroethylene
Vinyl Acetate
Vinyl Chloride
Vinyl Cyclohexane
Water
1-Butene
1-Decene
1-Decanal
1-Decanol
1-Dodecene
1-Dodecanol

1-Heptanol
1-Heptene
1-Hexene
1-Hexadecanol
1-0ctanol
1-Octene
1-Nonanol
1-Pentadecanol
1-Pentanol
1-Pentene
1-Undecanol
1-Nonanal
1,2,4- Trichlorobenzene
1,1,2- Trichloroethane
1,1,2,2- Tetrafluoroethane
1,2-Butadiene
1,3-Butadiene
1,3,5- Trichlorobenzene
1,4-Dioxane
1,4-Hexadiene
2-Methyl-1-Pentene
2,2-Dimethylbutane

Drawing/Notes

41

Rosemount Integral Orifice

Product Data Sheet

00813-0100-4686, Rev NA

Flowmeter Series

March 2008

FOUNDATION fieldbus™ Configuration Data Sheet (CDS)

DP FLOW CDS

Complete this form to define a custom flow configuration for DP Flowmeters. Unless specified, the flowmeter will
be shipped with the default values identified by the H symbol.

For technical assistance in filling out this CDS, call a Rosemount representative.

NOTE

Any missing information will be processed with the indicated default values.

* = Required Item
★ = Default

Customer Information

Customer: Contact Name:

Customer Phone: Customer Fax:

Customer Approval Sign-Off: Customer PO:

Calculation Approval

❑ Check this box if a calculation for approval prior to manufacturing is required

Application and Configuration Data Sheet (Required with Order)

Ta g:

Model No

* Select fluid type ❑ Liquid ❑ Gas ❑ Ste am
* Fluid name

Flowmeter Information (optional)

* Failure Mode Alarm Direction (select one)

Software Tag: ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ (16 characters)

Descriptor: ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___

Message: ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___

Date: Day __ __ (numeric) Month __ __ (numeric) Year __ __ (numeric)

(1) A complete model number is required before Rosemount Inc. can process the order.

(2) If the Fluid is not located in Table 12 on page Flow-44, the “Fluid Data Sheet (FDS)” on page 45 must be completed.

(1)

(2)

❑ Alarm High★❑ Alarm Low

___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ (32 characters)

___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ (32 characters)

For Rosemount Use Only

S.O.: LI

CHAMP: DATE:

ADMIN:

42

Product Data Sheet

00813-0100-4686, Rev NA
March 2008

* = Required Item
★ = Default

Primary Element Information

* Select Differential Producer (Select One)

Annubar

❑ 485 Annubar/ 3095MFA Mass ProBar, 3051SFA ProBar
❑ 285 Annubar
❑ Annubar Diamond II + / Mass Probar
❑ Long Radius Wall Taps, ASME
❑ Long Radius Wall Taps, ISO
❑ ISA 1932, ISO

Venturi

❑ Nozzle, ISO
❑ Rough Cast/Fabricated Inlet, ASME
❑ Round Cast Inlet, ISO
❑ Machined Inlet, ASME
❑ Machined Inlet, ISO
❑ Welded Inlet, ISO

Other (All options require a discharge coefficient value)

❑ Calibrated Orifice: Flange, Corner, or D & D/2 Taps.

Discharge coefficient: __________________

❑ Calibrated Orifice: 2

Discharge coefficient: __________________

1

/2 D & 8D Taps

❑ Calibrating Nozzle

Discharge coefficient: __________________

❑ Calibrating Venturi

Discharge coefficient: __________________

❑ Area Averaging Meter

Discharge coefficient: __________________

❑ V-Cone

Discharge coefficient: __________________

Special Annubar dimension (required if customer supplies mounting hardware).

®

Diameter (d) ________________

Orifice

❑ 3051SFP, 3095MFP, 1195
❑ 405C, 405P, 3051SFC, 3095MFC
❑ 1595 Conditioning Orifice
❑ 2
❑ Corner Taps, ASME
❑ Corner Taps, ISO
❑ D & D/2 Taps, ASME
❑ D & D/2 Taps, ISO
❑ D & D/2 Taps, ISO 99 Amendment 1
❑ Flange Taps, AGA
❑ Flange Taps, ASME
❑ Flange Taps, ISO
❑ Flange Taps, ISO 99 Amendment 1
❑ Small Bore, Flange Taps, ASME

❑ inch★
❑ millimeters

Rosemount Integral Orifice

Flowmeter Series

1

/2D & 8D Taps, ASME

at __________

❑ ODF _____ ❑ ODT _____

❑ °F
❑ 68 °F★

❑ °C

Pipe Information

* Orientation / Flow Direction:
* Line Size / Schedule: ___________________________________ Body I.D. (D): ___________________________________

Materials of Construction

* Pipe Material
* Primary Element Material

Operating Conditions

4 mA value Minimum Normal Maximum Full Scale:20 mA flow rate

Flow Rate 0 *

Pressure (P) — *

Temperature (T) — *

RTD Mode

❑ Vertical Up ❑ Vertical Down ❑ Horizontal

❑ Carbon Steel ❑ 304 SST ❑ 316 SST ❑ Hastelloy ❑ Other ________________

❑ 316 SST ❑ Hastelloy ❑ Other ___________________ (Please verify material availability)

(1)

(1)

(1)

**

* *

* *

(1)

(1)

(design to P and T)

(2)

*

*

Design

❑ Normal Mode ★ (Requires a RTD to be connected. If the RTD is disconnected or fails, the 3095MV output goes to alarm value)

❑ Fixed Temperature Mode: Specify the fixed temperature value _____________________ ❑ °F ❑ °C

❑ Backup Mode (Uses the connected RTD for temperature measurement. If the RTD is disconnected or fails, the transmitter uses a fixed

temperature value as a backup. This will not cause the mA output to go to alarm value and can potentially cause inaccurate flow
measurement.) Fixed temperature value to be used as backup_________________

❑ °F ❑ °C

43

Rosemount Integral Orifice

Product Data Sheet

00813-0100-4686, Rev NA

Flowmeter Series

March 2008

* = Required Item
★ = Default

Base Conditions

❑ Standard Base (P=14.696 psia / 101.325 kPa abs, T= 60 °F (15.56 °C))

❑ Normal Base (P=14.696 psia / 101.325 kPa abs, T= 32 °F (0 °C))

❑ Standard Base for Natural Gas (AGA) (P=14.73 psia, T= 60°F (15.56 °C))

❑ User Defined: P= ________ Units: ________ T= ________ Units = ________

Compressibility at Base: ________________________ OR Density at Base: ________________________

(1) Operating ranges for pressure and temperature are needed for transmitter configuration.

(2) Required to verify that the product selection meets design criteria.

TABLE 12. Rosemount Fluids Database

Acetic Acid
Acetone
Acetonitrile
Acetylene
Acrylonitrile
Air
Allyl Alcohol
Ammonia
Argon
Benzene
Benzaldehyde
Benzyl Alcohol
Biphenyl
Carbon Dioxide
Carbon Monoxide
Carbon Tetrachloride
Chlorine
Chlorotrifluoroethylene
Chloroprene
Cycloheptane
Cyclohexane
Cyclopentane
Cyclopentene
Cyclopropane

(1) This list is subject to change without notice. Steam per ASME Steam tables. All other fluids per AlChE.

Divinyl Ether
Ethane
Ethanol
Ethylamine
Ethylbenzene
Ethylene
Ethylene
GlycolEthylene
Oxide
Fluorene
Furan
Helium-4
Hydrazine
Hydrogen
Hydrogen Chloride
Hydrogen Cyanide
Hydrogen Peroxide
Hydrogen Sulfide
Isobutane
Isobutene
Isobutyl benzene
Isopentane
Isoprene
Isopropanol

(1)

Methane
Methanol
Methyl Acrylate
Methyl Ethyl Ketone
Methyl Vinyl Ether
m-Chloronitrobenzene
Neon
Neopentane
Nitric Acid
Nitric Oxide
Nitrobenzene
m-Dichlorobenzene
Nitroethane
Nitrogen
Nitromethane
Nitrous Oxide
n-Butane
n-Butanol
n-Butyraldehyde
n-Butyronitrile
n-Decane
n-Dodecane
n-Heptadecane
n-Heptane

n-Hexane
n-Octane
n-Pentane
Oxygen
Pentafluorothane
Phenol
Propadiene
Pyrene
Propylene
Styrene
Sulfer Dioxide
Propane
Toluene
Trichloroethylene
Vinyl Acetate
Vinyl Chloride
Vinyl Cyclohexane
Water
1-Butene
1-Decene
1-Decanal
1-Decanol
1-Dodecene
1-Dodecanol

1-Heptanol
1-Heptene
1-Hexene
1-Hexadecanol
1-0ctanol
1-Octene
1-Nonanol
1-Pentadecanol
1-Pentanol
1-Pentene
1-Undecanol
1-Nonanal
1,2,4- Trichlorobenzene
1,1,2- Trichloroethane
1,1,2,2- Tetrafluoroethane
1,2-Butadiene
1,3-Butadiene
1,3,5- Trichlorobenzene
1,4-Dioxane
1,4-Hexadiene
2-Methyl-1-Pentene
2,2-Dimethylbutane

Block Tag Names

AI Block Name (Flow): ____________________________ (AI 1400 ★)
AI Block Name (DP): ____________________________ (AI 1500 ★)
AI Block Name (SP): ____________________________ (AI 1600 ★)
AI Block Name (PT): ____________________________ (AI 1700 ★)
INTEG Block Name (Flow Total): ____________________________ (INTEG 2100 ★)

Drawing/Notes

44

Product Data Sheet

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

Fluid Data Sheet (FDS)

For custom fluid not in the Rosemount Fluid Database

For technical assistance in filling out this CDS, call an Emerson Process Management representative. Complete
this form to define a custom fluid. The H symbol identifies the default value.

NOTE

This form is not required if using the Rosemount Fluid Database.

* = Required Item
★ = Default

Customer Information

Customer: Contact Name:

Customer Phone: Customer Fax:

Customer PO:

Fluid Properties

❑ Custom Liquid– Complete Table ❑ Liquid

❑ Custom Gas– Complete Table ❑ Gas

❑ Custom Natural Gas– Complete Table ❑ Natural Gas

For Rosemount Use Only

S.O.: LI

CHAMP: DATE:

ADMIN:

45

Rosemount Integral Orifice
Flowmeter Series

TABLE 13. Custom Liquid Worksheet

* = Required Item
★ = Default

Mass Liquid Density and Viscosity Information

1. Fill in the following operating temperatures

a) _________________________ min

1

b) _________________________ [

c) _________________________ [

d) _________________________ max

2. Transfer the values from the above section to the numbered lines below.

3. Check one Density box, then enter the values for each temperature and the standard density.

4. Check one Viscosity box, then enter values for each temperature. (At least one viscosity value is required).
Density

❑ Density in lbs/CuFt
❑ Density in kg/CuM

Temperature Temperature
a) _____________ min a) _____________ min.

1

b) _____________ [

c) _____________ [

/3 (max - min))] + min b) _____________ [1/3 (max - min))] + min

2

/3 (max - min))] + min c) _____________ [2/3 (max - min))] + min

/3 (max - min))] + min

2

/3 (max - min))] + min

Viscosity

❑ Viscosity in centipoise
❑ Viscosity in lbs/ft sec
❑ Viscosity in pascal sec

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

d) _____________ max d) _____________ max

Base density: __________________________________________________________
(at base reference conditions specified)

Volumetric Liquid Density and Viscosity Information

* Density at Flow: _________________________________________________ Units: ❑ lb/ft3❑ Kg/m3❑ Other:

OR

Specific Gravity at Flow: ____________________________________________

* Viscosity at Flow: ________________________________________________ Units: ❑ Centipoise ❑ Other:

46

Product Data Sheet

Rosemount Integral Orifice

00813-0100-4686, Rev NA
March 2008

TABLE 14. Custom Gas Worksheet

Flowmeter Series

* = Required Item
★ = Default

Mass Gas Compressibility and Viscosity Information

1. Fill in the following operating pressures and operating temperatures

Operating Pressures Operating Temperatures

1) _____________ min 5) _____________ min

1

2) _____________ [

3) _____________ [

4) _____________ max 8) _____________ [

2. Transfer the values from the above section to the numbered lines below

3. Check one Density/Compressibility box, then enter the 12 values for each pressure/temperature range.

4. Check one Viscosity box, then enter values for each temperature. (At least one viscosity value is required).

5. Enter values for molecular weight, isentropic exponent, and standard density (or standard compressibility).
Density

❑ Density in lbs/CuFt
❑ Density in kg/CuM
❑ Compressibility

Pressure Temperature Temperature

/3 (max - min))] + min 6) _____________ [1/2 (max - min))] + min

2

/3 (max - min))] + min 7) _____________ max

1

/3 (max - min))] + min

2

9) _____________ [

Viscosity

/3 (max - min))] + min

❑ Viscosity in centipoise
❑ Viscosity in lbs/ft sec
❑ Viscosity in pascal sec

1) ____________ 5) _____________________________ 5) ________________________________________

2) ____________ 5) _____________________________ 8) ________________________________________

3) ____________ 5) _____________________________ 9) ________________________________________

4) ____________ 5) _____________________________ 7) ________________________________________

1) ____________ 6) _____________________________

2) ____________ 6) _____________________________ Molecular Weight: _________________________

3) ____________ 6) _____________________________ Isentropic Exponent: _______________________ 1.4

4) ____________ 6) _____________________________

1) ____________ 7) _____________________________

2) ____________ 7) _____________________________

3) ____________ 7) _____________________________

4) ____________ 7) _____________________________

Standard density/compressibility: __________________________________________________________

Volumetric Gas Compressibility and Viscosity Information

* Density at Flow: ______________________________ Units: ❑ lb/ft3❑ Kg/m3❑ Other:

OR

M.W. / Specific Gravity at Flow: _________________________________________________

★

Compressibility at Flow: _____________________________________________________

Compressibility at Base: ____________________________________________________

* Viscosity at Flow: _____________________________ Units: ❑ Centipoise ❑ Other: Isentropic Exponent (K):______ 1.4 ★

47

Rosemount Integral Orifice

Product Data Sheet

00813-0100-4686, Rev NA

Flowmeter Series

TABLE 15. Natural Gas Worksheet

March 2008

NOTE

The minimum requirement for the Volumetric options is highlighted gray below.

Compressibility Factor Information

Choose desired characterization method and only enter values for that method.

❑ Detail Characterization Method (AGA8 1992) Mole Valid Range

CH
N

2

CO
C2H
C3H
H2O

S

H

2

H

2

CO
O

2

C4H
C4H
C5H
C5H
C6H
C7H
C8H
C9H
C10H
He
Ar

4

2

6

8

10

10

12

12

14

18

18

2O

Methane mole percent
Nitrogen mole percent
Carbon Dioxide mole percent
Ethane mole percent
Propane mole percent
Water mole percent
Hydrogen Sulfide mole percent
Hydrogen mole percent
Carbon monoxide mole percent
Oxygen mole percent
i-Butane mole percent
n-Butane mole percent
i-Pentane mole percent
n-Pentane mole percent
n-Hexane mole percent
n-Heptane mole percent
n-Octane mole percent
n-Nonane mole percent
n-Decane mole percent

22

Helium mole percent
Argon mole percent

________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________

❑ Gross Characterization Method, Option Code 1 (AGA8 Gr-Hv-CO

Specific Gravity at 14.73 psia and 60 °F ________________________________ 0.554 – 0.87

Volumetric gross heating value at base conditions
Carbon Dioxide mole percent
Hydrogen mole percent
Carbon Monoxide mole percent

________________________________
________________________________
________________________________
________________________________

%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%

) Mole Valid Range

2

BTU/SCF
%
%
%

0 – 100 percent
0 – 100 percent
0 – 100 percent
0 – 100 percent
0 – 12 percent
0 – Dew point
0 – 100 percent
0 – 100 percent
0 – 3.0 percent
0 – 21 percent
0 – 6 percent
0 – 6 percent
0 – 4 percent
0 – 4 percent
0 – Dew Point
0 – Dew Point
0 – Dew Point
0 – Dew Point
0 – Dew Point
0 – 3.0percent
0 – 1.0 percent

477 – 1150 BTU/SCF
0 – 30 percent
0 – 10 percent
0 – 3.0 percent

(1)

(1)

(2)

❑ Gross Characterization Method, Option Code 2 (AGA8 Gr-CO

Specific Gravity at 14.73 psia and 60 °F
Carbon Dioxide mole percent
Nitrogen mole percent
Hydrogen mole percent
Carbon Monoxide mole percent

(1) The summaries of i-Butane and n-Butane cannot exceed 6 percent.

(2) The summaries of i-Pentane and n-Pentane cannot exceed 4 percent.

48

) Mole Valid Range

2-N2

________________________________
________________________________
________________________________
________________________________
________________________________

%
%
%
%
%

0.554 – 0.87
0 – 30 percent
0 – 50 percent
0 – 10 percent
0 – 3.0 percent

Product Data Sheet

00813-0100-4686, Rev NA
March 2008

NOTES

Rosemount Integral Orifice

Flowmeter Series

49

Rosemount Integral Orifice
Flowmeter Series

NOTES

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

50

Product Data Sheet

00813-0100-4686, Rev NA
March 2008

Rosemount Integral Orifice

Flowmeter Series

51

Rosemount Integral Orifice
Flowmeter Series

Product Data Sheet

00813-0100-4686, Rev NA

March 2008

Standard Terms and Conditions of Sale can be found at www.rosemount.com\terms_of_sale
The Emerson logo is a trade mark and service mark of Emerson Electric Co.
Rosemount, the Rosemount logotype, ProPlate, Mass ProPlate, and Annubar are registered trademarks of Rosemount Inc. MultiVariable (MV)
and Tri-Loop are trademarks of Rosemount Inc. Pentium is a registered trademark of the Intel Corporation. Microsoft, Windows, and Windows
NT are registered trademarks of the Microsoft Corporation. Hastelloy is a registered trademark of Haynes International. Monel and Inconel are
registered trademarks of International Nickel Co. HART is a registered trademark of the HART Communication Foundation.
All other marks are the property of their respective owners.

Emerson Process Management
Rosemount Inc.

8200 Market Boulevard
Chanhassen, MN USA 55317
T (US) [phone]
T (Intnl) [phone]
F [phone]

www.rosemount.com

Emerson Process Management

Heath Place
Bognor Regis
West Sussex PO22 9SH
England
T 44 (0) 1243 863121
F 44 (0) 1243 867554

Emerson Process Management Asia
Pacific Private Limited

1 Pandan Crescent
Singapore 128461
T (65) 6777 8211
F (65) 6777 0947
[e-mail]

¢00813-0100-4686v¤

© 2008 Rosemount Inc. All rights reserved.
