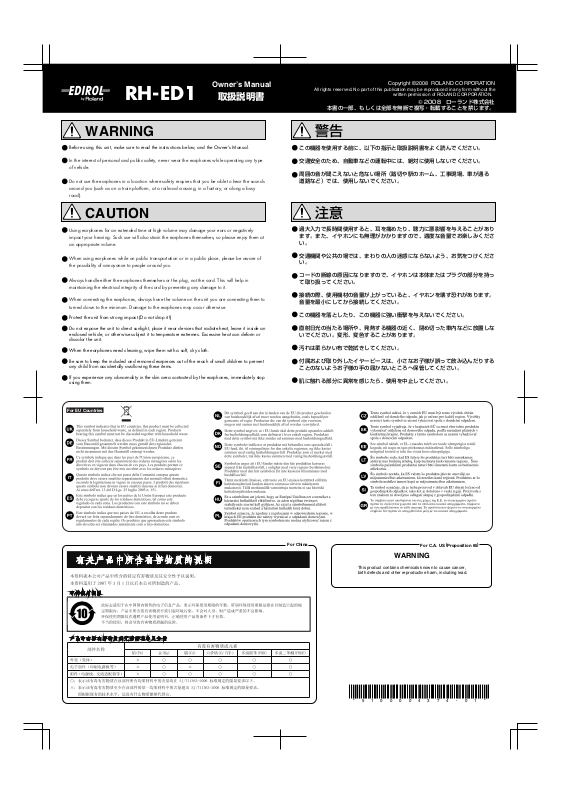

Owner’s Manual

RH-ED1

WARNING

Before using this unit, make sure to read the instructions below, and the Owner’s Manual.

In the interest of personal and public safety, never wear the earphones while operating any type of vehicle.

Do not use the earphones in a location where safety requires that you be able to hear the sounds around you (such as on a train platform, at a railroad crossing, in a factory, or along a busy road).

CAUTION

Using earphones for an extended time at high volume may damage your ears or negatively impact your hearing. Such use will also strain the earphones themselves, so please enjoy them at an appropriate volume.

When using earphones while on public transportation or in a public place, please be aware of the possibility of annoyance to people around you.

Always handle either the earphones themselves or the plug, not the cord. This will help in maintaining the electrical integrity of the cord by preventing any damage to it.

When connecting the earphones, always have the volume on the unit you are connecting them to turned down to the minimum. Damage to the earphones may occur otherwise.

Protect the unit from strong impact.(Do not drop it!)

Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.

When the earphones need cleaning, wipe them with a soft, dry cloth.

Be sure to keep the included and removed earpieces out of the reach of small children to prevent any child from accidentally swallowing these items.

If you experience any abnormality in the skin area contacted by the earphones, immediately stop using them.

For EU Countries

For China

For C.A. US (Proposition 65)

WARNING

This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.


*			5 1 0 0 0 0 4 3 7 4																																	-				0 1						*

	RH-ED1
SPECIFICATIONS
Type of Const ruction	Closed type; dynamic
Driver	11.5mm in Diameter
Sensitivity	98 dB/mW
Maximum Input	250mW
Frequency Response	10–24,000Hz
Impedance	18
Weight	5 g (without cord)
Cord	5’ (1.5 m)/OFC litz wire
Plug	Stereo mini (gold-plated)
Accessories	Carrying pouch
	Ear pieces (S,M,L)

*In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Concerning the fit of the earpieces

The sound quality you’ll experience can vary depending on how well the earpieces of this device are fitted with your ears during use. In order to enjoy the sound as it should be heard, please wear the earpieces so that they fit snugly into your ears.

If the earpieces do not fit your ears, exchange them with either the L or S sized ones, which are included. (When shipped from the factory, the M sized ones are attached.)

To remove an earpiece, grasp the body of the earphones and gently pull the tip of the earpiece.

Ear piece

Earphone

φ11.5mm

18Ω

98dB/mw

10 24,000Hz

250mW

1.5m(Y )

φ3.5mm

5g ( )

(S/M/L)

●

イヤーピースは、イヤホン本体をお持ちいただき、イヤーピースの先端を軽くひっぱると取り外せます。

Wearing the headphones

Wear the headphones as shown in the illustration below. The headphones will be stable and will provide optimal audio quality.

Earpieces

These headphones are designed so the cable is routed behind the ears, keeping the cable from swaying and reducing noises that might be caused by movement of the cable.

L/R

Slide tube

To make the headphones as secure as possible, adjust this tube to the appropriate position.

About the slide tube

The slide tube is used to adjust the cable separation. Adjust it to the appropriate location so that the cable will not get in your way as you play your instrument.

Slide to adjust
