Synthesizer

Owner’s Manual

Panel Descriptions

Top Panel

Rear Panel (Connecting Your Equipment)

Installing Batteries

Overview

............................................. 4

How the JUNO-DS Is Organized

Basic Operation

Playing the JUNO-DS

Turning On/O the Power

Playing a Single Tone (Patch Mode)

Performing Multiple Sounds Together (Performance Mode)

Changing the Key Touch (KEY TOUCH)

Shifting the Key Range in Semitone Steps (Transpose) Changing the Keyboard’s Pitch in One-Octave Steps

(Octave Shift)

Using the Control Knobs to Vary the Sound

Registering Favorite Sounds to a Button (FAVORITE)

Playing Arpeggios (ARPEGGIO)

Performing with Voice from a Mic

.................................... 2

........................................... 2

................... 3

..................................... 3

.......................... 4

....................................... 4

.................................. 5

............................... 5

........................ 5

..................... 7

......... 7

........................................ 7

................. 7

.......... 7

........................... 8

......................... 8

Importing a Sample and Playing It on the Keyboard (SAMPLE IMPORT)

Importing Audio Files (Sample)

Recalling a Sample

Deleting Imported Samples

Editing Samples

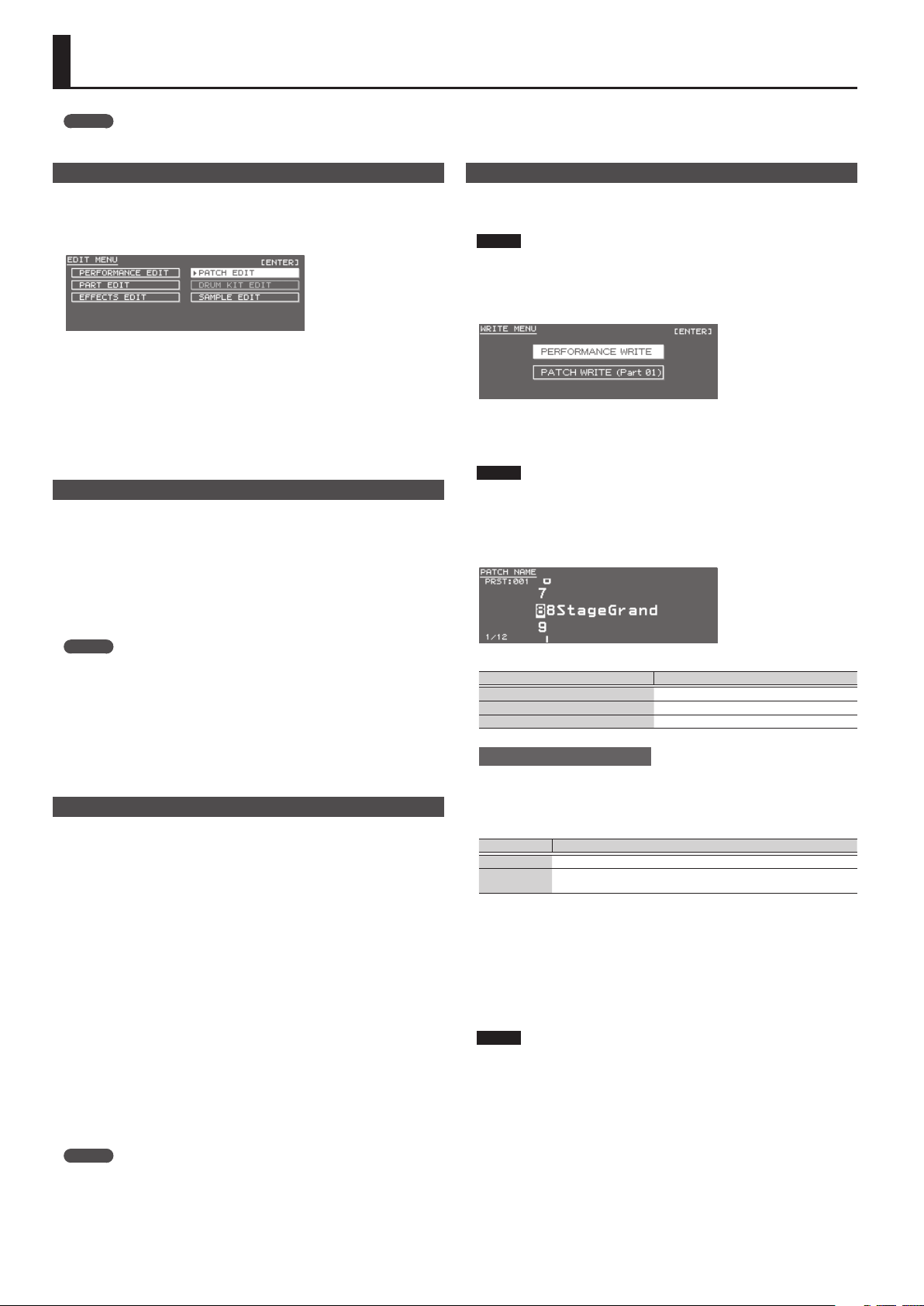

Editing Sounds

Editing a Patch/Drum Kit

Editing a Performance

Editing the Eects

Saving Your Settings (Write)

Playing Rhythm Patterns

Selecting and Playing a Rhythm Pattern

Changing the Tempo

..................................... 9

........................... 9

.................................... 9

............................. 9

...................................... 9

........................................ 10

................................ 10

.................................. 10

..................................... 10

............................. 10

.............................. 11

.................... 11

................................... 11

..... 5

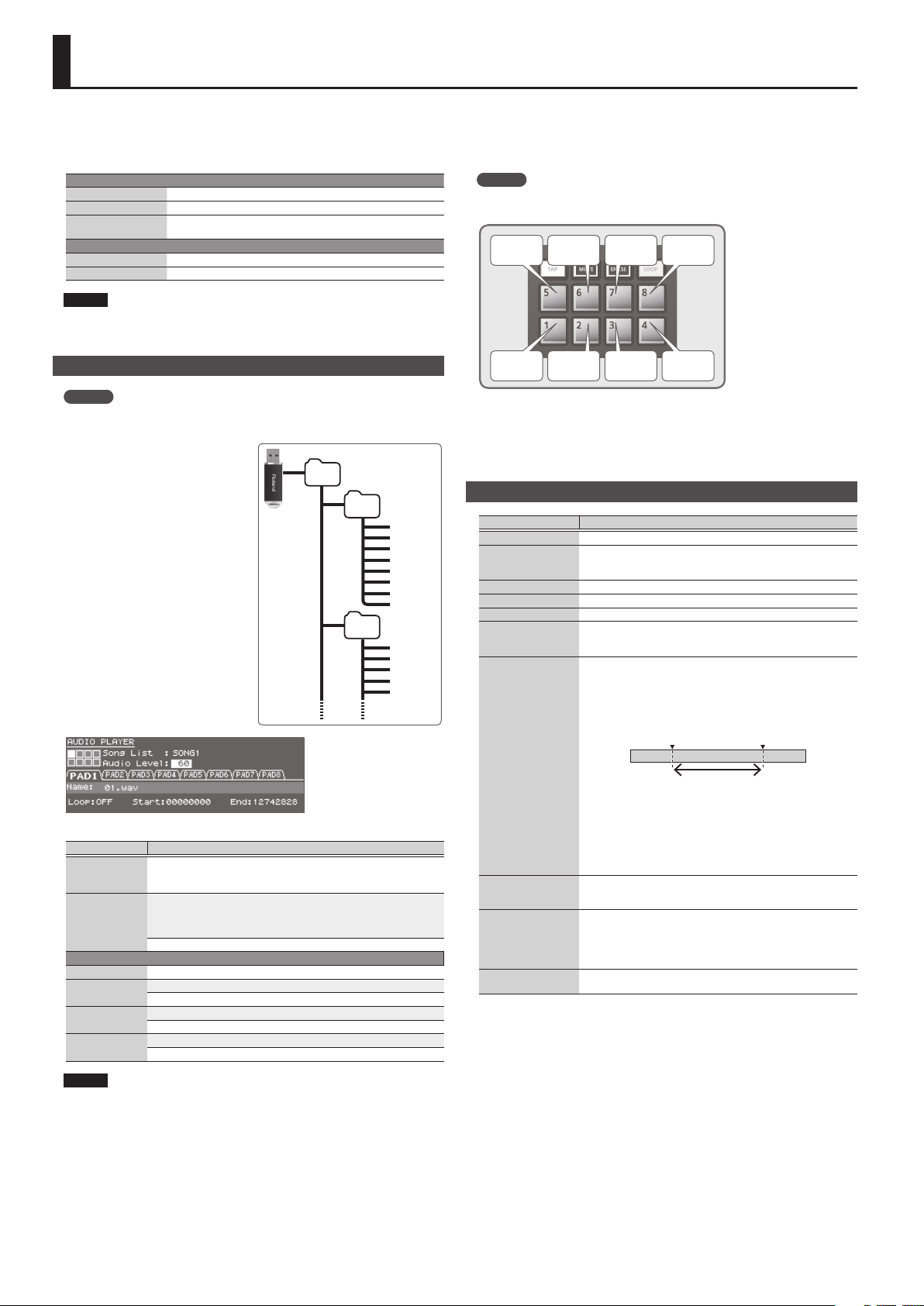

Playing Audio Files (Audio Player)

Assigning Audio Files to Pads and Playing Them

Audio Player Operations

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

...................... 12

.............. 12

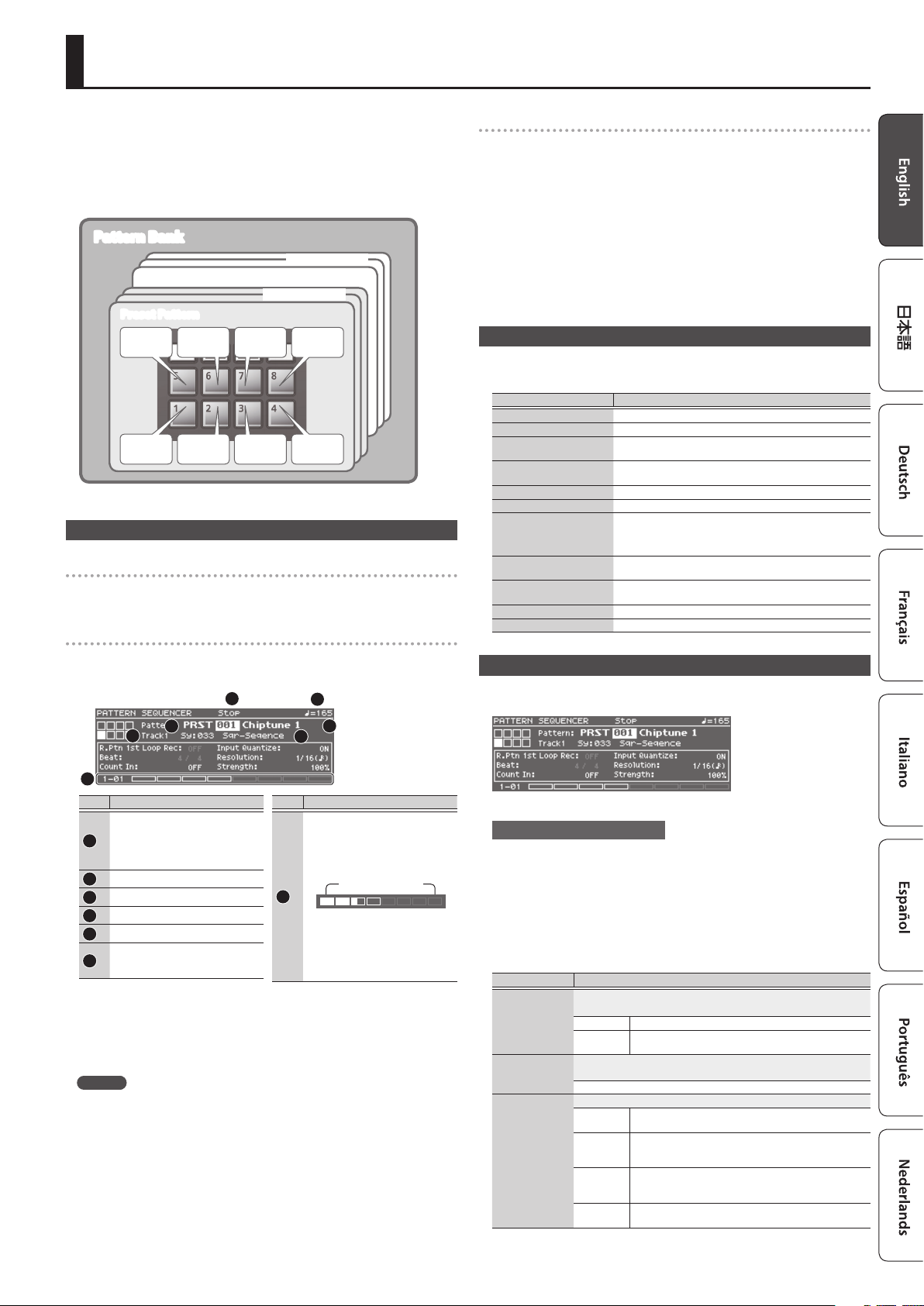

Playing/Recording Patterns (PATTERN SEQUENCER)

Playing Patterns

Basic Operations for the Pattern Sequencer

Recording Patterns

Saving a Pattern

Pattern Utility

Overall Settings for the JUNO-DS

Accessing the Menu Screens

Making System Settings (SYSTEM)

Adjusting the Display Contrast

Adjusting the Display Brightness

Enabling/Disabling the Auto-O Function

Master Tuning

Applying Reverb to the Mic Input

Assigning the Function of the Control Pedal

Assigning the Function of the Control Knobs

Convenient Functions (UTILITY)

Playing the Demo Songs

Appendix

Troubleshooting

Error Messages

USING THE UNIT SAFELY

IMPORTANT NOTES

Shortcut List

Main Specications

...................................... 13

................. 13

.................................... 13

...................................... 15

........................................ 15

...................... 16

............................. 16

. . . . . . . . . . . . . . . . . . . . . . . . 16

............................ 16

.......................... 16

................... 16

......................................... 16

.......................... 16

.................. 16

. . . . . . . . . . . . . . . . . 17

.......................... 17

................................ 18

............................................. 19

...................................... 19

....................................... 19

............................... 20

.................................... 20

.......................................... 22

.................................... 22

..... 13

Owner’s Manual

Read this rst. It explains the basic things you need to know in order to use the JUNO-DS.

PDF manual

5Parameter Guide

This explains all parameters of the JUNO-DS.

5MIDI Implementation

This is detailed information about MIDI messages.

Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (leaet “USING THE UNIT SAFELY” and Owner’s Manual (p. 20)). After reading, keep the document(s) including

those sections where it will be available for immediate reference.

(this document)

(download from the Web)

(English)

To obtain the PDF manual

Enter the following URL in your computer.

http://www.roland.com/manuals/

Choose “JUNO-DS” as the product name.

Panel Descriptions

Top Panel

1 2 3 4 5

Controller Explanation Page

MODE

[SAMPLE IMPORT] button Used to import an audio le (sample) into the JUNO-DS. p. 9

[DAW CONTROL] button

MEMO

You can move to the EDIT MENU screen by pressing the [SAMPLE IMPORT ] button and [DAW CONTROL] button simultaneously.

Control knobs

[SELECT] button

[MIC IN] LEVEL slider Adjusts the volume of the input from MIC INPUT jack. p. 8

[PHRASE PAD] LEVEL slider

[LOWER] LEVEL slider

[UPPER] LEVEL slider

[VOCODER/AUTO PITCH] button

KEYBOARD

[SPLIT] button Turns the split function on/o.

[SUPER LAYER] button Turns the super layer function on/o.

[ARPEGGIO] button Turns the arpeggiator on/o. p. 8

[KEY TOUCH] button

[PATCH/PERFORM] button

[TRANSPOSE] button

OCTAVE [DOWN] [UP] buttons Raise or lower the pitch range in steps of an octave. p. 7

[NUMERIC] button

[FAVORITE] button Turns the Favorite function on/o.

[BANK] button

BATTERY indicator

Display Shows various information depending on operation.

Value dial

[DRUMS/PERCUSSION]– [SAMPLE] (Category) buttons ([0]–[9] buttons)

[MENU] button Displays a menu screen.

[WRITE] button Saves the modied settings in internal memory. p. 10

Used to control DAW software from the JUNO-DS. For details, refer to “Parameter Guide (English)“ (PDF).

Control the parameters that you’ve selected by the [SELECT] button.

Selects the group of parameters that is controlled by the Control knobs.

Adjusts the volume of the rhythm pattern / audio player.

Split: Adjusts the volume of the lower part. Dual: Adjusts the volume of part 2.

Split: Adjusts the volume of the upper part. Dual: Adjusts the volume of part 1.

Accesses settings for the Vocoder function and Auto Pitch function.

Used to change the touch response of the keyboard. Depending on the KEY TOUCH setting, the [KEY TOUCH] button is lit or unlit.

When this button is on (lit), the JUNO-DS is in Performance mode. When this button is o (unlit), the JUNO-DS is in Patch mode.

Hold down this button and use the OCTAVE [DOWN] [UP] buttons to raise or lower the pitch range in semitone steps.

When this button is on (lit), you can use the [0]–[9] buttons to enter numeric values.

When this button is on (lit), you can use the [0]–[9] buttons to select Favorite banks.

The indication changes depending on the remaining battery amount.

Changes a value. If you hold down the [SHIFT] button and turn the dial, the value changes more greatly.

Select categories (types) of sound (such as patches or drum kits). You can also use the value dial to select other sounds within the same category.

* When the [NUMERIC] button is on (lit), these buttons

operate as [0]–[9] buttons to enter numeric values.

p. 7

p. 11 p. 12

p. 6

p. 8

p. 6[DUAL] button Turns the dual function on/o.

p. 7 p. 16

p. 5

p. 7

p. 4

p. 7

p. 3

p. 4

p. 5

p. 4 p. 16

Controller Explanation Page

Changes a value.

* If you press one of these buttons while holding

[–] [+] buttons

[H] [I] [K] [J] buttons Move the cursor position up/down/left/right.

[SHIFT] button

[EXIT] button Exits a screen or cancels an operation.

[ENTER] button Used to execute an operation.

PHRASE PAD

[TAP] button

[MUTE] button

[ERASE] button

[LOOP] button

Pads [1]–[8]

[RHYTHM PATTERN] button Press this button to use rhythm patterns. p. 11

[PATTERN SEQUENCER] button Press this button to use the pattern sequencer. p. 13

[AUDIO] button

[PATTERN LENGTH] button Changes the number of measures in the pattern. p. 14

[TEMPO] button Adjusts the tempo. p. 11

[MIXER] button

[u] button Moves to the beginning of the pattern or audio le.

[s] button

[t] button

[MASTER VOLUME] knob

Pitch bend/Modulation lever Varies the pitch or applies vibrato.

down the other, the value changes more rapidly. If you press one of these buttons while holding down the [SHIFT] button, the value changes more greatly.

Accesses the corresponding edit screen when pressed together with another button.

Sets the tempo to the interval at which you press this button during pattern playback.

When using the pattern sequencer, mutes the specied track.

When using the pattern sequencer, erases the recorded pattern or a portion of the pattern.

When using the pattern sequencer, turns loop playback/ recording on/o.

Play back phrases (rhythm patterns / patterns / samples) that are assigned to the pads.

Press this button to use the “audio player” which plays back audio les from a USB ash drive.

When using the pattern sequencer, species settings such as level or pan for each track.

Starts/stops playback of the rhythm pattern, pattern, or audio le that is selected for the rhythm pattern function, the pattern sequencer, or the audio player.

When using the pattern sequencer, press this button to record a pattern.

Adjusts the volume that is output from the OUTPUT jacks and the PHONES jack.

p. 4

p. 4 p. 22

p. 4

p. 11 p. 13

p. 13

p. 14

p. 13

p. 12

p. 13

p. 11 p. 12 p. 13

p. 13

p. 5

Rear Panel (Connecting Your Equipment)

Microphone

External audio player

MIDI device

Amplied speakers

Headphones

Panel Descriptions

* To prevent malfunction and equipment failure,

always turn down the volume, and turn o all the units before making any connections.

8 9

11 12

Pedal switch

Expression pedal

Jack/Controller Explanation Page

PEDAL CONTROL jack

PEDAL HOLD jack

MIDI IN, OUT connectors For connecting a MIDI device.

MIC [LEVEL] knob Adjusts the input level of the MIC INPUT jack.

MIC INPUT jack

EXT INPUT jack Connect your external audio player or audio device here.

OUTPUT R, L/MONO jacks

PHONES jack Connect your headphones (sold separately) to this jack.

USB COMPUTER port

USB MEMORY port

DC IN jack

[POWER] switch This turns the power on/o. p. 5

Ground terminal Refer to “Ground Terminal” (p. 20).

13 14

You can connect an expression pedal (EV-5; sold separately) or pedal switch (DP series; sold separately) here and use them to control various parameters or functions.

* Use only the specied expression pedal (EV-

5; sold separately). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.

You can connect a pedal switch (DP series; sold separately) and use it as a hold pedal.

Connect your dynamic microphone here. This is an unbalanced 1/4” phone jack.

These output the audio signal in stereo to your amp or mixer. If you’re outputting in mono, connect only the L/MONO jack.

Use a commercially available USB 2.0 cable to connect this unit to your computer. You can synchronize it with a DAW on your computer via USB MIDI, and record the sound of the JUNO-DS into your DAW via USB audio.

Connect a USB ash drive (sold separately) here. You can use a USB ash drive to play audio les or to back up data.

* Never insert or remove the USB ash drives

while this unit is turned on. Doing so may corrupt the unit’s data or the data on the USB ash drives.

* Carefully insert the USB ash drives all the way

in—until it is rmly in place.

Connect the included AC adaptor here.

* To prevent the inadvertent disruption of power to your

unit (should the plug be pulled out accidentally), and to avoid applying undue stress to the jack, anchor the power cord using the cord hook, as shown in the illustration.

Computer

16 17

USB ash drive

* Place the AC adaptor so the side with the indicator (see

illustration) faces upwards and the side with textual information faces downwards. The indicator will light when you plug the AC adaptor into an AC outlet.

p. 16

p. 8

p. 9 p. 12 p. 17

18 19

Concerning the Auto O Function

Indicator

AC adaptor

Power Cord

AC Outlet

The power to this unit will be turned o automatically after a predetermined amount of time has passed since it was last used for playing music, or its buttons or controls were operated (Auto O function). If you do not want the power to be turned o automatically, disengage the Auto O function (p. 16).

NOTE

5Any settings that you are in the process

of editing will be lost when the power is turned o. If you have any settings that you want to keep, you should save them beforehand.

5To restore power, turn the power on

again.

Installing Batteries

If eight commercially available AA nickel-metal hydride batteries are installed, you’ll be able to play the JUNO-DS without connecting the AC adaptor.

Remove the battery compartment cover.

61-key model, 76-key model

88-key model

* When turning the unit over, be careful so as to protect the buttons and knobs

from damage. Also, handle the unit carefully; do not drop it.

Insert the batteries into the battery compartment, taking care to observe

the correct polarity.

61-key model, 76-key model 88-key model

Securely close the battery compartment cover.

NOTE

If you handle batteries improperly, you risk explosion and uid leakage. Make sure that you carefully observe all of the items related to batteries that are listed in “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (leaet “USING THE UNIT SAFELY” and Owner’s manual (p. 20)).

When to replace the batteries (BATTERY indicator)

When the batteries run down, the BATTERY indicator will light or blink.

5The BATTERY indicator will light when the batteries run low. 5If you continue using the JUNO-DS, the indicator will blink; please replace the

batteries.

NOTE

5If you continue use even though the indicator is blinking, the display will

indicate “Battery Low!” and further operation will be impossible.

5The BATTERY indicator is only an approximation.

While pressing the tabs of the battery compartment cover on the bottom panel, remove the cover.

Slide the top panel battery compartment cover, and detach the cover.

Overview

How the JUNO-DS Is Organized

Controller section

The performance information generated when you press/release a key or press a hold pedal are transmitted to the sound generator section. This section consists of a keyboard, pitch bend/modulation lever, the panel buttons and knobs, and pedals connected to the rear panel.

Sound Generator section

This section receives performance information sent from the controller section, and sounds a patch or performance accordingly.

Eects

MFX (Multi eects) Provides 80 types of eect, such as distortion and anger.

Chorus/Reverb

* MFX and chorus/reverb can have dierent settings for each patch and performance.

Phrase Pad

These play the phrases that are assigned to pads [1]–[8].

Rhythm Pattern The pads play dedicated rhythm patterns.

Pattern Sequencer

Audio Player The pads play audio les from a USB ash drive.

Patch

A patch is a sound that you can perform. Each patch consists of up to four “tones,” and you can create a wide variety of sounds by combining tones.

Drum Kit

A drum kit is a collection of percussion instrument sounds or sound eects. Each dierent key (note number) plays a dierent percussion instrument or sound eect.

Sample

These are sounds created by Sample Import (p. 9).

Performance

A performance lets you assign a dierent patch, drum kit, or sample to each of 16 parts, allowing you to use 16 dierent sounds simultaneously. The following settings are also saved as performance settings.

SPLIT Use dierent sounds for the right and left hands

DUAL Layer two sounds

SUPER LAYER Layer a single sound to create a richer feeling

When you select Split or Dual, the patches of part 1 and part 2 are used.

“Patch mode” is when you select and play a single patch (or drum kit or sample). “Performance mode” is when you select and play a performance. When using SPLIT/DUAL/SUPER LAYER, you’ll always be in Performance mode (the [PATCH/PERFORM] button is lit).

A chorus/reverb unit that can be used independently of the chorus/reverb eects of the MFX unit. Chorus can also be used as a delay.

The pads record patterns of several measures, and play them back while you perform.

JUNO-DS

Sound Generator section

Patch

Drum Kit

Arpeggio

Controller section

Keyboard

Patch

Performance

Tone 1 Tone 2

Performance

Phrase Pad

Rhythm Pattern

Pattern Sequencer

Audio Player

Pitch Bend/Modulation lever

Part 1 (Upper)

Part 2 (Lower)

Part 3

Part 16

Eects

MFX Chorus Reverb

System

Tone 3 Tone 4

Patch/Drum Kit/Sample

Pedal

Basic Operation

Move the cursor

To change a selection or parameter setting that’s shown in the screen, use the [H] [I] [K] [J] buttons to move the cursor to the value of the parameter that you want to change. If you hold down a cursor button, the cursor continues to move. If you hold down the cursor button of a certain direction and then press the cursor button of the opposite direction, the cursor moves faster.

Changing a value

To change the value that’s highlighted by the cursor, use the value dial or the [–] [+] buttons.

5If you hold down the [SHIFT] button while performing this operation, the value will change more

greatly.

5In case of [–] [+] buttons, If you hold down one button and press the other button, the value will

change faster.

Entering numeric values

When the [NUMERIC] button is on (lit), you can use the [0]–[9] buttons to enter numeric values. Press the [0]–[9] buttons to enter a numerical value, and then press the [ENTER] button.

[ENTER] button

Use this button to conrm a value or execute an operation.

[EXIT] button

Use this button to exit a screen or to cancel an operation without executing it.

[MENU] button

From the menu you can select detailed sound settings (editing), system settings, or utility functions.

Saving your settings

When you press the [WRITE] button, the WRITE MENU screen appears, allowing you to save a patch (drum kit) or performance.

Shortcut

By holding down the [SHIFT] button and pressing another button, you can move to the setting screen for the button you pressed. For details, refer to “Shortcut List” (p. 22).

Split Dual Super Layer

Change a value

Shortcut

Entering numeric values

Display the menu screen

5Exit a screen 5Cancel an operation

Save your settings

Change a value

Conrm/

execute

Playing the JUNO-DS

Turning On/O the Power

Before turning the unit on/o, always be sure to turn the volume down. Even with the volume turned down, you might hear some sound when switching the unit on/ o. However, this is normal and does not indicate a malfunction.

Turn the power on in the following order:

this unit 0 connected devices.

* This unit is equipped with a protection

circuit. A brief interval (a few seconds) after turning the unit on is required before it will operate normally.

A screen like the following appears.

* The explanations in this manual include illustrations that depict what should

typically be shown by the display. Note, however, that your unit may incorporate a newer, enhanced version of the system (e.g., includes newer sounds), so what you actually see in the display may not always match what appears in the manual.

Turn the [MASTER VOLUME] knob to adjust the volume.

Turning the Power O

Turn the power o in the following order: connected devices 0 this unit.

O

Patches are organized into categories which are assigned to buttons. Each category is further divided into several sub-categories.

Use the value dial to select a patch.

MEMO

Patches whose category number is marked with an “S” (e.g., Pf: S01) are specially recommended sounds.

Selecting a bank

Move the cursor to bank, and use the value dial to select a bank.

Bank Explanation

DS (DS Tone)

PRST (Preset)

GM (GM2) This bank is for GM2 sounds.

EXP

USER

These are the particularly recommended patches of the JUNO-DS. The edited result is saved in the user bank.

These patches cannot be rewritten. The edited result is saved in the user bank.

This bank is for expansion sounds. A wide range of tones from the Axial sound library site can be added to this unit. For details, refer to the Axial site.

http://axial.roland.com/

Patches, drum kits, or samples that you edit are saved in this bank.

5User patches can be saved in numbers 501–756. 5User drum kits can be saved in numbers R501–R508.

Performing Multiple Sounds Together (Performance Mode)

Press the [PATCH/PERFORM] button to

make it light.

The JUNO-DS is in Performance mode, and the PERFORM screen appears.

Playing a Single Tone (Patch Mode)

Make sure that the [PATCH/PERFORM]

button is unlit.

If the [PATCH/PERFORM] button is lit, press the [PATCH/PERFORM] button to make it go dark. The JUNO-DS is in Patch mode, and the PATCH screen appears.

No. Explanation

Press a category button ([DRUMS/PERCUSSION]–[SAMPLE]) to select a

category.

Category Explanation

DRUMS/PERCUSSION Drum kit

PIANO Piano

KEYBOARD/ORGAN Keyboard, Organ

GUITAR/BASS Guitar, Bass

ORCHESTRA Orchestral

WORLD Ethnic instruments

BRASS Brass, Woodwinds

VOCAL/PAD Vocal, Choir, Pads

SYNTH Synthesizer

SAMPLE Sample (imported audio les)

Eect on (lit)/o (unlit)

Tempo

Patch bank

Bank number

Sub category

Category number

No. Explanation

Patch name

Octave Shift setting

Patch level

Level meter

Parameters that can currently be

adjusted by the control knobs

Performance bank/number

Split

Super Layer

Move the cursor to bank, and use the value dial to select a bank.

Bank Explanation

PRST (Preset)

USER

Move the cursor to the performance number, and use the value dial to

select a performance.

These performances cannot be rewritten. The edited result is saved in the user bank.

Performances that you edit are saved in this bank. User performances can be saved in numbers 001–128.

Dual

16-part mode

5If you select a performance that is set to split, dual, or super layer, the

corresponding button is lit.

5Within Performance mode, the state in which neither split, dual, nor super layer

is selected is called “16-part mode”; this allows you to make more detailed settings. For details, refer to “Parameter Guide (English)” (PDF).

When you edit the settings of a patch or performance, an “*” symbol appears beside the name. If you want to keep the edited settings, perform the Write operation (p. 10). When you save the setting, the “*” disappears.

Playing the JUNO-DS

Playing Dierent Tones with Your Right and Left Hands (SPLIT)

Press the [SPLIT] button to make it light.

The Split screen appears.

No. Explanation

Eect on (lit)/o (unlit)

Tempo

Performance bank

Performance number/name

Lower

(Part 2)

Category number

Patch name

Patch level

Level meter

No. Explanation

Category number

Upper (Part 1)

Split point

Indicates the part whose patch will be switched

Patch name

Patch level

Level meter

frame

Divided by the split point, the right-hand side of the keyboard plays the upper (part 1) patch, and the left-hand side plays the lower (part 2) patch.

Adjusting the volume

You can use the [UPPER] LEVEL slider and [LOWER] LEVEL slider to adjust the upper (part 1) and lower (part 2) volume (LEVEL). The “LEVEL” values in the screen change accordingly.

Exchanging the upper/lower patches

Hold down the [SPLIT] button and press the [DUAL] button.

Switching patches

Press pad [1] or pad [2] to select the part whose patch you want to switch.

Pad [1] Upper (Part 1)

Pad [2] Lower (Part 2)

Use the value dial to switch patches.

You can also select patches by pressing the [DRUMS/PERCUSSION]–[SAMPLE] buttons.

Changing the Split point

Hold down the [SPLIT] button and press the key that you want to be the

new split point.

The key you press becomes the split point. The split point key is included in the upper region.

Playing Two Layered Sounds (DUAL)

Press the [DUAL] button to make it light.

The Dual screen appears.

Adjusting the volume

You can use the [UPPER] LEVEL slider and [LOWER] LEVEL slider to adjust the upper (part 1) and lower (part 2) volume (LEVEL). The “LEVEL” values in the screen change accordingly.

Exchanging the upper/lower patches

Hold down the [SPLIT] button and press the [DUAL] button.

Switching patches

Press pad [1] or pad [2] to select the part whose patch you want to switch.

Pad [1] Upper (Part 1)

Pad [2] Lower (Part 2)

Use the value dial to switch patches.

You can also select patches by pressing the [DRUMS/PERCUSSION]–[SAMPLE] buttons.

Thickening a Patch (SUPER LAYER)

You can overlay a patch several times, slightly shifting the pitches of each layer. This is called “detuning.” Using the “Super Layer” function, you can easily set the detuning and the number of times you overlay the patch (number of parts), to create more spacious or thicker tones.

Select a patch.

Press the [SUPER LAYER] button to make it

light.

The Super Layer screen appears.

No. Explanation

Eect on (lit)/o (unlit)

Tempo

Performance bank

Performance number/name

Category number/Patch name

Move the cursor to “Layer” or “Detune,” and use the value dial to change the

setting.

Parameter Value

Layer 2–5

Detune 0–30

No. Explanation

Layer Number of layered parts

Detune Amount of pitch shift

Part level

Level meter

Parameters that can currently be

adjusted by the control knobs

Adjusting the volume

You can use the [UPPER] LEVEL slider to adjust the volume (LEVEL). The “LEVEL” values in the screen change accordingly.

No. Explanation

Eect on (lit)/o (unlit)

Tempo

Performance bank

Performance number/name

Upper

(Part 1)

Category number

Patch name

Patch level

Level meter

No. Explanation

Lower

(Part 2)

Indicates the part whose patch will

be switched

The upper (part 1) and lower (part 2) patches sound together.

Category number

Patch name

Patch level

Level meter

frame

Playing the JUNO-DS

Changing the Key Touch (KEY TOUCH)

Sets the keyboard’s touch.

Press the [KEY TOUCH] button.

The KEY TOUCH screen appears.

Move the cursor to “Velo Curve,” and use the value dial to change the

setting.

Value Explanation

LIGHT

MEDIUM This sets the keyboard to the standard touch.

HEAVY

This sets the keyboard to a light touch. You can achieve fortissimo ( ) play with a less forceful touch than MEDIUM setting, so the keyboard feels lighter. This setting makes it easier for children, whose hands have less strength.

This sets the keyboard to a heavy touch. You have to play the keyboard more forcefully than MEDIUM setting in order to play fortissimo (), so the keyboard touch feels heavier. This setting allows you to add more expression when playing dynamically.

MEMO

You can also make more detailed adjustments to the keyboard touch, or specify that all notes sound at a xed volume regardless of your keyboard playing dynamics. For details, refer to system settings “KEY TOUCH” (p. 16).

Shifting the Key Range in Semitone Steps (Transpose)

Hold down the [TRANSPOSE] button,

and press the OCTAVE [DOWN] or [UP] buttons.

If a value other than “C” is set, the [TRANSPOSE] button is lit. To reset the value to “C,” hold down the [TRANSPOSE] button and press the OCTAVE [DOWN] and [UP] buttons simultaneously.

Using the Control Knobs to Vary the Sound

You can use the Control knobs to control the sound in real time. You can control a total of 12 parameters, organized as three groups each containing four parameters.

If you select the parameters to be set for each part, the target aected by these modications will depend on the current settings.

Patch mode

Control knobs will apply to each individual key. When you turn one of

Drum Kit

Performance mode

Dual, Super Layer All parts

Split, 16-part mode The currently selected part

* For some sounds, the knobs may not have an eect.

Press the [SELECT] button to select the group of parameters.

Use the control knobs to control the parameters.

Parameter Explanation

CUTOFF

RESONANCE

ATT ACK

RELEASE

MIC REVERB Adjusts the reverb that’s applied to the input sound from the MIC IN jack.

MFX CTRL Controls MFX.

CHORUS/DELAY Adjusts the amount of chorus or delay.

REVERB Adjusts the amount of reverb.

ASSIGN 1–4

these knobs, the currently selected key will be indicated (e.g., C4). To change the key to which the eect is to be applied, press a key and specify a new key name.

Adjusts the frequency (cuto frequency) at which the lter begins to be applied.

Boosts the sound in the vicinity of the cuto frequency, adding a distinctive character to the sound.

Adjusts the time from when you press the key until the sound reaches the maximum level.

Adjusts the time from when you release the key until the sound is no longer heard.

You can assign various parameters to these knobs and control them. For details on how to change the parameters that are assigned to the knobs, refer to “Parameter Guide (English)” (PDF).

Value -5 (G)–0 (C)–+6 (F#)

Changing the Keyboard’s Pitch in One-Octave Steps (Octave Shift)

Press the OCTAVE [DOWN] or [UP] button.

If this setting is other than “0,” OCTAVE [DOWN] or [UP] button will light. You can reset this setting to “0” by pressing OCTAVE [DOWN] and [UP] buttons simultaneously.

Value -3–0–+3

What’s aected by the Octave Shift setting will depend on the current mode.

Patch mode

The octave of the selected patch will change. The setting cannot be saved.

Performance mode

Dual, Super Layer The octave of all parts will change.

Split, 16-part mode

* You can save the Octave setting of each part by saving the performance.

The octave of the currently selected part will change. You can set this independently for each part.

Registering Favorite Sounds to a Button (FAVORITE)

“Favorites” store settings for frequently used patches and performances, allowing you to recall them by simply pressing a button. Favorites store the number of the patch or performance.

Favorite Bank 9

Favorite Bank 0

Favorite 0–9

5Favorites 0–9 can be registered as a “favorite set”; you can register a total of ten

such sets.

5Use the [0] to [9] buttons to register tones or switch to tones.

NOTE

If you’ve changed the sound or keyboard settings (split, dual, super layer), you must rst save the changed settings before you can register them as a favorite.

Registering a Favorite

Select a patch or performance that you want to

Press the [BANK] button to make it light.

Press a [0]–[9] button to select the bank in which

you want to register the favorite.

Hold down the [FAVORITE] button and press a

[0]–[9] buttons to select the number in which the favorite will be registered.

+ 15 hidden pages
