Page 1

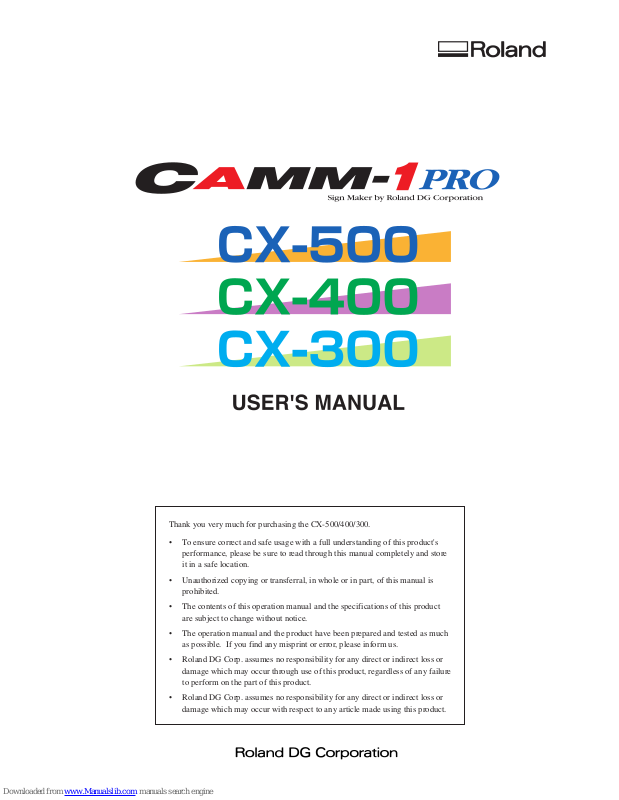

Thank you very much for purchasing the CX-500/400/300.
• To ensure correct and safe usage with a full understanding of this product's
performance, please be sure to read through this manual completely and store
it in a safe location.
• Unauthorized copying or transferral, in whole or in part, of this manual is
prohibited.
• The contents of this operation manual and the specifications of this product
are subject to change without notice.
• The operation manual and the product have been prepared and tested as much
as possible. If you find any misprint or error, please inform us.
• Roland DG Corp. assumes no responsibility for any direct or indirect loss or
damage which may occur through use of this product, regardless of any failure
to perform on the part of this product.
• Roland DG Corp. assumes no responsibility for any direct or indirect loss or
damage which may occur with respect to any article made using this product.
Page 2
2
Table of Contents
1 Checking Supplied Items ......................................................................................................... 3
2 Part Names and Functions....................................................................................................... 3
2-1 Front View........................................................................................................................... 3
2-2 Rear View............................................................................................................................ 4
2-3 Operation Panel .................................................................................................................. 4
3 Setup .......................................................................................................................................... 5
3-1 Setting Up ........................................................................................................................... 5
3-2 Connection.......................................................................................................................... 6
3-3 T urning on the Power .......................................................................................................... 7
3-4 Installing and Setting Up the Driver .................................................................................... 7
4 Basic Operation ........................................................................................................................ 8
4-1 Loading the Material (Roll Material).................................................................................... 8
4-2 Installing a Blade .............................................................................................................. 14
4-3 Adjusting the Blade Force and Cutting Speed.................................................................. 15
4-4 Setting the Origin Point.....................................................................................................17
4-5 Starting Cutting................................................................................................................. 18
4-6 When Cutting is Completed .............................................................................................. 20
5 Advanced Operation ............................................................................................................... 22
5-1 Detailed Cutting-condition Settings................................................................................... 22
5-2 Details of the Origin-point Location and Cutting Area....................................................... 25
5-3 To Perform Lengthy Cutting .............................................................................................. 28
5-4 Loading Flat Material (Standard-size Material, Cut Material, Etc.) ................................... 30
5-5 Repeating the Same Cutting............................................................................................. 31
5-6 Front Loading.................................................................................................................... 32
5-7 The Overcut Feature......................................................................................................... 35
5-8 The Preset Feature...........................................................................................................36
5-9 The Crop Mark Feature..................................................................................................... 38
6 About the Blades and Materials ............................................................................................ 40
6-1 Blade and Material Combinations..................................................................................... 40
6-2 About Special Materials.................................................................................................... 41
7 Descriptions of Features........................................................................................................ 42
7-1 Key Operations ................................................................................................................. 42
7-2 Display Menus Flowchart.................................................................................................. 43
7-3 List of Functions................................................................................................................ 46
8 Maintenance ............................................................................................................................ 50
8-1 Cleaning............................................................................................................................ 50
8-2 Consumable Items............................................................................................................ 51
8-3 How to Replace the Separating Knife ............................................................................... 52
9 If There Is a Problem ............................................................................................................... 53
9-1 Self-test Operation Check................................................................................................. 53
9-2 What to do if...................................................................................................................... 54
9-3 Error Messages ................................................................................................................ 58
10 Specifications.......................................................................................................................... 59
10-1 Specifications.................................................................................................................... 59
10-2 Interface Specifications..................................................................................................... 61
10-3 Instruction Support Chart.................................................................................................. 62
CutChoice™ is trademark of Roland DG Corporation.
Copyright © 2001 Roland DG Corporation
http://www.rolanddg.com/
Page 3
3
Pin
2 Part Names and Functions
2-1 Front View
* The figure shows the CX-500 installed with the PNS-502 special stand.
Movable Pinch Roller (Middle)
This is used when cutting materials with a width of 762 mm
(30 in.) or more. At this time, it is set at the center of the left
and right pinch rollers or above the grit roller near the center.
Platen
Blade Protector
Movable Pinch Roller (Left)
Set this at the left-hand edge
of the material.
Sheet sensor
Operation Panel
Tool Carriage
The tool carriage is where
the cutter (or alignment tool)
is mounted.
Separating knife
This cuts off a piece of
material from rolled material.
Power Switch
ON when switched to [
].
OFF when switched to [
] .
Guide line
These are used as guides for
making sure the loaded
material is straight. Align the
right-hand edge of the material
with these scale lines.
Grit Roller
The pinch rollers and grit
rollers grip the material and
move it forward and backward.
Movable Pinch Roller (Right)
Set this at the right-hand edge
of the material.
1 Checking Supplied Items
Check the following to make sure that you received all the items that were shipped along with the unit.
Replacement blade
for separating knife
CD-ROM
(Roland Software Package)
Power Cord
Blade
Alignment
tool
Blade
Holder
(XD-CH3)
Startup Manual
To Ensure Safe Use
Cable Clamp
Page 4
4
Display
This displays the various setting
menus and messages.
PRESET Key
This key calls up stored cutting
conditions.
ORIGIN Key
This key sets the origin point.
See 4-4.
PAUSE Key
When pressed once, this
temporarily halts cutting in
progress. Pressing this key again
releases the paused state.
SETUP LED
This lights up when material is
set up. Cutting can be
performed when this is lit.
POWER/ERROR LED
This lights up when the power is
switched on. This flashes when
an error occurs.
PAUSE LED
This lights up when the paused.
FORCE Key
This key sets the blade force.
See 4-3.
SPEED Key
This key sets the cutting speed.
See 4-3.
MENU Key
This key enters the menu mode.
See 7-1.
PEN FORCE Slider
This slider performs fine adjustment
of the blade force. See 4-3.
SHEET CUT Key
This severs the
material.
ENTER Key
This confirms menu items and
stores settings in memory.
TEST CUT Key
This performs a cutting test. You
can use this to make sure the
blade force, blade
compensation, and cutting
speed are appropriate. See 4-3.
CURSOR Keys
Sheet Loading Lever
These raise and lower the pinch rollers.
Parallel (Centronics) Connector
This is for connecting a computer
with a parallel (printer) cable.
Power Connector [AC IN]
This connector accepts the AC power
cord.
Sheet Sensor
Tray
Use this to store blades.
USB Connector
This is for connecting a
computer with a USB cable.
Brake
2-2 Rear View
2-3 Operation Panel
For more information about the keys, see the respective reference sections and “7-3 List of Functions.”
Page 5
5
3-1 Setting Up
3 Setup
Unpacking, installing, or relocating
the unit are operations which must
be carried out by two or more persons holding the unit at its bottom
surface on the left and right sides.
Failure to do so may result in dropping the
unit, leading to injury.
Use care to avoid pinching the
fingers when placing the unit on the
stand.
Doing so may result in injury.
Use the joining screws to secure the
unit to the stand.
Failure to do so may result in falling of the
unit, leading to injury.
NOTICE Never install this unit in any of the following situations, as it could result in damage:
Places where the installation surface is unstable or not level.
Places with excessive electrical noise.
Places with excessive humidity or dust.
Places with poor ventilation, because the CX-500/400/300 generates considerable heat during operation.
Places with excessive vibration.
Release the caster locks for the
stand before attempting to move.
Otherwise the unit may tip over and cause
injury.
Install in a level and stable location.
Otherwise the unit may tip over and cause
injury.
For an explanation of how to assemble the unit and the stand (PNS-502/402/302), refer to the “ASSEMBLY INSTRUCTIONS”
included with the stand.
When using the unit while mounted on a stand, be sure to ensure a
sufficient amount of installation space for the unit. The required installation spaces for each model are listed below.
CX-500 : 1200 mm (47-1/4 in.) high, 1700 mm (66-15/16 in.) wide,
and 900 mm (35-7/16 in.) depth
CX-400 : 1200 mm (47-1/4 in.) high, 1500 mm (59-1/16 in.) wide,
and 900 mm (35-7/16 in.) depth
CX-300 : 1200 mm (47-1/4 in.) high, 1250 mm (49-1/4 in.) wide,
and 900 mm (35-7/16 in.) depth
The material moves while cutting is in progress. Objects which may
obstruct material movement must not be placed within 60 cm (23-5/8 in.)
to the front or rear of the unit.
600mm
(23-5/8 in.)
600mm
(23-5/8 in.)
Page 6
6
3-2 Connection
Ground the unit with the ground
wire.
Failure to do so may result in risk of
electrical shock in the even of a mechanical
problem
Do not use with any electrical power
supply that does not meet the
ratings displayed on the unit.
Use with any other power supply may lead
to fire or electrocution.
Use only with the power cord
included with this product.
Use with other than the included power cord
may lead to fire or electrocution.
NOTICE Be sure to use a shielded USB cable. Do not interpose a hub in the USB cable.
It is possible to use the CX-500/400/300 with it connected by both cables at the same time. Data is received
with the port to which data is sent first taking priority. When cutting using the data received first is completed,
data from the other port is received.
Securely connect the power cord, computer I/O cable and so on so that they will not be unplugged and cause
failure during operation. Doing so may lead to faulty operation or breakdown.
USB
connector
Parallel connector
(Centronics)
Power
connector
Power outlet
Cable clamp
Push it into the
hole of the stand.
Power cord
USB cable
Parallel interface cable
(Centronics)
Page 7
7
3-3 Turning on the Power
Use the switch at the front-right surface of the unit to turn on the power.
3-4 Installing and Setting Up the Driver
The included Roland Software Package CD-ROM contains softwares such as a driver. Refer to the included Startup Manual and
install it on your computer.
Page 8
8
4 Basic Operation
Roll material must be placed at a
predetermined shaft position.
Failure to do so
may result in
falling of the roll,
leading to injury.
4-1 Loading the Material (Roll Material)
Acceptable Material Width and Maximum Cutting Width
Acceptable material widths Maximum cutting area
CX-500 Min.90 mm (3-1/2 in.) Max.1372 mm (54 in.) 1195 mm (47 in.)
CX-400 Min.90 mm (3-1/2 in.) Max.1178 mm (46 in.) 1000 mm (39 in.)
CX-300 Min.50 mm (2 in.) Max.915 mm (36 in.) 737 mm (29 in.)
( 50 to 540 mm (2 in. to 21 in.) , 582 to 915 mm (23 in. to 36 in.) )
There is no special restriction on length (vertical dimension), as long as it is 200 mm (7-7/8 in.) or more.
You can also use flat material such as standard-size and piece material. For more information, see “5-4 Loading Flat Material
(Standard-size Material, Piece Material, Etc.).”
The grit rollers (pinch rollers that secure the material) vary from one model to another, and settable ranges are determined for the left
and right movable pinch rollers. See “Material Loading Position” on the following page.
Setting a pinch roller outside the allowed range causes an error message to appear.
To cut off a piece of material with the separating knife, load the media within the range shown below.
Loading media outside this range may make it impossible to cut off the material with the separating knife.
13 mm (1/2 in.) from the edge
of the leftmost grit pattern
37 mm (1-7/16 in.) from the edge
of the Rightmost grit pattern
Separable range
Page 9
9
Shafts Shafts
less than 72 mm
Shafts
When using a thick
roll of material
When only a small amount of material
remains (material diameter is 72 mm
(2-7/8 in.) or less)...
No good
Sheet Loading Lever
Sheet
hanger
Sheet
hanger
Brake
Shafts
Stopper
Loading Roll Material
* When performing lengthy cutting of 1.5 m (60 in.) or more, please refer to the section “5-3 To
Perform Lengthy Cutting” that follows this one.
For information on how to install the sheet hanger, shaft, brake, and stoppers, please refer to the “ASSEMBLY INSTRUCTIONS”
for the PNS-502/402/302 (the stand for the CX-500/400/300).
1
Mount the shaft at the location on the sheet hanger shown in the figure to match the outer diameter of
the rolled material. If mounted at an incorrect position, the roll may fall.
2
Place the rolled material on the shaft.
3
Lower the sheet loading levers and raise the pinch rollers.
Release the brake and pass the end of the material between
the pinch rollers and the grit rollers so that it extends from
the front of the unit. You can easily load the material so
that it is straight by pulling out the material until it is in
line with the upper and lower guideline marks.
Performing high-speed cutting when only a little roll material remains may cause the
roll to fall off the shaft. If this happens, it may help to pass the shaft through the roll.
Page 10
10
4
Position the material so that its right edge lies over any of the grit patterns of the rightmost grit roller and its left edge
simultaneously lies over any other grit roller.
Grit roller
Material
Grit roller (Right)
Sensor
With the material set in
place, make sure the
grit rollers are
positioned correctly.
Load the material so that
it lies over the sensor on
the platen.
6 in.(approx.
152 mm)
12 in. (approx. 305 mm)
18 in. (approx. 457 mm)
24 in. (approx. 610 mm)
30 in. (approx. 762 mm)
36 in. (approx. 914 mm)
48 in. (approx. 1219 mm)
54 in. (approx. 1372 mm)
The right-hand movable pinch roller can be moved within this range.
When loading material with a width other than one indicated above,
move the right-hand movable pinch roller.
(1*) Position of the pinch roller (middle) when using material with a width of 30 in. or 36 in.
(2*) Position of the pinch roller (middle) when using material with a width of 48 in. or 54 in.
: Grit Roller
: Movable Pinch
Roller (Left)
: Movable Pinch
Roller (Right)
: Movable Pinch
Roller (Middle)
(1*)
(2*)
* Make sure the pinch rollers are positioned above the grit pattern.
54 in. (approx. 1372 mm)
Material
CX-500
Material Loading Position
Material
with a
width of 48 in.
and 54 in.
Material
with a
width of
36 in.
Material
with a
width of
30 in.
Material
with a
width of
24 in.
Material
with a
width of
12 in.
Material
with a
width of
6 in.
Material with
a width of
18 in.
Page 11
11
(1*) Position of the pinch roller (middle) when using material with a width of 30 in. or more.
(1*)
46 in. (approx. 1178 mm)
6 in.(approx.
152 mm)
12 in. (approx. 305 mm)
18 in. (approx. 457 mm)
24 in. (approx. 610 mm)
30 in. (approx. 762 mm)
36 in. (approx. 914 mm)
46 in. (approx. 1178 mm)
Material
CX-400
Material Loading Position
: Grit Roller
: Movable Pinch
Roller (Left)
: Movable Pinch
Roller (Right)
: Movable Pinch
Roller (Middle)
The right-hand movable pinch roller can be moved within this range.
When loading material with a width other than one indicated above,
move the right-hand movable pinch roller.
Material
with a
width of 36 in.
and 46 in.
Material
with a
width of
30 in.
Material
with a
width of
24 in.
Material
with a
width of
12 in.
Material
with a
width of
6 in.
Material with
a width of
18 in.
* Make sure the pinch rollers are positioned above the grit pattern.
Page 12
12
Material with
a width of
6 in.
6 in.(approx.
152 mm)
12 in. (approx. 305 mm)
18 in. (approx. 457 mm)
24 in. (approx. 610 mm)
30 in. (approx. 762 mm)
* The CX-300 has no middle pinch roller.
* Acceptable material widths
50 to 540 mm (2 in. to
21 in.), 582 to 915 mm
(23 in. to 36 in.)
Material with
a width of
12 in.
: Grit Roller
: Movable Pinch
Roller (Left)
: Movable Pinch
Roller (Right)
Material with
a width of
18 in.
Material with a
width of 24 in.
and 30 in.
and 36 in.
36 in. (approx. 915 mm)
Material
CX-300
Material Loading Position
The right-hand movable pinch roller can be moved within this range.
When loading material with a width other than one indicated above,
move the right-hand movable pinch roller.
* Make sure the pinch rollers are positioned above the grit pattern.
Page 13
13
Pinch roller (right)
Guide-line marks
Sheet loading lever
Material
Material
Rear View
5
Load the material so that it lies straight and is aligned with the guideline marks, then move the left and right pinch rollers so
that they are above the grit rollers.
Position the middle pinch roller over the grit roller that lies between the left- and right-hand pinch rollers.
If the pinch rollers do not move smoothly, try moving them by grasping near the base of the sheet loading lever at the back of
the unit. Load the material so that it is straight. If the material is crooked, straight material feed cannot be performed.
* The CX-300 does not have a middle pinch roller.
Screws
Brake
Roll material
6
Lift the sheet loading lever.
The pinch rollers are lowered and the material is
secured in place.
When using a material which is narrower than 762 mm
(30 in.), do not lower the middle pinch roller.
7
Position the stoppers so that they lightly touch the
edges of the roll and secure in place by tightening the
screws so that the rolled material does not move from
side to side during material feed.
Position the pinch rollers over
the material, near the edges.
Page 14
14
Pin
Blade holder
SELECT SHEET
ROLL PIECE
W1195mm L____mm
Change Pinch
Roller Position
8
Use the [ ] and [ ] keys to select [ROLL], then
press the [ENTER] key.
For more information about selecting material, see “52 Details of the Origin-point Location and Cutting
Area.”
9
The SETUP LED lights up, and the horizontal width
of the material is detected and shown on the display.
If a pinch roller is positioned over an area where there is no grit roller, the message
shown at right appears when you press the [ENTER] key.
If this occurs, lower the sheet loading levers and move the pinch rollers to the
proper positions above the grit rollers.
Reposition the material to match this new alignment, then lift the sheet loading
levers to hold the material in place.
When using roll material, before you perform cutting you need to pull out the
required length of material from the roll.
For more information, refer to “Material Test Feed” in “4-5 Starting Cutting”.
4-2 Installing a Blade
Do not touch the tip of the blade
with your fingers.
Doing so may result in injury, and the
cutting performance of the blade will be
impaired.
Be sure to support the tool mounting screw from below when installing the blade holder. If installed without
supporting the screw in this way, the blade tip may strike the blade protector, damaging the blade or blade
protector and impairing cutting quality.
NOTICE
1
Insert the pin into the blade holder.
2
Tighten the cap all the way.
Page 15
15
Blade Holder
Blade
Tool carriage
Loosen
Tool securing screw
Tighten
3
Insert the blade.
4
(1) Loosen the tool securing screw on the tool
carriage.
(2) Support the tool securing screw from below and
install the blade holder. Insert the blade holder
until the collar is flush with the carriage.
(3) Tighten the tool securing screw until the blade
holder is secured in place.
When you're using general sign material, use with the cap tightened all the way to the top (maximum amount of blade
extension: 2.5 mm). When cutting material whose carrier paper is thin with respect to the adhesive layer (that is, the
material thickness), or when performing half-cutting for material with no carrier paper, adjust the blade tip so that the
tip does not pierce the carrier paper. For more information, see “5-1 Detailed Cutting-condition Settings.”
4-3 Adjusting the Blade Force and Cutting Speed
Before carrying out actual cutting, you may wish to perform a "cutting test” to check whether the unit produces the cutout satisfactorily.
The cutting test should be repeated until the appropriate cutting conditions for the material in use are discovered.
Cutting T est
1
Use the [ ], [ ], [ ] and [ ] keys to move the tool
carriage to the place where the cutting test is to be performed.
• Note that an area of approximately 2 square centimeters
(a little less than a square inch) is required to make a test
cutout (given that the tip of the cutter after it has moved
is at the origin at lower-left).
2
Press the [TEST CUT] key for 0.5 seconds or more. After
prefeeding once, cutting test starts.
The resulting cutouts will then appear as illustrated.
(Position of the tool
installed in step 1)
A cutting test (and prefeeding) are not possible immediately after you have used [SELECT SHEET] to choose [R-EDGE].
Use the [
] key to feed the material several centimeters (1 or 2 inches) toward the rear, then execute the cutting test.
You use [R-EDGE] when you are performing front loading. For more information, refer to "5-6 Front Loading."
Page 16
16
Blade Force
DOWN UP
50cm/s
0.250mm 50gf
3
Check the state of cutting.
(1) Peel off the round section (marked by ).
When it can be peeled by itself, without disturbing the
square (marked by ), the cutter force is set
appropriately.
(2) Remove the square section (marked by ).
The optimum blade pressure is correct if you can clearly
make out the lines left by the blade.
For Materials with a Strong Adhesive Layer
If you are using a material with a strong adhesive layer, the adhesive layer may adhere to itself immediately when cut. This
means that even though the material has actually been cut, it may appear as if it has not been cut, and blade force may
mistakenly be set too high.
If a cutting test shows that the material peels easily and the blade traces on the carrier paper are optimal, then the
material is being cut. Take care not to set the blade force excessively high.
Adjusting the Blade Force
Examine the result of the cutting test and adjust the blade force accordingly.
Setting range: 20 to 350 gf
(in increments
of 10 gf)
After using the control panel to set the blade force, if you want to raise or lower the blade force slightly, you can use the [PEN
FORCE] slider to make fine adjustment.
Move the slider to the right or left to gradually raise or lower the blade force and set it at an appropriate value.
The range of the fine adjustment using the [PEN FORCE] slider is within 30 gf up or down from the value set with the control panel.
When using the control panel to set the blade force, move the [PEN FORCE] slider to its center (default) position.
Blade force
1
Set the [PEN FORCE] slider at the center (default)
position.
2
Press the [FORCE] key to display the message at right.
3
Then use the [ ] and [ ] keys to change the
numerical value, and press the [ENTER] key to enable
the setting.
Page 17
17
• Some parts of the sheet remain uncut. • Cutting takes a long time.
Blade force
• The material peels during the cutting.
• The cutter requires frequency replacement.
• Cutting extends through the base paper, and normal
advancing of the sheet becomes impossible.
• The blade protector is damaged.
Too large
Too small
Cutting-speed
• Uncut areas remain in places.
• The cut depth differs according to the location
(nonuniform cutting depth).
• The material peels.
• The cut shape is distorted.
Too fast
Too slow
W 146mm L___mm
372mm
50cm/s
0.250mm 30gf
Adjusting the Cutting Speed
Examine the results of the cutting test and adjust the cutting speed accordingly.
1
Press the [SPEED] key to make the right appear on the
display.
Setting range: 1 to 85 cm/s
(settable in
increments of
1 cm/s)
Cutting-speed adjustment
2
Use the [ ] and [ ] keys to adjust the value, then
press the [ENTER] key to enable the setting.
Incorrect cutting conditions may cause symptoms such as those described below.
4-4 Setting the Origin Point
With the CX-500/400/300, you can set the location where cutting starts (the origin point) at any position.
If the default origin point in effect just after you perform setup by loading material and pressing the [ENTER] key is acceptable, then
there is no need for you to explicitly set the origin point.
Setting the origin point at the point you want on the material lets you start cutting at any location you like, which can help reduce
wasted material.
1
Press the [ ], [ ], [ ] and [ ] keys to move
the blade to the location where you want to set the
origin point.
2
Hold down the [ORIGIN] key for 0.5 seconds or
longer.
Page 18
18
AREA MOVE
1.0m
AREA MOVE
1.0m 2.0m
AREA MOVE
START
4-5 Starting Cutting
Material Test Feed
Perform test feed beforehand to ensure that the roll material is not pulled with undue force during cutting.
If the roll material is pulled with undue force during cutting, a motor error may occur, or the position may be displaced. Test feed can
also be performed to make sure that the loaded material is straight.
Using the [AREA MOVE] feature makes it simple to perform test feed for the required portion.
1
Make sure the brake is released.
2
Press the [MENU] key to enter the menu mode, then
press the [
] key several times until the screen shown
at right appears.
3
Press the [ ] key to move to the setting screen, then
use the [
] and [ ] keys to make the setting for the
required material length.
In the cutting data, set a length that is about 0.1 m
longer than the required material length.
(Set the length for the value indicated by “
”. “ ”
signifies material feed toward the front, and “
”
signifies material feed toward the back. “
” is used
when front loading is employed. For more information, see “5-6 Front Loading.” )
4
Press the [ENTER] key. The screen changes to the one
shown at right. Pressing the [ENTER] key once more
feeds out the set length of material.
If the material is crooked and looks like it might come
loose from the pinch rollers, press the [PAUSE] key,
then hold down the [ENTER] key for 0.5 seconds or
longer to stop material feed. Reload the material.
5
Press the [ ] key to exit the menu mode.
Use [ ] or [ ] to change the value.
Press [ENTER] once.
Press [ ] once.
Downloading Cutting Data
The unit will begin cutting when it receives cutting data sent from computer.
If the material becomes dislodged or there is a problem in operation, then immediately press the [PAUSE] key
or turn off the power switch on the right side of the machine.
NOTICE
Using the CX-500/400/300 to cut data created using a program requires the CAMM-1 driver.
The CAMM-1 driver is in the included Roland Software Package. For information on how to install it, take a look at the included
“Startup Manual.”
Set toward front
Page 19
19
CONTINUE PAUSE
STOP ENTER
50cm/s
0.250mm 50gf
To Sever the Material
With the CX-500/400/300, it is possible to cut off the material after performing cutting.
Holding down the [SHEET CUT] key for 0.5 seconds or more severs the material.
Press the [PAUSE] key.
Cutting is paused and the screen shown at right appears on the
display.
[Continue cutting]
Press the [PAUSE] key.
Cutting is resumed.
[To Terminate Cutting]
First of all, stop the flow of data being sent by the computer.
Then hold down the [ENTER] key for 0.5 seconds or longer.
Cutting stops and the display returns to the top menu.
To Change the Cutting Speed or Blade Force During Cutting
You can change the settings during cutting by pressing the [SPEED] or [FORCE] key.
You can also perform fine adjustment in blade force while cutting is in progress by using the [PEN FORCE] slider.
For information on how to do this, see “4-3 Adjusting the Blade Force and Cutting Speed.”
Pausing Cutting Operations
If you want to stop the CX-500/400/300 momentarily while it is performing cutting, follow the procedure described below.
Page 20
20
Remove the Material
Tool carriage
Tool securing screw
Blade holder
Press the push-pin
Blade
4-6 When Cutting is Completed
When not in use for extended
periods, unplug the power cord from
the electrical outlet.
Failure to do so may
result in danger of
shock, electrocution,
or fire due to
deterioration of the
electrical insulation.
Do not leave the tool securing screw tightened. Tightening the screw makes it more difficult to install the
blade holder.
Do not leave the machine with the pinch rollers lowered. The rollers may deform, making normal material
feed impossible.
NOTICE
1
Lower the sheet loading levers and remove the
material.
2
(1) Loosen the tool securing screw on the tool
carriage.
(2) Remove the blade holder from the tool carriage.
3
Press the push-pin and remove the blade from the
blade holder.
If a blade was used, wipe the blade with a soft cloth to
remove any material that may cling to it.
Page 21
21
POWER/ERROR LED goes out
4
Turn off the power.
Page 22
22
Amount of cutter
Blade extension
Max. : 2.5 mmMin. : 0 mm
Material
portion
Holder
Blade
Carrier-paper
portion
1/2 of the
carrier paper
Amount of blade
extension is
approximately equal to
cutting-in amount
OFFSET
0.250mm
5 Advanced Operation
5-1 Detailed Cutting-condition Settings
Adjusting the Blade Extension
When you want to perform accurate and fine adjustment of the cutting-in amount, such as when cutting material with thin carrier
paper or when performing half-cutting of material having no carrier paper, you can obtain good results by adjusting the tip of the
blade.
Each indicator tick corresponds to 0.1 mm, and adjustment for
0.5 mm can be made by rotating the cap one full turn.
Turn the cap portion to adjust the amount of blade
extension, which is approximately equal to the cutting-in
amount.
Setting the blade force slightly higher than normal
achieves a stable cutting-in amount.
[Rough Estimate for the Amount of Blade
Extension]
Use the following dimension as a rough estimate for setting
the amount of blade extension.
Amount of
blade
extension
=
Thickness of
the material
portion
+
2
Thickness of
the carrier paper
Adjusting the Blade Offset
The blade offset is determined according to the blade. The included blade is designed to cut correctly at a setting of 0.25 mm, but
adjustment may be required when using another type of blade. For information about the optimal offset for each blade, see “6 About
the Blades and Materials.” Good results can also be obtained by performing fine adjustment of blade offset according to the material.
1
Press the [MENU] key to enter the menu mode,
then press the [
] key several times until the
screen shown at right appears.
Page 23
23
CB
A
UPSPEED
50cm/s
OFFSET
0.250mm 0.275mm
Setting range: 0 to 1.000
mm (in
increments
of 0.025
mm)
Blade-offset adjustment
2
Press the [ ] key to move to the setting screen, then
use the [
] and [ ] keys to enter the offset value.
3
Press the [ENTER] key to enable the offset value.
4
Press the [ ] key to exit the menu mode.
Evaluating the Offset Through a Cutting Test
The remaining cross-shaped area is used to check whether the
offset value is set correctly.
• When the offset value has been correctly set, the corners of
the figure should appear cleanly cut as shown in A of the
figure right.
• If the offset value is too small, the corners will appear
slightly rounded as illustrated by B; an offset value which is
too large will result in a cut figure similar to C.
When you are adjusting the blade offset, we recommend first adjusting the blade force and the amount of blade extension.
Changing the Speed When Raised (Up Speed)
With the CX-500/400/300, you can set the speed for movement to the next cutting location with the tool raised while cutting is in
progress.
In cases such as when the material rises up over the platen and the surface of the material is damaged by the blade when the material
moves forward and backward while the tool is raised, you can avoid problems by lowering the speed.
1
Press the [MENU] key to enter the menu mode.
2
Press the [ ] key several times until the screen shown
at right appears.
Page 24
24
QUALITY
NORMAL HEAVY
HEAVY NORMAL HI-SPEED
Emphasis
on Quality
Priority
on Speed
• When you want
cutting to be as
attractive as possible
• When heavy material
is loaded
• When you want to cut
as rapidly as possible
(used together with
cutting speed)
QUALITY
NORMAL
UPSPEED
50cm/s 40cm/s
QUALITY
NORMAL HEAVY
Setting range:1 to 85 cm/s
(in increments of 1
cm/s)
Adjusting the Up Speed
3
Press the [ ] key to move to the setting screen, then
use the [
] and [ ] keys to enter the up speed.
4
Press the [ENTER] key to enable the up speed.
5
Press the [ ] key to exit the menu mode.
Settings for Cutting Quality
You can select whether speed is given priority in cutting, or whether cutting quality is emphasized.
This is also effective in preventing misalignment and motor errors when cutting heavy material.
1
Press the [MENU] key to enter the menu mode.
2
Press the [ ] key several times until the screen shown
at right appears.
Setting range:NORMAL,
HEAVY, HISPEED
Adjusting Cutting Quality
3
Press the [ ] key to move to the setting screen, then
use the [
] and [ ] keys to select the cutting quality.
4
Press the [ENTER] key to enable the cutting quality.
5
Press the [ ] key to exit the menu mode.
Page 25
25
5-2 Details of the Origin-point Location and Cutting Area
The Location of the Origin Point Immediately After Loading Material
With the CX-500/400/300, the initial origin point is determined when you load material and press the [ENTER] key. The origin point
that is initially determined when you press the [ENTER] key differs according to the selection made for [SELECT SHEET] with the
operation panel when loading material.
[ROLL] Set near the left-hand pinch roller
[PIECE] Material size is detected and the origin is set at the lower-left area of the material
[F-EDGE] Set at the front left edge of the material
[R-EDGE] Set at the inner left edge of the material (When using the “Front loading”)
For more information, see the following page.
* When [AXIS ROTATE] is set to [90deg], the initial origin point is set at the lower right with the X and Y axes rotated 90 degrees.
Page 26
26
(0.0)
Depends on length
when loaded
Material
Pinch Roller
Margin
The Location of the Origin Point Immediately After Loading Material (When [AXIS ROTATE] is set to [0deg])
“ROLL” (When using roll material)
The origin point is set at the location where the material is
loaded, near the left pinch roller.
(0.0)
25 mm
(1 in.)
30 mm
(1-3/16 in.)
Material
Pinch Roller
Margin
“PIECE” (When using flat material)
After length in the direction of material feed is detected,
movement 25 mm back from the front edge of the material
is performed, and the origin point is set near the left pinch
roller.
* When the length of the material is 1,600 mm (63 in.) or
longer, the material is determined to be roll material.
The origin point is set in the same way as for “ROLL”
above.
(0.0)
25 mm
(1 in.)
Material
Pinch Roller
Margin
“F-EDGE” (When performing cutting from as close as possible to the front edge of the
material)
Set the origin point at a location having a margin of 25 mm
from the front edge of the material.
30 mm
(1-3/16 in.)
Pinch Roller
Material
(0.0)
“R-EDGE” (When using the front-loading feature)
Set the origin point at a location having a margin of 30 mm
from the trailing edge of the material.
When in this state, the cutting area is zero.
* For detailed information about the cutting area, see the following page.
Page 27
27
X
Y
Origin point
X
Y
Origin point
[0deg] [90deg]
AXIS ROTATE
0deg
AXIS ROTATE
0deg 90deg
Coordinate Rotation Settings
This rotates the cutting coordinates by 90 degrees. The default setting is at [0deg], and the origin point is set at the lower left of the
material. Setting this to [90deg] set the origin point at the lower right of the material and rotates the text (or graphics) by 90 degrees.
* Note that the coordinate axes change when rotated. Make the settings to match the program you're using. (When you are perform-
ing output using the CAMM-1 driver, set this to [0deg].)
When rotated 90 degrees, the X axis, Y axis, and origin point change as follows.
1
Press the [MENU] key to enter the menu mode, then
press the [
] key several times until the screen shown
at right appears.
2
Press the [ ] key to move to the setting screen, then
use the [
] and [ ] keys to select [0deg] or [90deg].
3
Press the [ENTER] key to enable the coordinates.
Press the [
] key to exit the menu mode.
Page 28
28
CX-500
CX-400
CX-300
1195 mm (47 in.)
1000 mm (39 in.)
737 mm (29 in.)
24998 mm
(984-1/8 in.)
10 mm
30 mm
(1-3/16 in.)
25 mm (*)
(1 in.)
Initial cutting coordinate
origin point (0,0)
Movable Pinch
Roller (Left)
Pinch roller (right)
1 mm
15 mm
Material
Cutting area
The pairs of allows
indicate the positive
direction along the X
and Y axis.
Brake
About the Cutting Area
The cutting area along the horizontal plane (the direction in which the tool carriage moves) is determined by the position of the pinch
rollers. The workable area spans the length between the two rollers, minus a margin of about 1 mm (about 0.04 in.) on both sides.
If the material length is greater than 1,600 mm (63 in.) when a flat material has been loaded, the CX-500/400/300 determines it to be
a rolled material and sets the material length to 24,998 mm (984-1/8 in.). Also, when loading flat material (that is, when [PIECE] has
been selected), a piece of material that is about 100 mm (3-15/16 in.) longer than the vertical size of the cutting data is required.
* When you select [F-EDGE] or [PIECE],
this is 25 mm. When you select [ROLL],
everything toward the front from the
origin point is the margin. (See “The
Location of the Origin Point Immediately
After Loading Material” elsewhere in this
section.) When you have separated the
material using the [SHEET CUT] key,
this is the value set for [MARGIN] at the
[AUTOCUT MENU]. Refer to “7-3 List of
Functions.”
When performing material feed or cutting, be sure to release the brake.
Attempting to perform material feed or cutting with the brake engaged may make normal feed impossible and
cause the material to slip and cause a motor error.
NOTICE
The longer is the cut material, the greater are the chances that the material will become crooked or come loose. This means that it is
important to load the material straight, make sure the margins are wide enough, and perform test feed to check the material feed.
The high-accuracy sheet hanger and brake on this machine can minimize crookedness of material.
Have on hand a piece of material that's at least 50 mm (2 in.) wider than the cutting width.
The chance of the material slipping loose from the pinch rollers can be reduced by braking the shaft and loading the pulled-out
material while it's in a tensioned state, which lets you load the material straight. Follow the steps below to load the material.
5-3 To Perform Lengthy Cutting
1
Place the rolled material on the shaft and engage the
brake for the shaft.
Page 29
29
Guide lines
25 mm
(1 in.)
or more
25 mm
(1 in.)
or more
Brake
Roll material
Screws
Brake
2
Pull out the material from the roll and pass it through
the unit.
Stretch taut, with no slackness.
3
Position the left- and right-hand pinch rollers as shown in the figure.
Position the middle pinch roller over the grit roller that lies between the left- and right-hand pinch rollers.
4
While keeping the material stretched taut, raise the
sheet loading lever to secure the material in place.
When using a material which is narrower than 762 mm
(30 in.), do not lower the middle pinch roller.
5
Position the stoppers so that they lightly touch the
edges of the roll, and secure in place by tightening the
screws.
6
Release the brake.
Page 30
30
Pass the material
SELECT SHEET
ROLL PIECE
W 500mm L1000mm
7
Use the operation panel as follows to perform test feed for the material. The material is fed out by the set length. Make sure
the material is not crooked.
If the material is crooked and looks like it might come loose from the pinch rollers, press the [PAUSE] key, then hold down
the [ENTER] key for 0.5 seconds or longer to stop material feed. Reload the material.
Press [ENTER].
Press [MENU].
Press [ ].
Press [ENTER].
Press [ ] or [ ]
to select [ROLL].
Set at the length
of the material
to cut plus
0.1 m (0.33 feet).
Press [ENTER].
Press [ ] or [ ] to change the value.
Press [ ].
SELECT SHEET
ROLL PIECE
AREA MOVE
1.0m
AREA MOVE
1.0m 1.0m
AREA MOVE
START
AREA MOVE
1.0m 5.0m
W 500mm L____mm
5-4 Loading Flat Material (Standard-size Material, Cut
Material, Etc.)
In addition to roll material, you can also load flat material such as piece material on this machine.
If the material strikes the shaft during cutting, remove the shaft.
1
Lower the sheet loading levers and pass the material
between the pinch rollers and the grit rollers.
2
Follow steps 4, 5, and 6 of “4-1 Loading the Material
(Roll Material)” to load a piece of material.
3
Use the [ ] and [ ] keys to select [PIECE], then
press the [ENTER] key.
4
The tool carriage will move from side to side and the
material will move forward and backward to detect the
size of the material.
When sensing ends, the display shows the loaded
material size.
* For more information about the cutting area, see “5-
2 Details of the Origin-point Location and Cutting
Area.”
Page 31
31
REPLOT
START
REPLOT
START START
REPLOT
START CLEAR
Change Pinch
Roller Position
If a pinch roller is positioned over an area where there is no grit roller, the
message shown at right appears when you press the [ENTER] key.
If this occurs, lower the sheet loading levers and move the pinch rollers to the
proper positions above the grit rollers.
Reposition the material to match this new alignment, then lift the sheet loading
levers to hold the material in place.
When detecting the material size in step 4, if the material is misaligned and looks like it might come loose from the pinch rollers, or
actually does come loose, please reload the material.
5-5 Repeating the Same Cutting
The “Replot” feature allows you to create numerous copies of same cutting.
1
Press the [MENU] key to enter the menu mode, use
the [
] key to select [REPLOT], then press the [ ]
key to display the replot execution screen.
2
Pressing the [ENTER] key starts replotting.
The Replot function calls up all data in the data buffer and performs cutting with this data. When performing replotting, follow the
steps below to delete the data in the data buffer before send the data to be replotted from the computer.
1
Carry out step 1 above.
2
Use the [ ] and [ ]keys to select [CLEAR] and
press the [ENTER] key to delete the data in the data
buffer.
3
Use the [ ] key to leave the menu mode.
Page 32
32
5-6 Front Loading
You can use the front-loading feature of the CX-500/400/300, which lets you load roll material at the front of the machine, by
installing the sheet hanger on the front.
Installing the Sheet Hanger
Install the sheet hanger on the front of the machine.
For an explanation of how assemble the unit and the stand
(PNS-502/402/302), refer to the “ASSEMBLY INSTRUCTIONS” included with the stand.
Loading Material
1
Refer to “4-1 Loading the Material (Roll Material)”
and load the material.
2
At [SELECT SHEET], select either [ROLL] or [REDGE]. Do not select [F-EDGE].
3
Follow the steps in “Setting the Origin Point” in the
next section to set a new origin point. In particular, not
that if you have selected [R-EDGE], cutting cannot be
performed unless you set a new origin point.
You cannot perform a cutting test immediately after you have selected [R-EDGE]. Use the [ ] key to feed the material
several centimeters (1 or 2 inches) toward the rear, then execute the cutting test. There is no particular need to set the
origin point.
Page 33
33
Pinch Roller
No cutting area
Pinch Roller
Front View
When “ROLL” is selected When “R-EDGE” is selected
Material
Material
Cutting area
30 mm (1-3/16 in.)
Depends on length
when loaded
(0.0)
30 mm
(1-3/16 in.)
(0.0)
AREA MOVE
1.0m
AREA MOVE
1.0m 0.5m
Setting the Origin Point
If you are using front loading, then when you make the setting for [SELECT SHEET] when loading the material, select either
[ROLL] or [R-EDGE]. The origin-point location and the area where cutting is possible are as shown below. (The figure shows the
case where [AXIS ROTATE] is set to [0 deg].)
The material is fed toward the front of the machine as cutting proceeds. The area where cutting is possible is to the rear of the origin
point. Even when set to [R-EDGE] or [ROLL], it is necessary to feed the material toward the rear and then set a new origin point to
make the required cutting area available.
When you are using front loading, the [AREA MOVE] feature can be a handy way to make the required cutting area available.
[ROLL] Set near the left-hand pinch roller
[R-EDGE] Set at the inner left edge of the material
1
Make sure the brake is released.
2
Press the [MENU] key to enter the menu mode.
3
Press the [ ] key several times until the screen shown at right appears.
4
Press the [ ] key to move to the setting screen, then use the [ ] and
[
] keys to set the required material length for cutting. Set a value that is
about 0.1 m longer than the required material length in the cutting data. (If
you are performing front loading, set the length to the value indicated by
the “
”. “ ” signifies material feed toward the front, and “ ” signifies
material feed toward the back.)
Set toward rear
AREA MOVE
START
5
Press the [ENTER] key. The screen changes to the one shown at right.
Pressing the [ENTER] key a second time feeds the set length of material
toward the rear of the machine. After material feed, the new origin point is
automatically set at the lower left of the cutting area made available.
6
Press the [ ] key to exit the menu mode. If the material is crooked and
looks like it might come loose from the pinch rollers, or actually does
come loose, please reload the material.
Page 34
34
W 500mm L____mm
250mm
In addition to the preceding method, you can also set the origin point by using the
[
] and [ ] keys to feed out the required length of material to the rear of the
machine, then pressing the [ORIGIN] key. At this time, the fed-out length appears
on the display as shown at right.
For more information, see “4-4 Setting the Origin Point.”
If You Are Using with the CAMM-1 Driver
As was explained in the previous section, when you're using front loading you need to take action to make the cutting area available,
but when you're using the CAMM-1 driver you can perform this automatically.
Open the CAMM-1 driver Properties window, click the [Options] tab, then select [Feed material before cutting]. Also, go to
the [Size] tab and make the setting for [Cutting Area]. The cutting area of the size you set here is made available.
Load material, then choose either [ROLL] or [R-EDGE].
When you send cutting data from the computer, the material is fed toward the back without any cutting or printing performed.
A new origin point is set and the cutting area is made available automatically. Cutting then starts.
When cutting finishes, the tool returns to the origin point. When you send the next set of cutting data, leave the location of
the tool unchanged.
1
2
3
4
The tool position when cutting starts is used as the point of origin for automatically making the cutting area available
using [Feed material before cutting]. It makes no difference where the origin point has been set.
This operation changes as follows according to the setting for [Cutting Origin]. Selecting [Origin] always makes the
cutting area available at the left edge. Selecting [Tool Position] makes the present tool position the point of origin not
only for the direction of material feed but for the left and right tool directions as well.
* [Tool Position] : available only Windows 95/98/Me
Tool location
at cutting start
When [Origin] is selected
When [Tool Position] is selected
cutting area
Tool location
at cutting start
cutting area
* Windows 95/98/Me only
Page 35
35
SETTING MENU
OVER CUT
DISABLE
OVER CUT
DISABLE ENABLE
1
Press the [MENU] key to enter the menu mode.
2
Press the [ ] key several times until the screen shown
at right appears.
3
Press the [ ] key to move to the overcut menu.
To set overcutting to [ENABLE], follow the steps below.
4
Press the [ ] key to move to the setting screen, then
use the [
] and [ ] keys to set to [ENABLE].
5
Press the [ENTER] key to enable the setting.
6
Press the [ ] key to exit the menu mode.
OVER CUT: DISABLE
OVER CUT: ENABLE
Cutting line
Cutting line
5-7 The Overcut Feature
This cuts an excess margin of 1 mm (0.04 in.) from the first and last line segments. This is effective when you want to finish with
angles that are especially sharp, such as when cutting thick material.
This should normally be left set at [DISABLE]. When you want to cut especially attractive corners, set it to [ENABLE]. Note that
when you are cutting small text and intricate shapes, cutting-in may occur on the portion of the material you are using, and so this
should be set at [DISABLE].
Cutting results differ as shown in the following figures depending on whether the Overcut function is disable or enable.
Page 36
36
PRESET
PRESET1
PRESET
PRESET1 PRESET1
5-8 The Preset Feature
With the CX-500/400/300, you can set and store eight types of cutting conditions for different tools and materials. You can call up
the settings simply by using the [PRESET] key.
To Store in Memory
2
Press the [MENU] key to enter the menu mode.
3
4
Press the [ ] key to move to the setting screen, then
use the [
] and [ ] keys to select the preset number
for the conditions you want to store in memory.
5
Press the [ENTER] key to enable the setting.
6
Press the [ ] key to exit the menu mode.
1
Use the display menu to make the settings for cutting conditions matched to the tool and material in use. You can set the
following five types of parameters.
Blade force : [FORCE] key
Offset : Menu mode [OFFSET]
Cutting speed : [SPEED] key
Cutting quality : Menu mode [QUALITY]
Up speed : Menu mode [UPSPEED]
Storing is now completed. When you store to a preset number, any cutting conditions already stored to the number are automatically
updated (overwritten) with the newly set parameters. If you want to keep the previous cutting conditions, store them to a different
number. You can store up to eight types of cutting conditions using the steps described above.
Press the [
] key several times until the screen shown
at right appears.
Page 37
37
PRESET1
50-0.250-50
Press [ ].
Speed - Offset - Force
PRESET1
NORMAL-50
Quality - Up Speed
Press [ ].
PRESET1 50cm/s
0.250mm 50gf
SUB MENU
FACTORY DEFAULT
PRESET
FACTORY DEFAULT
PRESET PRESET
ARE YOU SURE?
NO: YES:
Calling Up
1
Press the [PRESET] key.
2
Use the [ ] and [ ] keys to select the preset number
you want to call up. The parameters set to the selected
preset number appear on the display. You can use the
[
] and [ ] keys to confirm the set parameters.
3
Press the [ENTER] key. The preset number you
selected is called up and the display changes as shown
at right.
Deleting Settings
You can delete the stored settings for cutting conditions, returning them to their factory defaults. Please note that all preset numbers
from 1 to 8 are deleted.
1
Press the [MENU] key to enter the menu mode.
2
3
Press the [ ] key to move to the [FACTORY
DEFAULT] menu.
4
Press the [ ] key to move to the setting screen, then
use the [
] and [ ] keys to select [PRESET].
5
Press the [ ] key.
Press the [
] key several times until the screen shown
at right appears.
6
Press the [ENTER] key.
The user settings stored at preset numbers 1 through 8
are deleted and the factory-default settings are
restored.
7
Press the [ ] key to exit the menu mode.
Page 38
38
CROPMARK
BASEPOINT
0mm 0mm
5-9 The Crop Mark Feature
Use this when you are creating stickers or the like with data created using a program in which printing data and cutting data are
interlocked, and are cutting around figures that are already printed on the material.
With the CX-500/400/300, a material is always loaded parallel to the unit. This means that unless the graphics to be cut have been
printed parallel to the material, the cutting lines become shifted from the graphics, and it becomes impossible to accurately cut
around the graphics (see Figure A below).
If the printed graphics have crop marks, the positions of the crop marks can be stored in memory and used as reference points by the
CX-500/400/300. By making this setting, it becomes possible to cut around graphics with accuracy even when the graphics have not
been printed parallel to the material (Figure B).
The methods for setting crop marks are described bellow. Please refer to the figures shown above while making this setting.
Material
Material
When the crop mark setting has not been made
Crop mark: Cutting line:
B
When the crop mark settings has been made
A
Accurate cutting
around the graphic
becomes possible
Align point
Base point
Accurate cutting around the graphic
is not possible
Within 5 degrees
• The crop mark setting cannot be made if the angle of the base point and the align point is more than 5 degrees.
• Crop marks cannot be set when the [AXIS ROTATE] display menu is set to [90 deg].
Load the material (printed with a figure) and the included alignment tool (see “4-1 Loading the Material,” “4-2 Installing a Blade,”
and “5-4 Loading Flat Material (Standard-size Material, Piece Material, Etc.)”). The installation of the alignment tool is the same as
for the blade holder.
1
Press the [MENU] key to enter the menu mode.
2
Press the [ ] key several times until the screen shown
at right appears.
3
Press the [ ] key to move to the [BASEPOINT]
menu.
Page 39
39
ALIGNPOINT
0mm 0mm
CROPMARK SETTING
COMPLETED !
CROPMARK SETTING
FAILED,SET AGAIN
4
Use the [ ], [ ], [ ], and [ ] keys to move the
tool carriage to the left of the crop mark printed on the
material. Line up the alignment tool with the center of
the crop mark. After the alignment tool has been
positioned correctly, press the [ENTER] key. The
display then advances to the menu for setting the align
point.
5
Use the [ ], [ ], [ ], and [ ] keys to move the
tool carriage to the crop mark printed at the lower right
of the material. Line up the alignment tool with the
center of the crop mark. After the alignment tool has
been positioned correctly, press the [ENTER] key.
7
When the settings are successful, use the [ ] key to
quit the menu mode.
6
When the crop mark setting has been made successfully, the display shows screen (A), then returns to the
screen shown in step 2. Replace the alignment tool
with a blade. If the crop mark setting could not be
made, the display shows screen (B) before returning to
the screen shown in step 2. If this happens, reload the
material and make the setting again.
(A)
(B)
Page 40
40
6 About the Blades and Materials
6-1 Blade and Material Combinations
This section indicates the proper cutting conditions for various types of materials, as well as blade life-span. Cutting conditions
and blade life vary according to the hardness of the material and the usage environment. Making the settings for the conditions
described below does not automatically guarantee attractive cutting results in all situations. Before performing actual cutting, be
sure to carry out a cutting test and make any necessary adjustments (see “4-3 Adjusting the Blade Force and Cutting Speed”). If
the material is not cut through completely even when the blade force is increased by 50 to 60 gf more than the blade force values
shown below, it means that the useful life of the blade has ended. Replace with a new blade.
* The values for lifespan are intended to serve as a general guide when cutting materials of identical type.
* When you are cutting small text (character height of 3 mm for alphanumeric characters or more), ZEC-U3017 can produce more
attractive cutting results than other blades.
* Use the included blade under conditions equivalent to those for the ZEC-U5025.
Material
General Signage Vinyl
Polyolefin material
General Signage Vinyl
Fluorescent Vinyl
Reflective Vinyl
Polyolefin material
Rubber material for
sandblasting stencil
Signage vinyl (material
thickness 0.1 mm or
less)
Blade
ZEC-U1005
ZEC-U5025
ZEC-U1715
ZEC-U3017
Blade offset
0.25 mm (0.01 in.)
0.25 mm (0.01 in.)
0.25 mm (0.01 in.)
0.25 mm (0.01 in.)
0.25 mm (0.01 in.)
0.25 mm (0.01 in.)
0.25 mm (0.01 in.)
0.175 mm (0.007
in.)
Blade force
50 to 150 gf
100 to 200 gf
30 to 100 gf
120 to 200 gf
100 to 200 gf
70 to 140 gf
100 to 200 gf
100 gf or less
Speed
85 cm/sec.
85 cm/sec.
85 cm/sec.
85 cm/sec.
85 cm/sec.
85 cm/sec.
20 cm/sec.
85 cm/sec.
Life of a blade
(General guide)
8000 m
2500 m
4000 m
4000 m
4000 m
2500 m
Varies according
to material type
4000 m
Page 41
41
6-2 About Special Materials
[About the Separating Knife]
It may not be possible to sever some thicker materials (such as rubber sandblasting templates) or thin, flimsy materials.
Material with a strong tendency to reroll (that is, with a warp in the direction of the cutting surface) may catch on the carriage after
being cut off. Do not sever those materials with the separating knife.
[Rubber materials for sandblasting stencils which can be cut]
A) Materials with a material thickness of 1 mm (0.04 in.) or less
B) Materials with only carrier paper on both flanks of the material (Position the left and right pinch rollers above the strips of carrier
paper.)
C) Materials with carrier paper which is hard enough to withstand material feed
A) 1 mm (0.04 in.) or less
Carrier paper
Material
B) 15 mm (5/8 in.) or moreB) 15 mm (5/8 in.) or more
[Material with sprocket-feed holes]
Material for sprocket-feed use has feed holes along both
edges.
If the material is loaded with these holes lying over the pinch
rollers, material feed cannot be performed correctly.
When you are using this with the CX-500/400/300, load it as
shown in the figure.
Page 42
42
[ ] Key
[ ] Key [ENTER] Key
[ ] [ ] Key
7 Descriptions of Features
7-1 Key Operations
This describes the key operations. Refer to this together with the display-menu flowcharts on the following pages to make settings
using the menus.
Direct Keys
[PRESET] Pressing any one of these three keys displays the setting screen.
[FORCE] Use [
] and [ ] to change the setting value, then press [ENTER] to enable the setting.
[SPEED]
If you press another key without pressing [ENTER], the setting value does not change.
Menu Mode
Pressing [MENU] enters the menu mode. Key operations in the menu mode are as follows.
[
] [ ] • Moving to the previous menu screen or the next menu screen
• Selecting a setting value
• Moving the material
[
] • Moving to the setting screen
• Moving the carriage
[ ] • Moving to the previous screen (quitting the menu mode)
• Moving the carriage
[ENTER] • Executing a menu item
• Enabling a setting
Pressing the [
] key without pressing [ENTER] returns you to the previous screen without changing the setting.
Guidance for Key Operations in the Menu Mode
When you're in the menu mode, key-operation guidance appears at the right edge
of the display. The keys shown on the display at that time are used for operation.
Page 43
43
Power on
TOP MENU
[PRESET]: Preset call-up
SPEED-OFFSET-FORCE QUALITY-UPSPEED
[MENU] + Power on
Use [ ] or [ ] to select.
Press [ENTER] to enable the setting.
Use [ ] or [ ] to change the value,
and press [ENTER] to enable.
20 to 350 gf (in increments of 10 gf)
Press any key or send data.
The selected material type is displayed on the lower line.
The selected preset No. appears on the top line.
Cutting area for the loaded material (width: W, length: L)
* L is not displayed except when [PIECE] is selected.
When the cursor keys have been used to feed the material toward the rear of the machine, the display “ OO mm” appears.
When the cursor keys have been used to feed the material toward the front of the machine, the display “ OO mm” appears.
Use [ ] or [ ] to select. Press [ENTER] to enable the setting.
Use [ ] or [ ] to select. Press [ENTER] to enable the setting.
Use [ ] or [ ] to change the value,
and press [ENTER] to enable.
1 to 85cm/s (in increments of 1cm/s)
Send cutting
data.
[FORCE]: Blade force adjustment
[SHEET CUT] 0.5 seconds: This cuts off the material. * This is also available at the cutting-area display screen.
[SPEED]: Cutting-speed adjustment
Use the cursor keys to move the carriage.
Press [ORIGIN] for 0.5 seconds to set the new origin point.
[PAUSE]: This resumes cutting without change.
[ENTER] 0.5 seconds: This quits cutting.
[ ][ ][ ][ ]
[TEST CUT] 0.5 seconds: This performs a cutting test. * This is also available at the cutting-area display screen.
[ORIGIN SET] flashes.
[PAUSE]
Key operations are the same as at the top screen.
Key operations are the same as at the top screen.
[FORCE]
[SPEED]
SELECT SHEET
ROLL PIECE
SELECT SHEET
F-EDGE R-EDGE
CX-500
Roland DG Corp.
W1195mm L____mm
LOADING SHEET
ROLL
50cm/s
0.250mm 50gf
50cm/s
0.250mm 50gf
PROCESSING 50gf
0.250mm 50cm/s
50cm/s
0.250mm 50gf
50cm/s
0.250mm 50gf
50cm/s
0.250mm 50gf
PRESET1 50cm/s
0.250mm 50gf
CONTINUE PAUSE
STOP ENTER
W1195mm L____mm
100mm
W1195mm L____mm
ORIGIN SET
PRESET1
50-0.250-50
PRESET1
NORMAL-50
LANGUAGE
ENGLISH ENGLISH
7-2 Display Menus Flowchart
For details about each of the menus, see the “7-3 List of Functions”.
Page 44
44
PRESET
PRESET1
[MENU]
MENU MODE
Press [ENTER] to return to [SELECT SHEET].
Press [ENTER] to start area feed.
[ ]
[PRESET]: Initialize only preset
information.
[ALL]: Return to factory-default
settings.
mm/Inch
Adjustment of LCD contrast: 5 to 1 (5 levels)
0 to 1.000 mm
(0.025 mm step)
NORMAL/HI-SPEED/HEAVY
Press [ ] to feed toward the front of the machine or [ ] to
feed toward the rear.
24.9 m to 24.9 m (0.1 m step)
* When [DISPLAY UNIT] is set to [Inch]: 82.17 feet to
82.17 feet (0.33 feet step)
1 to 85 cm/s
(1 cm/s step)
Preset 1 to 8
This stores the settings
of the top screen to the
selected preset number.
0deg/90deg
TYPE1/TYPE2
DISABLE/ENABLE
40 to 85 cm/s (1 cm/s step)
AREA MOVE
1.0m
AREA MOVE
1.0m 1.0m
AREA MOVE
START
NOW AREA MOVING
OFFSET
0.250mm
OFFSET
0.250mm 0.250mm
UPSPEED
50cm/s
UPSPEED
50cm/s 50cm/s
QUALITY
NORMAL
QUALITY
NORMAL NORMAL
SETUP
SETUP UNSETUP
AXIS ROTATE
0deg
AXIS ROTATE
0deg 0deg
PRESET
PRESET1 PRESET1
SUB MENU
AUTOCUT MENU AUTOCUT COMMAND
DISABLE
FACTRY DEFAULT
PRESET
DISPLAY UNIT
mm
CONTRAST
5
DISPLAY UNIT
mm mm
CONTRAST
5 5
TEST PATTERN
TYPE1
TEST PATTERN
TYPE1 TYPE1
AUTOCUT COMMAND
DISABLE DISABLE
AUTOCUT SPEED
50cm/s
AUTOCUT SPEED
50cm/s 50cm/s
DEMO CUT
START
FACTRY DEFAULT
PRESET PRESET
ARE YOU SURE?
NO: YES:
Paused using [PAUSE].
Page 45
45
Use [ ], [ ], [ ], and [ ] to move the carriage.
Press [ENTER] to set.
Use [ ], [ ], [ ], and [ ] to move the carriage.
Press [ENTER] to set.
AUTO/MODE1/MODE2
DISABLE/ENABLE
DISABLE/ENABLE
DISABLE/ENABLE
ENABLE/DISABLE
START/CLEAR
-2.00 to 2.00% (0.01% step)
-2.00 to 2.00% (0.01% step)
DISABLE/ENABLE
DISABLE/ENABLE
5 to 50 mm (5 mm step)
1/2
REPLOT
START
REPLOT
START START
OVER CUT
DISABLE
SETTING MENU OVER CUT
DISABLE DISABLE
AUTO PREFEED
DISABLE
AUTO PREFEED
DISABLE DISABLE
SMOOTHING
ENABLE
SMOOTHING
ENABLE ENABLE
CALIB X
0.00%
CALIB X
0.00% 0.00%
CALIB Y
0.00%
CALIB Y
0.00% 0.00%
CROPMARK
COMMAND MENU
MARGIN
30mm
MARGIN
30mm 30mm
AUTOCUT PASSES
1
AUTOCUT PASSES
1 1
COMMAND MODE
AUTO
COMMAND MODE
AUTO AUTO
BASE POINT
0mm 0mm
ALIGNPOINT
0mm 0mm
CROPMARK SETTING
COMPLETED !
CROPMARK SETTING
FAILED,SET AGAIN
VS COMMAND
DISABLE
VS COMMAND
DISABLE DISABLE
!FS COMMAND
DISABLE
!FS COMMAND
DISABLE DISABLE
SP COMMAND
DISABLE
SP COMMAND
DISABLE DISABLE
Page 46
46
Key Function Range Default
PRESET This calls up user-set cutting conditions matched to the Preset 1 to 8 –
tool and material in use.
FORCE This sets the force for the blade during cutting. 20 to 350gf 50gf
Perform a cutting test and set the conditions to match (10gf step)
the loaded material and the installed blade.
SPEED This sets the speed for the blade during cutting. 1 to 85 cm/s 50 cm/s
Perform a cutting test and set the conditions to match (1 cm/s step)
the loaded material and the installed blade.
CURSOR These move the material and the carriage. – –
[
] [ ] [ ] [ ] When a menu is displayed, these change the menu
items and setting values.
PAUSE This pauses cutting. The PAUSE LED lights up while – –
operation is paused. Pressing this a second time
cancels the paused state. To quit cutting, hold down
[ENTER] for 0.5 seconds or longer.
This key is also effective when performing material
feed using the [AREA MOVE] menu.
MENU This enters the menu mode. – –
In the menu mode, use the [
] and [ ] keys to move
to the next menu, the [ ] key to move to the setting
screen, and the [ ] key to move to the previous
screen.
ENTER This enables, runs, or stores the item shown on the – –
display.
ORIGIN Holding down this key for 0.5 seconds or longer sets – –
the origin point at the present blade position (the blade
center).
SHEET CUT Holding down this key for 0.5 seconds or longer cuts – –
off the material at the present position of the separating
knife. Press this to sever an already-cut piece of
material from a roll of material. Severing cannot be
performed while cutting is in progress.
TEST CUT Holding down this key for 0.5 seconds or longer – –
performs a cutting test at the present blade position.
For more information, see “4-3 Adjusting the Blade
Force and Cutting Speed.”
MENU + Power on This sets the language for messages on the display.
/ ENGLISH/ ENGLISH
(LANGUAGE) You can select from among seven languages:
PORTUG / ITALIANO/
Japanese, English, Portuguese, Italian, Spanish,
ESPAÑOL / FRANÇE/
French, and German.
Deutsch
Power on This selects the type of material to use and enables the ROLL/PIECE/ –
(SELECT SHEET) setup state. For more information, see “5-2 Details of F-EDGE/R-EDGE
the Origin-point Location and Cutting Area.”
7-3 List of Functions
Control-key Functions
This describes the functions of the control keys when pressed.
Page 47
47
Description of Menu Items
This describes the items and functions available when you press [MENU] and enter the menu mode.
Menu Function Range Default
SETUP This cancels material setup (unsetup). – –
OFFSET This sets the amount of offset for the blade during 0 to 1 mm 0.250 mm
cutting. Perform a cutting test and set the conditions to (0.025 mm step)
match the loaded material and the installed blade.
When using the included blade, cutting can be
performed using the factory-default settings.
QUALITY This sets the cutting quality. Ordinarily this is left set to NORMAL/ NORMAL
[NORMAL]. When rapid cutting is desired, such as HI-SPEED/
when cutting a large material, set this to [HI-SPEED]. HEAVY
When load is large, or if the material is not cut
smoothly, or when small text is to be cut attractively,
set this to [HEAVY].
UPSPEED This sets the speed of movement when the blade is 1 to 85 cm/s 50 cm/s
raised and moves to the next position for cutting during (1 cm/s step)
a cutting operation.
PRESET It is possible to set the cutting parameters to match the Preset 1 to 8 –
blade and material, and store them for later use. Five
items can be stored: cutting speed , blade offset, blade
force, [UPSPEED], and [QUALITY]. These settings
can be stored in memory as eight patterns (numbered
1 through 8).
AXIS ROTATE This rotates the cutting coordinate origin by 90 degrees. 0deg/90deg 0deg
The default setting is [0deg], which means that the
origin is at the bottom left of the material. Setting this
to [90deg] moves the origin to the bottom right of the
material, thereby rotating the cutting pattern by 90
degrees.
* Don’t forget that the coordinate axis changes when
the origin is rotated.
AREA MOVE This moves the material by the length to be cut before 24.9 m toward the 1.0 m toward
actual cutting is performed, making it possible to front to 24.9 m the front
ensure that the material will not slip or come loose toward the rear
during cutting. When performing continuous cutting on
the same material, this can also be used to make sure
that there is enough remaining material to cut the data
that will be sent.
When you are performing front loading, this feeds the
specified length of material to the rear to ensure the
cutting area, and shifts the origin point.
You can pause or stop material feed by pressing the
[PAUSE] key during execution.
SUB MENU FACTORY Selecting [ALL] returns the settings values of the menu PRESET/ALL –
DEF A U LT items to their factory-default values.
Selecting [PRESET] returns only the cutting conditions
store in preset 1 through 8 to their factory-default
values.
DISPLAY This sets the unit of measurement used for coordinate mm/Inch mm
UNIT values shown on the display.
When you make the setting with the [AREA MOVE]
menu, selecting [mm] displays values in meters and
selecting [Inch] displays values in feet.
Page 48
48
Menu Function Range Default
CONTRAST This changes the contrast of the display. 5 to 1 5
TEST This changes the cutting-test pattern carried out when TYPE1/TYPE2 TYPE1
PATTERN you press the [TEST CUT] key.
This performs an ordinary cutting test with [TYPE 1].
For thin materials or cases where graphics are too
small to obtain good cutting results with [TYPE 1],
make the setting for [TYPE 2].
DEMO CUT This performs an operation check when the CX-500/ ––
400/300 is not working correctly.
AUTOCUT AUTOCUT This selects whether the material-cutoff command is DISABLE/ENABLE DISABLE
MENU COMMAND enabled or disabled.
When set to [ENABLE], material cutoff is performed
automatically when a material-cutoff command is sent
from the computer.
Pressing the [SHEET CUT] key performs material
cutoff regardless of whether the setting is [ENABLE] or
[DISABLE].
AUTOCUT This sets the [AUTOCUT] (material cutoff) speed. 40 to 85 cm/s 50 cm/s
SPEED Set this to a suitable speed for the loaded material. (1cm/s step)
MARGIN This sets the amount of margin from the cut edge of the 5 to 50 mm 30 mm
material for the next starting point for cutting after (5mm step)
cutting off the material.
AUTOCUT This sets the number of times material cutoff is 1/2 1
PASSES performed (once for [1] or twice for [2]). When working
with thicker material or other material that's difficult to
cut, set this to [2]. Pressing the [SHEET CUT] key once
performs material cutoff the number of times set here.
COMMAND COMMAND This selection enables the type of instructions that are AUTO/ AUTO
MENU MODE understood by the unit. You can set the unit to accept MODE1/
either CAMM-GL III mode 1 instructions or mode 2 MODE2
instructions.
When set to [AUTO], the CX-500/400/300 automatically
detects the type of instructions first received after
turning on the power, and sets itself to accept those
instructions.
To change the type of instructions, first change the
setting, then switch the power to the unit off and back
on again.
VS To perform cutting at the speed determined by a VS DISABLE/ENABLE DISABLE
COMMAND command (tool speed setting command) sent from the
computer, set this to [ENABLE]. When set to
[DISABLE], cutting is performed using the values for
[SPEED] and [UPSPEED].
!FS To perform cutting at the blade force determined by an DISABLE/ENABLE DISABLE
COMMAND FS command (tool force setting command) sent from
the computer, set this to [ENABLE]. When set to
[DISABLE], cutting is performed using the values for
[FORCE].
TYPE 1 TYPE 2
Page 49
49
Menu Function Range Default
SP This is normally set to [DISABLE] when performing DISABLE/ENABLE DISABLE
COMMAND cutting. When a tool-selection instruction (SP
instruction) is sent from the computer while this is set to
[DISABLE], the SP instruction is ignored and operation
continues without pause. When set to [ENABLE], SP
exchange instructions are accepted and operation
pauses. If tool change is needed, change the tool, then
press the [ENTER] key.
CROP MARK This is used when cutting materials with alignment – –
marks (crop marks) printed around the graphics, such
as for making stickers or seals. The crop marks are set
as reference points and correction points, enabling the
graphics to be cut with accuracy.
SETTING OVER CUT This cuts an excess margin of 1 mm (0.04 in.) from the DISABLE/ENABLE DISABLE
MENU first and last line segments.
This selection is normally set to [DISABLE], and is set
to [ENABLE] when cutting especially attractive corners
is desired. When cutting small text or intricate
graphics, however, this should be set to [DISABLE] to
avoid cutting into the material.
AUTO Set to [ENABLE] for automatic material feed at cutting. DISABLE/ENABLE DISABLE
PREFEED If this is set to [ENABLE], when cutting data is sent
from the computer, the plotter will automatically execute
cutting after a 1 m (39-3/8 in.) feed toward the front.
(Some data may cause feed over 1 m (39-3/8 in.), such
as when the next point of movement is located more
than 1 m (39-3/8 in.) to the rear.)
* If the [AREA MOVE] function is used to feed the
material in advance, the material will not be
automatically fed even when [AUTO PREFEED] is set
to [ENABLE].
SMOOTHING
If you want the curves of circles and arcs to be cut ENABLE/DISABLE ENABLE
smoothly, set this to [ENABLE]. When on, however,
small text or intricate designs may also be cut with
rounded corners. If this happens, change the setting to
[DISABLE] and perform cutting again.
CALIB X This adjusts the respective distances of the X axis. -2.00 to 2.00 % 0.00 %
Compare the actual measurements of the cutting
results with the data sent from the computer to
calculate and set the distance adjustment value.
CALIB Y This adjusts the respective distances of the Y axis. -2.00 to 2.00 % 0.00 %
Compare the actual measurements of the cutting
results with the data sent from the computer to
calculate and set the distance adjustment value.
REPLOT This cuts the data in the replot buffer. Selecting
[CLEAR] causes existing data in the replot buffer to be
deleted.
Page 50
50
8 Maintenance
8-1 Cleaning
NOTICE
Always turn off the CX-500/400/300 before cleaning it.
Never lubricate the mechanisms.
Do not clean with solvents (such as benzine or thinner).
[Cleaning the body]
Use a cloth moistened with water then wrung well, and wipe
gently to clean. Wipe the operation panel and display gently
with a clean, soft cloth.
[Cleaning the platen]
Use a cloth moistened with water then wrung well, and wipe
gently to clean.
[Cleaning the grit rollers]
With the sheet loading levers lowered and the pinch rollers
raised, use a commercially available brush to remove dust and
other detritus. Brush horizontally while rotating the grit
rollers.
If dust builds up it may prevent the material from being held
securely, and degrade plot precision.
[Cleaning the pinch rollers]
Lower the sheet loading levers and raise the pinch rollers.
Use a cloth moistened with water then wrung well, and wipe
gently to clean.
[Cleaning the blade holder cap]
If material debris is adhering to the inner surface of the cap for
the blade holder, loosen and remove the cap, then remove the
material debris.
If corners and curves are not cut attractively, or if cutting is
discontinuous, clean the blade holder cap.
Page 51
51
8-2 Consumable Items
[Blade]
If any of the following occurs, it means the blade has reached the end of its useful life.
Replace with a new blade.
• The blade tip is broken.
• Uncut areas remain even when blade force is raised 50 to 60 gf.
• Cutting traces are not as attractive as they were previously.
• When cutting details or corners, the material layer peels away from the carrier paper.
After prolonged use or cutting of hard material, the tip of the blade may become worn as
shown in the figure. Attractive cutting becomes impossible in such cases, so replace with a
new blade.
[Blade holder]
When you adjust the blade tip and carry out cutting, the cap portion of the blade holder rubs against the material as cutting is
performed, and so the end of the cap gradually becomes worn. When wear is severe, the blade tip cannot be adjusted correctly, and
attractive cutting becomes impossible. Replace with a new blade holder.
When the blade holder has been in use for a prolonged period, the bearing that supports the blade deteriorates, impeding rotation of
the blade. Continued use while in this state may make attractive cutting impossible because the blade tip cannot rotate easily.
If corners and curves are not cut attractively, or if cutting is discontinuous, refer to “8-1 Cleaning” and clean the blade holder cap. If
this does not improve the results, replacing the blade holder may bring about improvement.
[Blade protector]
If cutting is carried out when the amount of blade extension or blade force is not adjusted correctly, the blade tip may pierce the
material's carrier paper, resulting in damage to the blade protector. Performing cutting with a damaged blade protector may make
attractive cutting impossible.
When the surface of the blade protector is deformed by scratching or the like, it is necessary to replace the blade protector. Contact
your authorized Roland DG Corp. dealer. Replacement is a charged service operation.
Worn areaNew part
Page 52
52
Make sure the power to the unit is
off before attempting to replace the
separating knife.
Doing so may result in injury.
8-3 How to Replace the Separating Knife
1
Switch off the power to the CX-500/400/300.
If the separating knife, replace it with the replacement knife included with the CX-500/400/300. Follow the steps below to replace
the knife.
3
Replace with a new knife.
2
Remove the separating knife.
(1) Loosen the screw until it slips out.
(2) Grasp the screw portion, and slowly pull it out in
the direction of the arrow.
* Do not pull back while doing this.
4
Install the separating knife.
(1) Grasp the screw portion and slowly insert it into
the groove.
* Take care to ensure that the knife does not slip
(2) Tighten the screw.
Positioning groove
The knife is secured in place
by the magnet.
* If the blade remains in the carriage, use tweezers to remove it.
(2)
(1)
(2)
(1)
Page 53
53
9 If There Is a Problem
9-1 Self-test Operation Check
The CX-500/400/300 is provided with a self-test feature for verifying that operation is correct. If the CX-500/400/300 does not
operate correctly, follow the steps below to check its operation.
(No computer is required to perform an operation check.)
1
Refer to “4-1 Loading the Material (Roll Material)”
and load material.
3
4
Press the [ ] key several times until the screen shown
at right appears.
5
Press the [ ] key to move to the submenu.
6
Use the [ ] and [ ] keys to select [DEMO CUT].
Press the [MENU] key to enter the menu mode.
7
Press the [ENTER] key.
The operation check starts. Operation is correct if the
cutting shown in the figure is performed.
2
Refer to “4-2 Installing a Blade” and install the blade
holder in the tool carriage.
SUB MENU
FACTORY DEFAULT
PRESET
DEMO CUT
START
Page 54
54
9-2 What to do if...
Is the power cord connected correctly? Connect the power cord included with the CX-500/400/300 to the unit, and plug
the other end securely into an electrical outlet (see “3-2 Connection”).
CX-500/400/300 Troubleshooting
Is the CX-500/400/300 power on ? Turn on the power.
Is the CX-500/400/300 in the temporary
halt state ? Is operation paused?
If the screen shown at rights is displayed,
it means that operation is paused.
To resume cutting, press the [PAUSE] key again.
To abort cutting, first stop the flow of cutting instructions from the computer.
Then hold down the [ENTER] key for 0.5 seconds or longer.
Are the computer and the CX-500/400/
300 linked with the right cable ?
The type of cable you need is determined by your computer and the software you
are using. Even if the computer is the same, running different software may require
a different cable. Use the cable specified in your software.
Is the machine in the setup state? If the SETUP LED is not lit, cutting cannot be performed even when data is sent.
Are the settings for the software driver
correct?
Make the correct settings for the output port.
Are the computer and the CX-500/400/
300 connected correctly?
Correctly connect the computer and the CX-500/400/300 (see “3-2 Connections”
).
Is the OS set up correctly ? Check the following items:
• Output port selection • Output device selection • Other settings
Check the OS’s user’s manual and set it up correctly.
Are the application software settings
correctly ?
When specifying the output device, select the name of a model that supports the
instruction set. If the instruction set is different, completely different instructions
may be sent, resulting in an error. Settings for the output origin point and the like
may also be required.
Check the software user’s manual and set it up correctly.
Is the machine in the menu mode?
When the menu is displayed, cutting is not performed even when data is received.
Quit the menu mode.
CONTINUE PAUSE
STOP ENTER
Page 55
55
A message appears on the display
The location of one or more of the pinch rollers is not correct.
If this happens, lower the sheet loading levers and move the pinch rollers to the
proper positions above the grit rollers. Reposition the material to match this new
alignment, then lift the sheet loading levers to hold the material in place. (See “41 Loading the Material (Roll Material)”)
This is displayed when the material has been loaded at a position where the
sheet sensor does not function.
Follow the steps under “4-1 Loading the Material (Roll Material)” to load the
material so that it is positioned above the sheet sensor.
This is displayed when the material is removed after pressing the [ENTER]
key.
Load a material and press any key to cancel the error message.
Shows motor error status.
This is displayed when the CX-500/400/300 is heavily loaded, such as during a
media jam, when heavy stock is cut across a long distance without initial material
feed, or when the material is abruptly pulled from the roll during cutting.
In this case, turn the power off and back on again (if a media jam has occurred,
clear the jam before turning the power back on).
For large cutting data with a roll material, use the [AREA MOVE] function on the
display menu to feed the roll material by the length of the cut (ensure a small
margin by setting a length that is about 0.1 m longer than the cutting data).
When you are using thick material, change the [QUALITY] setting from [NORMAL] to [HEAVY]. (See “7-3 List of Functions” and refer to [QUALITY].) If
the foregoing message appears and operation stops even when you perform
cutting while set to [HEAVY], switch the power off and back on, then press
[SPEED] and set [** cm/s] to a smaller value. (See “7-3 List of Functions.”)
The machine is in standby for tool replacement.
If tool replacement is not necessary, then simply press [ENTER].
The [SP COMMAND] menu item should normally be set to [DISABLE].
Change Pinch
Roller Position
SHEET UNLOADED
LOAD AGAIN
Motor Err
00800080
Power ON Again
TOOL-CHG:TOOL No.
2
Page 56
56
Are the blade and blade holder installed
correctly and securely ?
Install these so that there is no looseness (see “4-2 Installing a Blade” ).
Cut lines are uneven or not cut attractively
Is a thick material being used? When you are using thick material, set the [QUALITY] to [HEAVY]. (Refer to “5-
1 Detailed Cutting-condition Settings”)
Has the blade holder deteriorated? Replace with a new blade holder. (Refer to “8-2 Consumable Items”)
Is the blade protector damaged? Replace with a new blade protector. (Refer to “8-2 Consumable Items.”)
Is the blade offset set correctly? Set at an appropriate value. (Refer to “5-1 Detailed Cutting-condition Settings”)
Also, depending on the program you're using, you may be able to set the offset
with the program. In such cases, make sure that the program setting does not
conflict with the machine's setting.
Is the blade chipped ? If it is, replace it with a new one (see “4-2 Installing a Blade” ).
Uncut areas remain or the material is not cut
Are blade force, blade offset, and
cutting speed appropriate for the
material being cut?
Carry out a cutting test and set the appropriate values. (Refer to “5-1 Detailed
Cutting-condition Settings” and “4-3 Adjusting the Blade Force and Cutting
Speed.”)
Are the amount of blade extension and
blade force appropriate for the material
being cut?
Adjust the amount of blade extension and the blade force appropriately. (Refer to
“5-1 Detailed Cutting-condition Settings” and “4-3 Adjusting the Blade Force and
Cutting Speed.”)
The carrier paper is cut
Is a wide material being used? When using a material with a width greater than 762 mm (30 in.), lower the middle
pinch roller at a position near the center of the material.
The material rise up during cutting, or the blade scratches the material
Is the up speed too fast? Use the menu to lower the setting for [UPSPEED]. (Refer to “5-1 Detailed
Cutting-condition Settings.”)
Are the blade and blade holder installed
correctly and securely ?
Install these so that there is no looseness (see “4-2 Installing a Blade” ).
The start and end points for cutting do not match
Are you using thick or hard material? When you are cutting thick or hard material, the start point and end point may not
match.
Are there material debris in the blade
holder?
Remove the cap from the blade holder and clean out the debris. (Refer to “8-1
Cleaning.”)
Page 57
57
Are the blank areas due to the specifications?
Mechanical limitations produce margins at the front, back, left, and right of the
material. (Refer to “5-2 Details of the Origin-point Location and Cutting Area.”)
Blank areas are produced on the material
Is the length 1.6 m (63 in.) or longer? Attempting to set up flat material having a length of 1.6 m or longer as [PIECE]
causes the material to be recognized as roll material. (Refer to “5-2 Details of the
Origin-point Location and Cutting Area.”)
Flat material cannot be set up as "PIECE" (the length is not displayed)
Is a material with sprocket holes being
used?
If a material with holes for sprocket feed is being used, placing the pinch roller
above the hole portion may cause the material to slip. Be sure to set the pinch
roller over the material to the inner side of the hole portion.
The Material slips away from the pinch rollers during the cutting process
If a flat material (such as a standard-size
material or piece material) has been
loaded, has the “PIECE” setting been
selected for the material type?
When loading the material, select [PIECE] for the [SELECT SHEET] display
menu (refer to “5-4 Loading Flat Material (Standard-size Material, Cut Material,
Etc.)”).
Is the material being cut blocked at
some position?
Make sure that the left and right edges of the material do not touch the inner
surfaces, the shafts of the CX-500/400/300 during cutting. Such contact may not
only damage the material, but could also make normal material advancing
impossible and cause the material to slip.
Is the material being cut loaded
straight?
If the front edge of the material you are working with is at an angle, cut off the
odd-shaped part to make it straight, then align it so that it is parallel with the grit
roller.
If the material is fed for a long distance, the material will be less likely to slip out
of alignment if the pinch rollers are moved inward slightly (5 to 25 mm).
When a roll material is loaded, use the display menu [AREA MOVE] function to
feed a material by the length to be used (ensure a small margin by setting a length
that is about 0.1 m longer than the cutting data), make sure the pinch rollers are
still in contact with the material (not off the left or right edges, or on the edges),
and then cut.
If the material is pulled while cutting it is more likely that material misalignment
and motor errors will occur.
Are the sheet loading levers lowered? The material is not secured in place. Make sure the left and right pinch rollers are
inside the edges of the material, then raise the sheet loading levers.
Are the pinch rollers damaged or
deformed?
If the material comes loose even when it is loaded correctly, the useful life of the
pinch rollers has ended. If this happens, contact your authorized Roland DG Corp.
dealer. Replacement is a charged service operation.
Also, when you are not performing cutting, leave the sheet loading levers lowered
and the pinch rollers raised.
Page 58
58
Er1:Command
Not Recognized
Er2:Wrong Number
of Parameters
Er3:Out of
Parameter range
Er5:Unknown
Character Set
9-3 Error Messages
An error message will appear if incoming data has any of the errors listed in table. Since the error is shown in the display for
informational purposes, the data transfer continues and you are allowed to perform the next operation.
To clear the display, press any key.
If an error occurs, correct cutting may become impossible.
The error messages that may appear on the display are described below.
In almost all cases, the cause is receiving incorrect data. For information about corrective action, go to “9-2 What to Do If...” and
refer to “CX-500/400/300 Troubleshooting.”
Error massage Meaning
Appears if an instruction that the CX-500/400/300 cannot interpret is sent. Additionally,
this error is generated if an instruction from the “mode2” set is sent when the unit has
been set to recognize “mode1,” or vice versa. Change the setting for the recognized
instruction set, using the display menu, and this error should no longer occur.
Appears if the number of parameters differs from the permissible number.
Appears if the value specified for a parameter is out of the permissible range.
Appears if an unusable character is specified.
Page 59
59
Mechanism
Driving method
Maximum cutting area
Acceptable media widths
Width of material that
can be cut off
Tools
Max. cutting speed
Cutting speed
Blade force
Mechanical resolution
Software resolution
Distance accuracy
Repetition accuracy
Interface
Buffer size
Instruction system
Switches
Control keys
LED
Display
Power consumption
Acoustic noise level
Dimensions
Weight
Operating temperature
Operating humidity
Accessories
10 Specifications
Cutter blades: Special blade for CAMM-1 series
During cutting: 850 mm/sec. (in all directions) During tool-up: 1202 mm/sec. (in 45° direction)
10 to 850 mm/sec. (in increments of 10 mm/sec.)
20 to 350 gf
0.0125 mm/step (0.000492 in./step)
0.025 mm/step (0.000984 in./step)
Error of less than ± 0.2% of distance traveled, or 0.1mm (0.00394 in.), whichever is greater
0.1 mm or less (excluding stretching/contraction of the material)
Range for assured repetition accuracy (*)
For materials with a width exceeding 610 mm (24 in.): Length 4,000 mm (157-7/16 in.) (CX-500/400 only)
For materials with a width of 610 mm (24 in.) or less : Length 8,000 mm (314-15/16 in.)
Parallel (Centronics compatible), USB (Rev 1.1)
2 MB (1.3 MB for replot buffer)
CAMM-GLIII (mode1 and mode2)
Power switch, Pen force slider
PRESET, FORCE, SPEED, ORIGIN, MENU, ENTER, PAUSE, SHEET CUT, TEST CUT, , , ,
POWER/ERROR LED, SETUP LED, PAUSE LED
Liquid crystal display unit: 20-character by 2 lines
Maximum: 0.8A/100V to 240V ± 10% 50/60 Hz
Cutting mode: under 62dB (A) Standby mode: under 40dB (A)
(According to ISO 7779)
Width: 737 mm (29 in.)
Length: 24998 mm (984-1/8 in.)
Min. 50 mm (2
in.)
/ Max. 915 mm (36
in.)
(50 to 540 mm (2 in. to 21 in.),
582 to 915 mm (23 in. to 36 in.))
0 to 812 mm (0 in. to 32 in.)
CX-300
Main unit
With stand
Main unit
With stand
For items indicates by an asterisk “*”, please see the next page.
Width: 1000 mm (39 in.)
Length: 24998 mm (984-1/8 in.)
Min. 90 mm (3-1/2 in.) /
Max. 1178 mm (46 in.)
0 to 1067 mm (0 in. to 42 in.)
CX-400
Width: 1195 mm (47 in.)
Length: 24998 mm (984-1/8 in.)
Min. 90 mm (3-1/2 in.) /
Max. 1372 mm (54 in.)
0 to 1270 mm (0 in. to 50 in.)
CX-500
Media-movement method
Digital control servo motor
1144 mm (W) x 264 mm (D) x 398 mm (H)
(45-1/16 in. (W) x 10-3/8 in. (D) x 15-11/16 in. (H))
1144 mm (W) x 727 mm (D) x 1113 mm (H)
(45-1/16 in. (W) x 28-5/8 in. (D) x 43-13/16 in. (H))
27 kg (59.5 lb.)
46 kg (101.4 lb.)
1407 mm (W) x 264 mm (D) x 398 mm (H)
(55-3/8 in. (W) x 10-3/8 in. (D) x 15-11/16 in. (H))
1407 mm (W) x 727 mm (D) x 1113 mm (H)
(55-3/8 in. (W) x 28-5/8 in. (D) x 43-13/16 in. (H))
32 kg (70.5 lb.)
53 kg (116.8 lb.)
1602 mm (W) x 264 mm (D) x 398 mm (H)
(63-1/16 in. (W) x 10-3/8 in. (D) x 15-11/16 in. (H))
1602 mm (W) x 727 mm (D) x 1113 mm (H)
(63-1/16 in. (W) x 28-5/8 in. (D) x 43-13/16 in. (H))
38 kg (83.8 lb.)
59 kg (130.1 lb.)
5 to 40°C (41 to 104°F)
35 to 80% (non-condensing)
Power cord x 1, Blade holder (XD-CH3) x 1, Blade x 1, Alignment tool x 1, Cable clamp x 1, Replacement blade for
separating knife x 1, Roland software package CD-ROM x 1, Startup Manual x 1, To ensure safe use x 1
10-1 Specifications
Page 60
60
(*)
The following conditions must be satisfied:
• Material type: 3M Scotchcal Mastercut
• Special stand (a roll material must be set at the rear and on the sheet hanger)
• Side margins: 25 mm (1 in.) or more for both the left and right margins
• Front margin: 25 mm (1 in.) or more
(After loading the material, using the display menu to select [F-EDGE] as the material type automatically sets a front
margin of 25 mm (1 in.).)
• Use of the display menu’s [AREA MOVE] function to perform feed of the material length plus 0.2 m and set the material
correctly
• Cutting of the following data one time
X
Y
Origin
(1) The letters are cut in order starting with “R”
(2) After the last letter (“P”) has been cut, the machine returns to the origin
point and the outer border is cut
The origin is rotated 90 degrees ([AXIS ROTATE] on the display menu is set to [90deg]).
Feed length
Material with a width exceeding 610 mm (24 in.): 4,000 mm (157-7/16 in.)
Material with a width of 610 mm (24 in.) or less: 8,000 mm (314-15/16 in.)
Cut width
Fills the
hard clip
Front margin: 25 mm (1 in.) or more
Side margins: 25 mm (1 in.) or more
Side margins:
25 mm (1 in.)
or more
Movable
pinch roller (left)
Movable pinch roller (right)
Cutter protector
Page 61
61
10-2 Interface Specifications
Standard In compliance with the specifications of Centronics
Input signals STROBE (1 BIT), DATA (8 BITS)
Output signals BUSY (1 BIT), ACK (1 BIT)
Level of input/output signals TTL level
Transmission method Asynchronous
[Parallel]
Standard Universal Serial Bus Specification Revision 1.1
Universal Serial Bus Device Class Definition for Printing Device Version 1.1
Transmission speed 12Mbps (Full Speed Device)
Data format NRZI
Compatible connector Series B
Rated cable length 3 m
[USB]
[Parallel connector (in compliance with
specifications of Centronics)]
1
19
18
36
3.3K
100
+5 V
+5 V
=
=
*
**
Signal
number
Terminal
number
Signal
number
Pin Connection
NC 36 18 HIGH**
HIGH* 35 17 GND
NC 34 16 GND
GND 33 15 NC
HIGH* 32 14 NC
NC 31 13 HIGH*
30 12 GND
29 11 BUSY
28 10 ACK
27 9 D7
26 8 D6
GND 25 7 D5
24 6 D4
23 5 D3
22 4 D2
21 3 D1
20 2 D0
19 1 STROBE
[USB connector]
Pin #2 Pin #1
Pin #3 Pin #4
Pin number Signal Remark
1 VCC Cable power
2 - Data
3 + Data
4 GND Cable ground
Page 62
62
10-3 Instruction Support Chart
The list uses marks, each of which means:
: Compatible
: Incompatible
: Ignored
mode 1
Instruction Compatibility Instruction Compatibility Instruction Compatibility Instruction Compatibility Instruction Compatibility
HDM IR
LBXPS
QNC EA
GKT ^
mode 2
Instruction Compatibility Instruction Compatibility Instruction Compatibility Instruction Compatibility Instruction Compatibility
AA AR CA CI CP
CS DF DI DR DT
EA ER EW FT
IM
IN IP IW LB
LT
OA OC OE OF
OH
OI OO OP OS
OW
PA PD PR PT
PU
RA RR SA SC
SI
SL SM SR SS
SP
TL UC VS WD
WG
XT YT
Instruction in mode 1 and mode 2
Instruction Compatibility Instruction Compatibility Instruction Compatibility Instruction Compatibility
!FS !NR !PG !ST
EC
Page 63
63
- MEMO -
Page 64
R5-020403
Loading...
