1 Welcome to the R&S Pulse Sequencer
(DFS)
Worldwide, the two frequency bands 5.25 GHz to 5.35 GHz and
5.47 GHz to 5.725 GHz are used by various radar systems. In addition, they are allocated to unlicensed WLAN devices. A requirement arising from this frequency band reuse
is a method called Dynamic Frequency Selection (DFS).
A system that requires DFS must be capable to avoid interfering with radar systems.
This is achieved by various methods:
●
Verify that the channel is free of any radar signals before using it.
●
Continuous monitoring for radar signals once a channel is in use. The channel
needs to be vacated if a radar signal is detected.
●
Blacklisting channels where a radar signal was detected.
●
Using channels equally (Uniform Loading).
●
Transmit only the required amount of power (Transmit Power Control).
Welcome to the R&S Pulse Sequencer (DFS)
Pulse Sequencer (DFS) key features
R&S
Most radar systems in these bands are used by the military and their actual signatures
are confidential. The representative test patterns therefore contain random variations.
The specifications require that WLAN devices not only detect a specific pattern but
also respond to a wider variety of signals.
Different standards documents exist worldwide that define requirements and test patterns. An overview is provided in Appendix, "DFS Standards and References".
Installation
You can find detailed installation instructions in the delivery of the option or in Chap-
ter 2.2, "Installing the software", on page 10.
1.1 R&S Pulse Sequencer (DFS) key features
The R&S Pulse Sequencer (DFS) software is a standalone, PC-based application that
generates Dynamic Frequency Selection (DFS) pulse patterns according to FCC,
ETSI, and MIC standards. This software is available for free download on the R&S
website.
Waveforms can be played by the following instruments:
●
R&S SMW
●
R&S SMBV
●
R&S SMBV100B
●
R&S SMM
●
R&S SMU
●
R&S SMJ
●
R&S SGT
5User Manual 1177.5327.02 ─ 17
Page 6
R&S®Pulse Sequencer (DFS)
The processing of the generated waveforms requires software option R&S SMW/
SMBV/SMU/SMJ/SGT-K350 installed on the instrument.
Key features:
●
Supported Standards for Europe, the US, Japan, Korea and China
●
Generation of all required waveforms and automatic transfer to the signal generator
●
Automatic report generation.
Reports contain all parameters used for the waveform calculation
●
Two report formats: Excel spreadsheets and ASCII text format
1.2 Accessing the R&S Pulse Sequencer (DFS)
To open the application
► On your PC, select "Start > All Programs > R&S Pulse Sequencer DFS".
Welcome to the R&S Pulse Sequencer (DFS)
Documentation overview
The software opens and displays the "Repository Manager" or the last used "Workspace".
1.3 Documentation overview
This section provides an overview of the R&S Pulse Sequencer (DFS) user documentation. Unless specified otherwise, you find the documents on the software option page
at:
www.rohde-schwarz.com/product/SMWK350 > "Downloads"> "Manuals"
1.3.1 User manuals and help
Introduces the R&S Pulse Sequencer (DFS) and describes how to start working with
the software. For description of the graphical user interface, basic operations, and the
remote control commands, see the R&S®Pulse Sequencer user manual.
The contents of the user manuals are available as help in the R&S Pulse Sequencer
(DFS). The help offers quick, context-sensitive access to the complete information.
All user manuals are also available for download or for immediate display on the Internet.
1.3.2 Release notes and open-source acknowledgment (OSA)
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
6User Manual 1177.5327.02 ─ 17
Page 7
R&S®Pulse Sequencer (DFS)
The open-source acknowledgment document provides verbatim license texts of the
used open-source software.
See www.rohde-schwarz.com/product/SMWK350 > "Downloads" > "Software"
1.3.3 Data sheets and brochures
The data sheet contains the technical specifications of the R&S Pulse Sequencer
(DFS). It also lists the options and their order numbers and optional accessories.
The brochure provides an overview of the instrument and deals with the specific characteristics.
See https://www.rohde-schwarz.com/brochure-datasheet/smwk350/
1.3.4 Application notes, application cards, white papers, etc.
These documents deal with special applications or background information on particular topics.
Welcome to the R&S Pulse Sequencer (DFS)
Notes on screenshots
1.4 Scope of this user manual
The R&S Pulse Sequencer (DFS) is the DFS variant of the R&S®Pulse Sequencer
software that is specially developed for DFS testing.
This user manual describes the functionality that the R&S Pulse Sequencer (DFS) software provides.
Functions that are the same as in the R&S®Pulse Sequencer software are not described here; they are described in its user manual.
Functions of the vector signal generators are also not described here; they are described in the user manual of the corresponding base unit. You find the latest version on
the product page, for example at www.rohde-schwarz.com/product/SMW200A.
1.5 Notes on screenshots
When describing the functions of the product, we use sample screenshots. These
screenshots are meant to illustrate as many as possible of the provided functions and
possible interdependencies between parameters. The shown values may not represent
realistic usage scenarios.
The screenshots usually show a fully equipped product, that is: with all options installed. Thus, some functions shown in the screenshots may not be available in your particular product configuration.
7User Manual 1177.5327.02 ─ 17
Page 8
R&S®Pulse Sequencer (DFS)
Welcome to the R&S Pulse Sequencer (DFS)
Notes on screenshots
8User Manual 1177.5327.02 ─ 17
Page 9
R&S®Pulse Sequencer (DFS)
2 Getting started
This section describes the basic steps to be taken when starting up the R&S Pulse
Sequencer (DFS) for the first time.
● Required options.......................................................................................................9
● Installing the software............................................................................................. 10
● Starting the R&S Pulse Sequencer (DFS) for the first time.....................................12
● Understanding the displayed information................................................................12
● Loading a DFS project file.......................................................................................17
● Getting information and help...................................................................................19
2.1 Required options
The R&S Pulse Sequencer (DFS) software is a stand-alone, PC-based application that
creates waveform files. This software is available for free download on the R&S website. Waveforms generated with the software can be played by a subset of instruments,
that must fulfill the minimum requirements listed below.
Getting started
Required options
The following vector signal generators support the FCC 06-96 Type 6 simulated frequency hopping.
R&S SMW200A
R&S SMW200A base unit equipped with:
●
Option baseband generator (R&S SMW-B10)
●
Option frequency (R&S SMW-B106)
●
Option baseband main module, one I/Q path to RF (R&S SMW-B13)
●
Option DFS (R&S SMW-K350)
R&S SMBV100B
R&S SMBV100B base unit equipped with:
●
Option frequency (R&S SMBV-B103/KB106)
●
Option DFS (R&S SMBVB-K350)
R&S SMBV100A
R&S SMBV100A base unit equipped with:
●
Option baseband generator (R&S SMBV-B51)
●
Option frequency (R&S SMBV-B1xx)
●
Option DFS (R&S SMBV-K350)
R&S SMM
R&S SMM base unit equipped with:
●
Option DFS (R&S SMM-K350)
9User Manual 1177.5327.02 ─ 17
Page 10
R&S®Pulse Sequencer (DFS)
R&S SGT100A
R&S SGT100A base unit equipped with:
●
Option frequency (R&S SGT-KB106)
●
Option baseband generator (R&S SGT-K510)
●
Option memory extension for ARB (R&S SGT-K51x)
●
Option DFS (R&S SGT-K350)
R&S SMJ100A and R&S SMU200A
R&S SMJ100A or R&S SMU200A base unit equipped with:
●
Option baseband generator (R&S SMJ/SMU-B9)
●
Option baseband main module (R&S SMJ/SMU-B13)
●
Option frequency (R&S SMJ/SMU-B106)
●
Option DFS (R&S SMJ/SMU-K350)
Getting started
Installing the software
2.2 Installing the software
Software updates and the release notes describing the improvements and modifications are available for download at the product page https://www.rohde-schwarz.com/
software/pulse-sequencer/.
Software and hardware requirements
Minimum requirements:
●
Software
–
Microsoft®Windows 10, 64-Bit operating system (x64-based or x86-based processor)
– Microsoft Excel (recommended)
●
Hardware
Table 2-1: Hardware requirements
AMD or Intel CPU Dual Core, 2 GHz Intel Core i7
RAM ≥ 2 GB 8 GB
Video NVIDIA Quadro 128 MB or ATI Radeon NVIDIA Quadro 128 MB or ATI
Minimum requirements Recommended hardware
Radeon
Video resolution ≥ 1280 x 1024 pixels ≥ 1920 x 1200 pixels
Network LAN 1 GB/s LAN 1 GB/s
To install the software
Download the R&S Pulse Sequencer (DFS) software form the Rohde & Schwarz website.
10User Manual 1177.5327.02 ─ 17
Page 11
R&S®Pulse Sequencer (DFS)
The R&S Pulse Sequencer (DFS) software consists of the file
PS-DFS-Install <major>.<minor>.<build>.<release>.msi.
1. Start the PS-DFS-Install <major>.<minor>.<build>.<release>.msi
file.
The filename follows the naming conventions:
● <major>.<minor> is the software version
● <build> is the build number.
This is the day elapsed since 1 January 2000
● <release> indicates the release on the build date.
This is 1/10 of the number of seconds elapsed since midnight.
● x64 indicates that this is a 64-bit installation file.
You can run the software version with the extension x64 only on a 64-bit operating system, see "Software and hardware requirements" on page 10.
2. Depending on your user rights, select one of the following:
a) Installation for all users (default)
Getting started
Installing the software
● Requires administrator rights
● Is a per-machine installation
● Project data and program data are common to all users
● Users keep their individual settings
b) Installation for current user only
● Does not require administrator rights
● Is a per-user installation
● Installation in %HomePath%
3. Choose the setup type.
4. Follow the installation instructions.
The installer performs the following actions:
● If enabled, installs the R&S VISA software on the PC
● Installs the R&S Pulse Sequencer (DFS) software including an uninstall tool
● Creates a shortcut on the desktop
● Creates the folder structure listed in Table 2-2.
Table 2-2: Default file location (software installation for all users)
File type File location
Program data
%PROGRAMFILES(X86)%\Rohde-Schwarz\
Pulse Sequencer DFS
(Path)
Project data (Repository database)
SDK files
%PUBLIC%\Public\Documents\Rohde-Schwarz\
Pulse Sequencer DFS
(DataPath)
11User Manual 1177.5327.02 ─ 17
Page 12
R&S®Pulse Sequencer (DFS)
File type File location
Getting started
Understanding the displayed information
Report files, startup log file, calculated data, volatile data
User settings (Workspace, etc.)
%HOMEPATH%
(HomePath or ReportPath)
%HOMEPATH%\AppData\Roaming\Rohde-Schwarz\
Pulse Sequencer DFS
2.3 Starting the R&S Pulse Sequencer (DFS) for the first
time
► On your PC, select "Start > R&S Pulse Sequencer (DFS) > R&S Pulse Sequencer
(DFS)"
The R&S Pulse Sequencer (DFS) workspace opens. When you start the software
for the first time, the "Repository Manager" dialog opens.
Follow the steps described in Chapter 2.5, "Loading a DFS project file",
on page 17.
See also Chapter A, "Overview of the test requirements and provided test pat-
terns", on page 43.
2.4 Understanding the displayed information
The following figure shows an example test scenario during software operation. The
different information areas are labeled. They are explained in more detail in the following sections.
12User Manual 1177.5327.02 ─ 17
Page 13
R&S®Pulse Sequencer (DFS)
Getting started
Understanding the displayed information
Figure 2-1: R&S Pulse Sequencer (DFS) default workspace: understanding the displayed information
1 = Title bar
2 = Menu bar with standard functions, e.g. save/open file etc.
3 = Toolbar
4 = Project tree (repository tree)
5 = Screens for individual scenarios
6 = Work area
4+6 = Workspace
7 = Taskbar with indication of enabled remote control incl. details like IP address (if enabled), information
on the required highest security level (if enabled) and access to active dialogs
The user interface of the R&S Pulse Sequencer (DFS) offers an intuitive operating concept. Operation is similar to any operating system. All menus and dialogs use known
elements, e.g., selection lists, checkboxes, and entry fields.
13User Manual 1177.5327.02 ─ 17
Page 14
R&S®Pulse Sequencer (DFS)
Menu bar
Table 2-3: Content of the menu bar
Getting started
Understanding the displayed information
File Repository Configure
●
New Repository
●
Load or Manage Repositories
●
Save Repository
●
Import Repository Archive
●
Export Repository
●
Clear Workspace
●
Open Workspace
●
Save Workspace
●
Save Workspace As
●
Exit
Quick access
to currently
loaded repository
●
Signal Generators
●
Remote
Control
●
Colors
●
Settings
Toolbars
The R&S Pulse Sequencer (DFS) offers two toolbars.
Standard functions can be performed via the icons in the main toolbar at the top of the
screen.
Tools Window Help
●
●
●
Script
Control
Panel
Console
●
●
●
●
●
●
Message
Log
SCPI Log
MinSize All
Windows
Cascade
Close All
Screen 1 ..
4
●
●
●
●
●
●
●
Online
Help
Documentation
SDK
Tutoriaks
Find
conncetors
Debug
Information
About
Figure 2-2: Standard functions in the main toolbar
1 = Save as: stores current workspace configuration
2 = Repository:
- = Creates a repository
- = Opens "Manage Repository" dialog for loading, discarding or exporting repositories
3 = Project tree > creates a scenario
4 = Generator:
- = Opens the "Signal Generators" dialog
- = Opens the signal generator "control panel"
5 = Logs:
- = Opens the "Message Log" window
- = Opens the "SCPI Log" window
6 = Screen: switches between the virtual screens
7 = Opens the "Program Settings" dialog
8 = Help:
- = Opens the "SDK" folder
- = Opens the help documentation folder containing help documents
- = Displays context-sensitive help topic for currently selected element
9 = Hardcopy: copies current dialog to the clipboard
14User Manual 1177.5327.02 ─ 17
Page 15
R&S®Pulse Sequencer (DFS)
Functions relating to the "Project Tree" can be performed via the icons in the toolbar
below the main toolbar.
Figure 2-3: Functions in the Project Tree toolbar
1 = Filters out the displayed elements in the "Project Tree" and displays, for example, only the uppermost
node, i.e. scenarios ("Show = Only Scenarios")
2 = Moves the elements within a node up/down in the "Project Tree"
3 = Expand/collapse all nodes in the "Project Tree"
Virtual screens
Using the R&S Pulse Sequencer (DFS) you can handle several scenarios with even
comprehensive settings at the same time. You can arrange the dialogs across multiple
screens logically, so that you can easily switch between them. You can, for example,
assign the subset of antenna dialogs to one screen and the pulse and modulation dialogs to another.
Getting started
Understanding the displayed information
Repository tree
The repository tree shows the content of all currently loaded repositories. Repository
elements are indicated with the assigned icons, their names, and the first comment
line.
= Name
1
2 = First comment line
15User Manual 1177.5327.02 ─ 17
Page 16
R&S®Pulse Sequencer (DFS)
Name and comment
Each repository element is identified with its unique name and optional description
entered in the comment field. The description can contain several lines; new line is
added by pressing [Shift+Enter].
1 = A unique name to indicate the element in the repository
2 = Description; the first line is displayed in the repository tree
Getting started
Understanding the displayed information
Context-sensitive menus
All user interface controls provide a context-sensitive menu. Context-sensitive menus
are accessed with a right mouse click on the control.
= Context menu of an icon
1
2 = Context menu of a parameter
Tooltips
Tooltips indicate the possible value range of a parameter or list overview information on
current settings.
= Tooltip of a setting parameter, indicating the allowed value range
1
2 = Tooltip with detailed information on a setting
16User Manual 1177.5327.02 ─ 17
Page 17
R&S®Pulse Sequencer (DFS)
Dialog names
The name of a dialog indicates its content or the functionality this dialog covers. The
used naming convention helps you to recognize which database element you are configuring, to which scenario it belongs and what its current name is.
Undocking dialogs
If your workspace contains several simultaneously opened dialogs, you can undock
dialogs and distribute them also outside the workspace, for example place them on a
second monitor.
1
= Undocks the dialog
Getting started
Loading a DFS project file
Keyboard shortcuts
Keyboard shortcuts are available for the most common functions in the software.
2.5 Loading a DFS project file
We assume that you have started the R&S Pulse Sequencer (DFS), as described in
Chapter 2.3, "Starting the R&S Pulse Sequencer (DFS) for the first time", on page 12.
1. In the R&S Pulse Sequencer (DFS), the "Repository Manager" dialog is open.
17User Manual 1177.5327.02 ─ 17
Page 18
R&S®Pulse Sequencer (DFS)
Getting started
Loading a DFS project file
Figure 2-4: R&S Pulse Sequencer (DFS) Repository Manager
2. In the "Repository Manager", select the required standard, e.g. "FCC > DFS FCC
06-96".
Repository files contain all signal definitions and report templates, as required for
the selected standard.
See also Chapter 3.1, "Normative reference", on page 24.
3. Select "Load".
The project tree opens and lists the project content.
Your workspace contains the selected predefined FCC test patterns.
18User Manual 1177.5327.02 ─ 17
Page 19
R&S®Pulse Sequencer (DFS)
Getting started
Getting information and help
Figure 2-5: R&S Pulse Sequencer (DFS) workspace: Understanding the displayed information

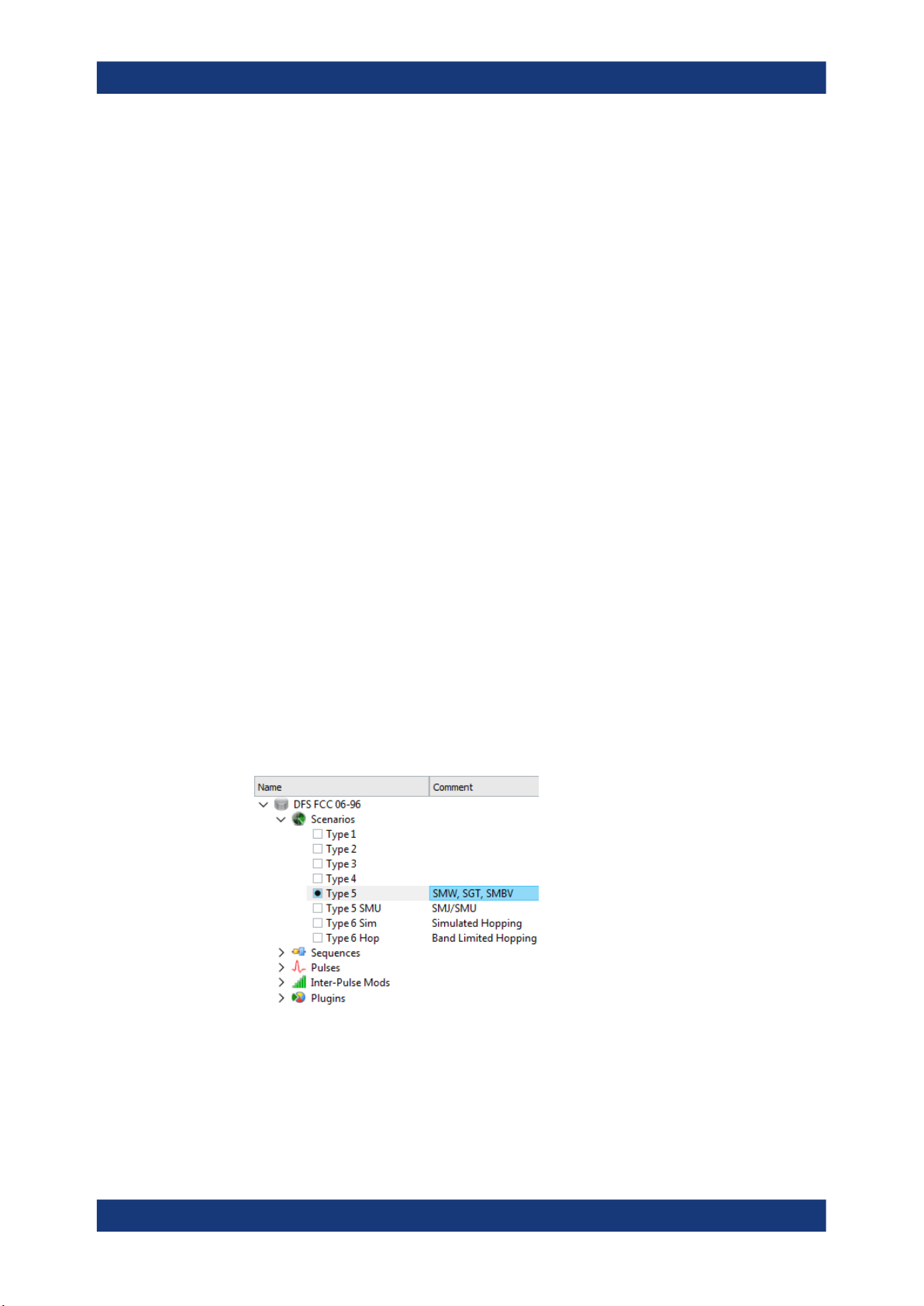

1 = Project tree displaying the loaded DFS FCC test patterns
2 = Scenario dialog displaying a loaded test pattern (DFS FCC 06-96 Type 1)
See:
● Chapter 4, "Generating test files and conducting the trials", on page 25
● Chapter A, "Overview of the test requirements and provided test patterns",
on page 43
2.6 Getting information and help
If any questions or problems concerning the R&S Pulse Sequencer (DFS) arise, an
extensive online help system is provided in the software and can be consulted at any
time.
The integrated help system provides the description of all functions. The help system is
context-sensitive and provides information specifically for the current operation or setting to be performed. In addition, general topics provide an overview on complete tasks
or function groups and background information.
Functions that are the same as in the R&S®Pulse Sequencer are not described in this
manual.
You find information on them in the online help system and in the R&S®Pulse
Sequencer user manual.
19User Manual 1177.5327.02 ─ 17
Page 20
R&S®Pulse Sequencer (DFS)
Calling up Help
► To display the "Help" dialog for the currently focused screen element, e.g. a setting
in an opened dialog, select the "Help" icon on the toolbar or press F1.
The "Help" dialog is displayed. A topic containing information about the focused
element is displayed. If no context-specific help topic is available, a more general
topic or the "Contents" tab is displayed.
The "Help" toolbar provides buttons with standard navigation functions. The "Help"
window contains several tabs:
● "View" - shows the selected help topic
● "Contents" - contains a table of help contents
● "Index" - contains index entries to search for help topics
The index is sorted alphabetically. You can browse the list, or search for entries
in the list
● "Bookmarks" - contains custom bookmarks
● "Search" - provides text search
To close the Help window
Getting started
Getting information and help
► Select the "Close" icon in the upper right corner of the help window.
20User Manual 1177.5327.02 ─ 17
Page 21
R&S®Pulse Sequencer (DFS)
3 About the R&S Pulse Sequencer (DFS)
The R&S Pulse Sequencer (DFS) comes as a stand-alone PC-based software with
pre-configured project files for various DFS standards.
Test setup
A typical setup includes a PC with installed software and a connected signal generator.
An example of a simplified test setup is shown on Figure 3-1.
You find the detailed requirements for the various standards in the related standard
documents. See also Chapter 3.1, "Normative reference", on page 24.
About the R&S Pulse Sequencer (DFS)

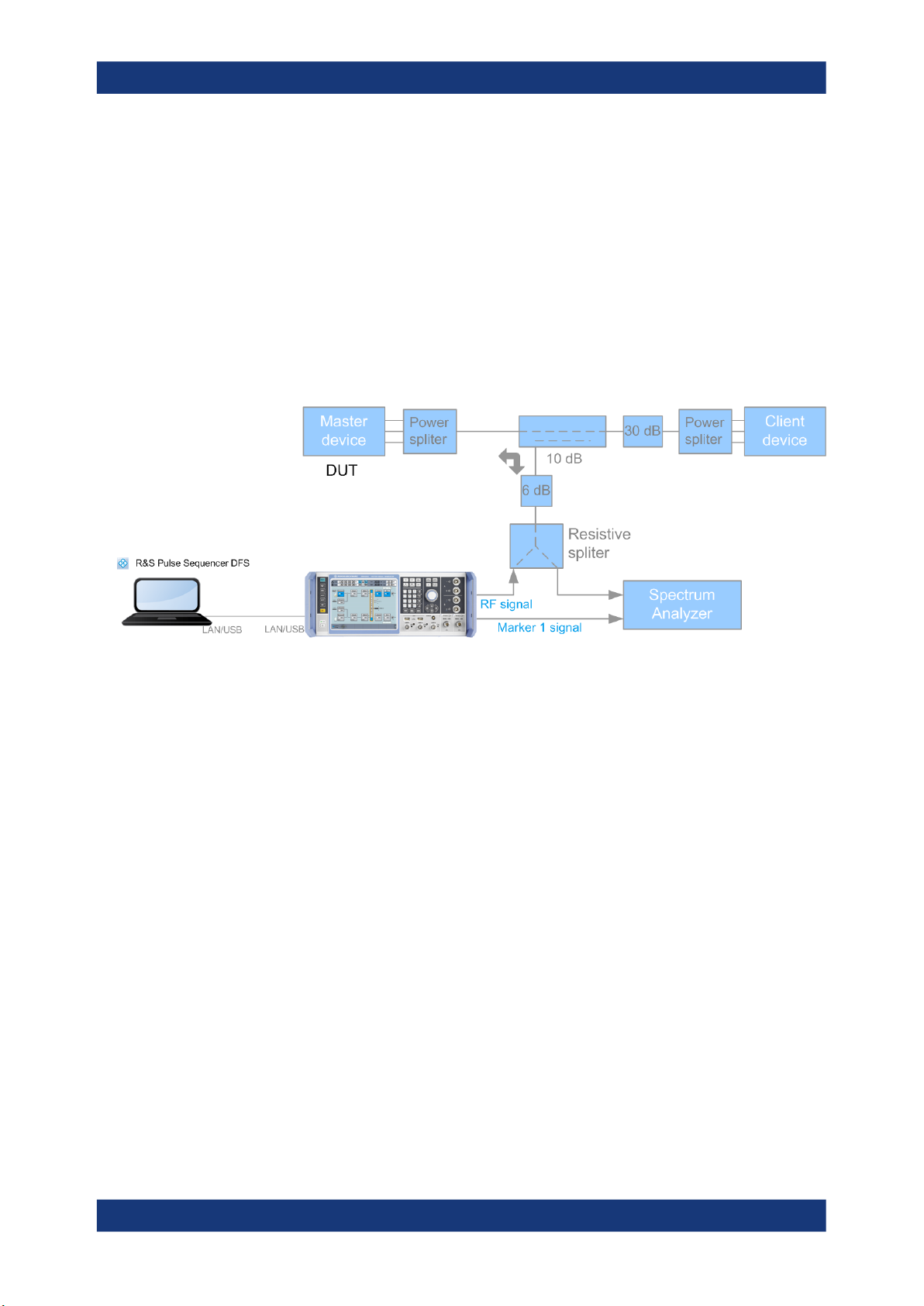

Figure 3-1: Simplified test setup for conducted DFS tests (Example with R&S SMW)
The setup uses a master device as
link. The test signal is attenuated by an additional 30 dB in the RF path to the client
device. This ensures that only the master device responds to the test signal.
The R&S Pulse Sequencer (DFS) calculates the test patterns and transfers them to the
signal generator. The signal generator injects the DFS test signal into the communication between the master and the client device. The spectrum analyzer is operated in
zero span mode on the channel center frequency. It monitors the traffic between the
two devices and the injected radar pulses. Both, the signal generator and the spectrum
analyzer can be remote controlled by a PC software for test automation.
Consider to trigger the spectrum analyzer sweep when a new radar test signal is injected. A suitable trigger source is one of the markers signals contained in the generated
DFS test patterns.
If the signal levels are high enough an alternative method for the measurement of the
RF test signals or the data traffic is the use of the R&S®NRP-Z81 Power Sensor. The
Figure 3-2 shows a measurement of the FCC Type 1 pulse train generated by a signal
generator. Marker 1 is used as external trigger for the power sensor. This signal marks
the end of the entire burst.
DUT and a client device for the setup of the data
21User Manual 1177.5327.02 ─ 17
Page 22
R&S®Pulse Sequencer (DFS)
About the R&S Pulse Sequencer (DFS)

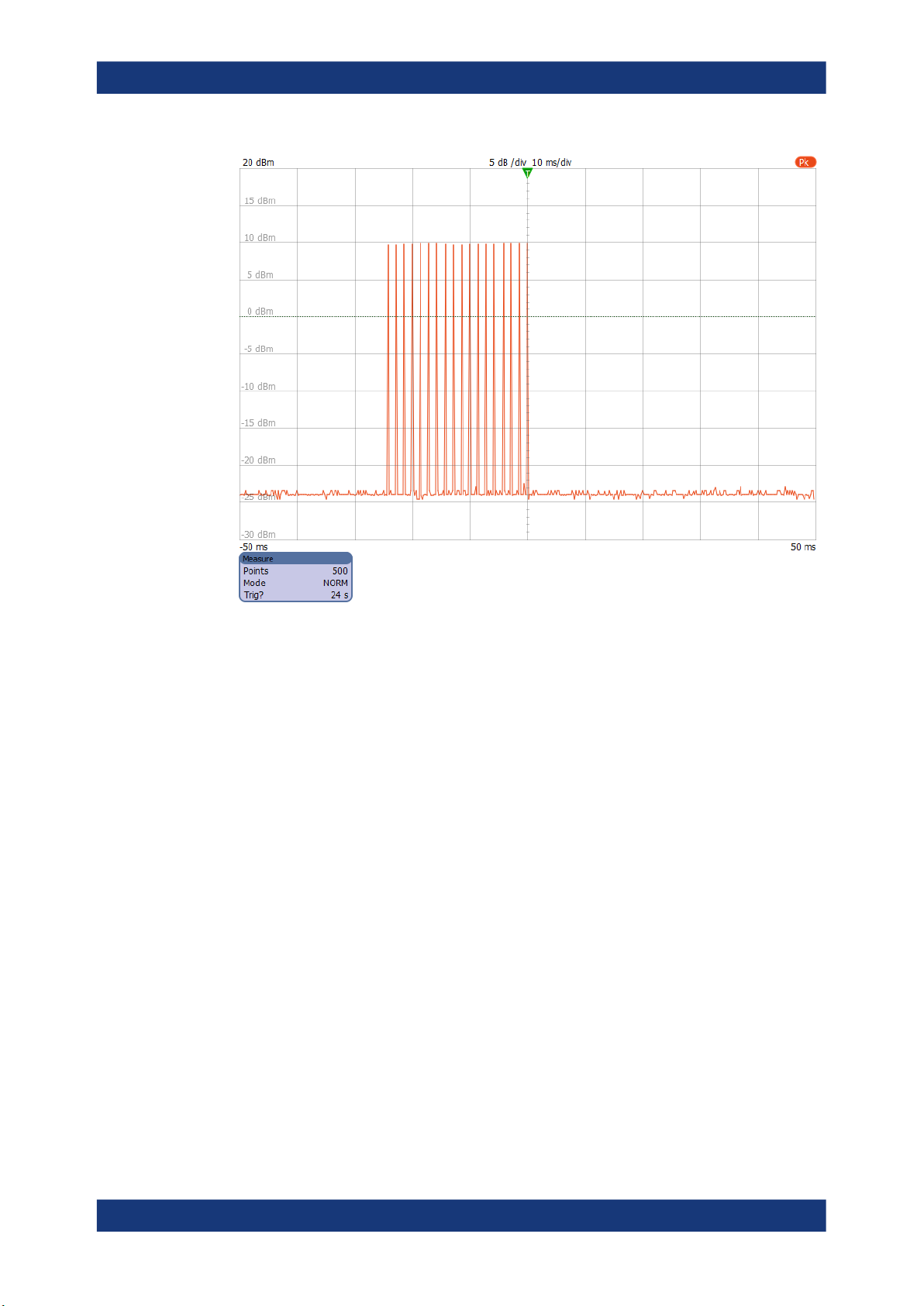

Figure 3-2: Power Sensor measurement result (FCC 06-96 Type 1 pulse train)
A signal created and processed in this way is suitable for performing test in accordance with the standards, listed in Appendix, "DFS Standards and References".
See also Chapter 4, "Generating test files and conducting the trials", on page 25.
Report generation
The R&S Pulse Sequencer (DFS) provides a built-in report generation function. During
waveform generation, this report function documents all used parameters and stores
them into a file. The storage location is configurable.
Report files can be stored as:
●
Microsoft Excel spread sheets (default)
22User Manual 1177.5327.02 ─ 17
Page 23
R&S®Pulse Sequencer (DFS)
About the R&S Pulse Sequencer (DFS)

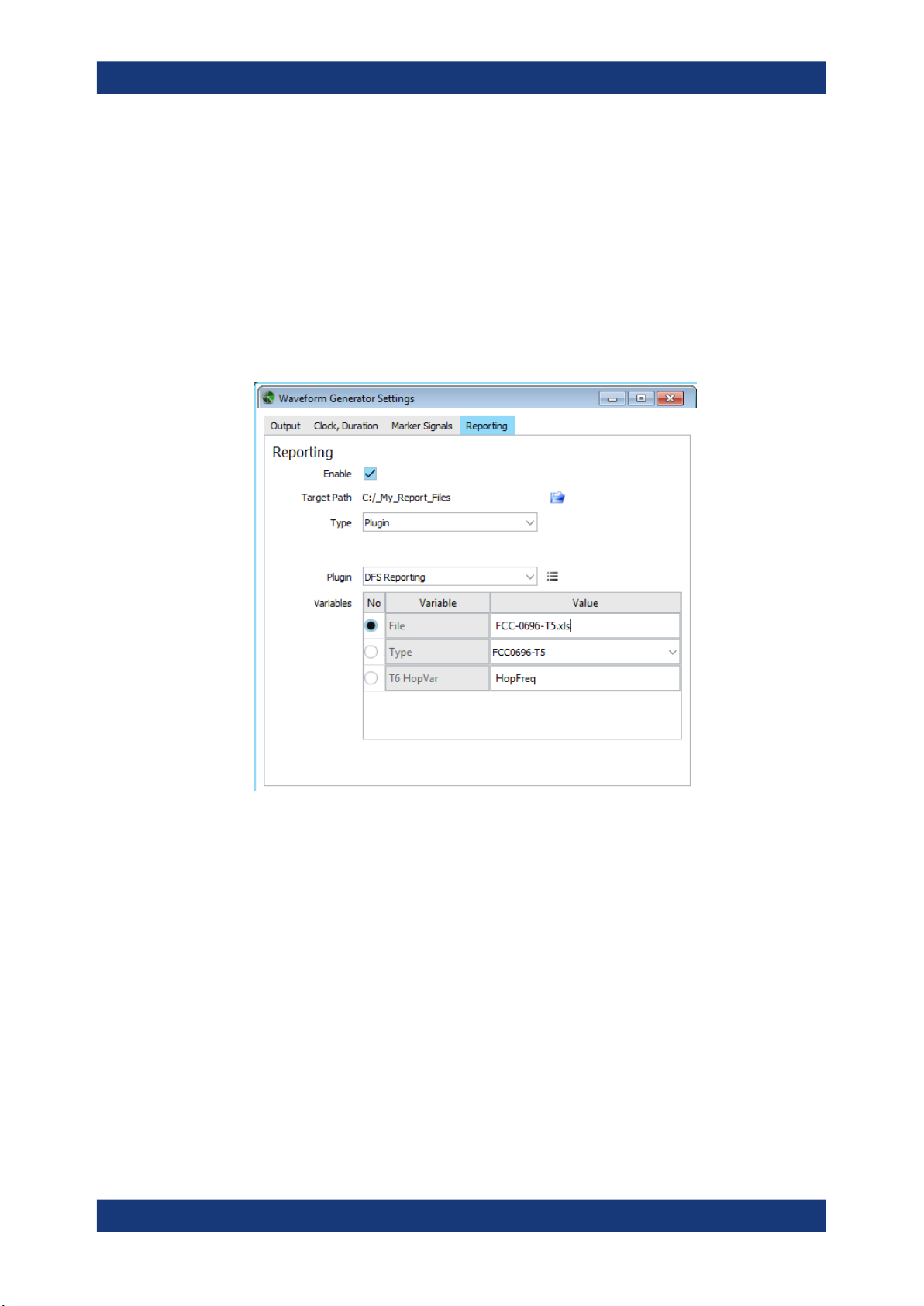

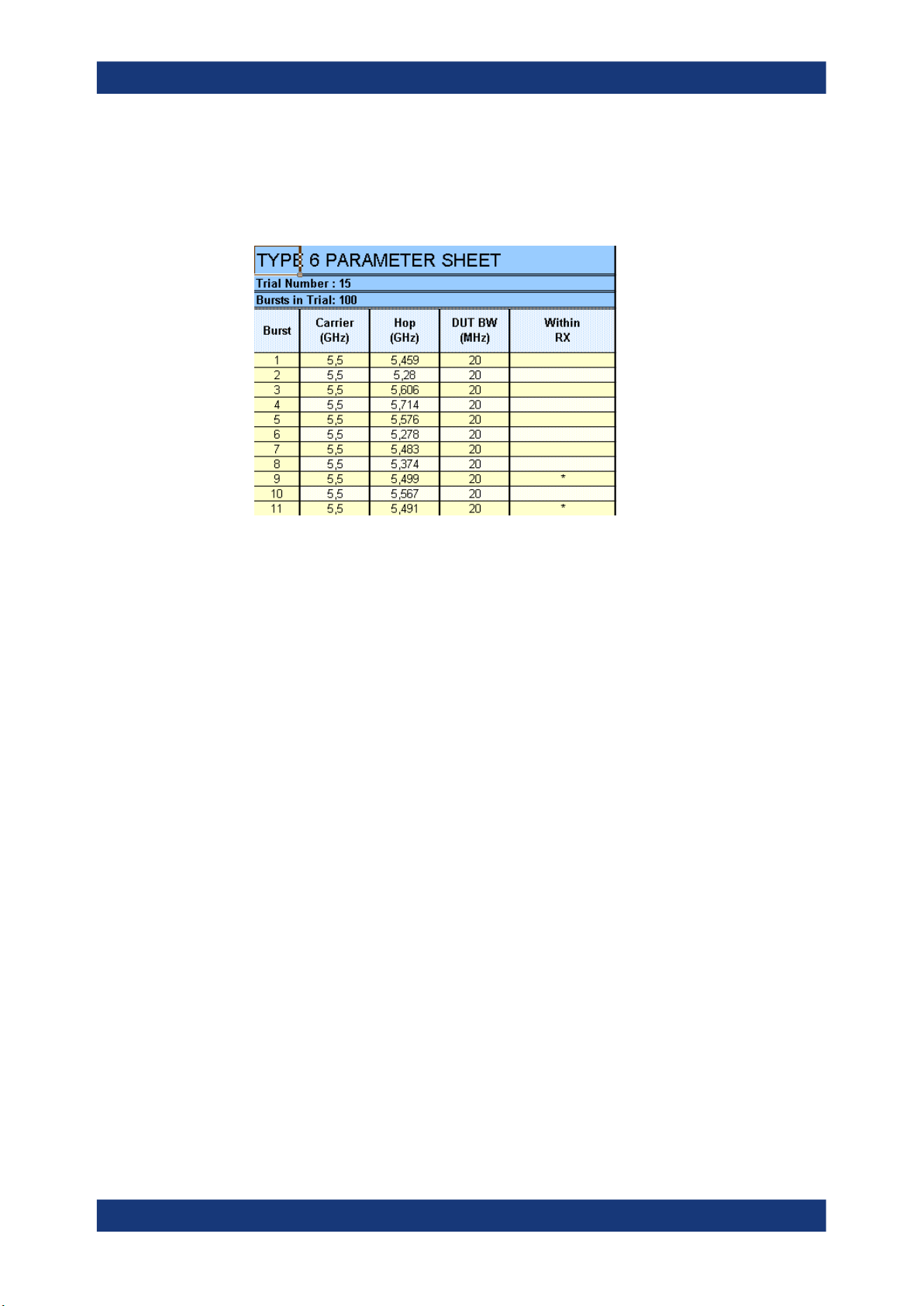

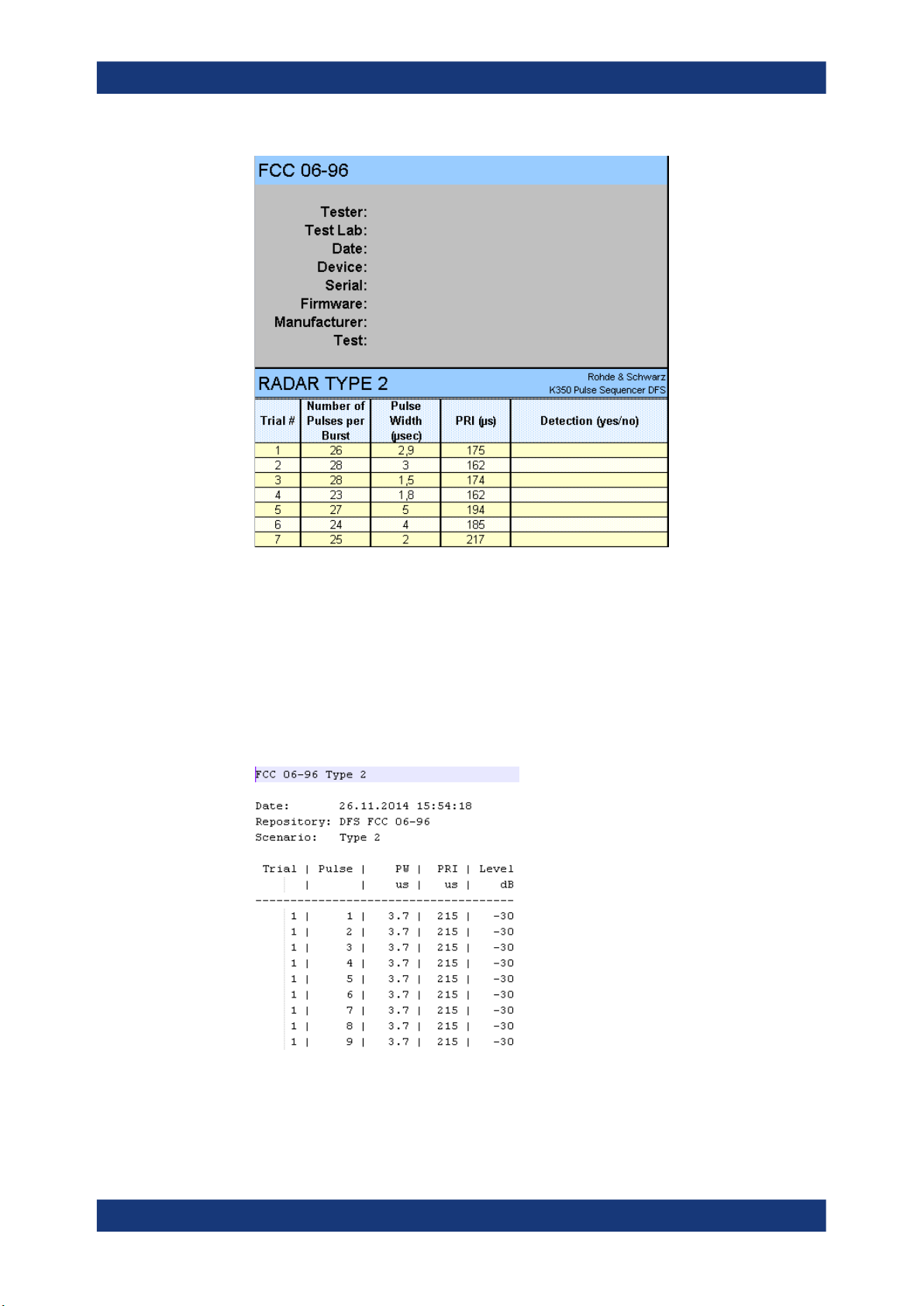

Figure 3-3: Example of a report file ("Type > Plugin")
This reporting function is tailored for the DFS testing. It uses a Microsoft Excel
plug-in, that is included in the repository. During waveform generation, the
R&S Pulse Sequencer (DFS) sends all relevant parameters to the plugin and populates the spread sheet.
See also Chapter 4.2, "How to create test reports", on page 29.
●
ASCII text files
The reporting uses a predefined but editable template. Generated is an ASCII text
file where data is formatted in columns, including header description.

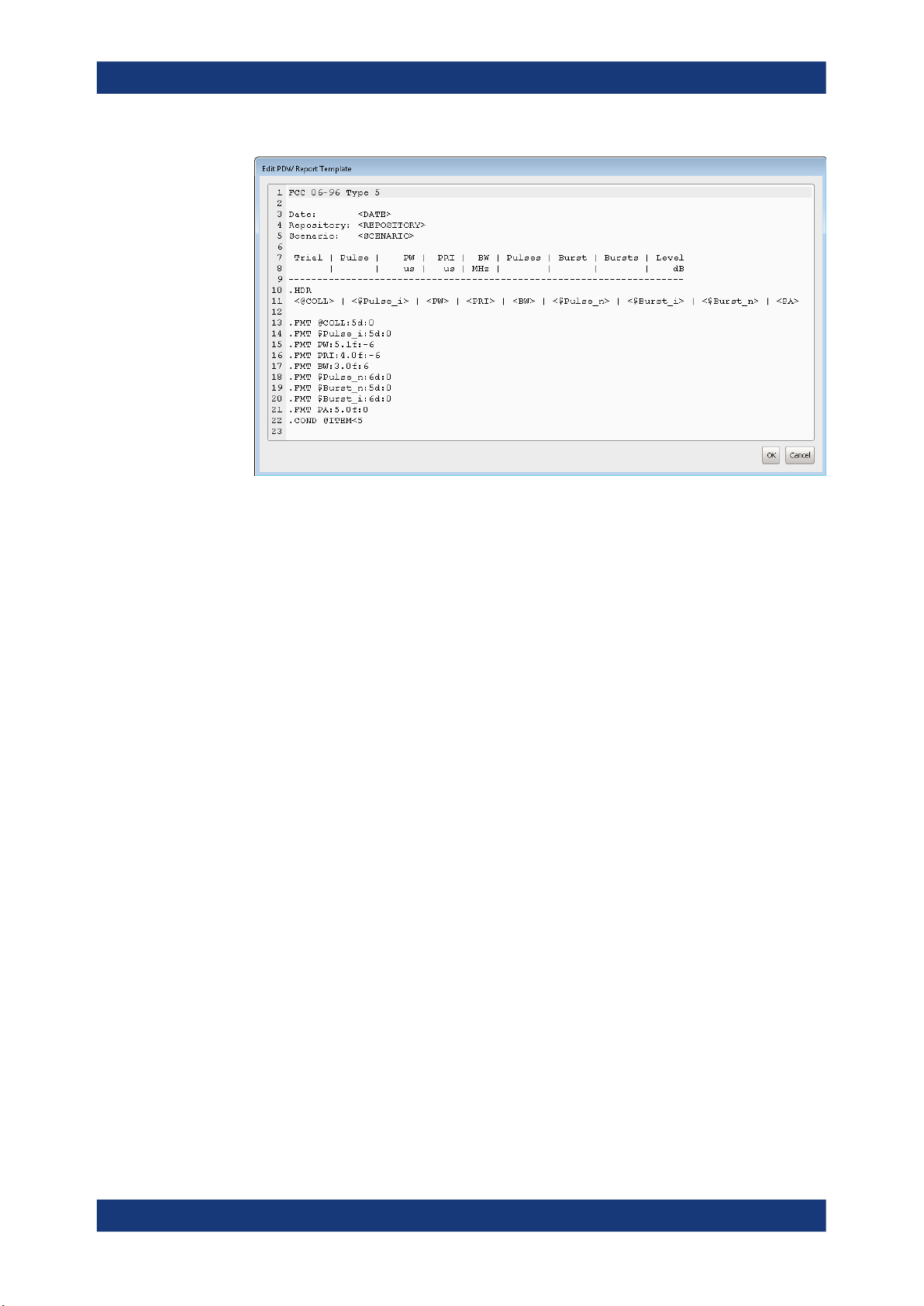

Figure 3-4: Example of a *.txt report file ("Type > Template")
You can print the report files and use them to mark the test status, e.g. passed or
failed. See also Chapter 4.2, "How to create test reports", on page 29.
23User Manual 1177.5327.02 ─ 17
Page 24
R&S®Pulse Sequencer (DFS)
The provided templates can be modified. For detailed description of the file formats,
the template and the plugin, see the R&S Pulse Sequencer user manual.
Status information on whether report logging is enabled or not is displayed in the "Scenario" dialog, see Figure 4-1.
Embedded marker signals
The generated waveforms contain two predefined marker signals:
●
Marker 1
A short marker that marks the end of the last pulse, i.e. the end of the waveform.
The rising edge of this signal marks the measurements start point, e.g. in Channel
Move Time measurements.
●
Marker 2
Marks the individual pulses
This signal can be used to trigger a spectrum analyzer, e.g. for pulse train verification measurements in zero span mode.
An overview information on the marker signals is displayed in the "Comment" field of
each test scenario, see Figure 4-1.
About the R&S Pulse Sequencer (DFS)
Normative reference
Marker signals are output at the corresponding BNC connectors of the
Rohde&Schwarz signal generator. In the R&S SMW for example, these signals are
routed per default to the [USER 1/2] and to the [T/M 2/3] connectors. You can use
these signals to synchronize or to trigger connected spectrum analyzers or power sensors. For examples, see Figure 3-1 and Figure 3-2.
3.1 Normative reference
The DFS testing is subject of the standards listed in Appendix, "DFS Standards and
References".
The software provides the required test patterns for the following standards:
●
ETSI, see Chapter A.1, "ETSI 301 893, ETSI 302 502, ETSI 303 258", on page 43
●
FCC 06-96, see Chapter A.2.1, "FCC 06-96", on page 46
●
FCC KDB 905462 D02, see Chapter A.2.2, "FCC KDB 905462 D02", on page 49
●
FCC 13-22, see Chapter A.2.3, "FCC 13–22", on page 49
●
MIC, see Chapter A.3, "MIC", on page 50
24User Manual 1177.5327.02 ─ 17
Page 25
R&S®Pulse Sequencer (DFS)
4 Generating test files and conducting the tri-
als
DFS signals created with the R&S Pulse Sequencer (DFS) can be processed by:
●
R&S SMW
●
R&S SMBV
●
R&S SMBV100B
●
R&S SMJ
●
R&S SMM
●
R&S SMU
●
R&S SGT
The R&S Pulse Sequencer (DFS) creates DFS test signals according to the specification listed in Chapter 3.1, "Normative reference", on page 24.
For detailed description of the requirements and the test signals, see Chapter A, "Over-
view of the test requirements and provided test patterns", on page 43.
Generating test files and conducting the trials
How to perform DFS tests with R&S Pulse Sequencer (DFS) and
Rohde & Schwarz vector signal generator
The following outlines the main steps to be performed with the R&S Pulse Sequencer
(DFS) and the signal generator.
For description on the exact test setup, refer to the corresponding standard documentation.
We assume that the vector signal generator is equipped with the options listed in
Chapter 2.1, "Required options", on page 9.
1. Install the R&S Pulse Sequencer (DFS) on a PC as described in Chapter 2.2,
"Installing the software", on page 10.
2. Connect the vector signal generator and the PC with the installed R&S Pulse
Sequencer (DFS) software to a LAN.
See Figure 3-1.
3. Route the marker 1 signal from the vector signal generator to the trigger input of
the spectrum analyzer or the power sensor.
Marker signals are output at one of the BNC connectors of the vector signal generator. For more information, refer to the user manual of the corresponding instrument.
4. Ensure that Microsoft Excel is installed on the PC.
Otherwise use template-based reporting.
5. Start the R&S Pulse Sequencer (DFS) software. Load the DFS repository of the
standard to be tested.
See Chapter 2.5, "Loading a DFS project file", on page 17.
25User Manual 1177.5327.02 ─ 17
Page 26
R&S®Pulse Sequencer (DFS)
6. In the R&S Pulse Sequencer (DFS), set up the connection between the software
and the vector signal generator.
See Chapter 4.1, "How to connect the signal generator", on page 26.
7. Create test reports.
See Chapter 4.2, "How to create test reports", on page 29.
8. Conduct the trial.
See Chapter 4.3, "How to create the waveforms and conduct the trial",
on page 31.
The R&S Pulse Sequencer (DFS) creates all required files and transfers them to
the vector signal generator.
4.1 How to connect the signal generator
This section shows how to:
●
"To select a physical generator" on page 26
●
"To add a connected physical signal generator to the list of available instruments"
on page 27
Generating test files and conducting the trials
How to connect the signal generator
To select a physical generator
This section assumes that you have loaded a DFS repository as described in Chap-
ter 2.5, "Loading a DFS project file", on page 17.
1. In the project tree, select the required "Scenario".
In the context of this software, the term scenario describes all trials of a waveform.
For example, to perform DFS tests according to FCC type 5, select "DFS FCC
06-96 > Scenario > Type 5".
The "Scenario" dialog opens and displays information on the sequence, generated
waveform, marker signals, etc.
26User Manual 1177.5327.02 ─ 17
Page 27
R&S®Pulse Sequencer (DFS)
Generating test files and conducting the trials
How to connect the signal generator

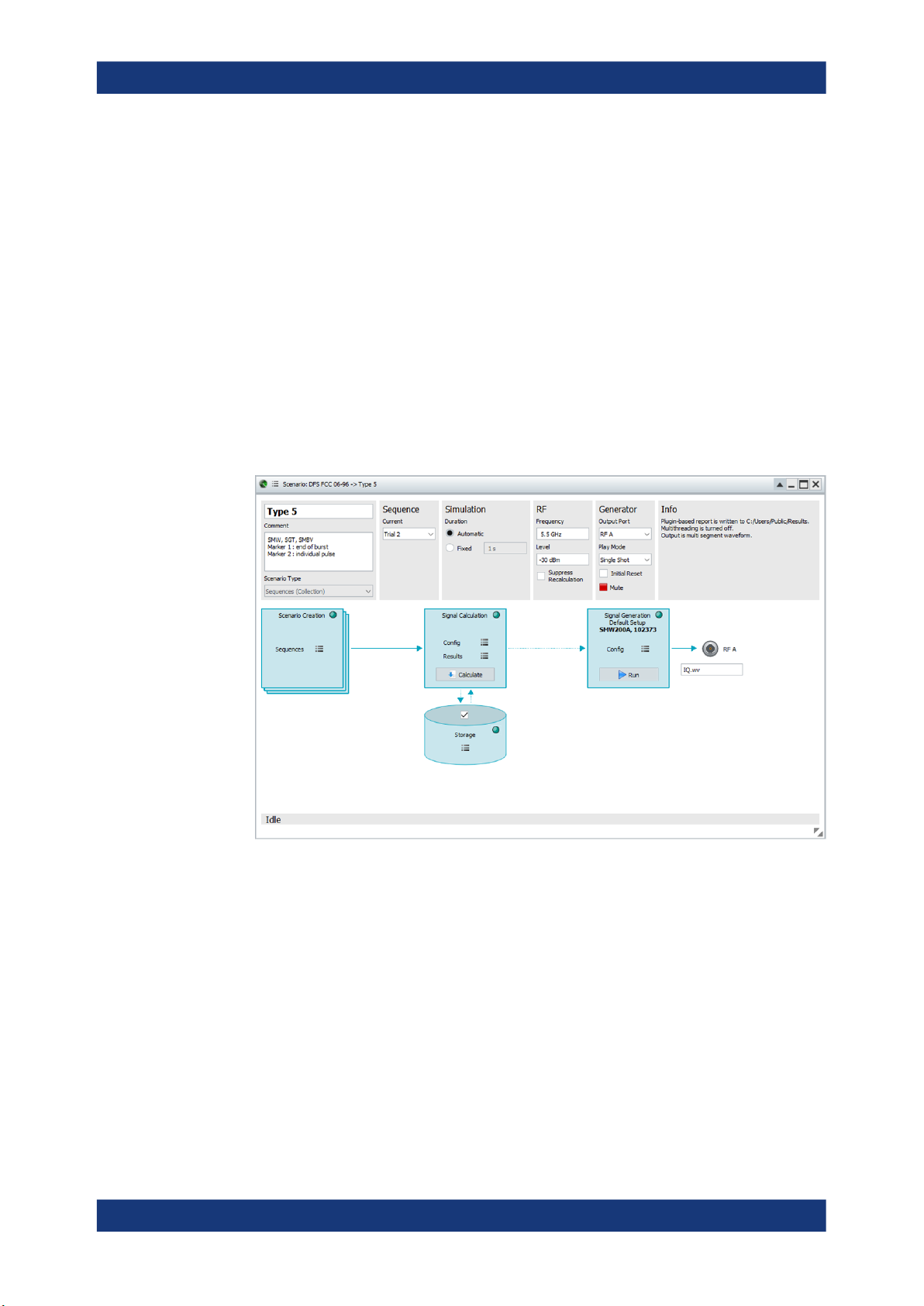

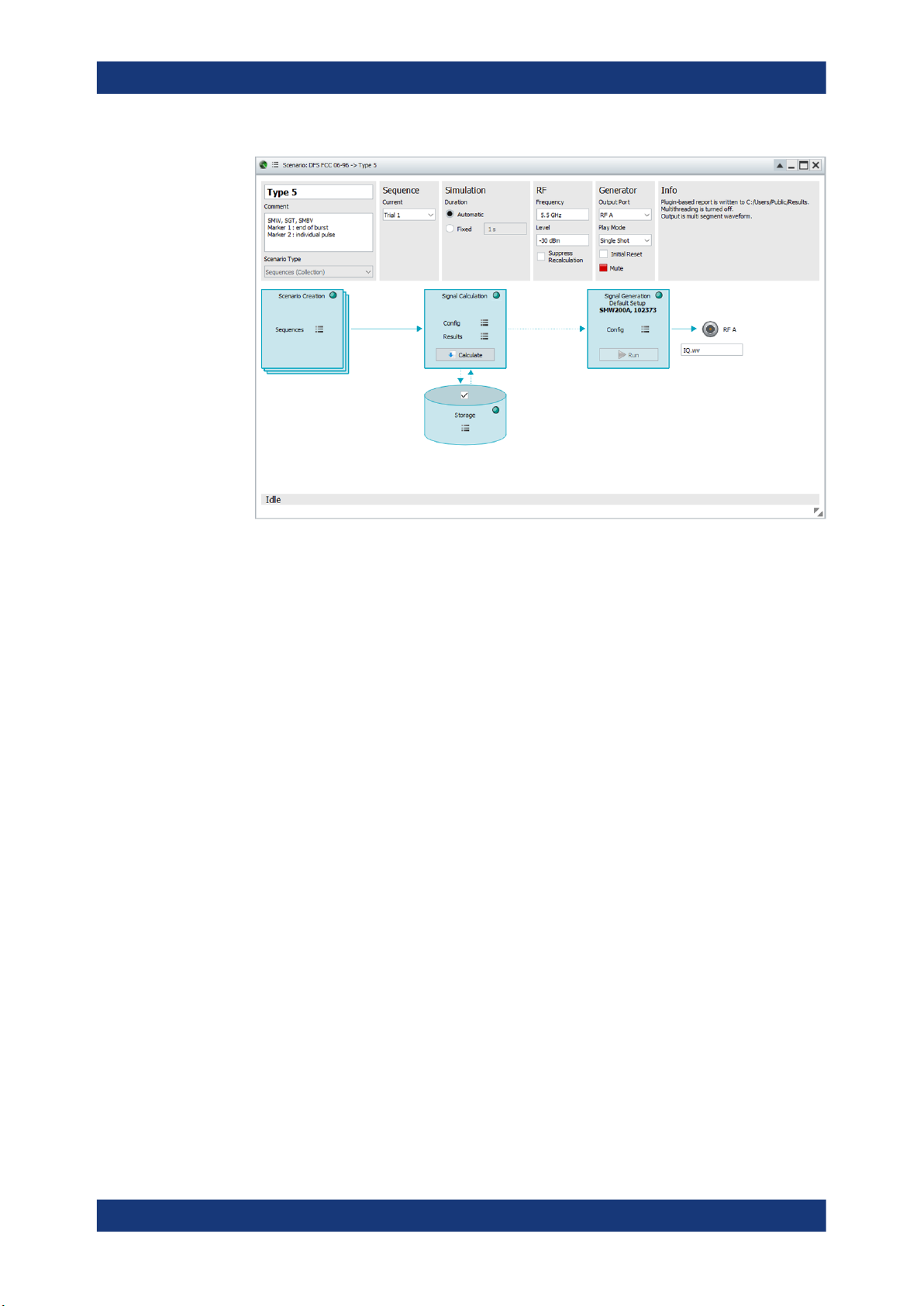

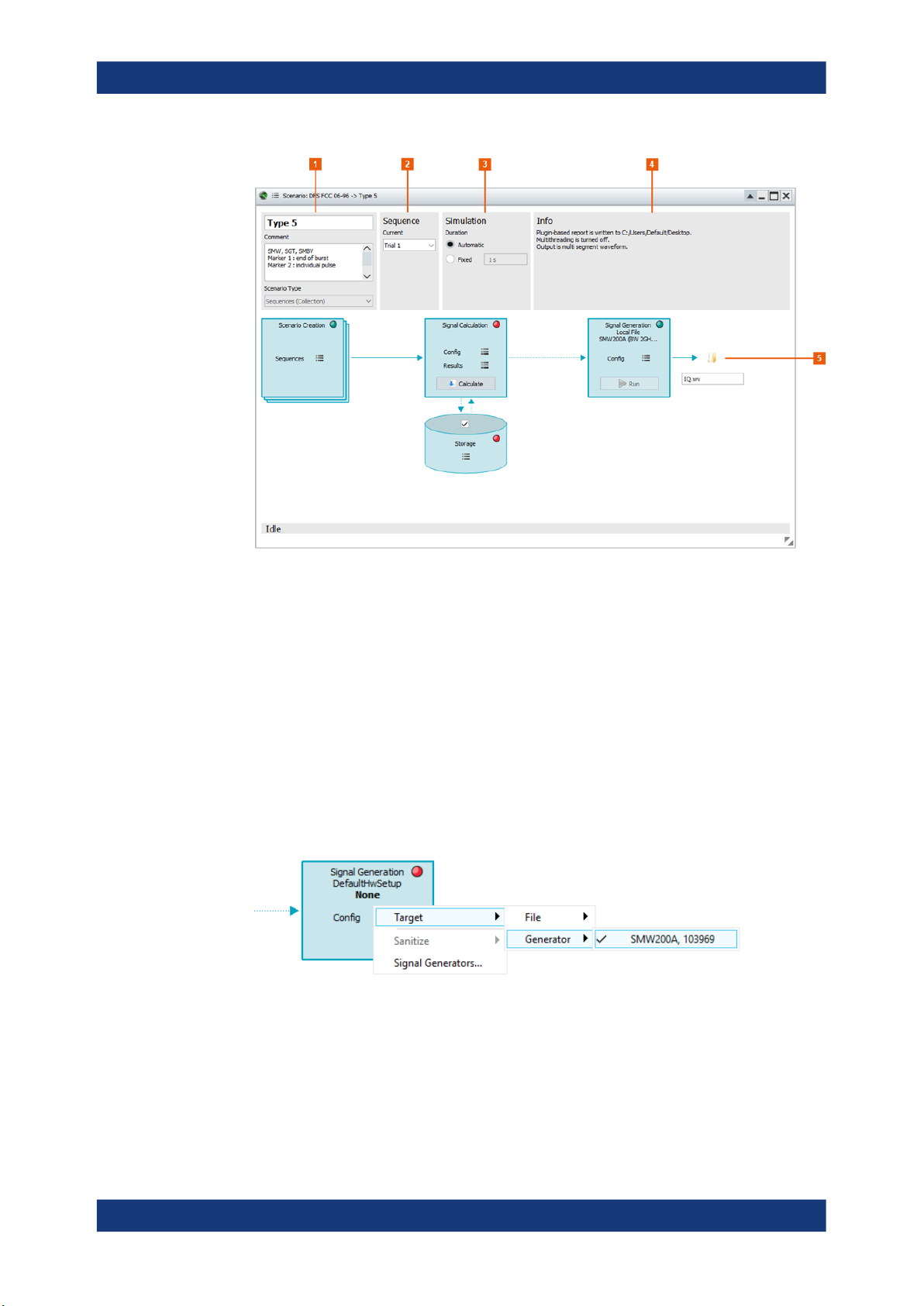

Figure 4-1: Scenario dialog: Understanding the displayed information
1 = Scenario name, additional information on generated markers and whether the same or variable tri-
als are used
2 = If the test requires several trials, the entire set of sequences is automatically generated; "Current"
indicates the name of the currently selected trail
3 = Simulation duration settings
4 = Information on the storage location, the generated waveform (single or multi-segment), and display
of status messages
5 = Selected generator or output file, together with status indication
See also "Embedded marker signals" on page 24.
2. In the "Signal Generation" block, open the context menu and select a physical generator.
For example, select "Config > Target > Generator > SMWA200A".
The selected generator is displayed in the "Signal Generation" block.
Note: If no physical generators are available, see "To add a connected physical
signal generator to the list of available instruments" on page 27.
To add a connected physical signal generator to the list of available instruments

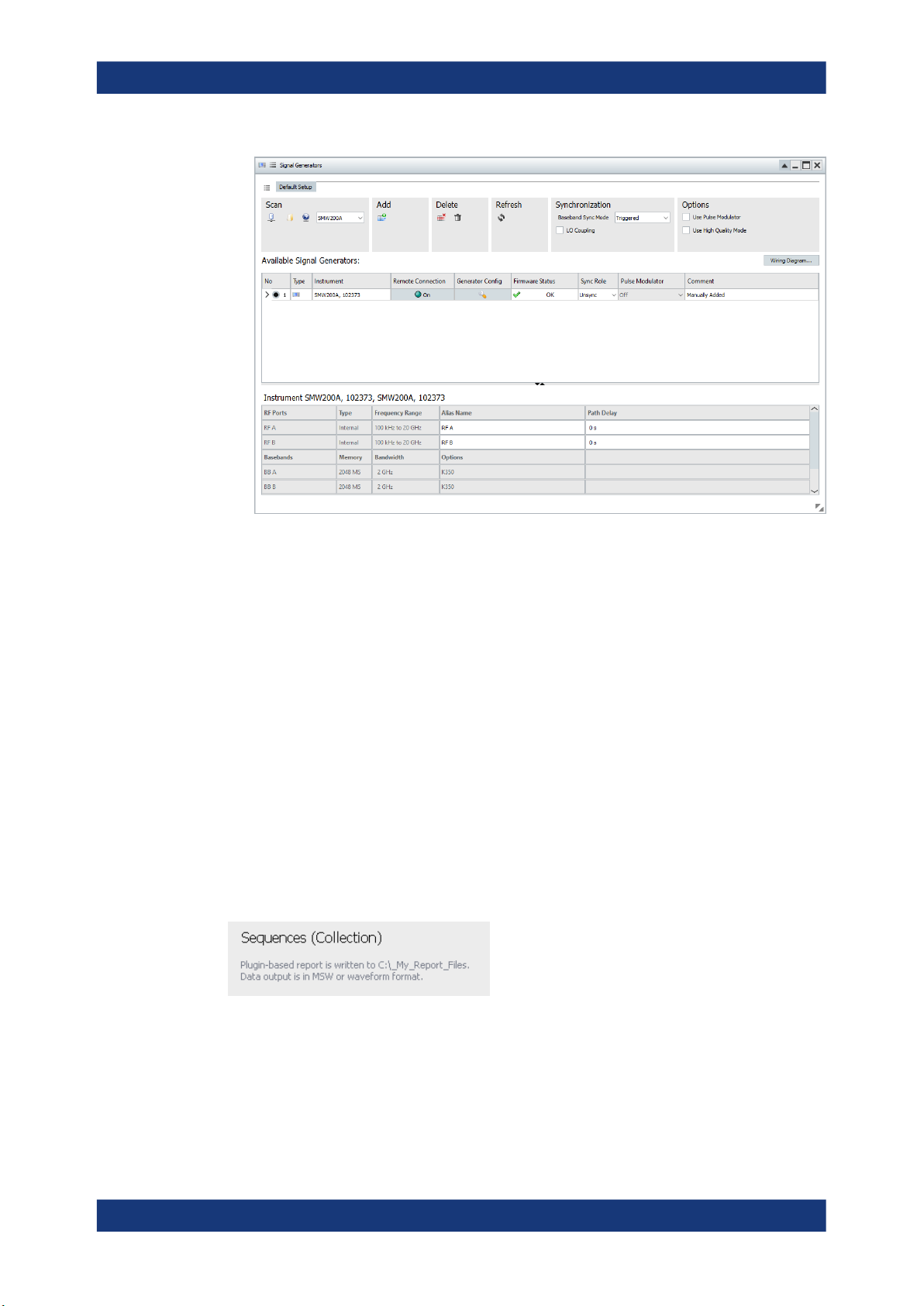

1. In the menu bar, select "Configure > Signal Generators".
27User Manual 1177.5327.02 ─ 17
Page 28
R&S®Pulse Sequencer (DFS)
The "Signal Generators" dialog opens.
Generating test files and conducting the trials
How to connect the signal generator

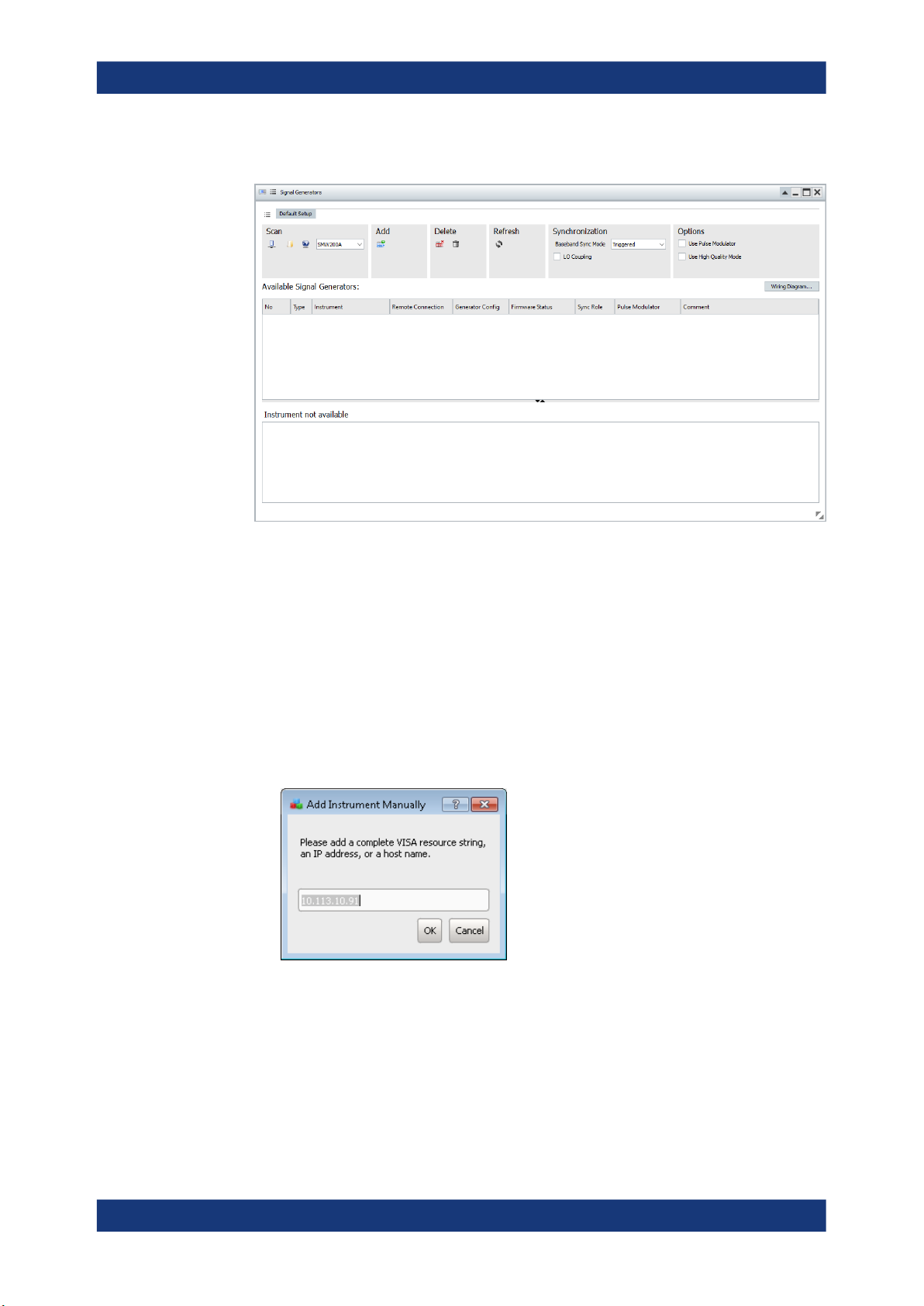

2. If the "Available Signal Generators" list is empty, perform one of the following:
a) Scan for available instruments.
Select one of the "Scan" options by clicking the appropriate icon (GPIB, USB or
LAN).
To scan for a particular type of generator, select it in the drop-down list (e.g.
SMW200A).
b) Add a particular instrument.
Select the "Add" icon.
Enter the IP address, the computer name, or the complete VISA resource
string of the connected instrument.
Select "Ok".
The new instrument is added to the list.
28User Manual 1177.5327.02 ─ 17
Page 29
R&S®Pulse Sequencer (DFS)
Generating test files and conducting the trials
How to create test reports
This generator also appears in the list of generators available via the "Signal Generators" block in the "Scenarios" dialog.
4.2 How to create test reports
An introduction to the reporting function is provided in "Report generation" on page 22.
This section shows how to:
●
"To enable report file generation" on page 29
●
"To set the storage location for the generated report files" on page 30
●
"To change the report type" on page 30
To enable report file generation
In R&S Pulse Sequencer (DFS), the reporting function is enabled per default.
The "Scenario" dialog provides information on the report logging status. The related
information is displayed to the right of the "Comment" field.
To enable or disable the report file generation, proceed as following:
1. In the "Scenario" dialog, select "Waveform Generation > Config".
2. In the "Signal Calculation Settings" dialog, select "Reporting > Reporting Enable >
On".
29User Manual 1177.5327.02 ─ 17
Page 30
R&S®Pulse Sequencer (DFS)
To set the storage location for the generated report files
Per default, report files are stored in the user home directory of the current user, that is
the %HOMEPATH% directory.
1. Open the "Scenario" dialog to retrieve information on the current storage location.
Information is displayed to the right of the "Comment" field.
2. Select "Signal Calculation > Config > Config".
3. In the "Signal Calculation Settings" dialog, select "Reporting".
The parameter "Target Path" indicates the current storage location.
Generating test files and conducting the trials
How to create test reports
4. To change this location, select the "Set target path" icon, navigate to the directory,
and confirm with "Select Folder".
To change the report type
You can also store the test reports in text form or as HTML pages (e.g. if Microsoft
Excel is not installed on your PC).
To change the type of the generated reports, proceed as following:
1. In the "Scenario" dialog, select "Signal Calculation > Config > Config > Report".
2. Select "Type > Template".
3. Select "Edit" to display the current template.
30User Manual 1177.5327.02 ─ 17
Page 31
R&S®Pulse Sequencer (DFS)
For detailed description of the file formats, the template and the plugin, see the
R&S Pulse Sequencer user manual.
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
4.3 How to create the waveforms and conduct the trial
Once you have completed the configuration described in Chapter 4.1, "How to connect
the signal generator", on page 26, you can start waveform generation.
We assume that the reporting function uses the predefined report plug-in.
This section shows how to:
●
"To generate the waveforms" on page 31
●
"To view the created reports" on page 33
●
"To store the generated waveforms in the repository" on page 33
●
"To verify the configuration of the connected signal generator" on page 34
●
"To play the generated signal" on page 36
●
"To set the DUT's frequency and bandwidth for FCC 06-96 type 6 tests with simulated hopping" on page 36
●
"To set the DUT's frequency and bandwidth for FCC KDB 905462 D02 type 5 tests"
on page 40
To generate the waveforms
We recommend that you create all waveforms before starting the manual tests.
Waveform generation is only required once for all trials.
1. In the "Scenario" dialog, observe the displayed "Comment".
Some scenarios require more configurations, like, for example, the FCC 06-96 type
6 or FCC KDB 905462 D02 type 5 tests.
2. Configure the test-related settings first.
31User Manual 1177.5327.02 ─ 17
Page 32
R&S®Pulse Sequencer (DFS)
See also:
● "To set the DUT's frequency and bandwidth for FCC 06-96 type 6 tests with
simulated hopping" on page 36
● "To set the DUT's frequency and bandwidth for FCC KDB 905462 D02 type 5
tests" on page 40
3. In the "Scenario" dialog, select "Calculate".
The waveform calculation starts. Depending on the PC performance, waveform calculation can take several minutes. Progress information, the size of the waveform
and a busy status indicator is displayed.
Note: Do not interrupt this process. Do not execute other actions while the calculation is in progress.
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
With the waveform generation start, the software performs automatically the following:
● Invokes Microsoft Excel and opens a spreadsheet for reporting

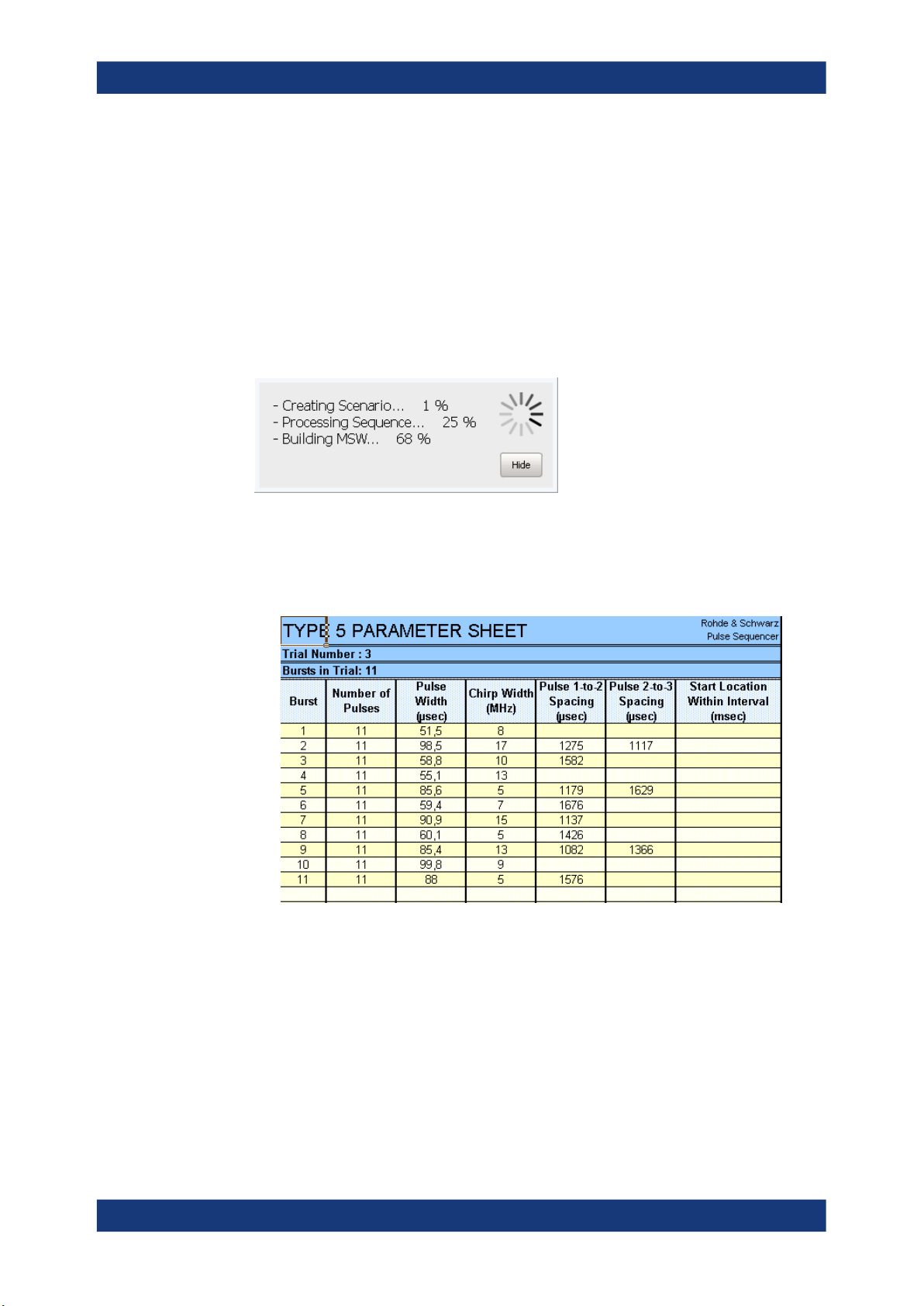

Figure 4-2: Example of a spreadsheet
● Creates the individual waveforms and transfers them to the vector signal gen-
erator
● Stores the populated reports and closes Microsoft Excel
The green status indicator in the "Signal Calculation" block indicates that the waveform generation has completed successfully.
32User Manual 1177.5327.02 ─ 17
Page 33
R&S®Pulse Sequencer (DFS)
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
If the default "Single Shot" play mode is used, the vector signal generator plays the
waveform once.
The RF frequency and level in the vector signal generator are set with the respective parameters in the "Scenario > RF" settings in the dialog.
To view the created reports
Once the waveform is created, you can view the created report files.
► In the "Scenario" dialog, select "Signal Calculation > Config > Open Report Folder".
To play the generated waveforms
Once the waveform is created, you can play the created waveform files.
1. In the "Scenario" dialog, select "Signal Calculation > Results > View".
2. Select a trial from the list.
The "Signal Preview" dialog opens.
To store the generated waveforms in the repository
According to the DFS standards, each new waveform calculation uses new random
values.
To continue testing later or to the repeat measurements with the same random parameters, generated waveforms can be stored in the repository.
1. In the "Scenario" dialog, select "Storage > On".
2. Select "Signal Calculation > Results > Save calculated results".
33User Manual 1177.5327.02 ─ 17
Page 34
R&S®Pulse Sequencer (DFS)

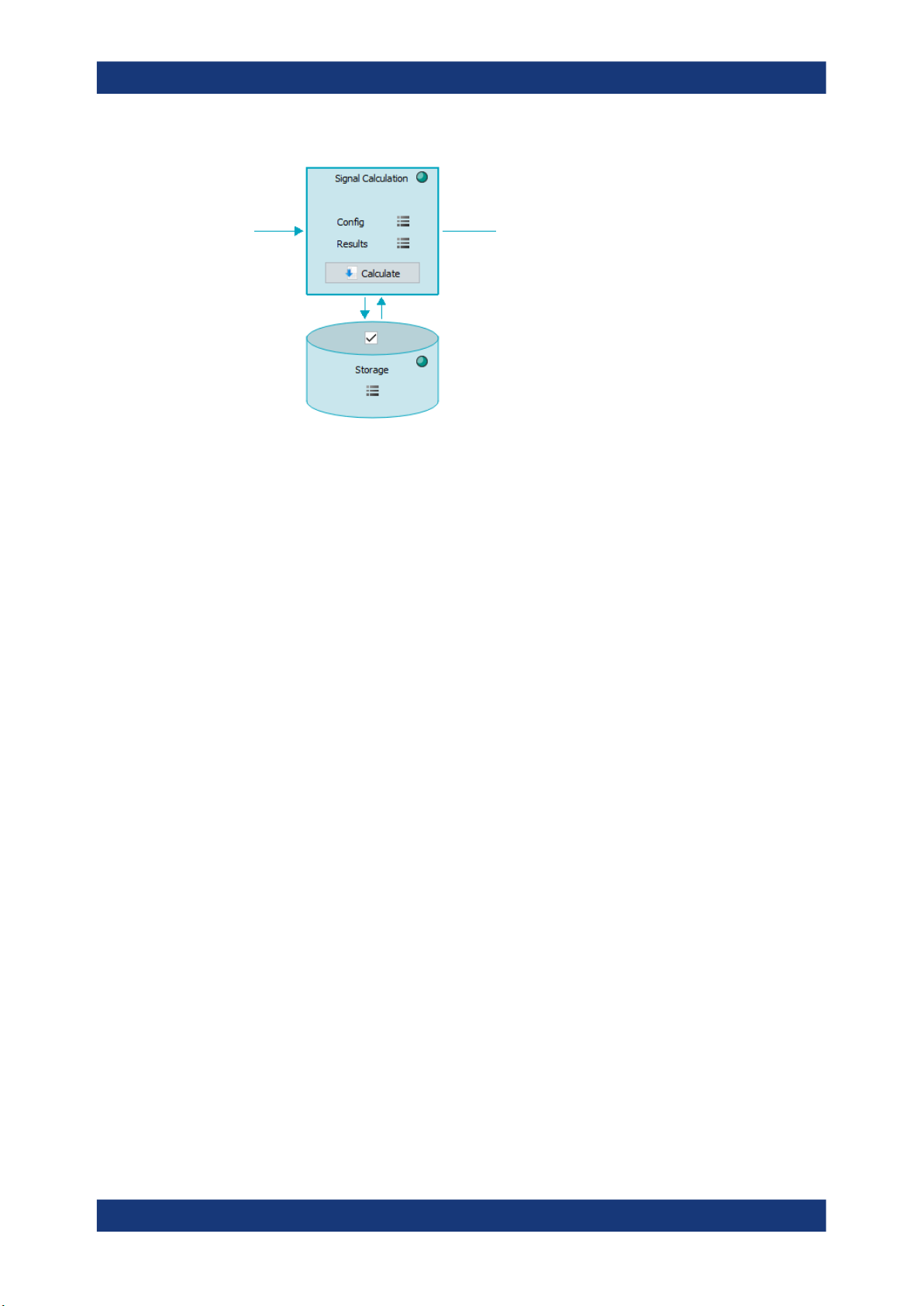

The green indicator in the "Storage" block confirms that the calculated waveforms
are stored in the repository. The dotted line also indicates that waveform data is
retrieved from the repository.
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
3. To load previously stored waveforms, select "Signal Generation > Results > Load
calculated results".
4. To trigger a waveform calculation for the same "Scenario" but with new random values, perform the reverse operation:
a) Select "Storage > Clear"
b) Select "Storage > Off"
c) Select "Start".
To verify the configuration of the connected signal generator
All required waveforms are stored in the user directory on the instrument's hard disk.
The following example uses R&S SMW.
1. In the R&S Pulse Sequencer (DFS), select "Signal Generation > Run".
The software controls the signal generator. The RF frequency and the pulse top
power level are set automatically.
The selected trial is loaded into the ARB. The ARB and the RF output are activated.

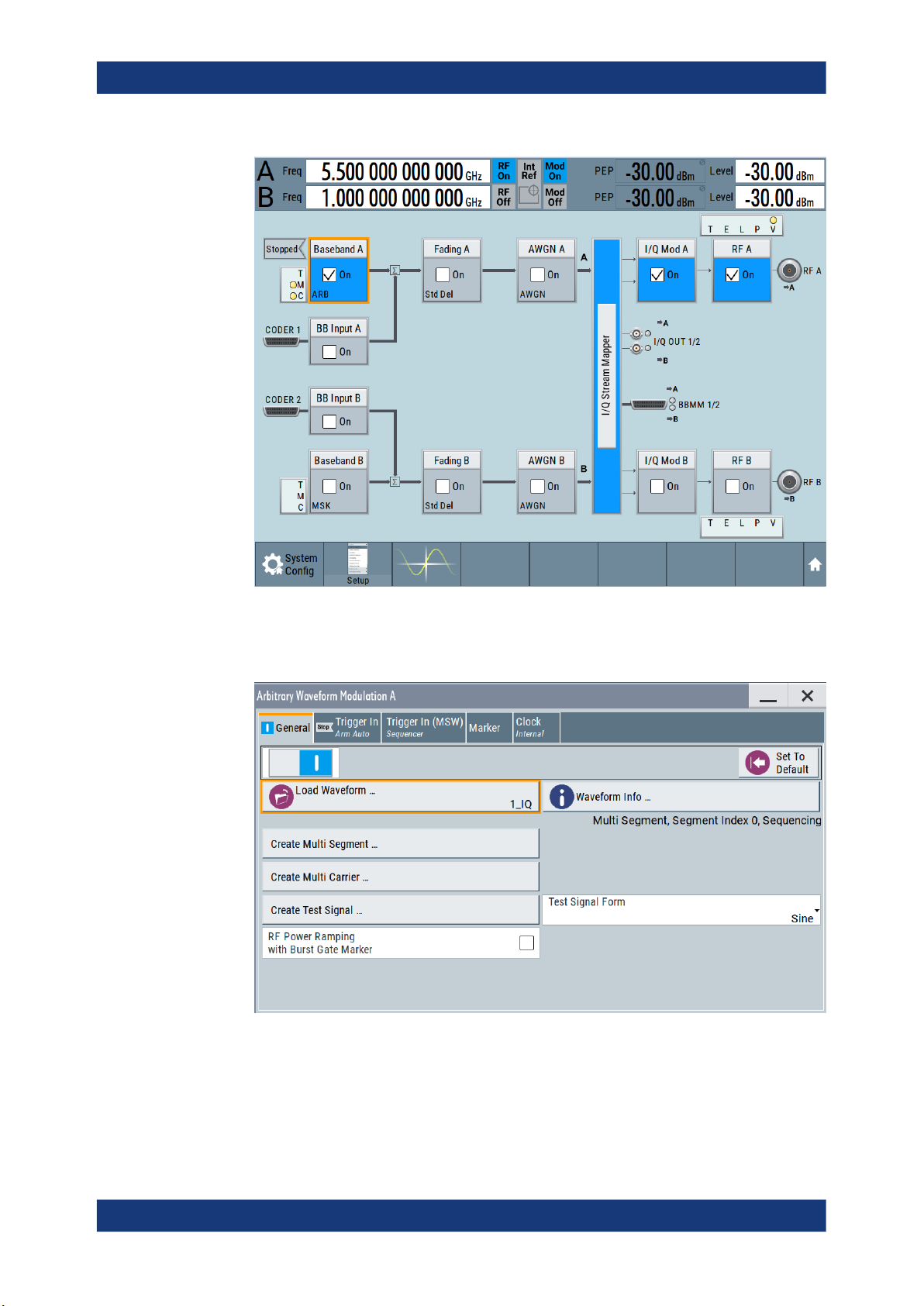

2. On the instrument's display, observe the block diagram.
34User Manual 1177.5327.02 ─ 17
Page 35
R&S®Pulse Sequencer (DFS)
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
The displayed "RF Frequency" and "PEP" values confirms the settings performed
in the R&S Pulse Sequencer (DFS).
3. Select "Baseband > ARB".
The waveform "1_IQ" is loaded.
35User Manual 1177.5327.02 ─ 17
Page 36
R&S®Pulse Sequencer (DFS)
To play the generated signal
The signal generator is configured in "Trigger Mode > Armed Auto". To play the waveform, execute the trigger manually:
► In the signal generator, select "Baseband > ARB > Trigger > Execute Trigger".
The instrument generates the selected waveform once. The required test signal is
output at [RF A] connector.
The "Marker 1" and "Marker 2" signals, at the [T/M 2] and [T/M 3] connectors.
To load and process further trials from the same DFS type
All required waveform had been created and transferred to the instrument. With the following steps, you select the trial to be loaded in the ARB:
1. In the R&S Pulse Sequencer (DFS), open the "Scenario" dialog.
Select the next trial, for example "Sequence > Current > Trial 2"
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
2. Select "Run".
The waveform of trial 2 is activated in the ARB.
If "Single Shot" play mode is used, signal generation starts automatically.
The waveform is played once.
To set the DUT's frequency and bandwidth for FCC 06-96 type 6 tests with simulated hopping
FCC 06-96 type 6 tests use simulated hopping. A short introduction to the principle is
provided in Chapter A.2.1.3, "Radar type 6", on page 47.
To calculate the waveform, the R&S Pulse Sequencer (DFS) software uses the following parameters: the DUT's bandwidth, the center frequency, and the description of the
frequency hopping.
36User Manual 1177.5327.02 ─ 17
Page 37
R&S®Pulse Sequencer (DFS)
To configure the required parameters, proceed as following:
1. In the "Scenario" dialog, select set the parameter "Frequency" to the operating frequency of the DUT.
2. Observe the displayed "Comment".
To perform FCC 06-96 type 6 tests with simulated hopping, adjust the DUT's bandwidth.
The default bandwidth is 20 MHz. To change this value:
3. In the "Repository tree", select "DFS FCC 06-96 > Pulses > Pulse 6 Sim".
Generating test files and conducting the trials
How to create the waveforms and conduct the trial

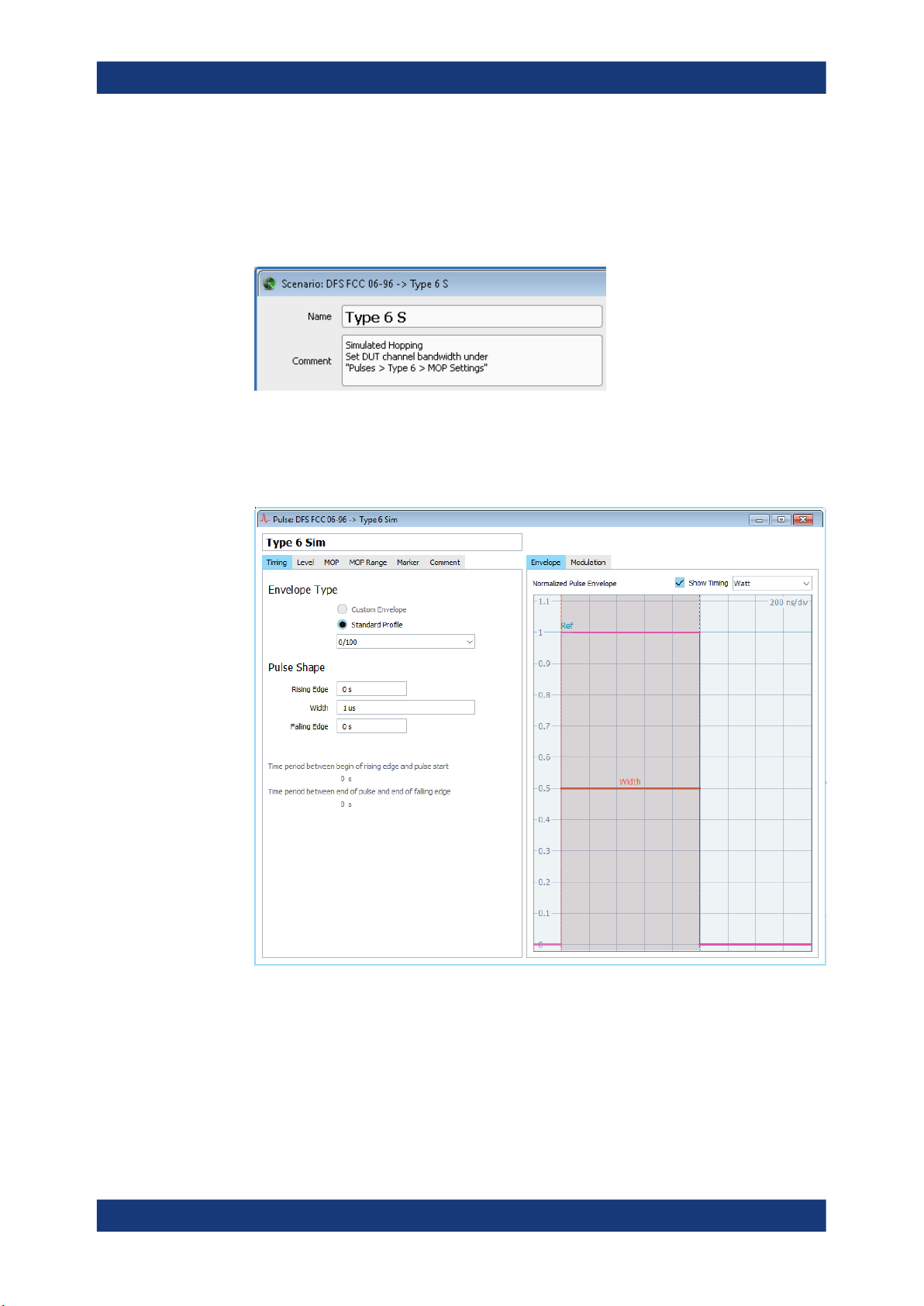

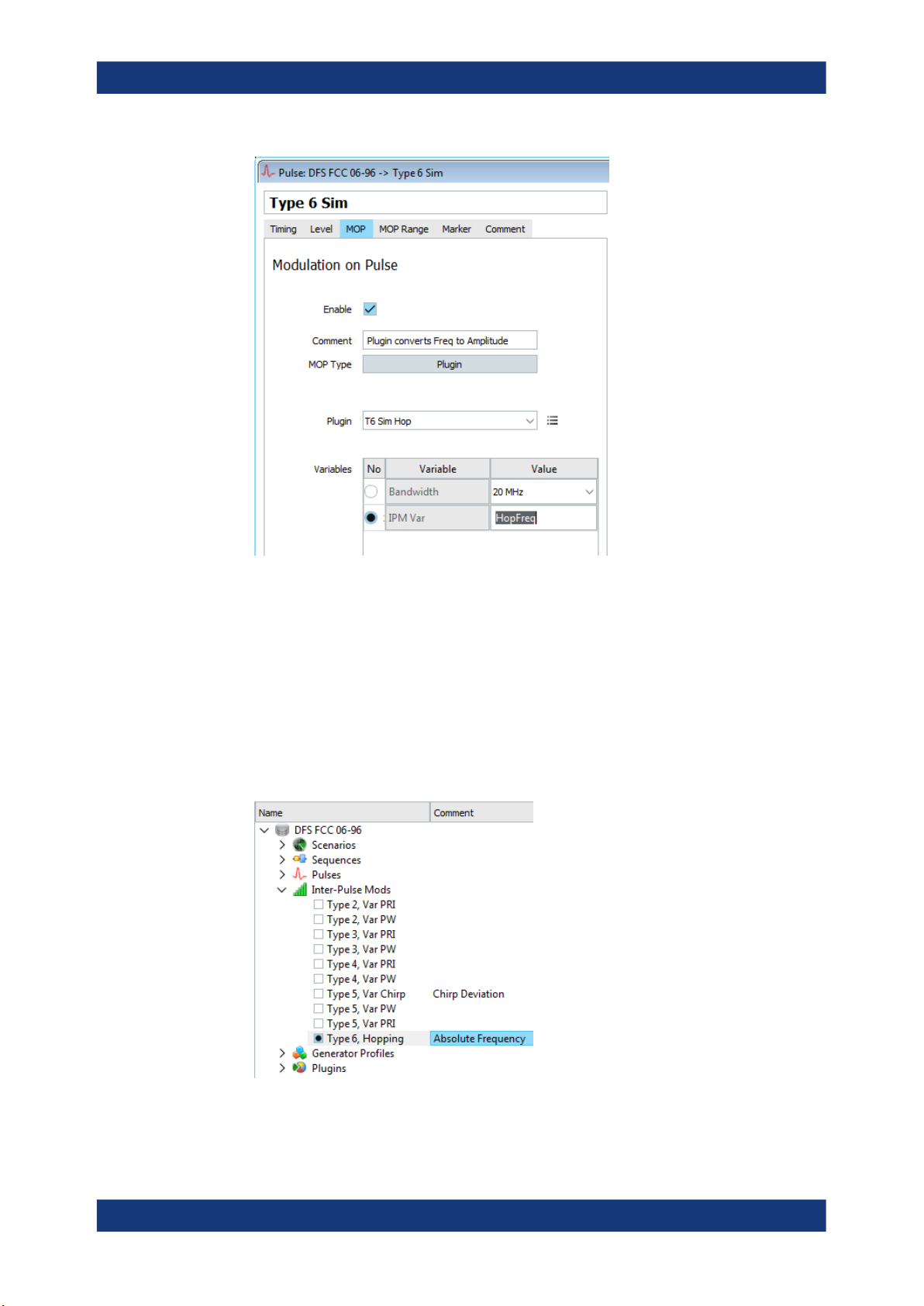

4. In the "Pulse" dialog, select "MOP"
37User Manual 1177.5327.02 ─ 17
Page 38
R&S®Pulse Sequencer (DFS)
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
5. In the "Bandwidth" field, select the DUT bandwidth according to the particular test
requirements, e.g. 20 MHz.
Generated are only pulses whose frequency f
fall within this "Bandwidth". Fre-
hop
quencies that fall outside the "Bandwidth" are suppressed.

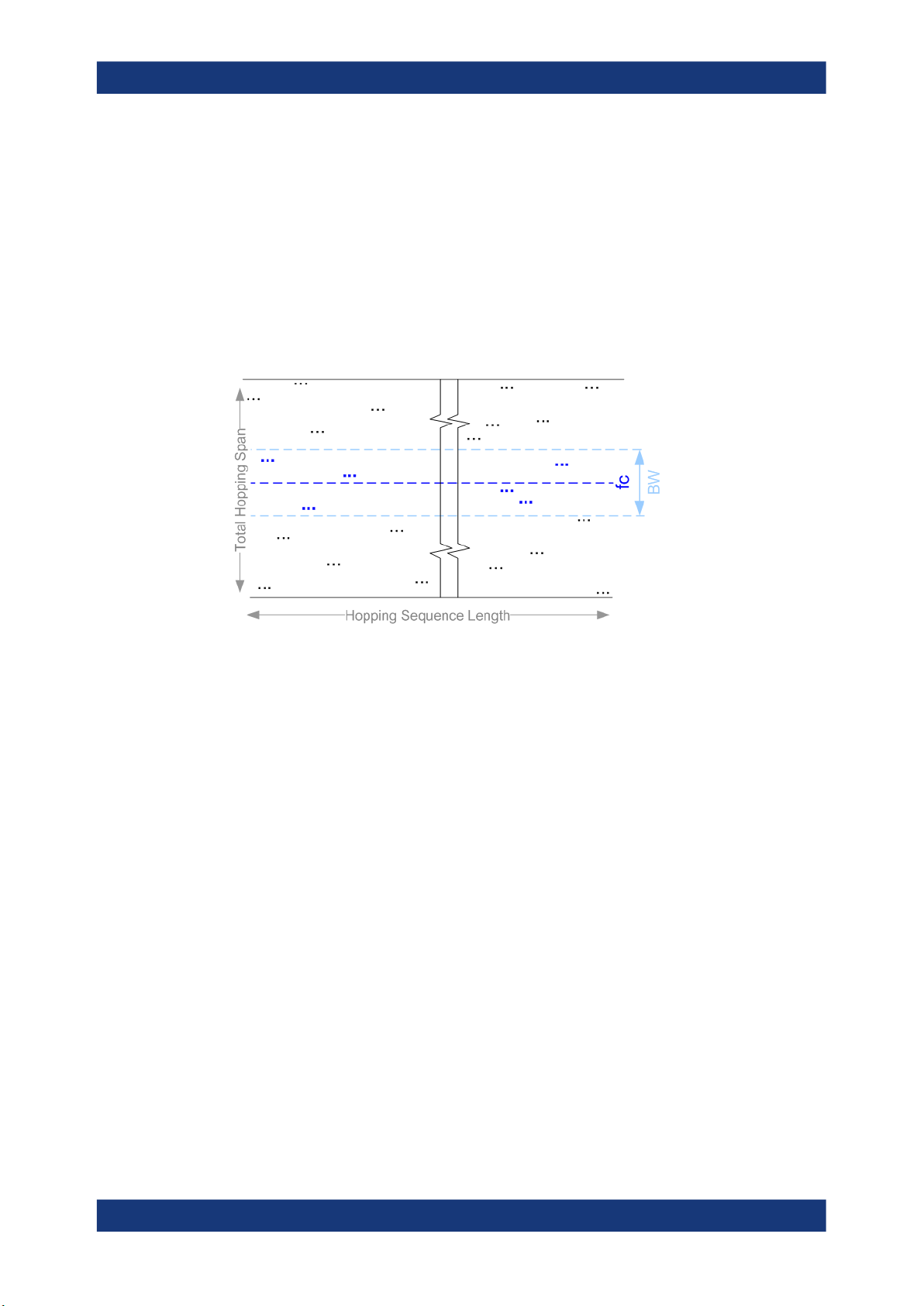

See also Figure A-1.
Note: Do not change the value of the variable "IPM Var".
The value "HopFreq" is internally used for the calculation of the frequency hops.
6. The frequency hopping is described with a predefined IPM profile.
To see the IPM profile, select "Repository Tree > IPM > Type 6, Hopping ".
The "IPM" dialog opens and displays information on the configured IPM profile.
38User Manual 1177.5327.02 ─ 17
Page 39
R&S®Pulse Sequencer (DFS)
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
The "Type 6, Hopping" is implemented as a "Random List" profile. The frequency is
selected on a random manner without frequency reuse.
7. To retrieve information on the used frequency range, select "List".

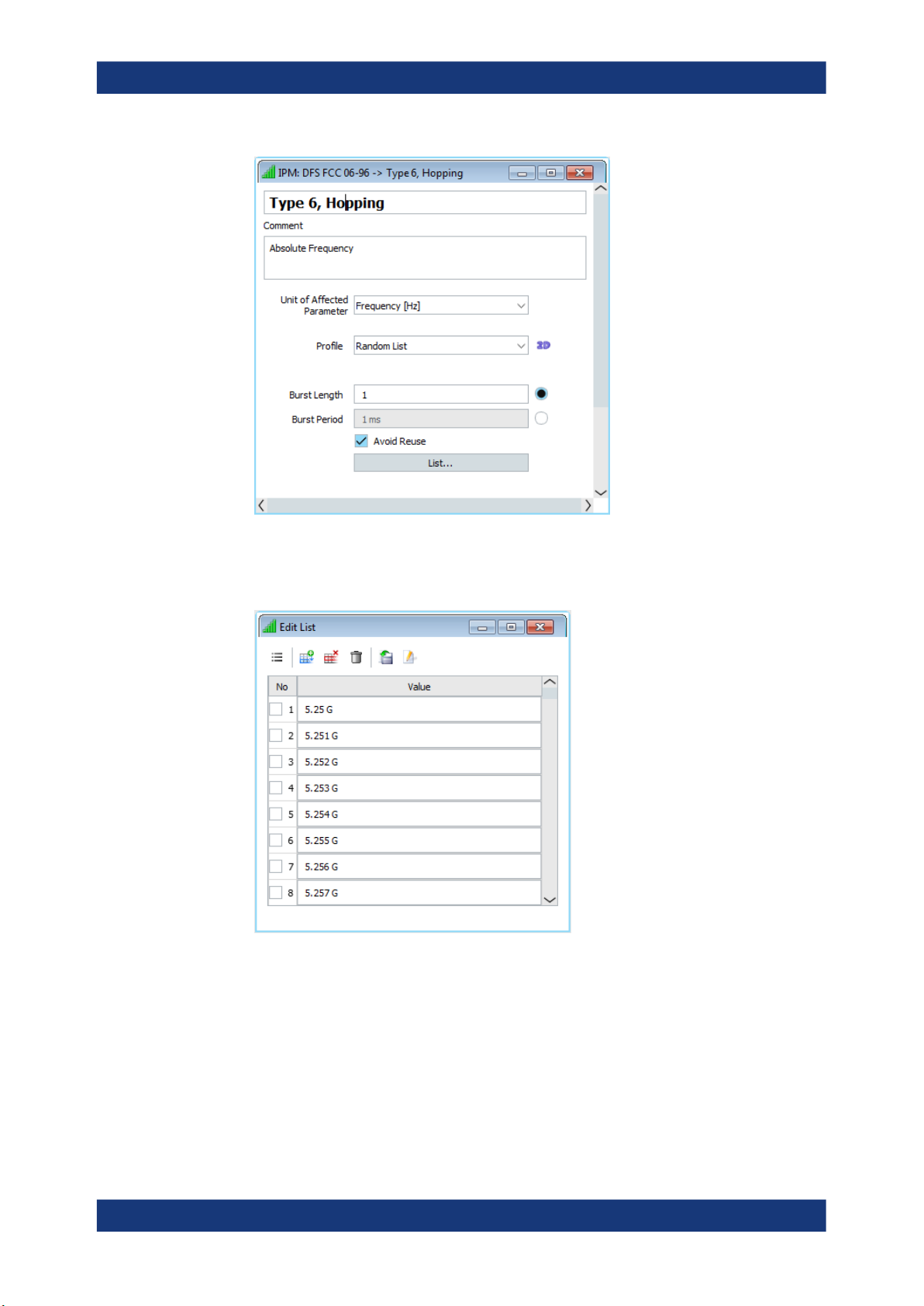

Figure 4-3: IPM profile for DFS FCC 06-96 type 6 tests with simulated hopping (extract)
The list contains 475 frequencies in the frequency range between 5.25 GHz to
5.724 GHz. The extract on Figure 4-3 shows the first few values.
For more information on the provided settings, see the R&S Pulse Sequencer user
manual.
8. Close the dialogs.
9. Conduct the trial.
39User Manual 1177.5327.02 ─ 17
Page 40
R&S®Pulse Sequencer (DFS)
See "To generate the waveforms" on page 31.
10. Open the generated report file FCC-0696-T6Sim.xls.
The file contains 1 overview sheet and 30 individual sheets, one for each trial.
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
Figure 4-4: DFS FCC 06-96 type 6 trial 15 spreadsheet (extract)
* = indicates frequencies that fall within the bandwidth of the DUT
Each spreadsheet lists the randomly selected 100 frequencies and indicates the
frequency hops that fall within the bandwidth of the DUT.
See also Figure A-1.
To set the DUT's frequency and bandwidth for FCC KDB 905462 D02 type 5 tests
To perform the FCC KDB 905462 D02 type 5 tests, you have to specify the center frequency (Fc) and the bandwidth of your DUT.
Configure the required parameters as following:
1. In the "Scenario" dialog, set the "Target > File".
2. Enable report generation, as described in Chapter 4.2, "How to create test reports",
on page 29.
3. In the "Scenario" dialog, select "Controls > Prepare".
Wait until the waveforms and the report are generated.
4. In the "Scenario" dialog, select "Signal Generation > Config > Open Report Folder".
5. Open the generated report file FCC905462D02v02-T5.xls.
The file contains 1 overview sheet and 30 individual sheets, one for each trial.
6. Observe the information on the "Overview" tab.
40User Manual 1177.5327.02 ─ 17
Page 41
R&S®Pulse Sequencer (DFS)
Generating test files and conducting the trials
How to create the waveforms and conduct the trial

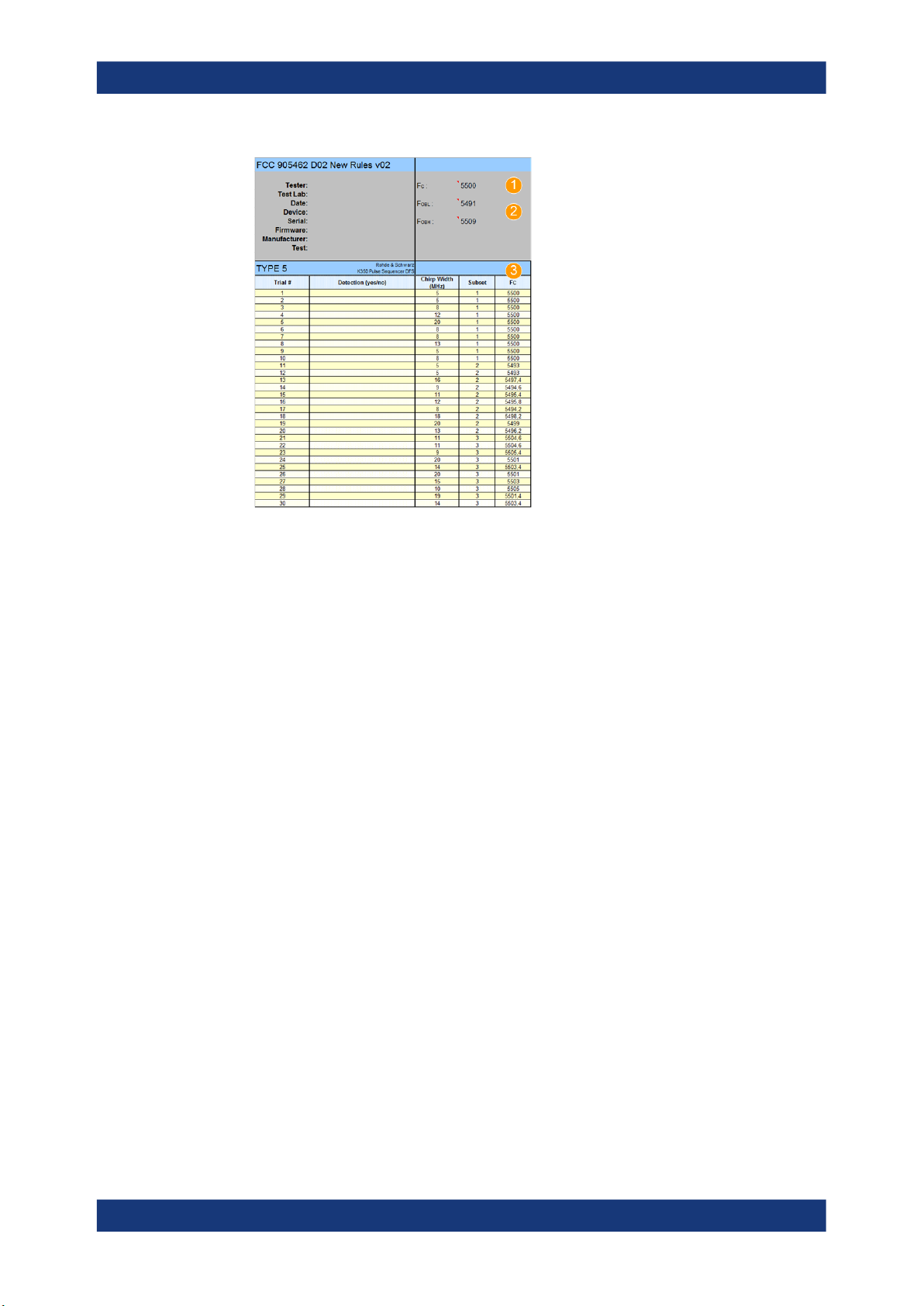

1 = Fc: Center frequency of the DUT
2 = DUT's bandwidth, set as F
edge)
3 = F
: center frequency per trial, calculated automatically from the DUT's center frequency and its
c,#
bandwidth
(occupied bandwidth low edge) and F
OBL
(occupied bandwidth high
OBH
The tab shows a table with summary information on the 30 trials. The indicated Fc,
F
and F
OBL
7. Set the Fc, F
values are the default values.
OBH
OBL
and F
values to fit the center frequency and bandwidth of your
OBH
DUT.
The F
values per trial are calculated automatically.
c,#
8. In the "Scenario" dialog, select "Traget > Config > Generator".
9. Depending on the used instrument, select a suitable profile. Proceed as described
in Chapter 4.1, "How to connect the signal generator", on page 26.
10. In the "Scenario" dialog, select "Sequence > Trial 1".
11. Set the parameter "RF > Frequency" to the center frequency F
as shown in the
c,1
report.
12. Set "RF > Supress Recalculation > On".
This setting prevents that the waveform is recalculated each time you change the
RF frequency.
13. Conduct the trial.
See "To generate the waveforms" on page 31.
14. Repeat steps step 11 and step 13
15. Open the generated report file FCC905462D02v02-T5.xls.
41User Manual 1177.5327.02 ─ 17
Page 42
R&S®Pulse Sequencer (DFS)
Generating test files and conducting the trials
How to create the waveforms and conduct the trial
42User Manual 1177.5327.02 ─ 17
Page 43
R&S®Pulse Sequencer (DFS)
Annex
A Overview of the test requirements and pro-
vided test patterns
The software supports waveform generation according to different version of the same
specification. If not other stated, all versions of the same specification use the same
waveform requirements.
A.1 ETSI 301 893, ETSI 302 502, ETSI 303 258
This section describes the generation of the DFS related radar test signals according
to the ETSI specifications.
Overview of the test requirements and provided test patterns
ETSI 301 893, ETSI 302 502, ETSI 303 258
● Waveform requirements 301893.............................................................................43
● Waveform requirements 302502.............................................................................44
● Waveform requirements 303258.............................................................................45
A.1.1 Waveform requirements 301893
The waveform requirements are listed in Table A-1.
Table A-1: Waveform requirements 301893 (Annex D, DFS)
Radar test signal Pulse width
[us]
1 0.5 to 5 200 to 1000 10, 18 See Table A-2.
2 0.5 to 15 200 to 1600 15, 18
3 0.5 to 15 2300 to 4000 25
4 20 to 30 2000 to 4000 20
5 0.5 to 2 300 to 400 10, 18
6 0.5 to 2 400 to 1200 15, 18
Table A-2: Additional requirements
PRF [us] Pulses per burst Additional
requirements
Radar test signal Pulse descriptions
1 Constant PRF
2 Constant PRF
3 Constant PRF
4 Constant PRF
Modulated radar test signal. Chirp with a ± 2.5 MHz frequency deviation.
43User Manual 1177.5327.02 ─ 17
Page 44
R&S®Pulse Sequencer (DFS)
Radar test signal Pulse descriptions
5 Staggered PRF (2 or 3 different PRF values and a single pulse type).
6 Staggered PRF (2 or 3 different PRF values and a single pulse type)
For off-channel CAC testing, the test signal contains groups of pulses.
For all other tests, single pulses are used.
Refer to diagrams D1 to D4 in the ETSI specification (see ETSI 301893).
Starting form V2.1.1 of ETSI 301893, the generation of two communication signals is
required.
In this implementation, the signals are generated as follows:
●
OFDM test signal with "Pulse Width = 40 us", continuously generated
●
LTE test signal with "Pulse Width = 20000 us", continuously generated
Overview of the test requirements and provided test patterns
ETSI 301 893, ETSI 302 502, ETSI 303 258
PRF values differ by 20 PPS to 50 PPS.
Note: R&S Pulse Sequencer (DFS) provides two off-channel CAC scenarios to sup-
port wideband and narrowband signal generators.
PRF values differ by 80 PPS to 400 PPS
For all test signals, a total of 20 randomly generated test patterns are required.
A.1.2 Waveform requirements 302502
The waveform requirements described in this section apply to the following ETSI
standards:
●
ETSI EN 302 502 V2.0.8
●
ETSI EN 302 502 V2.1.1
The waveform requirements are listed in Table A-3.
Table A-3: Waveform requirements 302502 (Annex D, DFS, Table D.3.1)
Radar test signal Pulse width
[us]
1 1 750 15 Variable PRF and
2 1, 2, 5 200, 300, 500, 800,
3 10, 15 200, 300, 500, 800,
4 1, 2, 5 ,10, 15 1200, 1500, 1600 15
PRF [us] Pulses per burst Requirements
1000
1000
10
pulse width
15
5 1, 2, 5 ,10, 15 2300, 3000, 3500,
4000
6 20, 30 2000, 3000, 4000 20
25
44User Manual 1177.5327.02 ─ 17
Page 45
R&S®Pulse Sequencer (DFS)
The radar test signal 6 requires a linear chirp modulation from -2.5 MHz to +2.5 MHz
within the pulse. For the test signals 2 to 6, a total of 20 randomly generated test patterns are required.
This standard adds two more waveforms that simulate frequency hopping radar systems, see Table A-4.
Table A-4: Waveform requirements 302502 (Annex D, DFS, Table D.3.2)
Overview of the test requirements and provided test patterns
ETSI 301 893, ETSI 302 502, ETSI 303 258
Radar test
signal
1 1 3000 9 3 -
2 20 4500 9 2 Chirp
Pulse width
[us]
PRF [us] Pulses per
Both signals use bursts that contain 9 pulses with fixed pulse width and fixed PRF. The
second signal also uses a linear FM chirp from -2.5 MHz to +2.5 MHz. In contrast to
the other waveforms the spacing between the bursts is increased from trial to trial by a
fixed step size, see Table A-5.
Table A-5: Waveform requirements 302502 (burst spacing)
Radar test signal Trials Min spacing
[ms]
1 29 1.25 37.5 1.25
2 29 5 150 5
A.1.3 Waveform requirements 303258
The waveform requirements are listed in Table A-6.
Table A-6: Waveform requirements 303258 (Annex D)
burst
Burst length
[ms]
Max spacing
[ms]
MOP
Step size
[ms]
Radar test signal Pulse width
[us]
1 0.5 to 5 200 to 1000 10 Constant PRF for
2 0.5 to 15 200 to 1600 15
3 0.5 to 15 200 to 4000 25
4 20 to 30 2000 to 4000 20
PRF [PPS] Pulses per burst Requirements
each test pattern
The radar test signal 4 also requires a linear chirp modulation from
-2.5 MHz to +2.5 MHz within the pulse.
For all test signals a total of 20 randomly generated test patterns are required.
45User Manual 1177.5327.02 ─ 17
Page 46
R&S®Pulse Sequencer (DFS)
A.2 FCC
● FCC 06-96...............................................................................................................46
● FCC KDB 905462 D02............................................................................................49
● FCC 13–22..............................................................................................................49
A.2.1 FCC 06-96
This section describes the generation of the DFS related radar test signals according
to the FCC 06-96 specification.
TheR&S Pulse Sequencer (DFS) provides a repository with all test signals defined in
the standard. The repository contains all relevant pulse definitions and creates waveforms of all the required trials. The provided test patterns are in line with the requirements listed in Table A-7.
Table A-7: FCC 06-96: Overview of the related chapters
Chapter Test Patterns/Trials Description Related section
Overview of the test requirements and provided test patterns
FCC
Chapter 6.1 Radar Type 1 to 4 Short Pulse Radar
Chapter 6.2 Radar Type 5 Long Pulse Radar Test
Chapter 6.3 Radar Type 6 Frequency Hopping
You can use the built-in reporting function to generate and store report files. If enabled,
the reporting plug-in populates Microsoft Excel spreadsheets, formatted according to
the requirements and populated with the parameters used during the waveform generation. You can use these spreadsheets during testing or for filing test results.
A.2.1.1 Radar type 1 to 4
The parameters for the waveforms of type 1 to 4 are listed in Table A-8.
Table A-8: Radar types 1 to 4: Parameters overview
Radar type Pulse width
(0.1 us steps)
1 1 1428 18 1 waveform Fixed (static)
2 1 to 5 150 to 230 23 to 29 min 30 unique
3 6 to 10 200 to 500 16 to 18
4 11 to 20 200 to 500 12 to 16
PRI [us]
(1 us steps)
Waveforms
Waveform
Radar Test Waveform
Number of
Pulses
Chapter A.2.1.1, "Radar type 1
to 4", on page 46
Chapter A.2.1.2, "Radar type
5", on page 47
Chapter A.2.1.3, "Radar type
6", on page 47
Requirements Comment
PRI
Variable PRI,
waveforms per
type
pulse width,
and number of
pulses
46User Manual 1177.5327.02 ─ 17
Page 47
R&S®Pulse Sequencer (DFS)
A.2.1.2 Radar type 5
Radar type 5 is a waveform that uses FM chirped bursts. Several pulse parameters
vary randomly. The overall duration of the waveform is 12 seconds. The time is divided
equally, depending on the number of used bursts. Each burst starts at a random
moment within its time interval. The following parameters are selected randomly per
burst and applied to all pulses belonging to same burst.
●
Number of pulses
●
FM chirp deviation
The same applies for the PRI, with the exception that bursts containing three pulses
also vary the PRI within the burst. In this case, the intra-pulse spacing is different
between pulse one and two as well as between pulse two and three.
The parameters for the waveform of type 5 are listed in Table A-9.
Table A-9: Radar type 5: Parameters overview
Overview of the test requirements and provided test patterns
FCC
Radar
type
5 50 to 100 1000 to
Pulse
width
(0.1 us
steps)
The R&S Pulse Sequencer (DFS) automatically creates the required waveforms of all
30 trials.
A.2.1.3 Radar type 6
Radar type 6 is a waveform that consists of 9 consecutive pulses on one frequency.
This burst is referred to as the pulses per hop.
A total of 100 frequencies are selected from a range 5.25 GHz to 5.724 GHz. The frequency changes every 3 ms and each burst of 9 pulses uses a unique frequency. It
must be ensured that at least one of the random frequencies falls into the receiver
bandwidth of the DUT.
PRI [us]
(1 us
steps)
2000
Pulses
per burst
1 to 3 8 to 20 5 to 20 30 unique
Bursts Chirp devia-
tion [MHz]
Requirements
waveforms
Comment
Variable
PRI, pulse
width, and
number of
pulses/
bursts
The parameters for the waveform of type 6 are listed in Table A-10.
Table A-10: Radar type 6: Parameters overview
Radar type Pulse width
[us]
6 1 333 300 9 333
PRI [us] Waveform
duration
[ms]
Pulses per hop Hop rate
[Hz]
47User Manual 1177.5327.02 ─ 17
Page 48
R&S®Pulse Sequencer (DFS)
Simulated frequency hopping
The FCC 06-96 Radar type 6 waveform uses a static pattern but requires frequency
hops across a wide frequency range. A real frequency hopping is a demanding implementation, that would, for example, require a vector signal generator with large bandwidth or a fast hopping synthesizer. As an alternative, the standard proposes a method
called simulated hopping. DUTs are devices that receive RF signals in a limited RF
band. Therefore, it is allowed to simulate only the subset of random frequency hops,
that would fall within the DUT's bandwidth.
The principle of the simulated hopping is illustrated on Figure A-1.
Overview of the test requirements and provided test patterns
FCC
Figure A-1: Principle of simulated hopping (according to FCC 06-96)
fc = center frequency
BW = DUT's bandwidth
black dots = hops that are outside the DUT's bandwidth
blue dots = hops that are within the DUT's bandwidth
If simulated hopping is used, generated are only pulses with frequency f
that fulfill
hop
the equation:
(fc - BW/2) < f
< (fc - BW/2)
hop
For the example on Figure A-1, generated are the six blue hops that are within the
DUT's bandwidth.
In the R&S Pulse Sequencer (DFS), the DUT's receiver bandwidth and center frequency are configurable parameters. The frequency hopping is described with the predefined IPM profile "Type 6, Hopping".
During waveform generation, the software selects random frequencies, lists all frequencies in the reporting file and then selects and marks those frequencies that are
within the selected DUT bandwidth.
See also "To set the DUT's frequency and bandwidth for FCC 06-96 type 6 tests with
simulated hopping" on page 36.
48User Manual 1177.5327.02 ─ 17
Page 49
R&S®Pulse Sequencer (DFS)
Overview of the test requirements and provided test patterns
A.2.2 FCC KDB 905462 D02
This section describes the generation of the DFS related radar test signals according
to the FCC KDB 905462 D02 specification. This specification is also known as "New
rules", whereas the specification FCC 06-96 is referred as the "Old rules". The compliance procedure is specified for all master devices operating in the U-NII bands (U-NII-1
band, U-NII-2 band and the U-NII-3 band).
The FCC KDB 905462 D02 specification modifies and extends the FCC 06-96 rules.
For description of the test patterns, refer to the FCC 06-96 description and the overview information in Table A-7.
Table A-11: FCC KDB 905462 D02: Overview of the related chapters
FCC
Chapter Test Patterns/
Trials
Chapter 6.1 Radar Type 0 to4Short Pulse Radar
Chapter 6.2 Radar Type 5 Long Pulse Radar Test
Chapter 6.3 Radar Type 6 Frequency Hopping
Description Related section Modification
Waveforms
Waveform
Radar Test Waveform
TheR&S Pulse Sequencer (DFS) provides a repository with all test signals defined in
the standard. The provided test patterns are in line with the requirements.
You can use the built-in reporting function to generate and store report files. If enabled,
the reporting plug-in populates Microsoft Excel spreadsheets, formatted according to
the requirements and populated with the parameters used during the waveform generation. You can use these spreadsheets during testing or for filing test results.
Chapter A.2.1.1,
"Radar type 1 to 4",
on page 46
Chapter A.2.1.2,
"Radar type 5",
on page 47
Chapter A.2.1.3,
"Radar type 6",
on page 47
New Radar Type 0
(identical to the FCC 06-96 Radar Type 1)
Modified Radar Type 1
(the rules of FCC 13-22 Radar Type 1 apply)
Modified frequency selection procedure
The FM chirp deviation is selected randomly for
the whole transmission interval. It does not vary
per burst as in the FCC 06-96 rules.
-
A.2.3 FCC 13–22
This section describes the generation of the DFS related radar test signals according
to the FCC 13-22 specification.
Table A-12: FCC 13–22: Overview of the related chapters
Chapter Test Patterns/Trials Description Related section
Chapter 6.1 Radar type 0 to 4 Short Pulse Radar
The parameters for the waveforms of Type 0 to 4 are listed in Table A-13.
Table A-13
Waveforms
49User Manual 1177.5327.02 ─ 17
Page 50
R&S®Pulse Sequencer (DFS)
Table A-13: Radar types 0 to 4: Parameters overview
Overview of the test requirements and provided test patterns
MIC
Radar type Pulse width
(0.1 us steps)
0 1 1428 18 1 waveform Fixed (static)
1 1 518 to 3066
2 1 to 5 150 to 230 23 to 29 min 30 unique
3 6 to 10 200 to 500 16 to 18
4 11 to 20 200 to 500 12 to 16
*)
Roundup{(1/360)*[19*106/PRI[us]}.
**)
●
Test A: waveforms with 15 unique randomly selected PRI values
●
Test B: waveforms with 15 unique randomly selected PRI values, excluding PRI
PRI [us]
(1 us steps)
Number of
Pulses
18 to 102
Requirements Comment
*)
Test A and Test
**)
B
waveforms per
type;
If more than 30
waveforms are
used, then each
additional waveform must also be
unique
PRI
Variable PRI,
pulse width,
and number of
pulses
values selected in Test A
●
If more than 30 waveforms are used, then each additional waveform must be generated with Test B.
The test must be unique and not repeated from the previous waveforms in Test A
and Test B
A.3 MIC
The MIC standard specifies DFS parameters for testing on two bands:
●
The 5.3 GHz band, see:
– Chapter A.3.1, "Japan radar parameters for W53 band, former MIC specifica-
tion", on page 50
– Chapter A.3.2, "Japan radar parameters for W53 band, MIC specification
07/2019", on page 51
●
The 5.6 GHz band, see Chapter A.3.3, "Japan radar parameters for W56 band",
on page 51
A.3.1 Japan radar parameters for W53 band, former MIC specification
The waveform requirements for the types 1 and 2 are listed in Table A-14.
50User Manual 1177.5327.02 ─ 17
Page 51
R&S®Pulse Sequencer (DFS)
Table A-14: Radar types 1 and 2: Parameters overview
Overview of the test requirements and provided test patterns
MIC
Radar type Pulse width
[us]
1 1 700 18 1 waveform
2 2.5 260 18
Pulse repetition frequency [Hz]
Number of
Pulses
Requirements Comment
Fixed (static)
Non-modulated
pulses
PRI
A.3.2 Japan radar parameters for W53 band, MIC specification 07/2019
The waveform requirements for the types 1 to 8 are listed in Table A-14.
Table A-15: Radar types 1 to 8: Parameters overview
Radar type
1 0.5 to 5 200 to 1000 10
2 0.5 to 15 200 to 1600 15
3 0.5 to 5 200 to 1000
4 0.5 to 15 200 to 1600
5 0.5 to 1.5 1114 to 1118 30
Pulse width *) [us] Pulse repetition frequency *) [Hz]
Number of
Pulses
min to max
min to max
**)
**)
6 0.5 to 1.5 928 to 932 25
7 0.5 to 1.5 886 to 890 24
8 0.5 to 1.5 738 to 742 20
Where:
*)
●
value selected randomly within the specified range.
Pulses within the same burst are calculated with the same random value. Hence,
the pulse width and pulse repetition frequencies are constant within a burst.
**)
●
– min = min [(Pulse Repetition Frequency * 0.026), 30]
– max = max [(Pulse Repetition Frequency * 0.026), 22]
A.3.3 Japan radar parameters for W56 band
The requirements for DFS testing on the 5.6 GHz band are divided into:
●
Short pule radar types, see Table A-16
●
Long pulse radar type, see Table A-17
●
Frequency hopping radar type, see Table A-18.
51User Manual 1177.5327.02 ─ 17
Page 52
R&S®Pulse Sequencer (DFS)
Table A-16: Radar types 1 to 6: Parameters overview
Overview of the test requirements and provided test patterns
Korea
Radar type Pulse width
[us]
1 0.5 720 18 Fixed (static) PRI
2 1 700 18
3 2 250 18
4 1 to 5 4347 to 6667 23 to 29 Variable PRI, pulse width,
5 6 to10 2000 to 5000 16 to 18
6 11 to 20 2000 to 5000 12 to 16
Pulse repetition frequency
[Hz]
Number of
Pulses
Comment
and number of pulses
The Long Pulse Radar Type 1 requirements are identical with the requirements of FCC
06-96 Radar type 5.
Table A-17: Radar type 1: Parameters overview
Radar
type
1 50 to 100 1000 to
Pulse
width
(0.1 us
steps)
PRI [us]
(1 us
steps)
2000
Pulses
per burst
1 to 3 8 to 20 5 to 20 30 unique
Bursts Chirp devia-
tion [MHz]
Requirements
waveforms
Comment
Variable
PRI, pulse
width, and
number of
pulses/
bursts
The Hopping Radar Type 1 requirements are identical with the requirements of FCC
06-96 Radar type 6. Simulated frequency hopping is used.
Table A-18: Hopping Radar Type 1: Parameters overview
Radar type Pulse width
1 1 333 300 9 333
A.4 Korea
The waveform requirements are listed in Table A-19.
[us]
PRI [us] Waveform
duration
[ms]
Pulses per hop Hop rate
[Hz]
52User Manual 1177.5327.02 ─ 17
Page 53
R&S®Pulse Sequencer (DFS)
Table A-19: Waveform requirements
Overview of the test requirements and provided test patterns
YD/T
Radar test signal Pulse width
1 1 700 18 Fixed PRF and
2 1 1800 10
3 2 330 70
A.5 YD/T
The YD/T is the related DFS specification in China. The test requirements are similar
to the requirements specified by ETSI 301893, see Chapter A.1.1, "Waveform require-
ments 301893", on page 43.
Other as in ETSI 301893, the YD/T specifies fixed number of pulses per burst, see
Table A-20.
Table A-20: Waveform requirements YD/T
Radar test signal Pulse width
1 0.5 to 5 200 to 1000 12 Fixed PRF
PRF [PPS] Pulses per burst Requirements
[us]
pulse width
PRF [PPS] Pulses per burst Requirements
[us]
2 0.5 to 15 200 to 1600 16
3 0.5 to 15 2300 to 4000 24
4 20 to 30 2000 to 4000 20
5 0.5 to 2 300 to 400 12 Variable PRF
6 0.5 to 2 400 to 1200 16
53User Manual 1177.5327.02 ─ 17
Page 54
R&S®Pulse Sequencer (DFS)
Overview of the test requirements and provided test patterns
YD/T
54User Manual 1177.5327.02 ─ 17
Page 55
R&S®Pulse Sequencer (DFS)
B References
●
R&S SMW200A Vector Signal Generator user manual, the latest version is available for download at www.rohde-schwarz.com/product/SMW200A.
●
R&S SMBV100A Vector Signal Generator operating manual, the latest version is
available for download at www.rohde-schwarz.com/product/SMBV100A.
●
R&S SMU200A Vector Signal Generator operating manual, the latest version is
available for download at www.rohde-schwarz.com/product/SMU200A.
●
R&S SMJ100A Vector Signal Generator operating manual, the latest version is
available for download at www.rohde-schwarz.com/product/SMJ100A.
●
R&S SGT100A SGMA Vector RF Source operating manual, the latest version is
available for download at www.rohde-schwarz.com/product/SGT100A.
References
55User Manual 1177.5327.02 ─ 17
Page 56
R&S®Pulse Sequencer (DFS)
References
56User Manual 1177.5327.02 ─ 17
Page 57
R&S®Pulse Sequencer (DFS)
Glossary: Terms and abbreviations
A
AS/NZS: Australia and New Zealand standards
D
DFS: Dynamic Frequency Selection
DUT: Device under test
F
FCC: U.S. Federal Communication Commission
G
GUI: Graphical User Interface
Glossary: Terms and abbreviations
I
Inter-Pulse Modulation: IPM
Intra-Pulse Modulation: MOP
IPM: Inter-Pulse Modulation
M
MIC: Japan standard
MOP: Modulation on Pulse
MSW: Multi-segment waveforms
P
PDW: Pulse Descriptor Word
Format of the reported data
PEP: Peak Envelope Power
DFS testing requires to control the pulse power rather than an average signal power;
for DFS testing, the PEP is equal to the average level.
Plugin: A loadable Microsoft Windows DDL module that describes custom modulation
schemes or envelope shapes.
PRF: Pulse repetition frequency
PRI: Pulse repetition interval
57User Manual 1177.5327.02 ─ 17
Page 58
R&S®Pulse Sequencer (DFS)
Defines the overall time of a pulse cycle.
PRT: Pulse repetition time
Pulse sequence: Pulse train
Pulse train: A sequence of repetitive pulses
Pulse-to-Pulse Modulation: IPM
PW: Pulse width
R
RSS: Industry Canada, Radio Standards Specifications
S
Stagger PRI: Pulse train composed of two or more pulse subtrains that use the same
PRI
Glossary: Terms and abbreviations
58User Manual 1177.5327.02 ─ 17
Page 59
R&S®Pulse Sequencer (DFS)
Glossary: DFS standards and references
A
AS/NZS 4268:2008: Australia and New Zealand standards
Radio equipment and systems – Short range devices – Limits and methods of measurement
E
ETSI: The European Telecommunications Standards Institute
http://www.etsi.org
ETSI EN 301 893: en_301893v010701p.pdf
ETSI EN 302 502: Broadband Radio Access Networks (BRAN);
5.8 GHz fixed broadband data transmitting systems;
Harmonized EN covering thee essential requirements of article 3.2 of the R&TTE
Directive
Glossary: DFS standards and references
F
FCC: U.S. Federal Communication Commission
http://www.fcc.gov
FCC search page for approved devices: https://fjallfoss.fcc.gov/oetcf/eas/reports/
GenericSearch.cfm
FCC 06-96: U.S. Federal Communication Commission Part 15, Subpart E
FCC-06-96A1.pdf
APPENDIX “COMPLIANCE MEASUREMENT PROCEDURES FOR UNLICENSED
NATIONAL INFORMATION INFRASTRUCTURE DEVICES OPERATING THE 5250–
5350 MHz AND 5470–5725 MHz BANDS INCORPORATING DYNAMIC FREQUENCY
SELECTION”.
FCC 13-22: U.S. Federal Communication Commission
FCC-13-22A1.pdf
APPENDIX B "Changes to Compliance Measurement Procedures For UnlicensedNational Information Infrastructure Devices Operating in The 5250–5350 MHz and
5470–5725 MHz Bands Incorporating Dynamic Frequency Selection".
FCC KDB 905462 D02: U.S. Federal Communication Commission Part 15, Subpart E
KDB 905462 D02 UNII DFS Compliance Procedure "New Rules"
905462-D02-V02.pdf
APPENDIX “COMPLIANCE MEASUREMENT PROCEDURES FOR UNLICENSEDNATIONAL INFORMATION INFRASTRUCTURE DEVICES OPERATING THE 5250–
5350 MHz AND 5470–5725 MHz BANDS INCORPORATING DYNAMIC FREQUENCY
SELECTION”.
59User Manual 1177.5327.02 ─ 17
Page 60
R&S®Pulse Sequencer (DFS)
M
MIC: Japan standard
Available in two versions: MIC and MIC 07 2019
N
NTIA: National Telecommunications And Information Administration
DFS information
http://ntiacsd.ntia.doc.gov/dfs/ ·
R
RSS 210: Issue 7, June 2007
Industry Canada, Radio Standards Specifications
Low-power License-exempt Radiocommunication Devices (All Frequency Bands) Category I Equipment
This document refers under section A9.4 (b) to the DFS test procedures published by
the U.S. Federal Communication Commission (FCC).
Y
YD/T: China standard
Glossary: DFS standards and references
60User Manual 1177.5327.02 ─ 17
Page 61
R&S®Pulse Sequencer (DFS)
Index
Index
A
Application cards ................................................................. 7
Application notes ................................................................. 7
B
Brochures ............................................................................ 7
D
Data sheets ......................................................................... 7
DFS test
General workflow ........................................................ 25
How to perform ........................................................... 25
F
FCC
Trial 1 .......................................................................... 46
Trial 2 .......................................................................... 46
Trial 3 .......................................................................... 46
Trial 4 .......................................................................... 46
Trial 5 .......................................................................... 47
Trial 6 .......................................................................... 47
FCC 06-96 trial 6
Simulated hopping ...................................................... 48
Frequency hopping
Simulated .................................................................... 48
H
RF signal measurement
Power sensor .............................................................. 22
Spectrum analyzer ...................................................... 21
S
Software
Requirements ............................................................. 10
T
Triggering
Power sensor .............................................................. 22
Spectrum analyzer ...................................................... 21
U
User manual ........................................................................ 6
W
White papers ....................................................................... 7
Hardware
CPU, requirements ..................................................... 10
Requirements ............................................................. 10
Virtual memory ............................................................ 10
Help ..................................................................................... 6
I
Installation ........................................................................... 5
Installing
Hardware .................................................................... 10
Software ...................................................................... 10
Uninstalling old version ............................................... 10
InstallPath
see path ...................................................................... 11
M
Marker
Power sensor, triggering ............................................. 22
Spectrum analyzer, triggering ..................................... 21
O
Open-source acknowledgment (OSA) ................................ 6
R
Release notes ..................................................................... 6
RepositoryPath
see DataPath .............................................................. 11
61User Manual 1177.5327.02 ─ 17
Loading...
