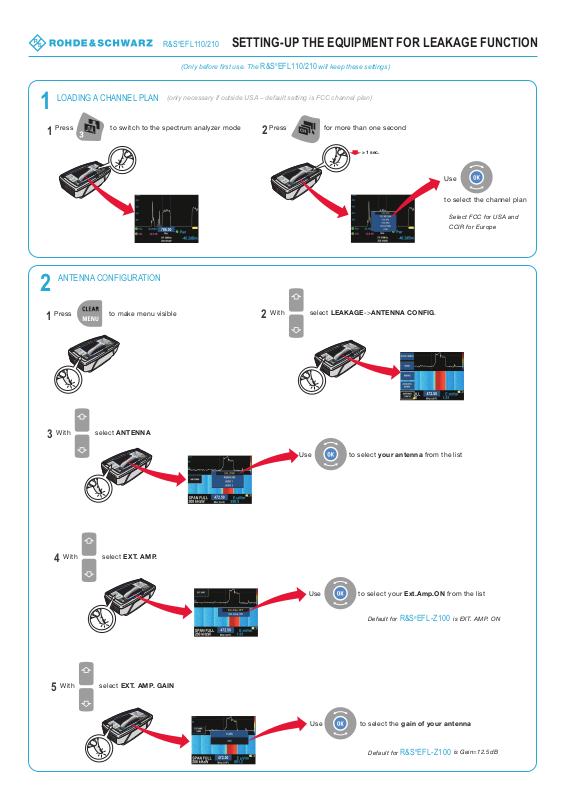

Page 1
R&S®EFL 110/210
SETTING-UP THE EQUIPMENT FOR LEAKAGE FUNCTION
(Only before first use. The R&S
LOADING A CHANNEL PLAN
(only necessary if outside USA default setting is FCC channel plan)
1
Press to switch to the spectrum analyzer mode
1
®
EFL 110/210 will keep these settings)
Press for more than one second
2
> 1 sec.
Use
to select the channel plan
Select FCC for USA and
CCIR for Europe
ANTENNA CONFIGURATION
2
Press to make menu visible
1
With select ANTENNA
3
> 1 sec.
> 3 sec.
With select LEAKAGE->ANTENNA CONFIG.
2
Use to select your antenna from the list
ON OFF
With select EXT. AMP.
4
With select EXT. AMP. GAIN
5
Use to select your Ext.Amp.ON from the list
Default for
R&S®EFL-Z100
is EXT. AMP. ON
Use to select the gain of your antenna
Default for R&S
®
EFL-Z100
is Gain=12.5dB
Page 2
GETTING READY
1
Connect the antenna to the RF input of the
1
R&S®EFL110/210:
R&S®EFL 110/210
LEAKAGE DETECTION IN LTE BAND (withR&S®EFL-Z100)
Press to switch on the amplifier of the R&S
2
antenna
®
EFL-Z100
Press to switch to the leakage detection mode
3
SEARCHING FOR LEAKAGE
2
Press to activate the Search Leakage Mode
1
Press multiple times until the LTE band is active
4
Indicates LTE Band
Move the antenna (or drive your car) until the R&S
2
detects a leak:
®
EFL110/210
OPTIONAL: Press for the AUTO CONFIG. function.
It adjusts the screen for an optimum display.
This is useful after a significant change in power level.
LOCALIZING THE LEAKAGE
9
1
After the alarm, press button. The R&S
ont the frequency of the leak and activates the tone generator function
®
EFL110/210 zooms
Indicates Cable Leakage!
and soud an alarm
Four customizable profiles
OPTIONAL: Press to activate the FRAME BEEP
R&S®EFL110/210
The
refreshed.
Watch the waterfall after every beep in order not to miss anything
Move the antenna. The pitch of the tone change with the signal level.
2
The highest pitch means thar the antenna is pointing at the leak.
sounds a beep every time the waterfall is
OPTIONAL: Press for >1 sec.
Use to adjust the threshold of the tone generator. The red dashed line should be higher than the highest signal peak.
R&S®EFL110/210
