RocketFish RF-MSE12 User Manual
Desktop 2.4G Laser Mouse
RF-MSE12
User Guide
Rocketfish RF-MSE12
Desktop 2.4G Laser Mouse
Contents
Introduction ...................................................................... 2
Features............................................................................... 2
Setting up the mouse .................................................... 5
Using the mouse............................................................10
Using the Mouse Suite software ..............................12
Troubleshooting ............................................................25
Legal notices ...................................................................26
One-Year Limited Warranty........................................29
Introduction
Congratulations on your purchase of the RocketFish Desktop 2.4G
Laser Mouse. Your mouse features an innovative tilt scroll wheel that
allows you to scroll windows up and down and side-to-side. The
smooth navigation is a more efficient way to navigate through your
documents and web pages.
Features
Laser mouse features
Your optical mouse features the following:
• Tilt scroll wheel
• Five programmable buttons
2
• Resolution setting button
•Power saving mode
•LED indicator
Slim USB receiver
• 2.4GHz technology
System requirements
•USB mouse supported computer
• Microsoft Windows 2000/XP/Vista or later
Software features
• Windows 2000/XP/Vista compatible
• Mouse Suite for configuring and managing mouse settings.
Package contents
Before you start using the mouse, verify that the following items are
in your package. If anything is missing, contact your retailer.
•Laser mouse
• (Slim) USB receiver
• Two AA batteries
•CD
•User guide
3RF-MSE12
Identifying components
1
3
5
Item Description
1Left button
2 Right button
3 Tilt/scroll wheel button
4Status LED
5 Resolution button
6 Programmable button A
7 Programmable button B
2
6
4
7
Identifying status indicators
The following table describes the status indicators on the mouse and
receiver.
LED Color Description
Mouse Green Mouse is turned on, battery level normal (illuminates for 5 seconds).
Red Low battery (flashes for 1 minute).
USB Receiver Green Wireless connection active and operating correctly (lit when mouse is in use).
Red Connection in progress (flashing).
4
Setting up the mouse
Installing the batteries
The mouse uses two AA size batteries. Complete the following steps
to install the batteries.
To install the batteries:
1 Push the tab to release the battery cover.
2 Install two AA batteries observing the polarity (+ and -) indicated inside
the housing.
5RF-MSE12
3 Replace the battery cover.
p
Installing the Mouse Suite software
Complete the following steps to install the Mouse Suite software on
your computer.
To install the Mouse Suite:
1 Insert the USB receiver into an available USB jack on your computer.
2 If this is the first time you have connected the USB receiver to your
computer, the Found New Hardware Wizard starts automatically. Cancel
the Wizard, then follow the steps below.
3 Insert the provided CD into your computer’s CD or DVD drive. The
software starts automatically.
If the software does not start automatically, double-click Setup.exe
located in the bin folder on the CD.
6
The Welcome screen opens.
4 Click Next to continue. The Start Installation screen opens.
7RF-MSE12
5 Click Next. The program takes a few moments to install. When the
program is installed, the Setup Complete screen opens.
6 Click Finish.
Note: You must reboot your computer before using the Mouse Suite.
Connecting the mouse
Connecting the mouse to a PC
After you install the batteries and the Mouse Suite software, your
mouse is ready to use.
To connect the mouse to a PC:
1 Make sure that the USB receiver is inserted into an available USB jack on
your computer.
8
2 Slide the mouse power switch to the on position.
2
3 Move the mouse to verify that it is connected.
4 If the mouse does not respond, press and hold the Pairing button until
the LED flashes every second. This indicates the dongle has started to
search for the device to be paired.
Pairing
button
Note: Each time you turn on your computer, the mouse is automatically detected.
9RF-MSE12
Turning on the USB mouse function in BIOS
If the mouse fails to work, verify that the keyboard/mouse USB
function has been turned on in the BIOS. See your computer user
guide for more information.
Note: Some older PCs do not support the USB keyboard/mouse in BIOS/DOS
environment.
Using the mouse
Note: The scroll wheel on the mouse is automatically disabled while the mouse is
pairing.
Note: The mouse enters a power-saving mode when not in use for a period of time.
Using the mouse status indicator

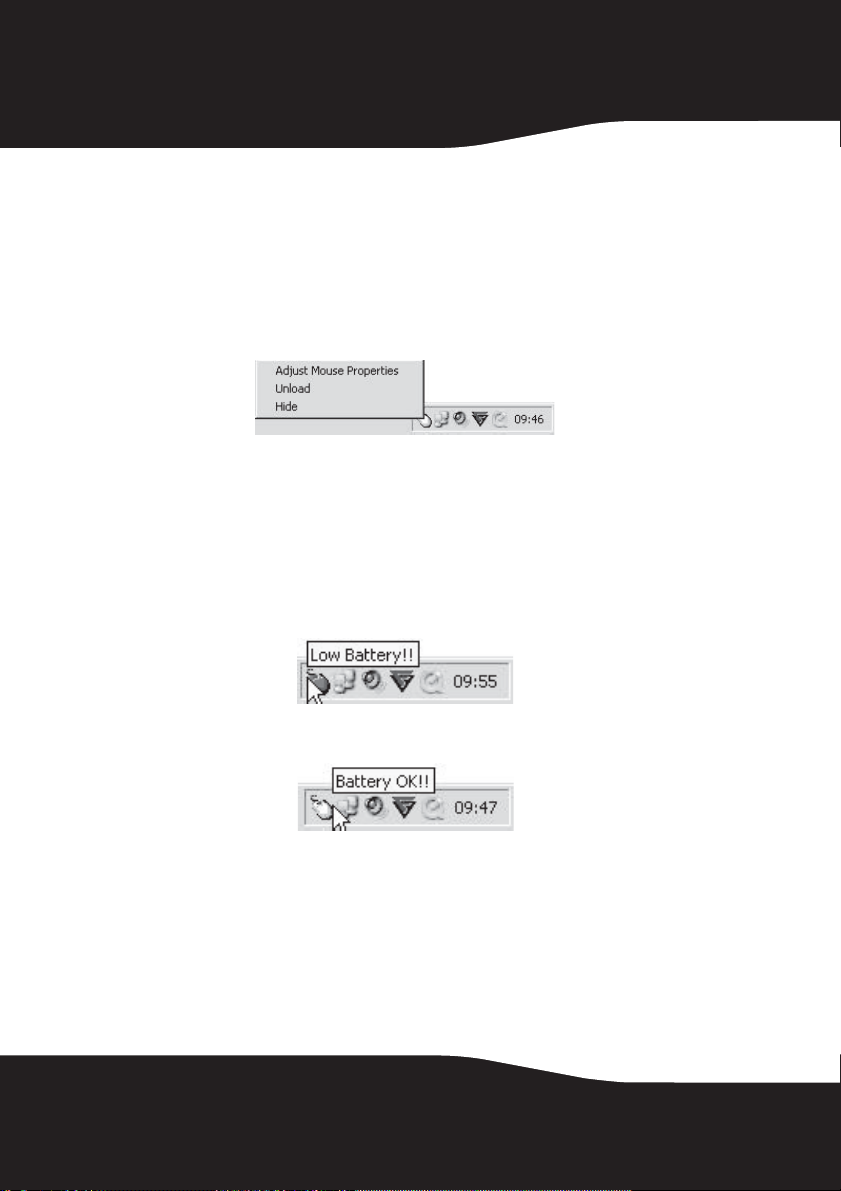

The Laser Mouse has a battery status LED. When the battery is low,
the LED flashes red for one minute. You should change the batteries
immediately.
Status
LED
10
