40" to 75" TV WALL
MOUNT - FULL MOTION
RF-HTLF23
ASSEMBLY GUIDE
Before using your new product, please read these instructions to prevent any damage.
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TV Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
LIFETIME LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Introduction
Congratulations on your purchase of a high-quality Rocketfish product. Your
RF-HTLF23 represents the state of the art in TV wall-mount design and is designed for
reliable and trouble-free performance.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
• This product is designed ONLY to be installed into wood studs, solid concrete,
or concrete block.
• DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD
THE WEIGHT OF YOUR TV.
• This product is designed for INDOOR USE ONLY.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
• Do not use this product for any purpose not explicitly specified by
manufacturer.
• Manufacturer is not responsible for damage or injury caused by incorrect
assembly or use.
• Improper installation may cause property damage or personal injury. If you do
not understand these directions, or have doubts about the safety of the
installation, contact Customer Service or call a qualified contractor. Rocketfish
is not responsible for damage or injury caused by incorrect installation or use.
• The weight of your TV and accessories must not exceed 100 lbs. (45.3 kg).
• This product contains small items that could be a choking hazard if swallowed.
Keep these items away from young children!
2
Need help? Call 1-800-620-2790 (U.S. and Canada)
Specifications
25.14"
(63.9 cm)
17.72"
(45 cm)
• Maximum TV weight: 100 lbs. (45.3 kg)
• Screen size: From 40 in. to 75 in. (101.6 cm to 190.5 cm) diagonal
• Overall dimensions (H × W): 17.7 × 25.1 in. (45 cm × 63.9 cm)
• Wall-mount weight: 18.8 lbs. (8.5 kg)
• For customer service, call: 1-800-620-2790
Dimensions
RF-HTLF23
Need help? Call 1-800-620-2790 (U.S. and Canada)
3
Tools needed
Edge-to-edge
stud finder
Pencil
Level
Phillips screwdriver
Socket wrench with
1/2" (13 mm) socket or
adjustable wrench
Measuring tape
Drill
Tap e
Hammer
Wood Stud Wall Concrete or Concrete Block Wall
3/8" (10 mm)
masonry drill bit
7/32" (5.5 mm)
wood drill bit
You need the following tools to assemble your new TV wall mount:
4
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
04 Horizontal bracket (2)
08 Wall plate (1)
07 Temp la te (1 )
05 Vertical
bracket (1)
11 Arm assembly (1)
Package contents
Make sure that you have all the hardware necessary to assemble your new TV wall
mount:
Need help? Call 1-800-620-2790 (U.S. and Canada)
5
TV Hardware
M6 × 12 mm screw
Spacer (2.5 mm)
M6 × 35
mm screw
Spacer (22 mm)
M8 × 16 mm
screw
M5 × 10 mm TV
interface screw
M8 × 25 mm
screw
Lag screw 5/16 × 2 3/4 in.
M8 × 35 mm screw
Washer 5/16 in.
M8 × 50 mm screw
Locking screw
10-32 × 3/8 in.
M6/M8 washer
Wall plate screw
10-24 × 1 1/4 in.
5/32 in. hex key
Lbl. Hardware # Lbl. Hardware #
01
4
03
4
06
4
09
4
10
4
12
4
4
4
4
4
4
1
02 4
6
Need help? Call 1-800-620-2790 (U.S. and Canada)
13
14
2
1
RF-HTLF23
Lag screw 5/16 × 2 3/4 in.
Washer 5/16 in.
Concrete anchors
(Fischer UX10 x 60R)
Concrete Installation Kit CMK1 (not included)
Contact customer service at 1-800-359-5520 to have these additional parts shipped
directly to you.
Lbl. Hardware #
C1 4
C2 4
C3 4
Installation instructions
STEP 1 - Determine whether your TV has a flat back or an irregular or obstructed back
1 Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the
documentation that came with your TV for instructions.
3 Temporarily lay the horizontal brackets (
4 Align the screw holes in the brackets with the mounting screw holes on your TV.
5 Identify which type of back your TV have:
• Flat back: The brackets lay flush against the back of your TV and do not block
any jacks. You do not need spacers when assembling the wall mount.
04) on the back of your TV.
Need help? Call 1-800-620-2790 (U.S. and Canada)
7
• Obstructed back: The brackets block any of the jacks on the back of your TV.
You need 2.5 mm or 22 mm spacers (
• Irregularly-shaped back: There is a gap between the brackets and some part
of the back of your TV. You need 2.5 mm or 22 mm spacers (
assembling the wall mount.
6 Remove the brackets.
03) when assembling the wall mount.
03) when
8
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
Screw is
too long
Screw fits
correctly
Screw is
too short
STEP 2 - Select screws, washers, and spacers
1 Select the hardware for your TV (screws, washers, and spacers). A limited number
of TVs come with mounting hardware included. (If screws came with your TV,
they are almost always in the holes on the back of your TV.) If you don't know the
correct length of the mounting screws your TV requires, test various sizes by
hand threading the screws.
Select the screws that fit:
M6 × 12 mm screws (01) M8 × 25 mm screws (01)
M6 × 35 mm screws (01) M8 × 35 mm screws (01)
M8 × 16 mm screws (01) M8 × 50 mm screws (
Use the M6/M8 washers (02) for all screws.
For an irregular or obstructed TV back, also use the 2.5 mm or 22 mm
spacers (
03).
CAUTION: To avoid potential personal injuries and property damage,
make sure that the screws have adequate threads to secure the brackets
to your TV. If you encounter resistance, stop immediately and contact
customer service. Use the shortest screw and spacer combination to
accommodate your TV. Using hardware that is too long may damage your TV.
However, using a screw that is too short may cause your TV to fall from the mount.
01)
2 Remove the screws.
3 For a flat back TV, go to STEP 3 - Option 1: Attaching the horizontal brackets to a
TV with a flat back on page 10.
-ORFor an irregular or obstructed back, go to STEP 3 - Option 2: Attaching the
horizontal brackets to a TV with irregular or obstructed back on page 11.
Need help? Call 1-800-620-2790 (U.S. and Canada)
9
STEP 3 - Option 1: Attaching the horizontal brackets to a
4
2
1
02
Washer
(4)
01 Screws (4)
OR
04 Horizontal
brackets (2)
OR
OR OR
Phillips screwdriver
Level
TV with a flat back
CAUTION: To avoid personal injury or property damage, do not use power tools.
1 Align the holes you noted on the horizontal brackets (04) with the screw holes
on the back of your TV.
2 Place the washers (
holes on the back of your TV, then insert the screws that you selected in
STEP 2 (
3 Tighten the screws until they are snug against the brackets. Do not over tighten.
01) through the washers. Make sure that the brackets are level.
02) over the holes in the brackets that align with the screw
You’ll need
10
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
02
Washer
(4)
01 Screws (4)
Phillips screwdriver
OR
Level
04 Horizontal
brackets (2)
OR
OR OR
OR
03 Spacers (4)
STEP 3 - Option 2: Attaching the horizontal brackets to a TV with irregular or obstructed back
CAUTION: To avoid personal injury or property damage, do not use power tools.
1 Place the spacers you selected in STEP 2 (03) over the screw holes on the back of
your TV.
2 Align the horizontal brackets (04) over the spacers, then place the washers (
over the holes in the brackets. Insert the screws you selected in STEP 2 (
through the washers, brackets, and spacers. Make sure that the brackets are
level.
3 Tighten the screws until they are snug against the brackets. Do not over tighten.
4
3
2
1
02)
01)
You’ll need
Need help? Call 1-800-620-2790 (U.S. and Canada)
11
STEP 4 - Attaching the vertical bracket
04 05
04
05
06
06 TV interface
screw (4)
Phillips screwdriver
05 Vertical bracket (1)
CAUTION: To avoid personal injury or property damage, do not use power tools.
1 Lay the vertical bracket (05) on top of the horizontal brackets (04). Make sure
that the bracket is centered.
2 Secure the vertical bracket to the horizontal brackets with the TV interface
screws (
Do not over tighten.
06). Tighten the screws until they are snug against the vertical brackets.
You’ll need
12
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
A
B
a
b
Measuring tape
Pencil
STEP 5 - Determine wall-mount location
Note:
Your TV should be high enough so your eyes are level with the middle of the screen from a seated
position (normally, 40 to 60 inches from the ground).
For more detailed information on determining where to drill your holes, visit our online height-finder
at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder
The center of your TV will match the center of the wall plate (08). Before you drill
holes in the wall:
1 Measure the distance from the bottom of your TV to the middle of the four
mounting screw holes. This is measurement a.
2 Measure the distance from the floor to where you want the bottom of your TV to
be placed on the wall. Keep in mind that the bottom of your TV should be placed
above any furniture (such as entertainment centers or TV stands). Your TV should
also be above items placed on top of the furniture (like a Blu-ray player or cable
box). This is measurement b.
3Add a + b. The total measurement is the height where you want the center of the
wall plate (
4 Use a pencil to mark this spot on the wall.
08) to be on the wall.
You’ll need
Need help? Call 1-800-620-2790 (U.S. and Canada)
13
STEP 6 - Option 1: Installing on a wood stud wall
16"
(40.6 cm)
Note:
Drywall covering the wall must
not exceed 5/8 in. (1.6 cm).
Minimum wood stud size:
nominal 2 × 4 in. (5.1 × 10.2 cm)
actual 1 1/2 × 3 1/2 in.
(3.8 × 8.9 cm).
Edge-to edge
stud finder
09 Lag screw (4)
Drill
7/32" wood
drill bit
1/2" socket
wrench
07 Temp l ate (1)
Tap e
08 Wall plate (1)
Level
10 Washer (4)
Note: Drywall covering the wall must not exceed 5/8" (16 mm).
1 Locate the stud, then verify the center of the stud with an edge-to-edge stud
finder.
2 Make sure that the distance between the studs is 16 in. (40.6 cm).
You’ll need
14
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
2 3/4 in
(69 mm)
7/32 in
(5.5 mm)
07
2 3/4 in.
(7 cm)
3 Align the center of the wall plate template (07) at the height you determined in
the previous step and make sure that it is level. Tape the template to the wall.
4 Drill four pilot holes through the template to a depth of 2 3/4 in. (7 cm) using a
7/32 in. (5.5 mm) diameter drill bit, then remove the template.
Need help? Call 1-800-620-2790 (U.S. and Canada)
15

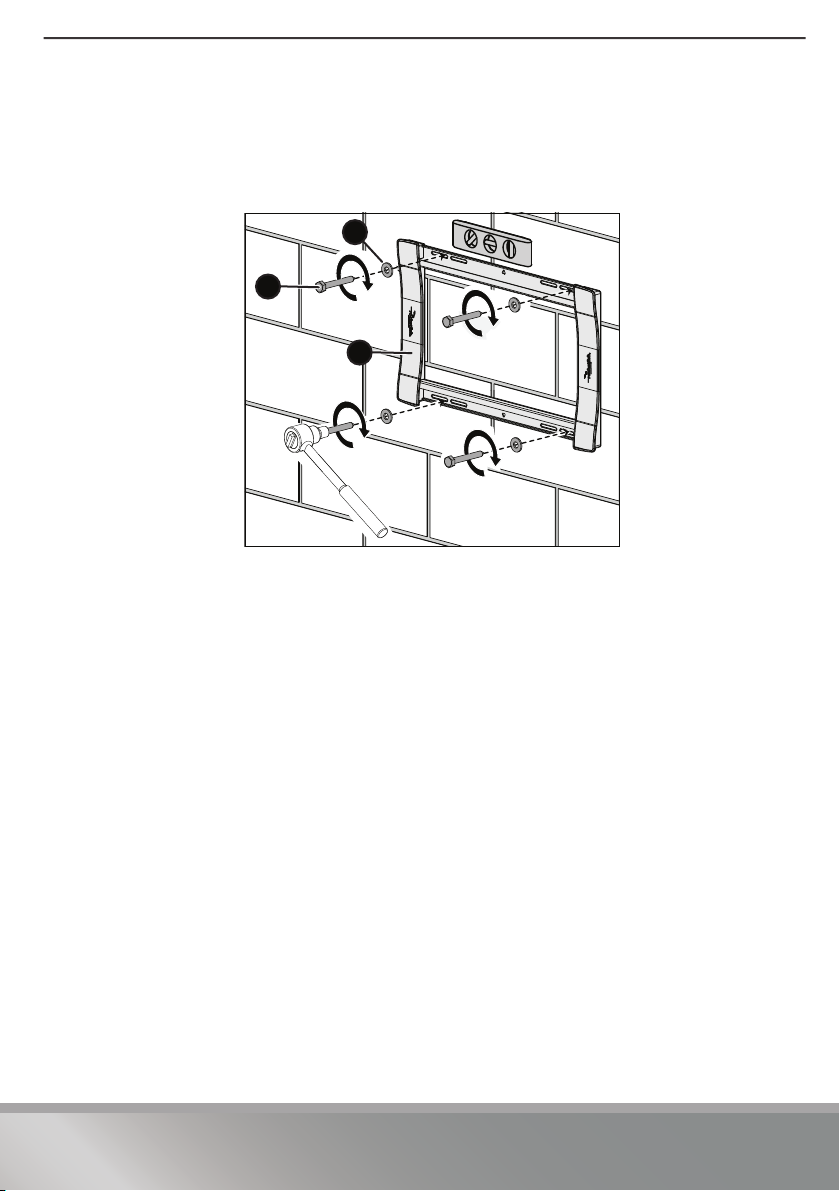

5 Align the wall plate (
washers (10) and into the holes in the wall plate, then tighten the lag screws only
until they are firm against the wall plate assembly.
08) with the pilot holes, insert the lag screws (09) through
10
09
08
CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag
screws (09).
16
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
07
Note: Mount the wall plate (08)
directly onto the concrete surface (no
wall covering).
Minimum solid concrete thickness:
8in. (20.3 cm).
Minimum concrete block size:
8 × 8 × 16 in. (20.3 × 20.3 × 40.6 cm).
Minimum horizontal space between
fasteners: 16 in. (40.6 cm).
For concrete applications, the arm
assembly (11) must remain centered
in wall plate (08). Keep this in mind
when selecting the wall plate
location.
C1 Lag screw (4)
Drill
1/2" socket
wrench
07 Temp l ate (1)
Tap e
08 Wall plate (1)
Level
Hammer
3/8" (10 mm)
masonry drill bit
C3 Concrete
anchors (04)
C2 Washer
(04)
STEP 6 - Option 2: Installing on a solid concrete or concrete block wall
CAUTION: To prevent property damage or personal injury, never drill into the mortar between
the blocks. Mount the wall plate directly onto the concrete surface.
1 Align the center of the wall plate template (07) at the height you determined in
the previous step and make sure that it is level. Tape the template to the wall.
You’ll need
Need help? Call 1-800-620-2790 (U.S. and Canada)
17
2 Drill pilot holes to a depth of 3 in. (7.6 cm) using a 3/8 in. (10 mm) diameter
3 in. (76 mm)
C3
masonry drill bit, then remove the template.
07
3 Insert the concrete wall anchors (
included) on page 7) into the pilot holes and use a hammer to make sure that the
anchors are flush with the concrete surface.
C3) (see Concrete Installation Kit CMK1 (not
18
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
08
C1
C2
4 Align the wall plate (08) with the anchors, insert the lag screws (C1) through the
washers (
screws only until they are firm against the wall plate.
CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag
screws (C1).
C2) and into the holes in the wall plate assembly, then tighten the lag
Need help? Call 1-800-620-2790 (U.S. and Canada)
19
STEP 7 - Attach the arm assembly to the wall plate
11
08
13 Wall plat e
screw (2)
14 Hex key
11 Arm assembly
(1)
1Hang the arm (11) onto the wall plate (08) by first hooking the top of the arm
assembly into the wall plate channel, then lowering the bottom of the assembly
into place.
You’ll need
20
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
13
14
11
08
2 Use the hex key (14) to secure the arm assembly to the wall plate (08) with the
wall plate screws (
CAUTION: These wall plate screws must be installed to secure your TV onto the wall
plate assembly.
13).
Need help? Call 1-800-620-2790 (U.S. and Canada)
21
STEP 8 - Attach your TV to the arm assembly
05
11
05
11
12 locking screw
(1)
14 Hex key
1 Hang your TV onto the arm assembly (11) by first hooking the top support of the
vertical bracket (
an audible click when your TV is in place.
05) onto the assembly, then resting your TV into place. You hear
You’ll need
22
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
HEAVY! You may
need assistance
with this step.
2 Use the hex key (14) to lock your TV to the arm assembly with the locking
screw (
12).
IMPORTANT: The locking screw must be installed to secure your TV onto the arm
assembly.
05
11
12
14
Need help? Call 1-800-620-2790 (U.S. and Canada)
23
STEP 9 - Managing cables
11
14
Tension
knob
• Fully extend the arm assembly (11) to provide enough slack, then routing
cables along the arms and inserting them into the channels on the arms to
provide a clean look to your installation.
STEP 10 - Adjust tilt
Note: After your TV is in place, tighten the tilt tension knob to prevent unwanted
movement.
• Loosen the tension knob with your fingers or the hex key (14), adjust the tilt
angle, then tighten the knob to keep your TV in place.
24
Need help? Call 1-800-620-2790 (U.S. and Canada)

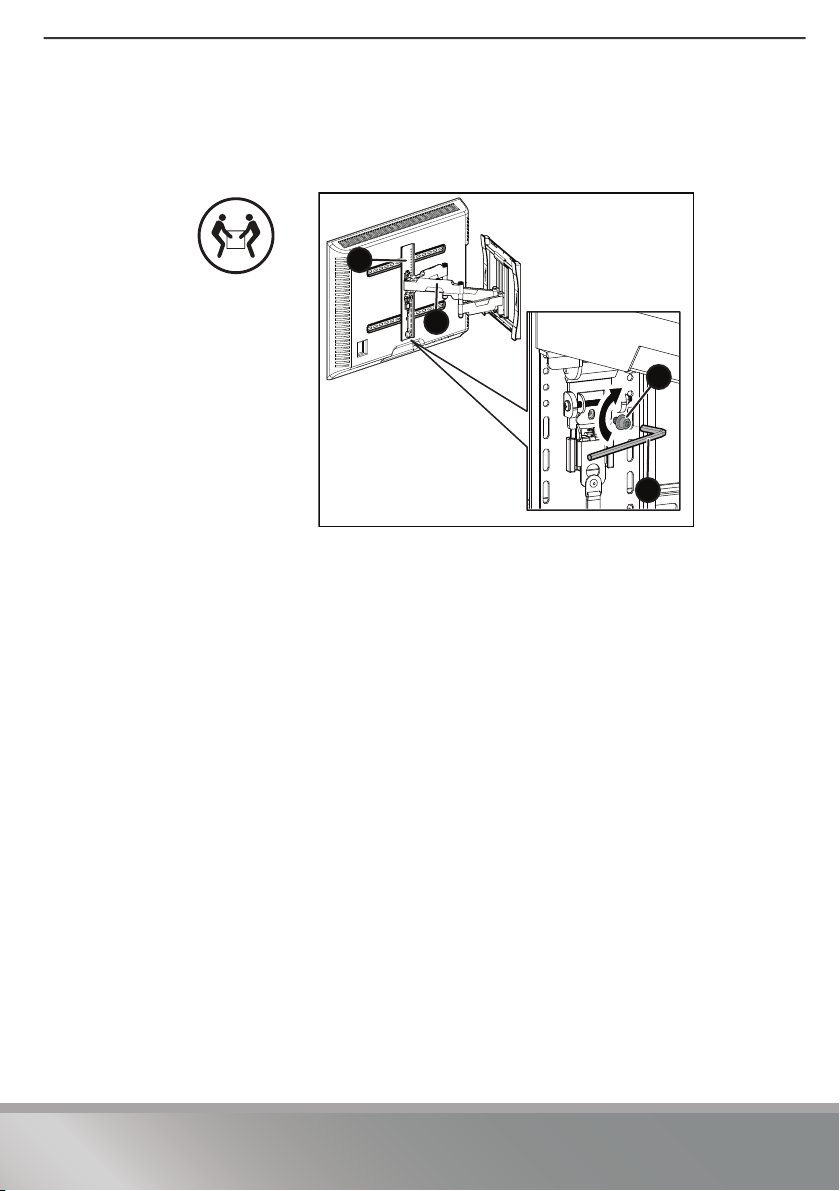

STEP 10 - Adjust the level
HEAVY! You may
need assistance
with this step.
1 Loosen the locking screw (12).
2 Turn the leveling screw (
3 Retighten the screw (
L) with a Phillips screwdriver to level your TV.
12).
RF-HTLF23
12
14
L
12
14
Removing your TV from the wall mount
1 Disconnect all cables, then pull down the release cord located below the vertical
bracket to unlock your TV from the vertical bracket.
2 Use the hex key (14)to remove the locking screw (12) from the arm assembly (see
STEP 8 - Attach your TV to the arm assembly
3 Lift your TV off the arm assembly.
on page 22).
For customer service, call: 1-800-620-2790 (U.S. and Canada)
Need help? Call 1-800-620-2790 (U.S. and Canada)
25
LIFETIME LIMITED WARRANTY
Definitions:
The Distributor* of Rocketfish branded products warrants to you, the original purchaser of this new
Rocketfish-branded product ("Product"), that the Product shall be free of defects in the original
manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase
of the Product ("Warranty Period").
For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy
branded retail store or online at www.bestbuy.com or www.bestbuy.ca and is packaged with this warranty
statement.
How long does the coverage last?
The Warranty Period lasts for the useful life of the Product beginning on the date you purchased the
Product. Your purchase date is printed on the receipt you received with the Product. In the event the
Distributor ceases to sell the covered Rocketfish-branded product, this Limited Lifetime Warranty shall
terminate for that product and there shall be no repair or replacement of the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is
determined to be defective by an authorized Rocketfish repair center or store personnel, Roc ketfish will (at
its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with
new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the
property of Rocketfish and are not returned to you. If service of Products or parts are required after the
Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own
your Rocketfish Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise
transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website
(www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy
store. Make sure that you place the Product in its original packaging or packaging that provides the same
amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-800-620-2790. Call agents may diagnose
and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to
the original purchaser of the product in the country where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction/education
•Installation
•Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
26
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
•Accidental damage
•Misuse
•Abuse
•Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in communal
areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of
other than a private home.
• Unauthorized modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Rocketfish to service the Product
• Products sold "as is" or "with all faults"
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5)
pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels
that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH
OF WARRANTY. ROCKETFISH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT
LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. ROCKETFISH
PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND
IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR
IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Rocketfish:
1-800 620-2790
www.rocketfishproducts.com
Rocketfish is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2019 Best Buy. All rights reserved.
Made in China
Need help? Call 1-800-620-2790 (U.S. and Canada)
27
Part # 6907-302025
www.rocketfishproducts.com
1-800-620-2790 (U.S. and Canada)
ROCKETFISH is a trademark of Best Buy and its affiliated companies.
Registered in some countries. Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2019 Best Buy. All rights reserved.
Made in China
V1 ENGLISH
19-0301
Loading...
