Roberts Radio ecologic 4 User Manual

FM RDS/DAB digital radio

ROBERTS

Sound for Generations

Please read this manual before use

Contents

Controls ...............................................................................2

Battery operation .................................................................3

Mains operation ...................................................................3

Operating your radio - DAB .................................................4

Selecting a station - DAB ....................................................5

Secondary services - DAB ..................................................6

Display modes - DAB ...................................................... 7-8

Finding new stations - DAB ................................................9

Signal strength display - DAB ..............................................9

Manual tuning - DAB .........................................................10

Dynamic range control (DRC) settings - DAB ...................11

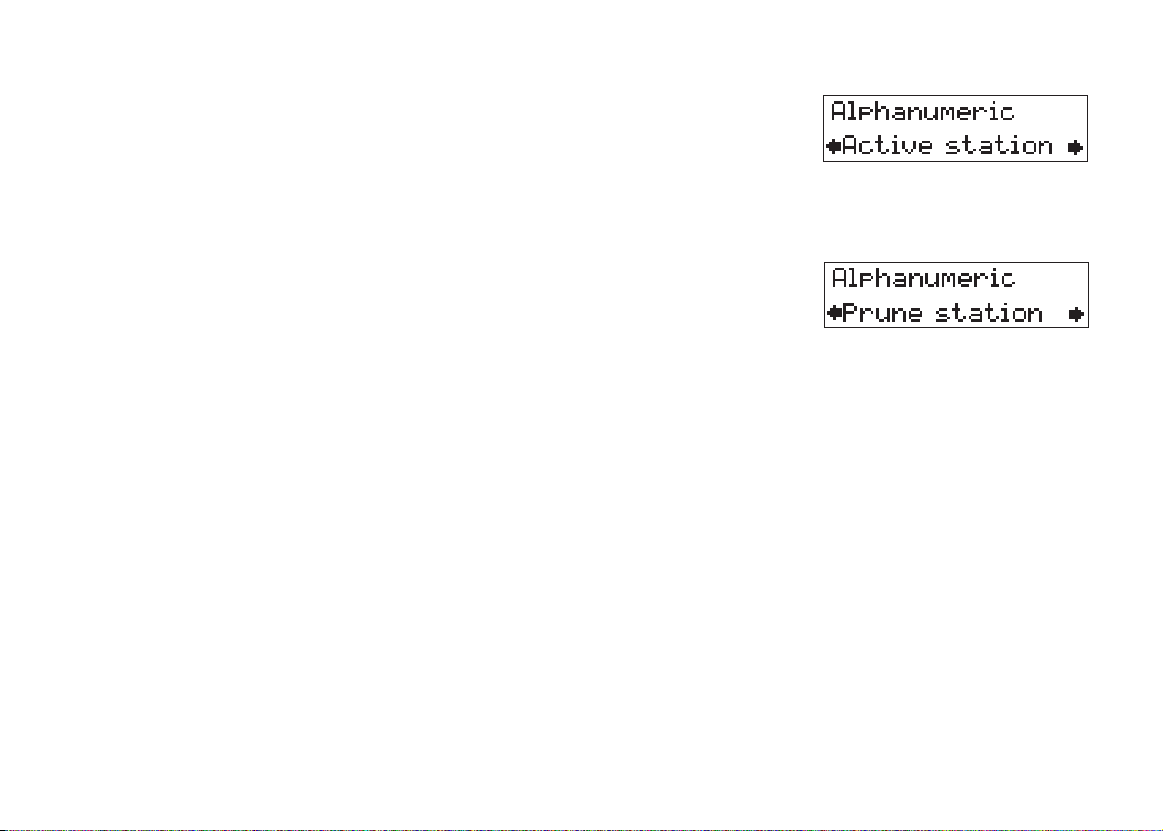

Station order setup - DAB ........................................... 12-13

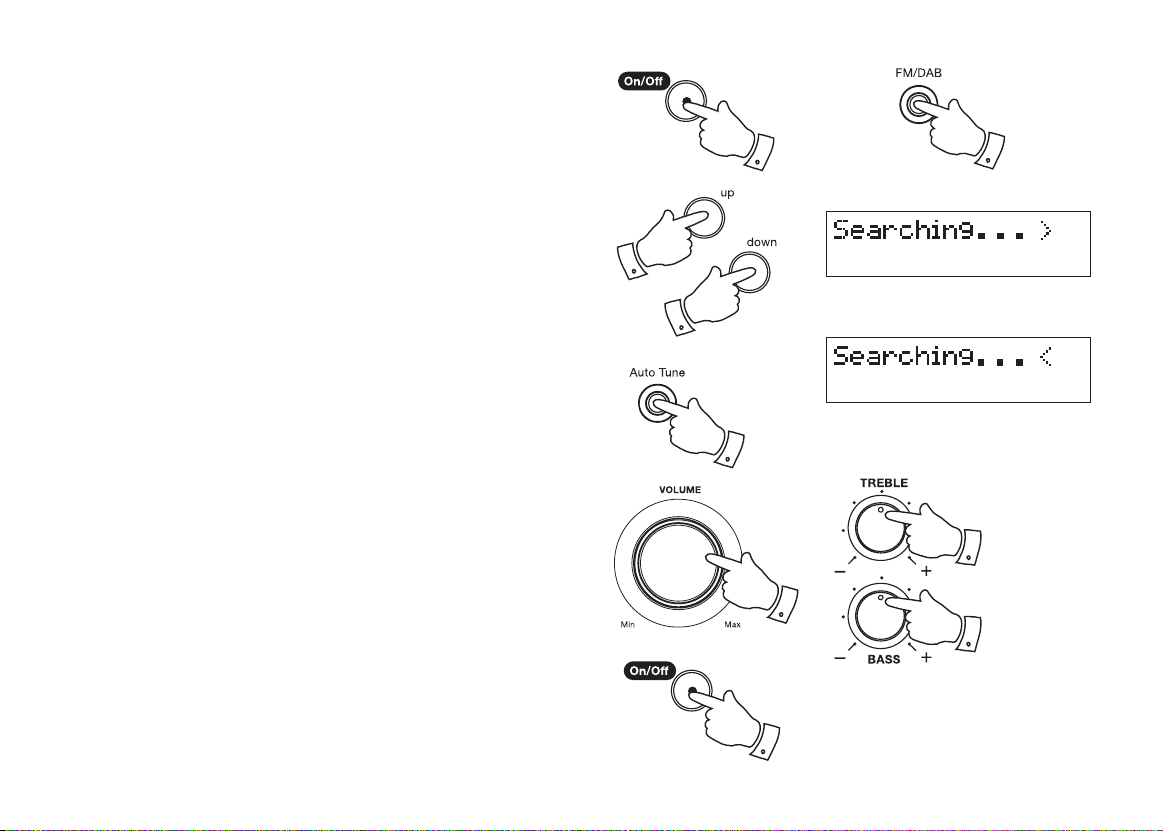

Operating your radio - FM .................................................14

Manual tuning - FM ...........................................................15

Display modes - FM...........................................................16

FM stereo/mono ................................................................16

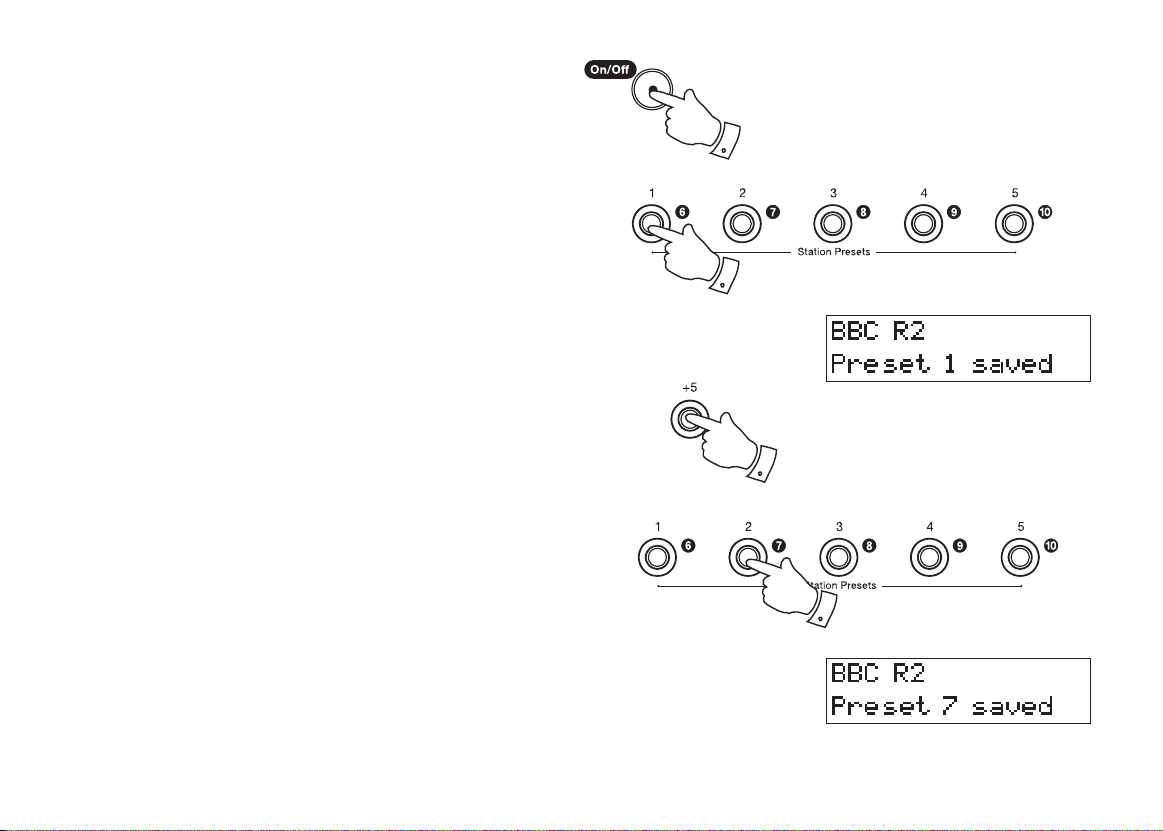

Presetting stations - DAB and FM .....................................17

Recalling a preset station - DAB and FM .........................18

System reset .....................................................................19

Headphone socket ............................................................20

Line out socket ..................................................................20

Display backlight ...............................................................20

Software version ................................................................21

General ..............................................................................22

Speciﬁ cations ....................................................................23

Circuit features ..................................................................23

Mains Supply .....................................................................24

Notes .................................................................................25

Guarantee .........................................................................26

Controls

(Top)

3 4 6 9 11 12 13

57 14

810

17 16

1. Telescopic aerial (on rear)

2. On/Off button

3. Mains LED indicator

4. Treble control

5. Liquid crystal display (LCD)

6. + 5 button

If you need any further advice, please call our Technical Helpline on :-

020 8758 0338 (Mon-Fri)

7. Auto Tune button

8. Headphone socket

9. FM/DAB button

10. Line out socket

11. Info/Menu button

12. Select button

13. Tuning Up button

14. Tuning Down button

15. Tuning control

16. Station presets

17. Bass control

18. Volume control

Battery operation

1. Remove the Battery cover on the rear of the unit by pushing the

battery door in and downwards.

2. Insert six LR20 (D size) batteries into the spaces in the compartment. Take care to ensure all batteries are inserted with the correct polarity as shown inside the battery compartment. Replace the battery cover.

3. Reduced power, distortion and a ‘stuttering’ sound are all signs that the batteries may need replacing.

4. If the radio is not to be used for any extended period of time it is recommended that the batteries are removed from the radio.

We would recommend for economy that the ecologic 4 is used on

the mains whenever possible with battery operation for occasional or stand-by use only.

IMPORTANT: The batteries should not be exposed to excessive heat

such as sunshine, ﬁ re or the like. After use, disposable batteries should if possible be taken to a suitable recycling centre. On no account should batteries be disposed of by incineration.

Mains operation

1. Place your radio on a ﬂ at surface.

2. Plug the mains lead into the Socket located on the rear of your radio ensuring that the plug is pushed fully into the socket.

3. Plug the other end of the mains lead into a wall socket and switch on the wall socket.

IMPORTANT: The mains plug is used as the means of connecting the

radio to the mains supply. The mains socket used for the radio must remain accessible during normal use. In order to disconnect the radio from the mains completely, the mains plug should be removed from the mains socket outlet completely.

4. When the mains LED is on, it indicates that the radio is connected to and powered from the mains supply.

Operating your radio - DAB

1. Fully extend the telescopic aerial.

2. Press the On/Off button to switch on your radio. The display will show "Welcome to DAB" for a few seconds.

3. If this is the ﬁ rst time the radio is used a quick scan of the UK band III DAB channels will be carried out.

4. During Autotune as each group of stations is detected the bottom line of the display will show a bargraph indicating progress of the Autotune.

5. When the Autotune is complete the ﬁ rst station (in numeric-alpha order

0...9...A....Z) will be selected.

6. If the station list is still empty after the Autotune you radio will display "No stations available".

7. If no signals are found it may be necessary to relocate your radio to a position giving better reception.

If you need any further advice, please call our Technical Helpline on :-

020 8758 0338 (Mon-Fri)

Selecting a station - DAB

1. The top line of the display shows the name of the station currently selected.

2. Rotate the Tuning control or press the Up or Down buttons to scroll through the list of available stations.

3. Press and release the Select button to select the station. The display may show "Now Tuning" while your radio ﬁ nds the new station.

4. Adjust the Volume and Tone controls to the required settings.

Note: If after selecting a station the display shows "Station not available"

it may be necessary to relocate your radio to a position giving better reception.

Secondary services - DAB

1. Certain radio stations have one or more secondary services associated with them. If a station has a secondary service associated with it the display will show ">>" next to the station name on the station list. The secondary service will then appear immediately after the primary service as you rotate the Tuning control.

2. To tune to the secondary service, press and release the Select button. Most secondary services do not broadcast continually and if the selected service is not available, the radio will retune to the associated primary service.

If you need any further advice, please call our Technical Helpline on :-

020 8758 0338 (Mon-Fri)

Display modes - DAB

Your radio has seven display modes:-

1. Press the Info/Menu button to cycle through the various modes.

a. Scrolling text Displays scrolling text messages such as

artist/track name, phone in number etc.

b. Program Type Displays the type of station being listened

to e.g. Pop, Classic, News etc.

c. Multiplex Name Displays the name of DAB multiplex to

which the current station belongs.

d. Time and date Displays current the time and date.

e. Frequency Displays the frequency of the DAB

multiplex for the station listened to.

f. Bit rate & audio type Displays the digital bit rate & audio type

for the station being listened to.

g. Signal Error Displays the signal error for the station

being listend to.

If you need any further advice, please call our Technical Helpline on :-

020 8758 0338 (Mon-Fri)
