Roberts Radio CR9952 User Manual

Page 1
CR9952
Alarm Clock Radio
ROBERTS
Sound for Generations
Please read this manual before use
Page 2
Contents
Contents ............................................................................1
Controls ..........................................................................2-4
Switching on and setting the time .................................... 6
Listening to the radio ........................................................ 7
Setting the alarm time ......................................................8
Snooze control .................................................................. 9
Sleep function ...................................................................9
Backlight ......................................................................... 10
Using the AC Adaptor ..................................................... 11
Notes ............................................................................... 12
Specifications.................................................................. 13
Circuit features ................................................................13
General ............................................................................ 13
Guarantee........................................................................ 14
1
Page 3
Controls
Front Back
5 4
3
2 1
1. Clock Display
2. Minute hand
3. Hour hand
4. Alarm hand
5. Second hand
6. Battery Cover
7. Light Mode button
8. Mains Supply Socket
6
7
8
2
Page 4
Controls Top
13
12
11
10
9
9. Tuning scale
10. Radio On/Off button
11. Sleep button
12. Snooze button
3
13. Speaker
14. Alarm/Off button
15. Light/Off button
14
15
Page 5
Controls
Left hand side Right hand side
16
18
19
17
16. Time Set control
17. Alarm Set control
If you need any further advice, please call our Technical Helpline on :­020 8758 0338 (Mon-Fri)
20
18. Tuning control
19. FM/MW switch
20. Volume control
4
Page 6
Batteries
1. Press the On/Off button to switch the radio off before replacing batteries.
2. Open the battery cover located on the rear of your clock radio by pressing the catch down and pulling the battery cover towards you.
3. Insert 4 x AA batteries into the compartment. Make sure the (+) and (-) ends of the batteries are positioned as shown inside the compartment.
4. Close the battery cover.
5. Press the On/Off button to switch the radio on after batteries have been replaced.
6. If the radio is not to be used for an extended period of time it is recommended that the batteries are removed from the radio.
1
2
5
3
5
Page 7
Switching on and setting the time
Before using your alarm clock radio you must first set the correct time.
1. Check that the batteries have been installed correctly.
2. Place the unit on a flat surface.
3. Press in and turn the Time Set control.Rotating the control will move the clock hands, continue until the correct time is reached.
3
If you need any further advice, please call our Technical Helpline on :­020 8758 0338 (Mon-Fri)
6
Page 8

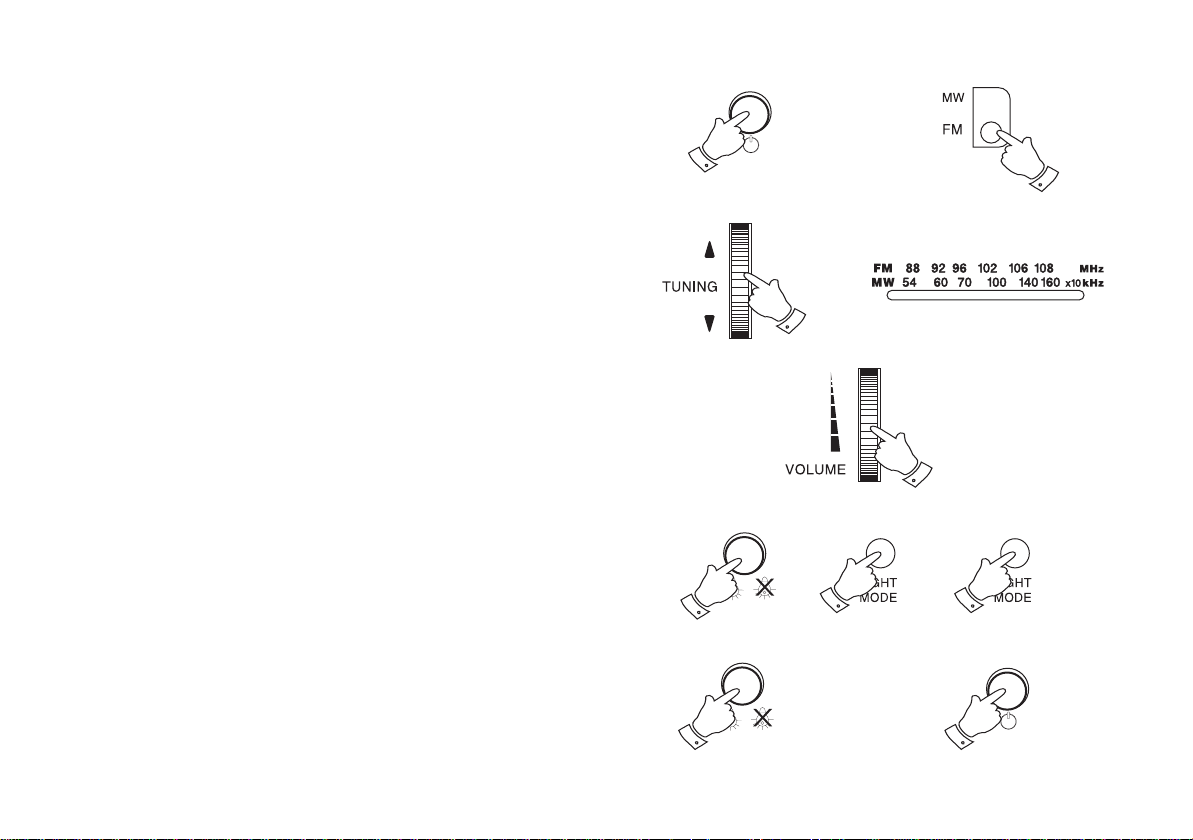

Listening to the Radio
1. Switch on the clock radio by pressing the On/Off button
2. Slide the FM/MW switch to the required waveband.
3. Tune in to the desired station by rotating the Tuning control. The station frequency is indicated in the Tuning scale. The Wire aerial located on the rear of your clock radio is for FM
reception. The wire should be fully extended and positioned for optimum reception.
For MW reception there is a built in ferrite aerial. Rotate your clock radio to the position giving the best reception.
4. Adjust the volume by rotating the Volume control.
5. To illuminate the clock face whilst listening to the radio, press the Light/Off button: this will give a Green backlight.
6. To change the static Green backlight to a cycling Green/Blue/ Red backlight, depress the Light Mode button and release.
The cycle interval is approximately 15 seconds.
7. To return to a static Green backlight, depress the Light Mode button once more.
8. To turn off the Backlight at any time press the Light/Off button.
9. The radio can be switched off by pressing the On/Off button.
1
2
3
4
5
8
6 7
9
7
Page 9
Setting the alarm time
The alarm can be set to wake you by a buzzer.
1. Press the Alarm/Off button.
2. Press in and turn the Alarm Set dial. Rotating the dial will move the alarm hand, continue until the correct time is reached.
The buzzer will sound at the preset time. After a few seconds the buzzer will sound more urgently and a few seconds later will change its tone again.
3. The clock display will turn to a Red backlight whilst the alarm sounds.
4. To turn off the alarm and the Red backlight, press the Alarm/Off button.
1
2
If you need any further advice, please call our Technical Helpline on :­020 8758 0338 (Mon-Fri)
4
8
Page 10
Snooze control
1. The buzzer alarm can be silenced for 5 minutes by pressing the Snooze button. This sequence can be repeated during the 90 minute alarm period.
Sleep function
1. The radio can be set to switch off automatically after a preset time has elapsed.
2. Press the Sleep/Off button. The radio will stay on for 59 minutes, then turn off automatically.
3. If the Backlight is illuminated at the time of pressing the Sleep/Off button, the Backlight will change from green to blue. On completion of the sleep elapsed time, the radio and Backlight will turn off.
4. To cancel the sleep function before the preset time has expired, press the On/Off button.
1
2
4
9
Page 11
Backlight
The Backlight illuminates the clock display, making it easy to view in a dark environment.
1. Press and hold the Light/Off button on the top of the clock to turn on the Green backlight. The light will go off once the button is released.
1
If you need any further advice, please call our Technical Helpline on :­020 8758 0338 (Mon-Fri)
10
Page 12
Using the AC adaptor
Your clock radio is supplied with a Mains Adaptor.
1. Place your clock radio on a flat surface.
2. Insert the adaptor plug into the DC socket located on the rear of your clock radio.
3. Plug the adaptor into a standard 13 amp mains socket outlet. Whenever the adaptor is used, the batteries are automatically disconnected.
The AC adaptor should be disconnected from the mains supply and the radio when not in use. The AC adaptor for use with the CR9952 should provide 4.5 volts DC output at 300mA, centre pin negative.
We would recommend for economy that your radio is used via the AC adaptor whenever possible with battery operation for occasional or stand-by use only.
11
Page 13
Notes
If you need any further advice, please call our Technical Helpline on :­020 8758 0338 (Mon-Fri)
12
Page 14
Specifications
Power Requirements
Mains AC230 volts, 50Hz~ only Adaptor Output DC4.5 volts, 300mA Battery 4 x LR6 (AA Size) alkaline
Frequency Coverage
FM 87.5 - 108MHz MW 525 - 1605kHz
The Company reserves the right to amend the specification without notice.
Circuit Features
Loudspeaker 8 ohms
Output power 0.8 Watts
Aerial System FM Wire Aerial
MW Built-in Ferrite Aerial
General
Do not allow this unit to be exposed to moisture (e.g. dripping or splashing) or to temperatures exceeding 70 degrees centigrade. It is recommended that the FM band be used wherever possible as better results in terms of quality and freedom from interference will usually be obtained than on the MW band.
13
Page 15
Guarantee
This instrument is guaranteed for twelve months from the date of delivery to the original owner against failure due to faulty workmanship or component breakdown, subject to the procedure stated below. Should any component or part fail during this guarantee period it will be repaired or replaced free of charge.
The guarantee does not cover:
1. Damage resulting from incorrect use.
2. Consequential damage.
3. Receivers with removed or defaced serial numbers.
Procedure: Any claim under this guarantee should be made through the dealer from whom the instrument was purchased. It is likely that your Roberts' dealer
will be able to attend to any defect quickly and efficiently, but should it be necessary the dealer will return the instrument to the company’s service department for attention. In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services department at the address shown on the rear of this manual before taking further action.
These statements do not affect the statutory rights of a consumer.
If you need any further advice, please call our Technical Helpline on :­020 8758 0338 (Mon-Fri)
14
Page 16
ROBERTS RADIO TECHNICAL SERVICES
97-99 Worton Road
Isleworth Middlesex
TW7 6EG
Issue 1
Technical Helpline:- 020 8758 0338 (Mon-Fri)
