Roberts Radio CR9916 User Manual

Download

CR9916

2 Band Dual Alarm

CD Clock Radio

ROBERTS

Sound for Generations

Down/

Repeat

Stop

B.skip

Power FM St Memory Repeat Random

Sleep

CD Display Time Set

CD mode

Snooze

Up/ F.skip

Memory

Play/ Pause

Sleep

Power

Please read this manual before use

Controls

123 6

19 18

15 14

1. CD stop button

2. Track down/minute up button

3. CD repeat button

4. CD mode button

5. Track up/hour up button

Down/

Stop

Power FM St Memory Repeat Random

Sleep

Repeat

B.skip

Snooze

CD Display Time Set

6. CD play/pause button

7. CD mode/sleep indicators

8. Alarm 2 indicator

9. Tuning dial

10. Power button

CD mode

Up/

Play/

F.skip

Pause

Sleep

Power

Memory

11.Memory button

12. Time set button

13. CD display button

14. Sleep button

15. Snooze button

11 12

16. Alarm 1 indicator

17. PM indicator

18. Power indicator

19. FM stereo indicator

Controls

AdjA

Off

dj On Off

Music

Buzz

Tuning

MW FM FMSt.

Vol

20. Alarm 1 function switch

21. Alarm 2 function switch

22. Alarm mode switch

23. Headphone socket

24. Tuning control

25. Function switch

26. Volume control

27. Battery compartment (on underside)

If you need any further advice, please call our Technical Helpline on :020 8758 0338 (Mon-Fri)

Switching on and setting the time

CD Display Time Set

Before using your CD clock radio you must first set the correct time.

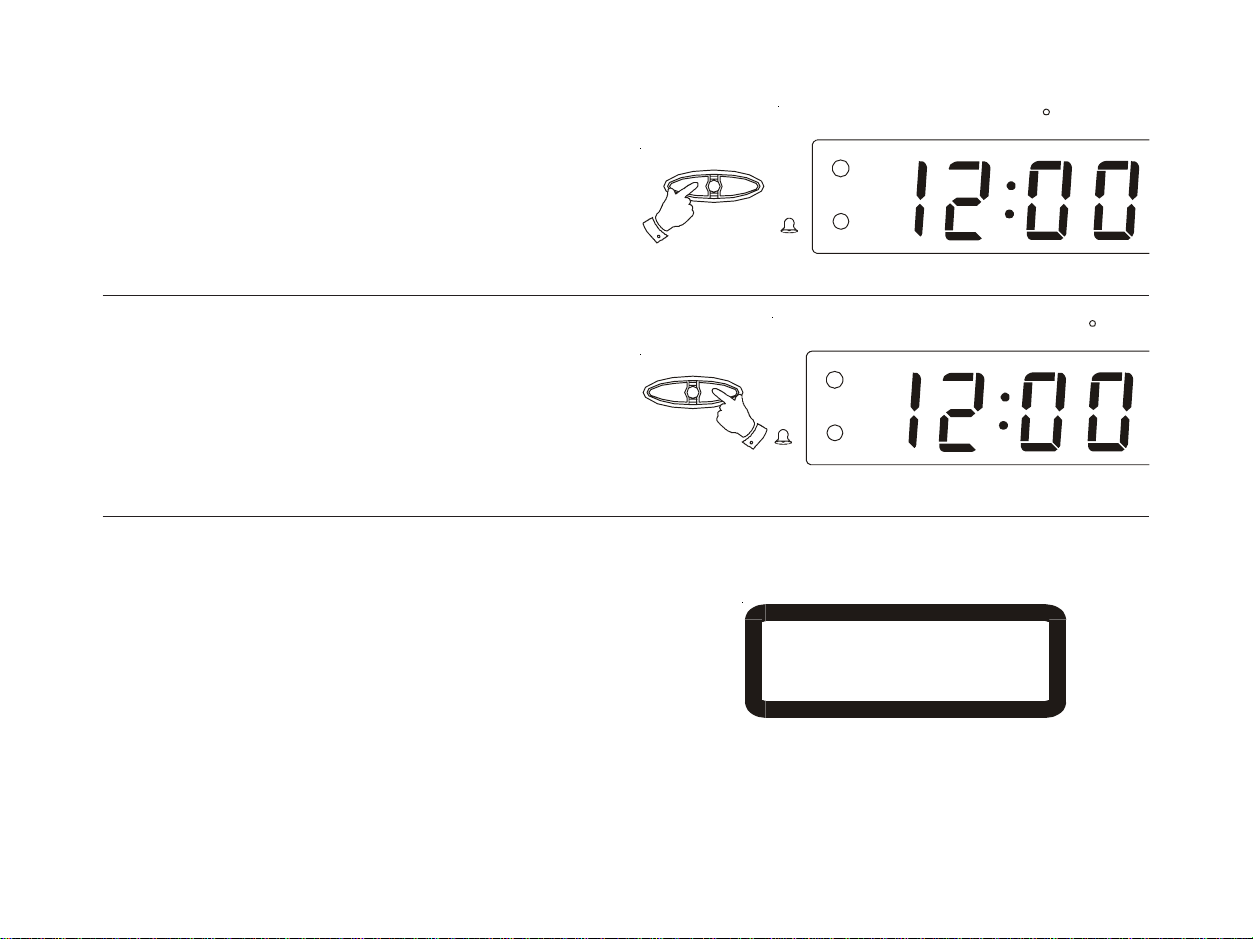

1. Place the unit on a flat surface. Plug the mains lead into a wall socket and switch on.

2. The clock display will show 12:00. Ensure that the Alarm 1 and Alarm 2 function switches are set to the 'Off' position.

3. Press and hold down the Time Set button. The time will flash in the display.

4. Whilst holding down the Time Set button press the Down button to set minutes and the Up button to set the hour. Release the buttons when the correct time is reached. The clock uses a 12 hour display with a PM indicator. Ensure that the correct 12 hour cycle is selected.

Adj On

Off

Adj

Up/ F.skip

Off

Music

Buzz

Down/ B.skip

Listening to the Radio

1000

104 106

1300

108

1600

MHz

1. Switch on your CD clock radio by pressing the Power button. The Power indicator LED will light.

2. Slide the Function switch to the required waveband.

3. Tune in to the desired station by rotating the Tuning control. The station frequency is indicated in the dial scale.

The Wire aerial located on the rear of your CD clock radio is for FM reception. The wire should be fully extended and positioned for optimum reception.

For MW reception there is a built in ferrite aerial. Rotate your CD clock radio to the position giving best reception.

4. Adjust the volume by rotating the Volume control.

Tuning

Power

5409260096800700

CD MW FM FMSt.

100

kHz

Vol

5. The radio can be switched off by pressing the Power button. The Power indicator will switch off

Power

If you need any further advice, please call our Technical Helpline on :020 8758 0338 (Mon-Fri)

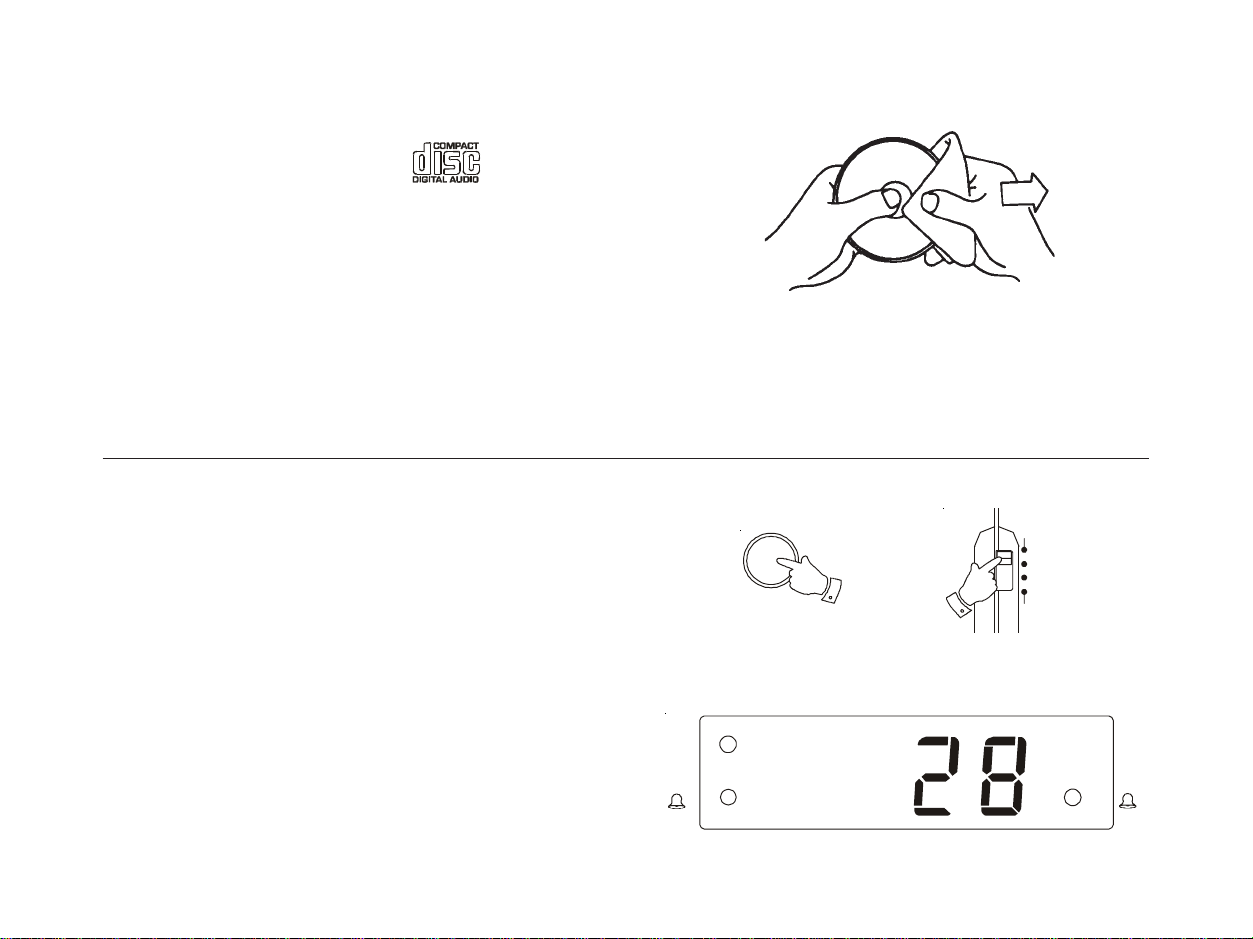

Compact discs

Use only Digital Audio CDs which have the symbol.

Never write on a CD or attach any sticker to the CD. Always hold the CD at the edge and store it in its box after use with the label facing up.

To remove dust and dirt, breathe on the CD and wipe it with a soft, lint-free cloth in a straight line from the centre towards the edge.

Cleaning agents may damage the CD

Do not expose the CD to rain, moisture, sand, or to excessive heat. (e.g. from heating equipment or in motor cars parked in the sun).

Inserting a CD

1. Press the Power button to switch on your CD clock radio. The Power indicator will light.

2. Set the Function switch to CD.

3. To open the CD compartment, lift the CD door on the edge marked

'Open'

Power

CD MW FM FMSt.

4. Insert an Audio CD, printed side facing up. Close the CD door. The CD player will scan the contents of the CD and the total number of tracks will appear on the display.

Playing a CD

1. Press the Play/Pause button to start playback. The display will show the track number. After a short time the display will revert to showing time.

2. Set the Volume control to the required setting.

3. To display the CD track number press the CD display button.

4. To pause playback press the Play/Pause button. The track number will flash in the display. To resume playback press the Play/Pause button again.

5. To stop playback, press the Stop button.

6. To take out the CD, lift the CD door on the edge marked Open. The CD door should only be opened when the CD is in Stop mode.

Play/ Pause

Stop

Vol

CD Display Time Set

Selecting a track

1. Whilst the CD is playing, press either the F.skip or B.skip buttons to change to the desired track. You can also skip tracks when the player is in stop mode. Skip to the desired track using the F.skip or B.skip

buttons.

2. Press the Play/Pause button to play the selected track.

Search function

1. Whilst the CD is playing, press and hold down either the F.skip or B.skip buttons. Release the button when the desired part of the track

is reached.

If you need any further advice, please call our Technical Helpline on :020 8758 0338 (Mon-Fri)

Down/ B.skip

Up/ F.skip

Down/ B.skip

Up/ F.skip

CD repeat mode

1. Whilst the CD is playing press the Repeat button once to repeat the current track. The Repeat indicator will flash.

Repeat

CD mode

Repeat

2. Press the Repeat button again to repeat all tracks on the CD. The Repeat indicator will light up.

CD Random play

1. Press the CD Mode button to play all tracks on the CD in random order. The Random indicator will light up The tracks are played in random order until all tracks have been played.

2. Press the CD Mode button again to return to normal play. The Random indicator will switch off.

Warning

CLASS 1 LASER PRODUCT means that the laser's construction makes

it inherently safe so that the legally prescribed maximum permissible radiation values can never be exceeded

Caution: Using any equipment or devices other than those described

and specified in these operating instructions, or tampering with the unit in any way, can result in dangerous exposure to radiation.

Repeat

Random

CD mode

CLASS 1

LASER PRODUCT

Programmed play

By programming the player you can play up to 20 tracks in any desired order.

1. Whilst the CD is in STOP mode, press the Memory button. The display will show ‘ P 01’.

2. Select the first track using the F.skip or B.skip buttons. The track number will flash on the display. Store this track by pressing the Memory button.

3. Repeat the above steps until you have completed your program. Press the Play/Pause button to commence play of the selected tracks.

Note: the display will revert to showing time after 5 seconds of inactivity.

Checking a programme

1. Whilst the CD is in STOP mode, repeatedly press the Memory button to step through the tracks programmed.

Memory

Down/ B.skip

Memory

Up/ F.skip

Erasing a programme

1. Press the Memory button. The Memory indicator will flash. Press the Stop button to erase the programme. Programmes are also erased by opening the CD door and interrupting the mains supply.

If you need any further advice, please call our Technical Helpline on :020 8758 0338 (Mon-Fri)

Memory

Stop

Memory

Setting alarm times

The alarms can be set to wake you by a buzzer, CD or the radio. Your CD clock radio has 2 separate alarms which can be set to activate at different times.

Setting alarm 1

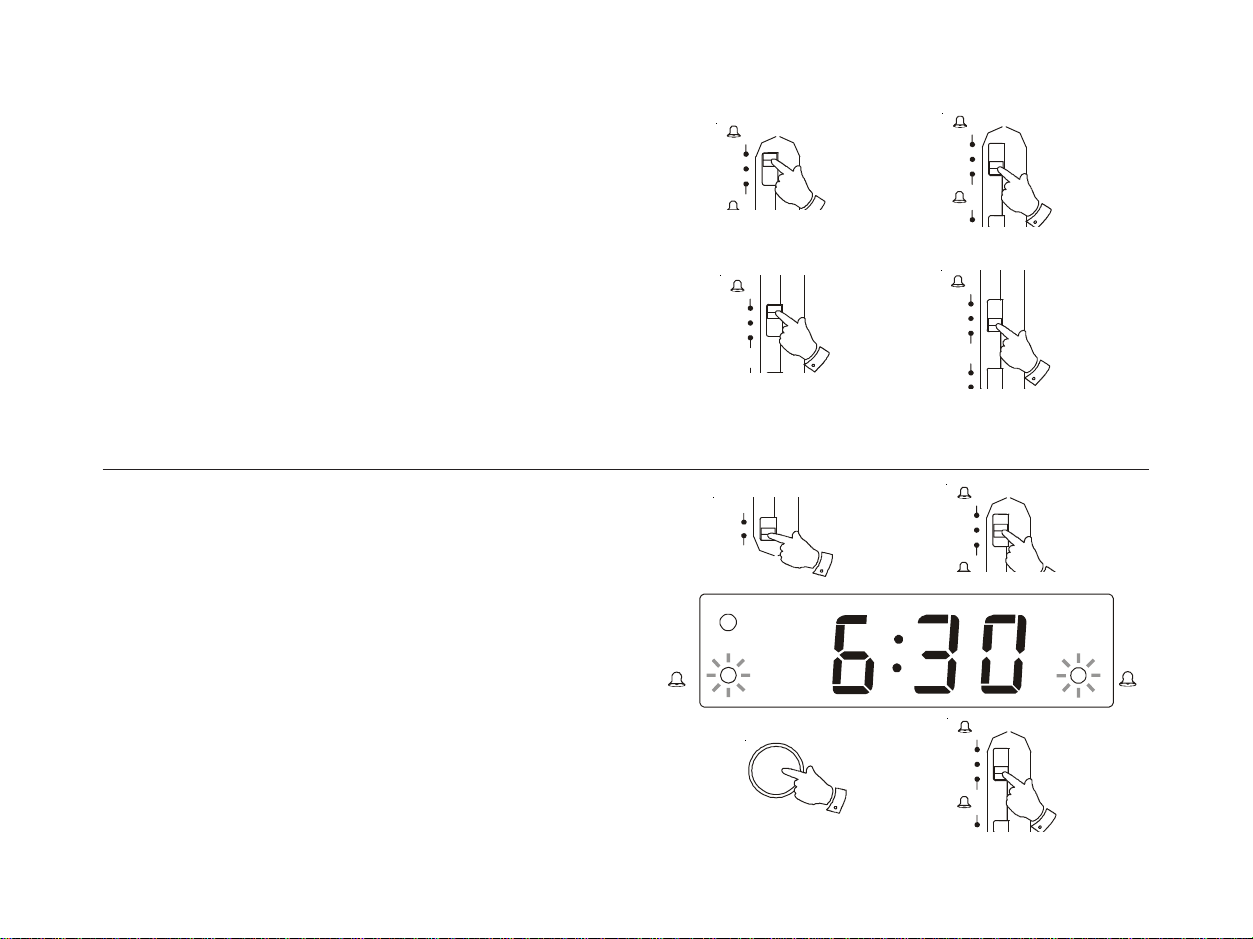

1. Slide the Alarm 1 function switch to the 'Adj' position.

Adj On Off

2. Press the Down button to set minutes and the Up button to set the hour. Release the buttons when the correct time is reached. Alarm 1 time will continue to flash in the display. The clock uses a 12 hour display with a PM indicator. Ensure that the correct 12 hour cycle is selected.

3. Return the Alarm 1 function switch to the 'Off' position. The display will revert to showing time.

Note: Incorrect display will result if both the Alarm function switches are set to the 'Adj' position.

Setting alarm 2

1. Slide the Alarm 2 function switch to the 'Adj' position. Alarm 2 time will flash in the display.

2. Press the Down button to set minutes and the Up button to set the hour. Release the buttons when the correct time is reached. Alarm 2 time will continue to flash in the display. The clock uses a 12 hour display with a PM indicator. Ensure that the correct 12 hour cycle is selected.

3. Return the Alarm 2 function switch to the 'Off' position. The display will revert to showing time

Down/ B.skip

Adj On Off

Music

Up/ F.skip

Adj On Off

Adj

Adj On Off

Music

Checking the Alarm Times

Adj On Off

Music

1. To check alarm 1 time, set the Alarm 1 function switch to the 'Adj' position. Alarm 1 time will flash in the display.

2. Return the Alarm 1 function switch to the 'Off' position. The display will revert to showing time.

Adj On Off

Adj

3. To check alarm 2 time, set the Alarm 2 function switch to the 'Adj' position. Alarm 2 time will flash in the display.

4. Return the Alarm 2 function switch to the 'Off' position. The display will revert to showing time.

Adj On Off

Music

Note: Incorrect display will result if both the Alarm function switches are set to the 'Adj' position.

Setting the alarms to wake to buzzer

1. Set the alarm time as previously described. Set the Alarm function switch to the 'Buzz' position. Set the Alarm 1 or Alarm 2 selector

Music

Buzz

Adj On Off

switch to the 'On' position. The corresponding Alarm indicator will light.

2. Press the Power button to switch off your CD clock radio, the Power indicator will switch off.

3. The buzzer alarm will sound every day at the preset time for 60 minutes. To turn off the alarm until the next day press the Power button. To turn off the alarms permanently set the Alarm 1 or Alarm 2 function switch to the 'Off' position.

Note: Alarm 1 has a low tone Alarm 2 has a high tone.

If you need any further advice, please call our Technical Helpline on :020 8758 0338 (Mon-Fri)

Adj On Off

Power

Adj

Setting the alarms to wake to radio

Adj On Off

Adj

On Off

Off

1. Set the alarm time as previously described. Set the Alarm function switch to the 'Music' position. Set the Alarm 1 or Alarm 2 selector switch to the 'On' position. The corresponding Alarm indicator will

light.

2. Select the required waveband and ensure that a station is tuned in and the Volume control is set to the desired level. Press the Power button to switch off your CD clock radio, the Power indicator will switch off.

3. The radio alarm will sound every day at the preset time for 60 minutes. To turn off the alarm until the next day press the Power button. To turn off the alarms permanently set the Alarm 1 or Alarm 2 function switch to the 'Off' position.

Music

Buzz

Power

Setting the alarms to wake to CD

Music

Buzz

Adj On Off

CD MW FM FMSt.

light.

2. Set the Function switch to the 'CD' position, insert a CD and ensure

that the Volume control is set to the desired level. Press the Power button to switch off your CD clock radio, the Power indicator will

switch off. Important: failure to switch off the power will

result in non operation of the alarm.

3. The CD will play every day at the preset time for a maximum of 60 minutes. To turn off the alarm until the next day press the Power

button. To turn off the alarms permanently set the Alarm 1 or Alarm 2 function switch to the 'Off' position.

Power

Adj On

Off

Adj

Setting the alarm to wake to CD programme

Snooze

Adj On Off

Music

Buzz

1. Set the alarm to wake to CD as described above.

2. Programme your favourite tracks as described earlier

3. Press the Play button followed by the Stop button.

4. Press the Power button to switch off your CD clock radio, the Power

indicator will switch off. Important: failure to switch off the

power will result in non operation of the alarm.

5. The CD will switch on at the preset time and play tracks in the order programmed.

Snooze control

1. The buzzer, CD or radio alarm can be silenced for 6 minutes by pressing the Snooze button. This sequence can be repeated whilst the alarm continues to sound.

Sleep timer

1. CD or radio playback can be set to switch off automatically after a preset time has elapsed.

2. Repeatedly press and release the Sleep button until the desired time is reached (maximum 90 minutes in 30 minute steps). The Sleep indicator will light up in the display.

3. The CD or radio will switch off after the sleep time has elapsed.

4. To cancel the sleep function before the preset time has expired, press the Power button.

Headphones

A Headphone Socket (3.5mm located on left side) is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker.

Sleep

Play/ Pause

Stop

Power

Sleep

Power

If you need any further advice, please call our Technical Helpline on :020 8758 0338 (Mon-Fri)

General

Do not allow this unit to be exposed to water or steam. It is recommended that the FM band be used wherever possible as better results in terms of quality and freedom from interference will usually be obtained than on the MW band.

Mains supply

The CR9916 will operate from a supply of AC 230volts, 50Hz only. For your convenience this product is supplied with a plug which is fitted with

a fuse of the appropriate rating. If the plug supplied is not suitable for your socket outlet, it should be removed by unscrewing the plug top, the terminal screws and removing the cable.

The correct style of plug to suit your household together with a correctly rated fuse should be fitted.

IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN IMPORTANT. DO NOT make any connection to the larger terminal which is marked with the letter E or by the safety earth symbol or coloured

Green or Green-and-yellow. The wires in the mains lead are coloured in accordance with the following

codes :-

BLUE - NEUTRAL BROWN - LIVE

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:-

Fuse

This apparatus must be protected by a 3A fuse (BS1362) in a 13A plug (BS1363). If another type of plug is used a 5A fuse should be fitted in the plug, adaptor or distribution board.

IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN.

Back-up Battery (not necessary for the unit to function)

Slide the battery cover catch in the direction of the arrow. Open the battery cover. Fit a 9 volt IEC size 6LR61 (6F22, PP3) or equivalent battery into the compartment. Observe the correct polarity as shown on battery cover.

The time and alarm settings will be retained during a temporary failure of the AC mains supply. The LED display will not be operational. The display will be extinguished to conserve battery life, but the memory will retain details of the time and alarm time settings.

If your clock radio is not to be used for a prolonged period of time, remove the battery to avoid damage by battery leakage.

(Underside)

Blue

Brown

(Neutral)

The wire coloured BLUE must be connected to the terminal marked N or coloured BLACK.

The wire coloured BROWN must be connected to the terminal marked L or coloured RED.

OPEN

(Live)

(Earth)

3 amp

Mains Lead

Specifications

Power Requirements

Mains AC 230 volts, 50Hz

Back-up Battery IEC size 6LR61 (6F22, PP3)

Circuit Features

Loudspeakers 2 x 8 ohms

only

Output power 2 x 500mW

Frequency Coverage

FM 87.5 - 108MHz

MW 520 - 1610kHz

Aerial System FM Wire Aerial

MW Built-in Ferrite aerial

CLASS 1

LASER PRODUCT

Warning

CLASS 1 LASER PRODUCT means that the laser's construction makes it inherently safe so that the legally prescribed maximum permissible radiation

values can never be exceeded

Caution: Using any equipment or devices other than those described and specified in these operating instructions, or tampering with the unit in any

way, can result in dangerous exposure to radiation.

ROBERTS RADIO LIMITED

PO BOX 130

MEXBOROUGH

SOUTH YORKSHIRE

S64 8YT

The Company reserves the right to amend the specification without notice.

If you need any further advice, please call our Technical Helpline on :020 8758 0338 (Mon-Fri)

Guarantee

This instrument is guaranteed for twelve months from the date of delivery to the original owner against failure due to faulty workmanship or component breakdown, subject to the procedure stated below. Should any component or part fail during this guarantee period it will be repaired or replaced free of charge.

The guarantee does not cover:

1. Damage resulting from incorrect use.

2. Consequential damage.

3. Receivers with removed or defaced serial numbers.

Procedure: Any claim under this guarantee should be made through the dealer from whom the instrument was purchased. It is likely that your Roberts' dealer will

be able to attend to any defect quickly and efficiently, but should it be necessary the dealer will return the instrument to the company’s service department for attention. In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services department at the address shown below before taking further action.

These statements do not affect the statutory rights of a consumer.

ROBERTS RADIO TECHNICAL SERVICES DEPARTMENT

97-99 Worton Road

Isleworth Middlesex

TW7 6EG

Technical Helpline:- 020 8758 0338 (Mon-Fri)

Issue 1

Roberts Radio CR9916 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
