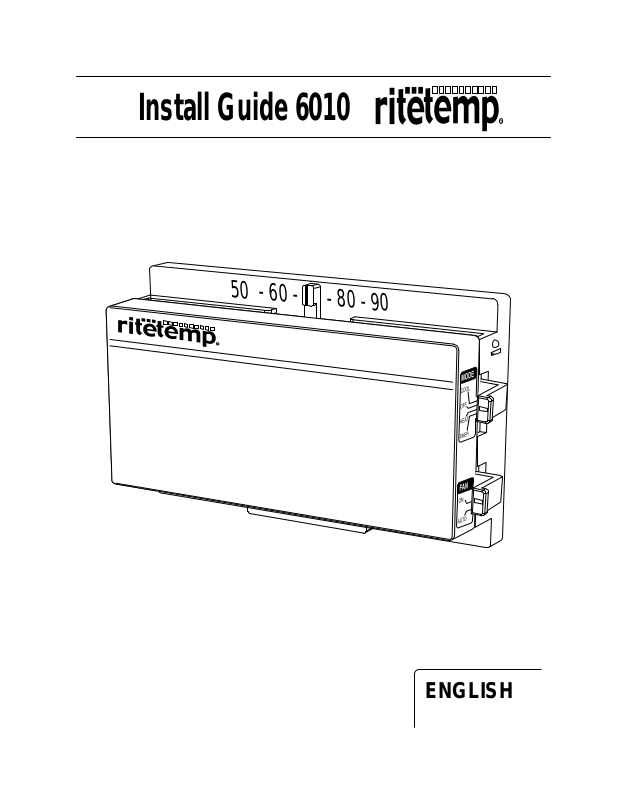

Page 1
Install Guide 6010
50 - 60 - 70 - 80 - 90
ENGLISH
Page 2
Install Guide 6010
To avoid electrical shock and to prevent damage to the furnace, air conditioner,
Caution
and thermostat, disconnect the power supply before beginning work.
This can be done at the circuit breaker, or at the appliance.
PG
1
Tools
You will need #1 Phillips screwdriver (small) and
Drill with 3/16-in. (4.8mm) bit for this installation.

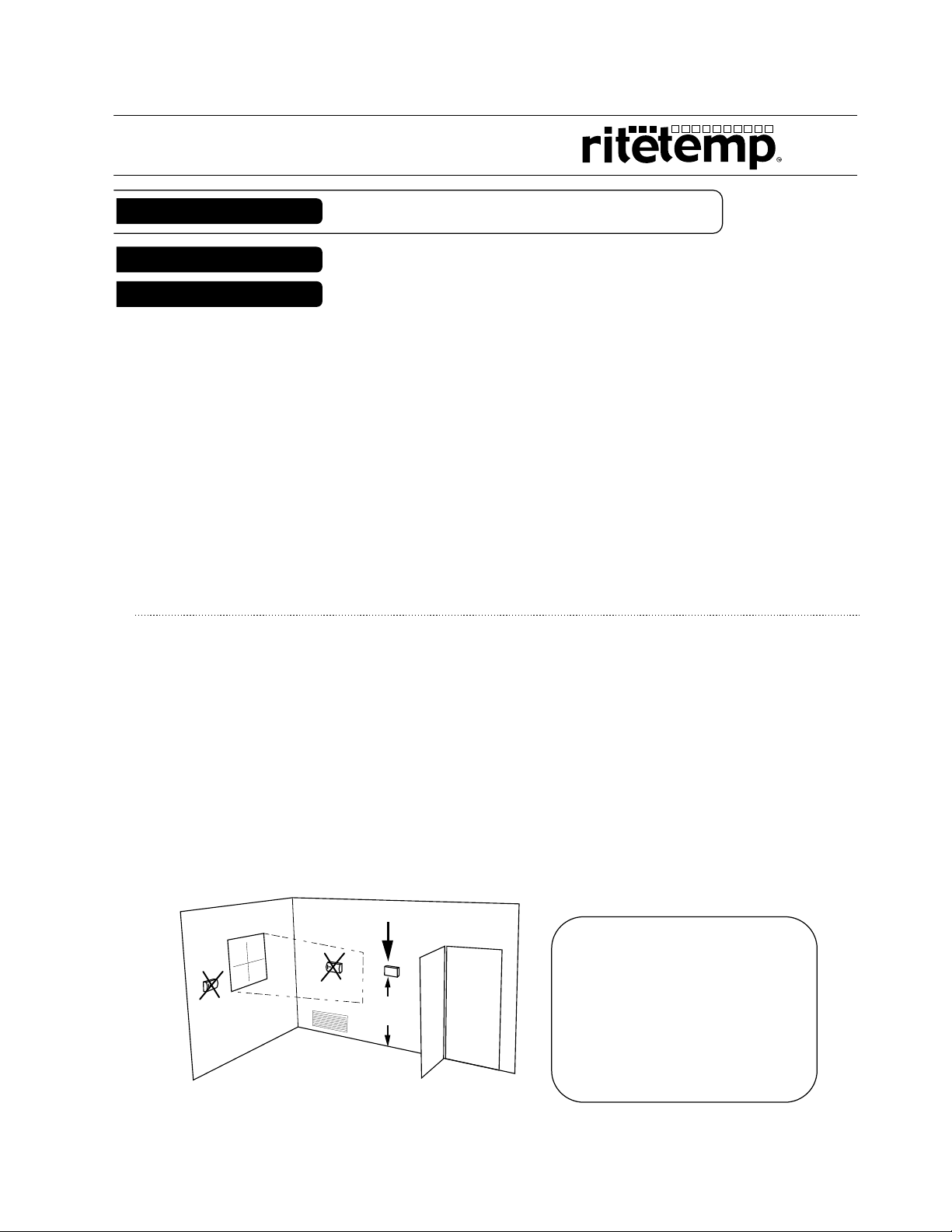

Location
• On replacement installations, mount the new thermostat in place of the old
one if possible.
• Locate the thermostat on an inside wall, about 5 ft. (1.5m) above the floor,
and in a room that is used often.
• Do not install it where there are unusual heating conditions, such as: in
direct sunlight; near a lamp, radio, television, radiator register, or fireplace;
near hot water pipes in a wall; near a stove on the other side
of a wall
• Do not locate in unusual cooling conditions, such as: on a wall separating
an unheated room; or in a draft from a stairwell, door, or window.
• On new Installations, follow the guidelines listed below.
• Do not locate in a damp area. This can lead to corrosion that will shorten
thermostat life.
PG
2
• Do not locate where air circulation is poor, such as: in a corner or an
alcove; or behind an open door.
• Do not install the unit until all construction work and painting has been
completed.
• This thermostat does not require leveling.
Good
C A U T I O N
• Your thermostat is a precise instrument.
Please handle it with care.
• Turn off electricity to the appliance before installing or
servicing thermostat or any part of the system. Do not
5ft.
(1.5m)
turn electricity back on until work is completed.
• Do not short (jumper) across electric terminals at control
on furnace or air conditioner to test the system. This will
damage the thermostat and void your warranty.
• All wiring must conform to local codes and ordinances.
• This thermostat is designed for use with 24 volt AC and
millivolt systems. The thermostat should be limited to a
maximum of 1.0 amps; higher amperage may cause
damage to the thermostat.
Page 3

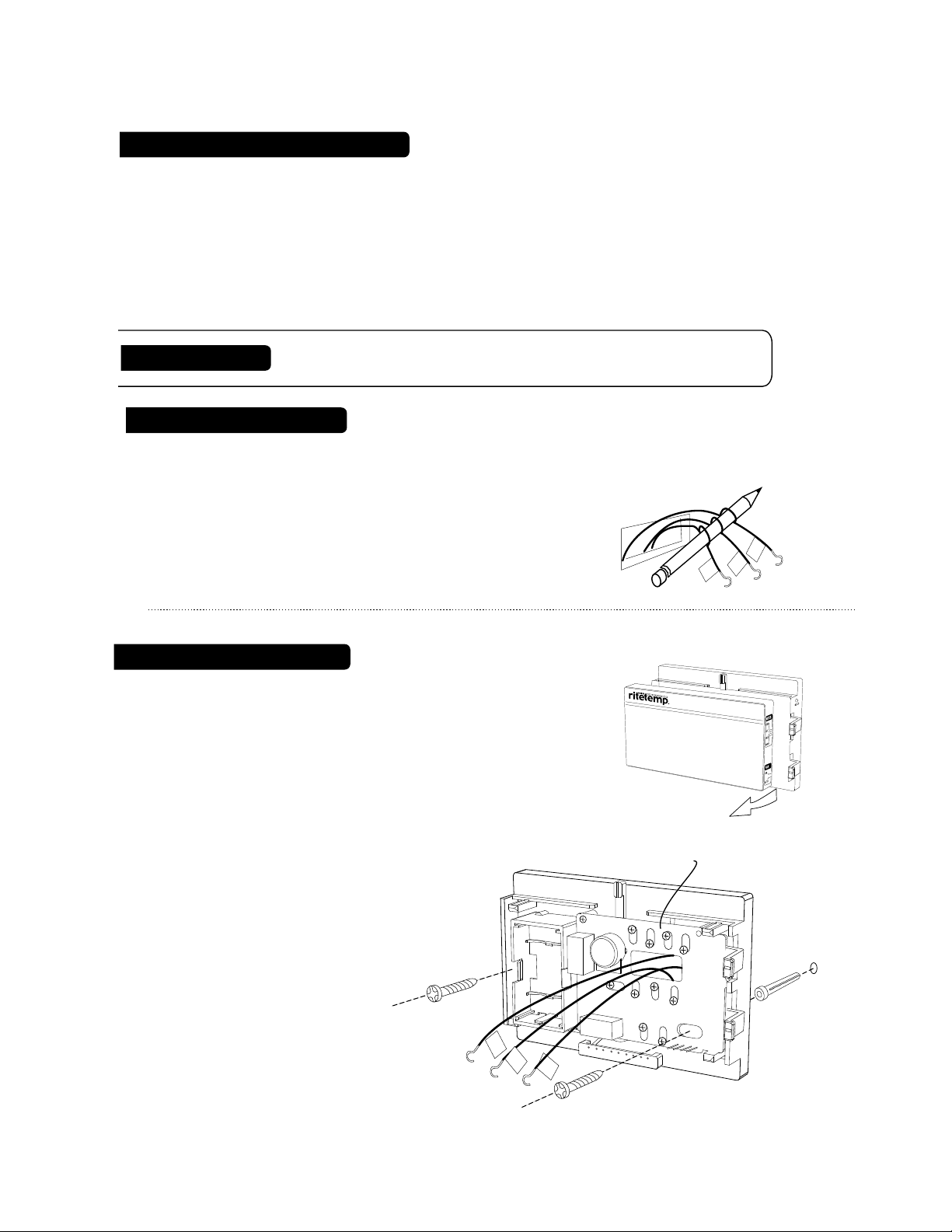

Label Wires to Old Unit
• Switch electricity to the furnace and air conditioner OFF;
then proceed with the following steps.
• Remove cover from old thermostat. Most are snap-on types and simply pull
off. Some have locking screws on the side or front. These must be loosened.
• Note the letters printed near the terminals.
• Carefully attach labels (enclosed) to each wire.
You must have all the wires labeled before you proceed.
time.
Label the wires one at a
DO NOT REMOVE WIRES FROM OLD THERMOSTAT UNTIL YOU HAVE
Caution
CAREFULLY LABELED THEM, WITH LABELS PROVIDED.
THERE IS NO STANDARD COLOR CODE FOR THESE WIRES.
Remove old unit
Remove the wires from the terminals of the old thermostat.
•
Make sure the wires do not fall back inside the wall.
•
Wind them around a pencil to keep them from falling.
•
Remove the old thermostat from the wall. Fill wall
Wires in wall come from
Furnace and AC unit
opening with fiber glass insulation to prevent drafts.
R
PG
3
W
G
Mount the 6010
•
Separate front from back of unit. Grasp the front of the
unit and the back of the unit and pull apart. The
thermostat body away from the base.
•
Hold the base against the wall, with the wires coming
through the opening below the terminal block.
•
Position the base for best appearance
•
Attach the base to the wall with the two
screws provided.
•
If you are mounting the base to sheet
rock or if you are using the old
mounting holes, use the plastic
anchors provided.
Drill a 3/16-in.(4.8mm) hole
for the insert at each screw
location, then mount the base.
PG
4
50 - 60 - - 80 - 90
Terminals
50 - 60 - 70 - 80 - 90
RC
O
RH
B
W
W2
R
G
50 60 70 80 90
W
Y
G
A
C
GAS ELECT
Page 4

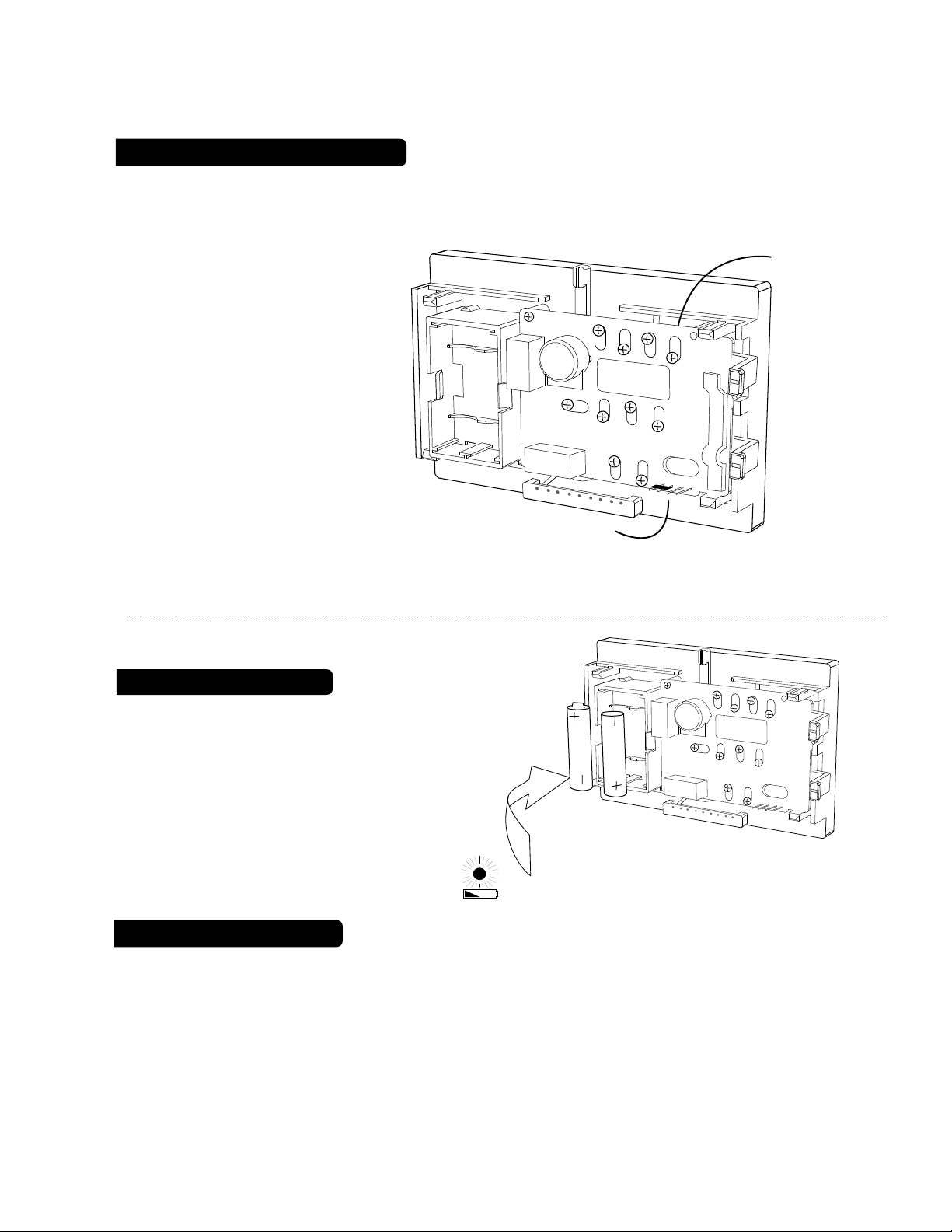

Gas-Electric Selection
• If you have Electric Heat or a Heat Pump you must
place the Gas/Electric jumper in the ELECT position
(thermostat controls the Fan).
• If you have Gas Heat the
50 - 60 - 70 - 80 - 90
Gas/Electric Jumper should be
in the GAS position (furnace
controls the Fan ).
50 60 70 80 90
Gas/ Electric
jumper
PG
5
Circuit
Board
RC
O
RH
B
W
W2
Y
G
A
C
GAS ELECT
50 - 60 - 70 - 80 - 90
Install Batteries
The 6010 requires batteries to operate your system.
Switch MODE switch to OFF and the FAN switch to
AA
AA
AUTO.
•
Insert 2 AA alkaline batteries according to the
polarity noted in the compartment.
NOTE: Replace the batteries once a year
or when this low battery indicator appears
on the right side of the unit.
Power Options
Please be aware of the following power options
1) The 6010 can run on batteries only. (2AA Alkaline)
The batteries will last well over 1 year. If the batteries are not replaced the thermostat will
stop working.
2) The 6010 can run on the C wire if available.
As shown in the wiring diagrams, The C wire is the other side of the 24VAC heating
transformer. If the C wire is used, the batteries are not needed.
RC
W2
A
50 60 70 80 90
O
RH
B
W
Y
G
C
GAS ELECT
PG
6

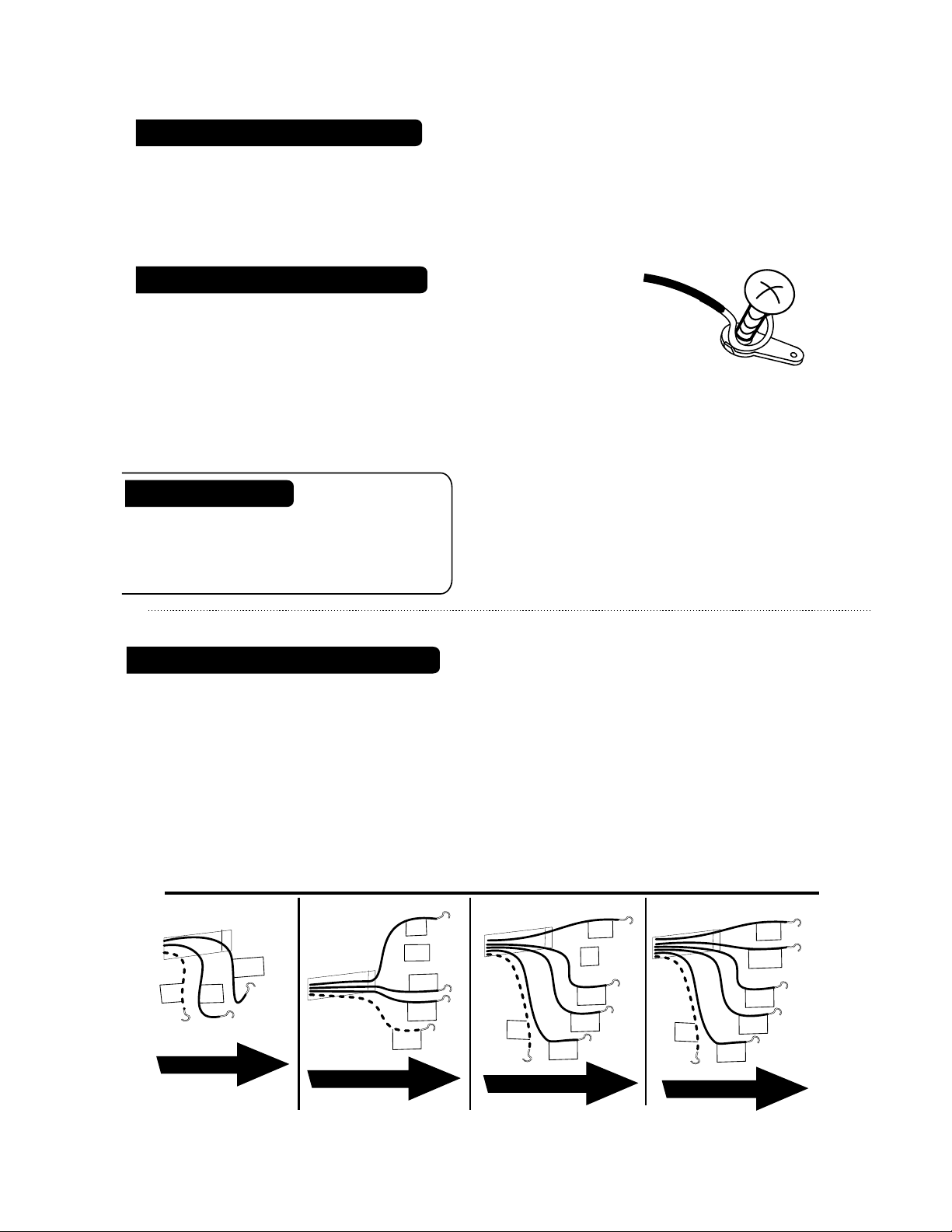

Page 5
PG
Wire Connections
7
Make sure your wires are labeled. This is necessary to determine which step-by-step
wiring diagram you should use. This may require you to find the 'other end' connection for
each wire on your heating or air conditioning equipment and read the label there.
If you have a Zoned Heating/Cooling system with multiple thermostats, please refer to
our website at www.ritetemp-thermostats.com for installation notes or call 1-877-505-2353.
Before you Connect Wires
Please refer back to these guidelines for safe and secure wire
connections.
•
Take care not to damage the labels for each wire in handling.
•
Strip insulation 3/8 in. (9.5mm) from wire ends.
•
Connect labeled wires only to a terminal with corresponding letter.
•
Bend the wire slightly, insert the wire under the contact plate and
tighten the screw down onto the wire.
WIRE LABEL LIST
Caution
each other or parts on unit.
Wires must be routed through
the hole in the back plate, below
the terminal block, or they will
hit parts on the cover.
Do not allow
wires to touch
R - Single source power for heat/cool
RC and RH using the jumper wire)
RH or R - Heating Power
RC - Cooling Power
W - Heating return
G - Fan return
(R connected to
What Wires Do You Have?
The Wire Label List shows wire
labels used on Ritetemp thermostats.
Please determine what wires you
have and select the correct wiring
diagram to "go to" on pages 8-9.
If you have a HEAT PUMP select a
wiring diagram on pg 9.
From Furnace
R
or
RH
C
W
Go To Page 11
PG
8
From Furnace
Go To Page 12
G
R
or
RH
W
C
Y - Compressor return
H - Humidifier
W2 -
2nd stage heat in NORMAL, auxiliary heat in PUMP mode.
(built into the furnace)
A - For 3 wire zoned heating systems
C - AC power for the thermostat if available
O - Damper control
(Zoned heating)
or heat pump
changeover valve (powered in COOL)
B - Damper control
changeover valve (powered in HEAT)
not connect both O and B on a heat pump. Connect O
to O & tape off B.
(Zoned heating)
or heat pump
NOTE: Do
X - Tape off X
E - Tape off E
From Furnace
And AC unit
C
W
Go To Page 13
Y
R
or
RH
G
From Furnace
And AC unit
C
W
Go To Page 14
Y
RH
RC
G

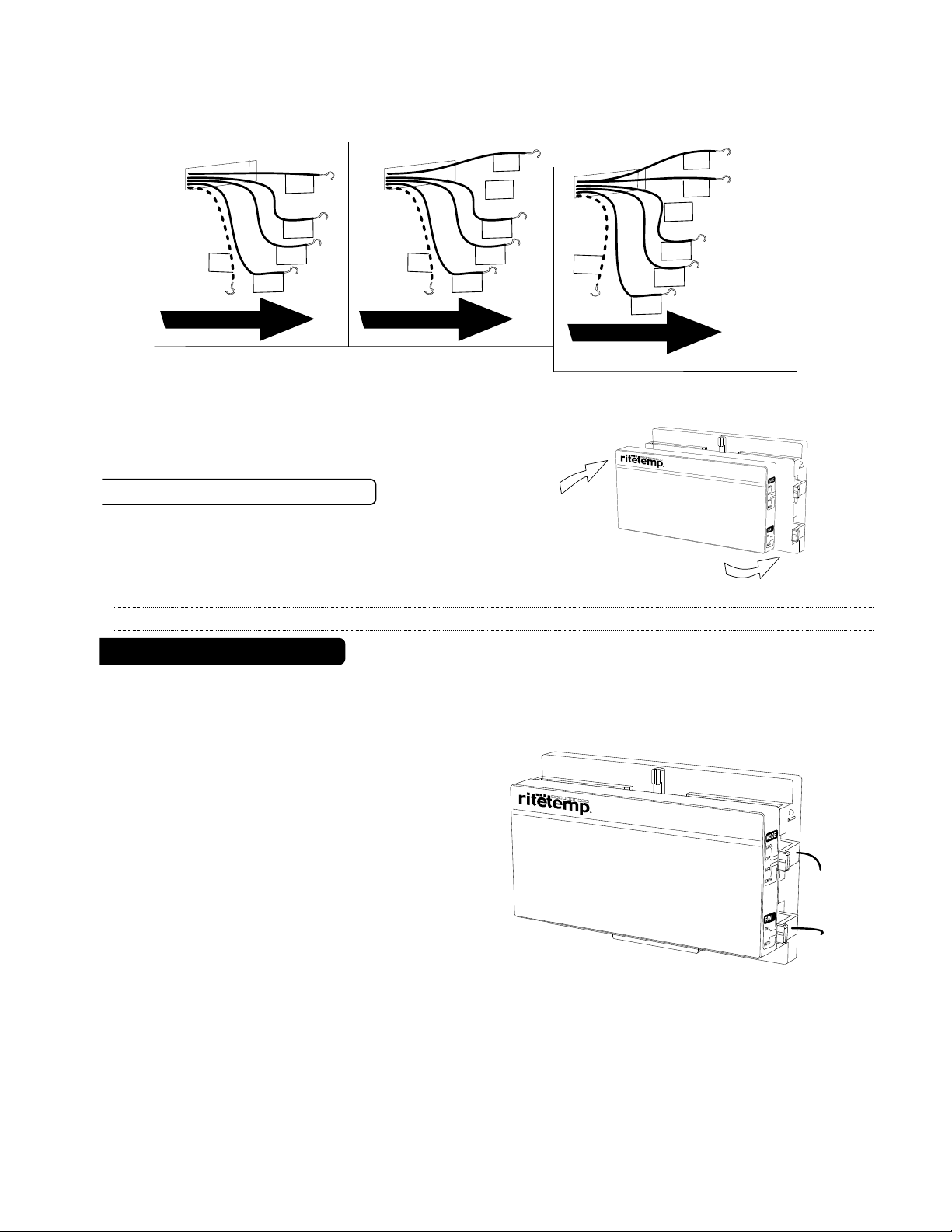

Page 6
From Normal
two stage system
W2
From heat pump
Aux heat
w/o
Y
From heat pump
Aux heat
with
O
or
W
C
G
C
R
B
G
C
R
B
G
R
Go To Page 15
Go To Page 16
Go To Page 17
If you do not find the wiring information for
your system try our webiste www.ritetemp-thermostats.com
for more information or call our customer service
hotline at 877-505-2353.

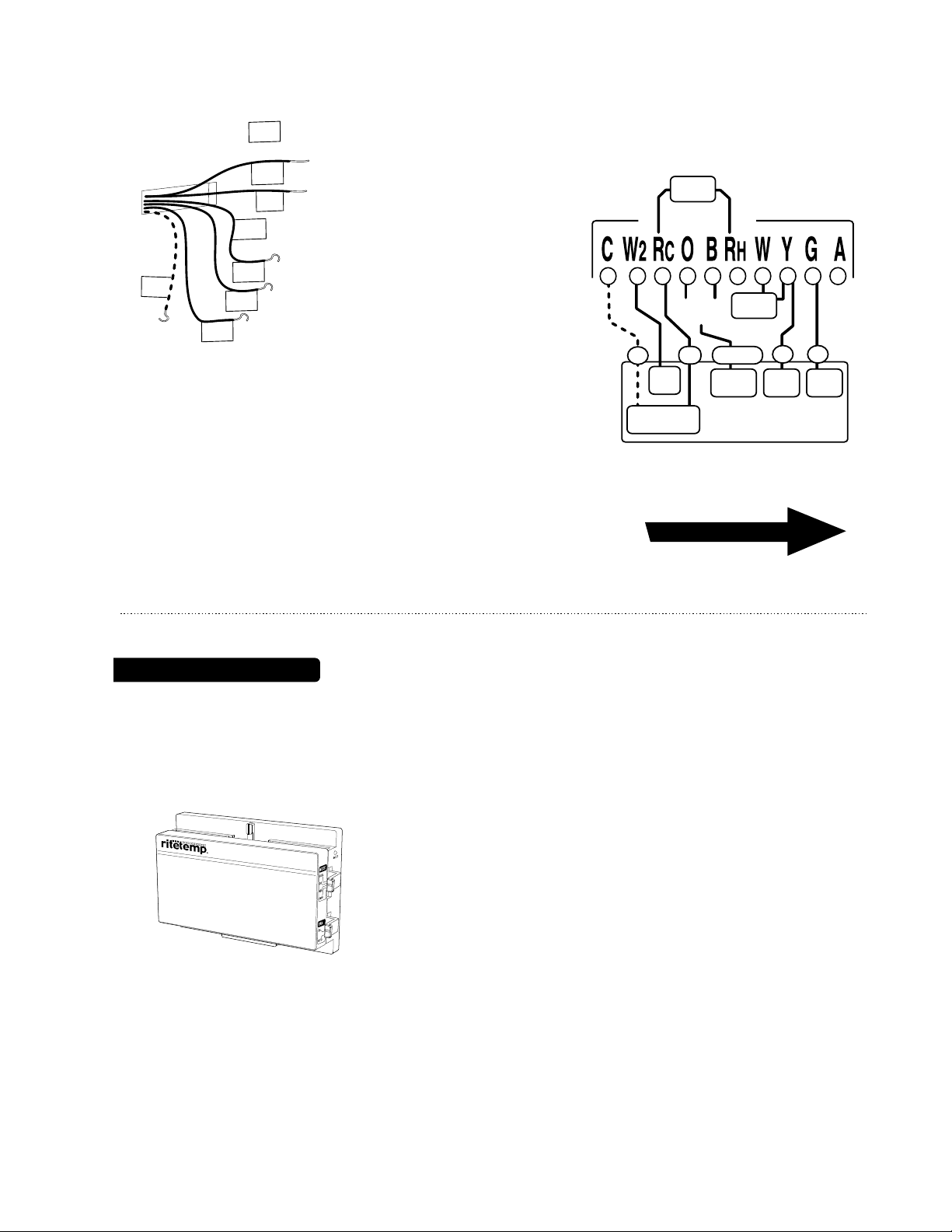

Wire Connections cont
When you have finished connecting the wires attach
control unit to wall unit. Hook the top of the body
onto the base, swing the body down, and snap the
body onto the base.
W or W2
Y
O
or
50 - 60 - - 80 - 90
PG
9
Check Unit
Follow these procedures to verify you have correctly
installed the unit.
To check Fan: (If you connected the G wire)
• Switch Mode to OFF during fan test.
• Switch the FAN switch to the ON position. Verify air is blowing from vents.
• After test, return to Fan switch to AUTO, and Mode to HEAT or COOL
To check HEAT mode:
50 - 60 - - 80 - 90
• Set the mode switch to HEAT. Set the
fan switch AUTO.
• Adjust the temperature control to raise
the target temp to 90
o
.
• Wait 5 min.
• Verify that heat is blowing from the
system.
To check COOL mode:
• Set the mode switch to COOL.
• Adjust the temperature control to 5o below the room temperature.
• Wait 5 min.
• Verify that cool air is blowing from the system.
Congratulations, you have successfully installed your unit. Please proceed to
the OPERATING Guide to initialize the new thermostat.
REMEMBER, Mode Switch must be in HEAT or COOL to operate.
PG
Mode
Switch
Fan
Switch
10
Page 7

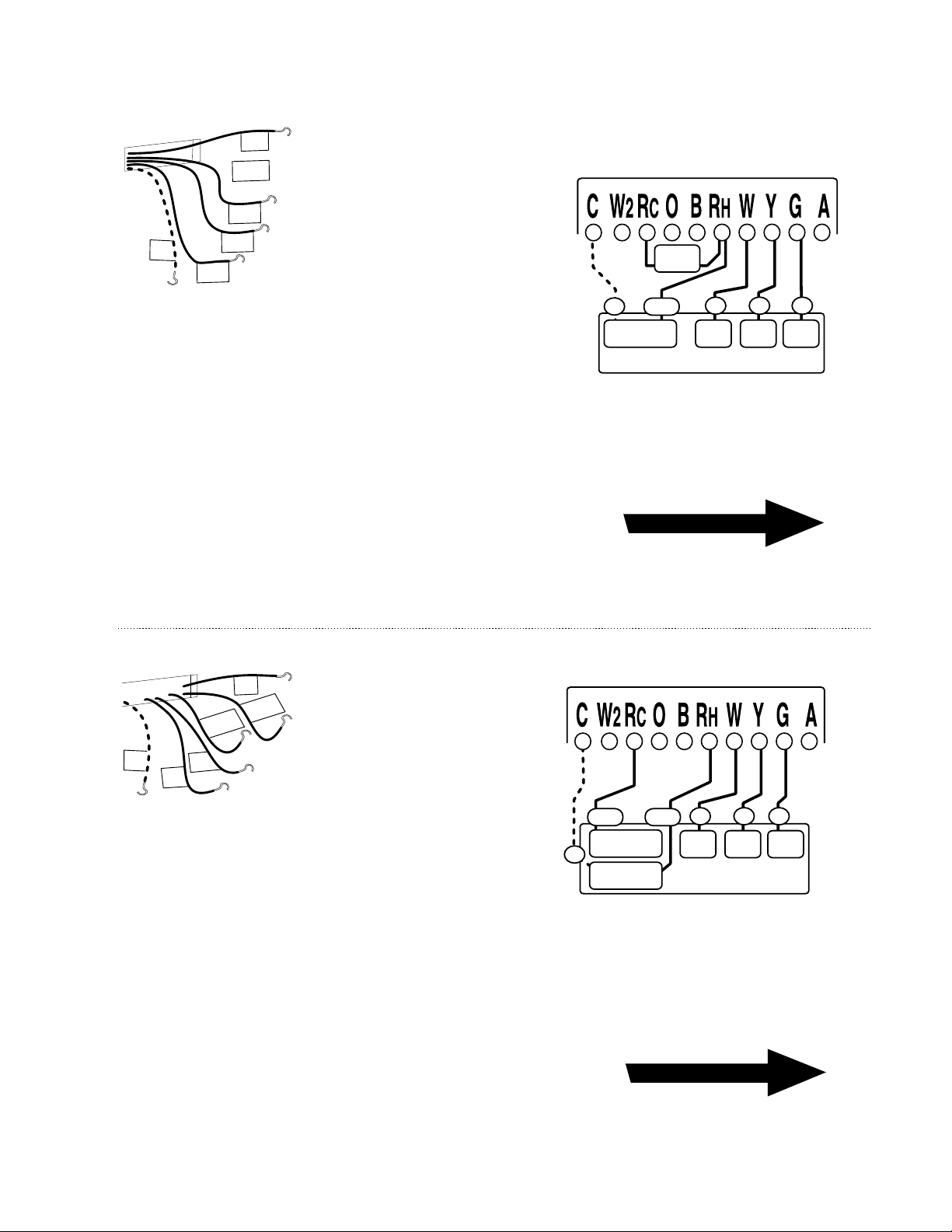

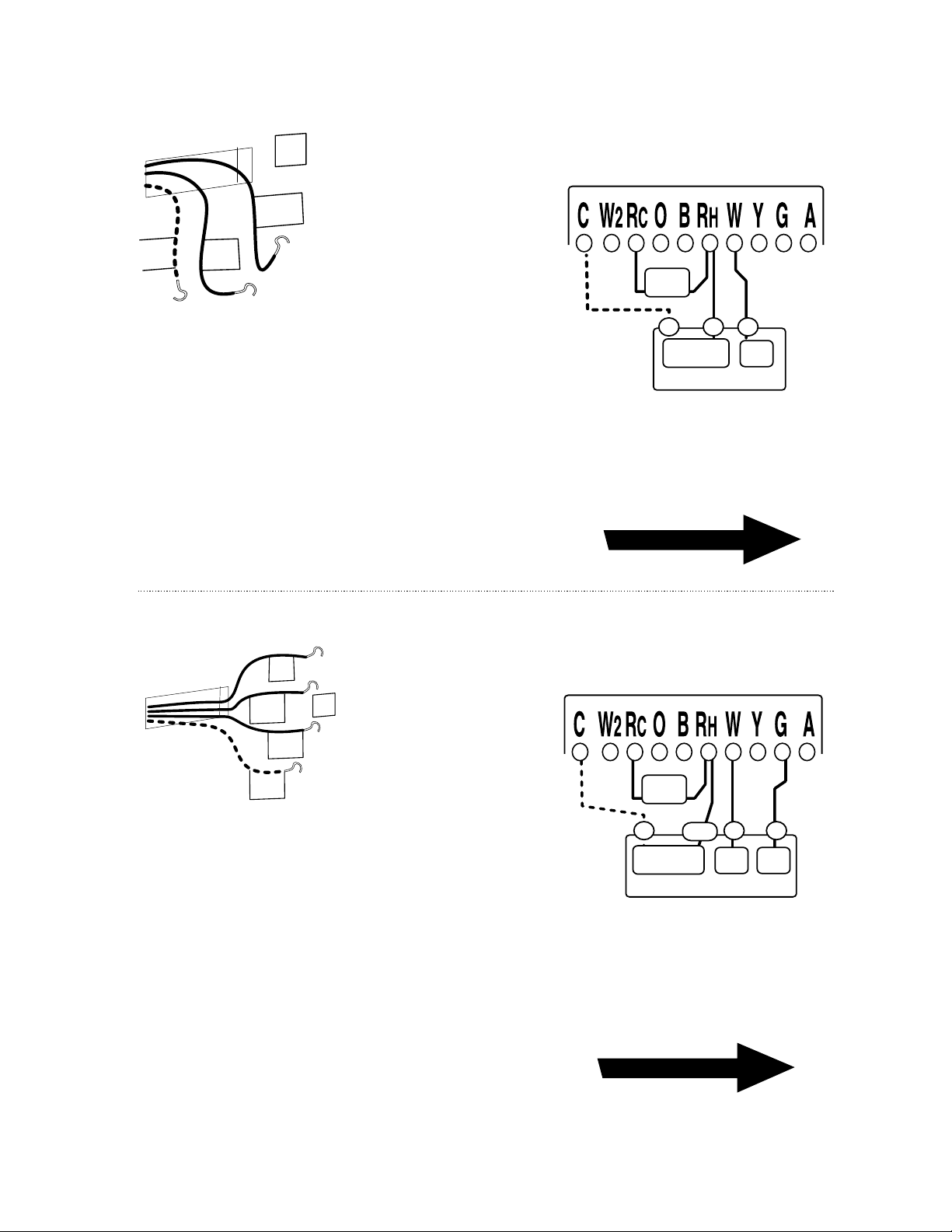

From Furnace
C
W
2 WIRE Heating
R
STEP 1 - Connect the R
or
(GAS MILLIVOLT or 24vac
(or RH) wire to the RH
RH
terminal on the thermostat.
This connects the Heater
Power to the thermostat.
STEP 2 - Connect the W wire
to the W terminal on the
thermostat.
This connects the heater control line
to the thermostat.
Your Heater is now connected to the thermostat.
Thermostat
jumper
wire
R
C
HEAT
Power
FURNACE
NOTE: Wires marked with
the dotted line are optional.
W
HEAT
PG
11
From Furnace
Return To Page 8
STEP 1 - Connect the R (or RH)
G
wire to the RH terminal on the
thermostat. This
or R
RH
W
C
connects to the
Heater Power .
STEP 2 - Connect the
W wire to the W
terminal on the thermostat.
This connects the heater control line to
the thermostat.
STEP 3 - Connect the G wire to the G terminal on
the thermostat.
This connects the Fan to the thermostat.
3 WIRE
Thermostat
jumper
wire
W G
C
NOTE: Wires marked with
the dotted line are optional.
RH
Heat
Power
FURNACE
Heat
FAN
PG
Your system is now connected to the thermostat.
Return To Page 8
12
Page 8

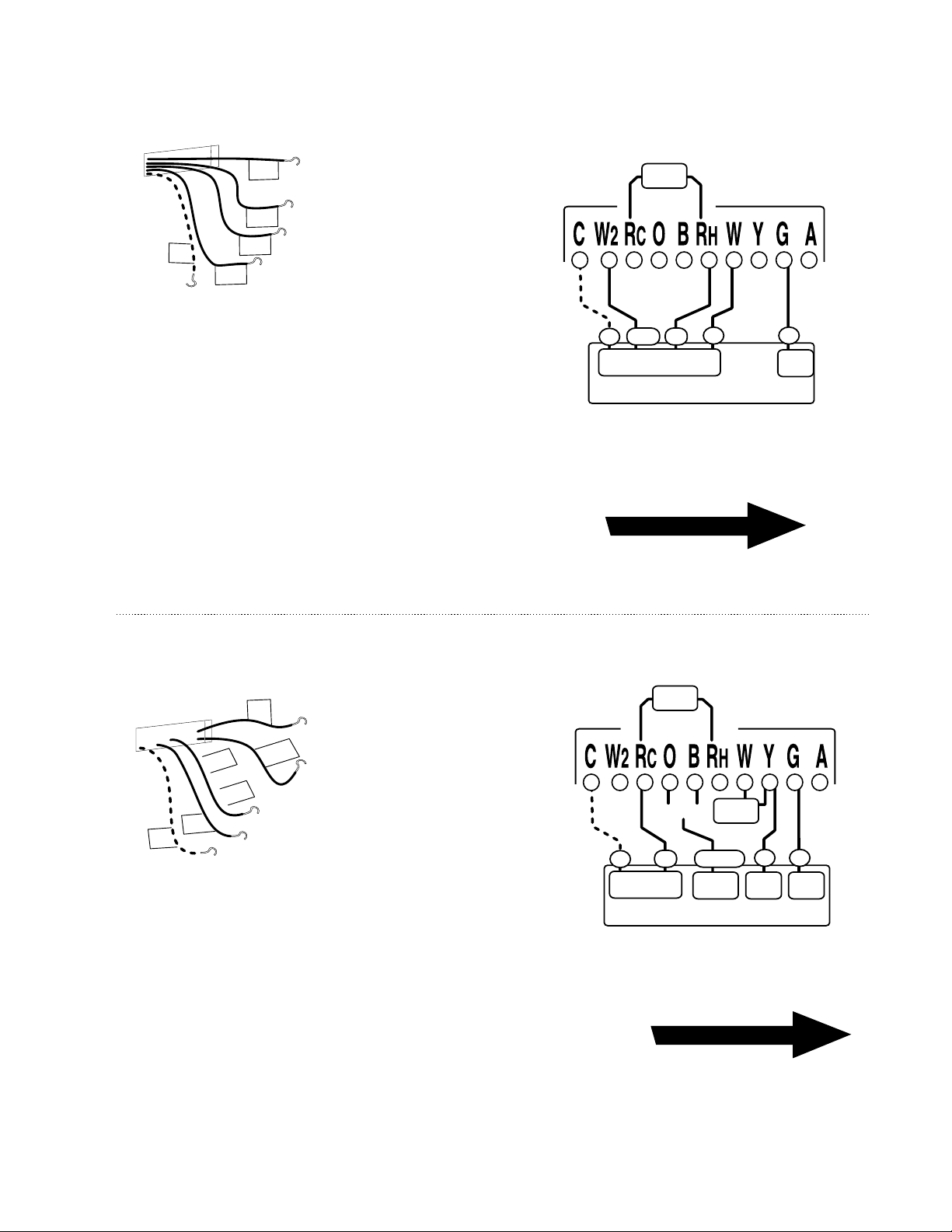

From Furnace
and AC unit
RH
or
R
Y
STEP 1 - Connect the Y wire to
the Y terminal on the thermostat.
This connects to the Cooler
4 WIRE
NON_HEAT PUMP
Thermostat
compressor.
W
G
STEP 2 - Connect the RH or R
wire to the RH terminal on the
thermostat.
This connects the Heater/Cooler
Power.
RH
C
Heat
Power
HVAC SYSTEM
C
STEP 3 - Connect the W wire to the W
terminal on the thermostat.
This connects to the heater control line.
NOTE: Wires marked with
the dotted line are optional.
STEP 4 - Connect the G wire to the G terminal on the Thermostat.
This connects to the Fan.
Return To Page 8
Your HVAC system is now connected to the thermostat.
From Furnace
and AC unit
STEP 1 - Remove the Jumper wire.
Y
STEP 2 - Connect the Y wire
5 WIRE
RH
RC
C
G
W
STEP 3 - Connect the RH wire to the RH
terminal on the thermostat. This connects to the
Heater Power .
to the Y terminal on the
thermostat. This connects to
the Cooler compressor.
Remove
jumper
wire
RHRC
COOL
Power
C
HEAT
Power
STEP 4 - Connect the RC wire to the RC terminal
on the thermostat. This connects to the Cooling
NOTE: Wires marked with
the dotted line are optional.
Power .
jumper
wire
W
Heat
NON_HEAT PUMP
W
Cool
Heat
Comp
HVAC SYSTEM
Y
Cool
Comp
Y
G
FAN
PG
Thermostat
G
FAN
13
STEP 5 - Connect the W wire to the W terminal on the thermostat.
This connects to the heater control line.
STEP 6 - Connect the G wire to the G terminal on the Thermostat.
This connects to the Fan.
Return To Page 8
Your HVAC system is now connected to the thermostat.
PG
14
Page 9
From Normal
two stage system
C
NORMAL 2 Stage
PG
15
Heat System
W2
W
STEP 1 - Connect the G wire to
the G terminal on the thermostat.
This connects the Fan.
jumper
wire
Thermostat
G
STEP 2 - Connect the
R
between W wire to W. This
connects the 1st stage heat.
STEP 3 - Connect the between
W2 wire to W2. This connects the 2nd stage heat.
STEP 4 - Connect the R wire to the RH terminal on
the Thermostat. This connects to the 24vac power.
Your HVAC system is now connected to the
thermostat. (If the system also has AC, connect it per
instructions for RC and Y on pg 14)
STEP 1 - Connect the G wire to
the G terminal on the thermostat.
From Furnace
and AC unit
C
R
O
or
G
This connects the Fan.
STEP 2 - Add a jumper wire
Y
between W and Y.
B
STEP 3 - Connect the Y wire to
the Y terminal on the thermostat.
This connects the Compressor.
STEP 4 - Connect the O or B wire
to the O or B terminal on the thermostat. (If you have
both O and B contact Ritetemp or your local HVAC
contractor for further help) This connects the change
over valve.
STEP 5 - Connect the R wire to the RC terminal on the
Thermostat. This connects to the 24vac power.
RW2
C
Two Stage
Furnace
Two Stage Heat System
W
G
FAN
NOTE: Wires marked with
the dotted line are optional.
Return To Page 9
HEAT PUMP w/o Auxiliary Heat
jumper
wire
Thermostat
O or B
R
C
24VAC
Power
Single Stage HEAT PUMP
jumper
wire
O or B
Change
Over
Y
Comp
NOTE: Wires marked with
the dotted line are optional.
Return To Page 9
G
FAN
Your HVAC system is now connected to the thermostat.
PG
16
Page 10
W
STEP 1 - Connect the G wire to
the G terminal on the thermostat.
This connects the Fan.
STEP 2 - Add a jumper wire
between W and Y.
STEP 3 - Connect the Y wire to
the Y terminal on the thermostat.
From heat pump
with Aux heat
C
or
W2
Y
O
or
B
G
This connects the Compressor.
R
STEP 4 - Connect the O or B wire to the
O or B terminal on the thermostat. (If you have both
O and B wires, use the O and tape off the B).
This connects the change over valve.
STEP 5 - Connect the R wire to the RC terminal on
the Thermostat. This connects to the 24vac power.
STEP 6 - Connect W or W2 to W2 on the thermostat.
This connects the AUX heat.
Your HVAC system is now connected to the thermostat.
PG 17
HEAT PUMP with Auxiliary Heat
jumper
wire
Thermostat
jumper
wire
O or B
Change
Over
Comp
HEAT PUMP
G
Y
FAN
C
24VAC
Power
AUX
Heat
O or B
(not both)
R
NOTE: Wires marked with
the dotted line are optional.
Return To Page 9

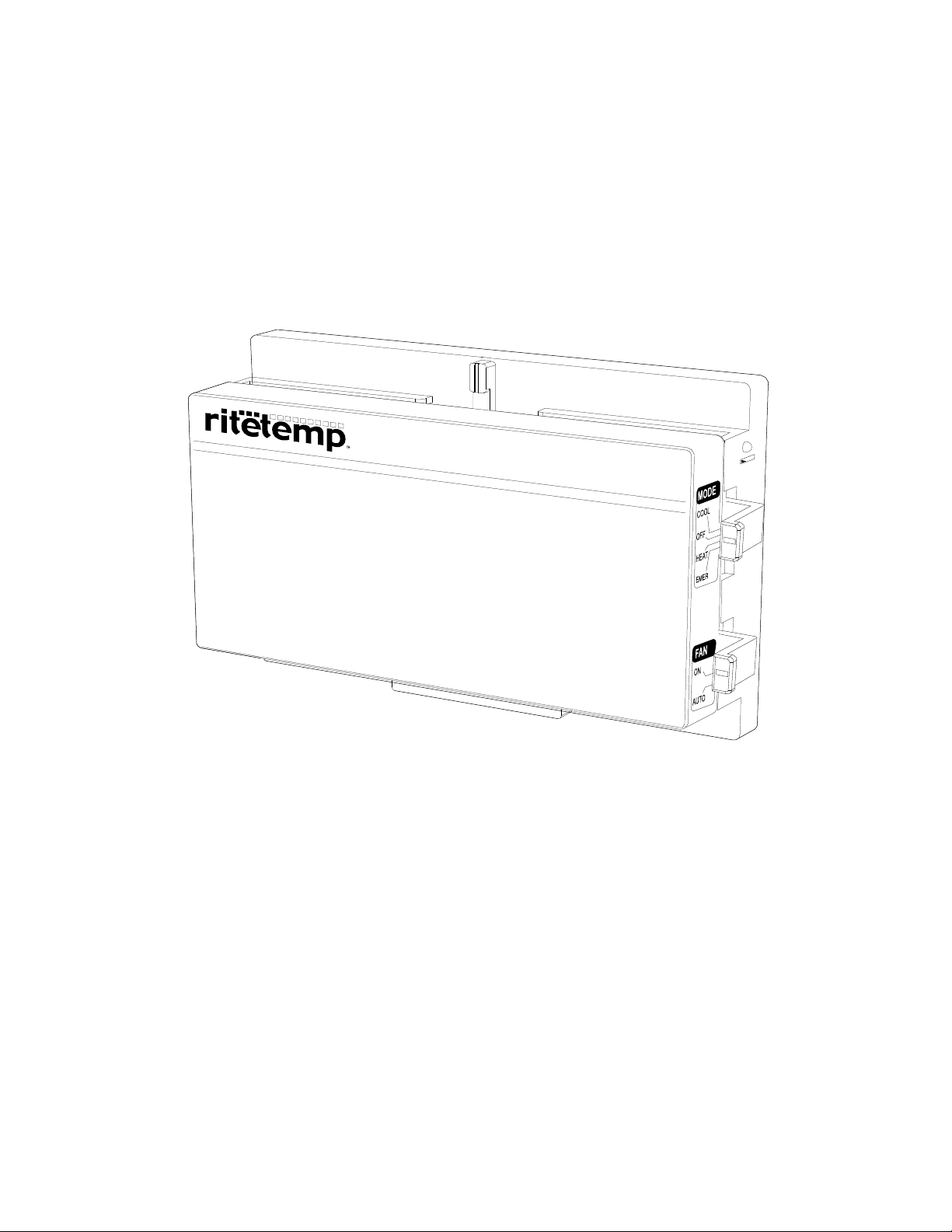

6010 Features
The 6010 can be used with most 24 volt gas, oil or electric heating and air
conditioning systems, heat pump systems with or without auxiliary heat, Normal 2
Stage systems, Zoned Hot-Water, Zoned Forced air systems, or gas millivolt
heating systems. It cannot be used with 120 volt heating systems or. Ask The
Home Depot for other thermostats to control those systems.
50 - 60 - - 80 - 90
The 6010 is digital. You can program your desired Heat
and cool temperature by setting the dial. The unit uses
no harmful mercury.
A 5-minute minimum off time in COOL protects your air
conditioning system from being damaged.
Two "AA" batteries (not included) are used to run the
thermostat in some installation. "C" wire installations can
make batteries last many times longer.
PG 18
Page 11
50 - 60 - - 80 - 90
Customer Support: 877-505-2353
or Visit our website www.ritetemp-thermostats.com
Printed in China
1611-015
Loading...
