Install Guide 6005
Page 2
Install Guide 6005
To avoid electrical shock and to prevent damage to the furnace, air conditioner,
Caution
and thermostat, disconnect the power supply before beginning work.
This can be done at the circuit breaker, or at the appliance.
Tools
You will need #1 Phillips screwdriver (small) and
Drill with 3/16-in. (4.8mm) bit for this installation.

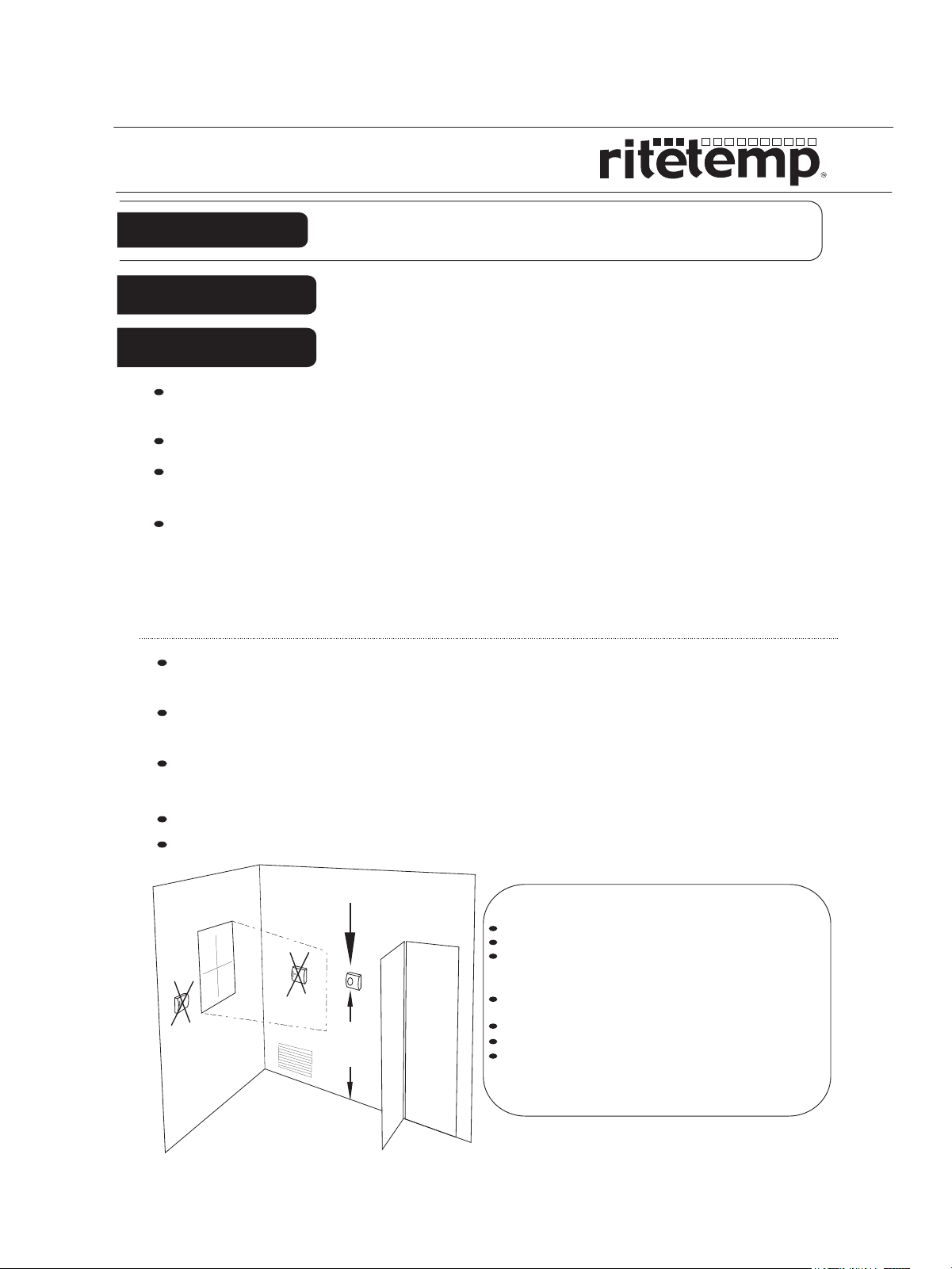

Location
On replacement installations, mount the new thermostat in place
of the old one if possible.
On new Installations, follow the guidelines listed below.
Locate the thermostat on an inside wall, about 5 ft. (1.5m) above
the floor, and in a room that is used often.
Do not install where there are unusual heating conditions, such
as: in direct sunlight; near a lamp, radio, television, radiator
register, or fireplace; near hot water pipes in a wall; near a stove
PG
on the other side of a wall.
Do not locate in unusual cooling conditions: on a wall separating
an unheated room; or in a draft from a stairwell, door, or window.
Do not locate in a damp area. This can lead to corrosion that will
shorten thermostat life.
Do not locate where air circulation is poor, such as: in a corner or
an alcove; or behind an open door.
Do not install until construction and painting is completed.
This thermostat does not require leveling.
1
Good
5ft.
(1.5m)
C A U T I O N
Your thermostat is a precise instrument.
Please handle it with care.
Turn off electricity to the appliance before installing or
servicing thermostat or any part of the system. Do not
turn electricity back on until work is completed.
Do not short (jumper) across electric terminals at
control on furnace or air conditioner to test the system.
This will damage the thermostat and void your warranty.
All wiring must conform to local codes and ordinances.
This thermostat is designed for use with 24 volt AC and
millivolt systems. The thermostat should be limited to a
maximum of 1.0 amps; higher amperage may cause
damage to the thermostat.
PG
2
Page 3

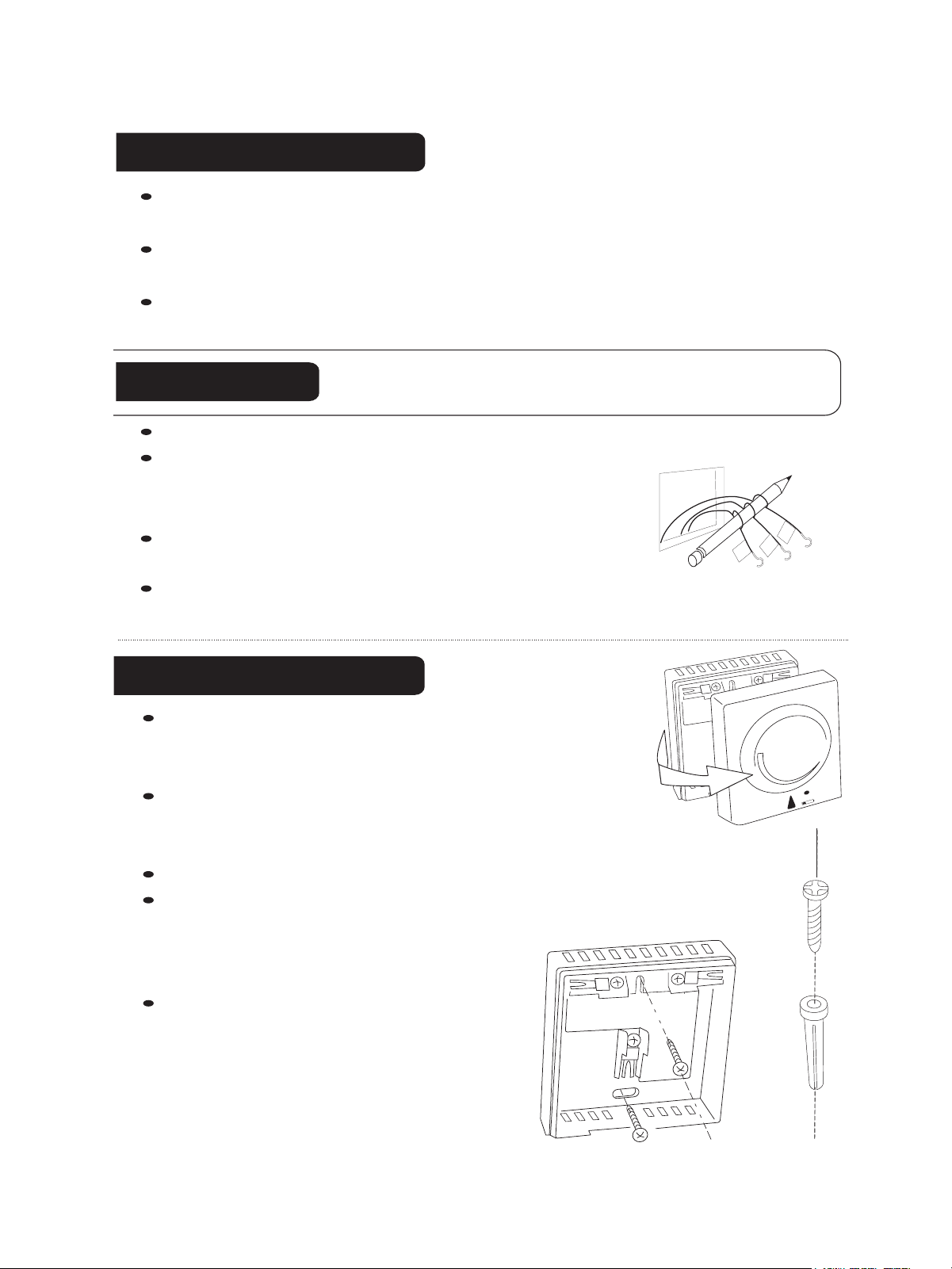

Remove old unit
Switch electricity to the furnace and air conditioner OFF;
then proceed with the following steps.
Remove cover from old thermostat. Most are snap-on types and
simply pull off. Some have locking screws on the side or front.
These must be loosened. Note the letters printed near the
terminals. Attach labels (enclosed) to each wire for identification.
DO NOT REMOVE WIRES FROM OLD THERMOSTAT UNTIL YOU HAVE
Caution
Remove and label the wires one at a time.
Make sure the wires do not fall back inside the
wall.
Wind them around a pencil to keep them from
falling.
Loosen all screws on the old thermostat and remove it from the
wall.
PG
3
CAREFULLY LABELED THEM, WITH LABELS PROVIDED.
THERE IS NO STANDARD COLOR CODE FOR THESE WIRES.
RH
W
G
Mount the 6005
Separate front from back of unit. Grasp the
front of the unit and the back of the unit and
pull apart. The thermostat body away from the
base.
Hold the base against the wall, with the wires
coming through the opening below the terminal block.
Position the base for best appearance
Attach the base to the wall with the two screws provided.
If you are mounting the base to sheet rock or if you are using
the old mounting holes, use the
plastic anchors provided.
Drill a 3/16-in.(4.8mm) hole for the
insert at each screw location, then
mount the base.
PG
4
C
C
Page 4

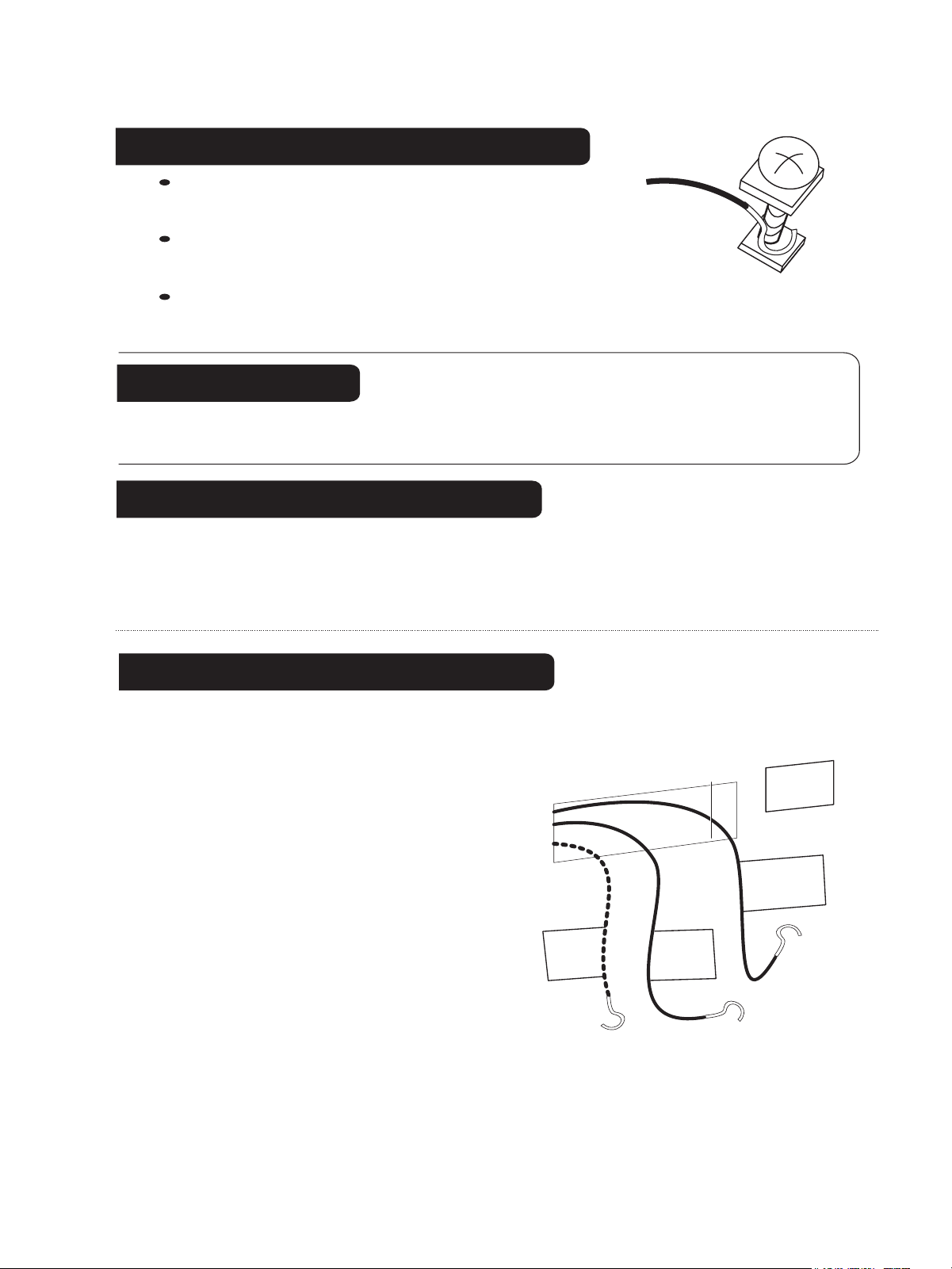

4 Before you Connect Wires
Strip insulation 3/8 in. (9.5mm)
from wire ends.
Connect labeled wires only to a terminal
with the same letter.
Bend the wire slightly, insert the wire under the contact
plate and tighten the screw down onto the wire.
Caution
Optional Wire Connections
If you have a wire marked "C" its connection is optional.
If you do connect it the thermostat will draw power from
the C wire and this will extend battery life.
What Wires Do you Have?
R - Single source power
for heat/cool
Do not allow wires to touch each other or
parts on thermostat. Wires must be routed
through the hole in the back plate, below
the terminal block, or they will hit parts
on the cover.
From Furnace
R
PG 5
RH or 4 - HEATING
POWER
W - HEATING CONTROL
C - Common side of
Heating Power
C
or
RH
W
PG 6
Page 5
From Furnace
R
or
RH

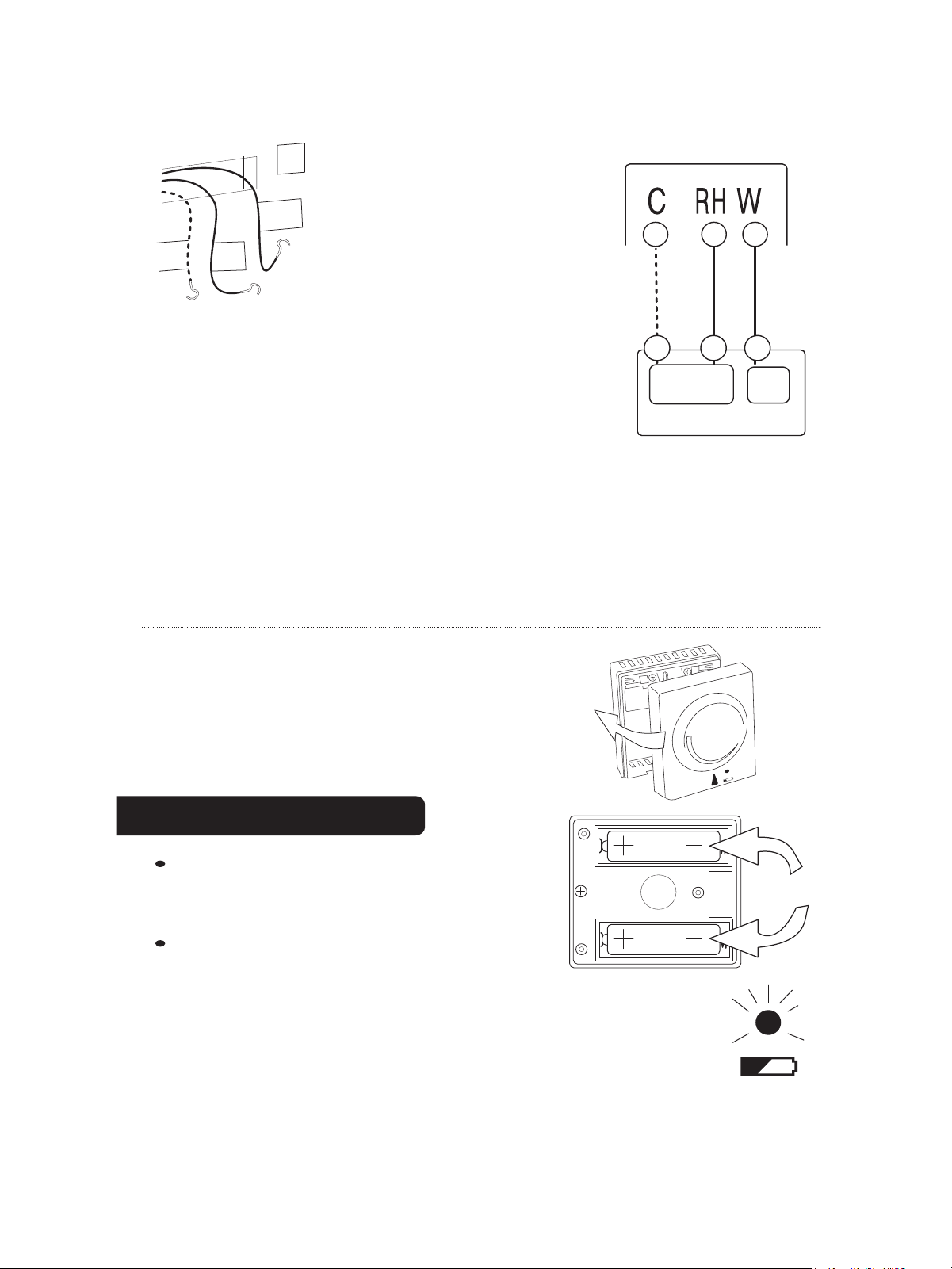

STEP 1 - Connect the R
(or RH) wire to the RH
2 WIRE Heating
Thermostat
C
W
terminal.
This connects the Heater
Power to the thermostat.
STEP 2 - Connect the W wire to the
W terminal
This connects the heater control line to
the thermostat. Your Heater is now
connected to the thermostat.
When you have finished making
connections. Reattach the the body
onto the base by pressing it firmly onto
the base.
R
C
HEAT
Power
FURNACE
NOTE:
Wires marked
with the dotted
line are optional.
C
W
HEAT
PG
7
Install Batteries
AA
The 6005 requires 2AA batteries if the
C wire is not available in your furnace
installation.
Remove the control unit form the wall
unit. Install 2 AA alkaline batteries
according to the polarity noted in the compartment.
NOTE: Replace the batteries when the red LOW
battery LED indicator blinks or once a year.
Caution: The thermostat will go "off" if the batteries die.
This exposes your house to unexpected heat or cold and
should be avoided.
AA
PG
8
Page 6

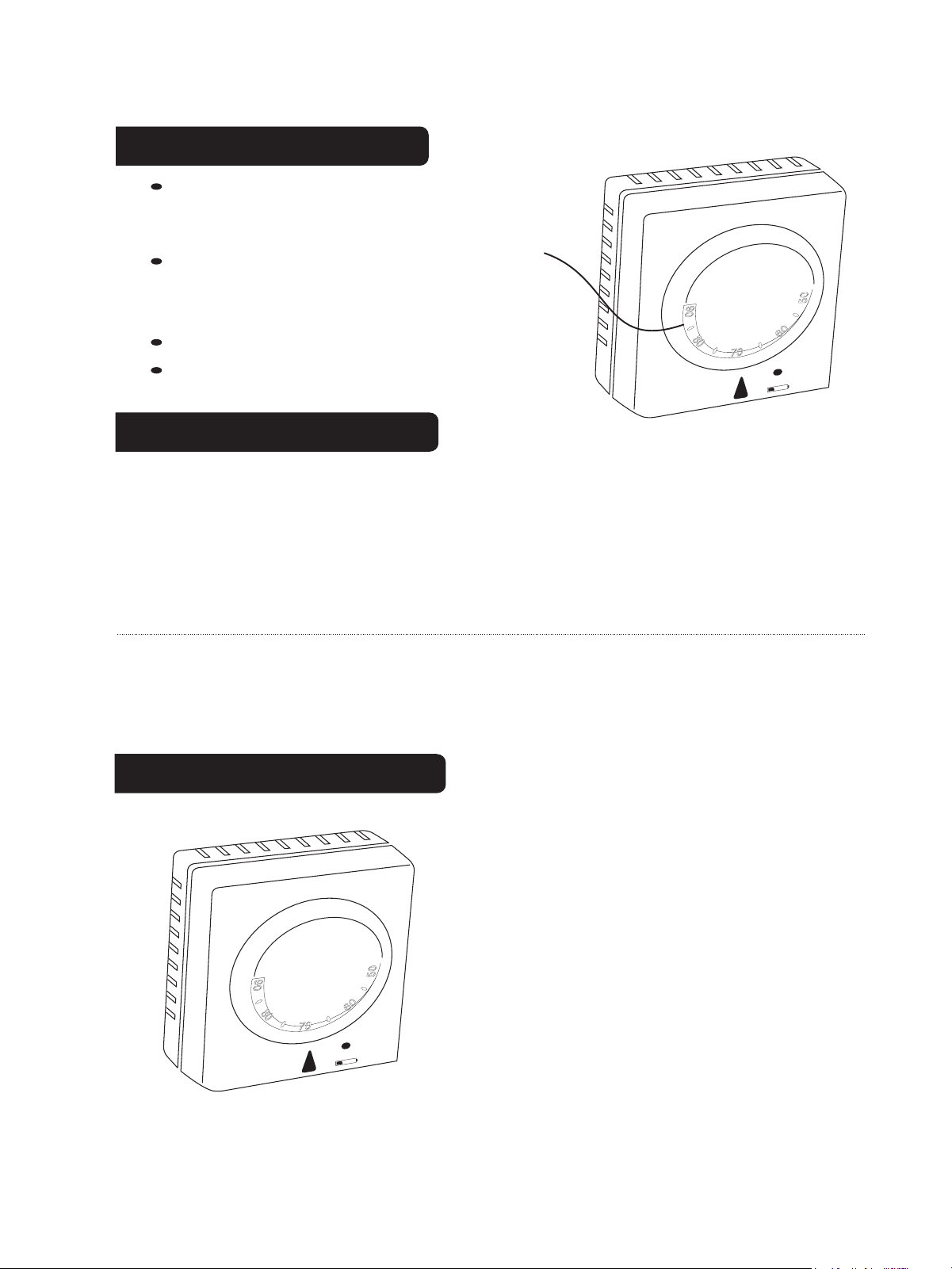

Check Unit
Follow these procedures to verify you
have correctly installed the unit.
Temperature
To check HEAT:
Dial
Turn TEMP DIAL counter clockwise
to its stop.
Allow the system 5 min to respond.
Verify that heat is blowing from the
system.
Power Options
1) The 6005 can run on batteries only. (2AA Alkaline)
The batteries will last well over 1 year. If the batteries are not
replaced the thermostat will stop working.
2) The 6005 can run on the C wire if available. As shown in the
wiring diagrams. If the C wire is used, the batteries are not
PG
needed.
9
Congratulations, you have successfully installed your
unit. Please proceed to the OPERATING Guide to
initialize the new thermostat.
6005 Features
The 6005 can be used with most
24 volt gas, oil or electric heating
systems, gas millivolt heating
systems. It cannot be used with
120 volt heating systems or heat
pump systems. Ask The Home
Depot for other thermostats to
control those systems.
The 6005 is electronic. You can
program your desired Heat
temperature by setting the dial.
The unit uses no harmful mercury.
PG
10
Page 7
Customer Support: 877-505-2353
or Visit our website www.ritetemp-thermostats.com
