RIDGID 425 User Manual
999-998-422.10Printed in U.S.A.
Ridge Tool Company/Elyria, Ohio, U.S.A.
5/08
Ref. Catalog
No.
No. Description
— 16703 425 Tristand
1 19063 Hex Bolt,
3
/8″ - 16 x 31/2″
2 59970 Flat Washer,
3
/8″
3 19118 Latch
4 19113 Torsion Spring
5 19108 Latch Bushing
6 19103 Adjuster Shoe Assembly
7 83545 Jam Nut,
3
/8″ - 16″
8 41005 Chain Assembly
9 41040 Chain Screw Pin
10 41065 Chain Screw
11 41020 Jaw
12 41025 Friction Ring
13 41060 Swivel Nut w/Friction Ring
14 41015 Handle
15 41050 Handle Assembly
16 79985 Lock Nut,
3
/8″ - 16 (4)
17 58052 Hex Bolt,
3
/8″ - 16 x 21/2″ (3)
Ref. Catalog
No.
No. Description
18 19053 Base
19 40990 Roll
20 41035 Roll Pin
21 40770 Lock Washer,
3
/8″ (2)
22 76735 Spring Pin
23 32457 Screw w/Washer (2)
24 19083 Pivot Pin (6)
25 19088 Link (6)
26 41270 X-Washer (6)
27 18228 Hand Grip
28 19093 Center Ring w/Handle
29 19098 Center Tube
30 19533 Ridgid Label
31 40940 Grommet (3)
32 19068 Rear Leg Assembly
33 19078 Right Leg Assembly
34 19073 Left leg Assembly
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
32
31
30
29
34
25
26
27
24
19
16
17
18
11
12
13
10
14
9
8
7
6
4
5
2
3
1
20
21
22
23
16
15
31
31
33
28

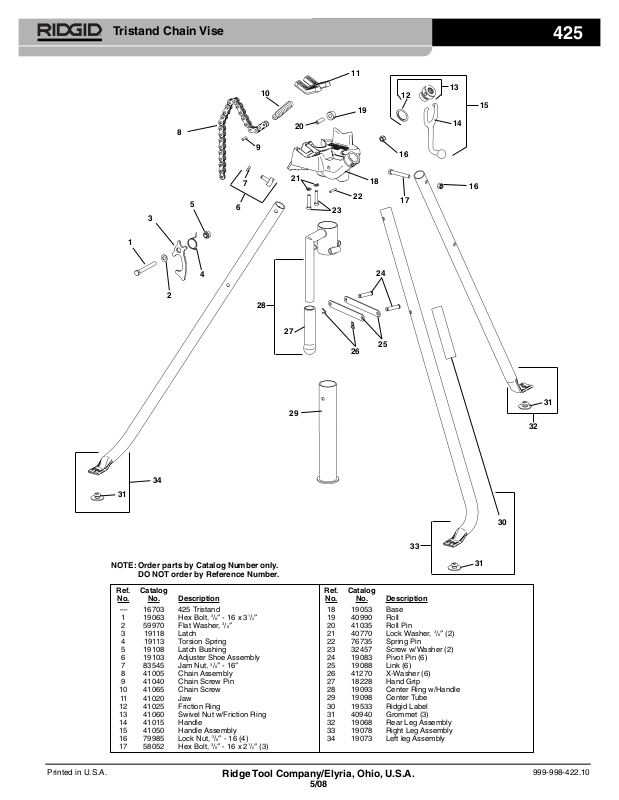

Tristand Chain Vise
425
Ridge Tool Company/Elyria, Ohio, U.S.A.
46
No. 40-A Tristand Yoke Vise
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No.
No. Description
1 40895 Base
2 40915 Legs & Tray Assembly
3 41240 Tool Tray
4 40900 Yoke & Hook Assembly
5 40920 Yoke Assembly
6 41235 Tray Support with Screw
7 40380 Hook Assembly
8 46675 Leg Bolt
9 44225 Nut (3)
10 40930 Lock Washer (3)
11 41265 Tray Pin & Washer (3)
12 41270 “X” Washer (3)
13 41245 Set Screw
Ref. Catalog
No.
No. Description
14 41255 Front Leg Assembly (2)
15 41250 Rear Leg Assembly
16 40945 Leg Chain
17 40905 Hinge Bolt, Nut & Washer
18 40910 Lower Jaw Screw (2)
19 40385 Jaw Clamp Screw with Washer (2)
20 40390 Feed Screw
21 41230 Jack Screw Assembly
22 40395 Jaw Clamp Set
23 40940 Grommet (3)
24 40400 Upper Jaw
25 40405 Lower Jaw (1 Set)
26 40415 Hinge Pin
Capacity:1/8″, through 21/2″
1
2
4
5
13
6
20
26
17
24
19
22
7
8
18
25
21
23
9
15
16
23
14
12
11
3
10
