RICOH GROUP COMPANIES
C223/C228
PARTS CATALOG
PN: RCPC3800
PARTS CATALOG
C223\C228
®
®
RICOH GROUP COMPANIES
C223/C228
PARTS CATALOG
PN: RCPC3800
It is the reader's responsibility when discussing the information contained within this
document to maintain a level of confidentiality that is in the best interest of Ricoh
Corporation and its member companies.
NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN ANY
FASHION AND DISTRIBUTED WITHOUT THE PRIOR
PERMISSION OF RICOH CORPORATION.
All product names, domain names or product illustrations, including desktop images,
used in this document are trademarks, registered trademarks or the property of their
respective companies.
They are used throughout this book in an informational or editorial fashion only and for
the benefit of such companies. No such use, or the use of any trade name, or web
site is intended to convey endorsement or other affiliation with Ricoh products.
2000 RICOH Corporation. All rights reserved.
LEGEND
PRODUCT CODE COMPANY
RICOH SAVIN GESTETNER
C223 VT3800 3300DNP 5385
C228 VT6000 3400DNP 5390
C550 DF Unit
C562 DF Unit Type 50
C563 Large Capacity Tray
C532 Tape Marker
DOCUMENTATION HISTORY
REV. NO. DATE COMMENT
* 3/96 Original Printing
1 11/97 Reprint
2 2/98 C228 (VT6000) Addit i on
TABLE OF CONTENTS
SECTION 1 C223PARTS LOCATION AND LIST
LOCATION OF UNIT.............................................................. 3
1. EXTERIOR (C223) ............................................................ 10
2. PLATEN COVER (C223)................................................... 12
3. FRAME SECTION 1 (C223).............................................. 14
4. FRAME SECTION 2 (C223).............................................. 16
5. DRIVE SECTION 1 (C223)................................................ 18
6. DRIVE SECTION 2 (C223)................................................ 20
7. PAPER TABLE SECTION 1 (C223).................................. 22
8. PAPER TABLE SECTION 2 (C223).................................. 24
9. PAPER FEED ROLLER AND
SEPARATION ROLLER(C223)......................................... 26
10. PAPER SEPARATION ROLLER (C223).......................... 28
11. PAPER DELIVERY SECTION 1 (C223)........................... 30
12. PAPER DELIVERY SECTION 2 (C223)........................... 32
13. PAPER DELIVERY SECTION 3 (C223)........................... 34
14. PAPER DELIVERY SECTION 4 (C223)........................... 36
15. DELIVERY TABLE 1 (C223) ............................................ 38
16. DELIVERY TABLE 2 (C223) ............................................ 40
17. PAPER EXIT SECTION 1 (C223) .................................... 42
18. PAPER EXIT SECTION 2 (C223) .................................... 44
19. PAPER EXIT SECTION 3 (C223) .................................... 46
20. DRUM SECTION 1 (C223)............................................... 48
21. DRUM SECTION 2 (C223)............................................... 50
22. DRUM SECTION 3 (C223)............................................... 52
23. DRUM SECTION 4 (C223)............................................... 54
24. DRUM SECTION 5 (C223)............................................... 56
25. SCANNER SECTION 1 (C223)........................................ 58
26. SCANNER SECTION 2 (C223)........................................ 60
27. SCANNER SECTION 3 (C223)........................................ 62
28. SCANNER SECTION 4 (C223)........................................ 64
29. PLOTTER SECTION 1 (C223)......................................... 66
30. PLOTTER SECTION 2 (C223)......................................... 68
31. PLOTTER SECTION 3 (C223)......................................... 70
32. PLOTTER SECTION 4 (C223)......................................... 72
33. MASTER EJECT SECTION 1 (C223) .............................. 74
34. MASTER EJECT SECTION 2 (C223) .............................. 76
35. MASTER EJECT SECTION 3 (C223) .............................. 78
36. ELECTRICAL SECTION 1 (C223) ................................... 80
37. ELECTRICAL SECTION 2 (C223) ................................... 82
38. ACCESSORIES AND SPECIAL TOOLS (C223).............. 84
39. CASSETTE (C223)........................................................... 86
40. MAIN CONTROL BOARD (C223) .................................... 88
41. AC DRIVE BOARD (C223)............................................... 90
42. IMAGE PROCESSING BOARD (C223) ........................... 92
43. TABLE SECTION (C223) ................................................. 98
44. DECAL AND DOCUMENT (C223) ................................... 100
SECTION 2 C223 PARTS INDEX
PARTS INDEX........................................................................ 105
SECTION 3 C228 PARTS LOCATION AND LIST
LOCATION OF UNIT.............................................................. 3
1. EXTERIOR (C228) ............................................................ 10
2. PLATEN COVER (C228)................................................... 12
3. FRAME SECTION 1 (C228).............................................. 14
4. FRAME SECTION 2 (C228).............................................. 16
5. DRIVE SECTION 1 (C228)................................................ 18
6. DRIVE SECTION 2 (C228)................................................ 20
7. PAPER TABLE 1 (C228)................................................... 22
8. PAPER TABLE 2 (C228)................................................... 24
9. PAPER FEED &
UPPER SEPARATION ROLLERS (C228) ........................ 26
10. PAPER SEPARATION 1 (C228) ...................................... 28
11. PAPER SEPARATION 2 (C228) ...................................... 30
12. 2ND FEED ROLLERS (C228).......................................... 32
13. PAPER FEED DRIVE (C228)........................................... 34
14. PRESS ROLLER (C228).................................................. 36
15. PAPER EXIT SECTION 1 (C228) .................................... 38
16. PAPER EXIT SECTION 2 (C228) .................................... 40
TABLE OF CONTENTS
(Continued)
17. PAPER EXIT SECTION 3 (C228) .................................... 42
18. PAPER EXIT SECTION 4 (C228) .................................... 44
19. PAPER EXIT SECTION 5 (C228) .................................... 46
20. DRUM SECTION 1 (C228)............................................... 48
21. DRUM SECTION 2 (C228)............................................... 50
22. DRUM SECTION 3 (C228)............................................... 52
23. DRUM SECTION 4 (C228)............................................... 54
24. DRUM SECTION 5 (C228)............................................... 56
25. SCANNER SECTION 1 (C228)........................................ 58
26. SCANNER SECTION 2 (C228)........................................ 60
27. SCANNER SECTION 3 (C228)........................................ 62
28. SCANNER SECTION 4 (C228)........................................ 64
29. PLOTTER SECTION 1 (C228)......................................... 66
30. PLOTTER SECTION 2 (C228)......................................... 68
31. PLOTTER SECTION 3 (C228)......................................... 70
32. PLOTTER SECTION 4 (C228)......................................... 72
33. MASTER EJECT SECTION 1 (C228) .............................. 74
34. MASTER EJECT SECTION 2 (C228) .............................. 76
34. MASTER EJECT SECTION 2 (C228) .............................. 76
35. MASTER EJECT SECTION 3 (C228) .............................. 78
36. ELECTRICAL SECTION 1 (C228) ................................... 80
37. ELECTRICAL SECTION 2 (C228) ................................... 82
38. ACCSESSORIES (C228) ................................................. 84
39. TABLE SECTION (C228) ................................................. 86
40. IMAGE PROCESSING BOARD (C228) ........................... 88
41. MAIN CONTROL BOARD (C228) .................................... 92
42. DECAL AND DOCUMENT (C228) ................................... 96
SECTION 4 C228 PARTS INDEX
PARTS INDEX........................................................................ 2
5. DECAL AND DOCUMENT (C550) .................................... 12
SECTION 6 DOCUMENT FEEDER C550 PARTS INDEX
PARTS INDEX........................................................................ 2
SECTION 7 DOCUMENT FEEDER C562 LOCATION AND LIST
LOCATION OF UNIT............................................................. 3
1. ADF UNIT 1 (C562).......................................................... 4
2. ADF UNIT 2 (C562).......................................................... 6
3. ADF UNIT 3 (C562).......................................................... 8
4. ADF UNIT 4 (C562).......................................................... 10
5. DECAL AND DOCUMENT (C562) ................................... 12
SECTION 8 DOCUMENT FEEDER C562 PARTS INDEX
PARTS INDEX....................................................................... 2
SECTION 9 LARGE CAPACITY TRAY C563 LOCATION AND LIST
1. EXTERIOR (C563) ........................................................... 2
2. LCT DRIVE SECTION (C563).......................................... 4
3. PAPER TRAY SECTION (C563)...................................... 6
4. SHIFT DRIVE SECTION (C563) ...................................... 8
5. CASSETTE & LCT TABLE (C563)................................... 10
6. DECAL AND DOCUMENT (C563) ................................... 12
SECTION 10 LARGE CAPACITY TRAY C563 PARTS INDEX
PARTS INDEX........................................................................ 2
SECTION 11 TAPE MARKER C532 LOCATION AND LIST
1. EXTERIOR (C532) ........................................................... 2
2. DECAL (C532).................................................................. 4
SECTION 5 DOCUMENT FEEDER C550 LOCATION AND LIST
LOCATION OF UNIT............................................................. 3
1. DF UNIT 1 (C550).............................................................. 4
2. DF UNIT 2 (C550).............................................................. 6
3. DF UNIT 3 (C550).............................................................. 8
4. DF UNIT 4 (C550).............................................................. 10
SECTION 12 TAPE MARKER C532 PARTS INDEX
PARTS INDEX....................................................................... 2
C223
PARTS LOCATION AND LIST
This section instructs you as to the numbers and names of the parts on this machine.
Location of Unit
1. EXTERIOR (C223)
See Page 10
4. FRAME SECTION 2 (C223)
2. PLATEN COVER (C223)
See Page 12
5. DRIVE SECTION 1 (C223)
3. FRAME SECTION 1 (C223)
See Page 14
6. DRIVE SECTION 2 (C223)
See Page 16
C223 3 Parts Location and List
See Page 18
See Page 20
Location of Unit
7. PAPER TABLE SECTION 1 (C223)
See Page 22
10. PAPER SEPARATION ROLLER (C223)
8. PAPER TABLE SECTION 2 (C223)
See Page 24
11. PAPER DELIVERY SECTION 1 (C223)
9. PAPER FEED ROLLER AND SEPARATION
ROLLER(C223)
See Page 26
12. PAPER DELIVERY SECTION 2 (C223)
See Page 28
C223 4 Parts Location and List
See Page 30
See Page 32
Location of Unit
13. PAPER DELIVERY SECTION 3 (C223)
See Page 34
16. DELIVERY TABLE 2 (C223)
14. PAPER DELIVERY SECTION 4 (C223)
See Page 36
17. PAPER EXIT SECTION 1 (C223)
15. DELIVERY TABLE 1 (C223)
See Page 38
18. PAPER EXIT SECTION 2 (C223)
See Page 40
C223 5 Parts Location and List
See Page 42
See Page 44
Location of Unit
19. PAPER EXIT SECTION 3 (C223)
See Page 46
22. DRUM SECTION 3 (C223)
20. DRUM SECTION 1 (C223)
See Page 48
23. DRUM SECTION 4 (C223)
21. DRUM SECTION 2 (C223)
See Page 50
24. DRUM SECTION 5 (C223)
See Page 52
C223 6 Parts Location and List
See Page 54
See Page 56
Location of Unit
25. SCANNER SECTION 1 (C223)
See Page 58
28. SCANNER SECTION 4 (C223)
26. SCANNER SECTION 2 (C223)
See Page 60
29. PLOTTER SECTION 1 (C223)
27. SCANNER SECTION 3 (C223)
See Page 62
30. PLOTTER SECTION 2 (C223)
See Page 64
C223 7 Parts Location and List
See Page 66
See Page 68
Location of Unit
31. PLOTTER SECTION 3 (C223)
See Page 70
34. MASTER EJECT SECTION 2 (C223)
32. PLOTTER SECTION 4 (C223)
See Page 72
35. MASTER EJECT SECTION 3 (C223)
33. MASTER EJECT SECTION 1 (C223)
See Page 74
36. ELECTRICAL SECTION 1 (C223)
See Page 76
C223 8 Parts Location and List
See Page 78
See Page 80
Location of Unit
37. ELECTRICAL SECTION 2 (C223)
See Page 82
40. TABLE SECTION (C223)
38. ACCESSORIES AND SPECIAL TOOLS (C223)
See Page 84
39. CASSETTE (C223)
See Page 86
See Page 98
C223 9 Parts Location and List
1. EXTERIOR (C223)
C223 10 Parts Location and List
1. EXTERIOR (C223)
Index
No.
1 C218 2424 Front Door Ass’y (RIC) 1
1 C222 2862 Front Door Ass’y (NRG) 1
1 C223 2921 Front Door Ass’y (SVN) 1
1 C218 2954 Front Door Ass’y (AB DICK) 1
2 C218 2816 Decal - Drum Replacement - LT 1
3 C218 2825 Decal - Master Eject Open 1
4 C218 2750 Front Left Cover 1
5 C209 2469 Door Catch 1
6 C223 2865 Model Name Plate - GES 1
6 C223 2866 Model Name Plate - REX 1
6 C223 2867 Model Name Plate - NSA 1
7 C209 2432 Upper Hinge Bracket 1
8 C217 2455 Key Counter Cover 1
9 C209 2435 Lower Hinge Bracket 1
10 A030 1339 Plate Nut - Key Counter 1
11 C209 2470 Left Cover Cap 1
12 C218 2803 Left Front Cover (LT) 1
12 C218 2832 Left Front Cover (A4) 1
13 C209 2411 Right Cover Support Bracket 2
14 C223 2810 Front Cover Ass’y (RIC) 1
14 C222 2860 Front Cover Ass’y (NRG)(SVN) 1
14 C223 2910 Front Cover Ass’y (AB DICK) 1
15 C217 2514 Decal - Main Switch 1
16 C218 2809 Main Switch Cover 1
17 C223 2801 Operation Panel Ass’y (LT) 1
17 C223 2831 Operation Panel Ass’y (A4) 1
18 C218 2405 Lower Cover- Operation Panel 1
19 C218 2817 Decal - Replacement 1
20 C222 2811 Rear Upper Cover 1
24 A153 6409 Decal Key-top Cover (GES) 1
24 C225 2866 Decal Key-top Cover (REX) 1
24 C225 2867 Decal Key-top Cover (NSA) 1
25 C223 2812 Rear Cover Ass’y 1
26 C217 2453 Rear Cover Cap- Small 1
27 C217 2454 Rear Cover Cap- Large 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
28 C221 2575 Large Pad - Rear Cover 1
29 C209 2572 Upper Pad - Rear Cover 1
30 C209 2574 Side Pad - Rear Cover 2
31 C221 2573 Lower Pad - Rear Cover 1
32 C218 2450 Right Cover 1
33 C219 2705 Original Holder 1
34 C222 2552 Decal - Master Set 1
35 C222 2120 Left Bracket - Operation Panel 1
36 C222 2121 Middle Bracket - Operation Panel 1
37 C222 2122 Right Bracket - Operation Panel 1
38 C218 2525 Stepped Screw - M4 1
39 C217 5102 Spring Washer 1
100 0965 3006Z Tapping Screw With Flat Washer-M3x6
102 0344 0080D Philips Truss Head Screw - M4x8
103 0333 0080D Philips Counter Sunk Screw - M3x8
104 0965 4008W Tapping Screw With Flat Washer-M4x8
105 0705 0040B Toothed Washer
108 0802 5097 Tapping Screw - M3x10
109 0951 4006Z Philips Screw With Flat Washer M4x6
Part No.
Description
Q’ty Per
Assembly
C223 11 Parts Location and List
2. PLATEN COVER (C223)
C223 12 Parts Location and List
2. PLATEN COVER (C223)
Index
No.
*C218 2807 Platen Cover Ass’y 1
1 C219 2705 Original Holder 1
2 C219 2704 Rear Platen Cover 1
3 C219 2702 Front Platen Cover 1
4 5448 2824 Flex Hinge - Platen Cover 2
5 AA16 2053 Platen Cover Pad 1
6 C219 2710 Platen Cover Hinge 2
7 C219 2706 Platen Cover Sensor Actuator 1
8 C219 3473 Interface Cover 1
9 C219 2708 Platen Cover Sheet 1
10 C219 2711 Hinge Stopper 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0801 1004 Screw - M4X4
101 0314 0060W Philips Pan Head Screw - M4x6
102 0313 0050W Philips Pan Head Screw - M3x5
103 0452 4012Z Tapping Screw - M4x12
Part No.
Description
Q’ty Per
Assembly
C223 13 Parts Location and List
3. FRAME SECTION 1 (C223)
C223 14 Parts Location and List
3. FRAME SECTION 1 (C223)
Index
No.
1 C218 3124 Spacer 1
2 C218 3123 Slide Rail 2
3 C222 2001 Left Side Plate 1
4 C219 2106 Left Grip - Paper Delivery 1
5 C209 2413 Right Cover Bracket 1
6 C209 2061 Left Grip - Paper Feed 1
7 C222 2062 Left Grip Cover 1
8 C218 2120 Board Bracket 1
9 C222 2098 Bottom Cover 1
10 C203 2091 Front Shaft 1
11 C222 2071 Bottom Stay 2
12 C209 2050 Front Stay 1
13 C219 2111 Shaft 1
14 C223 8223 AC Drive Harness - 230V 1
14 C223 8123 AC Drive Harness - 120V 1
15 C223 8111 DC Drive Harness - 120V 1
15 C223 8208 DC Drive Harness - 230V 1
16 C203 2096 Bottom Stay Nut 2
17 C222 2072 Bottom Stay 1
18 C218 3131 Slide Rail Left Bracket 1
19 C218 3127 Slide Rail Right Bracket 1
20 C209 2006 Spacer 2
21 C222 2002 Right Side Plate 1
22 C219 2150 Rear Right Grip 1
23 C218 3135 Spacer Cushion 1
24 C218 3134 Scanner Base Cushion 2 2
25 C218 3133 Scanner Base Cushion 1 2
26 C218 3125 Scanner Open Actuator 2
27 C222 3136 Scanner Rail Stopper 1
28 C218 3138 Stopper Seal 1
29 C218 3130 Slide Rail Seal 1
30 C219 2152 Rear Cover Bracket 1
31 C223 2085 Paper Table Lower Cover 1
32 C222 2095 Bottom Cover - Delivery Table 1
33 C222 2089 Side Plate Bracket 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
34 C222 2092 Seal 2
35 C219 2112 Harness Stay 1
100 0314 0060Z Philips Pan Head Screw - M4x6
101 0314 0080Z Philips Screw - 4x8
102 0434 0080Z Tapping Screw - M4x8
103 0595 0120E Socket Screw - M5X12
104 0315 0120Z Philips Screw - 5x12
105 0805 6009 Rubber Foot
106 0951 5035Z Philips Screw W/t Flat Washer-M3x35
107 0801 1004 Screw - M4X4
108 0324 0060Z Philips Sunken Head Screw - M4x6
109 0951 3006Z Philips Screw With Flat Washer - M3x6
110 1105 0209 Clamp
Part No.
Description
Q’ty Per
Assembly
C223 15 Parts Location and List
4. FRAME SECTION 2 (C223)
C223 16 Parts Location and List
4. FRAME SECTION 2 (C223)
Index
No.
1 C219 4505 Drum Stopper Ass’y 1
2 C201 4533 Drum Stopper Spring 1
3 C201 4531 Drum Stopper Pawl 1
4 C201 4532 Drum Stopper Roller 1
5 C219 4506 Stopper Base 1
6 C201 4604 Drum Rail Roller 2
7 C223 2052 Left Fixing Bracket 1
8 C218 2024 Flat Cable Cover 1
9 C218 3039 Flat Cable Clamp 2
10 C200 4520 Lock Pin - Drum 2
11 C215 4514 Drum Lock Knob 1
12 C209 8117 Drum Master Detection Sensor 1
13 C209 4519 Drum Sensor Bracket 1
14 C215 4511 Drum Lock Lever 1
15 C223 2036 Scanner Stopper Bracket 1
16 C223 2037 Cushion 1 1
17 C218 4502 Drum Rail Stay 1
18 C218 4528 Plate Spring - Drum Rail 1
19 5501 4719 Rubber Ring - Stopper 1
20 C200 3716 Cushion Shaft 1
21 C209 4190 Stud 2
22 C223 2038 Cushion 2 1
23 C209 2110 Drive Support Shaft 1
24 C219 2428 Switch Plate - Paper Feed Table 1
25 5403 2048 Bushing - 4mm 1
26 C223 8295 Safety Switch Relay Harness 1
27 C223 8294 Safety Switch 1
28 AA06 3016 Pressure Spring 1
29 C222 2429 Support Cover - Paper Feed Cover 1
30 C209 2056 Right Fixing Plate 1
31 C223 2039 Stopper Bracket 2
32 C223 2040 Stopper Seal 1 2
33 C215 4533 Spring Plate 1
34 C215 4532 Locking Arm 1
35 C210 2186 Right Cover Bracket 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 C223 2041 Stopper Seal 2 1
37 C223 2043 Stopper Seal 2
38 C223 2029 Scanner Stopper Unit 1
39 C223 2042 Stopper Seal 3 1
40 C215 4515 Drum Lock Link 1
41 C218 8181 Transformer - 115V 1
41 C216 8155 Transformer - 235V/105V 1
42 C216 2018 Transformer Bracket 1
43 C218 2099 Transformer Cover 1
44 C219 2441 Upper Harness Cover 1
45 C219 2440 Lower Harness Cover 1
46 C203 4511 Spring Plate Supporter 1
47 C203 4512 Grounding Spring Plate 1
48 C210 2091 Harness Cover 1
100 0951 3006Z Philips Screw With Flat Washer - M3
101 0323 0060Z Philips Sunk Screw - M3x6
102 0252 0080Z Philips Pan Head Screw - M2x8
103 0622 0250E Spring Pin M2x250
104 0434 0100Z Pan Head Self-tapping Screw - M4x10
105 0434 0080Z Tapping Screw - M4x8
106 0720 0050Z Retaining Ring - M5
107 0314 0080Z Philips Screw - 4x8
108 0314 0060Z Philips Pan Head Screw - M4x6
109 0713 0050B Hexagon Nut - M5
110 0313 0120Z Philips Screw - 3x12
111 0807 3083 Washer
112 0594 0080E Bolt - M4x8
113 0960 4005Z Philips Flange Screw - M4x5
114 1105 0009 Nylon Clip - 5N
Part No.
Description
Q’ty Per
Assembly
C223 17 Parts Location and List

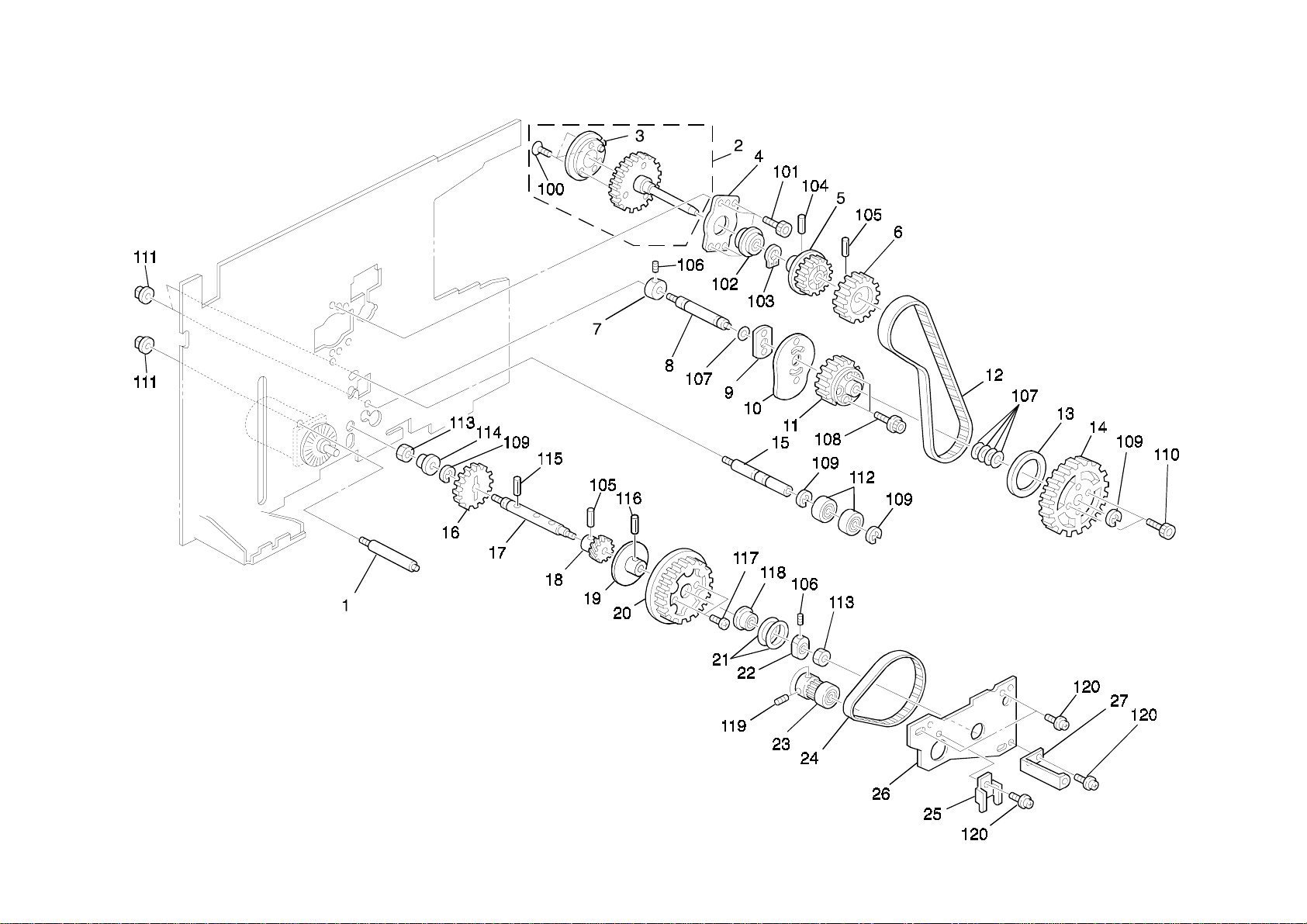

5. DRIVE SECTION 1 (C223)
C223 18 Parts Location and List
5. DRIVE SECTION 1 (C223)
Index
No.
1 C200 2232 Drive Shaft 1
2 C209 2218 Drum Drive Gear/pulley 1
3 C209 2220 Support Gear - 30Z 1
4 C200 2248 Fixing Plate 1
5 C203 2317 Pulley - 26Z 1
6 C201 2217 Gear - 50Z 1
7 C200 2221 Collar - Pressure Cam Shaft 1
8 C200 2225 Pressure Cam Shaft 1
9 C200 2224 Plate Nut - Print Pressure Cam 1
10 C223 5560 Pressure Roller Cam - DLT 1
11 C203 2312 Pulley 1
12 C203 2316 Timing Belt 1
13 C203 2327 Pulley Flange 1
14 C203 2326 Gear - 90Z 1
15 C219 2315 Tension Shaft 1
16 C209 2214 Gear - 40Z 1
17 C209 2216 Driver Shaft 1
18 C203 2215 Gear - 18T 1
19 C203 2311 Gear Flange 1
20 C207 2209 Pulley - 60Z 1
21 C200 2267 Spacer 2
22 C219 2217 Collar 1
23 C209 2207 Pulley - 12Z 1
24 C207 2210 Timing Belt - 100S4.5M297 1
25 C207 2211 Bearing Stopper 1
26 C223 2309 Support Plate 1
27 C209 2308 Support Bracket - Rear Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0323 0060Z Philips Sunk Screw - M3x6
101 0594 0080E Bolt - M4x8
102 0805 3134 Ball Bearing - 10x26x8mm
103 0725 0100Z Retaining Ring - M10
104 0804 4048 Spring Pin - 4x20
105 0804 4046 Spring Pin - 4x16
106 0574 0040E Hexagon Headless Set Screw - M4x4
107 0807 7013 Spacer - 10.2 X 14 X 0.2 mm
108 0804 6092 Hexagonal Set Screw
109 0720 0080Z Retaining Ring - M8
110 0595 0120E Socket Screw - M5X12
111 0713 0050B Hexagon Nut - M5
112 0740 3010 Ball Bearing - 10x26x8mm
113 0712 0060Z Hexagon Nut - M6
114 0741 3807S Ball Bearing - 7x14x5
115 0623 0200E Spring Pin - 3x20mm
116 0623 0140E Spring Pin - 3x14mm
117 0315 0060Z Philips Screw - 5x6
118 0741 3908S Ball Bearing - 8x19x6
119 0574 0050E Hexagon Headless Set Screw - M4x5
120 0960 4008Z Flange Head Screw - 4 X 8
Part No.
Description
Q’ty Per
Assembly
C223 19 Parts Location and List

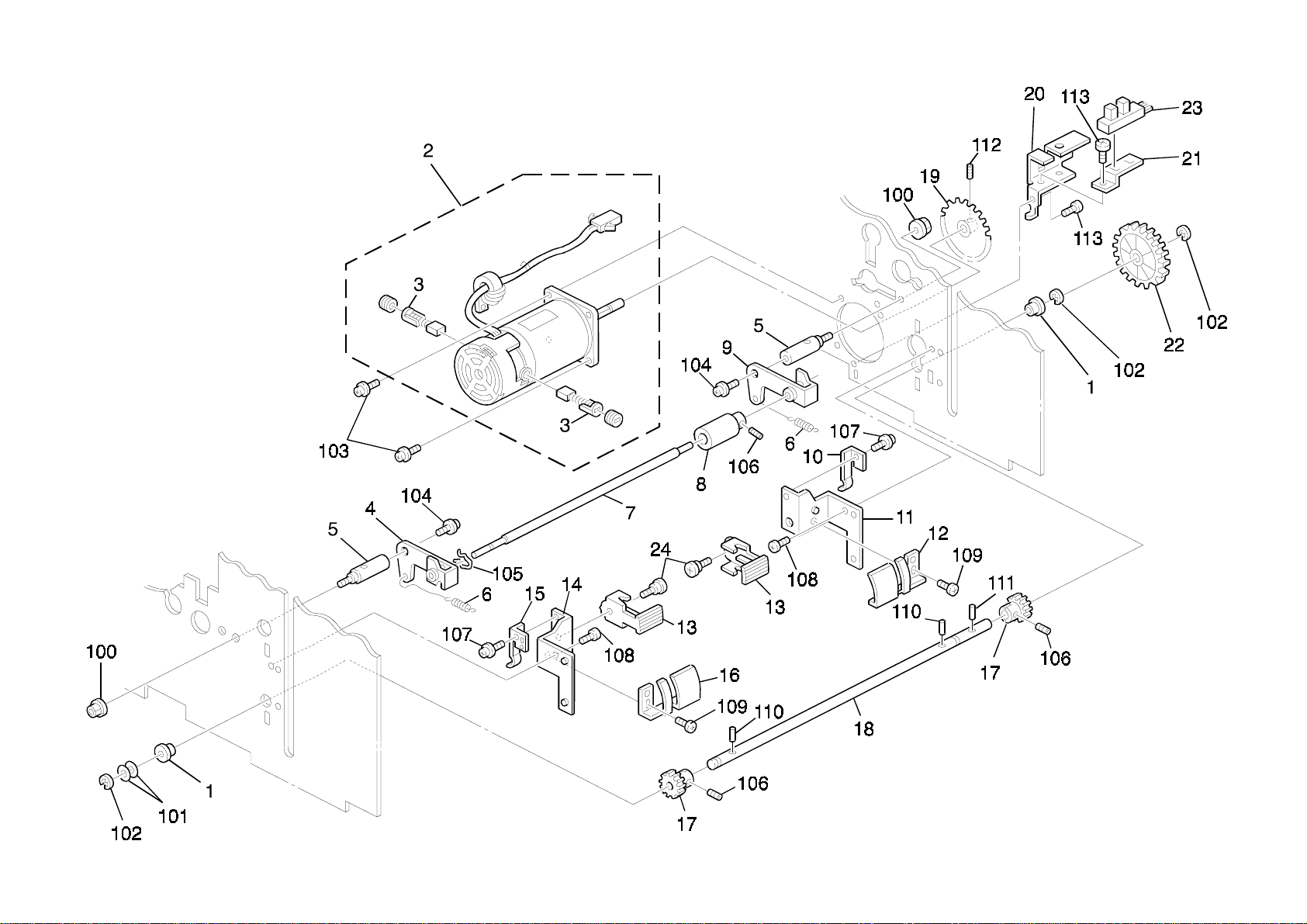

6. DRIVE SECTION 2 (C223)
C223 20 Parts Location and List
6. DRIVE SECTION 2 (C223)
Index
No.
1 C218 2047 Lift Motor Cover 1
2 C219 8250 Lift Motor - DC 1.69W 0.2A 1
3 C209 2325 Motor Bracket 1
4 5205 2681 Coupled Gear - 17T/50T 1
5 5205 2680 Coupled Gear - 16T/53T 1
6 C209 8280 Image Position Sensor 1
7 C209 2321 Bracket - Image Shifting 1
8 C201 2221 Gear - 40T 1
9 C201 2222 Coupled Gear - 20T & 60T 1
10 C201 2211 Stud 1
11 C219 5120 Feed Cam Shaft 1
12 C203 5170 Feed Cam Shaft 1
13 C213 5110 Paper Feed Cam 1
14 C223 5120 Feed Cam - DLT 1
15 C201 2229 Feed Cam Gear 1
16 C223 2302 Image Shifting Arm - Large 1
17 C200 2311 Image Shifting Link 2
18 C223 2226 Gear - 22Z 2
19 C223 2311 Image Shifting Arm - Small 1
20 C209 2304 Support Side Plate 1
21 C200 2266 Bearing Holder 2
22 C203 2318 Reinforcement Plate 1
23 C219 2075 Feed Gear Stopper Shaft 1
24 C200 5222 Sector Spring 1
25 C203 5184 Sector Gear 1
26 C200 5223 Lift Cam 1
27 C219 5106 Sector Gear Stopper 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0313 0040B Philips Pan Head Screw - M3x4
101 0720 0040Z Retaining Ring - M4
102 0434 0080Z Tapping Screw - M4x8
103 0314 0080Z Philips Screw - 4x8
104 0712 0060Z Hexagon Nut - M6
105 0741 3807S Ball Bearing - 7x14x5
106 0720 0080Z Retaining Ring - M8
107 0807 7055 Holder - Main Shaft
108 0585 0100Z Bolt - M5x10
109 0701 0050Z Flat Washer - M5
110 0807 7013 Spacer - 10.2 X 14 X 0.2 mm
111 0720 0080Z Retaining Ring - M8
112 0805 3104 Ball Bearing - 8x22x7mm
113 0801 1135 Philips Pan Head Screw - M3x3
114 0960 4008Z Flange Head Screw - 4 X 8
115 0960 5008Z Philips Flange Screw - M5x8
116 0807 7018 Washer - M10
117 0315 0080Z Philips Screw - 5x8
118 0701 0040Z Flat Washer - M4
119 0594 0060E Socket Screw - 4X6
120 0713 0050B Hexagon Nut - M5
121 0707 6120B Bushing - 6x12mm
122 0573 0050E Hexagon Headless Set Screw - M3x5
123 0720 0050Z Retaining Ring - M5
124 0314 0060Z Philips Pan Head Screw - M4x6
125 0951 4006Z Philips Screw With Flat Washer - M4
126 1105 0005 Nylon Clip - 3n
127 0807 7013 Spacer - 10.2 X 14 X 0.2 mm
Part No.
Description
Q’ty Per
Assembly
C223 21 Parts Location and List
7. PAPER TABLE SECTION 1 (C223)
C223 22 Parts Location and List
7. PAPER TABLE SECTION 1 (C223)
Index
No.
1 5507 6828 Rubber Plate - Feed Table 1
2 C209 4640 Paper Table Ass’y 1
3 C219 5066 Paper Feed Table Ass’y - LT 1
3 C219 5067 Paper Feed Table Ass’y - A4 1
4 C200 5025 Paper Feed Plate Shield 1
5 C219 5073 Stepped Screw 2
6 C210 2805 Decal - Paper Size (LT) 1
6 C210 2806 Decal - Paper Size (A4) 1
7 C219 8021 Paper Detection Board 1
8 C218 2423 Paper Feed Table Cover 1
9 C219 8113 Harness - Paper Detection Board 1
10 C209 5055 Bracket - Paper Size 1
11 C209 8197 Paper Size Sensor Harness 1
12 C209 5047 Switch Bracket - Paper Table 1
13 C223 2453 Decal - Paper Level 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0965 3010W Tapping Screw With Flat Washer-M3x1
102 0951 3005Z Philips Pan Head Screw - M3 X 5
103 1403 0690 Sensor - TLP1215
104 1105 0042 Wire Band
105 1204 2239 Micro Switch
106 0800 0084 Philips Pan Head Screw - M2.3x12
107 0713 0050B Hexagon Nut - M5
108 0313 0100Z Philips Pan Head Screw - M3x10
109 0951 3004Z Philips Screw With Flat Washer-M3x4
110 1403 0456 Photosensor - EE-SB5-C3
Part No.
Description
Q’ty Per
Assembly
C223 23 Parts Location and List
8. PAPER TABLE SECTION 2 (C223)
C223 24 Parts Location and List
8. PAPER TABLE SECTION 2 (C223)
Index
No.
1 C223 5073 Paper Table Fixing Bracket 1
2 5506 1536 Screw - M4X6 2
3 5070 0923 Spring Washer - Rotating Table 2
4 C209 5090 Rubber Plate - Paper Feed Guide 2
5 C200 5287 Rubber Plate - Paper Feed 2
6 C201 5015 Seal - M10 2
7 C209 5092 Rubber Plate Lever 2
8 C223 5082 Left Side Plate 1
9 5506 6314 Mylar - Master Feed Table 2
10 C223 5085 Right Side Plate 1
11 C203 5131 Gear Cover 2
12 C203 5142 Rack Shaft 2
13 5606 2310 Roller 4
14 C223 5128 Left Rack - Paper Feed 1
15 C203 5121 Bushing - 8x12x9mm 4
16 C219 5076 Paper Table 1
17 5600 1107 Snap Retainer - 12 2
18 C218 5054 Table Position Knob 1
19 C203 5113 Bushing - 6x9x3mm 1
20 C203 5116 Washer - 6x13x12mm 1
21 C203 5114 Bushing - 3x6x3mm 1
22 C223 5336 Paper Feed Slider 2
23 C209 5058 Paper Size Plate 1
24 C223 5050 Paper Guide Rack 2
25 5505 7197 Spring - Hinge - Inking 1
26 5309 1023 Pinion Paper Feed Table 1
27 C219 5079 Supporter 1
28 C200 5042 Rear Shaft - Paper Feed 1
29 C223 5123 Front Shaft - Paper Feed 1
30 C223 5055 Paper Table Arm 1
31 C209 8197 Paper Size Sensor Harness 1
32 C223 5124 Stepped Screw - M8.2 1
33 C222 5121 Position Indicator 1
34 C203 5126 Right Rack - Paper Feed 1
35 C209 5235 Paper Table Holder 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 C219 5081 Sensor Bracket 1
37 AW02 0021 Photointerruptor - 175487-3 1
38 C222 3175 Scanner Slider 2
100 0314 0120Z Philips Screw - 4x12
102 0314 0080Z Philips Screw - 4x8
103 0701 0080Z Flat Washer - M8
104 0585 0161B Hexagon Bolt - M5x16
105 0951 4008Z Philips Screw With Flat Washer M4x8
106 0720 0040Z Retaining Ring - M4
107 0720 0060Z Retaining Ring - M6
108 0951 3006Z Philips Screw With Flat Washer - M3
109 0710 0040Z Hex Nut 4
110 0700 0060Z Flat Washer - M6
111 0951 3008Z Philips Screw With Flat Washer - M3
112 0705 0040B Toothed Washer
Part No.
Description
Q’ty Per
Assembly
C223 25 Parts Location and List
9. PAPER FEED ROLLER AND SEPARATION ROLLER(C223)
C223 26 Parts Location and List
9. PAPER FEED ROLLER AND SEPARATION ROLLER(C223)
Index
No.
1 C209 5220 Spacer - 4x20x6 2
2 C203 5007 Paper Feed Lever 1
3 5501 8180 Flat Spring - Feed Roller Pressure 1
4 C209 8288 Table Down Switch 1
5 C218 2833 Lower Cover - Paper Feed (A4) 1
5 C218 2804 Lever Cover - Paper Feed - LT 1
6 C218 2841 Decal - Paper Table Down (A4) 1
6 C218 2819 Decal - Paper Table Down (LT) 1
7 C218 2818 Decal - Paper Feed Pressure - LT 1
8 C201 2425 Adjusting Lever 1
9 5506 4235 Plate Nut - Paper Pressure 1
10 C203 5013 Lever Supporter 1
11 C209 2027 Lever Bracket - Paper Feed 1
12 C203 5045 Bushing - 18x24x28mm 1
13 C209 5080 Stepped Screw 1
14 C203 5020 Spring - Feed Roller Pressure 1
15 C209 5081 Spring Link 1
16 C203 5027 Adjusting Plate 1
17 C203 5113 Bushing - 6x9x3mm 1
18 C209 5035 Arm - Feed Roller Holder 1
19 C203 5055 Actuator - Paper Feed Table 1
20 C209 5225 Feed Roller Holder 1
21 C201 5073 Arm Balancer - Feed Roller 3
22 C203 5205 Belt Tensioner Ass’y 1
23 C203 5208 Tension Bracket 1
24 C203 5215 Tension Spring 1
25 C203 5201 Tension Arm 1
26 C203 5200 Tension Roller 1
27 5606 2066 Paper Feed Guide Disk 4
28 5600 1086 Spacer - 10.2 X 20 2
29 5506 4169 Rubber Roller - Paper Feed 4
30 C207 5023 Separator Roller Ass’y 1
31 5507 6032 Timing Belt Pulley - 30T 2
32 C207 5020 Upper Roller Shaft 1
33 5206 2684 Shoulder Screw - M3 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
34 5507 6035 Timing Belt - 162XL 1
35 C219 5033 Paper Feed Roller 1
36 C219 5026 Pick-up Roller Shaft 1
37 C203 5046 Bushing - 14x20x9mm 1
38 5053 0419 Bushing - 10mm 1
39 C203 5220 Gear - 18T 1
40 C203 5050 Rear Bushing Stud 1
41 C203 5049 Front Bushing Stud 1
42 5600 1081 Right Bushing - Paper Feed Roller 1
43 C223 5350 Upper Paper Guide 1
44 C223 5355 Paper Guide Slider 1
45 C218 3051 Philips Screw - M3 1
46 C223 5360 Lower Paper Guide 1
47 C223 5365 Left Guide Plate 1
48 C223 5366 Right Guide Plate 1
49 C203 5225 Spacer - Tension - Paper Feed 1
Part No.
Description
Q’ty Per
Assembly
C223 27 Parts Location and List
Index
No.
100 0314 0100Z Philips Screw - 4x10
101 0951 3006Z Philips Screw With Flat Washer - M3
102 0801 1004 Screw - M4X4
103 0323 0100Z Philips Sunken Head Screw - M3x10
104 0434 0080Z Tapping Screw - M4x8
105 0314 0080Z Philips Screw - 4x8
106 0720 0040Z Retaining Ring - M4
107 0951 3005Z Philips Pan Head Screw - M3 X 5
108 0720 0040Z Retaining Ring - M4
109 0701 0040Z Flat Washer - M4
110 0594 0080E Bolt - M4x8
111 0314 0060Z Philips Pan Head Screw - M4x6
112 0804 4055 Pin
113 0574 0040E Hexagon Headless Set Screw - M4x4
115 0805 3263 Bearing - 6 X 10 X 6mm
116 5600 1107 Snap Retainer - 12
117 0720 0050Z Retaining Ring - M5
118 0713 0040B Hexagon Nut - M4
119 0720 0060Z Retaining Ring - M6
120 0951 4010Z Philips Screw With Flat Washer M4 X
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
C223 27 Parts Location and List
A
10. PAPER SEPARATION ROLLER (C223)
C223 28 Parts Location and List
10. PAPER SEPARATION ROLLER (C223)
Index
No.
1 C203 5135 Bushing - 10x14x5.9 2
2 C218 8200 Main Motor - DC90V 108W 1
3 C209 8202 Commutation Brush 2
4 C203 5062 Left Arm - Separation 1
5 C201 5090 Separation Roller Pressure Stud 2
6 C223 5030 Lower Spring 2
7 C222 5020 Separation Roller Shaft 1
8 C223 5015 Lower Reverse Roller 1
9 C203 5066 Right Arm - Separation 1
10 C209 5208 Spring Plate - Right Lever 1
11 C209 5206 Right Lever Bracket 1
12 C209 5211 Right Lever Cover 1
13 C209 5209 Separation Pressure Lever 2
14 C209 5205 Left Lever Bracket 1
15 C209 5207 Spring Plate - Left Lever 1
16 C209 5210 Left Lever Cover 1
17 C201 5051 Pinion - 24T 1
18 C223 5133 Paper Lift Shaft 1
19 C203 2309 Pulse Disk 1
20 C219 2205 Bracket - Drum Rotation Sensor 1
21 C219 2306 Drum Sensor Bracket 1
22 C223 5096 Lift Gear 1
23 AW02 0021 Photointerruptor - 175487-3 1
24 5403 2075 Stepped Screw 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0713 0040B Hexagon Nut - M4
101 0807 7013 Spacer - 10.2 X 14 X 0.2 mm
102 0720 0080Z Retaining Ring - M8
103 0960 4008Z Flange Head Screw - 4 X 8
104 0951 4008Z Philips Screw With Flat Washer M4x8
105 0804 4061 Spring Pin - M6
106 0574 0040E Hexagon Headless Set Screw - M4x4
107 0951 3005Z Philips Pan Head Screw - M3 X 5
108 0801 1004 Screw - M4X4
109 0313 0050Z Philips Screw - 3x5
110 0624 0160E Spring Pin - 4x16mm
111 0623 0200E Spring Pin - 3x20mm
112 0574 0050E Hexagon Headless Set Screw - M4x5
113 0314 0080Z Philips Screw - 4x8
Part No.
Description
Q’ty Per
Assembly
C223 29 Parts Location and List
11. PAPER DELIVERY SECTION 1 (C223)
C223 30 Parts Location and List
11. PAPER DELIVERY SECTION 1 (C223)
Index
No.
1 C201 5075 Guide Plate Bracket 2
2 C207 5013 Pressure Spring - Paper Feed 1
3 C207 5009 Pressure Plate Holder 1
4 C207 5008 Pressure Plate 1
5 C207 5011 Adjusting Plate 1
6 C207 5010 Adjusting Screw 1
7 C207 5012 Pressure Spring 1
8 5507 6060 Guide Screw - Front Plate 1
9 C209 5018 Separation Plate 1
10 C218 5016 Front Side Plate 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0952 4008W Philips Screw - M4x8
101 0434 0080Z Tapping Screw - M4x8
102 0720 0040Z Retaining Ring - M4
103 0313 0050W Philips Pan Head Screw - M3x5
Part No.
Description
Q’ty Per
Assembly
C223 31 Parts Location and List
12. PAPER DELIVERY SECTION 2 (C223)
C223 32 Parts Location and List
12. PAPER DELIVERY SECTION 2 (C223)
Index
No.
1 C200 5153 Bushing Supporter 2
2 C201 5125 Shoulder Screw - M4 2
3 C200 5150 Bushing - 7x18x9mm 2
4 C201 5134 Bearing Holder 2
5 C209 2034 Sensor Bracket 1
6 C207 5138 Upper Feed Roller Ass’y 1
7 C200 5154 Left Spring Arm 1
8 C201 5125 Shoulder Screw - M4 2
9 C200 5340 Upper Feed Roller 2
10 C207 5148 Upper Feed Roller 3
11 5505 6528 Spring - Press Roller 2
12 C207 5123 Upper Guide Plate 1
13 C207 5125 Guide Plate Spacer 2
14 C200 5137 Left Bracket - Guide Plate 1
15 C223 5215 Lower Guide Plate 1
16 C222 5216 Rubber Plate - Guide Plate 1
17 C200 5138 Right Bracket - Guide Plate 1
18 5501 8328 Spring - Feed Roller Brake 1
19 C203 5198 Feed Roller Brake Ass’y 1
20 C209 5203 Lower 2nd Feed Roller 1
21 C200 5504 Paper Detecting Pin 2
22 C200 5503 Paper Detecting Shaft 1
23 C201 5142 Lift Arm - Feed Roller 1
24 C201 5145 Lift Arm Spring 1
25 C209 5200 Gear - 14Z 1
26 5600 1080 Bush - Paper Feed Roller - Left 1
27 C209 5515 Paper Detecting Arm 1
28 C201 5505 Height Sensor Bracket 1
29 C200 5155 Right Spring Arm 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0801 1004 Screw - M4X4
101 0720 0050Z Retaining Ring - M5
102 0314 0080Z Philips Screw - 4x8
103 0314 0200Z Philips Screw - 4x20
104 0740 3010 Ball Bearing - 10x26x8mm
105 0434 0080Z Tapping Screw - M4x8
106 0805 0084 Retaining Ring
107 0951 4006Z Philips Screw With Flat Washer - M4
108 0313 0050Z Philips Screw - 3x5
109 0740 3808 Ball Bearing - 8x16x5mm
110 0713 0040B Hexagon Nut - M4
111 0573 0050E Hexagon Headless Set Screw - M3x5
112 0804 6090 Hexagon Bolt - M4
Part No.
Description
Q’ty Per
Assembly
C223 33 Parts Location and List
13. PAPER DELIVERY SECTION 3 (C223)
C223 34 Parts Location and List
13. PAPER DELIVERY SECTION 3 (C223)
Index
No.
1 C203 4515 Drum Clamper Roller 2
2 C200 4551 Slide Guide 2
3 C223 4553 Master Release Lever 1
4 C200 4561 Clamper Spring 2
5 C223 4398 Lever Cushion 2
6 C223 8224 DC Solenoid Ass’y 2
7 C223 2082 Solenoid Bracket 1
8 C215 8116 Ink Detecting Board 1
9 C223 8119 Drum Harness 1
10 5501 7559 Spring - Master Feed 1
11 C200 5565 Print Pressure Stopper 1
12 C209 8262 Release Solenoid 1
13 C200 5226 Link - Paper Feed Solenoid 1
14 C200 5235 Paper Feed Solenoid Spring 1
15 C209 8262 Release Solenoid 1
16 C200 5225 Bracket - Paper Feed Solenoid 1
17 C219 2073 Stopper Stud - Paper Feed 1
18 C219 2075 Feed Gear Stopper Shaft 1
19 C201 5101 Link 1
20 C219 5109 Feed Sector Stopper 1
21 C219 5108 Sector Stopper - Feed Roller 1
22 5403 6246 Stepped Screw - Cleaning 3
23 C219 5127 Sector Gear Shaft 1
24 C203 5194 Shoulder Screw - M4 1
25 C219 5122 Paper Feed Sector Cam 1
26 C200 5205 Paper Feed Spring 1
27 C219 5101 Sector Gear 1
28 C223 4552 Master Exit Lever 1
29 C200 5222 Sector Spring 1
30 C219 5105 Sector Gear Stopper 1
31 C209 4516 Slide Guide - Drive Shaft 1
32 C203 2083 Exit Pawl Bushing 1
33 C209 8234 Drum Lock Solenoid 1
34 C218 4536 Ink Detecting Board Bracket 1
35 C218 4539 Connector Spring 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 C201 5125 Shoulder Screw - M4 2
37 C215 4538 Slid Lock Arm 1
38 5403 2075 Stepped Screw 1
39 C215 4517 Connector Lock Arm 1
40 C215 4537 Connector Lock Lever 1
41 C218 4535 Drum Connector Bracket 1
42 C222 5519 Release Lever Shaft 1
43 C222 5518 Paper Release Lever 1
44 C222 5512 Tension Spring 1
45 C222 5520 Solenoid Bracket 1
46 C222 8234 Paper Release Solenoid 1
47 C222 5525 Solenoid Cover 1
48 C223 4392 Solenoid Bracket 1
49 C223 4395 Right Cushion 1
50 C223 4396 Left Cushion 1
51 C223 4555 Cushion 2
52 C201 5080 Separation Roller Pressure Spring 1
Part No.
Description
Q’ty Per
Assembly
C223 35 Parts Location and List
Index
No.
100 0622 0060E Spring Pin - 2x6mm
101 0434 0080Z Tapping Screw - M4x8
102 0623 0120E Spring Pin - M3x12
103 0804 6101 Hexagon Bolt - M3
104 0314 0200Z Philips Screw - 4x20
105 0951 3006Z Philips Screw With Flat Washer - M3
106 0314 0100Z Philips Screw - 4x10
107 0313 0040Z Philips Pan Head Screw - M3x4
108 0951 4006Z Philips Screw With Flat Washer - M4
109 0720 0080Z Retaining Ring - M8
110 0720 0040Z Retaining Ring - M4
111 0725 0220Z Retaining Ring - M22
112 0740 3007 Ball Bearing - 7x19x6mm
113 0807 5004 Washer
114 0713 0040B Hexagon Nut - M4
115 0951 3004Z Philips Screw With Flat Washer-M3x4
116 0623 0080E Spring Pin - 3x8mm
117 0701 0040Z Flat Washer - M4
118 0594 0060E Socket Screw - 4X6
119 0713 0050B Hexagon Nut - M5
120 0623 0100E Spring Pin - 3x10mm
121 0700 0060G Flat Washer - M6
122 0720 0050Z Retaining Ring - M5
123 0623 0140E Spring Pin - 3x14mm
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
C223 35 Parts Location and List
A
14. PAPER DELIVERY SECTION 4 (C223)
C223 36 Parts Location and List
14. PAPER DELIVERY SECTION 4 (C223)
Index
No.
1 C209 5507 Sensor Actuator 1
2 C200 5526 Print Pressure Bushing 2
3 C221 5573 Pressure On/off Lever 1
4 C218 5555 Transfer Roller 1
5 C223 5529 Support Stay 2
6 C223 5549 Rear Guide Plate 2
7 C223 5521 Left Pressure Arm 1
8 C223 5528 Pressure Stay 1
9 C223 5525 Right Pressure Arm 1
10 C221 5570 Adjusting Plate - Exit Pawl 1
11 C223 6004 Stripper Pawl Cam 1
12 5607 2814 Roller Spring 1
13 C223 5603 Pressure Shaft - A3 1
14 C218 5554 Press Roller Ass’y 1
15 C200 5566 Pressure On/off Lever 1
16 C200 5541 Print Pressure Arm 1
17 C209 5521 Joint Shaft 1
18 C209 5543 Press Roller Spring Link 1
19 C218 5526 Spring 1
20 C219 2306 Drum Sensor Bracket 1
21 AW02 0021 Photointerruptor - 175487-3 1
22 C222 8236 Press Roller Solenoid 1
23 C223 5574 Solenoid Bracket 1
24 C223 5573 Drive Arm 1
25 C222 5254 Solenoid Support Bracket 1
26 C222 5275 Tension Spring 1
27 AA14 3062 Shoulder Screw - M4 1
28 C223 5564 Sheet Bracket 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0951 4008Z Philips Screw With Flat Washer M4x8
101 0720 0120Z Retaining Ring - M12
102 0314 0100Z Philips Screw - 4x10
104 0720 0060Z Retaining Ring - M6
105 0740 3007 Ball Bearing - 7x19x6mm
106 0586 0451Z Hexagon Bolt - M6x45
107 0584 0121Z Hexagon Bolt - M4x12
108 0710 0040Z Hex Nut 4
109 0594 0060E Socket Screw - 4X6
110 0701 0040Z Flat Washer - M4
111 0433 0080Z Tapping Screw - M3x8
112 0313 0060Z Philips Pan Head Screw - M3x6
113 0584 0101Z Hexagon Bolt - M4x10
114 0595 0140E Hexagon Bolt - M5x14
115 0804 4060 Spring Pin - M4x22
116 0740 3206 Ball Bearing - 6x19x6
117 0720 0040Z Retaining Ring - M4
118 0720 0030Z Retaining Ring - M3
119 0951 3004Z Philips Screw With Flat Washer-M3x4
120 0960 3006Z Philips Flange Screw - M3x6
121 0623 0100E Spring Pin - 3x10mm
122 1105 0021 Cord Clamper
Part No.
Description
Q’ty Per
Assembly
C223 37 Parts Location and List

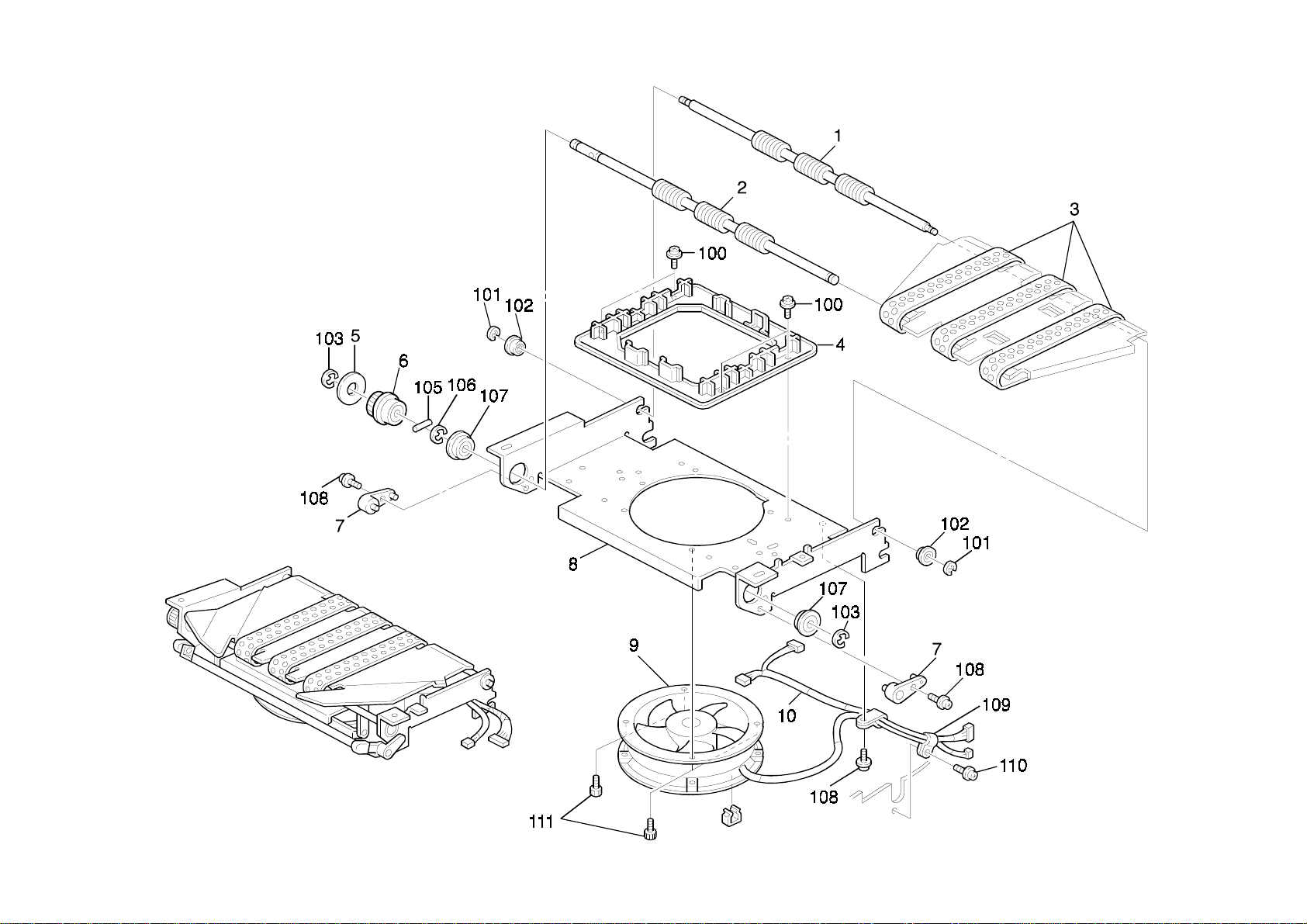

15. DELIVERY TABLE 1 (C223)
C223 38 Parts Location and List
15. DELIVERY TABLE 1 (C223)
Index
No.
1 C209 6019 Idler Roller - Transport Belt 1
2 C209 6009 Drive Roller - Transport Belt 1
3 C209 6016 Transport Belt 3
4 C209 6017 Vacuum Duct 1
5 C203 6065 Pulley Flange 1
6 C219 6080 Adjusting Lever Shaft 1
7 C209 6052 Drive Roller Arm 2
8 C221 6002 Vacuum Base 1
9 C209 8204 Vacuum Fan Motor 1
10 C209 8107 Blower Motor Harness 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0951 4008Z Philips Screw With Flat Washer M4x8
101 0720 0040Z Retaining Ring - M4
102 0741 3506 Ball Bearing - 6x12x4 Mm
103 0720 0080Z Retaining Ring - M8
105 0623 0160E Spring Pin - 3x16mm
106 0720 0080E Retaining Ring - M8
107 0805 3452 Ball Bearing - 10x22x6mm
108 0951 4008Z Philips Screw With Flat Washer M4x8
109 1105 0016 Nylon Clip - 4n
110 0960 4008Z Flange Head Screw - 4 X 8
111 0594 0120E Hexagon Bolt - M4x12
Part No.
Description
Q’ty Per
Assembly
C223 39 Parts Location and List
16. DELIVERY TABLE 2 (C223)
C223 40 Parts Location and List
16. DELIVERY TABLE 2 (C223)
Index
No.
1 C209 6005 Vacuum Plate 1
2 C209 6003 Vacuum Plate Bracket 2
3 C203 6047 Rubber Washer 2
4 C203 6046 Link - Wing 2
5 C209 6028 Transport Right Wing 1
6 C209 6050 Bushing - 4x8x6 mm 2
7 C209 6025 Transport Left Wing 1
8 C221 6051 Support Arm 1
9 C209 4059 Lever Knob 1
10 C203 6035 Magnet Plate 2
11 C221 6037 Right Support Plate 2
12 AG07 0004 Magnetic Catch 1
13 C221 6038 Left Support Plate 1
14 C221 6002 Vacuum Base 1
15 C221 6048 Small Arm 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0434 0080Z Tapping Screw - M4x8
101 1105 0172 Clamp
102 1403 0691 Photo Sensor
103 0313 0100Z Philips Pan Head Screw - M3x10
104 0951 3012Z Philips Screw W/h Flat Washer-M3x12
105 0707 3050B Bushing - 3x5mm
106 0707 3080B Bushing - M3x8
107 0964 3006Z Tapping Screw With Flat Washer - M3
108 0313 0040Z Philips Pan Head Screw - M3x4
109 0314 0080Z Philips Screw - 4x8
Part No.
Description
Q’ty Per
Assembly
C223 41 Parts Location and List
17. PAPER EXIT SECTION 1 (C223)

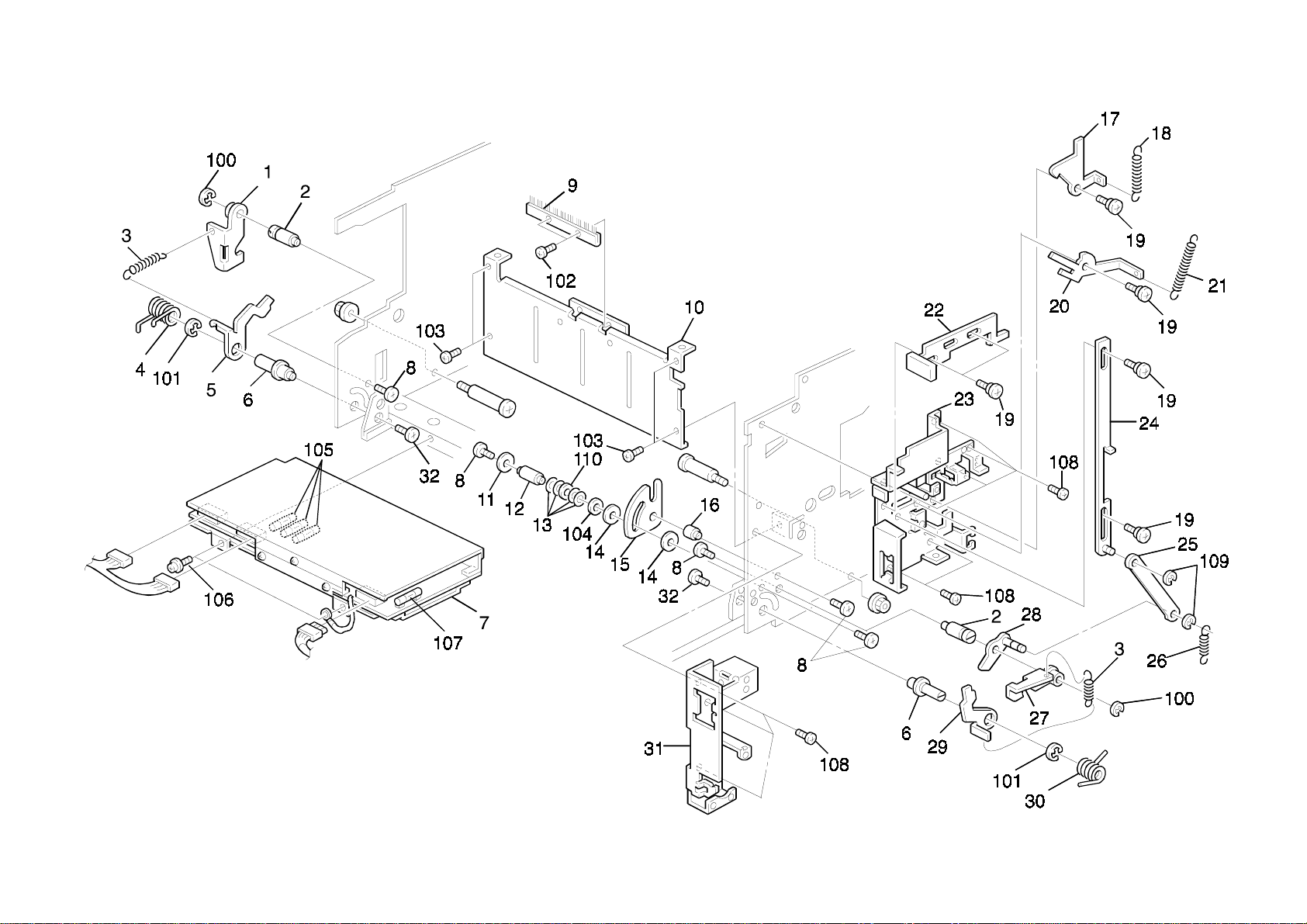

C223 42 Parts Location and List
17. PAPER EXIT SECTION 1 (C223)
Index
No.
1 C209 6110 Right Exit Cam 1
2 C209 6104 Exit Cam Shaft 2
3 C209 6114 Tension Spring 2
4 C209 6116 Right Adjusting Lever Spring 1
5 C209 6113 Right Adjusting Lever 1
6 C221 6118 Adjusting Lever Shaft 2
7 C222 8301 Power Supply Unit 1
8 5506 6197 Screw - Knife Cam - Leading Edge CL 5
9 C219 6084 Antistatic Brush 1
10 C221 6081 Paper Delivery Plate 1
11 C209 6179 Spacer - 4x18x2 1
12 C209 6177 Stud - M4x11 1
13 C209 6180 Spring Washer - M8 4
14 C209 6178 Spacer 8x20x2 14
15 C209 6176 Delivery Table Angle 1
16 C209 6175 Stud - M4 1
17 C200 3953 Middle Lever 1
18 C200 3956 Middle Lever Spring 1
19 C219 3950 Stepped Screw 6
20 C200 3954 Lower Lever 1
21 C200 3957 Lower Lever Spring 1
22 C218 2160 Upper Lever 1
23 C218 2164 2nd Left Side Plate 1
24 C209 6188 Sensor Actuator - Delivery Table 1
25 C209 6196 Actuator Link - Delivery Table 1
26 5501 7559 Spring - Master Feed 1
27 C209 6107 Left Exit Cam 1
28 C209 6193 Lock Arm - Delivery Table Sensor 1
29 C209 6112 Left Adjusting Lever 1
30 C209 6115 Left Adjusting Lever Spring 1
31 C219 2109 Key Counter Bracket 1
32 5603 1045 Screw - M5 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0720 0060Z Retaining Ring - M6
101 0720 0100Z Retaining Ring - M10
102 0313 0040Z Philips Pan Head Screw - M3x4
103 0314 0080Z Philips Screw - 4x8
104 0701 0080Z Flat Washer - M8
105 1107 0415 Fuse 5A
106 0951 3008Z Philips Screw With Flat Washer - M3
107 1107 0354 Fuse - 3.15A 125V
108 0434 0080Z Tapping Screw - M4x8
109 0720 0040Z Retaining Ring - M4
110 0807 5013 Flat Washer - M8.4
Part No.
Description
Q’ty Per
Assembly
C223 43 Parts Location and List
18. PAPER EXIT SECTION 2 (C223)
Rev. 9/27/96
C223 44 Parts Location and List
18. PAPER EXIT SECTION 2 (C223)
Rev. 9/27/96
Index
No.
*C219 6150 Delivery Table Unit 1
*C222 6265 Delivery Table Unit (A4) 1
1 C209 6184 End Fence 1
2 C227 6196 End Fence Cushion 1
3 C209 6157 End Fence Shaft 2
4 C209 6160 End Fence Base 1
5 C209 6159 End Fence Spring - Large 2
6 C209 6158 End Fence Bracket 2
7 C209 6162 Right Rail - End Fence (A4) 1
7 C210 6255 Right Rail - End Fence (LT) 1
8 C209 6163 Spacer - 10x18x1 2
9 C209 6164 Rail Spring - End Fence 2
10 C209 6168 End Fence Washer 2
11 5603 1045 Screw - M5 2
12 C209 6161 Left Rail - End Fence (A4) 1
12 C210 6254 Left Rail - End Fence (LT) 1
13 C209 6183 Small End Fence 1
14 C209 6144 Guide Fence Shaft 1
15 C209 6151 End Fence Support Rail 1
16 C209 6142 Guide Fence Slider 1
17 C209 6150 End Fence Spring 1
18 C209 6153 Bracket - Support End Fence 1
19 C209 6136 Magnet Plate 1
20 C210 6253 Delivery Table (LT) 1
20 C210 6262 Delivery Table (A4) 1
21 C218 6119 Delivery Table Cover 1
22 C209 6181 Front Guide Plate 1
23 C209 6182 Rear Guide Fence 1
24 C209 6144 Guide Fence Shaft 2
25 C209 6143 Guide Fence Knob 2
26 C209 6141 Guide Fence Rail 1
27 C209 6142 Guide Fence Slider 2
28 C209 6149 Guide Fence Spring 2
29 C209 6145 Guide Fence Bracket 2
30 C209 6126 Stud - M4 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
31 5506 6197 Screw - Knife Cam - Leading Edge CL 2
32 C221 6131 Right Stay - Delivery Table 1
33 C221 6130 Left Stay - Delivery Table 1
34 C221 6128 Support Plate - Right Stay 1
35 C221 6127 Support Plate - Left Stay 1
36 5607 3927 Stepped Screw - M3x8 2
37 C209 6137 Magnet Catch Cover 1
38 C222 6166 Lower Guide - Rear Fence (LT) 1
39 C222 6167 Lower Guide - Front Fence (LT) 1
40 C227 6155 Lower Guide Shaft 4
41 C227 6156 Upper Guide Shaft 4
42 C227 6158 Guide Stopper 4
43 C227 6160 Upper Guide Spring Plate 2
44 C227 6162 Upper Guide Link 2
45 C227 6172 Upper Guide - Front Fence 1
46 C227 6173 Upper Guide - Rear Fence 1
100 0720 0030Z Retaining Ring - M3
101 0343 0060W Philips Pan Head Screw - M3x6
102 0707 8105B Bushing - M8x10.5
103 0323 0060Z Philips Sunk Screw - M3x6
104 0313 0060Z Philips Pan Head Screw - M3x6
105 0965 3012W Tapping Screw With Flat Washer - M3
106 0965 3012W Tapping Screw With Flat Washer - M3
107
108
109 0450 4008W Philips Tapping Screw M4x8
110 0450 3008W Philips Tapping Screw M3x8
Part No.
Description
Q’ty Per
Assembly
C223 45 Parts Location and List

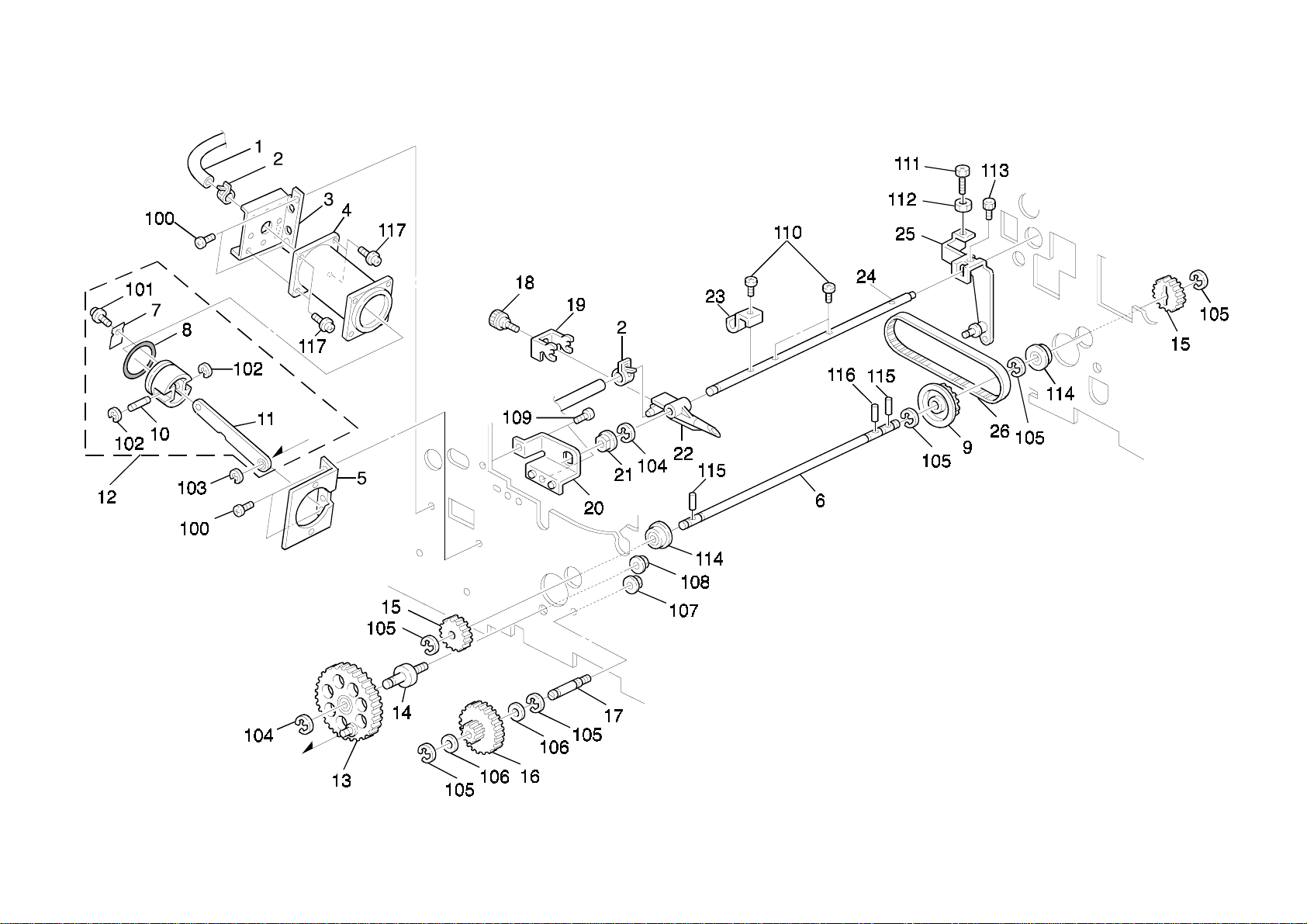

19. PAPER EXIT SECTION 3 (C223)
C223 46 Parts Location and List
19. PAPER EXIT SECTION 3 (C223)
Index
No.
1 C218 6219 Air Hose 1
2 C209 4711 Hose Band 2
3 C209 6241 Front Cylinder Bracket 1
4 C209 6240 Air Pump Cylinder 1
5 C209 6242 Rear Cylinder Bracket 1
6 C209 6065 Drive Shaft - Vacuum Roller 1
7 C209 6215 Piston Valve 1
8 C209 6216 O-Ring - 34 1
9 C200 6059 Pulley - 25T 1
10 C209 6213 Piston Pin - Air Pump 1
11 C209 6211 Piston Link 1
12 C209 6203 Air Piston Ass’y 1
13 C209 6207 Gear - 75Z 1
14 C209 6210 Air Pump Drive Shaft 1
15 C209 6064 Gear - 28Z 2
16 C209 6204 Gear - 18/48Z 1
17 C209 6206 Gear Shaft 1
18 C209 6231 Knob Screw - M4 1
19 C209 6230 Exit Pawl Holder 1
20 C209 6223 Exit Pawl Bracket 1
21 5053 0223 Bushing - 8mm 1
22 C209 6233 Exit Pawl 1
23 C209 6225 Hose Clamp 1
24 C209 6232 Exit Pawl Shaft 1
25 C200 6004 Exit Pawl Lever 1
26 C209 6067 Timing Belt - 220XL025G 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0314 0080Z Philips Screw - 4x8
101 0433 0060W Tapping Screw - M3x6
102 0720 0030Z Retaining Ring - M3
103 0720 0040Z Retaining Ring - M4
104 0720 0060Z Retaining Ring - M6
105 0720 0080Z Retaining Ring - M8
106 0807 7013 Spacer - 10.2 X 14 X 0.2 mm
107 0713 0050B Hexagon Nut - M5
108 0713 0080B Flanged Hexagon nut - M8
109 0314 0050Z Philips Pan Head Screw - M4x5
110 0313 0060Z Philips Pan Head Screw - M3x6
111 0584 0121Z Hexagon Bolt - M4x12
112 0710 0040Z Hex Nut 4
113 0593 0080E Bolt - M3x8
114 0805 3452 Ball Bearing - 10x22x6mm
115 0623 0160E Spring Pin - 3x16mm
116 0623 0180E Spring Pin - 3x18mm
117 0960 4008Z Flange Head Screw - 4 X 8
Part No.
Description
Q’ty Per
Assembly
C223 47 Parts Location and List
20. DRUM SECTION 1 (C223)
C223 48 Parts Location and List
20. DRUM SECTION 1 (C223)
Index
No.
1 5413 1882 Stepped Screw 1
2 C209 4529 Drum Stopper 1
3 C200 4914 Drum Stopper Spring 1
4 C200 4814 Bushing - 6x10x55mm 1
5 C209 4852 Gear - 46Z 1
6 5507 6624 Bushing - 8x16x45mm 2
7 C200 4864 Bracket - Ink Supply Solenoid 1
8 C209 8227 Ink Supply Solenoid 1
9 5505 3598 Spring - Ratch - Control Section 1
10 C200 4862 Ink Stopper 1
11 C209 4674 Gear - 25Z 1
12 C201 4676 Clutch Spring 1
13 C200 4861 Pump Clutch Sleeve 1
14 C201 4067 Pump Clutch Collar 1
15 C209 4677 Clutch Bracket 1
16 C222 4670 Ink Pump (RIC)(NRG)(SVN) 1
16 C222 4680 Ink Pump (AB DICK) 1
17 C200 4926 Ink Holder Cam 1
18 C209 4867 Gear - 64Z 1
19 0808 0021 Rubber Ring 1
20 C213 4810 Ink Antechamber 1
21 C201 4679 Ink Pump Slider 1
22 C209 4817 Ink Tube - Small 1
23 C209 4816 Stopper Plate - Ink Antechamber 1
24 C209 4711 Hose Band 2
25 C200 4826 Pump Rubber 1
26 C209 4923 Right Shaft - Ink Holder 1
27 C209 4930 Seal - 0.1x5x17 1
28 C201 4639 Ink Holder Handle 1
29 C201 4682 Ink Cartridge Spring 1
30 C200 4924 Right Shaft - Ink Holder 1
31 C209 4641 Ink Holder 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0951 4006Z Philips Screw With Flat Washer - M4
101 0313 0040Z Philips Pan Head Screw - M3x4
102 0960 4006Z Philips Flange Screw - M4x6
103 0951 4020Z Philips Screw With Flat Washer - M4
104 0623 0080E Spring Pin - 3x8mm
105 0707 4160B Bushing - 4x16mm
106 0574 0050E Hexagon Headless Set Screw - M4x5
107 0434 0060Z Tapping Screw - M4x6
108 0720 0060Z Retaining Ring - M6
109 0951 4010Z Philips Screw With Flat Washer M4 X
110 0720 0050Z Retaining Ring - M5
111 0434 0080Z Tapping Screw - M4x8
112 0595 0080Z Bolt - M5x8
113 0314 0060Z Philips Pan Head Screw - M4x6
Part No.
Description
Q’ty Per
Assembly
C223 49 Parts Location and List

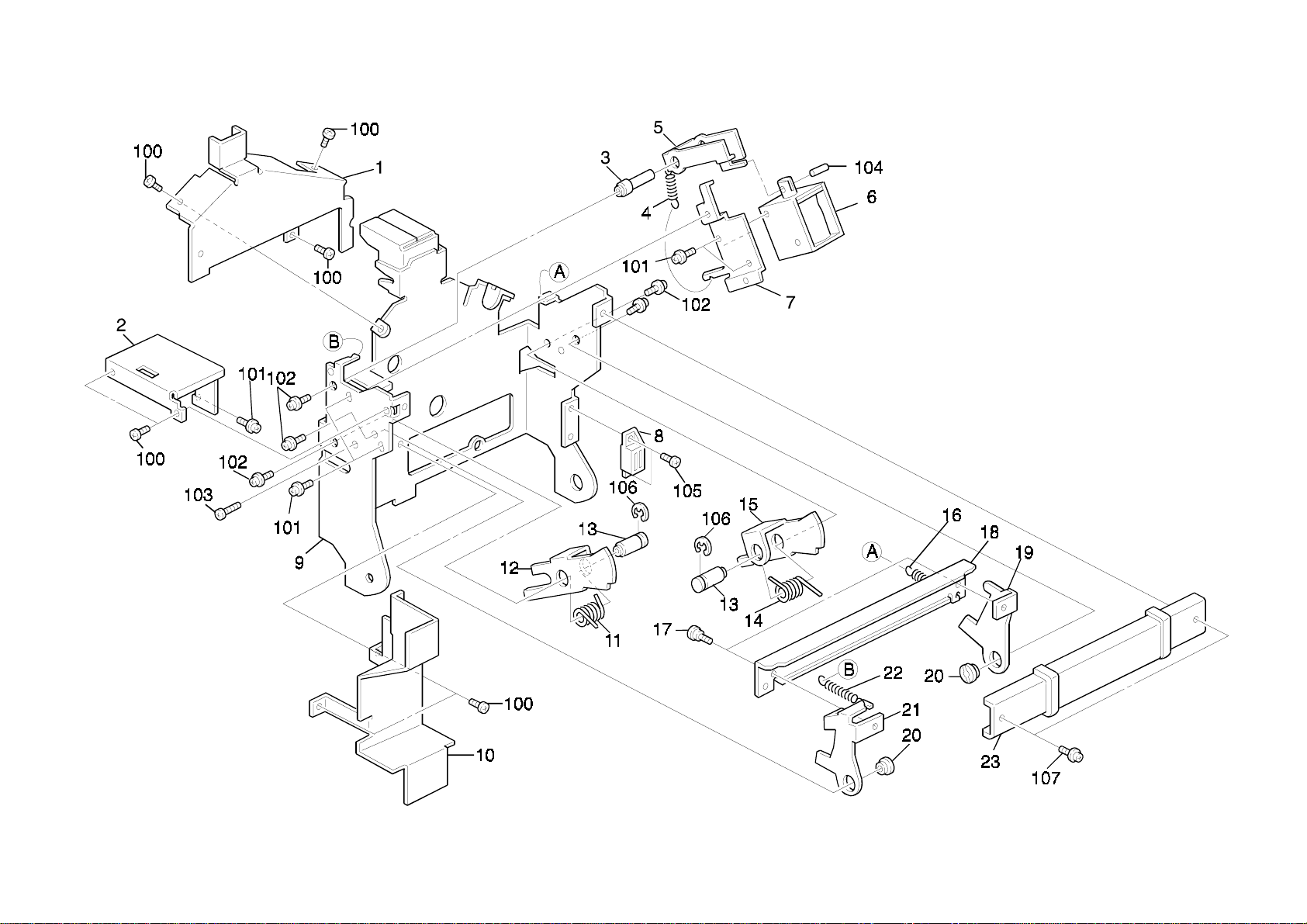

21. DRUM SECTION 2 (C223)
C223 50 Parts Location and List
21. DRUM SECTION 2 (C223)
Index
No.
1 C209 4616 Side Plate Cover - Drum 1
2 C209 4620 Upper Cover - Drum Side Plate 1
3 C209 4566 Drum Lock Shaft 1
4 C200 5118 Release Spring 1
5 C209 4567 Left Arm - Drum Lock 1
6 C209 8234 Drum Lock Solenoid 1
7 C209 4568 Solenoid Bracket - Drum Lock 1
8 5054 0536 Magnet Catch Ass’y 1
9 C209 4624 Front Side Plate 1
10 C209 4617 Lower Cover - Drum Side Plate 1
11 C209 4634 Drum Lock Spring - Left 1
12 C200 4631 Left Arm - Drum Lock 1
13 C200 4633 Drum Lock Shaft - Long 2
14 C200 4635 Drum Lock Spring - Right 1
15 C200 4632 Right Arm - Drum Lock 1
16 5600 1379 Spring 1
17 5400 3404 Stepped Screw 2
18 C209 4639 Release Lever - Drum Lock 1
19 C209 4637 Right Stopper - Drum Lock 1
20 C200 4638 Drum Lock Shaft - Small 2
21 C209 4638 Left Stopper - Drum Lock 1
22 C209 4642 Drum Lock Spring 1
23 C201 4636 Drum Unit Handle 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0434 0060Z Tapping Screw - M4x6
101 0951 3005Z Philips Pan Head Screw - M3 X 5
102 0960 4006Z Philips Flange Screw - M4x6
103 0434 0100Z Pan Head Self-tapping Screw - M4x10
104 0623 0080E Spring Pin - 3x8mm
105 0314 0060Z Philips Pan Head Screw - M4x6
106 0720 0060Z Retaining Ring - M6
107 0960 4008Z Flange Head Screw - 4 X 8
Part No.
Description
Q’ty Per
Assembly
C223 51 Parts Location and List
22. DRUM SECTION 3 (C223)
C223 52 Parts Location and List
22. DRUM SECTION 3 (C223)
Index
No.
1 C218 4612 Rear Roller Guide 1
2 C201 2543 Decal - Drum Caution 1
3 C207 4611 Front Stopper Guide (RIC)(NRG)(SVN) 1
3 C201 4611 Front Stopper Guide (AB DICK) 1
4 C201 4613 Drum Rail Cover 1
5 C201 4609 Stopper Releasing Lever 1
6 C201 4606 Stopper Releasing Plate 1
7 C200 4625 Drum Rail 1
8 5506 6111 Stepped Screw - M4 1
9 C201 4610 Drum Slider Spring 1
10 C201 4604 Drum Rail Roller 2
11 2701 0101 Metal Screen Seal 1
12 C223 4801 Metal Screen - DLT 1
13 C219 4648 Front Drum Flange 1
14 C219 4678 Front Drum Flange cover 1
15 C209 4681 Stopper Plate 1
16 C209 4673 Gear - 62Z 1
17 C200 4653 Drum Shaft Bracket 1
18 C200 4627 Drum Rail Shaft 1
19 C209 4814 Metal Screen Mylar 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0951 4008Z Philips Screw With Flat Washer M4x8
101 0323 0050Z Philips Sunken Head Screw - M3x5
102 0960 4006Z Philips Flange Screw - M4x6
103 0720 0050Z Retaining Ring - M5
104 0951 4006Z Philips Screw With Flat Washer - M4
105 0595 0080E Hexagon Bolt - M5x8
106 0595 0140E Hexagon Bolt - M5x14
107 0575 0080E Hexagon Headless Set Screw - M5x8
108 0594 0080Z Bolt - M4x8
Part No.
Description
Q’ty Per
Assembly
C223 53 Parts Location and List
23. DRUM SECTION 4 (C223)
C223 54 Parts Location and List
23. DRUM SECTION 4 (C223)
Index
No.
1 C209 8169 Short Harness 1
2 C526 8172 Relay Harness (Option Drum) 1
3 C209 4613 Rear Side Plate - Drum 1
4 C209 8140 Grounding Wire - 65mm 1
5 C200 4653 Drum Shaft Bracket 1
6 5506 6069 Step Screw - Etching Middle Roller 1
7 C200 4946 Clamper Sector Shaft 1
8 C200 4944 Sector Gear - 9T 1
9 C209 4689 Interrupter Plate 1
10 C200 4945 Sector Gear Spring 1
11 5413 2274 Spring Anchor - Release Lever 1
12 C209 4688 Gear Support Plate 1
13 C219 4679 Rear Sealed - Drum Flange 1
14 C218 4565 Rear Drum Flange 1
15 C209 4672 Gear - 50Z 1
16 C209 4531 Drum Shaft 1
17 C218 4945 Drum Clamper Base Ass’y 1
18 C223 4836 Cloth Screen 1
19 C209 4850 Screen mylar 1
20 C209 4550 Black Seal - 40x50 1
21 C218 4936 Drum Clamper Ass’y 1
22 C218 4683 Screen Rear Plate 1
23 C209 4540 Screen Plate Spring 2
24 C209 4938 Clamper Magnet 1
25 C209 4941 Clamper Shaft 1
26 C200 4942 Pinion - 9T 1
27 C209 4682 Screen Front Plate 1
28 C209 4947 Clamper Rubber 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0314 0080Z Philips Screw - 4x8
101 1102 2098 Connector - 12p
102 0594 0080Z Bolt - M4x8
103 0595 0140E Hexagon Bolt - M5x14
104 0575 0080E Hexagon Headless Set Screw - M5x8
105 0807 7114 Washer - 16x24x0.3mm
106 0807 5044 Spacer - 8.1mm X 11.5mm X 0.2
107 0807 4126 Flat Washer - 6.2x12x0.2mm
108 0807 3103 Washer - 4x13x2.3mm
109 0807 5076 Washer - 8x13x2.2mm
110 0323 0060Z Philips Sunk Screw - M3x6
111 0804 6092 Hexagonal Set Screw
112 0952 4008W Philips Screw - M4x8
113 0951 4006Z Philips Screw With Flat Washer - M4
114 0951 4008Z Philips Screw With Flat Washer M4x8
115 0574 0050E Hexagon Headless Set Screw - M4x5
116 0804 6091 Hexagonal Set Screw - M2x5
Part No.
Description
Q’ty Per
Assembly
C223 55 Parts Location and List
24. DRUM SECTION 5 (C223)
C223 56 Parts Location and List
24. DRUM SECTION 5 (C223)
Index
No.
1 C209 4749 Grounding Plate 1
2 C200 4723 Adjusting Plate - Doctor Roller 2
3 C207 4672 Gear - 36Z 1
4 C207 4670 Gear - 24Z 1
5 C201 4665 Bearing Holder 2
6 C217 4599 Rear Drum Blade 1
7 C209 4662 Rear Side Plate - Ink Roller 1
8 C218 4594 Rear Bank Plate 1
9 C209 4654 Spacer - 16x36x5.7 1
10 C200 4653 Drum Shaft Bracket 2
11 C218 4701 Ink Tube nipple 1
12 C209 4704 Packing - Ink Tube 1
13 C218 4698 Ink Distributor & Tube Ass’y 1
14 C209 4711 Hose Band 1
15 C209 4705 Ink Distributor 1
16 C209 4715 Shaft Stay - Ink Roller 1
17 C203 4543 Ink Detector 1
18 C209 8137 Relay Harness - Ink Detection 1
19 C200 4733 Ink Detector Bracket 1
20 C209 4722 Doctor Roller 1
21 C218 4592 Front Bank Plate 1
22 C209 4666 Ink Roller 1
23 C209 4664 Ink Roller Stay 1
24 C209 4661 Front Side Plate - Ink Roller 1
25 C217 4598 Front Drum Blade 1
26 C200 3629 Gear - 20T 1
27 C200 4748 Gear - 45T 1
28 C209 4712 Spacer 1
29 C223 4713 Hose Band 1
30 C218 4558 Front Doctor Roller Ring 1
31 C218 4560 Ring Spring 2
32 C218 4559 Rear Doctor Roller Ring 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0951 4006Z Philips Screw With Flat Washer - M4
101 0725 0160E Retaining Ring C - M16
102 0807 7114 Washer - 16x24x0.3mm
103 0314 0080Z Philips Screw - 4x8
104 0720 0050Z Retaining Ring - M5
105 0594 0060E Socket Screw - 4X6
106 0313 0040Z Philips Pan Head Screw - M3x4
107 0594 0200E Hexagon Bolt - M4x20
108 0575 0080E Hexagon Headless Set Screw - M5x8
109 0595 0140E Hexagon Bolt - M5x14
110 0573 0040E Hexagon Headless Set Screw - M3x4
111 0314 0120Z Philips Screw - 4x12
112 1105 0209 Clamp
113 0434 0082Z Tapping Screw - M4x8
114 0314 0060Z Philips Pan Head Screw - M4x6
115 0594 0080E Bolt - M4x8
116 0951 4008Z Philips Screw With Flat Washer M4x8
117 0313 0050Z Philips Screw - 3x5
Part No.
Description
Q’ty Per
Assembly
C223 57 Parts Location and List

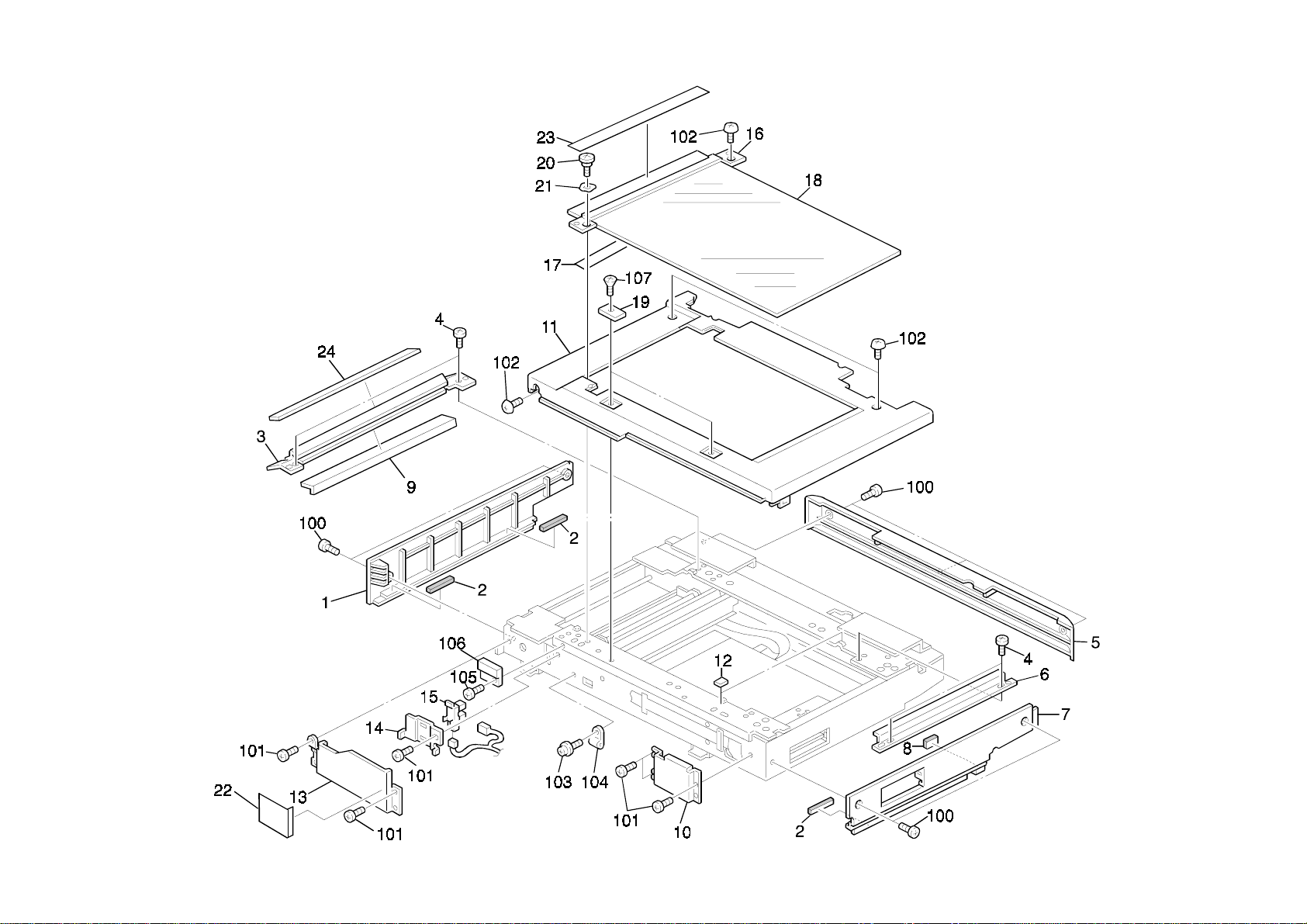

25. SCANNER SECTION 1 (C223)
C223 58 Parts Location and List
25. SCANNER SECTION 1 (C223)
Index
No.
1 C218 2535 Scanner Left Cover 1
2 C218 2522 Cushion - Large 3
3 C218 3046 Original Exit Guide 1
4 5875 2088 Shoulder Screw - M4 4
5 C218 2560 Scanner Rear Cover 1
6 C218 3041 Right Bracket 1
7 C218 2515 Scanner Right Cover 1
8 C218 2524 Cushion - Small 1
9 C218 3045 Guide Mylar 1
10 C218 3037 Flat Cable Cover 1
11 C218 2500 Scanner Upper Cover 1
12 C218 3171 Seal - 5x30 2
13 C218 3036 H.P Sensor Cover 1
14 C218 3034 H.P Sensor Bracket 1
15 C218 8407 Photointerruptor - GP1A34LC 1
16 C218 3205 Original Scale - A4 1
16 C218 3157 Original Scale - LT 1
17 C222 3170 Exposure Glass Sheet 1
18 C218 3166 Exposure Glass (A4) 1
18 C218 3154 Exposure Glass (LT) 1
19 C218 3446 Magnet Catch Plate 2
20 C218 2525 Stepped Screw - M4 1
21 C217 5102 Spring Washer 1
22 C218 3018 Seal - 40x131 1
23 C218 2516 Decal - Original Scale - A4 1
23 C218 2820 Decal - Original Size - LT 1
24 C218 3044 Cover Cushion 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0344 0060D Philips Truss Head Screw - M4x6
101 0314 0060Z Philips Pan Head Screw - M4x6
102 0344 0060D Philips Truss Head Screw - M4x6
103 0960 4006Z Philips Flange Screw - M4x6
104 1105 0005 Nylon Clip - 3n
105 0313 0060Z Philips Pan Head Screw - M3x6
106 1204 2353 Switch - PS3670-02
107 0324 0060Z Philips Sunken Head Screw - M4x6
Part No.
Description
Q’ty Per
Assembly
C223 59 Parts Location and List

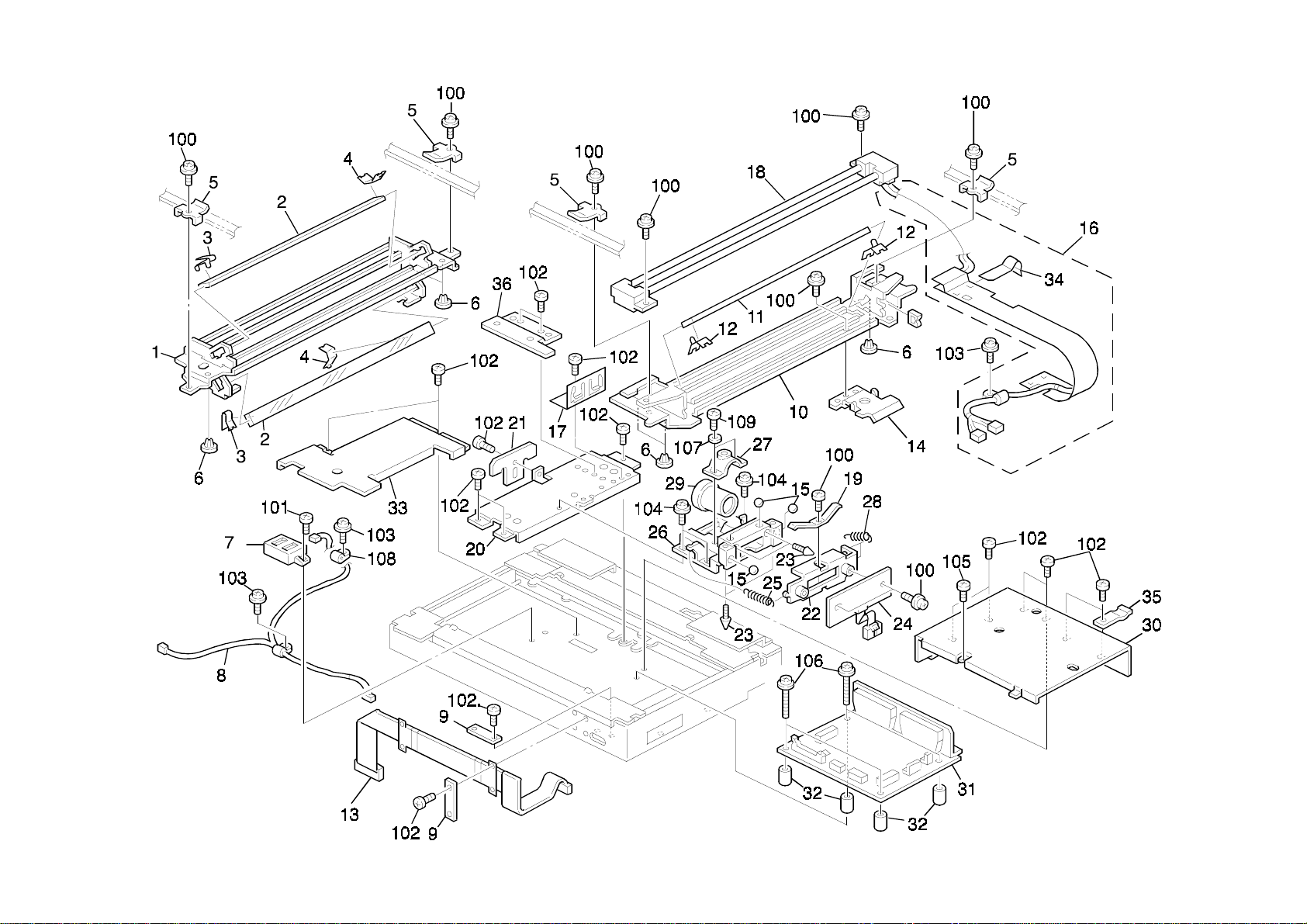

26. SCANNER SECTION 2 (C223)
C223 60 Parts Location and List
26. SCANNER SECTION 2 (C223)
Index
No.
1 C222 3185 Mirror Bracket - 2nd/3rd 1
2 C218 3206 2nd And 3rd Mirror 2
3 C218 3208 Front Spring Plate 2
4 C218 3207 Rear Spring Plate 2
5 C218 3193 Timing Belt Clamp 3
6 C222 3175 Scanner Slider 6
7 C218 8424 Original Sensor 1
8 C218 8132 Original Sensor Harness 1
9 C218 3039 Flat Cable Clamp 2
10 C222 3150 1st Mirror Bracket 1
11 C218 3191 1st Mirror 1
12 C218 3190 Spring Plate 2
13 C218 8153 Scanner Flat Cable 1
14 C222 3178 Fluorescent Lamp Harness Bracket 1
15 C218 3213 Adjusting Ball 3
16 C222 3200 Fluorescent Lamp Harness 1
17 C222 3169 Harness Bracket 1
18 C222 8220 Fluorescent Lamp 1
19 C218 3223 Adjusting Spring Plate 1
20 C218 3043 Lens Base Plate 1
21 C218 3226 Shading Plate 1
22 C223 3215 CCD Bracket 1
23 C218 3212 Adjusting Pin 4
24 C223 8072 CCD Board 1
25 C218 3225 Front Adjust Spring 1
26 C218 3214 Lens Bracket 1
27 C218 3211 Lens Holder 1
28 C218 3224 Rear Adjust Spring 1
29 AC02 0046 CCD Lens F4/43 1
30 C222 3232 CCD Board Cover 1
31 C222 8012 A/D Converter Board 1
32 C222 3120 Spacer 4
33 C222 3019 Scanner Harness Cover 1
34 C222 3179 Harness Clip 1
35 C222 3234 Grounding Plate (230V) 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 C223 3233 CCD Board Bracket
100 0951 3006Z Philips Screw With Flat Washer - M3
101 0313 0060Z Philips Pan Head Screw - M3x6
102 0314 0060Z Philips Pan Head Screw - M4x6
103 0960 4006Z Philips Flange Screw - M4x6
104 0951 4008Z Philips Screw With Flat Washer M4x8
105 0801 1004 Screw - M4X4
106 0965 3008W Tapping Screw With Flat Washer - M3x8
107 0701 0030Z Flat Washer - M3
108 1105 0005 Nylon Clip - 3n
109 0965 3008W Tapping Screw With Flat Washer-M3x8
Part No.
Description
Q’ty Per
Assembly
C223 61 Parts Location and List

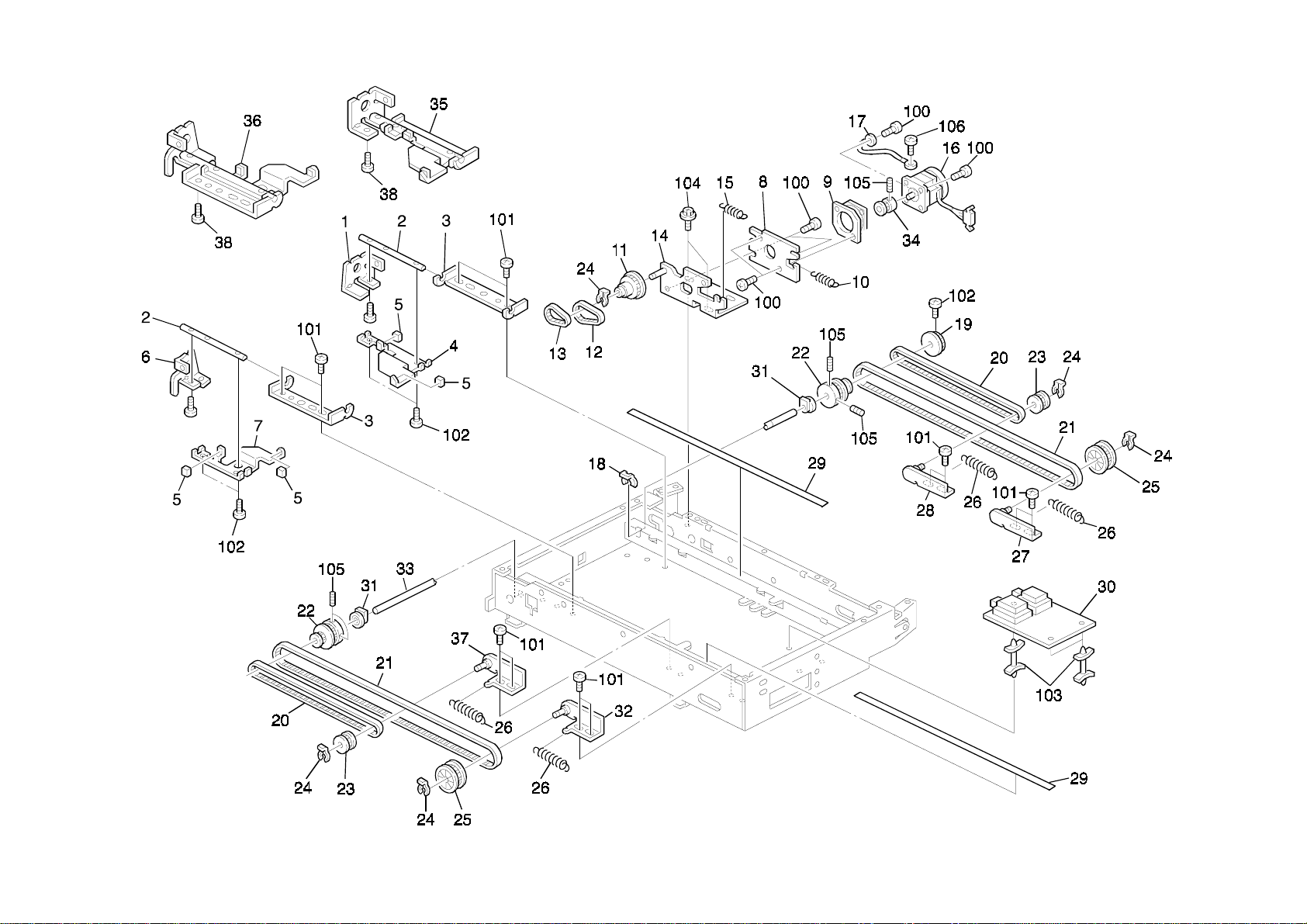

27. SCANNER SECTION 3 (C223)
C223 62 Parts Location and List
27. SCANNER SECTION 3 (C223)
Index
No.
1 C218 3060 Rear Fixed Angle 1
2 C218 3057 Fixed Shaft 2
3 C218 3056 Fixed Shaft Bracket 2
4 C218 3053 Arm - Carriage - Fix - Front 1
5 C218 3054 Pad - 5x5 4
6 C218 3055 Front Fixed Angle 1
7 C218 3059 Rear Fixed Arm 1
8 C218 3081 Tension Bracket 1
9 C218 3086 Motor Cushion 1
10 C218 3082 Tension Spring 1
11 C218 3065 Pulley - 22/56Z 1
12 C218 3072 Timing Belt - B40S2M160 1
13 C218 3073 Timing Belt - B60S2M126 1
14 C218 3078 Scanner Motor Bracket 1
15 C218 3083 Tension Spring 1
16 C223 8214 Stepping Motor 1
17 C218 8426 Grounding Harness 1
18 C209 3133 Retaining Ring - M6 1
19 C218 3066 Pulley - 49Z 1
20 C218 3075 Timing Belt - B40S2M800 2
21 C218 3074 Timing Belt - B40S2M1274 2
22 C218 3063 Scanner Drive Pulley 2
23 C218 3069 Timing Pulley - 24Z 2
24 5447 2681 Snap Ring 5
25 C218 3068 Timing Pulley - 48Z 2
26 C218 3094 Tension Spring 4
27 C218 3103 Timing Pulley Bracket - Rear 2 1
28 C218 3096 Timing Pulley Bracket - Rear 1 1
29 C218 3017 Scanner Grip Rail 2
30 C222 8221 Inverter 1
31 C222 3193 Bushing - 8mm 1
32 C218 3099 Timing Pulley Bracket - Front 2 1
33 C218 3090 Scanner Drive Shaft 1
34 C218 3062 Timing Pulley - Scanner Motor 1
35 C218 3053 Arm - Carriage - Fix - Front 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 C218 3059 Rear Fixed Arm 1
37 C218 3091 Timing Pulley Bracket - Front 1 1
38 C218 3051 Philips Screw - M3 1
100 0314 0080Z Philips Screw - 4x8
101 0801 1004 Screw - M4X4
102 0313 0050Z Philips Screw - 3x5
103 1105 0225 Spacer - W Rocking
104 0804 6074 Hexagon Bolt - M4x8
105 0573 0040E Hexagon Headless Set Screw - M3x4
106 0964 4006Z Tapping Screw W/Flat Washer - M4x6
Part No.
Description
Q’ty Per
Assembly
C223 63 Parts Location and List

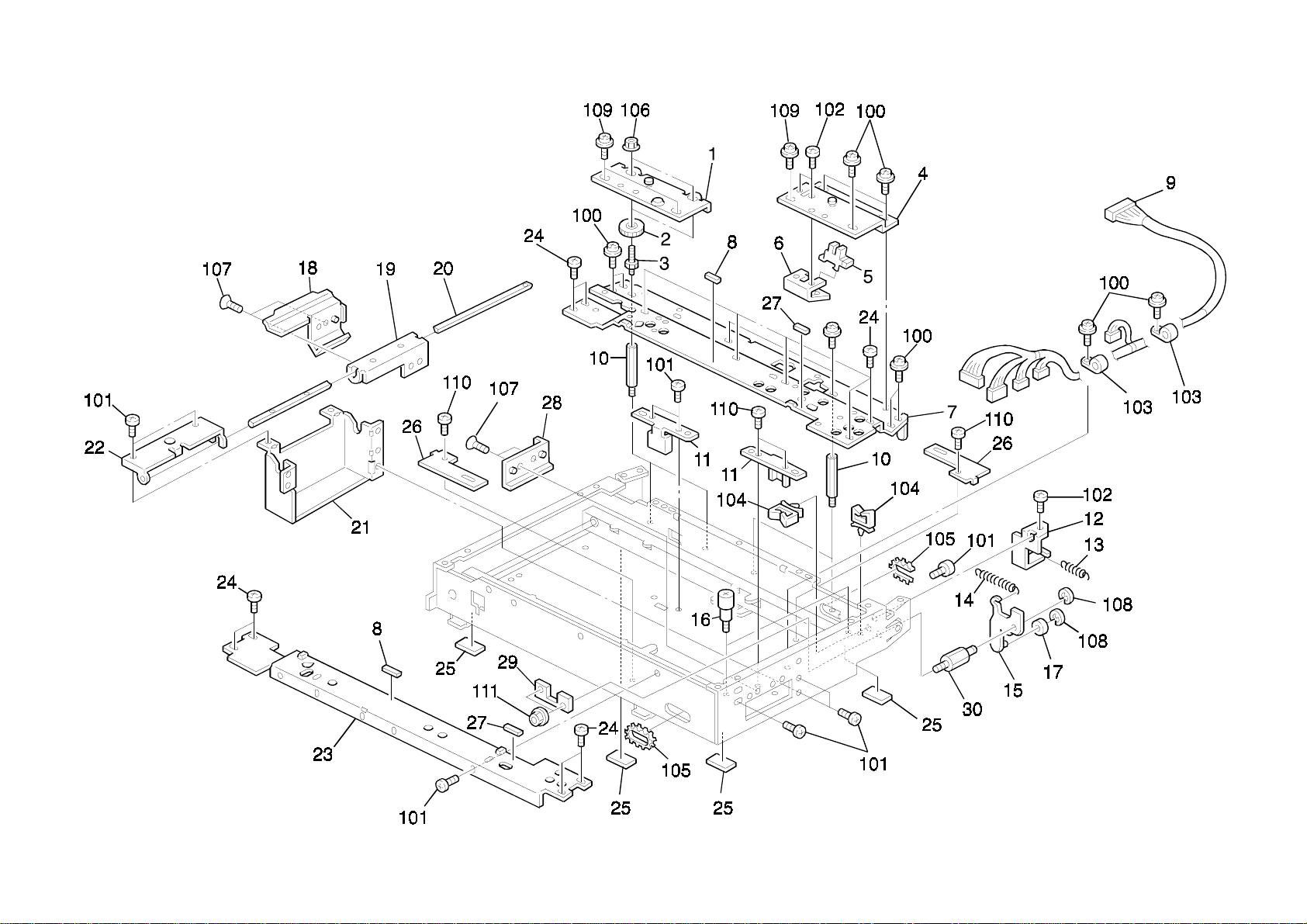

28. SCANNER SECTION 4 (C223)
C223 64 Parts Location and List
28. SCANNER SECTION 4 (C223)
Index
No.
1 C218 3438 Platen Cover Left Bracket 1
2 C218 3430 Knob Screw 2
3 C218 3431 Platen Cover Shaft 2
4 C218 3426 Platen Cover Right Bracket 1
5 AW02 0021 Photointerruptor - 175487-3 1
6 C218 3434 Sensor Bracket 1
7 C218 3028 Scanner Rear Stay 1
8 C218 3025 Contact Grass Cushion 2
9 C222 8415 Scanner Harness 1
10 C218 3031 Stud 4
11 C223 3014 Scanner Stopper Lever 2
12 C218 3118 Scanner Stopper Bracket 1
13 C218 3117 Stopper Spring 2 1
14 C218 3116 Stopper Spring 1 1
15 C218 3112 Scanner Stopper 1
16 C218 3020 Stopper Pin 2
17 C209 4087 Guide Plate Roller 1
18 C223 3108 Scanner Open Grip 1
19 C223 3109 Grip Bracket 1
20 C218 3111 Scanner Grip Shaft 1
21 C222 3016 Scanner Grip Cover 1
22 C218 3110 Scanner Grip Upper Cover 1
23 C218 3024 Scanner Front Stay 1
24 5875 2088 Shoulder Screw - M4 11
25 C218 3003 Seal - 28x40 4
26 C222 3235 Grounding Plate 2
27 C223 3024 Contact Glass Sheet 2
28 C223 3119 Scanner Open Cover 1
29 C218 3021 Support Plate 1
30 C218 3022 Scanner Stopper Shaft 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0960 4008Z Flange Head Screw - 4 X 8
101 0314 0060Z Philips Pan Head Screw - M4x6
102 0313 0060Z Philips Pan Head Screw - M3x6
103 1105 0011 Nylon Clip - 8n
104 1105 0144 Harness Clamp
105 1106 0103 Universal Bushing
106 0713 0040B Hexagon Nut - M4
107 0324 0060Z Philips Sunken Head Screw - M4x6
108 0720 0030Z Retaining Ring - M3
109 0960 4008W Philips Flange Screw - M4x8
110 0801 1004 Screw - M4X4
111 0713 0050B Hexagon Nut - M5
Part No.
Description
Q’ty Per
Assembly
C223 65 Parts Location and List

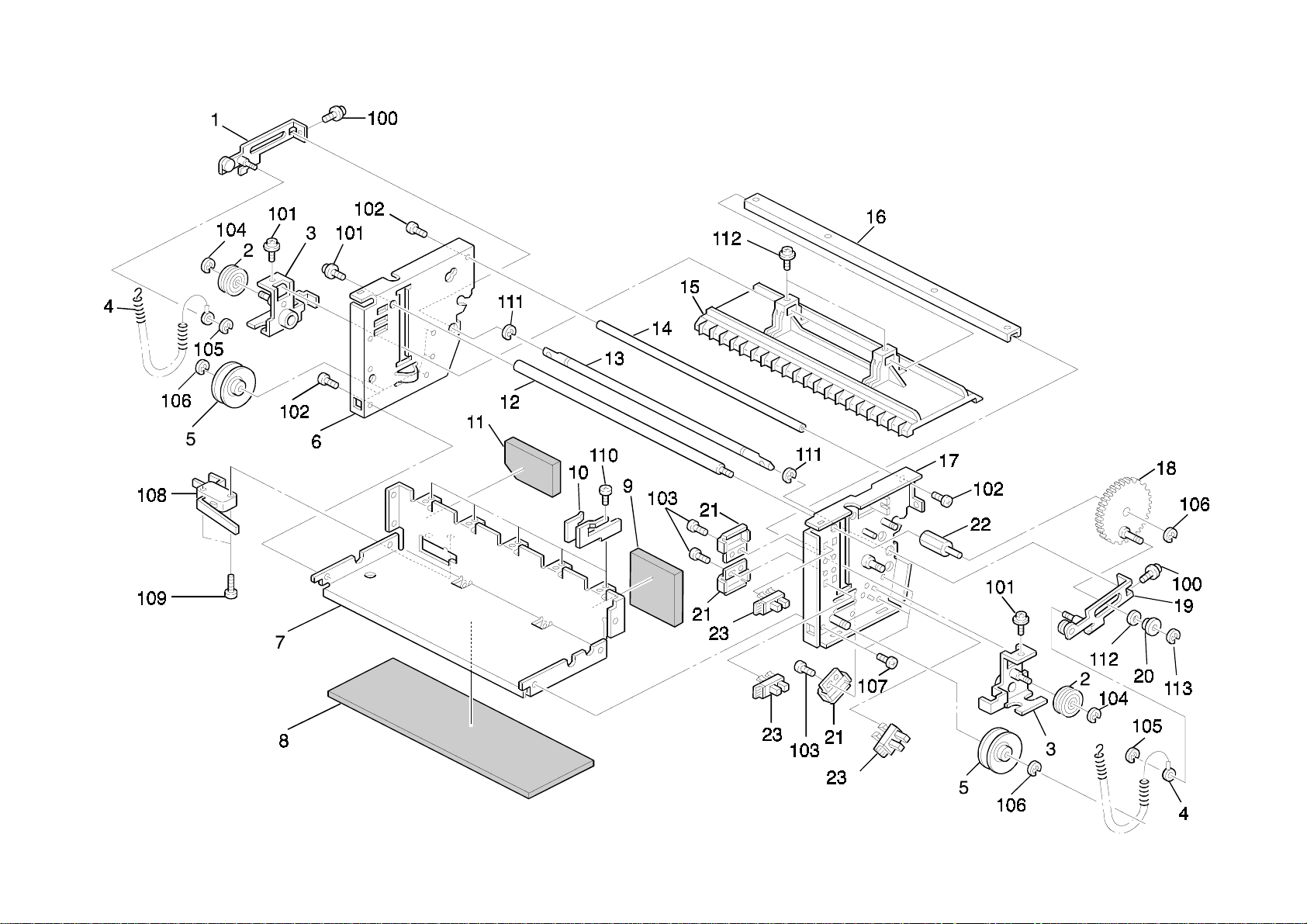

29. PLOTTER SECTION 1 (C223)
C223 66 Parts Location and List
29. PLOTTER SECTION 1 (C223)
Index
No.
1 C223 8037 Thermal Head - A3 1
2 C223 4039 Thermal Head Guide Plate 1
3 C209 4180 Thermal Head Spacer 2
4 C223 4035 Spacer 1
5 C223 4030 Thermal Head Stay 1
6 C209 4139 Spring Plate 2
7 C223 4034 Spring 1
8 C218 4136 Spring Plate 1
9 C223 4040 Left Adjusting Plate 1
10 C223 4005 Plotter Left Side Plate 1
11 C223 2599 Plotter Base Pad - Large 1
12 C209 2585 Plotter Base Pad - Small 1
13 C222 8028 Thermal Head Drive Board 1
14 C222 8163 Thermal Head Harness - 2 1
15 C222 8164 Thermal Head Harness - 1 1
16 C219 4023 Seal 1
17 C219 8146 Harness Head Power 1
18 C223 4133 Plotter Base 1
19 C223 2586 Lower Plotter Cover 1
20 C223 2587 Plotter Cover Pad 1
21 C203 4013 Brake Plate 1
22 C209 4021 Holder - Master 1
23 5054 0536 Magnet Catch Ass’y 1
24 C218 4038 Bushing Washer - M8 1
25 C223 4054 Thermal Head Cover 1
26 C218 4126 Right Connector Bracket 1
27 C223 4010 Plotter Right Side Plate 1
28 C200 4116 Sensor Spring 1
29 C209 4027 Master End Sensor Bracket 1
30 5203 5230 Master Sensor 1
31 C209 4063 Lever Shaft 1
32 C218 4060 Platen Release Lever 1
33 C209 4059 Lever Knob 1
34 C218 2827 Decal - Master Feed 1
35 C209 4076 Tension Release Arm 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0313 0040Z Philips Pan Head Screw - M3x4
101 0313 0060Z Philips Pan Head Screw - M3x6
102 0313 0050Z Philips Screw - 3x5
103 0314 0060Z Philips Pan Head Screw - M4x6
104 0434 0080Z Tapping Screw - M4x8
105 0434 0060Z Tapping Screw - M4x6
106 1105 0193 Nylon Stud
107 0720 0070Z Retaining Ring - M7
108 0720 0040Z Retaining Ring - M4
109 0323 0100Z Philips Sunken Head Screw - M3x10
Part No.
Description
Q’ty Per
Assembly
C223 67 Parts Location and List
30. PLOTTER SECTION 2 (C223)
C223 68 Parts Location and List
30. PLOTTER SECTION 2 (C223)
Index
No.
1 C218 4065 Cutter Unit 1
2 C223 4111 Pulley - 38 1
3 C223 4112 Timing Belt 1
4 C223 4179 Left Holder - Platen Cover 1
5 C223 4047 Platen Roller 1
6 C223 4184 Right Holder - Platen Cover 1
7 C209 4025 Master Roller Holder 2
8 C218 4230 Master Flange 2
9 C218 2507 Decal - Master Flange 2
10 C222 8216 Stepper Motor - DC2.85V 4.28W 1
11 C219 4071 Gear - 17Z 1
12 C223 4175 Thermal Head Positioning Pin 2
13 C221 4070 Gear Cover 1
14 C207 4150 Fixing Screw 2
15 C209 4049 Gear - 48Z 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0574 0040E Hexagon Headless Set Screw - M4x4
101 0314 0060Z Philips Pan Head Screw - M4x6
102 0720 0080Z Retaining Ring - M8
103 0951 4010Z Philips Screw With Flat Washer M4 X
104 0434 0080Z Tapping Screw - M4x8
105 0740 3008 Ball Bearing - 8x22x7
106 0720 0060Z Retaining Ring - M6
Part No.
Description
Q’ty Per
Assembly
C223 69 Parts Location and List
31. PLOTTER SECTION 3 (C223)
C223 70 Parts Location and List
31. PLOTTER SECTION 3 (C223)
Index
No.
1 C209 4116 Spacer - 6x36x0.3 1
2 C209 4115 Gear - 30Z 1
3 C209 4071 Gear -25Z 1
4 5056 0188 Bushing - 6mm - Long 4
5 5403 2075 Stepped Screw 2
6 C203 4060 Tension Release Slider 1
7 C209 4072 Gear - 24Z 1
8 C209 4075 Left Arm - Tension Release 1
9 C209 4082 Tension Release Shaft 1
10 C209 4076 Tension Release Arm 1
11 C209 4320 Antistatic Brush 1
12 C223 4068 Front Guide Plate 1
13 C209 4093 Reverse Guide 1
14 C209 4070 Upper Master Feed Roller 1
15 C200 4184 Tension Spring 2
16 C209 4074 Lower Master Feed Roller 1
17 C223 4038 Master Guide - Large 4
18 C223 4088 Lower Guide Plate 1
19 C209 4321 Antistatic Brush 3
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0720 0040Z Retaining Ring - M4
101 0313 0060Z Philips Pan Head Screw - M3x6
102 0312 5050Z Philips Pan Head Screw - M2.5x5
103 0701 0060Z Flat Washer - M6
104 0720 0050Z Retaining Ring - M5
105 0313 0050Z Philips Screw - 3x5
Part No.
Description
Q’ty Per
Assembly
C223 71 Parts Location and List
32. PLOTTER SECTION 4 (C223)
Rev. 10/99
C223 72 Parts Location and List
32. PLOTTER SECTION 4 (C223)
Index
No.
1 C200 2338 Gear - 20T 1
2 C209 4305 Gear - 16Z 1
3 C209 4303 Gear -27Z 1
4 H012 1181 Bushing- 6mm 2
5 C209 4128 Harness Bracket 1
6 C222 8128 Thermal Head Harness 1
7 C223 4125 Left Connector Bracket 1
8 C222 2553 Caution Decal - Master Set 1
9 C223 4306 Inverter Guide Stay 1
10 C209 4307 Reverse Guide Plate 3
11 5324 1658 Bushing- 4x8x4.5mm 1
12 C209 4300 Counter Roller 1
13 H002 2226 Bushing 1
14 C209 4100 Upper Reverse Roller 1
15 H012 1181 Bushing- 6mm 2
16 C209 4105 Lower Reverse Roller 1
17 C209 4019 Plotter Middle Stay 1
18 C209 8239 Reverse Roller - Magnetic Clutch 1
19 C209 4114 Gear - 20/27Z 1
20 C223 4341 Duct Support Plate 1
21 C203 8137 Master Sensor 1
22 C222 8129 Sensor Relay Harness 1
23 C222 8208 Air Knife Motor 1
24 C223 4338 Duct Stay 1
25 C222 4336 Duct Cover 1
26 C222 8160 Thermal Head Drive Harness 1
27 1102 6621 Connector 13P 1
28 1102 4559 Connector 3P 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0313 0060Z Philips Pan Head Screw - M3x6
101 0720 0020Z Retaining Ring - M2
102 0720 0025Z Retaining Ring - M2.5
103 0720 0040Z Retaining Ring - M4
104 0964 4008Z Tapping Screw W/washer - M4x8
105 0313 0050Z Philips Screw - 3x5
106 0951 3008Z Philips Screw With Flat Washer - M3
107 0951 4006Z Philips Screw With Flat Washer - M4
108 1105 0144 Harness Clamp
109 0313 0350Z Pan Head Screw - M3x35
110 0701 0030Z Flat Washer - M3
111 0313 0080Z Philips Screw - 3x8
Part No.
Description
Rev. 10/99
Q’ty Per
Assembly
C223 73 Parts Location and List

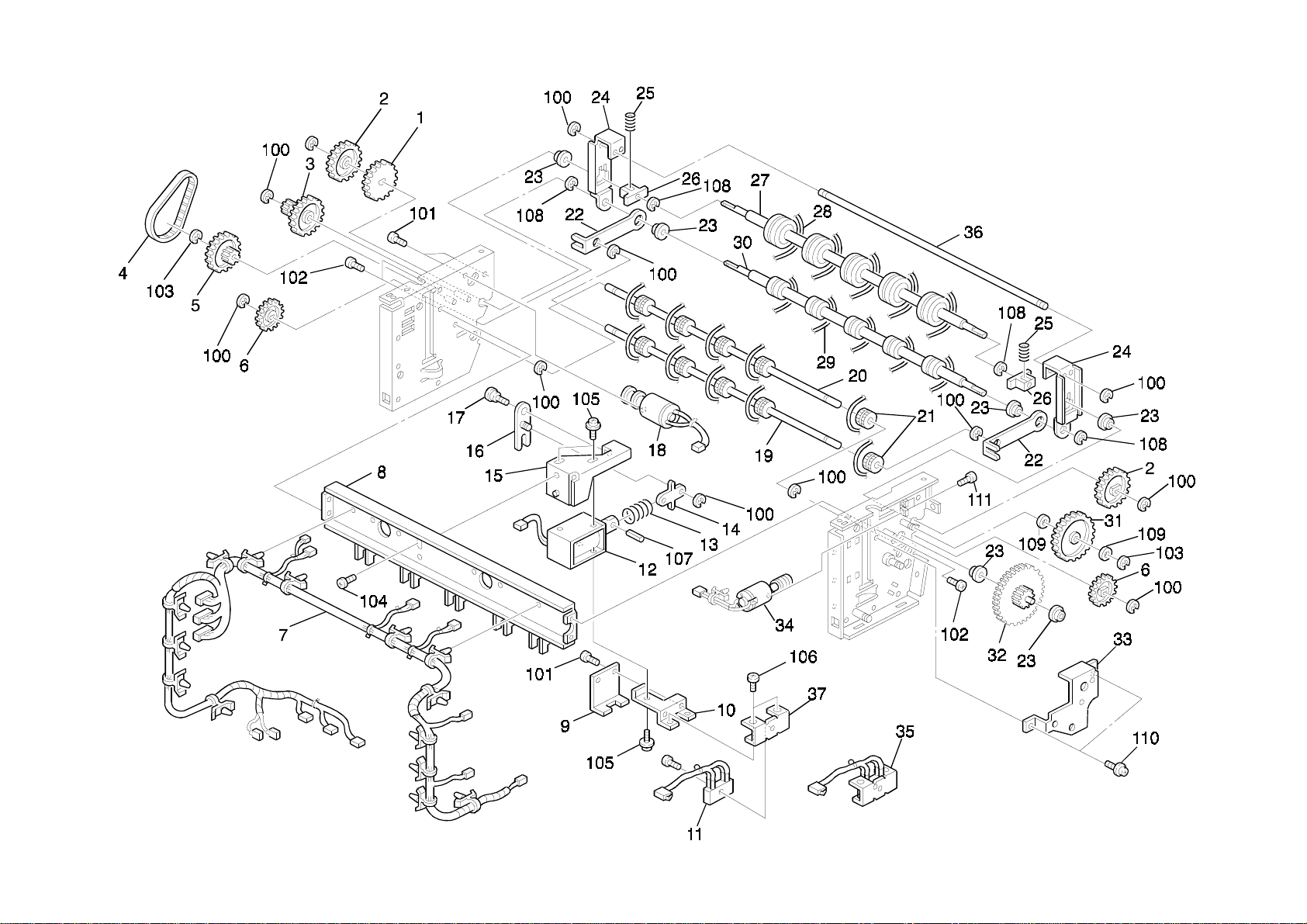

33. MASTER EJECT SECTION 1 (C223)
C223 74 Parts Location and List
33. MASTER EJECT SECTION 1 (C223)
Rev. 08/99
Index
No.
1 C209 3545 Gear - 62Z 1
2 C200 3627 Gear - 30T 2
3 C200 3606 Coupled Gear - 62T & 20T 1
4 C207 3612 Timing Belt - B30S2M126 1
5 C207 3604 Pulley - 40Z 1
6 C200 3628 Gear - 20T 2
7 C223 8122 Master Exit Harness 1
8 C209 3516 Master Eject Stay 1
9 C209 3530 Sensor Cover - Master Eject 1
10 C209 3529 Sensor Bracket - Master Eject 1
11 C209 8117 Drum Master Detection Sensor 1
12 C209 8269 Master Eject Solenoid 1
13 C207 6125 Guide Plate Spring 1
14 C209 3661 Solenoid Plate 1
15 C200 3553 Solenoid Bracket 1
16 C200 3554 Solenoid Arm 1
17 5403 2075 Stepped Screw 1
18 C209 8260 Micro Motor - Master Eject 1
19 C201 3529 Lower Pulley Shaft 1
20 C207 3530 Upper Pulley Shaft 1
21 C200 3547 Pulley 10
22 C200 3529 Pulley Plate 2
23 5506 4608 Bushing - Paper Hold/down Roller - 6
24 C221 3519 Roller Arm 2
25 C201 3527 Pressure Spring 2
26 C209 3520 Separation Roller Bushing 2
27 C209 3522 1st Upper Eject Roller 1
28 C219 3611 Upper Belt 5
29 C219 3612 Lower Belt 5
30 C209 3524 1st Lower Eject Roller 1
31 C209 3550 Worm Gear - 16/50Z 1
32 C209 3551 Gear - 16/116Z 1
33 C209 3557 Bracket 1
34 C217 8447 DC Motor - 24V/7.2W 1
35 C209 3561 Master Eject Sensor 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 C209 3521 Arm Connecting Shaft 1
37 C213 3561 Master Eject Sensor Bracket 1
100 0720 0040Z Retaining Ring - M4
101 0313 0030Z Philips Pan Head Screw - M3x3
102 0434 0060Z Tapping Screw - M4x6
103 0720 0030Z Retaining Ring - M3
104 0314 0050Z Philips Pan Head Screw - M4x5
105 0951 3006Z Philips Screw With Flat Washer - M3
106 0313 0050Z Philips Pan Head Screw - M3x5
107 0623 0120E Spring Pin - M3x12
108 0720 0050Z Retaining Ring - M5
109 0807 3041 Spring Washer
110 0964 4008Z Tapping Screw W/washer - M4x8
111 0313 0030Z Philips Pan Head Screw - M3x3
Part No.
Description
Q’ty Per
Assembly
C223 75 Parts Location and List
34. MASTER EJECT SECTION 2 (C223)
C223 76 Parts Location and List
34. MASTER EJECT SECTION 2 (C223)
Index
No.
1 C209 3543 Rear Pressure Arm 1
2 C209 3536 Pulley 2
3 C209 3533 Pressure Plate Arm 2
4 C221 3537 Pressure Spring 2
5 C200 3712 Pulley 2
6 C209 3512 Rear Side Plate 1
7 C209 3526 Bottom Plate - Master Eject Box 1
8 C209 2579 Lower Pad - Master Eject Box 1
9 C209 2581 Left Pad - Master Eject Box 1
10 C218 3532 Pulley Guide 5
11 C209 2580 Right Pad - Master Eject Box 1
12 C209 3642 Master Eject Stay - Large 1
13 C209 3539 Pressure Arm Shaft 1
14 C200 3508 Master Eject Stay - Small 1
15 C209 3531 Pressure Plate 1
16 C209 3532 Pressure Plate Shaft 1
17 C209 3501 Front Side Plate 1
18 C209 3554 Gear - 60Z 1
19 C209 3540 Front Pressure Arm 1
20 C209 3615 Spacer - 6x12x3 1
21 C209 3507 Master Eject Sensor Cover 3
22 C209 3643 Lock Stay 1
23 AW02 0075 Photointerrupter 3
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0960 4010Z Philips Flange Screw - M4x10
101 0960 4005Z Philips Flange Screw - M4x5
102 0314 0080Z Philips Screw - 4x8
103 0433 0060W Tapping Screw - M3x6
104 0720 0040Z Retaining Ring - M4
105 0720 0030Z Retaining Ring - M3
106 0720 0060Z Retaining Ring - M6
107 0434 0060Z Tapping Screw - M4x6
108 1204 1490 Micro Switch - V-53-1A3
109 0313 0140Z Philips Pan Head Screw - M3x14
110 0314 0060Z Philips Pan Head Screw - M4x6
111 0720 0080Z Retaining Ring - M8
112 0807 4118 Flat Washer
113 0720 0050Z Retaining Ring - M5
Part No.
Description
Q’ty Per
Assembly
C223 77 Parts Location and List

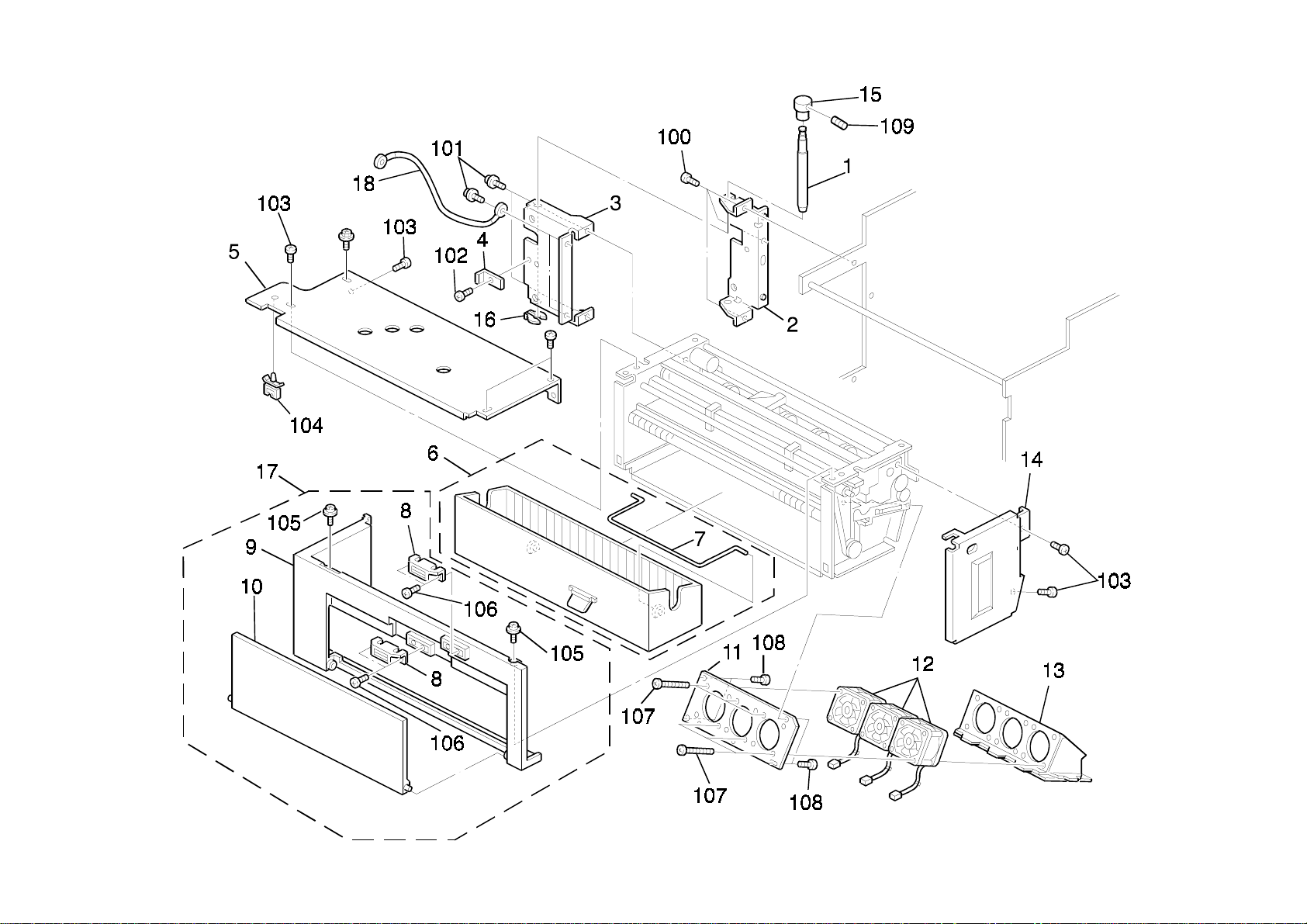

35. MASTER EJECT SECTION 3 (C223)
C223 78 Parts Location and List
35. MASTER EJECT SECTION 3 (C223)
Index
No.
1 C218 3505 Hinge Shaft 1
2 C209 3671 Master Eject Hinge 1
3 C219 3680 Master Eject Hinge - Small 1
4 C209 3675 Cover Bracket 1
5 C219 3768 Upper Inner Cover 1
6 C209 3558 Master Eject Box 1
7 C203 3511 Arm - Master Eject Box 1
8 AG07 0004 Magnetic Catch 2
9 C218 2460 Master Eject Cover 1
10 C218 2456 Master Eject Cover 1
11 C209 3574 Blower Fan Bracket 1
12 C222 8208 Air Knife Motor 1
13 C209 3571 Blower Duct 1
14 C219 3673 Inner Cover - Master Eject 1
15 C218 3506 Boss 1
16 C209 3133 Retaining Ring - M6 1
17 C219 2454 Master Eject Cover 1
18 C203 8204 Grounding Wire 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0434 0080Z Tapping Screw - M4x8
101 0964 4010Z Tapping Screw W/washer - M4x10
102 0314 0080Z Philips Screw - 4x8
103 0434 0060Z Tapping Screw - M4x6
104 1105 0108 Nylon Clip
105 0965 3006Z Tapping Screw With Flat Washer-M3x6
106 0434 0062W Pan Head Tapping Screw - M4x6
107 0313 0350Z Pan Head Screw - M3x35
108 0314 0060Z Philips Pan Head Screw - M4x6
109 0574 0040E Hexagon Headless Set Screw - M4x4
Part No.
Description
Q’ty Per
Assembly
C223 79 Parts Location and List
36. ELECTRICAL SECTION 1 (C223)
C223 80 Parts Location and List
36. ELECTRICAL SECTION 1 (C223)
Index
No.
1 AW02 0021 Photointerruptor - 175487-3 2
2 C209 2306 Drum Sensor Bracket 2
3 C219 2104 Right Grip - Master Eject 1
4 C218 8242 Power Supply Cord - 115V 1
4 C218 8252 Power Supply Cord - 230V 1
5 C203 8095 Upper Harness Supporter 1
6 C221 2004 Switch Bracket (A4) 1
6 C218 2070 Safety Switch Bracket (LT) 1
7 C200 3123 Support Plate - Safety Switch (A4) 1
7 C218 2173 Support Plate - Safety Switch (LT) 1
8 C219 8174 Microswitch 1
9 C209 2169 Harness Bracket 1
10 C223 8058 AC Drive Board - 120V 1
10 C223 8064 AC Drive Board - 230V 1
11 C223 8213 DC Motor 1
12 C223 5097 Worm Wheel 1
13 C223 5093 Lift Motor Bracket 1
14 C203 2759 Master Cutter Decal 1
15 C222 2020 Scanner Stopper 1
16 C218 2015 Rear Scanner Stopper Bracket 1
17 C209 2130 Safety Cover 1
18 C218 2022 Rear Cover Left Bracket 1
19 C219 8296 Safety Switch 1
20 C218 2014 Rear Left Upper Bracket 1
21 C218 2013 Rear Center Upper Bracket 1
22 C218 2012 Rear Right Upper Bracket 1
23 C223 5092 Lifting Gear Cover 1
24 C221 2124 Cap 1
25 C221 2128 Support Bracket 1
26 C221 6115 Delivery Table Bracket 1
27 C223 5090 Motor Bracket 1
28 C223 5091 Gear Shaft 1
29 C223 5095 Worm Wheel 1
30 C223 5098 Support Gear Bracket 1
31 C223 5099 Worm Gear Shaft 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
32 C223 5126 Timing Pulley 1
33 AB03 0216 Pulley - 15Z 1
34 C221 2028 Switch Cover Bracket 1
34 C218 2072 Safety Switch Cover - LT 1
35 C218 3073 Timing Belt - B60S2M126 1
36 C218 2172 Safety Switch Lever - LT 2
37 C218 2071 Safety Switch Stopper - LT 1
38 C201 5125 Shoulder Screw - M4 1
39 C218 2171 Safety Switch Bracket - Eject Box (115V) 1
39 C210 2171 Safety Switch Bracket - Eject Box (230V) 1
40 C203 2128 AC Drive Board Cover 1
41 C217 4426 Shoulder Screw 1
100 0314 0080Z Philips Screw - 4x8
101 1106 0430 Bushing - 13mm
102 1602 0991 Noise Filter - 115V
102 1607 0742 Noise Filter - 230V
103 0434 0080Z Tapping Screw - M4x8
104 1105 0046 Harness
105 0807 7064 Spacer
106 0705 0040B Toothed Washer
108 0314 0060Z Philips Pan Head Screw - M4x6
109 0313 0060Z Philips Pan Head Screw - M3x6
110 0720 0020Z Retaining Ring - M2
111 0960 4008Z Flange Head Screw - 4 X 8
112 0314 0160Z Philips Pan Head Screw - M4x16
113 0720 0120Z Retaining Ring - M12
114 0741 3706 Ball Bearing - 6x10x3
115 1204 41442 Microswitch
116 0574 0040E Hexagon Headless Set Screw - M4x4
117 1107 0354 Fuse - 3.15A 125V
Part No.
Description
Q’ty Per
Assembly
C223 81 Parts Location and List
37. ELECTRICAL SECTION 2 (C223)
C223 82 Parts Location and List
37. ELECTRICAL SECTION 2 (C223)
Index
No.
1 C200 8446 Copy Counter 1
2 C209 8276 Main Switch 1
3 5056 0509 Nut Plate - Microswitch 2
4 C219 8171 Microswitch 1
5 C209 8278 LED - Drum 1
6 C209 2469 Door Catch 1
7 C219 2418 Push Switch Bracket 1
8 C223 8045 UVEPROM 512KX8 150NS 1
9 C218 2051 Main Board Spacer 2
10 C222 8127 Plotter Unit Harness 1
11 C223 8016 Image Processing Board 1
12 C223 8005 UVEPROM 256K X8 150NS 1
13 C223 8006 UVEPROM 256K X8 150NS 1
14 C223 8004 UVEPROM 256K X8 150NS 1
15 C222 8157 Thermal Head Harness 1
16 C223 8208 DC Drive Harness (230V) 1
16 C223 8111 DC Drive Harness (115V) 1
17 AG07 0004 Magnetic Catch 1
18 C200 3755 Plate Spring 1
19 C219 2419 Safety Switch Bracket 1
20 C218 5094 Insulating Sheet 1
21 C200 2596 Maim Board Stud - Long 1
22 C218 2052 Stud - Main Control Board 1
23 C223 8042 Main Control Board 1
24 C223 2054 IPU Board Stud 2
25 C219 8296 Safety Switch 1
26 C223 8047 UVEPROM 512K X8 150NS 1
27 C218 2172 Safety Switch Lever - LT 1
28 C218 2173 Support Plate - Safety Switch - LT 1
29 C218 2185 Stepper Screw 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0313 0060Z Philips Pan Head Screw - M3x6
101 0951 3004Z Philips Screw With Flat Washer-M3x4
102 1204 1490 Micro Switch - V-53-1A3
103 0313 0140Z Philips Pan Head Screw - M3x14
104 0800 0084 Philips Pan Head Screw - M2.3x12
105 0951 3012Z Philips Screw W/h Flat Washer-M3x12
106 0434 0080Z Tapping Screw - M4x8
107 0960 4010Z Philips Flange Screw - M4x10
108 0960 4008Z Flange Head Screw - 4 X 8
109 1107 0788 Circuit Breaker - 6A
109 1107 0782 Circuit Breaker - 5A
110 1107 0411 Fuse - 3A 125V
111 1107 0415 Fuse 5A
112 0951 3006Z Philips Screw With Flat Washer - M3
113 0314 0080Z Philips Screw - 4x8
114 0960 3006B Philips Flange Screw - M3 X 6
115 0720 0020Z Retaining Ring - M2
116 1204 2267 Micro Switch - V-162-3C25
117 0951 3008Z Philips Screw With Flat Washer - M3
Part No.
Description
Q’ty Per
Assembly
C223 83 Parts Location and List
