Ricoh G800 SE Software User Guide
Software User Guide
• Read all safety precautions thoroughly to ensure safe use.
• What applications are present on your computer depends on the method used to install software from
the camera’s internal memory. See the “Camera User Guide” for details.
• This software is for use with Windows only. For more information, see the “Camera User Guide”.
Using These Manuals
How to Use the Software User
The following two manuals are supplied with the
camera.
1. Understanding How to Use Your
Camera
“Camera User Guide” (Printed Manual)
This guide explains the usage and functions of
the camera. You will also see how to install the
provided software on your computer.
Camera User Guide
The serial number of this product
is given on the bottom face of the
Basic Operations
If you are using the camera for the first time, read this section.
This section provides a basic overview of how to turn on the camera, take
pictures and play back pictures.
Advanced Operations
Read this section when you want to learn more about the different camera
functions.
This section provides more detailed information about the functions used to
take pictures and play back pictures, as well as information on how to customize
the camera settings, print pictures, and use the camera with a computer.
The rechargeable battery needs to be charged before use. The battery is not
charged at the time of purchase.
camera.
2. Downloading Images to Your
Computer
“Software User Guide”
*This Manual (This File)
Guide
Display examples:
The display examples may be different from actual
display screens.
Terms:
In this guide, still images and movies are
referred to as “images” or “files”.
Symbols:
This guide uses the following symbols and
conventions:
This indicates important notices and restrictions
for using this camera.
This indicates supplementary explanations and
useful tips about camera operations.
This guide explains how to download images
from the camera to your computer.
This indicates page(s) relevant to a particular
function. “GP. xx” is used to refer you to pages
in this manual.
This indicates terms that are useful for
understanding the explanations.
2
Contents
Using These Manuals ...................................................2
How to Use the Software User Guide ......................2
Contents ..........................................................................3
Chapter 1 Downloading Images to Your
Computer
Downloading Images ..................................................5
Downloading Images Without Using DL-10 ..........6
Downloading All Images Using the DL-10
Software ..........................................................................7
Security Alerts (Windows Vista Service Pack 2) .....8
Security Alerts (Windows 7 and Windows 8.1) ......8
Disconnecting the Camera .........................................8
Detailed Instructions for DL-10 .................................8
Starting/Exiting DL-10 .................................................... 8
The DL-10 Window .......................................................... 9
How to Use the [Option settings] .............................. 10
How to Use the [Background illustration settings]
Using [CameraMemo Settings] .................................. 11
Downloading Images from an SD Memory
Card ............................................................................... 12
Images in an SD Memory Card ................................... 12
Chapter 2 How to Use EC1
Using the Edit Detection Function ........................ 14
Updating Folder Contents ...........................................14
Chapter 3 Shooting with Camera Memos
Section 1 About Camera Memos
Shooting with Camera Memos............................... 16
Memos .............................................................................. 16
Using Memos .................................................................. 17
Section 2 Creating and Transferring a Memo
List
Creating a Camera Memo List ................................ 19
The List Editor Dialog ....................................................19
Using the List Editor ...................................................... 20
Transferring a Memo List File to the Camera ...... 21
The List Editor ................................................................. 21
Card Readers ................................................................... 22
Deleting Memo List Files From Memory Cards ...... 22
... 11
Section 3 Taking Pictures with Memos
Recording Memos with Pictures ............................ 23
Adding Memos to New Pictures ................................23
Choosing Descriptions .................................................24
Viewing Memos .........................................................26
Viewing Memos .............................................................26
Editing Memos ...............................................................26
Creating a Temporary Memo .................................. 27
Creating a Temporary Memo ......................................27
Editing the Temporary Memo ..................................... 28
Creating a Temporary Memo from an Existing
Memo ............................................................................... 28
Memo Increment ....................................................... 29
Using Memo Increment ...............................................29
Using Memo Increment with Temporary Memos ... 30
Voice Memos...............................................................30
Recording Voice Memos ...............................................30
Playing Voice Memos .................................................... 31
Re-recording Voice Memos ......................................... 32
Registering Barcode Data as a Temporary
Memo ........................................................................... 33
Choosing a Barcode Mode ..........................................33
QR Codes (Mode 6) ........................................................33
Reading a Barcode and Registering Barcode
Data ................................................................................... 34
Image Memos .............................................................36
First Steps ........................................................................36
Viewing Image Memos ................................................. 37
Image Clips ..................................................................38
Taking Pictures with Image Clips ............................... 38
Section 4 Viewing/Editing a Camera Memo
on a Computer
Using ME1 ....................................................................39
The ME1 Window ........................................................... 39
Editing Memos ...............................................................39
Printing Memos with Photographs ........................... 40
Section 5 Using Memos to Sort Pictures
Using EX1 .....................................................................41
EX1 Operation Flow ....................................................... 41
Starting and Exiting EX1 ..............................................41
Transfer Settings ............................................................42
Processing Pictures ........................................................ 44
Property ........................................................................... 44
File Information ..............................................................45
Appendices
How to Use the Keyboard ........................................48
Troubleshooting ........................................................ 49
3
Chapter 1 Downloading Images to Your Computer
This section explains how to download still images and movies to a
Windows computer.
Downloading Images
There are two methods for downloading
images from the camera to your computer.
1. Downloading images without using
image download software such as
DL-10 (GP.6).
The camera is recognized by the computer
as a separate drive and appears on [My
Computer]. Select and copy images.
2. Use image downloading software such
as DL-10 to download all images to the
computer (GP.7).
To use DL-10, DC Software must be installed.
For information on how to install
DC Software, see the “Camera User Guide”.
• Do not turn off the camera or disconnect the
USB cable during image transfer. The files will
not be written correctly.
• Do not use the computer to format the SD
memory card or the internal memory. Use the
camera to format the SD memory card or the
internal memory.
• Be sure to stop the connection before
removing the USB cable.
• The camera can not display pictures that
have been transferred to the computer using
“Windows Photo Gallery” (Windows Vista) or
“Windows Live Photo Gallery” (Windows 7
or Windows 8.1) and then copied from
the computer to a memory card which is
subsequently inserted in the camera.
• Only one Ricoh digital camera can be
connected to one computer. Do not connect
multiple Ricoh cameras to one computer at the
same time.
• When downloading images from your camera,
load a battery with adequate remaining power
in the camera.
• If there is an SD memory card in the camera,
images will be loaded from the card. If there is
no SD memory card in the camera, images will
be loaded from the internal memory on the
camera.
• The software supplied in the camera’s internal
memory can only be used with Windows.
5
Downloading Images Without Using DL-10
Copy files from the camera drive to
1.
the desired destination.
Connect the supplied USB cable to
2.
a USB port on the computer.
Copy files from the camera drive to
4.
the desired destination.

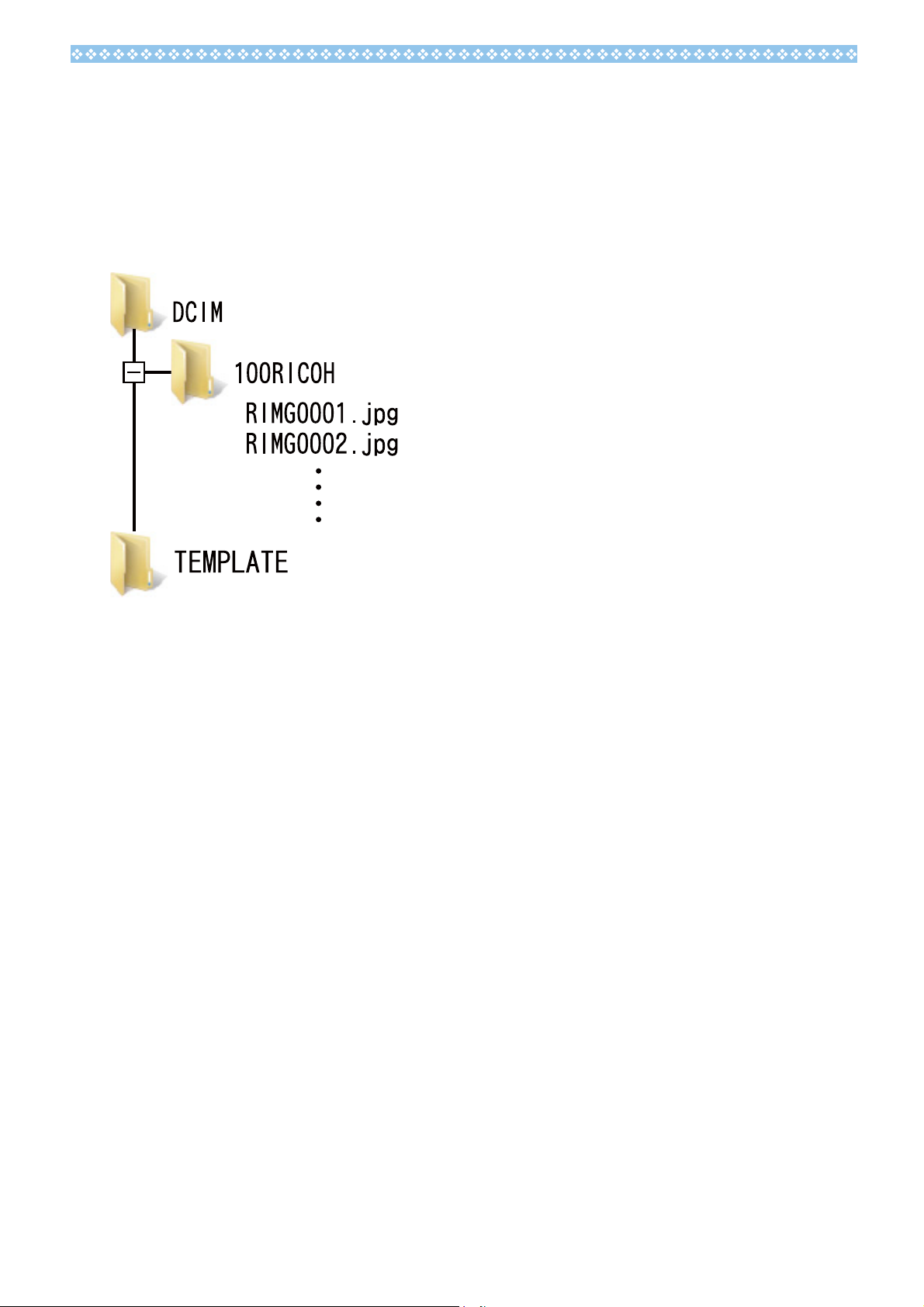

The folders on the camera are organized as
shown below.
The volume name for the camera’s internal
memory is [RICOHDCI].
Connect the cable to the camera
3.
USB terminal.
The camera will turn on. After reading the
data that identifies the camera as a drive,
the computer will display the camera drive
in the [Computer] folder.
• If a file with the same name already exists at
the destination, it is overwritten.
• If DC Software is installed, clear the check
box next to the [Saves automatically when
connected to USB] option in the DL-10 [Option
settings] dialog box.
6
Downloading All Images Using the DL-10 Software
DL-10 automatically creates a folder called
[Digital Camera] inside your [My Documents]
folder. Downloaded images are saved in
folders with the date of each shot, inside the
[Digital Camera] folder. (The files will continue
to be saved in the [Caplio] folder if you were
previously using Caplio Software.)
Set the correct date and time on the camera
before shooting.
Confirm that the camera is off.
1.
Connect the USB cable to a USB
2.
port on the computer.
If image transfer does not begin, please try
the following procedures:
• Click the [Save] button in the DL-10
window.
• Restart your computer and perform
Steps 1 to 3 again.
• Confirm that the [Saves automatically
when connected to USB] checkbox in the
[Option settings] dialog box for DL-10 is
selected.
• When the [The same image will not be saved]
check box is selected in DL-10 [Option settings]
(GP.10), the total number of files that can
be transferred at one time is 999. To transfer
1000 files or more, transfer 999 files first and
then click [OK] when the dialog box with the
number of remaining files appears. After that,
click the [Save] button in the DL-10 window
or reconnect the USB cable to transfer the
remaining files.
• Do not turn off the camera or disconnect
the USB cable during image transfer using
DL-10 (when the message for receiving data is
displayed).
Connect the cable to the camera
3.
USB terminal.
The camera will turn on, DL-10 will start,
and the DL-10 window will be displayed.
Image transfer begins automatically.
• The images on the computer are renamed
using consecutive file numbers; the file names
assigned by the camera are not used.
• Even when the storage folder is changed, the
file number will be continuous. The number
cannot be initialized.
• When transferring images to a computer
using DL-10, the files are assigned names like
[RIMG****.jpg] (**** indicates the number of
the image), even if [File Sequence No.] is set to
[On].
• For details about DL-10, see P.8.
• For details about the DL-10 [Option settings]
dialog box, see P.10.
7
Security Alerts (Windows Vista
Detailed Instructions for DL-10
Service Pack 2)
Windows Vista (Service Pack 2) may display a
security alert when you launch software for
Ricoh digital cameras (either manually or by
connecting the camera). Check the program
name and publisher and click [Unblock].
If you clicked [Keep Blocking]: Open the [Windows
Firewall] control panel, click the [Exceptions]
tab, and check whether DL-10 is listed under
[Programs and Services]. If it is, place a check in
the check box next to [DL-10] and click [OK]. If it
is not listed,click [Add Program…] to add DL-10
to the list of exceptions.
If you clicked [Ask Me Later]: The security alert will
be displayed the next time the application is
launched. Click [Unblock].
Security Alerts (Windows 7 and
Starting/Exiting DL-10
Starting
DL-10 is already installed with DC Software.
Connecting the camera to your computer
automatically starts the software and begins
downloading of images from the camera.
Exiting
To exit DL-10, follow either of the steps below.
• Click the [MENU] button on the DL-10
window and select [Exit] from the displayed
menu (see “The DL-10 Window”).
• Right-click the DL-10 icon on the task bar and
select [Exit] from the displayed menu.
Windows 8.1)
Windows 7 and Windows 8.1 may display a
security alert when you launch software for
Ricoh digital cameras (either manually or by
connecting the camera). Check the program
name and publisher and click [Allow Access].
Disconnecting the Camera
Turn the camera off and disconnect the USB
cable.
• If the USB cable is disconnected without
disabling the connection, the Unsafe Removal
of Device screen may be displayed.
• Do not disconnect the USB cable during
image transfer. Check that image transfer is
completed and be sure to stop the connection
before removing the USB cable.
DL-10 is not network-compatible. Use as a standalone application.
8
The DL-10 Window
Once DL-10 starts up, the following DL-10
window appears on your computer screen.
3 [Application] Button
The application registered in [Option
settings] is started.
4 [Minimize] Button
Minimizes the window and displays its icon
on the Windows task bar. If you click on the
icon, the window will be displayed again.
5 Indicator
1 [MENU] Button
Click this and the following menu appears.
[Option settings] Specifies where to save
images when downloading
all images and which
application to start after
images have been saved
or when the [Application]
button is clicked. (GP.10)
[Background
illustration
settings]
Changes the background
design in the DL-10 window.
(GP.11)
The “Indicator” lights if the camera is
connected via USB cable. When lit, if you
move the mouse pointer over the “Indicator”,
[Camera is being connected] appears. When
your camera is not connected, the “Indicator”
is grayed out, and if you move the mouse
pointer over it, [Camera is being connected]
does not appear.
[CameraMemo] Transfer images (GP.11) to
destinations selected based
on the presence or absence
of a memo (GP.15) and
memo contents.
[About] Displays the version of DL-10.
[Exit] Closes DL-10.
2 [Save] Button
Click this and the images are downloaded
from your camera.
If the message indicating that [Connecting...
Press [Adj.] key to direct print] appears on the
camera picture display, do not click the [Save]
button.
9
How to Use the [Option settings]
If you click the [MENU] button on the DL-10 window and select
[Option settings] from the displayed menu, the [Option settings]
dialog box appears.
Note that uninstalling the software for earlier Ricoh cameras may
reset user preferences for DL-10 or RICOH Gate La.
Item Description Initial Setting
1 [Saves
automatically
when connected
to USB]
2 [Destination folder] Specifies which folder to save your images in. The [Digital Camera] folder
3 [Create folder] Specifies how to create a folder.
Select the check box to have images downloaded and saved automatically
in your computer when the camera is connected to your computer with the
USB cable.
If you deselect the check box, your images will not be downloaded
automatically when you connect your camera to the computer. For
downloading, activate DL-10 and click the [Save] button.
inside [My Documents] is specified initially; if you want to change this, click
the [Browse...] button to display the dialog box and then specify the folder.
[Not created]
Your downloaded images will all be saved in the folder specified in item
“2 [Destination folder]”.
[For each date photographed]
Creates a new folder assigning the date the images were shot as the folder
name, and saves images shot on the same day in the same folder.
For example, if shot on January 1, 2014: [20140101] folder
[For each time saved]
Creates a new folder each time and save images in the folder. If images are
saved more than once in a day, a new folder is created each time.
The folder name format is “Saving date + Underscore + Three-digit serial
number”.
For example, if you saved twice on January 1, 2014:
[20140101_001] folder, [20140101_002] folder
Save
automatically
———
Create a new
folder for
each date
photographed
4 [The same image
will not be saved]
5 [Application
software settings]
6 [Save and start
application
software]
7 [Camera's IP
Address]
When this check box is selected, images once loaded into your computer are
not loaded again. This check box is enabled only when [Not created] or [For
each date photographed] is selected in [Create folder].
To allow this function to work properly, the camera date and time must be set
correctly.
When this check box is deselected, previously loaded images are loaded
again.
*
If you were previously using Caplio Software, images will be downloaded
again if images downloaded using RICOH Gate La remain on the SD
memory card even if the [The same image will not be saved] checkbox for
the DL-10 [Option settings] is selected.
To start an application after loaded images have been saved, specify the
application name here. Click the [Browse...] button and select the application
in the displayed dialog box.
When this is checked, the application specified above is started after the
images have been saved.
When this is unchecked, the application is not started.
Not used for this camera, but used for other Ricoh digital cameras. For details,
see the documentation that came with the camera.
10
The same
image will not
be saved
———
Application is
started
0.0.0.0
How to Use the [Background illustration settings]
You can select a background for the DL-10
window from three types of patterns.
If you click the [MENU] button on the DL-10
window and select [Background illustration
settings] from the displayed menu, the
[Background illustration settings] dialog box
appears.
Using [CameraMemo Settings]
Transfer images to destinations selected
based on the presence or absence of memos
and memo contents. Click the [MENU] button
and select [CameraMemo] to display the
[CameraMemo Settings] dialog.
1 [Background illustration pattern]
Select the pattern you wish to use from the
three available.
1 [Transfer From]
Choose the source from [Memory Card
(specify drive or folder)] and [Digital Camera]
in the [Type] menu. If you select [Memory
card (specify drive or folder)], click the
[Browse...] button and navigate to the desired
source folder.
2 [Save To]
Click [Browse...] and choose the destination
for the transferred files. The destination type
is fixed and can not be changed.
3 [Settings...]
Clicking this button displays the [Setting
Information] dialog, where you can adjust
each of the transfer settings listed below by
double-clicking the setting or by selecting
the setting and clicking [Change...].
2 [Preview]
You can preview the pattern selected in
[Background illustration pattern].
11
[Overwrite and
save] (available
only when [Digital
Camera] is selected
for [Transfer From]
Choose whether to include
images that have already
been transferred to the
destination. Select [Do
not save the same image]
to skip images that have
already been transferred.
Downloading Images from an SD Memory Card
It is possible to download images from an SD
memory card to computer via a PC card slot or
card reader.
[Export type]
(available only
when [Memory
Card] is selected
for [Transfer From])
[Transfer mode] Choose whether the sub-
[Launch
application]
[Confirm File
Overwrite]
Choose whether to
transfer all images or only
those with memos.
folders in the destination
folder are named by
memo description or using
both memo item names
and descriptions.
Choose the application
that starts when transfer is
complete.
Choose whether a
confirmation dialog is
displayed before files in
the destination folder are
overwritten by transferred
files with the same name.
If you opt not to display
a confirmation dialog,
files will be overwritten
without warning. If [Digital
Camera] is selected
for [Transfer From], a
confirmation dialog
will only be displayed if
[Save the same image] is
selected.
Images in an SD Memory Card
Images are stored on an SD memory card in a
hierarchy, as shown here.
Image files
If you connect the camera or a card reader to a
computer and then directly display, edit or save
SD memory card images on the computer, you
may no longer be able to play back the images
on the camera. Download the images to the
computer before displaying, editing or saving
them.
Card Reader
4 [Begin Transfer]
Click this button to begin transfer (clicking
this button is the only way to begin transfer
using [CameraMemo Settings]).
Reserved characters (\ / ; ? * " < > |) are
automatically converted to underscores (“_”)
when memo item names and descriptions are
used as folder names.
This is a device connected to a computer to read
the contents of cards. In addition to the memory
card adapter-type, there are card readers into
which you can directly load an SD memory card.
12
Chapter 2 How to Use EC1
EC1 edit detection software can be used to check whether images
taken with the camera have subsequently been processed or
edited.
In order to carry out edit detection using EC1, you must set [Edit
Detection] to [On] in the camera’s shooting menu before shooting and
download the images to your computer.
Using the Edit Detection Function
You can only carry out edit detection using EC1
after setting [Edit Detection] to [On] on your
camera, shooting still images, and downloading
the images to your computer.
Set [Edit Detection] to [On] in the
1.
camera’s shooting menu, and shoot
still images.
For operation procedures, see the “Camera
User Guide”.
Download the still images shot
2.
using your camera to your computer.
Launch EC1.
3.
From the EC1 Folder View, select the
4.
folder for the downloaded images.
The JPEG images in the selected folder
will be loaded and the images will be
displayed in Thumbnail View after loading
is complete.
• Neither of the above icons is displayed
with images taken when [Edit Detection]
was set to [Off] or images for which edit
detection is not possible.
• By double-clicking an image in the
Thumbnail View, you can open the
image using the linked viewer software.
• If a space occurs at the beginning or
end of the folder name, a message will
appear and no images will be displayed.
• Edit detection is available only with
photographs taken using cameras equipped
with an edit detection function.
• Images for which the [Resize], [Contrast
Correction], or [Skew Correction] functions
have been used during playback mode will be
labeled as images that have been processed or
edited.
• When downloading images to your computer,
please use the method for downloading
shown in Chapter 1. Images downloaded
using different methods may be labeled as
processed or edited images even if they have
not been processed or edited.
For example, when you download images to
your computer using “Windows Photo Gallery”
for Windows Vista or “Windows Live Photo
Gallery” for Windows 7 or Windows 8.1, a
portion of the shooting data is edited during the
download process. As a result, the images are
labeled as processed or edited images for EC1.
• Depending on the software you used to view
images after downloading them, the images
may be labeled as processed or edited images
if you viewed the images or image properties
before saving or closing them.
Folder View Thumbnail View
• is displayed with images that have
not been processed or edited after
shooting.
is displayed with images that have
•
been processed or edited after shooting.
• For details about how to install EC1, see the
“Camera User Guide”.
• For details about downloading images to your
computer, see P.5.
Updating Folder Contents
After adding, deleting, or renaming folders,
select [Reload] in the [View] menu to update
the folder and thumbnail lists.
14
Chapter 3 Shooting with Camera Memos
Read this section for information on attaching camera memos
to pictures taken with the camera. Camera memos can contain a
variety of information, such as image descriptions.
• Be sure to set the date and time on the camera.
• To use the camera memo function, DC Software must be installed.
Use ME1 to view and edit the memos that have been appended to
pictures (GP.39).
Loading...
