First Edition December 1999

Ricoh Company,LTD.

PARTS CATALOG

INTRODUCTION

This chapter instructs you the numbers and names of parts on this machine.

INDEX to PARTS CATALOG

KING FISHER 2 Jr/Jr-R

(B009/B019)

.,1*),6+(5-U-U5%%

PARTS CATALOG

INTRODUCTION

This chapter instructs you the numbers and names of parts on this machine.

INDEX to PARTS CATALOG

LOCATION OF UNIT............................................................... 2

1.EXTERIOR (B009/B019) ..................................................... 6

2.PLATEN COVER (B009/B019)............................................ 8

3.OPERATION PANEL (B009/B019)...................................... 10

4.PAPER TRAY (B009/B019)................................................. 12

5.BY-PASS FEED TABLE(B009/B019).................................. 14

6.PAPER FEED SECTION 1 (B009/B019)............................. 16

7.PAPER FEED SECTION 2 (B009/B019)............................. 18

8.PAPER REGISTRATION (B009/B019) ............................... 20

9.OPTICS SECTION 1 (B009/B019)...................................... 22

10.OPTICS SECTION 2 (B009)............................................... 24

11.OPTICS SECTION 3 (B019)............................................... 26

12.OPTICS SECTION 4 (B019)............................................... 28

13.TONER BOTTLE HOLDER UNIT (B009/B019).................. 30

14.IMAGING UNIT - 1 (B009/B019) ........................................ 32

15.IMAGING UNIT - 2 (B009/B019) ........................................ 34

16.LOWER OPTICS SECTION (B009/B019).......................... 36

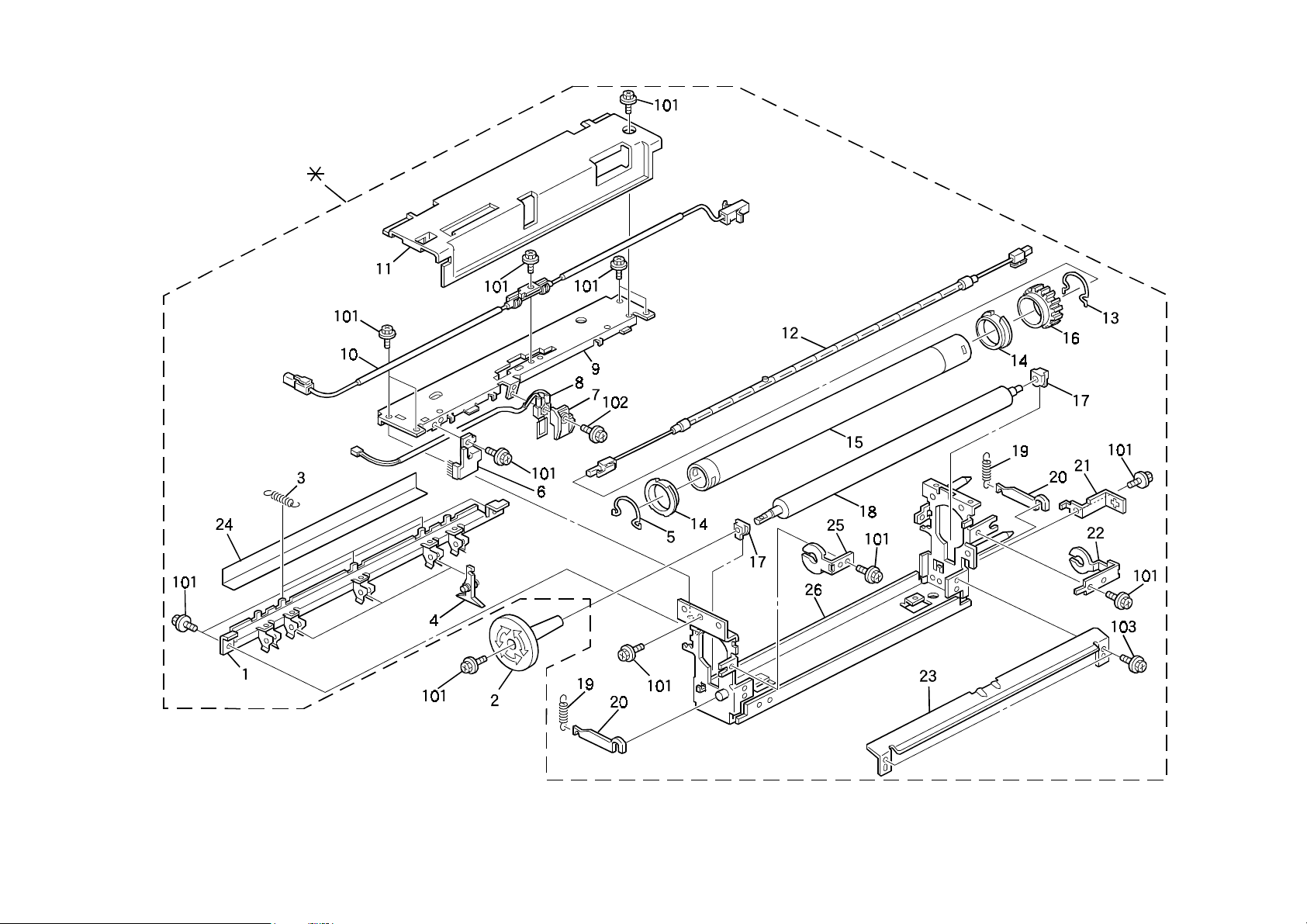

17.FUSING UNIT (B009/B019)................................................ 38

18.TRANSFER AND EXIT SECTION (B009/B019) ................ 40

19.DRIVE SECTION 1 (B009/B019)........................................ 42

20.DRIVE SECTION 2 (B009/B019)........................................ 44

21.ELECTRICAL SECTION 1 (B009/B019) ............................ 46

22.ELECTRICAL SECTION 2 (A298)...................................... 48

23.FRAME SECTION (B009/B019)......................................... 50

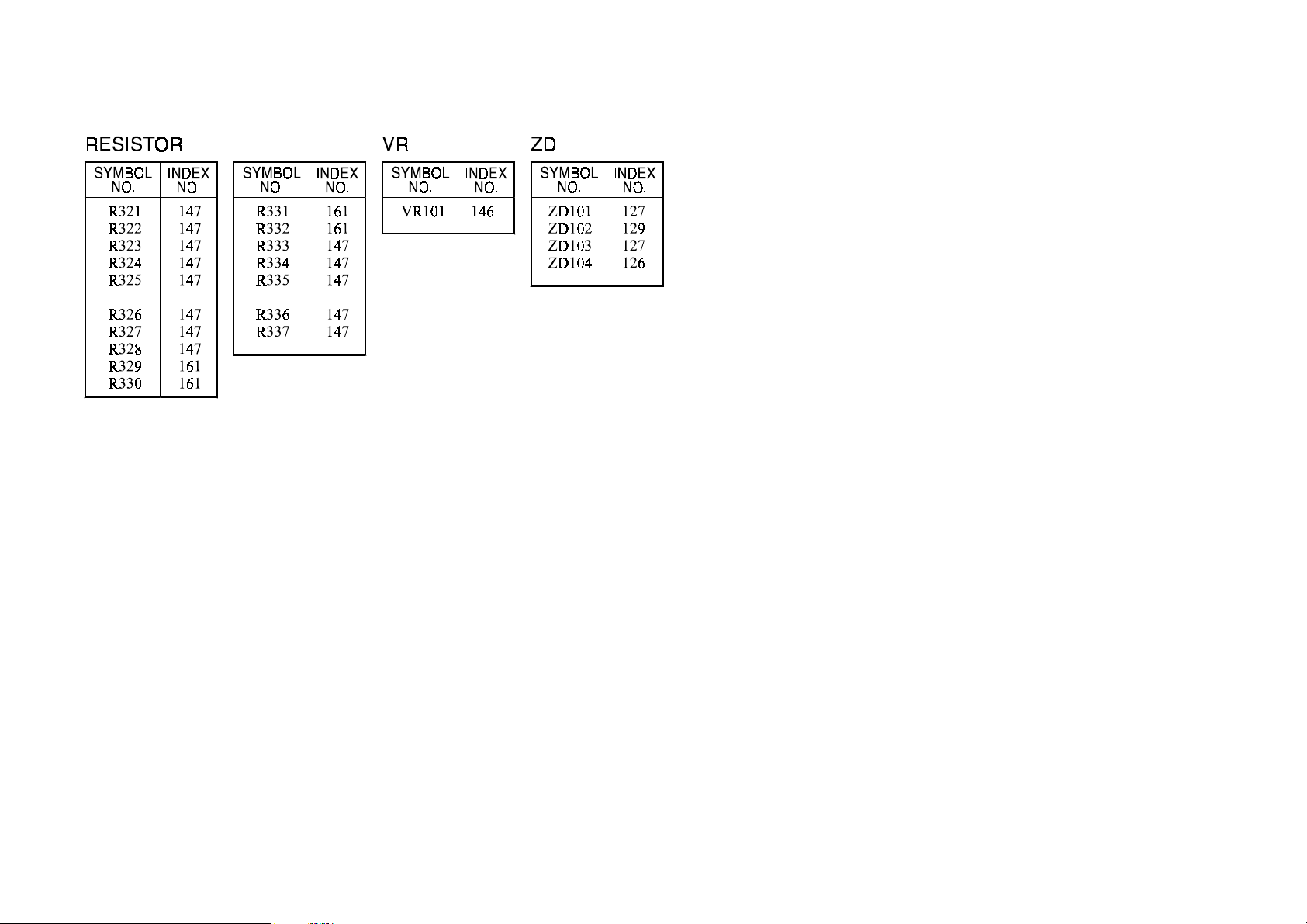

24.MAIN CONTROL BOARD (B009/B019)............................. 52

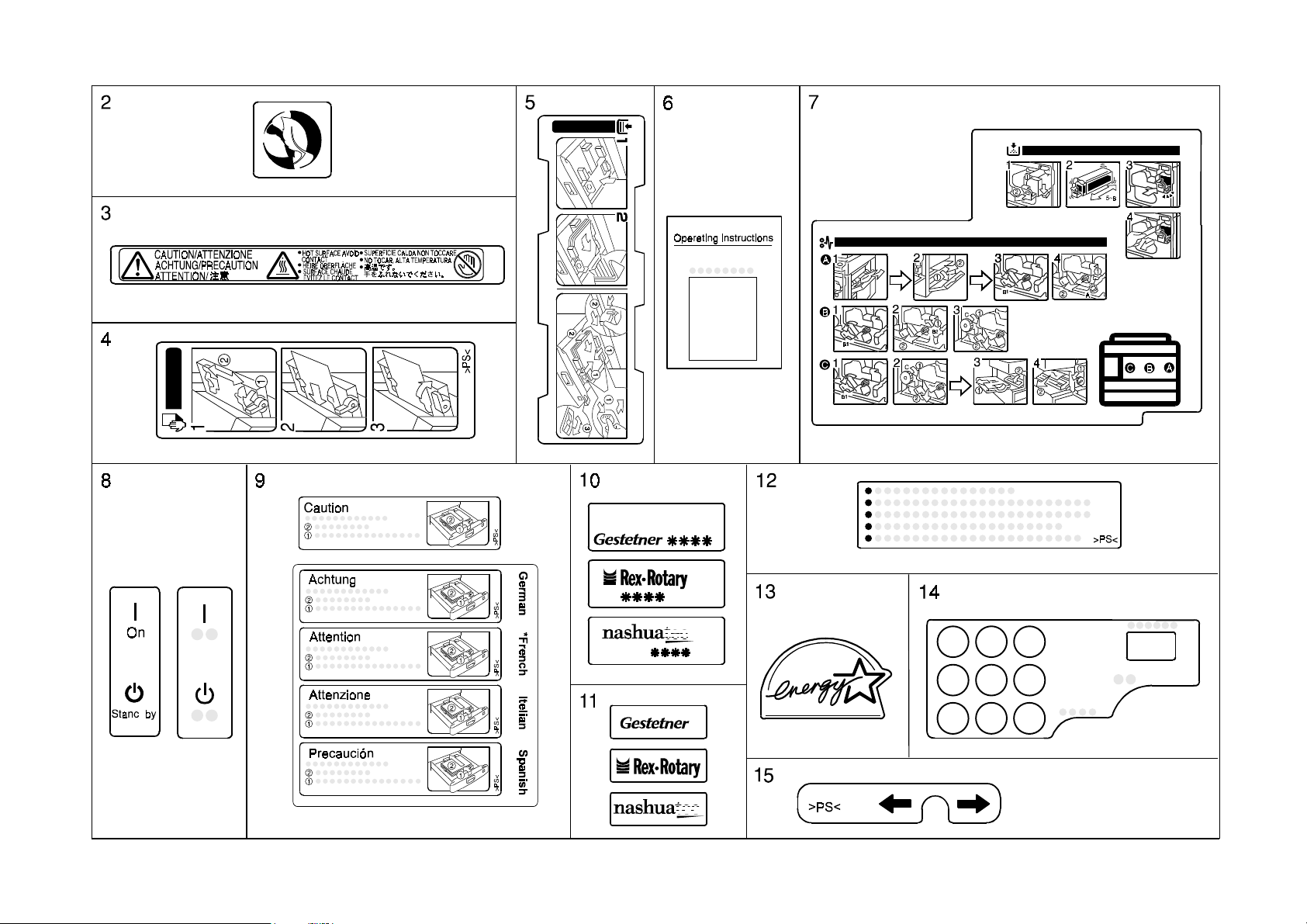

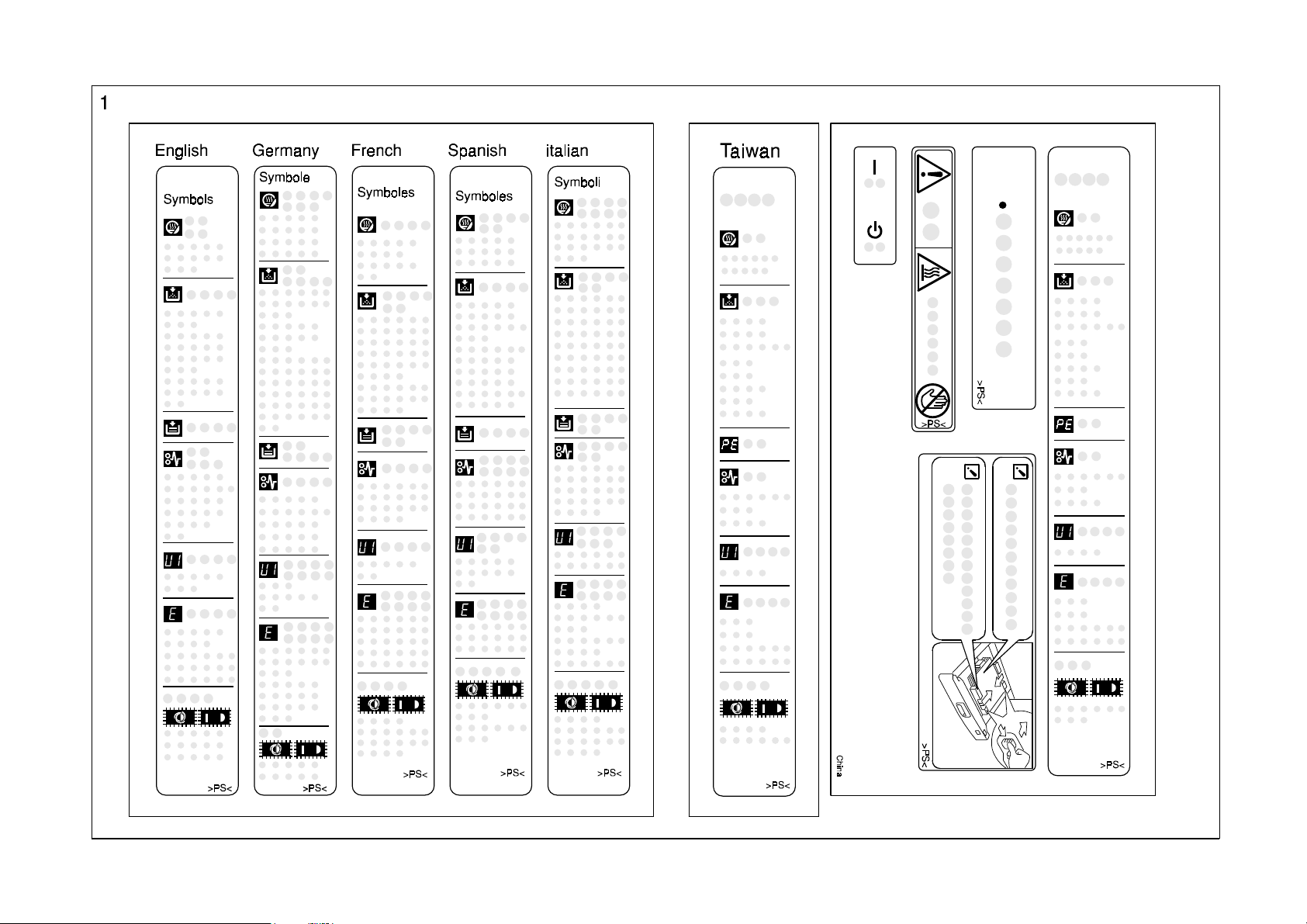

25.DECAL AND DOCUMENT (B009/B019) ............................ 56

26.SPECIAL TOOLS (B009/B019) .......................................... 58

PARTS INDEX......................................................................... 61

December ,30 ’99

LOCATION OF UNIT

1.EXTERIOR (B009/B019)

See Page 7

4.PAPER TRAY (B009/B019)

2.PLATEN COVER (B009/B019)

See Page 9

5.BY-PASS FEED TABLE(B009/B019)

3.OPERATION PANEL (B009/B019)

See Page 11

6.PAPER FEED SECTION 1 (B009/B019)

See Page 13

See Page 15

See Page 17

LOCATION OF UNIT

7.PAPER FEED SECTION 2 (B009/B019)

See Page 19

10.OPTICS SECTION 2 (B009)

8.PAPER REGISTRATION (B009/B019)

See Page 21

11.OPTICS SECTION 3 (B019)

9.OPTICS SECTION 1 (B009/B019)

See Page 23

12.OPTICS SECTION 4 (B019)

See Page 25

See Page 27

See Page 29

LOCATION OF UNIT

13.TONER BOTTLE HOLDER UNIT (B009/B019)

See Page 31

16.LOWER OPTICS SECTION (B009/B019)

14.IMAGING UNIT - 1 (B009/B019)

See Page 33

17.FUSING UNIT (B009/B019)

15.IMAGING UNIT - 2 (B009/B019)

See Page 35

18.TRANSFER AND EXIT SECTION (B009/B019)

See Page 37

See Page 39

See Page 41

LOCATION OF UNIT

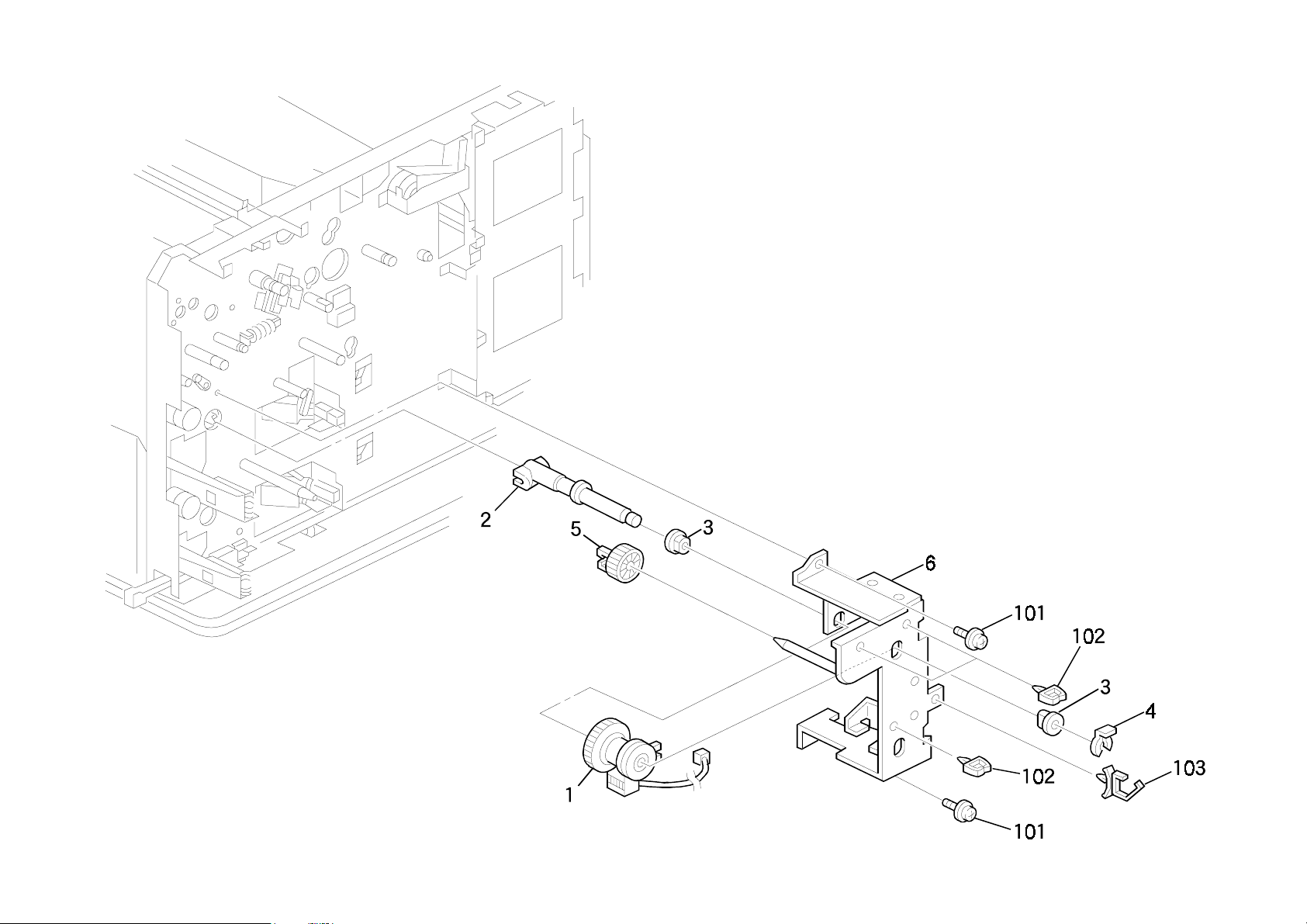

19.DRIVE SECTION 1 (B009/B019)

See Page 43

22.ELECTRICAL SECTION 2 (A298)

20.DRIVE SECTION 2 (B009/B019)

See Page 45

23.FRAME SECTION (B009/B019)

21.ELECTRICAL SECTION 1 (B009/B019)

See Page 47

See Page 49

See Page 51

1.EXTERIOR (B009/B019)

Index No.

1 B009 1270 Front Cover Assembly (RIC) (B009) 1 1 A298 1270 Front Cover Assembly (RIC) (B019) 1 1 A219 6070 Front Cover Ass‘y (NRG/SVN) 1 1 B009 6270 Front Cover Ass‘y (INF) (B009) 1 1 B019 6270 Front Cover Ass‘y (INF) (B019) 1 2 A153 1285 Emblem (RIC) 1 2 A153 6423 Support Cover (INF) 1 3 C225 2866 Decal - Key Top Cover (REX) 1 3 C225 2867 Decal - Cover - Panel (NSA) 1 3 A153 6409 Decal - Keytop Cover (GES) 1 4 A298 1354 Hinge Pin 2 5 A219 1284 Opetation Guide Sheet 1 6 A190 1282 Magnet Catch 1 7 A190 1283 Magnet Catch 1 8 A190 1337 Inner Cover 1 9 AG07 0004 Magnetic Catch 2 10 A219 1296 Front Right Cover 1 11 B009 1451 Operation Panel - A4 (B009) 1 11 B019 1450 Operation Panel - LT (B019) 1 11 B019 1451 Operation Panel - A4 (B019) 1 11 B019 1452 Operation Panel - LT (LA) (B019) 1 12 A190 1260 Upper Cover 1 13 AC01 2042 Exposure Glass 1 14 A298 1655 Left Scale 1 15 AA14 3070 Shoulder Screw - M2x2 2 16 A219 1305 Left Lower Cover 1 17 A190 1300 Left Upper Cover 1 18 A298 1201 Exit Tray 1 19 A298 1202 Slide Wire - Exit Tray 1 20 A190 1297 Right Lower Cover 1 21 B009 6184 Model Name Plate - NSA (B009) 1 21 B009 6186 Model Name Plate - REX (B009) 1 21 B009 6182 Model Name Plate - GES (B009) 1 21 B019 6184 Model Name Plate - NSA (B019) 1 21 B019 6186 Model Name Plate - REX (B019) 1

Part No.

Description

Q’ty Per Assembly

Index No.

21 B019 6182 Model Name Plate - GES (B019) 1 22 A219 1330 Rear Cover 1 23 A219 1290 Rear Right Cover 1 24 AA00 1383 Decal - Energy Star 1 25 A219 1288 Lower Front Cover 1 26 A219 2715 Rail Auxiliary - Left

101 0452 3008Z Bind Tapping Screw - M3x8 102 0353 0060B Philips Pan Head Screw - M3x6 103 0434 0102W Tapping Screw - M4x10 104 0452 3010Z Bind Tapping Screw - 3x10 105 0451 3014B Tapping Screw - M3-14 106 0451 3006B Tapping Screw - M3x6

Part No.

Description

Q’ty Per Assembly

2.PLATEN COVER (B009/B019)

Index No.

1 A203 1346 Platen Cover Hinge 2

2 5448 2804 Platen Cover Sheet 1

3 A298 1391 Platen Cover 1 4 A203 1356 Hinge Shaft - Platen Cover 2 5 AA16 2067 Platen Cover Pad 1

Part No.

Description

Q’ty Per Assembly

Index No.

101 0720 0025E Retaining Ring - M2.5

Part No.

Description

Q’ty Per Assembly

3.OPERATION PANEL (B009/B019)

Index No.

* B009 1451 Operation Panel - A4 (B009) 1 * B019 1450 Operation Panel - LT (B019) 1 * B019 1451 Operation Panel - A4 (B019) 1 * B019 1452 Operation Panel - LT (LA) (B019) 1 1 A298 1465 Operation Panel Cover - A4 1 2 B009 1466 Indication Sheet - A4 (B009) 1 2 B019 1462 Indication Sheet - LT (B019) 1 2 B019 1464 Indication Sheet - LT (LA) (B019) 1 2 B019 1466 Indication Sheet - A4 (B019) 1 3 B009 1467 Operation Panel Sheet - A4 (B009) 1 3 B019 1463 Operation Panel Sheet - LT (B019) 1 3 B019 1465 Operation Panel Sheet - LT (LA) (B019) 1 3 B019 1467 Operation Panel Sheet - A4 (B019) 1 4 A190 1452 Keytop - Start (RIC/NRG) 1 5 A190 1453 Keytop - Clear/Stop (RIC/NRG) 1 6 A190 1454 Keytop - Clear Mode (RIC/NRG) 1 7 A190 1455 Keytop - 10keys (RIC/NRG) 1 8 A298 1464 Operation Panel Board - 120V 1 8 A298 1468 Operation Panel Board - 230V 1

Part No.

Description

Q’ty Per Assembly

Index No.

Part No.

Description

Q’ty Per Assembly

4.PAPER TRAY (B009/B019)

Index No.

* A245 2551 Paper Tray Ass’y - LT 1 * A245 2552 Paper Tray Ass’y - A4 1 1 G020 2647 Paper Tray Cover 1 2 G020 2668 Sheet - Paper Set 1 3 A245 2693 Decal Paper Tray Operation 1 3 A245 2694 Decal - Paper Set Direction (4Languages) 1 4 G020 2593 Paper Size Sensor - LT 1 4 G020 2595 Paper Size Sensor - A4 1 5 G020 2663 Paper Size Actuator 1 6 G020 2648 Holder - Paper Size Detector 1 7 G020 2592 Release Lever - Bottom Plate 1 8 G020 2599 Spring - Release Lever 1 9 A190 2812 Stopper Cover 1 10 A190 2810 Cassette Stopper 1 11 G020 2567 Rear Side Fence 1 12 G020 2568 Rear Corner Separator 1 13 A157 2769 Rear Stopper Spring 2 14 A190 2642 Rear Lever Stopper 1 15 G020 2557 Tray Bottom Plate 1

16 G020 2645 Friction Pad 1

17 G020 2656 Pressure Spring - Bottom Plate 2 18 G020 2658 Grounding Plate - Bottom Plate 1 19 AB01 3868 Gear - 16Z 1 20 G020 2644 End Fence 1 21 G020 2561 Front Paper Separator 1 22 A190 2561 Side Fence Rack 1 23 G020 2664 Front Stopper Lever 1 24 A190 2560 Front Side Fence 1 25 A190 2590 Paper Tray 1 26 G020 2661 Bottom Plate Ass’y 1 27 A193 2660 Paper Separator Cushion 2 28 A219 2696 Decal - Size Selection 1

Part No.

Description

Q’ty Per Assembly

Index No.

101 0450 3008B Tapping Screw - M3x8 102 0452 3008B Tapping Screw - M3x8 103 0413 0082W Tapping Screw - M3x8 104 0451 3006B Tapping Screw - M3x6

Part No.

Description

Q’ty Per Assembly

5.BY-PASS FEED TABLE(B009/B019)

Index No.

* A298 2700 By-pass Feed Unit 1 1 G020 2735 Guide - By-pass Feed Table 2 2 A190 2707 Side Fence Rack 2 3 A190 2701 By-pass Feed Cover 1 4 A190 2708 Decal - By-pass Feed 1 5 G020 2786 Shaft - By-pass Release Lever 1 6 G020 2784 Lever - By-pass Feed Table 1 7 5447 2681 Snap Ring 1 8 G020 2702 Pressure Spring - By-pass Feed 1 9 5215 2713 Bottom Plate Pad 1 10 A190 2782 Bottom Plate Stay 1 11 A190 2705 Right Side Fence 1 12 G011 3305 Gear - 16T 1 13 A190 2702 Paper Guide 1 14 A190 2704 Bottom Plate - By-pass Feed 1 15 A190 2706 Left Side Fence 1

Part No.

Description

Q’ty Per Assembly

Index No.

101 0453 3006Z Bind Tapping Screw - M3x6 102 0451 3006B Tapping Screw - M3x6

Part No.

Description

Q’ty Per Assembly

6.PAPER FEED SECTION 1 (B009/B019)

Index No.

1 A298 1139 Magnetic Clutch - Vertical 1

2 G020 2555 Paper Feed Roller 2

3 A190 3361 Toner Bottle Holder Guide 1 4 G020 2785 Cover - Feed Roller Shaft 1 5 A190 2771 Resist Sensor 1 6 A219 3360 Toner Bottle Holder guide Ass’y 1 7 G020 2753 Bracket - Registration Sensor 1 8 A190 2772 Paper End Sensor 1 9 G020 2787 Cover - By-pass Paper End Sensor 1 10 A190 5344 Relay Harness - By-pass Feed 1 11 G020 2723 By-pass Feed Shaft 1 12 G020 2587 Bushing - Paper Feed 1

13 G020 2721 By-pass Feed Roller 1

14 A190 2564 Relay Roller 1 15 G020 2586 Rear Pin - Paper Feed Roller 1 16 G020 2585 Front Pin - Paper Feed Roller 1 17 G020 2570 Shaft - Paper Feed Roller 1 18 G020 2565 Paper Guide 4 19 A219 3364 Mylar Seal - 8x429 1 20 A219 3365 Mylar Seal - 8x400 1 21 A190 3363 Mylar Seal - 10x360 1 22 G020 2554 Paper Feed Roller Ass’y 1

Part No.

Description

Q’ty Per Assembly

Index No.

101 0805 3480 Bushing - 6mm 102 0720 0040E Retaining Ring - M4 103 0451 3006B Tapping Screw - M3x6 104 0450 3008B Tapping Screw - M3x8 105 0453 3008 Bbind Tapping Screw - M3x8

Part No.

Description

Q’ty Per Assembly

7.PAPER FEED SECTION 2 (B009/B019)

Index No.

1 A190 2905 Cushion 1 2 A190 2902 Switch Lever 1 3 B009 5310 DC Main Harness (B009) 1 3 A298 5310 DC Main Harness (B019) 1 4 A190 2900 Switch Bracket 1 5 A219 2611 Paper Guide Plate 1 6 A219 2612 Lower Paper Guide 1 7 AF02 0283 Pressure Roller 2 8 G020 2577 Spring Plate - Driven Roller 4 9 G020 2630 Magnetic Catch 1 10 A219 2575 Vartical Transport 1

Part No.

Description

Q’ty Per Assembly

Index No.

101 1204 2466 Micro Switch - V -16506 IC25 102 0451 3006B Tapping Screw - M3x6 103 0720 0030E Retaining Ring - M3 104 0451 3014B Tapping Screw - M3-14

Part No.

Description

Q’ty Per Assembly

8.PAPER REGISTRATION (B009/B019)

Index No.

1 G020 3888 Pin - Transfer Guide 1 2 A190 2780 Front Bushing 1 3 5447 2681 Snap Ring 1 4 G020 2743 Tension Spring 1 5 A190 2711 Friction Pad Stay 1 6 G020 2745 Lower Guide Plate - Regist 1 7 A190 2783 Resist Roller Knob 1 8 A190 2740 Lower Resistration Roller 1 9 A190 2781 Rear Bushing 1 10 G020 2712 Holder - By-pass Feed Friction Pad 1 11 A298 2741 Upper Registration Roller 1 12 G020 2765 Knob - Lower Transport Guide 1 13 G020 2762 Lower Transport Guide 1 14 AA06 0331 Release Spring 1 15 5053 0223 Bushing - 8mm 2 16 G020 2754 Upper Paper Guide 1 17 A190 2717 Friction Pad Guide 1

18 G020 2716 Friction Pad 1

19 A190 2714 Friction Pad Holder Ass‘y 1 20 G020 2713 Pressure Spring 1

Part No.

Description

Q’ty Per Assembly

Index No.

101 0451 3006B Tapping Screw - M3x6

Part No.

Description

Q’ty Per Assembly
