Ricoh FT2212, FT2012 Part List

®

A183/A184

®

®

®

PARTS CATALOG

RICOH GROUP COMPANIES

PN: RCPC2012

®

®

®

PARTS CATALOG

A183/A184

RICOH GROUP COMPANIES

A183/A184

PARTS CATALOG

PN: RCPC2012

LEGEND

PRODUCT CODE COMPANY

GESTETNER RICOH SAVIN

A183 FT2012
A184 FT2212

DOCUMENTATION HISTORY

REV. NO. DATE COMMENT

* 9/97 Original Printing

A183/A184 PARTS CATALOG

TABLE OF CONTENTS

A183/A184 PARTS LOCATION AND LIST

LOCATION OF UNIT ..................................................................... 2

1. EXTERIOR (A183/A184).......................................................... 4

2. OPTICS SECTION 1 (A183/A184)........................................... 6

3. OPTICS SECTION 2 (A183/A184)........................................... 8

4. OPTICS SECTION 3 (A183/A184)........................................... 10

5. PAPER TRAY (A183/A184)...................................................... 12

6. IMAGING UNIT (A183/A184) ................................................... 14

7. FUSING UNIT (A183/A184) ..................................................... 16

8. DRIVE SECTION (A183/A184) ................................................ 18

9. ELECTRICAL SECTION (A183/A184)..................................... 20

10. MAIN CONTROL BOARD (A183/A184)................................... 22

11. DECAL AND DOCUMENT (A183/A184).................................. 26

12. SPECIAL TOOLS AND LUBRICATIONS (A183/A184)............ 28

A183/A184 PARTS INDEX

PARTS INDEX ............................................................................... 2

A183/A184

PARTS LOCATION AND LIST

This section instructs you as to the numbers and names of parts on this machine.

Location of unit

1. EXTERIOR (A183/A184)

See Page 4

4. OPTICS SECTION 3 (A183/A184)

2. OPTICS SECTION 1 (A183/A184)

See Page 6

5. PAPER TRAY (A183/A184)

3. OPTICS SECTION 2 (A183/A184)

See Page 8

6. IMAGING UNIT (A183/A184)

See Page 10

A183/A184 2 Parts Location and List

See Page 12

See Page 14

Location of unit

7. FUSING UNIT (A183/A184)

See Page 16

8. DRIVE SECTION (A183/A184)

See Page 18

9. ELECTRICAL SECTION (A183/A184)

See Page 20

A183/A184 3 Parts Location and List

1. EXTERIOR (A183/A184)

A183/A184 4 Parts Location and List

1. EXTERIOR (A183/A184)

Index
No.

1 A184 1480 Platen cover 1
1 A184 1486 Platen Cover (RIC-NA) 1
2 A184 1481 Platen Cover Sheet 1
3 A184 1471 Upper Copy Tray 1
4 A184 1472 Decal - Original Size (RIC-NA) 1
4 A184 1473 Decal - Original Size 1
5 A184 1473 Position Cover 2
6 A184 1474 Shielding Cover 2
7 A184 1470 Upper Cover 1
8 A183 1403 Operation Panel - LT (A183)(RIC-NA) 1
8 A183 1411 Operation Panel - LT (A183)(RIC-SA) 1
8 A183 1405 Operation Panel - A4 (A183)(RIC) 1
8 A183 1406 Operation Panel - LT (A183)(NRG) 1
8 A183 1408 Operation Panel - A4 (A183)(NRG) 1
8 A183 1409 Operation Panel - A4 (A183)(INF) 1
8 A184 1402 Operation Panel - LT (A184)(RIC-NA) 1
8 A184 1411 Operation Panel - LT (A184)(RIC-SA) 1
8 A184 1404 Operation Panel - A4 (A184)(RIC) 1
8 A184 1406 Operation Panel - LT (A184)(NRG) 1
8 A184 1408 Operation Panel - A4 (A184)(NRG) 1
8 A184 1409 Operation Panel - A4 (A184)(INF) 1
9 A184 3890 Wire Cleaning Tool 1
10 A184 1814 Exposure Glass 1
11 A184 1475 Operation Panel Cover 1
12 A184 1372 Gas Spring Shaft - Upper Right 1
13 A184 1371 Gas Spring Shaft - Upper Left 1
14 5215 2621 Snap Ring - M6 3
15 A184 1491 Platen Cover Hinge - Left 1
16 A184 1492 Platen Cover Hinge - Right 1
17 A183 1430 Decal - Model Name (A183)(GES) 1
17 A183 1431 Decal - Model Name (A183)(NSA) 1
17 A183 1432 Decal - Model Name (A183)(SVN) 1
17 A183 1433 Decal - Model Name (A183)(REX) 1
17 A184 1430 Decal - Model Name (A184)(GES) 1
17 A184 1431 Decal - Model Name (A184)(NSA) 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

17 A184 1432 Decal - Model Name (A184)(SVN) 1
17 A184 1433 Decal - Model Name (A184)(REX) 1
18 A184 8600 Decal - Symbol Explanation - English 1
18 A184 8606 Decal - Symbol Explanation - German (INF) 1
18 A184 8607 Decal - Symbol Explanation - French (INF) 1
18 A184 8608 Decal - Symbol Explanation - Spanish 1

18 A184 8609 Decal - Symbol Explanation - Italian (INF) 1
18 A184 8610 Decal - Symbol Explanation - Portuguese 1

101 0451 3008B Tapping Screw - M3x8
102 0452 3012Z Bind Tapping Screw - 3x12

103 1106 0313 Harness Clamp

Part No.

(RIC-NA,SA/INF)

(RIC-SA)

Description

Q’ty Per
Assembly

A183/A184 5 Parts Location and List

2. OPTICS SECTION 1 (A183/A184)

A183/A184 6 Parts Location and List

2. OPTICS SECTION 1 (A183/A184)

Index
No.

1 A183 1781 Lens Cover (A183) 1
1 A184 1781 Lens Cover (A184) 1
2 A184 1651 1st Scanner Unit - 120V 1
2 A184 1652 1st Scanner Unit - 230V 1
3 A184 5309 Exposure Lamp Harness 1
4 A184 5226 Optics Cooling Fan Motor - DC24V (230V) 1
5 A152 5120 Optics Control Board 1
6 A077 1745 Cover - ADS Sensor 1
7 A184 1721 Scanner Lens - 8/180 1
8 A184 1717 Scanner Lens Clamp (A184) 1
9 A184 1718 Scanner Lens Bracket (A184) 1
10 A184 1715 Lens Bracket (A184) 1
11 A184 1741 Driven Gear - 30z (A184) 1
12 A184 1746 Timing Belt - L426 (A184) 1
13 A184 1737 Cam - 44z (A184) 1
14 A184 1760 Cam Spring (A184) 1
15 A184 1736 Timing Pulley - 73Z/19Z/30Z (A184) 1
16 A184 1739 Idle Gear - 67z (A184) 1
17 A184 5210 Lens/Mirror Motor - DC24V (A184) 1
18 AW02 0075 Photointerrupter (A184) 1
19 A184 1367 Clamp 1
20 A183 1715 Lens Bracket (A183) 1
21 A184 1756 Cam Flower (A184) 1
22 A184 1752 Mirror - 4th/5th 2
23 A077 1690 Spring Plate - Mirror 6
24 A077 1746 Mirror Adjusting Screw 1
25 A184 1772 6th Mirror 1
26 AA06 3180 Adjust Spring 2
27 AA06 3523 Adjust Spring 1
28 A153 1906 Adjust Shoe 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

101 0450 3030B Tapping Screw - M3x30
102 0450 3010B Tapping Screw - M3x10
103 0701 0030B Flat Washer - M3
104 0720 0040E Retaining Ring - M4
105 0313 0060B Philips Pan Head Screw - M3x6
106 0451 3006B Tapping Screw - M3x6

107 0413 0102W Tapping Screw - M3x10

Part No.

Description

Q’ty Per
Assembly

A183/A184 7 Parts Location and List

3. OPTICS SECTION 2 (A183/A184)

A183/A184 8 Parts Location and List

3. OPTICS SECTION 2 (A183/A184)

Index
No.

1 A184 1695 Mirror - 2nd/3rd 2
2 A077 1690 Spring Plate - Mirror 4
3 A184 1685 2nd Slider Bushing 2
4 A184 1855 Large Cleaner - Scanner Rod 2
5 A184 1676 Clamp Bracket 1
6 A184 1677 Clamp 1
7 A184 1687 Clamp 1
8 A184 1689 Harness Guide 1
9 A184 5235 Quenching Lamp 1
10 A184 1831 Drive Pulley - 44z 1
11 A184 1836 Timing Belt - L956 1
12 A184 1841 Driven Pulley - 22z 1
13 A184 1748 Tension Spring 1
14 A184 1846 Timing Belt - L530 1
15 A184 1824 Pulley - 22Z/44Z 1
16 A184 5344 Scanner Grounding Harness 1
17 A184 5205 Scanner Motor - DC24V 1
18 A184 1853 Scanner Rod Fixing Plate 1
19 A183 5230 Erase Lamp (A183) 1
19 A184 5230 Erase Lamp (A184) 1
20 A184 2091 Shielding Plate - 240x14.5 1
21 A184 1691 2nd Scanner Shoe 1
22 A184 1675 1st Scanner Bushing 1
23 A184 1854 Small Cleaner - Scanner Rod 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

101 0451 3006B Tapping Screw - M3x6
102 0313 0040B Philips Pan Head Screw - M3x4
103 0450 3006B Tapping Screw - M3x6
104 0450 3008B Tapping Screw - M3x8

105 0720 0060E Retaining Ring - M6

Part No.

Description

Q’ty Per
Assembly

A183/A184 9 Parts Location and List

4. OPTICS SECTION 3 (A183/A184)

Rev. 09/99

A183/A184 10 Parts Location and List

4. OPTICS SECTION 3 (A183/A184)

Rev. 09/99

Index
No.

1 A184 1361 Fan Motor Holder 1
2 A184 5225 Exhaust Fan Motor - DC24V 1
3 A184 1364 Ozone Filter Holder 1

5 A183 5100 Main Control Board (A183) 1
5 A184 5100 Main Control Board (A184) 1
6 AW02 0075 Photointerrupter 1
7 A184 5341 Scanner HP Harness 1
8 AW10 0033 Thermistor 1
9 A184 5150 High Voltage Supply Board - CT/B/G 1
10 A184 2360 Terminal - Charge 1
11 A184 2362 Terminal - Bias 1
12 A184 2361 Terminal - Grid 1
13 A183 5303 Upper Main Harness (A183) 1
13 A184 5303 Upper Main Harness (A184) 1
14 A184 5140 Scanner Drive Board 1
15 A184 1376 Grounding Plate 1
16 AX31 0024 Total Counter (230V) 1
17 A184 5290 Photointerrupter 1
18 A184 1352 Release Spring 2
19 A184 1359 Lock Release Lever 1
20 A184 2585 Middle Driven Roller 2
21 A184 2586 Roller Spring 2
22 A184 4092 Pressure Spring Ass‘y 2
23 A184 2588 Sensor Bracket 1

Part No.

4 A184 1363 Ozone Filter 1

Description

Q’ty Per
Assembly

Index
No.

101 0450 3008B Tapping Screw - M3x8
102 0451 3006B Tapping Screw - M3x6

103 1607 0576 Sleeve Core - SFC-8

Part No.

Description

Q’ty Per
Assembly

A183/A184 11 Parts Location and List

5. PAPER TRAY (A183/A184)

13

A183/A184 12 Parts Location and List

5. PAPER TRAY (A183/A184)

Index
No.

*A184 2500 Paper Tray Unit 1
1 A184 2558 Paper End Fence 1
2 A184 0456 Decal - Paper Set 1
3 A184 2504 By-pass Feed Unit 1
4 A184 2555 Side Fence 2
5 A184 2567 Decal - Paper Upper Limit 1
6 A184 2554 Bottom Plate Spring 2
7 A184 2559 Spacer 2
8 A184 2553 Bottom Plate Pad 2
9 A184 2566 Paper Feed Guide 3
10 A184 2568 Corner Separation Seal 2
11 A184 2557 Corner Separation - Left 1
12 A184 2556 Corner Separator - Right 1

13 A184 2569 Paper Guide Mylar 4

Part No.

Description

Q’ty Per
Assembly

Index
No.

Part No.

Description

Q’ty Per
Assembly

A183/A184 13 Parts Location and List

6. IMAGING UNIT (A183/A184)

A183/A184 14 Parts Location and List

6. IMAGING UNIT (A183/A184)

Index
No.

1 A184 2276 Spring Plate - Lever 1
2 A184 3430 Toner Bottle Holder 1
3 A184 0454 Decal - OPC Guidance 1
4 A184 3550 Cleaning Blade 1

5 A184 2045 Charge Corona Unit 1

6 A184 2352 Grid Terminal 1
7 A184 0452 Caution Decal - Used Toner 1
8 A184 5335 Imaging Unit Connector 1
9 A184 3371 Connector Guide 3
10 A184 2610 Driven Roller 2
11 A184 3460 Drive Gear - 14z 1
12 A184 3451 Gear - 12Z 1
13 A184 3453 Bushing 1
14 A184 3328 Gear - 19Z 2
15 A184 3329 Gear - 20Z 2
16 A184 3327 Gear - 18Z 1
17 A184 3335 Idler Bushing 1
18 A184 2270 Toner Bottle Holder Plate 1
19 A184 3281 Spacer - M5 1
20 A184 2350 Bias Terminal 1
21 A184 2325 Gear - 32Z 1
22 A184 3561 Gear - 24Z 1
23 A184 2356 High Voltage Terminal 1
24 A184 2357 Charge Corona Terminal 1
25 A184 2355 Terminal Cover 1
26 A184 2359 Resistor - 3M
27 A184 2365 Transfer Terminal 1
28 A184 3450 Gear - 20Z 1
29 A184 2614 Lower Guide Plate 1
30 A184 3432 Lever Spring Plate - Left 1
31 A184 3431 Lever Spring Plate - Right 1
32 A184 0453 Caution Decal - OPC 1

Part No.

Description

Ω

Q’ty Per
Assembly

1

Index
No.

101 0452 3008B Tapping Screw - M3x8
102 0452 3006B Tapping Screw - M3x6
103 0720 0040B Retaining Ring - M4

104 0805 0089 Retaining Ring - M4

Part No.

Description

Q’ty Per
Assembly

A183/A184 15 Parts Location and List

7. FUSING UNIT (A183/A184)

35

A183/A184 16 Parts Location and List

7. FUSING UNIT (A183/A184)

Index
No.

*A184 4050 Fusing Unit - 120V 1
*A184 4051 Fusing Unit - 230V 1
1 A184 4054 Exit Cover 1
2 A184 4053 Paper Exit Roller Holder 2
3 A184 4055 Exit Driven Roller 2
4 A184 4058 Exit Drive Roller 1
5 A184 4057 Bushing 2
6 A184 4056 Gear - 22Z 1
7 A184 4059 Lower Guide Plate 1
8 A184 4064 Idle Gear - 20z 2
9 A184 0455 Decal - Misfeed Removal 1
10 A184 4061 Fusing Upper Cover 1
11 A184 4082 Thermistor 1
12 A184 4099 Terminal Plate 1
13 A184 4063 Thermofuse 1
14 A184 4074 Terminal Plate 1
15 A184 4069 Paper Stripper Bracket 1
16 A184 4106 Fusing Lamp - 120V 480W 1
16 A184 4107 Fusing Lamp - 230V 550W 1
17 A184 4065 Front Heater Holder 1
18 A184 4104 Front Heater Cover 1
19 A184 4081 Right Retaining Ring - 31 1
20 A184 4098 Bushing - 36mm 2

21 A184 4079 Hot Roller 1

22 A184 4080 Gear - 50Z 1
23 A184 4077 Right Heater Holder 1
24 A184 4103 Right Heater Cover 1
25 A184 4091 Pressure Roller Bushing 2

26 A184 4084 Pressure Roller 1

27 A184 4085 Right Pressure Arm 1
28 A184 4087 Photointerruptor 1
29 A184 5319 Exit Sensor Relay Harness 1
30 A184 4089 Fusing Lower Frame 1
31 A184 4088 Lower Entrance Guide 1

32 A184 4072 Stripper Pawl 3

Part No.

Description

Q’ty Per
Assembly

Index
No.

33 A184 4073 Stripper Pawl Spring 3
34 A184 4086 Left Pressure Arm 1
35 A184 4105 Left Retaining Ring - 31 1

101 0451 3006B Tapping Screw - M3x6
102 0450 3008B Tapping Screw - M3x8
103 0451 3010B Tapping Screw - M3x10
104 0324 0160W Philips Sunken Head Screw - M4x16
105 0710 0040 Hexagon Nut - M4

106 0720 0040E Retaining Ring - M4

Part No.

Description

Q’ty Per
Assembly

A183/A184 17 Parts Location and List

8. DRIVE SECTION (A183/A184)

28

A183/A184 18 Parts Location and List

8. DRIVE SECTION (A183/A184)

Index
No.

1 A184 4093 Exit Cover 1
2 A184 1328 Grounding Plate 1
3 A184 1050 Drive Unit 1
4 A184 4101 Antistatic Brush 1
5 A184 5201 Main Motor - 18W 1
6 A184 5220 Toner Supply Clutch 1
7 A184 1370 Gas Spring 2
8 A184 1334 Lower Gas Spring Shaft 2
9 5215 2621 Snap Ring - M6 3

10 A184 3800 Transfer Corona Unit 1

11 A184 2600 Registration Roller 1
12 A184 2602 Right Bushing 1
13 A184 2601 Left Bushing 1
14 A184 2604 Bushing - 6x9x4 1
15 A184 2603 Gear - 30Z 1
16 A184 3916 Varistor 1
17 A184 3911 Grounding Plate 1
18 A184 3913 Grounding Plate 1
19 A184 3915 Antistatic Brush 1
20 A184 1339 Grounding Plate - Front 1
21 A184 2453 Connector Spring 1
22 A184 2584 Idle Gear 1
23 AX20 0132 Magnetic Clutch 1
24 A184 2583 Middle Transfer Gear 1
25 A184 2580 Transport Roller Ass‘y 1

26 A184 2570 Pick-up Roller 1

27 A184 2573 Roller Shaft Stopper 1
28 A184 3917 Antistatic Brush Cover 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

101 0450 3008B Tapping Screw - M3x8

102 0451 3008B Tapping Screw - M3x8

Part No.

Description

Q’ty Per
Assembly

A183/A184 19 Parts Location and List

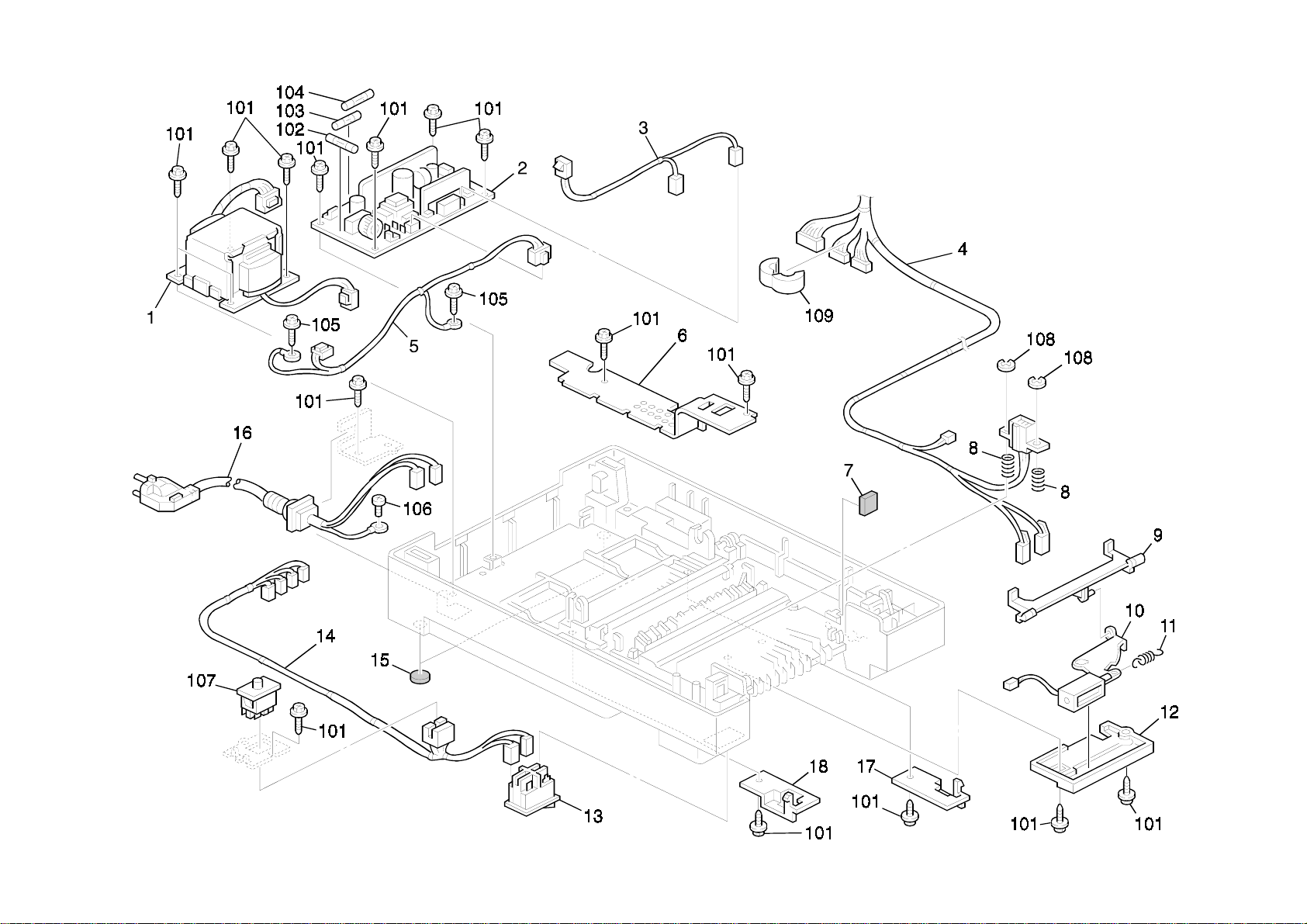

9. ELECTRICAL SECTION (A183/A184)

A183/A184 20 Parts Location and List

9. ELECTRICAL SECTION (A183/A184)

Rev. 10/99

Index
No.

1 A184 5552 Transformer - 120V 1
1 A184 5652 Transformer - 230V 1
2 A184 5551 Power Supply Board - 120V 1
2 A184 5651 Power Supply Board - 230V 1
3 A184 5307 Fusing Harness 1
4 A184 5302 Lower Main Harness 1
5 A184 5305 Scanner Harness 1
6 A184 1332 Inner Cover - Base 1
7 A184 1333 Cushion 1
8 A184 2453 Connector Spring 2
9 A184 2596 Stopper 1
10 A184 2595 Stopper Solenoid 1
11 A184 2592 Stripper Pawl Spring 1
12 A184 2593 Solenoid Cover 1
13 A152 5220 Main Switch 1
14 A184 5301 AC Drive Harness 1
15 A184 1331 Rubber Foot 1
16 A184 5581 Power Supply Cord - 120V 1
16 A184 5681 Power Supply Cord - 230V 1
17 A184 1482 Rear Right Base Cover 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

101 0450 3008B Tapping Screw - M3x8
102 1107 0874 Fuse - 10A 125V
102 1107 0884 Fuse - 5A 250V
103 1107 0867 Fuse - 2A 125V
103 1107 0882 Fuse - 2A 250V
104 1107 0855 Fuse - 8A 125V
104 1107 0885 Fuse - 6.3A 250V
105 0951 3006B Philips Screw With Flat Washer-M3x6
106 0950 4008M Screw - M4X8
107 1204 2334 Interlock Switch - Fail
108 0720 0020E Retaining Ring - M2

109 1607 0623 Ferrite Core - TFC-16-8-13

Part No.

Description

Q’ty Per
Assembly

A183/A184 21 Parts Location and List

10. MAIN CONTROL BOARD (A183/A184)

A183/A184 22 Parts Location and List

10. MAIN CONTROL BOARD (A183/A184)

A183/A184 23 Parts Location and List

10. MAIN CONTROL BOARD (A183/A184)

A183/A184 24 Parts Location and List

10. MAIN CONTROL BOARD (A183/A184)

Index
No.

*A183 5100 Main Control board (A183) 1
*A184 5100 Main Control Board (A184) 1
1 A077 5702 IC Socket - 28P 1
2 A077 5717 Resistor - 1K Ω ±5% 1W 1
3 A184 5104 IC - UVEPROM 512KX8 120NS 1
4 A184 5105 IC - RF5A93 1
5 A184 5108 Resistor - 330Ω ±5% 3W 1

101 1102 4201 Connector - 2p
102 1102 4202 Connector - 3p
103 1102 4203 CT Header - 4p
104 1102 4205 CT Header- 6p
105 1102 4207 Connector - 8p
106 1102 4208 Connector - 9p
107 1102 4210 Connector - 11p
108 1102 4462 CT Header(h) - 4p
109 1102 4619 Connector - 2p
110 1102 4621 CT Header - 4p
111 1102 4631 CT Connector - 2p
112 1102 4643 CT Connector - 2p
113 1102 5303 Connector - 4p
114 1104 0511 IC Socket - 8p - DICF-8CS-E
115 1400 0072 Transistor - 2SC372Y
116 1400 0291 Transistor - 2SA1020Y
117 1401 0694 Zener Diode - RD6.8FB
118 1402 0277 Zener Diode - 1z12
119 1402 1050 Silicon Diode - 100V 1A
120 1402 1160 Diode - S5688
121 1407 1535 IC - TD62308AP
122 1407 2187 TTLIC - SN74LS07NS
123 1407 2344 IC - TD62382F
124 1407 3173 Driver - 16bit - M66311fp
125 1407 3764 IC - TC7SU04F
126 1407 3857 Transistor - Array - Td62381f

Part No.

Description

Q’ty Per
Assembly

Index
No.

127 1407 4662 Eeprom - Is93c46-3i
128 1407 4672 TTL - HD74LS368FP
129 1408 0150 IC - ULN2003AN
130 1408 0595 IC - NJM2904M
131 1408 0611 IC - 3771
132 1503 0563 Oscillator-9.83MTZ040
133 1600 0681 Resistor - 510 Ω 1W ±5%
134 1601 8157 Variable Resistor - 100K
135 1607 0878 Inductor - BLM21A102S
136 1611 4569 Resistor - 5.6 Ω ±5% 1/4W
137 1630 3101 Resistor - 100Ω - 1/10W
138 1630 3102 Resistor - 1KΩ 1/10W ±5%
139 1630 3103 Resistor - 10KΩ 1/10W ±5%
140 1630 3105 Resistor - 1M Ω ±5% 1/10W
141 1630 3153 Resistor - 15K Ω ±5% 1/10W
142 1630 3204 Resistor - 200K Ω 1/10W ±5%
143 1630 3222 Resistor - 2.2KΩ 1/10W ±5%
144 1630 3223 Resistor - 22kΩ - 1/10W
145 1630 3272 Resistor - 2.7K Ω ±5% 1/1W
146 1630 3472 Resistor - 4.7KΩ 1/10W ±5%
147 1630 3512 Resistor - 5.10kΩ - 1/10W
148 1630 3751 Resistor - 750Ω±5% 1/10W
149 1633 0000 Resistor - 0Ω 1/10W:JAMPER CHIP
150 1633 1001 Resistor - 1K Ω ±1% 1/10W
151 1633 1002 Resistor - 10K Ω ±1% 1/10W
152 1633 3901 Resistor - 3.9 Ω ±1% 1/10W
153 1640 5100 Capacitor - 10µF ±20% 50V
154 1640 5109 Capacitor - 1µF - ±20% - 50V
155 1640 5470 Capacitor - 47µF ±20% 50V
156 1660 3101 Capacitor - 100PF 50V
157 1660 3471 Capacitor - 470PF 50V
158 1660 7103 Capacitor - 10000PF 50V

159 1660 7104 Capacitor - 100000PF 50V

Part No.

Description

Ω

Q’ty Per
Assembly

A183/A184 25 Parts Location and List

11. DECAL AND DOCUMENT (A183/A184)

A183/A184 26 Parts Location and List

11. DECAL AND DOCUMENT (A183/A184)

Index
No.

1 A183 1430 Decal - Model Name (A183)(GES) 1
1 A183 1431 Decal - Model Name (A183)(NSA) 1
1 A183 1432 Decal - Model Name (A183)(SVN) 1
1 A183 1433 Decal - Model Name (A183)(REX) 1
1 A184 1430 Decal - Model Name (A184)(GES) 1
1 A184 1431 Decal - Model Name (A184)(NSA) 1
1 A184 1432 Decal - Model Name (A184)(SVN) 1
1 A184 1433 Decal - Model Name (A184)(REX) 1
2 A184 0455 Decal - Misfeed Removal 1
3 A184 0456 Decal - Paper Set 1
4 A184 1338 Decal - Main Switch (120V) 1
4 A184 1354 Decal - Main Switch (230V) 1
5 A184 1472 Decal - Original Size (RIC-NA) 1
5 A184 1476 Decal - Original Size 1
6 A184 2277 Decal - Imaging Unit 1
7 A184 2567 Decal - Paper Upper Limit 1
8 A183 8608 Operating Instructions - Eng. Asia 1
8 A183 8632 Operating Instructions - French LT 1
8 A183 8634 Operating Instructions - Spanish LT 1
8 A183 8636 Operating Instructions - Portuguese LT 1
8 A183 8637 Operating Instructions - English LT 1
8 A183 8644 Operating Instructions - Spanish LT 1
8 A183 8647 Operating Instructions - English LT 1
8 A183 8660 Operating Instructions - English A4 1
8 A183 8661 Operating Instructions - German A4 1
8 A183 8662 Operating Instructions - French A4 1
8 A183 8663 Operating Instructions - Italian A4 1
8 A183 8664 Operating Instructions - Spanish A4 1
8 A183 8690 Operating Instructions - English A4 1
8 A183 8697 Operating Instructions - English LT 1
9 A184 8600 Decal - Symbol Explanation - English 1
9 A184 8606 Decal - Symbol Explanation - German (INF) 1
9 A184 8607 Decal - Symbol Explanation - French (INF) 1
9 A184 8608 Decal - Symbol Explanation - Spanish 1
(RIC-NA,SA/INF)

Part No.

Description

Q’ty Per
Assembly

Index
No.

9 A184 8609 Decal - Symbol Explanation - Italian (INF) 1
9 A184 8610 Decal - Symbol Explanation - Portuguese 1
(RIC-NA)
10 A184 0452 Caution Decal - Used Toner 1
11 A184 0453 Caution Decal - OPC 1

12 A184 0454 Decal - OPC Guidance 1

Part No.

Description

Q’ty Per
Assembly

A183/A184 27 Parts Location and List

12. SPECIAL TOOLS AND LUBRICATIONS (A183/A184)

78

A183/A184 28 Parts Location and List

12. SPECIAL TOOLS AND LUBRICATIONS (A183/A184)

Index
No.

1 A184 9501 Optics Adjustment Tool 1
2 5214 9500 Test Chart OS-A4 (10 pcs/set) 1
2 5214 9501 Test Chart OS-A4 (100 pcs/set) 1
3 5442 9103 Launa Oil 40 1
4 5203 9501 Grease 501 1
5 5420 9507 Digital Multimeter - Beckman 1
6 5442 9101 Setting Powder 1
7 A184 1991 Scanner Locking Pin 2

8 A184 1993 4th/5th Mirror Lock Tool 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

Part No.

Description

Q’ty Per
Assembly

A183/A184 29 Parts Location and List

A183/A184

PARTS INDEX

This section instructs you as to the numbers and names of the parts of this machine.

PM Parts Index

Section Name

OPTICS SECTION 3 (A183/A184) A184 1363 Ozone Filter Ozone Filter 1 11- 4
IMAGING UNIT (A183/A184) A184 2045 Corona Wires Charge Corona Unit 1 15- 5
FUSING UNIT (A183/A184) A184 4072 Stripper Pawls Stripper Pawl 3 17- 32

DRIVE SECTION (A183/A184) A184 2570 Pick-up Roller Pick-up Roller 1 19- 26

Part No.

A184 4079 Hot Roller Hot Roller 1 17- 21
A184 4084 Pressure Roller Pressure Roller 1 17- 26

A184 3800 Corona Wires Transfer Corona Unit 1 19- 10

Description in Service Manual

Description in Parts Catalog

Q’ty Per
Assembly

Page and
Index No

A183/A184 2 Parts Index

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

A183 1403 Operation Panel - LT (A183)(RIC-NA) 5- 8
A183 1405 Operation Panel - A4 (A183)(RIC) 5- 8
A183 1406 Operation Panel - LT (A183)(NRG) 5- 8
A183 1408 Operation Panel - A4 (A183)(NRG) 5- 8
A183 1409 Operation Panel - A4 (A183)(INF) 5- 8
A183 1411 Operation Panel - LT (A183)(RIC-SA) 5- 8
A183 1430 Decal - Model Name (A183)(GES) 5- 17
A183 1430 Decal - Model Name (A183)(GES) 27- 1
A183 1431 Decal - Model Name (A183)(NSA) 5- 17
A183 1431 Decal - Model Name (A183)(NSA) 27- 1
A183 1432 Decal - Model Name (A183)(SVN) 5- 17
A183 1432 Decal - Model Name (A183)(SVN) 27- 1
A183 1433 Decal - Model Name (A183)(REX) 5- 17
A183 1433 Decal - Model Name (A183)(REX) 27- 1
A183 1715 Lens Bracket (A183) 7- 20
A183 1781 Lens Cover (A183) 7- 1
A183 5100 Main Control Board (A183) 11- 5
A183 5100 Main Control board (A183) 25-
A183 5230 Erase Lamp (A183) 9- 19
A183 5303 Upper Main Harness (A183) 11- 13
A183 8608 Operating Instructions - Eng. Asia 27- 8
A183 8632 Operating Instructions - French LT 27- 8
A183 8634 Operating Instructions - Spanish LT 27- 8
A183 8636 Operating Instructions - Portuguese LT 27- 8
A183 8637 Operating Instructions - English LT 27- 8
A183 8644 Operating Instructions - Spanish LT 27- 8
A183 8647 Operating Instructions - English LT 27- 8
A183 8660 Operating Instructions - English A4 27- 8
A183 8661 Operating Instructions - German A4 27- 8
A183 8662 Operating Instructions - French A4 27- 8
A183 8663 Operating Instructions - Italian A4 27- 8
A183 8664 Operating Instructions - Spanish A4 27- 8
A183 8690 Operating Instructions - English A4 27- 8
A183 8697 Operating Instructions - English LT 27- 8

AA06 3180 Adjust Spring 7- 26
AA06 3523 Adjust Spring 7- 27
AW02 0075 Photointerrupter (A184) 7- 18
AW02 0075 Photointerrupter 11- 6
AW10 0033 Thermistor 11- 8
AX20 0132 Magnetic Clutch 19- 23
AX31 0024 Total Counter (230V) 11- 16

*

A183/A184 3 Parts Index

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

A077 1690 Spring Plate - Mirror 7- 23
A077 1690 Spring Plate - Mirror 9- 2
A077 1745 Cover - ADS Sensor 7- 6
A077 1746 Mirror Adjusting Screw 7- 24
A077 5702 IC Socket - 28P 25- 1
A077 5717 Resistor - 1K Ω ±5% 1W 25- 2
A152 5120 Optics Control Board 7- 5
A152 5220 Main Switch 21- 13
A153 1906 Adjust Shoe 7- 28
A184 0452 Caution Decal - Used Toner 15- 7
A184 0452 Caution Decal - Used Toner 27- 10
A184 0453 Caution Decal - OPC 15- 32
A184 0453 Caution Decal - OPC 27- 11
A184 0454 Decal - OPC Guidance 15- 3
A184 0454 Decal - OPC Guidance 27- 12
A184 0455 Decal - Misfeed Removal 17- 9
A184 0455 Decal - Misfeed Removal 27- 2
A184 0456 Decal - Paper Set 13- 2
A184 0456 Decal - Paper Set 27- 3
A184 1050 Drive Unit 19- 3
A184 1328 Grounding Plate 19- 2
A184 1331 Rubber Foot 21- 15
A184 1332 Inner Cover - Base 21- 6
A184 1333 Cushion 21- 7
A184 1334 Lower Gas Spring Shaft 19- 8
A184 1338 Decal - Main Switch (120V) 27- 4
A184 1339 Grounding Plate - Front 19- 20
A184 1351 Lock Release Lever 11- 19
A184 1352 Release Spring 11- 18
A184 1354 Decal - Main Switch (230V) 27- 4
A184 1361 Fan Motor Holder 11- 1
A184 1363 Ozone Filter 11- 4
A184 1364 Ozone Filter Holder 11- 3
A184 1367 Clamp 7- 19
A184 1370 Gas Spring 19- 7

A184 1371 Gas Spring Shaft - Upper Left 5- 13
A184 1372 Gas Spring Shaft - Upper Right 5- 12
A184 1376 Grounding Plate 11- 15
A184 1402 Operation Panel - LT (A184)(RIC-NA) 5- 8
A184 1404 Operation Panel - A4 (A184)(RIC) 5- 8
A184 1406 Operation Panel - LT (A184)(NRG) 5- 8
A184 1408 Operation Panel - A4 (A184)(NRG) 5- 8
A184 1409 Operation Panel - A4 (A184)(INF) 5- 8
A184 1411 Operation Panel - LT (A184)(RIC-SA) 5- 8
A184 1430 Decal - Model Name (A184)(GES) 5- 17
A184 1430 Decal - Model Name (A184)(GES) 27- 1
A184 1431 Decal - Model Name (A184)(NSA) 5- 17
A184 1431 Decal - Model Name (A184)(NSA) 27- 1
A184 1432 Decal - Model Name (A184)(SVN) 5- 17
A184 1432 Decal - Model Name (A184)(SVN) 27- 1
A184 1433 Decal - Model Name (A184)(REX) 5- 17
A184 1433 Decal - Model Name (A184)(REX) 27- 1
A184 1470 Upper Cover 5- 7
A184 1471 Upper Copy Tray 5- 3
A184 1472 Decal - Original Size (RIC-NA) 5- 4
A184 1472 Decal - Original Size (RIC-NA) 27- 5
A184 1473 Decal - Original Size 5- 4
A184 1473 Position Cover 5- 5
A184 1474 Shielding Cover 5- 6
A184 1475 Operation Panel Cover 5- 11
A184 1476 Decal - Original Size 27- 5
A184 1480 Platen cover 5- 1
A184 1481 Platen Cover Sheet 5- 2
A184 1482 Rear Right Base Cover 21- 17
A184 1486 Platen Cover (RIC-NA) 5- 1
A184 1491 Platen Cover Hinge - Left 5- 15
A184 1492 Platen Cover Hinge - Right 5- 16
A184 1651 1st Scanner Unit - 120V 7- 2
A184 1652 1st Scanner Unit - 230V 7- 2
A184 1675 1st Scanner Bushing 9- 22

A183/A184 4 Parts Index

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

A184 1676 Clamp Bracket 9- 5
A184 1677 Clamp 9- 6
A184 1685 2nd Slider Bushing 9- 3
A184 1687 Clamp 9- 7
A184 1689 Harness Guide 9- 8
A184 1691 2nd Scanner Shoe 9- 21
A184 1695 Mirror - 2nd/3rd 9- 1
A184 1715 Lens Bracket (A184) 7- 10
A184 1717 Scanner Lens Clamp (A184) 7- 8
A184 1718 Scanner Lens Bracket (A184) 7- 9
A184 1721 Scanner Lens - 8/180 7- 7
A184 1736 Timing Pulley - 73Z/19Z/30Z (A184) 7- 15
A184 1737 Cam - 44z (A184) 7- 13
A184 1739 Idle Gear - 67z (A184) 7- 16
A184 1741 Driven Gear - 30z (A184) 7- 11
A184 1746 Timing Belt - L426 (A184) 7- 12
A184 1748 Tension Spring 9- 13
A184 1752 Mirror - 4th/5th 7- 22
A184 1756 Cam Flower (A184) 7- 21
A184 1760 Cam Spring (A184) 7- 14
A184 1772 6th Mirror 7- 25
A184 1781 Lens Cover (A184) 7- 1
A184 1814 Exposure Glass 5- 10
A184 1824 Pulley - 22Z/44Z 9- 15
A184 1831 Drive Pulley - 44z 9- 10
A184 1836 Timing Belt - L956 9- 11
A184 1841 Driven Pulley - 22z 9- 12
A184 1846 Timing Belt - L530 9- 14
A184 1853 Scanner Rod Fixing Plate 9- 18
A184 1854 Small Cleaner - Scanner Rod 9- 23
A184 1855 Large Cleaner - Scanner Rod 9- 4
A184 1991 Scanner Locking Pin 29- 7
A184 1993 4th/5th Mirror Lock Tool 29- 8
A184 2045 Charge Corona Unit 15- 5
A184 2091 Shielding Plate - 240x14.5 9- 20

A184 2270 Toner Bottle Holder Plate 15- 18
A184 2276 Spring Plate - Lever 15- 1
A184 2277 Decal - Imaging Unit 27- 6
A184 2325 Gear - 32Z 15- 21
A184 2350 Bias Terminal 15- 20
A184 2352 Grid Terminal 15- 6
A184 2355 Terminal Cover 15- 25
A184 2356 High Voltage Terminal 15- 23
A184 2357 Charge Corona Terminal 15- 24
A184 2359 Resistor - 3M

Ω

15- 26
A184 2360 Terminal - Charge 11- 10
A184 2361 Terminal - Grid 11- 12
A184 2362 Terminal - Bias 11- 11
A184 2365 Transfer Terminal 15- 27
A184 2450 Density Sensor Bracket 21- 8
A184 2453 Connector Spring 19- 21
A184 2500 Paper Tray Unit 13- 0
A184 2504 By-pass Feed Unit 13- 3
A184 2553 Bottom Plate Pad 13- 8
A184 2554 Bottom Plate Spring 13- 6
A184 2555 Side Fence 13- 4
A184 2556 Corner Separator - Right 13- 12
A184 2557 Corner Separation - Left 13- 11
A184 2558 Paper End Fence 13- 1
A184 2559 Spacer 13- 7
A184 2566 Paper Feed Guide 13- 9
A184 2567 Decal - Paper Upper Limit 13- 5
A184 2567 Decal - Paper Upper Limit 27- 7
A184 2568 Corner Separation Seal 13- 10
A184 2569 Paper Guide Mylar 13- 13
A184 2570 Pick-up Roller 19- 26
A184 2573 Roller Shaft Stopper 19- 27
A184 2580 Transport Roller Ass‘y 19- 25
A184 2583 Middle Transfer Gear 19- 24
A184 2584 Idle Gear 19- 22

A183/A184 5 Parts Index

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

A184 2585 Middle Driven Roller 11- 20
A184 2586 Roller Spring 11- 21
A184 2592 Stripper Pawl Spring 21- 11
A184 2593 Solenoid Cover 21- 12
A184 2595 Stopper Solenoid 21- 10
A184 2596 Stopper 21- 9
A184 2600 Registration Roller 19- 11
A184 2601 Left Bushing 19- 13
A184 2602 Right Bushing 19- 12
A184 2603 Gear - 30Z 19- 15
A184 2604 Bushing - 6x9x4 19- 14
A184 2610 Driven Roller 15- 10
A184 2614 Lower Guide Plate 15- 29
A184 3281 Spacer - M5 15- 19
A184 3327 Gear - 18Z 15- 16
A184 3328 Gear - 19Z 15- 14
A184 3329 Gear - 20Z 15- 15
A184 3335 Idler Bushing 15- 17
A184 3371 Connector Guide 15- 9
A184 3430 Toner Bottle Holder 15- 2
A184 3431 Lever Spring Plate - Right 15- 31
A184 3432 Lever Spring Plate - Left 15- 30
A184 3450 Gear - 20Z 15- 28
A184 3451 Gear - 12Z 15- 12
A184 3453 Bushing 15- 13
A184 3460 Drive Gear - 14z 15- 11
A184 3550 Cleaning Blade 15- 4
A184 3561 Gear - 24Z 15- 22
A184 3800 Transfer Corona Unit 19- 10
A184 3890 Wire Cleaning Tool 5- 9
A184 3911 Grounding Plate 19- 17
A184 3913 Grounding Plate 19- 18
A184 3915 Antistatic Brush 19- 19
A184 3916 Varistor 19- 16
A184 3917 Antistatic Brush Cover 19- 28

A184 4050 Fusing Unit - 120V 17- 0
A184 4051 Fusing Unit - 230V 17- 0
A184 4053 Paper Exit Roller Holder 17- 2
A184 4054 Exit Cover 17- 1
A184 4055 Exit Driven Roller 17- 3
A184 4056 Gear - 22Z 17- 6
A184 4057 Bushing 17- 5
A184 4058 Exit Drive Roller 17- 4
A184 4059 Lower Guide Plate 17- 7
A184 4061 Fusing Upper Cover 17- 10
A184 4063 Thermofuse 17- 13
A184 4064 Idle Gear - 20z 17- 8
A184 4065 Front Heater Holder 17- 17
A184 4069 Paper Stripper Bracket 17- 15
A184 4072 Stripper Pawl 17- 32
A184 4073 Stripper Pawl Spring 17- 33
A184 4074 Terminal Plate 17- 14
A184 4077 Right Heater Holder 17- 23
A184 4079 Hot Roller 17- 21
A184 4080 Gear - 50Z 17- 22
A184 4081 Right Retaining Ring - 31 17- 19
A184 4082 Thermistor 17- 11
A184 4084 Pressure Roller 17- 26
A184 4085 Right Pressure Arm 17- 27
A184 4086 Left Pressure Arm 17- 34
A184 4087 Photointerruptor 17- 28
A184 4088 Lower Entrance Guide 17- 31
A184 4089 Fusing Lower Frame 17- 30
A184 4091 Pressure Roller Bushing 17- 25
A184 4092 Pressure Spring Ass‘y 11- 22
A184 4093 Exit Cover 19- 1
A184 4098 Bushing - 36mm 17- 20
A184 4099 Terminal Plate 17- 12
A184 4101 Antistatic Brush 19- 4
A184 4103 Right Heater Cover 17- 24

A183/A184 6 Parts Index

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

A184 4104 Front Heater Cover 17- 18
A184 4105 Left Retaining Ring - 31 17- 35
A184 4106 Fusing Lamp - 120V 480W 17- 16
A184 4107 Fusing Lamp - 230V 550W 17- 16
A184 5100 Main Control Board (A184) 11- 5
A184 5100 Main Control Board (A184) 25- 0
A184 5104 IC - UVEPROM 512KX8 120NS 25- 3
A184 5105 IC - RF5A93 25- 4
A184 5108 Resistor - 330Ω ±5% 3W 25- 5
A184 5140 Scanner Drive Board 11- 14
A184 5150 High Voltage Supply Board - CT/B/G 11- 9
A184 5201 Main Motor - 18W 19- 5
A184 5205 Scanner Motor - DC24V 9- 17
A184 5210 Lens/Mirror Motor - DC24V (A184) 7- 17
A184 5220 Toner Supply Clutch 19- 6
A184 5225 Exhaust Fan Motor - DC24V 11- 2
A184 5226 Optics Cooling Fan Motor - DC24V (230V) 7- 4
A184 5230 Erase Lamp (A184) 9- 19
A184 5235 Quenching Lamp 9- 9
A184 5290 Photointerrupter 11- 17
A184 5301 AC Drive Harness 21- 14
A184 5302 Lower Main Harness 21- 4
A184 5303 Upper Main Harness (A184) 11- 13
A184 5305 Scanner Harness 21- 5
A184 5307 Fusing Harness 21- 3
A184 5309 Exposure Lamp Harness 7- 3
A184 5319 Exit Sensor Relay Harness 17- 29
A184 5335 Imaging Unit Connector 15- 8
A184 5341 Scanner HP Harness 11- 7
A184 5344 Scanner Grounding Harness 9- 16
A184 5551 Power Supply Board - 120V 21- 2
A184 5552 Transformer - 120V 21- 1
A184 5581 Power Supply Cord - 120V 21- 16
A184 5651 Power Supply Board - 230V 21- 2
A184 5652 Transformer - 230V 21- 1

A184 5681 Power Supply Cord - 230V 21- 16
A184 8600 Decal - Symbol Explanation - English 5- 18
A184 8600 Decal - Symbol Explanation - English 27- 9
A184 8606 Decal - Symbol Explanation - German (INF) 5- 18
A184 8606 Decal - Symbol Explanation - German (INF) 27- 9
A184 8607 Decal - Symbol Explanation - French (INF) 5- 18
A184 8607 Decal - Symbol Explanation - French (INF) 27- 9
A184 8608 Decal - Symbol Explanation - Spanish 5- 18
A184 8608 Decal - Symbol Explanation - Spanish 27- 9
A184 8609 Decal - Symbol Explanation - Italian (INF) 5- 18
A184 8609 Decal - Symbol Explanation - Italian (INF) 27- 9
A184 8610 Decal - Symbol Explanation - Portuguese 5- 18
A184 8610 Decal - Symbol Explanation - Portuguese 27- 9
A184 9501 Optics Adjustment Tool 29- 1
5203 9501 Grease 501 29- 4
5214 9500 Test Chart OS-A4 (10 pcs/set) 29- 2
5214 9501 Test Chart OS-A4 (100 pcs/set) 29- 2
5215 2621 Snap Ring - M6 5- 14
5215 2621 Snap Ring - M6 19- 9
5420 9507 Digital Multimeter - Beckman 29- 5
5442 9101 Setting Powder 29- 6
5442 9103 Launa Oil 40 29- 3

A183/A184 7 Parts Index

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

0313 0040B Philips Pan Head Screw - M3x4 9-102
0313 0060B Philips Pan Head Screw - M3x6 7-105
0324 0160W Philips Sunken Head Screw - M4x16 17-104
0413 0102W Tapping Screw - M3x10 7-107
0450 3006B Tapping Screw - M3x6 9-103
0450 3008B Tapping Screw - M3x8 9-104
0450 3008B Tapping Screw - M3x8 11-101
0450 3008B Tapping Screw - M3x8 17-102
0450 3008B Tapping Screw - M3x8 19-101
0450 3008B Tapping Screw - M3x8 21-101
0450 3010B Tapping Screw - M3x10 7-102
0450 3030B Tapping Screw - M3x30 7-101
0451 3006B Tapping Screw - M3x6 7-106
0451 3006B Tapping Screw - M3x6 9-101
0451 3006B Tapping Screw - M3x6 11-102
0451 3006B Tapping Screw - M3x6 17-101
0451 3008B Tapping Screw - M3x8 5-101
0451 3008B Tapping Screw - M3x8 19-102
0451 3010B Tapping Screw - M3x10 17-103
0452 3006B Tapping Screw - M3x6 15-102
0452 3008B Tapping Screw - M3x8 15-101
0452 3012Z Bind Tapping Screw - 3x12 5-102
0701 0030B Flat Washer - M3 7-103
0710 0040 Hexagon Nut - M4 17-105
0720 0020E Retaining Ring - M2 21-108
0720 0040B Retaining Ring - M4 15-103
0720 0040E Retaining Ring - M4 7-104
0720 0040E Retaining Ring - M4 17-106
0720 0060E Retaining Ring - M6 9-105
0805 0089 Retaining Ring - M4 15-104
0950 4008M Screw - M4X8 21-106
0951 3006B Philips Screw With Flat Washer-M3x6 21-105
1102 4201 Connector - 2p 25-101
1102 4202 Connector - 3p 25-102
1102 4203 CT Header - 4p 25-103

1102 4205 CT Header- 6p 25-104
1102 4207 Connector - 8p 25-105
1102 4208 Connector - 9p 25-106
1102 4210 Connector - 11p 25-107
1102 4462 CT Header(h) - 4p 25-108
1102 4619 Connector - 2p 25-109
1102 4621 CT Header - 4p 25-110
1102 4631 CT Connector - 2p 25-111
1102 4643 CT Connector - 2p 25-112
1102 5303 Connector - 4p 25-113
1104 0511 IC Socket - 8p - DICF-8CS-E 25-114
1106 0313 Harness Clamp 5-103
1107 0855 Fuse - 8A 125V 21-104
1107 0867 Fuse - 2A 125V 21-103
1107 0874 Fuse - 10A 125V 21-102
1107 0882 Fuse - 2A 250V 21-103
1107 0884 Fuse - 5A 250V 21-102
1107 0885 Fuse - 6.3A 250V 21-104
1204 2334 Interlock Switch - Fail 21-107
1400 0072 Transistor - 2SC372Y 25-115
1400 0291 Transistor - 2SA1020Y 25-116
1401 0694 Zener Diode - RD6.8FB 25-117
1402 0277 Zener Diode - 1z12 25-118
1402 1050 Silicon Diode - 100V 1A 25-119
1402 1160 Diode - S5688 25-120
1407 1535 IC - TD62308AP 25-121
1407 2187 TTLIC - SN74LS07NS 25-122
1407 2344 IC - TD62382F 25-123
1407 3173 Driver - 16bit - M66311fp 25-124
1407 3764 IC - TC7SU04F 25-125
1407 3857 Transistor - Array - Td62381f 25-126
1407 4662 Eeprom - Is93c46-3i 25-127
1407 4672 TTL - HD74LS368FP 25-128
1408 0150 IC - ULN2003AN 25-129
1408 0595 IC - NJM2904M 25-130

A183/A184 8 Parts Index

Part No.

Description

Page and
Index No.

1408 0611 IC - 3771 25-131
1503 0563 Oscillator-9.83MTZ040 25-132
1600 0681 Resistor - 510 Ω 1W ±5% 25-133
1601 8157 Variable Resistor - 100K

Ω

25-134
1607 0576 Sleeve Core - SFC-8 11-103
1607 0623 Ferrite Core - TFC-16-8-13 21-109
1607 0878 Inductor - BLM21A102S 25-135
1611 4569 Resistor - 5.6 Ω ±5% 1/4W 25-136
1630 3101 Resistor - 100Ω - 1/10W 25-137
1630 3102 Resistor - 1KΩ 1/10W ±5% 25-138
1630 3103 Resistor - 10KΩ 1/10W ±5% 25-139
1630 3105 Resistor - 1M Ω ±5% 1/10W 25-140
1630 3153 Resistor - 15K Ω ±5% 1/10W 25-141
1630 3204 Resistor - 200K Ω 1/10W ±5% 25-142
1630 3222 Resistor - 2.2KΩ 1/10W ±5% 25-143
1630 3223 Resistor - 22kΩ - 1/10W 25-144
1630 3272 Resistor - 2.7K Ω ±5% 1/1W 25-145
1630 3472 Resistor - 4.7KΩ 1/10W ±5% 25-146
1630 3512 Resistor - 5.10kΩ - 1/10W 25-147
1630 3751 Resistor - 750Ω±5% 1/10W 25-148
1633 0000 Resistor - 0Ω 1/10W:JUMPER CHIP 25-149
1633 1001 Resistor - 1K Ω ±1% 1/10W 25-150
1633 1002 Resistor - 10K Ω ±1% 1/10W 25-151
1633 3901 Resistor - 3.9 Ω ±1% 1/10W 25-152
1640 5100 Capacitor - 10µF ±20% 50V 25-153
1640 5109 Capacitor - 1µF - ±20% - 50V 25-154
1640 5470 Capacitor - 47µF ±20% 50V 25-155
1660 3101 Capacitor - 100PF 50V 25-156
1660 3471 Capacitor - 470PF 50V 25-157
1660 7103 Capacitor - 10000PF 50V 25-158
1660 7104 Capacitor - 100000PF 50V 25-159

Part No.

Description

Page and
Index No

A183/A184 9 Parts Index
