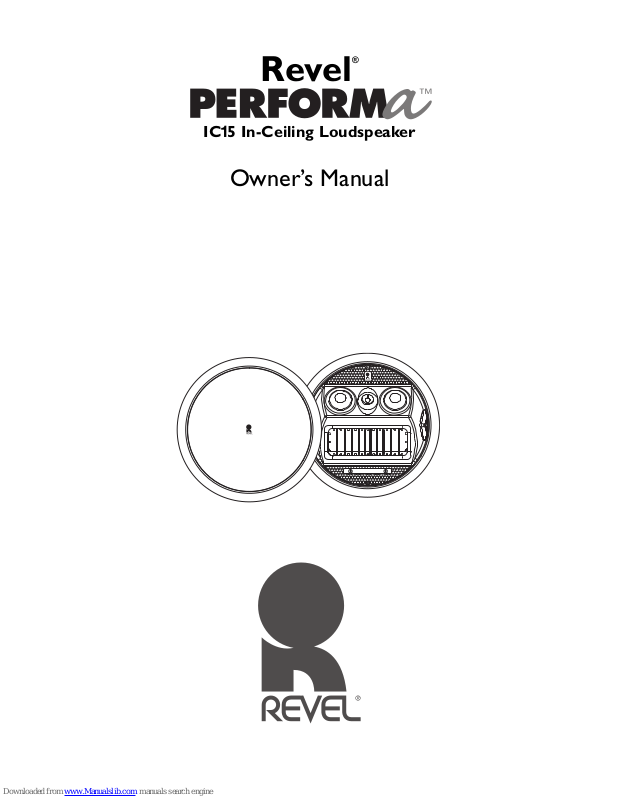

REVELL Concerta IC15, Performa IC15 Owner's Manual

®

Revel

IC15 In-Ceiling Loudspeaker

Owner’s Manual

THANK YOU FOR

Sofa

Subwoofer

Left Front

Channel

Right Front

Channel

Sofa

Subwoofer

Left Front

Channel

Right Front

Channel

Center Channel

(above TV)

Left
Surround
Channel

Right

Surround

Channel

Sofa

Left
Surround
Channel

Right

Surround

Channel

Subwoofer

Left Front

Channel

Right Front

Channel

Center Channel

(above TV)

Sofa

Left
Surround
Channel

Right

Surround

Channel

Left Rear

Channel

Right Rear

Channel

Center Rear

Channel

Subwoofer

Left Front

Channel

Right Front

Channel

Center Channel

(above TV)

CHOOSING REVEL

The Revel®Performa™IC15 has been specifically designed
to deliver unsurpassed home theater sound reproduction
from an in-ceiling speaker that does not intrude on your
room or its décor.

Please take a moment to register your product on our
Web site at www.revelspeakers.com. It enables us to
keep you posted on our latest advancements, and helps
us to better understand our customers and build products
that meet their needs and expectations.

Unpacking the Speaker

Carefully unpack the speaker. If you suspect damage
from transit, report it immediately to your dealer and/or
delivery service. Keep the shipping carton and packing
materials for future use. All models include a mounting
template and paint shield.

PLANNING
YOUR SYSTEM

Note: Revel IC15 loudspeakers are intended for use with
one or more subwoofers. A powered subwoofer will add
impact and realism to both music and film soundtracks.
Contact your Revel dealer for recommendations on
subwoofer models for your application.

Figure 2. This overhead view shows a typical home
theater system arrangement.

An alternative setup is to position the left and right
surround speakers with them “aimed” at the rear
wall (Figure

2

a) – providing a more diffuse surround
sound field, for those preferring greater diffusion.
Such orientation provides good surround coverage,
even in home theaters with several rows of seating.

Figure 2a.

Figure 1. This overhead view shows a typical 2-channel
system arrangement.

Figure 3. This overhead view shows a 6- or
7-channel home theater system arrangement.
Left/right rear channels are for a 7-channel system.
Center rear channel is for a 6-channel system.

2

Revel Performa IC15

Owner’s Manual

PLACEMENT

Stereo

Before deciding where to place your IC15 speakers,
survey your room and think about placement, keeping the
following points in mind, and using Figure 1 as a guide:

• For best results, place the speakers 6'–8' apart.

• Refer to “Home Theater” below if you also plan to use the
speakers in a home theater system.

Home Theater

For front-channel use, place one speaker on the left and
another on the right along either side of the television or
projection screen.

A center channel speaker should go directly above the
television. For left and right surround channels, place
one speaker on the left and another on the right, to the
side of or slightly behind the listening area. In 6- or
7-channel configurations, place the rear channel(s)
behind the listening position, as shown in Figure 3.

Installation

NOTE:The IC15 in-ceiling speaker was designed to be
easily installed. However, if you are unable to clearly and
fully understand and follow the instructions in this manual,
or if you are unsure of your ability to properly install
these loudspeakers, please contact your Revel dealer
or a qualified installer.

SPEAKER
CONNECTIONS

Connection Tips

Figure 4.

Wire Length/Recommended Size

The use of the heaviest gauge (lowest number) wire that
is practical will result in better sound quality; 12-gauge
or heavier wire is recommended for runs over 50 feet.

Tools Needed

Pencil

Measuring tape Utility knife

Carpenter’s level

Phillips no. 2 screwdriver
(

Do not

use a powered

screwdriver of any kind.)

Awl

Turn Off All Power

Before completing the installation, you must connect
your speakers to your system. First, turn off all audio­system power. Use high-quality speaker wire to make
your connections. Use at least #16-gauge speaker wire
with polarity coding. Heavier-gauge wire is recommended
for larger distances. Consult the chart above or your
dealer for recommendations. The side of the wire with
a ridge or other coding is usually considered positive (+)
polarity. Also, consult the owner’s manuals that were
included with your amplifier or receiver to confirm
connection procedures.

Observe polarities when making speaker connections,
as shown in Figure 4. Connect each + terminal on the
back of the amplifier or receiver to the respective + (red)
terminal on each speaker. Connect the – (black)
terminals in the same way.

Important!

Do not reverse polarities (i.e., + to – , or – to +) when
making connections. Doing so will cause poor imaging
and diminished bass response. Be certain that positive
and negative wire strands are completely isolated to
avoid short circuits that may damage your equipment.

Revel Performa IC15
Owner’s Manual

3

EXISTING CONSTRUCTION

Template

Ceiling Joist

Ceiling Joist

1. Remove the plastic paint shield
from the speaker frame.

2. Determine the correct speaker
location. Note: Use the included
template when cutting the
drywall.

3. Note: Always allow at least
1/2 inch between a ceiling
stud/joist and the speaker
cutout, or the locking tabs
will not be able to swivel
into place.

4. Ensure that the drywall or
plywood board or other
appropriate wallboard is at
least 1/2 inch thick, and
confirm that the board material
is capable of withstanding
the weight of the
speaker you will be
installing. Cut the drywall.

7. Screw down each of the four Phillips-head screws,
alternating between the four screws. The locking tabs
will swivel into place and secure the unit to the rear
surface of the ceiling. Hand-tighten with a nonpowered,
straight-handle regular screwdriver only. Do not use a
socket wrench, a powered screwdriver,
a drill or any other powered tool.
Confirm that the speaker is firmly
and securely held in place and that
all four locking tabs are firmly
resting against the ceiling.

8. Attach the metal grille and logo,
if desired.

Figure 5.

5. Connect the speaker wires to the speaker. It is
recommended that the nylon cable-strain relief tab,
located next to the speaker terminals, be used to
help prevent the speaker wires
from being accidentally dislodged
(see Figure 5).

6. Make sure all four locking tabs are properly positioned
against the locking tab stops that are located on the
speaker frame (see Figure 6). After confirming this,
carefully place the frame assembly in the ceiling and
confirm that there is no more than 1/8-inch play
between the frame and the ceiling
cutout. After positioning the
speaker in the
mounting
location, back
each screw out
one full turn
(turn counterclockwise).

4

Figure 6.

Revel Performa IC15

Owner’s Manual

NEW CONSTRUCTION

OPERATION

If you wish to preinstall a rough-in frame before the
drywall is installed, you will need to purchase the RIB 15C
rough-in-frame. Detailed installation instructions are
supplied with the rough-in kit.

PAINTING THE
SPEAKER FRAME
AND GRILLE

The IC15 in-ceiling loudspeaker can be painted to match
any décor. If you wish to change the color, the satin finish
on the grille and frame will function as a primer coat.
Before painting, install the paint shield (inner section of
template in the assembly kit) securely into the recess in
the baffle. This will protect the speaker components and
baffle from paint residue. Use a high-quality spray paint,
and apply a thin coat of color. Be certain the grille

perforations remain free of paint. Filling them with
paint will diminish the sound quality.

Note: Gently remove the “scrim cloth” from the grille
before painting. Attach the extra scrim cloth (supplied)
after lightly spraying the inside of the grille with
adhesive. (Do not spray the cloth.)

Surround Settings

When using the system in a Dolby®Digital or DTS®home
theater system, make sure all speakers are set to “Small.”

Some Dolby Digital-equipped receivers/processors offer
different setup options for each source or surround mode:
e.g., CD-stereo, videotape, Dolby or Pro Logic.
case, follow your equipment’s instructions to ensure that
the subwoofer (if you have one) output is turned on and
that the speakers are set to “Small” in each mode.

®

In each

Tweeter-Level Control

In most typical listening rooms, this switch should be
left in the neutral or “0” position.This setting will deliver
the most neutral and balanced sound. In some extreme
cases, it may be desirable to slightly boost or cut the
tweeter’s output, depending upon the room layout,
construction and furnishings.

If the room is sparsely furnished, contains large exposed
windows or is otherwise very reverberant, you may want
to set the control to the “–” (–1.5dB) position. If the
room is exceptionally absorbent because it is well
furnished or has thick curtains and/or carpet, you may
want to increase the tweeter output by setting this
switch to the “+” position (+1.5dB). Of course, the
control may be set to either position, based on listener
preference.

Boundary Compensation
Control

This control is designed to be engaged when positioning
the loudspeaker within two feet of another surface to
eliminate the bass peak caused by the second surface
and to maintain a smooth, natural bass response. For
example, if you need to install your in-ceiling speaker
within two feet of a side wall or corner, it is recommended
that the Boundary Compensation control be set to the
“On” position. In all other installations, the control should
typically be set to “Off.” Of course, the control may be
set to either position, based on listener preference.

Revel Performa IC15
Owner’s Manual

5

SPECIFICATIONS

Specification IC15

Frequency Range (

Recommended 10 – 200 Watts
Amplifier Power Range

Sensitivity 85dB
(2.83V @1 meter)

Nominal Impedance 8 Ohms

Crossover Frequency 700Hz, 2,000Hz;

Low-Frequency Driver 7-3/4" x 3-3/8"

Midrange Drivers Dual 3" (75mm)

High-Frequency Driver 1" (25mm)

External Diameter Diameter: 12-3/4"

Mounting Cutout Diameter Diameter: 11-3/8"

Mounting Depth 5-5/8" (142mm)

Weight (Net) 8 lb (3.6kg)

+

3dB) 80Hz – 20kHz

–

24dB/octave

(197mm x 85mm)

Pure titanium

(323mm)

(289mm)

NOTES

Features, specifications and appearance are subject to
change without notice.

6

Revel Performa IC15

Owner’s Manual

LIMITED WARRANTY

A valid serial number is required for warranty coverage.
This Revel warranty protects the original retail purchaser
for a period of five (5) years (parts and labor) from any
failure as a result of original manufacturing defects so
long as:

1. The Revel products were purchased within the 50
United States, its territories, or Canada.

2. The dealer from whom the Revel products were
purchased was authorized to sell such products at the
time of the original purchase.

3. The original, dated Bill of Sale is presented whenever
service is required during the warranty period.

The balance of this warranty is transferable only if the
used product is purchased from an authorized Revel
dealer.This warranty is only valid for service within the
United States, its territories, and Canada; please contact
an authorized Revel dealer for warranty and service
information.

Any Revel product not performing satisfactorily may be
returned to the factory for evaluation. Return authorization
must first be obtained by either calling or writing Customer
Service prior to shipping the product. The customer is
responsible for shipping charges to the factory. Customer
Service will pay return shipping charges within the United
States only in the event that the product is found to be
defective as mentioned above. There are other stipulations
that may apply to shipping charges.

There is no other express warranty on this product.
Neither this warranty nor any other warranty, express or
implied, including implied warranties of merchantability
and fitness, shall extend beyond the warranty period.
No responsibility is assumed for any incidental or
consequential damages, so that the above exclusion
or limitation may not apply.

This warranty provides specific legal rights. Other states
may provide additional rights. This warranty is applicable
in the United States, its territories, and Canada. Outside
of the United States, its territories, and Canada, please
contact an authorized Revel dealer for warranty and
service information.The information this document
contains is subject to change without notice. In the event
that there are differences between this warranty and the
provisions of any advertisements, documentation, product
brochures, or packaging cartons, the terms of this
warranty will prevail.

Product Shipments:
HSG/Revel
Returns Dept.
RMA #_____________
900 Middlesex Turnpike, Bldg. 6
Billerica, MA 01821

Customer Service
Telephone: [phone]
Sales Fax: [phone]
Service Fax: [phone]

Revel Performa IC15
Owner’s Manual

www.revelspeakers.com

7

Declaration of Conformity

We, Harman Consumer Group, Inc.

2, route de Tours
72500 Château du Loir
France

declare in own responsibility that the product described in this
owner’s manual is in compliance with technical standards:

EN 61000-6-3:2001
EN 61000-6-1:2001

Laurent Rault

Harman Consumer Group, Inc.

Château du Loir, France 12/07

3 Oak Park Drive
Bedford, MA 01730-1413 USA
Telephone: [phone]
Fax: [phone]
www.revelspeakers.com

Customer Service
Telephone: [phone]
Sales Fax: [phone]
Service Fax: [phone]

Product Shipments:
HSG/Revel
Returns Dept.
RMA #_____________
900 Middlesex Turnpike, Bldg. 6
Billerica, MA 01821

Part No. CT-16353-01 Rev. 12/07

©2007 Harman International Industries, Incorporated.
All rights reserved.

Revel, the Revel logo and Performa are trademarks
of Harman International Industries, Incorporated,
in the United States and/or other countries.

Dolby and Pro Logic are registered trademarks
of Dolby Laboratories.

DTS is a registered trademark of DTS, Inc.

This document should not be construed as a
commitment on the part of Harman International
Industries, Incorporated. The information it
contains is subject to change without notice.
Harman International Industries, Incorporated,
assumes no responsibility for errors that may
appear within this document.
