H8/3297 Series, H8/329 Series
QFP-64A
User System Interface Cable
(HS3297ECH61H)
for E6000 Emulator
User’s Manual
HS3297ECH61HE(C)
Cautions
1. Renesas neither warrants nor grants licenses of any rights of Renesas’s or any third party’s
patent, copyright, trademark, or other intellectual property rights for information contained in
this document. Renesas bears no responsibility for problems that may arise with third party’s
rights, including intellectual property rights, in connection with use of the information
contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you
have received the latest product standards or specifications before final design, purchase or
use.
3. Renesas makes every attempt to ensure that its products are of high quality and reliability.
However, contact Renesas’s sales office before using the product in an application that
demands especially high quality and reliability or where its failure or malfunction may directly
threaten human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear
power, combustion control, transportation, traffic, safety equipment or medical equipment for
life support.
4. Design your application so that the product is used within the ranges guaranteed by Renesas
particularly for maximum rating, operating supply voltage range, heat radiation characteristics,
installation conditions and other characteristics. Renesas bears no responsibility for failure or
damage when used beyond the guaranteed ranges. Even within the guaranteed ranges,
consider normally foreseeable failure rates or failure modes in semiconductor devices and
employ systemic measures such as fail-safes, so that the equipment incorporating Renesas
product does not cause bodily injury, fire or other consequential damage due to operation of
the Renesas product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document
without written approval from Renesas.
7. Contact Renesas’s sales office for any questions regarding this document or Renesas
semiconductor products.
Preface
Thank you for purchasing the E6000 emulator for the Renesas’s original microprocessor H8/300
series.
The HS3297ECH61H is a user system interface cable that connects an H8/300 series E6000
emulator (HS3008EPI60H; hereinafter referred to as the emulator) to the IC socket for a QFP-64A
package (package code: FP-64A) for the H8/3297 series or H8/329 series MCU on the user
system.
i
Contents
Section 1 Configuration.....................................................................................1
Section 2 Connection Procedures......................................................................4
2.1 Connecting User System Interface Cable to Emulator Station.........................................4
2.2 Connecting User System Interface Cable to User System................................................5
2.2.1 Installing IC Socket .............................................................................................5
2.2.2 Soldering IC Socket.............................................................................................5
2.2.3 Inserting Cable Head ...........................................................................................5
2.2.4 Fastening Cable Head..........................................................................................6
2.2.5 Connecting Cable Body to Cable Head ...............................................................8
2.3 Recommended Dimensions for User System Mount Pad.................................................9
2.4 Dimensions for User System Interface Cable Head..........................................................10
2.5 Resulting Dimensions after Connecting User System Interface Cable .............................11
Section 3 Installing the MCU to the User System.............................................12
Section 4 Verifying Operation...........................................................................14
Section 5 Notice ................................................................................................15
ii
Section 1 Configuration
UTIONCA
Use an IC149-064-008-B5 socket (manufactured by
YAMAICHI ELECTRONICS Co., Ltd.) for the FP-64A package
IC socket on the user system.
Figure 1 shows the configuration of the HS3297ECH61H user system interface cable for the
FP-64A package.
1
Screws (M2.0 x 8 mm)
and flat washers
Screws (M2.0 x 12 mm)
and flat washers
(For fastening cable
head)
Socket cover
IC socket
User system
Cable head
Figure 1 HS3297ECH61H User System Interface Cable
2
Table 1 lists the HS3297ECH61H components. Please make sure you have all of these
components when unpacking.
Table 1 HS3297ECH61H Components
No. Component Quantity Remarks
1 Cable body 1 Includes flat cable
2 Cable head 1
3 IC socket 1 For the FP-64A package
4 Socket cover 1 For installing an FP-64A-packaged MCU
5 Screws (M2.0 x 12 mm) 4 For fastening cable head (with four flat washers)
6 Screws (M2.0 x 8 mm) 4 For installing an FP-64A-packaged MCU (with
7 Documentation 1 User’s manual for HS3297ECH61H (this manual)
four flat washers)
3
Section 2 Connection Procedures
2.1 Connecting User System Interface Cable to Emulator Station
WARNING
Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE CABLE
is connected to or removed from any part. Before connecting,
make sure that pin 1 on both sides are correctly aligned. Failure to
do so will damage the user system and the emulator product or will
result in PERSONAL INJURY. The USER PROGRAM will be
LOST.
To connect the cable body to the emulator station, follow the instructions below.
1. Make sure the user system and emulator station are turned off.
2. After making sure the direction of the cable body connector is correct, firmly insert the cable
body connector into the emulator station socket (figure 2).
Figure 2 Connecting User System Interface Cable to Emulator Station
4
2.2 Connecting User System Interface Cable to User System
WARNING
Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE CABLE
is connected to or removed from any part. Before connecting,
make sure that pin 1 on both sides are correctly aligned. Failure to
do so will damage the user system and the emulator product or will
result in PERSONAL INJURY. The USER PROGRAM will be
LOST.
To connect the cable head to the user system, follow the instructions below.
2.2.1 Installing IC Socket
After checking the location of pin 1 on the IC socket, apply epoxy resin adhesive to the bottom of
the IC socket for an FP-64A package, and fasten it to the user system before soldering.
2.2.2 Soldering IC Socket
After fastening, solder the IC socket for an FP-64A package to the user system. Be sure to
completely solder the leads so that the solder slops gently over the leads and forms solder fillets.
(Use slightly more solder than the MCU.)
2.2.3 Inserting Cable Head
CAUTION
Check the location of pin 1 before inserting.
Align pin 1 on the IC socket for an FP-64A package on the user system with pin 1 on the user
system interface cable head, and insert the user system interface cable head into the IC socket on
the user system, as shown in figure 3.
5
2.2.4 Fastening Cable Head
UTIONCA
1. Use a Phillips-type screwdriver whose head matches
the screw head.
2. The tightening torque must be 0.0784 N•m or less.
If the applied torque cannot be accurately measured,
stop tightening when the force required to turn the screw
becomes significantly greater than that needed when first
tightening. If a screw is tightened too much, the screw head
may break or an IC socket contact error may be caused by
a crack in the IC socket solder.
3. If the emulator does not operate correctly, cracks might
have occurred in the solder. Check conduction with
a tester and re-solder the IC socket if necessary.
Fasten the user system interface cable head to the IC socket for an FP-64A package on the user
system with the four screws (M2.0
a time, alternating between screws on opposing corners. Take special care, such as manually
securing the IC socket soldered area, to prevent the soldered IC socket from being damaged by
overtightening the screws or twisting the components.
x 12 mm) provided. Each screw should be tightened a little at
6
Screws (M2.0 x 12 mm)
and flat washers
Cable head
Pin 1
IC socket
(IC149-064-008-B5
manufactured by
YAMAICHI ELECTRONICS
User system
Co., Ltd.)
Figure 3 Connecting User System Interface Cable to User System
7

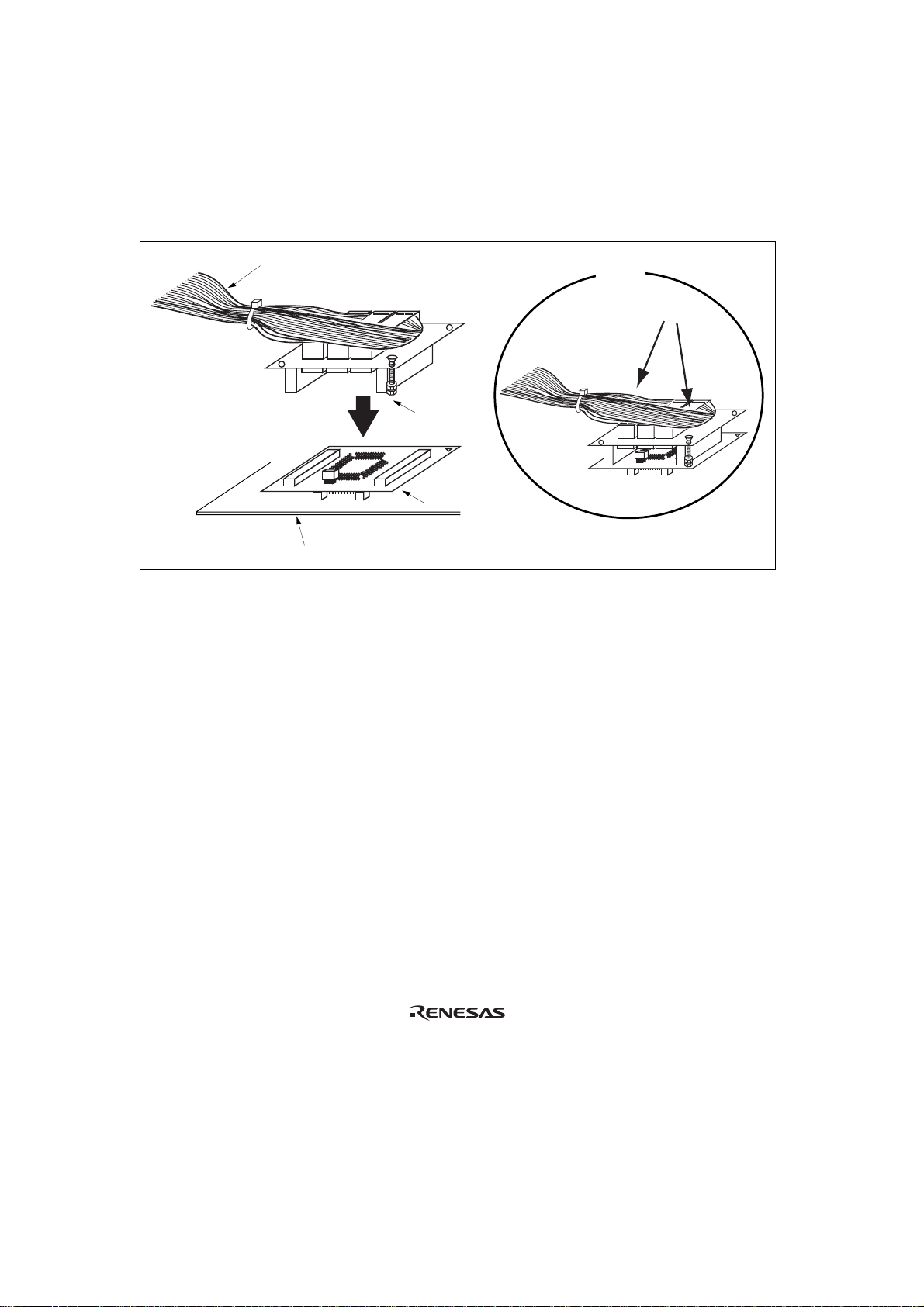

2.2.5 Connecting Cable Body to Cable Head
Connect the cable body to the cable head.
Cable body
Remove jig
Cable head
Removing
Push the remove jig
User system
Figure 4 Fastening Cable Body
8
2.3 Recommended Dimensions for User System Mount Pad
Figure 5 shows the dimensions for the recommended mount pad (footprint) for the user system
with an IC socket for an FP-64A package (IC149-064-008-B5: manufactured by YAMAICHI
ELECTRONICS Co., Ltd.). Note that the dimensions in figure 5 are somewhat different from
those of the actual chip's mount pad.
2 - 20.80 min
2 - 14.80 max
0.80 x 15 = 12.00 ± 0.10
+ 0.10
0.45
-
0.80 ± 0.05
0.05
Figure 5 Recommended Dimensions for Mount Pad
Unit: mm
0.80 ± 0.05
0.80 x 15 = 12.00 ± 0.10
9
2.4 Dimensions for User System Interface Cable Head
The dimensions for the user system interface cable head are shown in figure 6.
10
Figure 6 Dimensions for User System Interface Cable Head
2.5 Resulting Dimensions after Connecting User System Interface Cable
The resulting dimensions, after connecting the user system interface cable head to the user system,
are shown in figure 7.
9.4
Unit: mm
Tolerance: ± 0.5 mm
User system
IC socket
(IC149-064-008-B5
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)
Figure 7 Resulting Dimensions after Connecting User System Interface Cable
11
Section 3 Installing the MCU to the User System
UTIONCA
1. Check the location of pin 1 before inserting.
2. Use a Phillips-type screwdriver whose head matches
the screw head.
3. The tightening torque must be 0.0784 N•m or less.
If the applied torque cannot be accurately measured,
stop tightening when the force required to turn the screw
becomes significantly greater than that needed when first
tightening. If a screw is tightened too much, the screw head
may break or an IC socket contact error may be caused by
a crack in the IC socket solder.
4. If the MCU does not operate correctly, cracks might have
occurred in the solder. Check conduction with a tester
and re-solder the IC socket if necessary.
Check the location of pin 1 before inserting the MCU into the IC socket on the user system, as
shown in figure 8. After inserting the MCU, fasten the socket cover with the provided four
screws (M2.0
to prevent the IC socket from being damaged by overtightening the screws or twisting the
components.
x 8 mm). Take special care, such as manually securing the IC socket soldered area,
12
User system
Figure 8 Installing MCU to User System
Socket cover
MCU
Pin 1 mark
IC socket
(IC149-064-008-B5
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)
13
Section 4 Verifying Operation
1. When using the H8/300 series E6000 emulator (HS3008EPI60H), turn on the emulator
according to the procedures described in the H8/300 Series E6000 Emulator User's Manual
(HS3008EPI60HE).
2. Verify the user system interface cable connections by accessing the external memory and ports
to check the bus states of the pins. If an error is detected, recheck the soldered IC socket and
the location of pin 1.
3. The emulator connected to this user system interface cable supports two kinds of clock
sources: an emulator internal clock and an external clock on the user system. For details, refer
to the H8/300 Series E6000 Emulator User's Manual (HS3008EPI60HE).
To use the emulator internal clock
Select the clock in the emulator station as the system clock (φ), by using the CLOCK
command (emulator command).
To use the external clock on the user system as the system clock
Select target clock t or t2 with the CLOCK command (emulator command). Supply the
external clock from the user system to the emulator. Connect a crystal oscillator to the
EXTAL and XTAL terminals for the system clock. In the H8/3297 series, the system
clock (φ) has the same frequency as the external clock, and in the H8/329 series, the system
clock has a half frequency of the external clock.
Figure 9 shows the oscillator circuit on the user system interface cable.
14
R1 1 MΩ
HCU04HCU04
R2 270
XTALEXTAL
System clock
Ω
Figure 9 Oscillator Circuit
To E6000
emulator
Section 5 Notice
1. Make sure that pin 1 on the user system IC socket is correctly aligned with pin 1 on the cable
head before inserting the cable head into the user system IC socket.
2. The dimensions of the recommended mount pad for the user system IC socket are different
from those of the MCU.
3. This user system interface cable is specifically designed for the HS3008EPI60H emulator. Do
not use this cable with any other emulator station.
4. To prevent breaking of wires in the cable body, do not place heavy or sharp metal objects on
the user system interface cable.
5. While the emulator station is connected to the user system with the user system interface
cable, force must not be applied to the cable head. Place the emulator station, user system
interface cable, and user system as shown in the example in figure 10.
Figure 10 User Cable Location Example
6. The P1 short connector is used for testing. Do not remove the short pins that are inserted in
the sides of pin 1 and pin 2.
13
P1
Figure 11 P1 Short Connector
15
Loading...
