H8/3637 Series

FP-80B

User System Interface Cable (HS3637ECF61H)

for E6000 Emulator

User’s Manual

ADE-xxx-xxx Rev. 4.0 4/1/03

Renesas Technology Corp.

HS3637ECF61HE

Cautions

1.Renesas neither warrants nor grants licenses of any rights of Renesas’s or any third party’s patent, copyright, trademark, or other intellectual property rights for information contained in this document. Renesas bears no responsibility for problems that may arise with third party’s rights, including intellectual property rights, in connection with use of the information contained in this document.

2.Products and product specifications may be subject to change without notice. Confirm that you have received the latest product standards or specifications before final design, purchase or use.

3.Renesas makes every attempt to ensure that its products are of high quality and reliability. However, contact Renesas’s sales office before using the product in an application that demands especially high quality and reliability or where its failure or malfunction may directly threaten human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation, traffic, safety equipment or medical equipment for life support.

4.Design your application so that the product is used within the ranges guaranteed by Renesas particularly for maximum rating, operating supply voltage range, heat radiation characteristics, installation conditions and other characteristics. Renesas bears no responsibility for failure or damage when used beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-safes, so that the equipment incorporating Renesas product does not cause bodily injury, fire or other consequential damage due to operation of the Renesas product.

5.This product is not designed to be radiation resistant.

6.No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without written approval from Renesas.

7.Contact Renesas’s sales office for any questions regarding this document or Renesas semiconductor products.

Preface

Thank you for purchasing this user system interface cable (HS3637ECF61H) for the Renesas’s original microcomputer H8/3637 series.

The HS3637ECF61H is a user system interface cable that connects an H8/3637series E6000 emulator (HS3L08EPI60H; hereinafter referred to as the emulator) to the IC socket for a FP-80B package for the H8/3637 series MCU on the user system.

i

Contents

Section 1

Configuration....................................................................................

1

Section 2

Connection Procedures......................................................................

4

2.1

Connecting User System Interface Cable to Emulator Station .........................................

4

2.2

Connecting User System Interface Cable to User System ................................................

6



2.2.1

Installing IC Socket .............................................................................................

6



2.2.2

Soldering IC Socket.............................................................................................

6



2.2.3

Inserting Cable Head ...........................................................................................

7



2.2.4

Fastening Cable Head ..........................................................................................

7



2.2.5

Fastening Cable Body..........................................................................................

9

2.3

Recommended Dimensions for User System Mount Pad .................................................

10

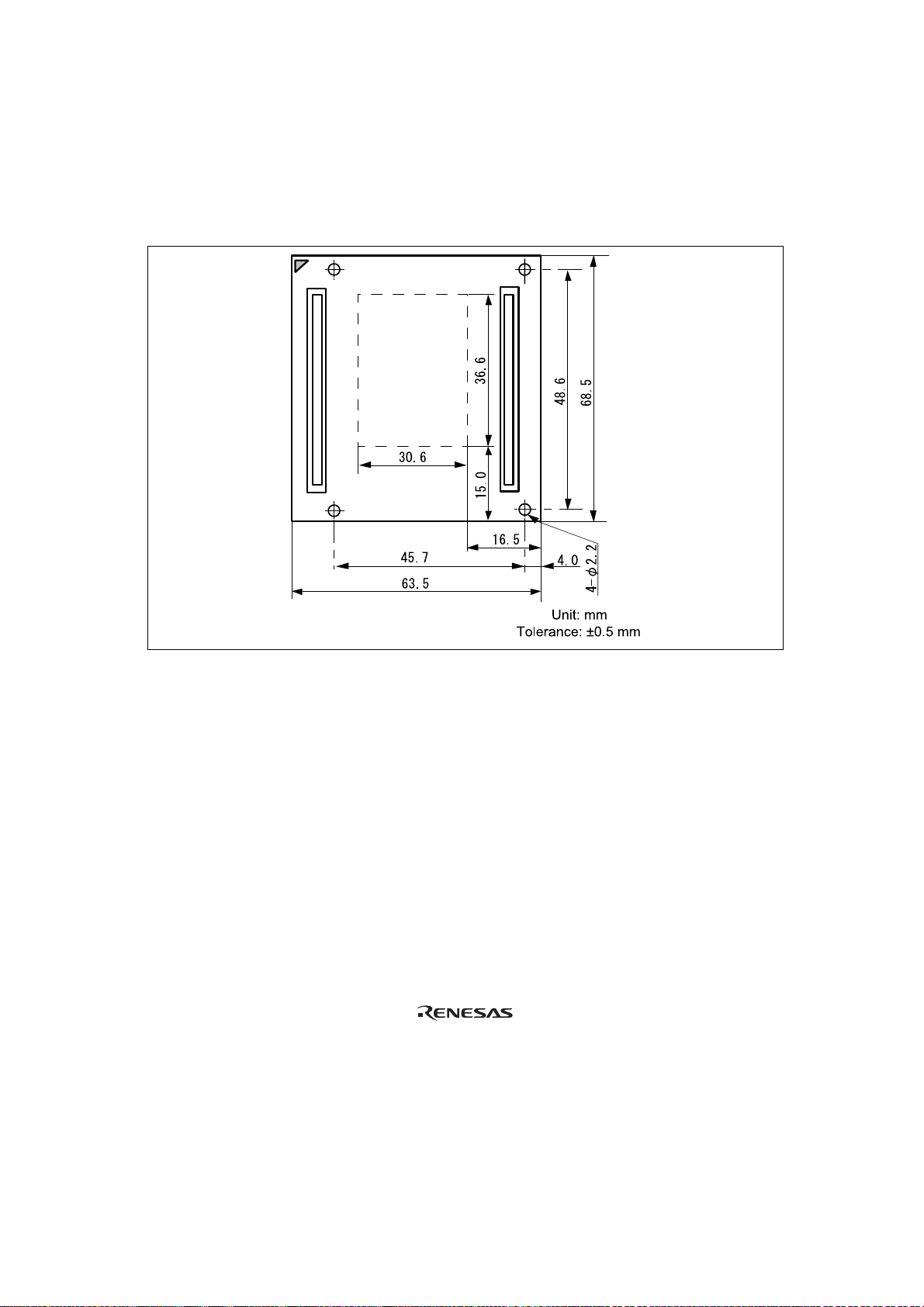

2.4

Dimensions for User System Interface Cable Head..........................................................

11

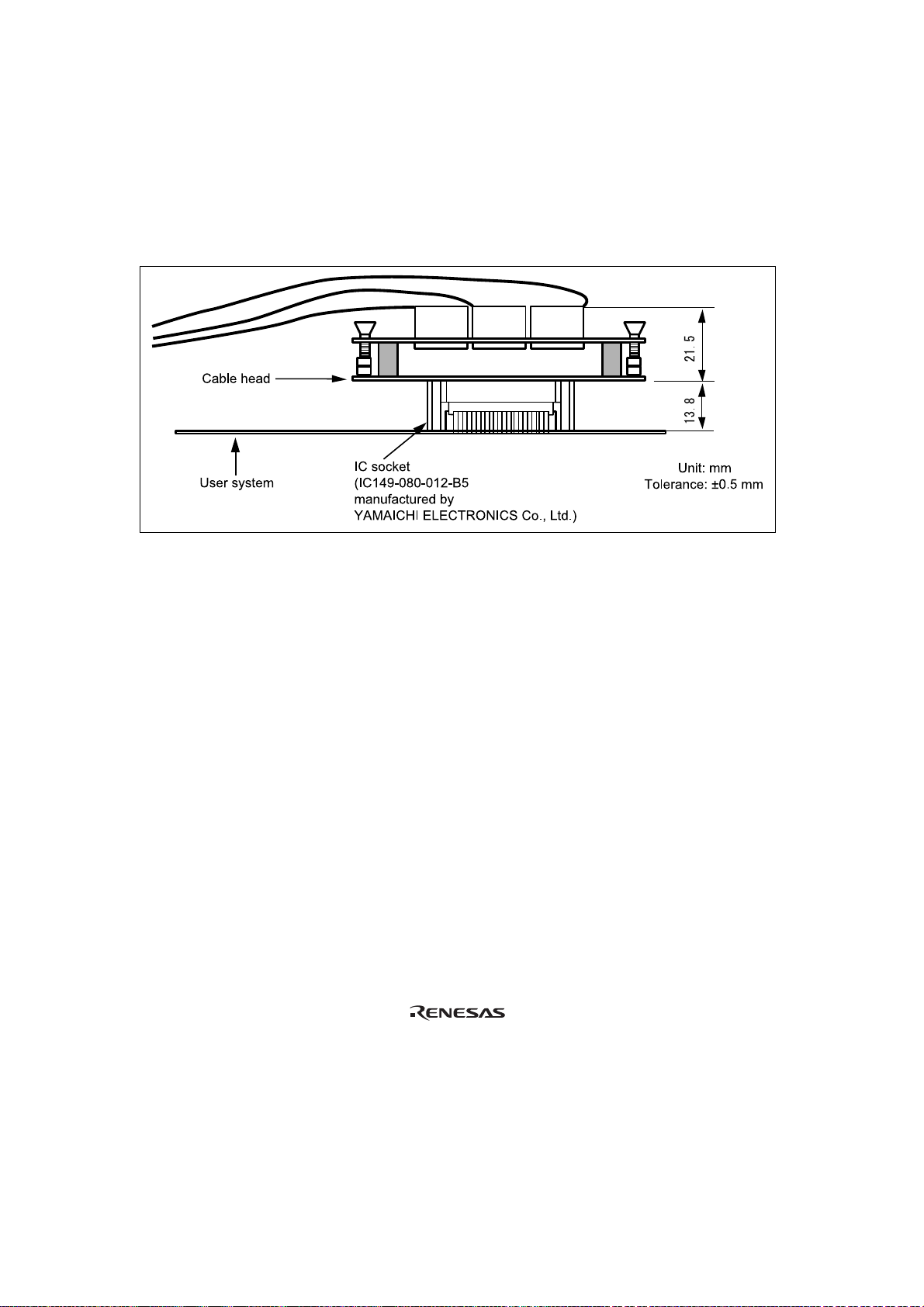

2.5

Resulting Dimensions after Connecting User System Interface Cable.............................

12

Section 3 Installing the MCU to the User System.............................................

13

Section 4

Verifying Operation...........................................................................

15

Section 5

Notice ................................................................................................

17

ii

Section 1 Configuration

CAUTION

Use an IC149-080-012-B5 socket (manufactured by YAMAICHI ELECTRONICS Co., Ltd.) for the FP-80B package IC socket on the user system.

Figure 1 shows the configuration of the HS3637ECF61H user system interface cable for the FP-80B package.

1

Renesas FP-80B User Manual

To emulator station

Cable body

Screws (M2 x 8 mm) with flat washers

Screws (M2 x 12 mm) with flat washers

(for fastening cable head)

Socket cover

Cable head

IC socket

User system

Figure 1 HS3637ECF61H User System Interface Cable

2

Table 1 lists the HS3637ECF61H components. Please make sure you have all of these components when unpacking.

Table 1 HS3637ECF61H Components

No.

Component

Quantity

Remarks

1

Cable body

1

Flat cable









2

Cable head

1











3

IC socket

1

For the FP-80B package









4

Socket cover

1

For installing an FP-80B-packaged MCU









5

Screws (M2 x 12 mm)

4

For fastening cable head (with four flat washers)









6

Screws (M2 x 8 mm)

4

For installing an FP-80B-packaged MCU (with four







flat washers)









7

Documentation

1

User’s manual for HS3637ECF61H (this manual)









3
